1. Lex and Yacc
COP - 3402

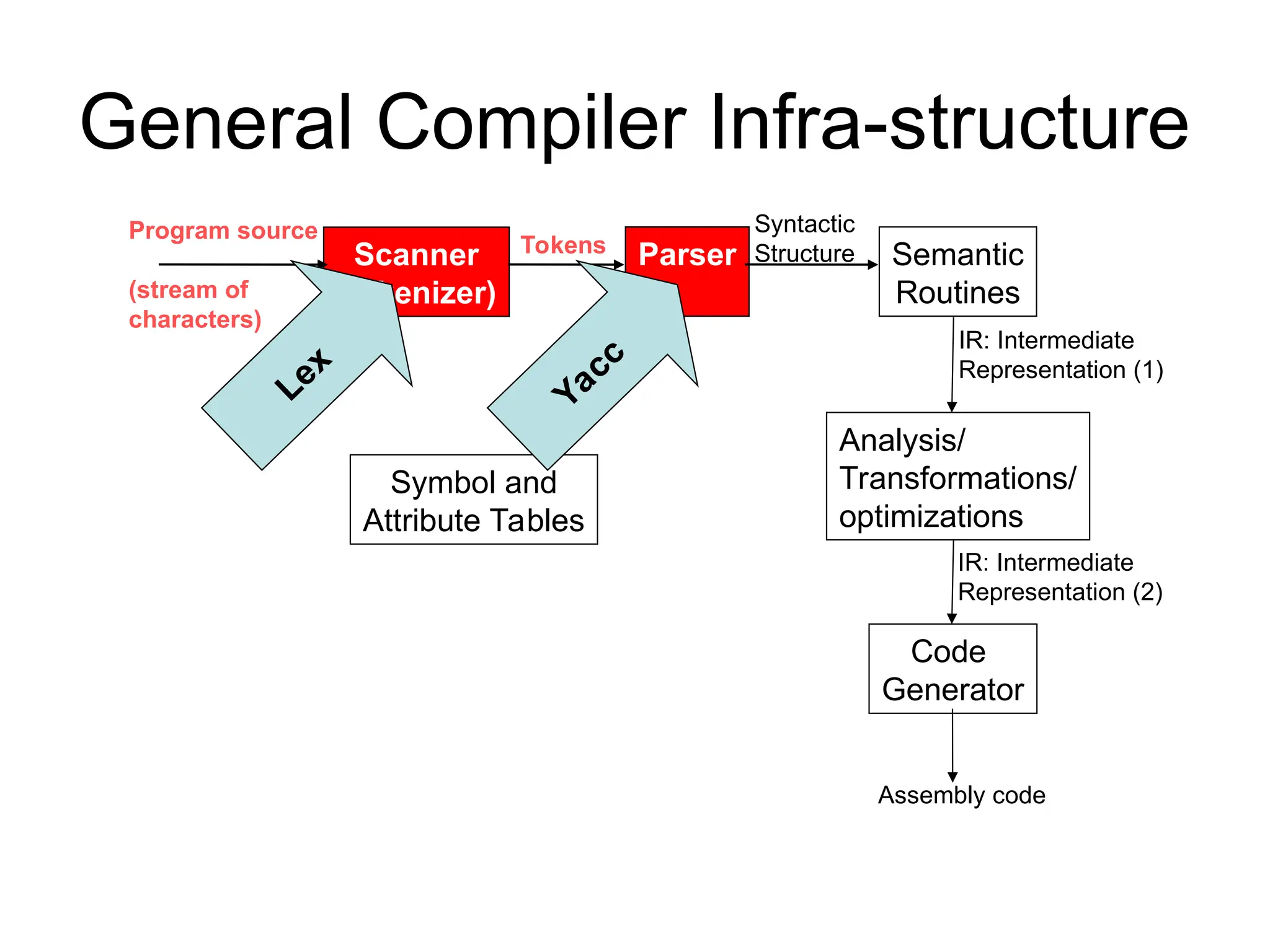

2. General Compiler Infra-structure
Scanner
(tokenizer)
Parser Semantic
Routines
Analysis/
Transformations/
optimizations
Code
Generator
Program source
(stream of
characters)
Tokens
Syntactic
Structure
IR: Intermediate
Representation (1)
Assembly code
IR: Intermediate
Representation (2)
Symbol and
Attribute Tables
Lex
Yacc

3. Lex & Yacc
• Lex
– generates C code for the lexical analyzer (scanner)
– Token patterns specified by regular expressions
• Yacc
– generates C code for a LR(1) syntax analyzer (parser)
– BNF rules for the grammar

4. Lex
 lex is a program (generator) that generates lexical analyzers,
(widely used on Unix).
 It is mostly used with Yacc parser generator.
 Written by Eric Schmidt and Mike Lesk.
 It reads the input stream (specifying the lexical analyzer ) and
outputs source code implementing the lexical analyzer in the C
programming language.
 Lex will read patterns (regular expressions); then produces C
code for a lexical analyzer that scans for identifiers.

5. Lex predefined variables and
functions

6. Lex – Pattern Matching
Primitives

7. Lex – Pattern Matching
Examples

8. Example: Simple Calculator
• Computes the basic arithmetic operations
• Allows declaration of variables
• Enough to illustrate the basic structure of
Lex and Yacc programs

9. Lex program structure
… definitions …
%%
… rules …
%%
… subroutines …
%{
#include <stdio.h>
#include "y.tab.h"
int c;
extern int yylval;
%}
%%
" " ;
[a-z] { c = yytext[0]; yylval = c - 'a';
return(LETTER); }
[0-9]* { yylval = atoi(yytext);
return(NUMBER); }
[^a-z0-9b] { c = yytext[0]; return(c); }

10. Pattern Matching and Action
[a-z] { c = yytext[0]; yylval = c - 'a';
return(LETTER); }
[0-9]* { yylval = atoi(yytext);
return(NUMBER); }
Match a character
in the a-z range
Match a positive integer
(sequence of 0-9 digits)
Place the offset c – ‘a’
In the stack
Place the integer value
In the stack
Buffer

11. Yacc
• Grammars described by rules using a
variant of the Backus Naur Form (BNF)
– Context-free grammars
• LALR(1) parse table is generated
automatically based on the rules
• Actions are added to the rules and
executed after each reduction

12. Yacc Program Structure
%{
#include <stdio.h>
int regs[26];
int base;
%}
%token NUMBER LETTER
%left '+' '-‘
%left '*' '/‘
%%
list: | list stat 'n' |list error 'n' {yyerrok;} ;
stat: expr {printf("%dn",$1);}
| LETTER '=' expr {regs[$1] = $3;};
expr:
'(' expr ')' {$$ = $2;} |
expr '+' expr {$$ = $1 + $3;} |
LETTER {$$ = regs[$1];}
%%
main(){return(yyparse());}
yyerror(CHAR *s){fprintf(stderr, "%sn",s);}
yywrap(){ return(1);}
… definitions …
%%
… rules …
%%
… subroutines …

13. Rule Reduction and Action
stat: expr {printf("%dn",$1);}
| LETTER '=' expr {regs[$1] = $3;};
expr:
expr '+' expr {$$ = $1 + $3;} |
LETTER {$$ = regs[$1];}
Grammar rule Action
“or” operator:
For multiple RHS

14. Further reading…

“A Compact Guide to Lex & Yacc”,
Thomas Niemann (recommended);

“Lex & Yacc”, Doug Brown (O’Reily);

Lots of resources on the web
• Check our website for some suggestions

15. Conclusions
• Yacc and Lex are very helpful for building
the compiler front-end
• A lot of time is saved when compared to
hand-implementation of parser and
scanner
• They both work as a mixture of “rules” and
“C code”
• C code is generated and is merged with
the rest of the compiler code
