This document introduces the flex tool for generating scanners (lexers) from regular expression rules. It discusses that flex source files contain three sections: definitions, rules, and user code. The rules section contains regular expressions and corresponding actions. Flex generates C code that defines a yylex() function. The user code section allows adding additional C code. It also covers regular expression syntax used in flex rules.

1. Introduction to Lex
Ying-Hung Jiang
compiler@csie.ntu.edu.tw

2. Outlines
 Review of scanner
 Introduction to flex
 Regular Expression
 Cooperate with Yacc
 Resources

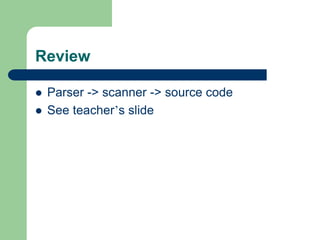

3. Review
 Parser -> scanner -> source code
 See teacher’s slide

4. flex

5. flex - fast lexical analyzer generator
 Flex is a tool for generating scanners.
 Flex source is a table of regular expressions
and corresponding program fragments.
 Generates lex.yy.c which defines a routine
yylex()

6. Format of the Input File
 The flex input file consists of three sections,
separated by a line with just %% in it:
definitions
%%
rules
%%
user code

7. Definitions Section
 The definitions section contains declarations of
simple name definitions to simplify the scanner
specification.
 Name definitions have the form:
name definition
 Example:
DIGIT [0-9]
ID [a-z][a-z0-9]*

8. Rules Section
 The rules section of the flex input contains a
series of rules of the form:
pattern action
 Example:
{ID} printf( "An identifier: %sn", yytext );
 The yytext and yylength variable.
 If action is empty, the matched token is
discarded.

9. Action
 If the action contains a ‘{‘, the action spans
till the balancing ‘}‘ is found, as in C.
 An action consisting only of a vertical bar ('|')
means "same as the action for the next rule.“
 The return statement, as in C.
 In case no rule matches: simply copy the input
to the standard output (A default rule).

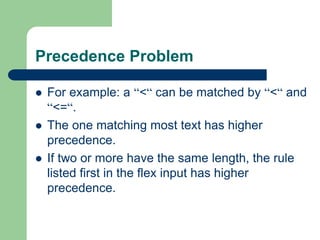

10. Precedence Problem
 For example: a “<“ can be matched by “<“ and
“<=“.
 The one matching most text has higher
precedence.
 If two or more have the same length, the rule
listed first in the flex input has higher
precedence.

11. User Code Section
 The user code section is simply copied to
lex.yy.c verbatim.
 The presence of this section is optional; if it is
missing, the second %% in the input file may be
skipped.
 In the definitions and rules sections, any
indented text or text enclosed in %{ and %} is
copied verbatim to the output (with the %{}'s
removed).

12. A Simple Example
%{
int num_lines = 0, num_chars = 0;
%}
%%
n ++num_lines; ++num_chars;
. ++num_chars;
%%
main() {
yylex();
printf( "# of lines = %d, # of chars = %dn",
num_lines, num_chars );
}

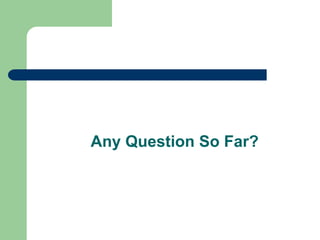

13. Any Question So Far?

14. Regular Expression

15. Regular Expression (1/3)
x match the character 'x'
. any character (byte) except newline
[xyz] a "character class"; in this case, the pattern
matches either an 'x', a 'y', or a 'z'
[abj-oZ] a "character class" with a range in it; matches
an 'a', a 'b', any letter from 'j' through 'o',
or a 'Z'
[^A-Z] a "negated character class", i.e., any character
but those in the class. In this case, any
character EXCEPT an uppercase letter.
[^A-Zn] any character EXCEPT an uppercase letter or
a newline

16. Regular Expression (2/3)
r* zero or more r's, where r is any regular expression
r+ one or more r's
r? zero or one r's (that is, "an optional r")
r{2,5} anywhere from two to five r's
r{2,} two or more r's
r{4} exactly 4 r's
{name} the expansion of the "name" definition
(see above)
"[xyz]"foo“ the literal string: [xyz]"foo
X if X is an 'a', 'b', 'f', 'n', 'r', 't', or 'v',
then the ANSI-C interpretation of x.
Otherwise, a literal 'X' (used to escape
operators such as '*')

17. Regular Expression (3/3)
0 a NUL character (ASCII code 0)
123 the character with octal value 123
x2a the character with hexadecimal value 2a
(r) match an r; parentheses are used to override
precedence (see below)
rs the regular expression r followed by the
regular expression s; called "concatenation"
r|s either an r or an s
^r an r, but only at the beginning of a line (i.e.,
which just starting to scan, or right after a
newline has been scanned).
r$ an r, but only at the end of a line (i.e., just
before a newline). Equivalent to "r/n".

18. Cooperate with Yacc
 The y.tab.h file (generated by –d option).
 See pascal.l and pascal.y for example.

19. Resources
 Google directory of lexer and parser
generators.
 Flex homepage:
http://www.gnu.org/software/flex
 Lex/yacc Win32 port:
http://www.monmouth.com/~wstreett/lex-
yacc/lex-yacc.html
 Above links are available on course webpage.
 Flex(1)

20. Any Question?
