LEX & YACC
• What is Lex?
• Lex is officially known as a "Lexical Analyser".
• It's main job is to break up an input stream into more usable elements.
• Or in, other words, to identify the "interesting bits" in a text file.
• What is Yacc?
• Yacc is officially known as a "parser".
• In the course of it's normal work, the parser also verifies that the input is
syntactically sound.
• YACC stands for "Yet Another Compiler Compiler". This is because this
kind of analysis of text files is normally associated with writing compilers.
2Deptii Chaudhari, Dept of Computer Engineering, Hope Foundation’s International Institute of Information Technology, I²IT P-14,Rajiv Gandhi Infotech Park
MIDC Phase 1, Hinjawadi, Pune – 411057 Tel - +91 20 22933441/2/3 | www.isquareit.edu.in | info@isquareit.edu.in

LEX Program Structure
Definitions
%{
C global variables, prototype, Comments
%}
Production
Rules
%% ------------------------------------%%
User Subroutine
Section
(Optional)

• In the rules section, each rule is made up of two parts : a pattern and an action
separated by whitespace.
• The lexer that lex generates will execute the action when it recognizes the
pattern.
• The user subroutine section, consists of any legal C code.
• Lex copies it to the C file after the end of the lex generated code.
• Lex translates the Lex specification into C source file called lex.yy.c which
we compile and link with lex library –ll.
• Then we can execute the resulting program to check that it works as we
expected.

Example
%{
#include <stdio.h>
%}
%%
[0123456789]+ printf("NUMBERn");
[a-zA-Z][a-zA-Z0-9]* printf("WORDn");
%%
• Running the Program
$ lex example_lex.l
gcc lex.yy.c –ll
./a.out

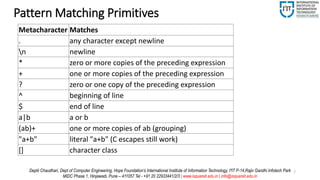

Pattern Matching Primitives
Metacharacter Matches
. any character except newline
n newline
* zero or more copies of the preceding expression
+ one or more copies of the preceding expression
? zero or one copy of the preceding expression
^ beginning of line
$ end of line
a|b a or b
(ab)+ one or more copies of ab (grouping)
"a+b" literal "a+b" (C escapes still work)
[] character class

Pattern Matching Examples
Expression Matches
abc abc
abc* ab abc abcc abccc ...
abc+ abc, abcc, abccc, abcccc, ...
a(bc)+ abc, abcbc, abcbcbc, ...
a(bc)? a, abc
[abc] one of: a, b, c
[a-z] any letter, a through z
[a-z] one of: a, -, z
[-az] one of: - a z
[A-Za-z0-9]+ one or more alphanumeric characters
[ tn]+ whitespace
[^ab] anything except: a, b
[a^b] a, ^, b
[a|b] a, |, b
a|b a, b

Operation of yylex()
•When lex compiles the input specification, it generates the
C file lex.yy.c that contains the routine int yylex(void).
•This routine reads the input string trying to match it with
any of the token patterns specified in the rules section.
•On a match associated action is executed.
•When we call yylex() function, it starts the process of
pattern matching.
•Lex keeps the matched string into the address pointed by
pointer yytext.
•Matched string's length is kept in yyleng while value of
token is kept in variable yylval.

%{
int com=0;
%}
%%
"/*"[^n]+"*/" {com++;fprintf(yyout, " ");}
%%
int main()
{
printf("Write a C programn");
yyout=fopen("output", "w");
yylex();
printf("Comment=%dn",com);
return 0;
}
$ cc lex.yy.c -ll
$ ./a.out
Write a C program
#include<stdio.h>
int main()
{
int a, b;
/*float c;*/
printf(“Hi”);
/*printf(“Hello”);*/
}
Comment=2
$ cat output
#include<stdio.h>
int main()
{
int a, b;
printf(“Hi”);
}

Lex Predefined Variables

YACC
•YACC is a parser generator that takes an input file with
an attribute-enriched BNF (Backus – Naur Form) grammar
specification.
•It generates the output C file y.tab.c containing the
function int yyparse(void) that implements its parser.
•This function automatically invokes yylex() everytime it
needs a token to continue parsing.

Structure of YACC Program
Definitions
%{
C global variables, prototype, Comments
%}
Context free grammar
& action for each
production
%% ------------------------------------%%
Subroutines/Functions

Arithmatic.l
%{
#include<stdio.h>
#include "y.tab.h"
extern int yylval;
%}
%%
[0-9]+ {
yylval=atoi(yytext);
return NUMBER;
}
[t] ;
[n] return 0;
. return yytext[0];
%%
int yywrap()
{
return 1;}
How To Run:
$yacc -d arithmatic.y
$lex arithmatic.l
$gcc lex.yy.c y.tab.c
$./a.out

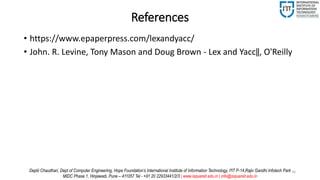

References
• https://www.epaperpress.com/lexandyacc/
• John. R. Levine, Tony Mason and Doug Brown - Lex and Yacc‖, O'Reilly

17

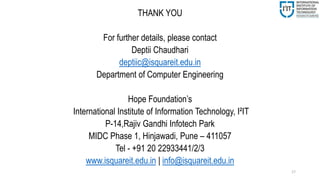

THANK YOU
