The document describes the general structure of a compiler, which consists of a front-end and back-end separated by an intermediate representation (IR). The front-end performs analysis of the source code by parsing and semantic checking to generate an IR. The back-end then translates the IR into target code through optimization and code generation. This separation allows different front-ends and back-ends to be combined to create compilers for new languages and targets. The front-end includes lexical analysis, syntax analysis, and semantic analysis, while the back-end contains IR generation, optimization, and code generation steps.

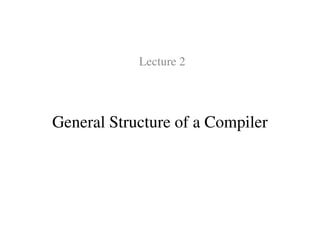

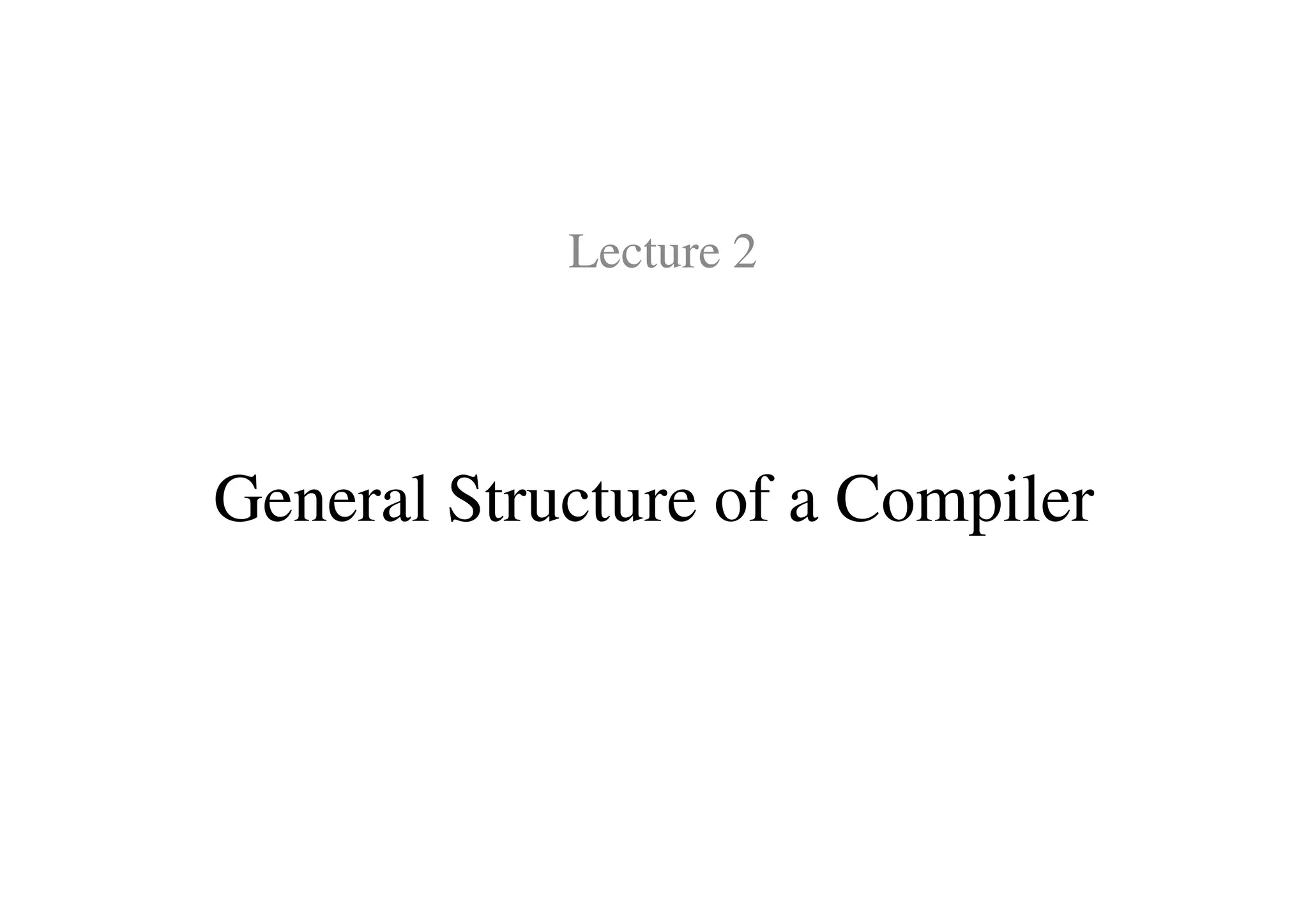

1. General Structure of a Compiler
Lecture 2
General Structure of a Compiler

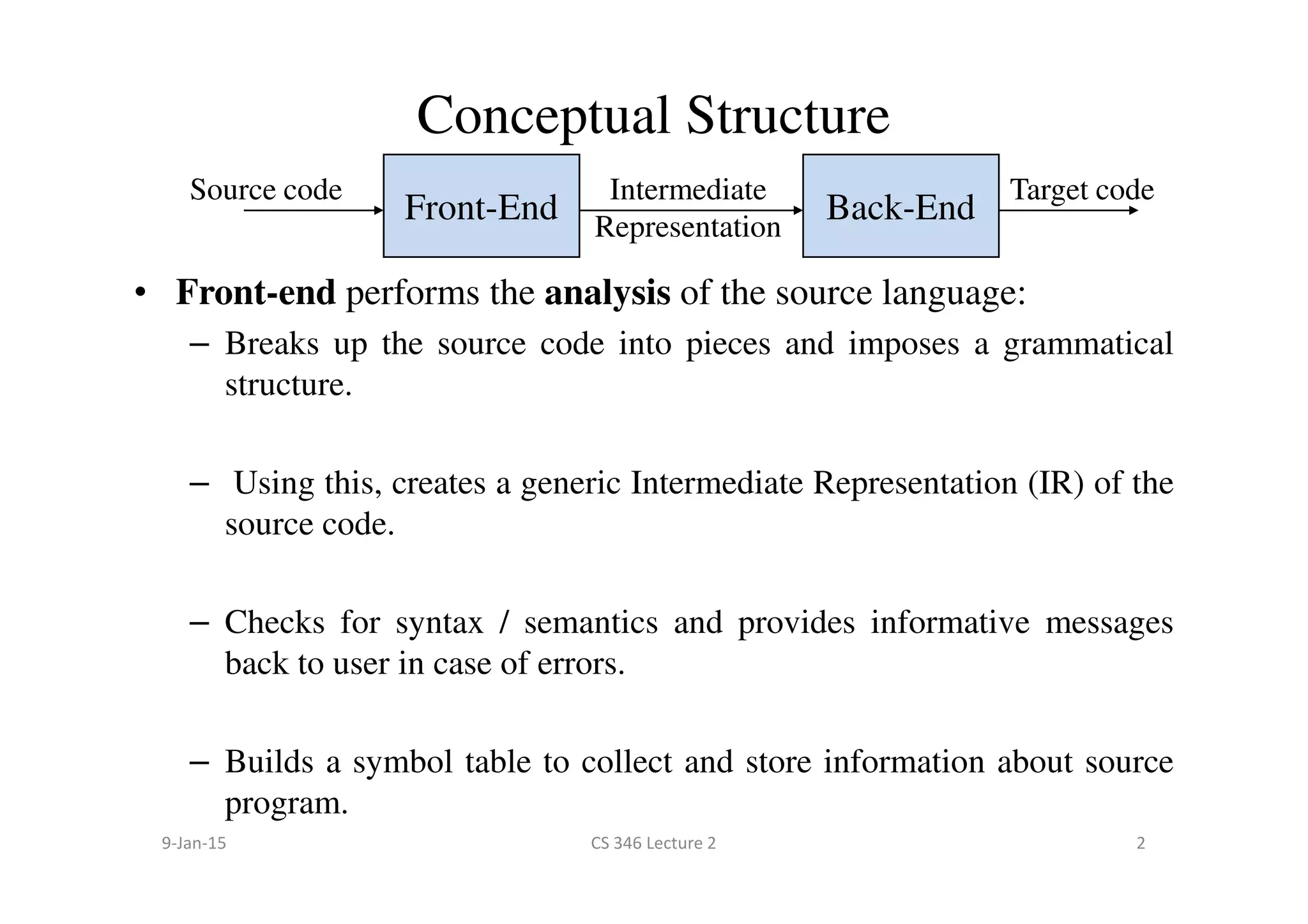

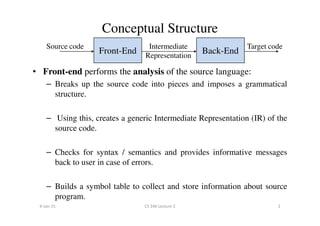

2. Conceptual Structure
• Front-end performs the analysis of the source language:
– Breaks up the source code into pieces and imposes a grammatical
structure.
Front-End Back-End
Intermediate
Representation
Source code Target code
9-Jan-15 CS 346 Lecture 2 2
– Using this, creates a generic Intermediate Representation (IR) of the
source code.
– Checks for syntax / semantics and provides informative messages
back to user in case of errors.
– Builds a symbol table to collect and store information about source
program.

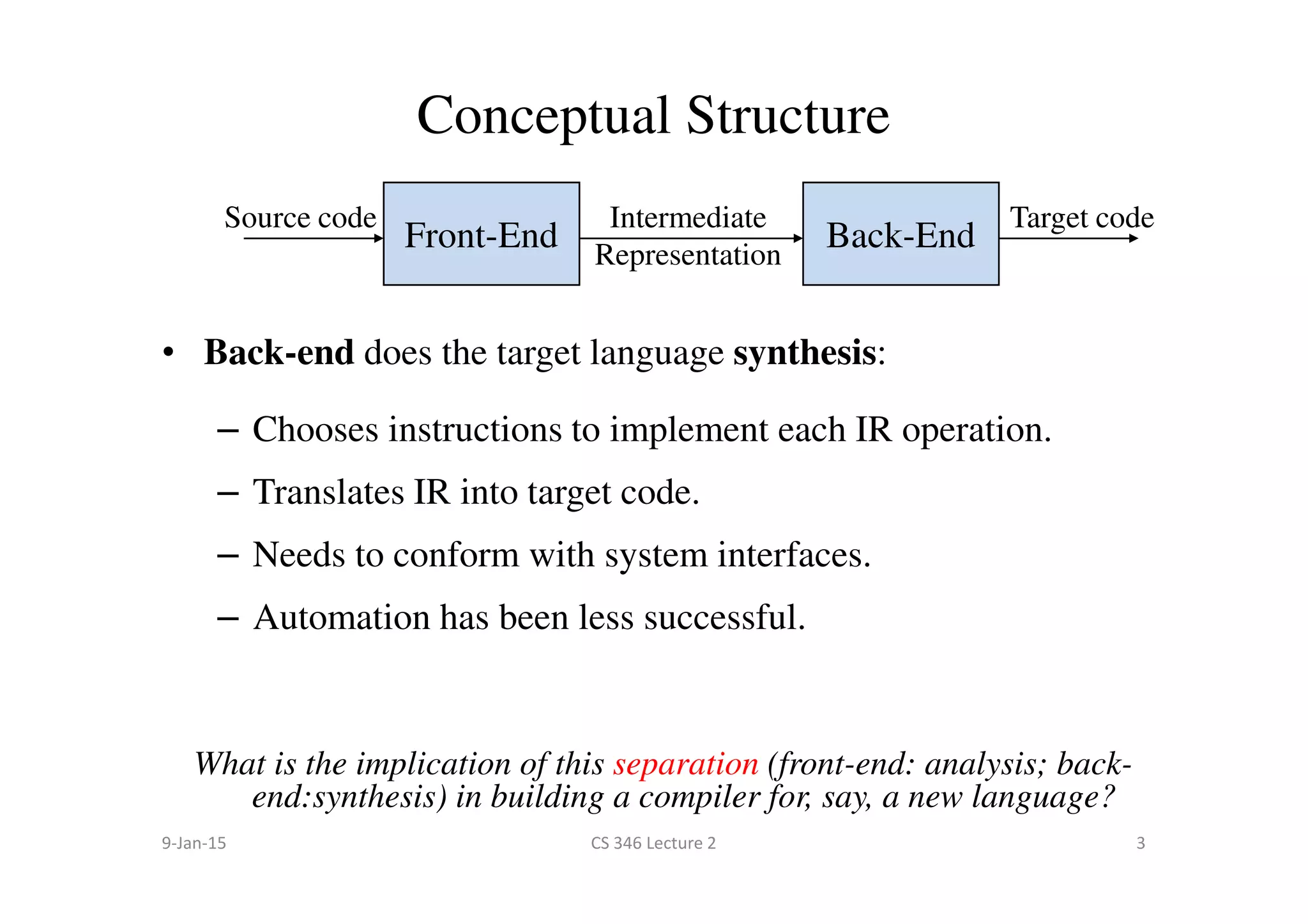

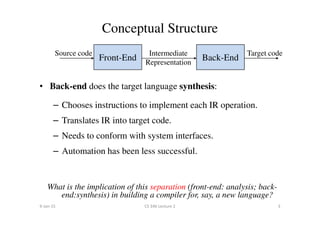

3. • Back-end does the target language synthesis:
– Chooses instructions to implement each IR operation.
Conceptual Structure
Front-End Back-End
Intermediate
Representation
Source code Target code
9-Jan-15 CS 346 Lecture 2 3
– Translates IR into target code.
– Needs to conform with system interfaces.
– Automation has been less successful.
What is the implication of this separation (front-end: analysis; back-
end:synthesis) in building a compiler for, say, a new language?

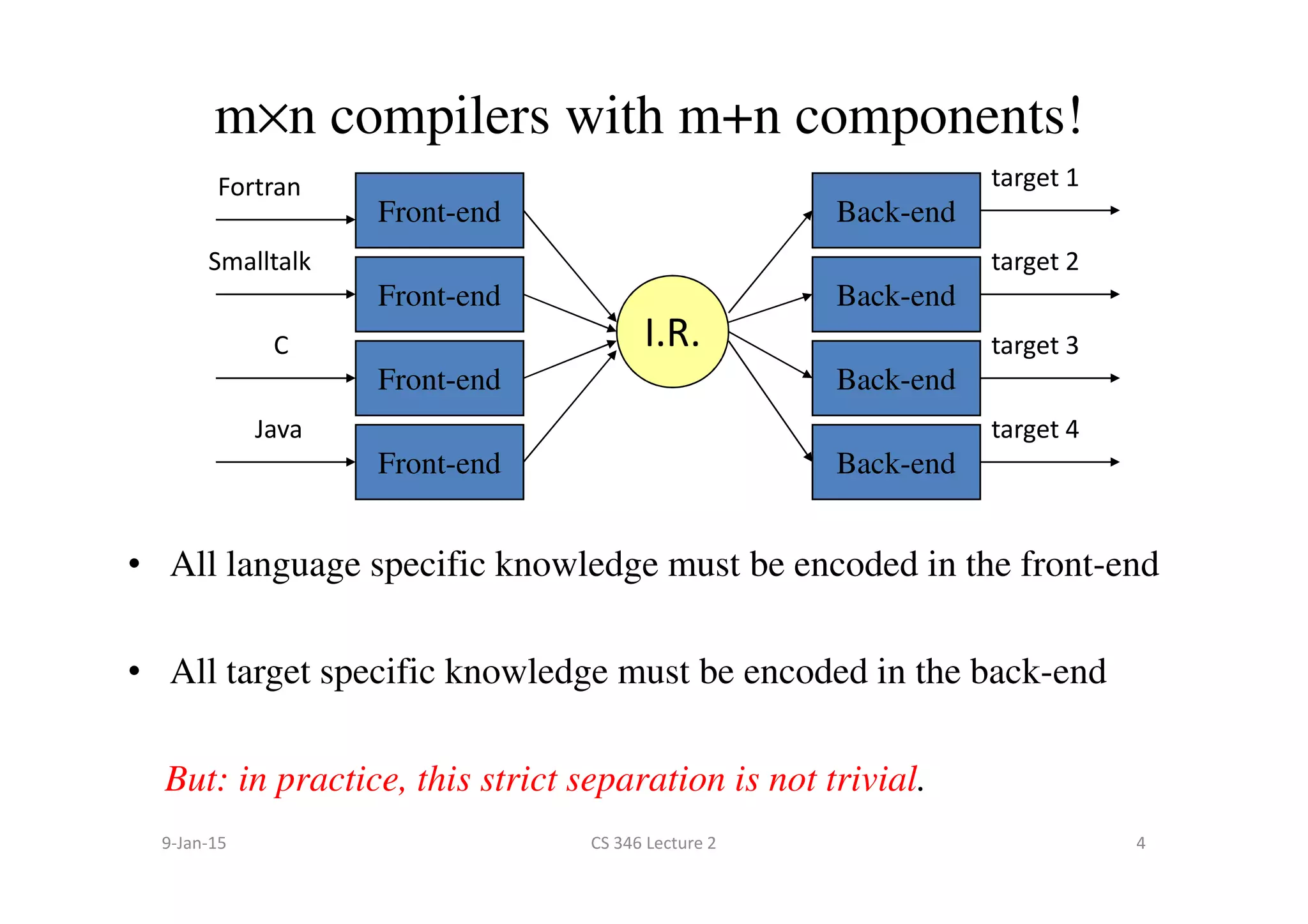

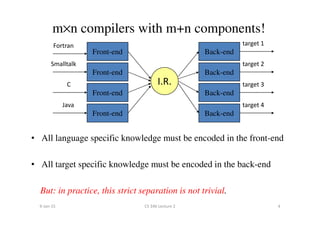

4. m×n compilers with m+n components!
Front-end
Front-end
Front-end
Front-end
Back-end
Back-end
Back-end
Back-end
I.R.
Fortran
Smalltalk
target 1
C
Java
target 2
target 3
target 4
9-Jan-15 4
• All language specific knowledge must be encoded in the front-end
• All target specific knowledge must be encoded in the back-end
But: in practice, this strict separation is not trivial.
Front-end Back-end
CS 346 Lecture 2

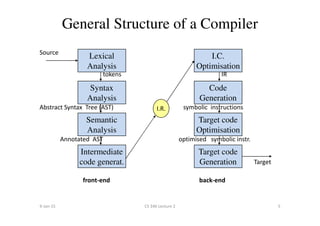

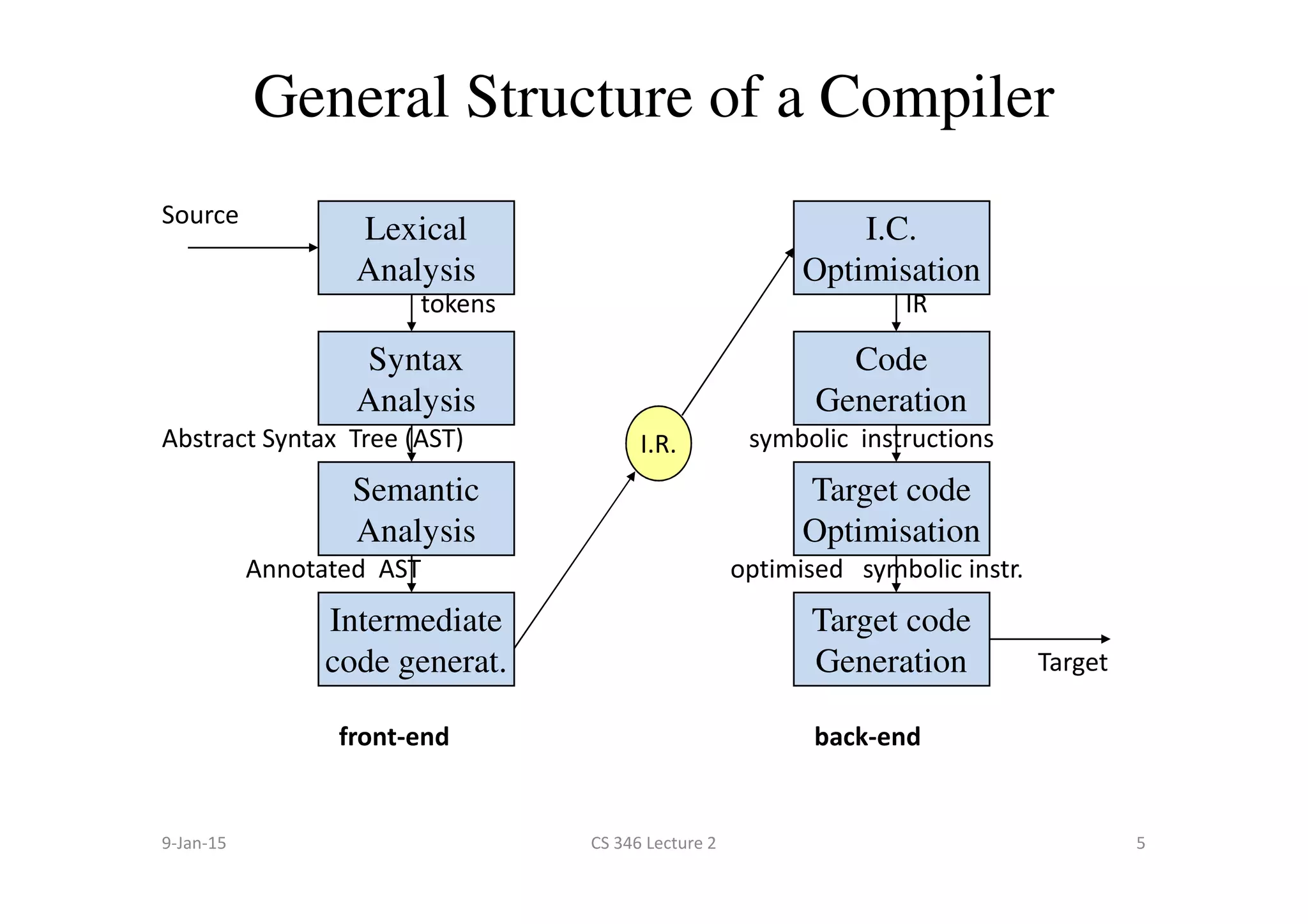

5. General Structure of a Compiler
Lexical
Analysis
Syntax
Analysis
I.C.
Optimisation
Code
Generation
I.R.
tokens
Abstract Syntax Tree (AST)
IR
symbolic instructions
Source
9-Jan-15 5
Semantic
Analysis
Intermediate
code generat.
Target code
Generation
Target code
Optimisation
Annotated AST optimised symbolic instr.
front-end back-end
Target
CS 346 Lecture 2

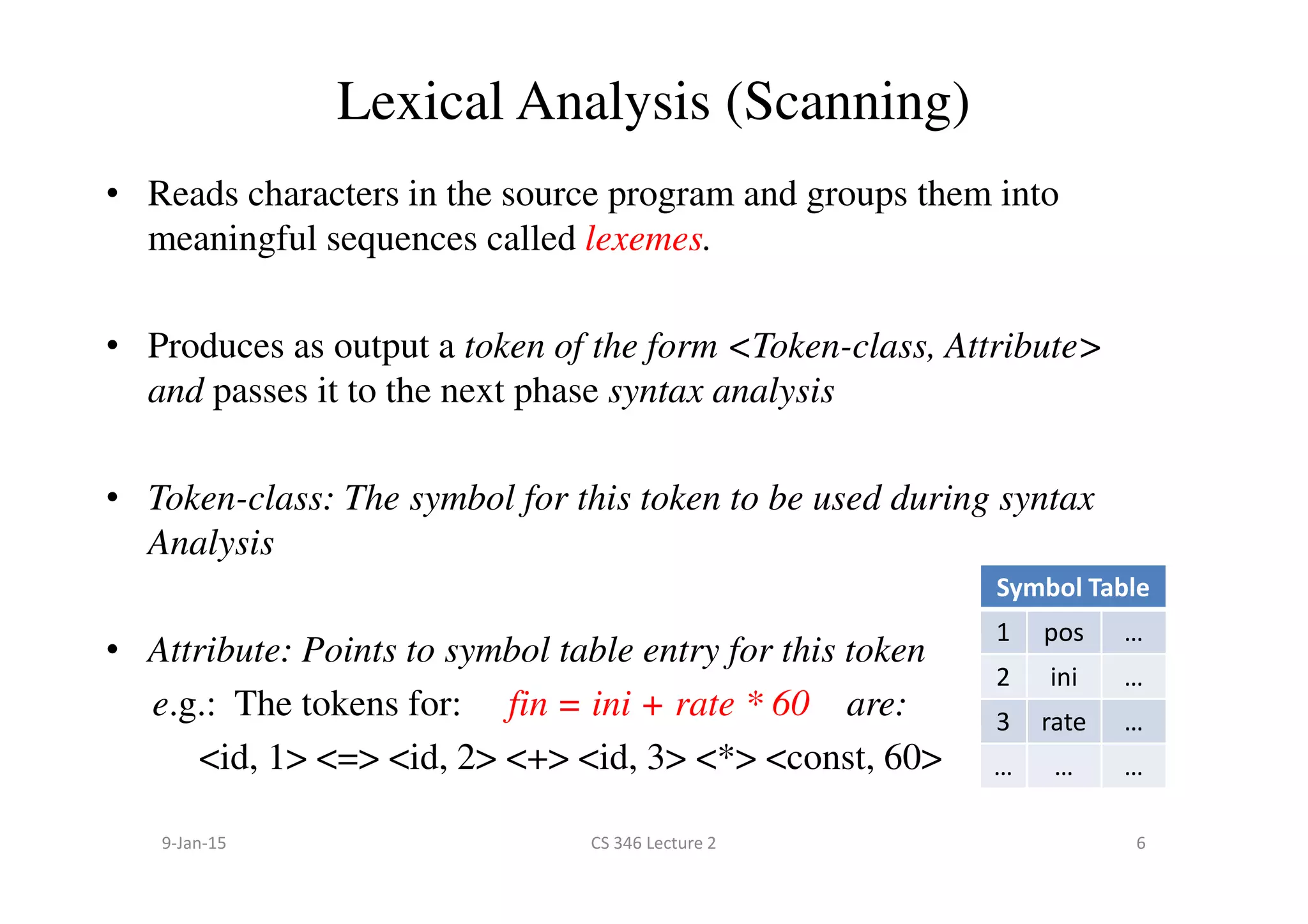

6. Lexical Analysis (Scanning)
• Reads characters in the source program and groups them into
meaningful sequences called lexemes.
• Produces as output a token of the form <Token-class, Attribute>
and passes it to the next phase syntax analysis
9-Jan-15 6
• Token-class: The symbol for this token to be used during syntax
Analysis
• Attribute: Points to symbol table entry for this token
e.g.: The tokens for: fin = ini + rate * 60 are:
<id, 1> <=> <id, 2> <+> <id, 3> <*> <const, 60>
CS 346 Lecture 2
Symbol Table
1 pos …
2 ini …
3 rate …
… … …

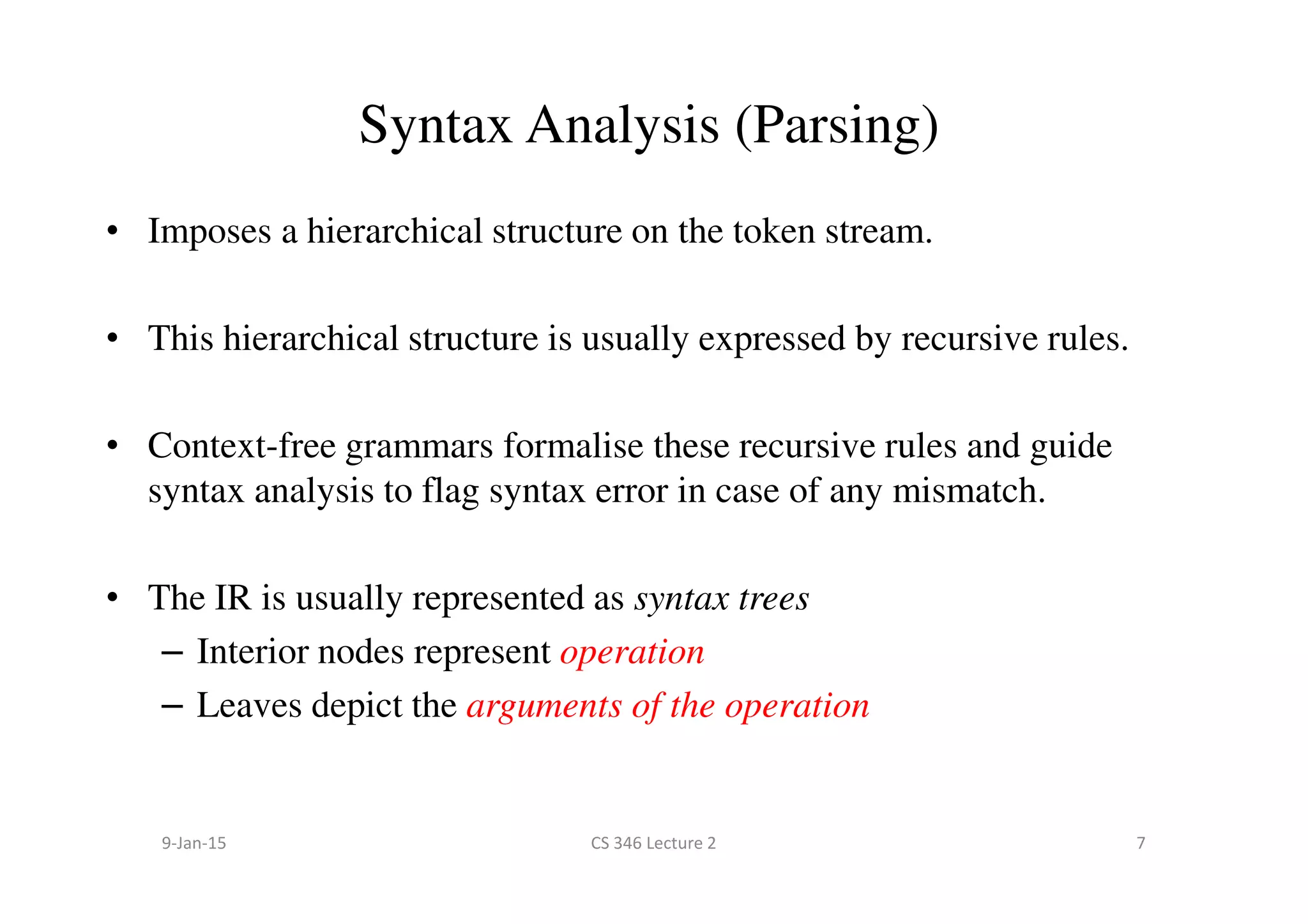

7. Syntax Analysis (Parsing)
• Imposes a hierarchical structure on the token stream.
• This hierarchical structure is usually expressed by recursive rules.
• Context-free grammars formalise these recursive rules and guide
9-Jan-15 7
• Context-free grammars formalise these recursive rules and guide
syntax analysis to flag syntax error in case of any mismatch.
• The IR is usually represented as syntax trees
– Interior nodes represent operation
– Leaves depict the arguments of the operation
CS 346 Lecture 2

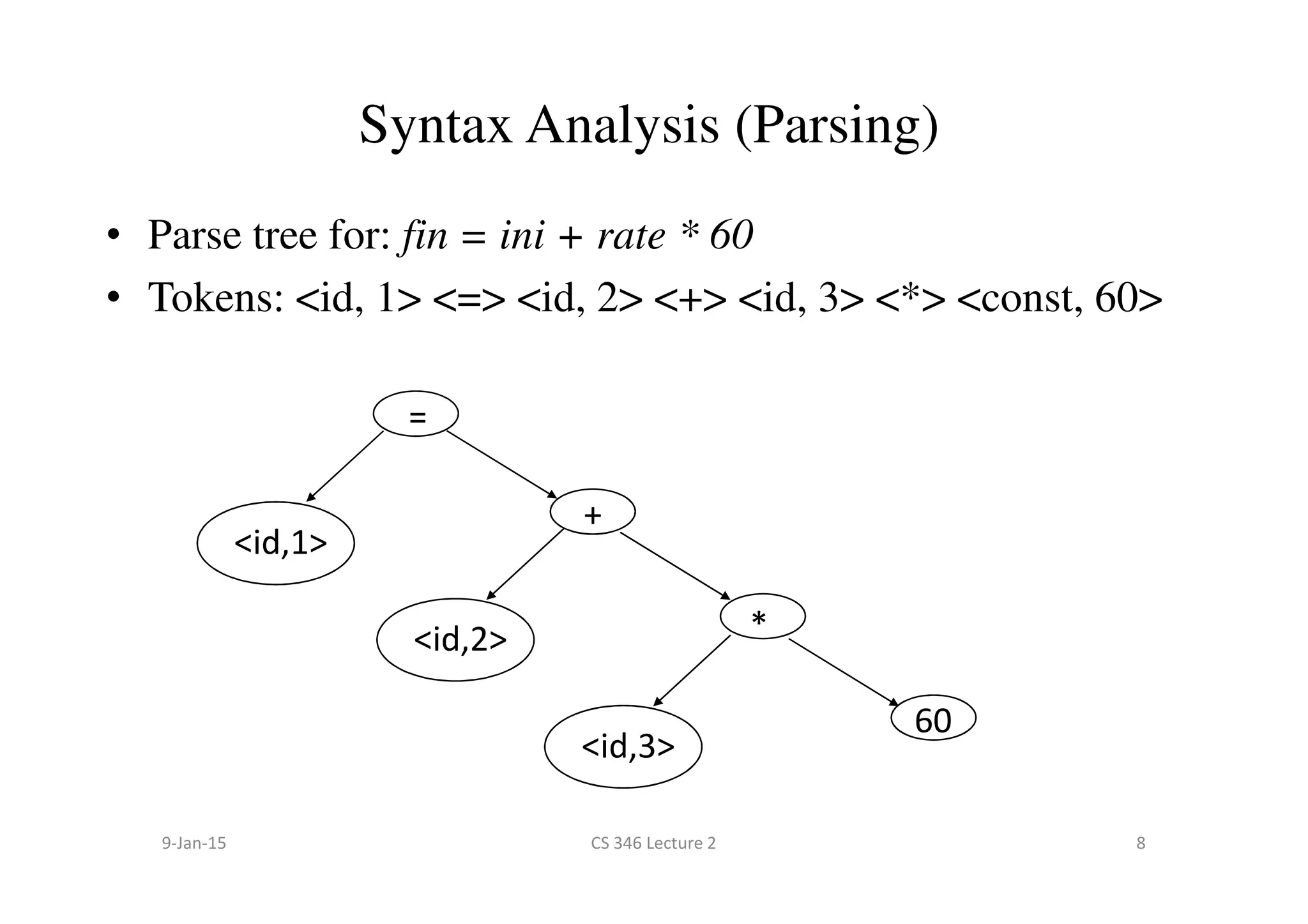

8. • Parse tree for: fin = ini + rate * 60
• Tokens: <id, 1> <=> <id, 2> <+> <id, 3> <*> <const, 60>
=
Syntax Analysis (Parsing)
+
<id,3>
<id,1>
*
60
<id,2>
9-Jan-15 8CS 346 Lecture 2

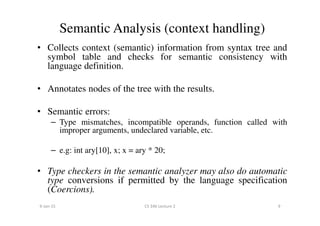

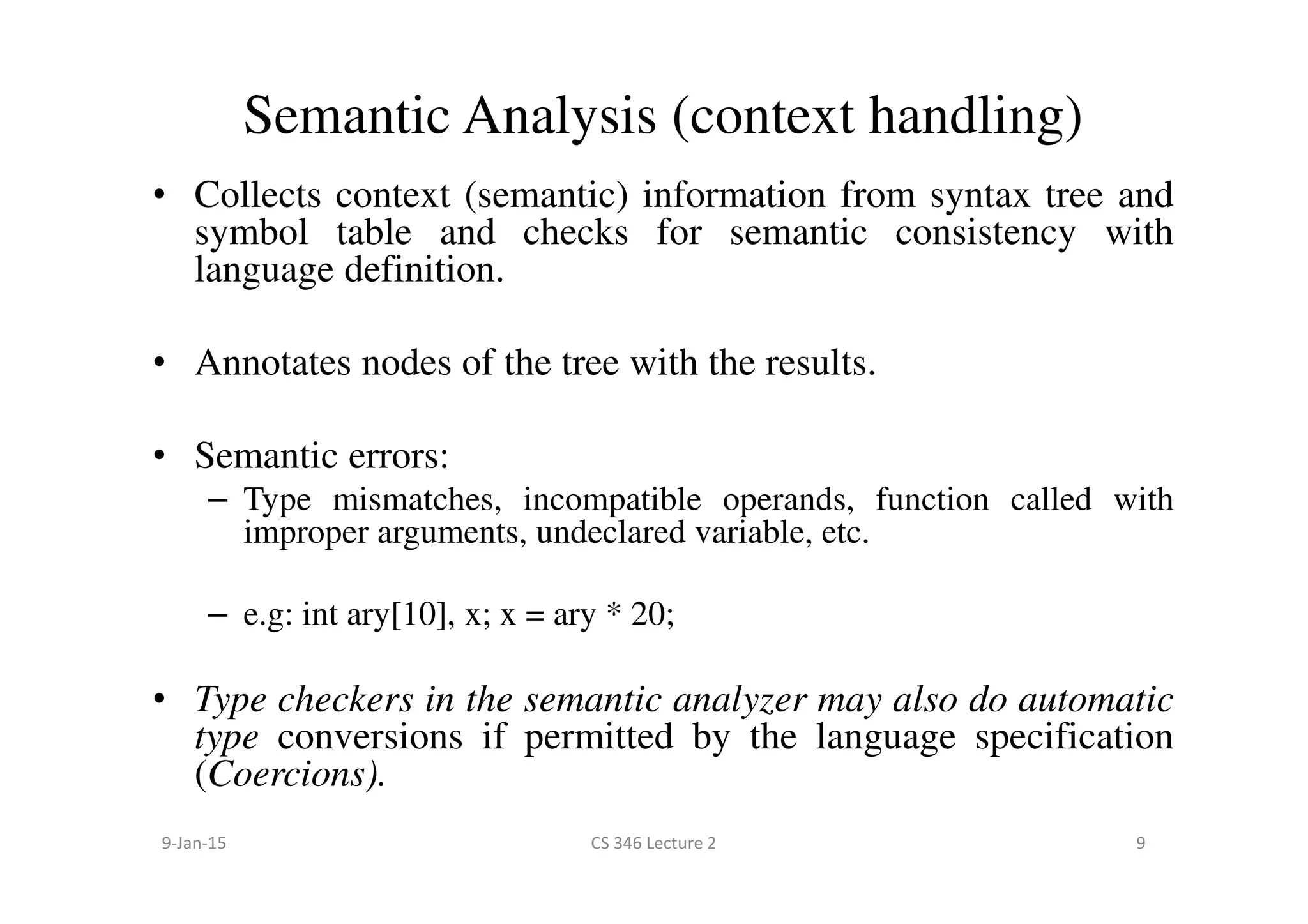

9. Semantic Analysis (context handling)
• Collects context (semantic) information from syntax tree and
symbol table and checks for semantic consistency with
language definition.
• Annotates nodes of the tree with the results.
• Semantic errors:
9-Jan-15 9
• Semantic errors:
– Type mismatches, incompatible operands, function called with
improper arguments, undeclared variable, etc.
– e.g: int ary[10], x; x = ary * 20;
• Type checkers in the semantic analyzer may also do automatic
type conversions if permitted by the language specification
(Coercions).
CS 346 Lecture 2

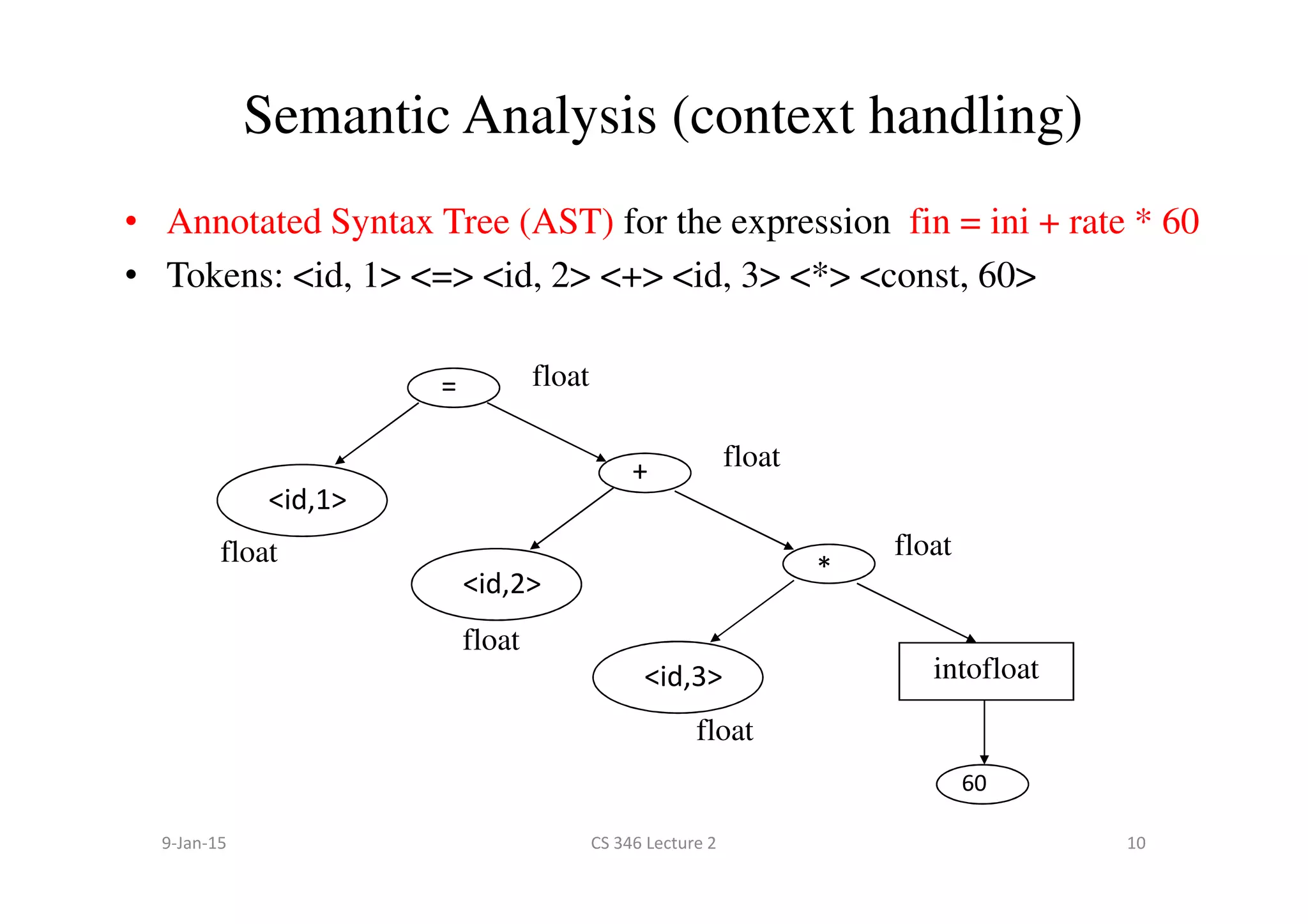

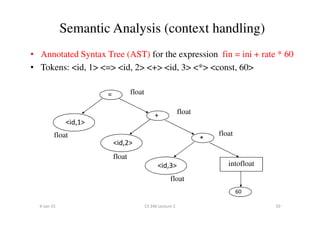

10. • Annotated Syntax Tree (AST) for the expression fin = ini + rate * 60
• Tokens: <id, 1> <=> <id, 2> <+> <id, 3> <*> <const, 60>
+
= float
float
Semantic Analysis (context handling)
*
+
60
<id,1>
<id,2>
<id,3>
float
float
float
float
float
intofloat
9-Jan-15 10CS 346 Lecture 2

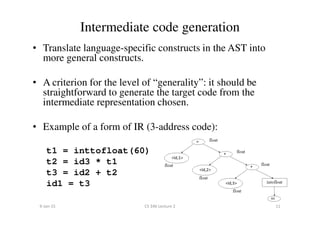

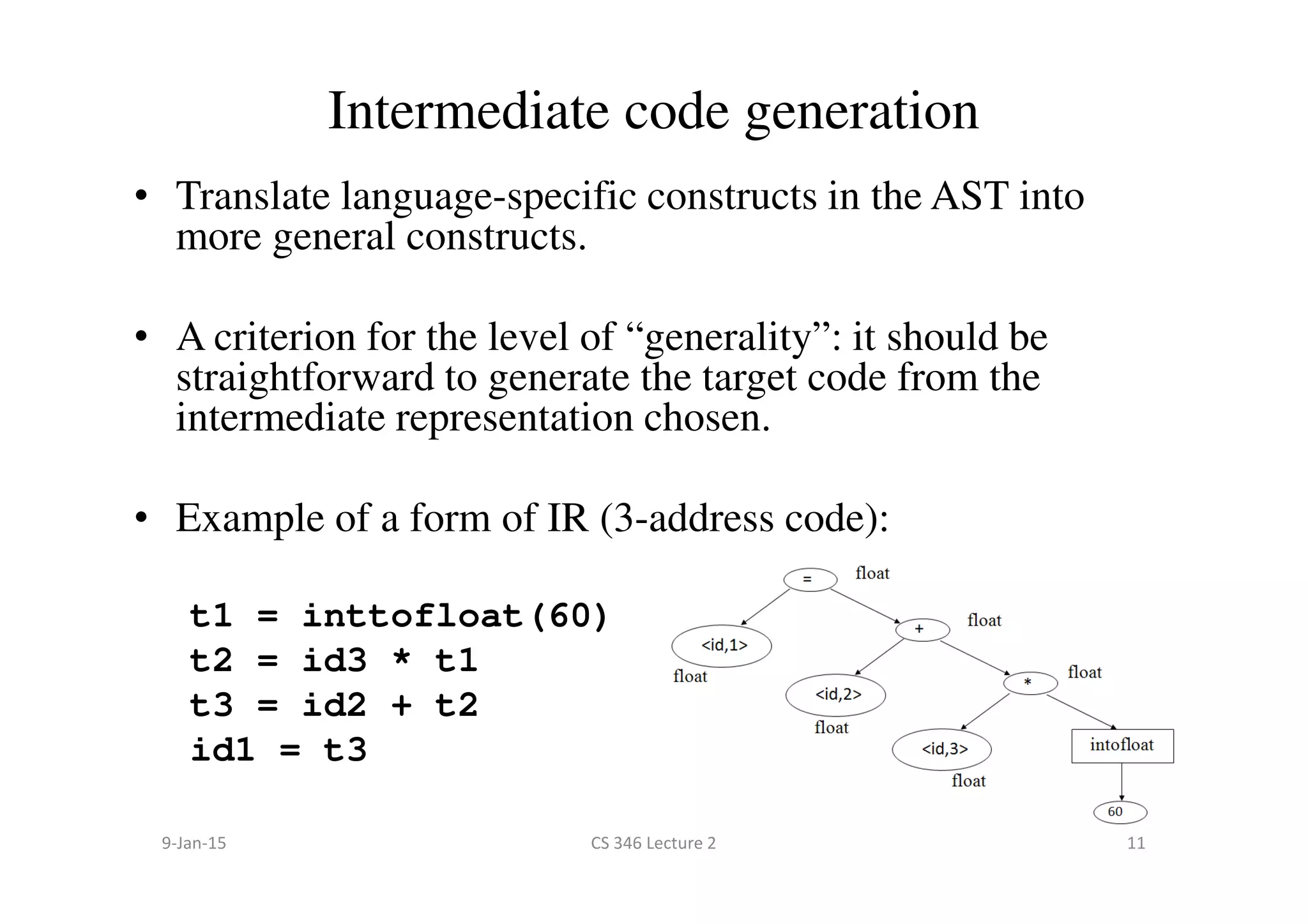

11. • Translate language-specific constructs in the AST into
more general constructs.
• A criterion for the level of “generality”: it should be
straightforward to generate the target code from the
intermediate representation chosen.
Intermediate code generation
• Example of a form of IR (3-address code):
t1 = inttofloat(60)
t2 = id3 * t1
t3 = id2 + t2
id1 = t3
9-Jan-15 11CS 346 Lecture 2

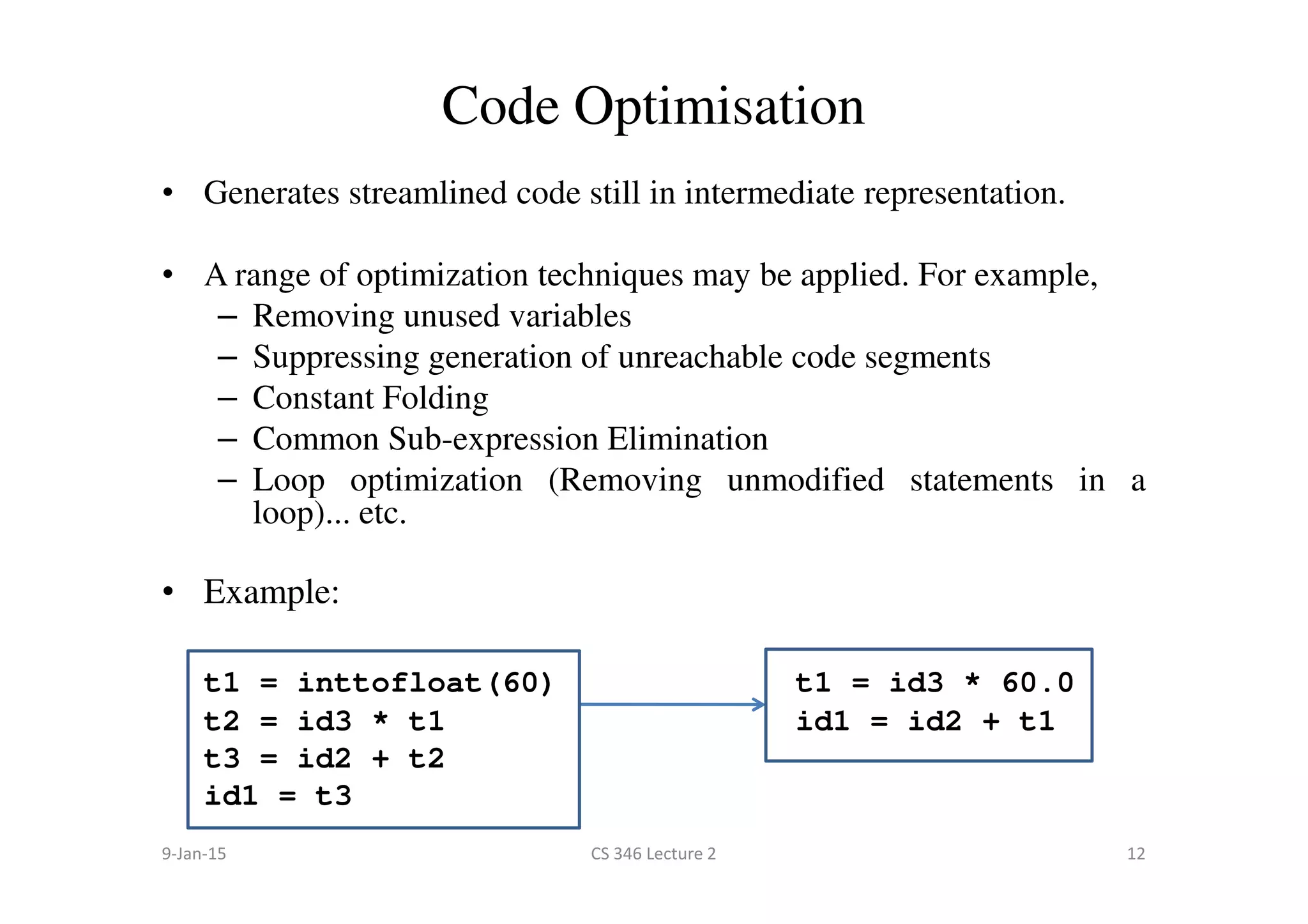

12. • Generates streamlined code still in intermediate representation.
• A range of optimization techniques may be applied. For example,
– Removing unused variables
– Suppressing generation of unreachable code segments
– Constant Folding
– Common Sub-expression Elimination
– Loop optimization (Removing unmodified statements in a
Code Optimisation
– Loop optimization (Removing unmodified statements in a
loop)... etc.
• Example:
t1 = inttofloat(60) t1 = id3 * 60.0
t2 = id3 * t1 id1 = id2 + t1
t3 = id2 + t2
id1 = t3
9-Jan-15 12CS 346 Lecture 2

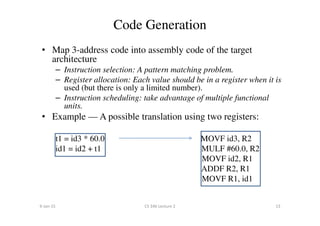

13. • Map 3-address code into assembly code of the target
architecture
– Instruction selection: A pattern matching problem.
– Register allocation: Each value should be in a register when it is
used (but there is only a limited number).
– Instruction scheduling: take advantage of multiple functional
units.
• Example — A possible translation using two registers:
Code Generation
• Example — A possible translation using two registers:
t1 = id3 * 60.0 MOVF id3, R2
id1 = id2 + t1 MULF #60.0, R2
MOVF id2, R1
ADDF R2, R1
MOVF R1, id1
9-Jan-15 13CS 346 Lecture 2

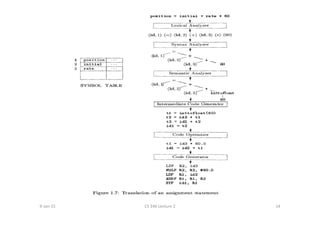

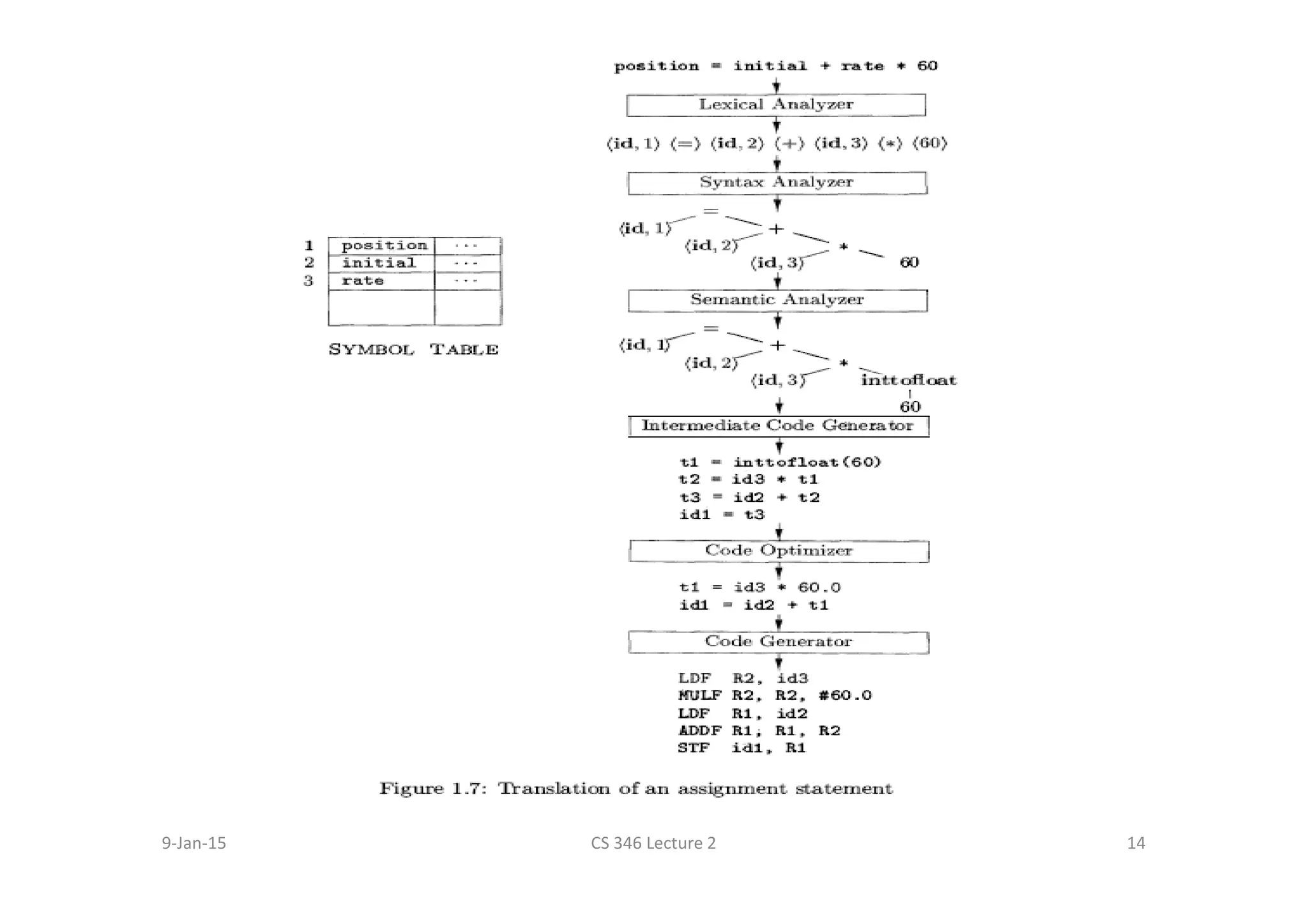

14. 9-Jan-15 14CS 346 Lecture 2
