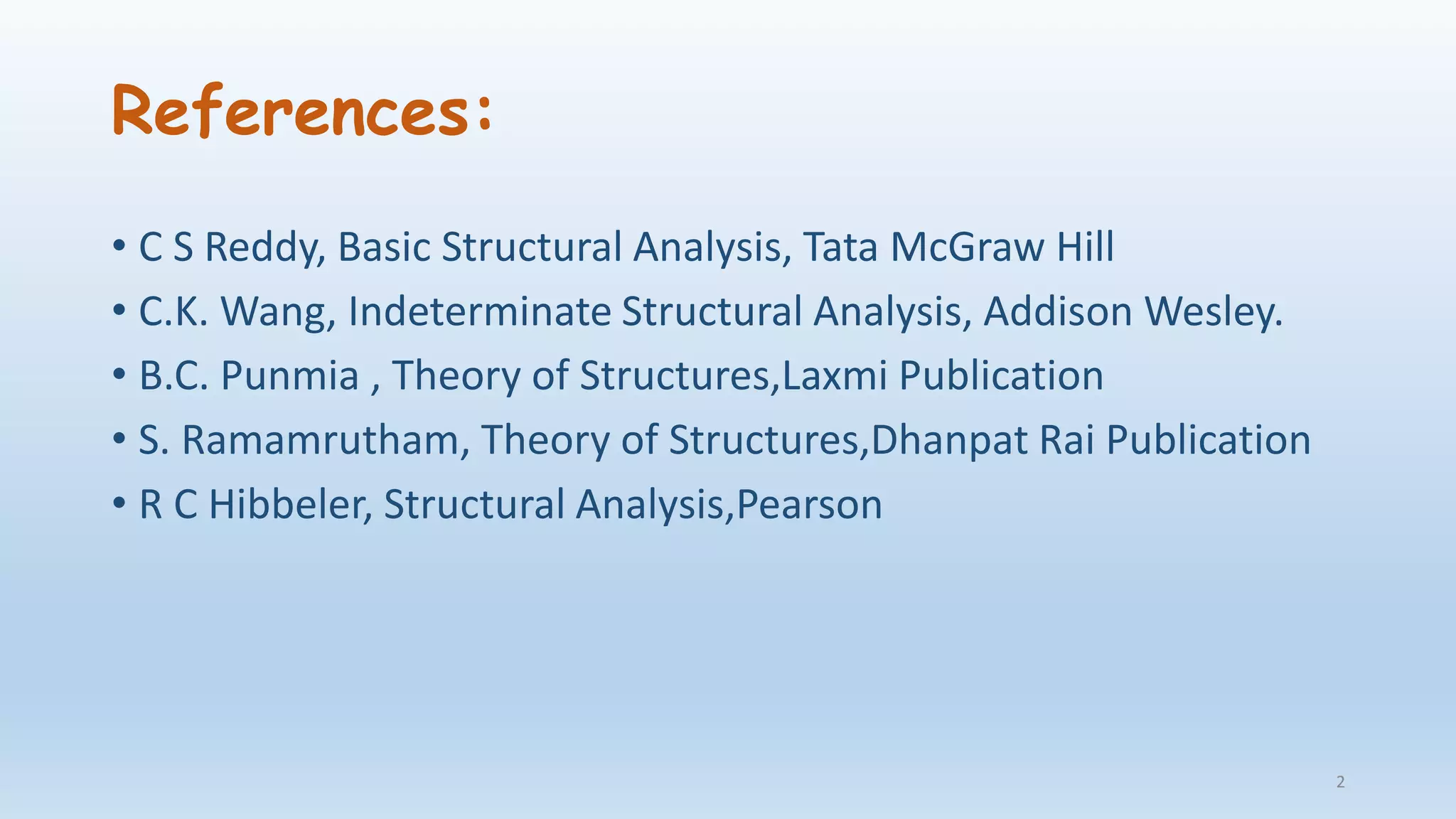

2. References:
• C S Reddy, Basic Structural Analysis, Tata McGraw Hill
• C.K. Wang, Indeterminate Structural Analysis, Addison Wesley.
• B.C. Punmia , Theory of Structures,Laxmi Publication
• S. Ramamrutham, Theory of Structures,Dhanpat Rai Publication
• R C Hibbeler, Structural Analysis,Pearson
2

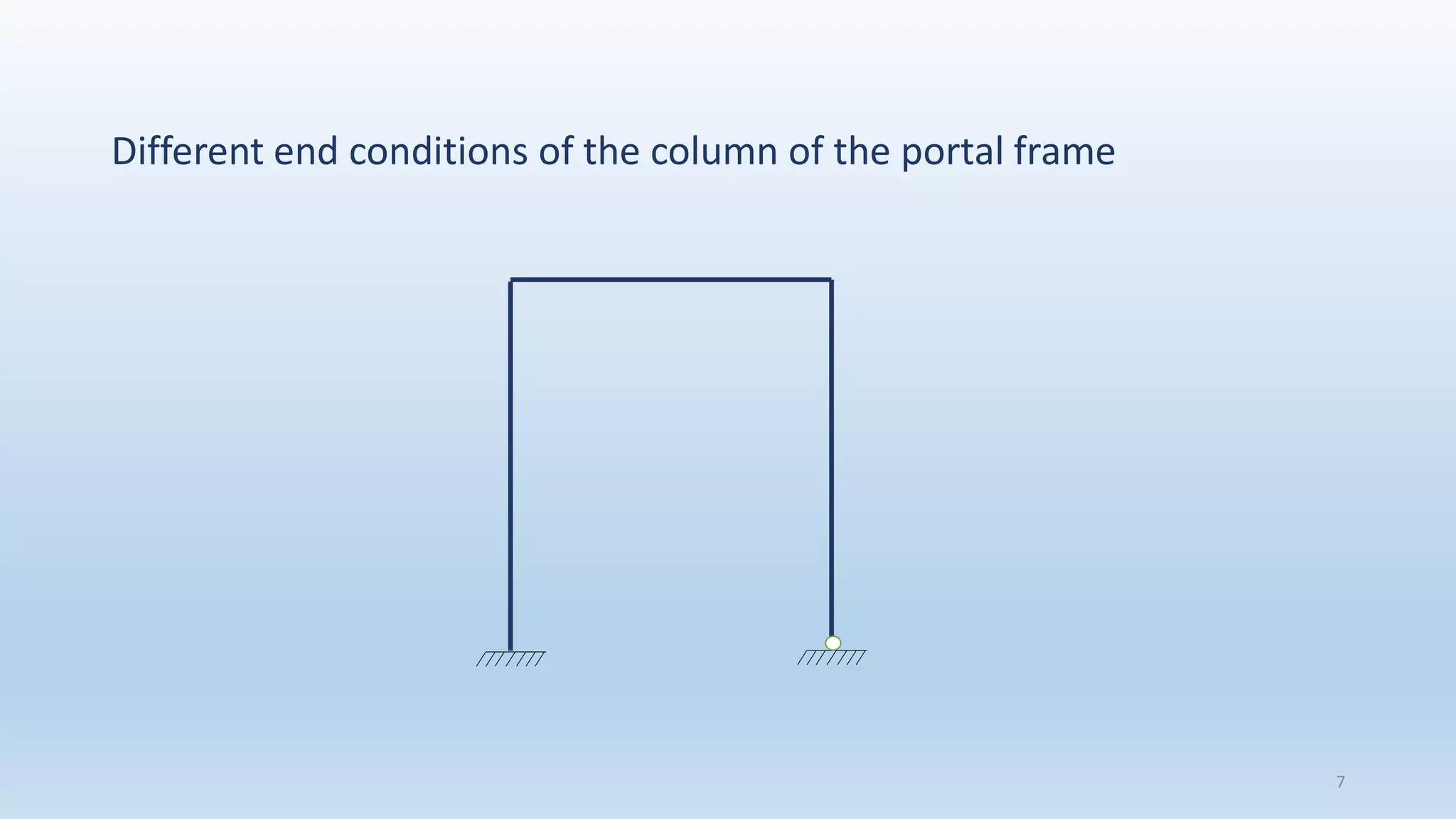

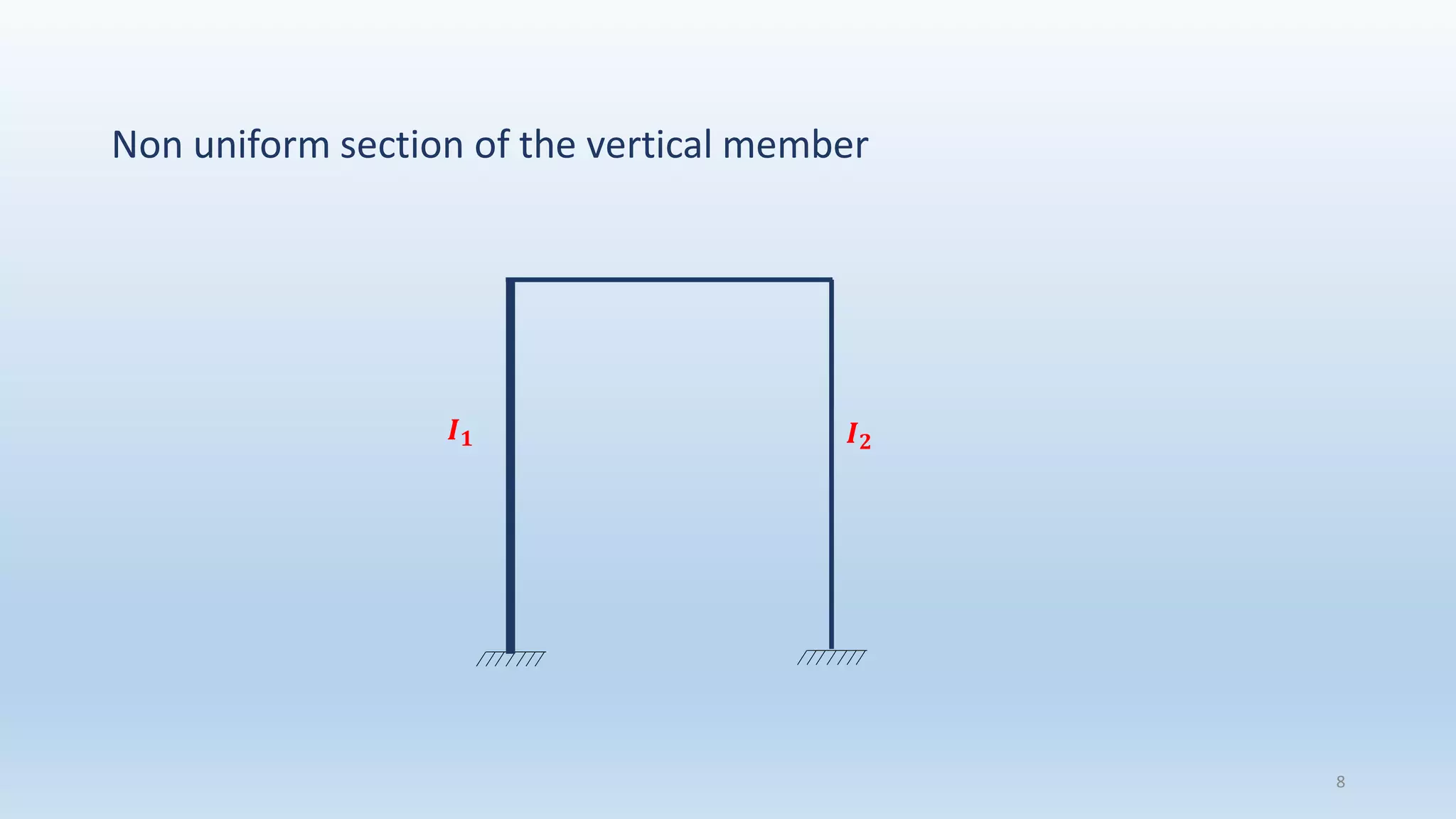

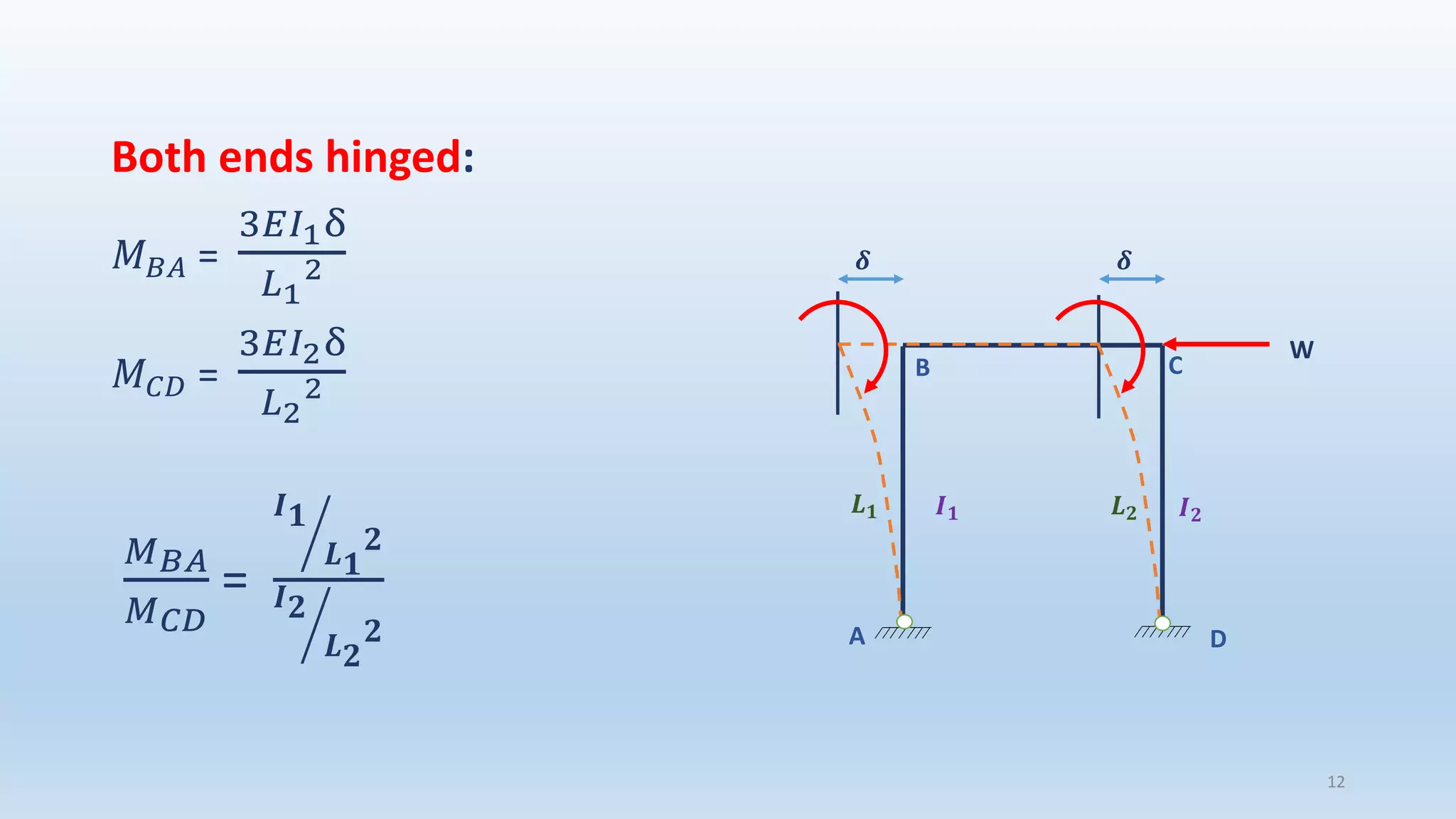

4. Moment Distribution with Sway Analysis
• In the case of continuous beam the effect of yielding or settlement of
support was taken into account by introducing initial fixed end
moments
6𝐸𝐼𝛿
𝐿2
• In the case of portal frame the amount of sway or joint movements is
not known and the analysis is done by assuming some arbitary
movement
• These assumed fixed moments due to side sway are then distributed
and reactions are found.
4

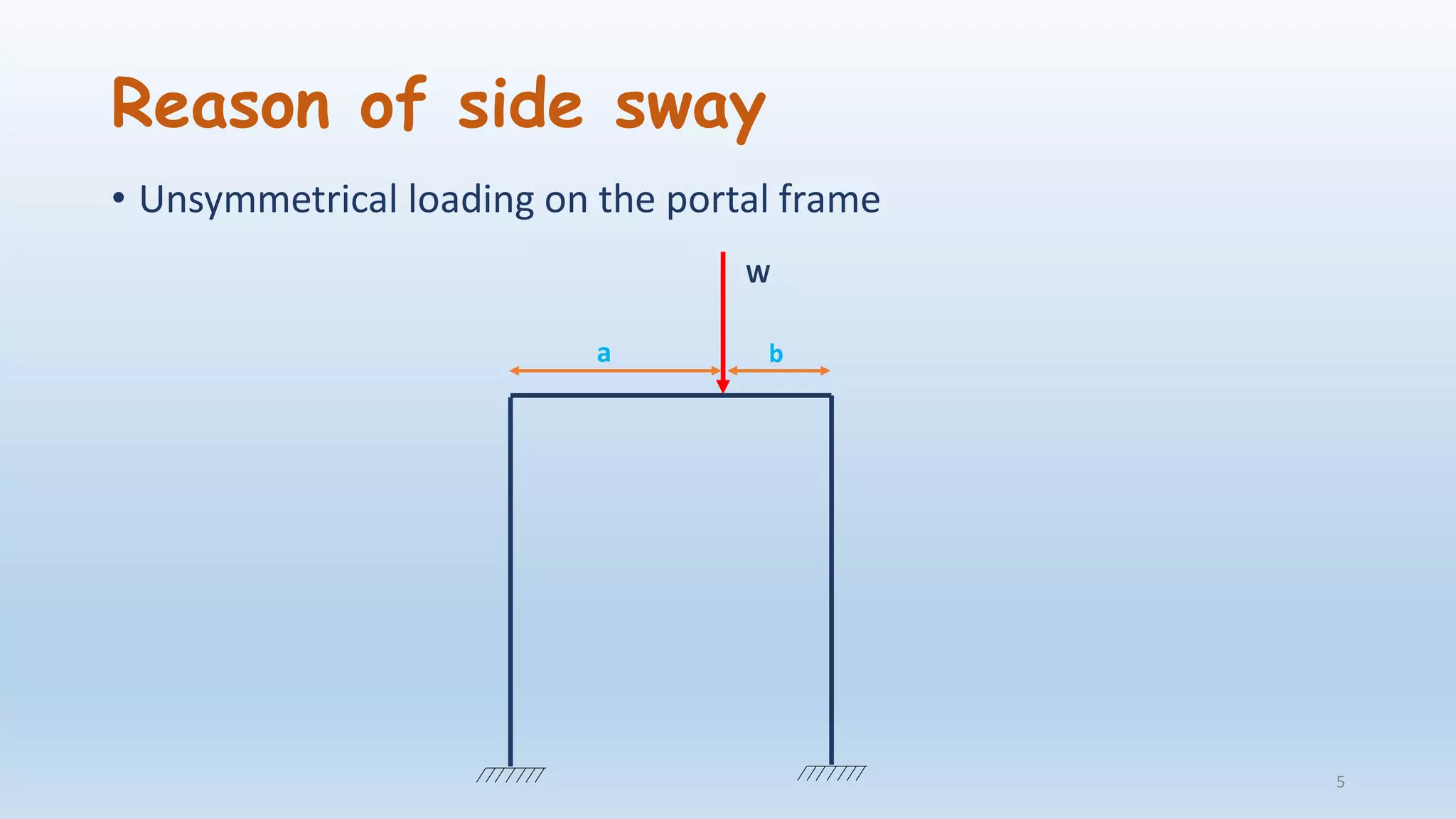

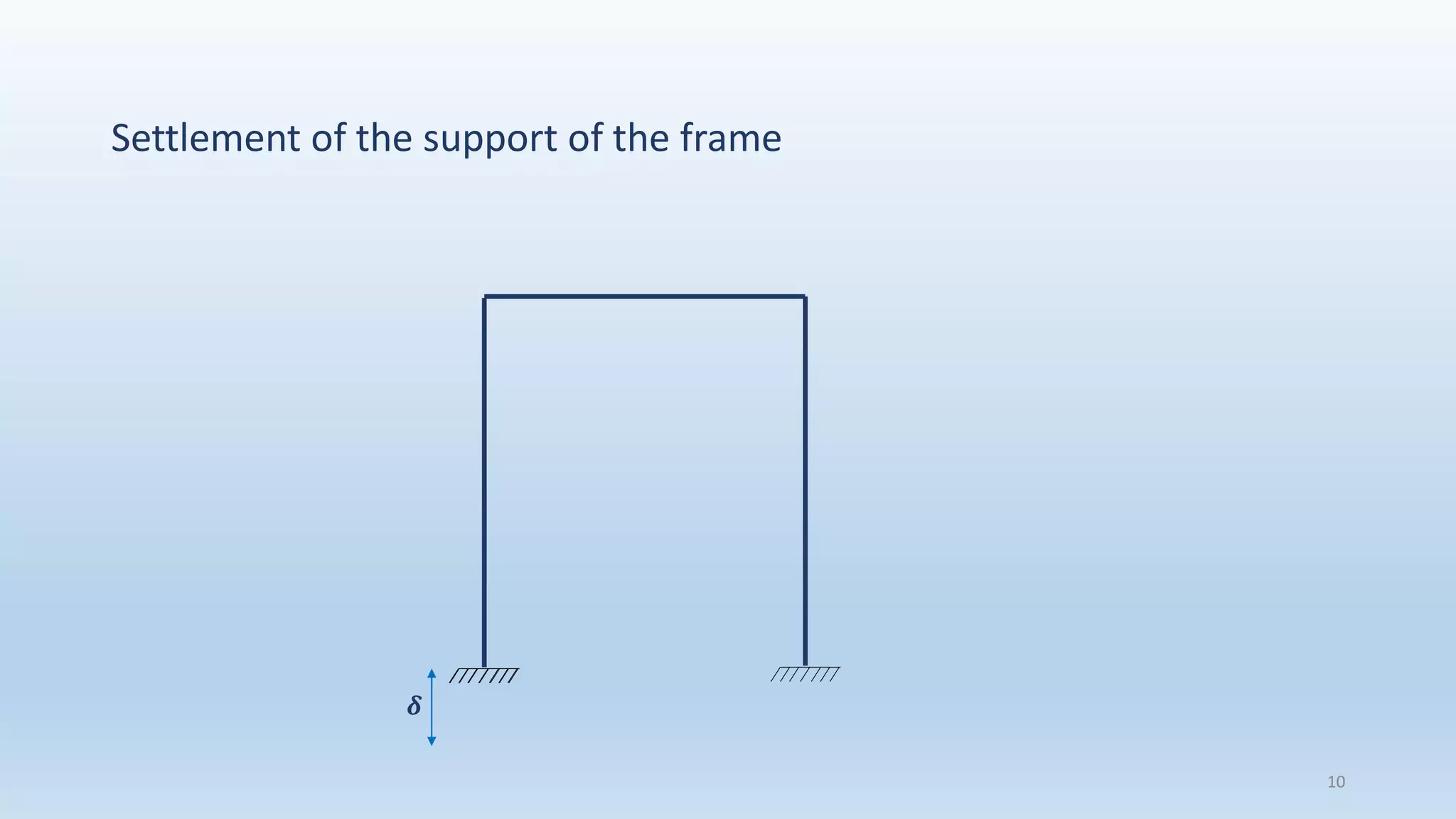

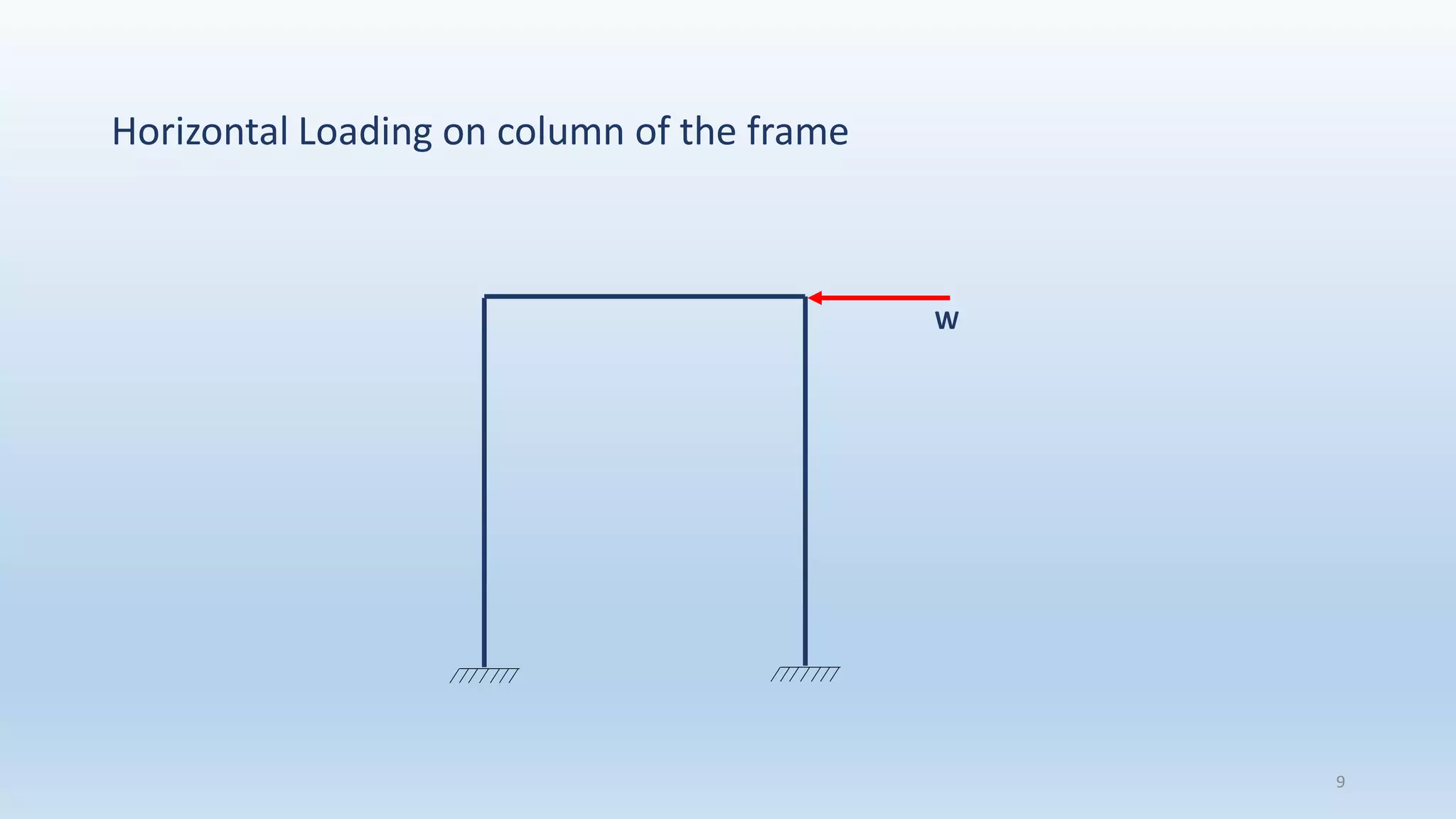

5. Reason of side sway
• Unsymmetrical loading on the portal frame
5
a b
W

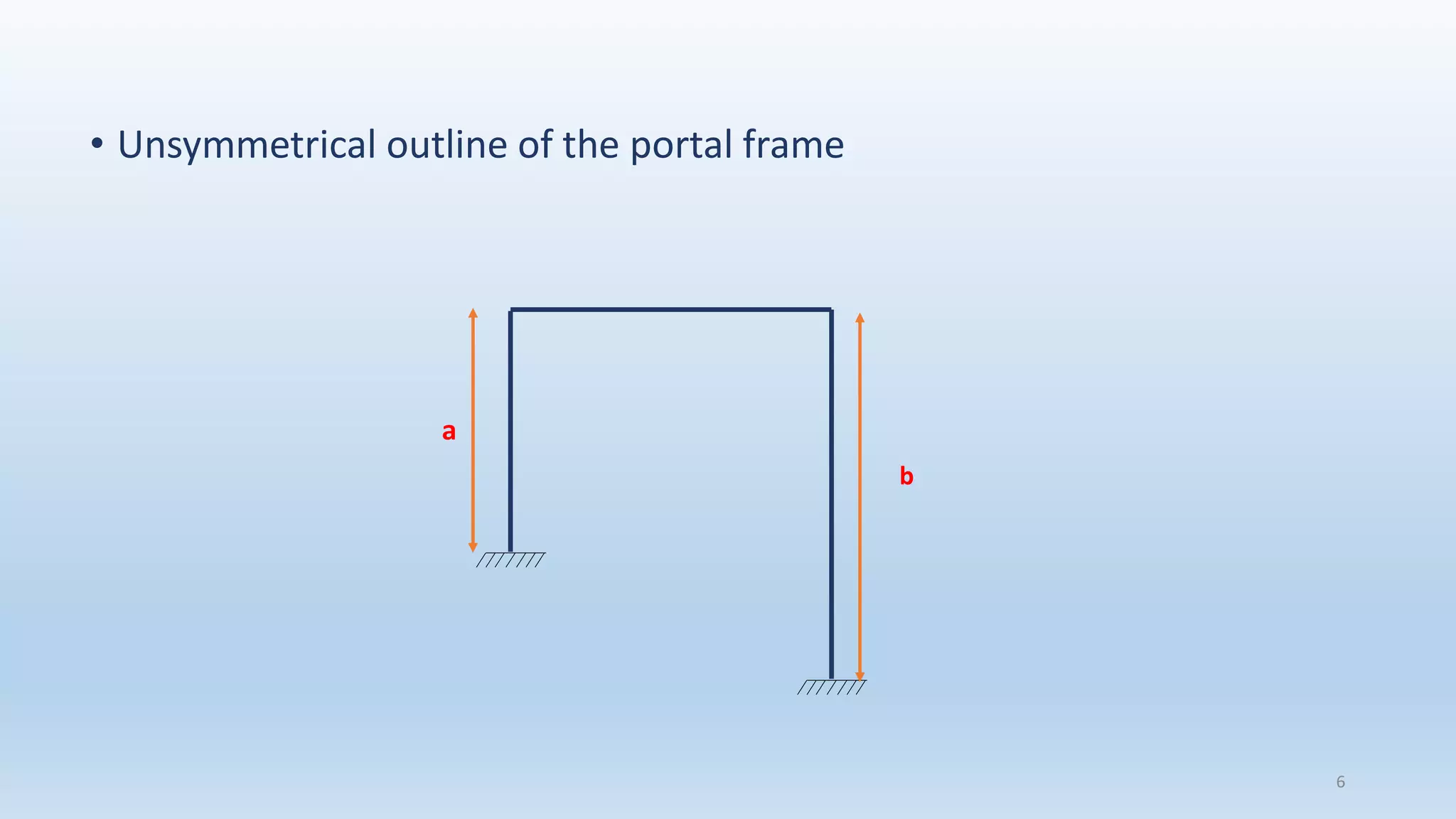

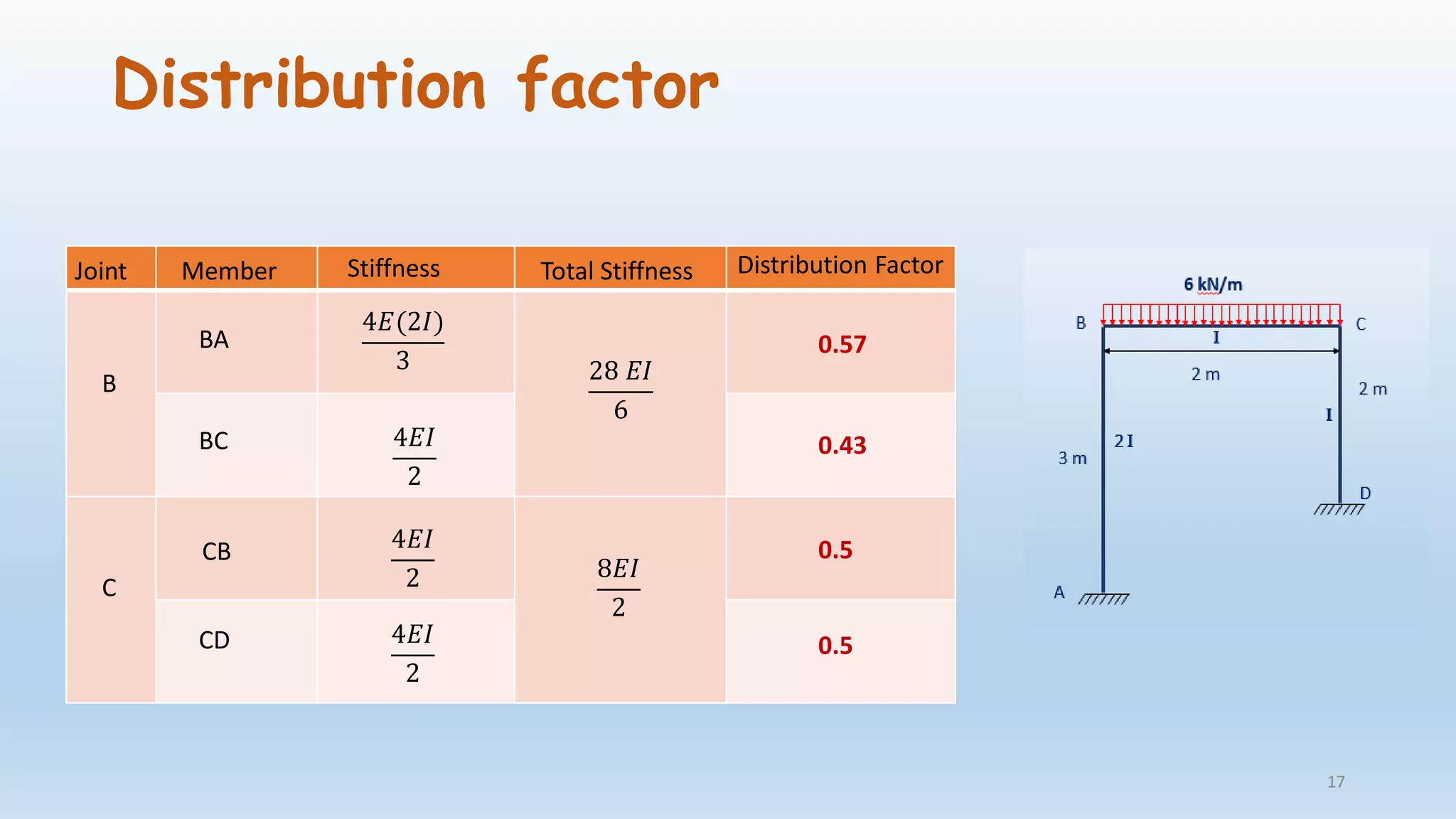

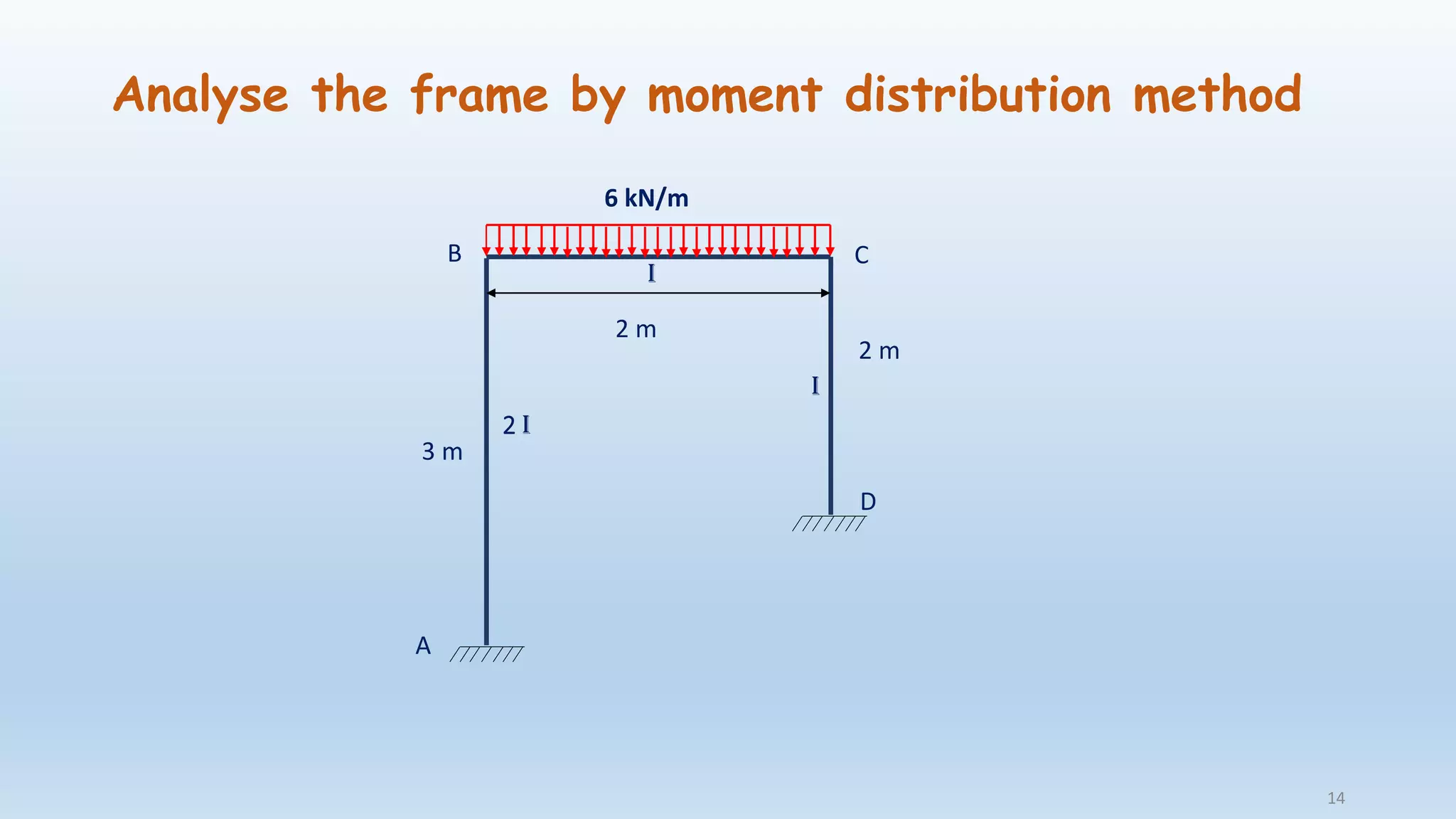

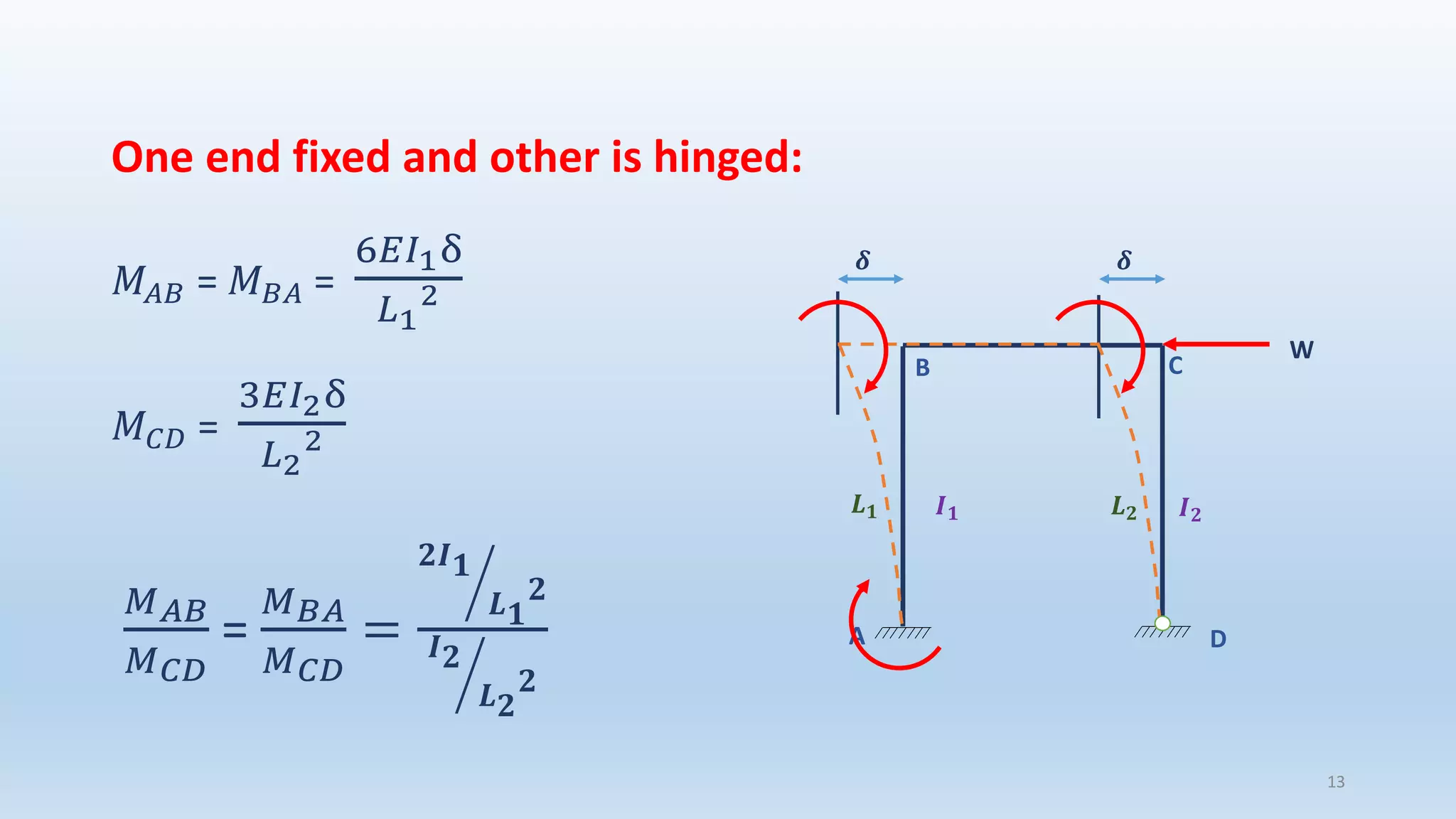

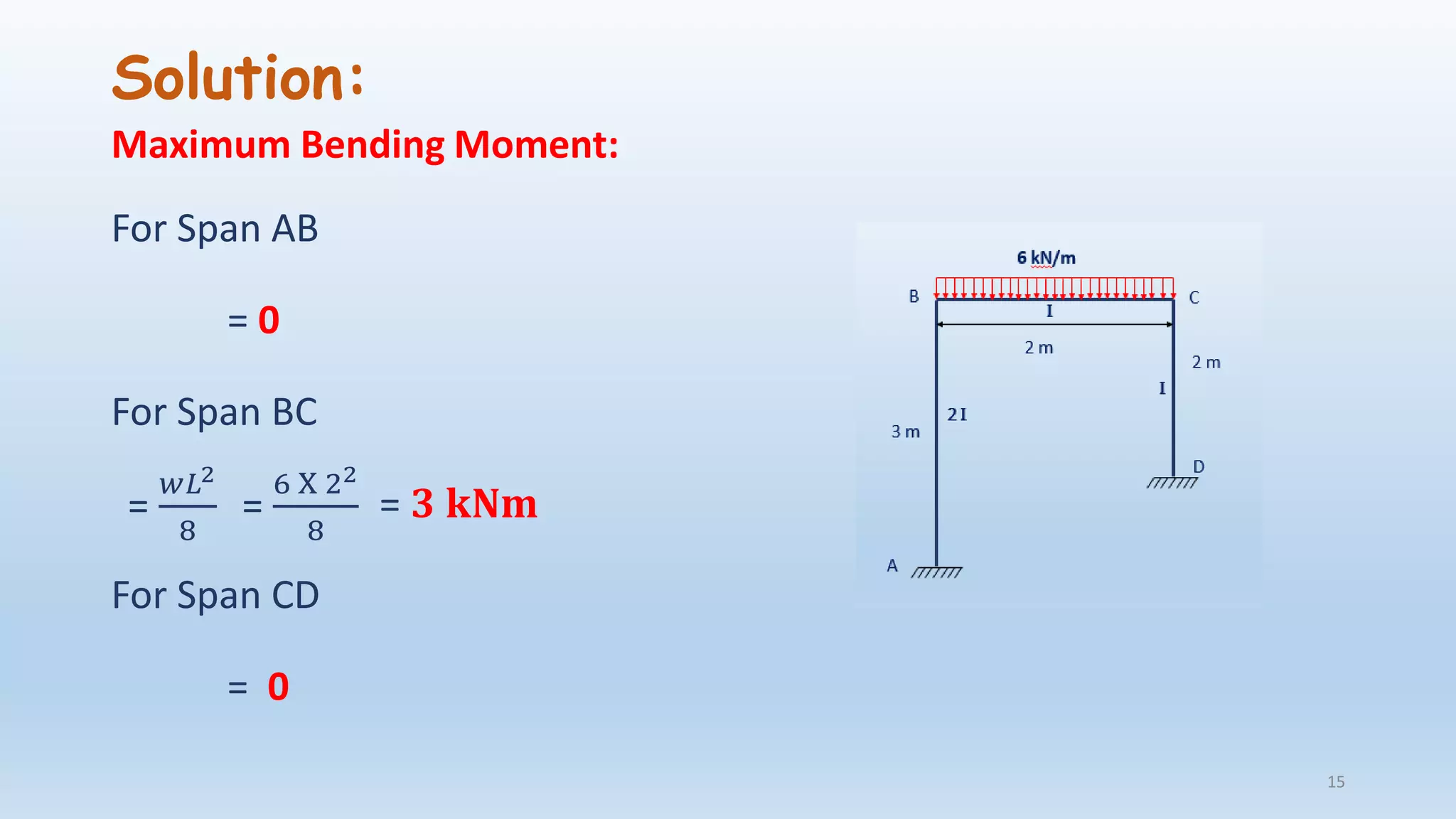

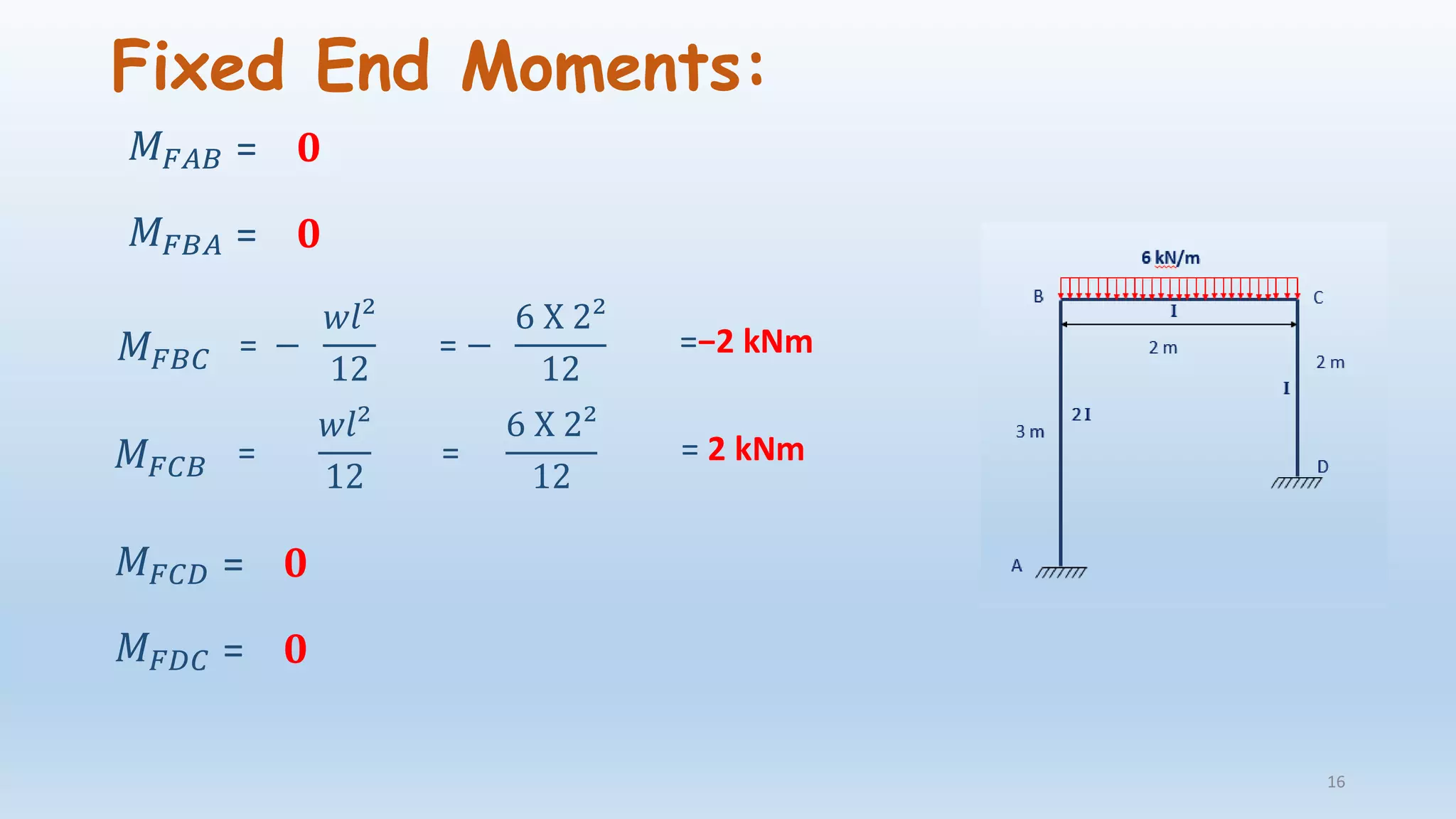

17. Distribution factor
Joint Member Stiffness Total Stiffness Distribution Factor
B
BA
BC
4𝐸(2𝐼)
3
4𝐸𝐼
2
28 𝐸𝐼
6
0.57
0.43
C
CB
CD
4𝐸𝐼
2
4𝐸𝐼
2
8𝐸𝐼
2
0.5
0.5
17

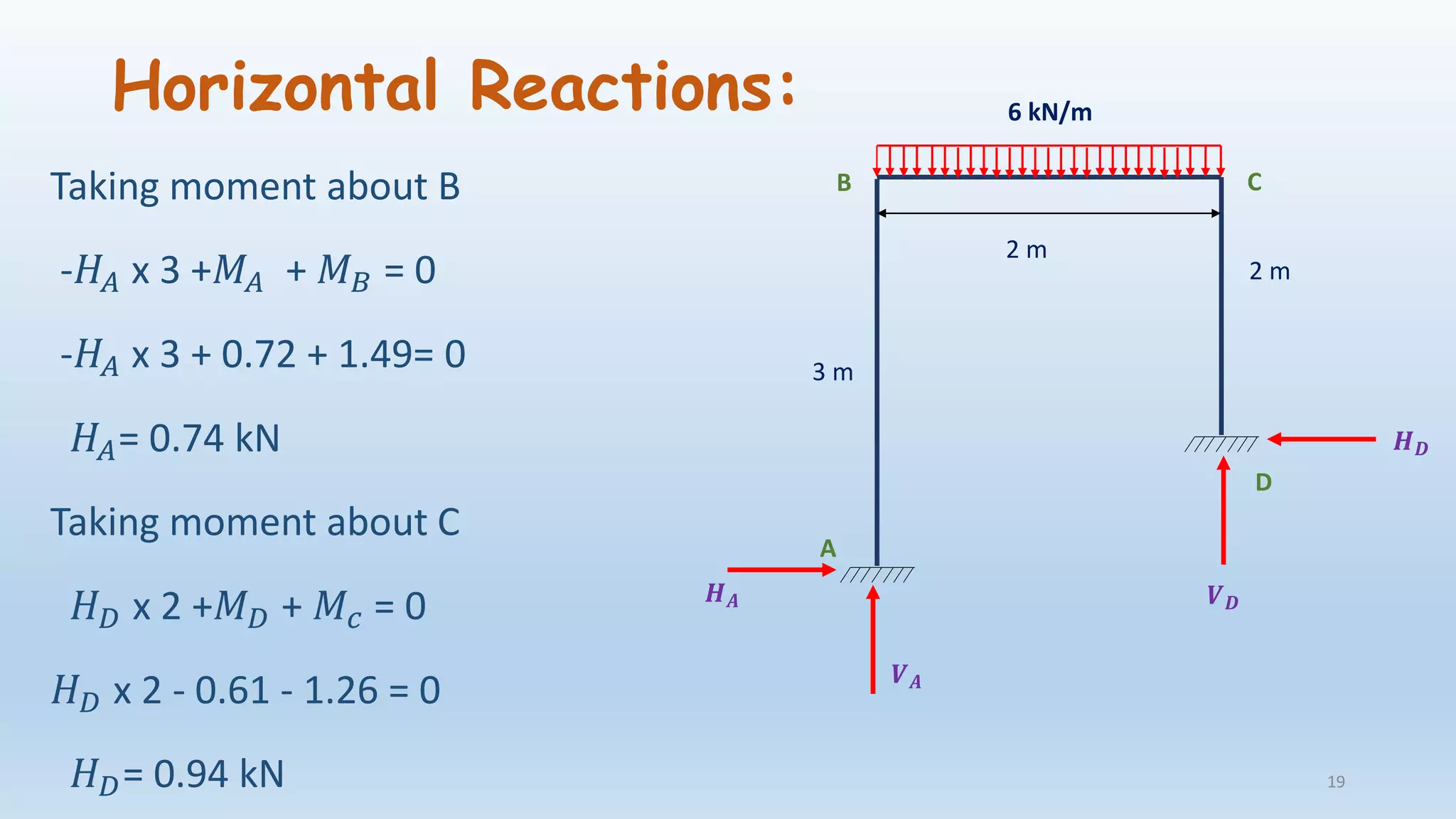

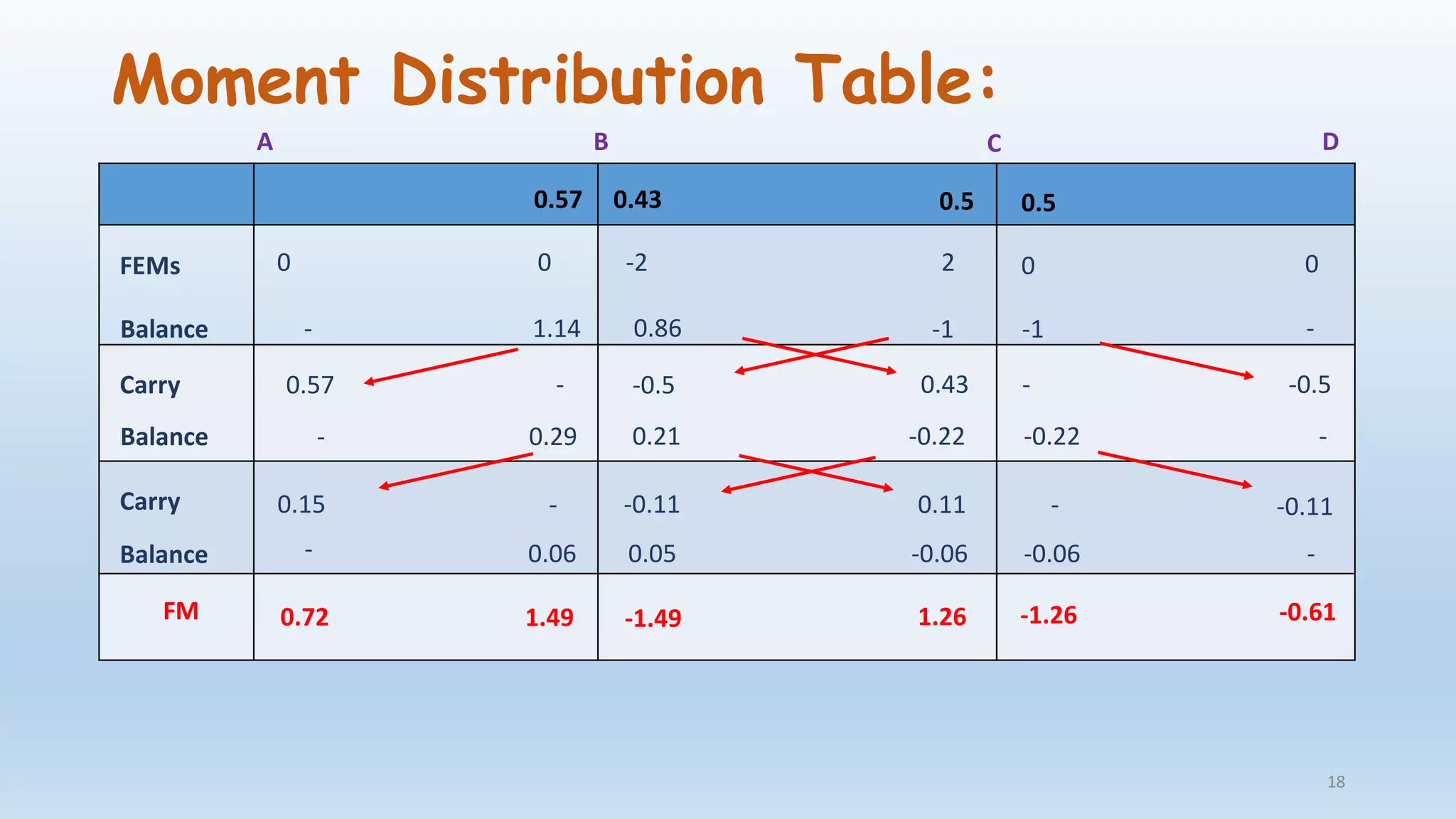

19. Horizontal Reactions:
Taking moment about B
-𝐻𝐴 x 3 +𝑀𝐴 + 𝑀 𝐵 = 0
-𝐻𝐴 x 3 + 0.72 + 1.49= 0
𝐻𝐴= 0.74 kN
Taking moment about C
𝐻 𝐷 x 2 +𝑀 𝐷 + 𝑀𝑐 = 0
𝐻 𝐷 x 2 - 0.61 - 1.26 = 0
𝐻 𝐷= 0.94 kN
𝑯 𝑨
𝑯 𝑫
𝑽 𝑨
𝑽 𝑫
A
B C
D
19
2 m
3 m
2 m
6 kN/m

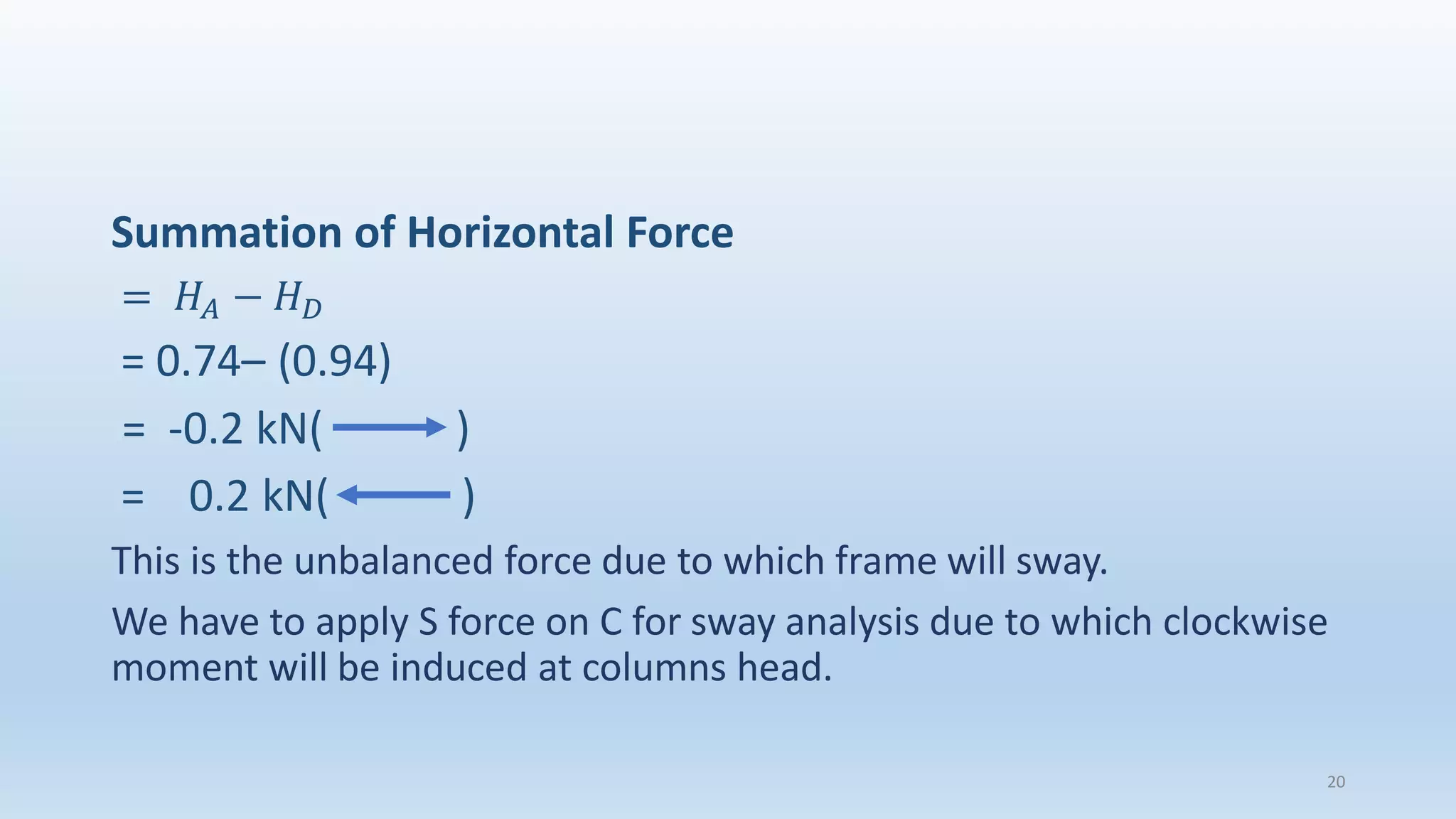

20. Summation of Horizontal Force
= 𝐻𝐴 − 𝐻 𝐷
= 0.74– (0.94)
= -0.2 kN( )
= 0.2 kN( )
This is the unbalanced force due to which frame will sway.
We have to apply S force on C for sway analysis due to which clockwise
moment will be induced at columns head.
20

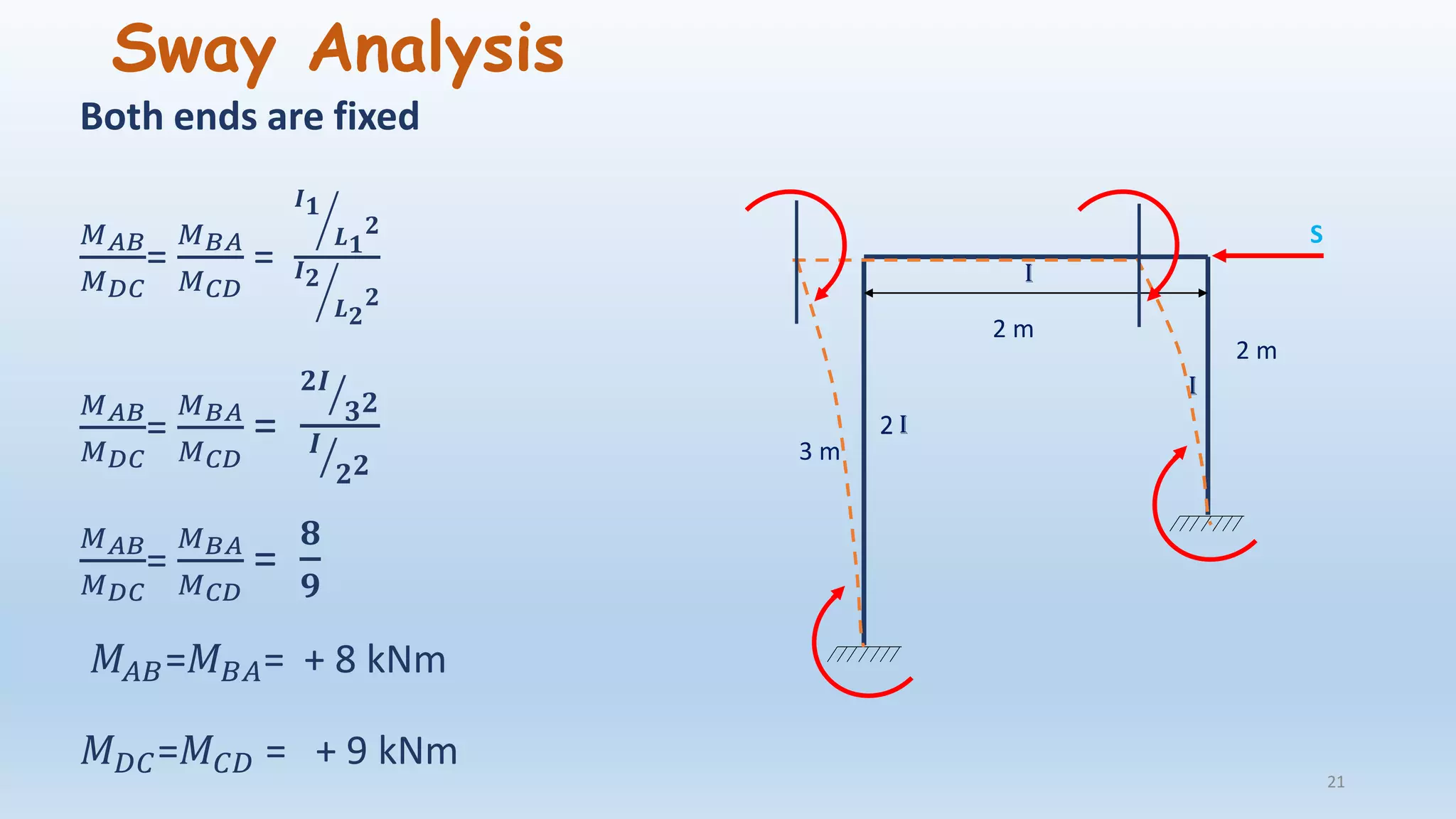

21. Sway Analysis
Both ends are fixed
𝑀 𝐴𝐵
𝑀 𝐷𝐶
=
𝑀 𝐵𝐴
𝑀 𝐶𝐷
=
൘
𝑰 𝟏
𝑳 𝟏
𝟐
൘
𝑰 𝟐
𝑳 𝟐
𝟐
𝑀 𝐴𝐵
𝑀 𝐷𝐶
=
𝑀 𝐵𝐴
𝑀 𝐶𝐷
=
ൗ𝟐𝑰
𝟑 𝟐
ൗ𝑰
𝟐 𝟐
𝑀 𝐴𝐵
𝑀 𝐷𝐶
=
𝑀 𝐵𝐴
𝑀 𝐶𝐷
=
𝟖
𝟗
𝑀𝐴𝐵=𝑀 𝐵𝐴= + 8 kNm
𝑀 𝐷𝐶=𝑀 𝐶𝐷 = + 9 kNm
21
2 m
3 m
2 m
I
2 I
I
S

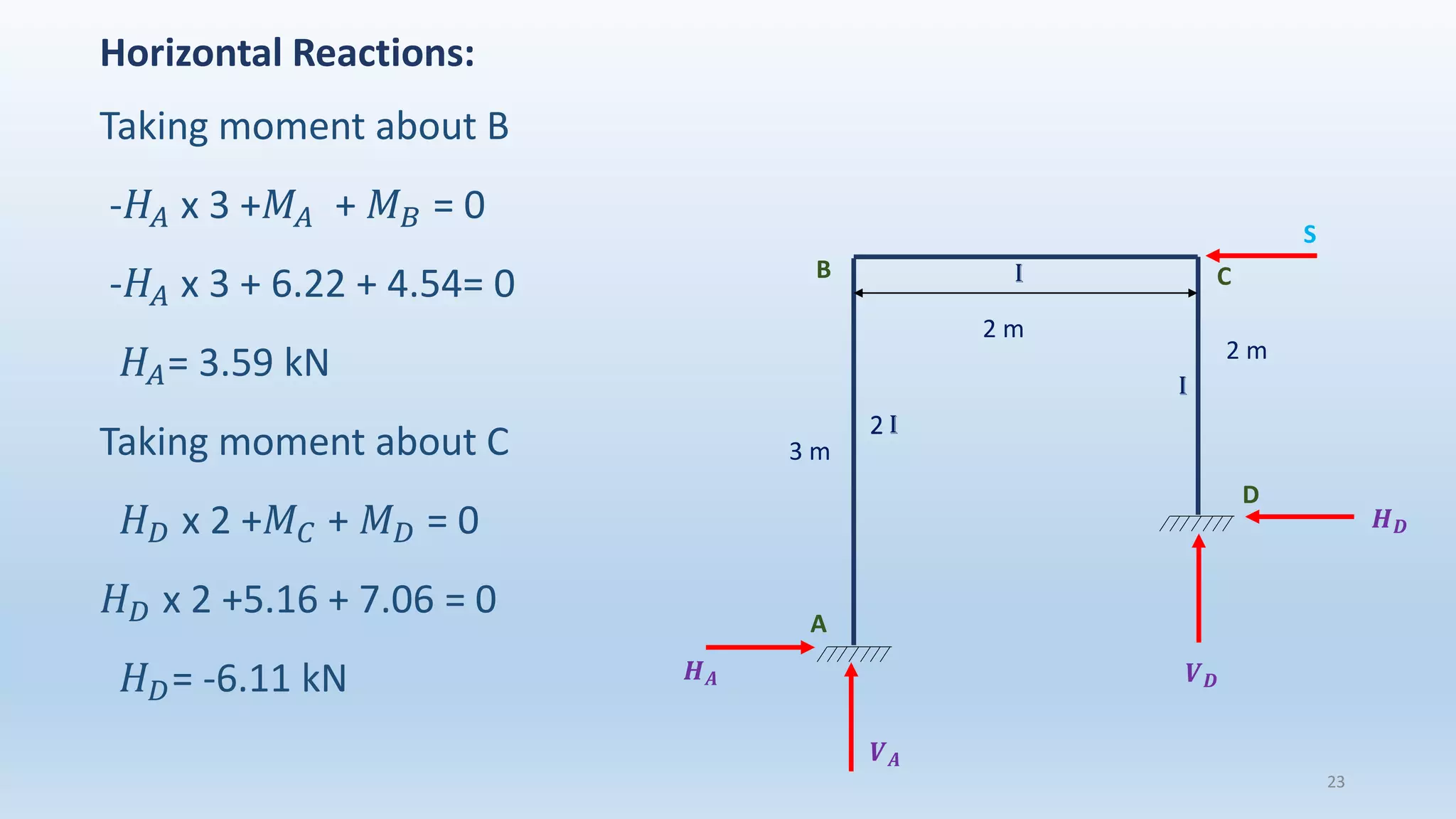

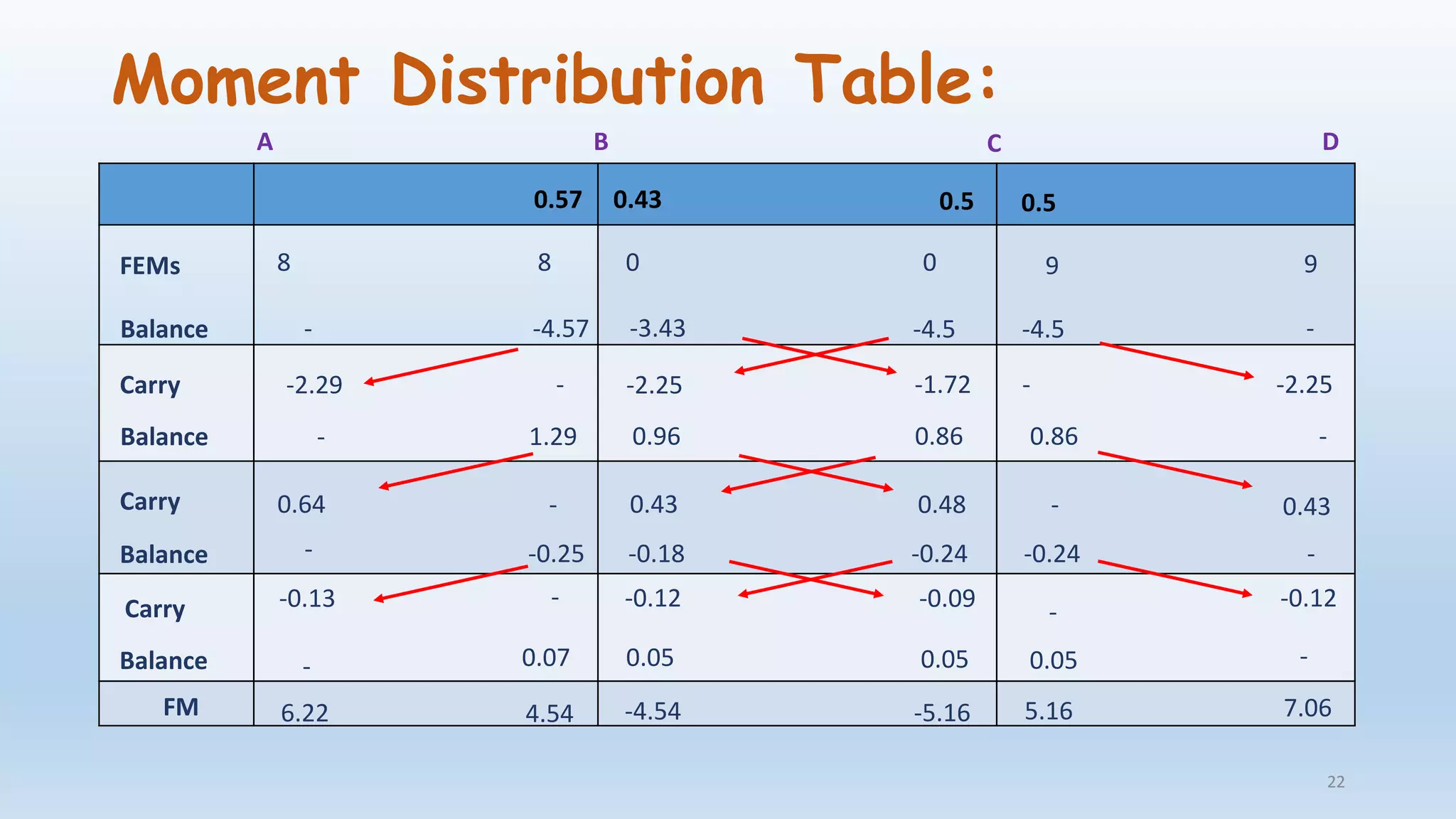

23. Horizontal Reactions:
Taking moment about B
-𝐻𝐴 x 3 +𝑀𝐴 + 𝑀 𝐵 = 0
-𝐻𝐴 x 3 + 6.22 + 4.54= 0
𝐻𝐴= 3.59 kN
Taking moment about C
𝐻 𝐷 x 2 +𝑀 𝐶 + 𝑀 𝐷 = 0
𝐻 𝐷 x 2 +5.16 + 7.06 = 0
𝐻 𝐷= -6.11 kN
23
2 m
3 m
2 m
I
2 I
I
S
𝑯 𝑨
𝑯 𝑫
𝑽 𝑨
𝑽 𝑫
A
B
D
C

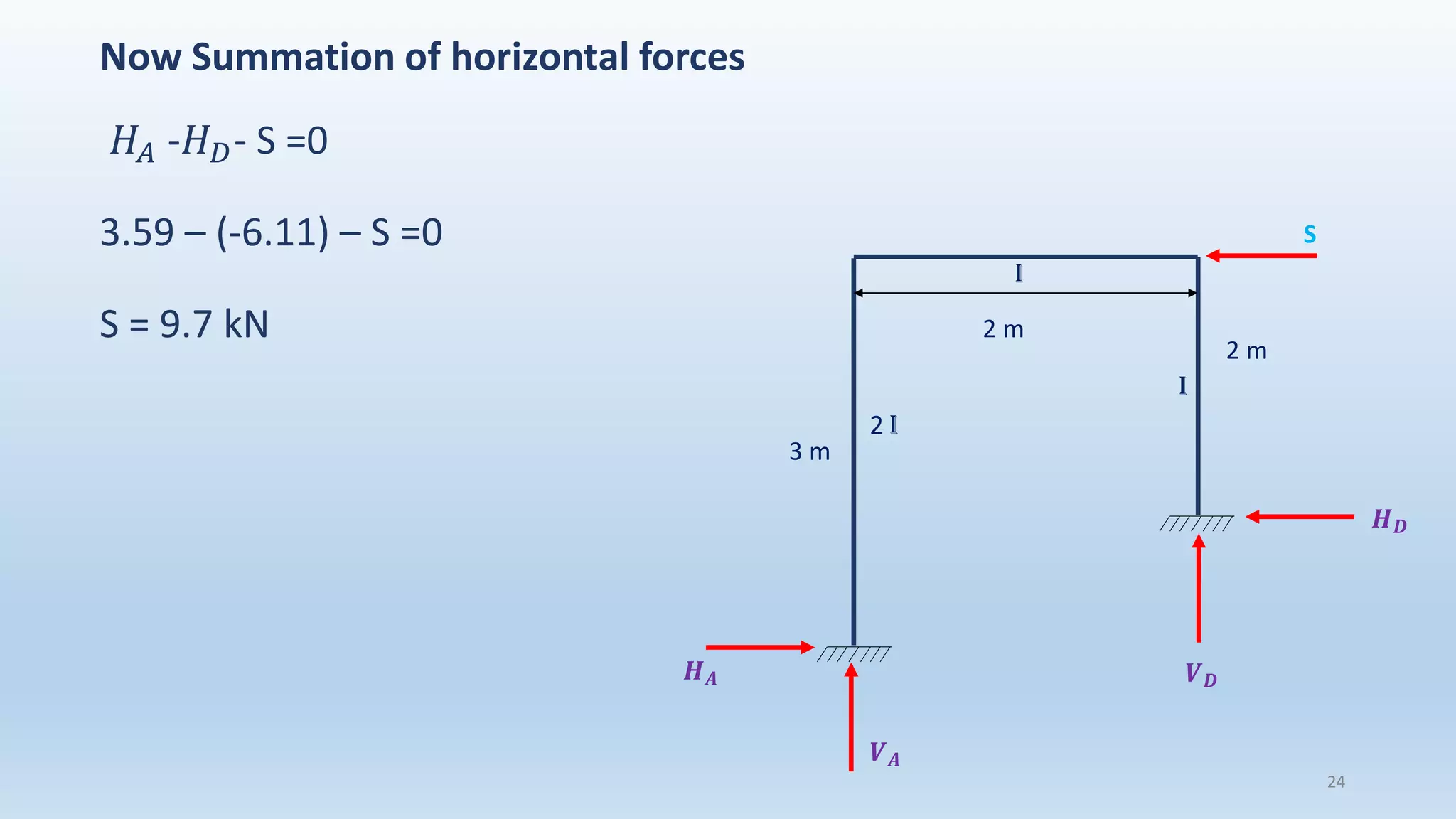

24. Now Summation of horizontal forces
𝐻𝐴 -𝐻 𝐷- S =0
3.59 – (-6.11) – S =0
S = 9.7 kN
24
2 m
3 m
2 m
I
2 I
I
S
𝑯 𝑨
𝑯 𝑫
𝑽 𝑨
𝑽 𝑫

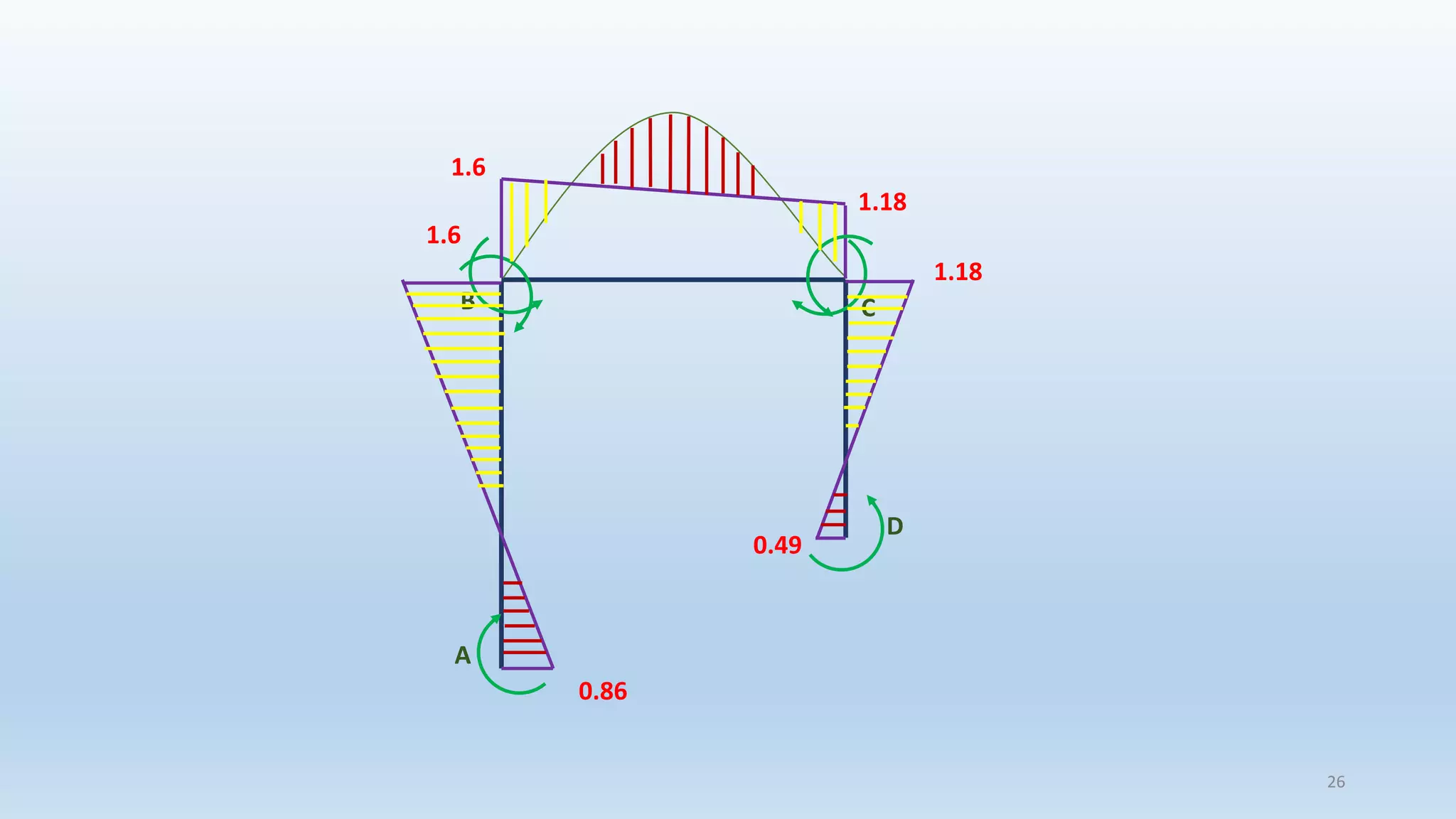

25. 25
A B C D
Sway force = 9.70 kN 6.22 4.54 -4.54 -5.16 5.16 7.06
Sway force = 0.20 kN 0.13 0.09 -0.09 -0.10 0.10 0.15
Non Sway moment 0.72 1.49 -1.49 1.26 -1.26 -0.61
Final Moments 0.85 1.58 -1.58 1.16 -1.16 -0.46
for
9.70 kN = 6.22
1 kN =
6.22
9.70
0.20 kN =
6.22
9.70
x 0.20 =0.13
