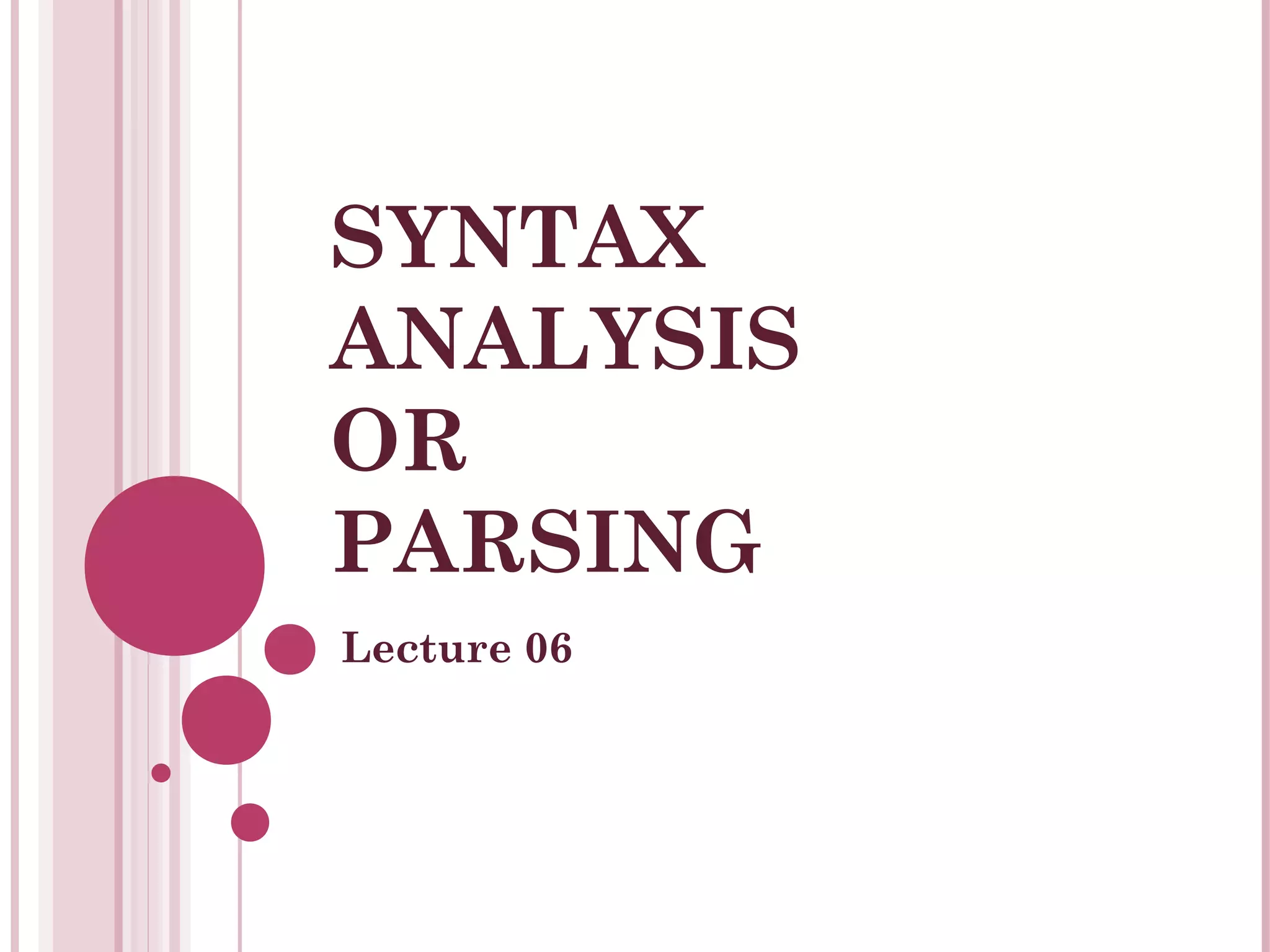

1. SYNTAX
ANALYSIS
OR
PARSING
Lecture 06

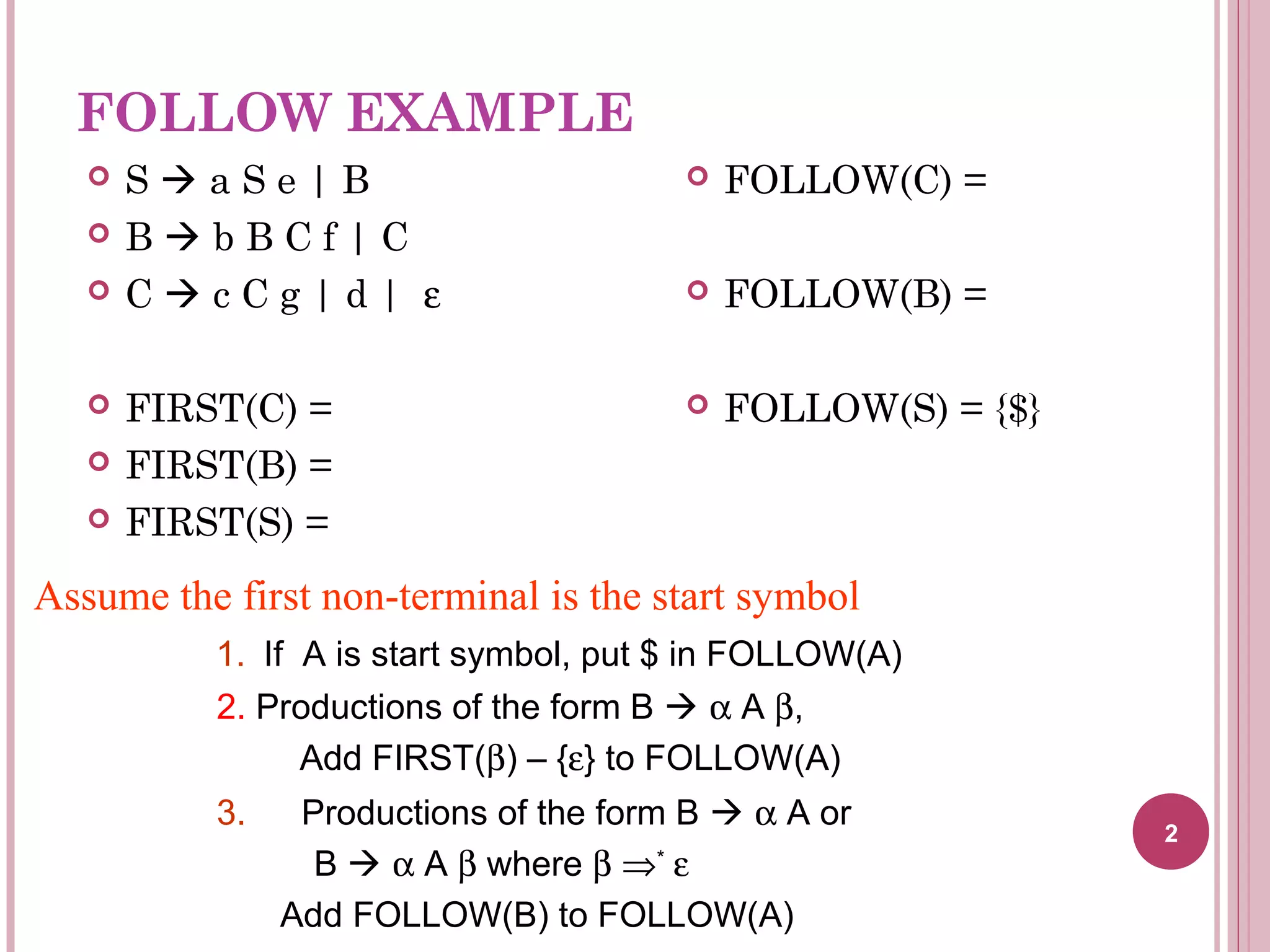

2. FOLLOW EXAMPLE
 S  a S e | B
 B  b B C f | C
 C  c C g | d | ε
 FIRST(C) =
 FIRST(B) =
 FIRST(S) =
 FOLLOW(C) =
 FOLLOW(B) =
 FOLLOW(S) = {$}
Assume the first non-terminal is the start symbol
1. If A is start symbol, put $ in FOLLOW(A)
2. Productions of the form B  α A β,
Add FIRST(β) – {ε} to FOLLOW(A)
3. Productions of the form B  α A or
B  α A β where β ⇒*
ε
Add FOLLOW(B) to FOLLOW(A)
2

3. FOLLOW EXAMPLE
 S  a S e | B
 B  b B C f | C
 C  c C g | d | ε
 FIRST(C) = {c,d,ε}
 FIRST(B) = {b,c,d,ε}
 FIRST(S) = {a,b,c,d,ε}
 FOLLOW(C) =
 FOLLOW(B) =
 FOLLOW(S) = { }$, e
{c,d} ∪ FOLLOW(S)
= {c,d,e,$}
{f,g} ∪ FOLLOW(B)
= {c,d,e,f,g,$}
3

4. PREDICTIVE PARSING
4

5. PREDICTIVE PARSING
 LL(1) Grammars
 Can do predictive parsing
 Can select the right rule
 Looking at only the next 1 input symbol
 First L : Left to Right Scanning
 Second L: Leftmost derivation
 1 : one input symbol look-ahead for predictive decision
 LL(k) Grammars
 Can do predictive parsing
 Can select the right rule
 Looking at only the next k input symbols
 Techniques to modify the grammar:
 Left Factoring
 Removal of Left Recursion
 LL(k) Language
 Can be described with an LL(k) grammar
5

6. TABLE DRIVEN PREDICTIVE
PARSING
6

7. PARSE TABLE CONSTRUCTION
7

8. TABLE DRIVEN PREDICTIVE
PARSING
8

9. TABLE DRIVEN PREDICTIVE
PARSING
9

10. PREDICTIVE PARSING
ALGORITHM
10

11. PREDICTIVE PARSING
11

12. PREDICTIVE PARSING
12

13. PREDICTIVE PARSING
13

14. PREDICTIVE PARSING
14

15. PREDICTIVE PARSING
15

16. PREDICTIVE PARSING
16

17. PREDICTIVE PARSING
17

18. PREDICTIVE PARSING
18

19. PREDICTIVE PARSING
19

20. PREDICTIVE PARSING
20

21. PREDICTIVE PARSING
21

22. PREDICTIVE PARSING
22

23. PREDICTIVE PARSING
23

24. PREDICTIVE PARSING
24

25. PREDICTIVE PARSING
25

26. PREDICTIVE PARSING
26

27. PREDICTIVE PARSING
27

28. PREDICTIVE PARSING
28

29. PREDICTIVE PARSING
29

30. PREDICTIVE PARSING
30

31. PREDICTIVE PARSING
31

32. PREDICTIVE PARSING
32

33. PREDICTIVE PARSING
33

34. PREDICTIVE PARSING
34

35. PREDICTIVE PARSING
35

36. PREDICTIVE PARSING
36

37. PREDICTIVE PARSING
37

38. PREDICTIVE PARSING
38

39. PREDICTIVE PARSING
39

40. PREDICTIVE PARSING
40

41. PREDICTIVE PARSING
41

42. PREDICTIVE PARSING
42

43. PREDICTIVE PARSING
43

44. PREDICTIVE PARSING
44

45. PREDICTIVE PARSING
45

46. PREDICTIVE PARSING
46

47. PREDICTIVE PARSING
47

48. PREDICTIVE PARSING
48

49. PREDICTIVE PARSING
49

50. PREDICTIVE PARSING
50

51. PREDICTIVE PARSING
51

52. PREDICTIVE PARSING
52

53. PREDICTIVE PARSING
53

54. PREDICTIVE PARSING
54

55. PREDICTIVE PARSING
55

56. PREDICTIVE PARSING
56

57. PREDICTIVE PARSING
57

58. RECONSTRUCTING THE PARSE
TREE
58

59. RECONSTRUCTING THE PARSE
TREE
59

60. RECONSTRUCTING THE PARSE
TREE
60

61. EXAMPLE: THE “DANGLING ELSE”
GRAMMAR
61

62. EXAMPLE: THE “DANGLING ELSE”
GRAMMAR
62

63. EXAMPLE: THE “DANGLING ELSE”
GRAMMAR
63

64. EXAMPLE: THE “DANGLING ELSE”
GRAMMAR
64

65. EXAMPLE: THE “DANGLING ELSE”
GRAMMAR
65

66. EXAMPLE: THE “DANGLING ELSE”
GRAMMAR
66

67. EXAMPLE: THE “DANGLING ELSE”
GRAMMAR
67

68. EXAMPLE: THE “DANGLING ELSE”
GRAMMAR
68

69. EXAMPLE: THE “DANGLING ELSE”
GRAMMAR
69

70. EXAMPLE: THE “DANGLING ELSE”
GRAMMAR
70

71. EXAMPLE: THE “DANGLING ELSE”
GRAMMAR
71

72. LL(1) GRAMMAR
 LL(1) grammars
 Are never ambiguous.
 Will never have left recursion.
 Furthermore...
 If we are looking for an “A” and the next symbol is
“b”,
 Then only one production must be possible
 Although elimination of left recursion and left
factoring is easy.
 Some grammar will never be a LL(1) grammar.
LL(1) Grammar
72

73. LL(1) GRAMMAR
73

74. PROPERTIES OF LL(1) GRAMMAR
 A grammar G is LL(1) if an only if whenever A
→α | β are two distinct productions of G the
following conditions hold:
1. For no terminal a do both α and β derive strings
beginning with a.
2. At most one of α and β can derive the empty string.
3. If then β ⇒* ε , then α does not derive any string
beginning with a terminal in FOLLOW(A).
74

75. ERROR RECOVERY
a + b $
Y
X
$
Z
Input
Predictive Parsing
Program
Stack Output
Parsing Table
M[A,a]
When Do Errors Occur? Recall Predictive Parser Function:
1. If X is a terminal and it doesn’t match input.
2. If M[X, Input] is empty – No allowable actions 75

76. ERROR RECOVERY
76

77. ERROR RECOVERY: SKIP INPUT
SYMBOLS
77

78. ERROR RECOVERY: POP THE
STACK
78

79. ERROR RECOVERY: PANIC MODE
79

80. ERROR RECOVERY - TABLE
ENTRIES
80
