- Real-time operating systems provide tools for prioritized control and synchronization of tasks on embedded systems. They manage processes, memory, and communication between tasks. - An OS acts as an intermediary between the user and hardware, making use of the computer convenient and efficient by hiding messy details and optimally allocating resources like the CPU. - On embedded systems specifically, an OS provides software tools to conveniently control tasks according to programmer-assigned priorities and synchronize access to shared resources through mechanisms like semaphores.

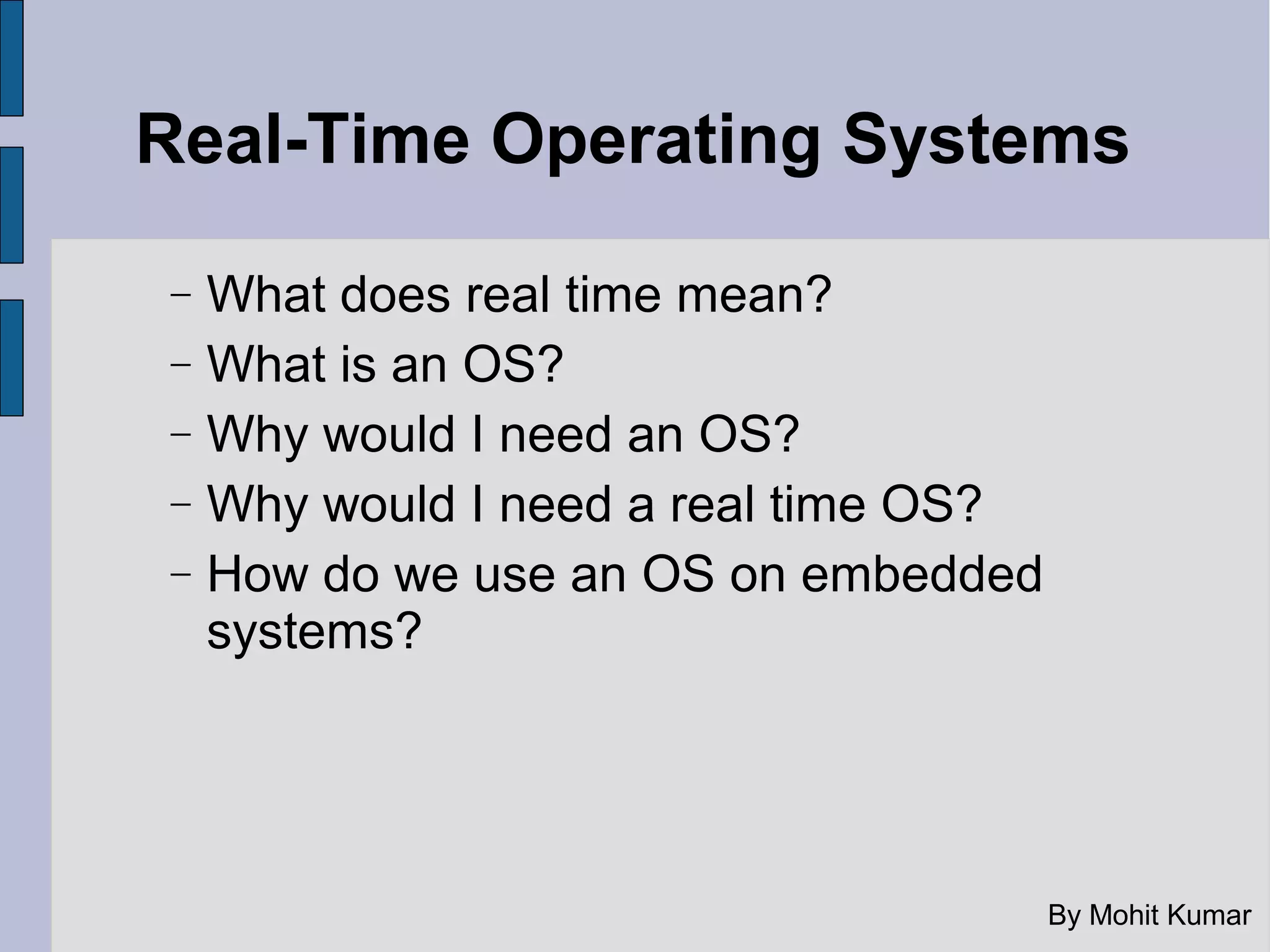

1. Real-Time Operating Systems
− What does real time mean?
− What is an OS?
− Why would I need an OS?
− Why would I need a real time OS?
− How do we use an OS on embedded
systems?
By Mohit Kumar

2. 

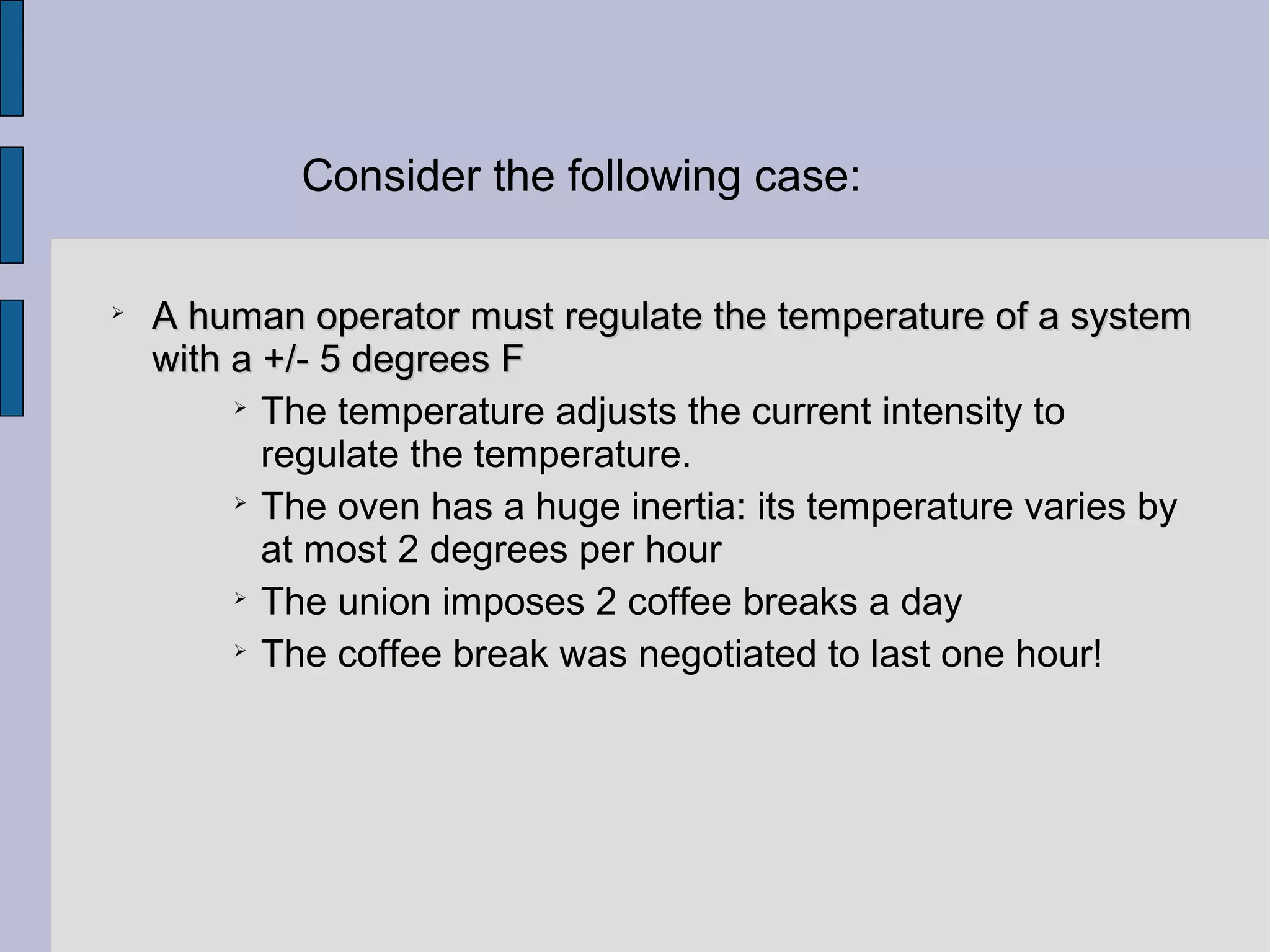

A human operator must regulate the temperature of a systemA human operator must regulate the temperature of a system
with a +/- 5 degrees Fwith a +/- 5 degrees F

The temperature adjusts the current intensity to
regulate the temperature.

The oven has a huge inertia: its temperature varies by
at most 2 degrees per hour

The union imposes 2 coffee breaks a day

The coffee break was negotiated to last one hour!
Consider the following case:

3. 

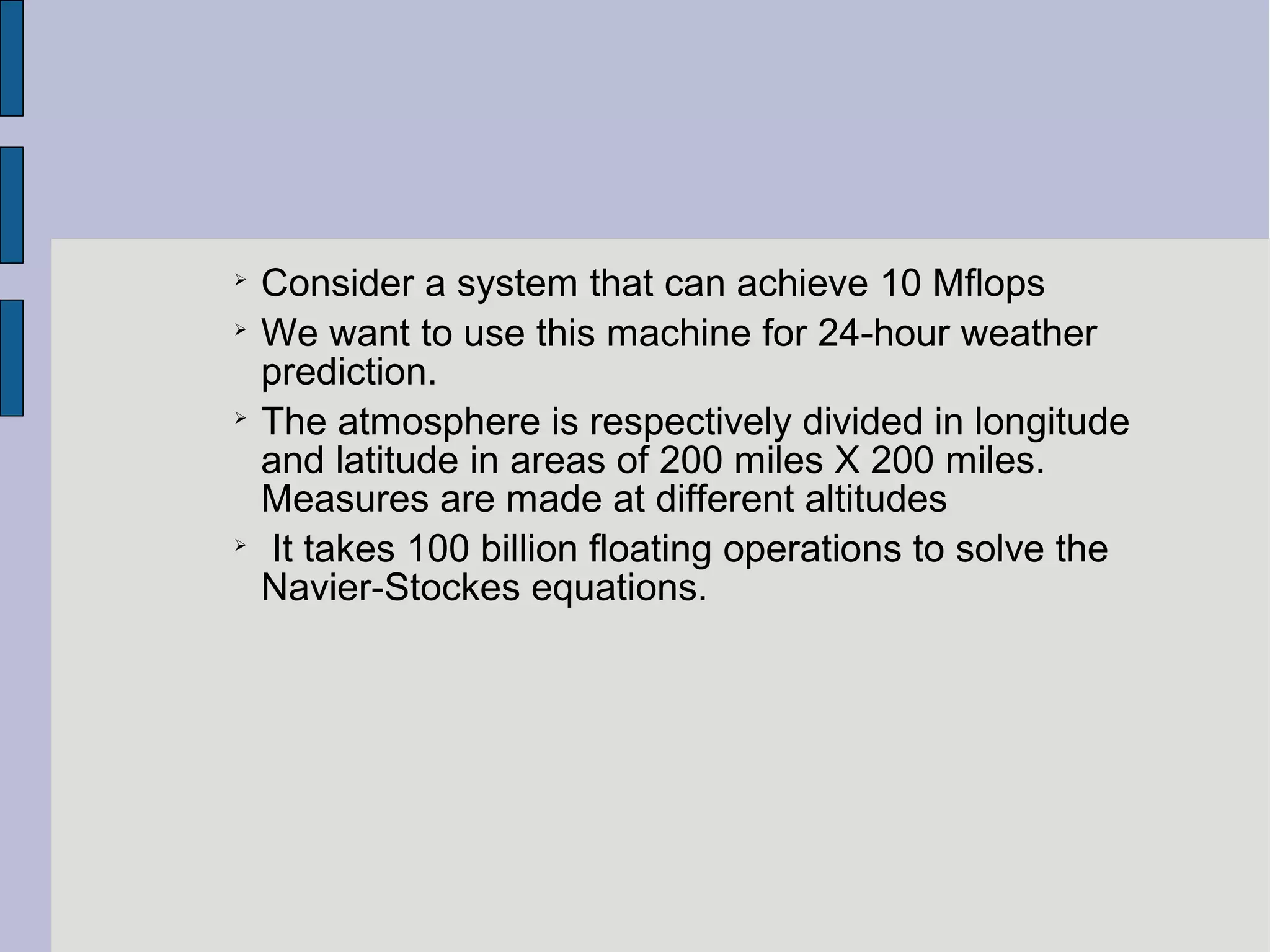

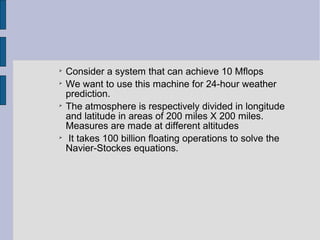

Consider a system that can achieve 10 Mflops

We want to use this machine for 24-hour weather
prediction.

The atmosphere is respectively divided in longitude
and latitude in areas of 200 miles X 200 miles.
Measures are made at different altitudes

It takes 100 billion floating operations to solve the
Navier-Stockes equations.

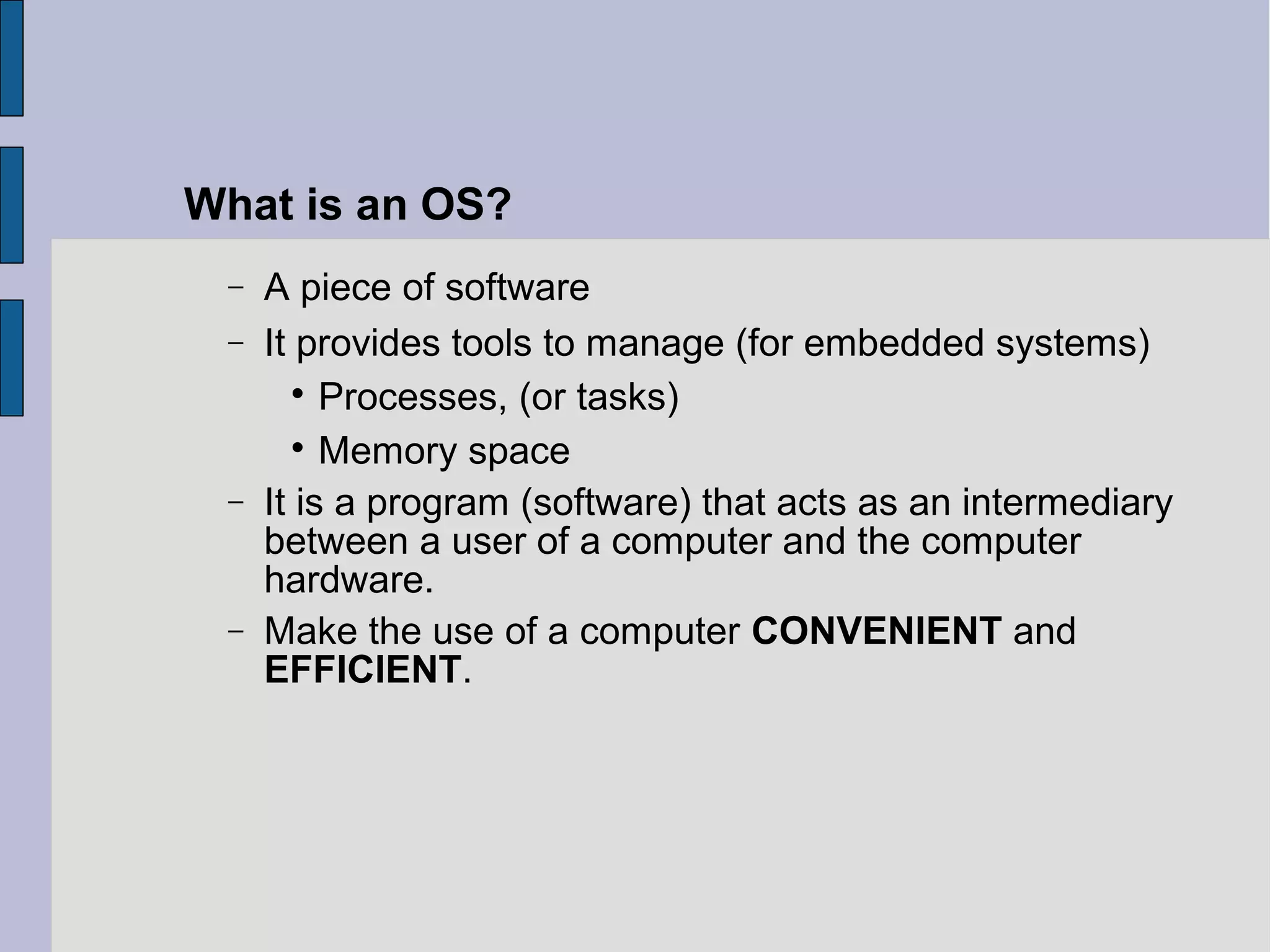

4. − A piece of software
− It provides tools to manage (for embedded systems)

Processes, (or tasks)

Memory space
− It is a program (software) that acts as an intermediary
between a user of a computer and the computer
hardware.
− Make the use of a computer CONVENIENT and
EFFICIENT.
What is an OS?

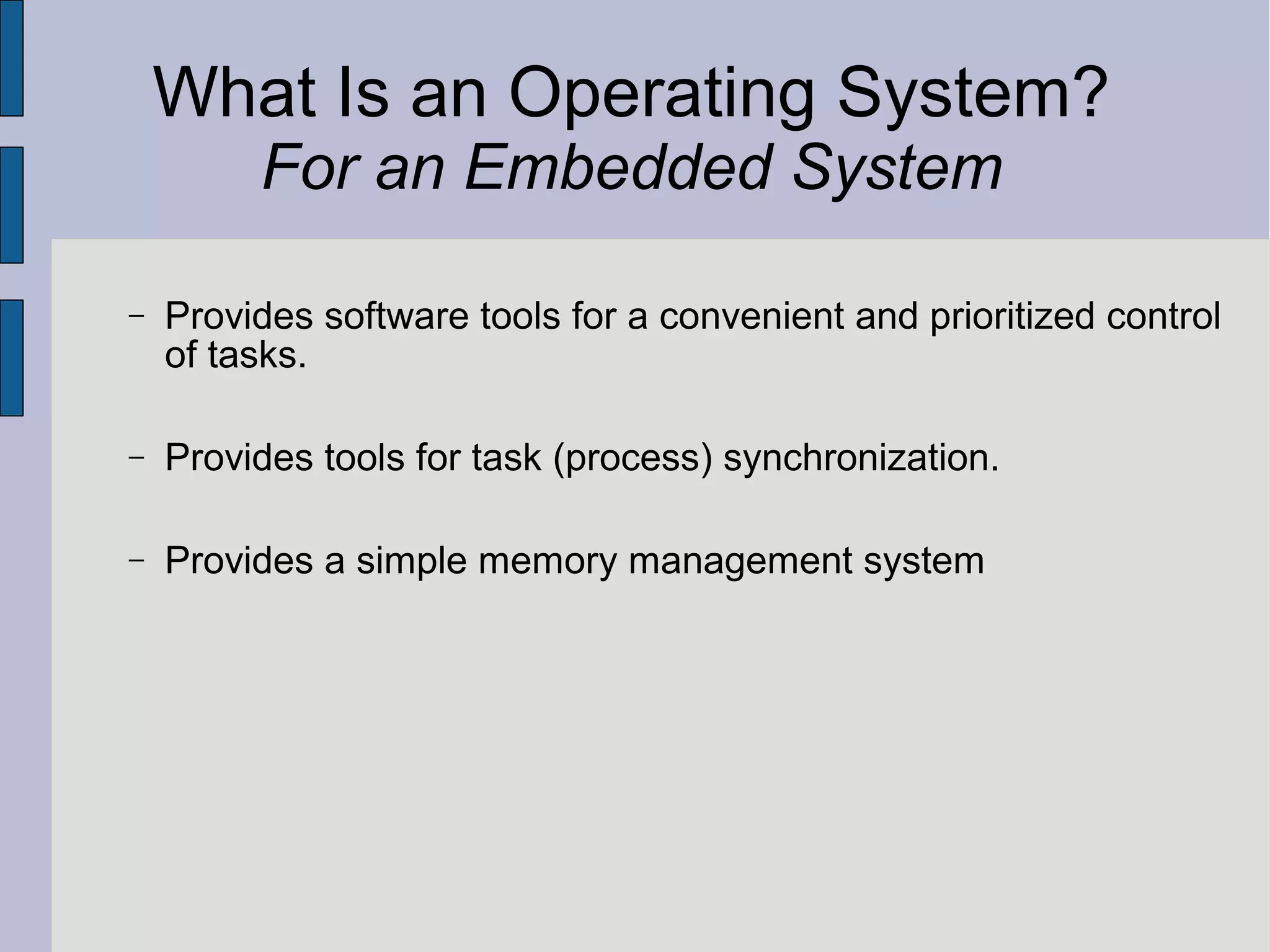

5. What Is an Operating System?
For an Embedded System
− Provides software tools for a convenient and prioritized control
of tasks.
− Provides tools for task (process) synchronization.
− Provides a simple memory management system

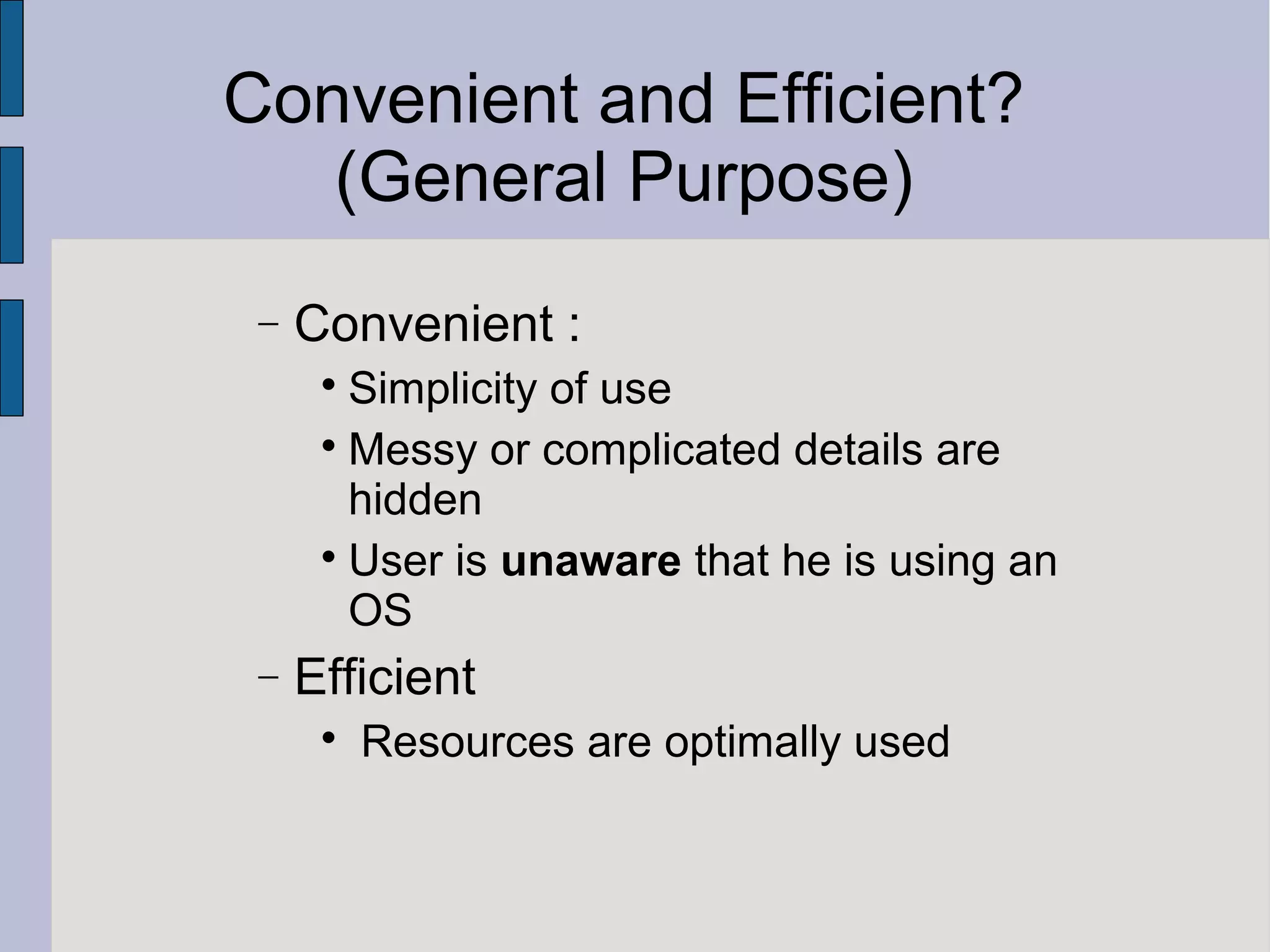

6. Convenient and Efficient?
(General Purpose)
− Convenient :

Simplicity of use

Messy or complicated details are
hidden

User is unaware that he is using an
OS
− Efficient

Resources are optimally used

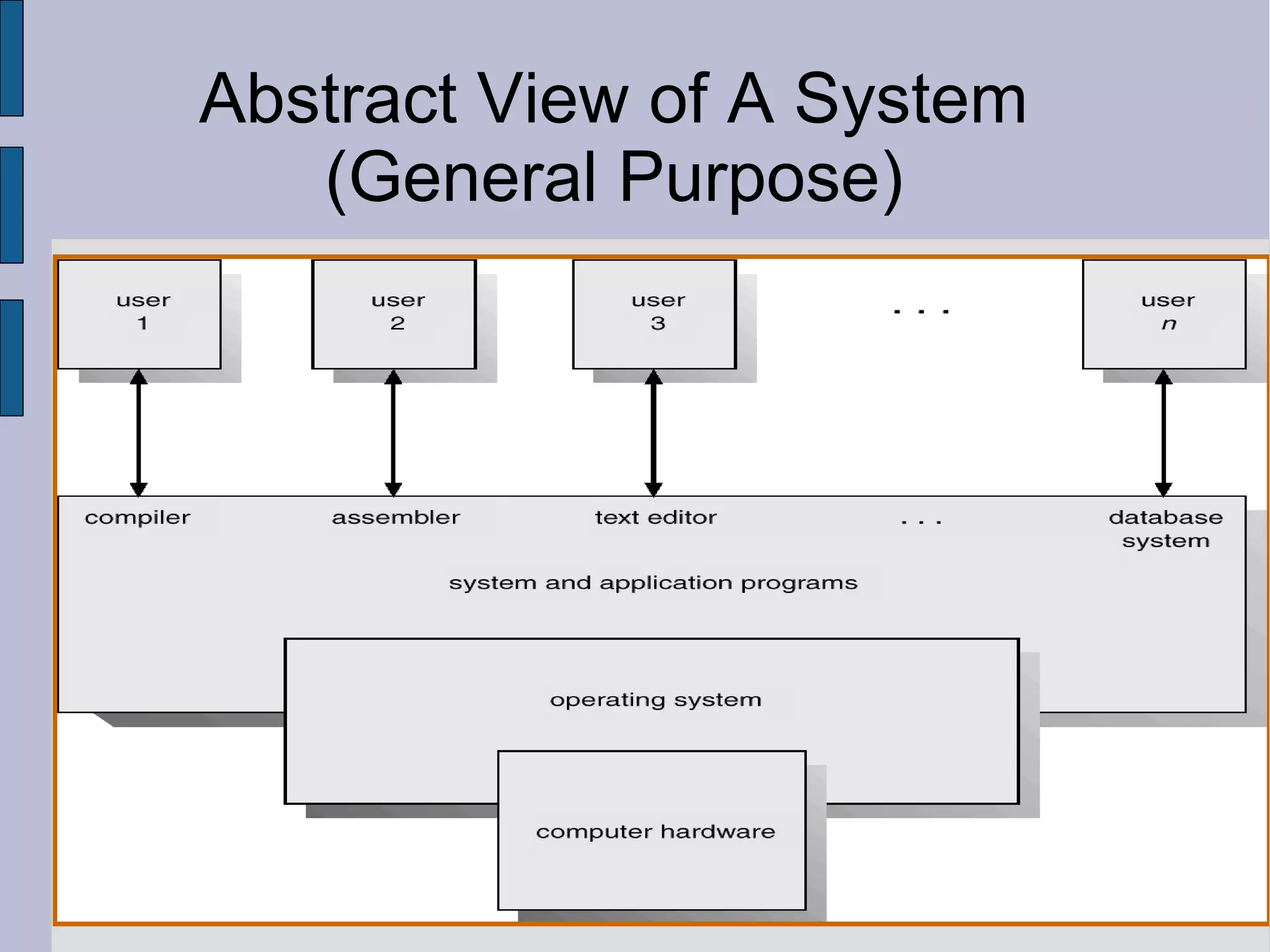

7. Abstract View of A System
(General Purpose)

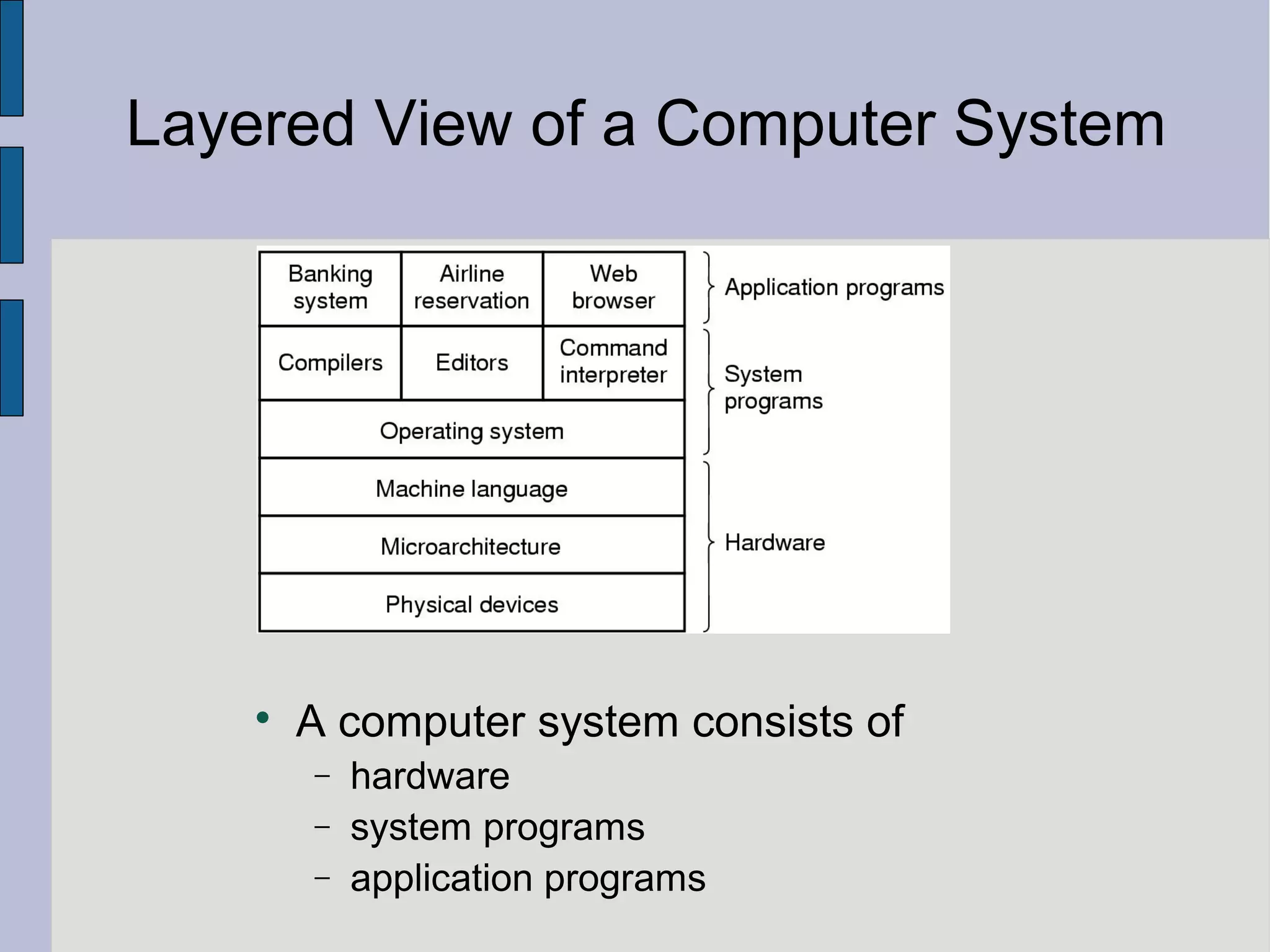

8. Layered View of a Computer System

A computer system consists of
− hardware
− system programs
− application programs

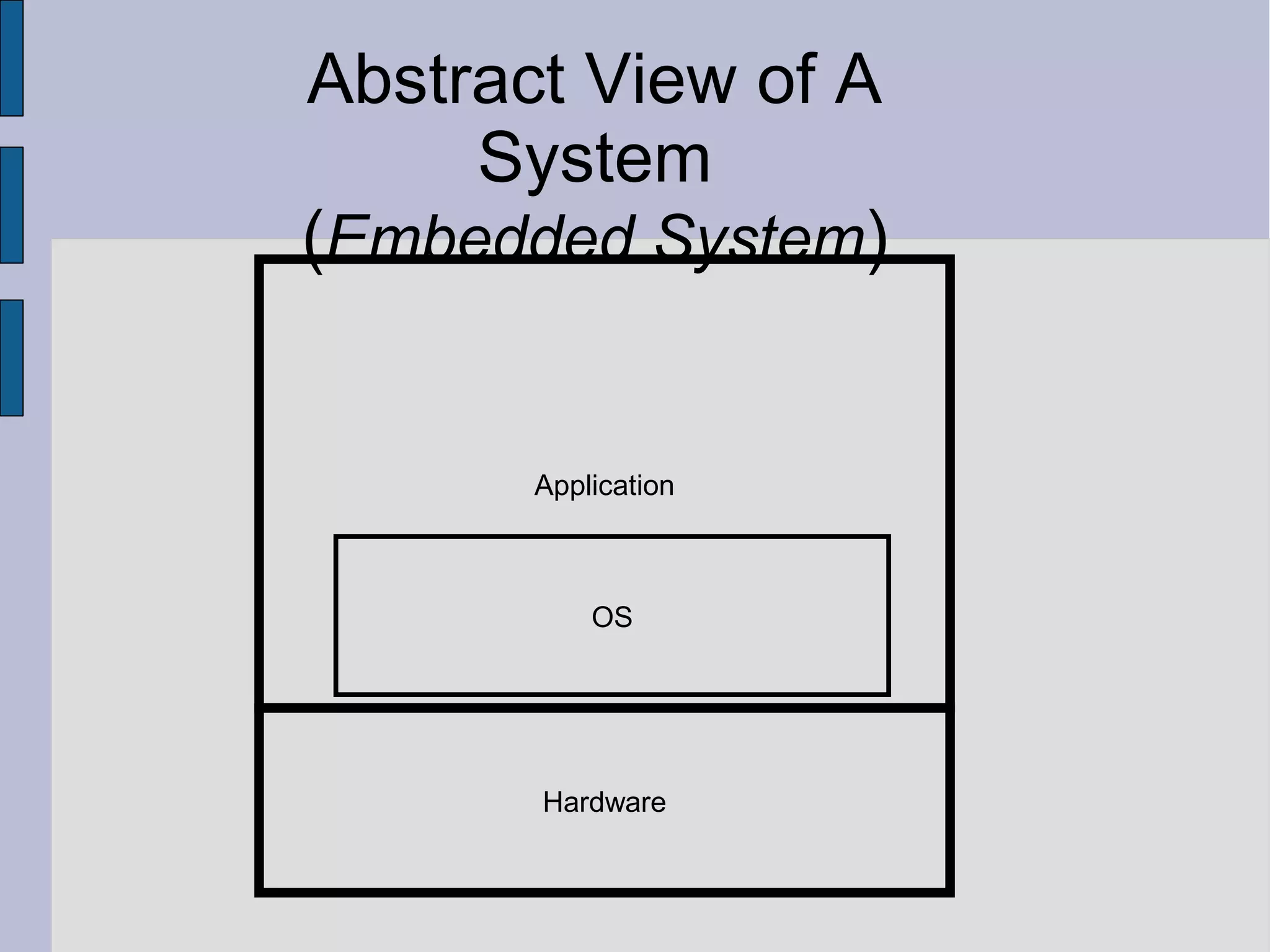

9. Abstract View of A
System
(Embedded System)
Hardware
Application
OS

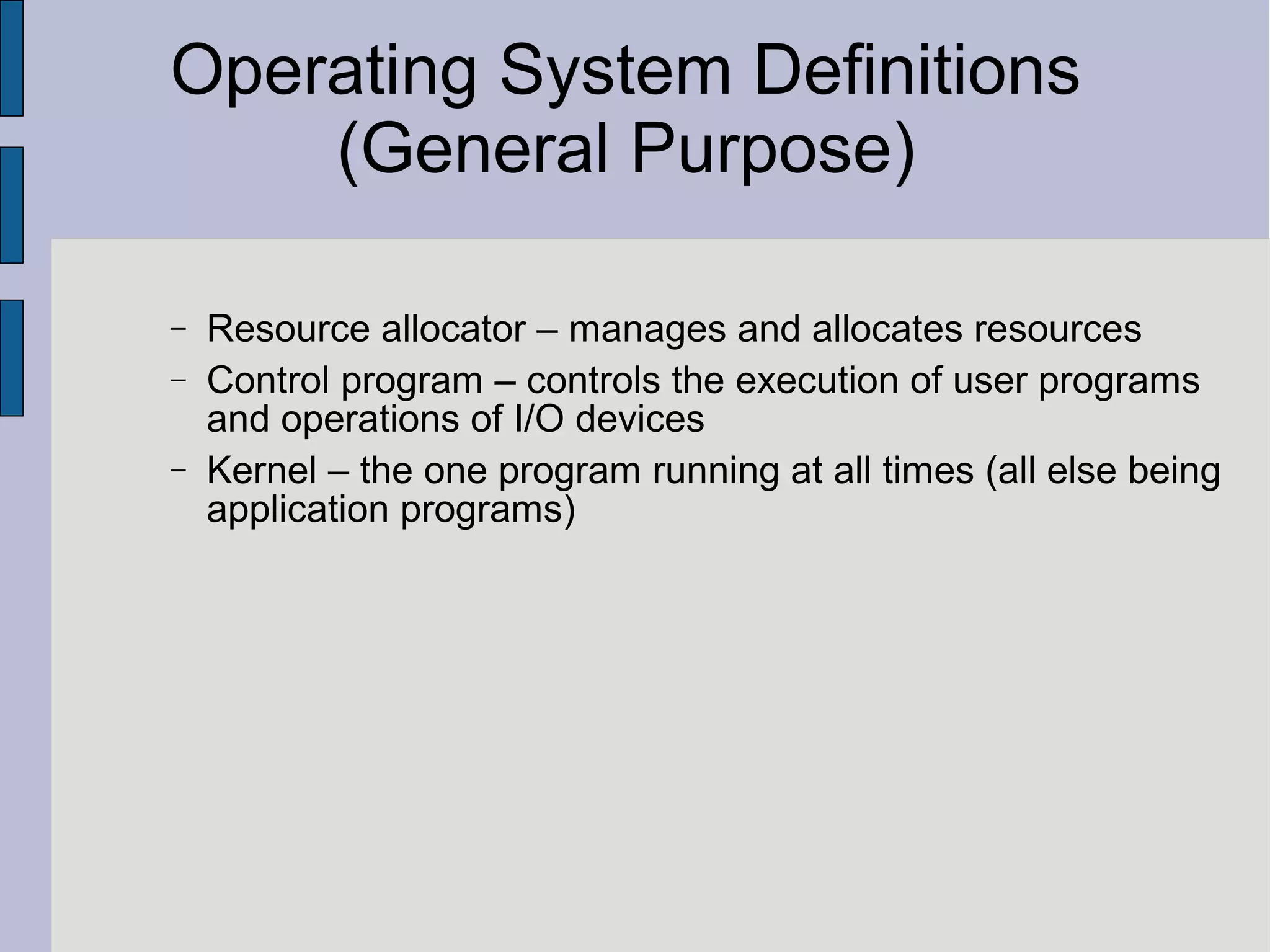

10. Operating System Definitions
(General Purpose)
− Resource allocator – manages and allocates resources
− Control program – controls the execution of user programs
and operations of I/O devices
− Kernel – the one program running at all times (all else being
application programs)

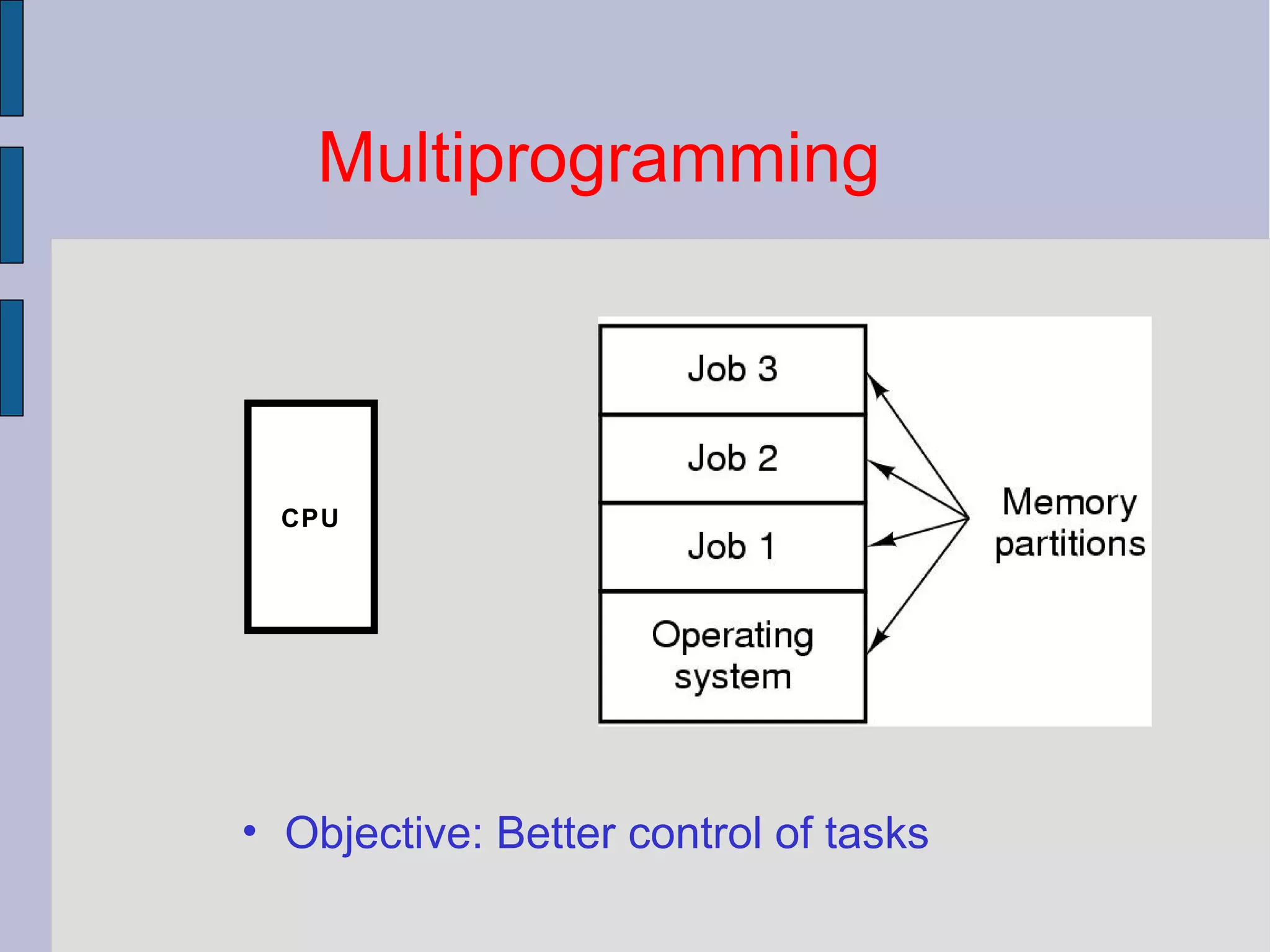

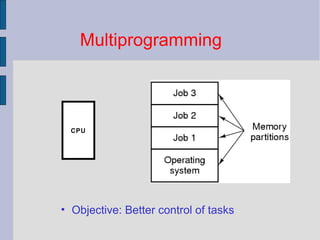

11. Multiprogramming
• Objective: Better control of tasks
CPU

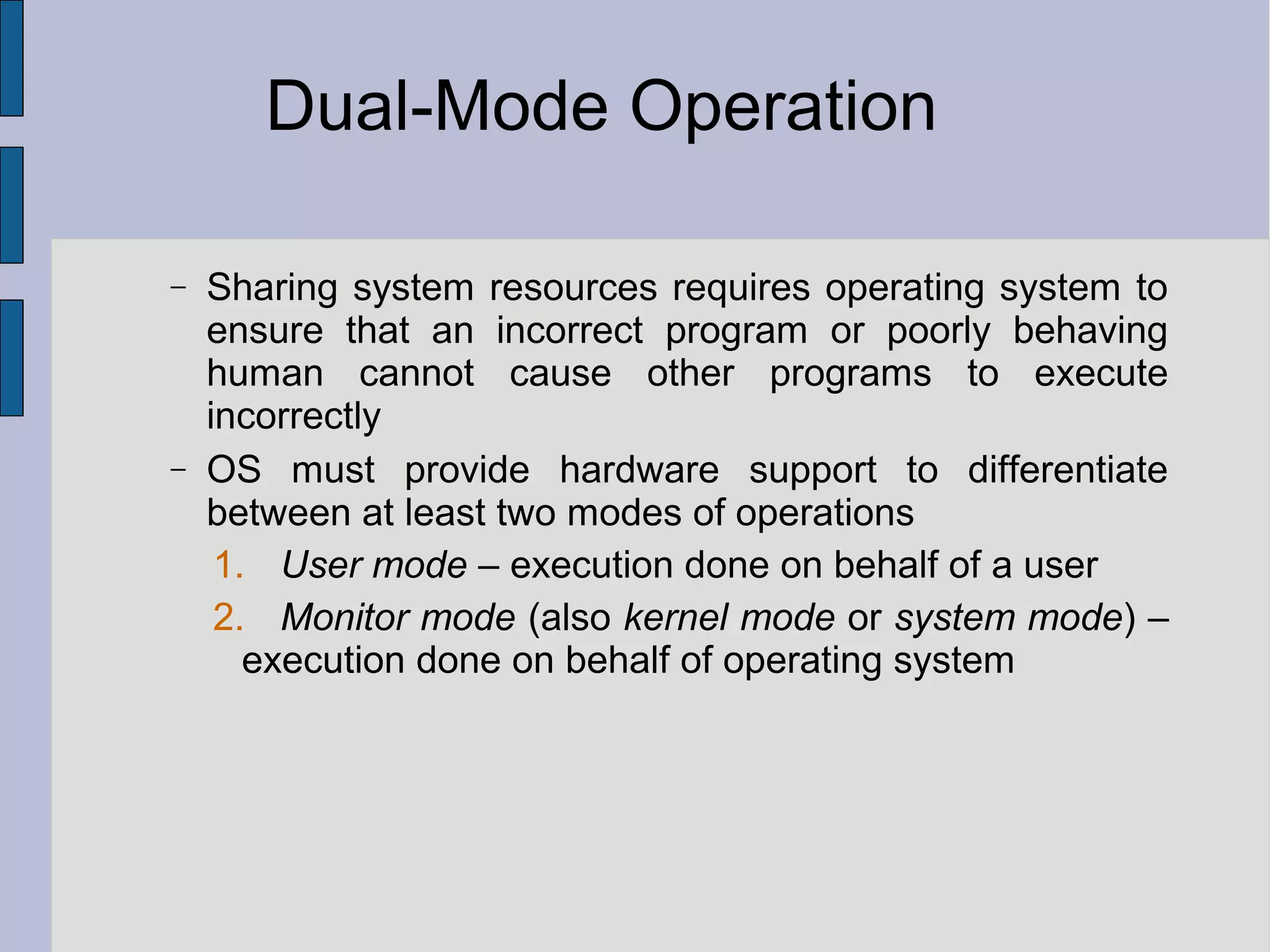

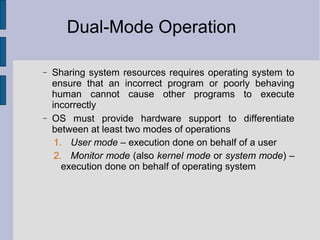

12. Dual-Mode Operation
− Sharing system resources requires operating system to
ensure that an incorrect program or poorly behaving
human cannot cause other programs to execute
incorrectly
− OS must provide hardware support to differentiate
between at least two modes of operations
1. User mode – execution done on behalf of a user
2. Monitor mode (also kernel mode or system mode) –
execution done on behalf of operating system

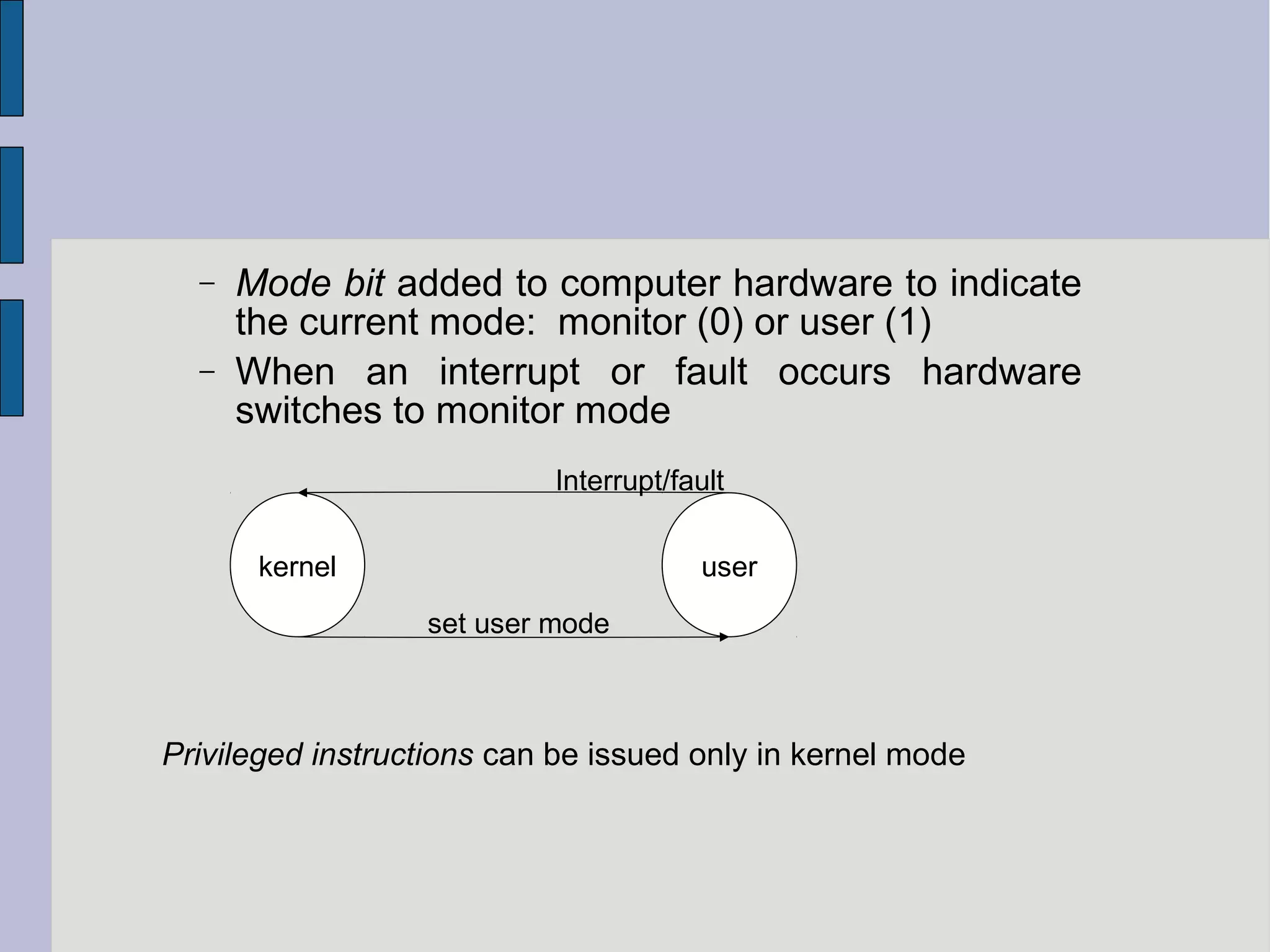

13. − Mode bit added to computer hardware to indicate
the current mode: monitor (0) or user (1)
− When an interrupt or fault occurs hardware
switches to monitor mode
kernel user
set user mode
Privileged instructions can be issued only in kernel mode
Interrupt/fault

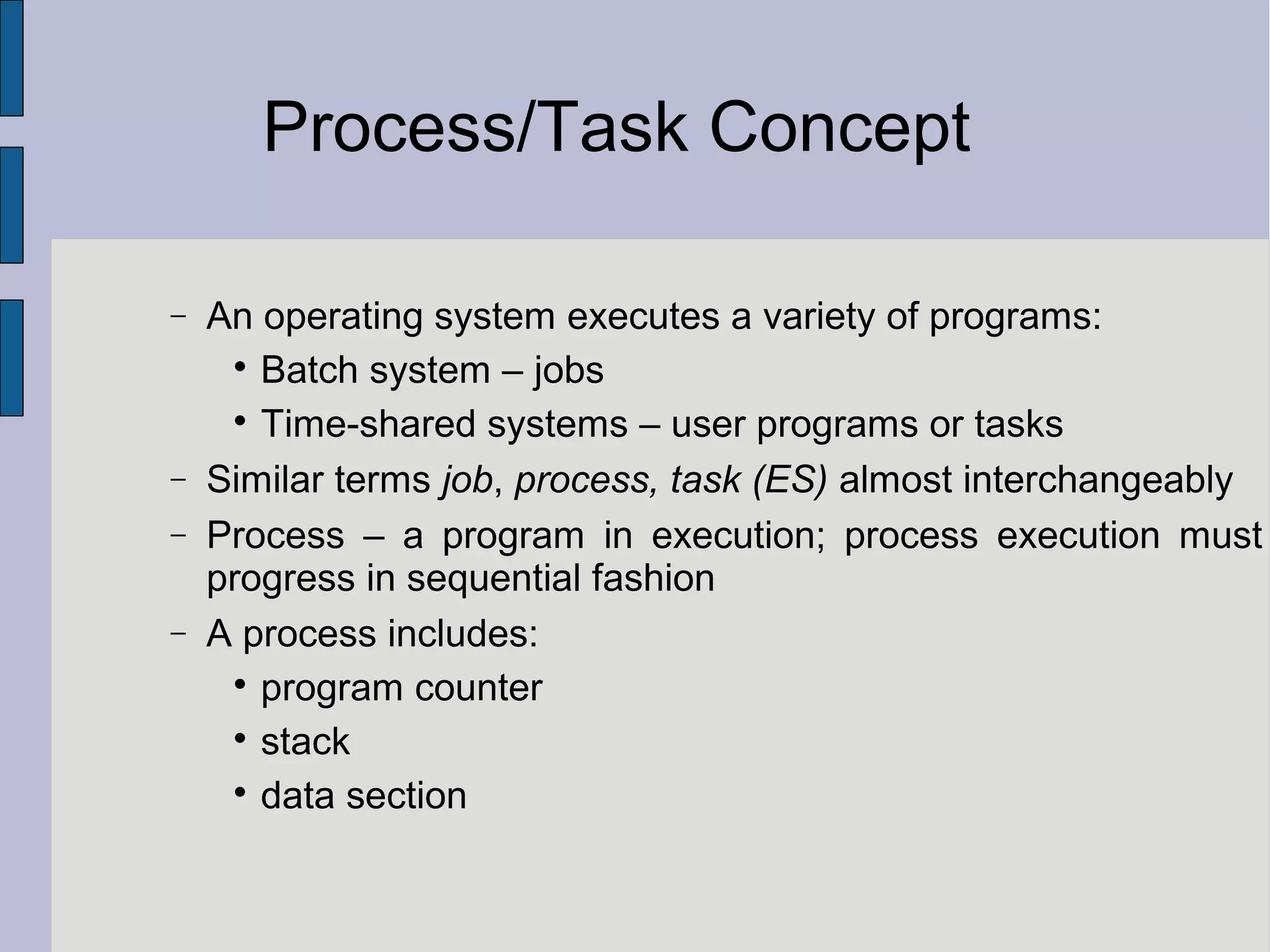

14. Process/Task Concept
− An operating system executes a variety of programs:

Batch system – jobs

Time-shared systems – user programs or tasks
− Similar terms job, process, task (ES) almost interchangeably
− Process – a program in execution; process execution must
progress in sequential fashion
− A process includes:

program counter

stack

data section

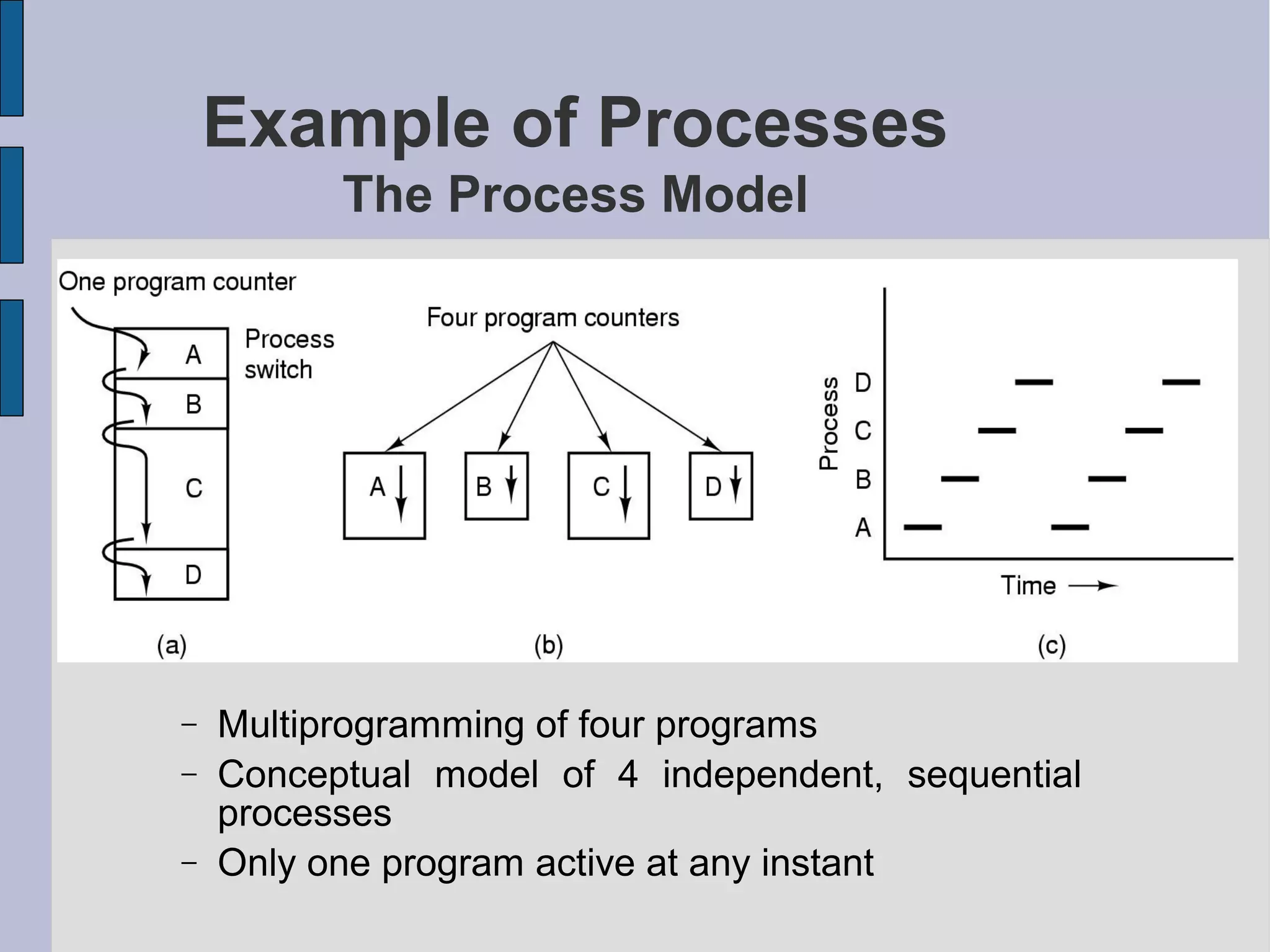

15. Example of Processes
The Process Model
− Multiprogramming of four programs
− Conceptual model of 4 independent, sequential
processes
− Only one program active at any instant

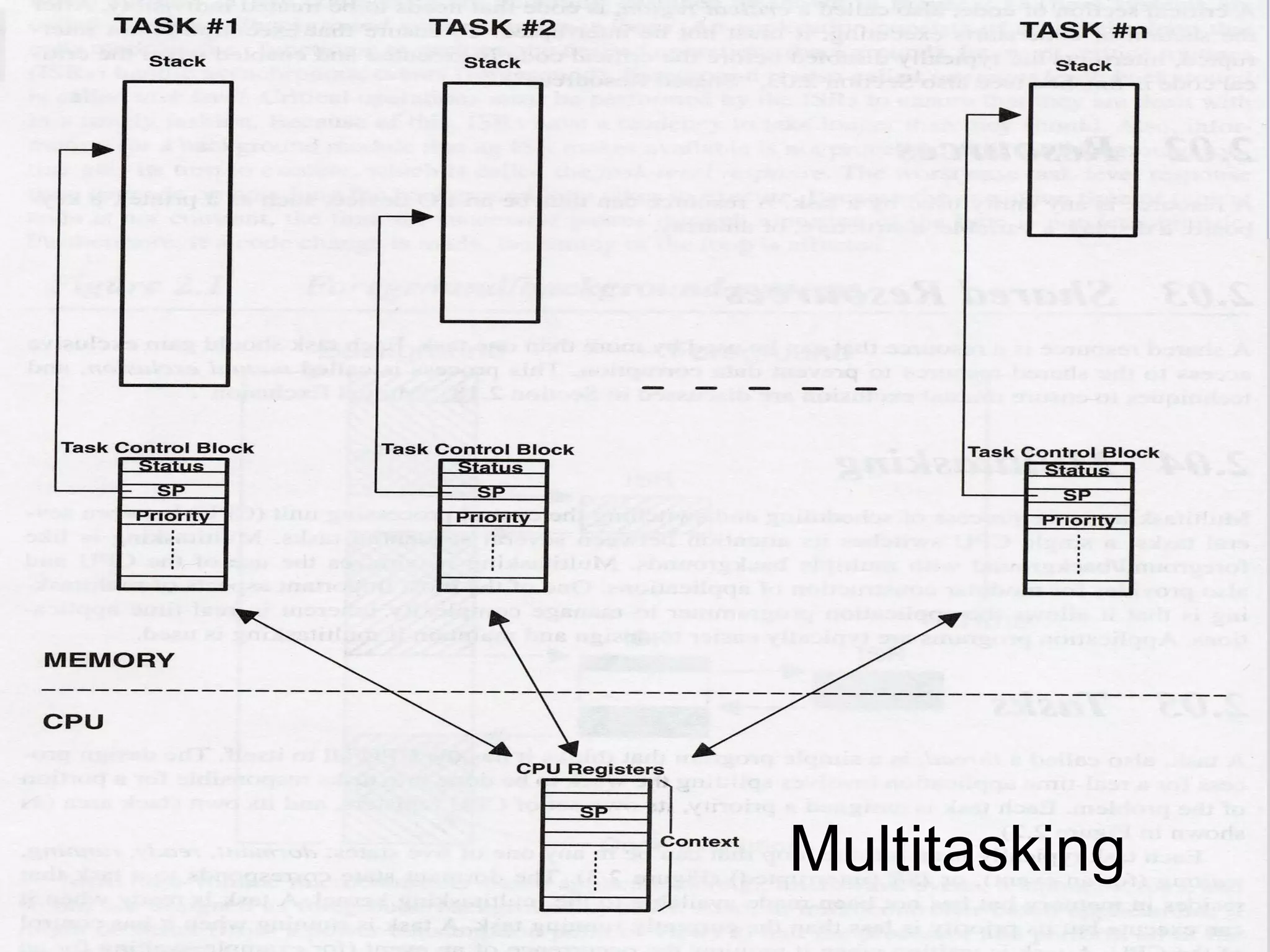

16. Multitasking

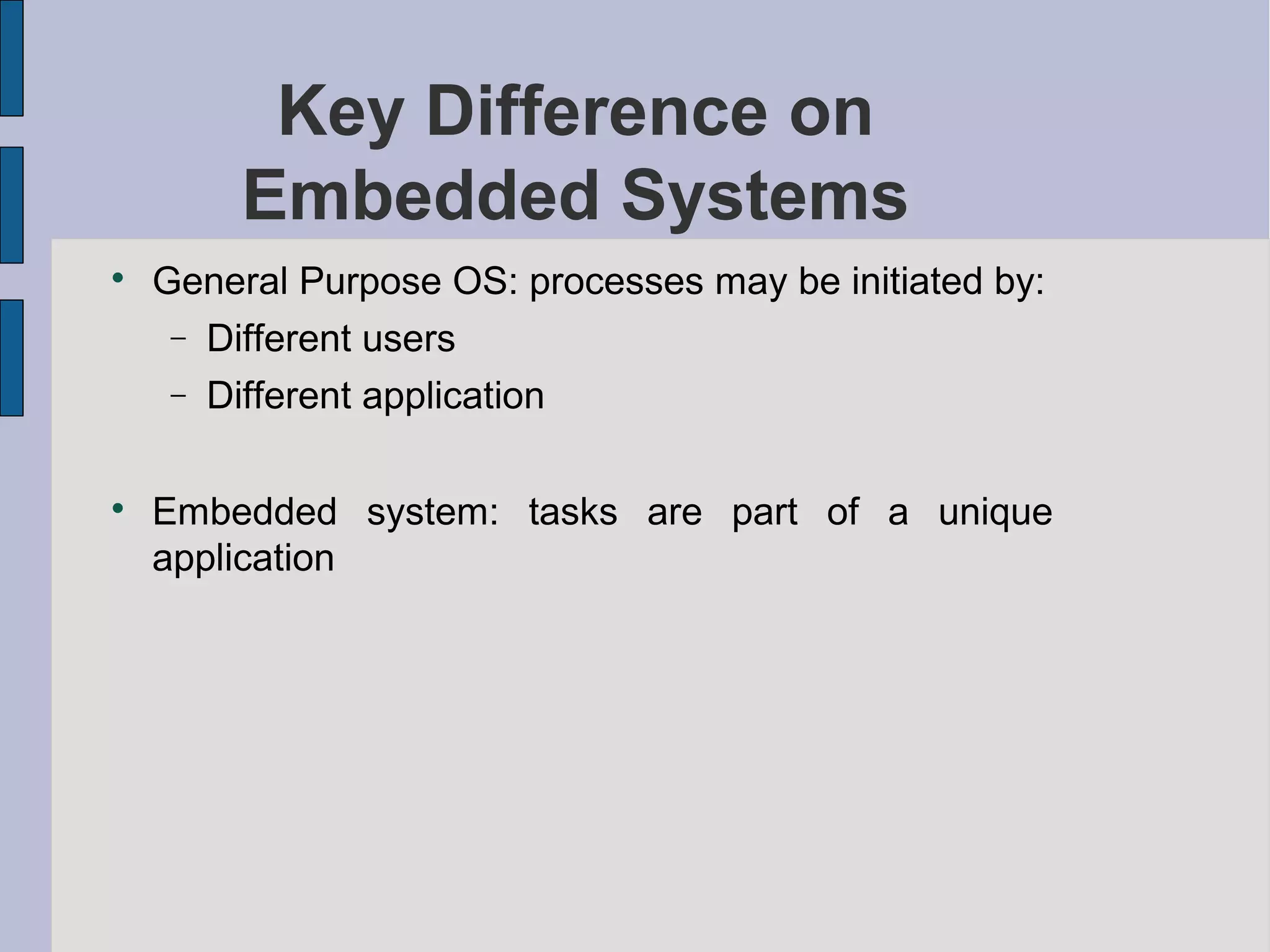

17. Key Difference on
Embedded Systems
Key Difference on
Embedded Systems

General Purpose OS: processes may be initiated by:
− Different users
− Different application

Embedded system: tasks are part of a unique
application

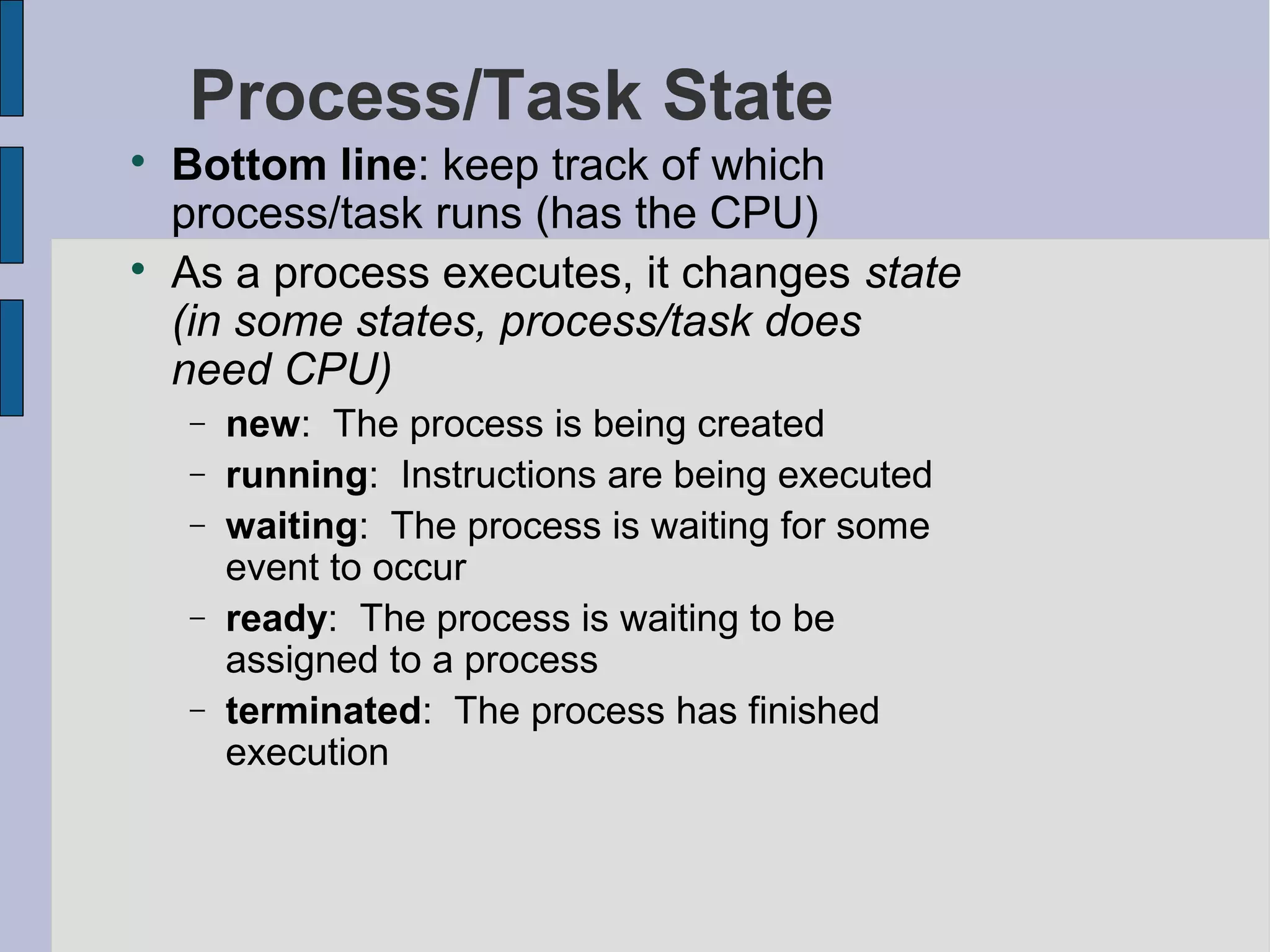

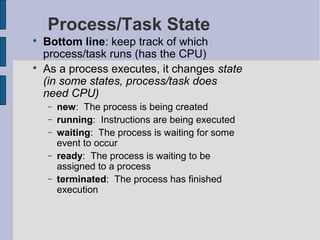

18. Process/Task State

Bottom line: keep track of which
process/task runs (has the CPU)

As a process executes, it changes state
(in some states, process/task does
need CPU)
− new: The process is being created
− running: Instructions are being executed
− waiting: The process is waiting for some
event to occur
− ready: The process is waiting to be
assigned to a process
− terminated: The process has finished
execution

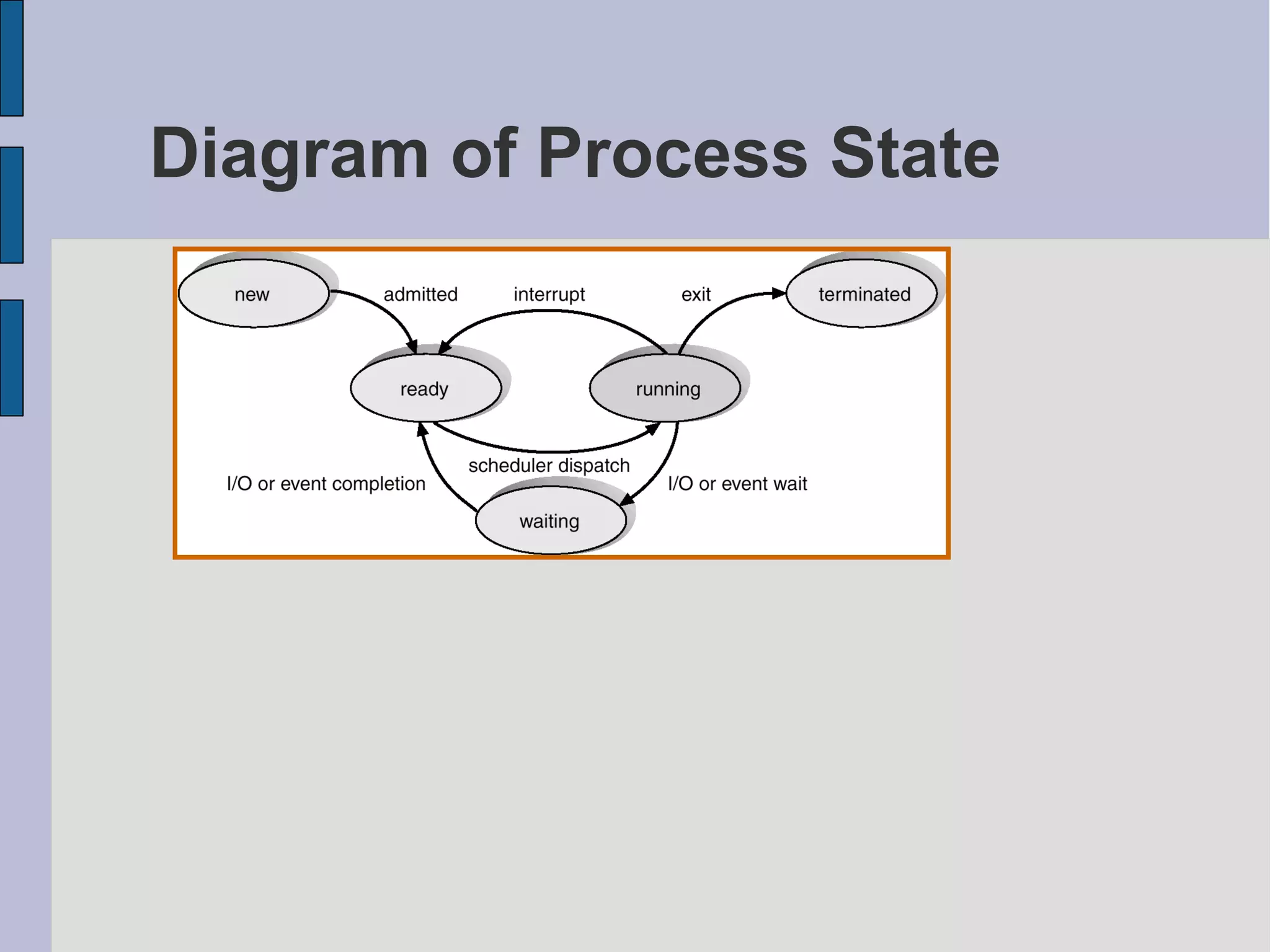

19. Diagram of Process State

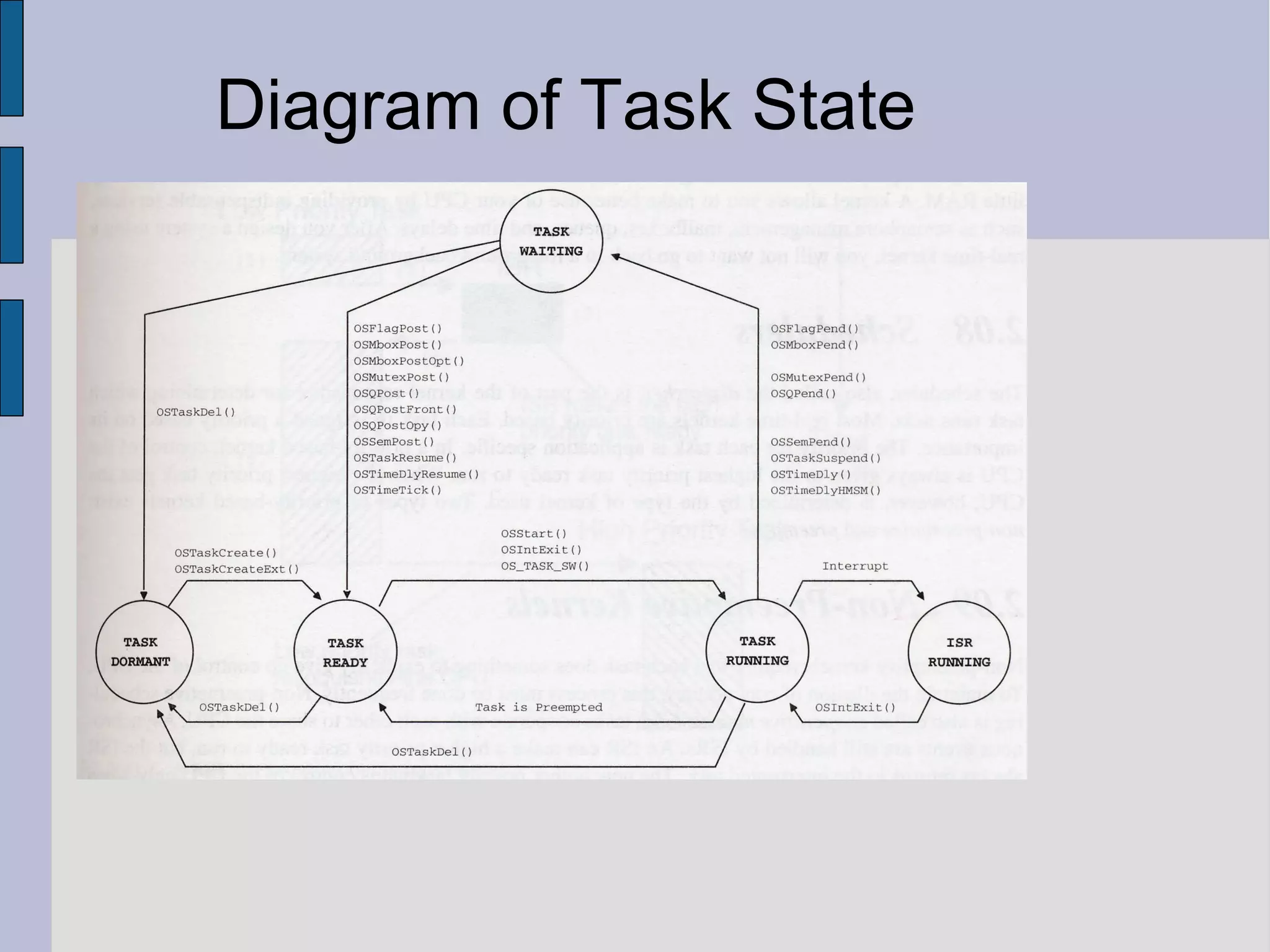

20. Diagram of Task State

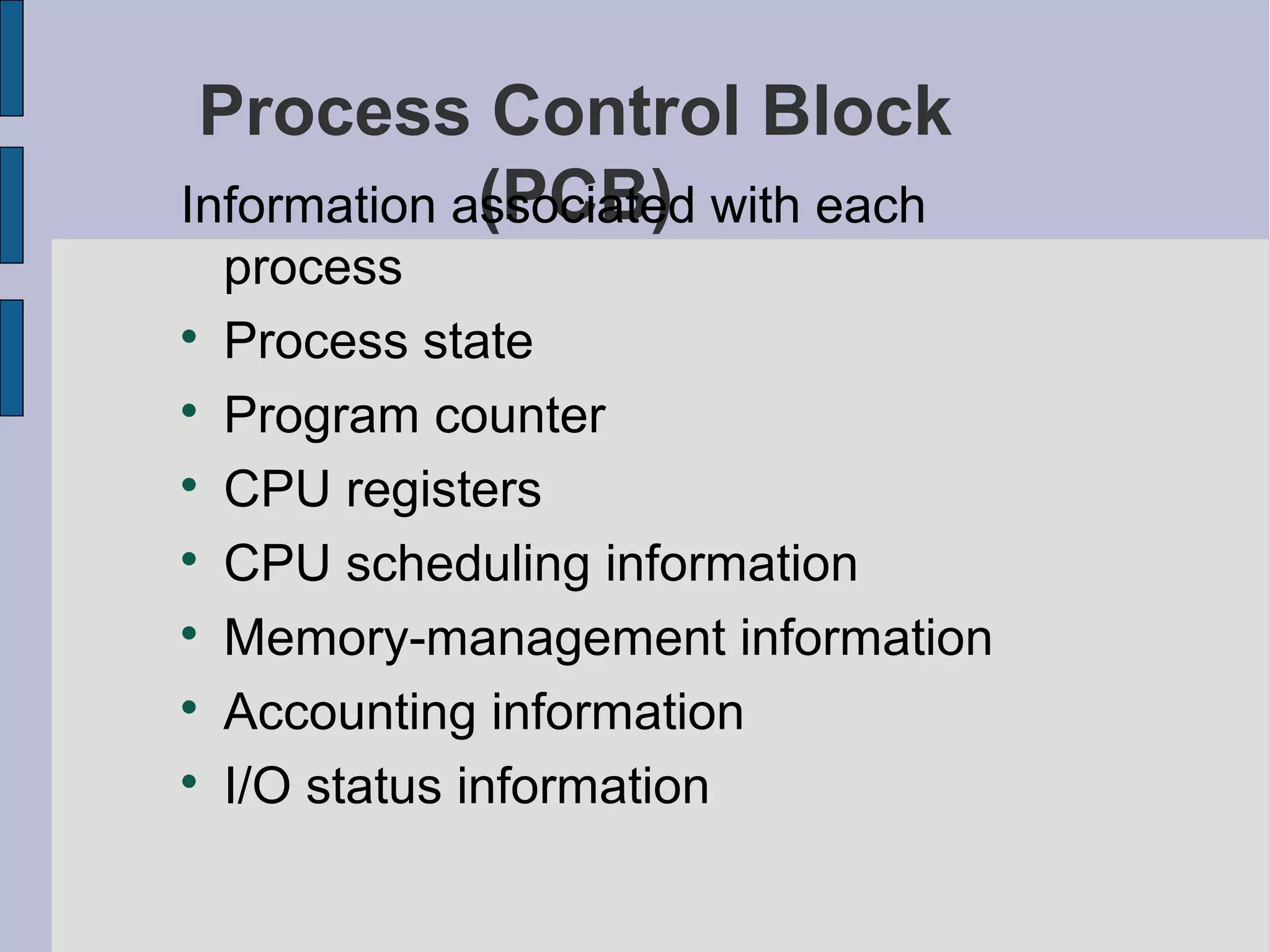

21. Process Control Block
(PCB)Information associated with each
process

Process state

Program counter

CPU registers

CPU scheduling information

Memory-management information

Accounting information

I/O status information

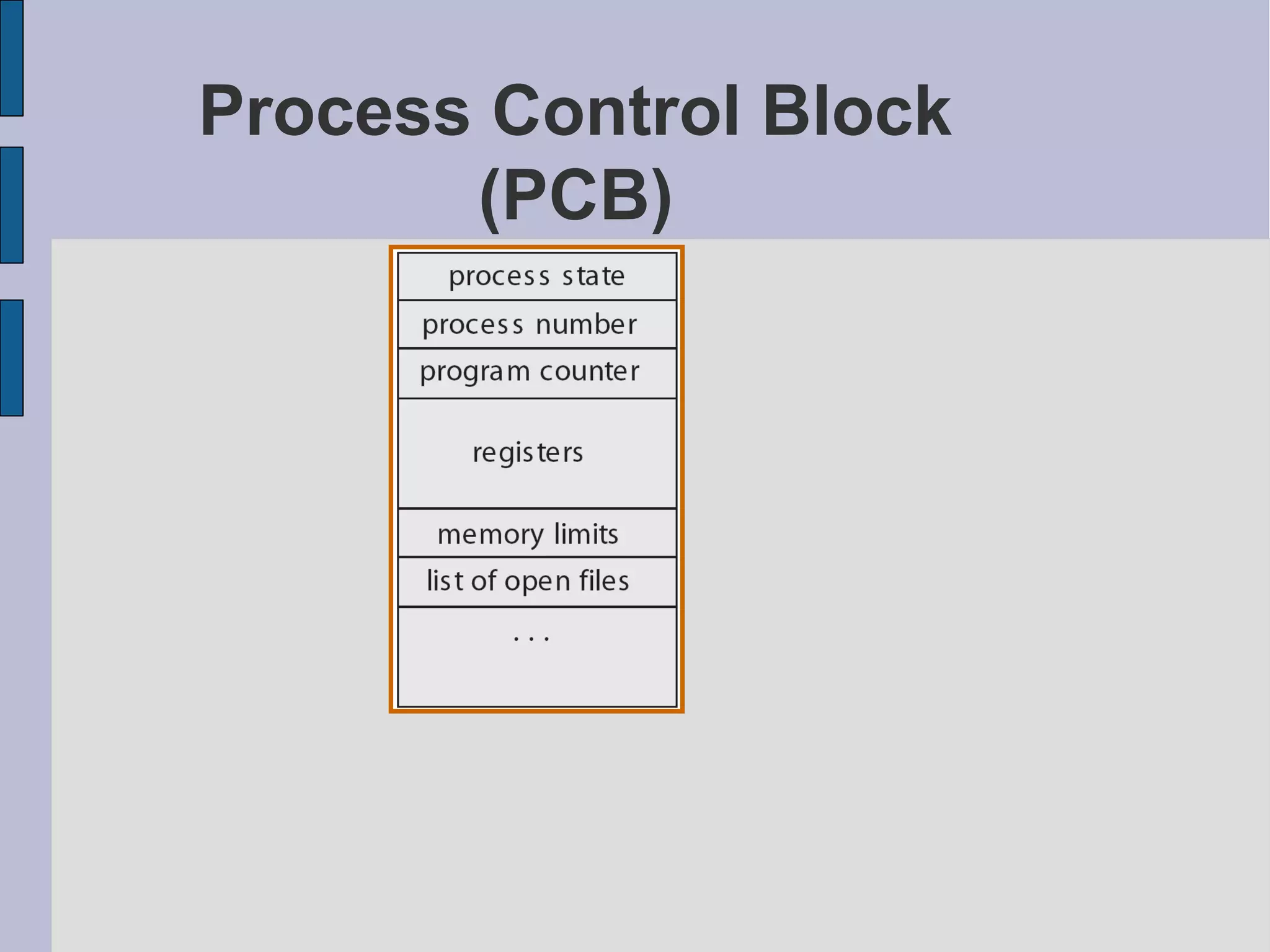

22. Process Control Block
(PCB)

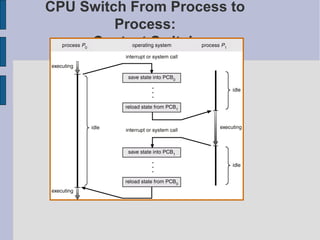

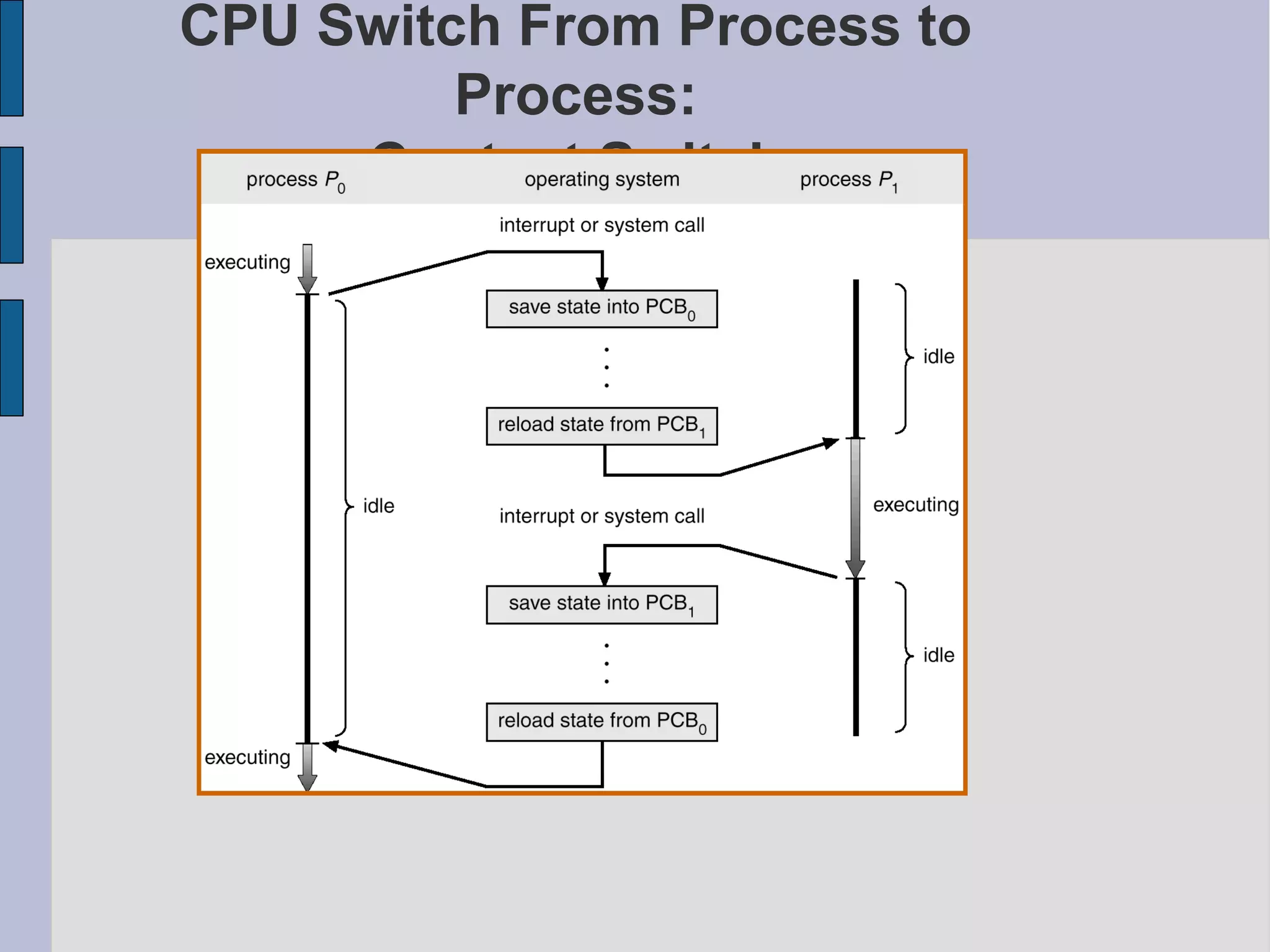

23. CPU Switch From Process to
Process:
Context Switch

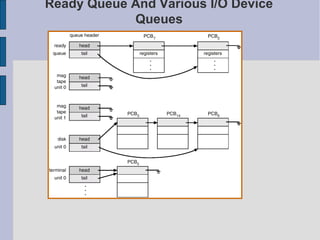

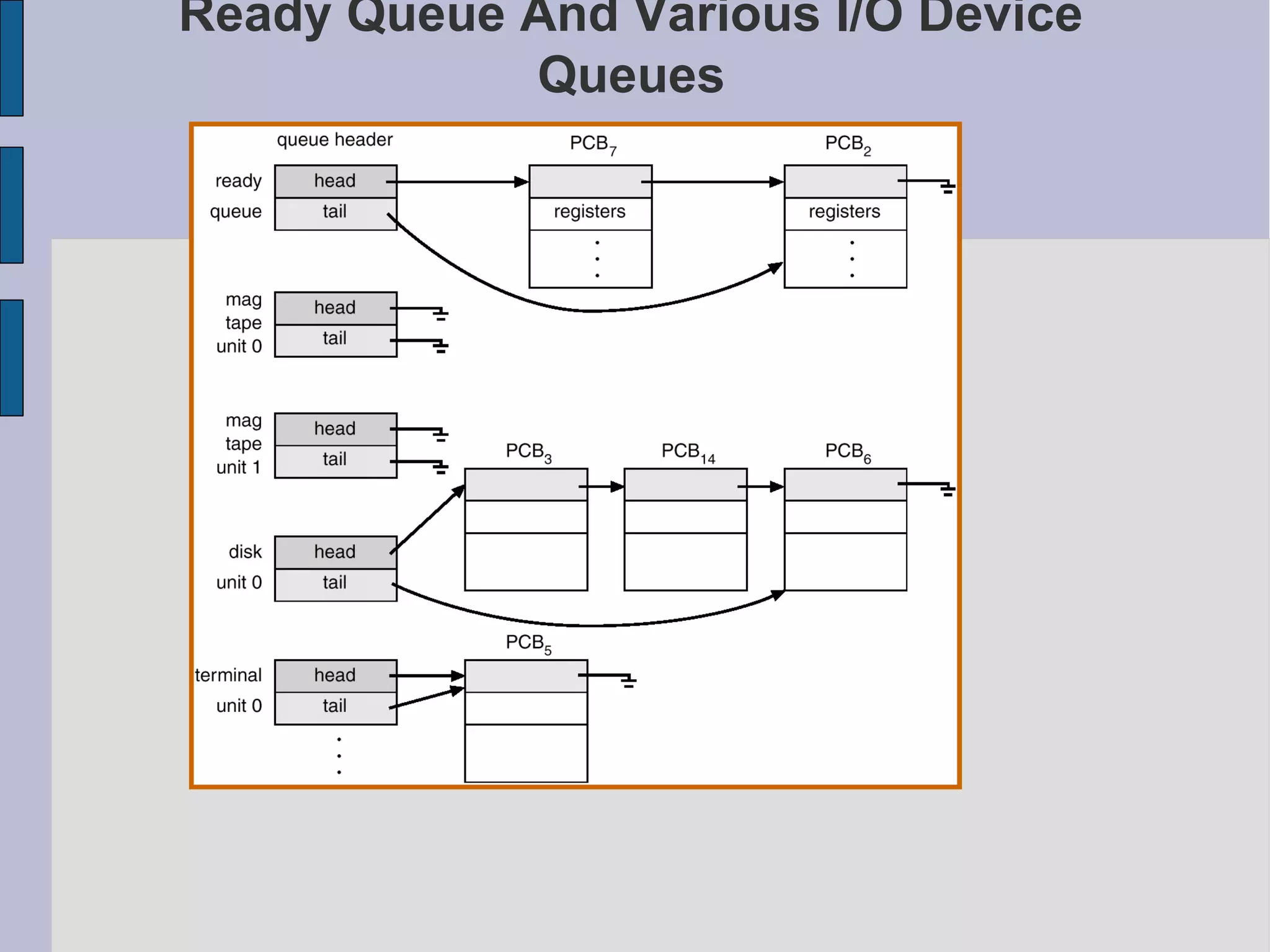

24. Ready Queue And Various I/O Device
Queues

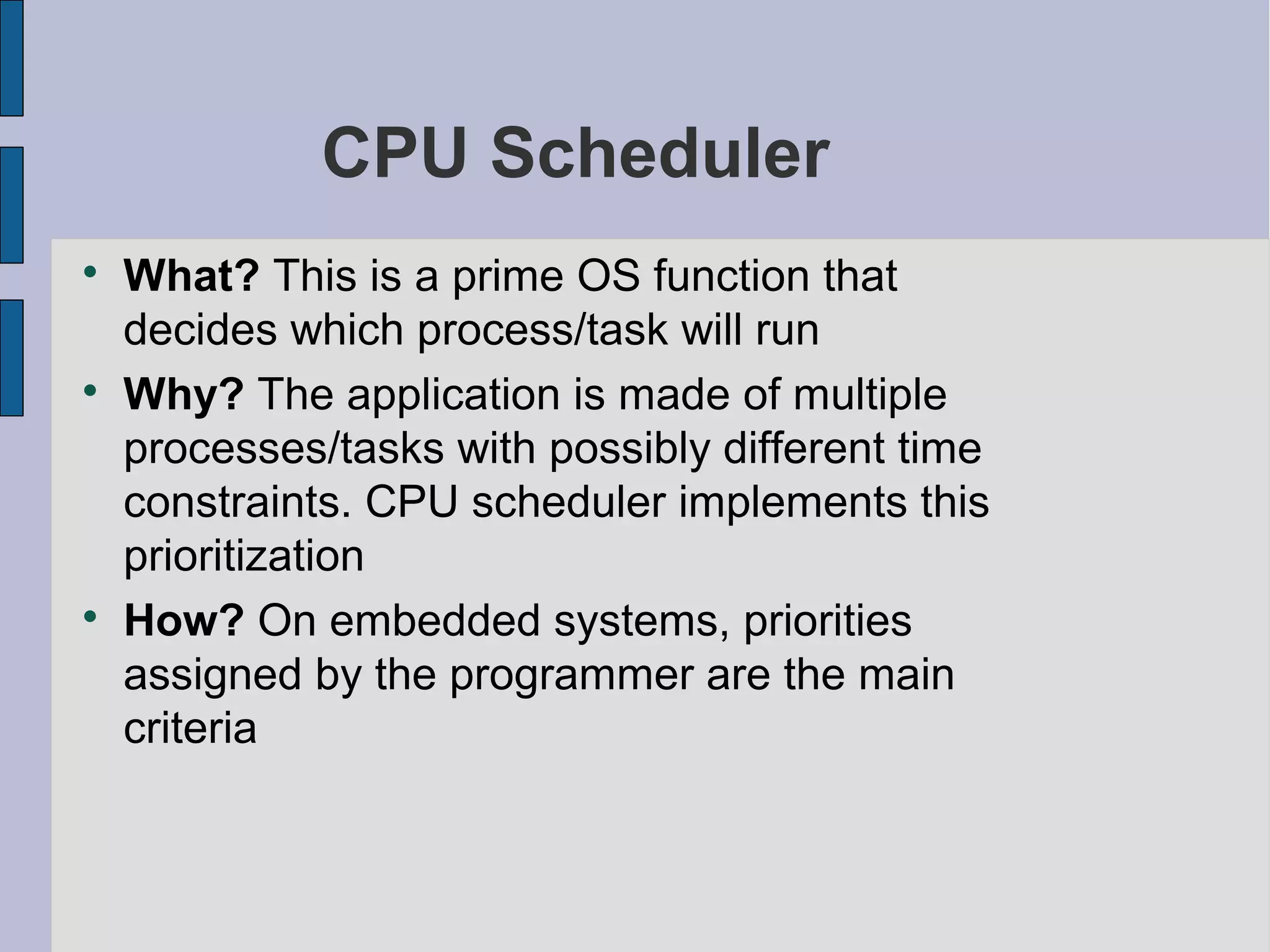

25. CPU Scheduler

What? This is a prime OS function that
decides which process/task will run

Why? The application is made of multiple
processes/tasks with possibly different time
constraints. CPU scheduler implements this
prioritization

How? On embedded systems, priorities
assigned by the programmer are the main
criteria

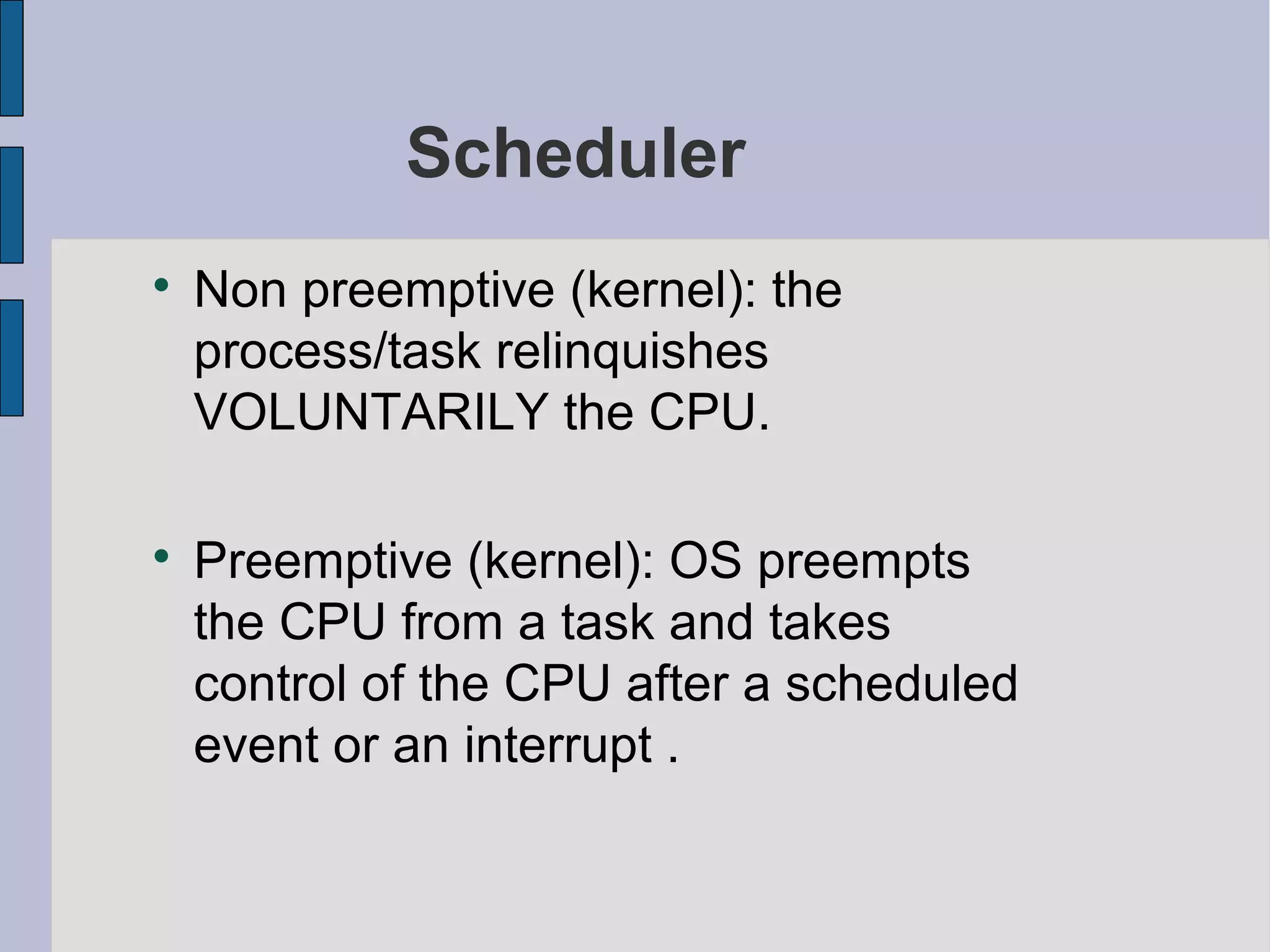

26. Scheduler

Non preemptive (kernel): the
process/task relinquishes
VOLUNTARILY the CPU.

Preemptive (kernel): OS preempts
the CPU from a task and takes
control of the CPU after a scheduled
event or an interrupt .

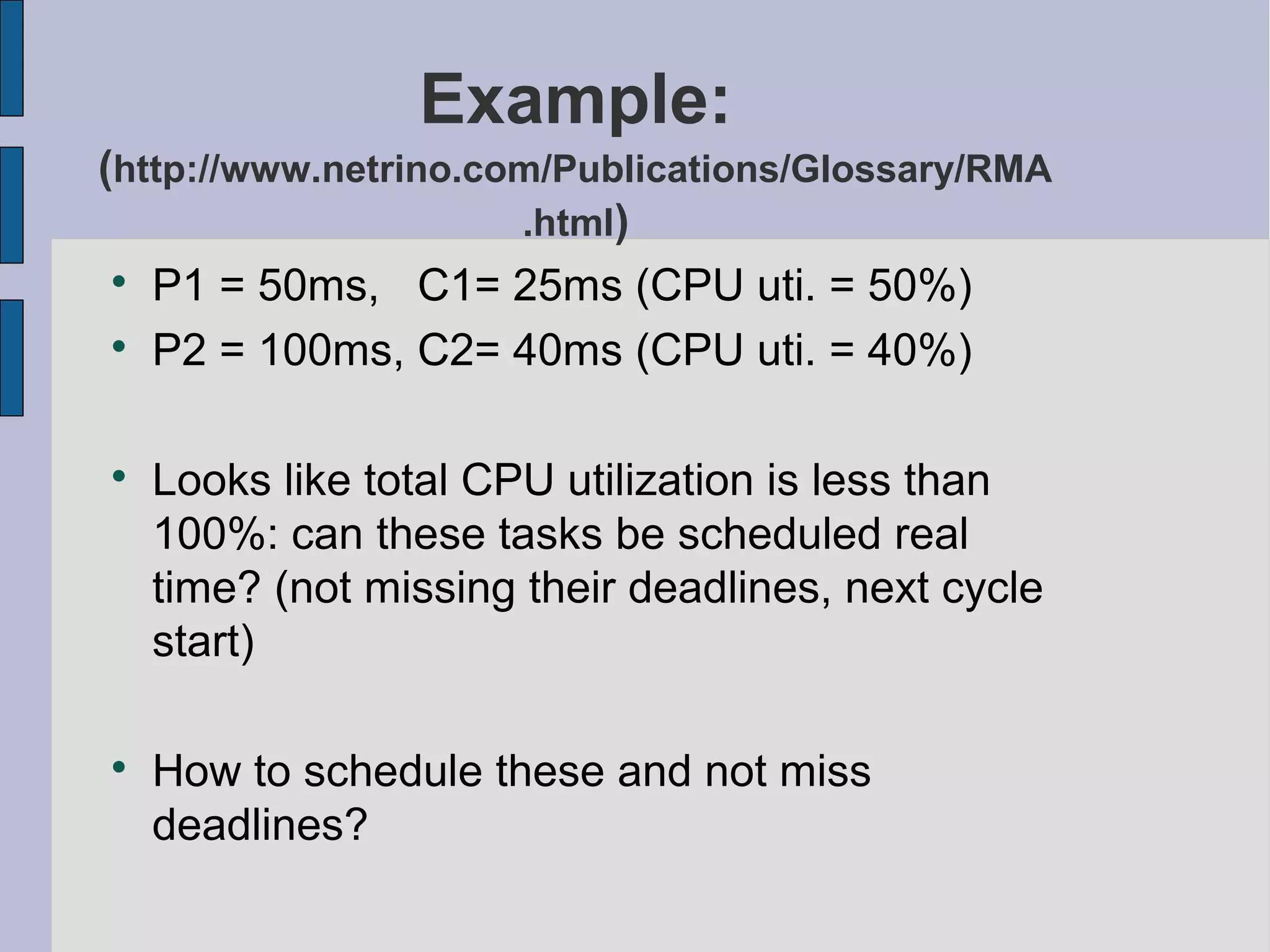

27. Example:
(http://www.netrino.com/Publications/Glossary/RMA
.html)

P1 = 50ms, C1= 25ms (CPU uti. = 50%)

P2 = 100ms, C2= 40ms (CPU uti. = 40%)

Looks like total CPU utilization is less than
100%: can these tasks be scheduled real
time? (not missing their deadlines, next cycle
start)

How to schedule these and not miss
deadlines?

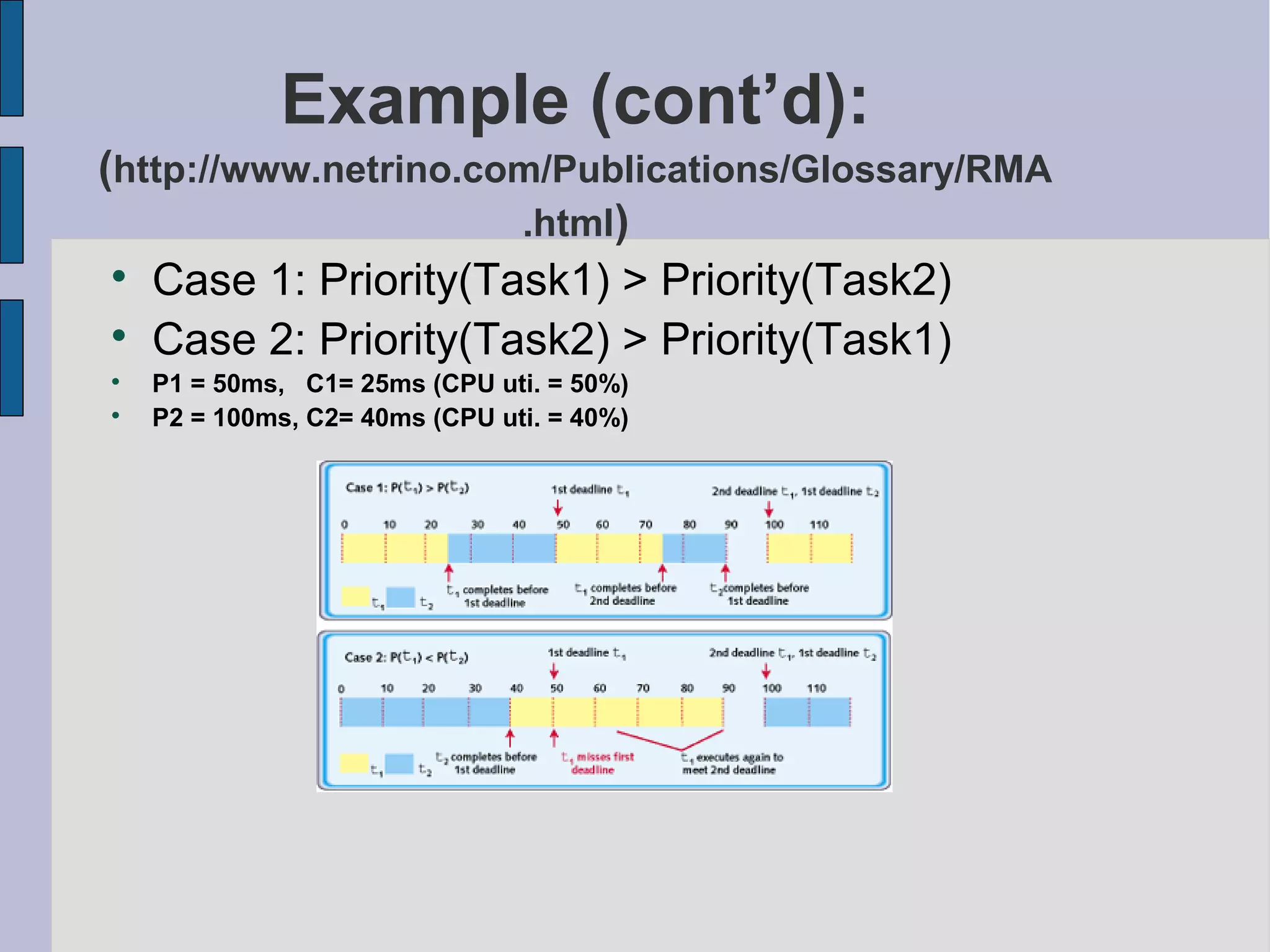

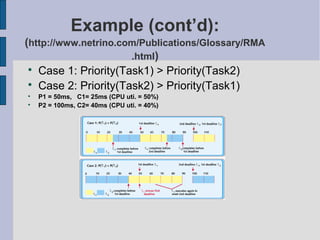

28. Example (cont’d):
(http://www.netrino.com/Publications/Glossary/RMA
.html)

Case 1: Priority(Task1) > Priority(Task2)

Case 2: Priority(Task2) > Priority(Task1)

P1 = 50ms, C1= 25ms (CPU uti. = 50%)

P2 = 100ms, C2= 40ms (CPU uti. = 40%)

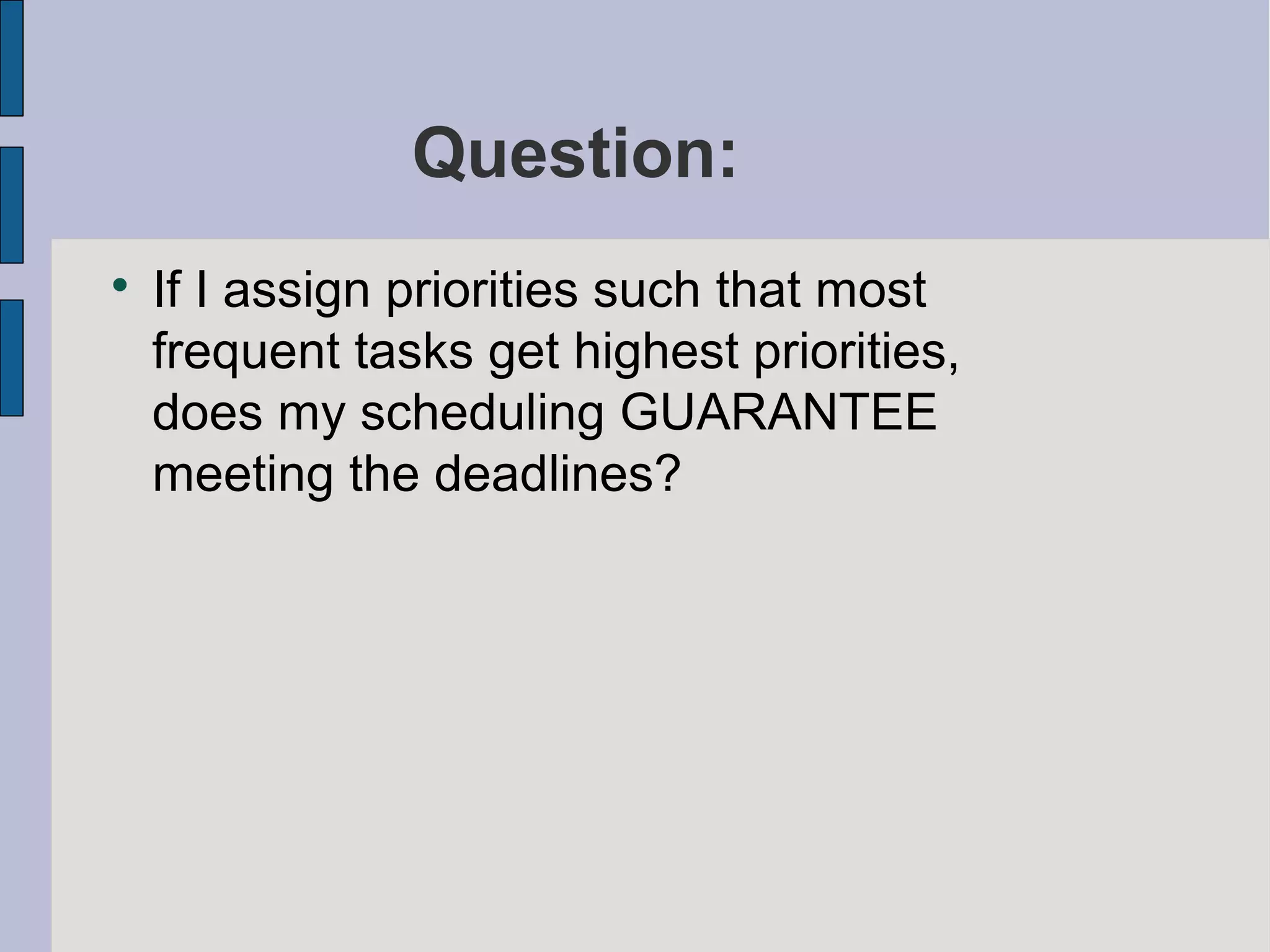

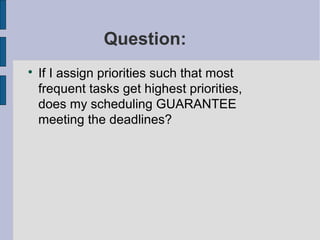

29. Question:

If I assign priorities such that most
frequent tasks get highest priorities,
does my scheduling GUARANTEE
meeting the deadlines?

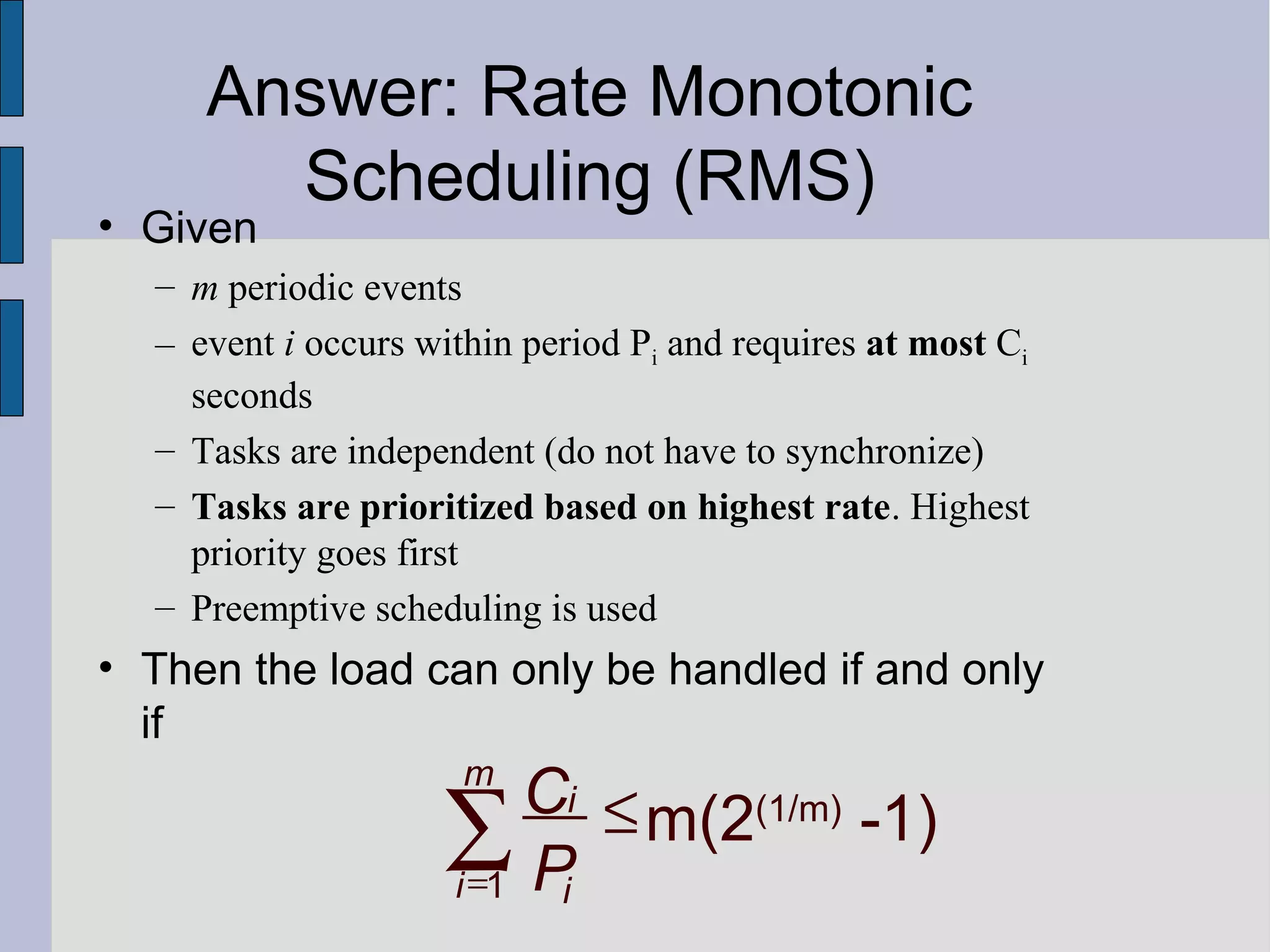

30. • Given
– m periodic events
– event i occurs within period Pi and requires at most Ci
seconds
– Tasks are independent (do not have to synchronize)
– Tasks are prioritized based on highest rate. Highest
priority goes first
– Preemptive scheduling is used
• Then the load can only be handled if and only
if
1
m(2(1/m)
-1)
m
i
i i
C
P=
≤∑
Answer: Rate Monotonic
Scheduling (RMS)

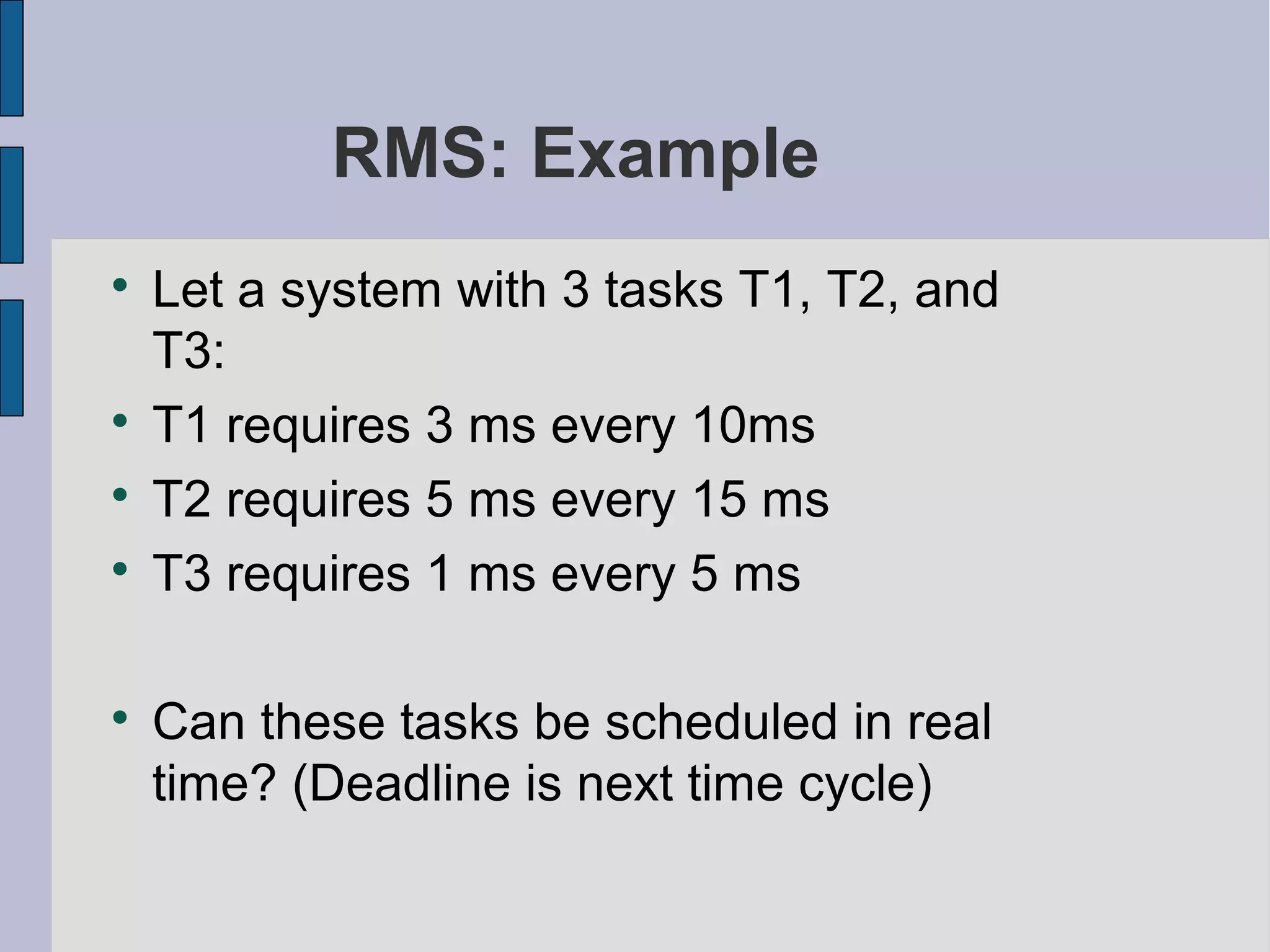

31. RMS: Example

Let a system with 3 tasks T1, T2, and
T3:

T1 requires 3 ms every 10ms

T2 requires 5 ms every 15 ms

T3 requires 1 ms every 5 ms

Can these tasks be scheduled in real
time? (Deadline is next time cycle)

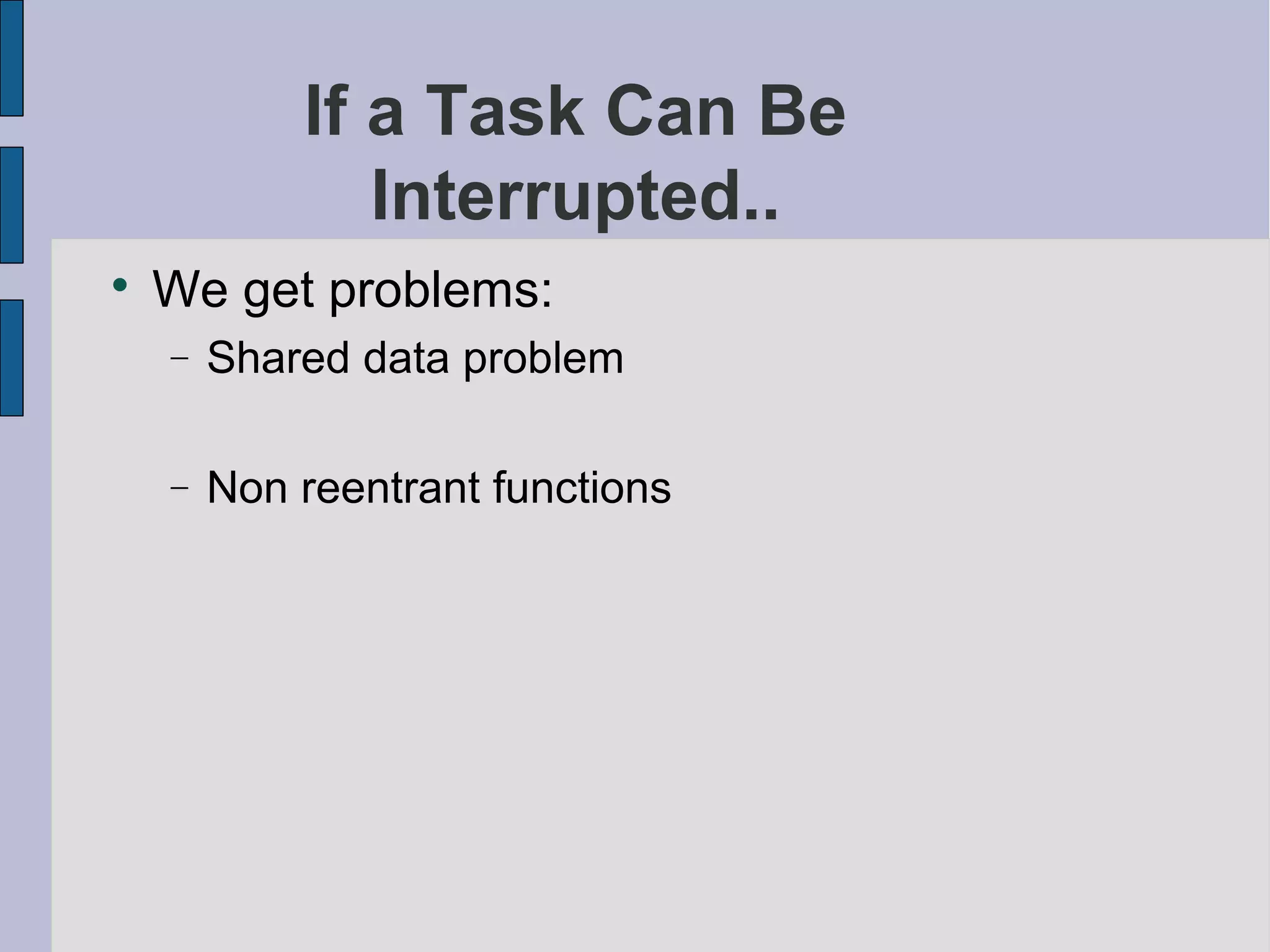

32. If a Task Can Be
Interrupted..

We get problems:
− Shared data problem
− Non reentrant functions

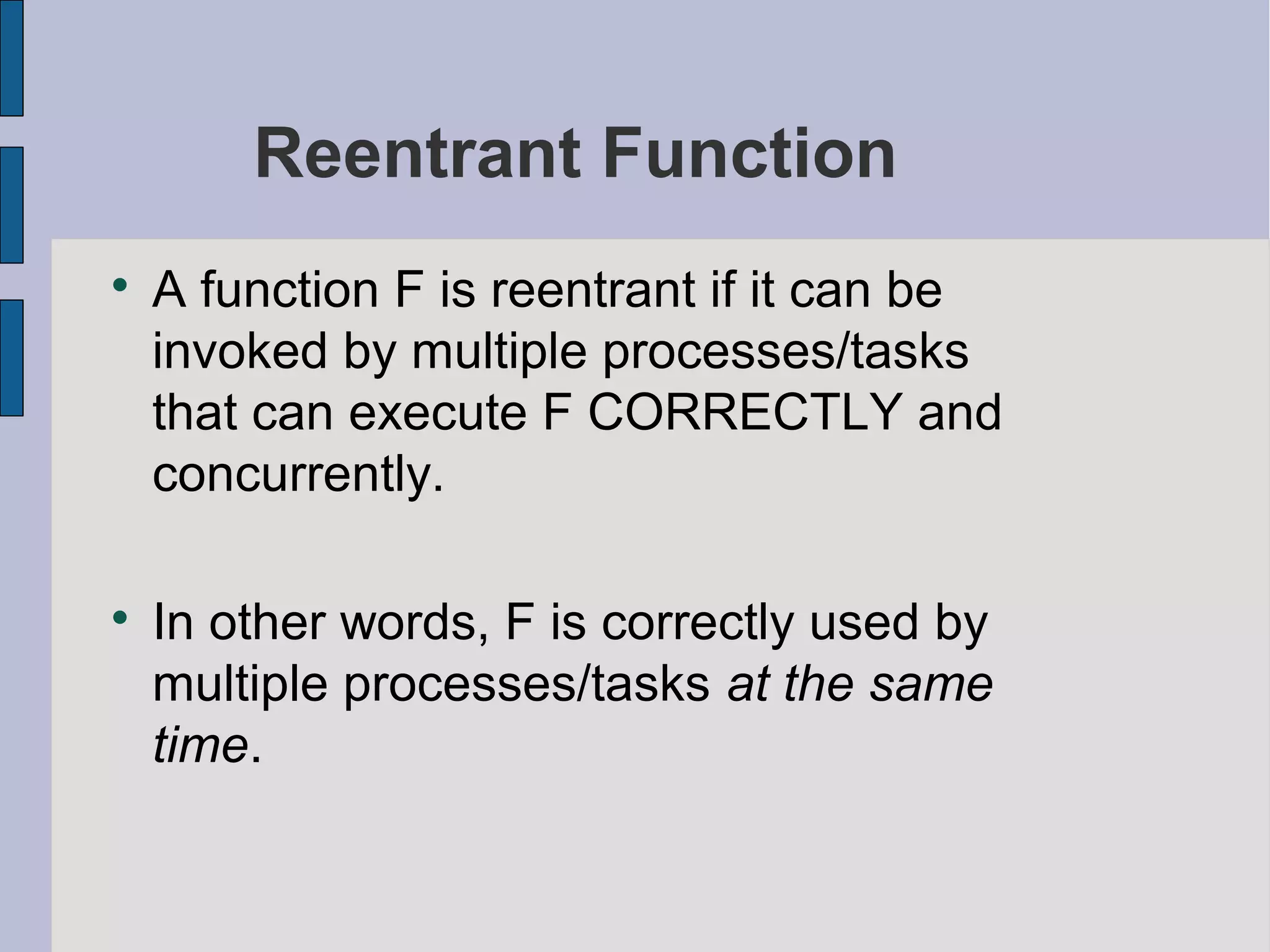

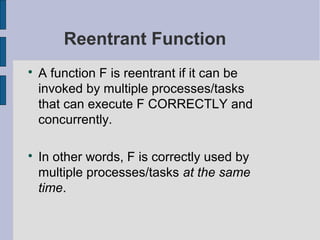

33. Reentrant Function

A function F is reentrant if it can be
invoked by multiple processes/tasks
that can execute F CORRECTLY and
concurrently.

In other words, F is correctly used by
multiple processes/tasks at the same
time.

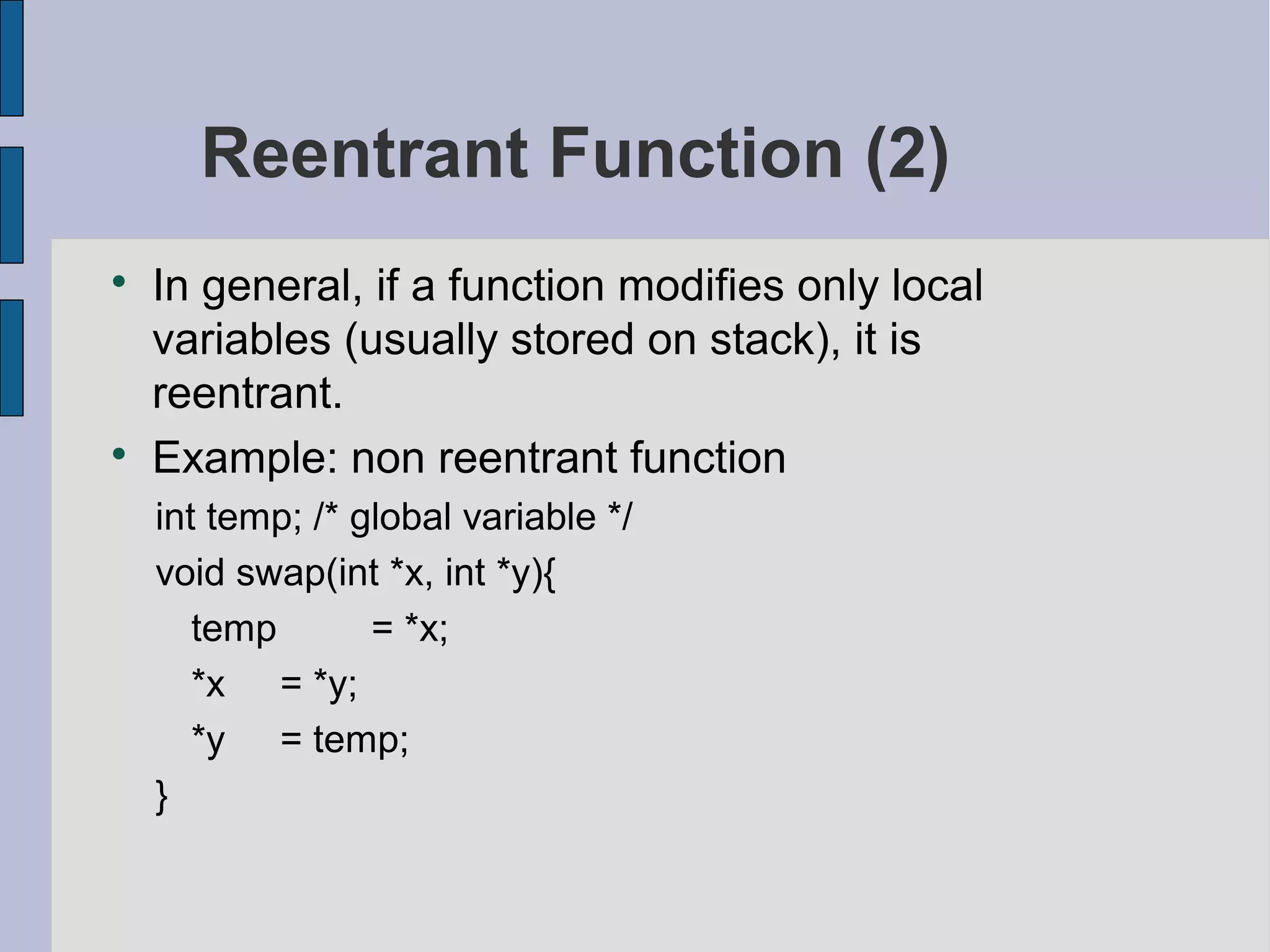

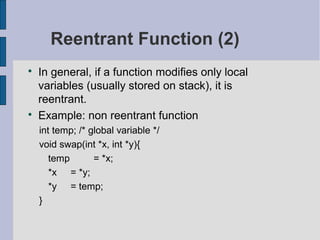

34. Reentrant Function (2)

In general, if a function modifies only local
variables (usually stored on stack), it is
reentrant.

Example: non reentrant function
int temp; /* global variable */
void swap(int *x, int *y){
temp = *x;
*x = *y;
*y = temp;
}

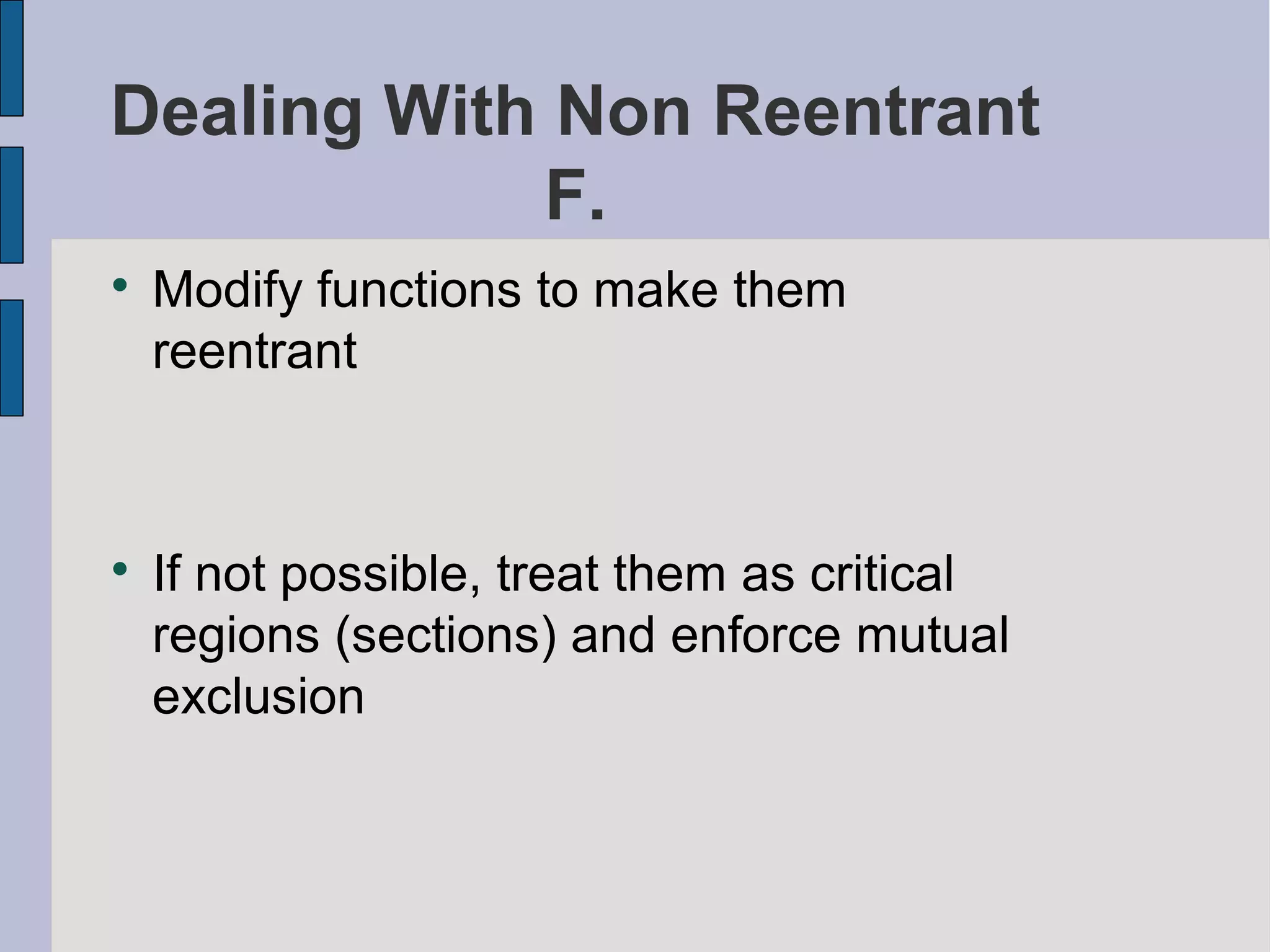

35. Dealing With Non Reentrant
F.

Modify functions to make them
reentrant

If not possible, treat them as critical
regions (sections) and enforce mutual
exclusion

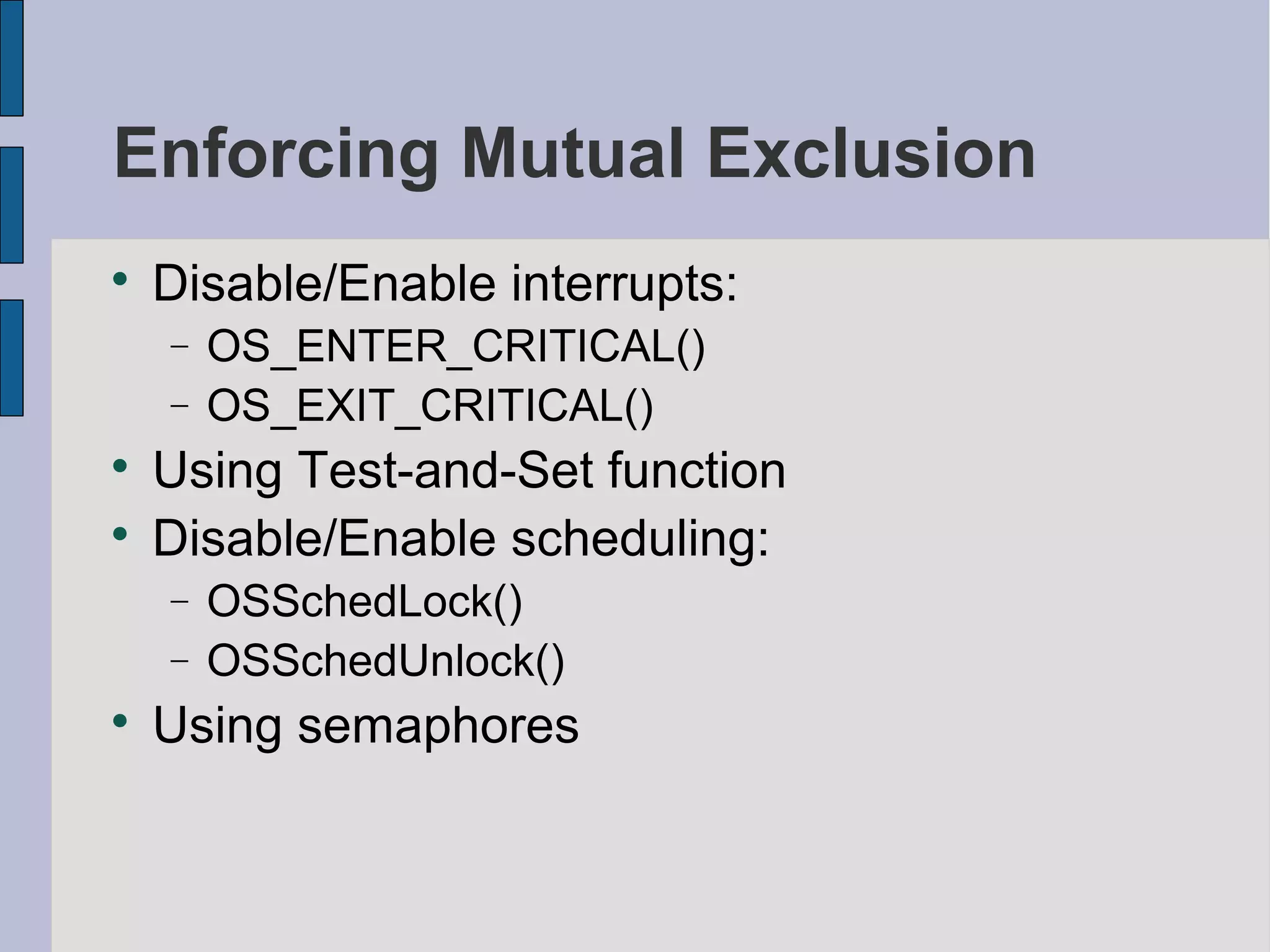

36. Enforcing Mutual Exclusion

Disable/Enable interrupts:
− OS_ENTER_CRITICAL()
− OS_EXIT_CRITICAL()

Using Test-and-Set function

Disable/Enable scheduling:
− OSSchedLock()
− OSSchedUnlock()

Using semaphores

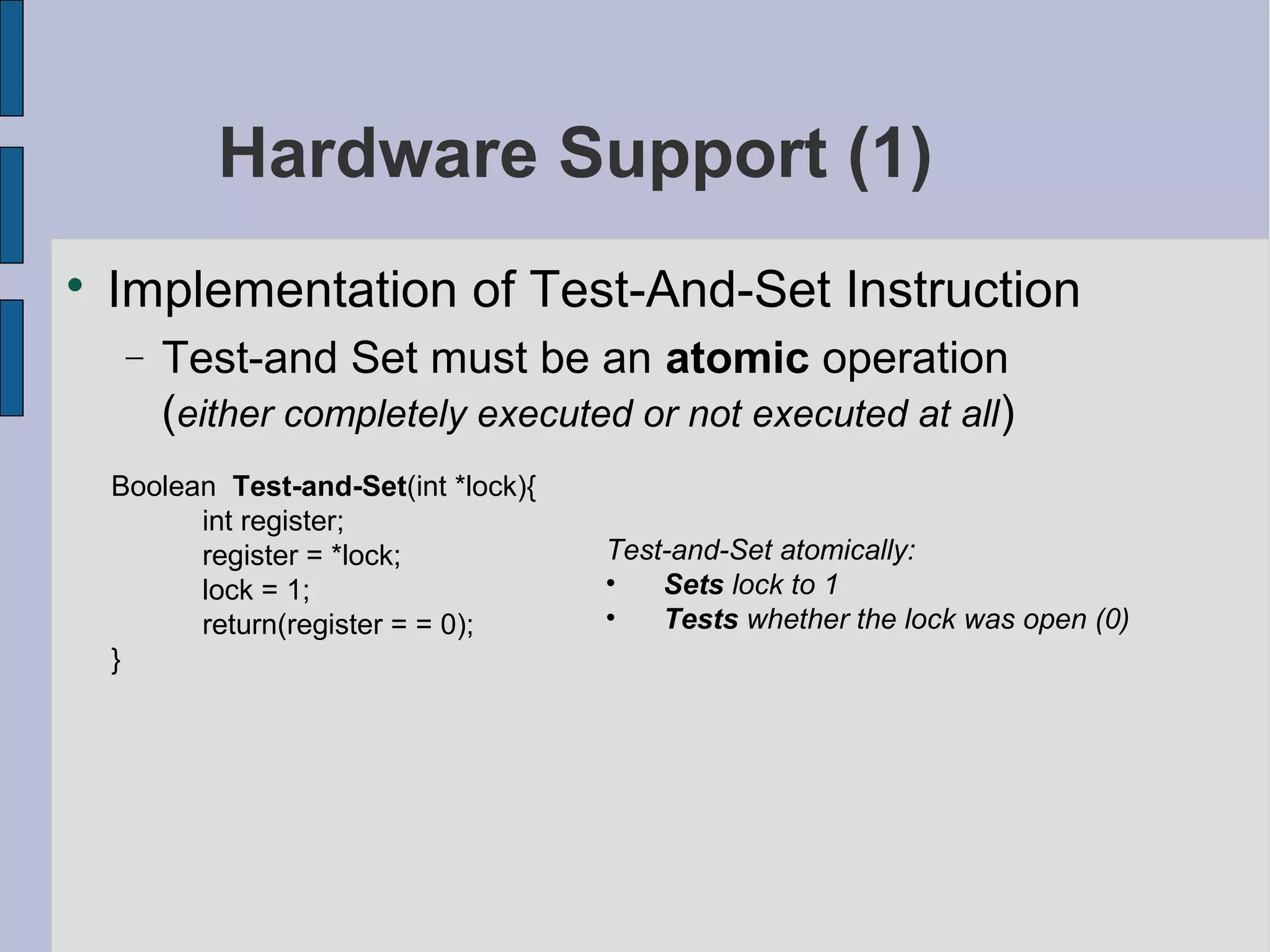

37. Hardware Support (1)

Implementation of Test-And-Set Instruction
− Test-and Set must be an atomic operation
(either completely executed or not executed at all)
Boolean Test-and-Set(int *lock){
int register;
register = *lock;
lock = 1;
return(register = = 0);
}
Test-and-Set atomically:
• Sets lock to 1
• Tests whether the lock was open (0)

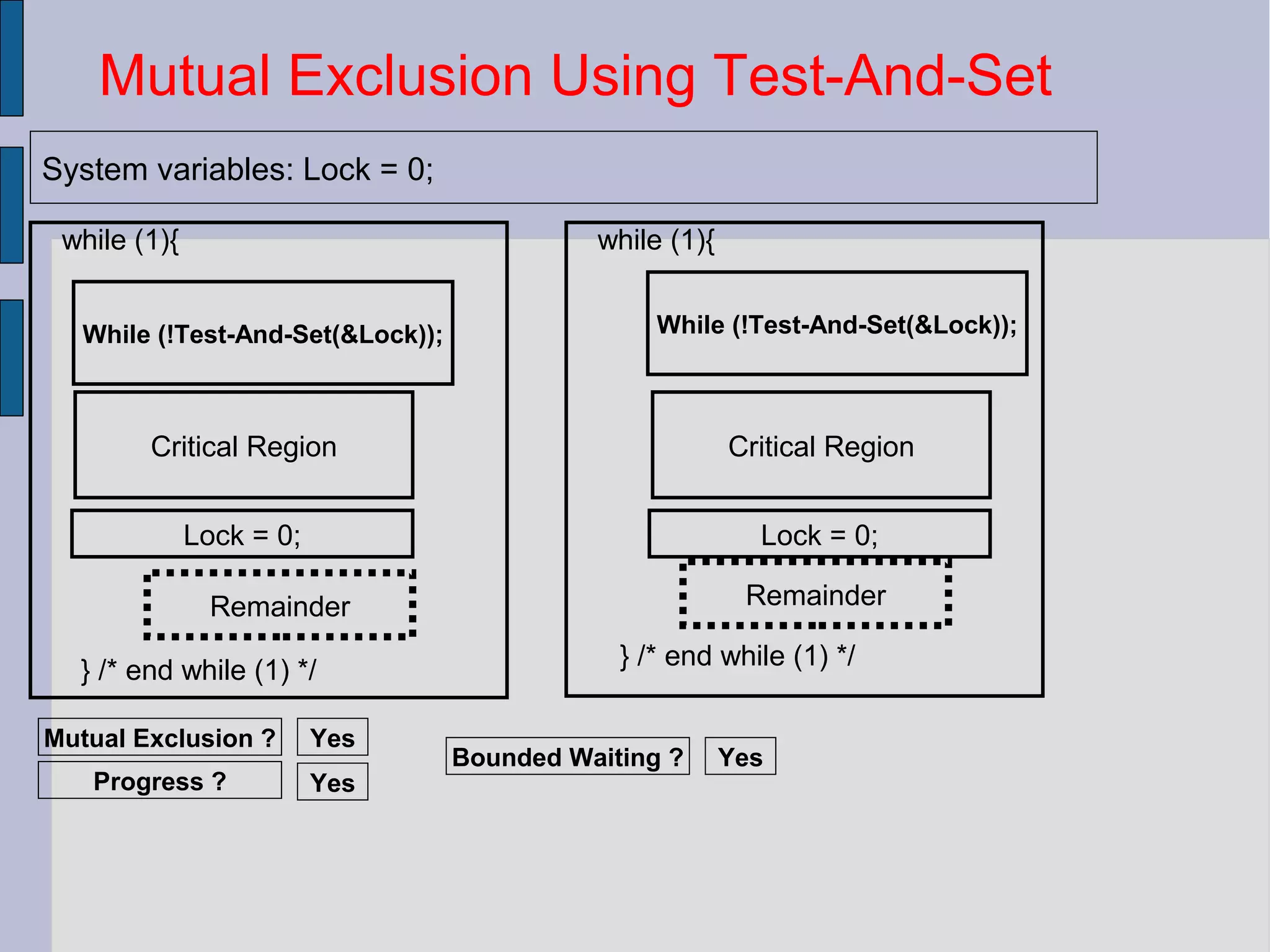

38. while (1){
} /* end while (1) */
While (!Test-And-Set(&Lock));
Lock = 0;
Critical Region
Remainder
Mutual Exclusion Using Test-And-Set
System variables: Lock = 0;
Mutual Exclusion ? Yes
Progress ? Yes
while (1){
} /* end while (1) */
Remainder
Lock = 0;
Critical Region
While (!Test-And-Set(&Lock));
Bounded Waiting ? Yes

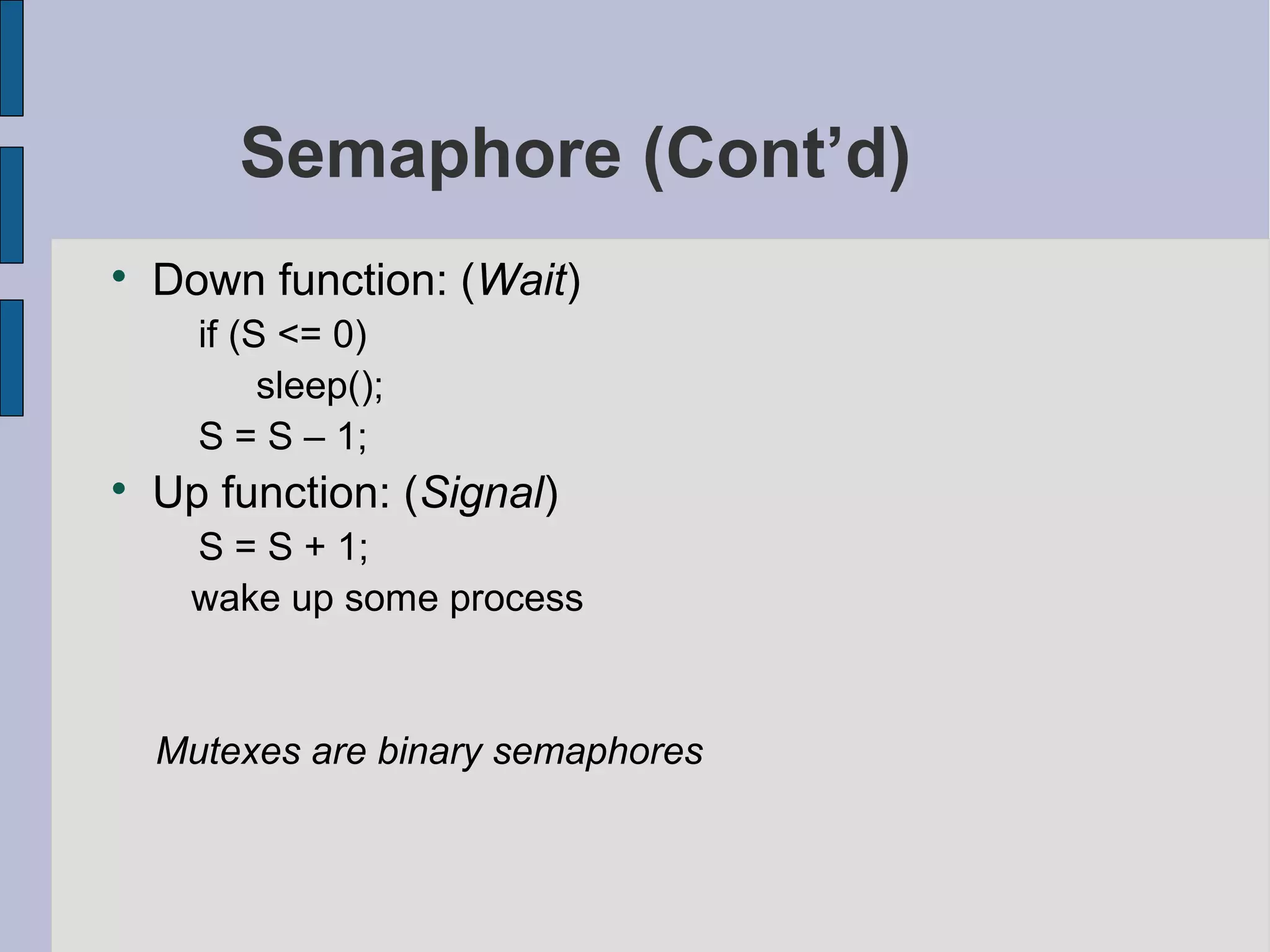

39. Semaphore (Cont’d)

Down function: (Wait)
if (S <= 0)
sleep();
S = S – 1;

Up function: (Signal)
S = S + 1;
wake up some process
Mutexes are binary semaphores

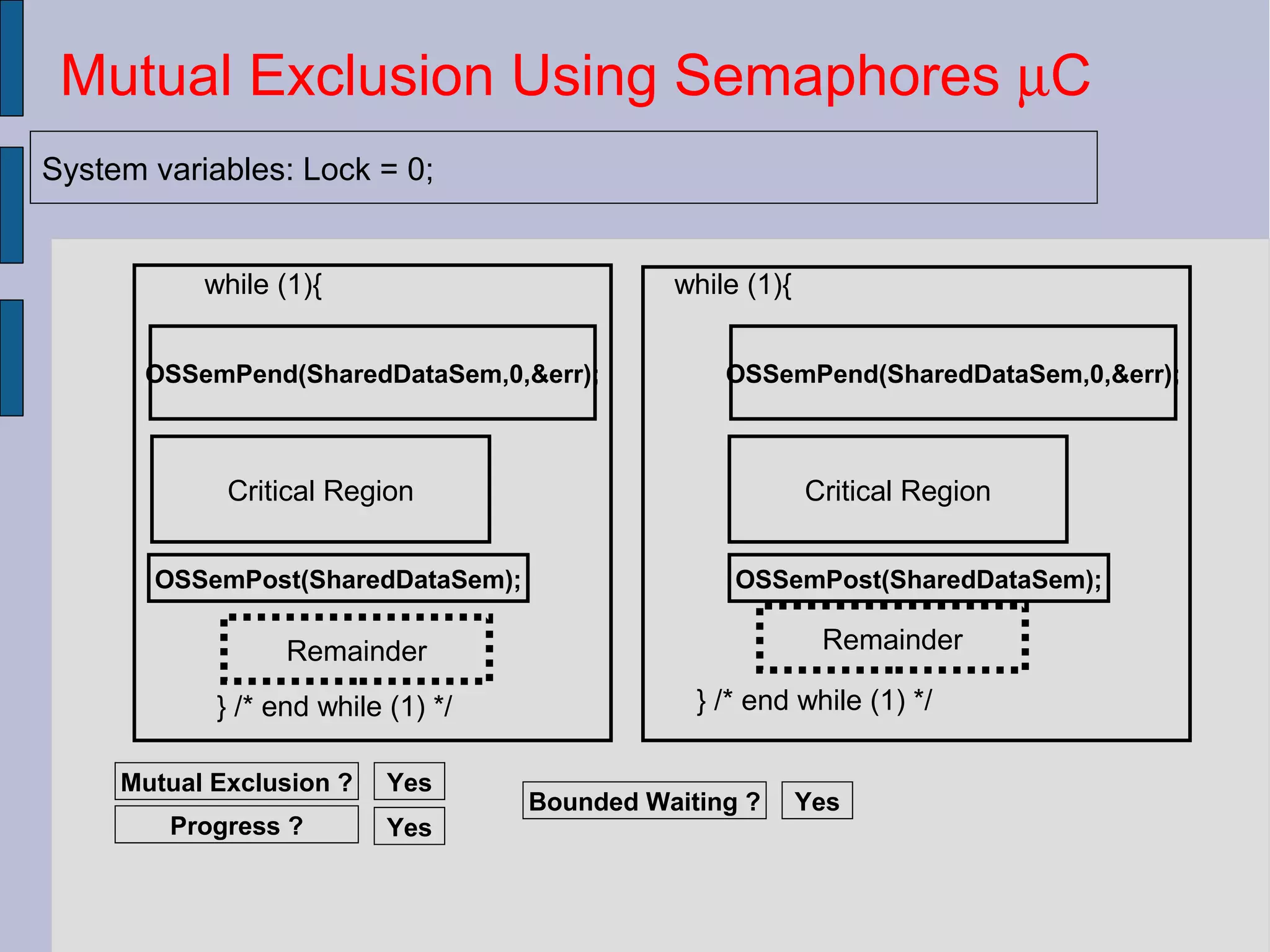

40. while (1){
} /* end while (1) */
OSSemPend(SharedDataSem,0,&err);
OSSemPost(SharedDataSem);
Critical Region
Remainder
Mutual Exclusion Using Semaphores µC
System variables: Lock = 0;
Mutual Exclusion ? Yes
Progress ? Yes
while (1){
} /* end while (1) */
Remainder
Critical Region
Bounded Waiting ? Yes
OSSemPend(SharedDataSem,0,&err);
OSSemPost(SharedDataSem);

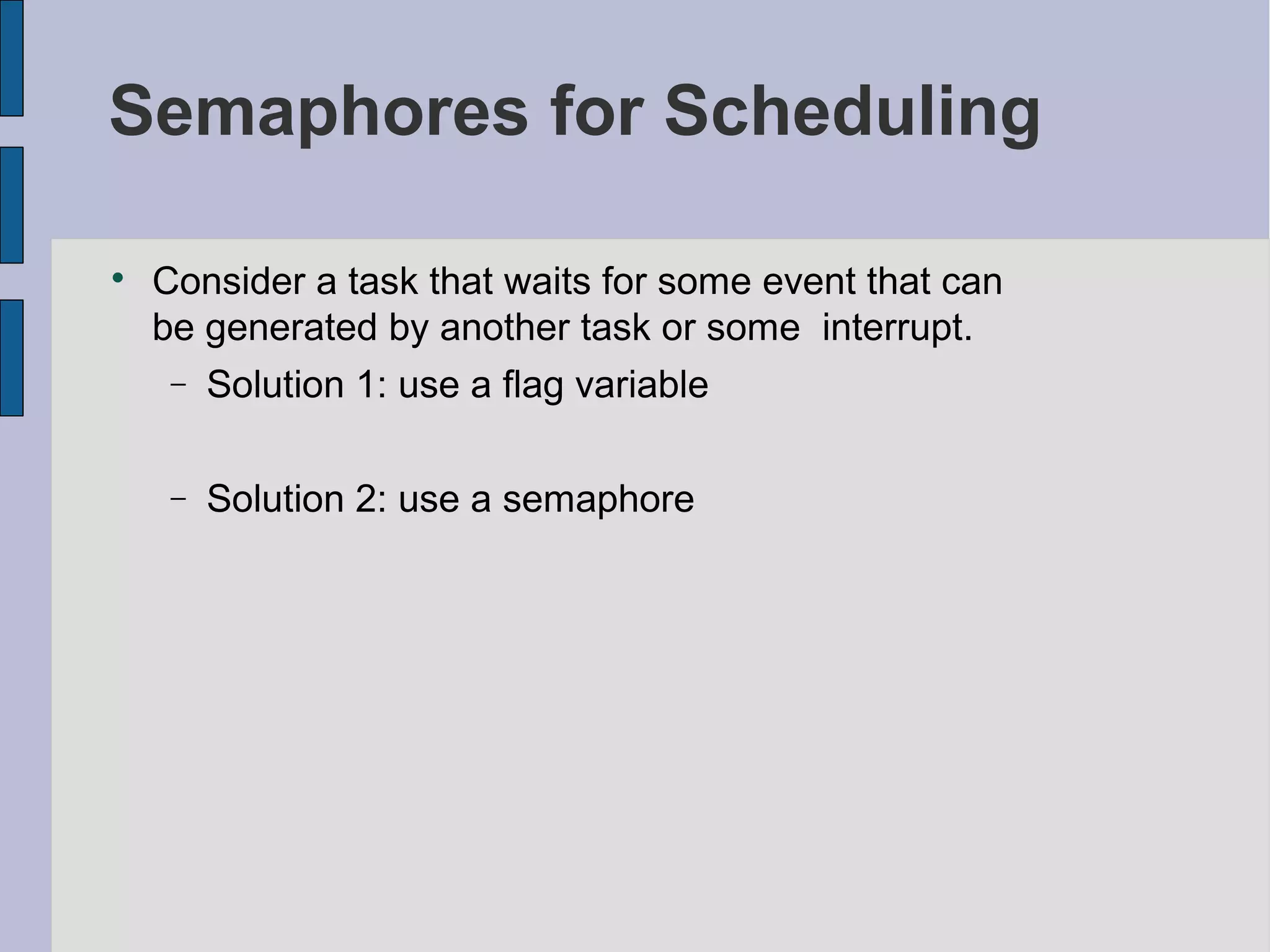

41. Semaphores for Scheduling

Consider a task that waits for some event that can
be generated by another task or some interrupt.
− Solution 1: use a flag variable
− Solution 2: use a semaphore

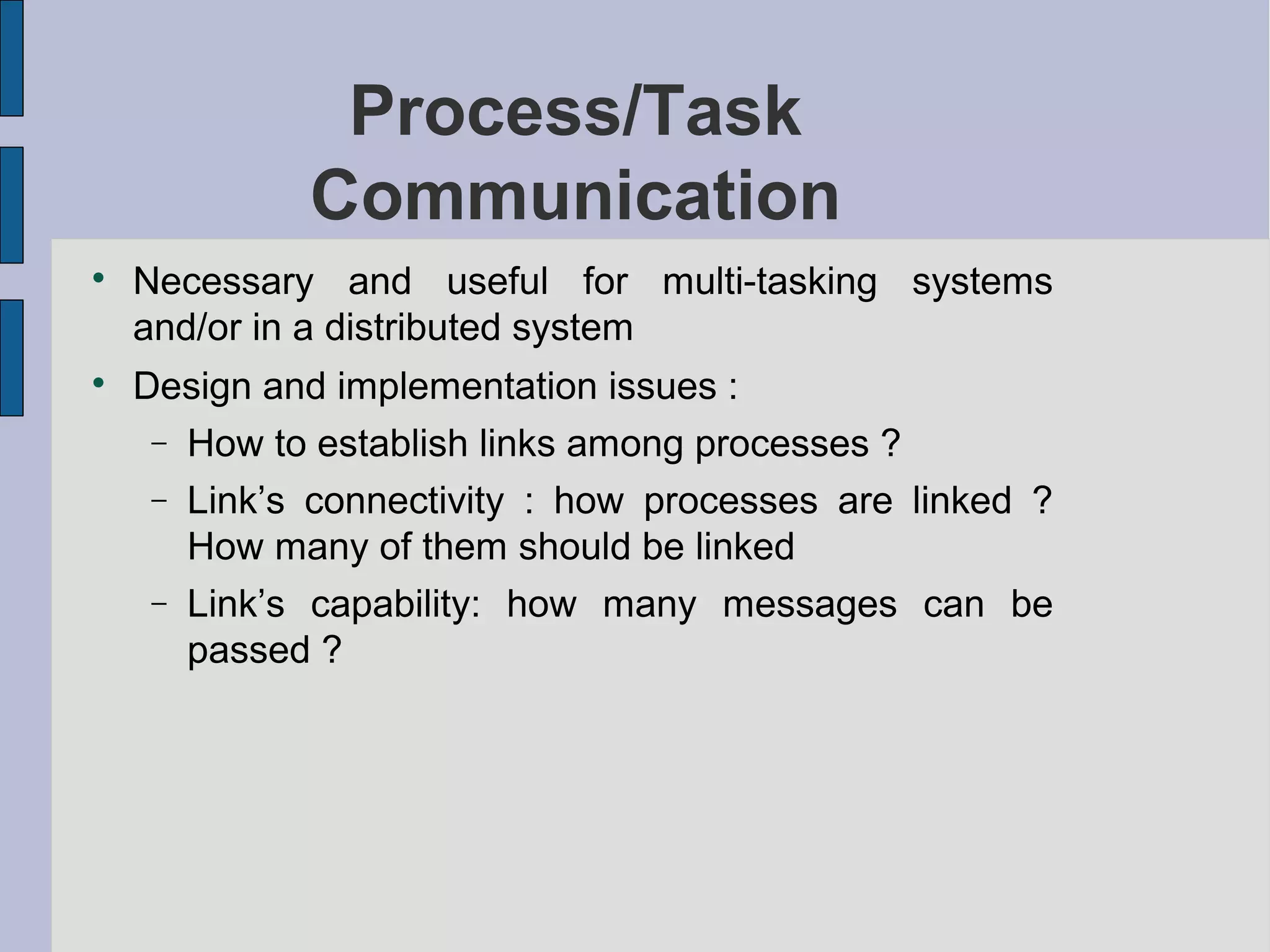

42. Process/Task
Communication

Necessary and useful for multi-tasking systems
and/or in a distributed system

Design and implementation issues :
− How to establish links among processes ?
− Link’s connectivity : how processes are linked ?
How many of them should be linked
− Link’s capability: how many messages can be
passed ?

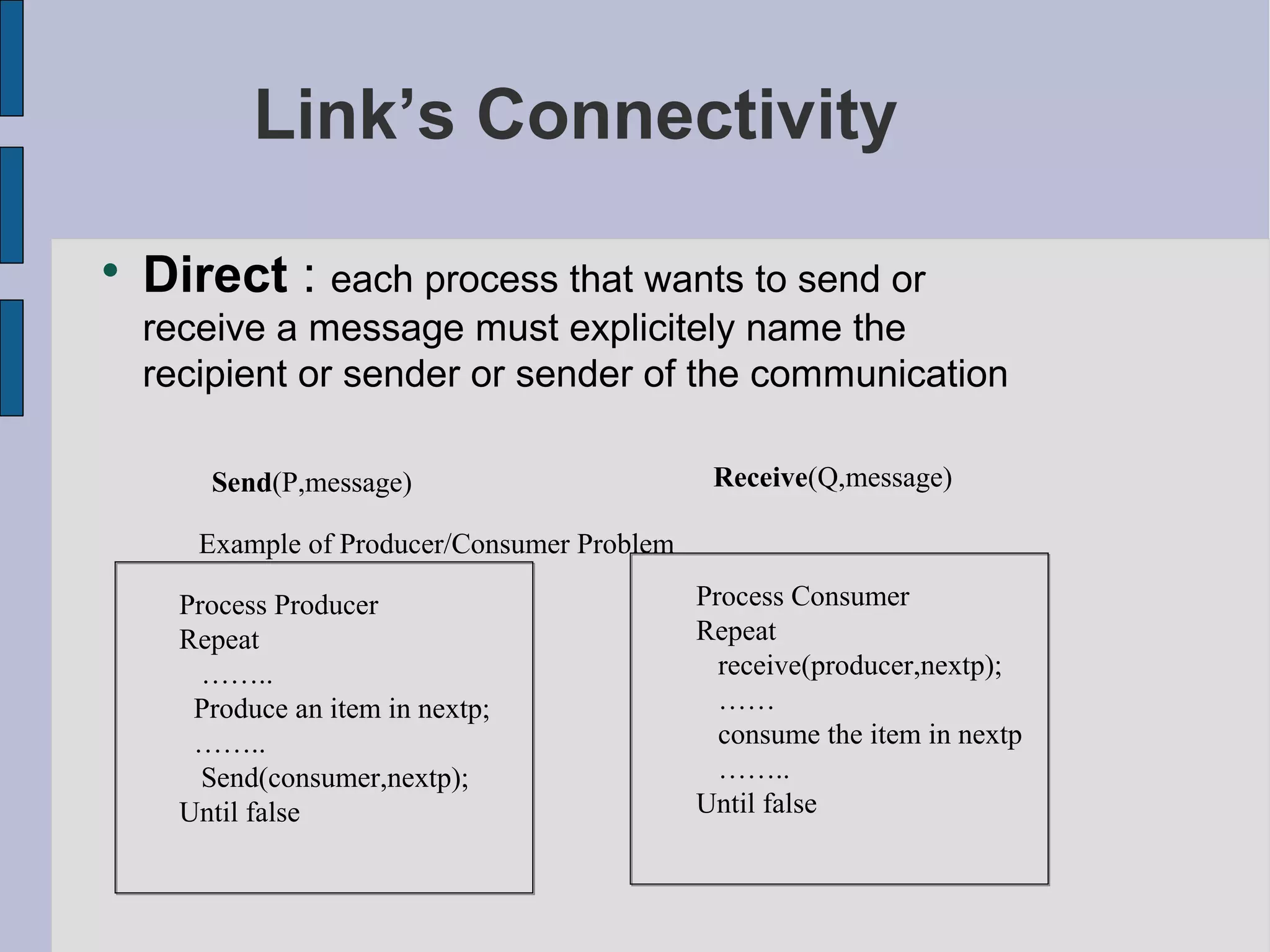

43. Link’s Connectivity

Direct : each process that wants to send or
receive a message must explicitely name the
recipient or sender or sender of the communication
Send(P,message) Receive(Q,message)
Example of Producer/Consumer Problem
Process Producer
Repeat
……..
Produce an item in nextp;
……..
Send(consumer,nextp);
Until false
Process Consumer
Repeat
receive(producer,nextp);
……
consume the item in nextp
……..
Until false

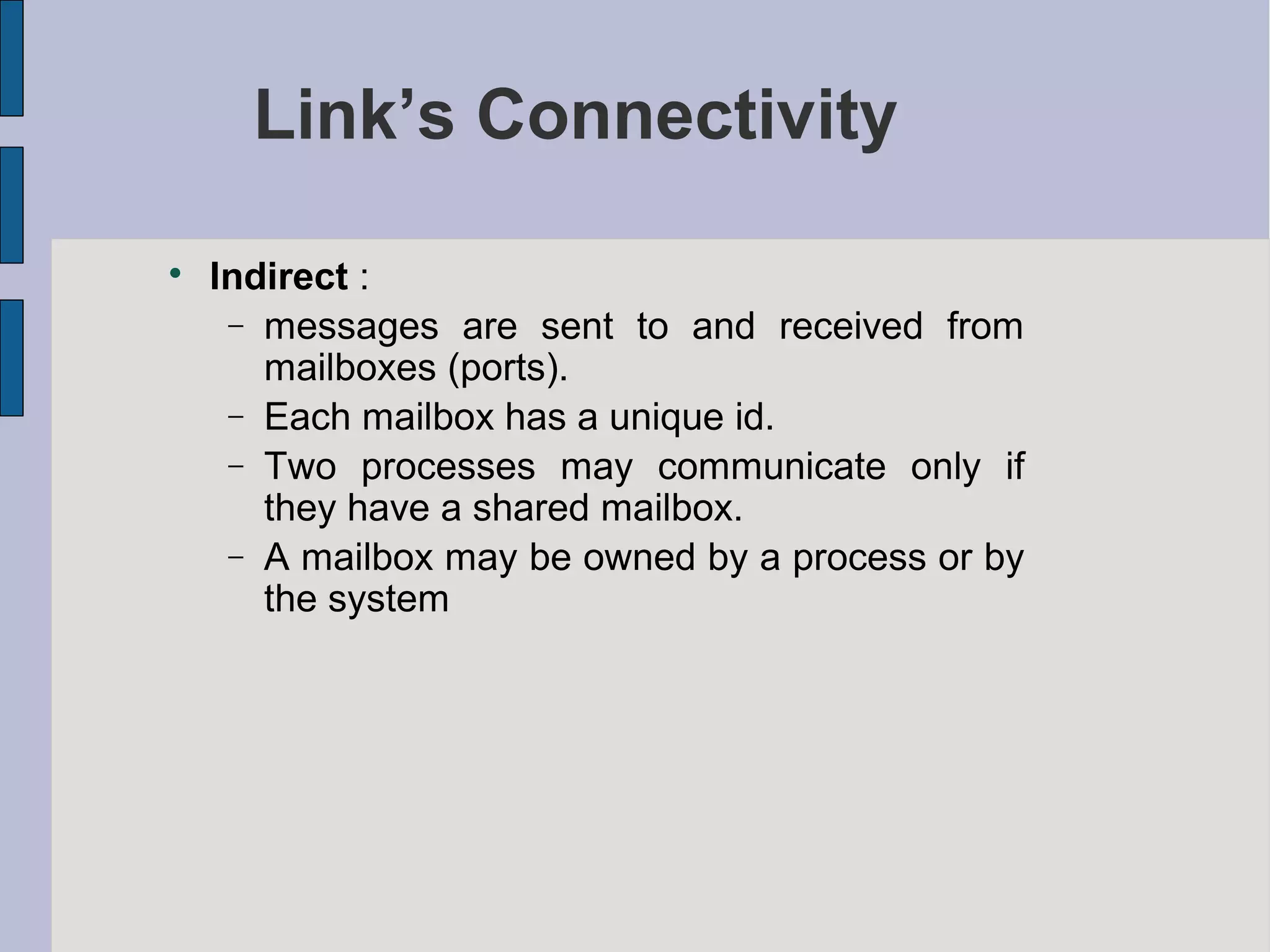

44. Link’s Connectivity

Indirect :
− messages are sent to and received from
mailboxes (ports).
− Each mailbox has a unique id.
− Two processes may communicate only if
they have a shared mailbox.
− A mailbox may be owned by a process or by
the system

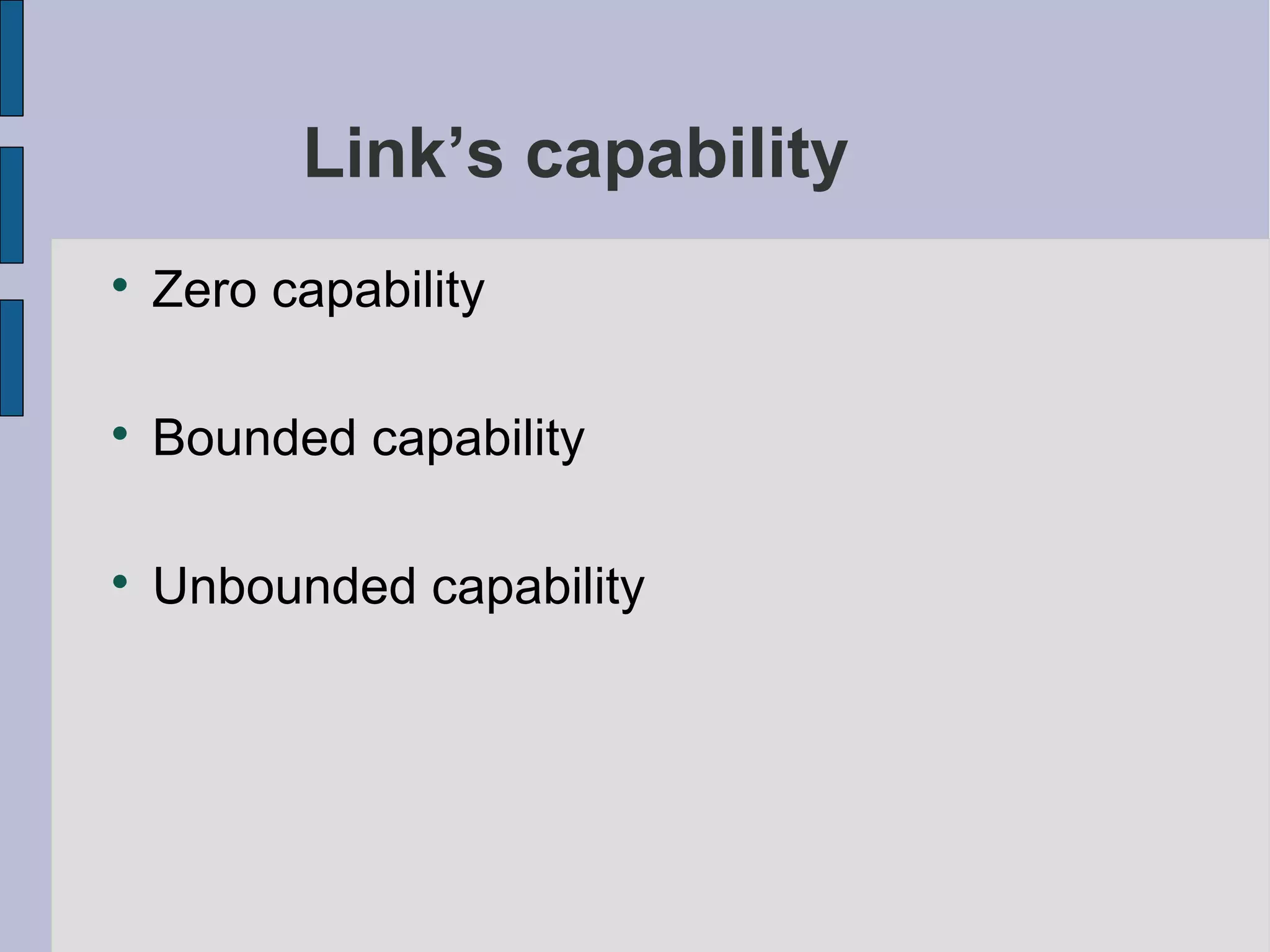

45. Link’s capability

Zero capability

Bounded capability

Unbounded capability

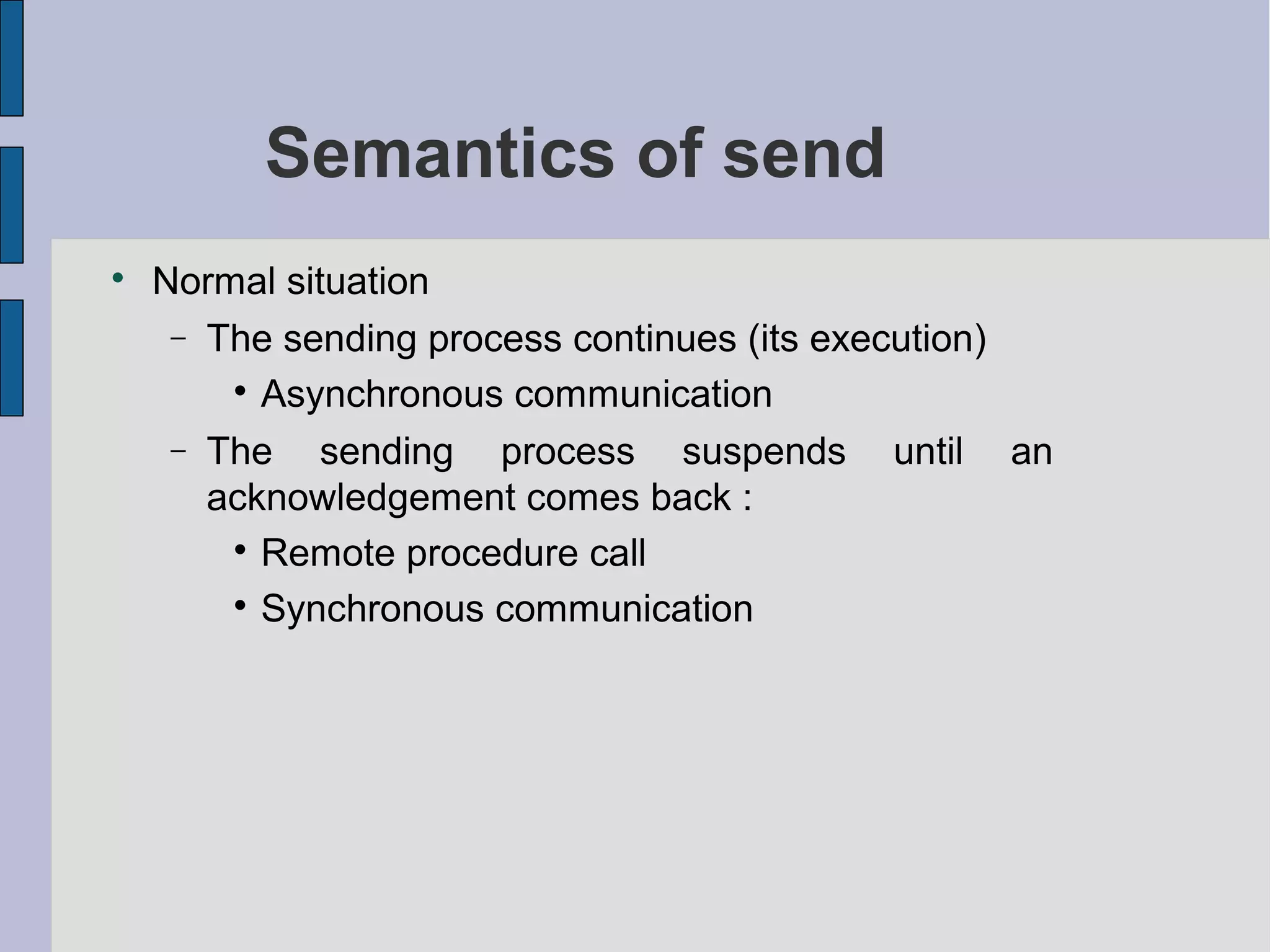

46. Semantics of send

Normal situation
− The sending process continues (its execution)

Asynchronous communication
− The sending process suspends until an
acknowledgement comes back :

Remote procedure call

Synchronous communication

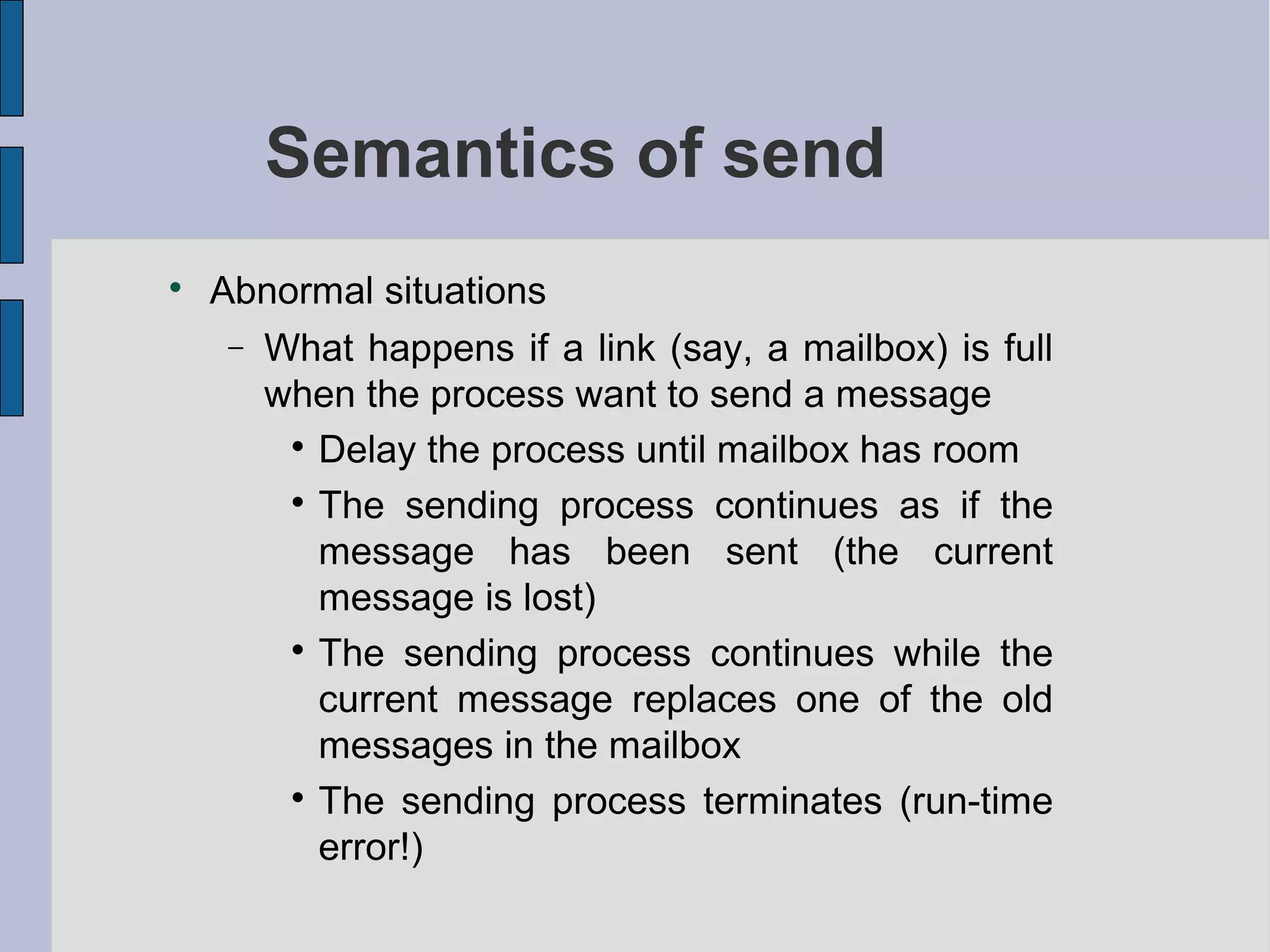

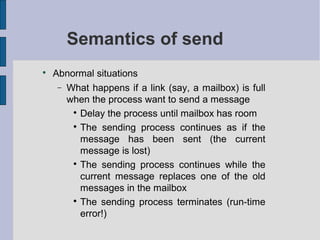

47. Semantics of send

Abnormal situations
− What happens if a link (say, a mailbox) is full
when the process want to send a message

Delay the process until mailbox has room

The sending process continues as if the
message has been sent (the current
message is lost)

The sending process continues while the
current message replaces one of the old
messages in the mailbox

The sending process terminates (run-time
error!)

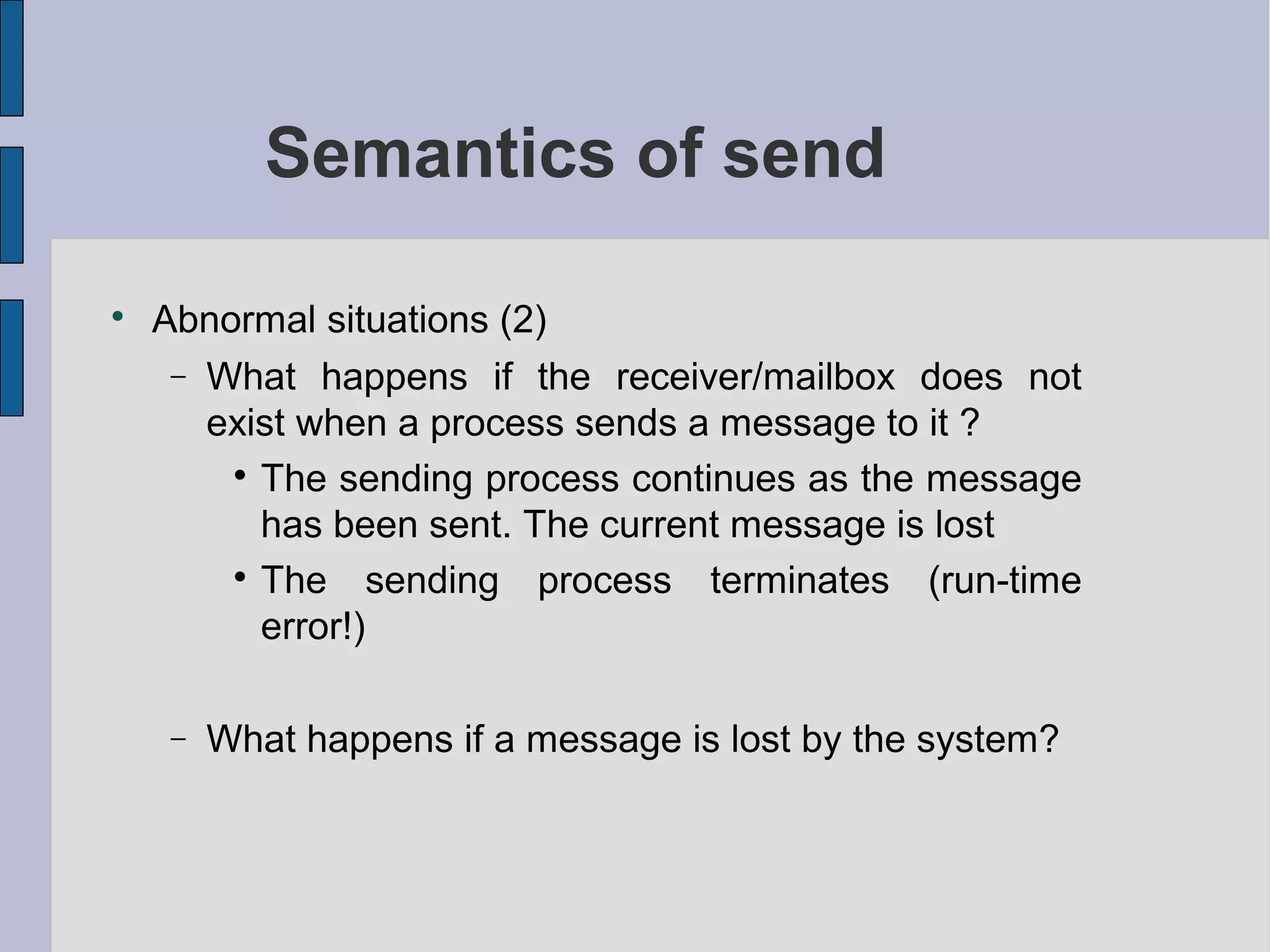

48. Semantics of send

Abnormal situations (2)
− What happens if the receiver/mailbox does not
exist when a process sends a message to it ?

The sending process continues as the message
has been sent. The current message is lost

The sending process terminates (run-time
error!)
− What happens if a message is lost by the system?

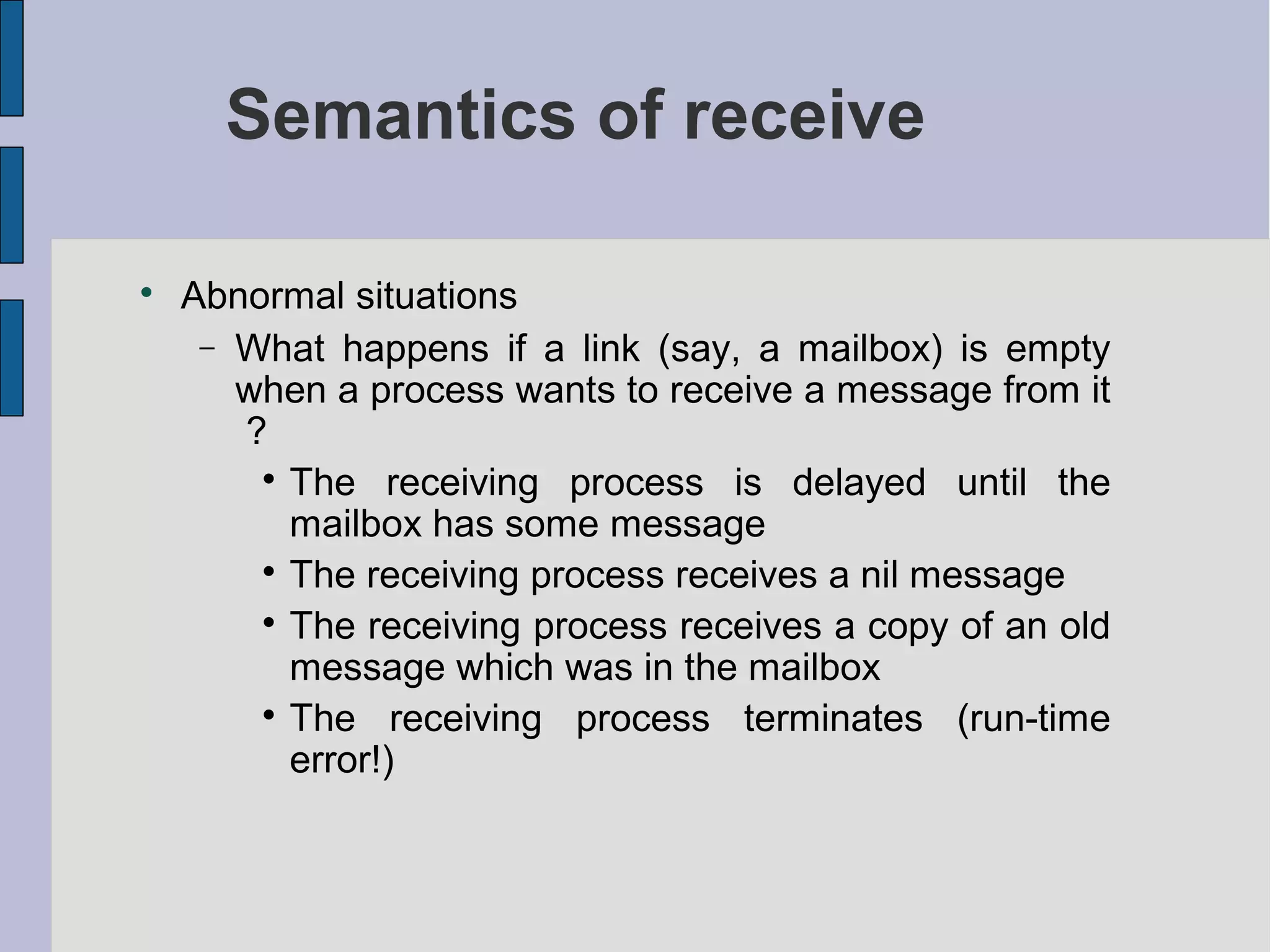

49. Semantics of receive

Abnormal situations
− What happens if a link (say, a mailbox) is empty
when a process wants to receive a message from it
?

The receiving process is delayed until the
mailbox has some message

The receiving process receives a nil message

The receiving process receives a copy of an old
message which was in the mailbox

The receiving process terminates (run-time
error!)

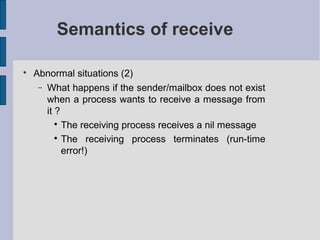

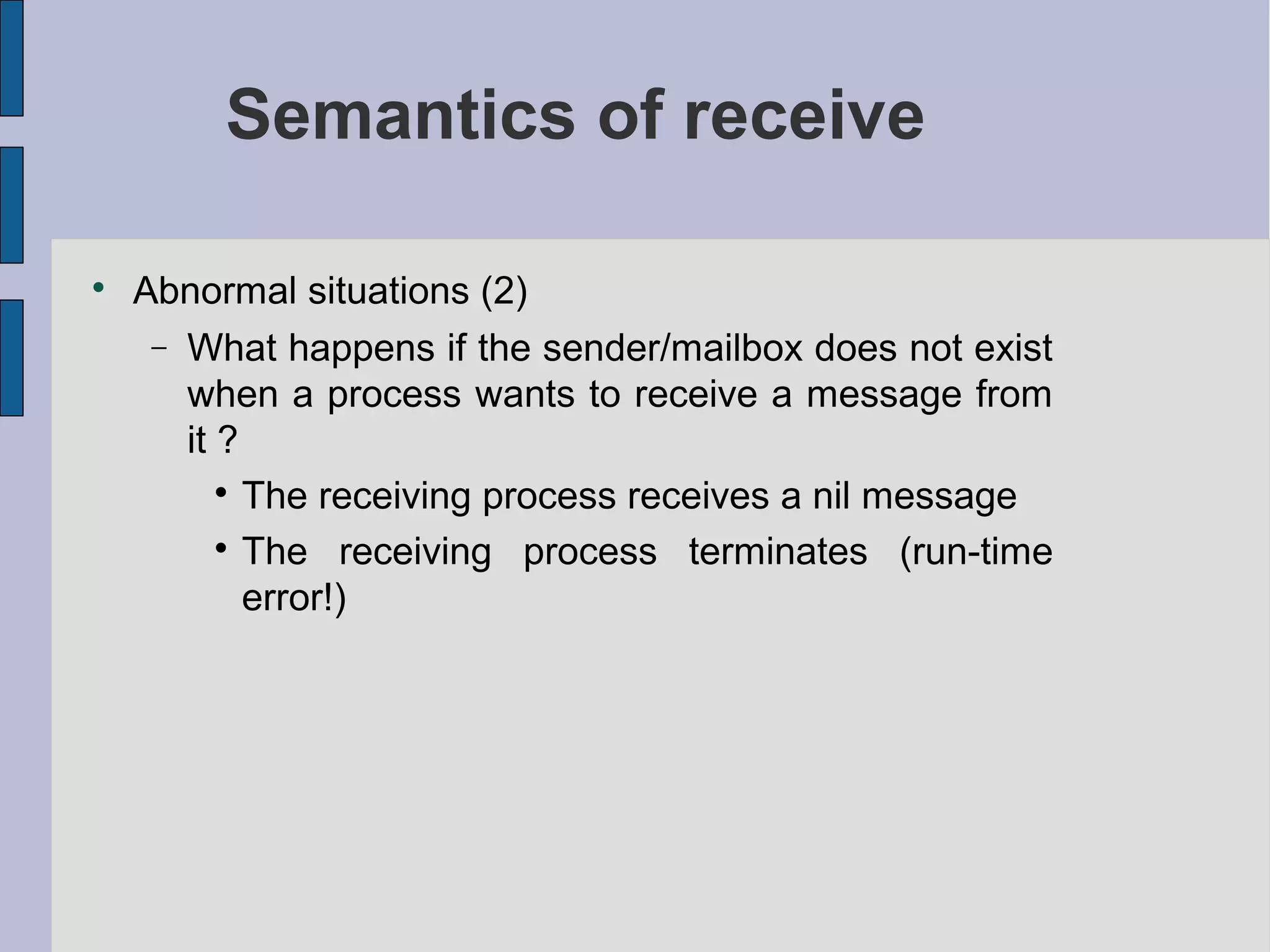

50. Semantics of receive

Abnormal situations (2)
− What happens if the sender/mailbox does not exist
when a process wants to receive a message from
it ?

The receiving process receives a nil message

The receiving process terminates (run-time
error!)

51. Thank You!!
