© 2015 The Karen Martin Group, Inc. 1

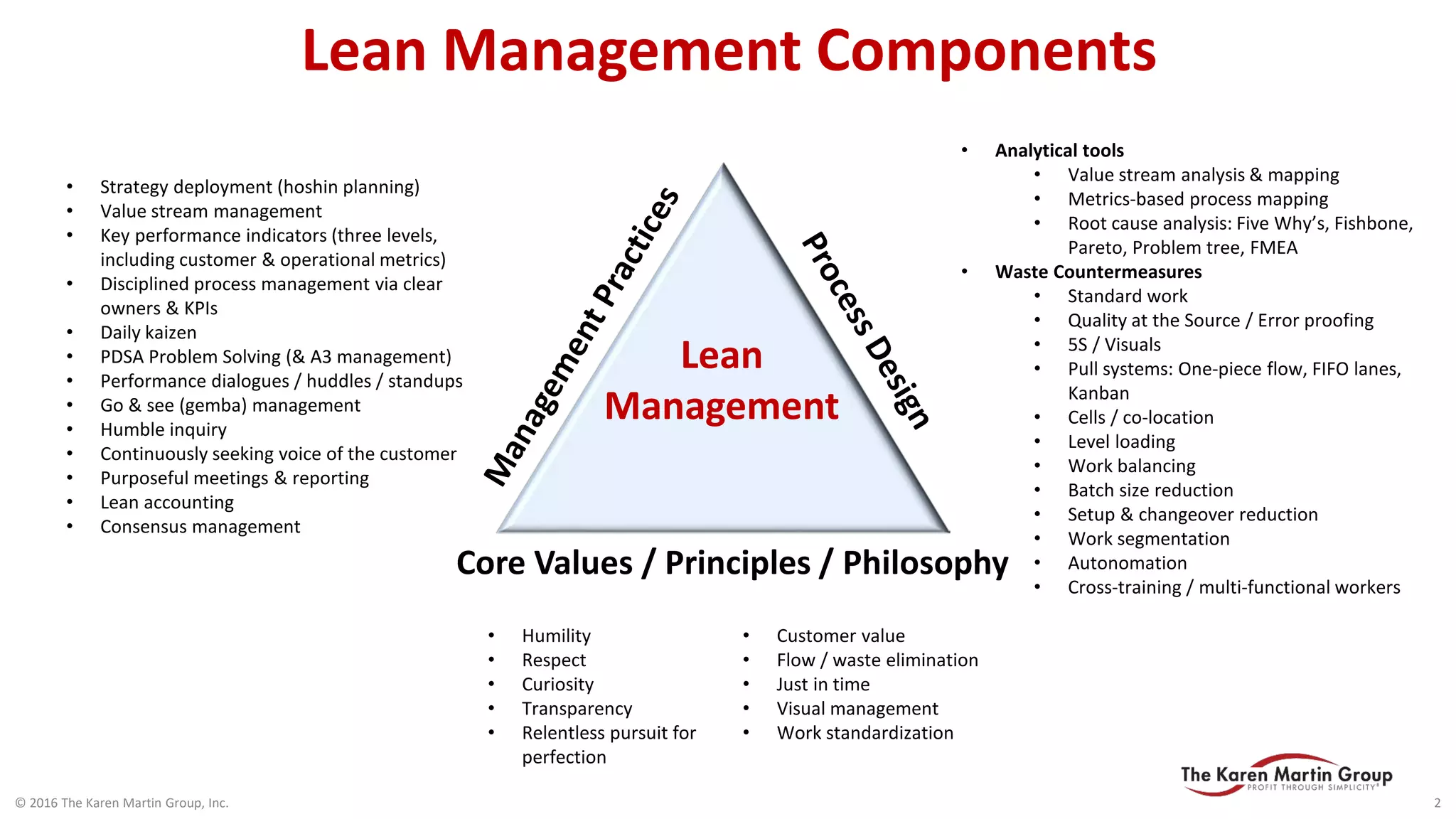

Lean Management Components
Core Values / Principles / Philosophy
• Analytical tools
• Value stream analysis & mapping
• Metrics-based process mapping
• Root cause analysis: Five Why’s, Fishbone,
Pareto, Problem tree, FMEA
• Waste Countermeasures
• Standard work
• Quality at the Source / Error proofing
• 5S / Visuals
• Pull systems: One-piece flow, FIFO lanes,
Kanban
• Cells / co-location
• Level loading
• Work balancing
• Batch size reduction
• Setup & changeover reduction
• Work segmentation
• Autonomation
• Cross-training / multi-functional workers
• Strategy deployment (hoshin planning)
• Value stream management
• Key performance indicators (three levels,
including customer & operational metrics)
• Disciplined process management via clear
owners & KPIs
• Daily kaizen
• PDSA Problem Solving (& A3 management)
• Performance dialogues / huddles / standups
• Go & see (gemba) management
• Humble inquiry
• Continuously seeking voice of the customer
• Purposeful meetings & reporting
• Lean accounting
• Consensus management
• Humility
• Respect
• Curiosity
• Transparency
• Relentless pursuit for
perfection
• Customer value
• Flow / waste elimination
• Just in time
• Visual management
• Work standardization
Lean
Management
© 2016 The Karen Martin Group, Inc. 2

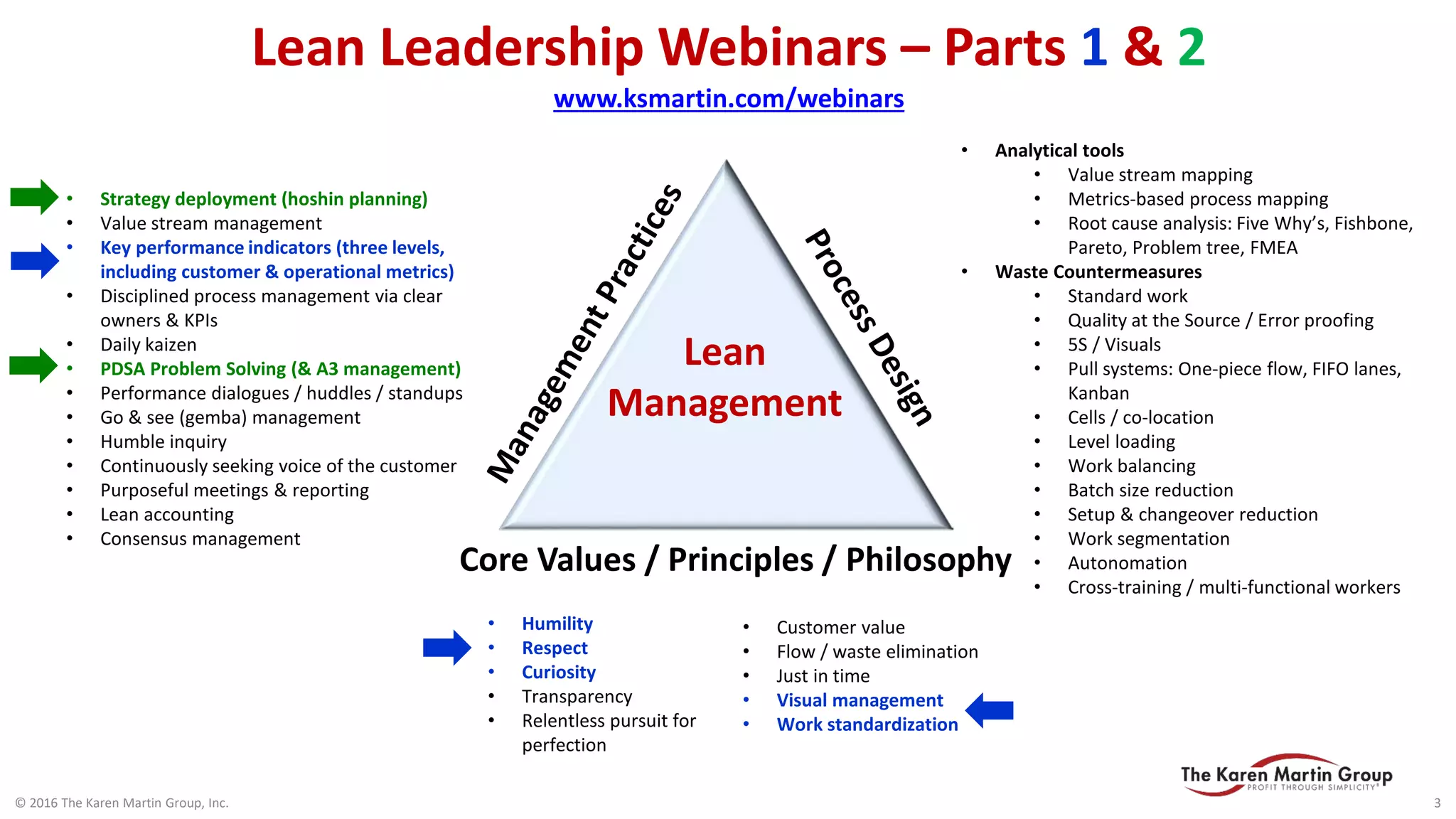

Lean Leadership Webinars – Parts 1 & 2
www.ksmartin.com/webinars
Core Values / Principles / Philosophy
• Analytical tools
• Value stream mapping
• Metrics-based process mapping
• Root cause analysis: Five Why’s, Fishbone,
Pareto, Problem tree, FMEA
• Waste Countermeasures
• Standard work
• Quality at the Source / Error proofing
• 5S / Visuals
• Pull systems: One-piece flow, FIFO lanes,
Kanban
• Cells / co-location
• Level loading
• Work balancing
• Batch size reduction
• Setup & changeover reduction
• Work segmentation
• Autonomation
• Cross-training / multi-functional workers
• Strategy deployment (hoshin planning)
• Value stream management
• Key performance indicators (three levels,
including customer & operational metrics)
• Disciplined process management via clear
owners & KPIs
• Daily kaizen
• PDSA Problem Solving (& A3 management)
• Performance dialogues / huddles / standups
• Go & see (gemba) management
• Humble inquiry
• Continuously seeking voice of the customer
• Purposeful meetings & reporting
• Lean accounting
• Consensus management
• Humility
• Respect
• Curiosity
• Transparency
• Relentless pursuit for
perfection
• Customer value
• Flow / waste elimination
• Just in time
• Visual management
• Work standardization
Lean
Management
© 2016 The Karen Martin Group, Inc. 3

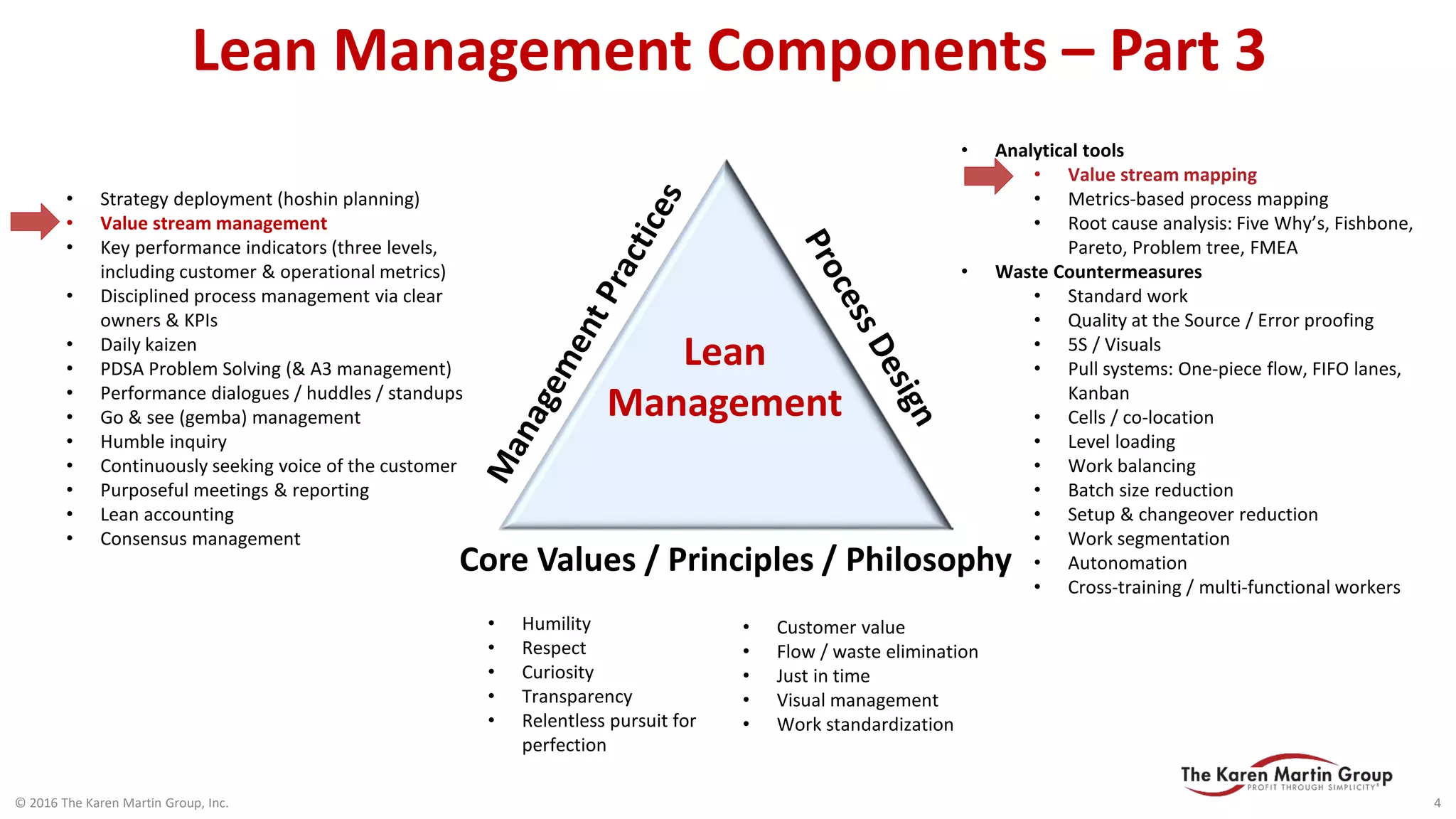

Lean Management Components – Part 3
Core Values / Principles / Philosophy
• Analytical tools
• Value stream mapping
• Metrics-based process mapping
• Root cause analysis: Five Why’s, Fishbone,
Pareto, Problem tree, FMEA
• Waste Countermeasures
• Standard work
• Quality at the Source / Error proofing
• 5S / Visuals
• Pull systems: One-piece flow, FIFO lanes,
Kanban
• Cells / co-location
• Level loading
• Work balancing
• Batch size reduction
• Setup & changeover reduction
• Work segmentation
• Autonomation
• Cross-training / multi-functional workers
• Strategy deployment (hoshin planning)
• Value stream management
• Key performance indicators (three levels,
including customer & operational metrics)
• Disciplined process management via clear
owners & KPIs
• Daily kaizen
• PDSA Problem Solving (& A3 management)
• Performance dialogues / huddles / standups
• Go & see (gemba) management
• Humble inquiry
• Continuously seeking voice of the customer
• Purposeful meetings & reporting
• Lean accounting
• Consensus management
• Humility
• Respect
• Curiosity
• Transparency
• Relentless pursuit for
perfection
• Customer value
• Flow / waste elimination
• Just in time
• Visual management
• Work standardization
Lean
Management
© 2016 The Karen Martin Group, Inc. 4

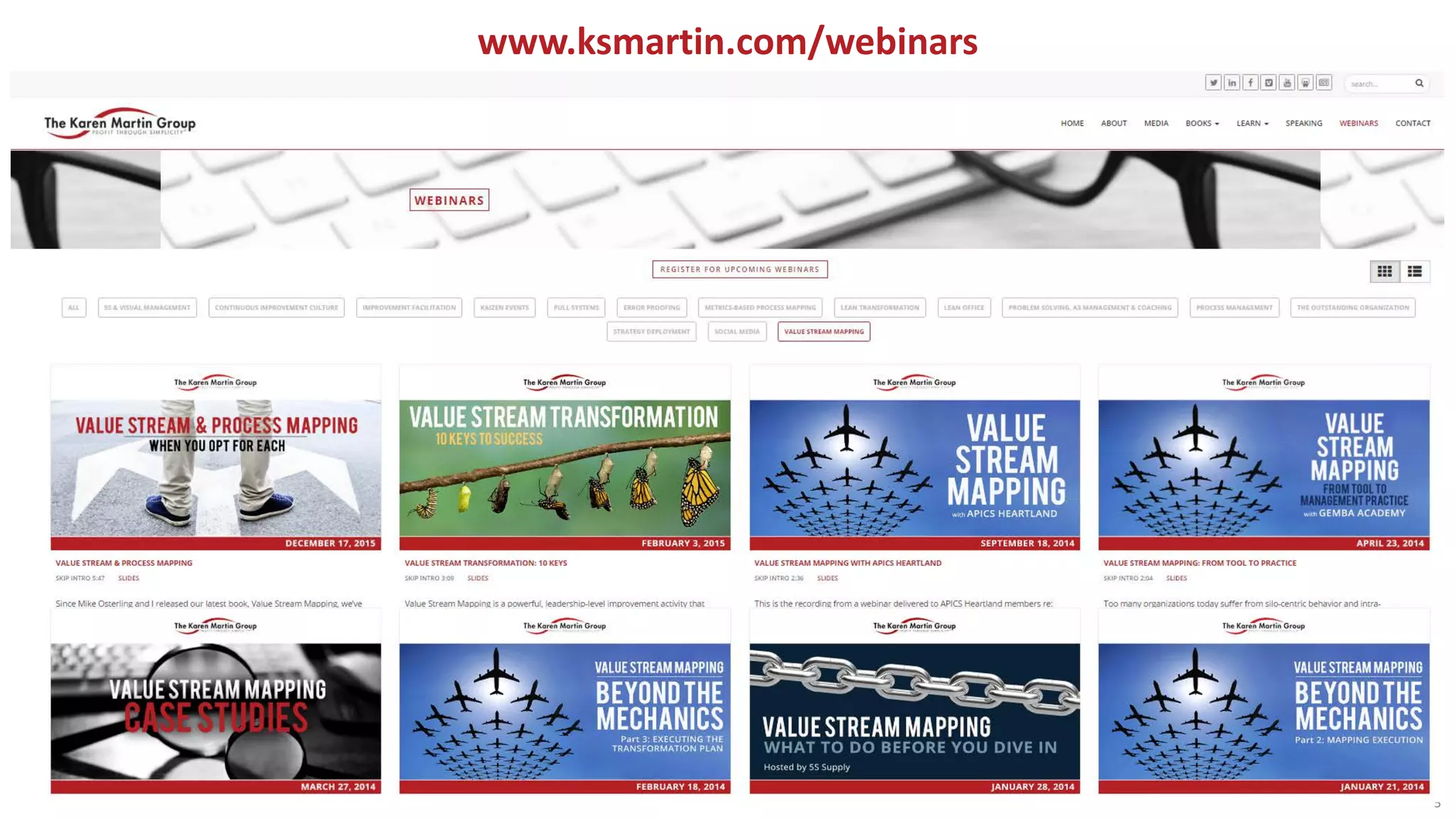

www.ksmartin.com/webinars
5

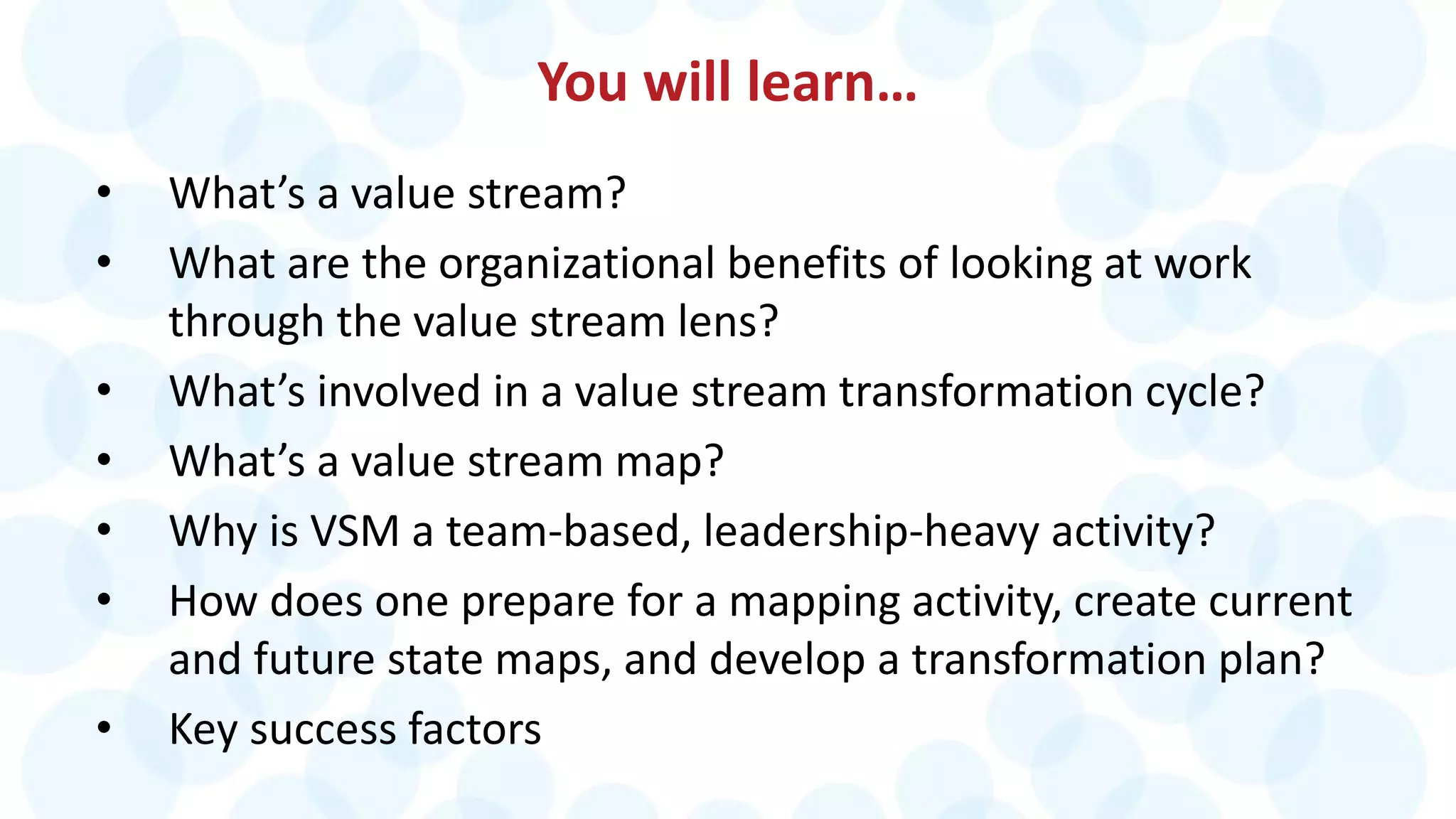

You will learn…
• What’s a value stream?
• What are the organizational benefits of looking at work
through the value stream lens?
• What’s involved in a value stream transformation cycle?
• What’s a value stream map?
• Why is VSM a team-based, leadership-heavy activity?
• How does one prepare for a mapping activity, create current
and future state maps, and develop a transformation plan?
• Key success factors
Wherever there is a request and a deliverable,
there is a value stream.

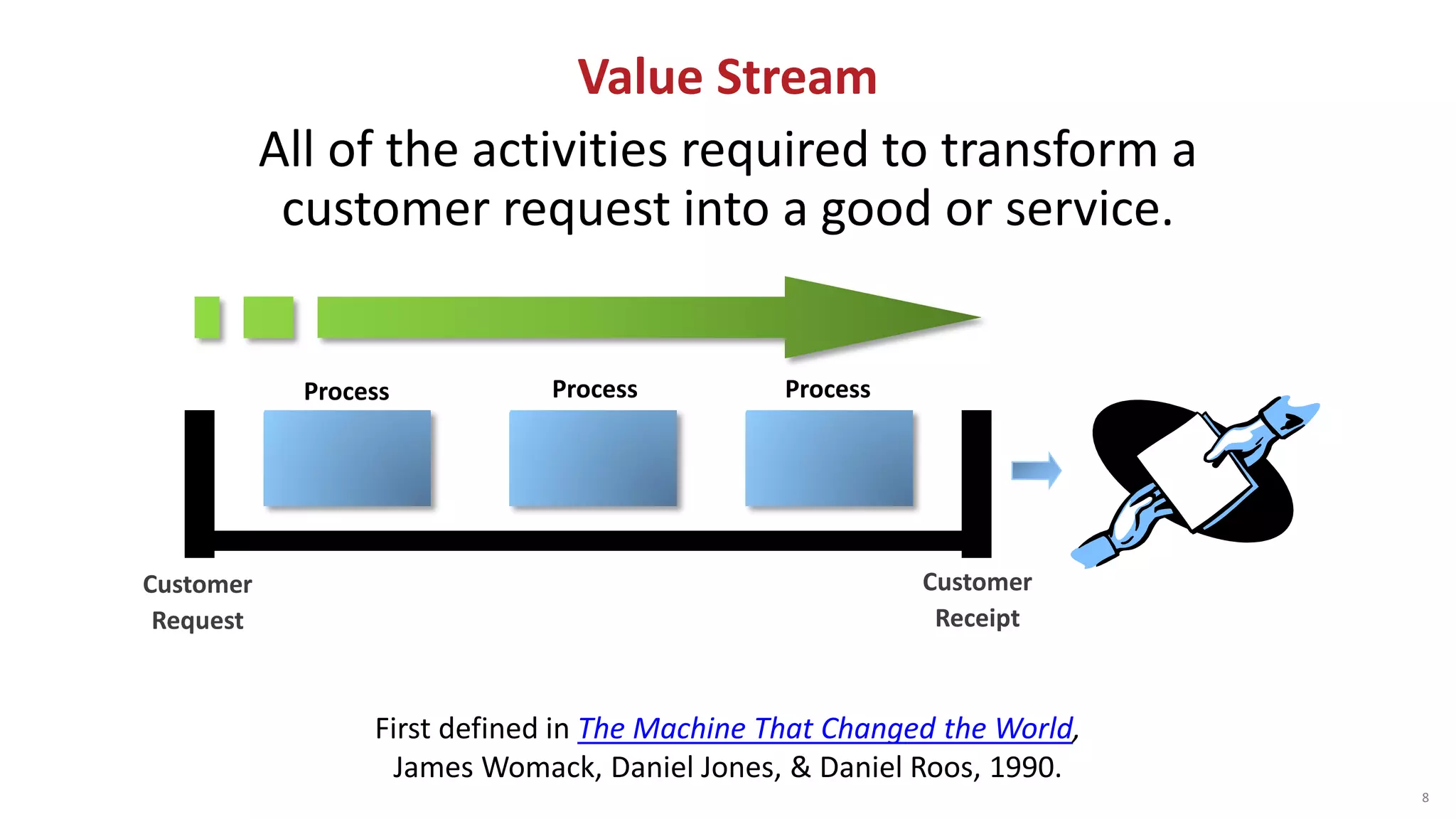

Value Stream
All of the activities required to transform a
customer request into a good or service.
8
First defined in The Machine That Changed the World,
James Womack, Daniel Jones, & Daniel Roos, 1990.
Process ProcessProcess
Customer
Request
Customer
Receipt

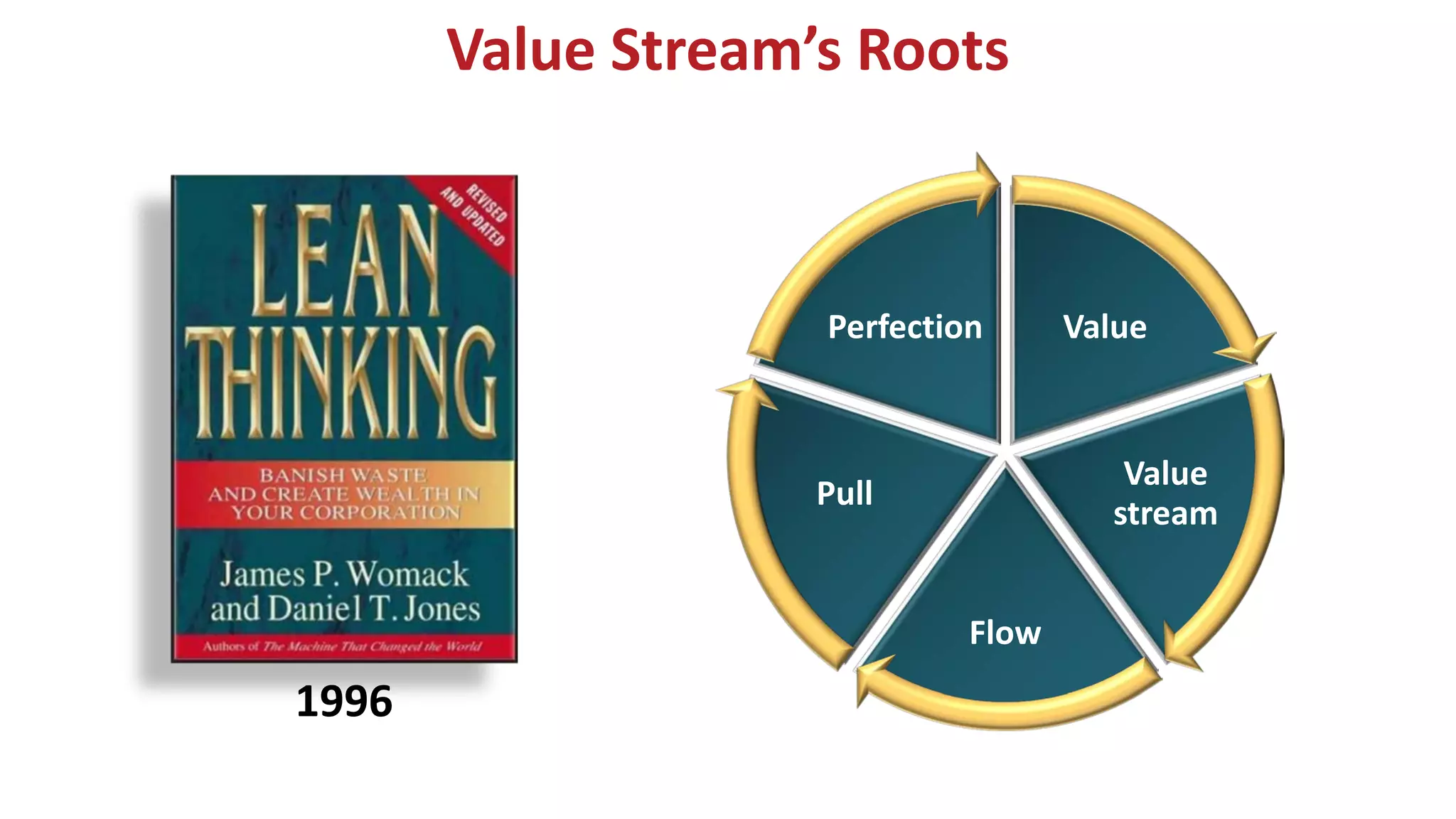

1996
Value
Value
stream
Flow
Pull
Perfection
Value Stream’s Roots
Value Stream Mapping Progression
10
Mike Rother &
John Shook
1999
Beau Keyte &
Drew Locher,
2004 & 2015
Karen Martin &
Mike Osterling
2014
“Whenever there is a product for a
customer, there is a value stream.
The challenge lies in seeing it.”

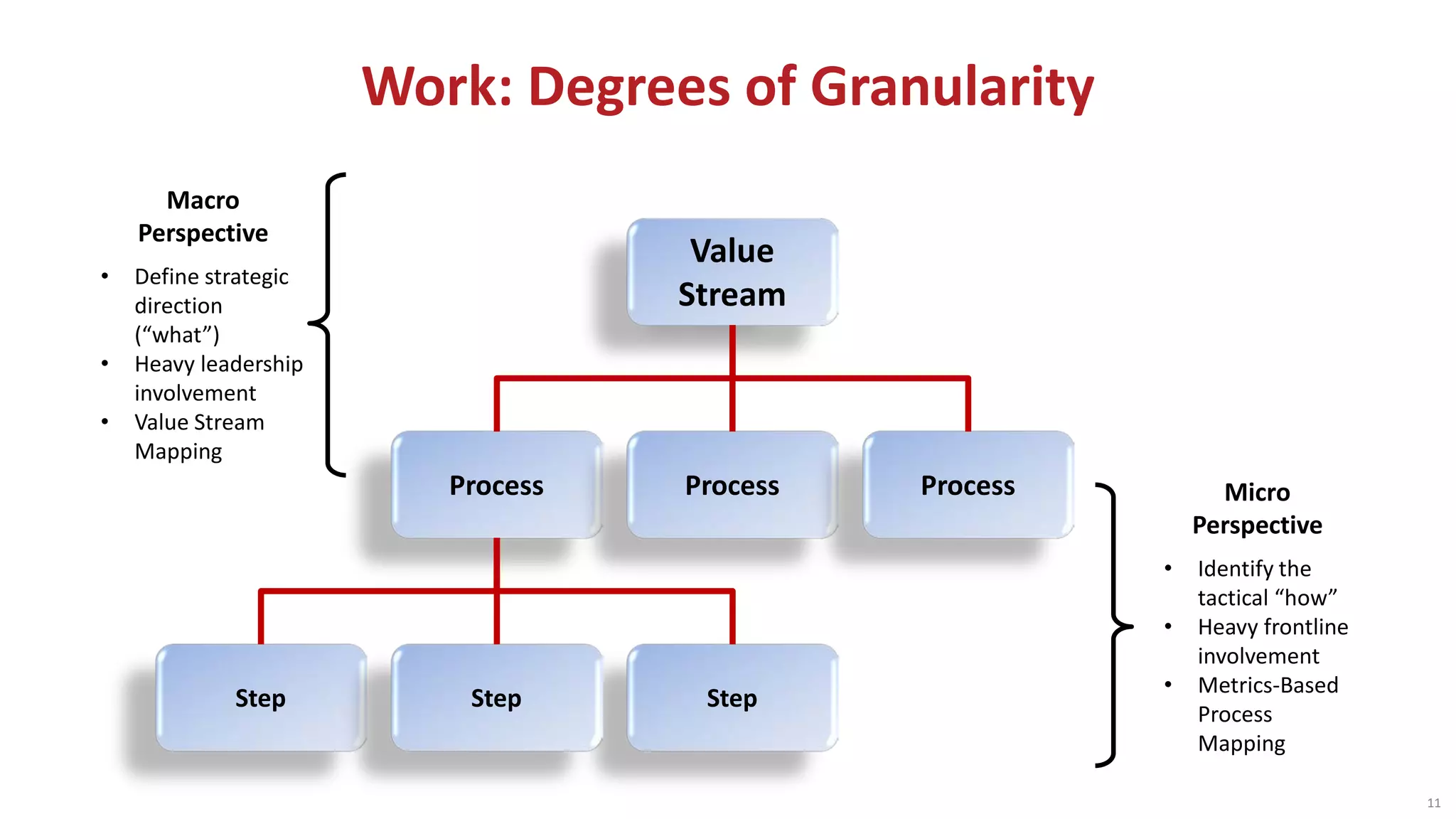

Work: Degrees of Granularity
11
Value
Stream
Process Process Process
Step StepStep
Macro
Perspective
• Define strategic
direction
(“what”)
• Heavy leadership
involvement
• Value Stream
Mapping
Micro
Perspective
• Identify the
tactical “how”
• Heavy frontline
involvement
• Metrics-Based
Process
Mapping

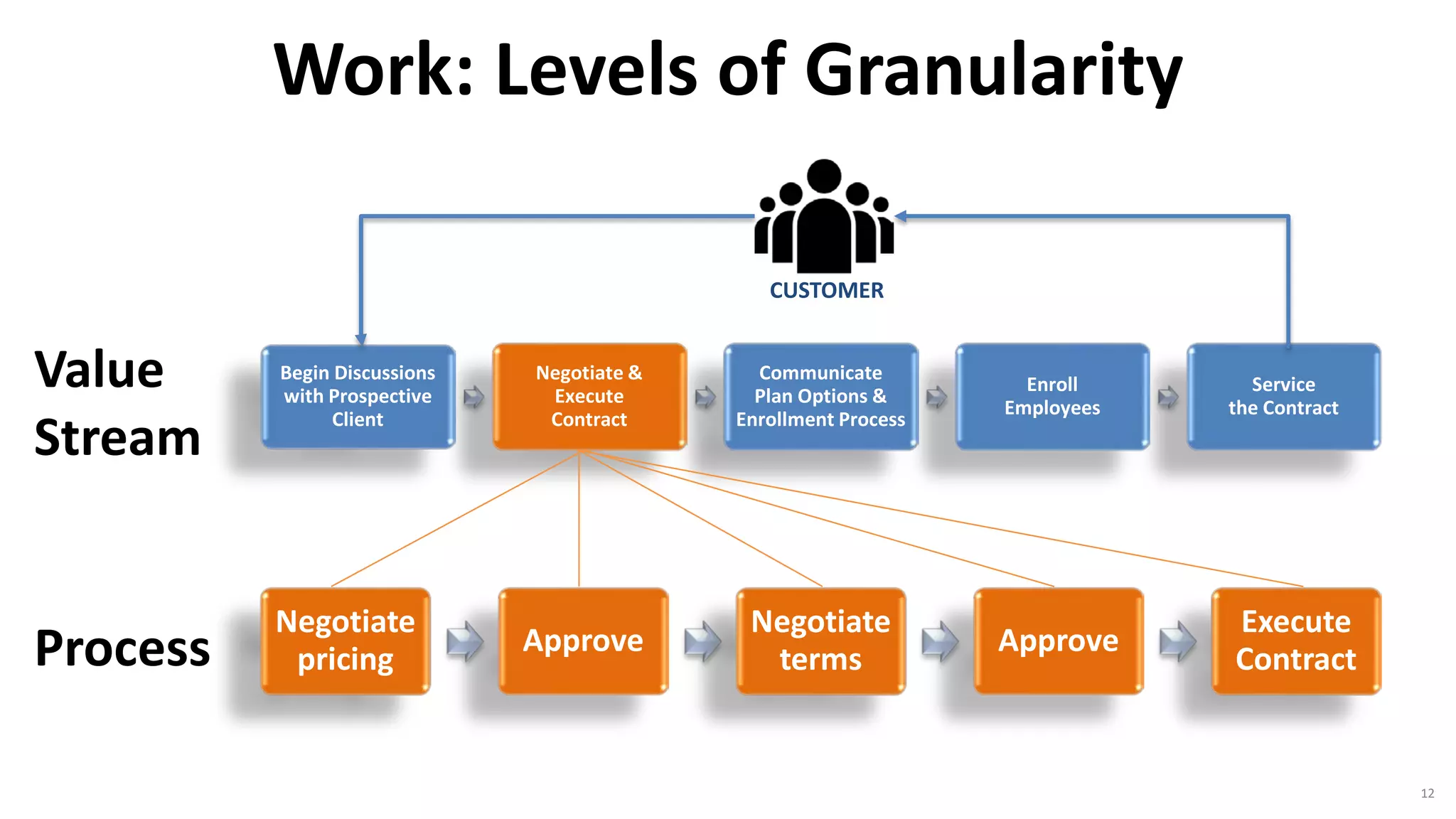

Work: Levels of Granularity
12
Begin Discussions
with Prospective
Client
Negotiate &
Execute
Contract
Communicate
Plan Options &
Enrollment Process
Enroll
Employees
Service
the Contract
Value
Stream
Process
Negotiate
pricing
Approve
Negotiate
terms
Approve
Execute
Contract
CUSTOMER
Function FunctionFunctionFunction

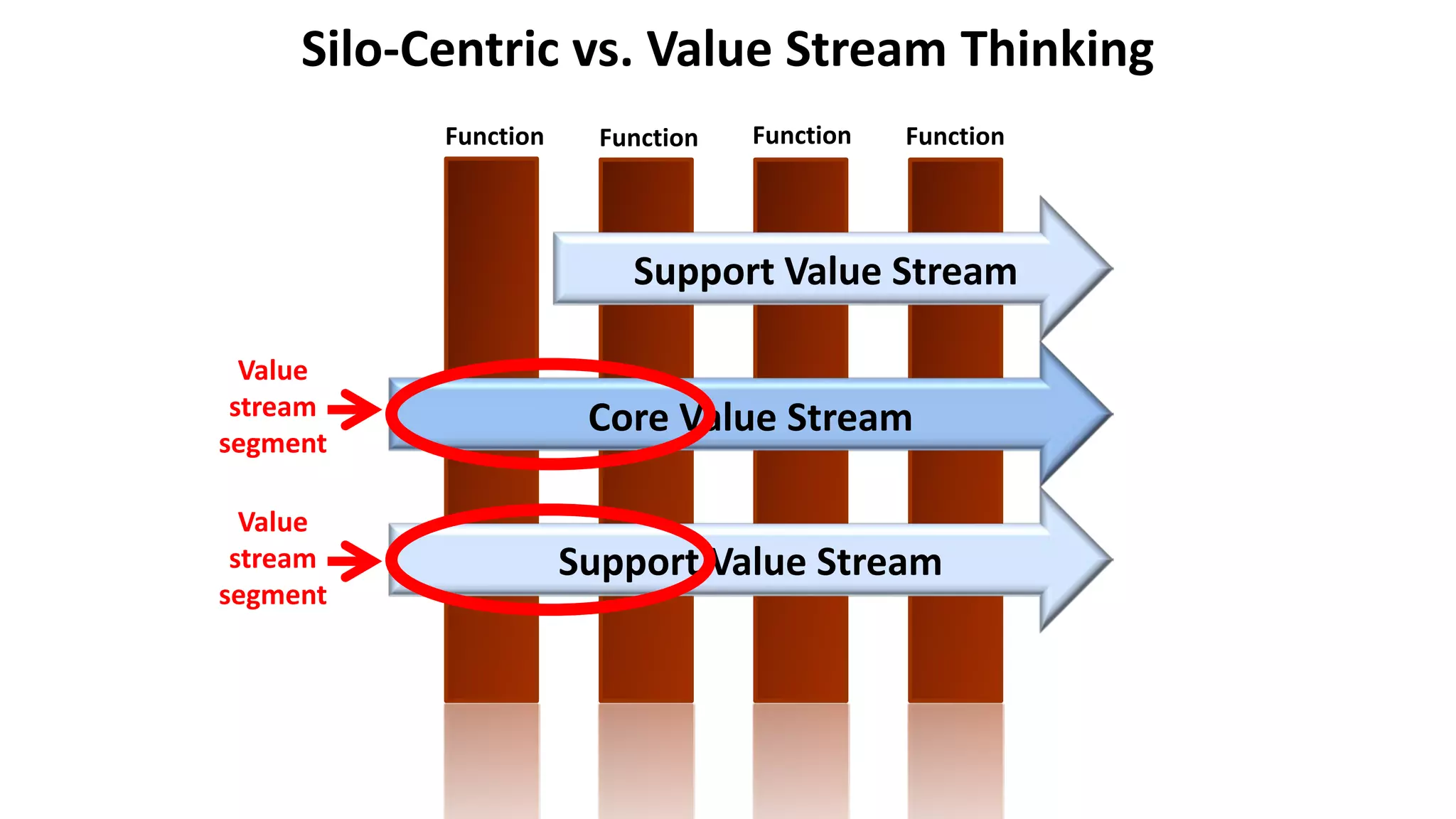

Core Value Stream
Support Value Stream
Support Value Stream
Silo-Centric vs. Value Stream Thinking
Value
stream
segment
Value
stream
segment

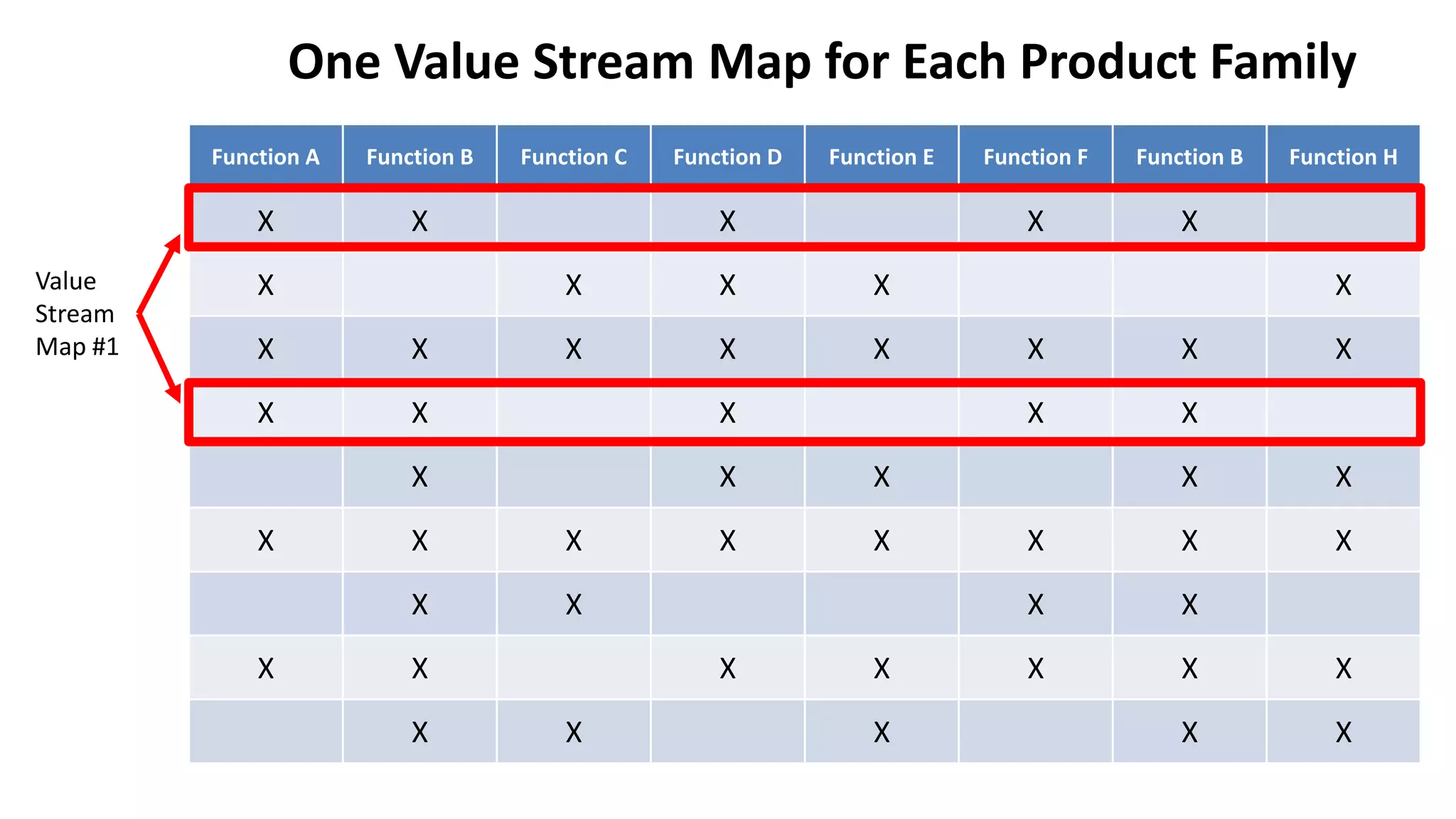

One Value Stream Map for Each Product Family
Function A Function B Function C Function D Function E Function F Function B Function H
X X X X X
X X X X X
X X X X X X X X
X X X X X
X X X X X
X X X X X X X X
X X X X
X X X X X X X
X X X X X
Value
Stream
Map #1

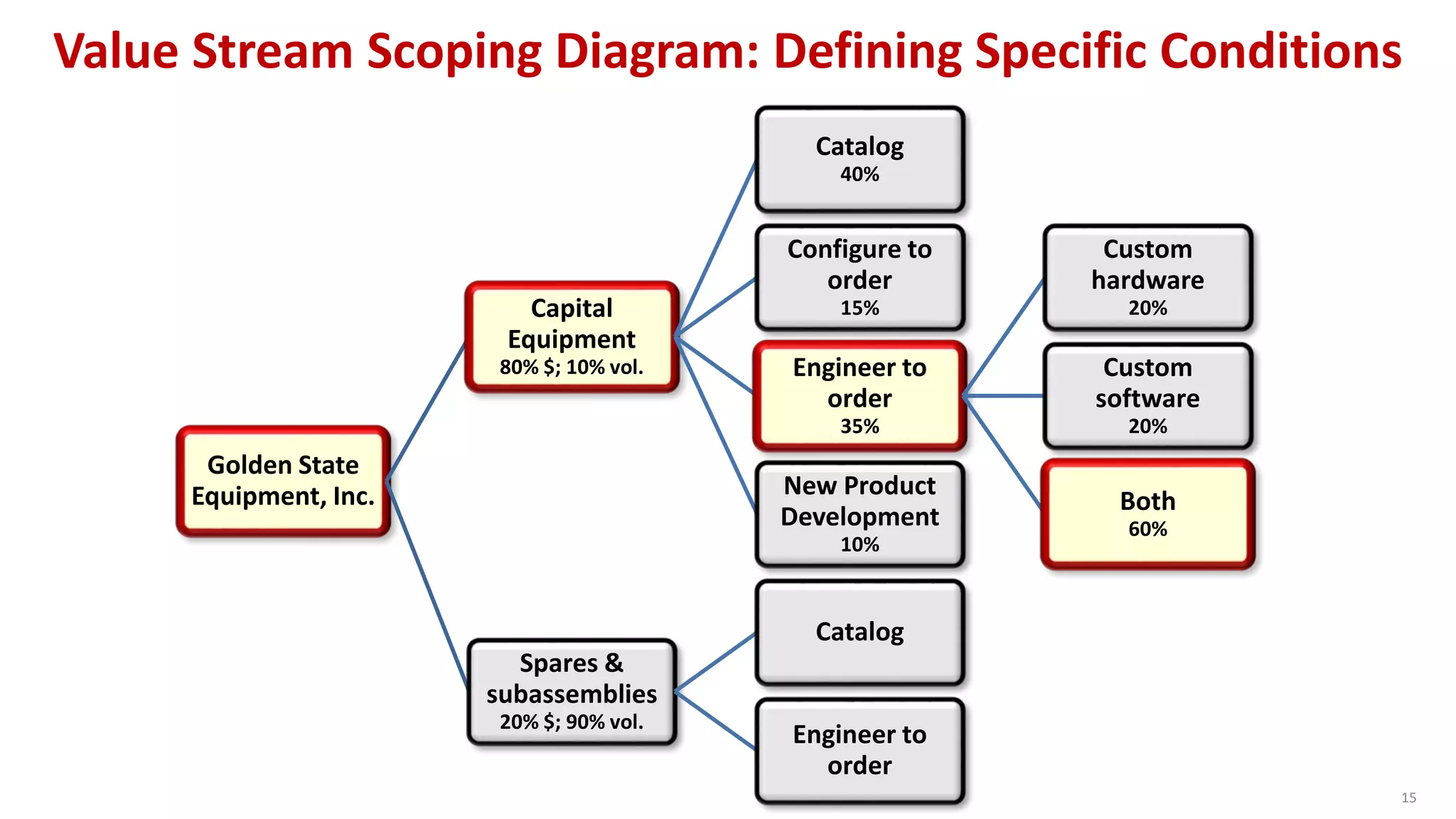

Value Stream Scoping Diagram: Defining Specific Conditions
Golden State
Equipment, Inc.
Capital
Equipment
80% $; 10% vol.
Catalog
40%
Configure to
order
15%
Engineer to
order
35%
Custom
hardware
20%
Custom
software
20%
Both
60%
New Product
Development
10%
Spares &
subassemblies
20% $; 90% vol.
Catalog
Engineer to
order
15
Value Stream Mapping Benefit:
Seeing the Whole
16
Value Stream Mapping enables a
mapping team to get ABOVE the work
17
18
Strategy
Before
Tactics
Options:
• I-55/57 & I- 30
• I-70 & I-44
• I-69 & I-30
20

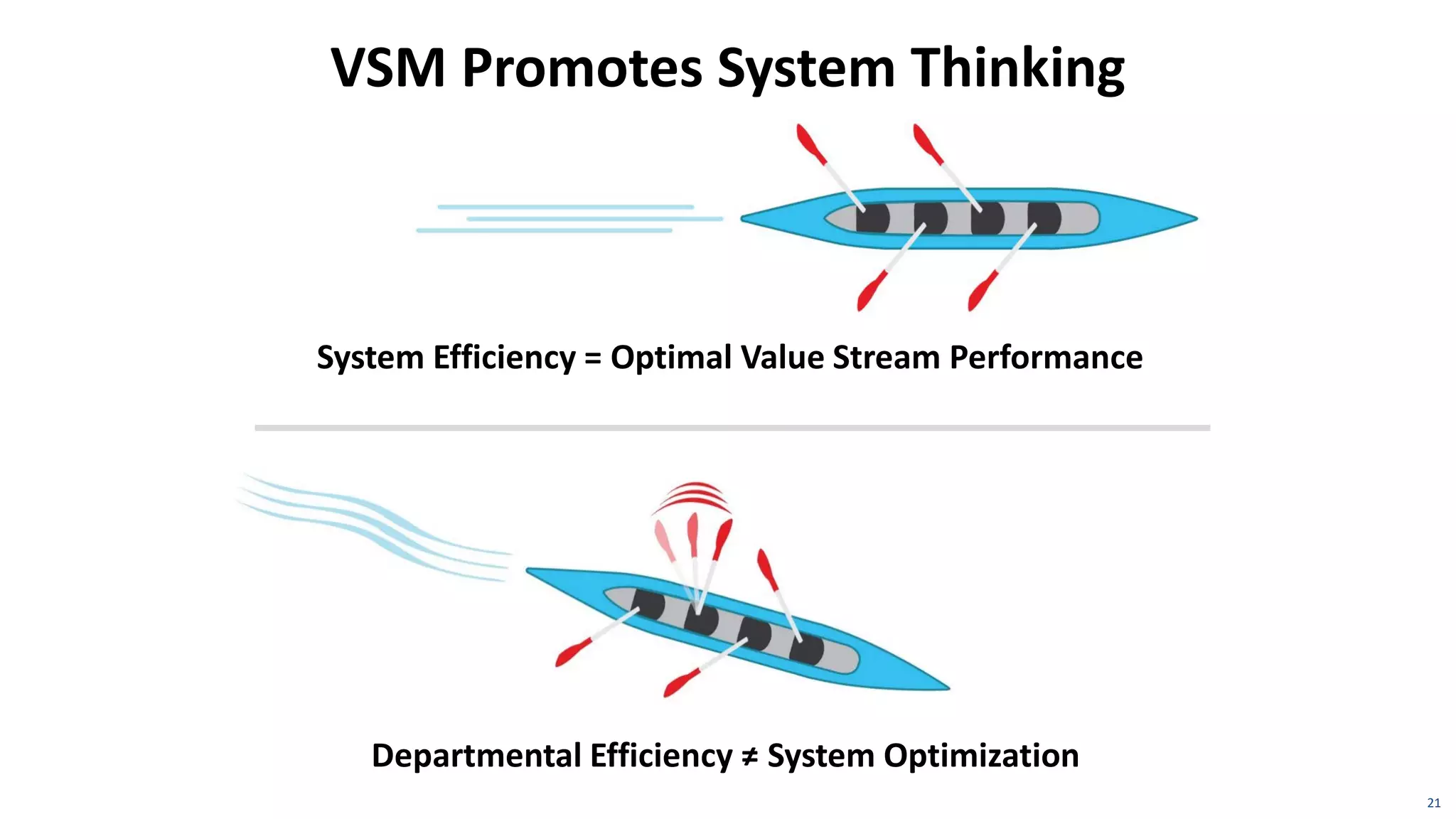

VSM Promotes System Thinking
21
System Efficiency = Optimal Value Stream Performance
Departmental Efficiency ≠ System Optimization
22
© 2016 The

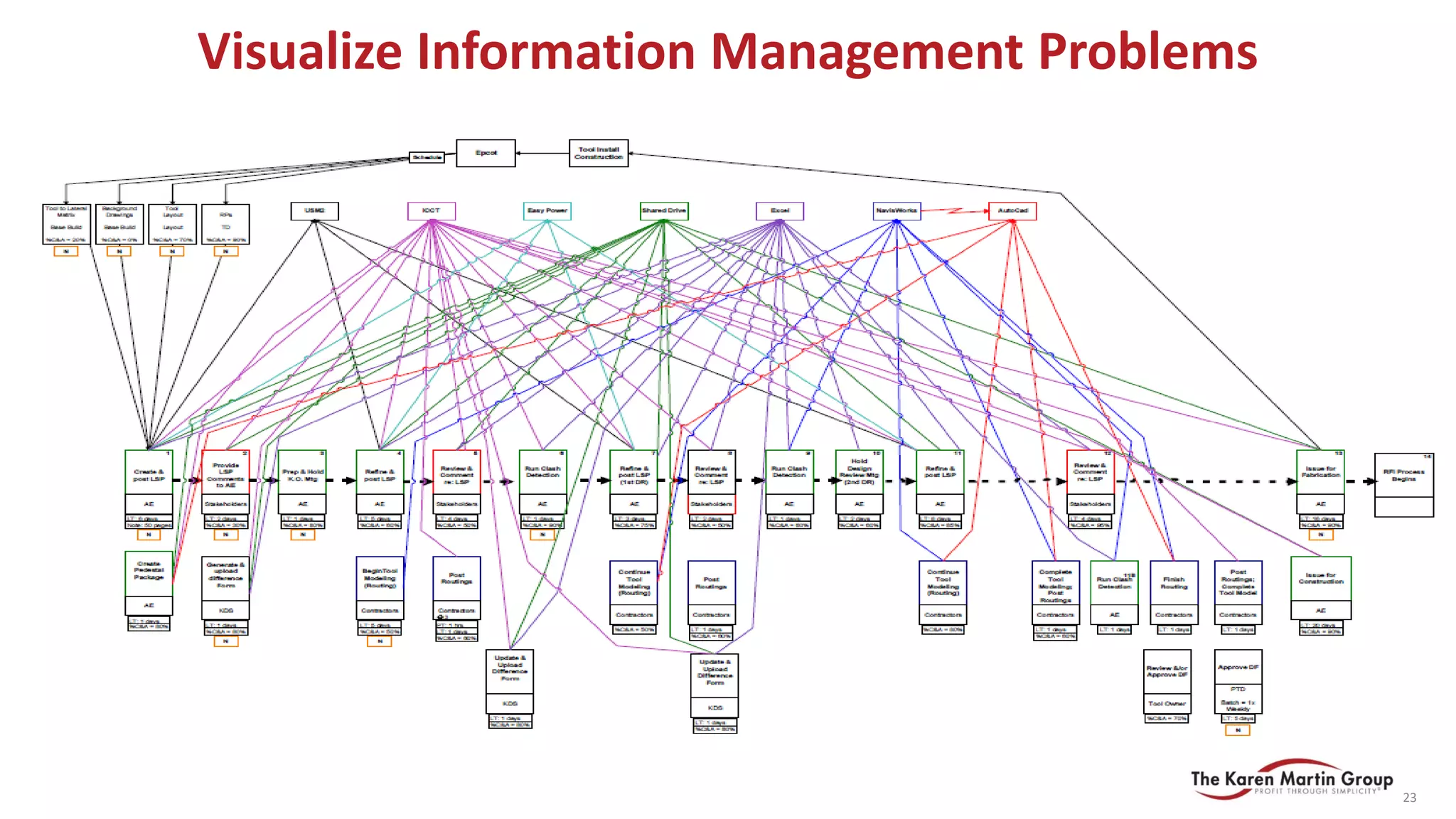

Visualize Information Management Problems
23
24

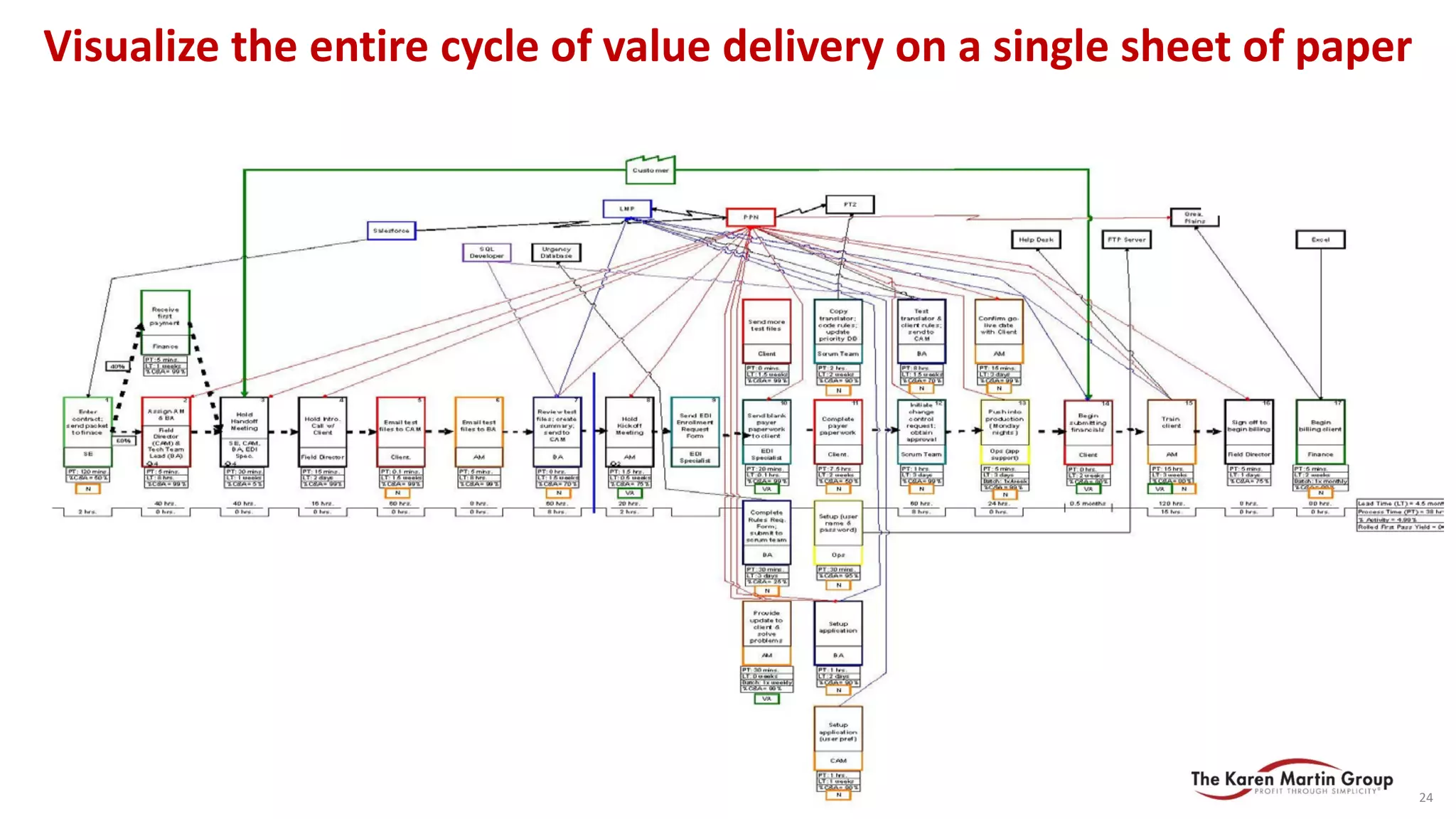

Visualize the entire cycle of value delivery on a single sheet of paper
24
Value Stream Mapping
Facilitates Leadership
Consensus & Accelerates
Improvement
Sample Future State Decisions
• Replace sales commissions with annual profit sharing.
• Insource an outsourced activity.
• Restructure broker relationships.
• Merge two departments.
• Shift work from one department to another.
• Push authorizations down two levels.
• Eliminate a department (with staff redeployment to other areas).
• Build the means for customers to order online.
• Add value stream owners to org chart.
• Double the financial levels of authority.
26

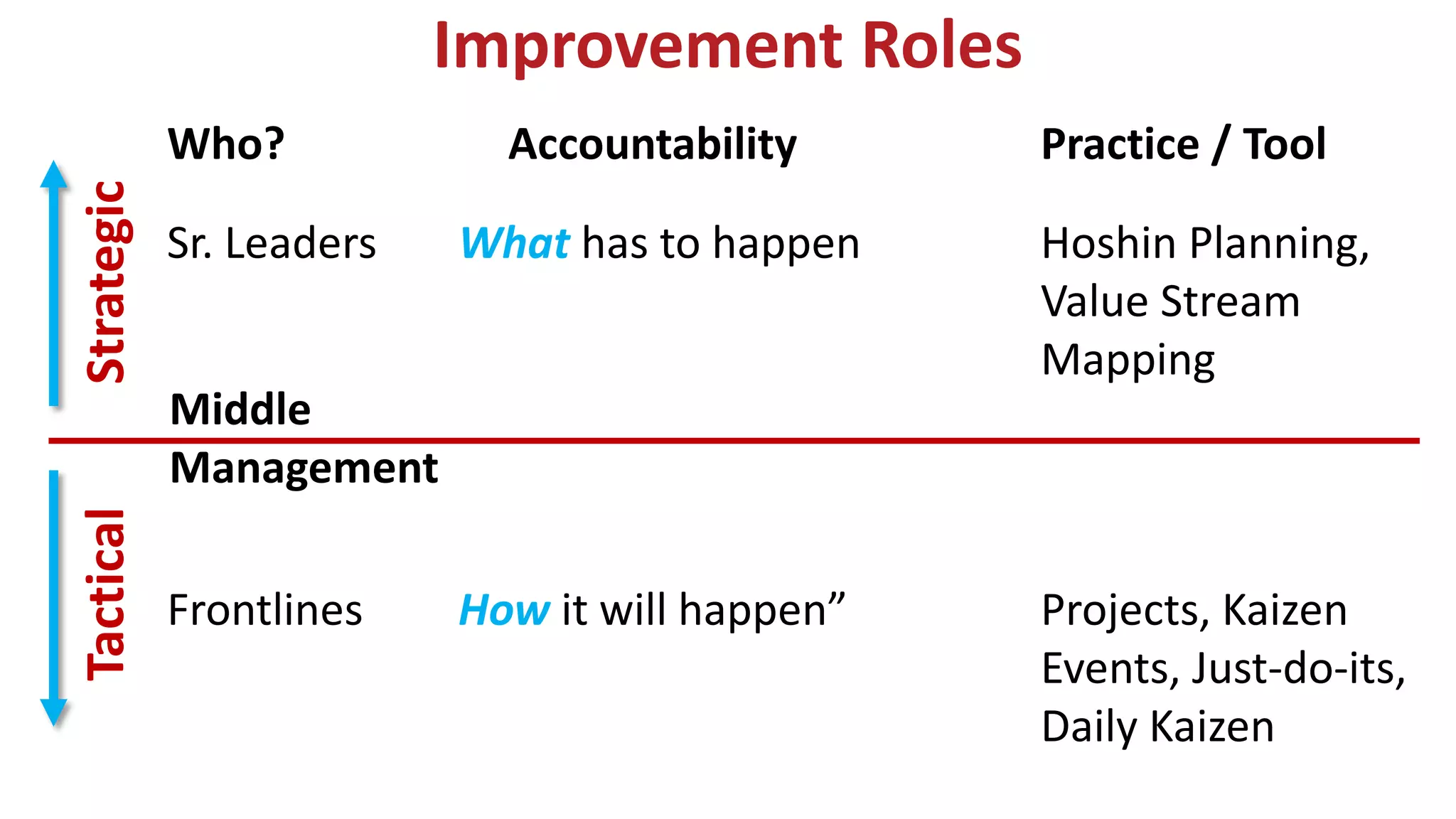

Improvement Roles
Who? Accountability Practice / Tool
Sr. Leaders What has to happen Hoshin Planning,
Value Stream
Mapping
Frontlines How it will happen” Projects, Kaizen
Events, Just-do-its,
Daily Kaizen
StrategicTactical
Middle
Management
Value Stream
Improvement
Annual Goals & Priorities
(Strategy Deployment) or
High-level A3
Projects (w/ or w/o A3),
Rapid Improvement Events
(Kaizen Events), Daily Kaizen (Kata)
29

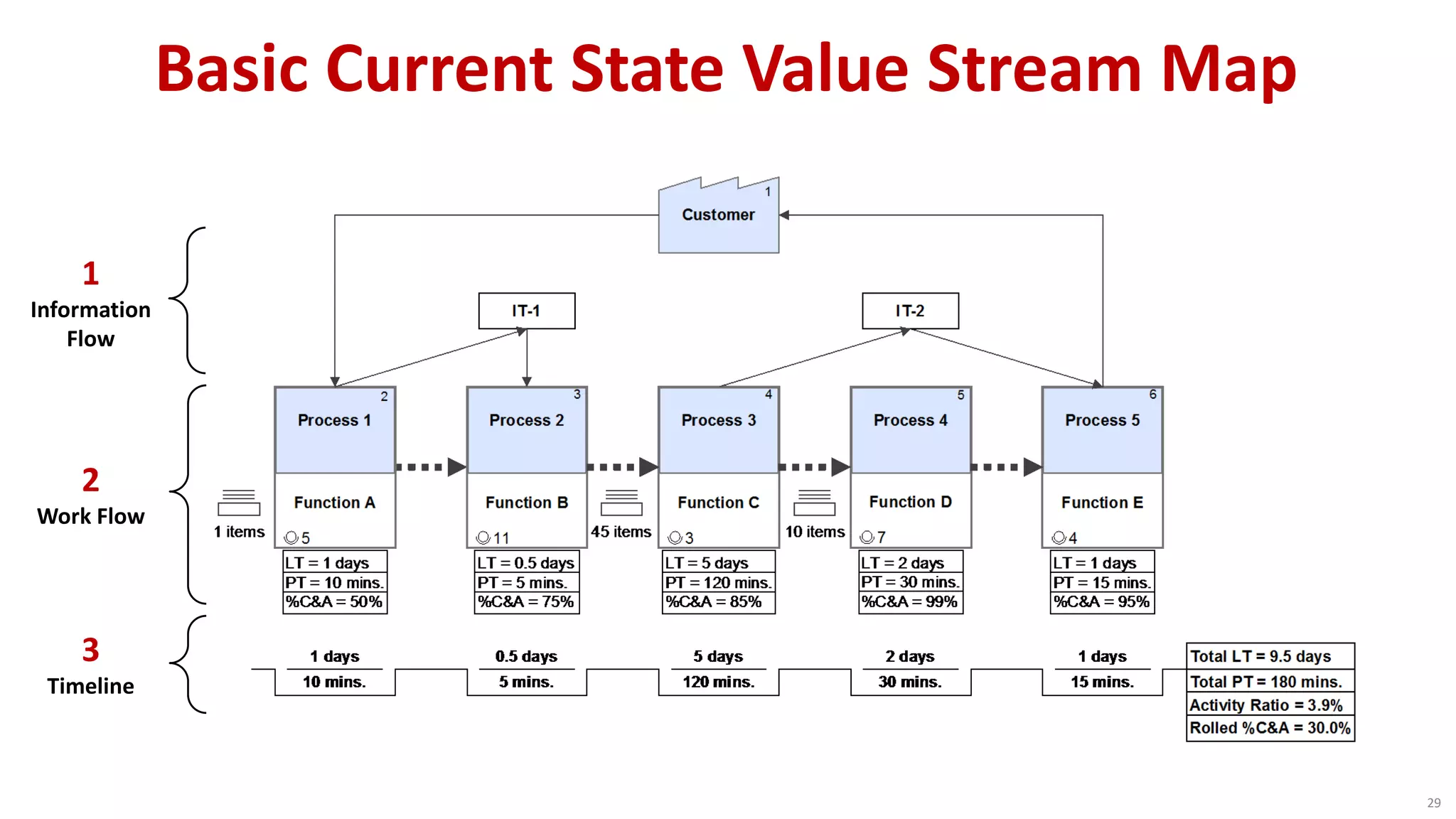

1
Information
Flow
2
Work Flow
3
Timeline
Basic Current State Value Stream Map

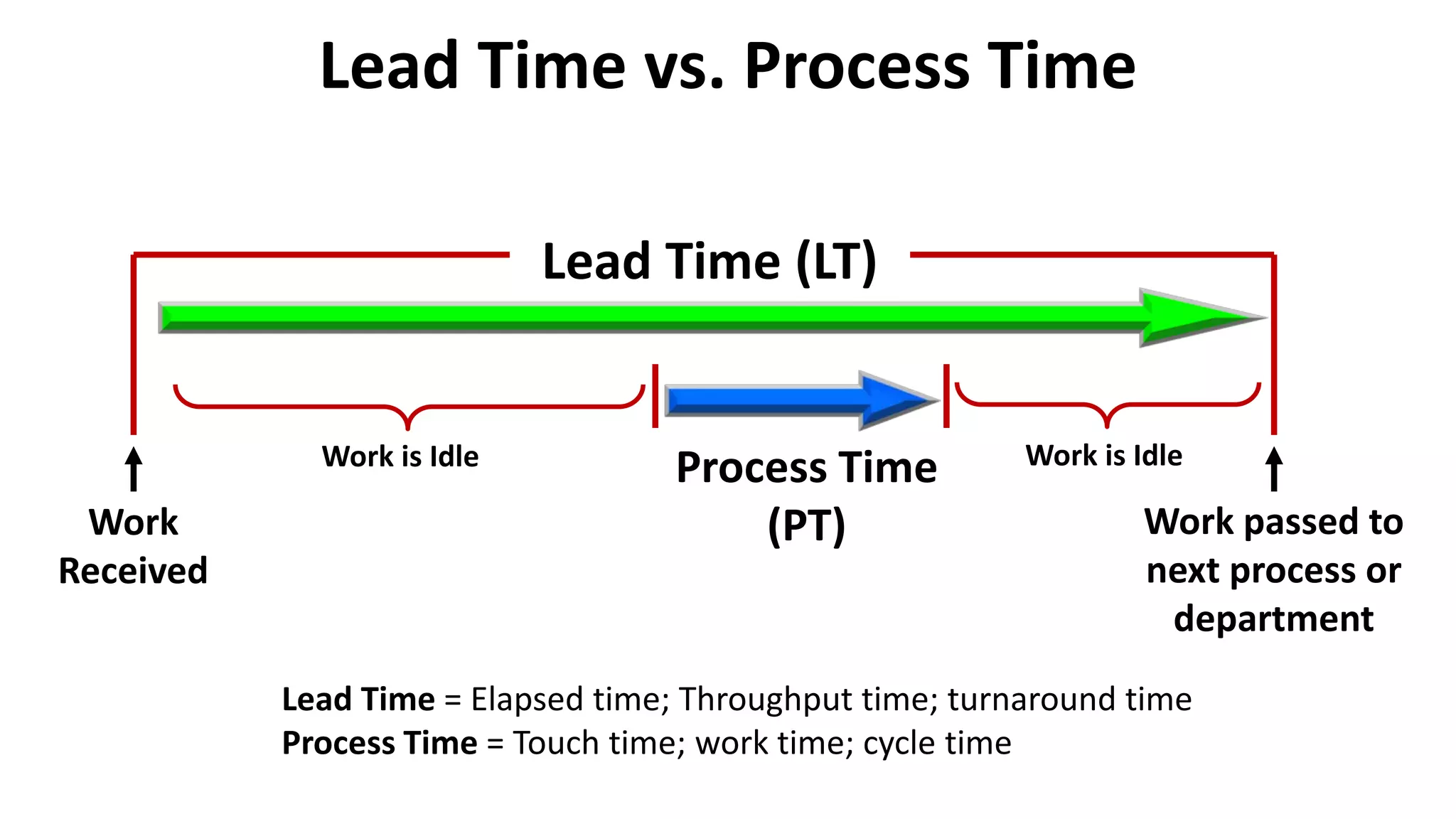

Lead Time vs. Process Time
Lead Time (LT)
Work
Received
Work passed to
next process or
department
Process Time
(PT)
Lead Time = Elapsed time; Throughput time; turnaround time
Process Time = Touch time; work time; cycle time
Work is Idle Work is Idle

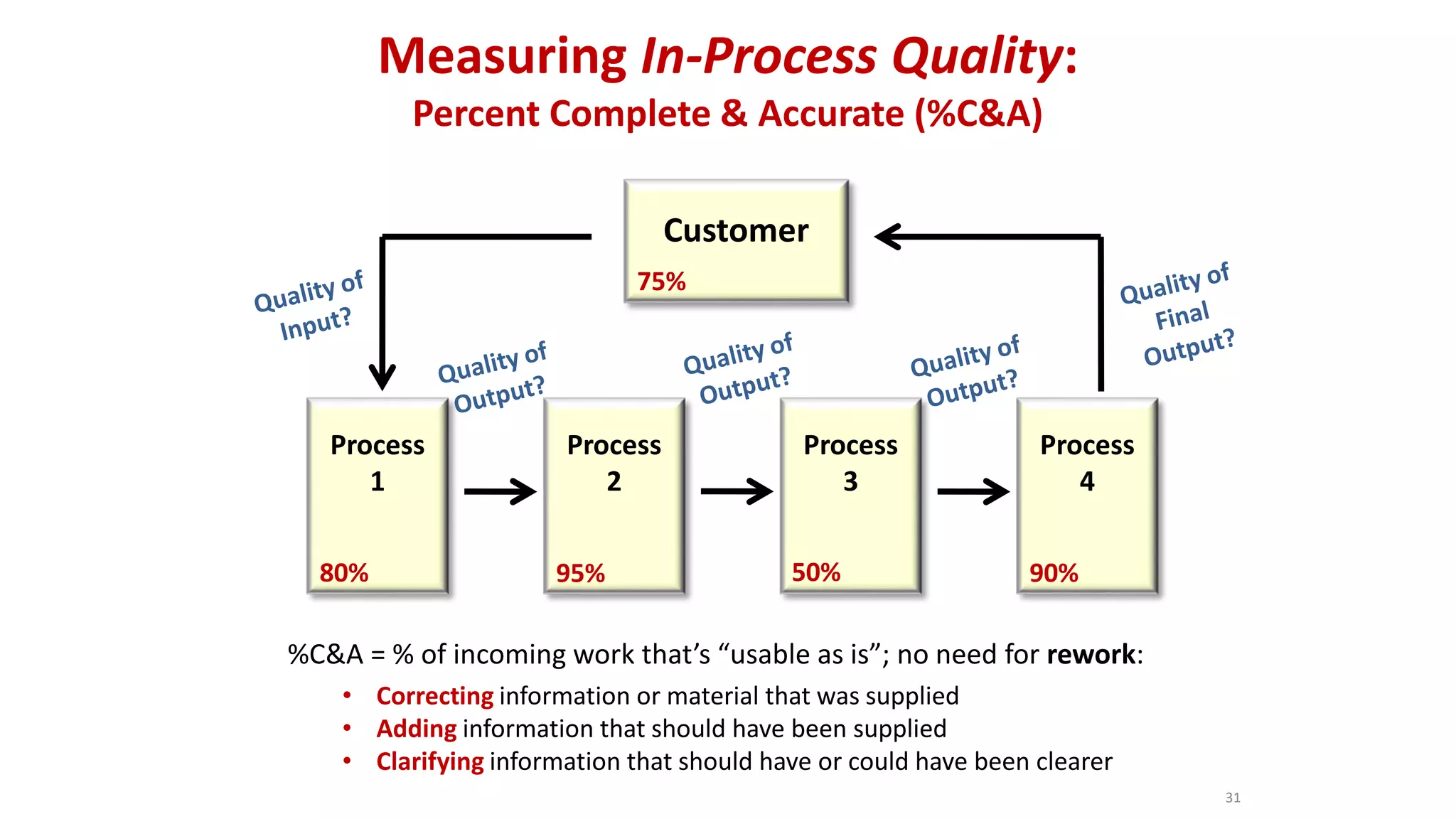

Measuring In-Process Quality:
Percent Complete & Accurate (%C&A)
Customer
Process
1
Process
2
Process
3
Process
4
80% 50%95%
75%
90%
%C&A = % of incoming work that’s “usable as is”; no need for rework:
• Correcting information or material that was supplied
• Adding information that should have been supplied
• Clarifying information that should have or could have been clearer

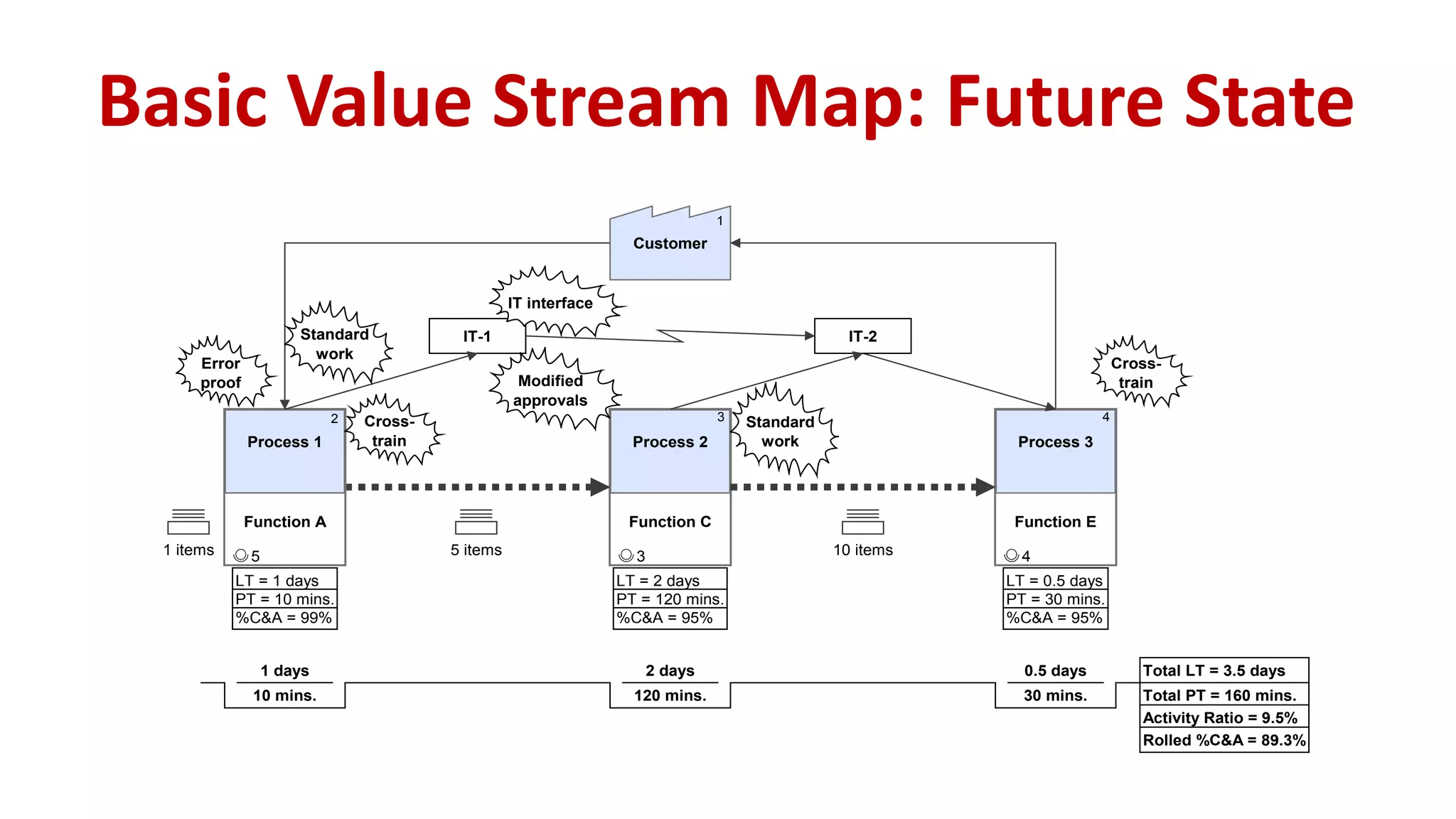

31
Customer
1
Process 3
Function E
LT = 0.5 days
PT = 30 mins.
%C&A = 95%
4
4
10 mins.
1 days
120 mins.
2 days
30 mins.
0.5 days Total LT = 3.5 days
Total PT = 160 mins.
Activity Ratio = 9.5%
Rolled %C&A = 89.3%
Process 2
Function C
LT = 2 days
PT = 120 mins.
%C&A = 95%
3
3
IT-1 IT-2
5 items
Process 1
Function A
LT = 1 days
PT = 10 mins.
%C&A = 99%
5
2
1 items 10 items
Standard
work
Modified
approvals
IT interface
Cross-
train
Cross-
train
Standard
work
Error
proof
Basic Value Stream Map: Future State

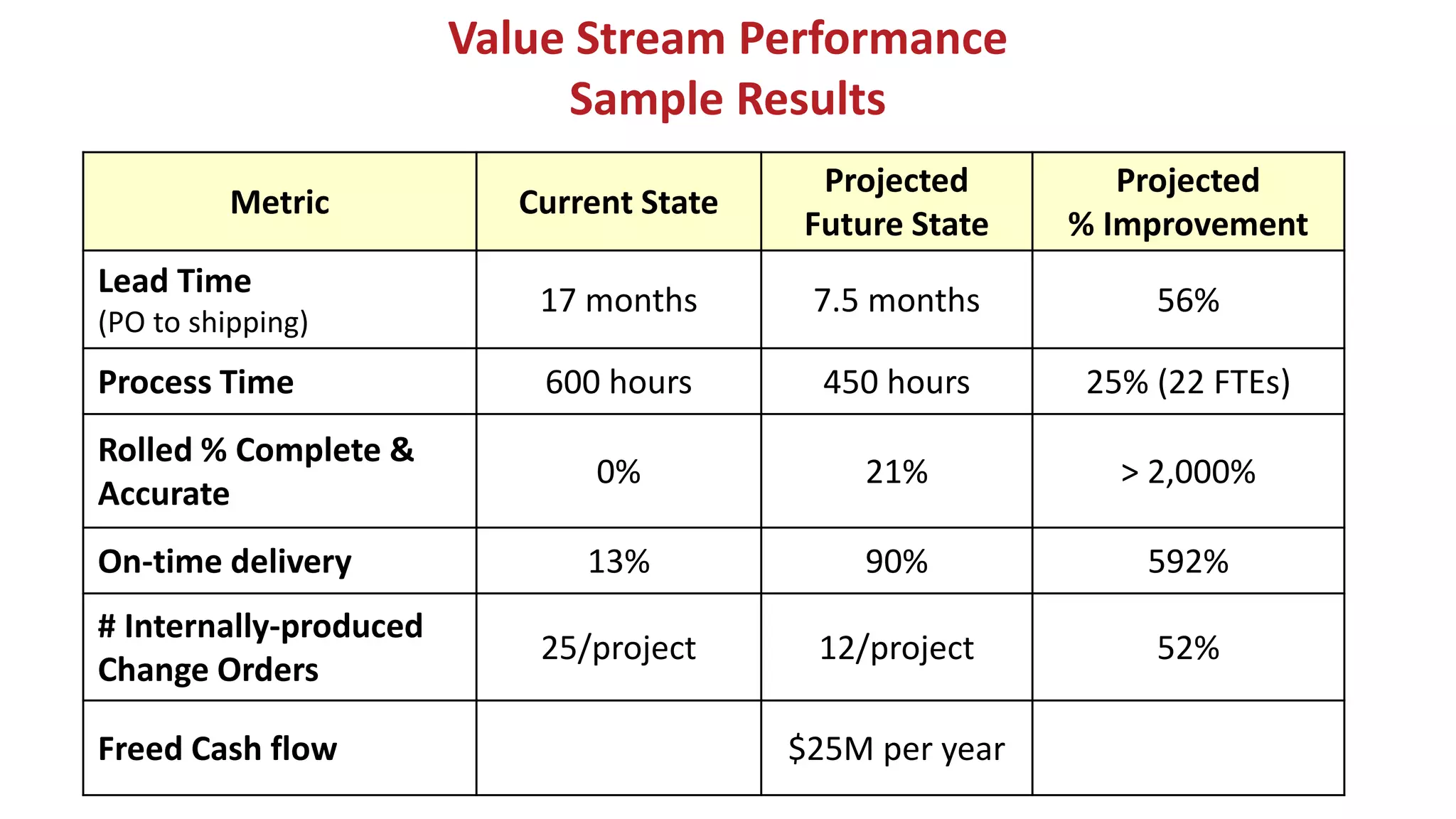

Value Stream Performance
Sample Results
Metric Current State
Projected
Future State
Projected
% Improvement
Lead Time
(PO to shipping)
17 months 7.5 months 56%
Process Time 600 hours 450 hours 25% (22 FTEs)
Rolled % Complete &
Accurate
0% 21% > 2,000%
On-time delivery 13% 90% 592%
# Internally-produced
Change Orders
25/project 12/project 52%
Freed Cash flow $25M per year

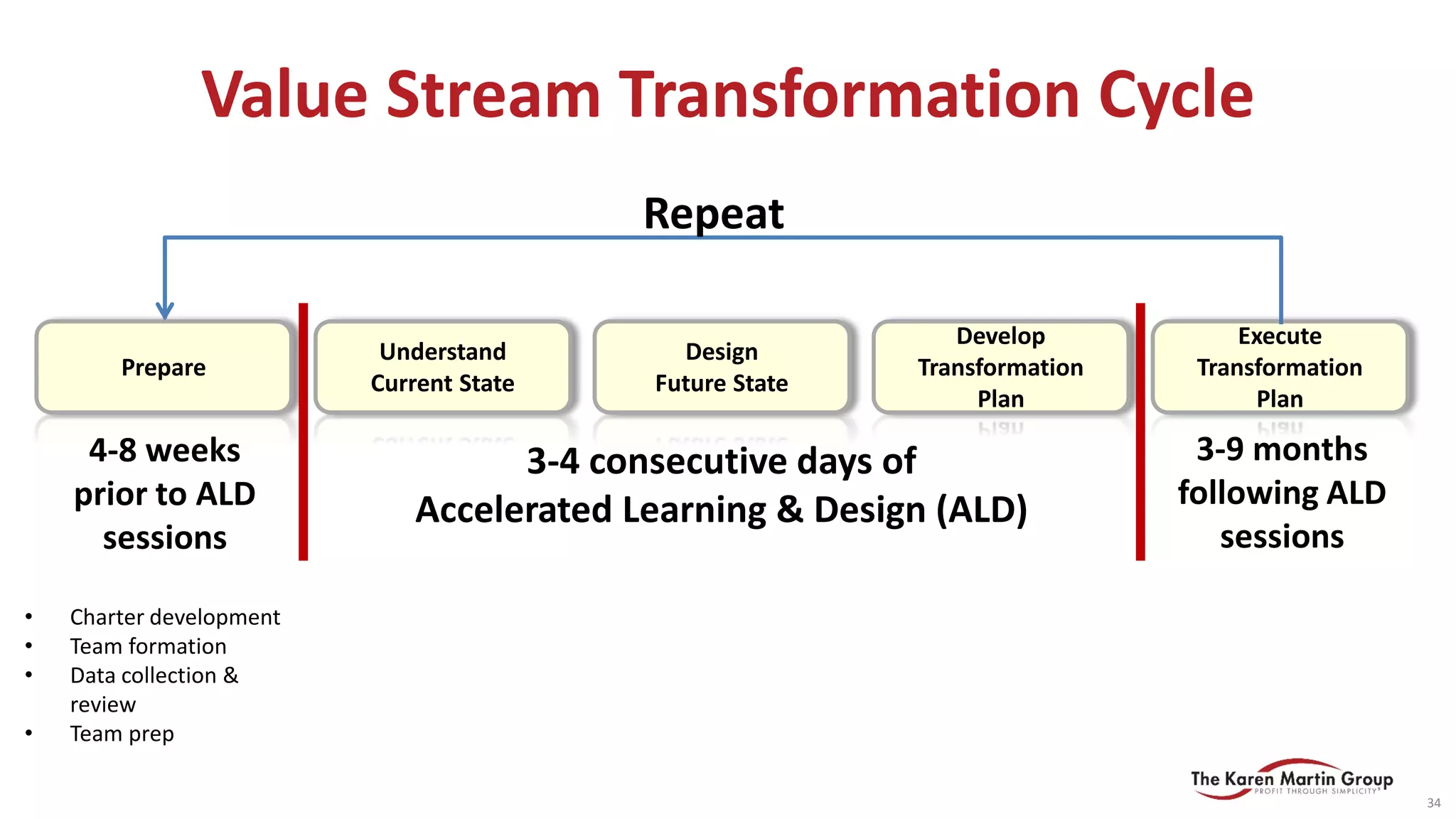

Prepare
Understand
Current State
Design
Future State
Develop
Transformation
Plan
Execute
Transformation
Plan
3-4 consecutive days of
Accelerated Learning & Design (ALD)
4-8 weeks
prior to ALD
sessions
3-9 months
following ALD
sessions
Repeat
Value Stream Transformation Cycle
34
• Charter development
• Team formation
• Data collection &
review
• Team prep
1
2 1
3 2
4 3
5 4
5
1 6
2 7
3 8
4 9
5 10
1
2 1
3 2
4 3
5 4
1
2
3
4 Date: Date:engagement, financials, lead time, safety records, etc.
effectiveness, market trends, customer satisfaction, employee Signature:
Date:
Relevant Data Agreement
Examples: work volume & volume variation, process quality &
Executive SponsorWhat data is required to understand relevant current state isues.
Signature: Signature:
How will the business, internal and external customers, and Function
internal and external suppliers benefit from value stream improvement? SMEs that may not be needed full time
Always a nice touch; keeps
the team from wandering
On-site, ample wall space,
quiet/private location
Benefits to Customers & Business On-Call Support
Increase <defined metric> from X to Y (Z% improvement).
Reduce <defined metric> from X to Y (Z% improvement).
Measurable Target Condition
What's driving the need for improvement? Function
Leadership-heavy
Current State Problems & Business Needs Mapping Team
Boundaries &
Limitations
Improvement Time
Frame
What is the team NOT authorized to change?
Typically 3-6 months
Last Step Task on last process block
Logistics
Coordinator
Not always needed
Aids in consensus building
and organizational learning.
Typically the last hour of the
day.
First Step Task on first process block
Briefing
Dates &
Times
Meals
Provided
Briefing
Attendees
** required
*optional
List the the people that are
required to attend the briefings (**)
and those whose attendance is
optional (*).
Demand Rate
Trigger
How many times is this done per wk, qtr, mo, or yr?
What initiates the process?
Value Stream Mapping Charter
Scope Accountable Parties Logistics
Required: typically VP or C-level
If needed—often director or
manager level
Specific
Conditions
What circumstances are included and excluded?
(e.g., type of customer, geographic location, etc.)
Value Stream
Champion
Value stream being improved
Executive
Sponsor
Value Stream
Event Dates
& Times
3 days typically; consecutive
is best; 6 hrs per day
minimum; 7 or 8 hrs is best
Required: skilled, objective person
leading the activity
Base-camp
Location
Facilitator
Name
Name
FacilitatorValue Stream Champion
Contact Information
Contact Information
Charter: Critical planning, communication, and consensus-building tool
Available at www.ksmartin.com/vsm-charter

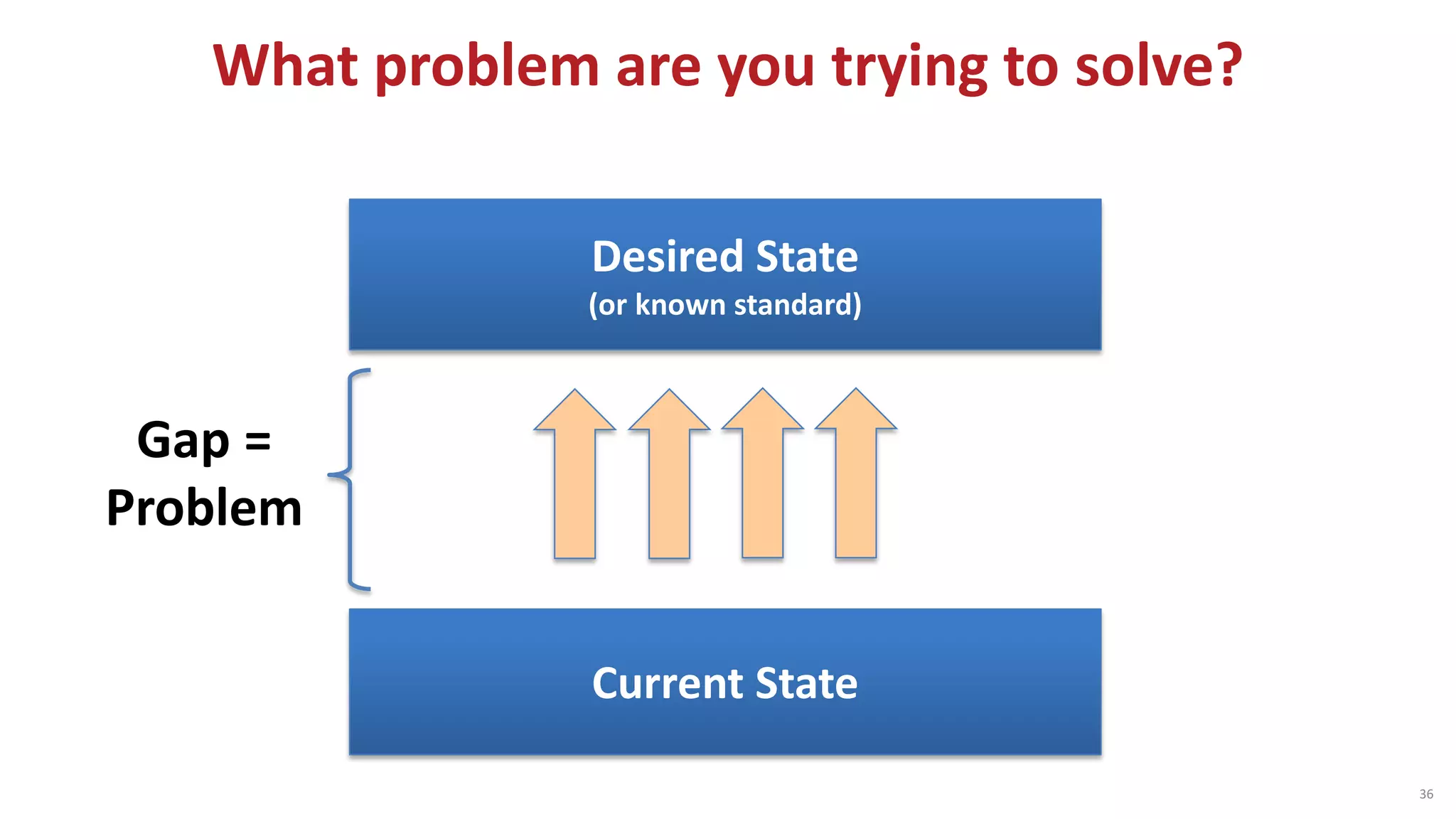

What problem are you trying to solve?
36
Desired State
(or known standard)
Current State
Gap =
Problem
Agency
1.3 hrs. 5.0 hrs.
10.0 days
3.0 hrs.
5.0 days
0.2 hrs.
1.0 days
1.0 hrs.
3.0 days
5.0 hrs.
2.0 days
1.3 hrs.
1.5 days
8.0 hrs. 4.0 hrs.
10.0 days
0.1 hrs.
10.0 days
40.0 hrs.
10.0 days
4.0 hrs.
7.0 days
3.0 hrs.
64.0 days Total LT = 124.7 days
Total PT = 75.8 hrs.
Activity Ratio = 8%
Customer's
Order
System
Apptus/
Design
C9
Apollo
Create
Opportunity
Conduct
Credit Check
Sales
Credit
LT = 0 days
PT = 1.25 hrs.
%C&A: 60%
1
Create & Send
Proposal
Validate
Opportunity
create IO
Sales
Strategic
Response
LT = 2 weeks
PT = 5 hrs.
%C&A: 80%
2
Rev iew &
Negotiate
Deal Via
Unsigned IO
Sales
Deal Desk
LT = 1 weeks
PT = 3 hrs.
%C&A: 66%
4
3
Sign & return
IO
Customer
LT = 1 days
PT = 0.25 hrs.
%C&A: 100%
4
Confirm
Campaign
Details
Direct Teams
to setup
campaign,
obtain assetsAcct Mgmt
LT = 3 days
PT = 1 hours
%C&A: 52%
5
Setup &
Launch
Campaign
Ad
Operations
Analytics
LT = 2 days
PT = 5 hrs.
%C&A: 50%
30
6
Obtain
Ext. Data &
Config. Auto
Load (AO)
Acct Mgmt
Ad
Operations
LT = 1.5 days
PT = 1.25 hrs.
%C&A: 80%
7
Rolled %C&A = 1.9%
Monitor
Campaign &
Trouble Shoot
Operations
Acct Mgmt
Analytics
LT = 0 days
PT = 8 hrs.
%C&A: 50%
8
Inv oice
Customer
(Batch = 1x/
mnth)
Finance
LT = 2 weeks
PT = 4 hrs.
%C&A: 60%
13
9
Send
Commission
Report To
Comp
(Batch =
1x/mnth)
Finance
LT = 2 weeks
PT = 0.1 hrs.
%C&A: 99%
10
Assign
Campaign To
Reps
(Batch = 45
Days)
Comp
LT = 10 days
PT = 40 hrs.
%C&A: 95%
11
Pay
Commission
Finance
Payroll
LT = 7 days
PT = 4 hrs.
%C&A: 100%
12
Notify Client
They Are Liv e
&Send SS's
Acct Mgmt
Ad
Operations
LT = 1 days
PT = 1 hrs.
%C&A: 98%
7B
Receiv e Cash
(inv oice
payment)
90 Calendar
days = 64
working days
LT = 64 days
PT = 3 hrs.
%C&A: 100%
6
13

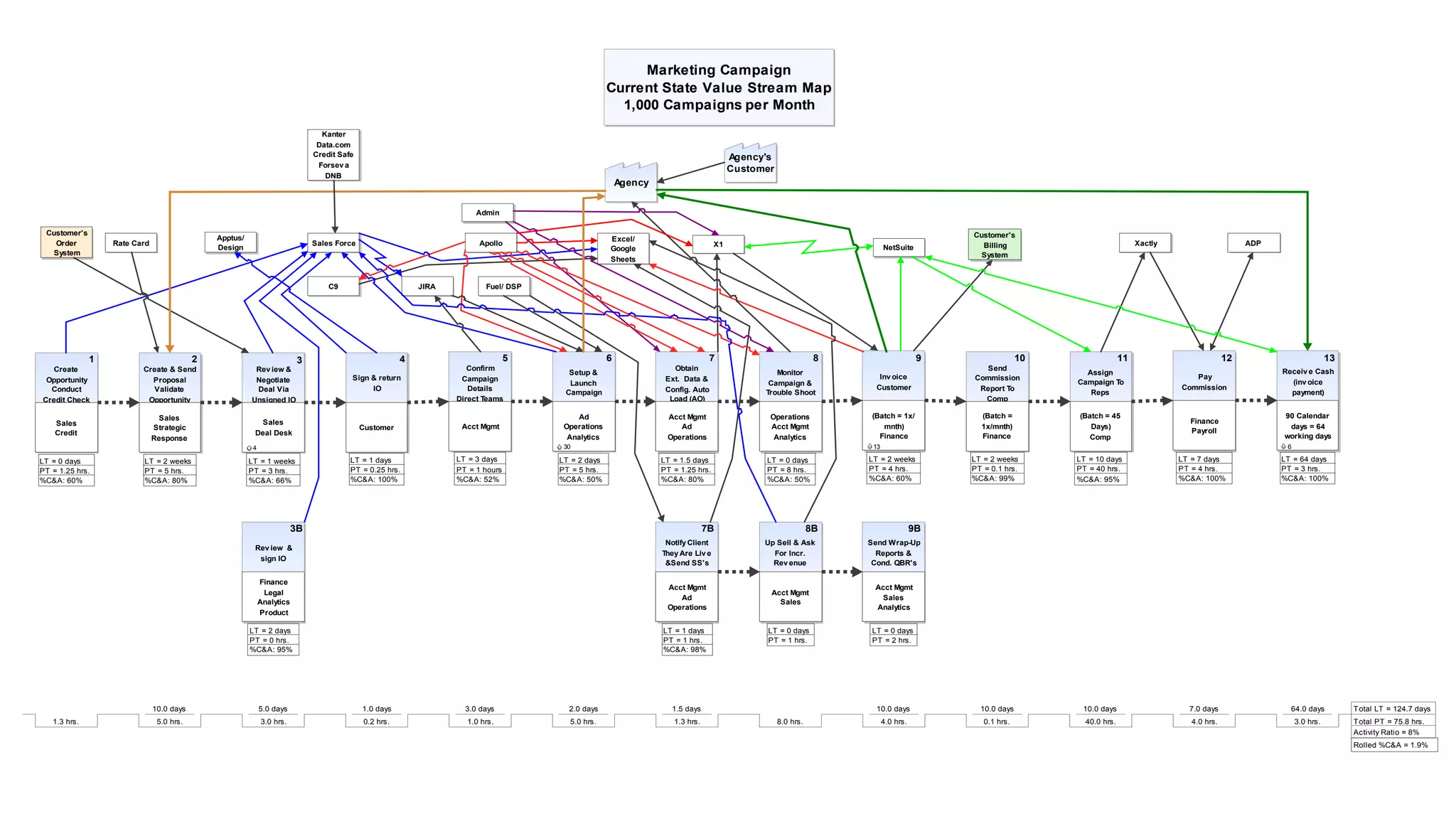

Marketing Campaign
Current State Value Stream Map
1,000 Campaigns per Month
Rev iew &
sign IO
Finance
Legal
Analytics
Product
LT = 2 days
PT = 0 hrs.
%C&A: 95%
3B
Up Sell & Ask
For Incr.
Rev enue
Acct Mgmt
Sales
LT = 0 days
PT = 1 hrs.
8B
Send Wrap-Up
Reports &
Cond. QBR's
Acct Mgmt
Sales
Analytics
LT = 0 days
PT = 2 hrs.
9B
Rate Card
Kanter
Data.com
Credit Safe
Forsev a
DNB
Sales Force
JIRA Fuel/ DSP
Admin
Excel/
Google
Sheets
NetSuite
Customer's
Billing
System
ADPXactlyX1
Agency's
Customer
Go to the
Gemba to
learn how
work REALLY
gets done
Go & See
Ask Why
Show Respect
Daily Leadership Briefings
Day 1 – Share insights; reduce resistance
Day 2 – Build consensus re: future state
Day 3 – Gain commitment for action plan 39
Agency
0.5 hrs. 2.5 hrs.
10.0 days
2.0 hrs.
5.0 days
0.2 hrs.
1.0 days
0.5 hrs.
3.0 days
2.0 hrs.
0.4 days
1.3 hrs.
1.5 days
6.5 hrs. 0.2 hrs.
4.0 days
0.1 hrs.
5.0 days
16.0 hrs.
5.0 days
4.0 hrs.
7.0 days
2.0 hrs.
53.0 days Total LT = 95.8 days
Total PT = 37.8 hrs.
Activity Ratio = 5%
Customer
Order
Systems
Apptus/
DocuSign
C9
Create
Opportunity
Conduct
Credit Check
Sales
Credit
LT = 0 days
PT = 0.5 hrs.
%C&A: 90%
1
Create & Send
Proposal
Validate
Opportunity
Create IO
Sales
Acct Mgmt
Strategic
Response
LT = 2 weeks
PT = 2.5 hrs.
%C&A: 90%
2
Rev iew &
Negotiate
Deal Via
Unsigned IO
Sales
Deal Desk
LT = 1 weeks
PT = 2 hrs.
%C&A: 90%
3
Sign & return
IO
Close IO in
SFDC
Customer
Sales
LT = 1 days
PT = 15 mins.
%C&A: 100%
4
Confirm
Campaign
Details
Obtain
Creativ e
Assets
Acct Mgmt
LT = 3 days
PT = 30 mins.
%C&A: 75%
5
Setup &
Launch
Campaign
Ad
Operations
Analytics
LT = 3 hours
PT = 2 hrs.
%C&A: 70%
6
Obtain
Ext. Data &
Config. Auto
Load (AO)
Acct Mgmt
Ad
Operations
LT = 1.5 days
PT = 1.25 hours
%C&A: 95%
7
Rolled %C&A = 27%
Monitor &
Trouble Shoot
Campaign
Operations
Acct Mgmt
Analytics
LT = 0 days
PT = 6.5 hrs.
%C&A: 80%
8
Send
Commission
Report To
Comp.
(Batch =
Weekly)
Finance
LT = 5 days
PT = 5 mins.
%C&A: 99%
10
Assign
Campaign To
Reps
(Batch =
Weekly)
Comp
LT = 5 days
PT = 2 days
%C&A: 99%
11
Pay
Commission
Finance
Payroll
LT = 7 days
PT = 4 hrs.
%C&A: 100%
12
Notify Client
They Are Liv e
&Send Screen
Shots
AM
Ad
Operations
LT = 1 days
PT = 1 hrs.
%C&A: 98%
7B
Reciev e Cash
(Inv oice
Payment)
75 Calendar
days=53
working days
LT = 53 days
PT = 2 hrs.
%C&A: 100%
13

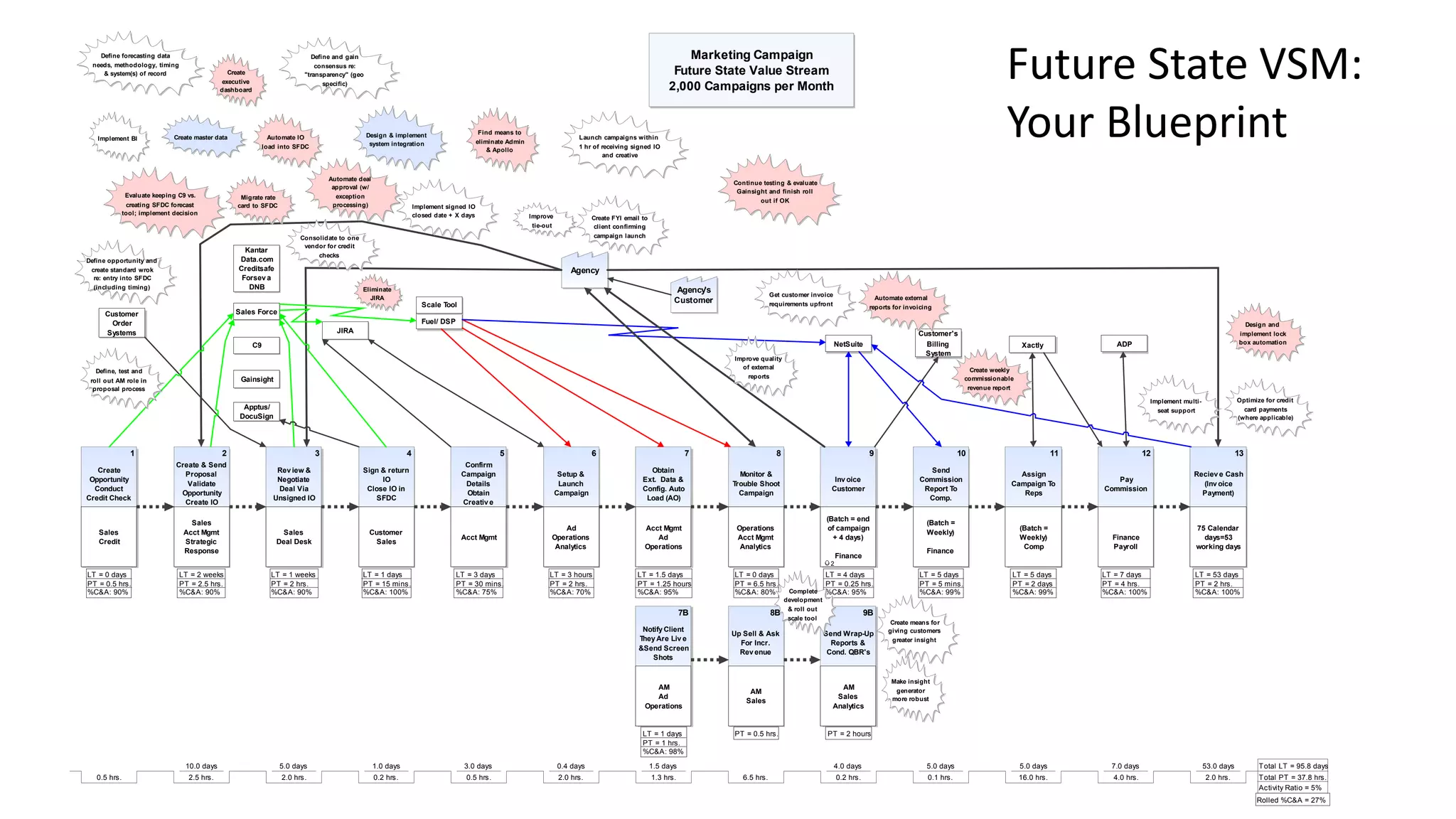

Marketing Campaign
Future State Value Stream
2,000 Campaigns per Month
Up Sell & Ask
For Incr.
Rev enue
AM
Sales
PT = 0.5 hrs.
8B
Send Wrap-Up
Reports &
Cond. QBR's
AM
Sales
Analytics
PT = 2 hours
9B
Gainsight
Kantar
Data.com
Creditsafe
Forsev a
DNB
Sales Force
JIRA
Fuel/ DSP
Scale Tool
NetSuite
Customer's
Billing
System
ADPXactly
Agency's
Customer
Inv oice
Customer
(Batch = end
of campaign
+ 4 days)
Finance
LT = 4 days
PT = 0.25 hrs.
%C&A: 95%
2
9
Define, test and
roll out AM role in
proposal process
Migrate rate
card to SFDC
Automate deal
approval (w/
exception
processing)
Automate IO
load into SFDC
Implement BI
Create FYI email to
client confirming
campaign launch
Define opportunity and
create standard wrok
re: entry into SFDC
(including timing)
Implement signed IO
closed date + X days
Create master data
Evaluate keeping C9 vs.
creating SFDC forecast
tool; implement decision
Eliminate
JIRA
Improve
tie-out
Launch campaigns within
1 hr of receiving signed IO
and creative
Improve quality
of external
reports
Continue testing & evaluate
Gainsight and finish roll
out if OK
Complete
development
& roll out
scale tool
Make insight
generator
more robust
Create means for
giving customers
greater insight
Get customer invoice
requirements upfront
Automate external
reports for invoicing
Consolidate to one
vendor for credit
checks
Create
executive
dashboard
Define forecasting data
needs, methodology, timing
& system(s) of record
Design and
implement lock
box automation
Optimize for credit
card payments
(where applicable)
Create weekly
commissionable
revenue report
Implement multi-
seat support
Find means to
eliminate Admin
& Apollo
Design & implement
system integration
Define and gain
consensus re:
"transparency" (geo
specific)
Future State VSM:
Your Blueprint
41

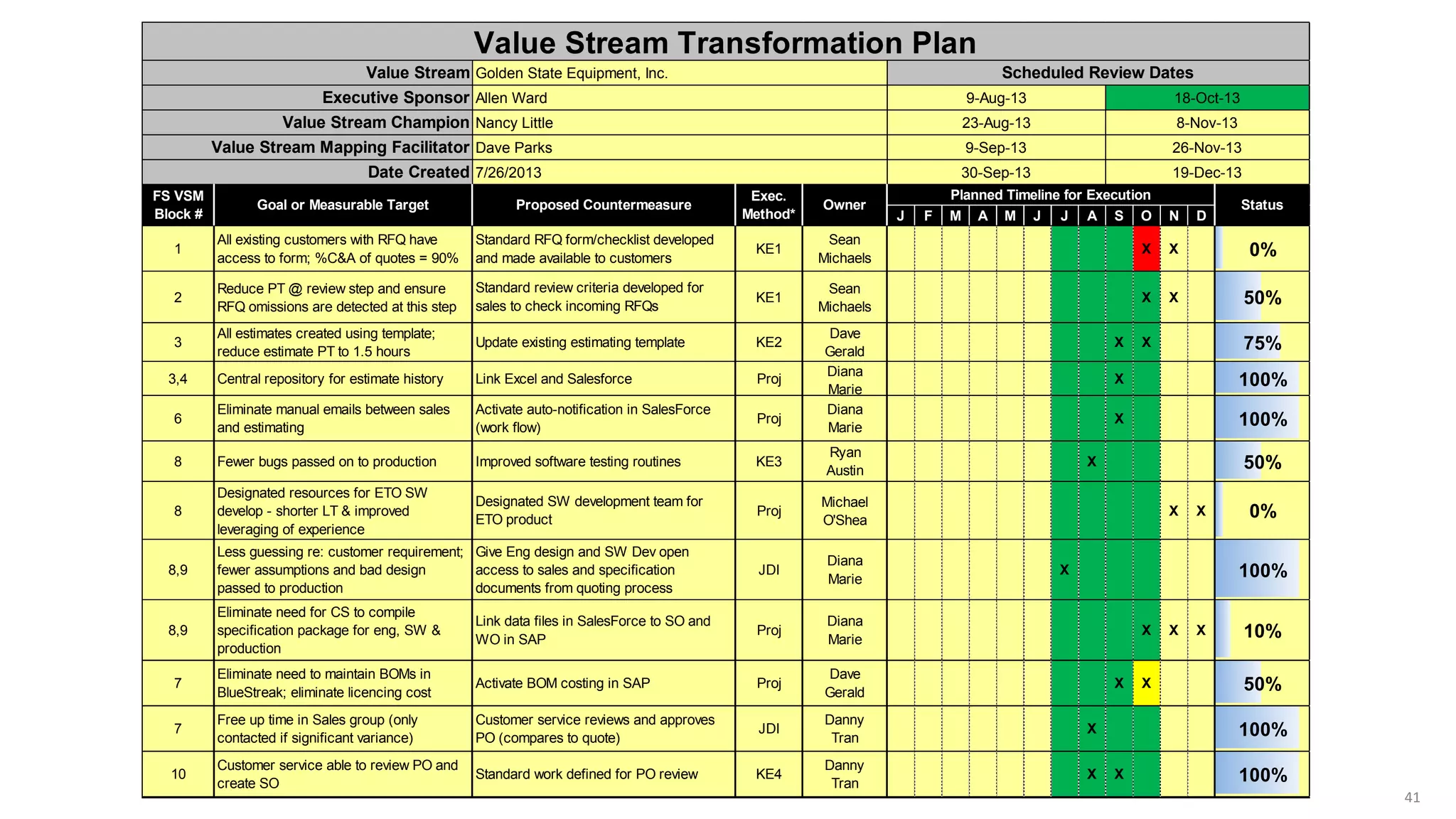

J F M A M J J A S O N D
1
All existing customers with RFQ have
access to form; %C&A of quotes = 90%
KE1
Sean
Michaels
X X 0%
2
Reduce PT @ review step and ensure
RFQ omissions are detected at this step
KE1
Sean
Michaels
X X 50%
3
All estimates created using template;
reduce estimate PT to 1.5 hours
KE2
Dave
Gerald
X X 75%
3,4 Central repository for estimate history Proj
Diana
Marie
X 100%
6
Eliminate manual emails between sales
and estimating
Proj
Diana
Marie
X 100%
8 Fewer bugs passed on to production KE3
Ryan
Austin
X 50%
8
Designated resources for ETO SW
develop - shorter LT & improved
leveraging of experience
Proj
Michael
O'Shea
X X 0%
8,9
Less guessing re: customer requirement;
fewer assumptions and bad design
passed to production
JDI
Diana
Marie
X 100%
8,9
Eliminate need for CS to compile
specification package for eng, SW &
production
Proj
Diana
Marie
X X X 10%
7
Eliminate need to maintain BOMs in
BlueStreak; eliminate licencing cost
Proj
Dave
Gerald
X X 50%
7
Free up time in Sales group (only
contacted if significant variance)
JDI
Danny
Tran
X 100%
10
Customer service able to review PO and
create SO
KE4
Danny
Tran
X X 100%
Value Stream Transformation Plan
Value Stream Golden State Equipment, Inc. Scheduled Review Dates
Executive Sponsor Allen Ward 9-Aug-13 18-Oct-13
Value Stream Champion Nancy Little 23-Aug-13 8-Nov-13
Value Stream Mapping Facilitator Dave Parks 9-Sep-13 26-Nov-13
Activate auto-notification in SalesForce
(work flow)
Date Created 7/26/2013 30-Sep-13 19-Dec-13
FS VSM
Block #
Goal or Measurable Target Proposed Countermeasure
Exec.
Method*
Owner
Planned Timeline for Execution
Status
Standard RFQ form/checklist developed
and made available to customers
Standard review criteria developed for
sales to check incoming RFQs
Update existing estimating template
Link Excel and Salesforce
Improved software testing routines
Designated SW development team for
ETO product
Give Eng design and SW Dev open
access to sales and specification
documents from quoting process
Link data files in SalesForce to SO and
WO in SAP
Activate BOM costing in SAP
Customer service reviews and approves
PO (compares to quote)
Standard work defined for PO review
Managing the Value Stream
• Key Performance Indicators
2-5 relevant value stream KPIs (need process level KPIs as well)
Operations heavy
Set targets and visual management boards; track
• Ownership
Designated person – Value Steam Owner
Monitors KPIs and communicates performance to plan
Drives problem solving and ongoing improvements; ensures
alignment with strategy
43

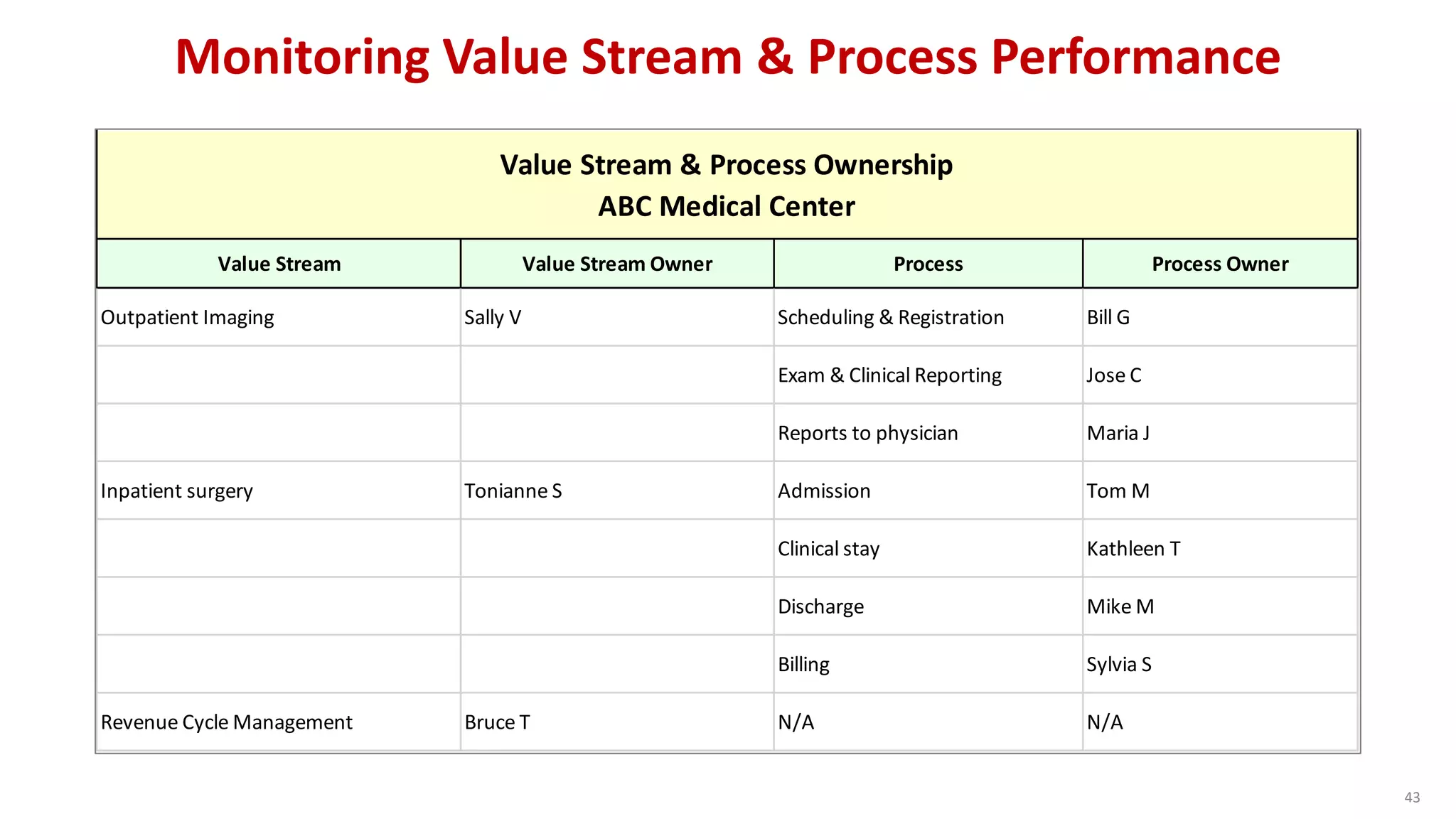

Monitoring Value Stream & Process Performance
Value Stream Value Stream Owner Process Process Owner
Outpatient Imaging Sally V Scheduling & Registration Bill G
Exam & Clinical Reporting Jose C
Reports to physician Maria J
Inpatient surgery Tonianne S Admission Tom M
Clinical stay Kathleen T
Discharge Mike M
Billing Sylvia S
Revenue Cycle Management Bruce T N/A N/A
Value Stream & Process Ownership
ABC Medical Center
44

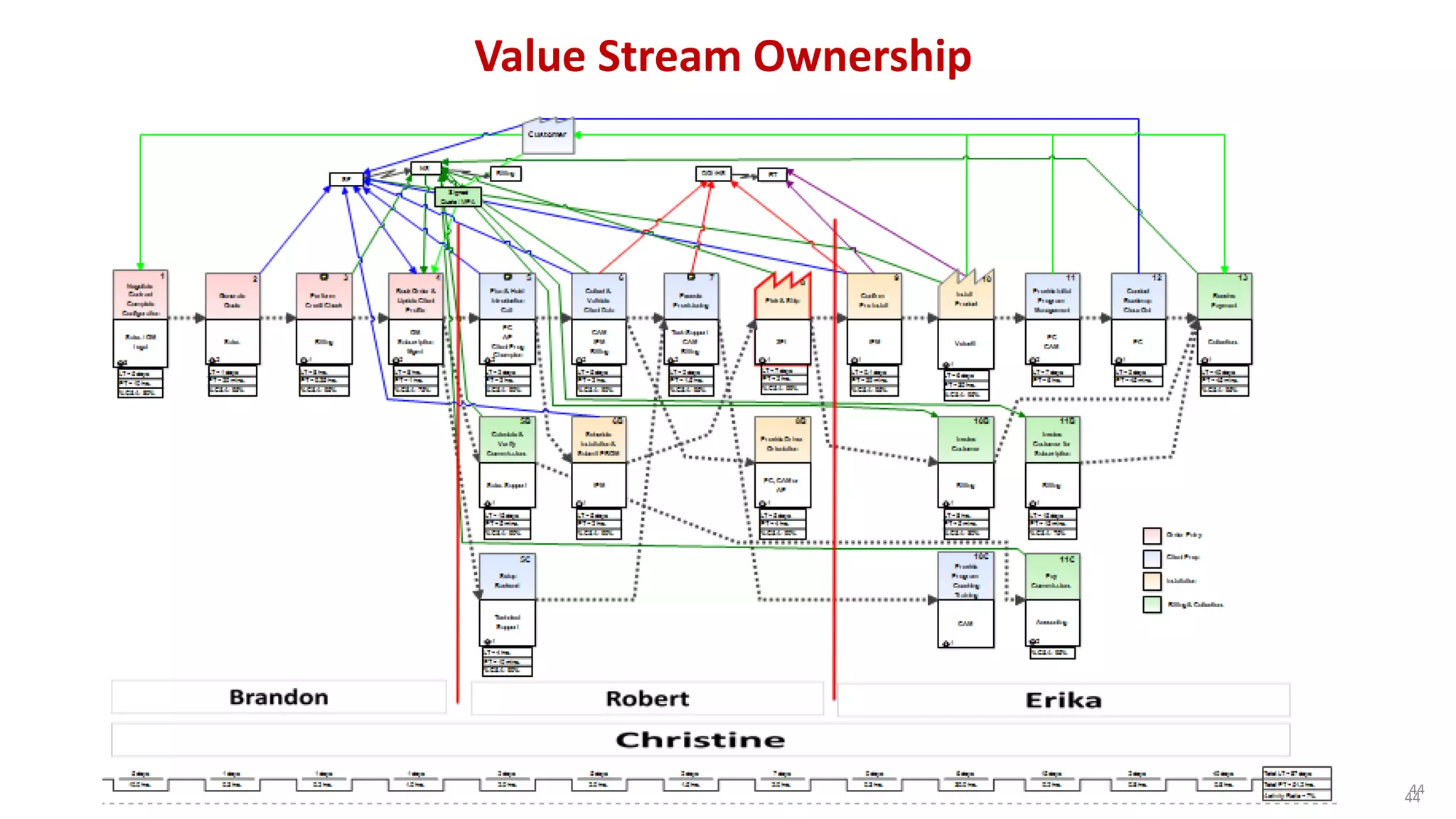

Value Stream Ownership
44
45

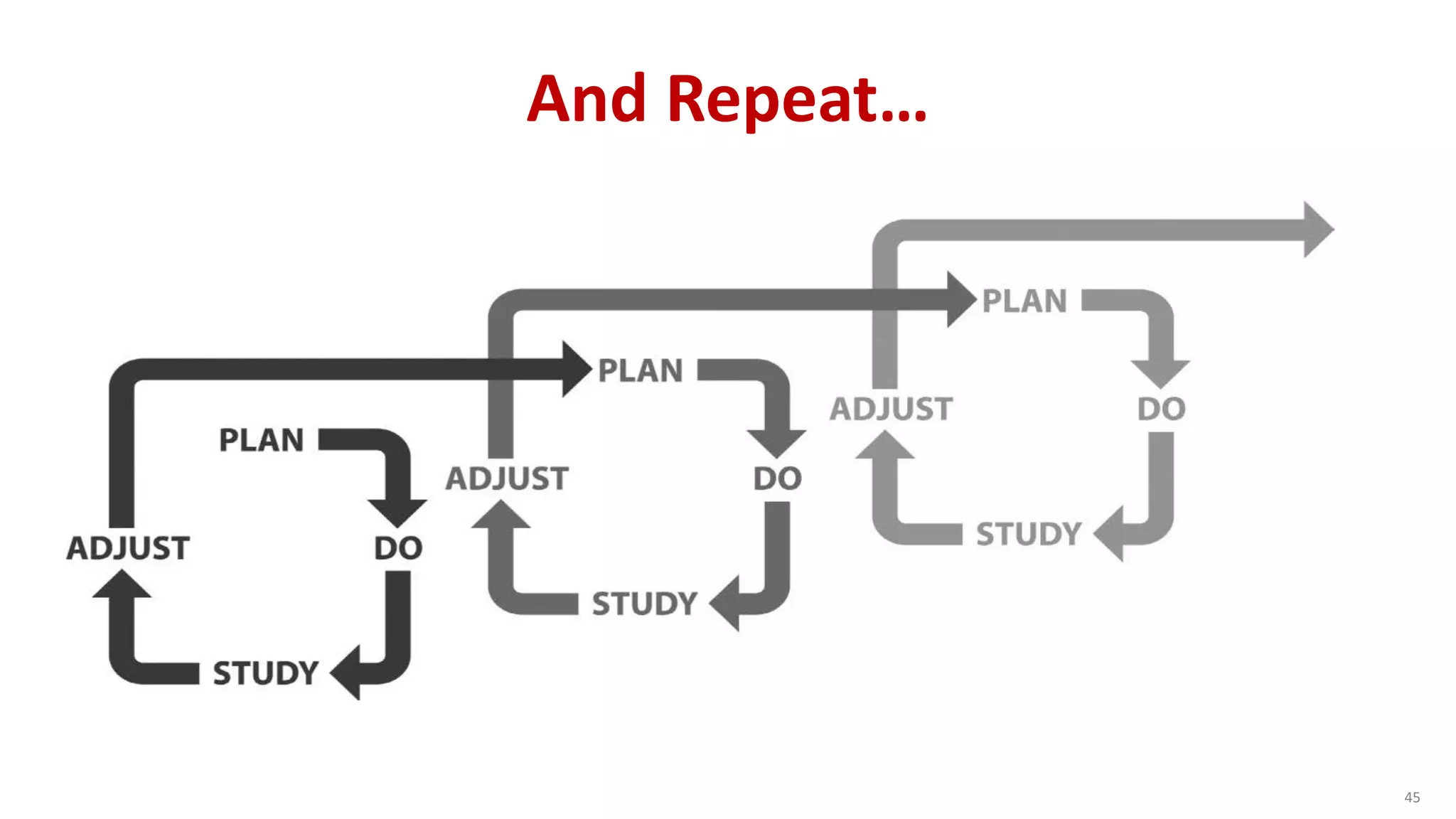

And Repeat…
46
It’s not about the map.
It’s about the conversations,
the insights, the decisions,
the organizational healing
that mapping enables.
© 2016 The Karen Martin Group, Inc. 47
To Learn More…
• Books
• Value Stream Mapping (Martin & Osterling)
• The Complete Lean Enterprise (Keyte & Locher)
• Learning to See (Rother & Shook)
• Public Workshops & Conferences
• Association for Manufacturing Excellence
• Lean Enterprise Institute
• Shingo Institute
• Webinars – www.ksmartin.com/webinars
Questions or
comments?
48
ksm@ksmartin.com
49
www.ksmartin.com/subscribe

More Related Content

What's hot

Kaizen Events Blitz & Lean Projects
Kaizen Events   Blitz  & Lean ProjectsKaizen Events   Blitz  & Lean Projects
Kaizen Events Blitz & Lean ProjectsAnand Subramaniam

Clarity First: Process & Performance
Clarity First: Process & PerformanceClarity First: Process & Performance
Clarity First: Process & PerformanceTKMG, Inc.

Clarity the Essence of Lean Management
Clarity the Essence of Lean ManagementClarity the Essence of Lean Management
Clarity the Essence of Lean ManagementTKMG, Inc.

We've Had it All Wrong: Manage Processes, Not people
We've Had it All Wrong: Manage Processes, Not peopleWe've Had it All Wrong: Manage Processes, Not people
We've Had it All Wrong: Manage Processes, Not peopleTKMG, Inc.

How to Run a Value Stream Mapping (VSM) Workshop
How to Run a Value Stream Mapping (VSM) WorkshopHow to Run a Value Stream Mapping (VSM) Workshop
How to Run a Value Stream Mapping (VSM) WorkshopAbraic, Inc.

Process Change: Communication & Training Tips
Process Change:  Communication & Training TipsProcess Change:  Communication & Training Tips
Process Change: Communication & Training TipsTKMG, Inc.

Lean Daily Visual ManagementSystem(LDVMS)
Lean Daily Visual ManagementSystem(LDVMS)Lean Daily Visual ManagementSystem(LDVMS)
Lean Daily Visual ManagementSystem(LDVMS)Romains Bos, PMP, MBA

Metrics-Based Process Mapping: Part 1 of 3
Metrics-Based Process Mapping: Part 1 of 3Metrics-Based Process Mapping: Part 1 of 3
Metrics-Based Process Mapping: Part 1 of 3TKMG, Inc.

Standard work for leaders
Standard work for leadersStandard work for leaders
Standard work for leadersLean Teams USA

Process improvement presentation
Process improvement presentationProcess improvement presentation
Process improvement presentationDr. John Persico

Value stream mapping training
Value stream mapping trainingValue stream mapping training
Value stream mapping trainingJusto Castellon

The Agile Adoption Roadmap (Keynote by Tim Abbott)
The Agile Adoption Roadmap  (Keynote by Tim Abbott)The Agile Adoption Roadmap  (Keynote by Tim Abbott)
The Agile Adoption Roadmap (Keynote by Tim Abbott)Agile Days Middle East

Value Stream Transformation: Achieving Excellence through Leadership Alignmen...
Value Stream Transformation: Achieving Excellence through Leadership Alignmen...Value Stream Transformation: Achieving Excellence through Leadership Alignmen...
Value Stream Transformation: Achieving Excellence through Leadership Alignmen...TKMG, Inc.

Value Stream Mapping: How to Visualize Work & Align Leadership for Organizati...
Value Stream Mapping: How to Visualize Work & Align Leadership for Organizati...Value Stream Mapping: How to Visualize Work & Align Leadership for Organizati...
Value Stream Mapping: How to Visualize Work & Align Leadership for Organizati...TKMG, Inc.


What's hot (20)

Lean Thinking by Operational Excellence Consulting
Lean Thinking by Operational Excellence ConsultingLean Thinking by Operational Excellence Consulting
Lean Thinking by Operational Excellence Consulting

Kaizen Events Blitz & Lean Projects
Kaizen Events   Blitz  & Lean ProjectsKaizen Events   Blitz  & Lean Projects
Kaizen Events Blitz & Lean Projects

Clarity First: Process & Performance
Clarity First: Process & PerformanceClarity First: Process & Performance
Clarity First: Process & Performance

Clarity the Essence of Lean Management
Clarity the Essence of Lean ManagementClarity the Essence of Lean Management
Clarity the Essence of Lean Management

Introduction To Lean
Introduction To LeanIntroduction To Lean
Introduction To Lean

We've Had it All Wrong: Manage Processes, Not people
We've Had it All Wrong: Manage Processes, Not peopleWe've Had it All Wrong: Manage Processes, Not people
We've Had it All Wrong: Manage Processes, Not people

How to Run a Value Stream Mapping (VSM) Workshop
How to Run a Value Stream Mapping (VSM) WorkshopHow to Run a Value Stream Mapping (VSM) Workshop
How to Run a Value Stream Mapping (VSM) Workshop

Lean Office by Operational Excellence Consulting
Lean Office by Operational Excellence ConsultingLean Office by Operational Excellence Consulting
Lean Office by Operational Excellence Consulting

Process Change: Communication & Training Tips
Process Change:  Communication & Training TipsProcess Change:  Communication & Training Tips
Process Change: Communication & Training Tips

Lean Daily Visual ManagementSystem(LDVMS)
Lean Daily Visual ManagementSystem(LDVMS)Lean Daily Visual ManagementSystem(LDVMS)
Lean Daily Visual ManagementSystem(LDVMS)

Metrics-Based Process Mapping: Part 1 of 3
Metrics-Based Process Mapping: Part 1 of 3Metrics-Based Process Mapping: Part 1 of 3
Metrics-Based Process Mapping: Part 1 of 3

Operational Excellence Roadmap
Operational Excellence RoadmapOperational Excellence Roadmap
Operational Excellence Roadmap

Lean thinking
Lean thinkingLean thinking
Lean thinking

Standard work for leaders
Standard work for leadersStandard work for leaders
Standard work for leaders

Process improvement presentation
Process improvement presentationProcess improvement presentation
Process improvement presentation

Value stream mapping training
Value stream mapping trainingValue stream mapping training
Value stream mapping training

Lean Lego Game
Lean Lego GameLean Lego Game
Lean Lego Game

The Agile Adoption Roadmap (Keynote by Tim Abbott)
The Agile Adoption Roadmap  (Keynote by Tim Abbott)The Agile Adoption Roadmap  (Keynote by Tim Abbott)
The Agile Adoption Roadmap (Keynote by Tim Abbott)

Value Stream Transformation: Achieving Excellence through Leadership Alignmen...
Value Stream Transformation: Achieving Excellence through Leadership Alignmen...Value Stream Transformation: Achieving Excellence through Leadership Alignmen...
Value Stream Transformation: Achieving Excellence through Leadership Alignmen...

Value Stream Mapping: How to Visualize Work & Align Leadership for Organizati...
Value Stream Mapping: How to Visualize Work & Align Leadership for Organizati...Value Stream Mapping: How to Visualize Work & Align Leadership for Organizati...
Value Stream Mapping: How to Visualize Work & Align Leadership for Organizati...


Similar to Lean Leadership - Part 3 of 3

Brizzoft Certified Lean Six Sigma Training
Brizzoft Certified Lean Six Sigma Training Brizzoft Certified Lean Six Sigma Training
Brizzoft Certified Lean Six Sigma Training Sivaraman Sundararajan

QUALMAN QUIZ # 1 Reviewer
QUALMAN QUIZ # 1 ReviewerQUALMAN QUIZ # 1 Reviewer
QUALMAN QUIZ # 1 ReviewerSamantha Abalos

Process Improvement Methodologies For Process Excellence PowerPoint Presentat...
Process Improvement Methodologies For Process Excellence PowerPoint Presentat...Process Improvement Methodologies For Process Excellence PowerPoint Presentat...
Process Improvement Methodologies For Process Excellence PowerPoint Presentat...SlideTeam

Complete Guide To Input Output Business Process Model PowerPoint Presentatio...
Complete Guide To Input Output Business Process Model  PowerPoint Presentatio...Complete Guide To Input Output Business Process Model  PowerPoint Presentatio...
Complete Guide To Input Output Business Process Model PowerPoint Presentatio...SlideTeam

Operational Excellence.pptx
Operational Excellence.pptxOperational Excellence.pptx
Operational Excellence.pptxArvindGarg40

Six Sigma- Define & Measure_Sudhanshu.pdf
Six Sigma- Define & Measure_Sudhanshu.pdfSix Sigma- Define & Measure_Sudhanshu.pdf
Six Sigma- Define & Measure_Sudhanshu.pdfSudhanshuMittal20

Six Sigma Session For Production And Project Team By Lt Col Vikram Bakshi
Six Sigma Session For Production And Project Team By Lt Col Vikram BakshiSix Sigma Session For Production And Project Team By Lt Col Vikram Bakshi
Six Sigma Session For Production And Project Team By Lt Col Vikram BakshiLT COLONEL VIKRAM BAKSHI ( RETD)

Metrics-Based Process Mapping
Metrics-Based Process MappingMetrics-Based Process Mapping
Metrics-Based Process MappingTKMG, Inc.

Rapid Deployment of ERP solutions using agile practices by Husni Roukbi
Rapid Deployment of ERP solutions using agile practices by Husni Roukbi Rapid Deployment of ERP solutions using agile practices by Husni Roukbi
Rapid Deployment of ERP solutions using agile practices by Husni Roukbi Agile ME

LEAN SPEED vs SIX SIGMA QUALITY by JULIAN KALAC
LEAN SPEED vs SIX SIGMA QUALITY by JULIAN KALAC LEAN SPEED vs SIX SIGMA QUALITY by JULIAN KALAC
LEAN SPEED vs SIX SIGMA QUALITY by JULIAN KALAC Julian Kalac P.Eng

Lean manufacturing
Lean manufacturingLean manufacturing
Lean manufacturingskchawla4

Without Quality, What's the Point?
Without Quality, What's the Point?Without Quality, What's the Point?
Without Quality, What's the Point?CloudFactory

Key Performance Indicators
Key Performance IndicatorsKey Performance Indicators
Key Performance IndicatorsCIToolkit

Lean Six Sigma overview Julian Kalac
Lean  Six Sigma overview Julian KalacLean  Six Sigma overview Julian Kalac
Lean Six Sigma overview Julian KalacJulian Kalac P.Eng

PPT %GenMngmnt^Improvement - KPIs Complete Presentation.pdf
PPT %GenMngmnt^Improvement - KPIs Complete Presentation.pdfPPT %GenMngmnt^Improvement - KPIs Complete Presentation.pdf
PPT %GenMngmnt^Improvement - KPIs Complete Presentation.pdfSuhas Agawane

Product Spotlight: Oracle Profitability and Cost Management
Product Spotlight: Oracle Profitability and Cost ManagementProduct Spotlight: Oracle Profitability and Cost Management
Product Spotlight: Oracle Profitability and Cost ManagementInnovusPartners


Similar to Lean Leadership - Part 3 of 3 (20)

Weekend lssyb1.3san
Weekend lssyb1.3sanWeekend lssyb1.3san
Weekend lssyb1.3san

Brizzoft Certified Lean Six Sigma Training
Brizzoft Certified Lean Six Sigma Training Brizzoft Certified Lean Six Sigma Training
Brizzoft Certified Lean Six Sigma Training

QUALMAN QUIZ # 1 Reviewer
QUALMAN QUIZ # 1 ReviewerQUALMAN QUIZ # 1 Reviewer
QUALMAN QUIZ # 1 Reviewer

Process Improvement Methodologies For Process Excellence PowerPoint Presentat...
Process Improvement Methodologies For Process Excellence PowerPoint Presentat...Process Improvement Methodologies For Process Excellence PowerPoint Presentat...
Process Improvement Methodologies For Process Excellence PowerPoint Presentat...

Complete Guide To Input Output Business Process Model PowerPoint Presentatio...
Complete Guide To Input Output Business Process Model  PowerPoint Presentatio...Complete Guide To Input Output Business Process Model  PowerPoint Presentatio...
Complete Guide To Input Output Business Process Model PowerPoint Presentatio...

Lean vs six sigma -jk
Lean vs six sigma  -jkLean vs six sigma  -jk
Lean vs six sigma -jk

Operational Excellence.pptx
Operational Excellence.pptxOperational Excellence.pptx
Operational Excellence.pptx

Six Sigma- Define & Measure_Sudhanshu.pdf
Six Sigma- Define & Measure_Sudhanshu.pdfSix Sigma- Define & Measure_Sudhanshu.pdf
Six Sigma- Define & Measure_Sudhanshu.pdf

Six Sigma Session For Production And Project Team By Lt Col Vikram Bakshi
Six Sigma Session For Production And Project Team By Lt Col Vikram BakshiSix Sigma Session For Production And Project Team By Lt Col Vikram Bakshi
Six Sigma Session For Production And Project Team By Lt Col Vikram Bakshi

Metrics-Based Process Mapping
Metrics-Based Process MappingMetrics-Based Process Mapping
Metrics-Based Process Mapping

Rapid Deployment of ERP solutions using agile practices by Husni Roukbi
Rapid Deployment of ERP solutions using agile practices by Husni Roukbi Rapid Deployment of ERP solutions using agile practices by Husni Roukbi
Rapid Deployment of ERP solutions using agile practices by Husni Roukbi

LEAN SPEED vs SIX SIGMA QUALITY by JULIAN KALAC
LEAN SPEED vs SIX SIGMA QUALITY by JULIAN KALAC LEAN SPEED vs SIX SIGMA QUALITY by JULIAN KALAC
LEAN SPEED vs SIX SIGMA QUALITY by JULIAN KALAC

Six sigma
Six sigmaSix sigma
Six sigma

Lean manufacturing
Lean manufacturingLean manufacturing
Lean manufacturing

Without Quality, What's the Point?
Without Quality, What's the Point?Without Quality, What's the Point?
Without Quality, What's the Point?

Six sigma
Six sigmaSix sigma
Six sigma

Key Performance Indicators
Key Performance IndicatorsKey Performance Indicators
Key Performance Indicators

Lean Six Sigma overview Julian Kalac
Lean  Six Sigma overview Julian KalacLean  Six Sigma overview Julian Kalac
Lean Six Sigma overview Julian Kalac

PPT %GenMngmnt^Improvement - KPIs Complete Presentation.pdf
PPT %GenMngmnt^Improvement - KPIs Complete Presentation.pdfPPT %GenMngmnt^Improvement - KPIs Complete Presentation.pdf
PPT %GenMngmnt^Improvement - KPIs Complete Presentation.pdf

Product Spotlight: Oracle Profitability and Cost Management
Product Spotlight: Oracle Profitability and Cost ManagementProduct Spotlight: Oracle Profitability and Cost Management
Product Spotlight: Oracle Profitability and Cost Management


More from TKMG, Inc.

Clarity the Essence of Lean Management
Clarity the Essence of Lean ManagementClarity the Essence of Lean Management
Clarity the Essence of Lean ManagementTKMG, Inc.

CLEAR Problem-Solving Questions
CLEAR Problem-Solving QuestionsCLEAR Problem-Solving Questions
CLEAR Problem-Solving QuestionsTKMG, Inc.

Clarity First: What it is. Why you need it. How to get it.
Clarity First: What it is. Why you need it. How to get it.Clarity First: What it is. Why you need it. How to get it.
Clarity First: What it is. Why you need it. How to get it.TKMG, Inc.

Clarity First - You
Clarity First - YouClarity First - You
Clarity First - YouTKMG, Inc.

Clarity First - Problem Solving
Clarity First - Problem Solving Clarity First - Problem Solving
Clarity First - Problem Solving TKMG, Inc.

Clarity First: Purpose and Priorities
Clarity First: Purpose and PrioritiesClarity First: Purpose and Priorities
Clarity First: Purpose and PrioritiesTKMG, Inc.

Clarity First: Overview (1 of 5 webinars)
Clarity First: Overview (1 of 5 webinars)Clarity First: Overview (1 of 5 webinars)
Clarity First: Overview (1 of 5 webinars)TKMG, Inc.

Know How Data is Calculated - OEE example
Know How Data is Calculated - OEE exampleKnow How Data is Calculated - OEE example
Know How Data is Calculated - OEE exampleTKMG, Inc.

Daily Management Systems
Daily Management SystemsDaily Management Systems
Daily Management SystemsTKMG, Inc.

The Trust Factor: Eliminating Waste with a Reliable System
The Trust Factor: Eliminating Waste with a Reliable SystemThe Trust Factor: Eliminating Waste with a Reliable System
The Trust Factor: Eliminating Waste with a Reliable SystemTKMG, Inc.

Metrics Based Process Mapping Discount Code
Metrics Based Process Mapping Discount CodeMetrics Based Process Mapping Discount Code
Metrics Based Process Mapping Discount CodeTKMG, Inc.

Building the Fit Organization (with guest presenter Dan Markovitz)
Building the Fit Organization (with guest presenter Dan Markovitz)Building the Fit Organization (with guest presenter Dan Markovitz)
Building the Fit Organization (with guest presenter Dan Markovitz)TKMG, Inc.

value stream mapping and metrics based process mapping
value stream mapping and metrics based process mappingvalue stream mapping and metrics based process mapping
value stream mapping and metrics based process mappingTKMG, Inc.

Lean and the Corporate Agenda with Guest Jacob Stoller
Lean and the Corporate Agenda with Guest Jacob StollerLean and the Corporate Agenda with Guest Jacob Stoller
Lean and the Corporate Agenda with Guest Jacob StollerTKMG, Inc.

How to Truly Establish a CI Culture
How to Truly Establish a CI CultureHow to Truly Establish a CI Culture
How to Truly Establish a CI CultureTKMG, Inc.

Lean and Your Top & Bottom Lines
Lean and Your Top & Bottom LinesLean and Your Top & Bottom Lines
Lean and Your Top & Bottom LinesTKMG, Inc.

Value Stream Transformation: 10 Keys to Success
Value Stream Transformation: 10 Keys to SuccessValue Stream Transformation: 10 Keys to Success
Value Stream Transformation: 10 Keys to SuccessTKMG, Inc.

Problem Solving: The P in PDSA
Problem Solving: The P in PDSAProblem Solving: The P in PDSA
Problem Solving: The P in PDSATKMG, Inc.

Coaching: Asking the Right Questions
Coaching: Asking the Right QuestionsCoaching: Asking the Right Questions
Coaching: Asking the Right QuestionsTKMG, Inc.

A3 Management: Effective Problem Solving via PDSA
A3 Management: Effective Problem Solving via PDSAA3 Management: Effective Problem Solving via PDSA
A3 Management: Effective Problem Solving via PDSATKMG, Inc.


More from TKMG, Inc. (20)

Clarity the Essence of Lean Management
Clarity the Essence of Lean ManagementClarity the Essence of Lean Management
Clarity the Essence of Lean Management

CLEAR Problem-Solving Questions
CLEAR Problem-Solving QuestionsCLEAR Problem-Solving Questions
CLEAR Problem-Solving Questions

Clarity First: What it is. Why you need it. How to get it.
Clarity First: What it is. Why you need it. How to get it.Clarity First: What it is. Why you need it. How to get it.
Clarity First: What it is. Why you need it. How to get it.

Clarity First - You
Clarity First - YouClarity First - You
Clarity First - You

Clarity First - Problem Solving
Clarity First - Problem Solving Clarity First - Problem Solving
Clarity First - Problem Solving

Clarity First: Purpose and Priorities
Clarity First: Purpose and PrioritiesClarity First: Purpose and Priorities
Clarity First: Purpose and Priorities

Clarity First: Overview (1 of 5 webinars)
Clarity First: Overview (1 of 5 webinars)Clarity First: Overview (1 of 5 webinars)
Clarity First: Overview (1 of 5 webinars)

Know How Data is Calculated - OEE example
Know How Data is Calculated - OEE exampleKnow How Data is Calculated - OEE example
Know How Data is Calculated - OEE example

Daily Management Systems
Daily Management SystemsDaily Management Systems
Daily Management Systems

The Trust Factor: Eliminating Waste with a Reliable System
The Trust Factor: Eliminating Waste with a Reliable SystemThe Trust Factor: Eliminating Waste with a Reliable System
The Trust Factor: Eliminating Waste with a Reliable System

Metrics Based Process Mapping Discount Code
Metrics Based Process Mapping Discount CodeMetrics Based Process Mapping Discount Code
Metrics Based Process Mapping Discount Code

Building the Fit Organization (with guest presenter Dan Markovitz)
Building the Fit Organization (with guest presenter Dan Markovitz)Building the Fit Organization (with guest presenter Dan Markovitz)
Building the Fit Organization (with guest presenter Dan Markovitz)

value stream mapping and metrics based process mapping
value stream mapping and metrics based process mappingvalue stream mapping and metrics based process mapping
value stream mapping and metrics based process mapping

Lean and the Corporate Agenda with Guest Jacob Stoller
Lean and the Corporate Agenda with Guest Jacob StollerLean and the Corporate Agenda with Guest Jacob Stoller
Lean and the Corporate Agenda with Guest Jacob Stoller

How to Truly Establish a CI Culture
How to Truly Establish a CI CultureHow to Truly Establish a CI Culture
How to Truly Establish a CI Culture

Lean and Your Top & Bottom Lines
Lean and Your Top & Bottom LinesLean and Your Top & Bottom Lines
Lean and Your Top & Bottom Lines

Value Stream Transformation: 10 Keys to Success
Value Stream Transformation: 10 Keys to SuccessValue Stream Transformation: 10 Keys to Success
Value Stream Transformation: 10 Keys to Success

Problem Solving: The P in PDSA
Problem Solving: The P in PDSAProblem Solving: The P in PDSA
Problem Solving: The P in PDSA

Coaching: Asking the Right Questions
Coaching: Asking the Right QuestionsCoaching: Asking the Right Questions
Coaching: Asking the Right Questions

A3 Management: Effective Problem Solving via PDSA
A3 Management: Effective Problem Solving via PDSAA3 Management: Effective Problem Solving via PDSA
A3 Management: Effective Problem Solving via PDSA


Recently uploaded

Elevate Your Online Presence with SEO Services
Elevate Your Online Presence with SEO ServicesElevate Your Online Presence with SEO Services
Elevate Your Online Presence with SEO ServicesHaseebBashir5

Pitch Deck Teardown: Terra One's $7.5m Seed deck
Pitch Deck Teardown: Terra One's $7.5m Seed deckPitch Deck Teardown: Terra One's $7.5m Seed deck
Pitch Deck Teardown: Terra One's $7.5m Seed deckHajeJanKamps

Meaningful Technology for Humans: How Strategy Helps to Deliver Real Value fo...
Meaningful Technology for Humans: How Strategy Helps to Deliver Real Value fo...Meaningful Technology for Humans: How Strategy Helps to Deliver Real Value fo...
Meaningful Technology for Humans: How Strategy Helps to Deliver Real Value fo...Björn Rohles

How to refresh to be fit for the future world
How to refresh to be fit for the future worldHow to refresh to be fit for the future world
How to refresh to be fit for the future worldChris Skinner

Toyota Kata Coaching for Agile Teams & Transformations
Toyota Kata Coaching for Agile Teams & TransformationsToyota Kata Coaching for Agile Teams & Transformations
Toyota Kata Coaching for Agile Teams & TransformationsStefan Wolpers

Engagement Rings vs Promise Rings | Detailed Guide
Engagement Rings vs Promise Rings | Detailed GuideEngagement Rings vs Promise Rings | Detailed Guide
Engagement Rings vs Promise Rings | Detailed GuideCharleston Alexander

Raising Seed Capital by Steve Schlafman at RRE Ventures
Raising Seed Capital by Steve Schlafman at RRE VenturesRaising Seed Capital by Steve Schlafman at RRE Ventures
Raising Seed Capital by Steve Schlafman at RRE VenturesAlejandro Cremades

The Truth About Dinesh Bafna's Situation.pdf
The Truth About Dinesh Bafna's Situation.pdfThe Truth About Dinesh Bafna's Situation.pdf
The Truth About Dinesh Bafna's Situation.pdfMont Surfaces

Unlock Your TikTok Potential: Free TikTok Likes with InstBlast
Unlock Your TikTok Potential: Free TikTok Likes with InstBlastUnlock Your TikTok Potential: Free TikTok Likes with InstBlast
Unlock Your TikTok Potential: Free TikTok Likes with InstBlastInstBlast Marketing

Unveiling the Dynamic Gemini_ Personality Traits and Sign Dates.pptx
Unveiling the Dynamic Gemini_ Personality Traits and Sign Dates.pptxUnveiling the Dynamic Gemini_ Personality Traits and Sign Dates.pptx
Unveiling the Dynamic Gemini_ Personality Traits and Sign Dates.pptxmy Pandit

LinkedIn Masterclass Techweek 2024 v4.1.pptx
LinkedIn Masterclass Techweek 2024 v4.1.pptxLinkedIn Masterclass Techweek 2024 v4.1.pptx
LinkedIn Masterclass Techweek 2024 v4.1.pptxSymbio Agency Ltd

Blinkit: Revolutionizing the On-Demand Grocery Delivery Service.pptx
Blinkit: Revolutionizing the On-Demand Grocery Delivery Service.pptxBlinkit: Revolutionizing the On-Demand Grocery Delivery Service.pptx
Blinkit: Revolutionizing the On-Demand Grocery Delivery Service.pptxSaksham Gupta

Sedex Members Ethical Trade Audit (SMETA) Measurement Criteria
Sedex Members Ethical Trade Audit (SMETA) Measurement CriteriaSedex Members Ethical Trade Audit (SMETA) Measurement Criteria
Sedex Members Ethical Trade Audit (SMETA) Measurement Criteriamilos639

Equinox Gold Corporate Deck May 24th 2024
Equinox Gold Corporate Deck May 24th 2024Equinox Gold Corporate Deck May 24th 2024
Equinox Gold Corporate Deck May 24th 2024Equinox Gold Corp.

What is paper chromatography, principal, procedure,types, diagram, advantages...
What is paper chromatography, principal, procedure,types, diagram, advantages...What is paper chromatography, principal, procedure,types, diagram, advantages...
What is paper chromatography, principal, procedure,types, diagram, advantages...srcw2322l101

How to Maintain Healthy Life style.pptx
How to Maintain  Healthy Life style.pptxHow to Maintain  Healthy Life style.pptx
How to Maintain Healthy Life style.pptxrdishurana

Constitution of Company Article of Association
Constitution of Company Article of AssociationConstitution of Company Article of Association
Constitution of Company Article of Associationseri bangash

Stages of Startup Funding - An Explainer
Stages of Startup Funding - An ExplainerStages of Startup Funding - An Explainer
Stages of Startup Funding - An ExplainerAlejandro Cremades

A Brief Introduction About Jacob Badgett
A Brief Introduction About Jacob BadgettA Brief Introduction About Jacob Badgett
A Brief Introduction About Jacob BadgettJacobBadgett

Inside the Black Box of Venture Capital (VC)
Inside the Black Box of Venture Capital (VC)Inside the Black Box of Venture Capital (VC)
Inside the Black Box of Venture Capital (VC)Alejandro Cremades


Recently uploaded (20)

Elevate Your Online Presence with SEO Services
Elevate Your Online Presence with SEO ServicesElevate Your Online Presence with SEO Services
Elevate Your Online Presence with SEO Services

Pitch Deck Teardown: Terra One's $7.5m Seed deck
Pitch Deck Teardown: Terra One's $7.5m Seed deckPitch Deck Teardown: Terra One's $7.5m Seed deck
Pitch Deck Teardown: Terra One's $7.5m Seed deck

Meaningful Technology for Humans: How Strategy Helps to Deliver Real Value fo...
Meaningful Technology for Humans: How Strategy Helps to Deliver Real Value fo...Meaningful Technology for Humans: How Strategy Helps to Deliver Real Value fo...
Meaningful Technology for Humans: How Strategy Helps to Deliver Real Value fo...

How to refresh to be fit for the future world
How to refresh to be fit for the future worldHow to refresh to be fit for the future world
How to refresh to be fit for the future world

Toyota Kata Coaching for Agile Teams & Transformations
Toyota Kata Coaching for Agile Teams & TransformationsToyota Kata Coaching for Agile Teams & Transformations
Toyota Kata Coaching for Agile Teams & Transformations

Engagement Rings vs Promise Rings | Detailed Guide
Engagement Rings vs Promise Rings | Detailed GuideEngagement Rings vs Promise Rings | Detailed Guide
Engagement Rings vs Promise Rings | Detailed Guide

Raising Seed Capital by Steve Schlafman at RRE Ventures
Raising Seed Capital by Steve Schlafman at RRE VenturesRaising Seed Capital by Steve Schlafman at RRE Ventures
Raising Seed Capital by Steve Schlafman at RRE Ventures

The Truth About Dinesh Bafna's Situation.pdf
The Truth About Dinesh Bafna's Situation.pdfThe Truth About Dinesh Bafna's Situation.pdf
The Truth About Dinesh Bafna's Situation.pdf

Unlock Your TikTok Potential: Free TikTok Likes with InstBlast
Unlock Your TikTok Potential: Free TikTok Likes with InstBlastUnlock Your TikTok Potential: Free TikTok Likes with InstBlast
Unlock Your TikTok Potential: Free TikTok Likes with InstBlast

Unveiling the Dynamic Gemini_ Personality Traits and Sign Dates.pptx
Unveiling the Dynamic Gemini_ Personality Traits and Sign Dates.pptxUnveiling the Dynamic Gemini_ Personality Traits and Sign Dates.pptx
Unveiling the Dynamic Gemini_ Personality Traits and Sign Dates.pptx

LinkedIn Masterclass Techweek 2024 v4.1.pptx
LinkedIn Masterclass Techweek 2024 v4.1.pptxLinkedIn Masterclass Techweek 2024 v4.1.pptx
LinkedIn Masterclass Techweek 2024 v4.1.pptx

Blinkit: Revolutionizing the On-Demand Grocery Delivery Service.pptx
Blinkit: Revolutionizing the On-Demand Grocery Delivery Service.pptxBlinkit: Revolutionizing the On-Demand Grocery Delivery Service.pptx
Blinkit: Revolutionizing the On-Demand Grocery Delivery Service.pptx

Sedex Members Ethical Trade Audit (SMETA) Measurement Criteria
Sedex Members Ethical Trade Audit (SMETA) Measurement CriteriaSedex Members Ethical Trade Audit (SMETA) Measurement Criteria
Sedex Members Ethical Trade Audit (SMETA) Measurement Criteria

Equinox Gold Corporate Deck May 24th 2024
Equinox Gold Corporate Deck May 24th 2024Equinox Gold Corporate Deck May 24th 2024
Equinox Gold Corporate Deck May 24th 2024

What is paper chromatography, principal, procedure,types, diagram, advantages...
What is paper chromatography, principal, procedure,types, diagram, advantages...What is paper chromatography, principal, procedure,types, diagram, advantages...
What is paper chromatography, principal, procedure,types, diagram, advantages...

How to Maintain Healthy Life style.pptx
How to Maintain  Healthy Life style.pptxHow to Maintain  Healthy Life style.pptx
How to Maintain Healthy Life style.pptx

Constitution of Company Article of Association
Constitution of Company Article of AssociationConstitution of Company Article of Association
Constitution of Company Article of Association

Stages of Startup Funding - An Explainer
Stages of Startup Funding - An ExplainerStages of Startup Funding - An Explainer
Stages of Startup Funding - An Explainer

A Brief Introduction About Jacob Badgett
A Brief Introduction About Jacob BadgettA Brief Introduction About Jacob Badgett
A Brief Introduction About Jacob Badgett

Inside the Black Box of Venture Capital (VC)
Inside the Black Box of Venture Capital (VC)Inside the Black Box of Venture Capital (VC)
Inside the Black Box of Venture Capital (VC)


Lean Leadership - Part 3 of 3

  • 1. © 2015 The Karen Martin Group, Inc. 1
  • 2. Lean Management Components Core Values / Principles / Philosophy • Analytical tools • Value stream analysis & mapping • Metrics-based process mapping • Root cause analysis: Five Why’s, Fishbone, Pareto, Problem tree, FMEA • Waste Countermeasures • Standard work • Quality at the Source / Error proofing • 5S / Visuals • Pull systems: One-piece flow, FIFO lanes, Kanban • Cells / co-location • Level loading • Work balancing • Batch size reduction • Setup & changeover reduction • Work segmentation • Autonomation • Cross-training / multi-functional workers • Strategy deployment (hoshin planning) • Value stream management • Key performance indicators (three levels, including customer & operational metrics) • Disciplined process management via clear owners & KPIs • Daily kaizen • PDSA Problem Solving (& A3 management) • Performance dialogues / huddles / standups • Go & see (gemba) management • Humble inquiry • Continuously seeking voice of the customer • Purposeful meetings & reporting • Lean accounting • Consensus management • Humility • Respect • Curiosity • Transparency • Relentless pursuit for perfection • Customer value • Flow / waste elimination • Just in time • Visual management • Work standardization Lean Management © 2016 The Karen Martin Group, Inc. 2
  • 3. Lean Leadership Webinars – Parts 1 & 2 www.ksmartin.com/webinars Core Values / Principles / Philosophy • Analytical tools • Value stream mapping • Metrics-based process mapping • Root cause analysis: Five Why’s, Fishbone, Pareto, Problem tree, FMEA • Waste Countermeasures • Standard work • Quality at the Source / Error proofing • 5S / Visuals • Pull systems: One-piece flow, FIFO lanes, Kanban • Cells / co-location • Level loading • Work balancing • Batch size reduction • Setup & changeover reduction • Work segmentation • Autonomation • Cross-training / multi-functional workers • Strategy deployment (hoshin planning) • Value stream management • Key performance indicators (three levels, including customer & operational metrics) • Disciplined process management via clear owners & KPIs • Daily kaizen • PDSA Problem Solving (& A3 management) • Performance dialogues / huddles / standups • Go & see (gemba) management • Humble inquiry • Continuously seeking voice of the customer • Purposeful meetings & reporting • Lean accounting • Consensus management • Humility • Respect • Curiosity • Transparency • Relentless pursuit for perfection • Customer value • Flow / waste elimination • Just in time • Visual management • Work standardization Lean Management © 2016 The Karen Martin Group, Inc. 3
  • 4. Lean Management Components – Part 3 Core Values / Principles / Philosophy • Analytical tools • Value stream mapping • Metrics-based process mapping • Root cause analysis: Five Why’s, Fishbone, Pareto, Problem tree, FMEA • Waste Countermeasures • Standard work • Quality at the Source / Error proofing • 5S / Visuals • Pull systems: One-piece flow, FIFO lanes, Kanban • Cells / co-location • Level loading • Work balancing • Batch size reduction • Setup & changeover reduction • Work segmentation • Autonomation • Cross-training / multi-functional workers • Strategy deployment (hoshin planning) • Value stream management • Key performance indicators (three levels, including customer & operational metrics) • Disciplined process management via clear owners & KPIs • Daily kaizen • PDSA Problem Solving (& A3 management) • Performance dialogues / huddles / standups • Go & see (gemba) management • Humble inquiry • Continuously seeking voice of the customer • Purposeful meetings & reporting • Lean accounting • Consensus management • Humility • Respect • Curiosity • Transparency • Relentless pursuit for perfection • Customer value • Flow / waste elimination • Just in time • Visual management • Work standardization Lean Management © 2016 The Karen Martin Group, Inc. 4
  • 6. You will learn… • What’s a value stream? • What are the organizational benefits of looking at work through the value stream lens? • What’s involved in a value stream transformation cycle? • What’s a value stream map? • Why is VSM a team-based, leadership-heavy activity? • How does one prepare for a mapping activity, create current and future state maps, and develop a transformation plan? • Key success factors
  • 7. Wherever there is a request and a deliverable, there is a value stream.
  • 8. Value Stream All of the activities required to transform a customer request into a good or service. 8 First defined in The Machine That Changed the World, James Womack, Daniel Jones, & Daniel Roos, 1990. Process ProcessProcess Customer Request Customer Receipt
  • 10. Value Stream Mapping Progression 10 Mike Rother & John Shook 1999 Beau Keyte & Drew Locher, 2004 & 2015 Karen Martin & Mike Osterling 2014 “Whenever there is a product for a customer, there is a value stream. The challenge lies in seeing it.”
  • 11. Work: Degrees of Granularity 11 Value Stream Process Process Process Step StepStep Macro Perspective • Define strategic direction (“what”) • Heavy leadership involvement • Value Stream Mapping Micro Perspective • Identify the tactical “how” • Heavy frontline involvement • Metrics-Based Process Mapping
  • 12. Work: Levels of Granularity 12 Begin Discussions with Prospective Client Negotiate & Execute Contract Communicate Plan Options & Enrollment Process Enroll Employees Service the Contract Value Stream Process Negotiate pricing Approve Negotiate terms Approve Execute Contract CUSTOMER
  • 13. Function FunctionFunctionFunction Core Value Stream Support Value Stream Support Value Stream Silo-Centric vs. Value Stream Thinking Value stream segment Value stream segment
  • 14. One Value Stream Map for Each Product Family Function A Function B Function C Function D Function E Function F Function B Function H X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X Value Stream Map #1
  • 15. Value Stream Scoping Diagram: Defining Specific Conditions Golden State Equipment, Inc. Capital Equipment 80% $; 10% vol. Catalog 40% Configure to order 15% Engineer to order 35% Custom hardware 20% Custom software 20% Both 60% New Product Development 10% Spares & subassemblies 20% $; 90% vol. Catalog Engineer to order 15
  • 16. Value Stream Mapping Benefit: Seeing the Whole 16 Value Stream Mapping enables a mapping team to get ABOVE the work
  • 17. 17
  • 18. 18
  • 19. Strategy Before Tactics Options: • I-55/57 & I- 30 • I-70 & I-44 • I-69 & I-30
  • 20. 20
  • 21. VSM Promotes System Thinking 21 System Efficiency = Optimal Value Stream Performance Departmental Efficiency ≠ System Optimization
  • 24. 24 Visualize the entire cycle of value delivery on a single sheet of paper 24
  • 25. Value Stream Mapping Facilitates Leadership Consensus & Accelerates Improvement
  • 26. Sample Future State Decisions • Replace sales commissions with annual profit sharing. • Insource an outsourced activity. • Restructure broker relationships. • Merge two departments. • Shift work from one department to another. • Push authorizations down two levels. • Eliminate a department (with staff redeployment to other areas). • Build the means for customers to order online. • Add value stream owners to org chart. • Double the financial levels of authority. 26
  • 27. Improvement Roles Who? Accountability Practice / Tool Sr. Leaders What has to happen Hoshin Planning, Value Stream Mapping Frontlines How it will happen” Projects, Kaizen Events, Just-do-its, Daily Kaizen StrategicTactical Middle Management
  • 28. Value Stream Improvement Annual Goals & Priorities (Strategy Deployment) or High-level A3 Projects (w/ or w/o A3), Rapid Improvement Events (Kaizen Events), Daily Kaizen (Kata)
  • 30. Lead Time vs. Process Time Lead Time (LT) Work Received Work passed to next process or department Process Time (PT) Lead Time = Elapsed time; Throughput time; turnaround time Process Time = Touch time; work time; cycle time Work is Idle Work is Idle
  • 31. Measuring In-Process Quality: Percent Complete & Accurate (%C&A) Customer Process 1 Process 2 Process 3 Process 4 80% 50%95% 75% 90% %C&A = % of incoming work that’s “usable as is”; no need for rework: • Correcting information or material that was supplied • Adding information that should have been supplied • Clarifying information that should have or could have been clearer 31
  • 32. Customer 1 Process 3 Function E LT = 0.5 days PT = 30 mins. %C&A = 95% 4 4 10 mins. 1 days 120 mins. 2 days 30 mins. 0.5 days Total LT = 3.5 days Total PT = 160 mins. Activity Ratio = 9.5% Rolled %C&A = 89.3% Process 2 Function C LT = 2 days PT = 120 mins. %C&A = 95% 3 3 IT-1 IT-2 5 items Process 1 Function A LT = 1 days PT = 10 mins. %C&A = 99% 5 2 1 items 10 items Standard work Modified approvals IT interface Cross- train Cross- train Standard work Error proof Basic Value Stream Map: Future State
  • 33. Value Stream Performance Sample Results Metric Current State Projected Future State Projected % Improvement Lead Time (PO to shipping) 17 months 7.5 months 56% Process Time 600 hours 450 hours 25% (22 FTEs) Rolled % Complete & Accurate 0% 21% > 2,000% On-time delivery 13% 90% 592% # Internally-produced Change Orders 25/project 12/project 52% Freed Cash flow $25M per year
  • 34. Prepare Understand Current State Design Future State Develop Transformation Plan Execute Transformation Plan 3-4 consecutive days of Accelerated Learning & Design (ALD) 4-8 weeks prior to ALD sessions 3-9 months following ALD sessions Repeat Value Stream Transformation Cycle 34 • Charter development • Team formation • Data collection & review • Team prep
  • 35. 1 2 1 3 2 4 3 5 4 5 1 6 2 7 3 8 4 9 5 10 1 2 1 3 2 4 3 5 4 1 2 3 4 Date: Date:engagement, financials, lead time, safety records, etc. effectiveness, market trends, customer satisfaction, employee Signature: Date: Relevant Data Agreement Examples: work volume & volume variation, process quality & Executive SponsorWhat data is required to understand relevant current state isues. Signature: Signature: How will the business, internal and external customers, and Function internal and external suppliers benefit from value stream improvement? SMEs that may not be needed full time Always a nice touch; keeps the team from wandering On-site, ample wall space, quiet/private location Benefits to Customers & Business On-Call Support Increase <defined metric> from X to Y (Z% improvement). Reduce <defined metric> from X to Y (Z% improvement). Measurable Target Condition What's driving the need for improvement? Function Leadership-heavy Current State Problems & Business Needs Mapping Team Boundaries & Limitations Improvement Time Frame What is the team NOT authorized to change? Typically 3-6 months Last Step Task on last process block Logistics Coordinator Not always needed Aids in consensus building and organizational learning. Typically the last hour of the day. First Step Task on first process block Briefing Dates & Times Meals Provided Briefing Attendees ** required *optional List the the people that are required to attend the briefings (**) and those whose attendance is optional (*). Demand Rate Trigger How many times is this done per wk, qtr, mo, or yr? What initiates the process? Value Stream Mapping Charter Scope Accountable Parties Logistics Required: typically VP or C-level If needed—often director or manager level Specific Conditions What circumstances are included and excluded? (e.g., type of customer, geographic location, etc.) Value Stream Champion Value stream being improved Executive Sponsor Value Stream Event Dates & Times 3 days typically; consecutive is best; 6 hrs per day minimum; 7 or 8 hrs is best Required: skilled, objective person leading the activity Base-camp Location Facilitator Name Name FacilitatorValue Stream Champion Contact Information Contact Information Charter: Critical planning, communication, and consensus-building tool Available at www.ksmartin.com/vsm-charter
  • 36. What problem are you trying to solve? 36 Desired State (or known standard) Current State Gap = Problem
  • 37. Agency 1.3 hrs. 5.0 hrs. 10.0 days 3.0 hrs. 5.0 days 0.2 hrs. 1.0 days 1.0 hrs. 3.0 days 5.0 hrs. 2.0 days 1.3 hrs. 1.5 days 8.0 hrs. 4.0 hrs. 10.0 days 0.1 hrs. 10.0 days 40.0 hrs. 10.0 days 4.0 hrs. 7.0 days 3.0 hrs. 64.0 days Total LT = 124.7 days Total PT = 75.8 hrs. Activity Ratio = 8% Customer's Order System Apptus/ Design C9 Apollo Create Opportunity Conduct Credit Check Sales Credit LT = 0 days PT = 1.25 hrs. %C&A: 60% 1 Create & Send Proposal Validate Opportunity create IO Sales Strategic Response LT = 2 weeks PT = 5 hrs. %C&A: 80% 2 Rev iew & Negotiate Deal Via Unsigned IO Sales Deal Desk LT = 1 weeks PT = 3 hrs. %C&A: 66% 4 3 Sign & return IO Customer LT = 1 days PT = 0.25 hrs. %C&A: 100% 4 Confirm Campaign Details Direct Teams to setup campaign, obtain assetsAcct Mgmt LT = 3 days PT = 1 hours %C&A: 52% 5 Setup & Launch Campaign Ad Operations Analytics LT = 2 days PT = 5 hrs. %C&A: 50% 30 6 Obtain Ext. Data & Config. Auto Load (AO) Acct Mgmt Ad Operations LT = 1.5 days PT = 1.25 hrs. %C&A: 80% 7 Rolled %C&A = 1.9% Monitor Campaign & Trouble Shoot Operations Acct Mgmt Analytics LT = 0 days PT = 8 hrs. %C&A: 50% 8 Inv oice Customer (Batch = 1x/ mnth) Finance LT = 2 weeks PT = 4 hrs. %C&A: 60% 13 9 Send Commission Report To Comp (Batch = 1x/mnth) Finance LT = 2 weeks PT = 0.1 hrs. %C&A: 99% 10 Assign Campaign To Reps (Batch = 45 Days) Comp LT = 10 days PT = 40 hrs. %C&A: 95% 11 Pay Commission Finance Payroll LT = 7 days PT = 4 hrs. %C&A: 100% 12 Notify Client They Are Liv e &Send SS's Acct Mgmt Ad Operations LT = 1 days PT = 1 hrs. %C&A: 98% 7B Receiv e Cash (inv oice payment) 90 Calendar days = 64 working days LT = 64 days PT = 3 hrs. %C&A: 100% 6 13 Marketing Campaign Current State Value Stream Map 1,000 Campaigns per Month Rev iew & sign IO Finance Legal Analytics Product LT = 2 days PT = 0 hrs. %C&A: 95% 3B Up Sell & Ask For Incr. Rev enue Acct Mgmt Sales LT = 0 days PT = 1 hrs. 8B Send Wrap-Up Reports & Cond. QBR's Acct Mgmt Sales Analytics LT = 0 days PT = 2 hrs. 9B Rate Card Kanter Data.com Credit Safe Forsev a DNB Sales Force JIRA Fuel/ DSP Admin Excel/ Google Sheets NetSuite Customer's Billing System ADPXactlyX1 Agency's Customer
  • 38. Go to the Gemba to learn how work REALLY gets done Go & See Ask Why Show Respect
  • 39. Daily Leadership Briefings Day 1 – Share insights; reduce resistance Day 2 – Build consensus re: future state Day 3 – Gain commitment for action plan 39
  • 40. Agency 0.5 hrs. 2.5 hrs. 10.0 days 2.0 hrs. 5.0 days 0.2 hrs. 1.0 days 0.5 hrs. 3.0 days 2.0 hrs. 0.4 days 1.3 hrs. 1.5 days 6.5 hrs. 0.2 hrs. 4.0 days 0.1 hrs. 5.0 days 16.0 hrs. 5.0 days 4.0 hrs. 7.0 days 2.0 hrs. 53.0 days Total LT = 95.8 days Total PT = 37.8 hrs. Activity Ratio = 5% Customer Order Systems Apptus/ DocuSign C9 Create Opportunity Conduct Credit Check Sales Credit LT = 0 days PT = 0.5 hrs. %C&A: 90% 1 Create & Send Proposal Validate Opportunity Create IO Sales Acct Mgmt Strategic Response LT = 2 weeks PT = 2.5 hrs. %C&A: 90% 2 Rev iew & Negotiate Deal Via Unsigned IO Sales Deal Desk LT = 1 weeks PT = 2 hrs. %C&A: 90% 3 Sign & return IO Close IO in SFDC Customer Sales LT = 1 days PT = 15 mins. %C&A: 100% 4 Confirm Campaign Details Obtain Creativ e Assets Acct Mgmt LT = 3 days PT = 30 mins. %C&A: 75% 5 Setup & Launch Campaign Ad Operations Analytics LT = 3 hours PT = 2 hrs. %C&A: 70% 6 Obtain Ext. Data & Config. Auto Load (AO) Acct Mgmt Ad Operations LT = 1.5 days PT = 1.25 hours %C&A: 95% 7 Rolled %C&A = 27% Monitor & Trouble Shoot Campaign Operations Acct Mgmt Analytics LT = 0 days PT = 6.5 hrs. %C&A: 80% 8 Send Commission Report To Comp. (Batch = Weekly) Finance LT = 5 days PT = 5 mins. %C&A: 99% 10 Assign Campaign To Reps (Batch = Weekly) Comp LT = 5 days PT = 2 days %C&A: 99% 11 Pay Commission Finance Payroll LT = 7 days PT = 4 hrs. %C&A: 100% 12 Notify Client They Are Liv e &Send Screen Shots AM Ad Operations LT = 1 days PT = 1 hrs. %C&A: 98% 7B Reciev e Cash (Inv oice Payment) 75 Calendar days=53 working days LT = 53 days PT = 2 hrs. %C&A: 100% 13 Marketing Campaign Future State Value Stream 2,000 Campaigns per Month Up Sell & Ask For Incr. Rev enue AM Sales PT = 0.5 hrs. 8B Send Wrap-Up Reports & Cond. QBR's AM Sales Analytics PT = 2 hours 9B Gainsight Kantar Data.com Creditsafe Forsev a DNB Sales Force JIRA Fuel/ DSP Scale Tool NetSuite Customer's Billing System ADPXactly Agency's Customer Inv oice Customer (Batch = end of campaign + 4 days) Finance LT = 4 days PT = 0.25 hrs. %C&A: 95% 2 9 Define, test and roll out AM role in proposal process Migrate rate card to SFDC Automate deal approval (w/ exception processing) Automate IO load into SFDC Implement BI Create FYI email to client confirming campaign launch Define opportunity and create standard wrok re: entry into SFDC (including timing) Implement signed IO closed date + X days Create master data Evaluate keeping C9 vs. creating SFDC forecast tool; implement decision Eliminate JIRA Improve tie-out Launch campaigns within 1 hr of receiving signed IO and creative Improve quality of external reports Continue testing & evaluate Gainsight and finish roll out if OK Complete development & roll out scale tool Make insight generator more robust Create means for giving customers greater insight Get customer invoice requirements upfront Automate external reports for invoicing Consolidate to one vendor for credit checks Create executive dashboard Define forecasting data needs, methodology, timing & system(s) of record Design and implement lock box automation Optimize for credit card payments (where applicable) Create weekly commissionable revenue report Implement multi- seat support Find means to eliminate Admin & Apollo Design & implement system integration Define and gain consensus re: "transparency" (geo specific) Future State VSM: Your Blueprint
  • 41. 41 J F M A M J J A S O N D 1 All existing customers with RFQ have access to form; %C&A of quotes = 90% KE1 Sean Michaels X X 0% 2 Reduce PT @ review step and ensure RFQ omissions are detected at this step KE1 Sean Michaels X X 50% 3 All estimates created using template; reduce estimate PT to 1.5 hours KE2 Dave Gerald X X 75% 3,4 Central repository for estimate history Proj Diana Marie X 100% 6 Eliminate manual emails between sales and estimating Proj Diana Marie X 100% 8 Fewer bugs passed on to production KE3 Ryan Austin X 50% 8 Designated resources for ETO SW develop - shorter LT & improved leveraging of experience Proj Michael O'Shea X X 0% 8,9 Less guessing re: customer requirement; fewer assumptions and bad design passed to production JDI Diana Marie X 100% 8,9 Eliminate need for CS to compile specification package for eng, SW & production Proj Diana Marie X X X 10% 7 Eliminate need to maintain BOMs in BlueStreak; eliminate licencing cost Proj Dave Gerald X X 50% 7 Free up time in Sales group (only contacted if significant variance) JDI Danny Tran X 100% 10 Customer service able to review PO and create SO KE4 Danny Tran X X 100% Value Stream Transformation Plan Value Stream Golden State Equipment, Inc. Scheduled Review Dates Executive Sponsor Allen Ward 9-Aug-13 18-Oct-13 Value Stream Champion Nancy Little 23-Aug-13 8-Nov-13 Value Stream Mapping Facilitator Dave Parks 9-Sep-13 26-Nov-13 Activate auto-notification in SalesForce (work flow) Date Created 7/26/2013 30-Sep-13 19-Dec-13 FS VSM Block # Goal or Measurable Target Proposed Countermeasure Exec. Method* Owner Planned Timeline for Execution Status Standard RFQ form/checklist developed and made available to customers Standard review criteria developed for sales to check incoming RFQs Update existing estimating template Link Excel and Salesforce Improved software testing routines Designated SW development team for ETO product Give Eng design and SW Dev open access to sales and specification documents from quoting process Link data files in SalesForce to SO and WO in SAP Activate BOM costing in SAP Customer service reviews and approves PO (compares to quote) Standard work defined for PO review
  • 42. Managing the Value Stream • Key Performance Indicators 2-5 relevant value stream KPIs (need process level KPIs as well) Operations heavy Set targets and visual management boards; track • Ownership Designated person – Value Steam Owner Monitors KPIs and communicates performance to plan Drives problem solving and ongoing improvements; ensures alignment with strategy
  • 43. 43 Monitoring Value Stream & Process Performance Value Stream Value Stream Owner Process Process Owner Outpatient Imaging Sally V Scheduling & Registration Bill G Exam & Clinical Reporting Jose C Reports to physician Maria J Inpatient surgery Tonianne S Admission Tom M Clinical stay Kathleen T Discharge Mike M Billing Sylvia S Revenue Cycle Management Bruce T N/A N/A Value Stream & Process Ownership ABC Medical Center
  • 46. 46 It’s not about the map. It’s about the conversations, the insights, the decisions, the organizational healing that mapping enables.
  • 47. © 2016 The Karen Martin Group, Inc. 47 To Learn More… • Books • Value Stream Mapping (Martin & Osterling) • The Complete Lean Enterprise (Keyte & Locher) • Learning to See (Rother & Shook) • Public Workshops & Conferences • Association for Manufacturing Excellence • Lean Enterprise Institute • Shingo Institute • Webinars – www.ksmartin.com/webinars
