1. The Emerging Mass Medium
of Augmented Reality
Gene Becker
AR Strategist

2. About Layar
Mobile augmented reality leader
Founded in June 2009
Based in Amsterdam
VC funded
50+ people worldwide

3. Augmented reality is a new medium of
creative expression that expands human
experience

4. inspirations:
AR past & future

5.
AR
research:
first
HMD
-­‐
Ivan
Sutherland
(1966)
The
“Sword
of
Damocles”

6.
AR
research:
Caudell
&
Mizell
(Boeing,
1992)
Caudell, T., Mizell, D.: Augmented reality: an application of heads-up display technology
to manual manufacturing processes
Overlaying graphics to support assembly of complex wiring harnesses in aircraft manufacturing at Boeing. Coined the term
“augmented reality”.

7.
AR
research:
wearable
compuNng
-­‐
Steve
Mann
http://wearcam.org/steve.html

8.
AR
research:
first
mobile
AR
system
Feiner et al, Touring Machine (1997), Columbia University
http://graphics.cs.columbia.edu/projects/mars/mars.html

9. AR: a vision of future personal computing

10. visual search on the physical world concept design by mac funamizu
source: http://petitinvention.wordpress.com/2008/02/10/future-of-internet-search-mobile-version/

11. querying the natural world concept design by mac funamizu
source: http://petitinvention.wordpress.com/2008/02/10/future-of-internet-search-mobile-version/

12. computational print media concept design by mac funamizu
source: http://petitinvention.wordpress.com/2008/02/10/future-of-internet-search-mobile-version/

13. seeing through space and time concept design by mac funamizu
source: http://petitinvention.wordpress.com/2008/02/10/future-of-internet-search-mobile-version/

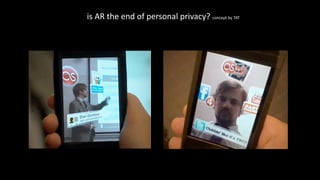

14.
is
AR
the
end
of
personal
privacy?
concept
by
TAT

15. and just wait ‘til the glasses get here concept design by mac funamizu
source: http://petitinvention.wordpress.com/2008/02/10/future-of-internet-search-mobile-version/

16. AR in the present tense

17. present
day
mobile
AR:
Layar
Layar
demo
video:
hRp://www.youtube.com/watch?v=b64_16K2e08

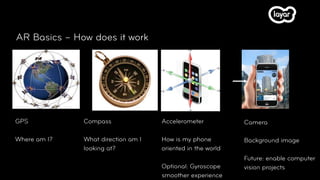

18. AR Basics – How does it work
GPS Compass Accelerometer Camera
Where am I? What direction am I How is my phone Background image
looking at? oriented in the world
Future: enable computer
Optional: Gyroscope vision projects
smoother experience

19. Layar Platform
Browser Player Publishing Platform
AR view SDK
for your
iphone app
1.000.000 active users Thousands of developers
Launch January 2011 & companies
1.500 layers

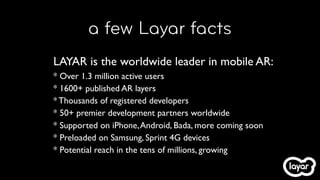

20. a few Layar facts
LAYAR is the worldwide leader in mobile AR:
* Over 1.3 million active users
* 1600+ published AR layers
* Thousands of registered developers
* 50+ premier development partners worldwide
* Supported on iPhone, Android, Bada, more coming soon
* Preloaded on Samsung, Sprint 4G devices
* Potential reach in the tens of millions, growing

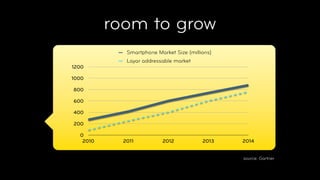

21. room to grow
Smartphone Market Size (millions)
Layar addressable market
1200
1000
800
600
400
200
0
2010 2011 2012 2013 2014
source: Gartner

22. The Layar ecosystem
inspirational applications Brands & Media artists enthusiasts
historians scientists
creative producers Agencies game designers curators
technical developers Layar developers
1000’s of content layers
Layar’s open & free platform
cross-platform support
1,000,000+ users

23. Augmented reality is a new medium of
creative expression that expands human
experience

24. AR is expressive

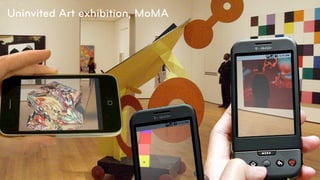

25. Uninvited Art exhibition, MoMA

26. Stedelijk Museum

27. AR is informative

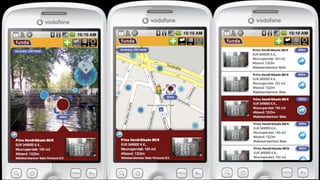

28. Quake information
http://livespot.com.au/

30. AR is playful

31. GRAPH
22 3

32. http://www.c2k.nl/
Conquar by C2K © 2010, Layar B.V.

33. AR is social

34. Foursquare by TAB
http://www.tabworldmedia.com

35. Tweeps around by TAB
http://www.tabworldmedia.com

36. AR is commercial

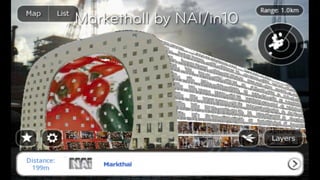

37. Prince of Persia by TAB
http://www.tabworldmedia.com
© 2010, Layar B.V.

38. Quiznos
http://www.hoppala-agency.com/& http://winvolve.com/

39. Rolling Stones by Mobilistar
http://www.augmentreality.co.uk/
© 2010, Layar B.V.

40. AR reveals the past...

41. Historic Market St. in SF

42. Berlin wall by Hoppala
http://www.hoppala-agency.com/

43. ...and the future

44. Markethall by NAI/in10

45. let’s make layers!

46. Creating layers – Terminology
 Layar: The browser application
 Layer: A content layer in our browser
 POI: Point of Interest, element of data in the AR view (sometimes called
hotspot, or object)
 AR View: The augmented reality view, with the POIs superimposed on the
camera view.
 List View: A list of all POIs
 Map View: POIs shown on a map

47. Radar
Layar terminology
BIW

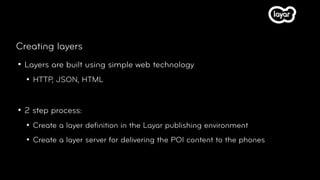

48. Creating layers
 Layers are built using simple web technology
 HTTP, JSON, HTML
 2 step process:
 Create a layer definition in the Layar publishing environment
 Create a layer server for delivering the POI content to the phones

49. Layar ecosystem

50. Creating layers – Publishing site
 http://layar.com/publishing
 Add all the static content of a layer
 Listing details
 Look & feel
 Service URL

51. Creating layers – Layer service
 RESTful API with a single HTTP GET call
 GetPOIs Request: HTTP request with the following parameters: Latitude,
Longitude, filter settings...
 GetPOIs Response: JSON data containing POI information (hotspots)
 API documentation: http://layar.pbworks.com

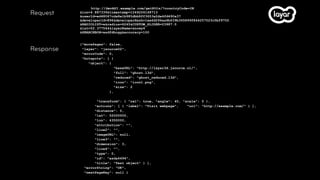

52. http://devAPI.example.com/getPOIs/?countryCode=IN
Request &lon=4.887339&timestamp=1249226148713
&userId=ed48067cda8e1b985dbb8ff3653a2da4fd490a37
&developerId=896&developerHash=1ee6d294aa6b639b365899f844257523c5bf9702
&RADIOLIST=a&radius=6245&CUSTOM_SLIDER=23987.0
&lat=52.377544&layerName=snowy4
&SEARCHBOX=asdfdhcgg&accuracy=100
{"morePages": false,
Response "layer": "jsource02",
"errorCode": 0,
"hotspots": [ {
"object": {
"baseURL": "http://layar3d.jsource.nl/",
"full": "ghost.l3d",
"reduced": "ghost_reduced.l3d",
"icon": "icon1.png",
"size": 2
},
"transform": { "rel": true, "angle": 45, "scale": 5 },
"actions": [ { "label": "Visit webpage", "uri": "http://example.com/" } ],
"distance": 0,
"lat": 52000000,
"lon": 4350000,
"attribution": "",
"line2": "",
"imageURL": null,
"line3": "",
"dimension": 3,
"line4": "",
"type": 0,
"id": "asda4494",
"title": "Test object" } ],
"errorString": "OK",
"nextPageKey": null }

53. Creating layers – 3rd party services
 Instead of creating your own layer service, you can use one of the
community created tools, e.g.:
 Porpoise
Open source server software created by Jens
 Hoppala Augmentation
Hosted solution, easy to use.

57. Discuss.
Gene Becker
tw: @genebecker
skype: gene.becker
web: www.layar.com
mail: gene@layar.com
