The document presents a talk by Konstantin Slisenko on latency tracing in distributed Java applications, covering its significance, operation, and implementation. It discusses the challenges in identifying performance issues across multiple engineering teams and emphasizes the importance of communication protocols and instrumentation for effective latency tracing. The talk also includes a live demo and various tools available for enhancing application performance monitoring.

1. 1
JAVA DAY KYIV 2017
LATENCY TRACING
IN DISTRIBUTED JAVA
APPLICATIONS
KONSTANTIN SLISENKO
LEAD SOFTWARE ENGINEER
NOV 5, 2017

2. 2
kanstantsin_slisenka@epam.com
Konstantin Slisenko
Java Team Lead in EPAM
Financial services, trading solutions
Speaker at Java Meetups
github.com/kslisenko

3. 3
MY TALK IS ABOUT…

4. 4

5. 5
AGENDA
What is latency tracing?
2
3
1
How it works?2
Live demo3

6. 6
ONE SYSTEM
LITTLE STORY ABOUT

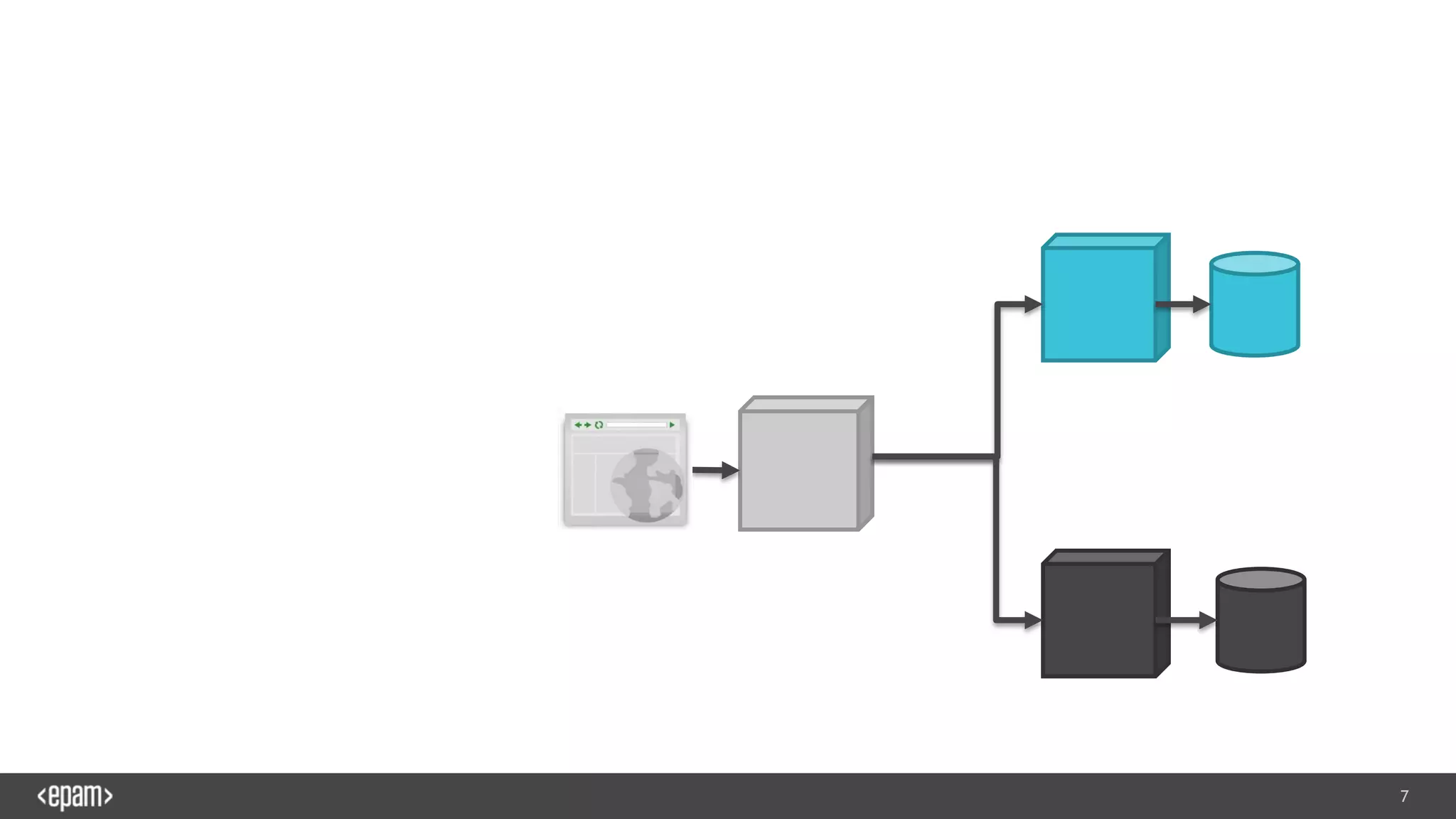

7. 7

8. 8

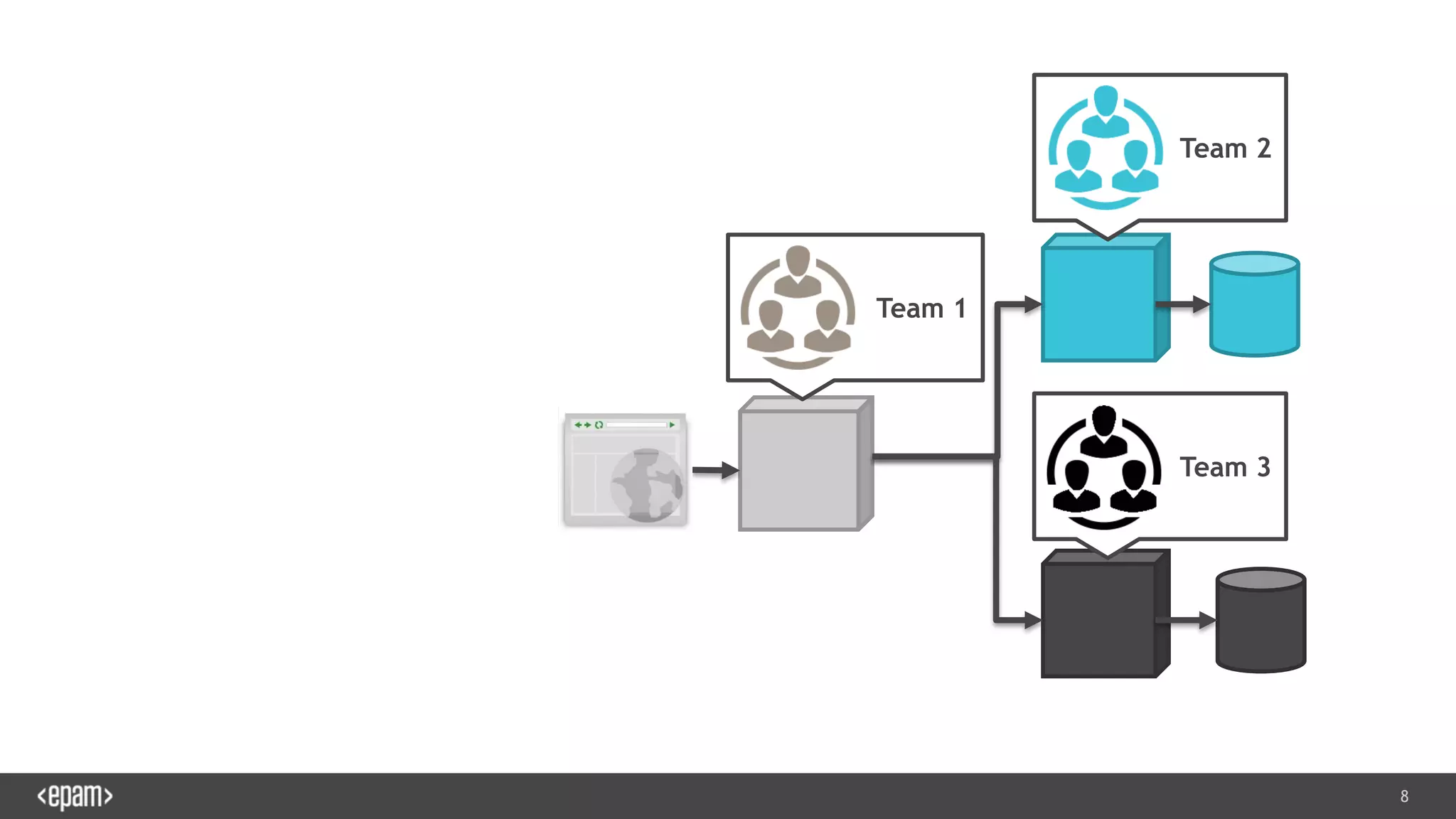

Team 1
Team 3
Team 2

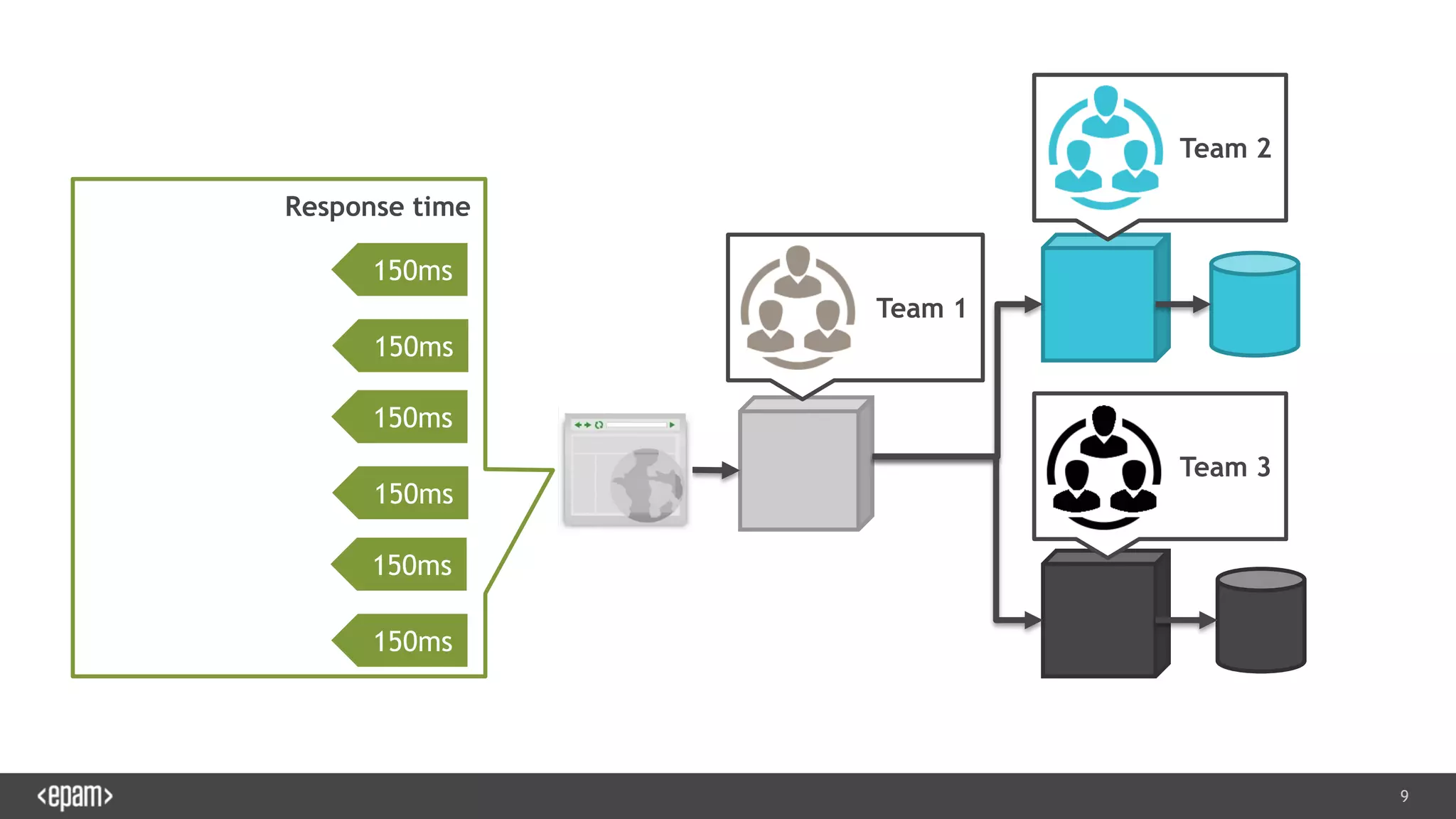

9. 9
Response time
150ms
150ms
Team 1
Team 3
Team 2
150ms
150ms
150ms
150ms

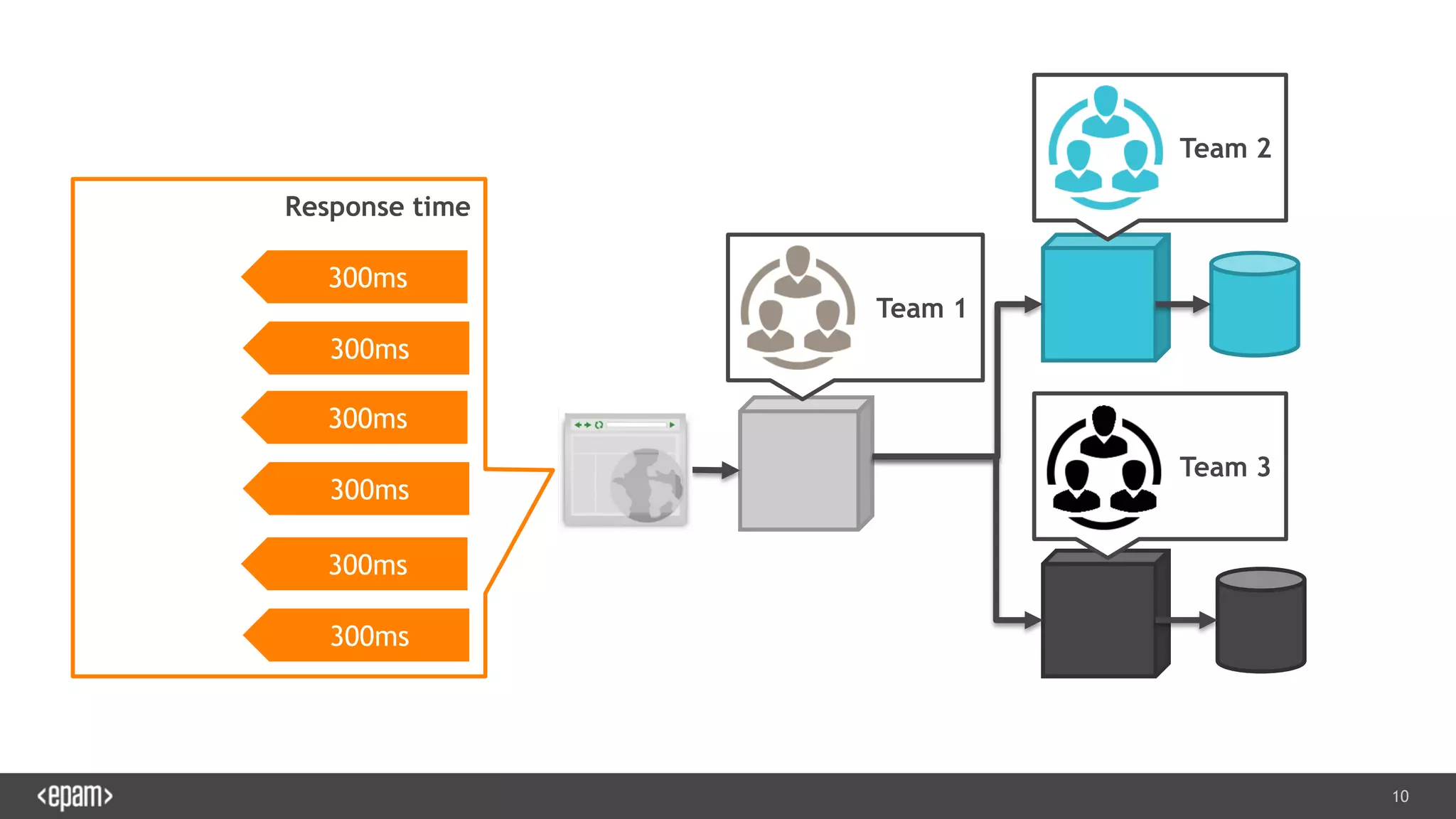

10. 10
Response time
300ms
300ms
Team 1
Team 3
Team 2
300ms
300ms
300ms
300ms

11. 11

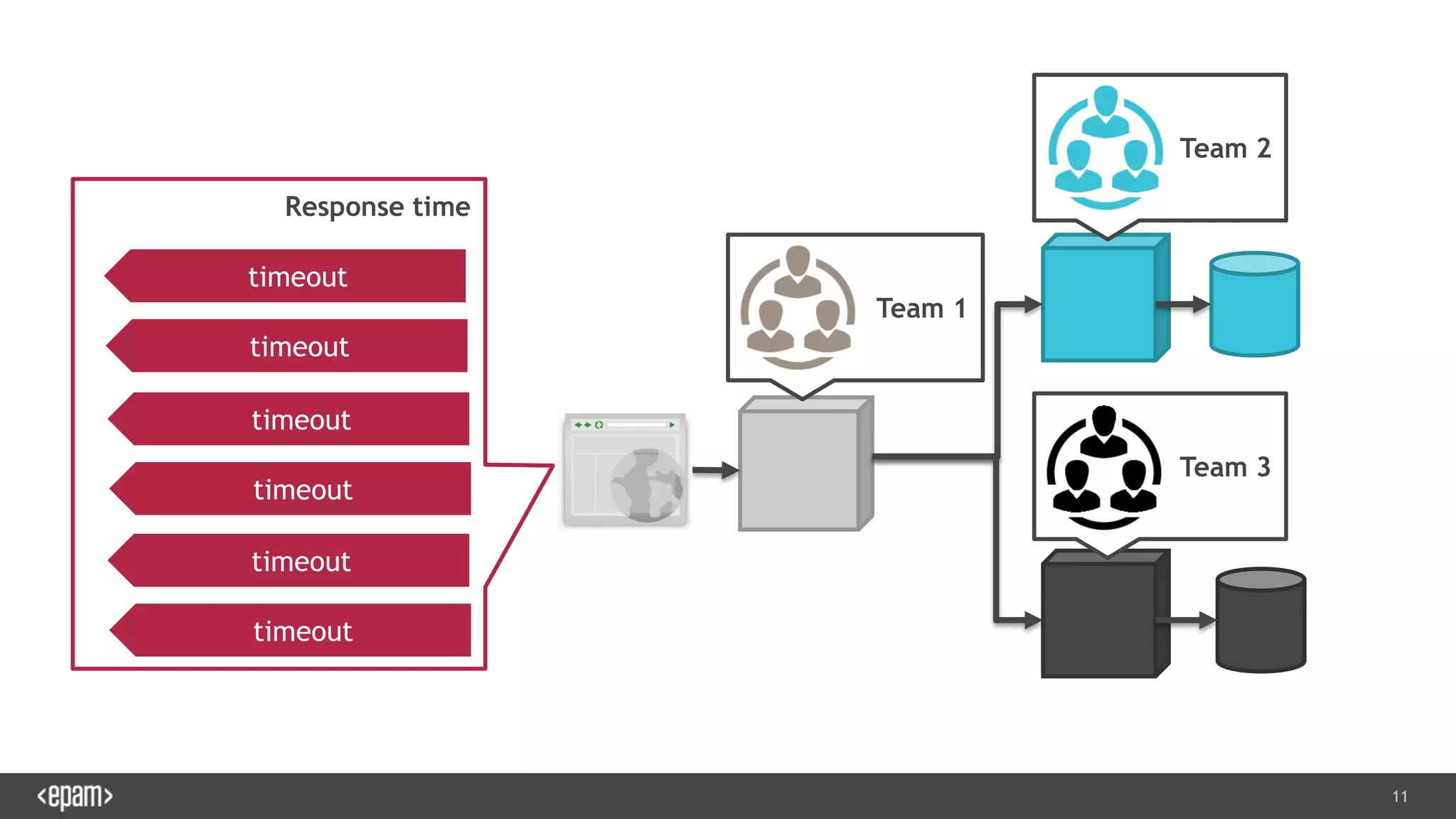

Response time
timeout
timeout
Team 1
Team 3
Team 2
timeout
timeout
timeout
timeout

12. 12
Response time
timeout
timeout
Team 1
Team 3
Team 2
timeout
timeout
timeout
timeout
Frustrated
user

13. 13
1. Whose fault?

14. 14
1. Whose fault?
Where?

15. 15
1. Whose fault?
Where?
2. Why?

16. 16
1. Whose fault?
Where?
2. Why?
3. How to prevent?

17. 17

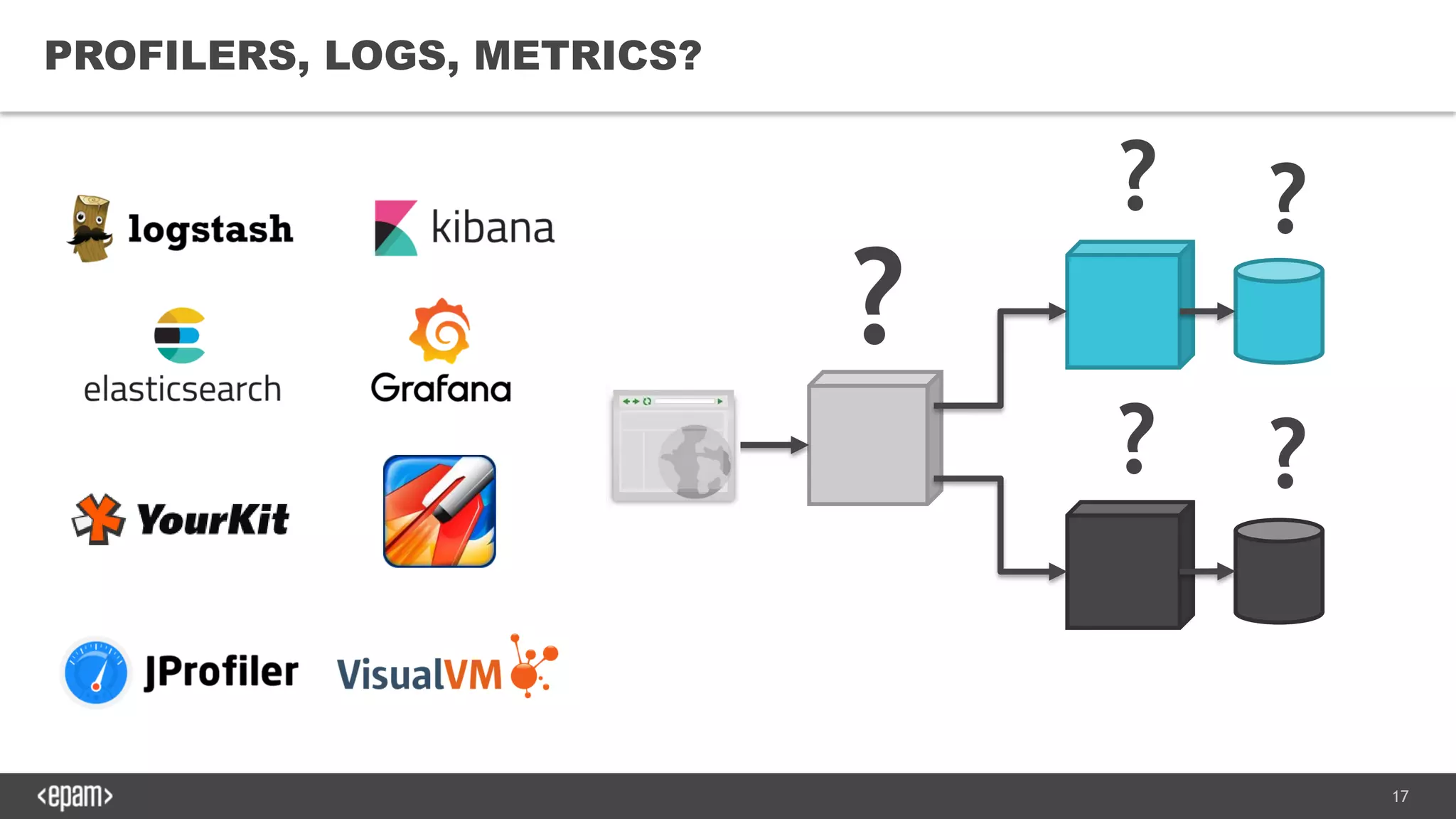

PROFILERS, LOGS, METRICS?
?
?
?
?
?

18. 18

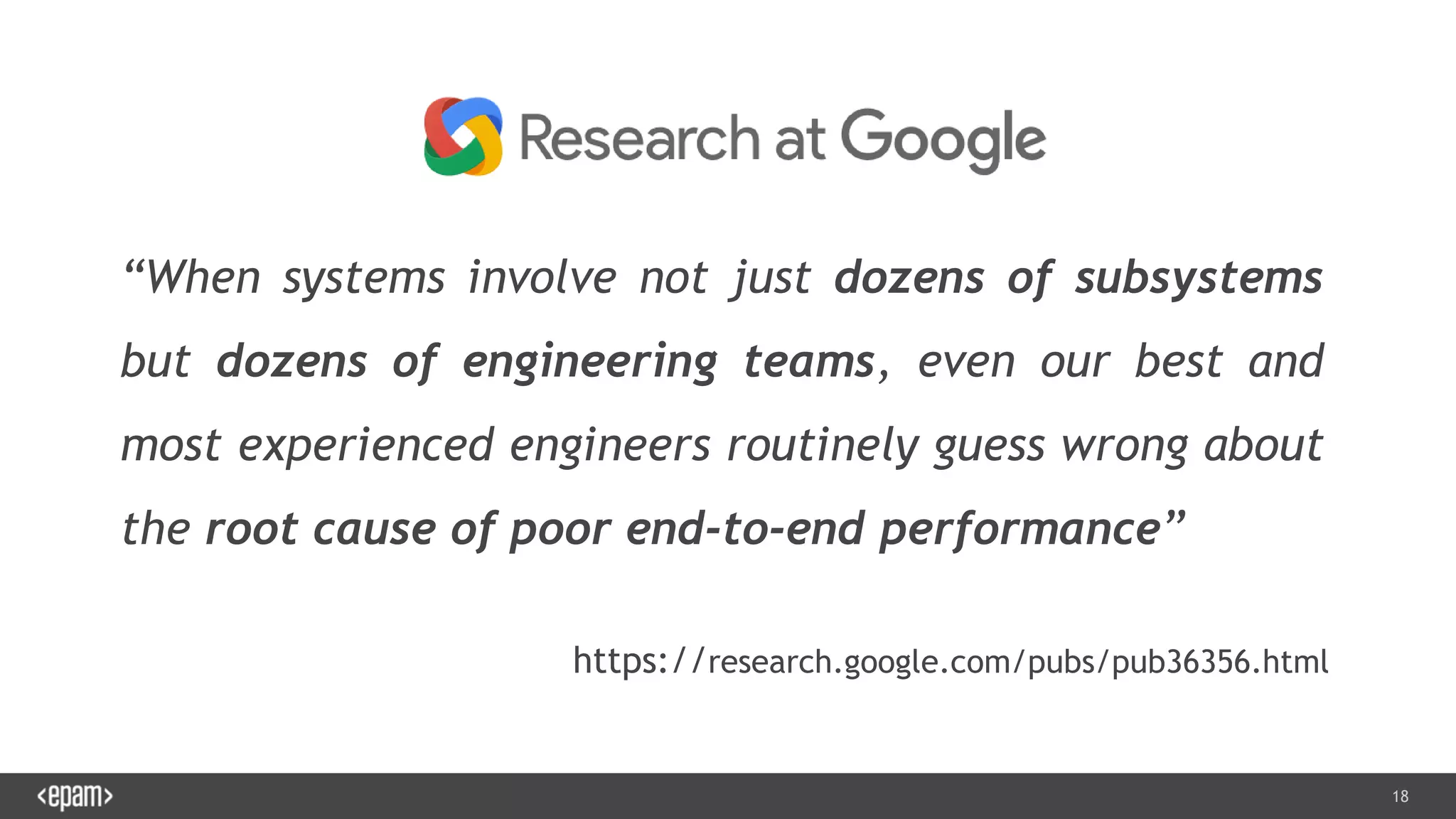

“When systems involve not just dozens of subsystems
but dozens of engineering teams, even our best and
most experienced engineers routinely guess wrong about
the root cause of poor end-to-end performance”
https://research.google.com/pubs/pub36356.html

19. 19
LATENCY TRACING
THE MOMENT WHEN YOU NEED

20. 20

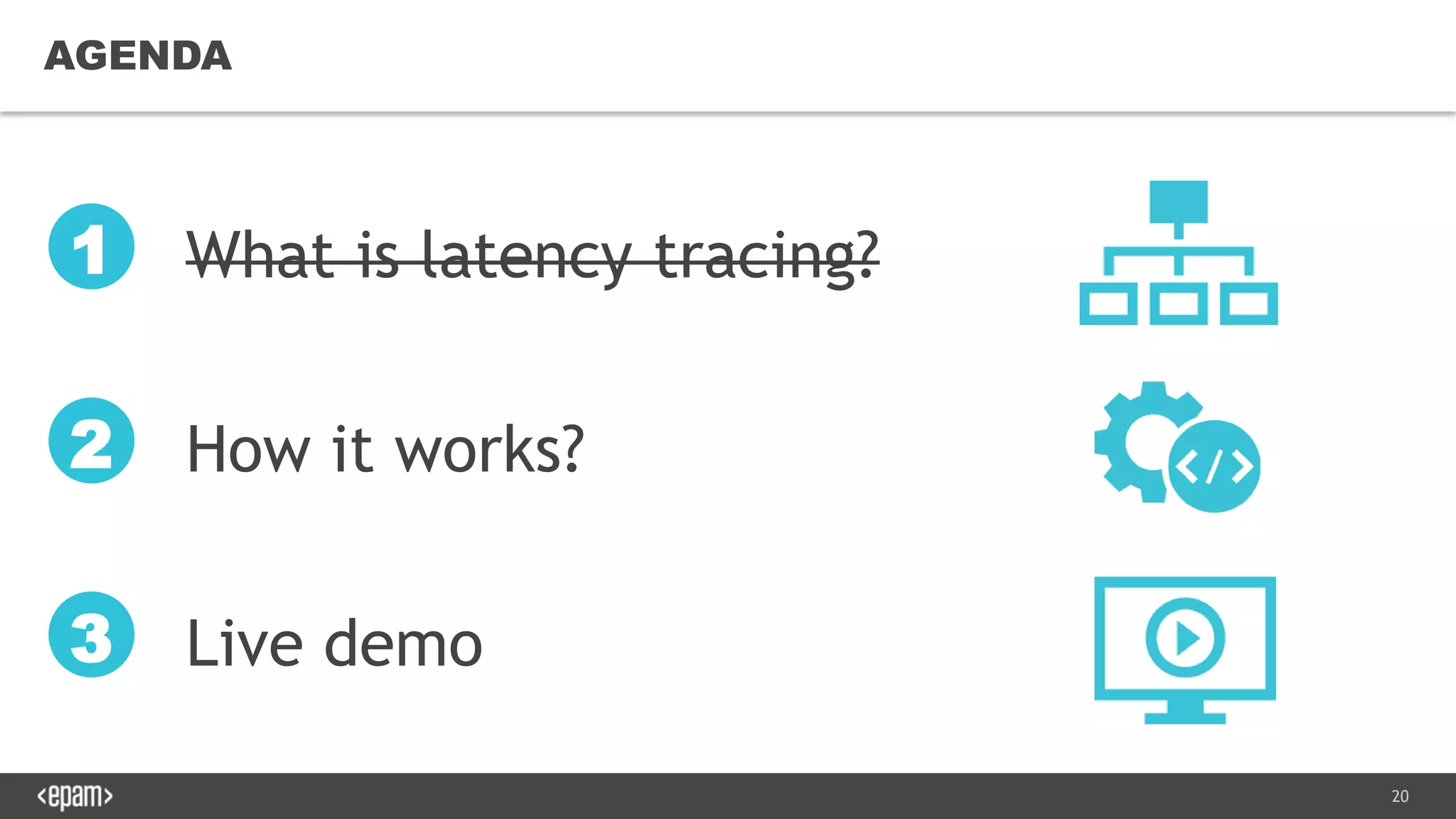

AGENDA
What is latency tracing?
2
3
1
How it works?2
Live demo3

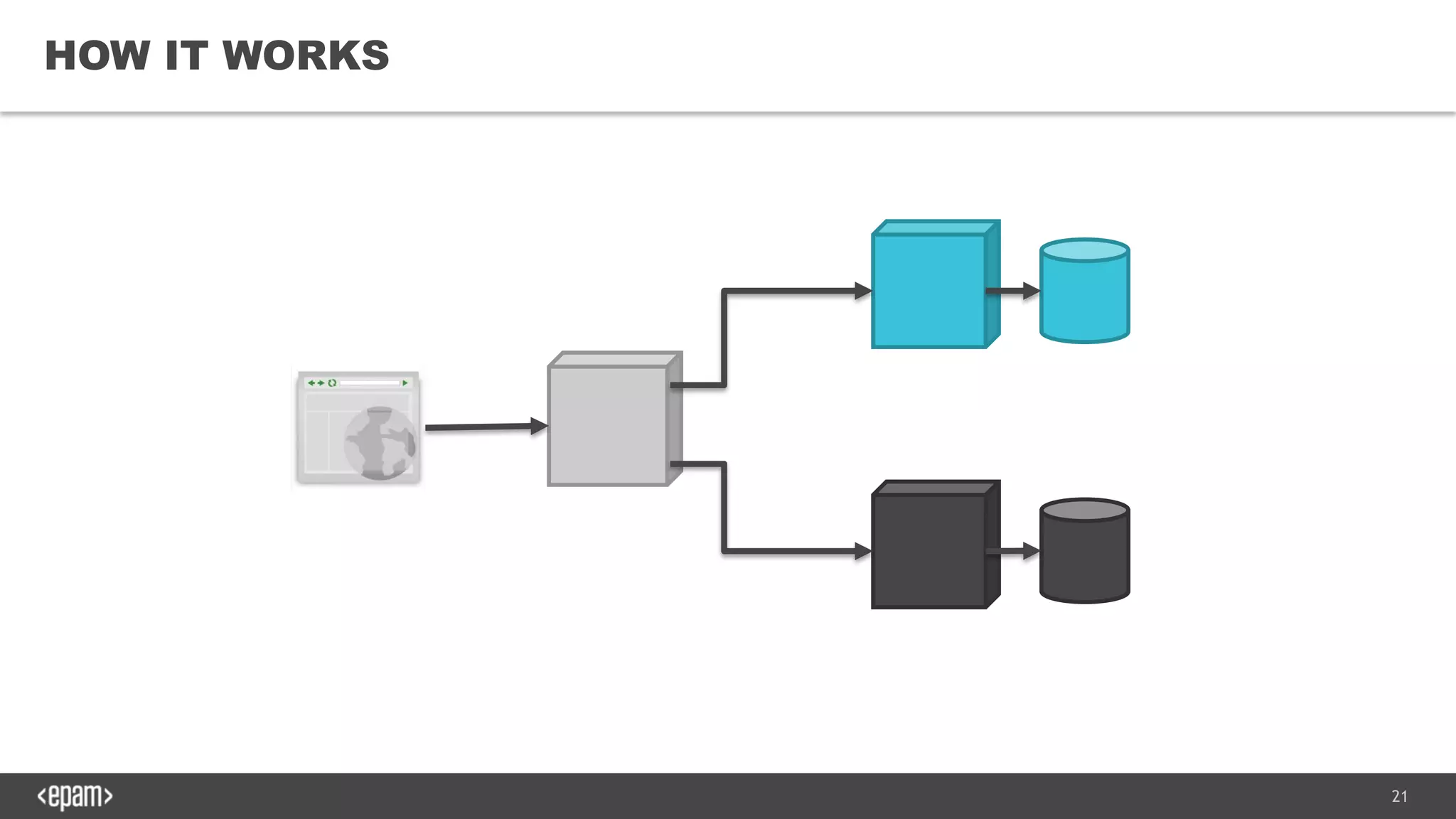

21. 21

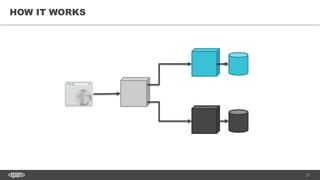

HOW IT WORKS

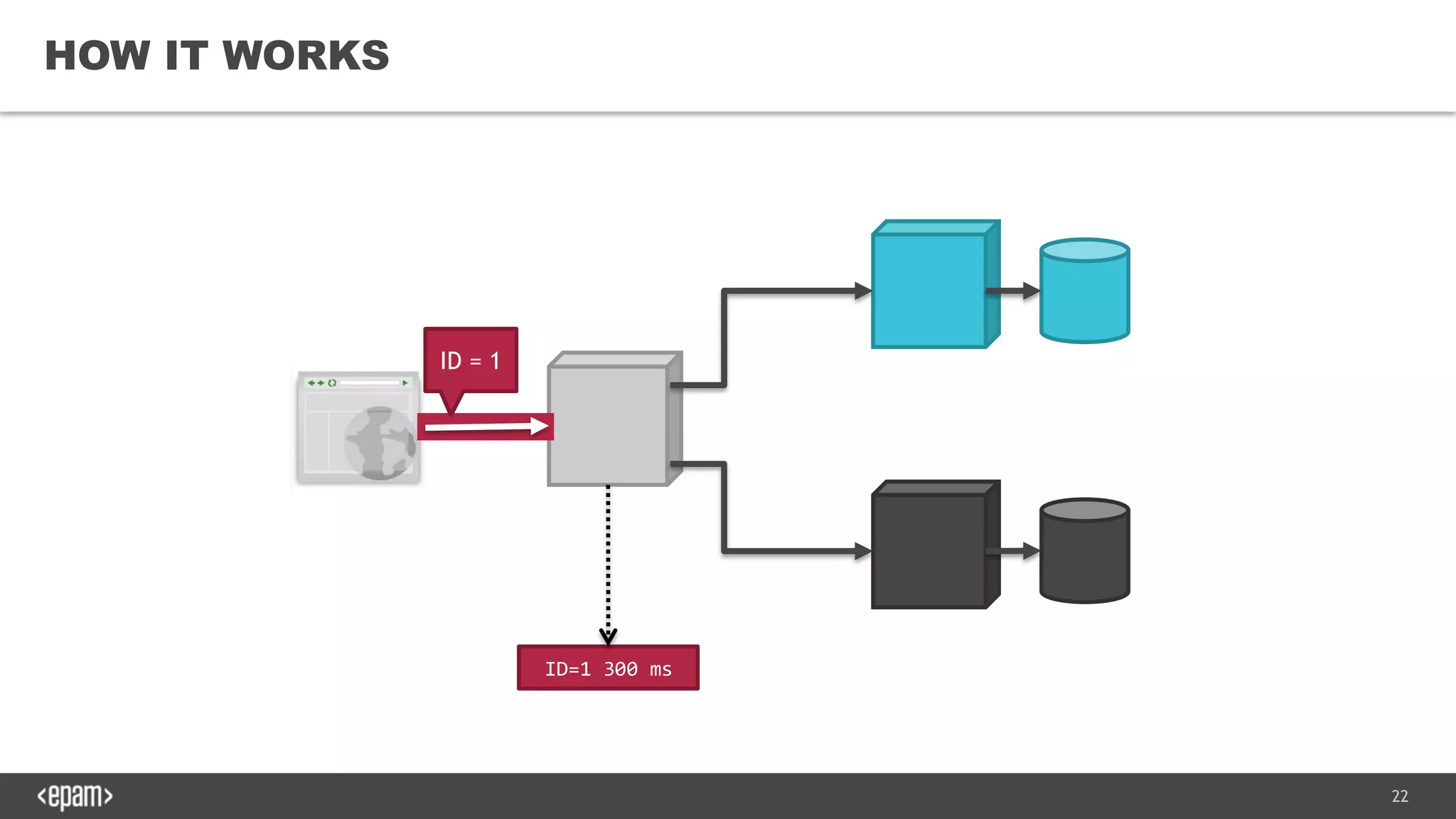

22. 22
HOW IT WORKS
ID=1 300 ms

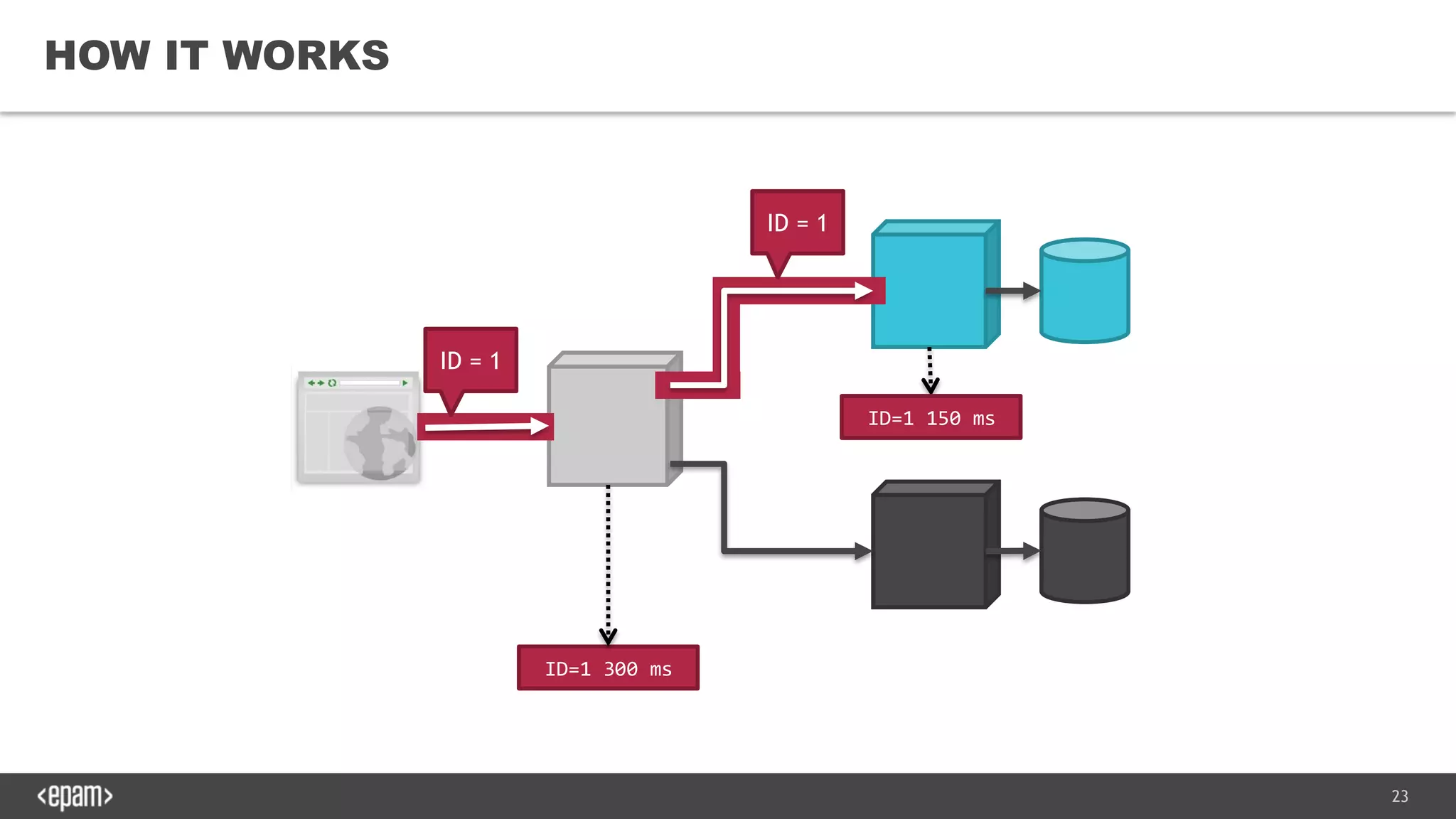

ID = 1

23. 23

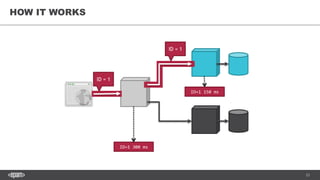

HOW IT WORKS
ID=1 300 ms
ID = 1
ID = 1
ID=1 150 ms

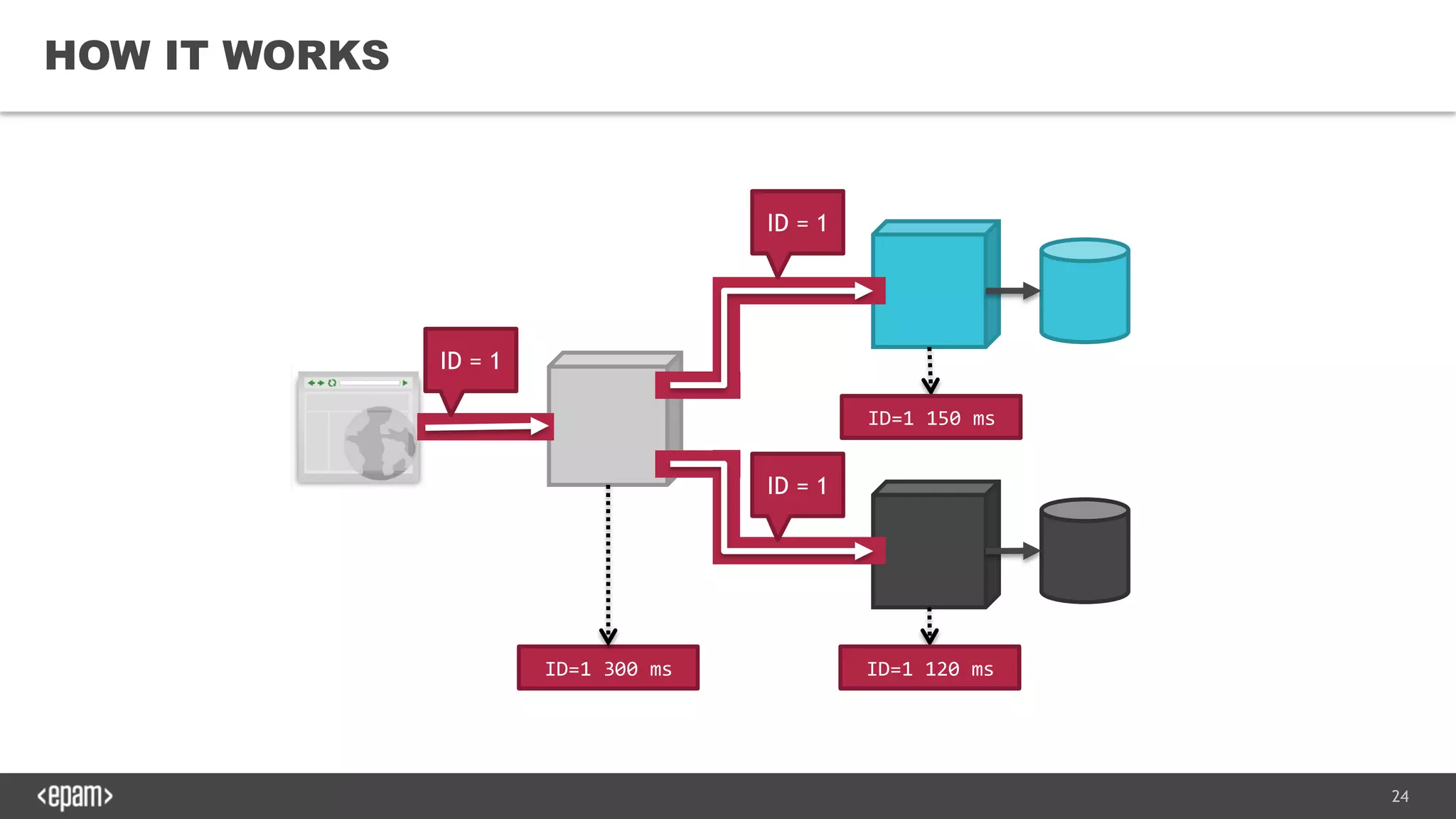

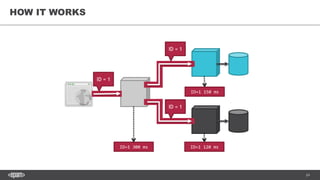

24. 24
HOW IT WORKS
ID=1 300 ms
ID = 1
ID = 1
ID = 1
ID=1 120 ms
ID=1 150 ms

25. 25

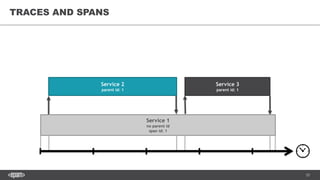

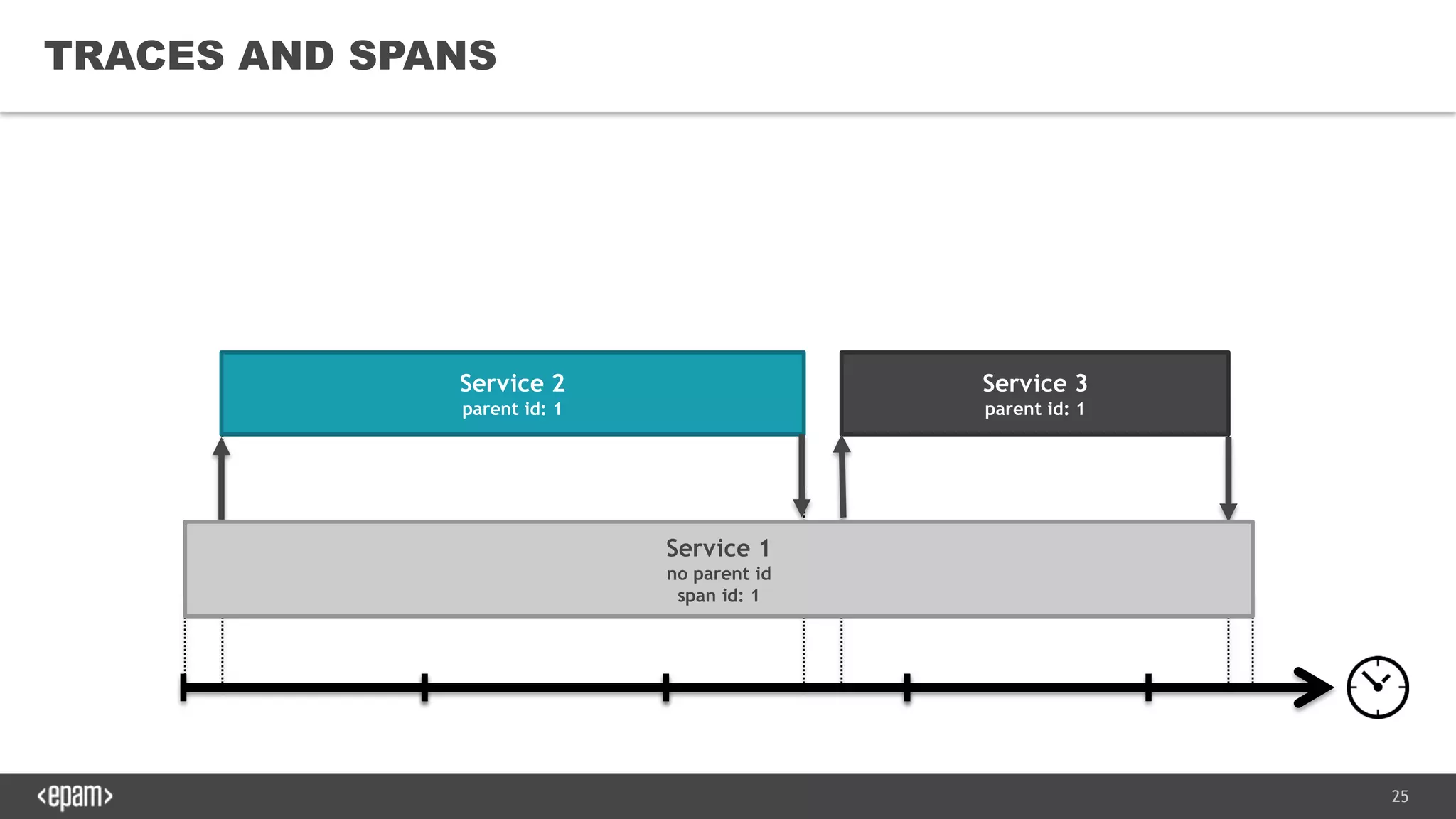

Service 2
parent id: 1
Service 3
parent id: 1
TRACES AND SPANS
Service 1
no parent id
span id: 1

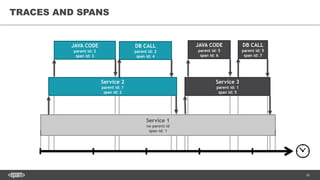

26. 26

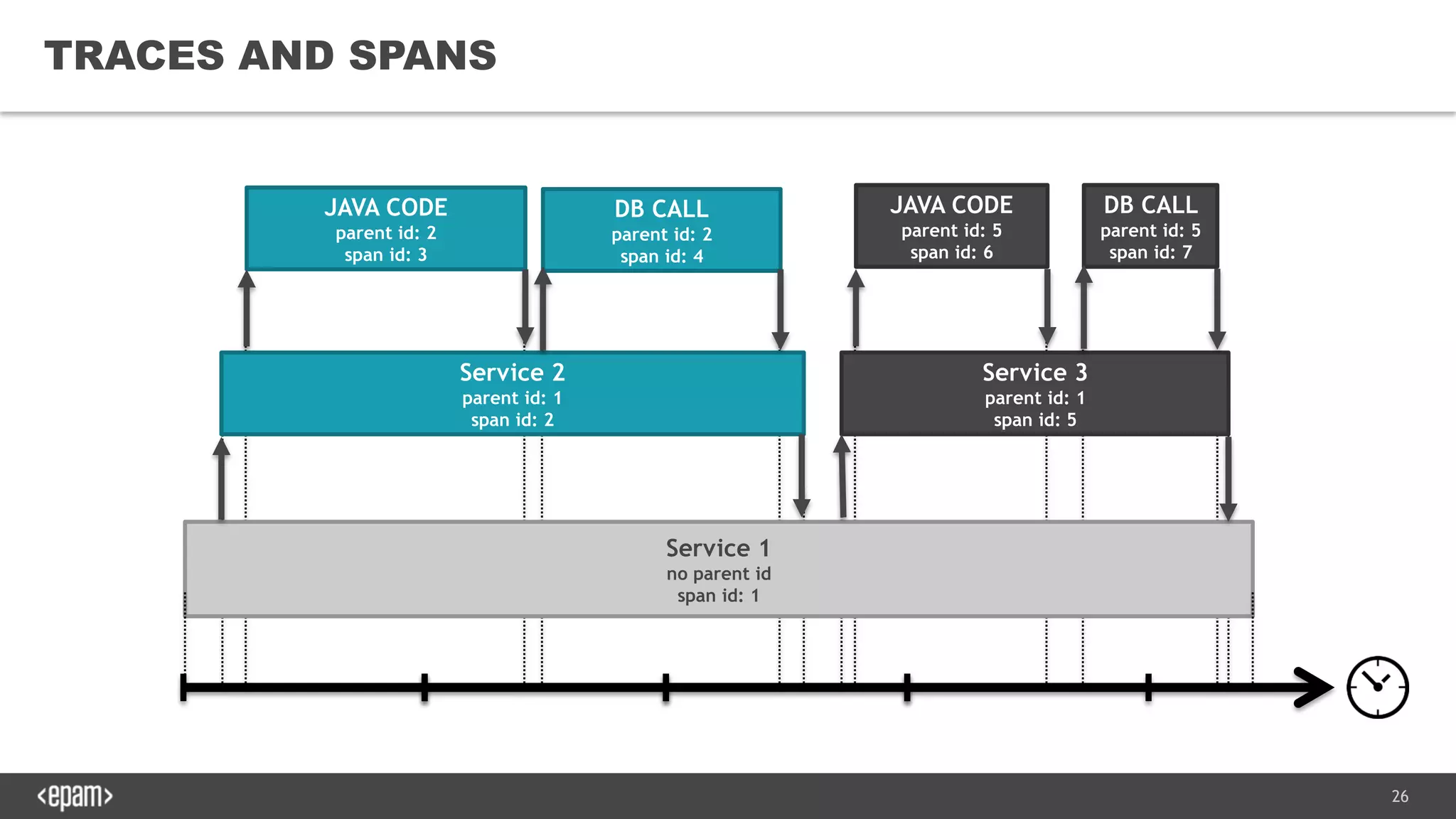

Service 1
no parent id
span id: 1
Service 2
parent id: 1
span id: 2
JAVA CODE
parent id: 2
span id: 3
DB CALL
parent id: 2
span id: 4
Service 3
parent id: 1
span id: 5
TRACES AND SPANS
JAVA CODE
parent id: 5
span id: 6
DB CALL
parent id: 5
span id: 7

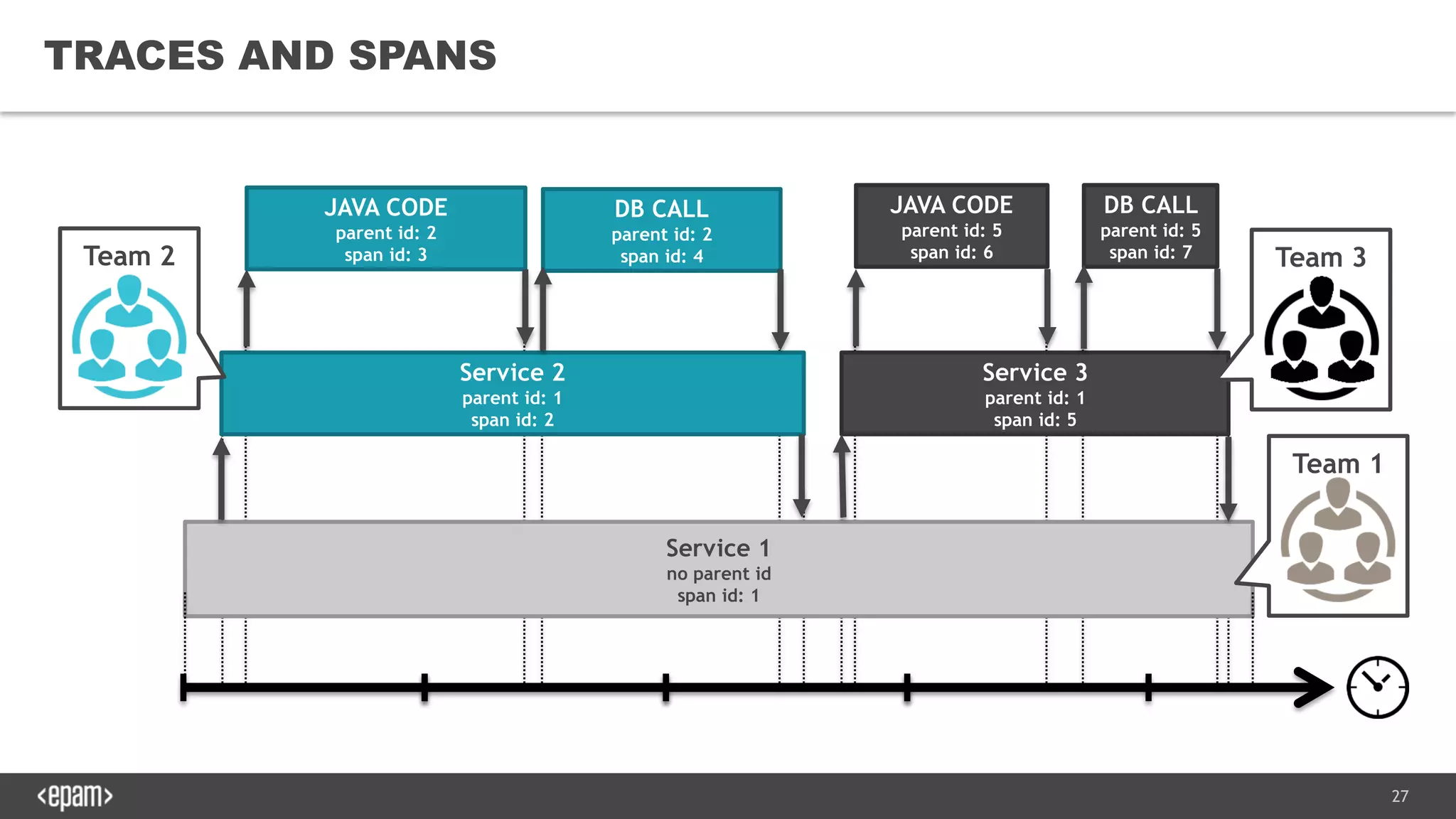

27. 27

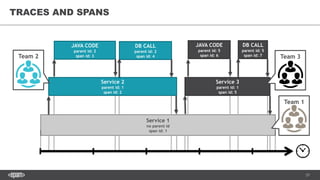

Service 1
no parent id
span id: 1
Service 2
parent id: 1
span id: 2
JAVA CODE
parent id: 2
span id: 3
DB CALL
parent id: 2
span id: 4
Service 3
parent id: 1
span id: 5
TRACES AND SPANS
JAVA CODE
parent id: 5
span id: 6
DB CALL
parent id: 5
span id: 7 Team 3
Team 1
Team 2

28. 28
1. Whose fault?
Where?
2. Why?
3. How to prevent?

29. 29
HOW DO I ADD THIS
TO MY PROJECT?

30. 30
1. Pass request IDs between tiers
2. Measure and report processing time
3. Collect traces and spans
SO, THE PLAN IS

31. 31
Communication protocols
 Pass trace/span IDs
 Use HTTP headers, JMS attrs
 Modify custom protocols

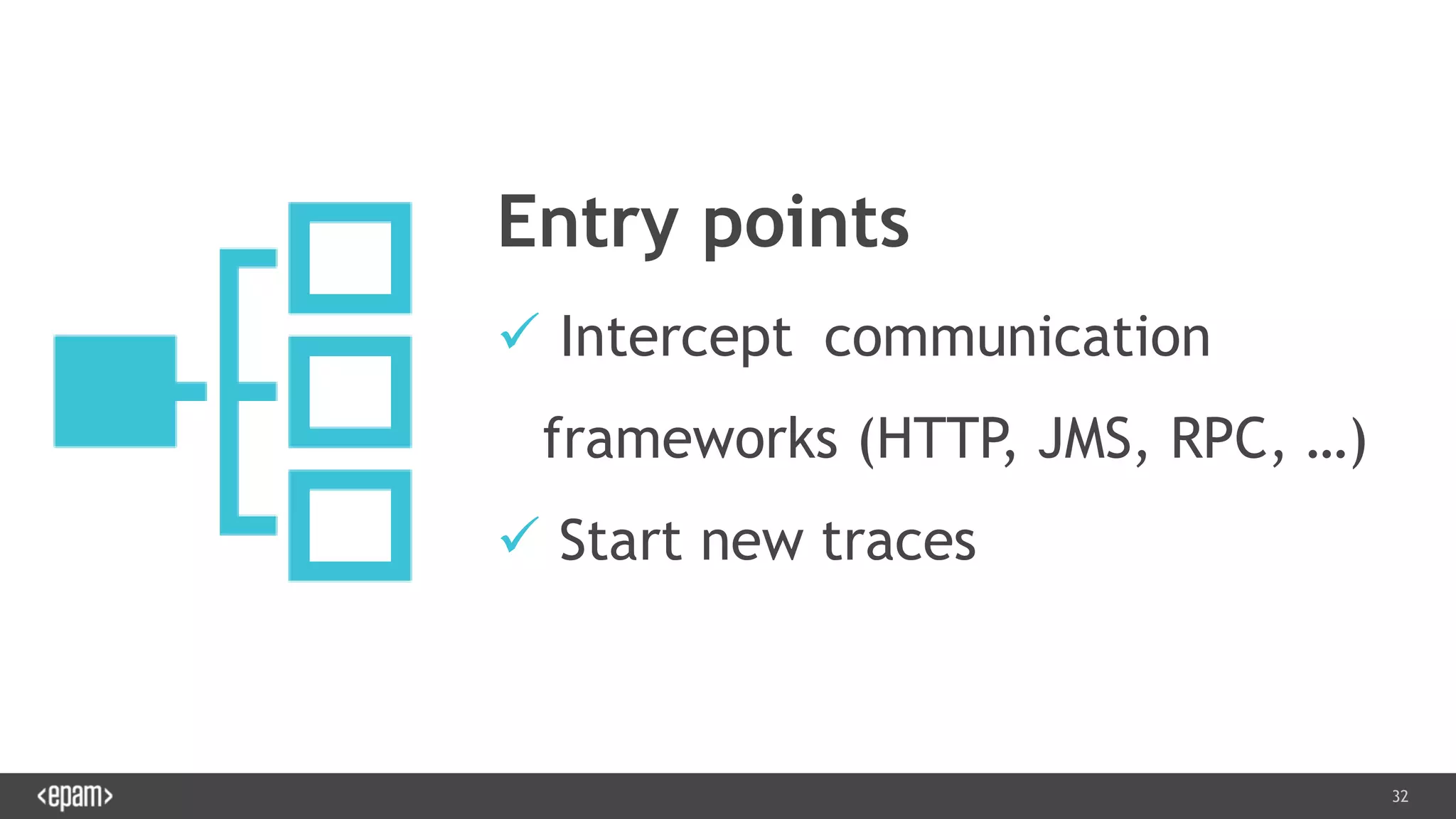

32. 32
Entry points
 Intercept communication
frameworks (HTTP, JMS, RPC, …)
 Start new traces

33. 33

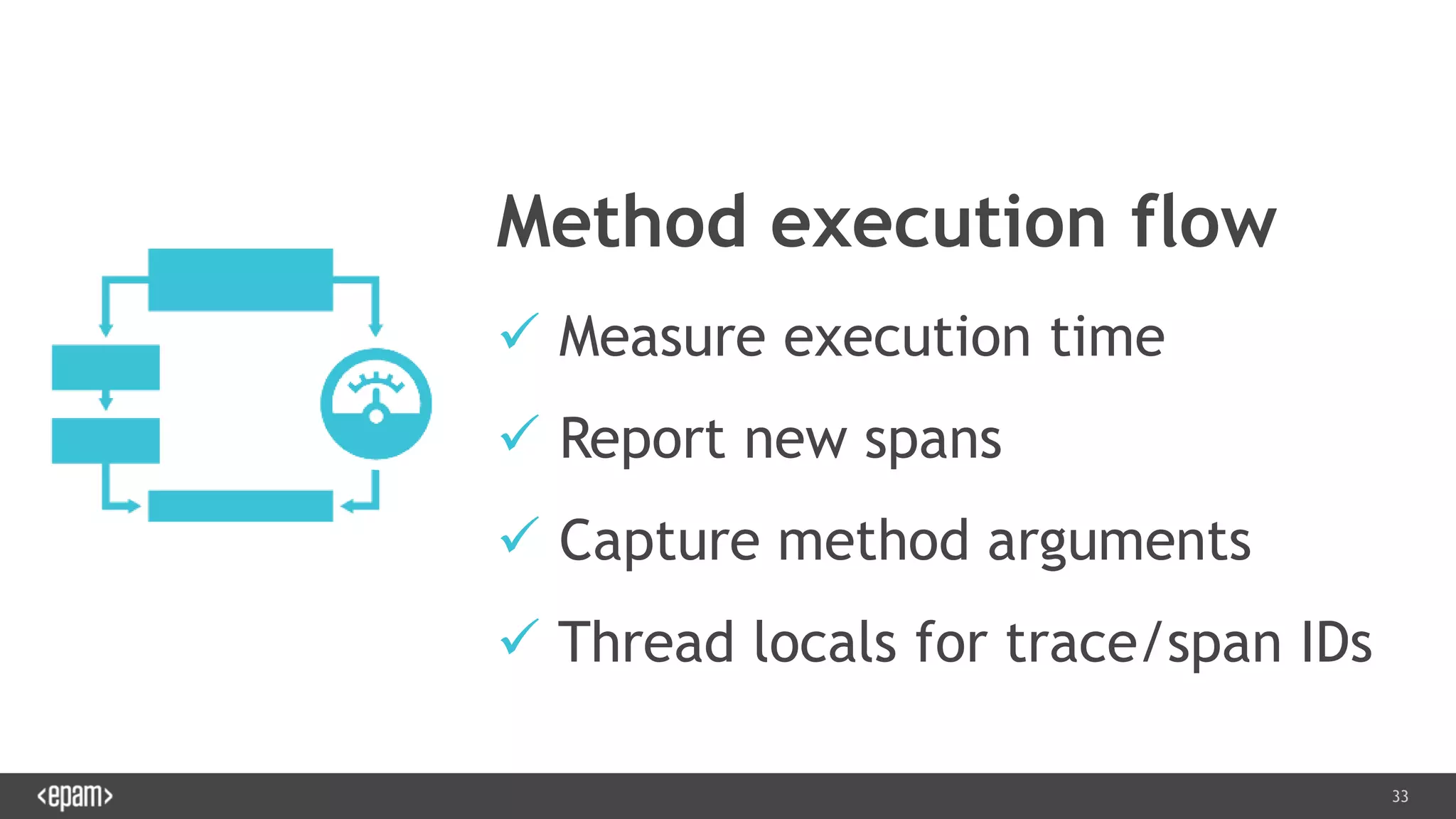

Method execution flow
 Measure execution time
 Report new spans
 Capture method arguments
 Thread locals for trace/span IDs

34. 34
Asynchronous invocation
 Intercept new thread starting
 Pass trace/span IDs to the new
threads

35. 35
WHAT NEEDS TO BE CHANGED
Communication protocols
 Pass trace/span IDs
 Use HTTP headers, JMS attrs
 Modify custom protocols
Method execution flow
 Measure execution time
 Report new spans
 Capture method arguments
 Thread locals for trace/span IDs
Entry points
 Intercept communication
frameworks (HTTP, JMS, RPC…)
 Start new traces
Asynchronous invocation
 Intercept new thread starting
 Pass trace/span IDs to the new
threads

36. 36
HOW DO I MODIFY
MY JAVA APP?

37. 37
Instrumentation in
Java

38. 38

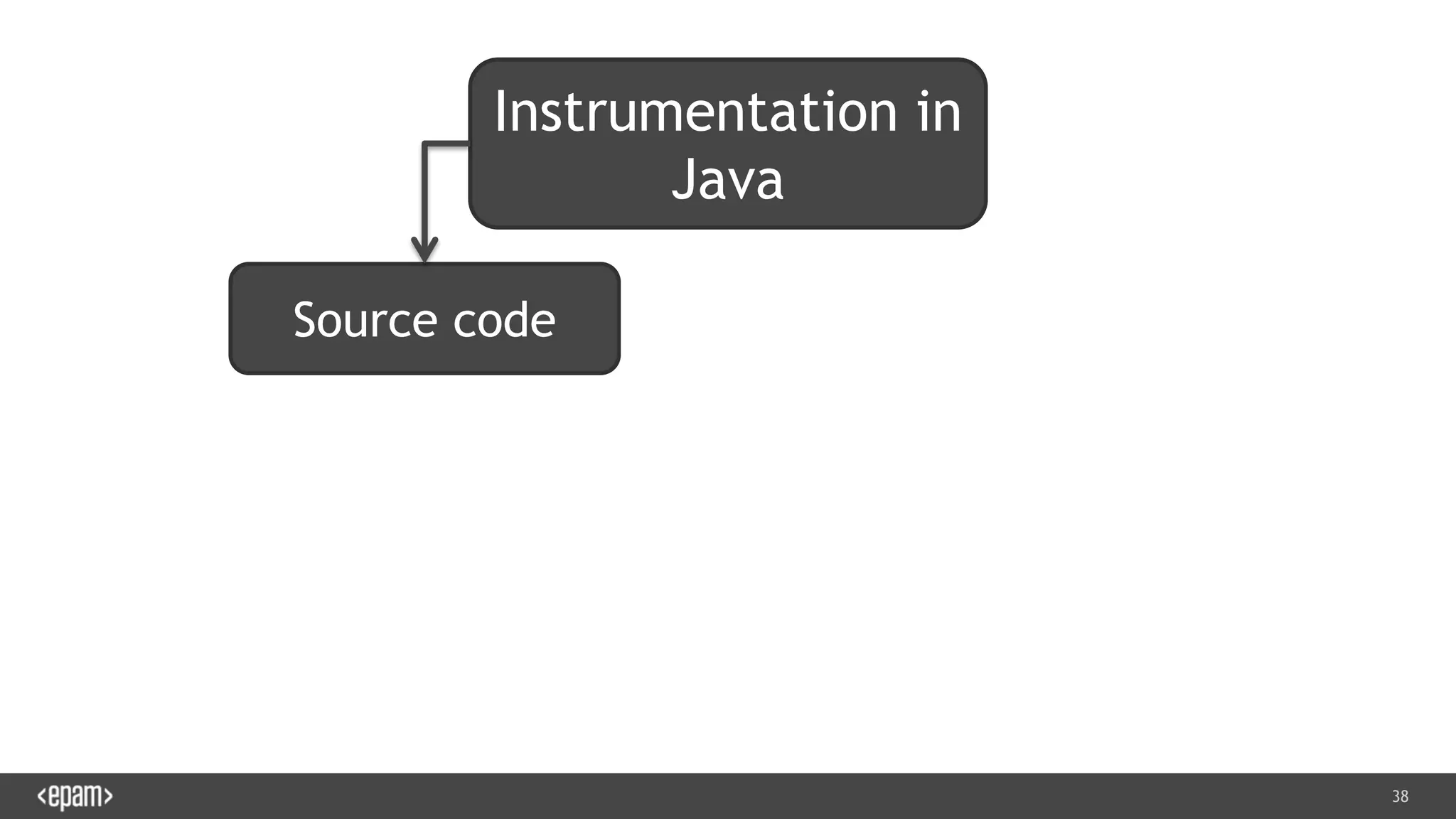

Instrumentation in
Java
Source code

39. 39

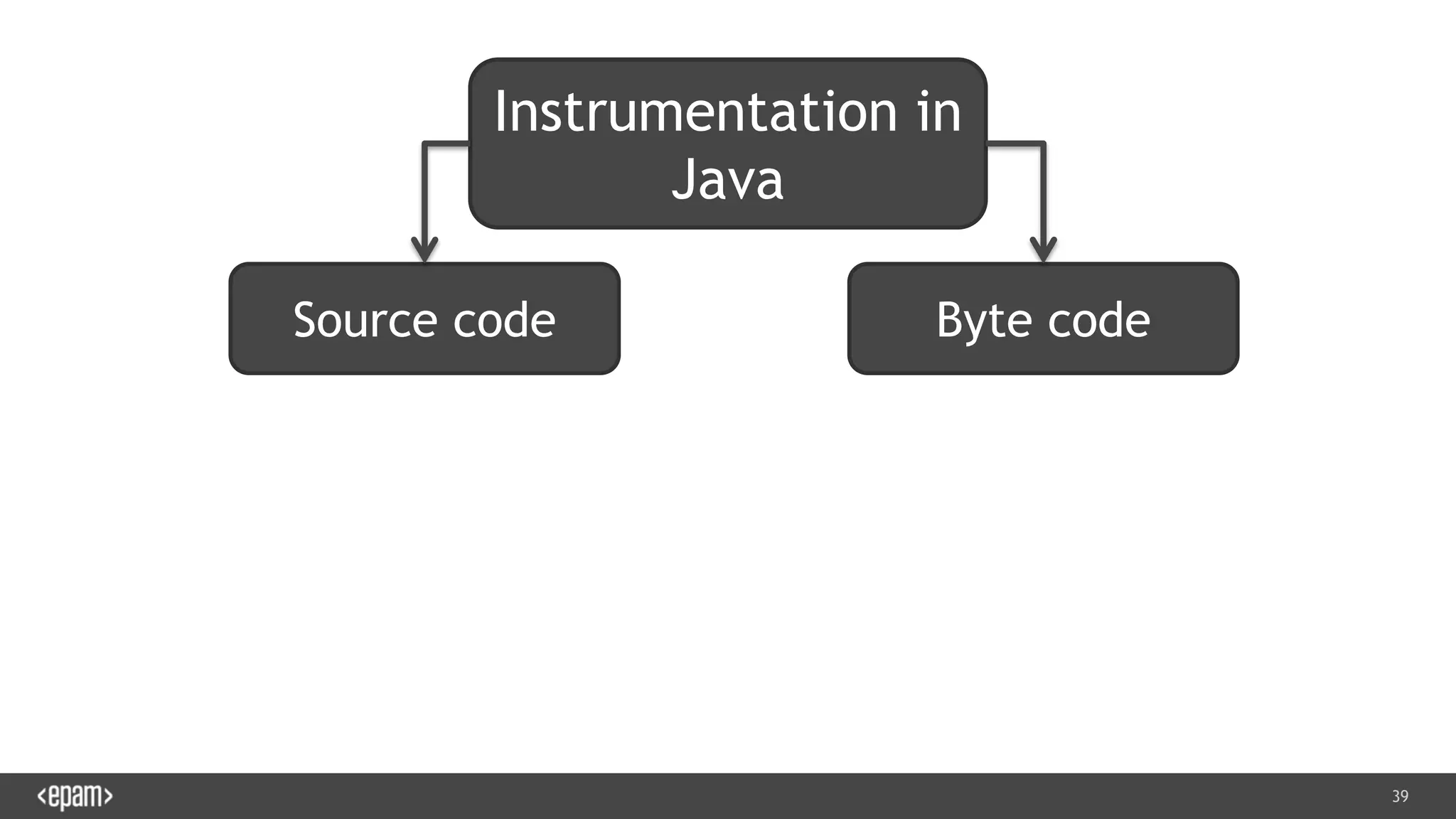

Instrumentation in
Java
Source code Byte code

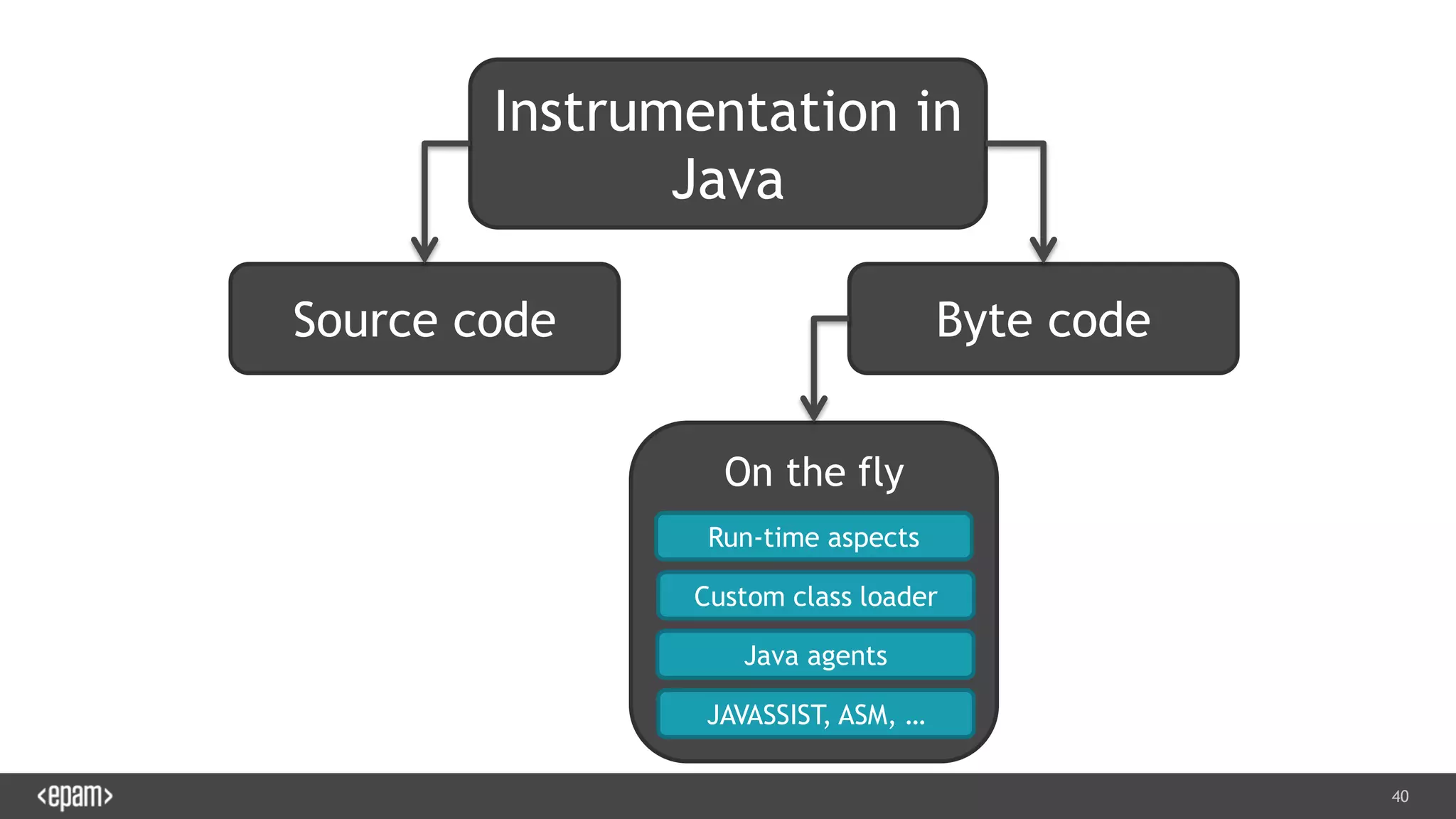

40. 40
Instrumentation in
Java
Source code Byte code
On the fly
Custom class loader
Java agents
JAVASSIST, ASM, …
Run-time aspects

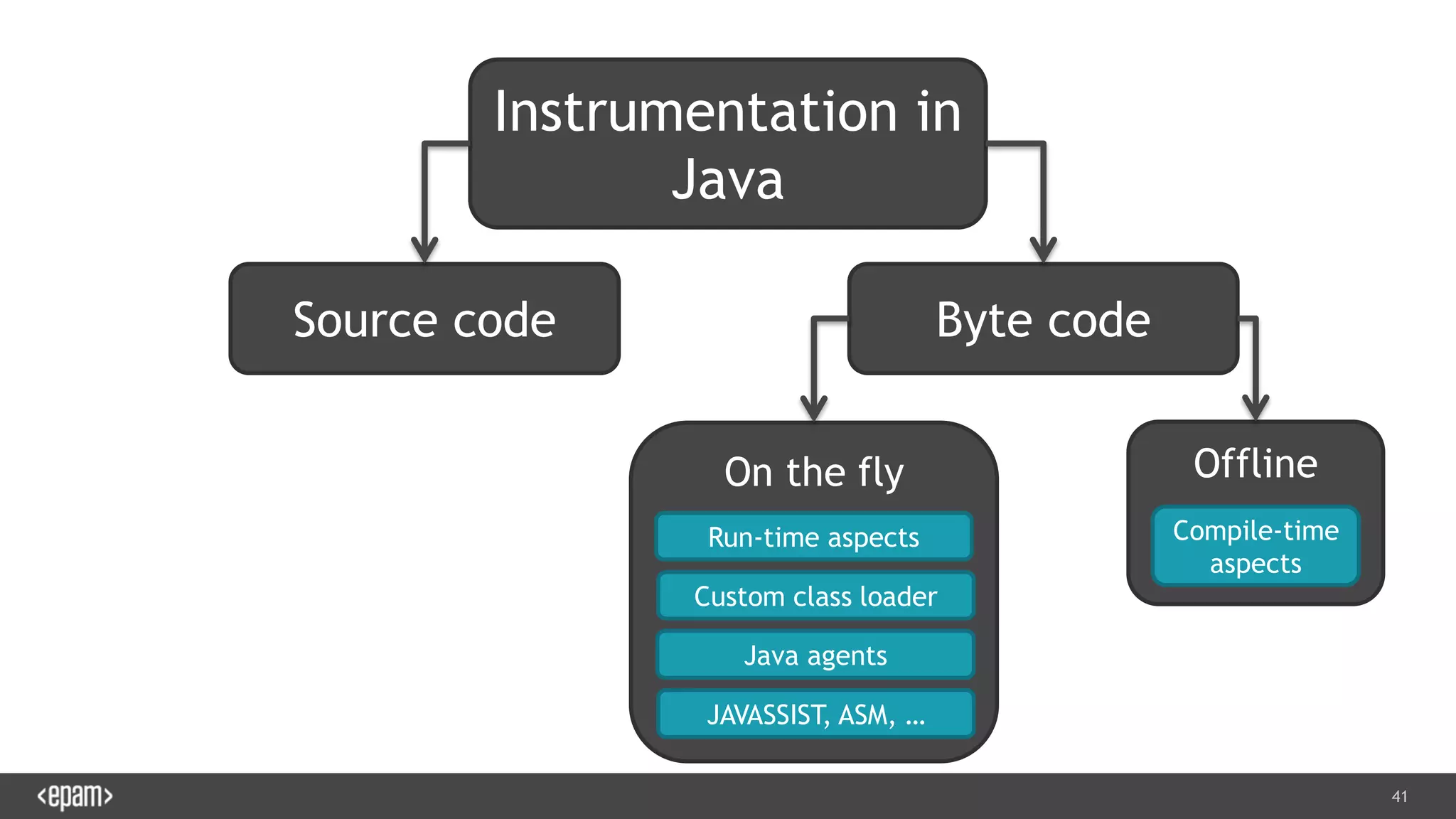

41. 41
Instrumentation in
Java
Source code Byte code
OfflineOn the fly
Custom class loader
Java agents
Compile-time
aspects
JAVASSIST, ASM, …
Run-time aspects

42. 42
ANY EXISTING TOOLS?

43. 43

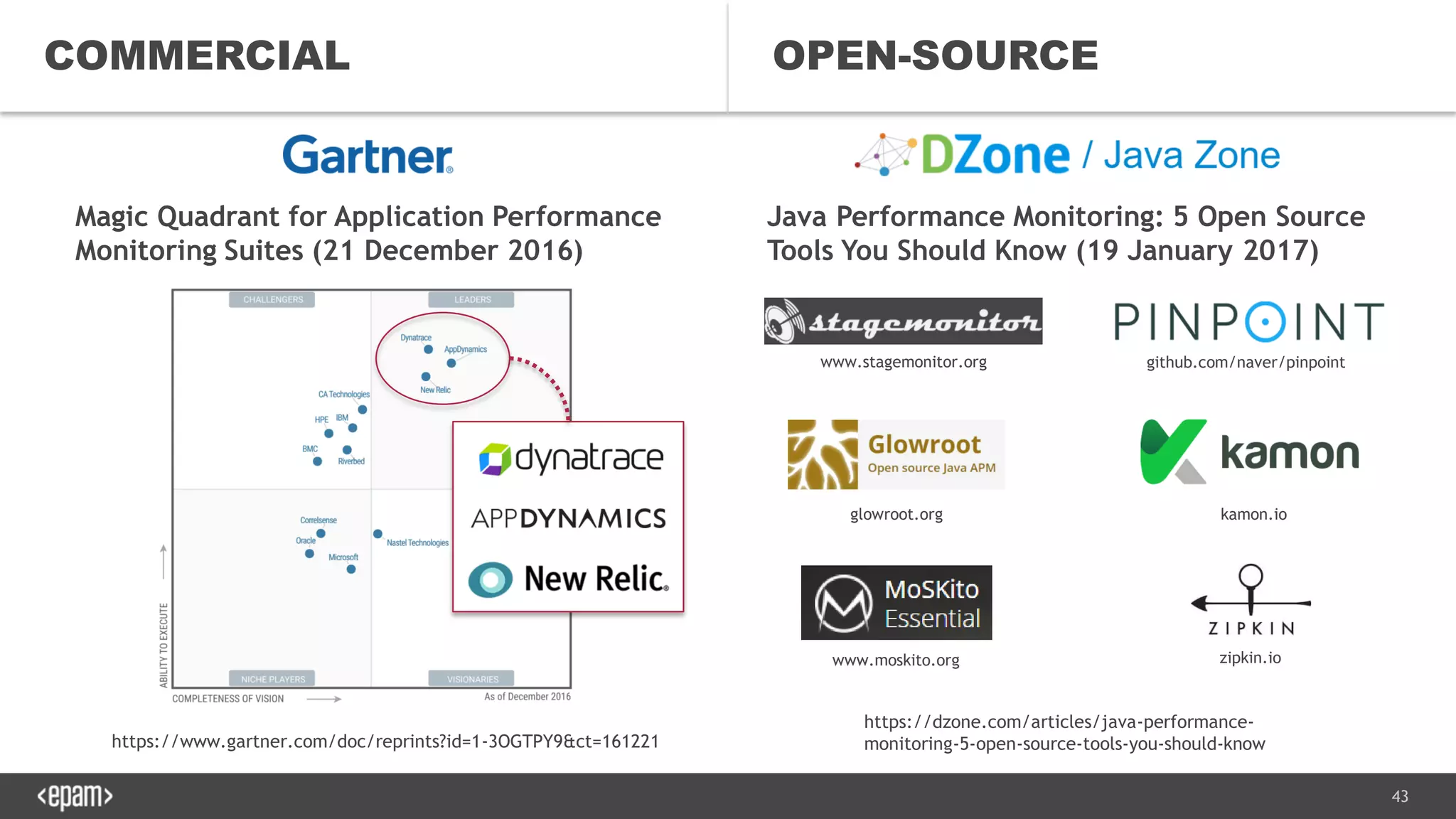

COMMERCIAL
Magic Quadrant for Application Performance
Monitoring Suites (21 December 2016)
OPEN-SOURCE
Java Performance Monitoring: 5 Open Source
Tools You Should Know (19 January 2017)
www.stagemonitor.org github.com/naver/pinpoint
www.moskito.org
glowroot.org kamon.io
zipkin.io
https://www.gartner.com/doc/reprints?id=1-3OGTPY9&ct=161221
https://dzone.com/articles/java-performance-
monitoring-5-open-source-tools-you-should-know

44. 44

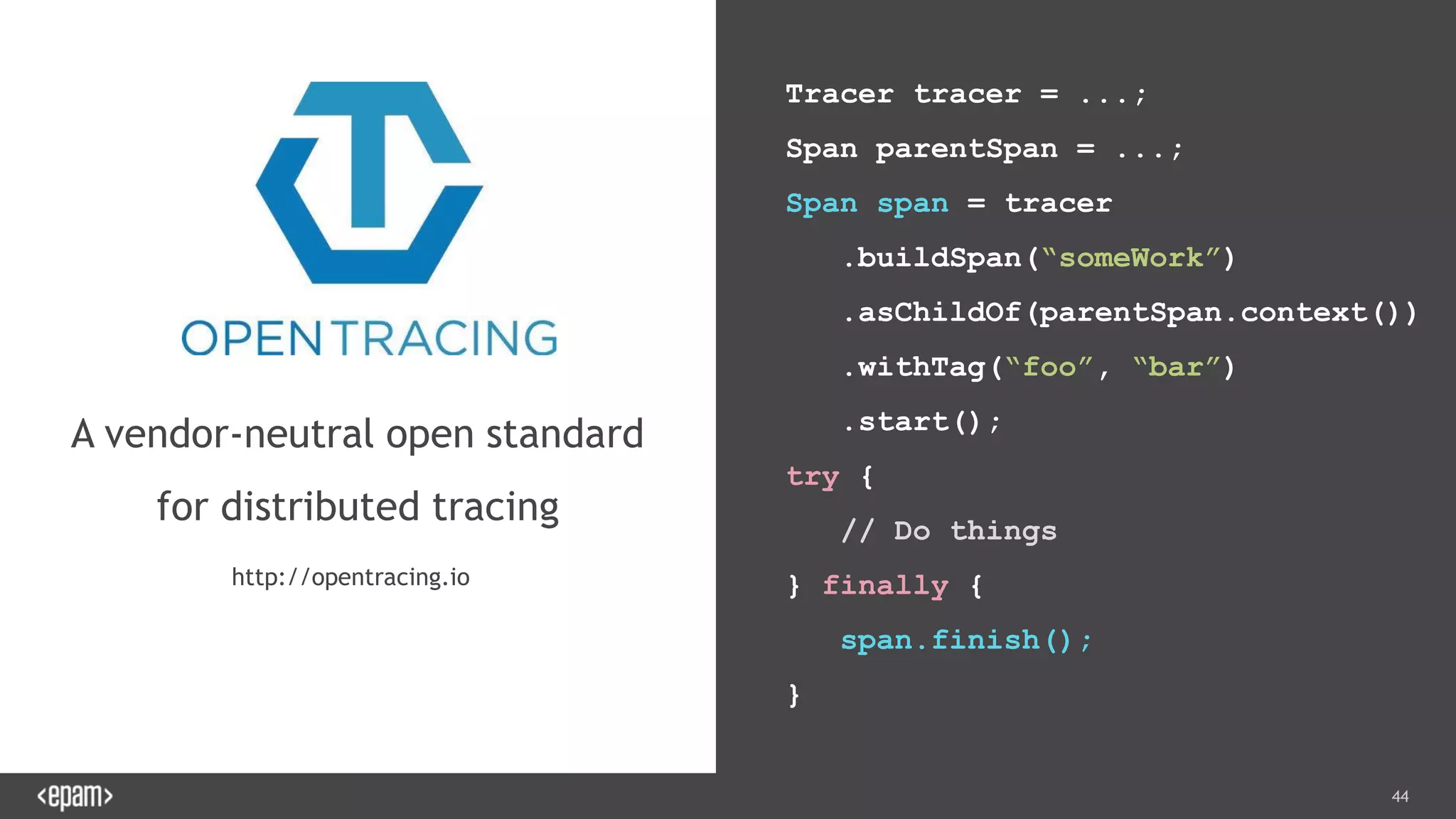

Tracer tracer = ...;
Span parentSpan = ...;
Span span = tracer
.buildSpan(“someWork”)
.asChildOf(parentSpan.context())
.withTag(“foo”, “bar”)
.start();
try {
// Do things
} finally {
span.finish();
}
A vendor-neutral open standard
for distributed tracing
http://opentracing.io

45. 45
AGENDA
What is latency tracing?
2
3
1
How it works?2
Live demo3

46. 46
I’M GOING TO SHOW

47. 47

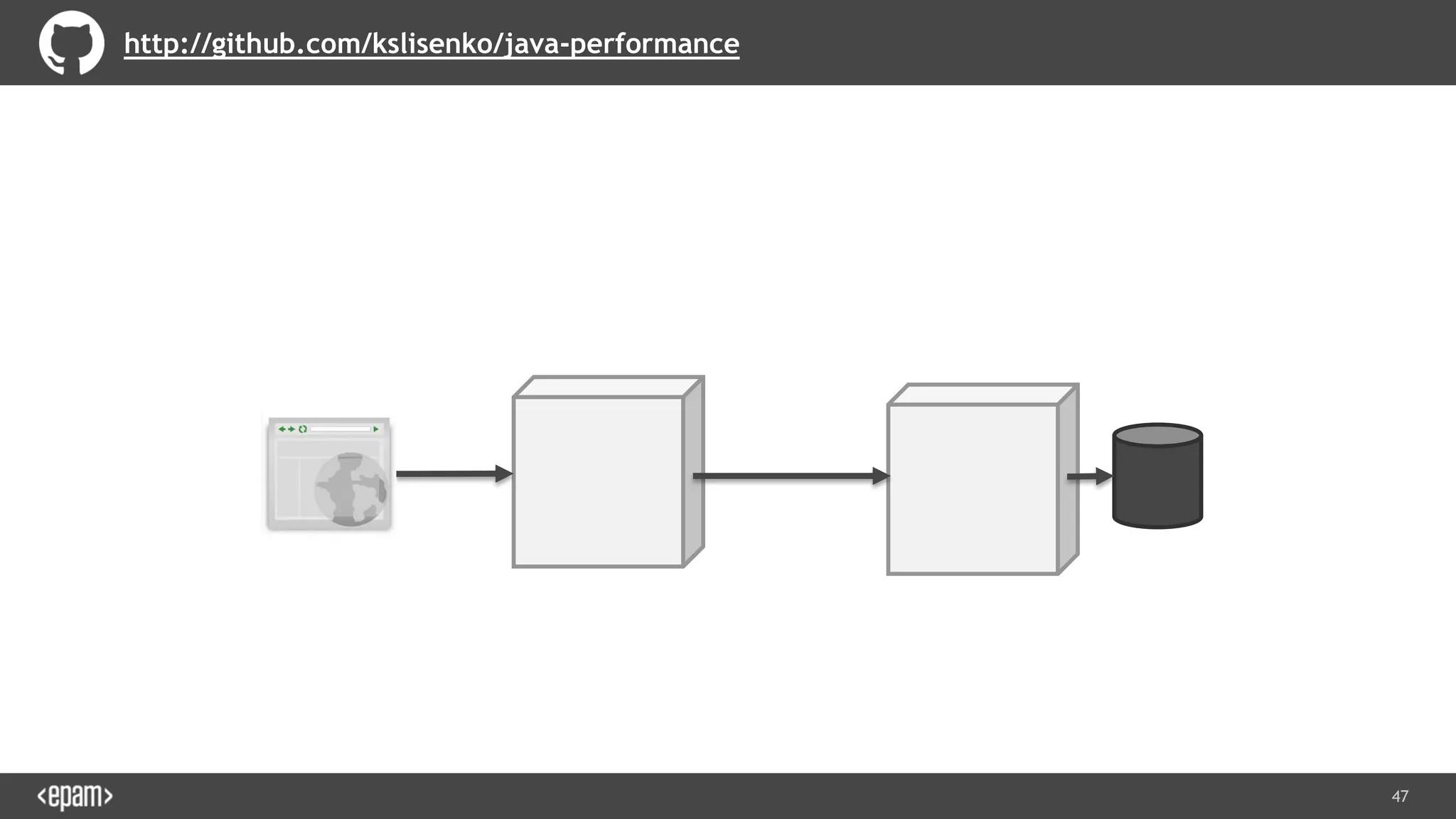

http://github.com/kslisenko/java-performance

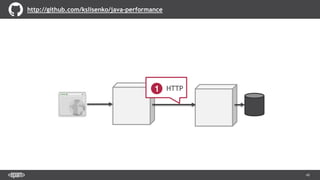

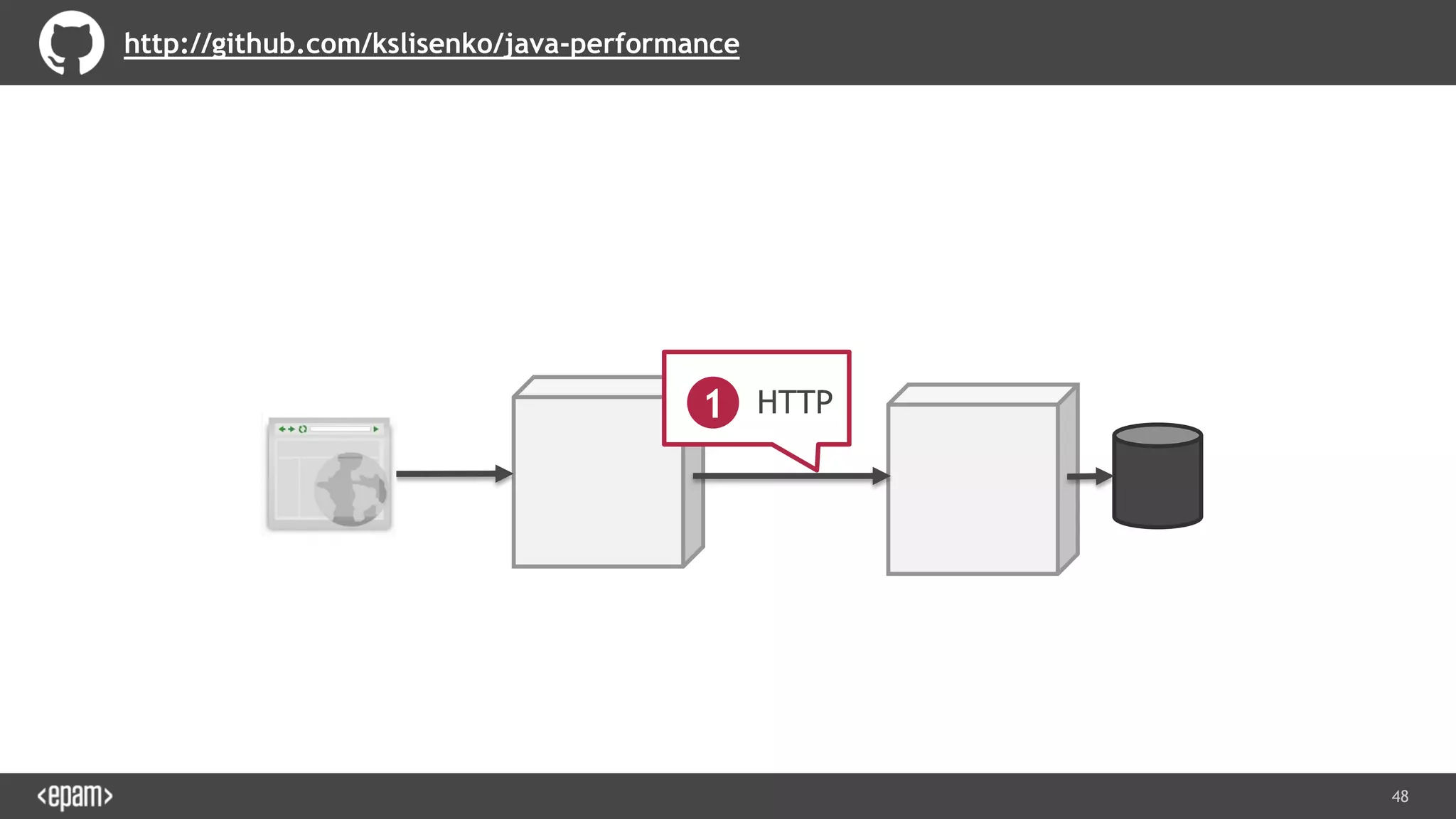

48. 48
http://github.com/kslisenko/java-performance
HTTP1

49. 49

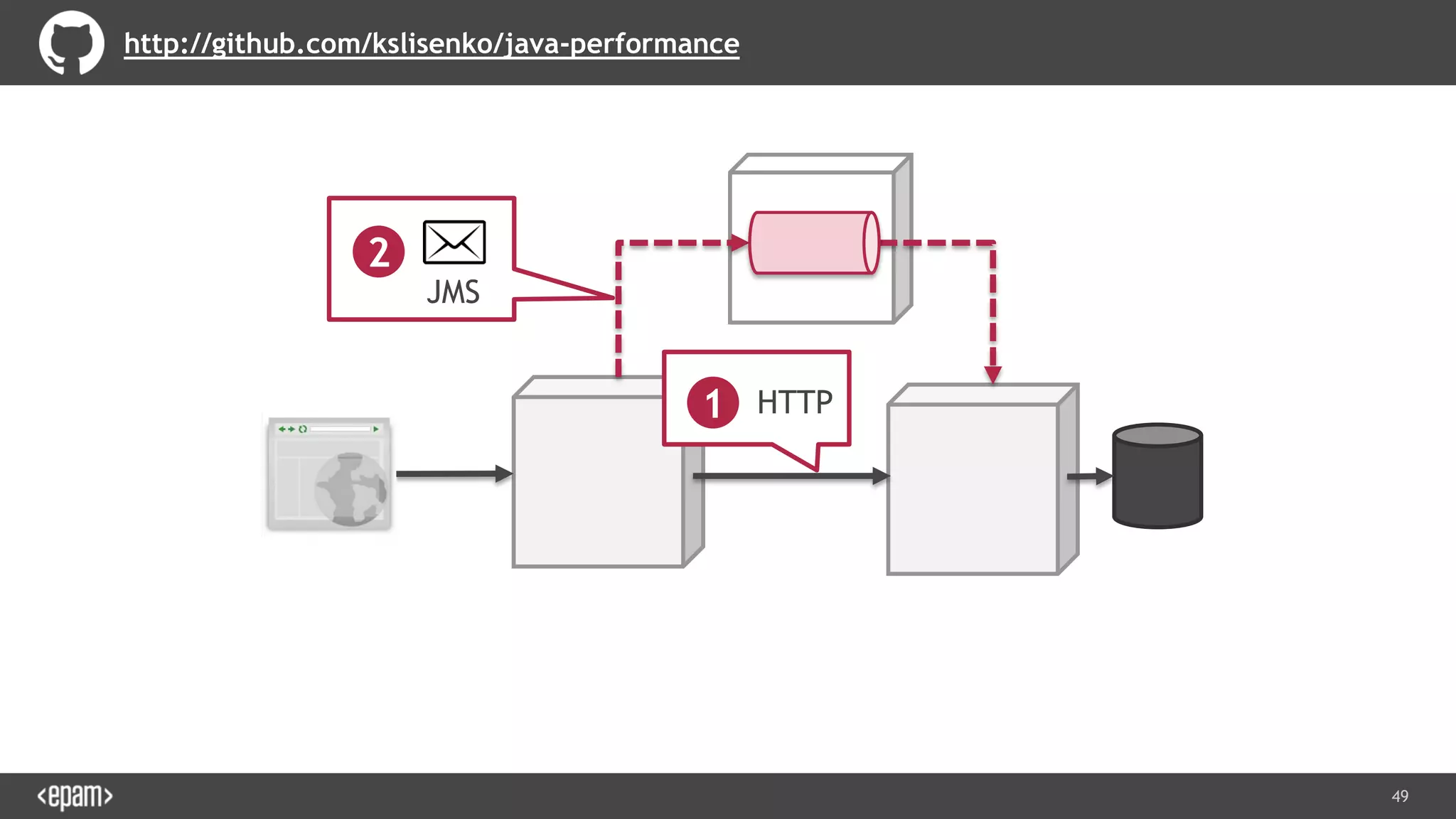

http://github.com/kslisenko/java-performance
2
JMS
HTTP1

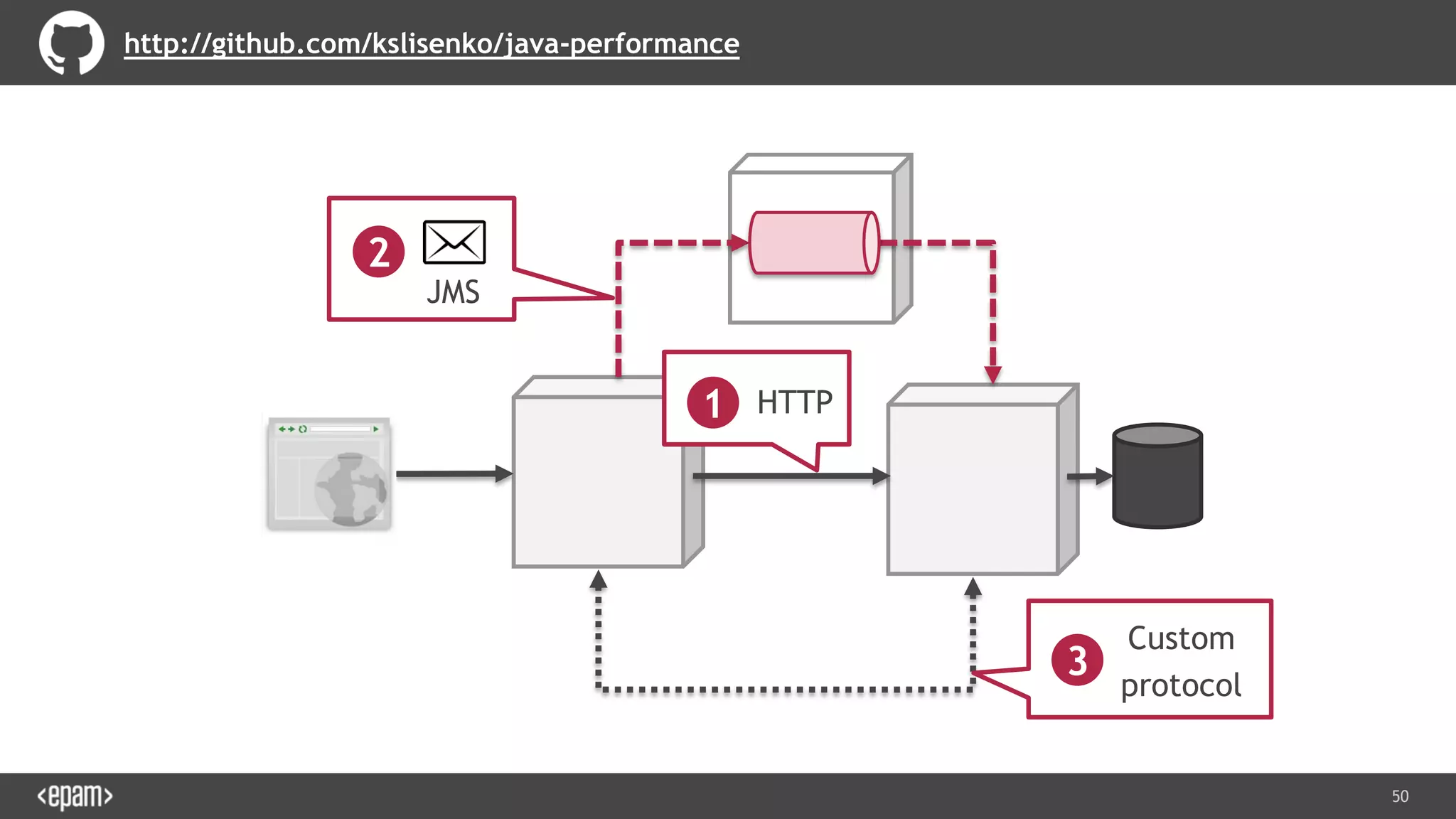

50. 50
http://github.com/kslisenko/java-performance
2
JMS
HTTP1
Custom
protocol
3

51. 51
LET’S GO!
github.com/kslisenko/java-performance

52. 52
TAKE AWAYS

53. 53
LATENCY TRACING ISSUES AND LIMITATIONS
1. Computation and I/O overhead
2. Custom protocols
3. Reactive streams, batch processing
4. Security and privacy

54. 54
Latency tracing
 Must have — for microservices
 Better — in production
 At least — at performance testing

55. 55

56. 56
QUESTIONS?
THANK YOU!
