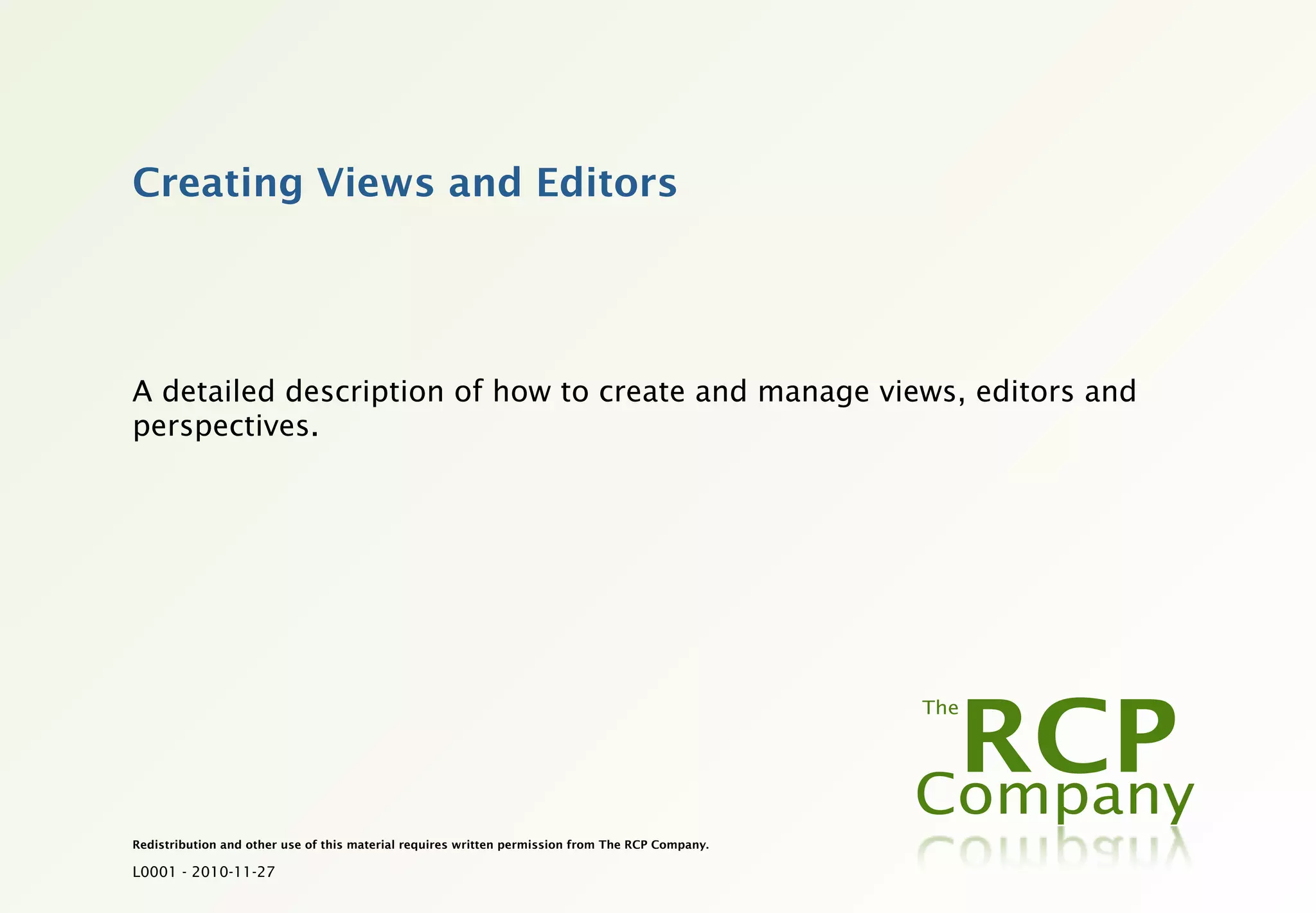

1. Creating Views and Editors
A detailed description of how to create and manage views, editors and
perspectives.
Redistribution and other use of this material requires written permission from The RCP Company.
L0001 - 2010-11-27
2. Views and Editors in Eclipse Applications

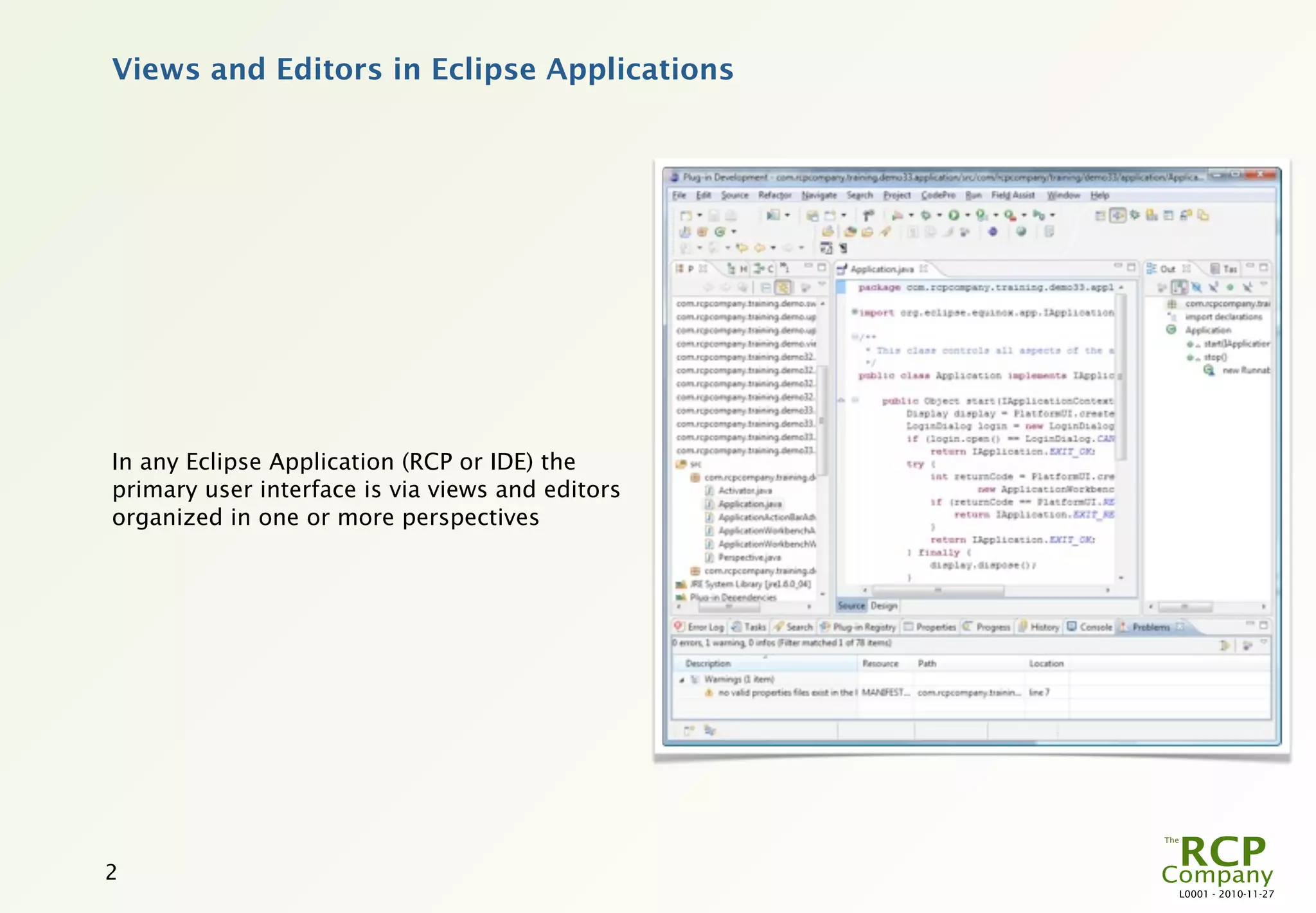

In any Eclipse Application (RCP or IDE) the
primary user interface is via views and editors
organized in one or more perspectives
2
L0001 - 2010-11-27
3. Basic Eclipse UI Information Model

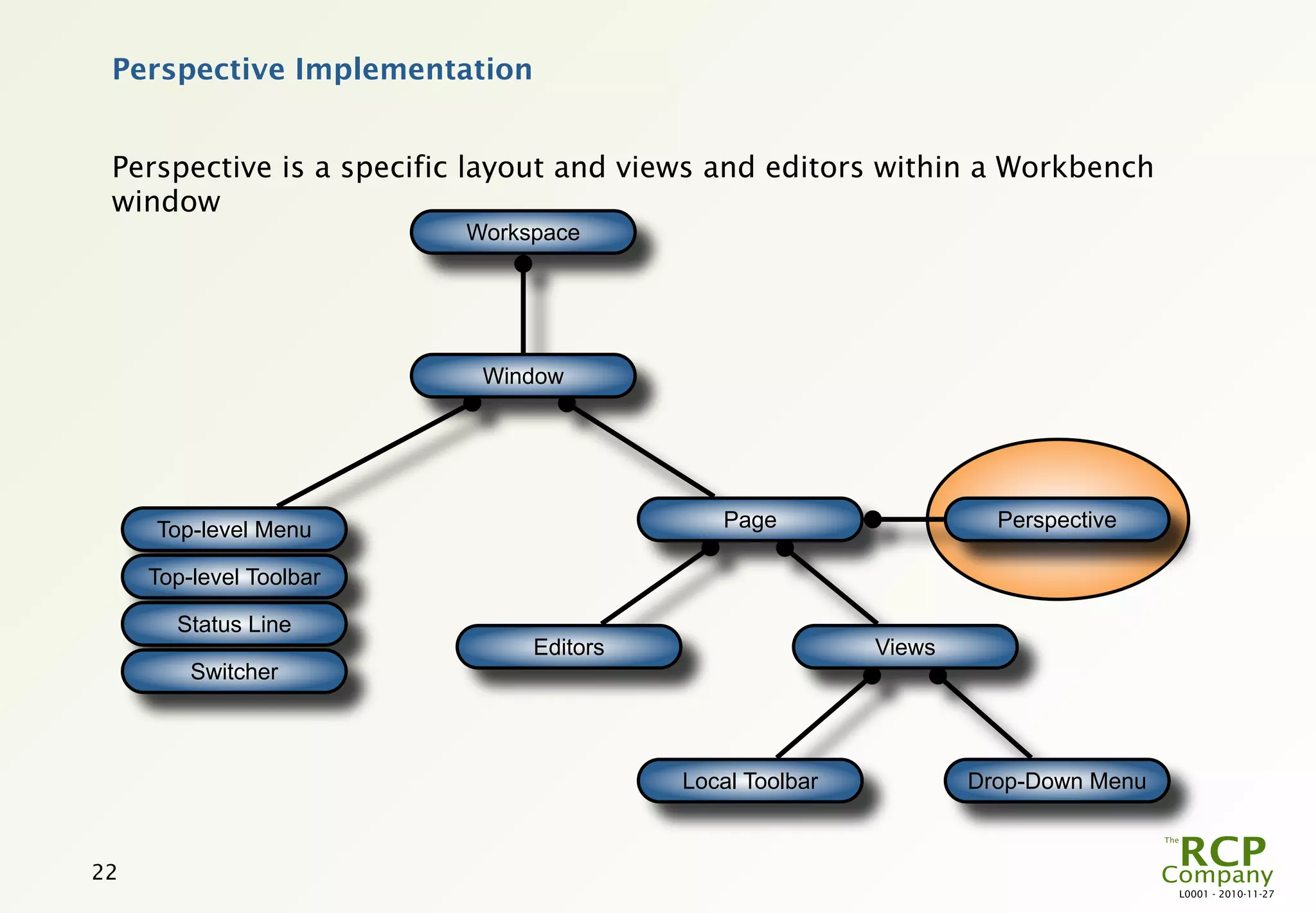

Workspace
Window
Top-level Menu Page Perspective
Top-level Toolbar
Status Line
Editors Views
Switcher
Local Toolbar Drop-Down Menu
3
L0001 - 2010-11-27
4. Editors and Views

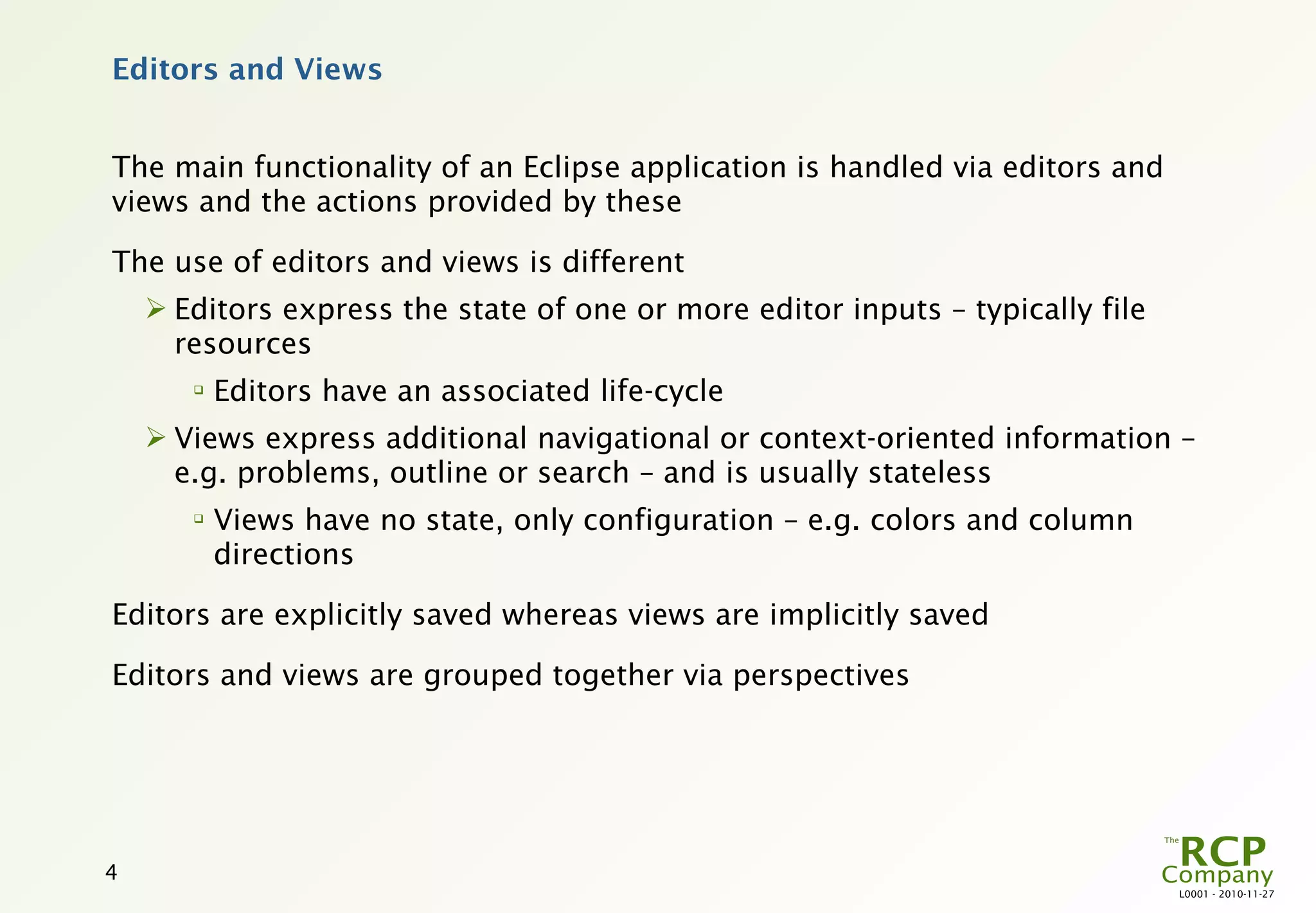

The main functionality of an Eclipse application is handled via editors and
views and the actions provided by these
The use of editors and views is different
Editors express the state of one or more editor inputs – typically file
resources
Editors have an associated life-cycle
Views express additional navigational or context-oriented information –
e.g. problems, outline or search – and is usually stateless
Views have no state, only configuration – e.g. colors and column
directions
Editors are explicitly saved whereas views are implicitly saved
Editors and views are grouped together via perspectives
4
L0001 - 2010-11-27

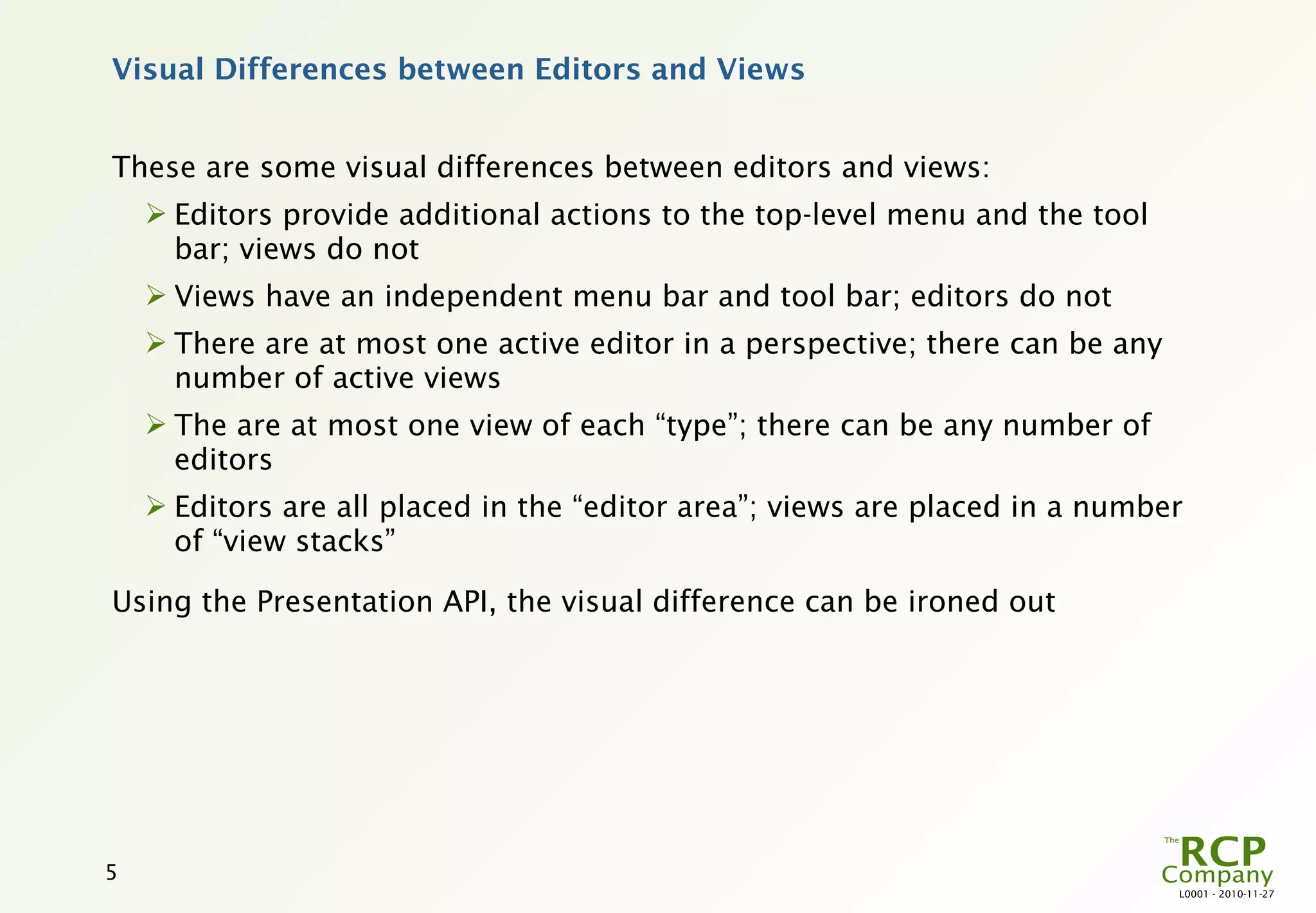

5. Visual Differences between Editors and Views
These are some visual differences between editors and views:
Editors provide additional actions to the top-level menu and the tool
bar; views do not
Views have an independent menu bar and tool bar; editors do not
There are at most one active editor in a perspective; there can be any
number of active views
The are at most one view of each “type”; there can be any number of
editors
Editors are all placed in the “editor area”; views are placed in a number
of “view stacks”
Using the Presentation API, the visual difference can be ironed out
5
L0001 - 2010-11-27

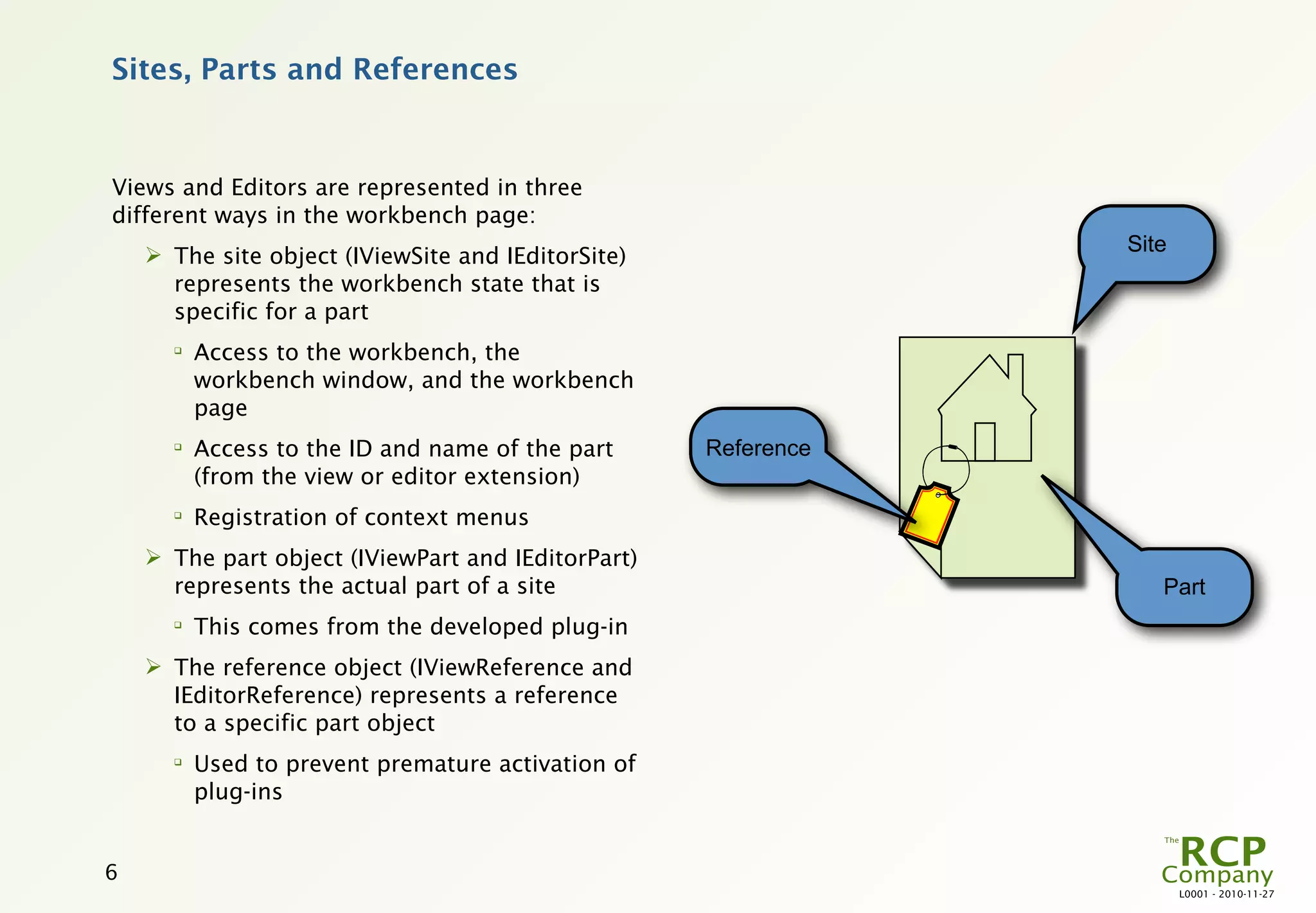

6. Sites, Parts and References
Views and Editors are represented in three
different ways in the workbench page:
The site object (IViewSite and IEditorSite) Site
represents the workbench state that is
specific for a part
Access to the workbench, the
workbench window, and the workbench
page
Access to the ID and name of the part Reference
(from the view or editor extension)
Registration of context menus
The part object (IViewPart and IEditorPart)
represents the actual part of a site Part
This comes from the developed plug-in
The reference object (IViewReference and
IEditorReference) represents a reference
to a specific part object
Used to prevent premature activation of
plug-ins
6
L0001 - 2010-11-27

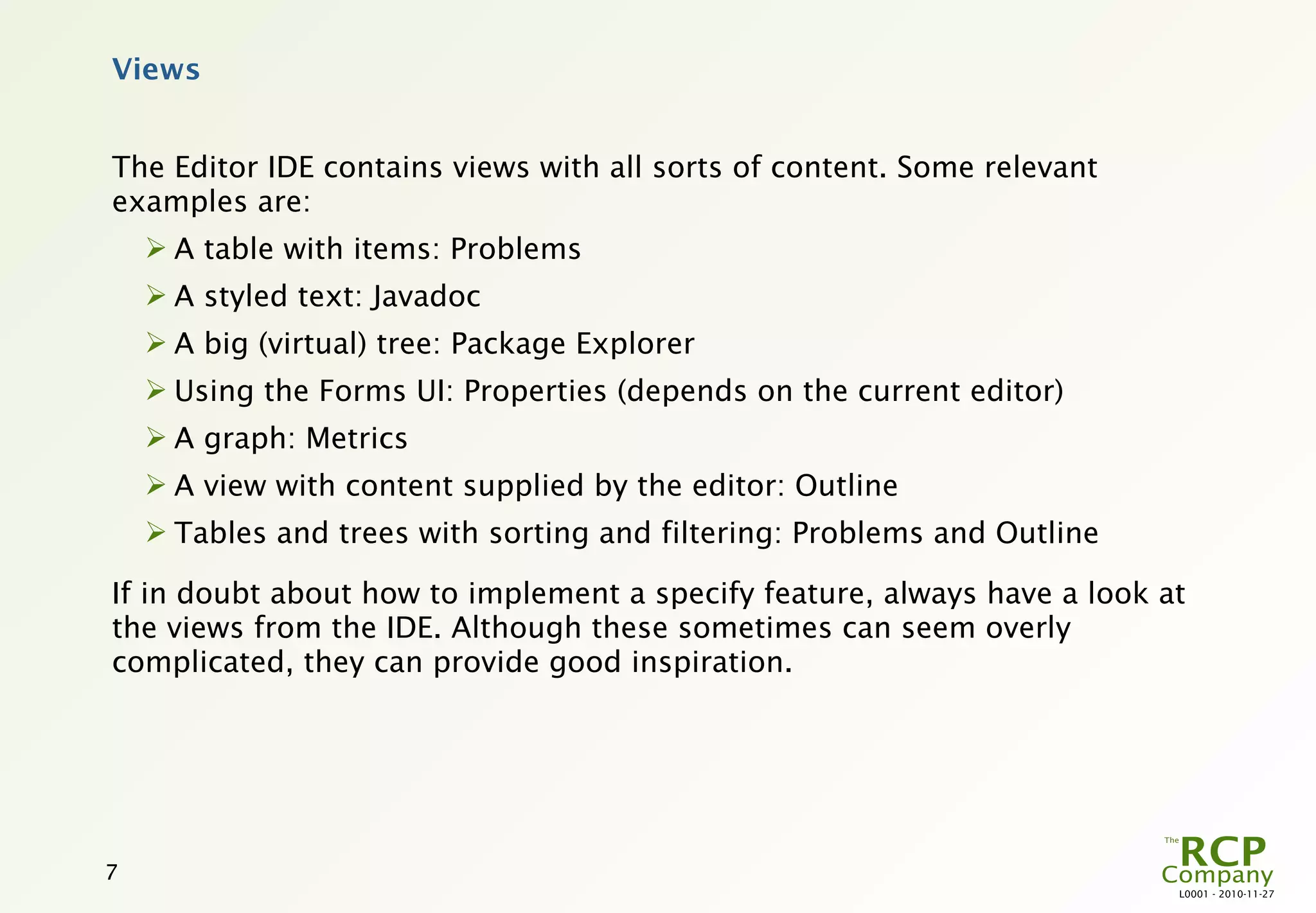

7. Views
The Editor IDE contains views with all sorts of content. Some relevant
examples are:
A table with items: Problems
A styled text: Javadoc
A big (virtual) tree: Package Explorer
Using the Forms UI: Properties (depends on the current editor)
A graph: Metrics
A view with content supplied by the editor: Outline
Tables and trees with sorting and filtering: Problems and Outline
If in doubt about how to implement a specify feature, always have a look at
the views from the IDE. Although these sometimes can seem overly
complicated, they can provide good inspiration.
7
L0001 - 2010-11-27

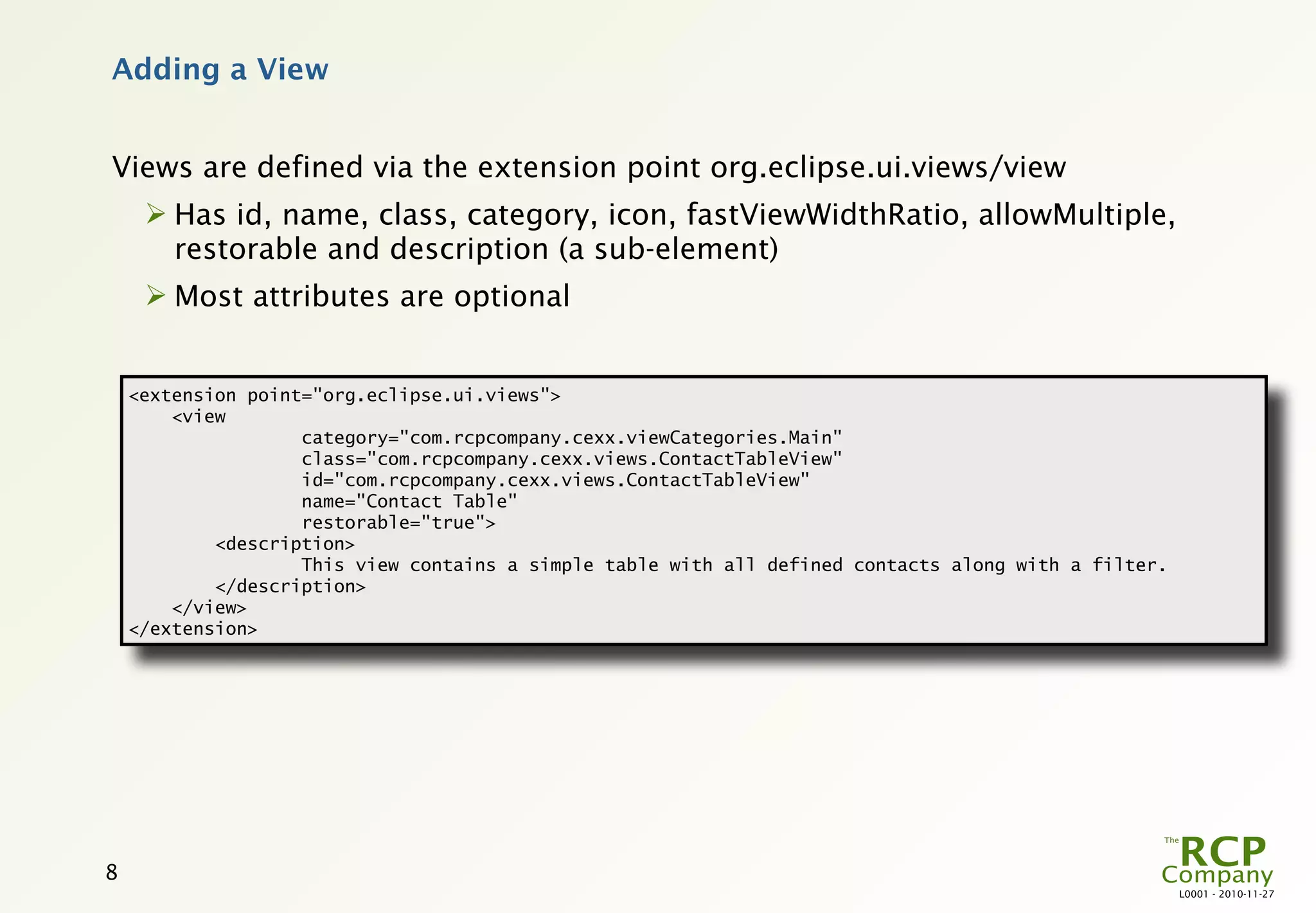

8. Adding a View
Views are defined via the extension point org.eclipse.ui.views/view
Has id, name, class, category, icon, fastViewWidthRatio, allowMultiple,
restorable and description (a sub-element)
Most attributes are optional
<extension point="org.eclipse.ui.views">
<view
category="com.rcpcompany.cexx.viewCategories.Main"
class="com.rcpcompany.cexx.views.ContactTableView"
id="com.rcpcompany.cexx.views.ContactTableView"
name="Contact Table"
restorable="true">
<description>
This view contains a simple table with all defined contacts along with a filter.
</description>
</view>
</extension>
8
L0001 - 2010-11-27

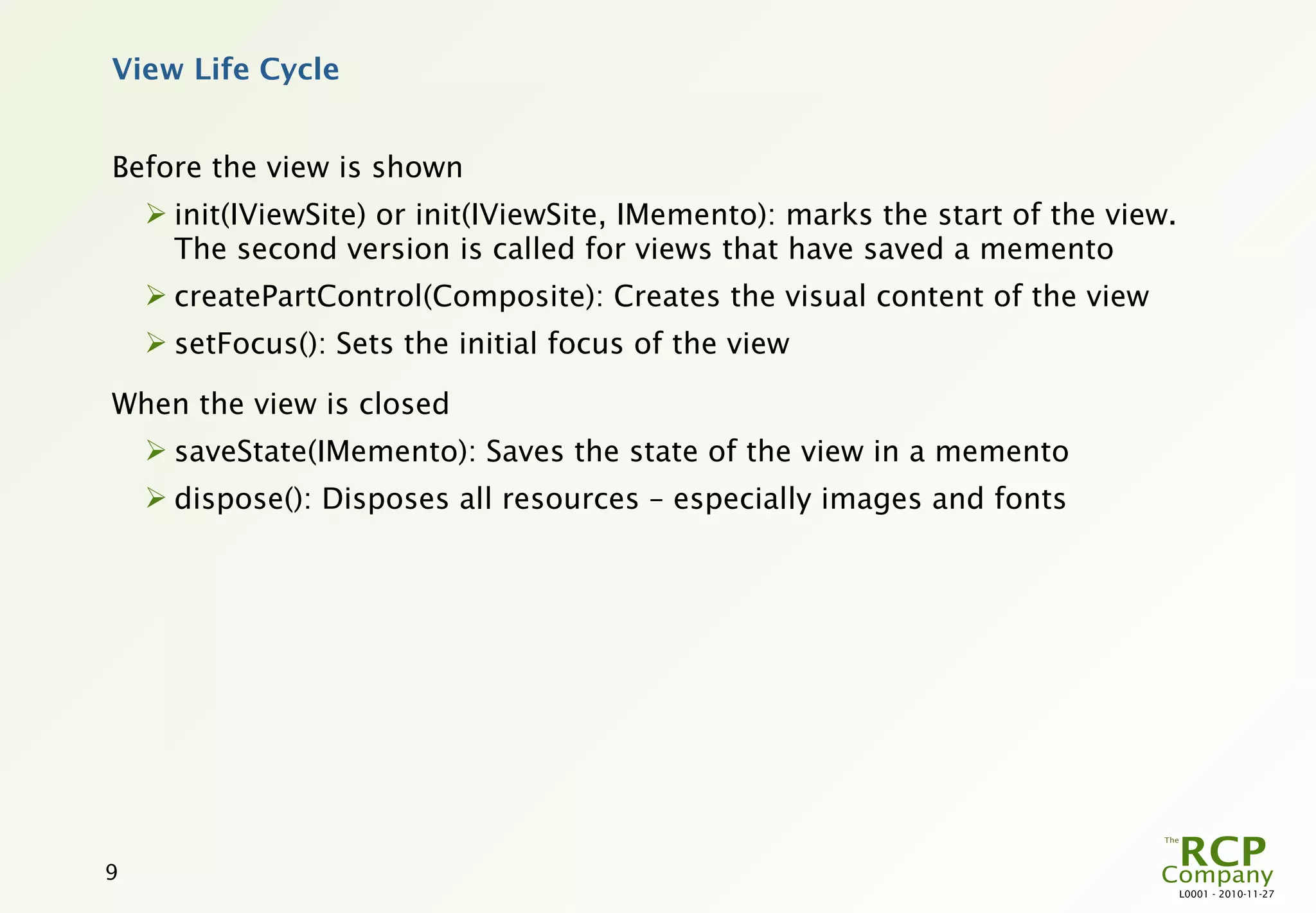

9. View Life Cycle
Before the view is shown
init(IViewSite) or init(IViewSite, IMemento): marks the start of the view.
The second version is called for views that have saved a memento
createPartControl(Composite): Creates the visual content of the view
setFocus(): Sets the initial focus of the view
When the view is closed
saveState(IMemento): Saves the state of the view in a memento
dispose(): Disposes all resources – especially images and fonts
9
L0001 - 2010-11-27

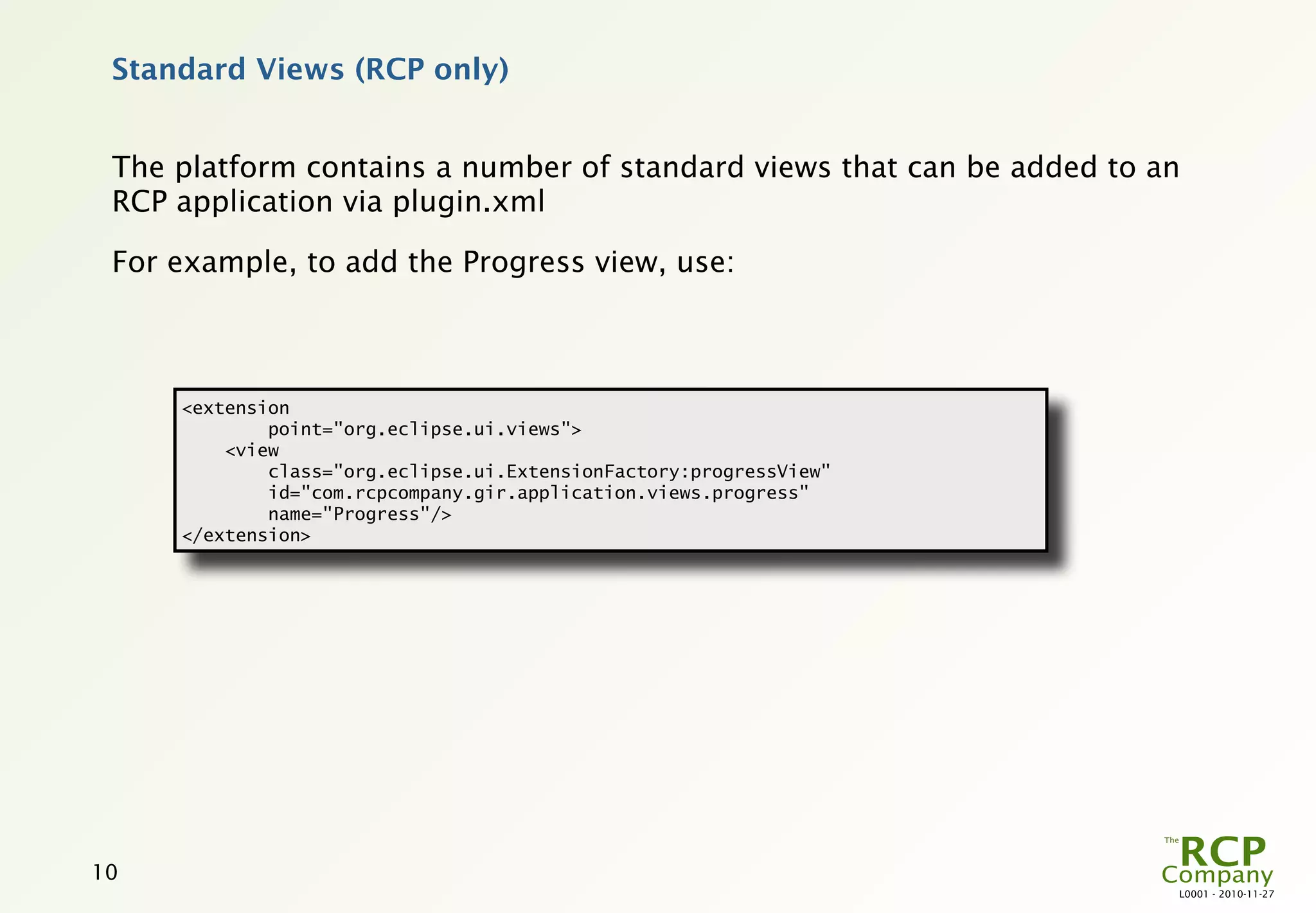

10. Standard Views (RCP only)
The platform contains a number of standard views that can be added to an
RCP application via plugin.xml
For example, to add the Progress view, use:
<extension
point="org.eclipse.ui.views">
<view
class="org.eclipse.ui.ExtensionFactory:progressView"
id="com.rcpcompany.gir.application.views.progress"
name="Progress"/>
</extension>
10
L0001 - 2010-11-27

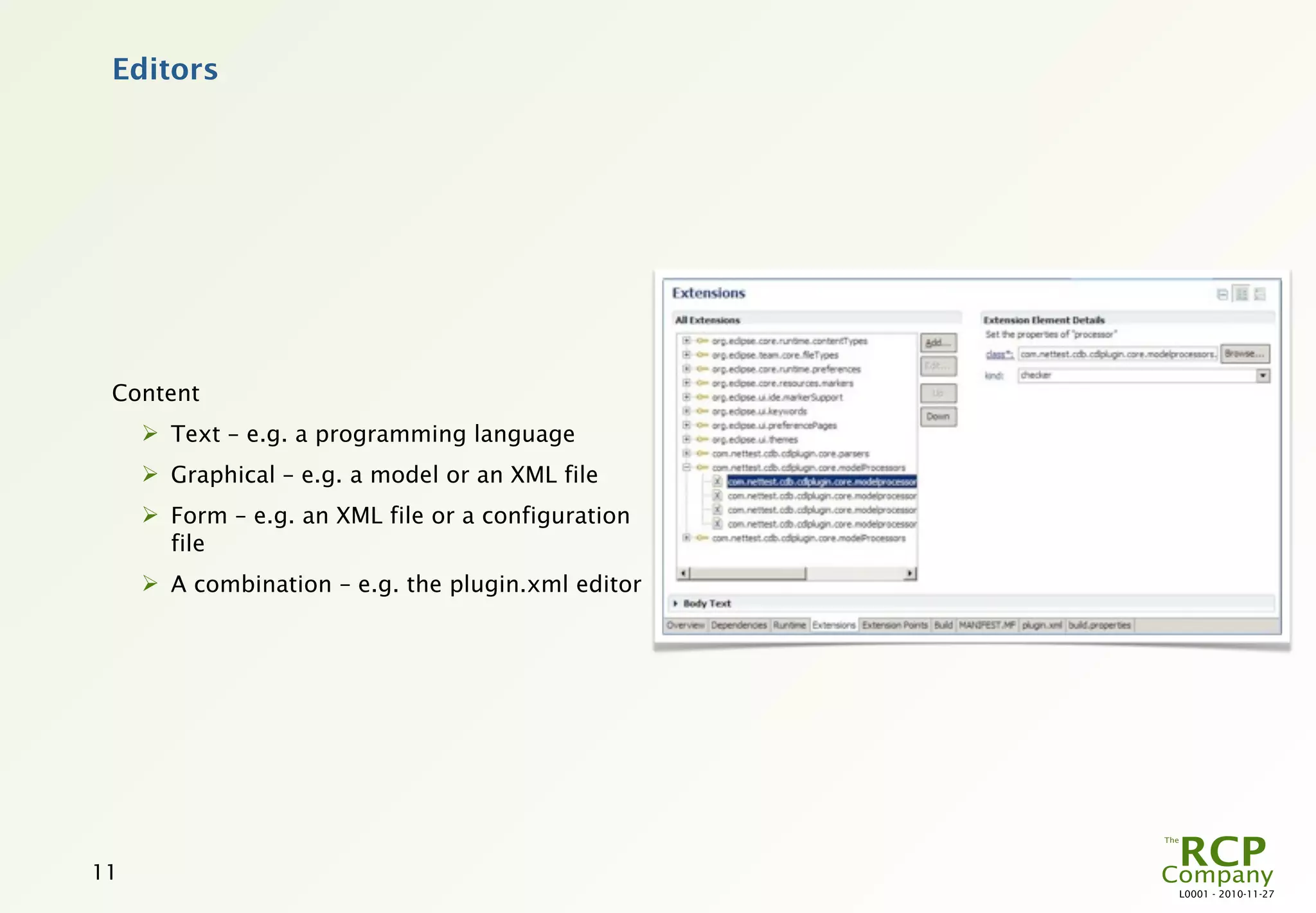

11. Editors
Content
Text – e.g. a programming language
Graphical – e.g. a model or an XML file
Form – e.g. an XML file or a configuration
file
A combination – e.g. the plugin.xml editor
11
L0001 - 2010-11-27

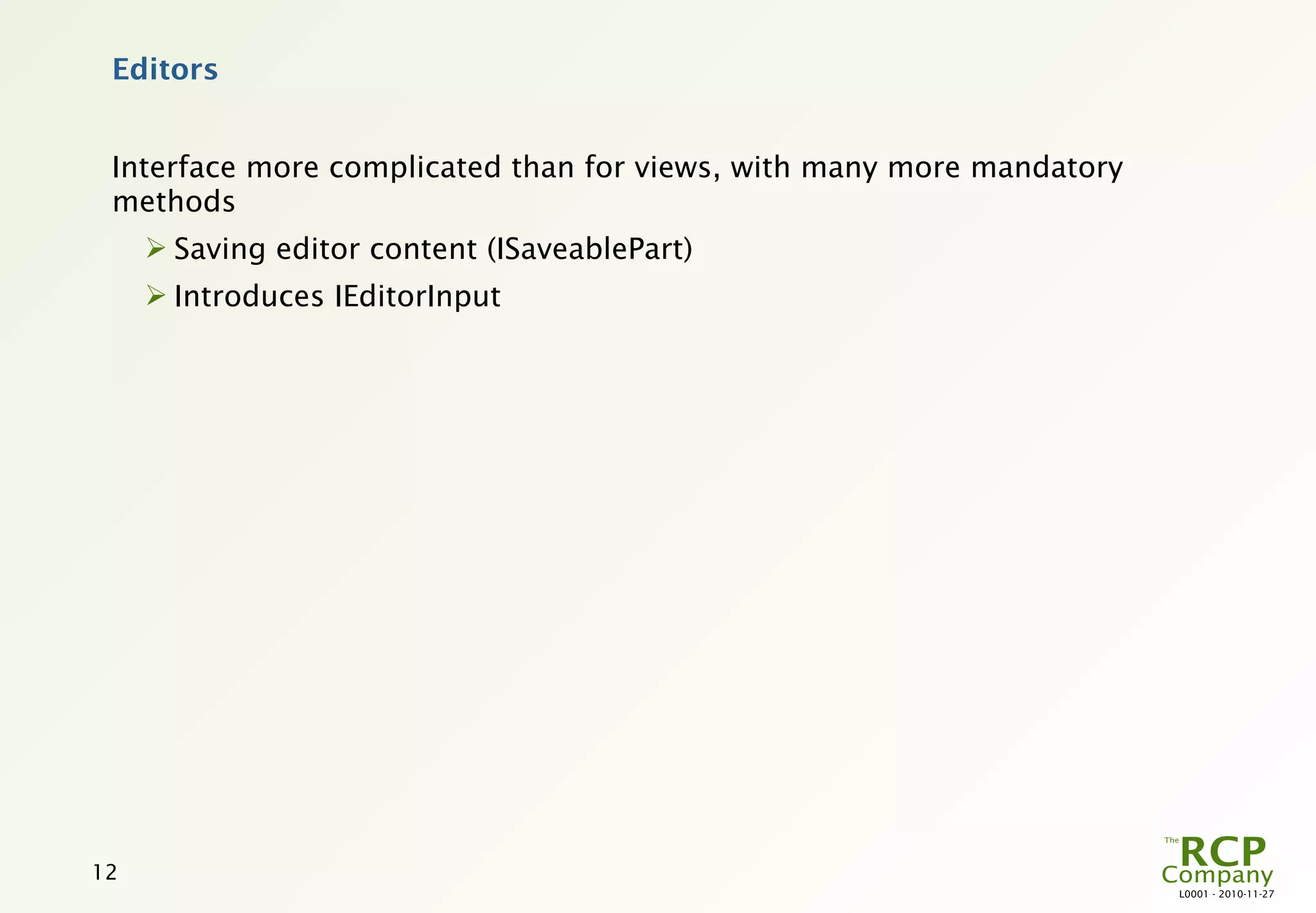

12. Editors
Interface more complicated than for views, with many more mandatory
methods
Saving editor content (ISaveablePart)
Introduces IEditorInput
12
L0001 - 2010-11-27

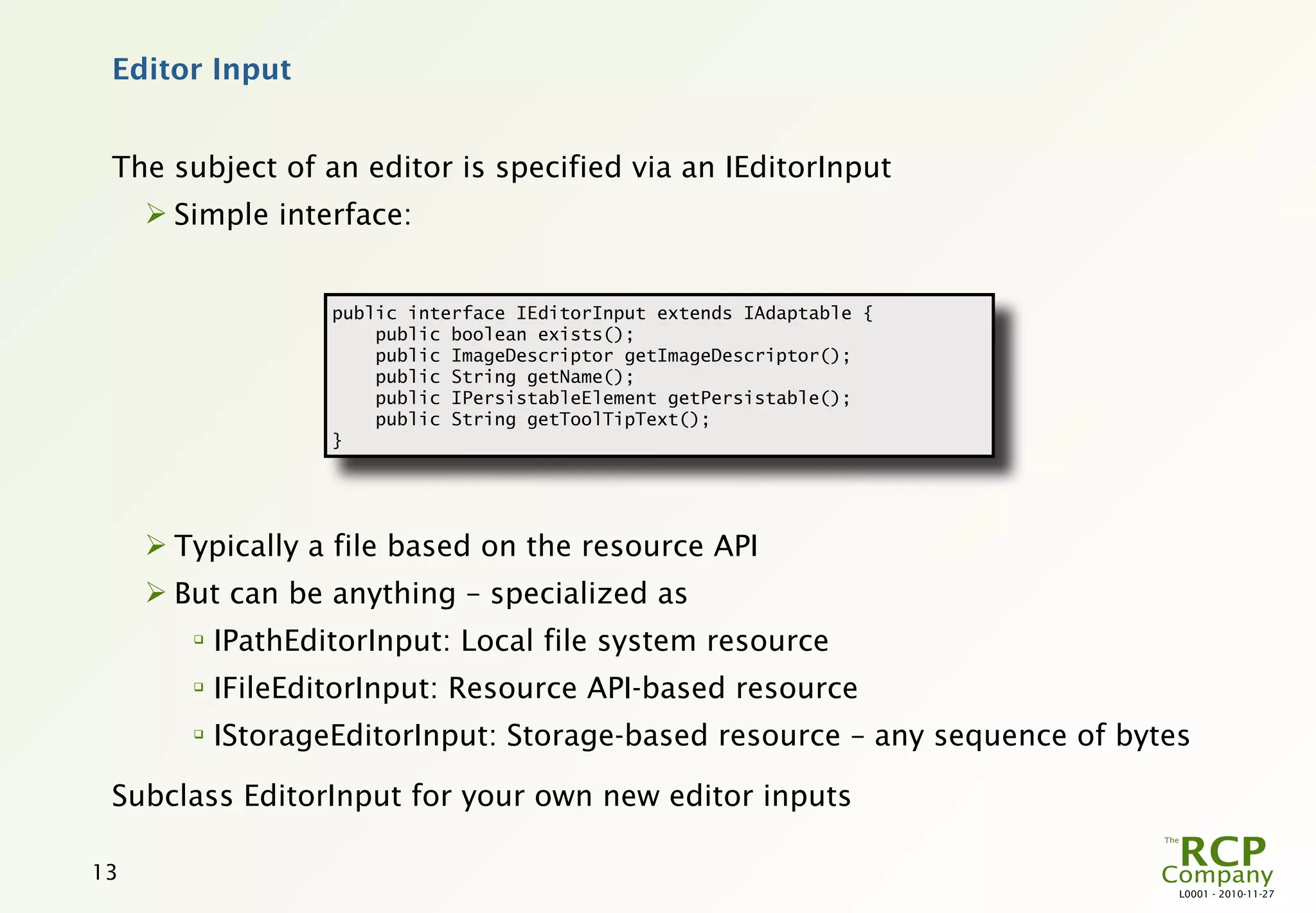

13. Editor Input
The subject of an editor is specified via an IEditorInput
Simple interface:
public interface IEditorInput extends IAdaptable {
public boolean exists();
public ImageDescriptor getImageDescriptor();
public String getName();
public IPersistableElement getPersistable();
public String getToolTipText();
}
Typically a file based on the resource API
But can be anything – specialized as
IPathEditorInput: Local file system resource
IFileEditorInput: Resource API-based resource
IStorageEditorInput: Storage-based resource – any sequence of bytes
Subclass EditorInput for your own new editor inputs
13
L0001 - 2010-11-27

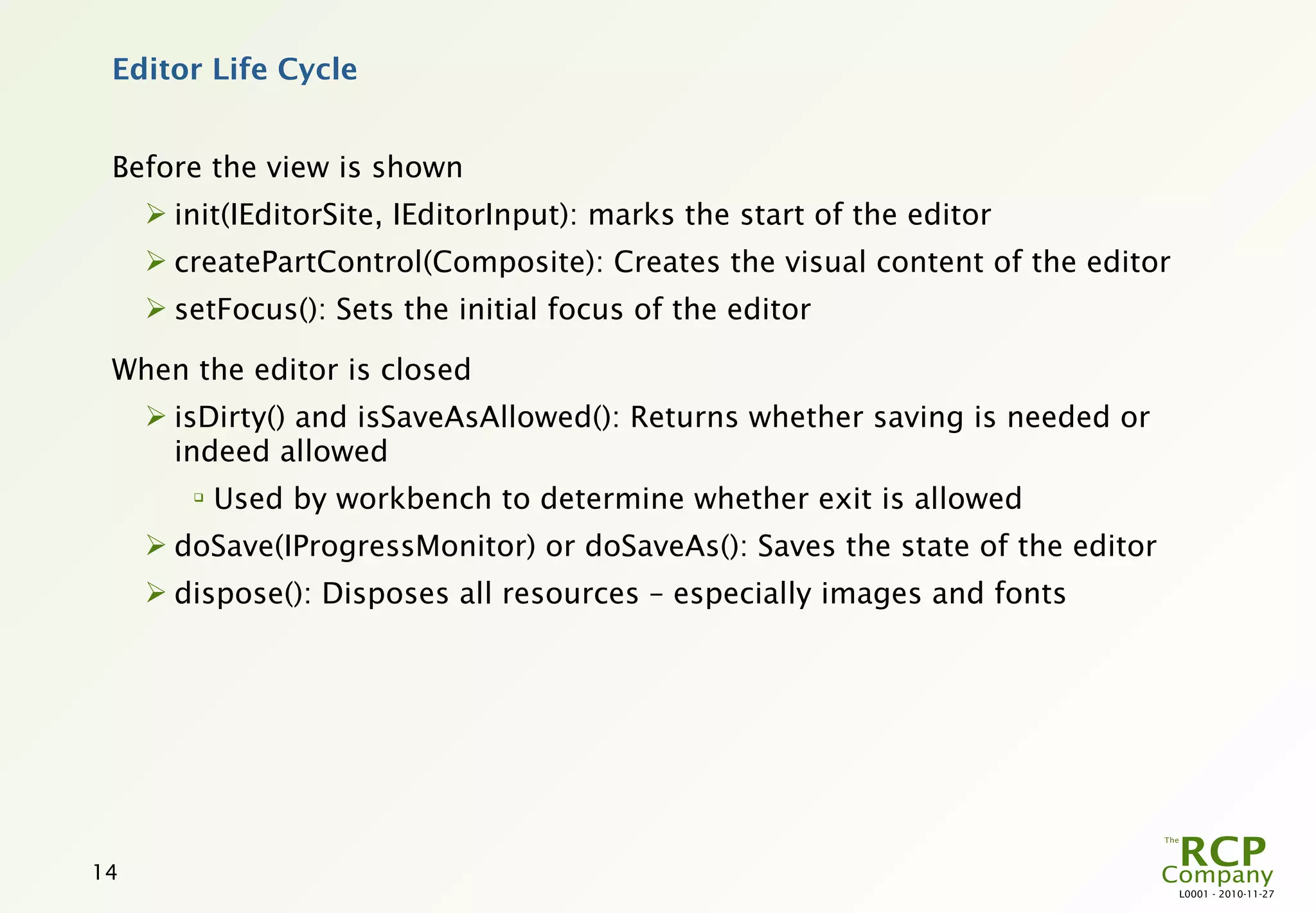

14. Editor Life Cycle
Before the view is shown
init(IEditorSite, IEditorInput): marks the start of the editor
createPartControl(Composite): Creates the visual content of the editor
setFocus(): Sets the initial focus of the editor
When the editor is closed
isDirty() and isSaveAsAllowed(): Returns whether saving is needed or
indeed allowed
Used by workbench to determine whether exit is allowed
doSave(IProgressMonitor) or doSaveAs(): Saves the state of the editor
dispose(): Disposes all resources – especially images and fonts
14
L0001 - 2010-11-27

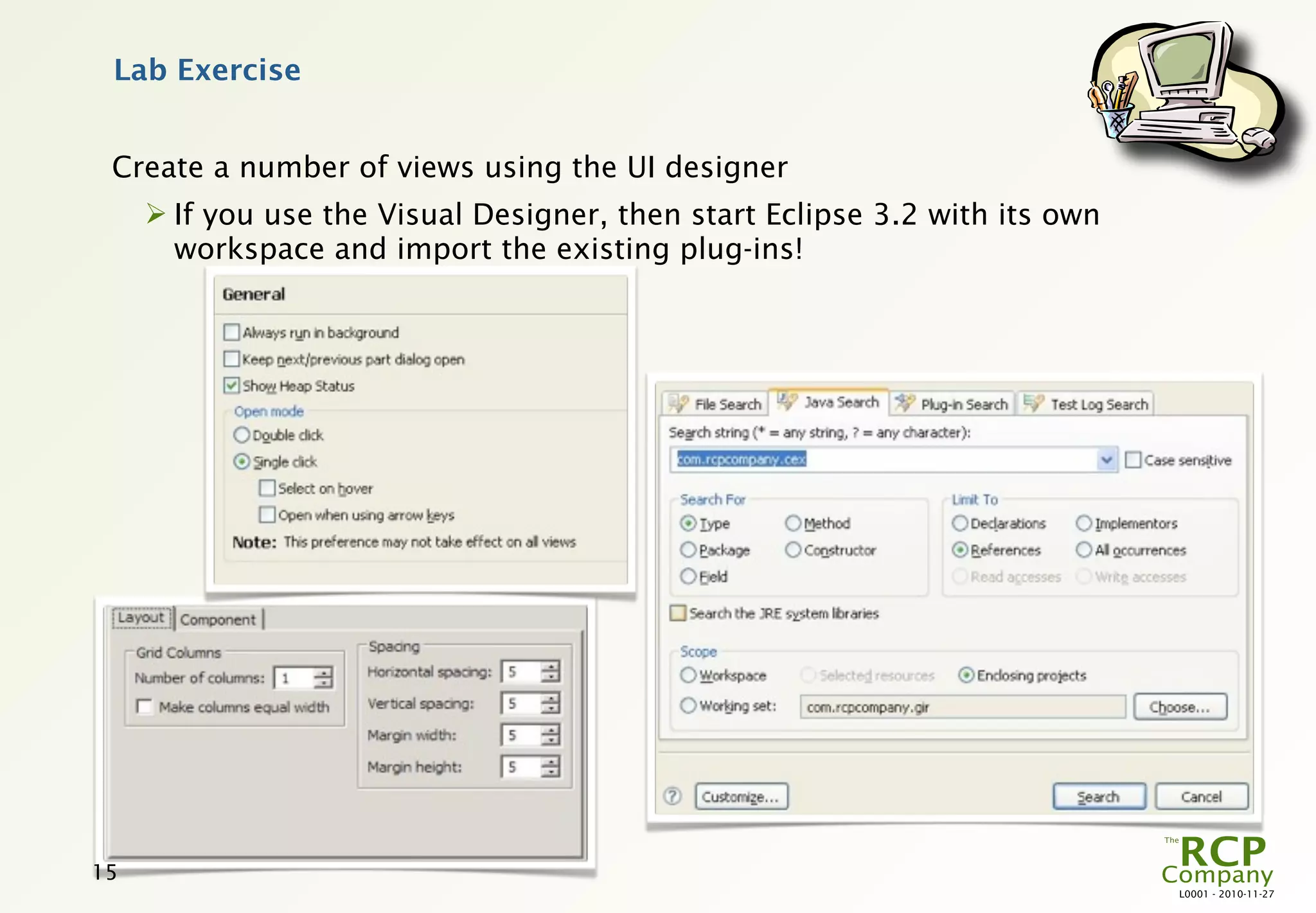

15. Lab Exercise
Create a number of views using the UI designer
If you use the Visual Designer, then start Eclipse 3.2 with its own
workspace and import the existing plug-ins!
15
L0001 - 2010-11-27

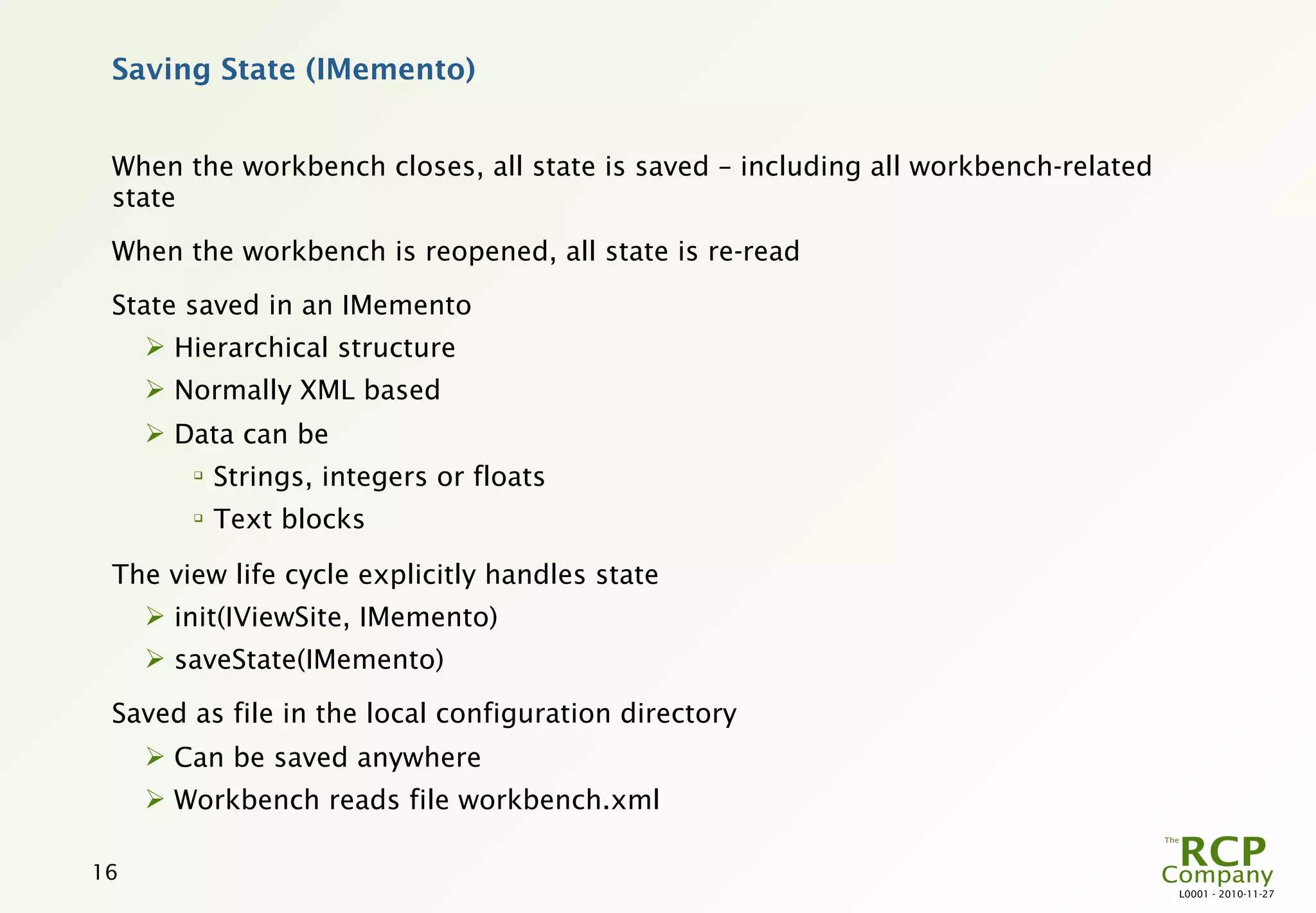

16. Saving State (IMemento)
When the workbench closes, all state is saved – including all workbench-related
state
When the workbench is reopened, all state is re-read
State saved in an IMemento
Hierarchical structure
Normally XML based
Data can be
Strings, integers or floats
Text blocks
The view life cycle explicitly handles state
init(IViewSite, IMemento)
saveState(IMemento)
Saved as file in the local configuration directory
Can be saved anywhere
Workbench reads file workbench.xml
16
L0001 - 2010-11-27

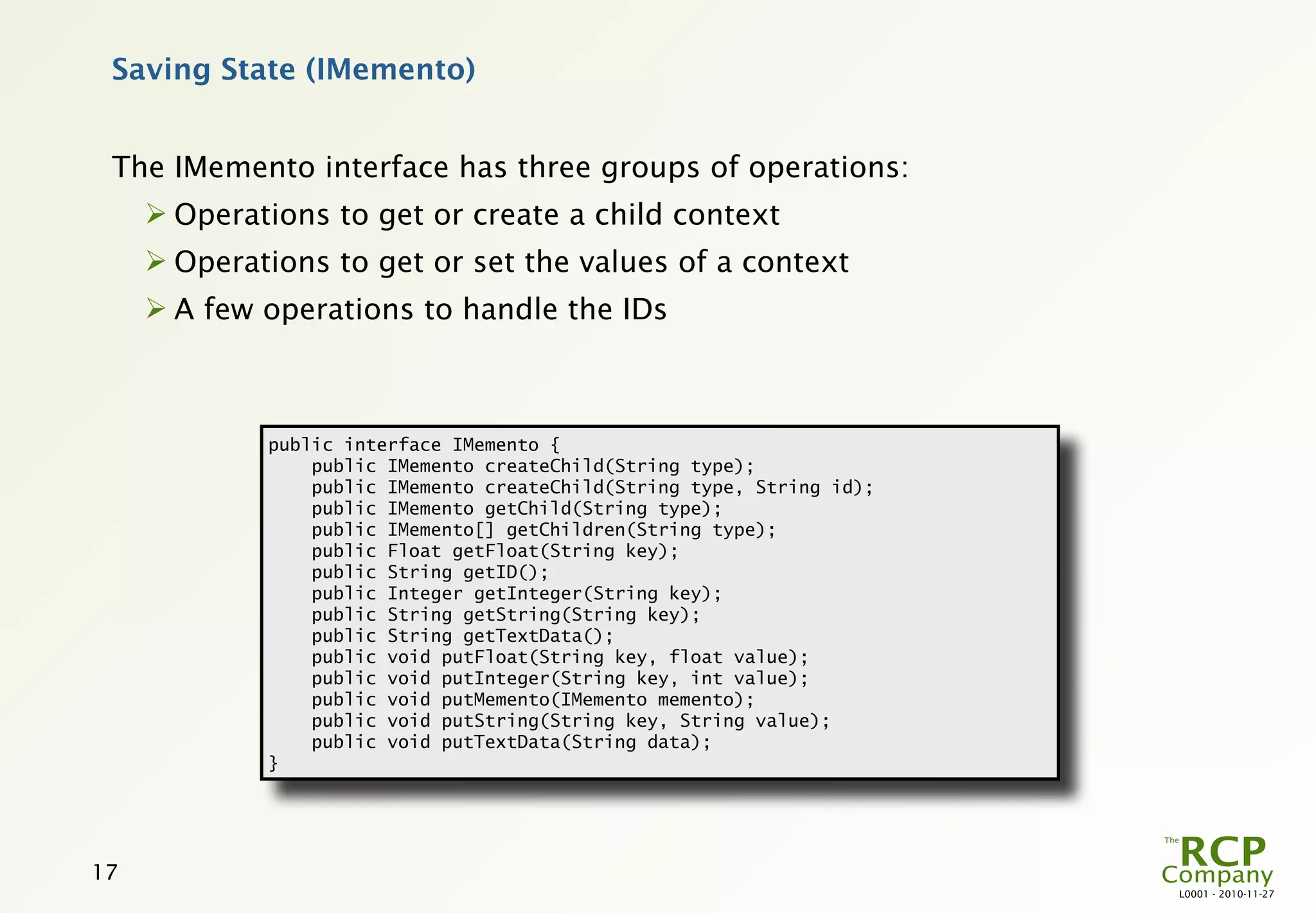

17. Saving State (IMemento)
The IMemento interface has three groups of operations:
Operations to get or create a child context
Operations to get or set the values of a context
A few operations to handle the IDs
public interface IMemento {
public IMemento createChild(String type);
public IMemento createChild(String type, String id);
public IMemento getChild(String type);
public IMemento[] getChildren(String type);
public Float getFloat(String key);
public String getID();
public Integer getInteger(String key);
public String getString(String key);
public String getTextData();
public void putFloat(String key, float value);
public void putInteger(String key, int value);
public void putMemento(IMemento memento);
public void putString(String key, String value);
public void putTextData(String data);
}
17
L0001 - 2010-11-27

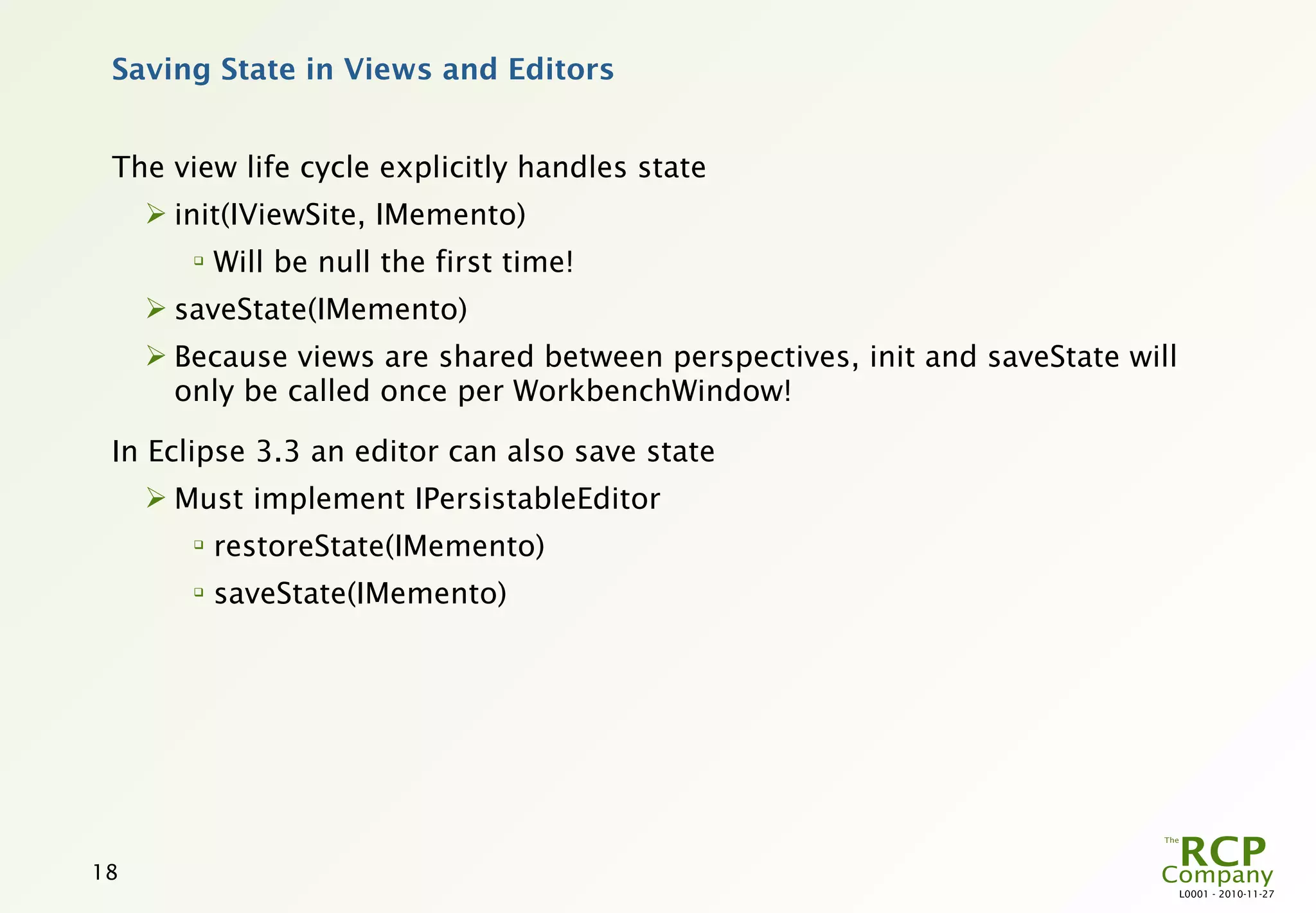

18. Saving State in Views and Editors
The view life cycle explicitly handles state
init(IViewSite, IMemento)
Will be null the first time!
saveState(IMemento)
Because views are shared between perspectives, init and saveState will
only be called once per WorkbenchWindow!
In Eclipse 3.3 an editor can also save state
Must implement IPersistableEditor
restoreState(IMemento)
saveState(IMemento)
18
L0001 - 2010-11-27

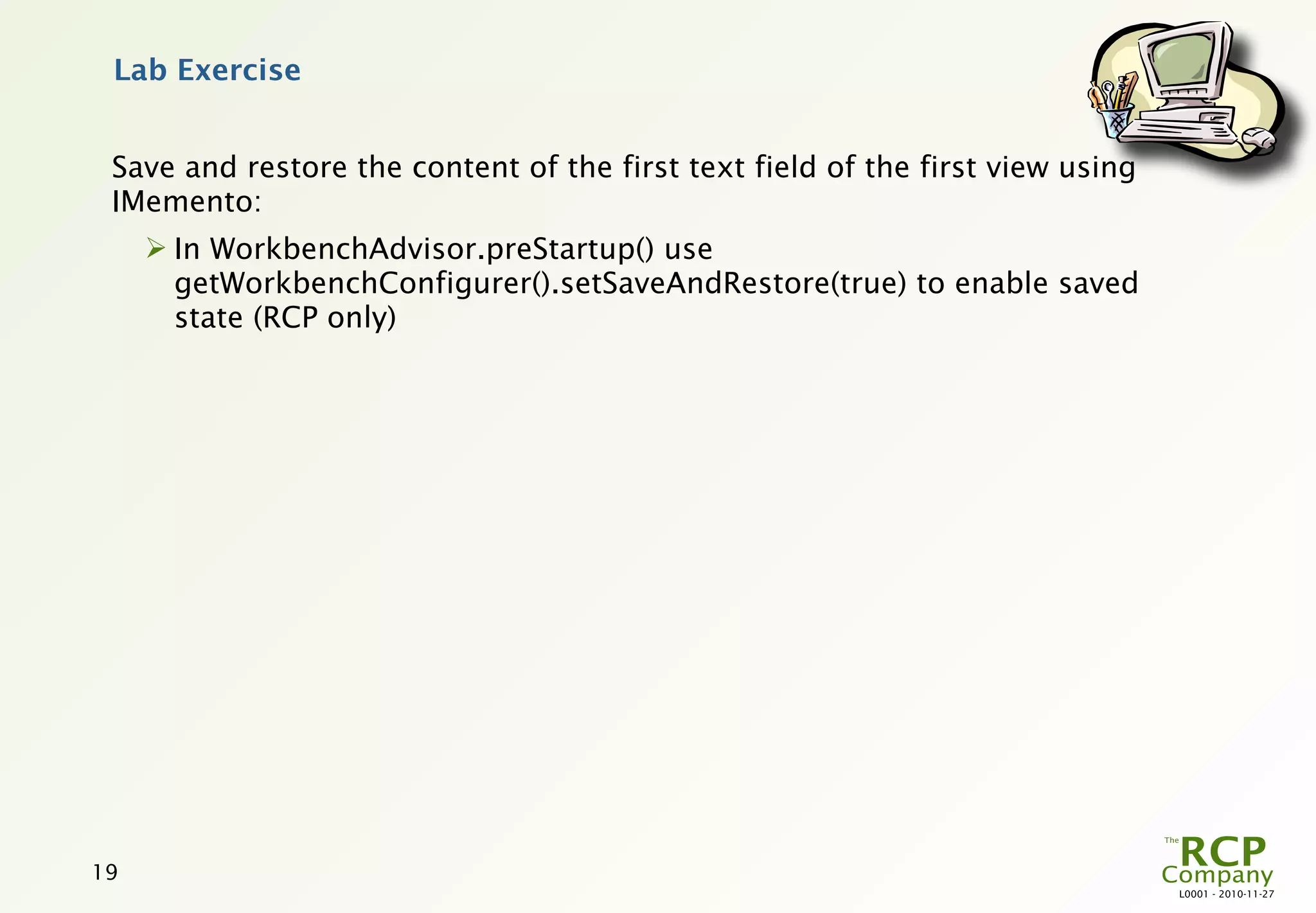

19. Lab Exercise
Save and restore the content of the first text field of the first view using
IMemento:
In WorkbenchAdvisor.preStartup() use
getWorkbenchConfigurer().setSaveAndRestore(true) to enable saved
state (RCP only)
19
L0001 - 2010-11-27

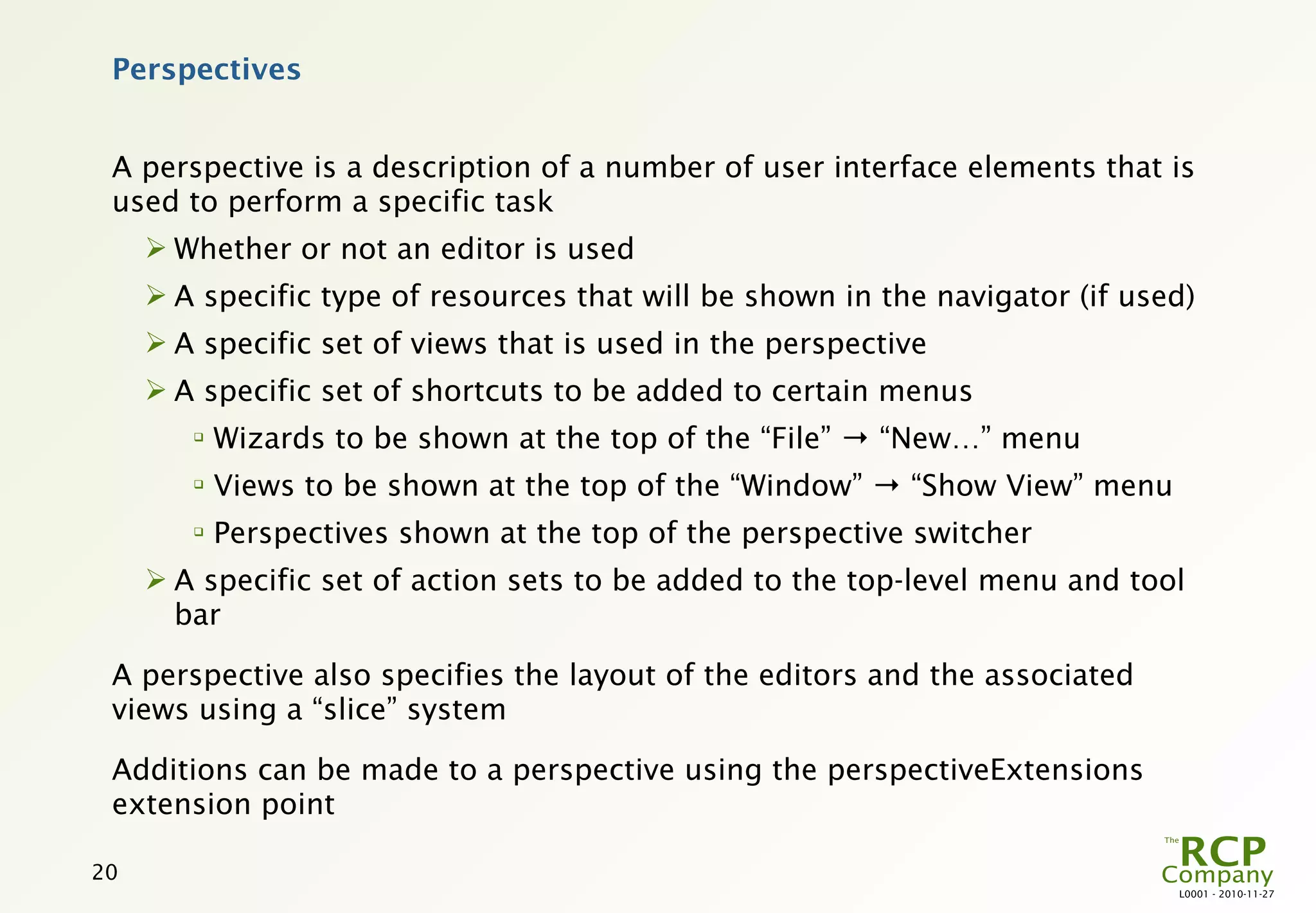

20. Perspectives
A perspective is a description of a number of user interface elements that is
used to perform a specific task
Whether or not an editor is used
A specific type of resources that will be shown in the navigator (if used)
A specific set of views that is used in the perspective
A specific set of shortcuts to be added to certain menus
Wizards to be shown at the top of the “File” → “New…” menu
Views to be shown at the top of the “Window” → “Show View” menu
Perspectives shown at the top of the perspective switcher
A specific set of action sets to be added to the top-level menu and tool
bar
A perspective also specifies the layout of the editors and the associated
views using a “slice” system
Additions can be made to a perspective using the perspectiveExtensions
extension point
20
L0001 - 2010-11-27

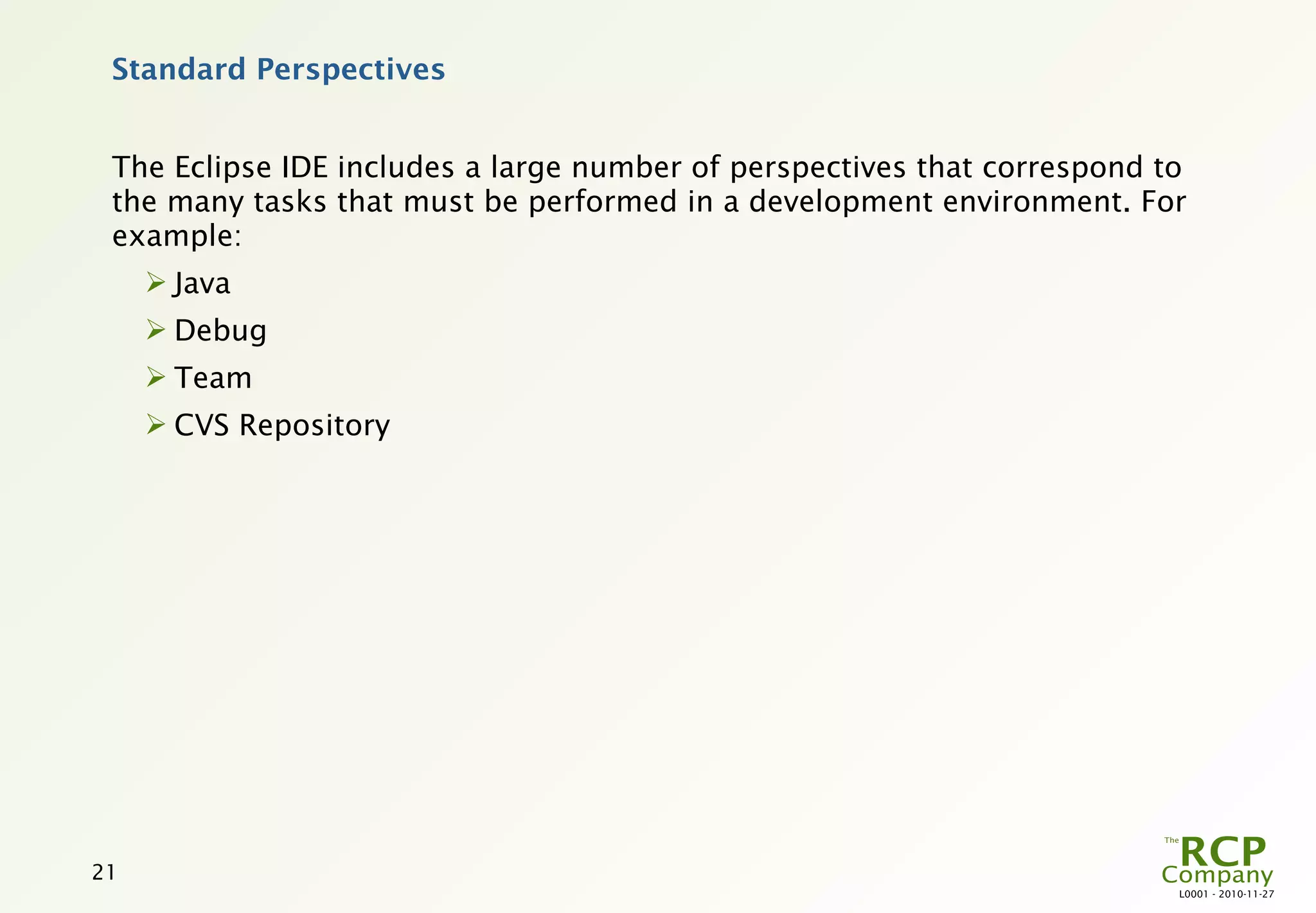

21. Standard Perspectives
The Eclipse IDE includes a large number of perspectives that correspond to
the many tasks that must be performed in a development environment. For
example:
Java
Debug
Team
CVS Repository
21
L0001 - 2010-11-27
22. Perspective Implementation
Perspective is a specific layout and views and editors within a Workbench
window
Workspace
Window
Top-level Menu Page Perspective
Top-level Toolbar
Status Line
Editors Views
Switcher
Local Toolbar Drop-Down Menu
22
L0001 - 2010-11-27

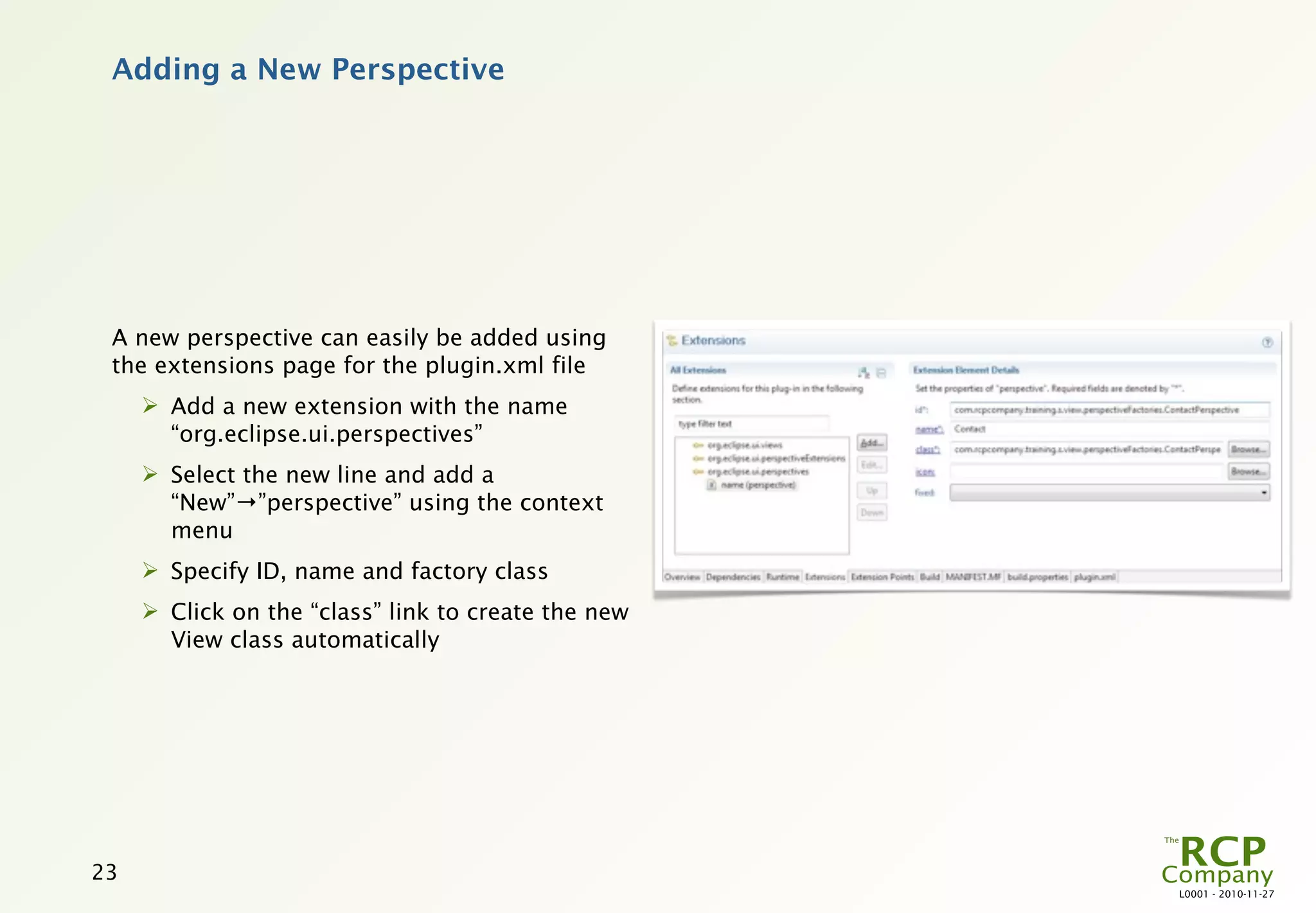

23. Adding a New Perspective
A new perspective can easily be added using
the extensions page for the plugin.xml file
Add a new extension with the name
“org.eclipse.ui.perspectives”
Select the new line and add a
“New”→”perspective” using the context
menu
Specify ID, name and factory class
Click on the “class” link to create the new
View class automatically
23
L0001 - 2010-11-27

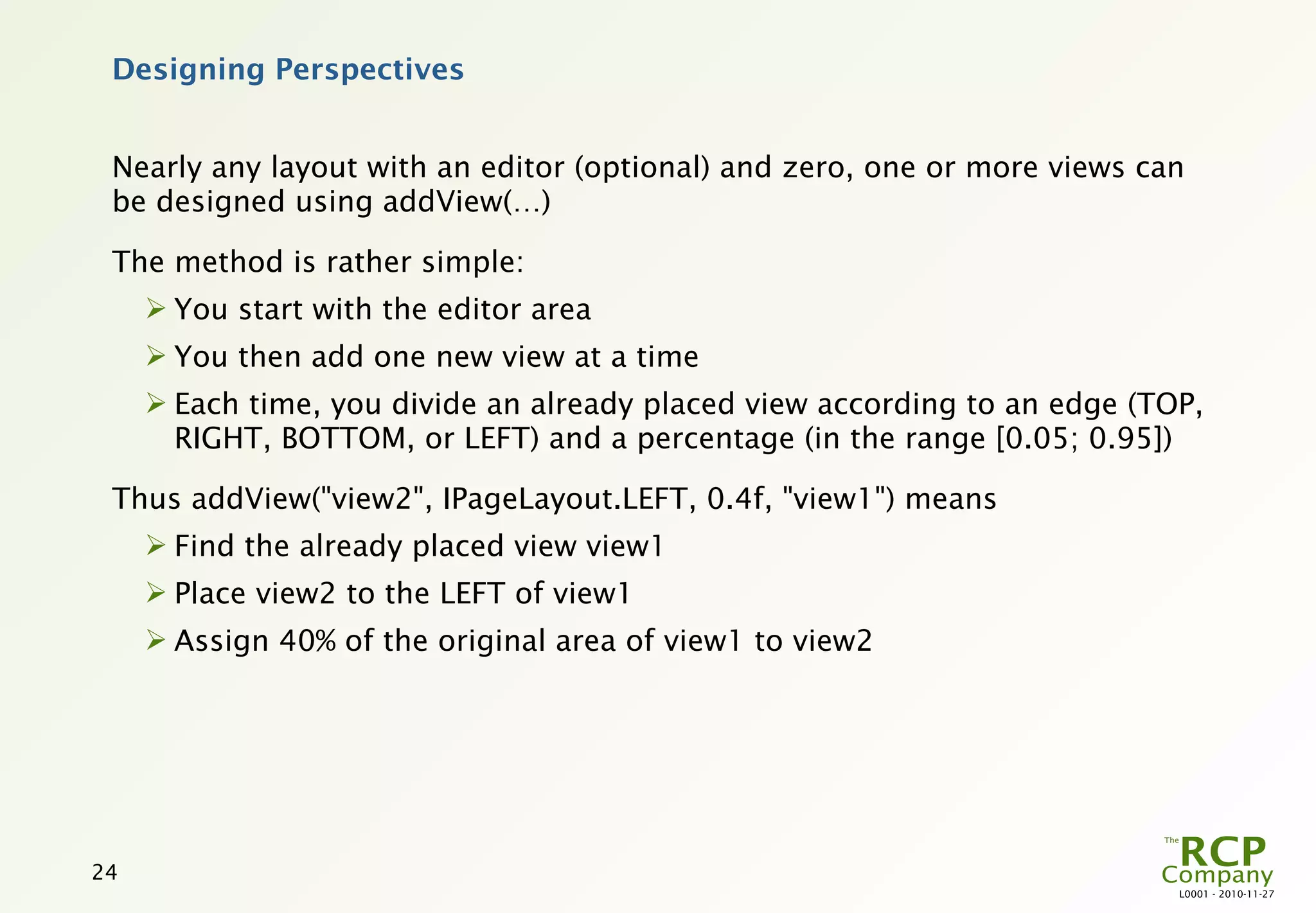

24. Designing Perspectives
Nearly any layout with an editor (optional) and zero, one or more views can
be designed using addView(…)
The method is rather simple:
You start with the editor area
You then add one new view at a time
Each time, you divide an already placed view according to an edge (TOP,
RIGHT, BOTTOM, or LEFT) and a percentage (in the range [0.05; 0.95])
Thus addView("view2", IPageLayout.LEFT, 0.4f, "view1") means
Find the already placed view view1
Place view2 to the LEFT of view1
Assign 40% of the original area of view1 to view2
24
L0001 - 2010-11-27
25. Designing Perspectives
1
2
4

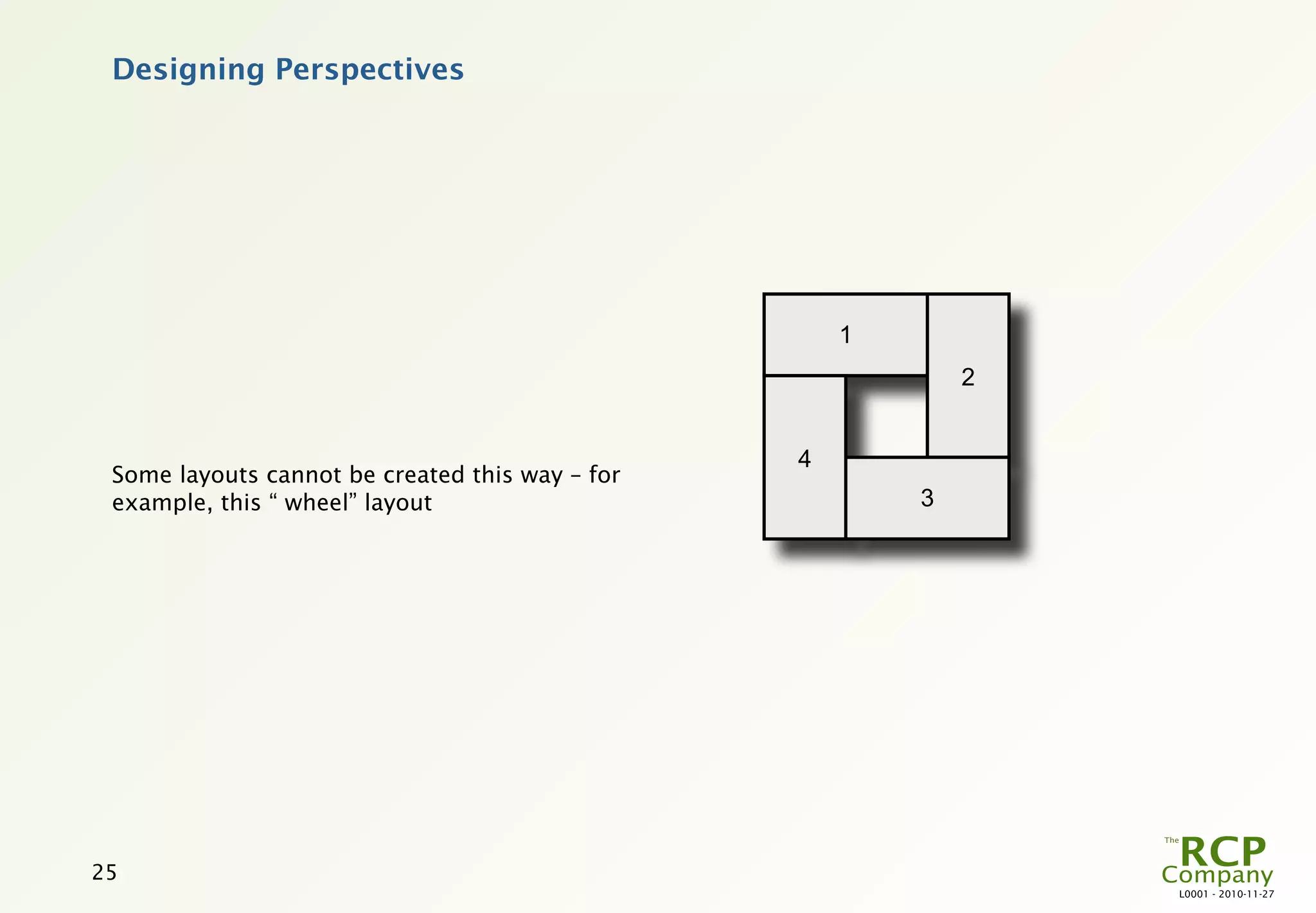

Some layouts cannot be created this way – for
example, this “ wheel” layout 3
25
L0001 - 2010-11-27
26. Designing Perspectives

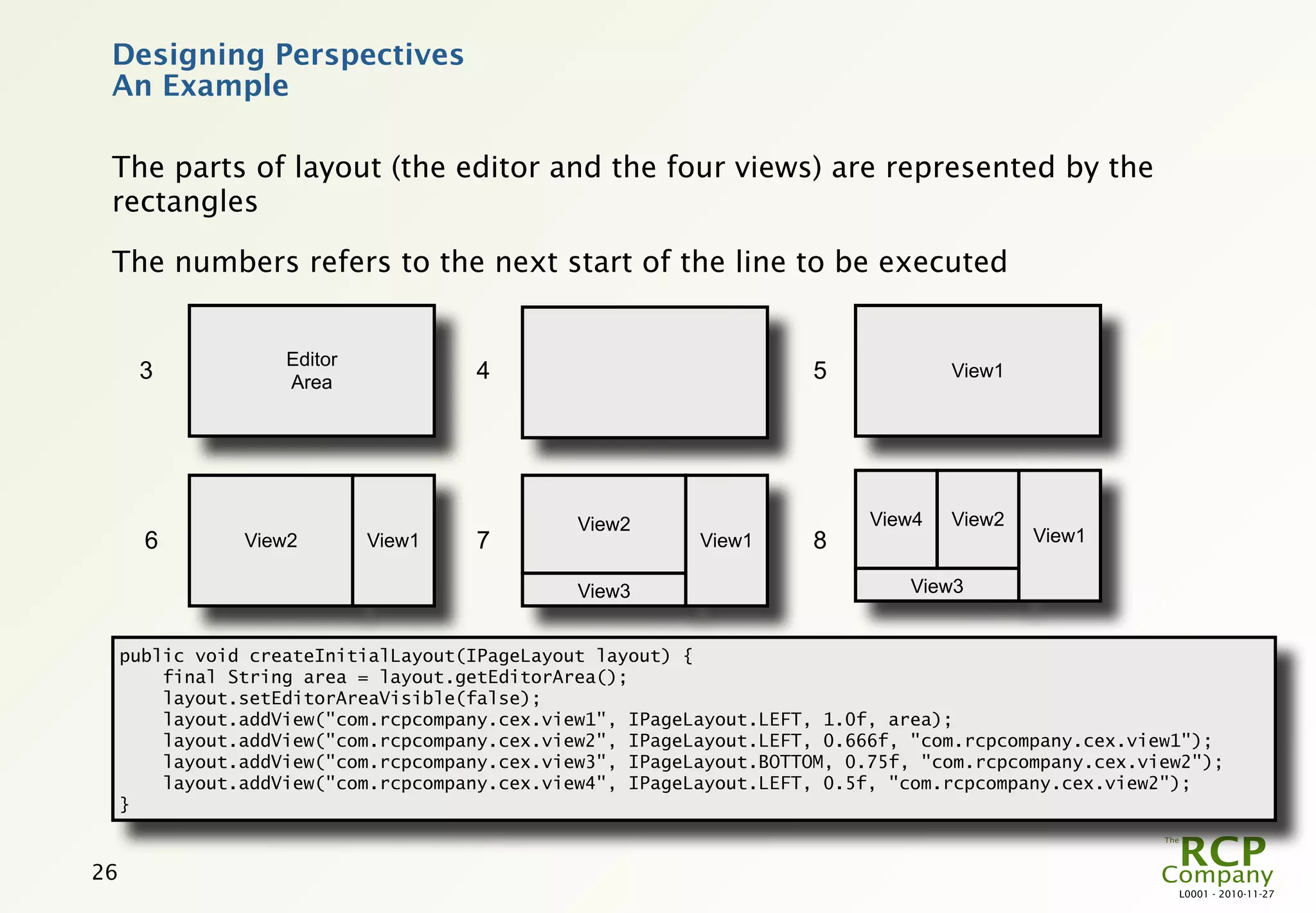

An Example
The parts of layout (the editor and the four views) are represented by the
rectangles
The numbers refers to the next start of the line to be executed
Editor
3 Area
4 5 View1
View2 View4 View2
6 View2 View1 7 View1 8 View1
View3 View3
public void createInitialLayout(IPageLayout layout) {
final String area = layout.getEditorArea();
layout.setEditorAreaVisible(false);
layout.addView("com.rcpcompany.cex.view1", IPageLayout.LEFT, 1.0f, area);
layout.addView("com.rcpcompany.cex.view2", IPageLayout.LEFT, 0.666f, "com.rcpcompany.cex.view1");
layout.addView("com.rcpcompany.cex.view3", IPageLayout.BOTTOM, 0.75f, "com.rcpcompany.cex.view2");
layout.addView("com.rcpcompany.cex.view4", IPageLayout.LEFT, 0.5f, "com.rcpcompany.cex.view2");
}
26
L0001 - 2010-11-27

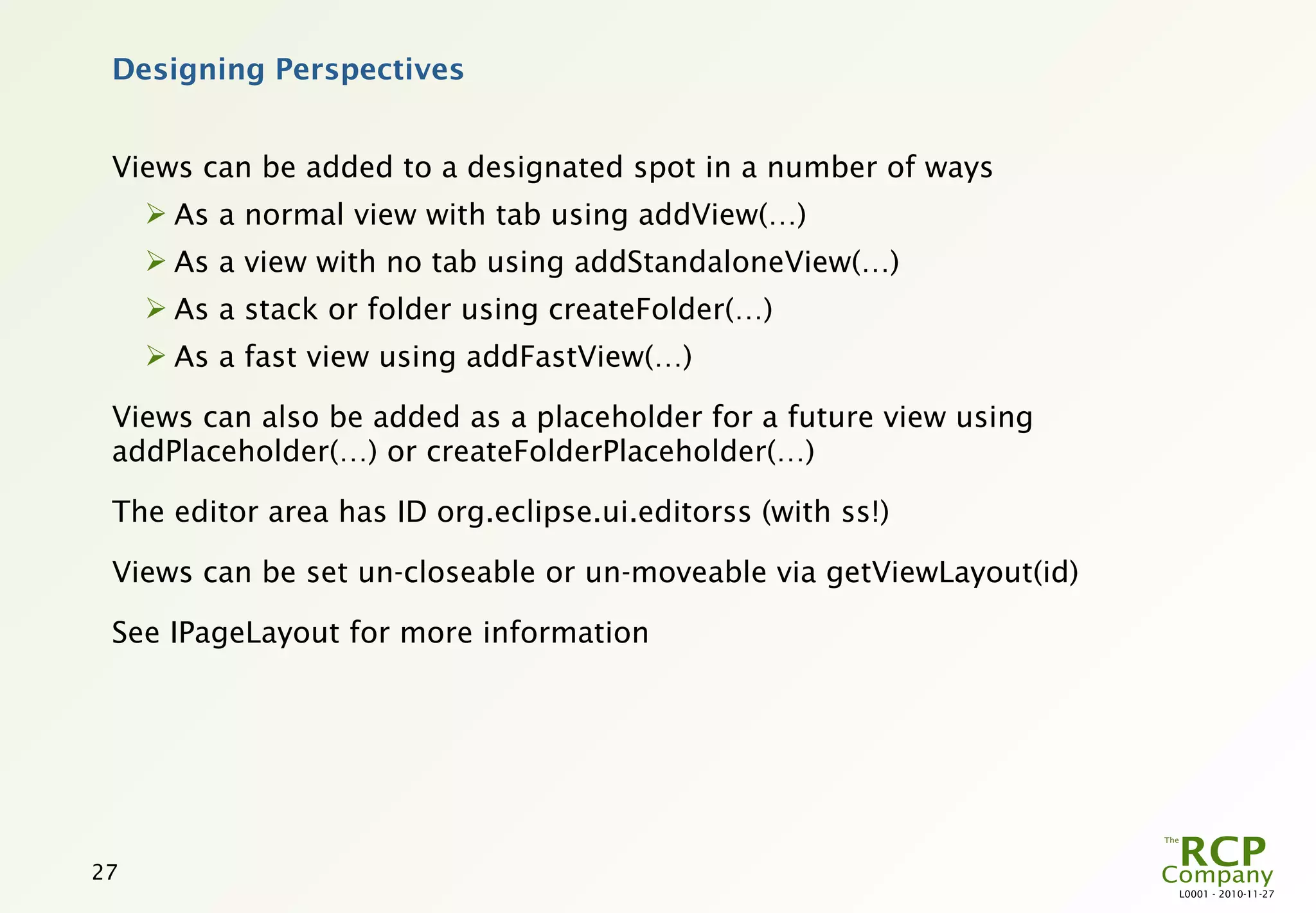

27. Designing Perspectives
Views can be added to a designated spot in a number of ways
As a normal view with tab using addView(…)
As a view with no tab using addStandaloneView(…)
As a stack or folder using createFolder(…)
As a fast view using addFastView(…)
Views can also be added as a placeholder for a future view using
addPlaceholder(…) or createFolderPlaceholder(…)
The editor area has ID org.eclipse.ui.editorss (with ss!)
Views can be set un-closeable or un-moveable via getViewLayout(id)
See IPageLayout for more information
27
L0001 - 2010-11-27

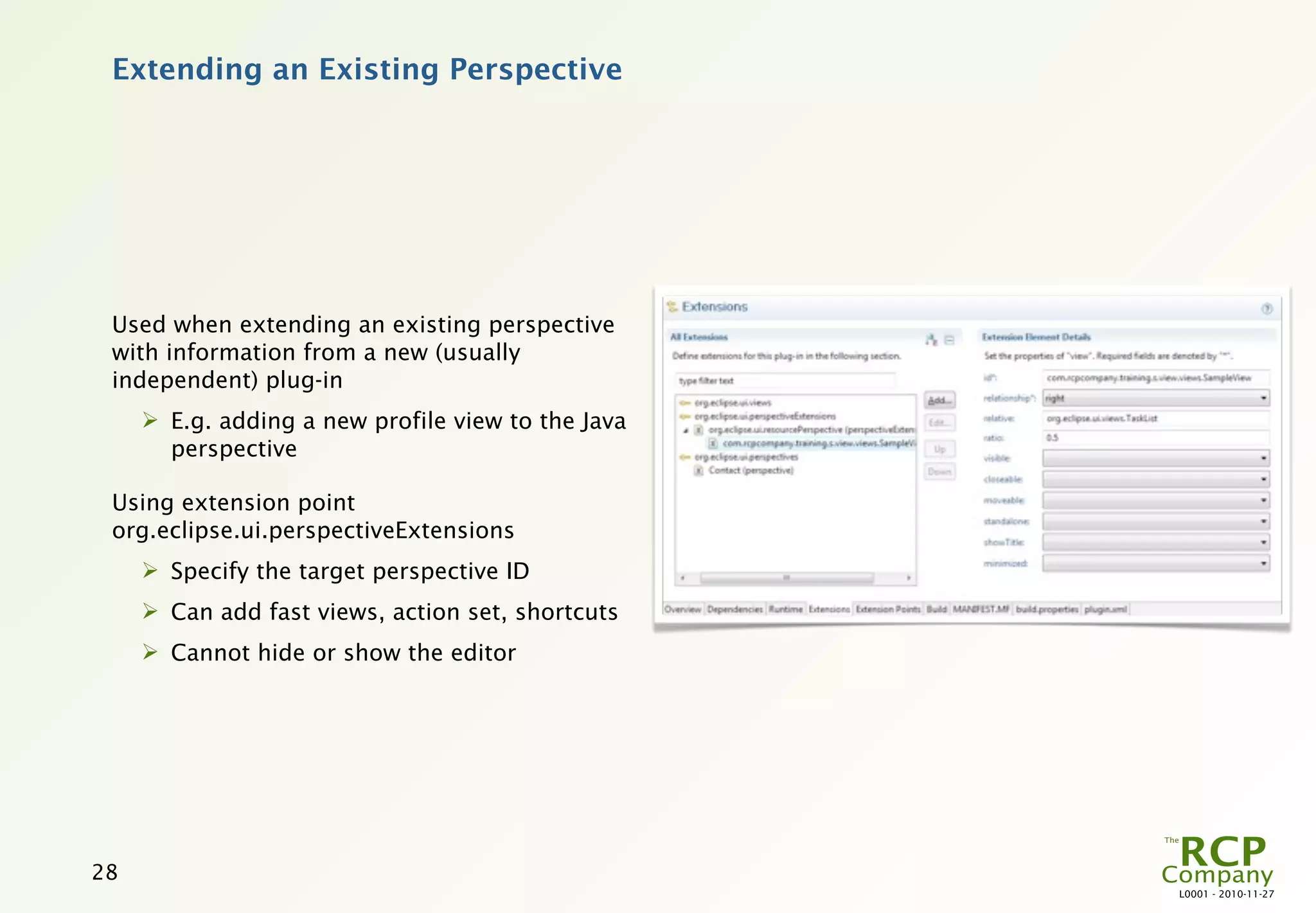

28. Extending an Existing Perspective
Used when extending an existing perspective
with information from a new (usually
independent) plug-in
E.g. adding a new profile view to the Java
perspective
Using extension point
org.eclipse.ui.perspectiveExtensions
Specify the target perspective ID
Can add fast views, action set, shortcuts
Cannot hide or show the editor
28
L0001 - 2010-11-27

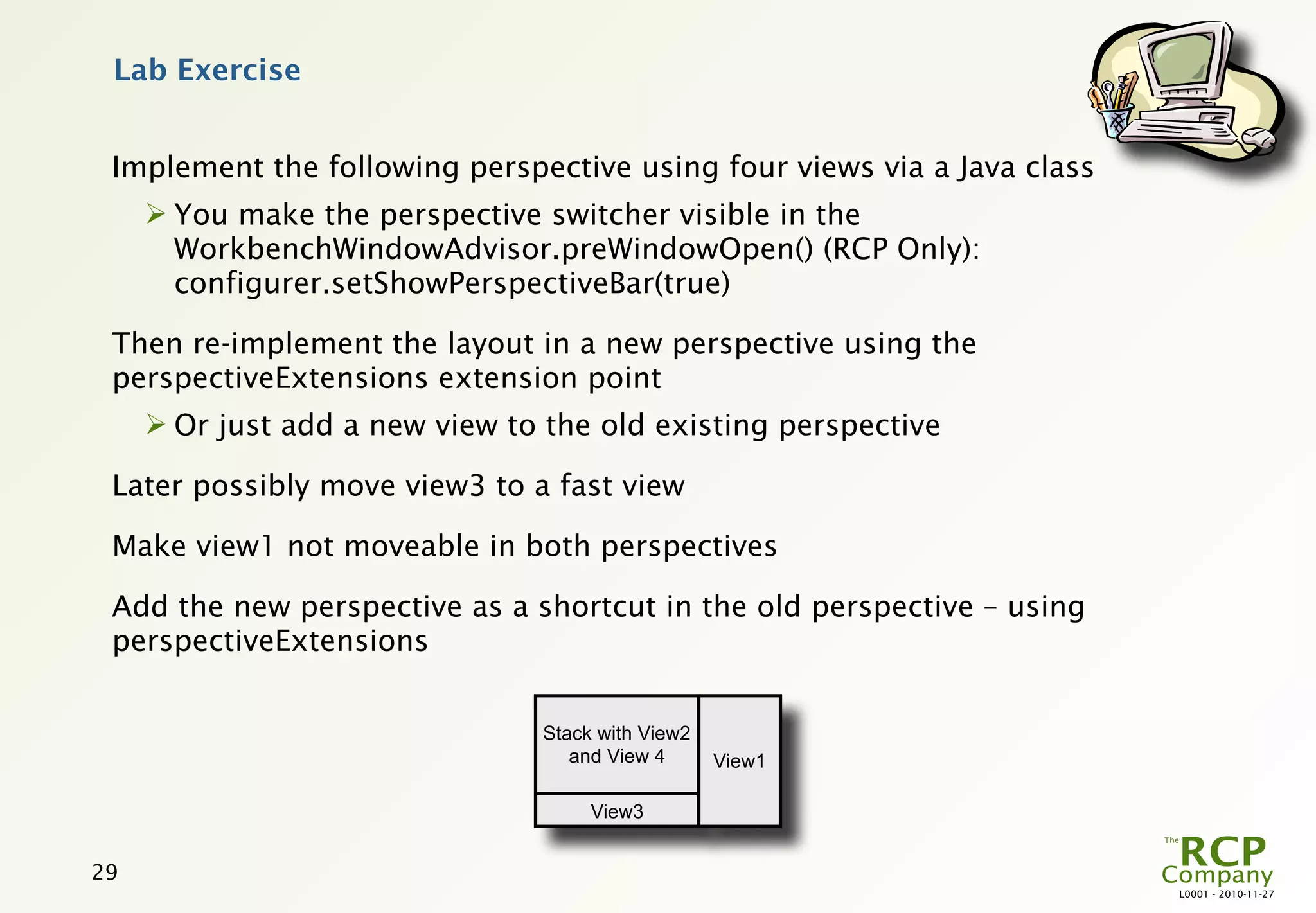

29. Lab Exercise
Implement the following perspective using four views via a Java class
You make the perspective switcher visible in the
WorkbenchWindowAdvisor.preWindowOpen() (RCP Only):
configurer.setShowPerspectiveBar(true)
Then re-implement the layout in a new perspective using the
perspectiveExtensions extension point
Or just add a new view to the old existing perspective
Later possibly move view3 to a fast view
Make view1 not moveable in both perspectives
Add the new perspective as a shortcut in the old perspective – using
perspectiveExtensions
Stack with View2
and View 4 View1
View3
29
L0001 - 2010-11-27

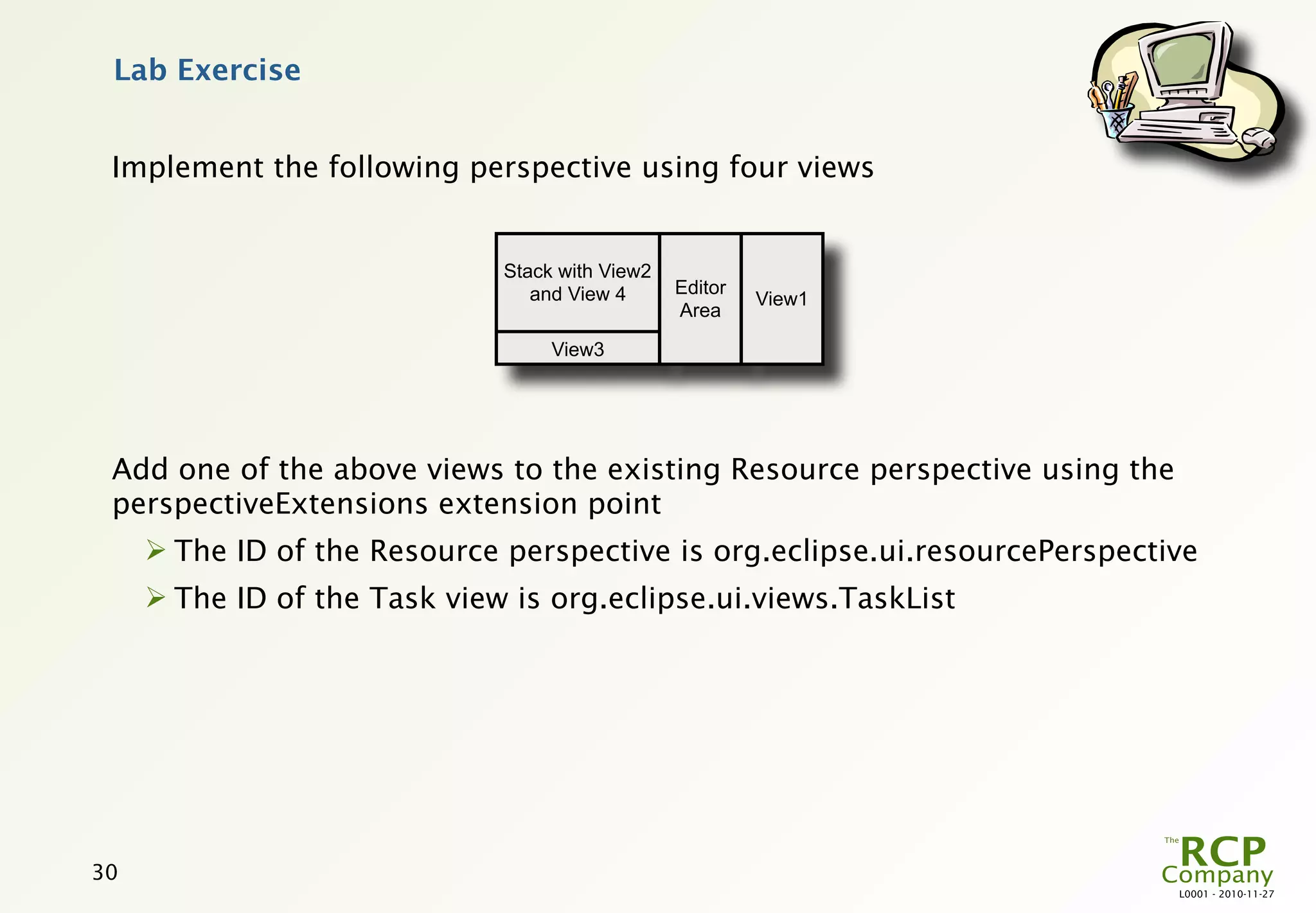

30. Lab Exercise
Implement the following perspective using four views
Stack with View2
and View 4 Editor
View1
Area
View3
Add one of the above views to the existing Resource perspective using the
perspectiveExtensions extension point
The ID of the Resource perspective is org.eclipse.ui.resourcePerspective
The ID of the Task view is org.eclipse.ui.views.TaskList
30
L0001 - 2010-11-27

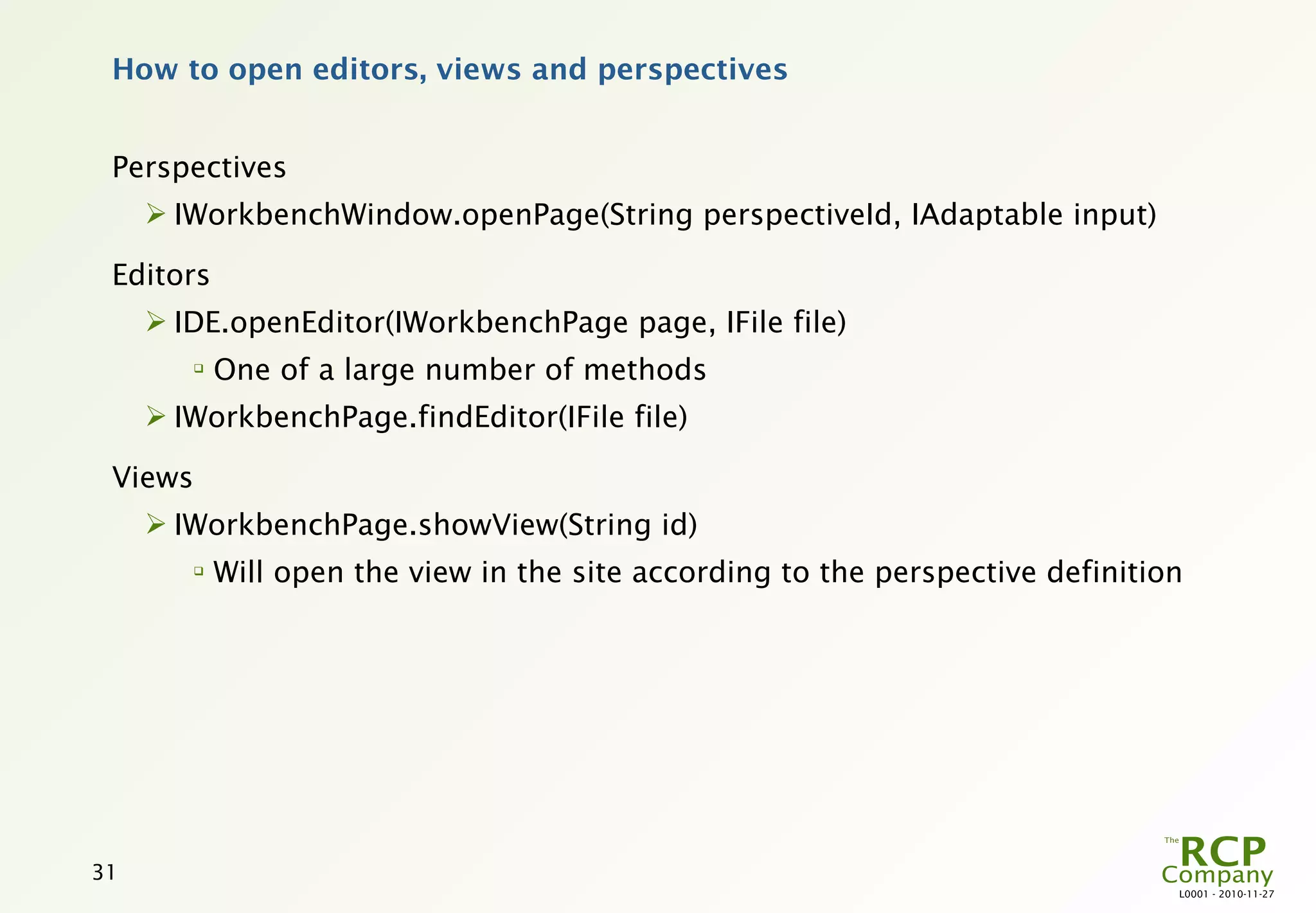

31. How to open editors, views and perspectives
Perspectives
IWorkbenchWindow.openPage(String perspectiveId, IAdaptable input)
Editors
IDE.openEditor(IWorkbenchPage page, IFile file)
One of a large number of methods
IWorkbenchPage.findEditor(IFile file)
Views
IWorkbenchPage.showView(String id)
Will open the view in the site according to the perspective definition
31
L0001 - 2010-11-27

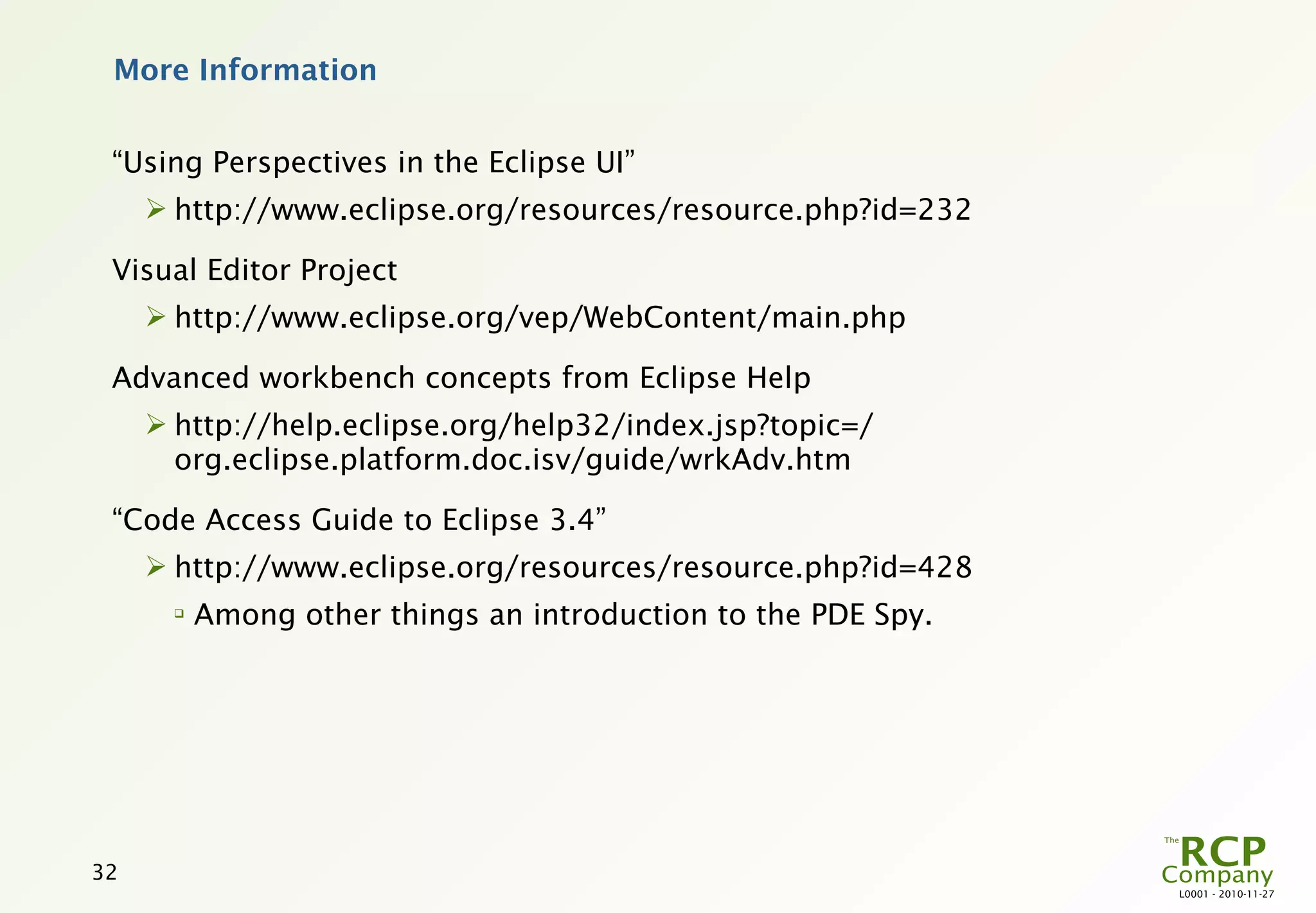

32. More Information
“Using Perspectives in the Eclipse UI”
http://www.eclipse.org/resources/resource.php?id=232
Visual Editor Project
http://www.eclipse.org/vep/WebContent/main.php
Advanced workbench concepts from Eclipse Help
http://help.eclipse.org/help32/index.jsp?topic=/
org.eclipse.platform.doc.isv/guide/wrkAdv.htm
“Code Access Guide to Eclipse 3.4”
http://www.eclipse.org/resources/resource.php?id=428
Among other things an introduction to the PDE Spy.
32
L0001 - 2010-11-27
Editor's Notes
\n
All Eclipse based applications &#x2013; RCP or IDE &#x2013; are made up of the same basic set of UI high level elements. The look-n-feel of these elements can be changed to some extent, but the basic semantics of each of the elements must remain the same. This is basically why all Eclipse-based applications look and feel the same.\nAn Eclipse RCP-based application can also interface with the host UI &#x2013; e.g. adding icons and actions to the system tray.\nThere are exceptions to the rule about the Eclipse look-n-feel: The current school example is IBM Lotus Notes version 8.x (Hannover), which has a very different look.\nThe product element is the component that &#x201C;decides&#x201D; which exact application is started.\nProduct branding is basically the icons and images that are shown:\nDuring start of the application\nIn the task bar\nIn the help menu\n
The information model of the Eclipse workbench consists of a number of entities. These all have a UI representation except for Workbench and Perspective.\nThe information model is relative simple:\nA workbench consists of one or more workbench windows.\nEach workbench window has a top-level menu, a tool bar, a status line and a perspective switcher.\nEach workbench window has exactly one workbench page.\nEach workbench page has one or more perspectives.\nEach workbench page handles any number of editors and views.\nEach perspective provides a specific view of the editors and views of the page.\nEach view also has a view-local menu and tool bar.\n\nMost applications only have one window.\nMost UI resources in the application are handled on a per-window basis, which can be very important if the windows are shown on different monitors, in which case the low-level resources such as fonts and images must be handled specially.\nPlease note that the Resource API provides a view of the workspace of the user and this view is common to all workbench windows.\nAll editors and views are shared between all perspectives of a workbench window.\n
Almost all interaction with an Eclipse-based application is via editors and views. Other interaction is possible via the menu bar, the tool bar and the status line, but to a large extend these just represent fast access to the information that is already represented in editors or views. This fact is also stressed in the high-level menu and tool bar, as large parts of these are populated by the active editor.\nThe use of editors and views is different. Also some of the visual aspects of editors and views are different &#x2013; in most cases as a direct consequence of the different usages of editors and views. (See next slide.) \nEditors are typically used to show and possibly change the information associated with an editor input. The classroom examples are Java files, a specific CRM contact, or a calendar appointment. The state of an editor is typically explicitly saved.\nViews are typically used to show information of more navigational or content-oriented nature. Again the classroom examples are search results, mail listings and progress information. Views are usually stateless &#x2013; if they carry state, the state is implicitly saved when changed.\nThe UI representations of editors and views are shared between all pages of a workbench window but never between workbench windows.\n
It is important to understand the distinction between editors and views. Although the visual differences can be simulated using the Presentation API, there are some differences that cannot be removed as there are rooted in the basic information model of Eclipse.\nIt is possible to have multiple views of a specific type, but it is seldom used.\n
The three terms, site, reference and part, mean nearly the same thing. As a result, they are used in a very relaxed manner in many conversations.\nThe Java Workbench API is more specific, though, so it is therefore nice to know which is which.\nThe use of the reference object is primarily to prevent early activation of the plug-in of a view. All the things needed to identify the part in the UI are present in the reference object &#x2013; e.g. the name, icon and state. Only when really needed in the UI &#x2013; e.g. when a view is exposed &#x2013; the part object itself is retrieved using getView() or getEditor().\n
\n
\n
A view is only created if needed &#x2013; which may be never, if the view is never shown. Until needed a view is represented internally as a ViewReference. This avoids activating the plug-in until really needed.\nOnly createPartControl(Composite) and setFocus() are mandatory; the rest are optional.\n
Eclipse RCP and Eclipse Platform define a number of views that can be used directly in an application.\nProgress &#x2013; shows the state of progress monitors (org.eclipse.ui)\nProperties &#x2013; shows properties of the current selection (org.eclipse.ui.views)\nOutline &#x2013; shows the outline of the data of the currently active editor (org.eclipse.ui.views)\n
The combination editor is called a multi-page editor. Some features of the workbench do not work optimally with a multi-page editor &#x2013; e.g. the global toolbar.\nThe editor model is not (yet) general enough to support nested editors. This is a problem in some special cases &#x2013; e.g. when files are compared.\n
Working with editors is a lot more complicated than working with views, as they must manage a state that can be saved.\nAs editors often work with a text file, it is even more complicated. This is also illustrated in the supported packages and classes used for this.\nAll the intricate details of working with editors are part of the modules &#x201C;L0040 - Creating an Editor&#x201D; and &#x201C;L0042 - Creating a Language Editor&#x201D;.\n\nWorking with standard views, such a Problems, Outline and the Package Explorer, is covered in the module &#x201C;L0043 - Interfacing to Eclipse Standard Views&#x201D;.\nThe declaration and implementation of an editor extension is more complicated than corresponding view extension for a number of reasons:\nThe type of the resources must be specified. Today the file name extensions of the relevant resources are specified, but there is a move to specify the content type instead. This will make it easier to work with IEditorInputs that are not IFileEditorInputs and to work with extension-less files. The latter is important when editing command files under Unix where the command interpreter is part of the text itself and not part of the file name.\nWorking with IEditorInputs can be troublesome, as the content of the input might not be available immediately. This means the &#x201C;reading&#x201D; of the input must be put into independent threads. The same goes for saving. See the module &#x201C;L0005 - Job Management and Progress Monitors&#x201D; for more information on how to &#x201C;do things&#x201D; in the background.\nWorking with text-based editors is a chapter in itself. Please refer to the module &#x201C;L0040 - Creating an Editor&#x201D; for more information.\n
Please note that IEditorInput.equals(&#x2026;) is used to determine if two editor inputs refer to the same underlying resource. This in turn is used to avoid opening the same resource multiple times.\n
An editor is only created if needed, just like views.\nAll of the methods listed above are mandatory.\nIf you really need an editor, using the Extension template for the extension point provides a good starting point.\n
Now it&#x2019;s time for the lab.\nThe exercise is easy: create a view using UI designer such as SWT Designer or the Visual Editor. Try to simulate as close as possible one of the views on the page.\nThe three dialogs are\nTop left: The general preference page (&#x201C;Windows&#x201D;&#x2192;&#x201D;Preferences&#x2026;&#x201D;)\nRight: The search dialog\nBottom left: The layout customization dialog for GridLayout in VE.\n
\n
\n
\n
\n
Each workbench window contains one or more perspectives in the form of workbench pages. A perspective defines the initial set and layout of views in the workbench window. \nThere can never be more than one editor in any perspective, but it is possible to hide the editor in specific perspectives.\nThe active set of perspectives is shown in the perspective switcher. It is possible to specify a set or perspective that will be shown at top of the list when the &#x201C;Show Perspective&#x201D; button is shown.\nLikewise it is possible to specify a set of &#x201C;new&#x201D; wizards and views to be shown in their respective menus.\nPerspectives control what appears in certain menus and tool bars. They define visible action sets, which you can change to customize a perspective. You can save a perspective that you build in this manner, making your own custom perspective that you can open again later.\nFor RCP-based applications the use of perspectives can make the difference between a messy application and an application that is intuitive. Thinking in turns on tasks or use-cases usually provides the most intuitive set of perspectives. E.g.\nMail\nCalendar\nCRM (often more than one perspective)\nCurrent tasks and deadlines\nTime management\nInternal news and notice board\nManuals and procedures\nEtc&#x2026;\n
The perspective of the Eclipse IDE is probably the best source of how to set up perspectives. Nearly all possible layouts can be found here!\n
Perspectives are an additional organizational layer inside a workbench window. A perspective defines a collection of views, a layout for the views, and the visible action sets that should be used when the user first opens the perspective.\n
\n
Designing the visual layout of a new perspective can seem difficult at first, but by following the simple rules above nearly any layout can be generated. Holes can even be added. The next slide contains a real-world example.\nFor a vertical split, the part on top gets the specified ratio of the current space and the part on bottom gets the rest. Likewise, for a horizontal split, the part at left gets the specified ratio of the current space and the part at right gets the rest.\nA few types of layout cannot be created this way &#x2013; like the example shown above. Currently there is no way to create this as an initial layout. To my knowledge it is not even possible to re-arrange a perspective into this layout!\nAll this really should be an addition to the extension, but for now code is required. See org.eclipse.ui.perspectiveExtensions for an example of how it could be done.\nA simple trick: use the perspectives extension point to define the perspective (this requires the implementation of IPerspectiveFactory which can then be empty) and then use perspectiveExtensions to add the views in a declarative manner. It is not possible to specify everything this way &#x2013; e.g. whether an editor is shown or hidden.\n
\n
Step by step we have:\nLine 3: we have a virgin layout, which by definition contains exactly the editor.\nLine 4: we have removed the editor &#x2013; or rather made it &#x201C;invisible&#x201D;.\nLine 5: we have added view#1 to the left of the (invisible) editor. It will take up 100% of the original areas &#x2013; i.e. all of it! Note that it could just as well have been on the right side of the (invisible) editor.\nLine 6: we have added view#2 to the left of view#1. It will take 66% of the space originally taken by view#1.\nLine 7: we have added view#3 to the bottom of view#2. It will take 25% of the space originally taken by view#2. This means 75% will be taken by the (existing) TOP view.\nLine 8: we have added view#4 to the left of view#2. It will take 50% of the space originally taken by view#2.\nResult should be that view#1, view#2 and view#4 have the same width (or very close to).\nThe trick is to continuously divide a part into two new parts according to the specification. \n
If it seems difficult to design a specific perspective, then have a look at one of the existing perspectives from Eclipse IDE!\nWhen a view is added as a placeholder it does not show up until it is explicitly added by the user. As all views are added by ID, the view does not even have to be implemented in the current executable.\n
One may wonder why the specification of a perspective cannot be performed using the same type of extension point. With a simple trick this can be done, though:\nFirst create the perspective as usual and simply hide or show the editor.\nPerform the rest of the configuration via the perspectiveExtensions extension point.\n
Now it&#x2019;s time for the lab.\n
Now it&#x2019;s time for the lab.\n
As can be seen the workbench window is the interesting item that is needed first. From this the current active workbench page is found (which corresponds to the current perspective).\nThe IDE class contains a large number of methods that can be used to open a new editor depending on the available information.\n
