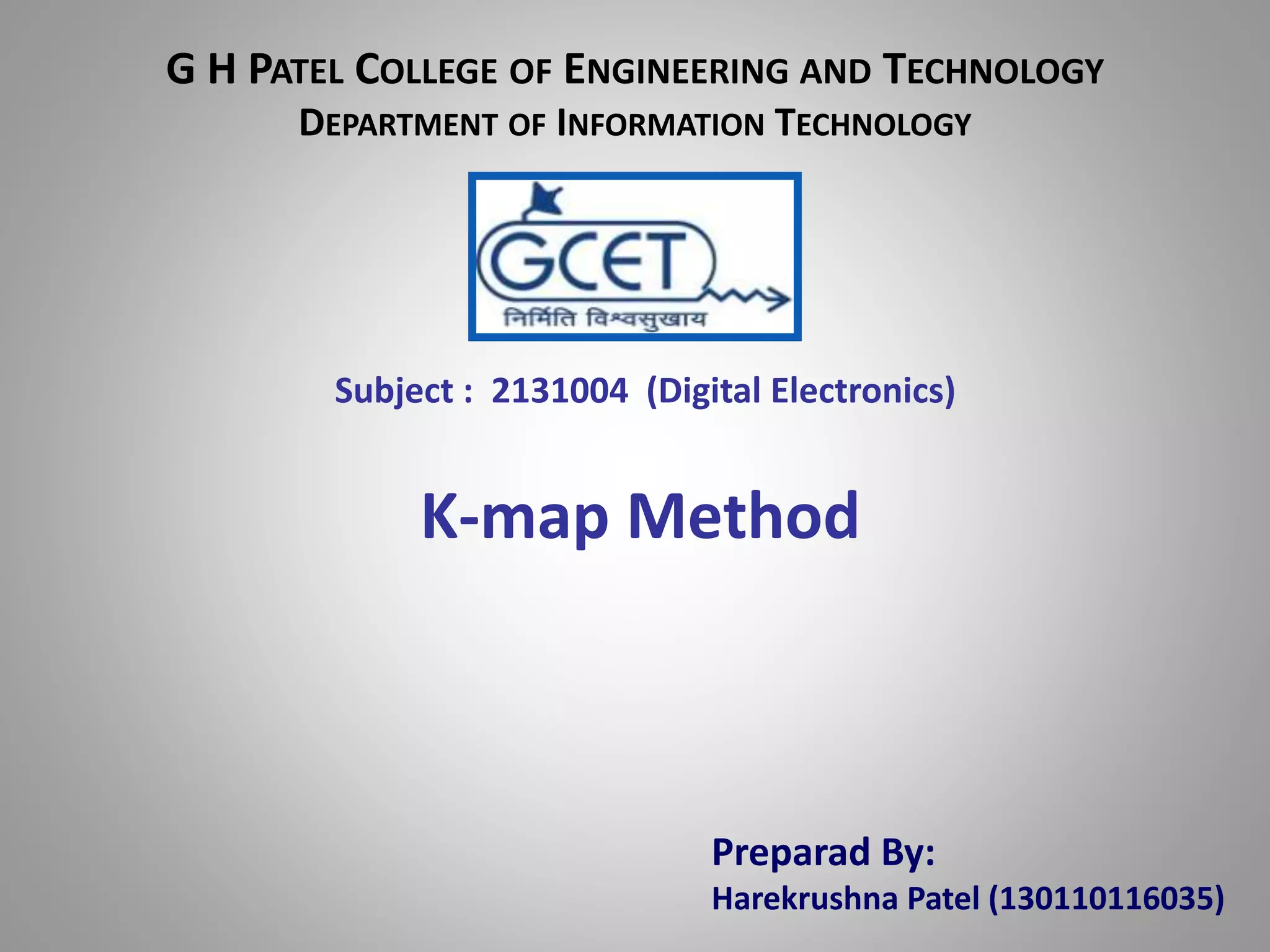

1. G H PATEL COLLEGE OF ENGINEERING AND TECHNOLOGY
DEPARTMENT OF INFORMATION TECHNOLOGY
Subject : 2131004 (Digital Electronics)
K-map Method
Preparad By:
Harekrushna Patel (130110116035)

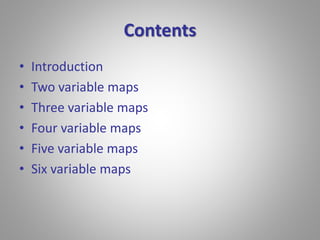

2. Contents
• Introduction
• Two variable maps
• Three variable maps
• Four variable maps
• Five variable maps
• Six variable maps

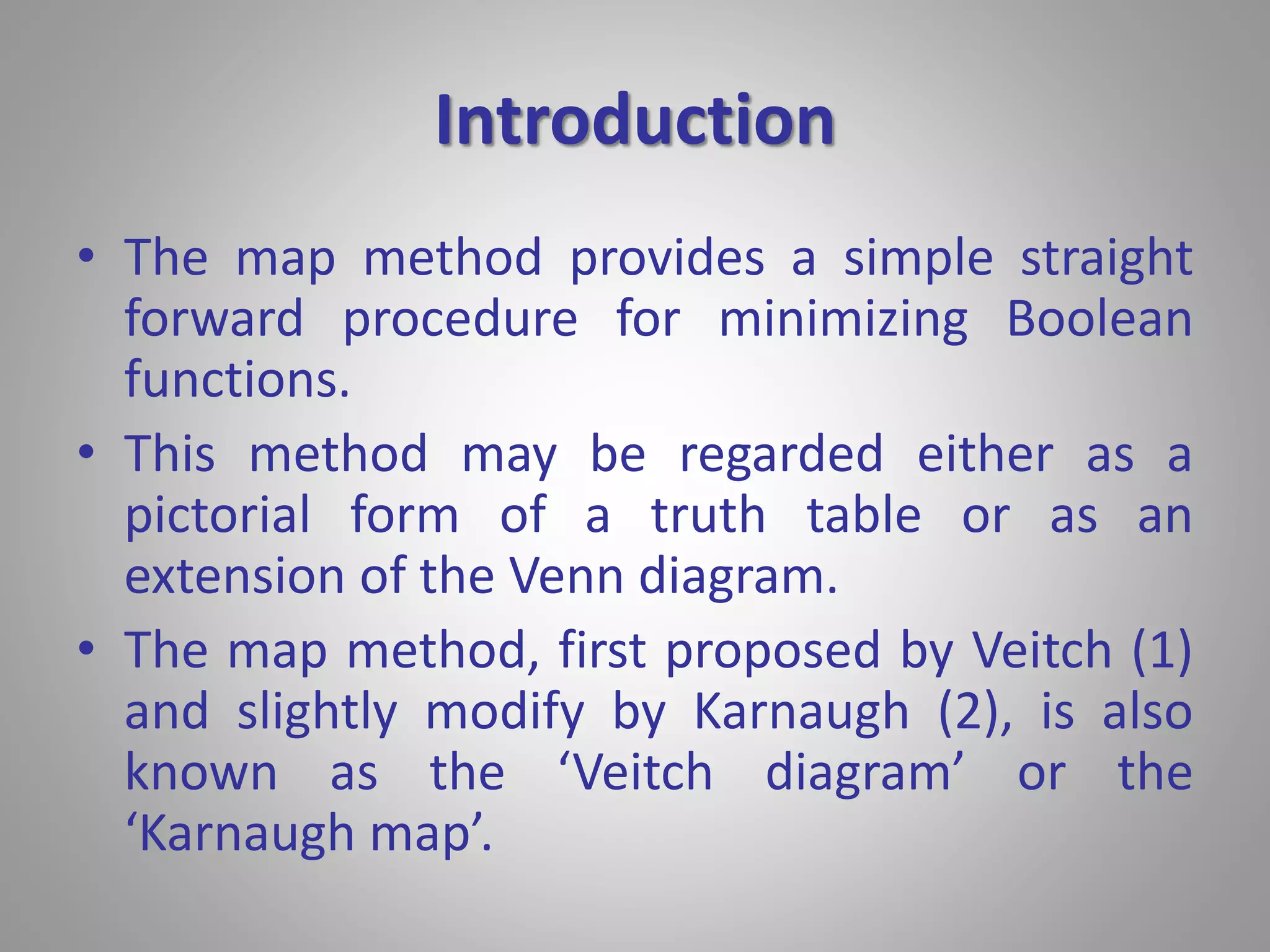

3. Introduction
• The map method provides a simple straight
forward procedure for minimizing Boolean
functions.
• This method may be regarded either as a
pictorial form of a truth table or as an
extension of the Venn diagram.
• The map method, first proposed by Veitch (1)
and slightly modify by Karnaugh (2), is also
known as the ‘Veitch diagram’ or the
‘Karnaugh map’.
4. Cont.

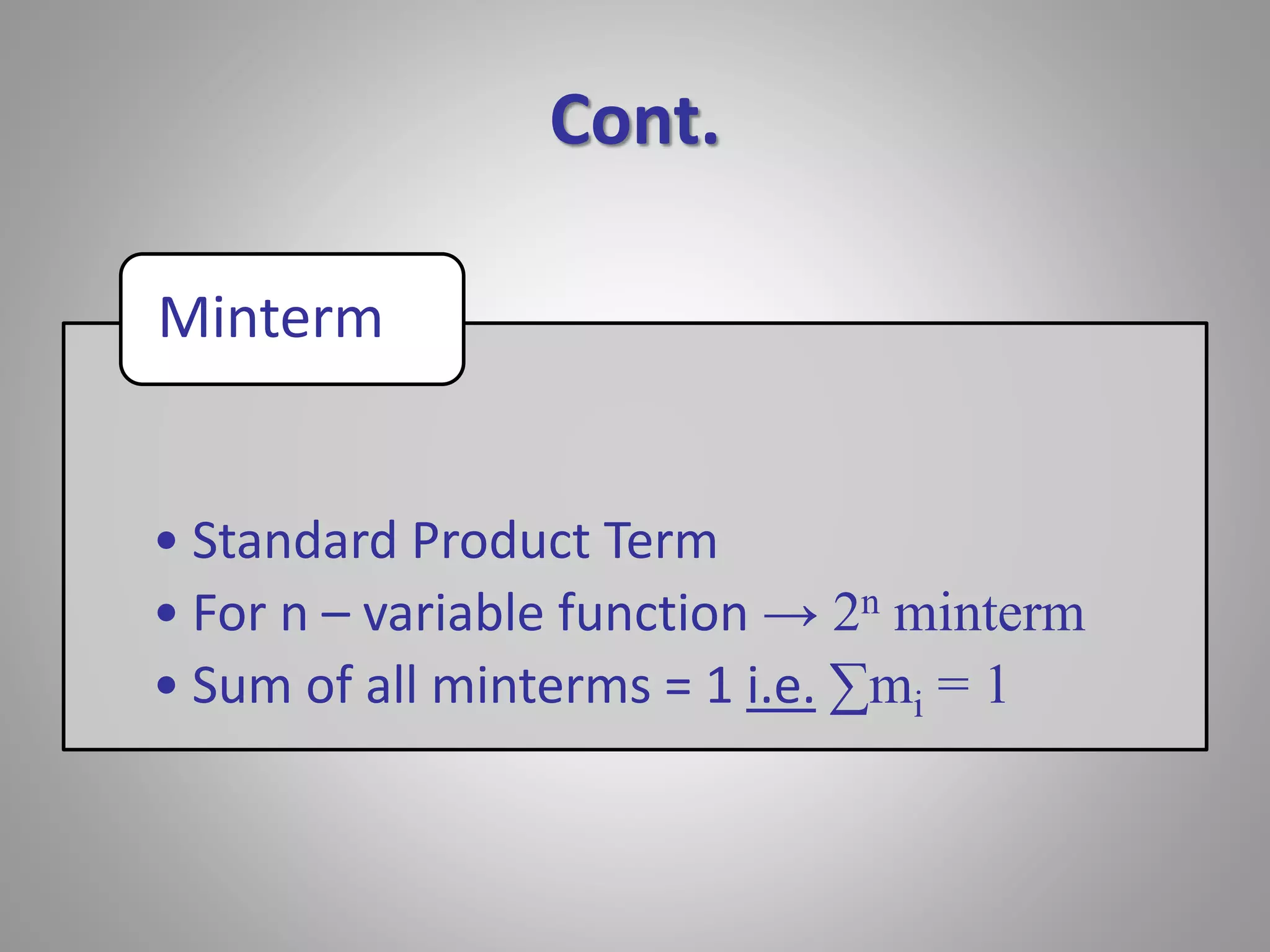

Minterm
• Standard Product Term
• For n – variable function → 2n minterm
• Sum of all minterms = 1 i.e. Σmi = 1
5. Cont.

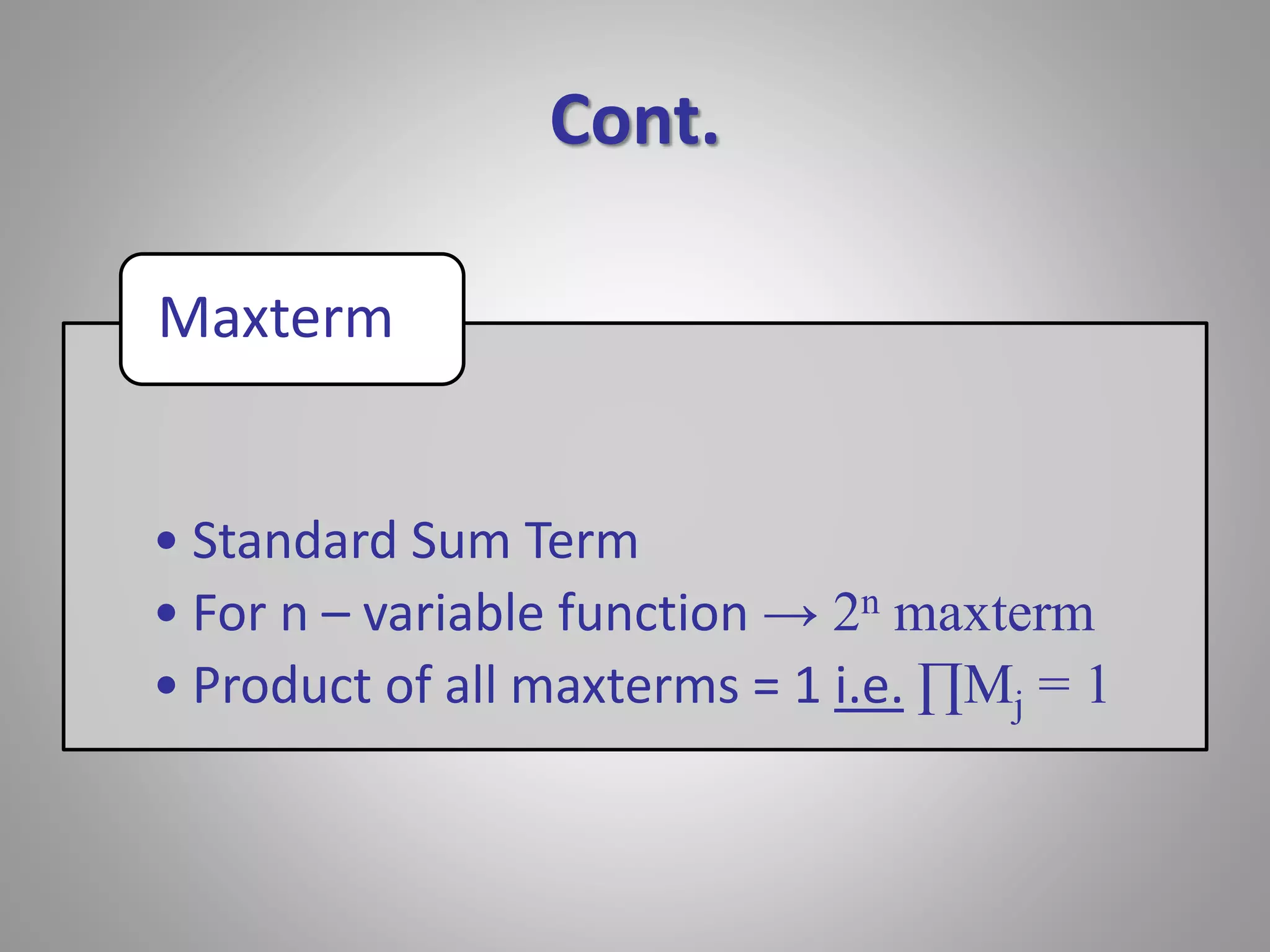

Maxterm
• Standard Sum Term
• For n – variable function → 2n maxterm
• Product of all maxterms = 1 i.e. ΠMj = 1
6. Cont.

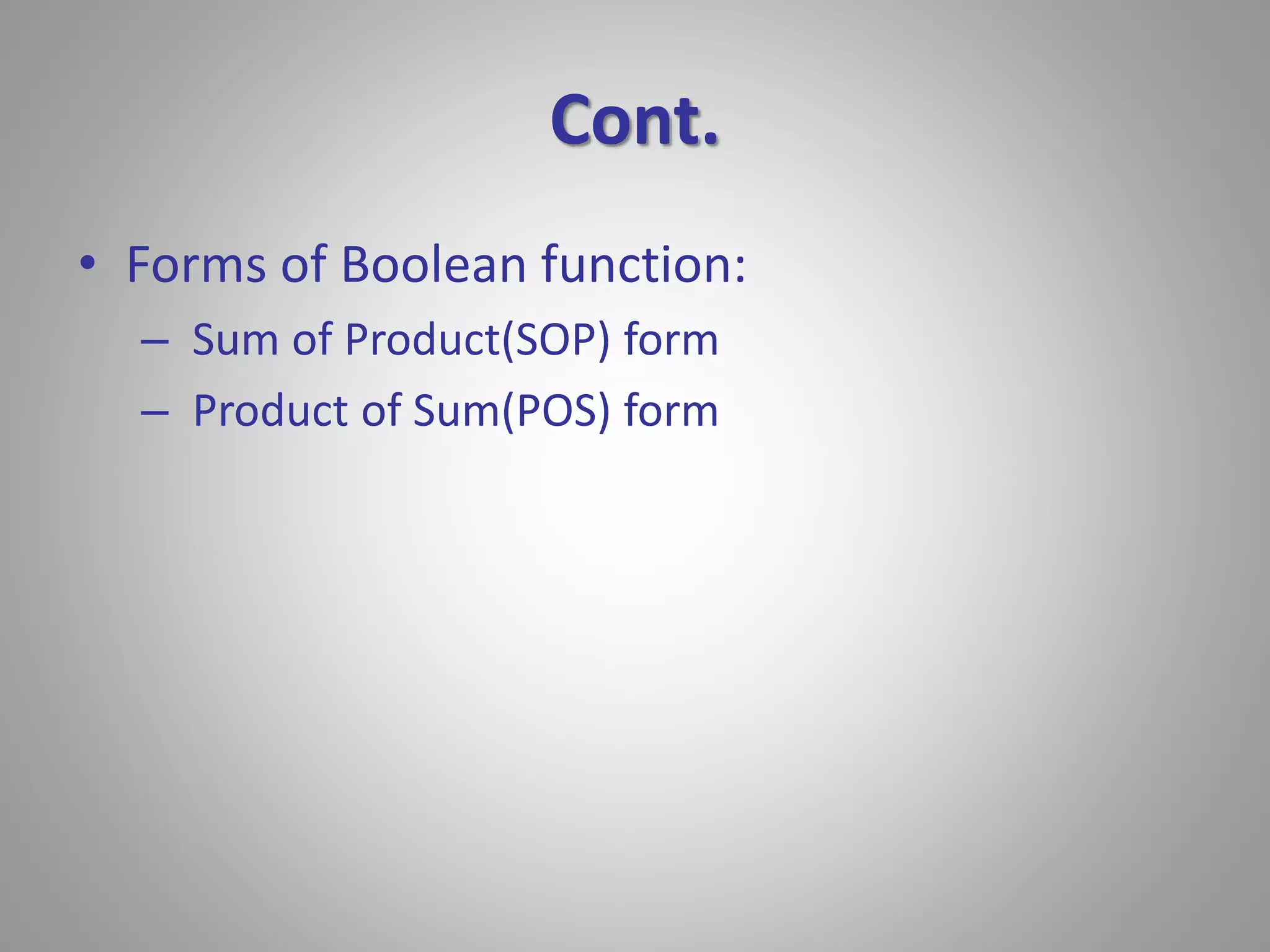

• Forms of Boolean function:
– Sum of Product(SOP) form
– Product of Sum(POS) form
7. Cont.

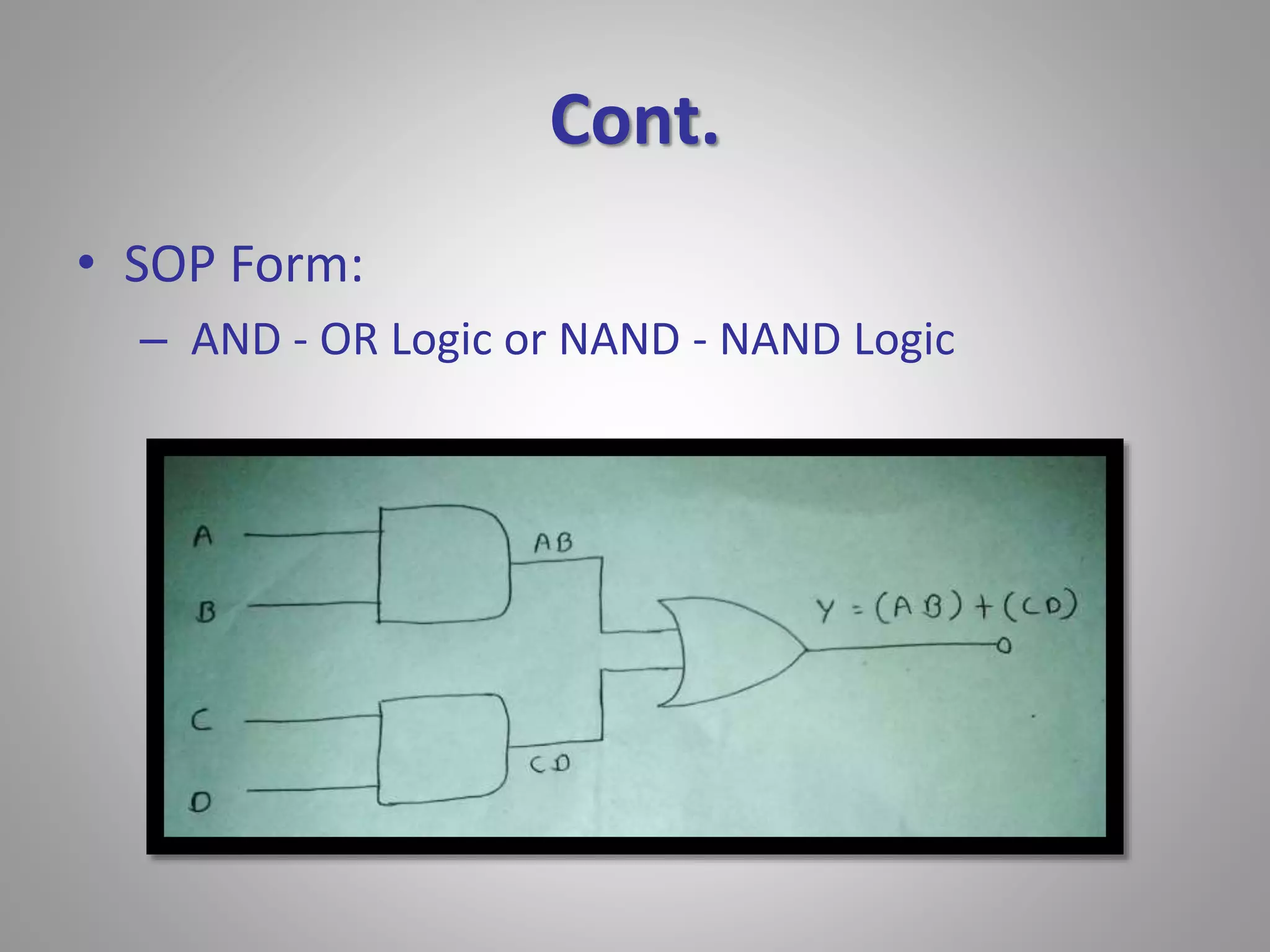

• SOP Form:
– AND - OR Logic or NAND - NAND Logic
8. Cont.

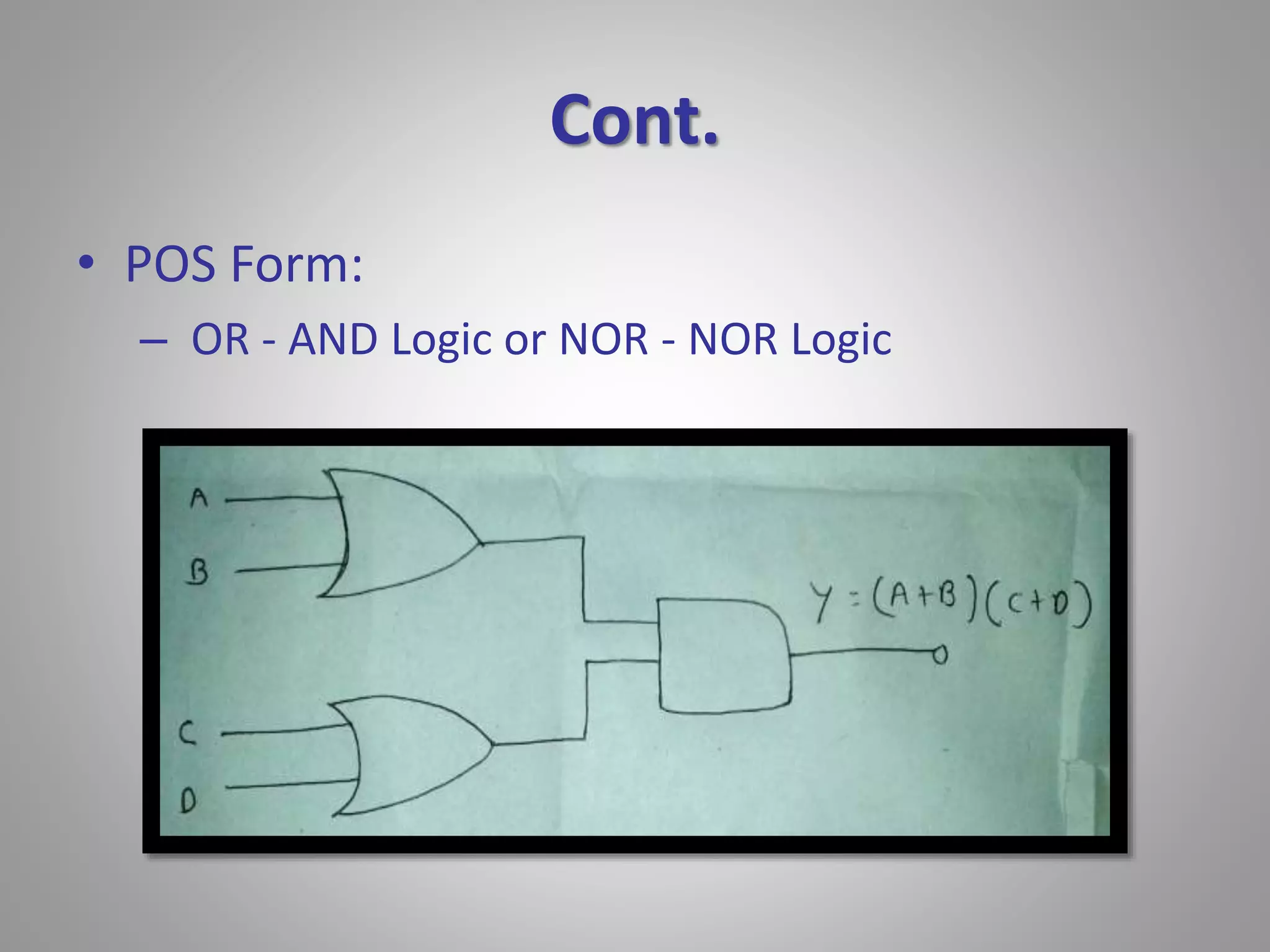

• POS Form:
– OR - AND Logic or NOR - NOR Logic
9. Rules
• No zeros allowed.
• No diagonals.
• Only power of 2 number of cells in each
group.
• Groups should be as large as possible.
• Every 1 must be in at least one group.
• Overlapping allowed.
• Wrap around allowed.
• Fewest number of groups possible.

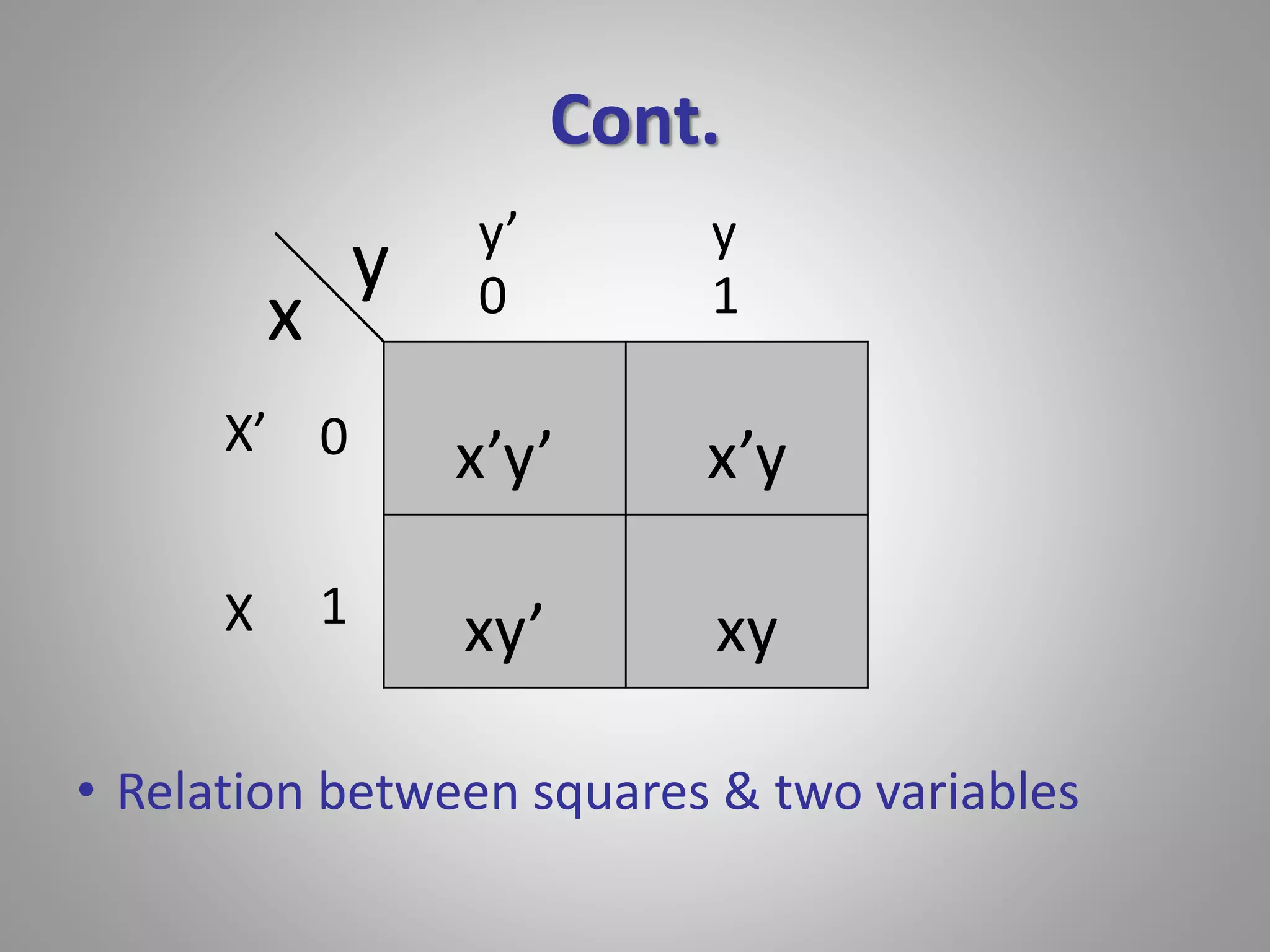

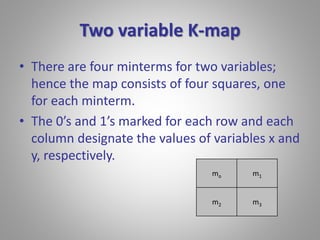

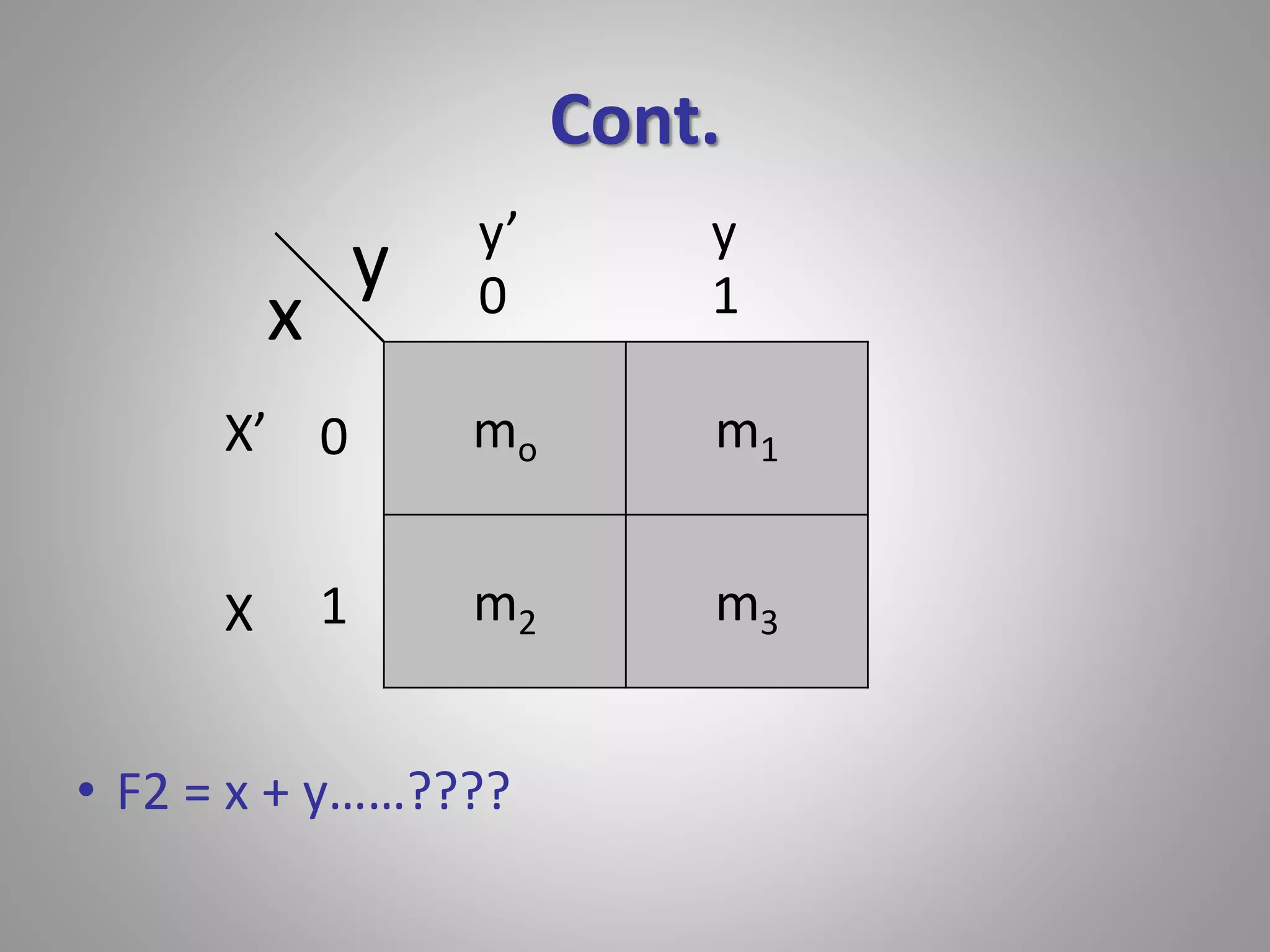

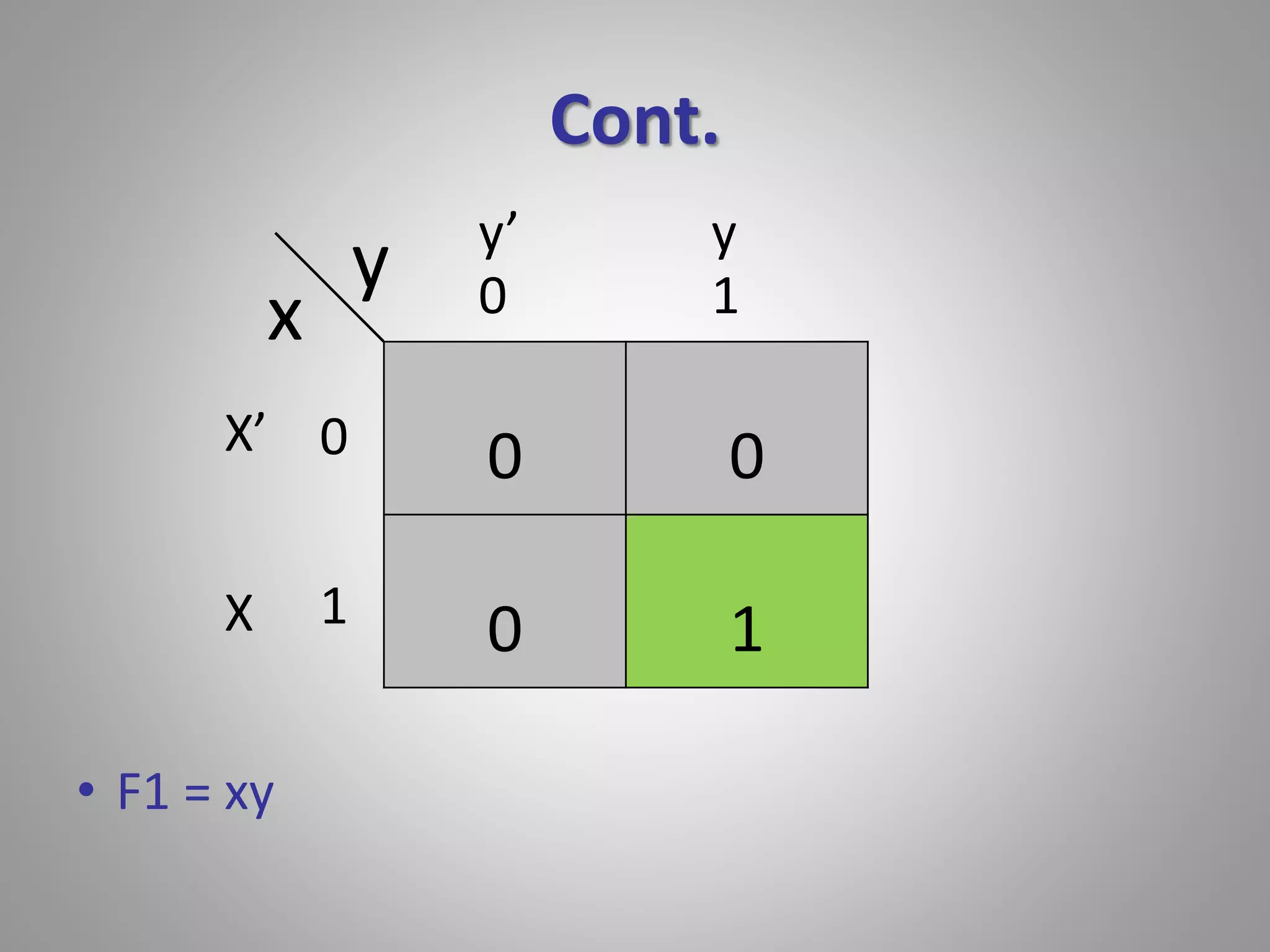

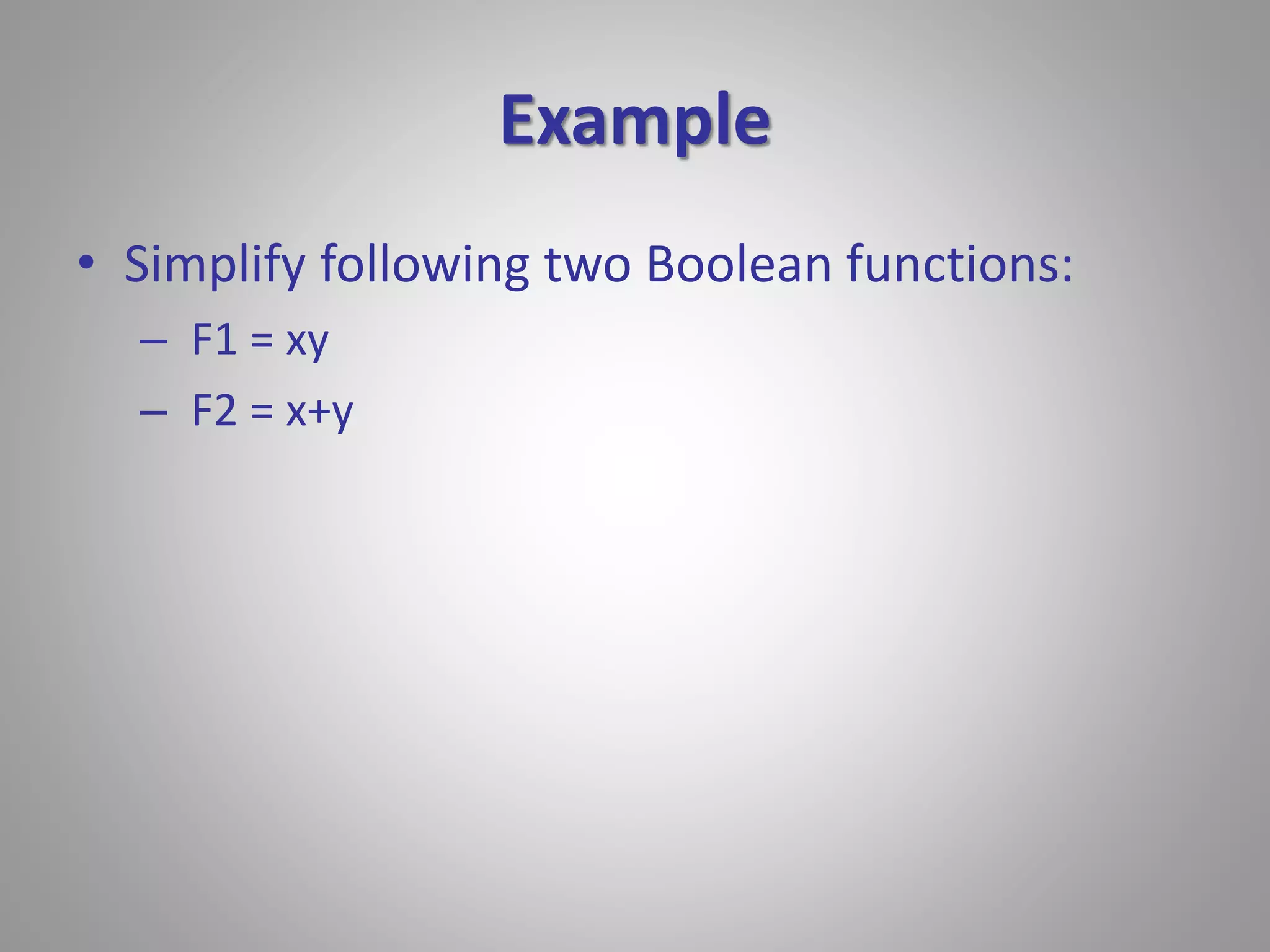

10. Two variable K-map

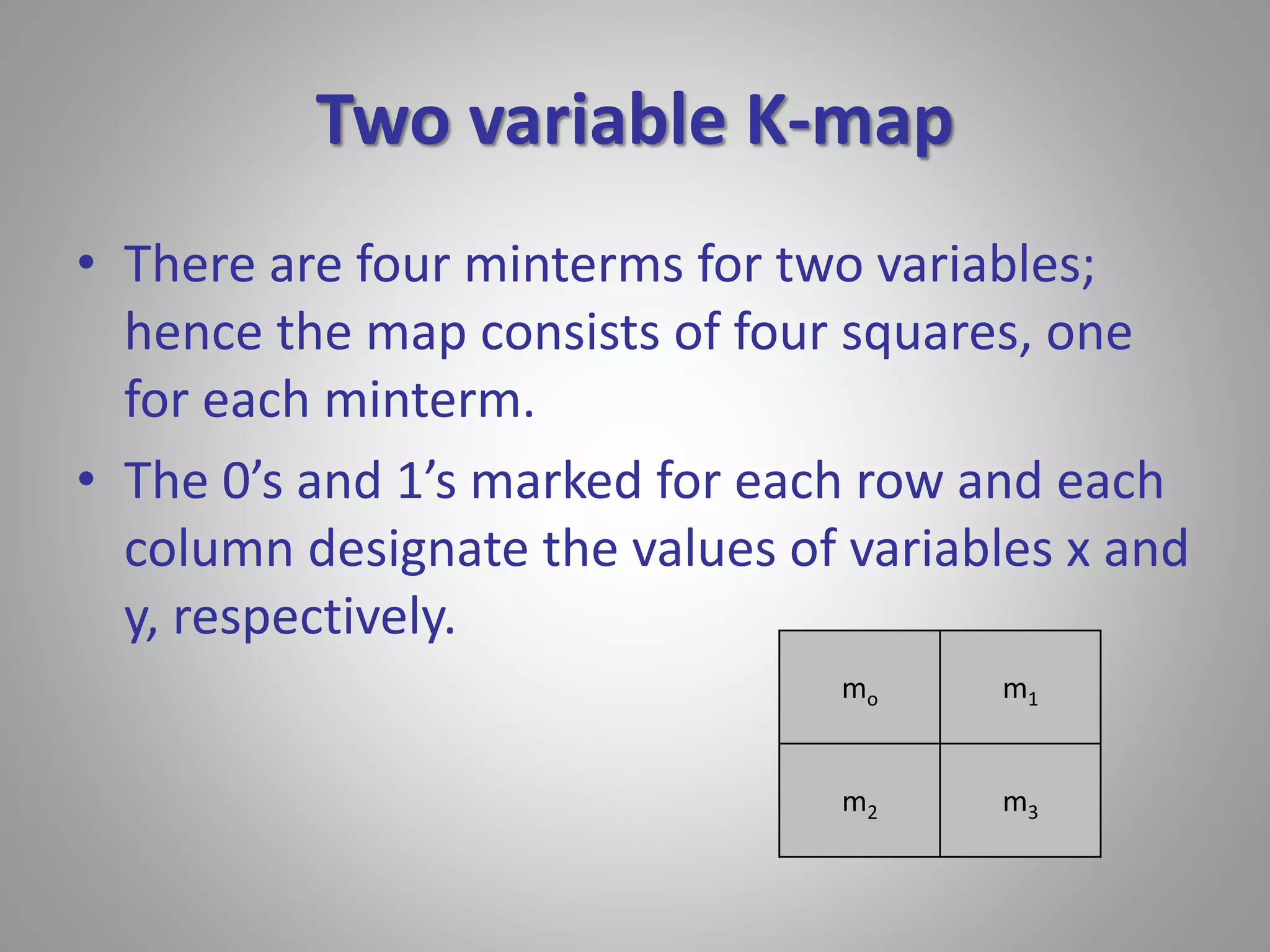

• There are four minterms for two variables;
hence the map consists of four squares, one
for each minterm.

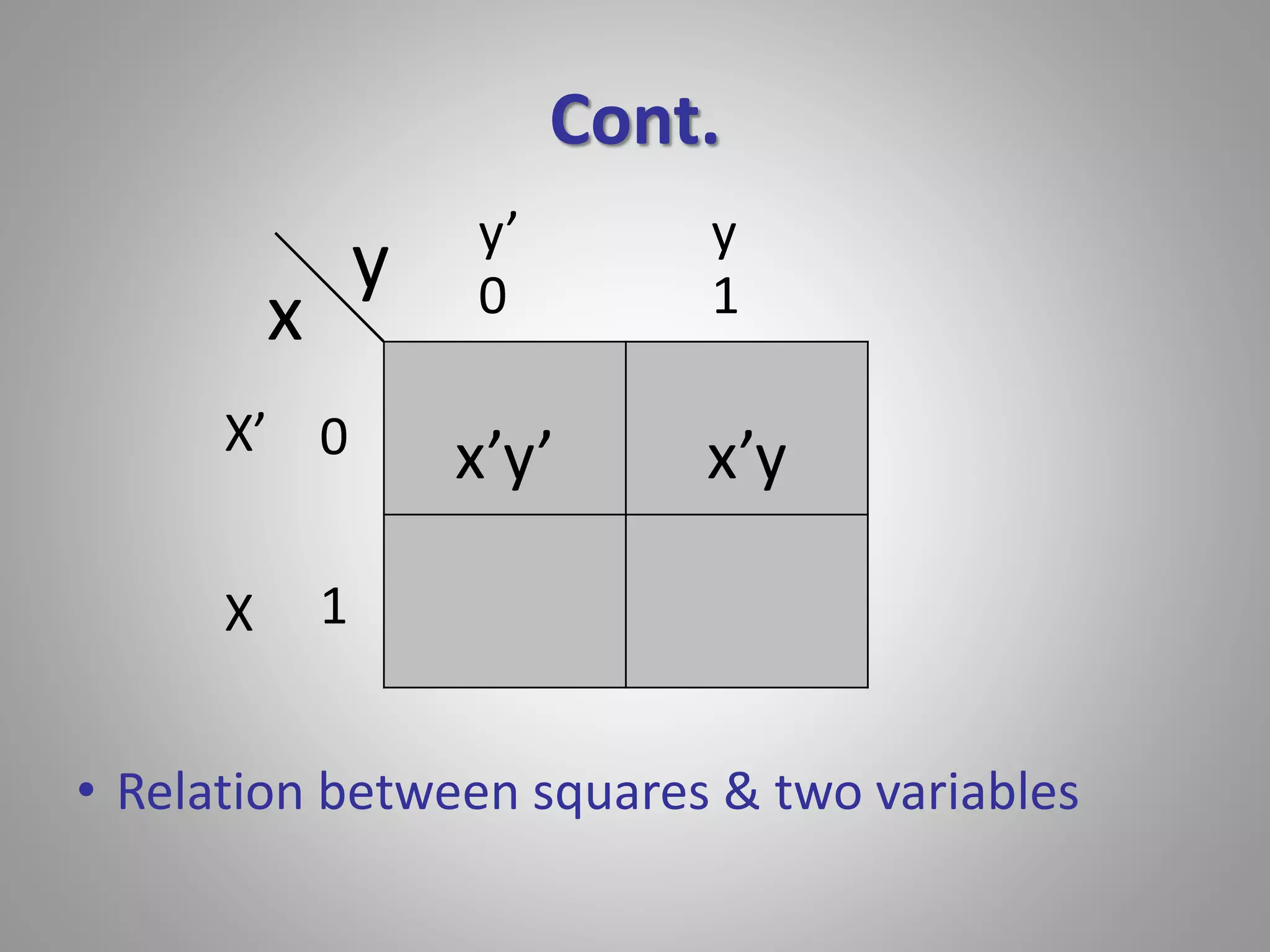

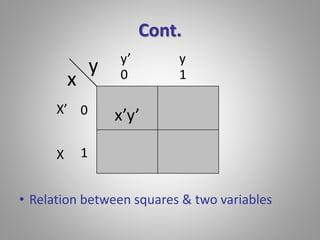

• The 0’s and 1’s marked for each row and each
column designate the values of variables x and
y, respectively.

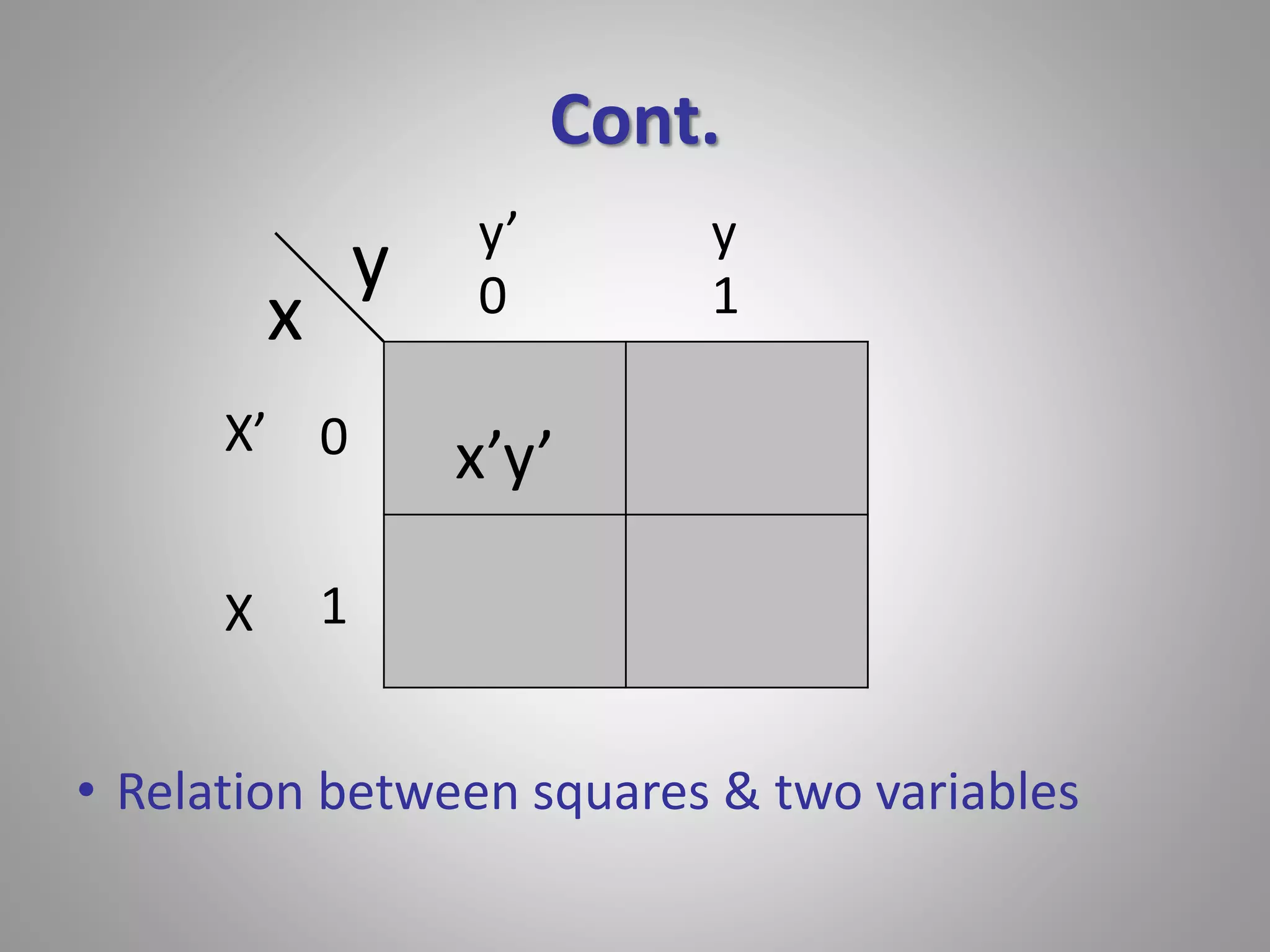

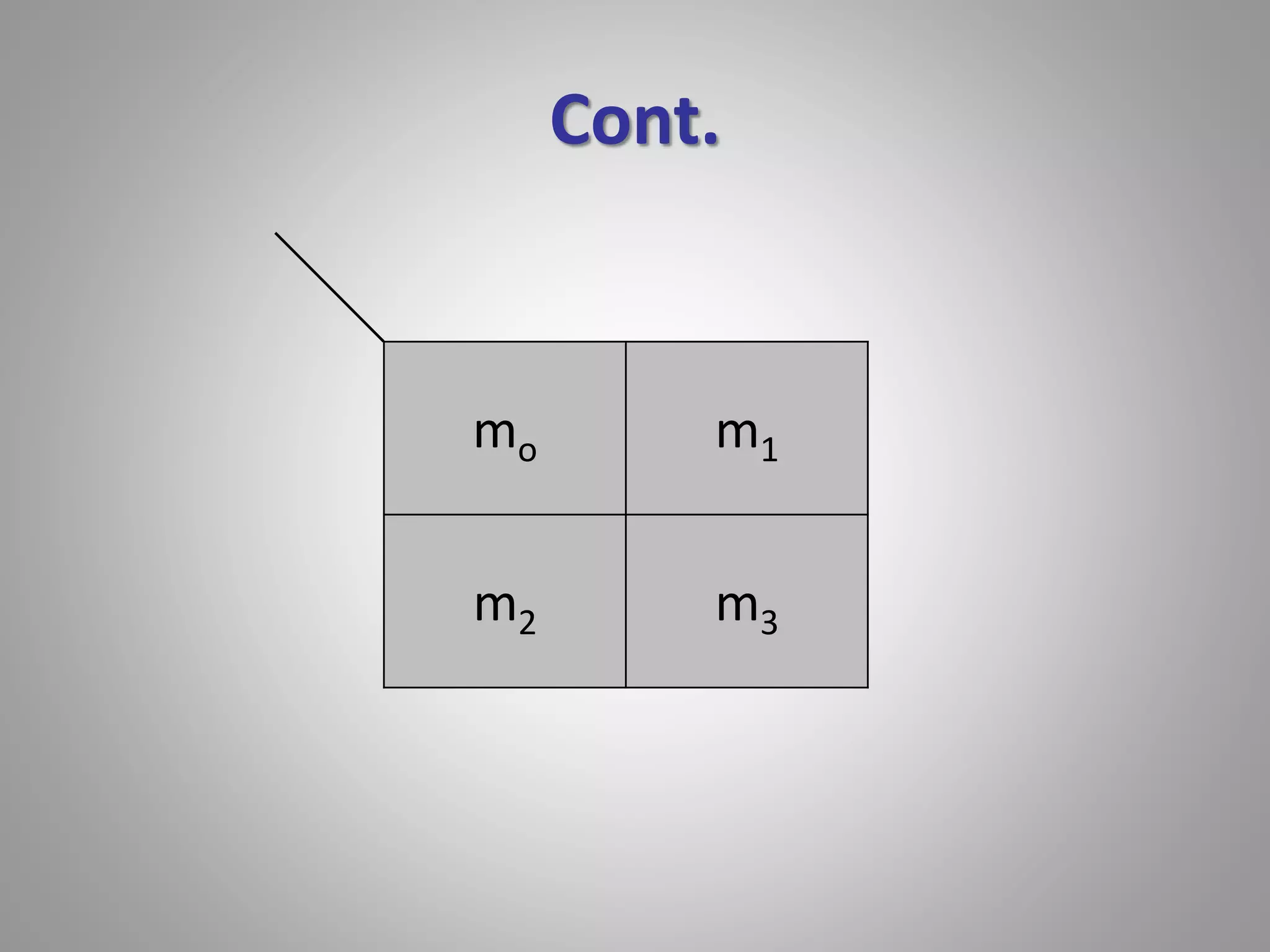

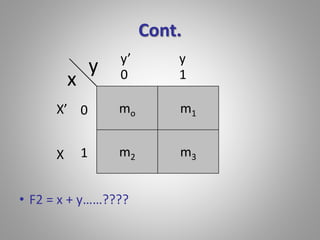

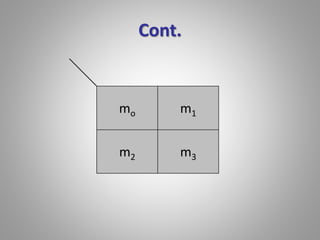

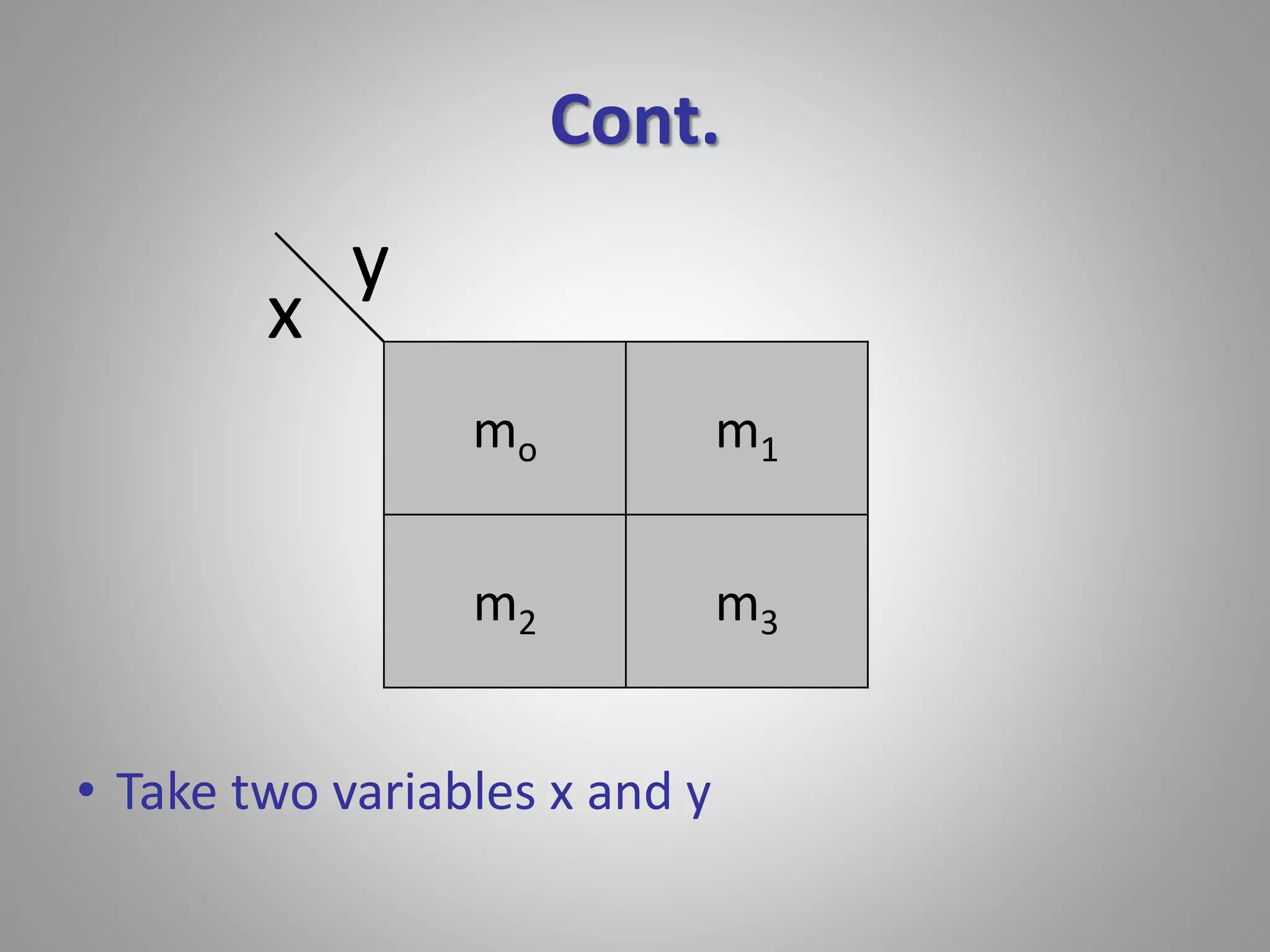

mo m1
m2 m3

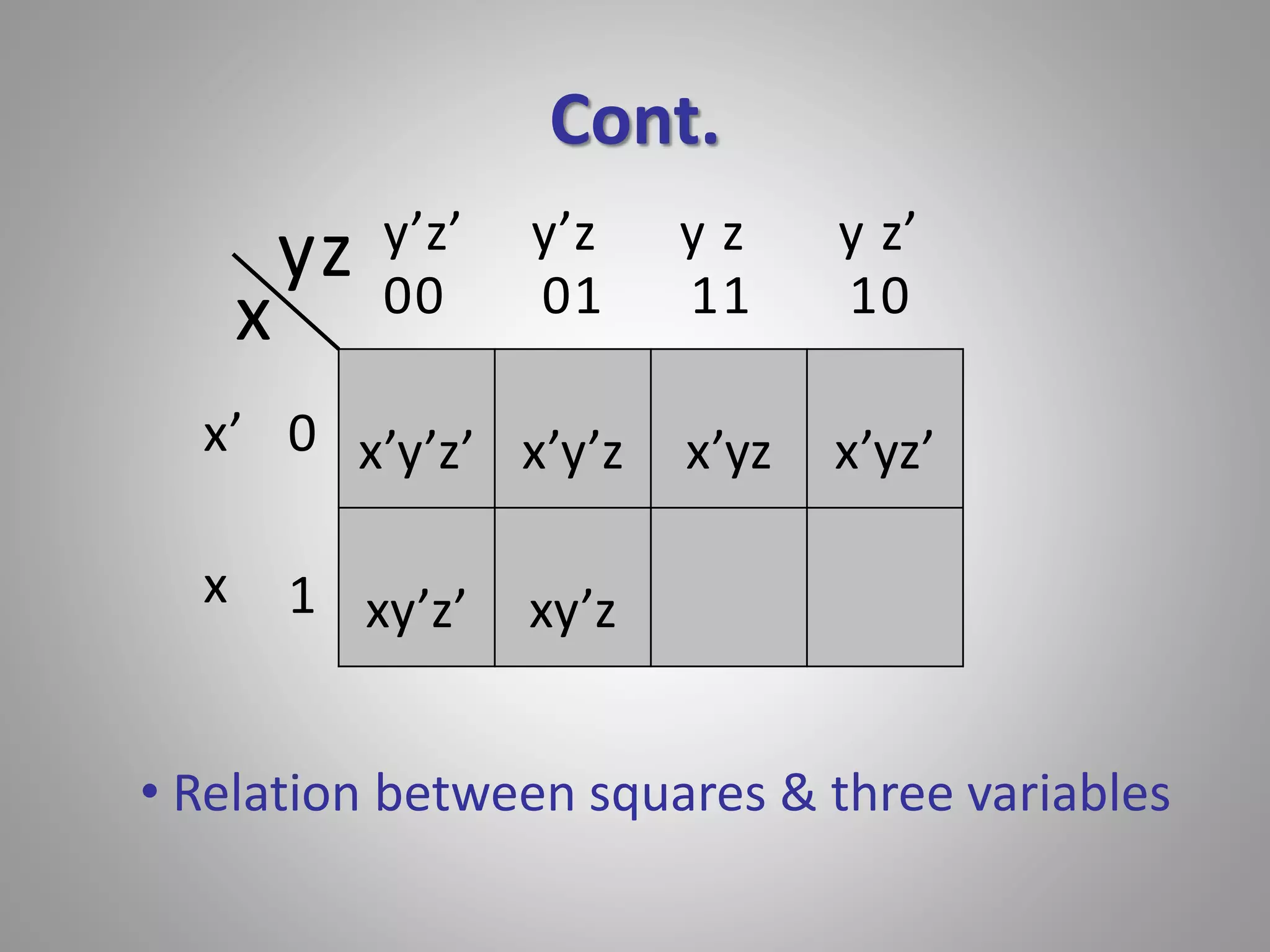

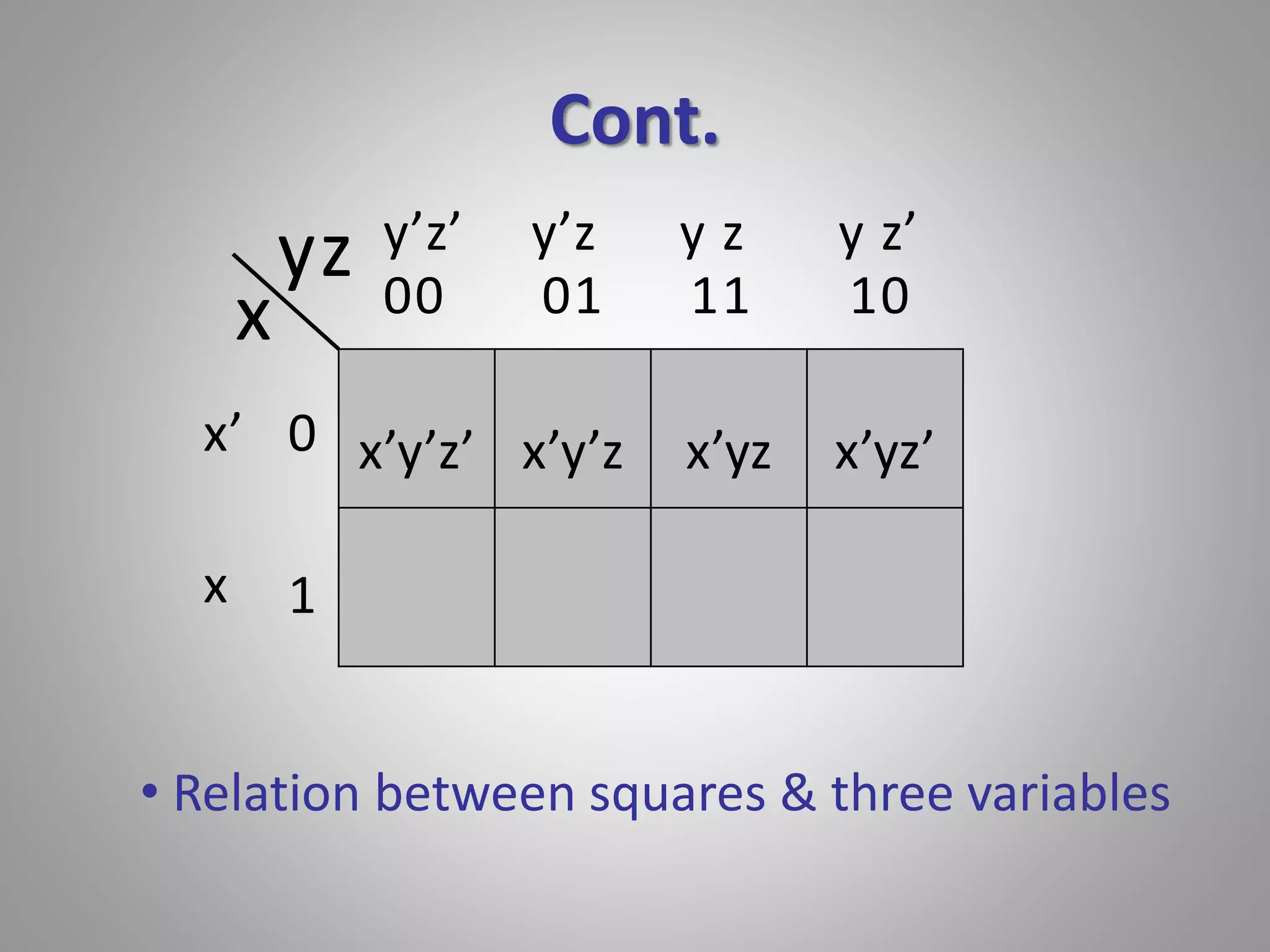

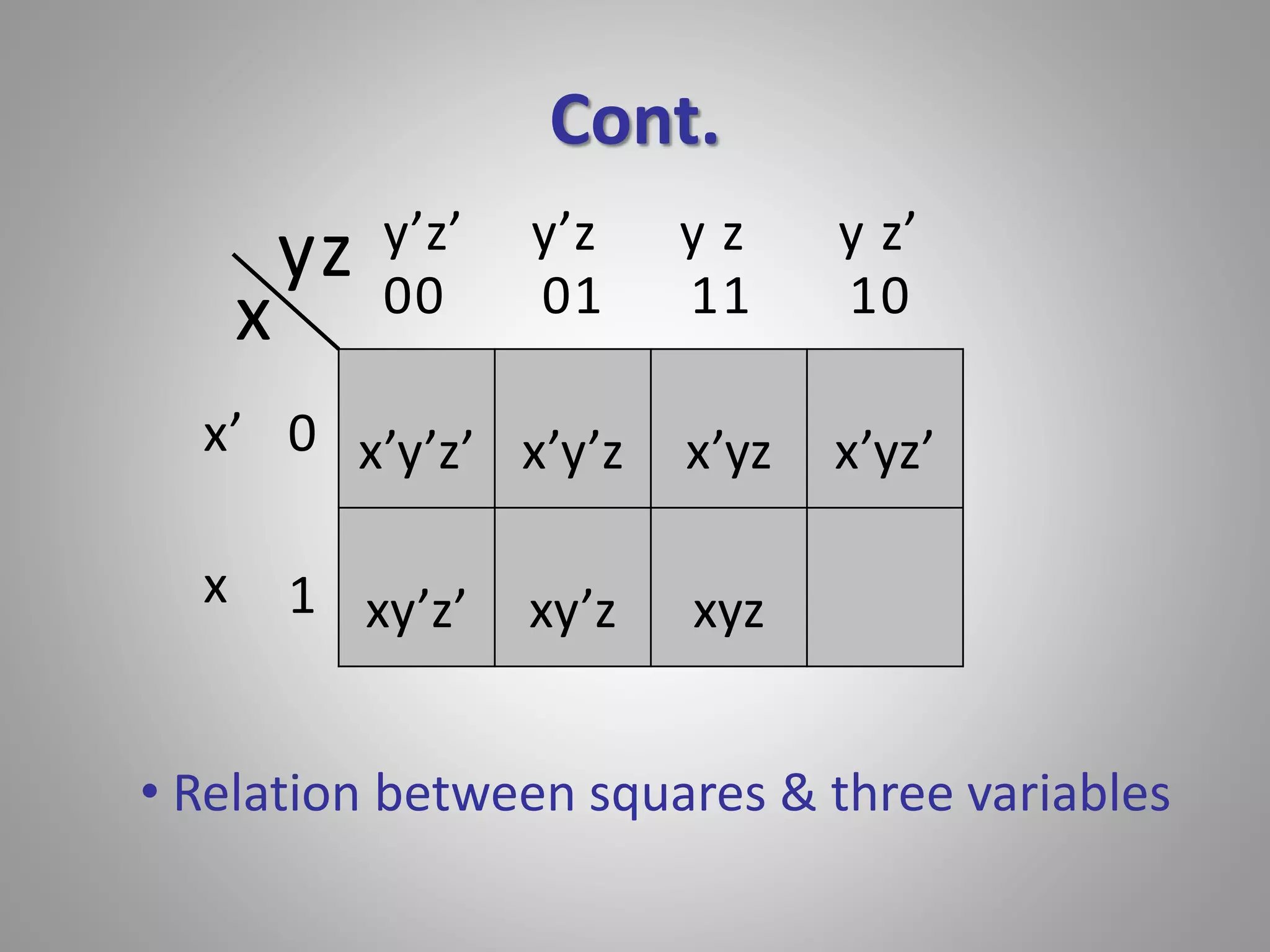

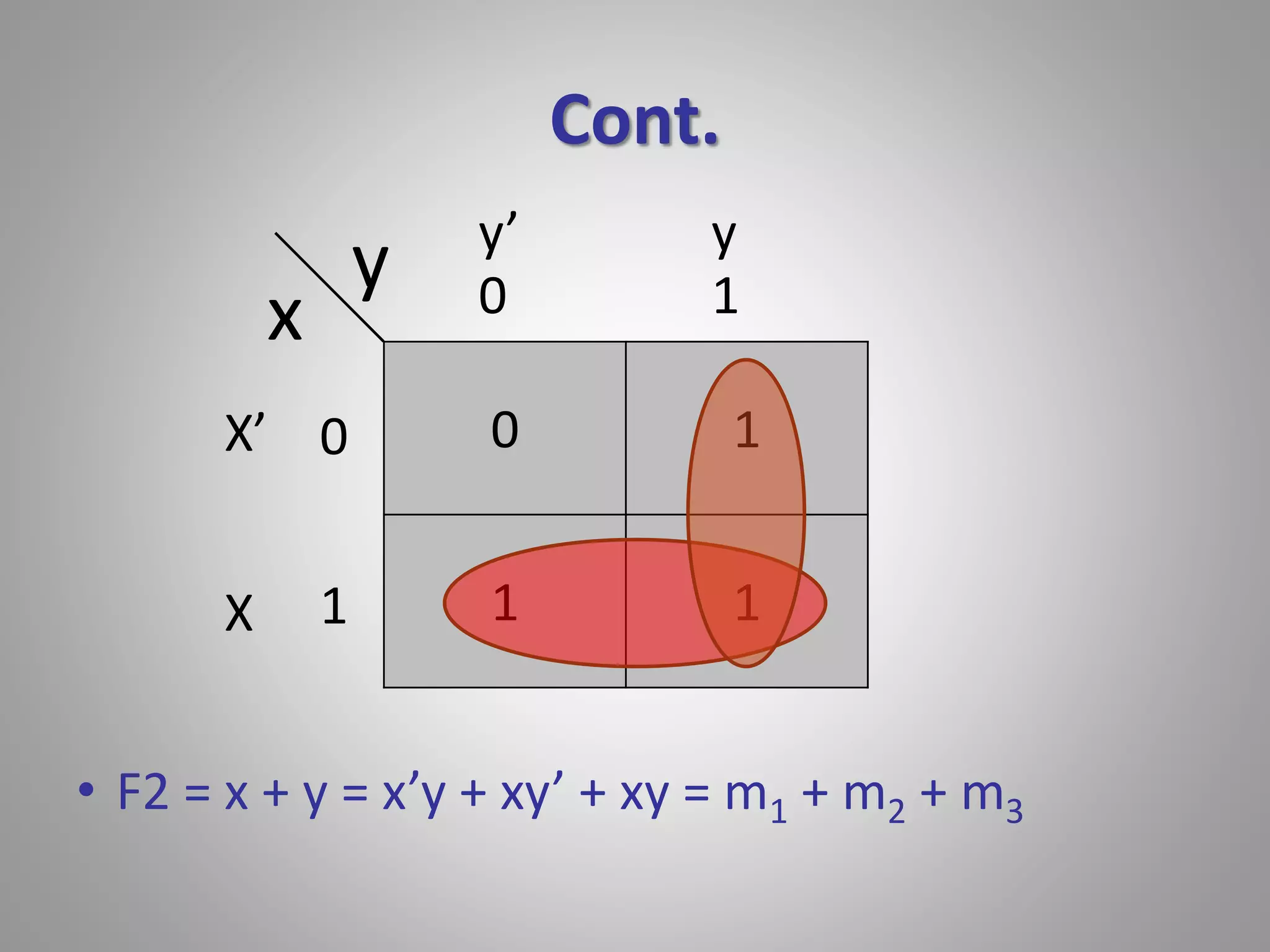

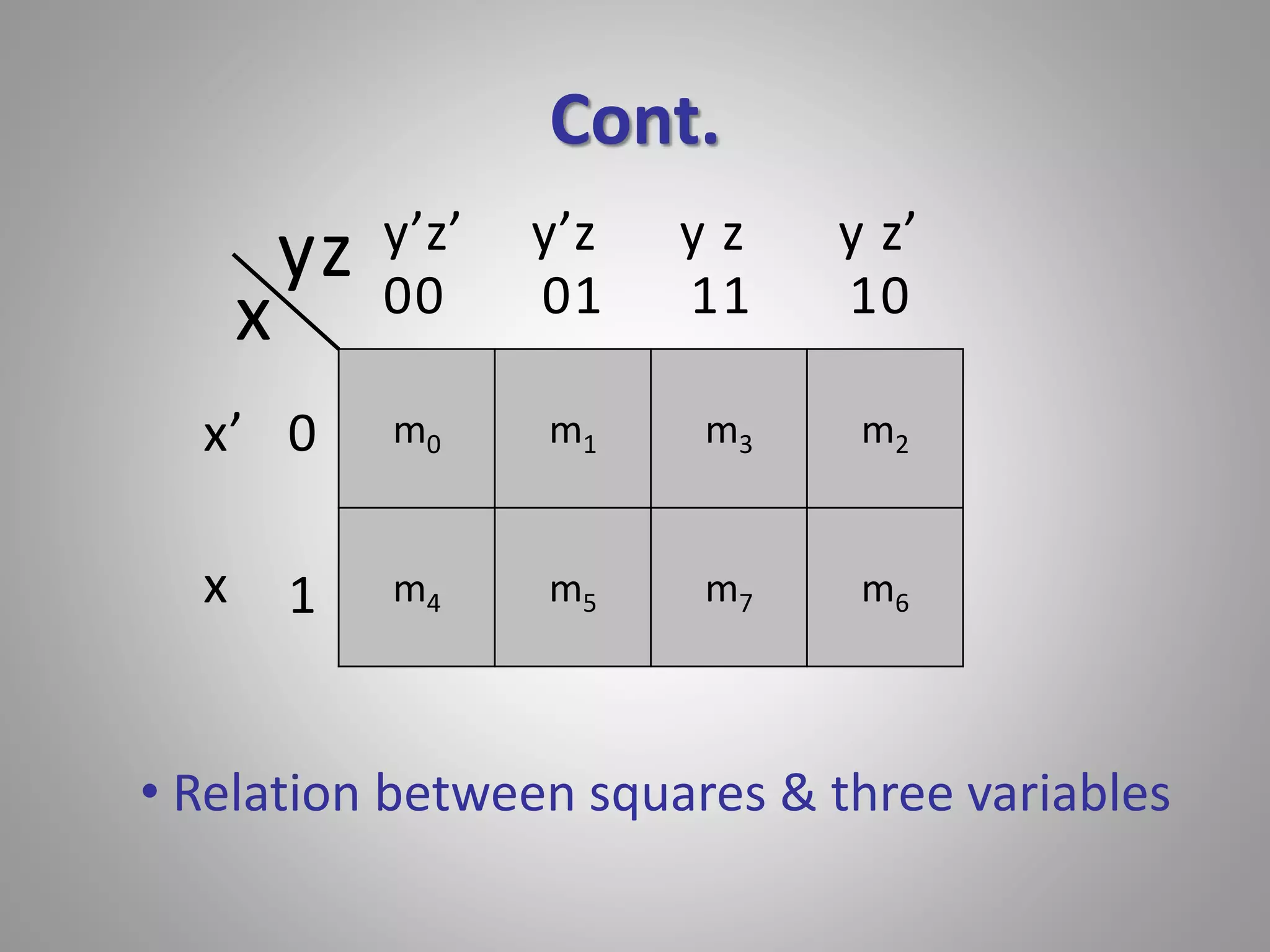

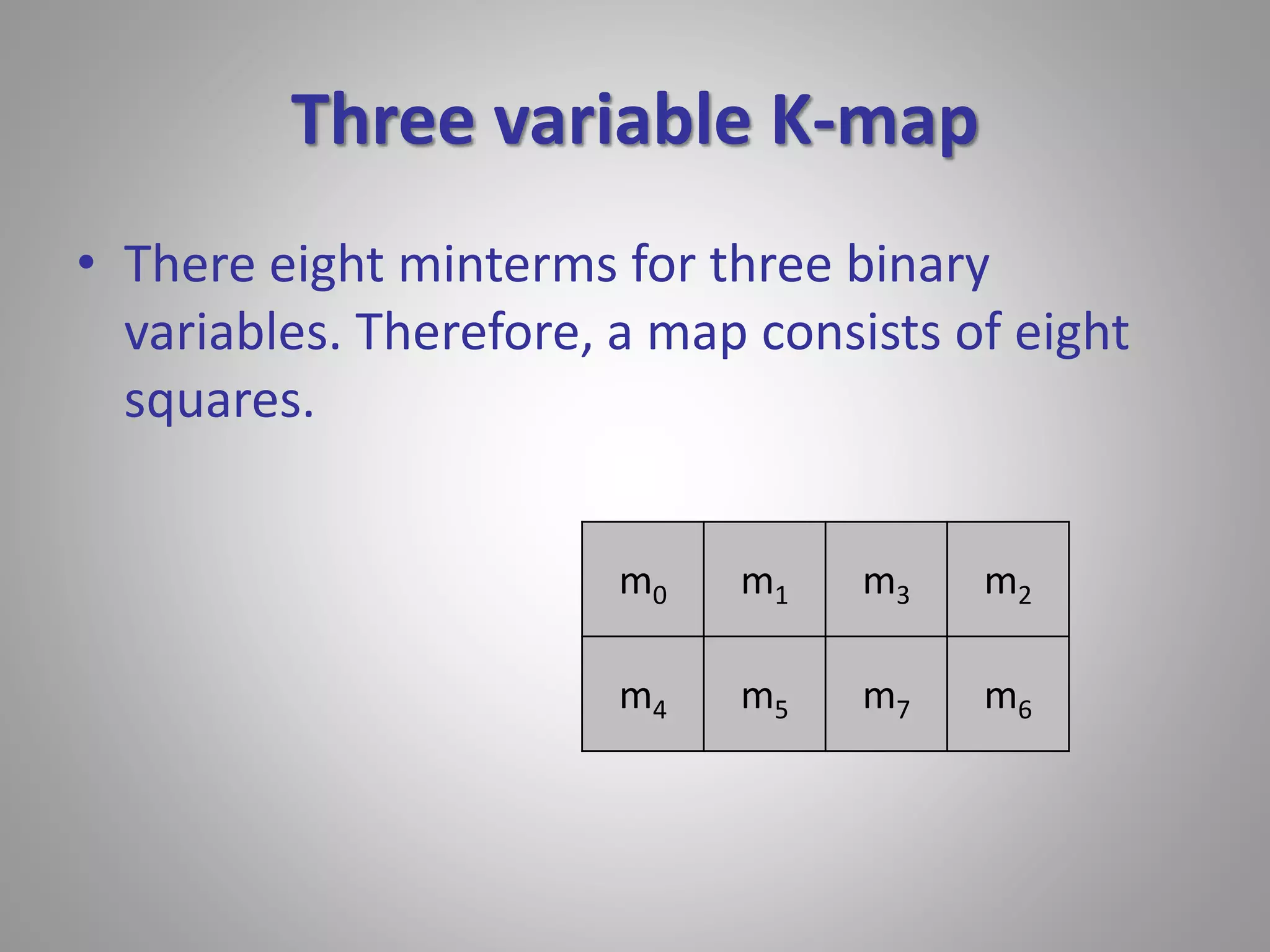

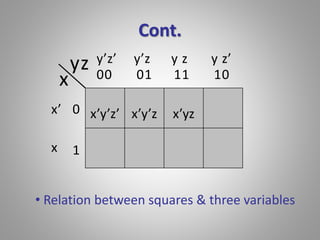

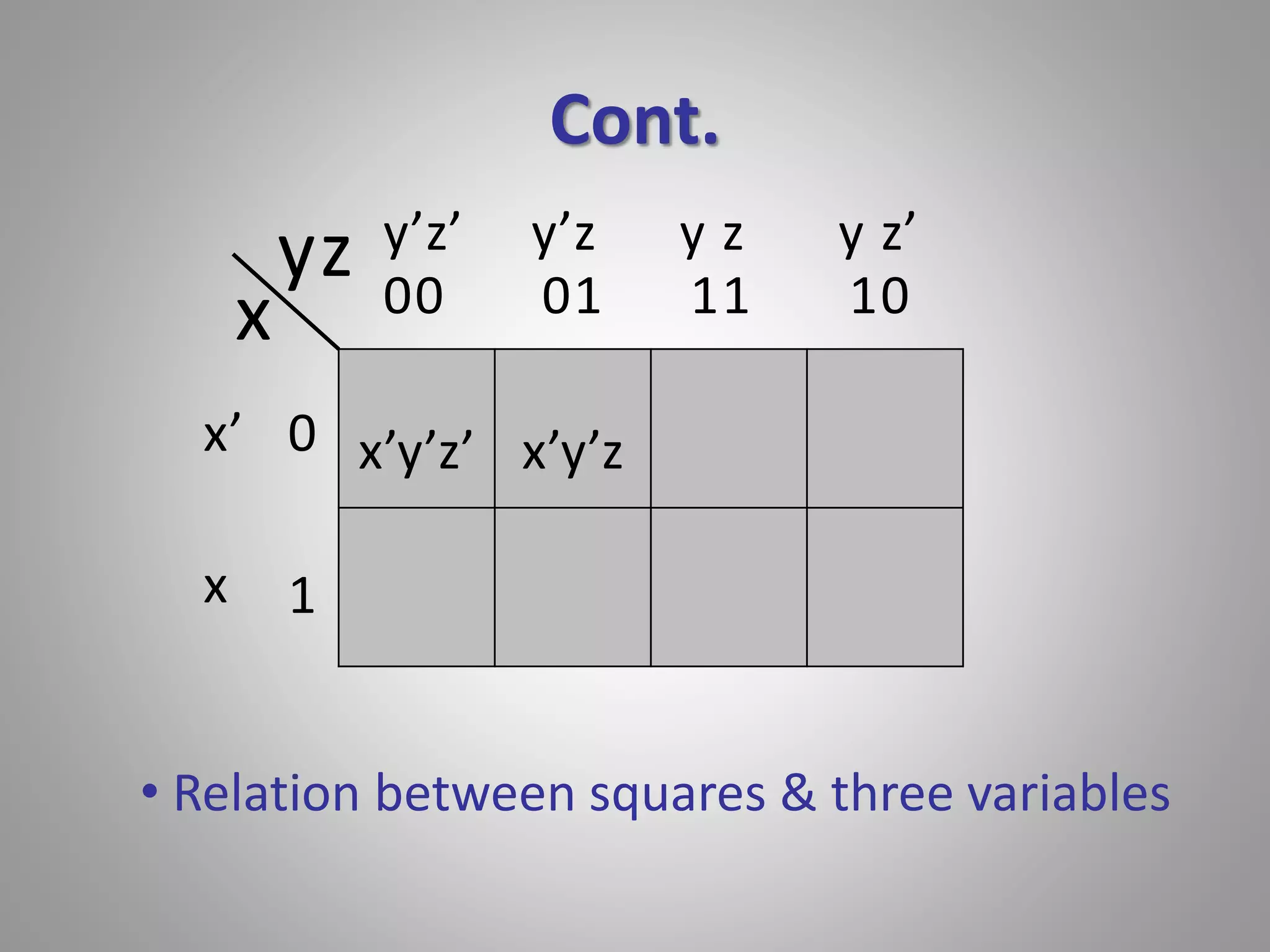

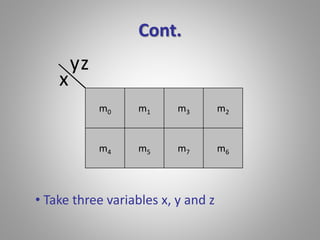

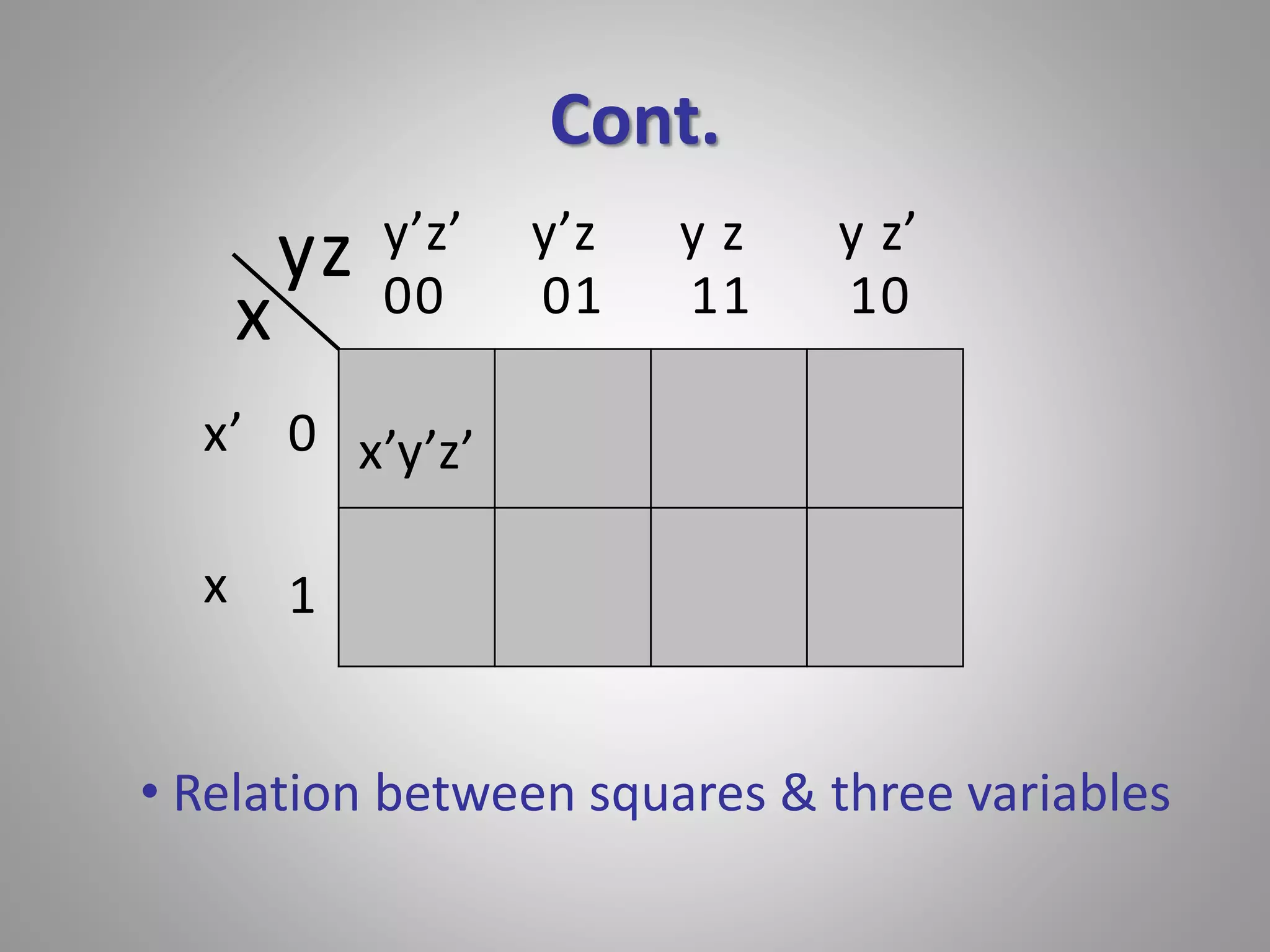

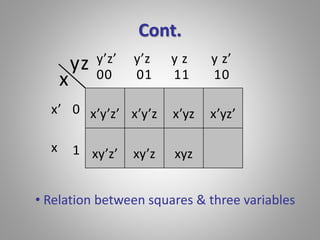

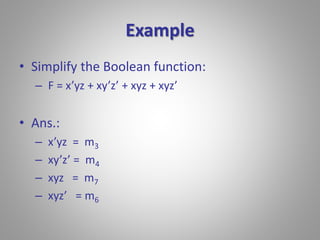

36. Cont.
x
yz
0
1
y’z’ y’z y z y z’
00 01 11 10
x’
x

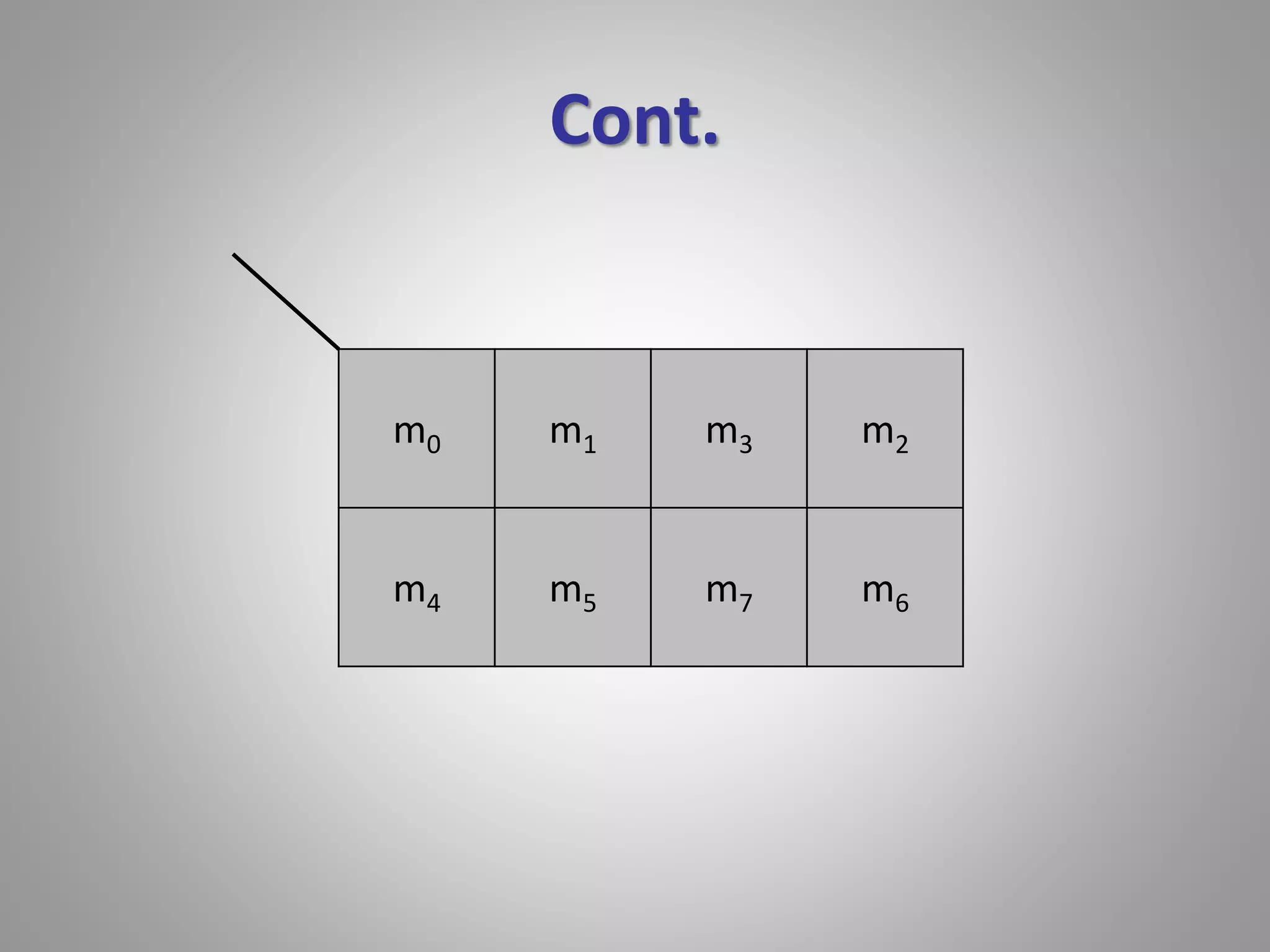

m0 m1 m3 m2
m4 m5 m7 m6
• F = x’yz + x’yz’ + xy’z’ + xy’z

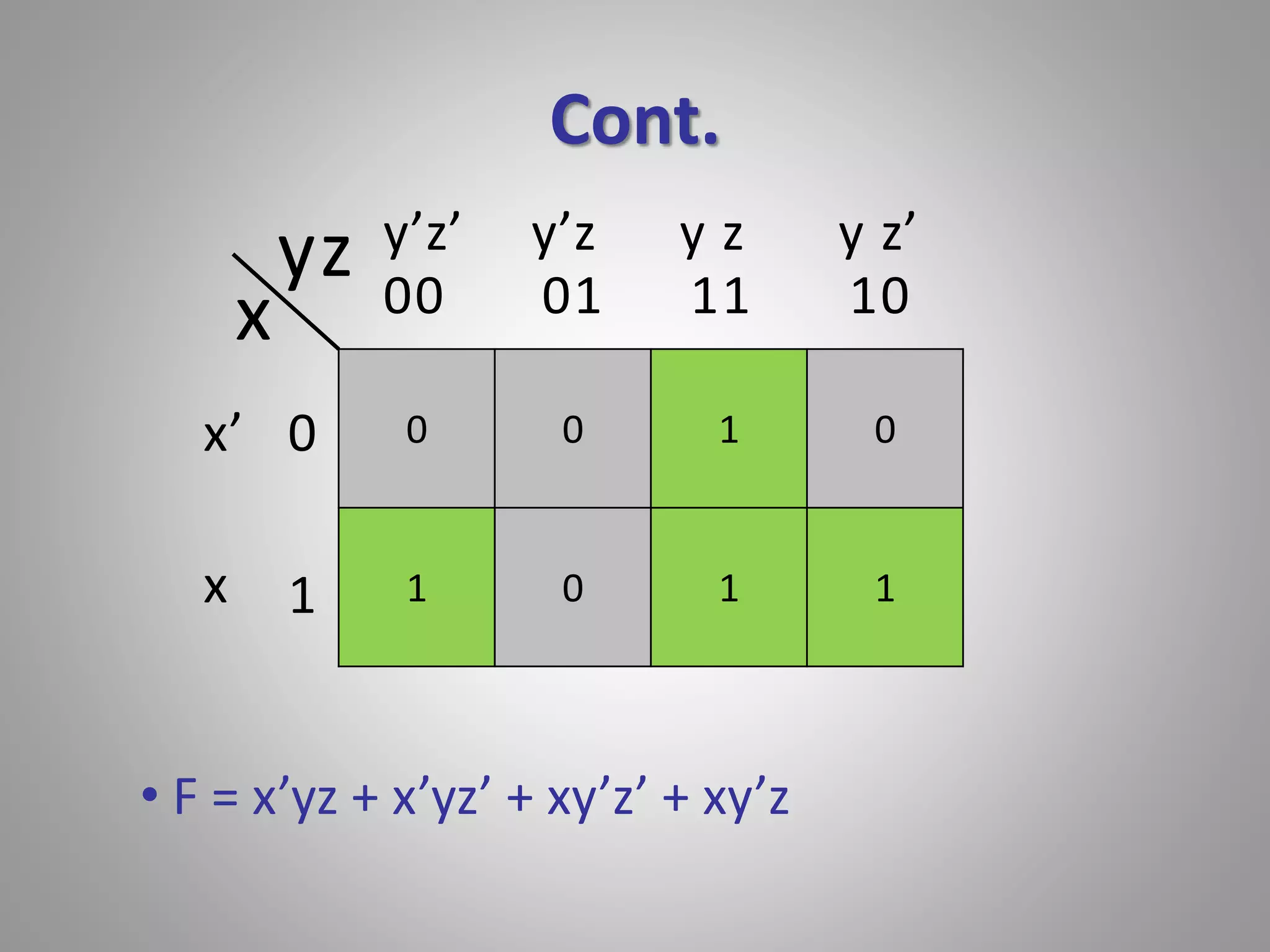

37. Cont.
x
yz
0
1
y’z’ y’z y z y z’
00 01 11 10
x’
x
0 0 1 0
1 0 1 1
• F = x’yz + x’yz’ + xy’z’ + xy’z
38. Cont.
x
yz
0
1
y’z’ y’z y z y z’
00 01 11 10
x’
x
0 0 1 0
1 0 1 1

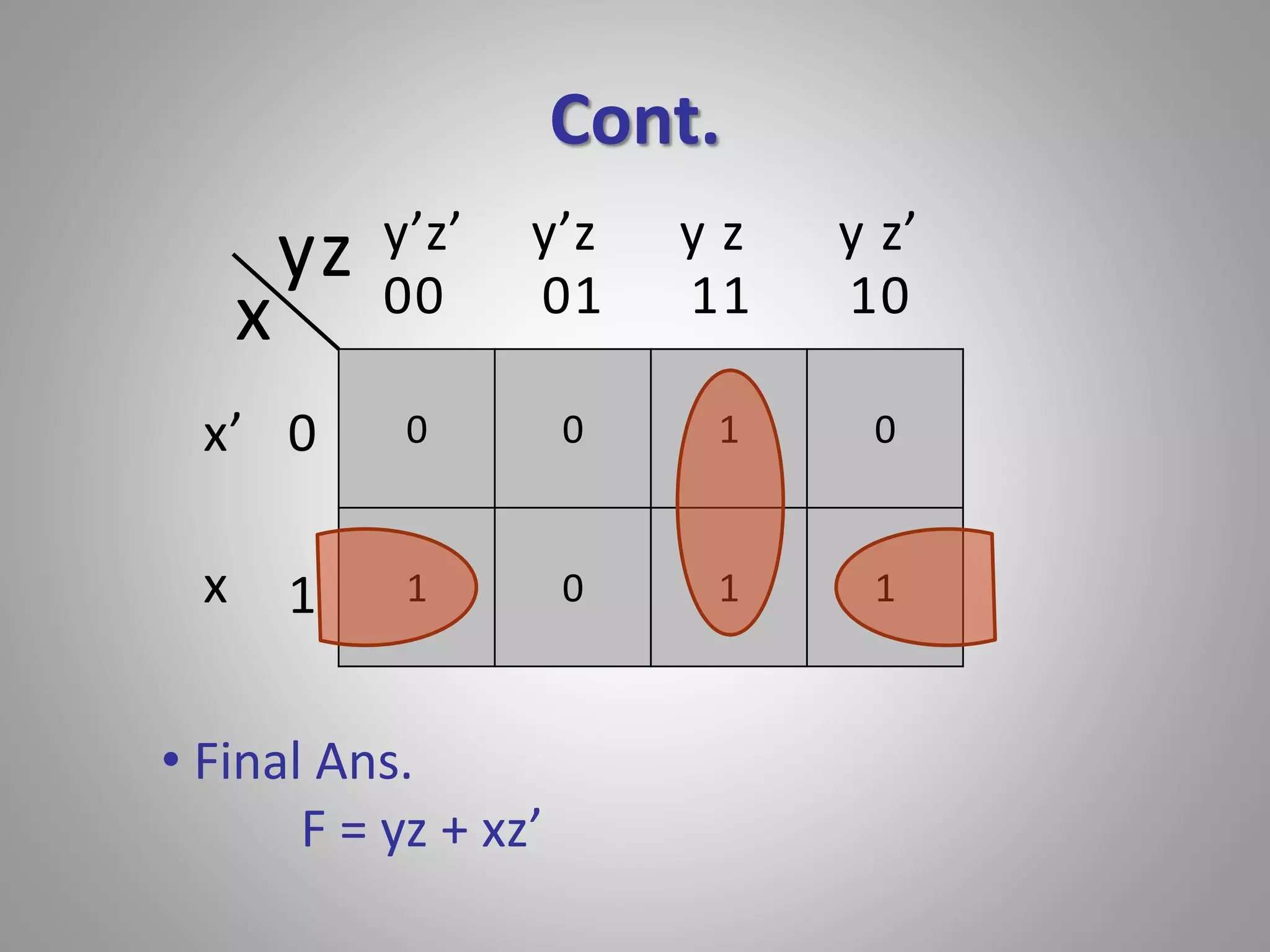

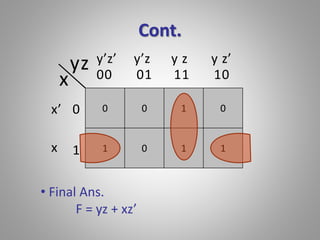

• Final Ans.
F = yz + xz’
39. Four Variable K-map

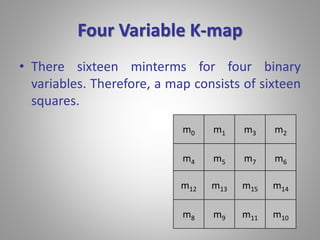

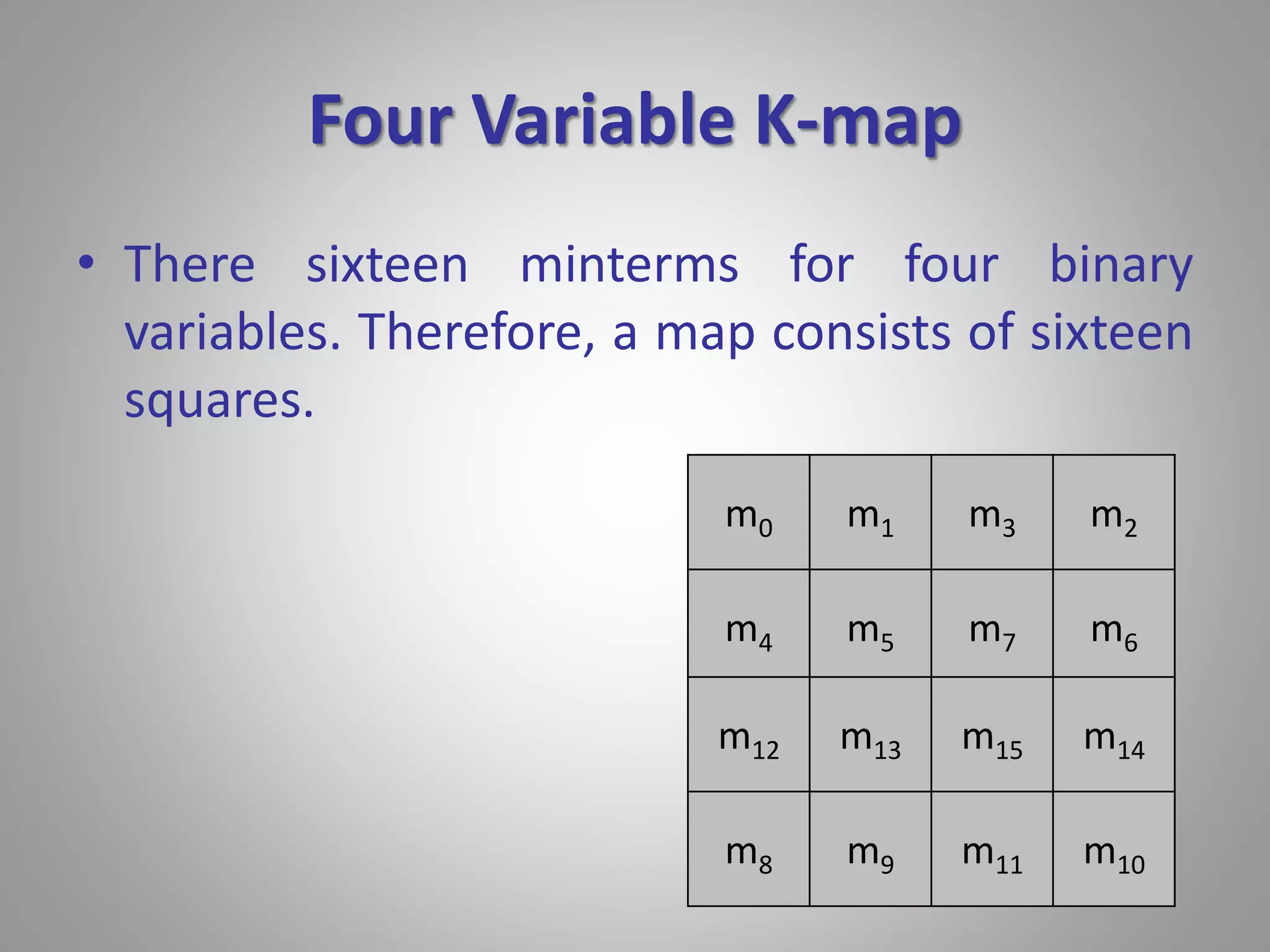

• There sixteen minterms for four binary
variables. Therefore, a map consists of sixteen
squares.
m0 m1 m3 m2
m4 m5 m7 m6
m12 m13 m15 m14
m8 m9 m11 m10
40. Cont.
C’D’ C’D C D C D’
00 01 11 10
m0 m1 m3 m2
m4 m5 m7 m6
m12 m13 m15 m14
m8 m9 m11 m10
00
01
11
10
AB
A’B’
A’B
A B
A B’
CD

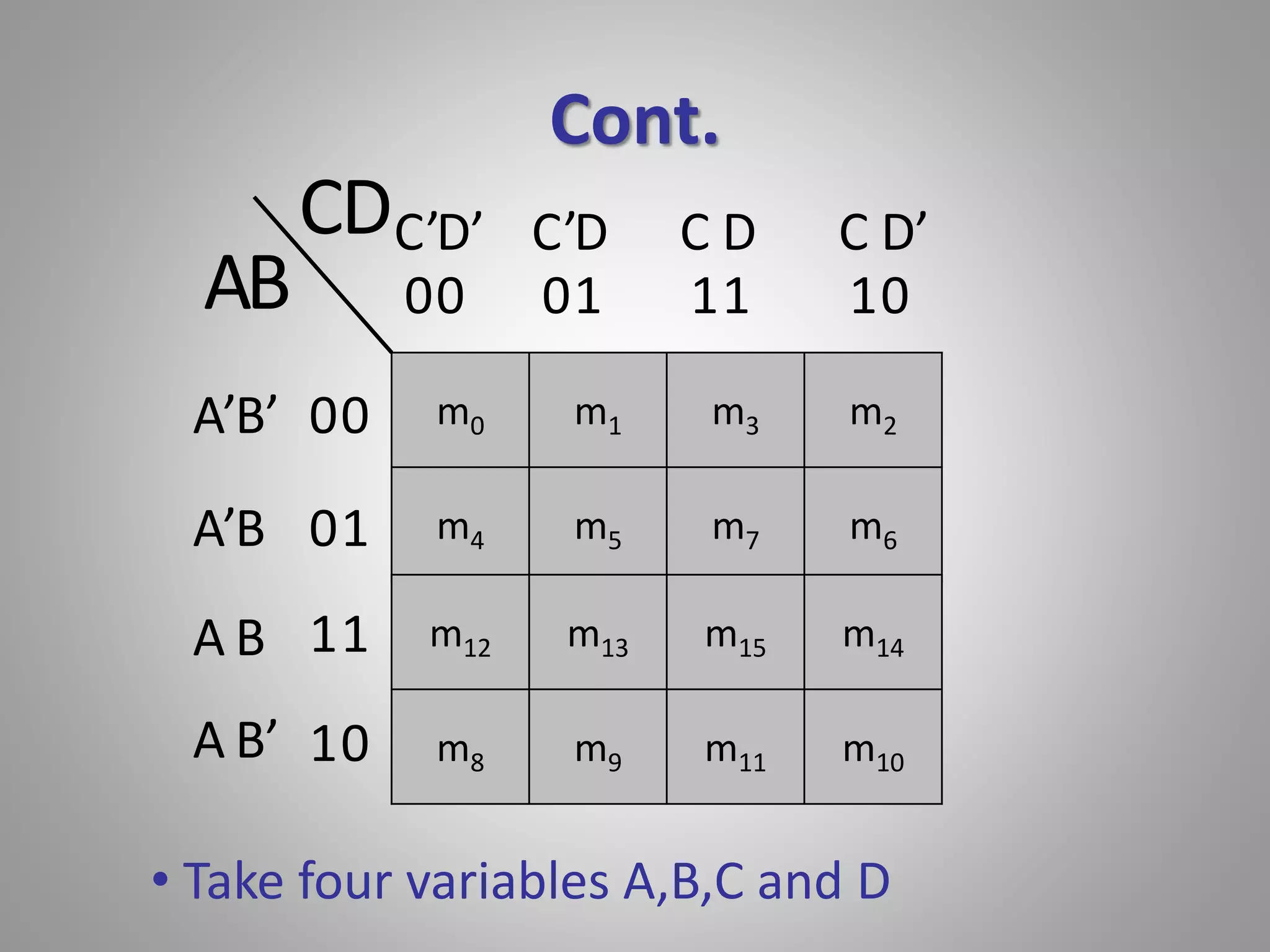

• Take four variables A,B,C and D
41. Cont.
C’D’ C’D C D C D’
00 01 11 10
A’B’C’D’
00
01
11
10
AB
A’B’
A’B
A B
A B’
CD

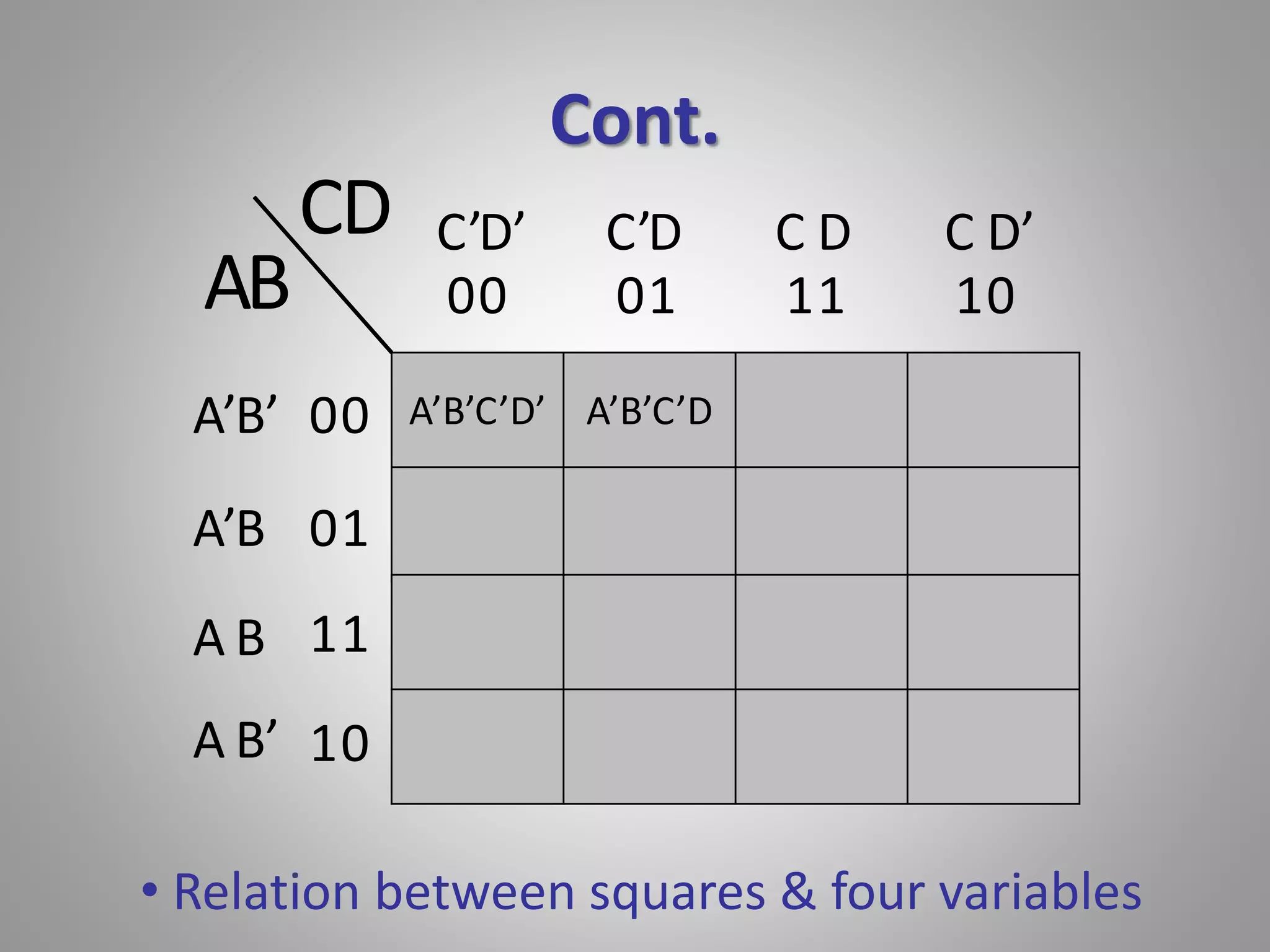

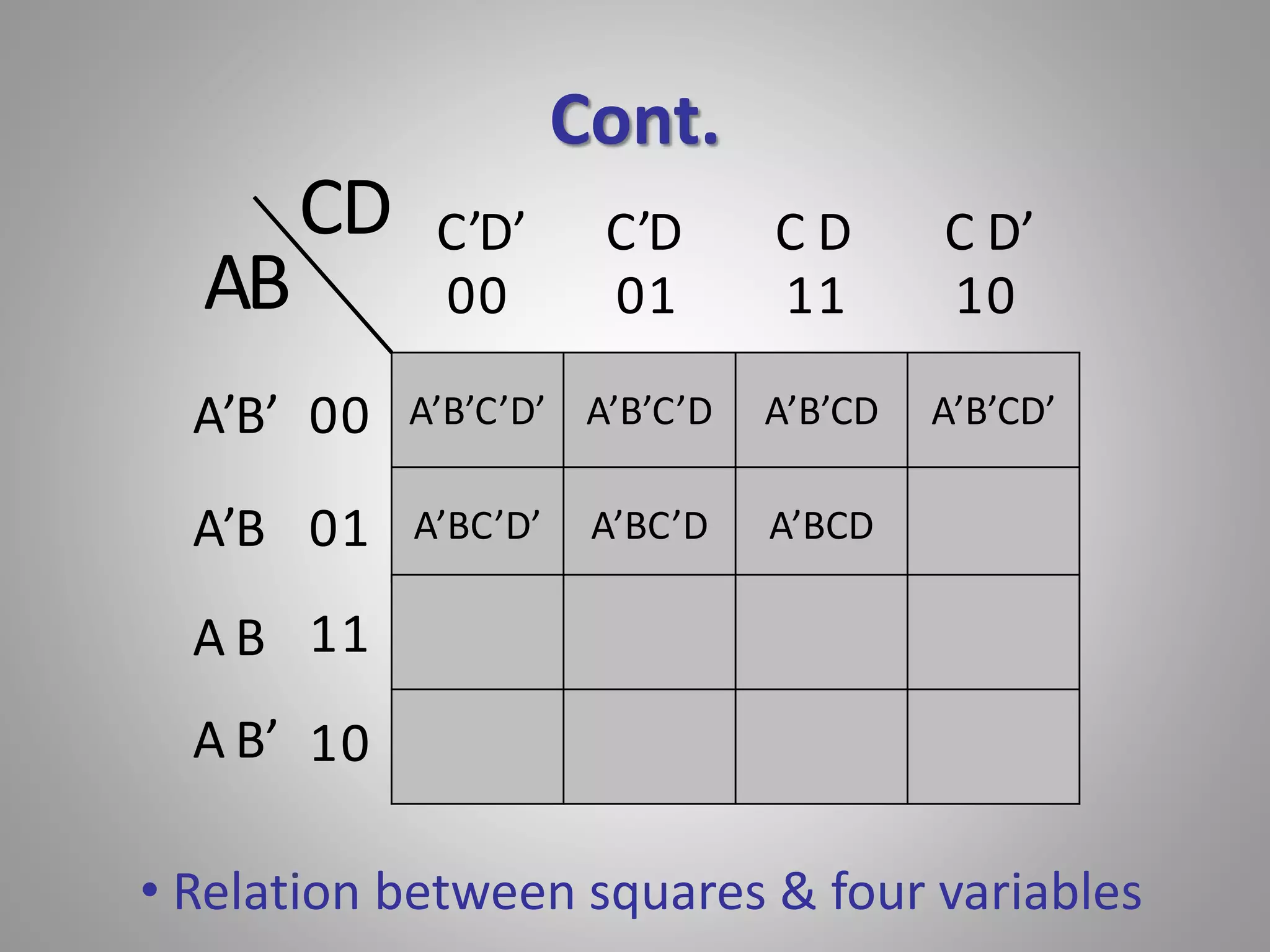

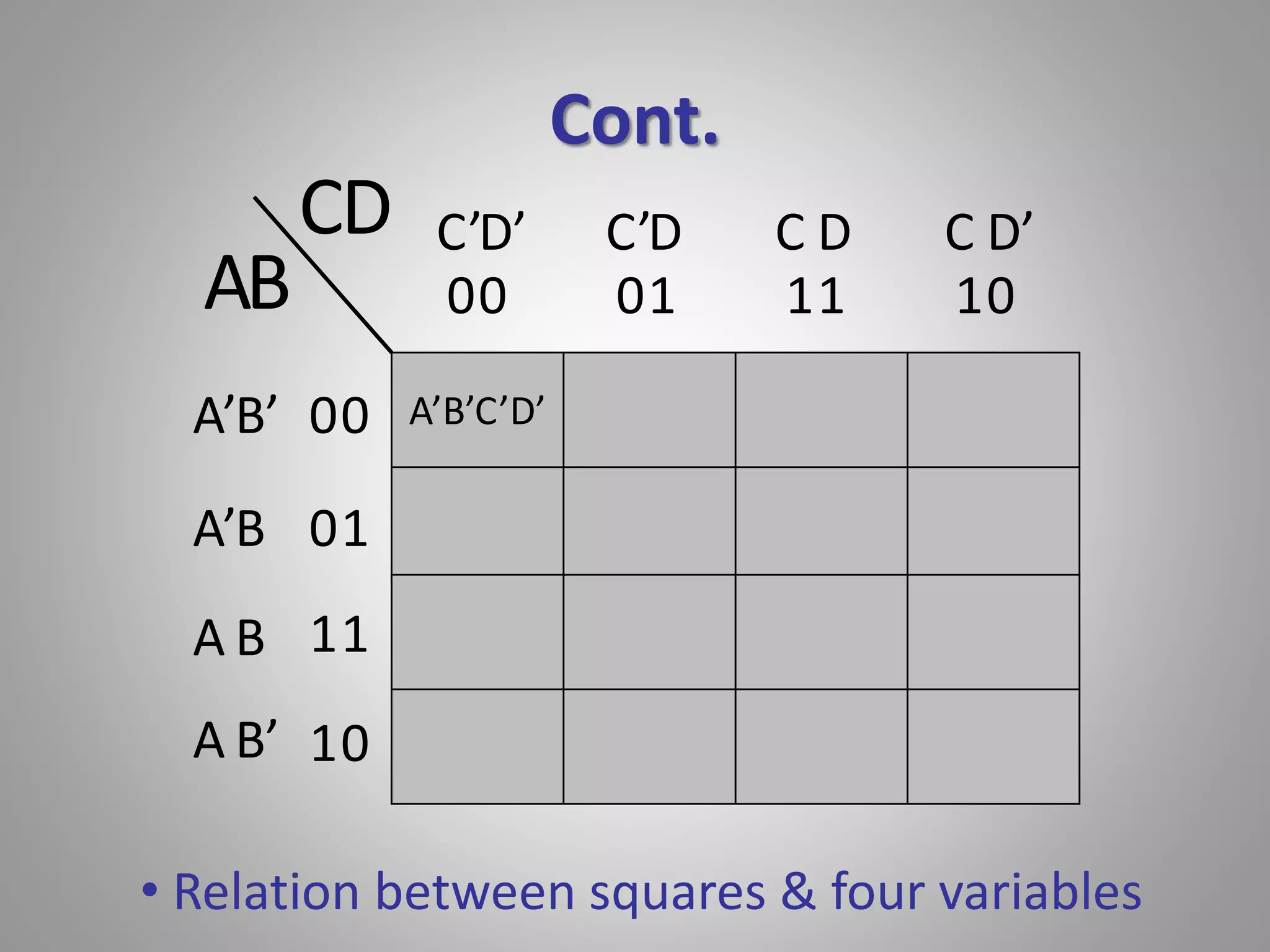

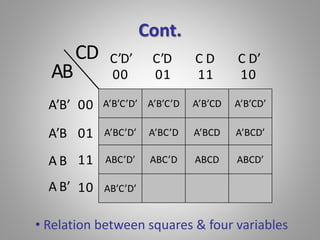

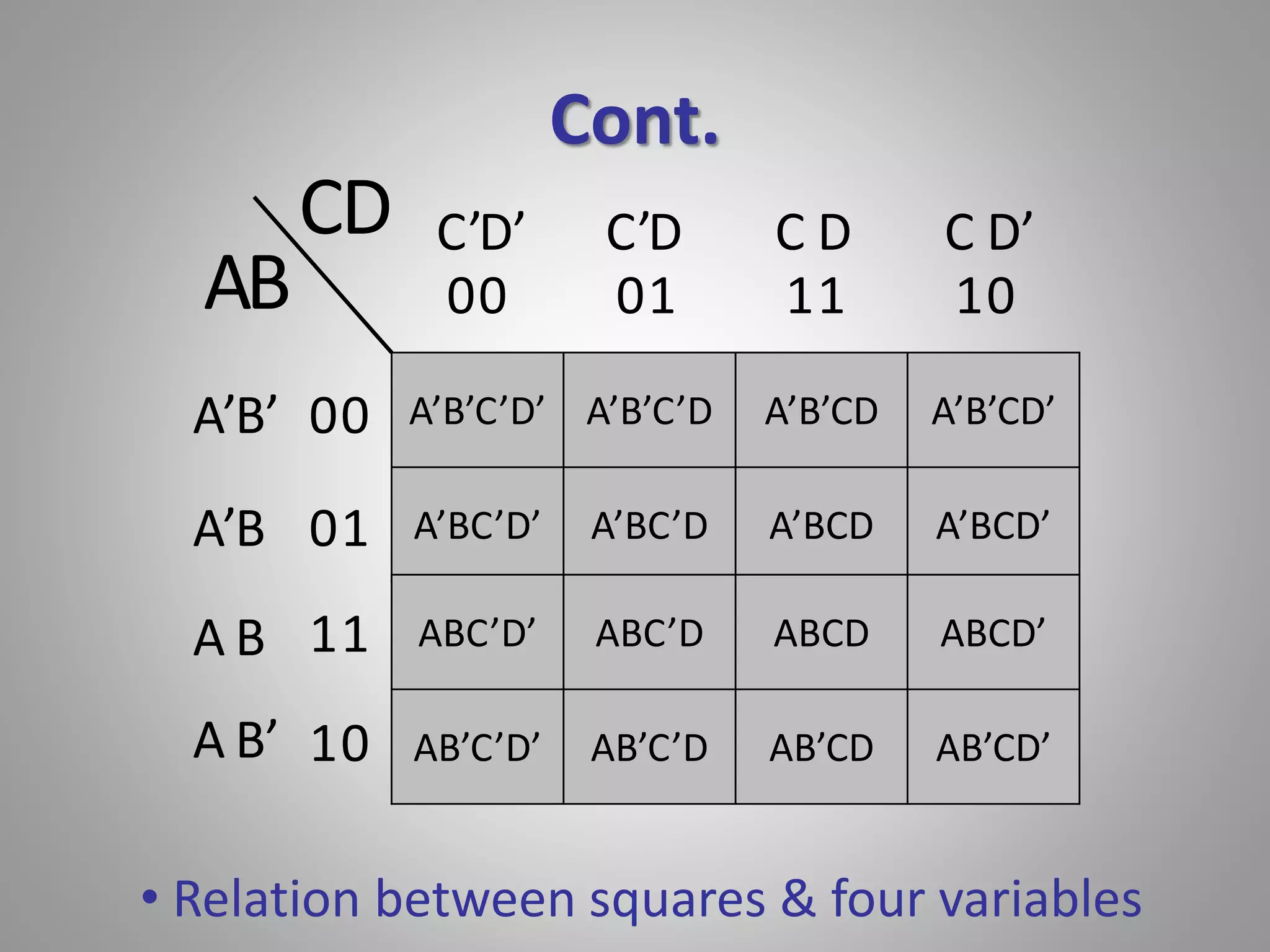

• Relation between squares & four variables
42. Cont.
C’D’ C’D C D C D’
00 01 11 10
A’B’C’D’ A’B’C’D
00
01
11
10
AB
A’B’
A’B
A B
A B’
CD
• Relation between squares & four variables

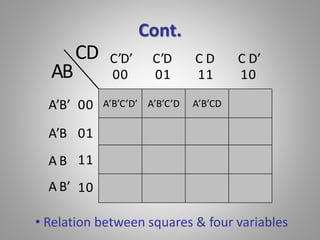

43. Cont.
C’D’ C’D C D C D’
00 01 11 10
A’B’C’D’ A’B’C’D A’B’CD
00
01
11
10
AB
A’B’
A’B
A B
A B’
CD
• Relation between squares & four variables

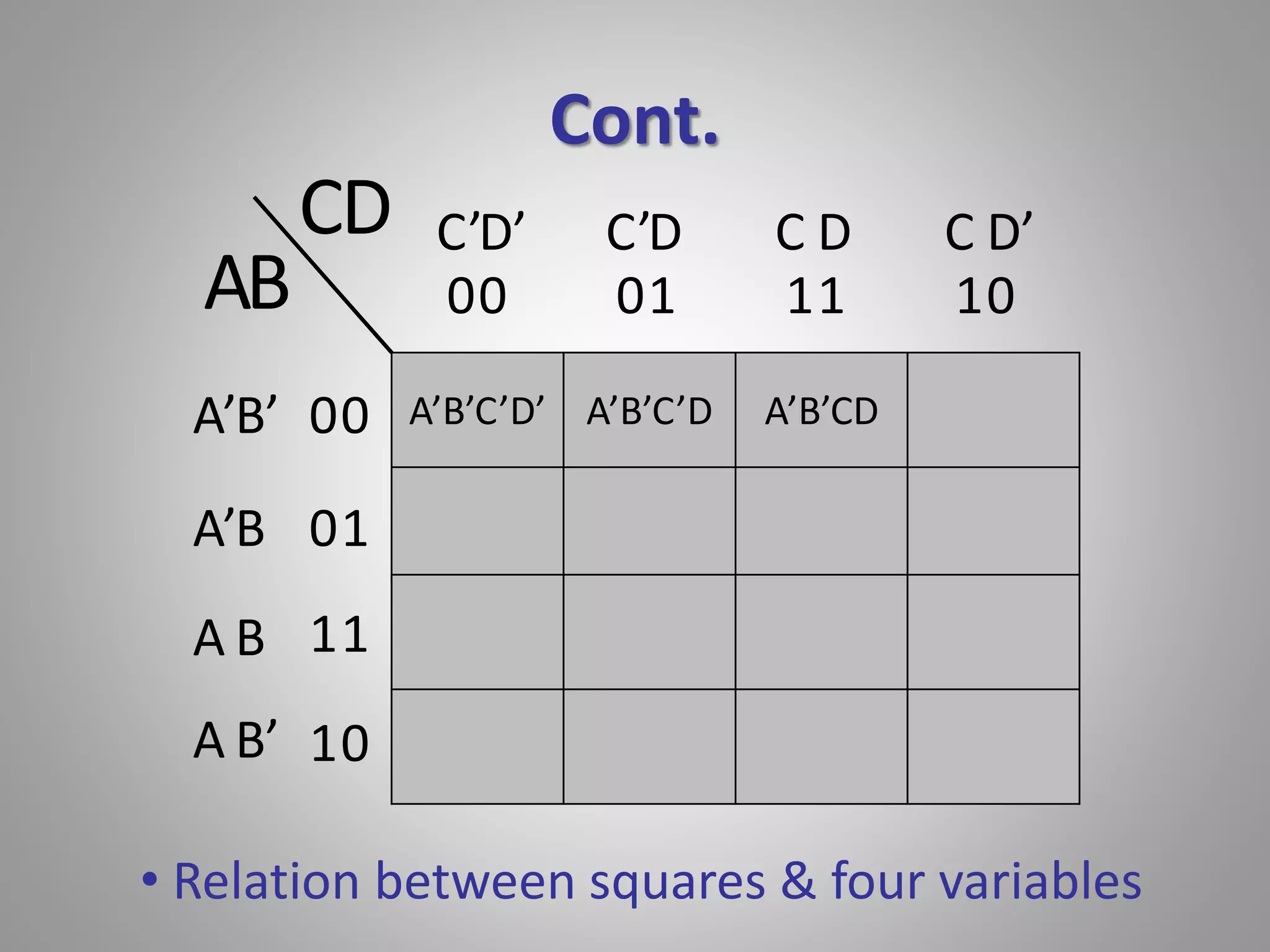

44. Cont.
C’D’ C’D C D C D’
00 01 11 10
A’B’C’D’ A’B’C’D A’B’CD A’B’CD’
00
01
11
10
AB
A’B’
A’B
A B
A B’
CD
• Relation between squares & four variables
45. Cont.
C’D’ C’D C D C D’
00 01 11 10
A’B’C’D’ A’B’C’D A’B’CD A’B’CD’
A’BC’D’
00
01
11
10
AB
A’B’
A’B
A B
A B’
CD

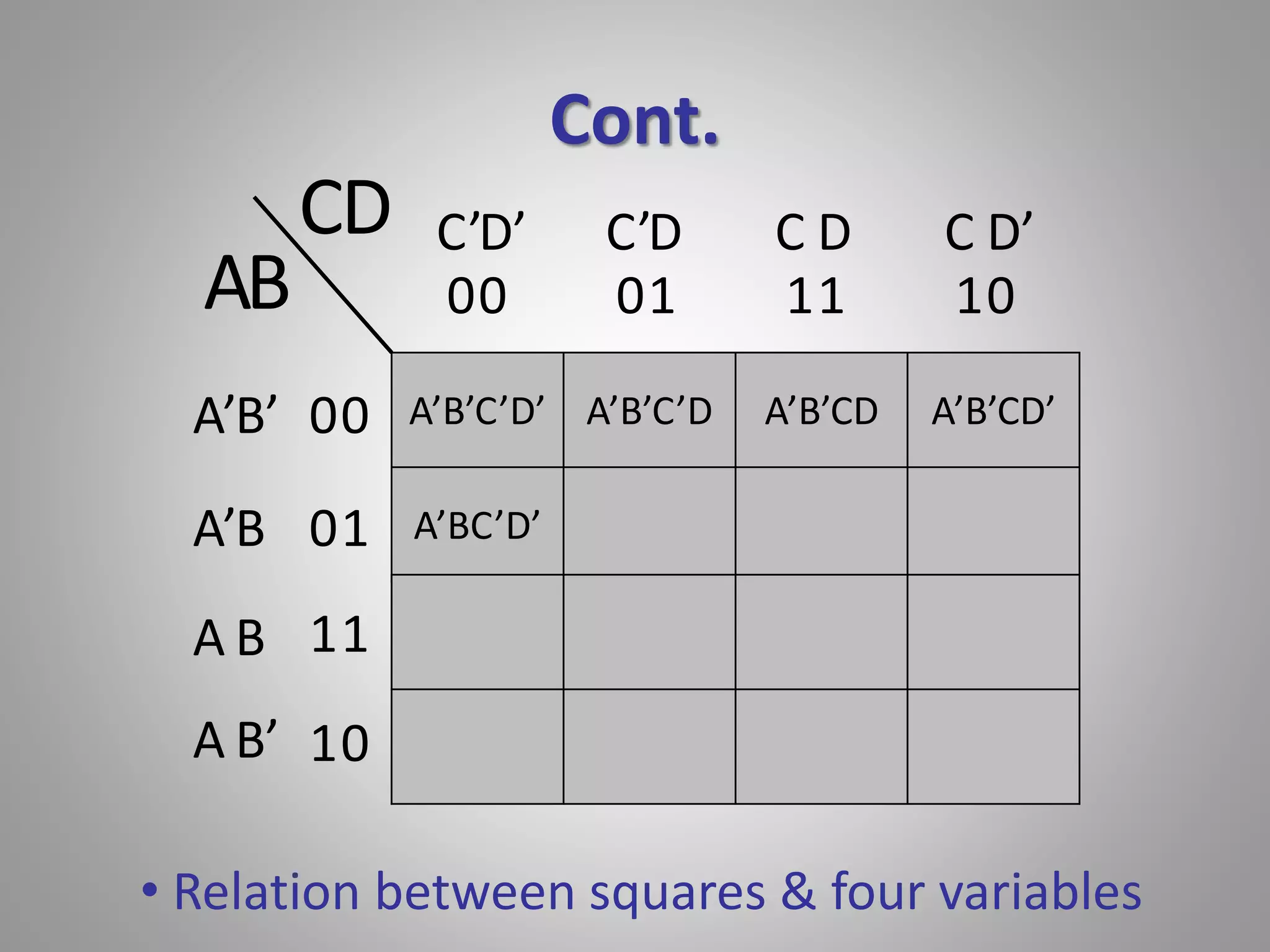

• Relation between squares & four variables
46. Cont.
C’D’ C’D C D C D’
00 01 11 10
A’B’C’D’ A’B’C’D A’B’CD A’B’CD’
A’BC’D’ A’BC’D
00
01
11
10
AB
A’B’
A’B
A B
A B’
CD
• Relation between squares & four variables
47. Cont.
C’D’ C’D C D C D’
00 01 11 10
A’B’C’D’ A’B’C’D A’B’CD A’B’CD’
A’BC’D’ A’BC’D A’BCD
00
01
11
10
AB
A’B’
A’B
A B
A B’
CD
• Relation between squares & four variables
48. Cont.
C’D’ C’D C D C D’
00 01 11 10
A’B’C’D’ A’B’C’D A’B’CD A’B’CD’
A’BC’D’ A’BC’D A’BCD A’BCD’
00
01
11
10
AB
A’B’
A’B
A B
A B’
CD
• Relation between squares & four variables
49. Cont.
C’D’ C’D C D C D’
00 01 11 10
A’B’C’D’ A’B’C’D A’B’CD A’B’CD’
A’BC’D’ A’BC’D A’BCD A’BCD’
ABC’D’
00
01
11
10
AB
A’B’
A’B
A B
A B’
CD

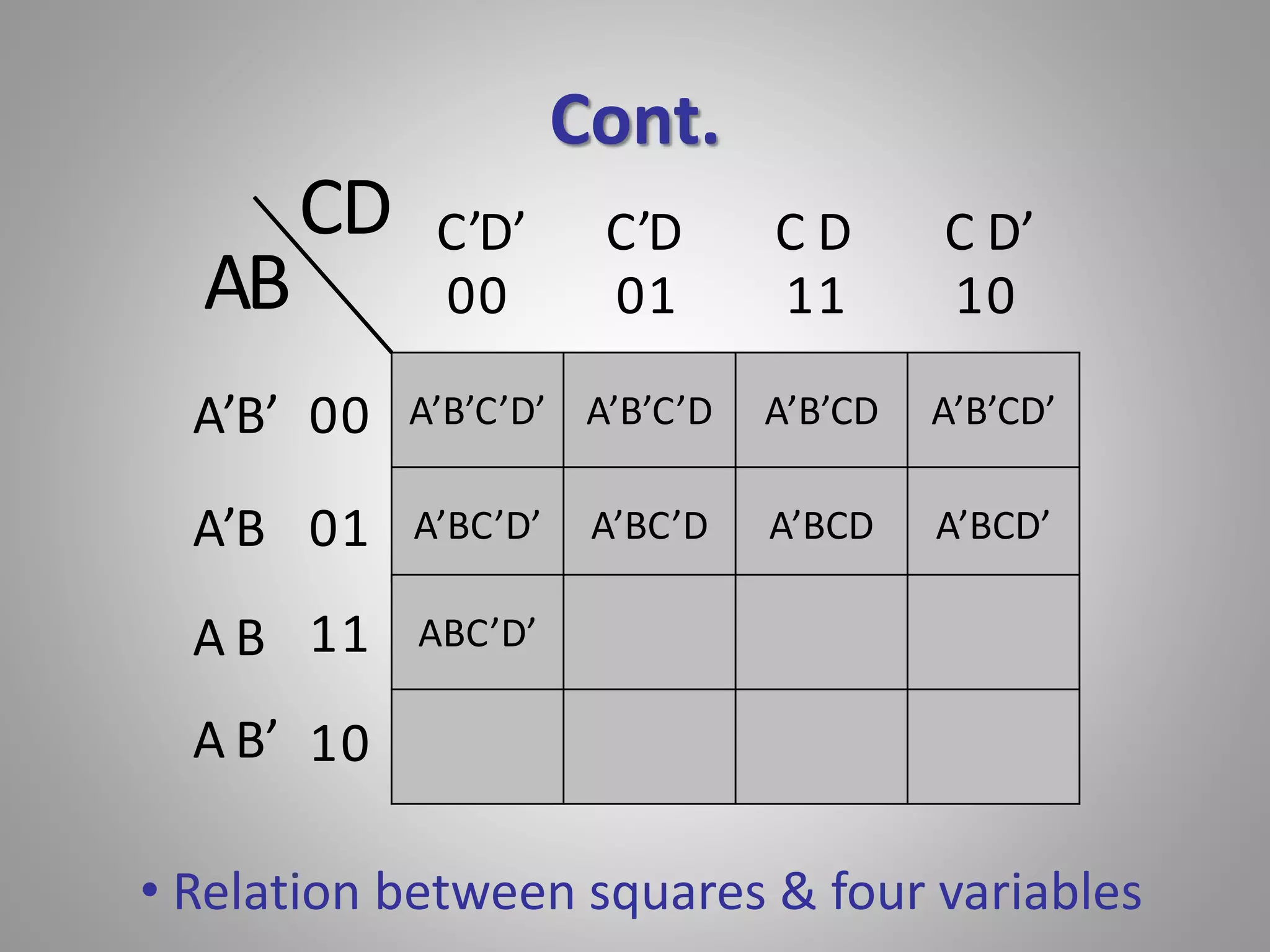

• Relation between squares & four variables
50. Cont.
C’D’ C’D C D C D’
00 01 11 10
A’B’C’D’ A’B’C’D A’B’CD A’B’CD’

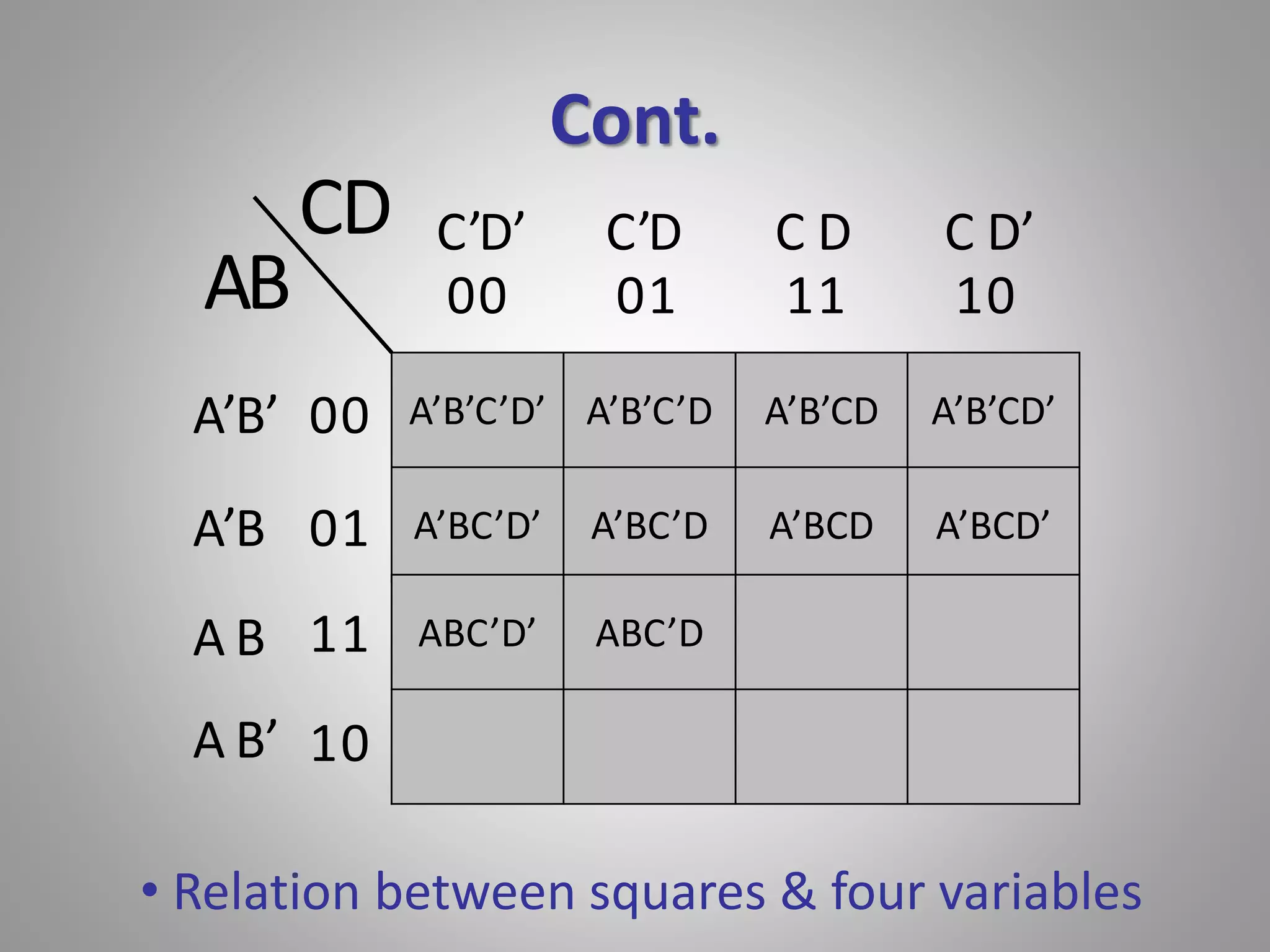

A’BC’D’ A’BC’D A’BCD A’BCD’
ABC’D’ ABC’D
00
01
11
10
AB
A’B’
A’B
A B
A B’
CD
• Relation between squares & four variables
51. Cont.
C’D’ C’D C D C D’
00 01 11 10

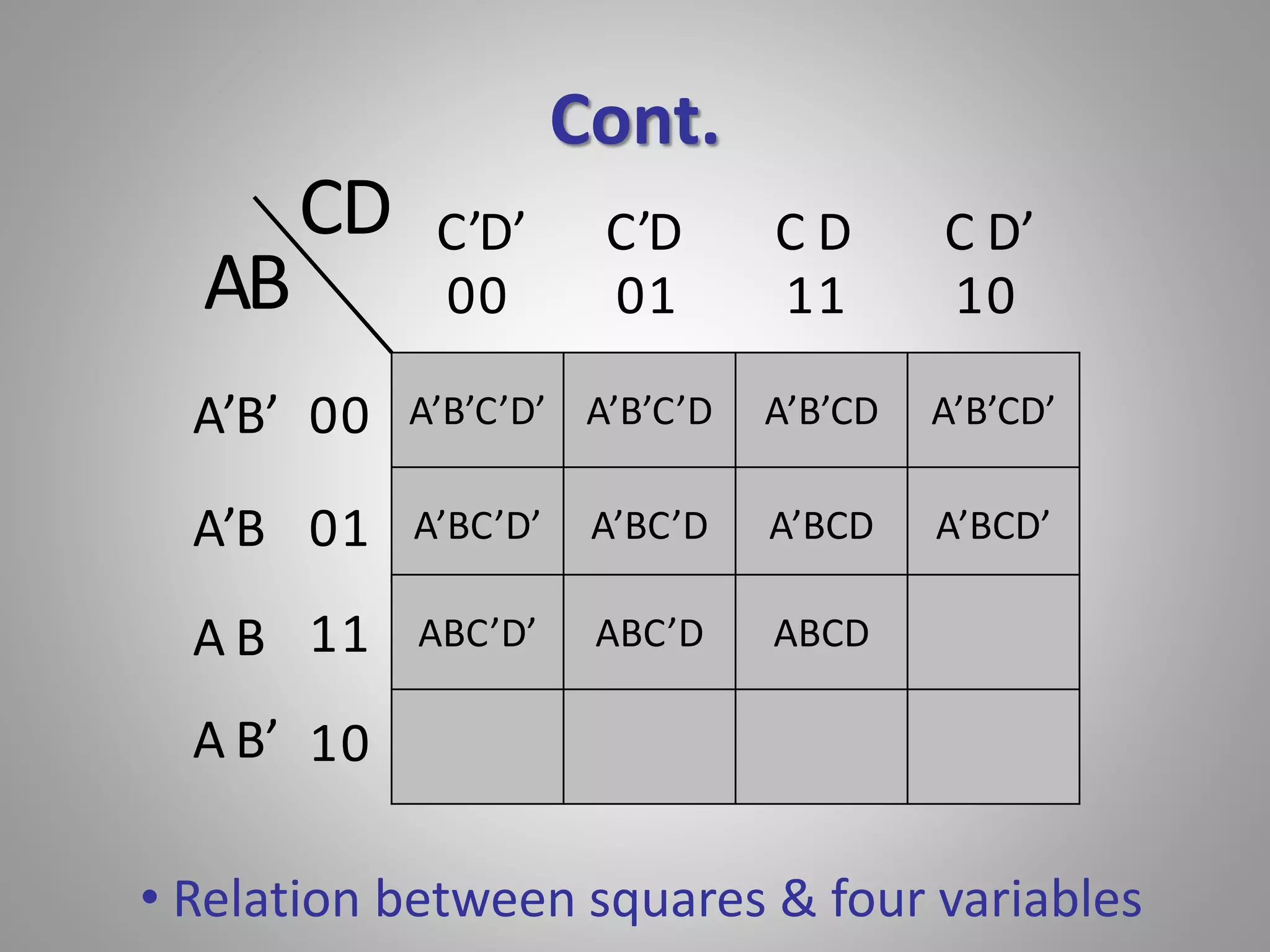

A’B’C’D’ A’B’C’D A’B’CD A’B’CD’
A’BC’D’ A’BC’D A’BCD A’BCD’
ABC’D’ ABC’D ABCD
00
01
11
10
AB
A’B’
A’B
A B
A B’
CD

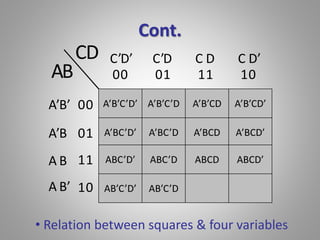

• Relation between squares & four variables

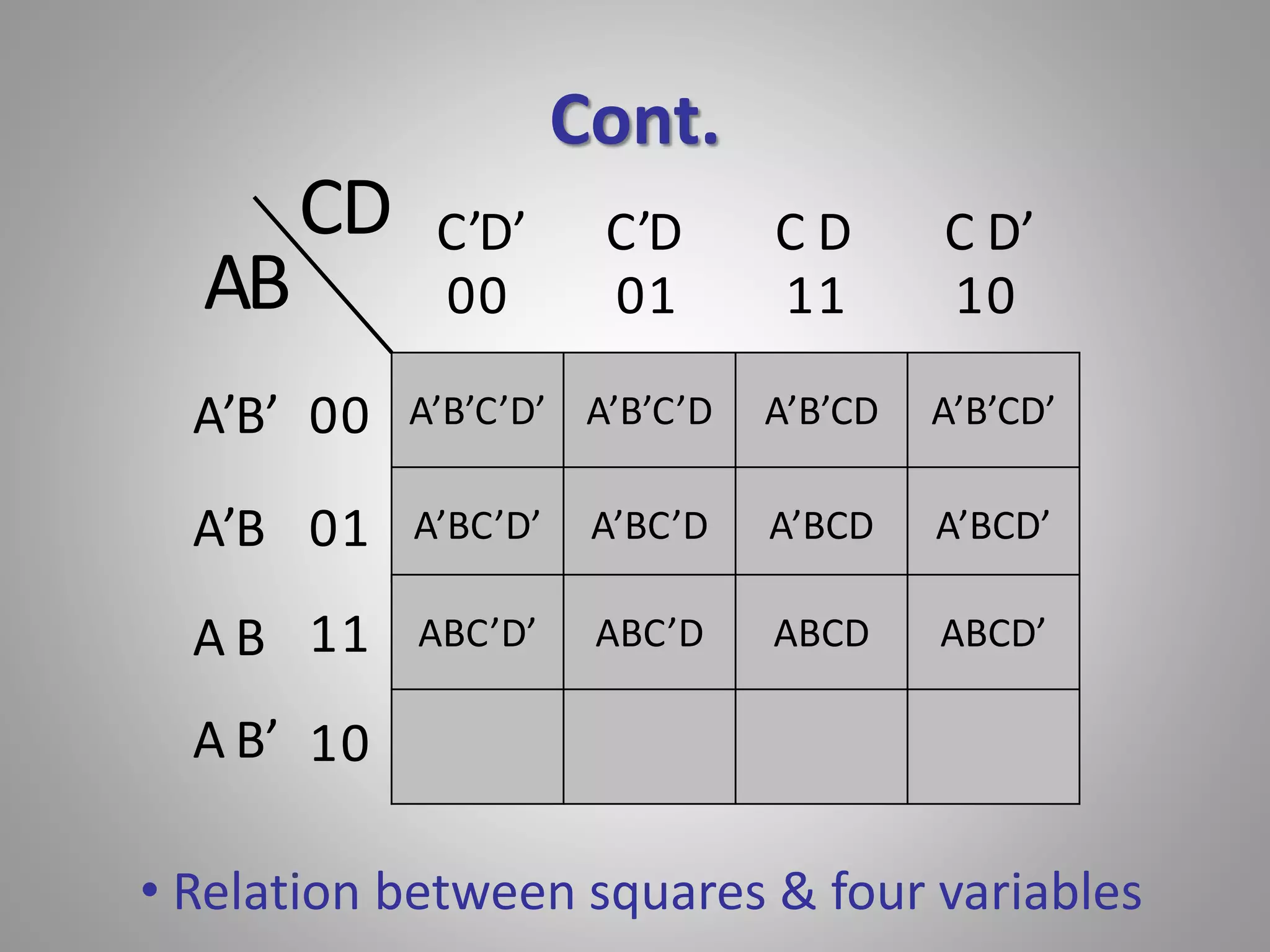

52. Cont.
C’D’ C’D C D C D’
00 01 11 10
A’B’C’D’ A’B’C’D A’B’CD A’B’CD’
A’BC’D’ A’BC’D A’BCD A’BCD’
ABC’D’ ABC’D ABCD ABCD’
00
01
11
10
AB
A’B’
A’B
A B
A B’
CD

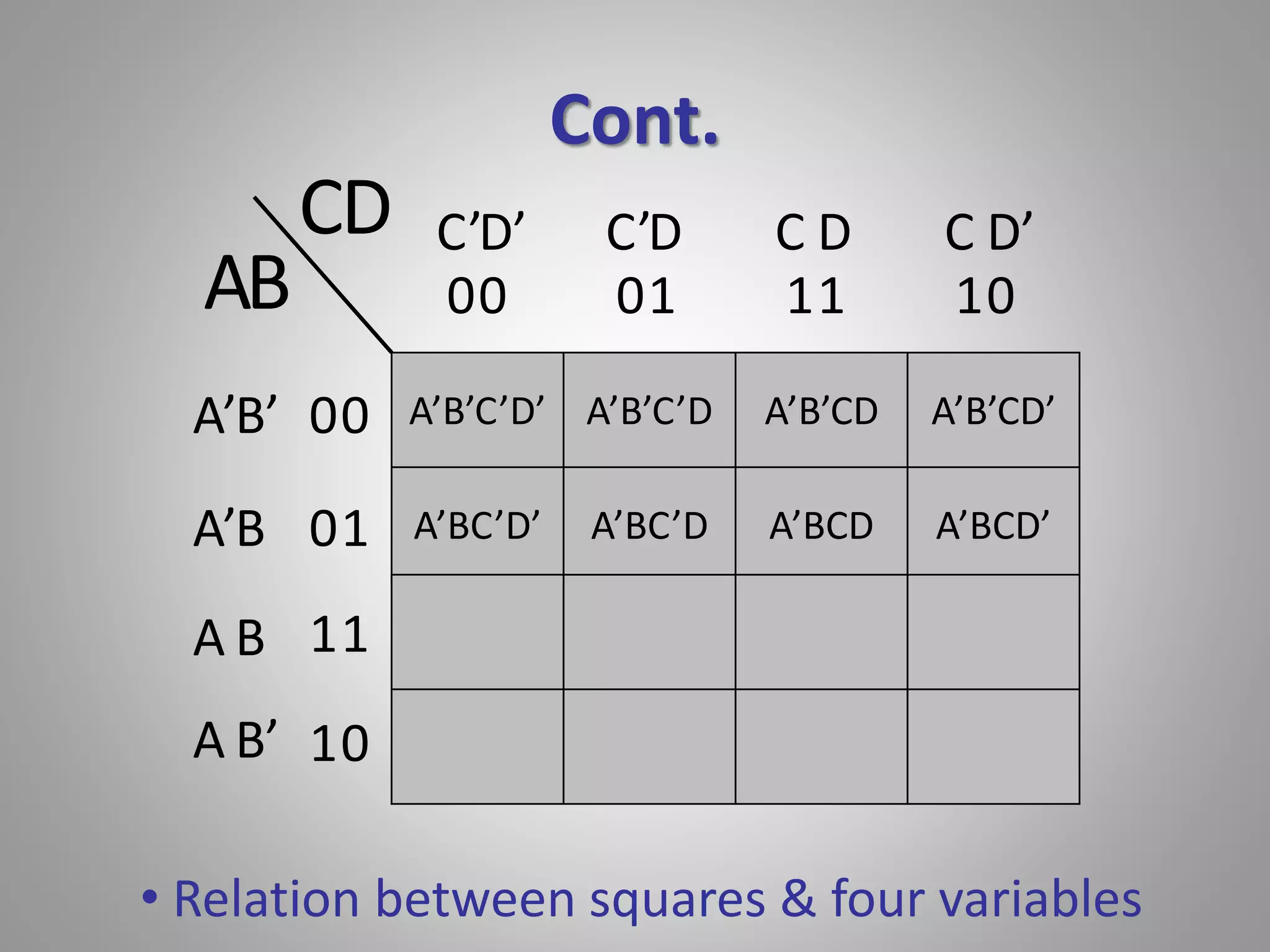

• Relation between squares & four variables

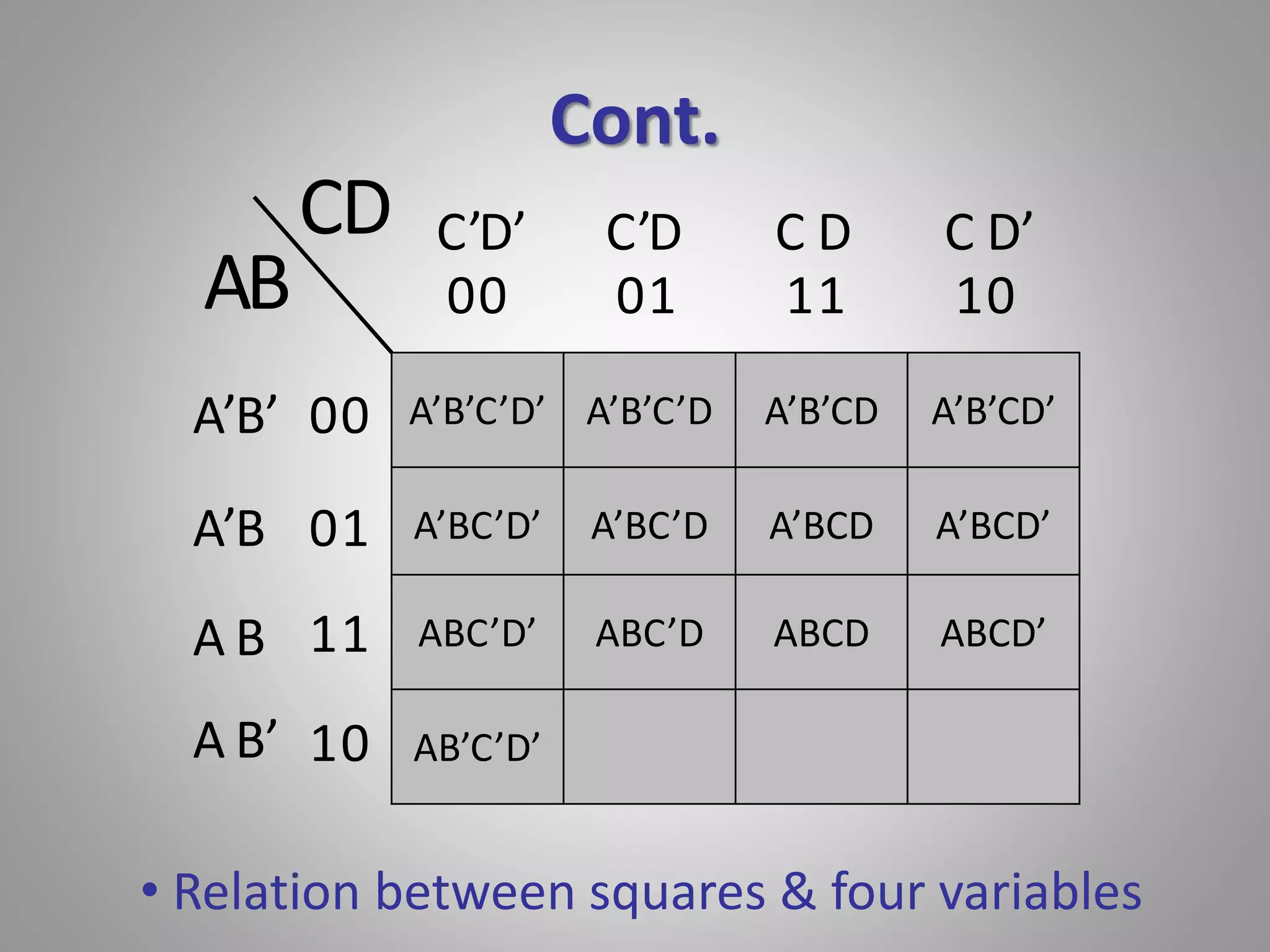

53. Cont.
C’D’ C’D C D C D’
00 01 11 10
A’B’C’D’ A’B’C’D A’B’CD A’B’CD’
A’BC’D’ A’BC’D A’BCD A’BCD’
ABC’D’ ABC’D ABCD ABCD’
AB’C’D’
00
01
11
10
AB
A’B’
A’B
A B
A B’
CD
• Relation between squares & four variables
54. Cont.
C’D’ C’D C D C D’
00 01 11 10
A’B’C’D’ A’B’C’D A’B’CD A’B’CD’
A’BC’D’ A’BC’D A’BCD A’BCD’
ABC’D’ ABC’D ABCD ABCD’
AB’C’D’ AB’C’D
00
01
11
10
AB
A’B’
A’B
A B
A B’
CD
• Relation between squares & four variables

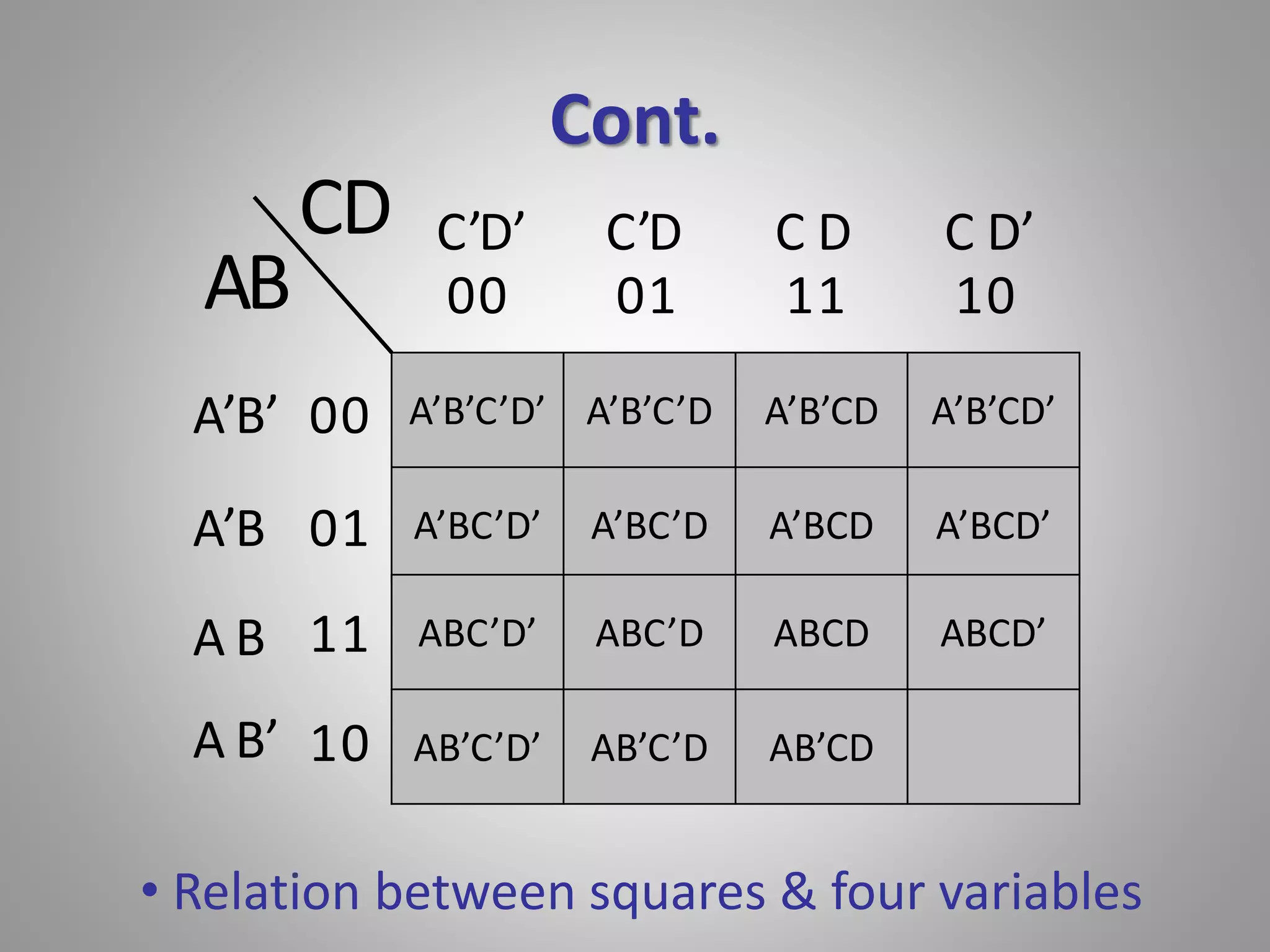

55. Cont.
C’D’ C’D C D C D’
00 01 11 10

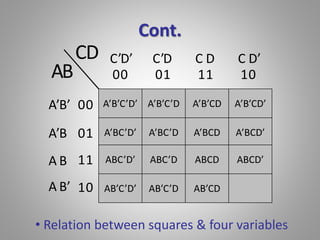

A’B’C’D’ A’B’C’D A’B’CD A’B’CD’
A’BC’D’ A’BC’D A’BCD A’BCD’
ABC’D’ ABC’D ABCD ABCD’
AB’C’D’ AB’C’D AB’CD
00
01
11
10
AB
A’B’
A’B
A B
A B’
CD

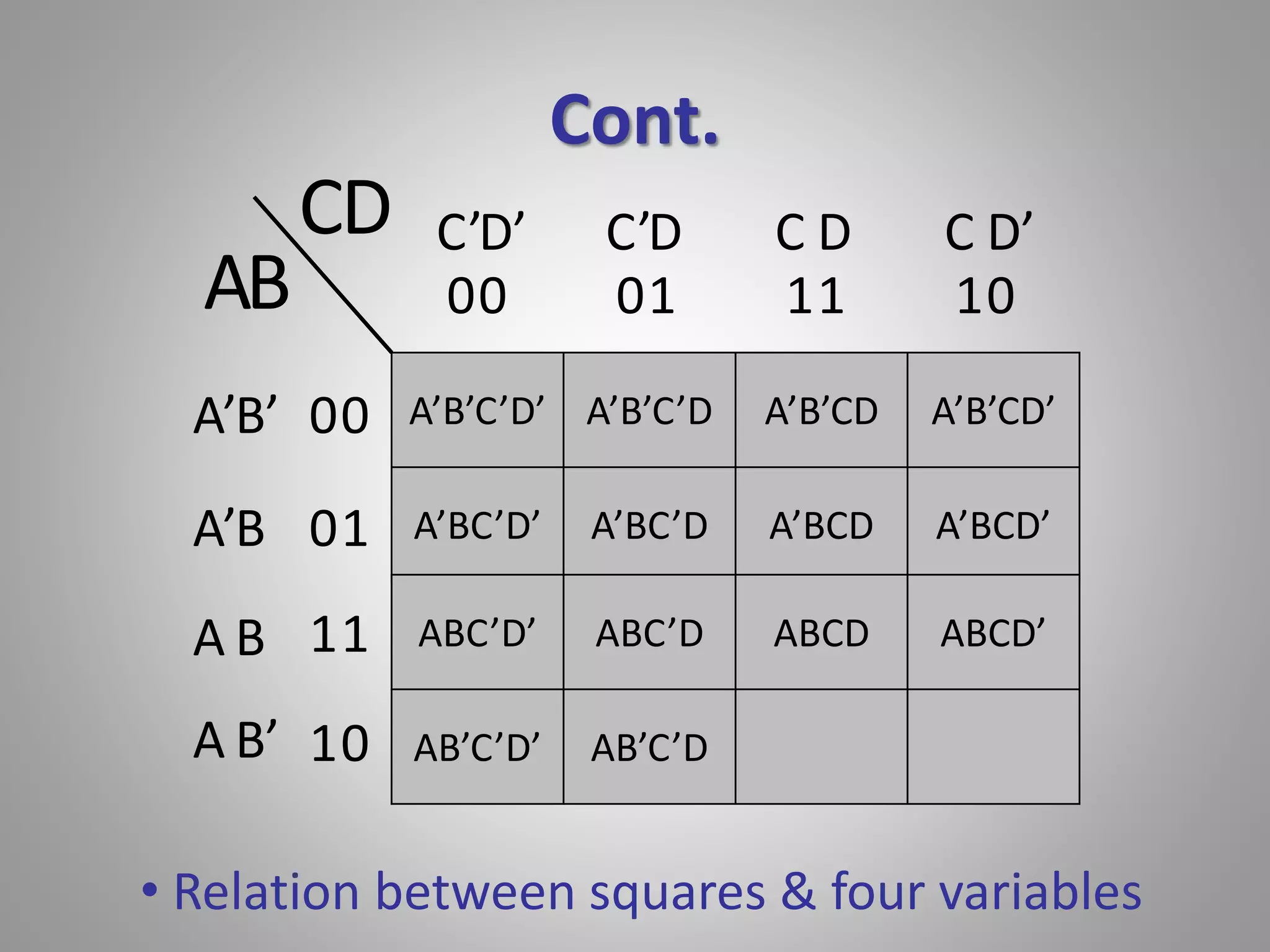

• Relation between squares & four variables
56. Cont.
C’D’ C’D C D C D’
00 01 11 10
A’B’C’D’ A’B’C’D A’B’CD A’B’CD’
A’BC’D’ A’BC’D A’BCD A’BCD’
ABC’D’ ABC’D ABCD ABCD’
AB’C’D’ AB’C’D AB’CD AB’CD’
00
01
11
10
AB
A’B’
A’B
A B
A B’
CD
• Relation between squares & four variables

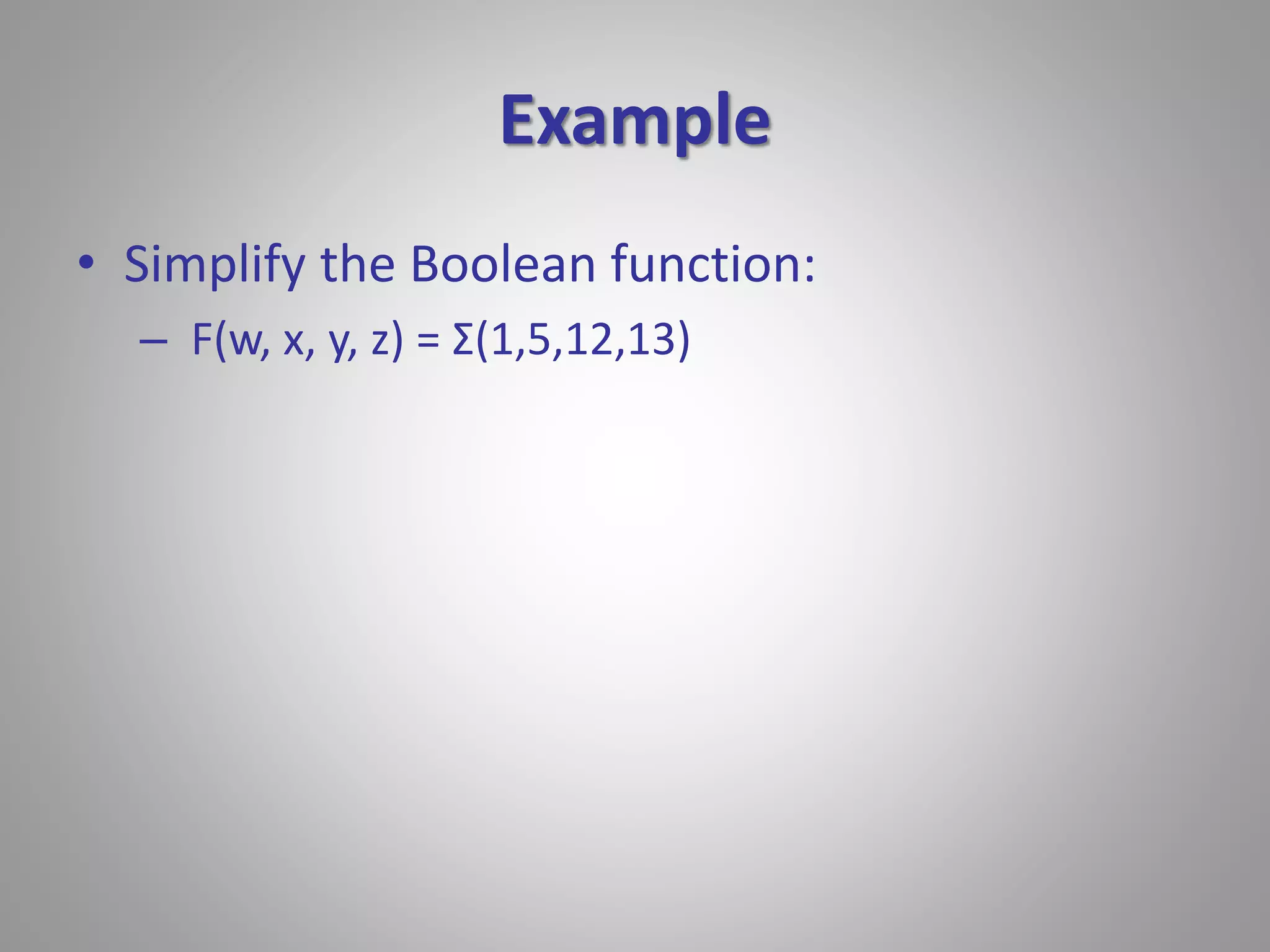

58. Cont.
m0 m1 m3 m2
m4 m5 m7 m6
m12 m13 m15 m14
m8 m9 m11 m10
W
Z
X
Y
00 01 11 10
00
01
11
10

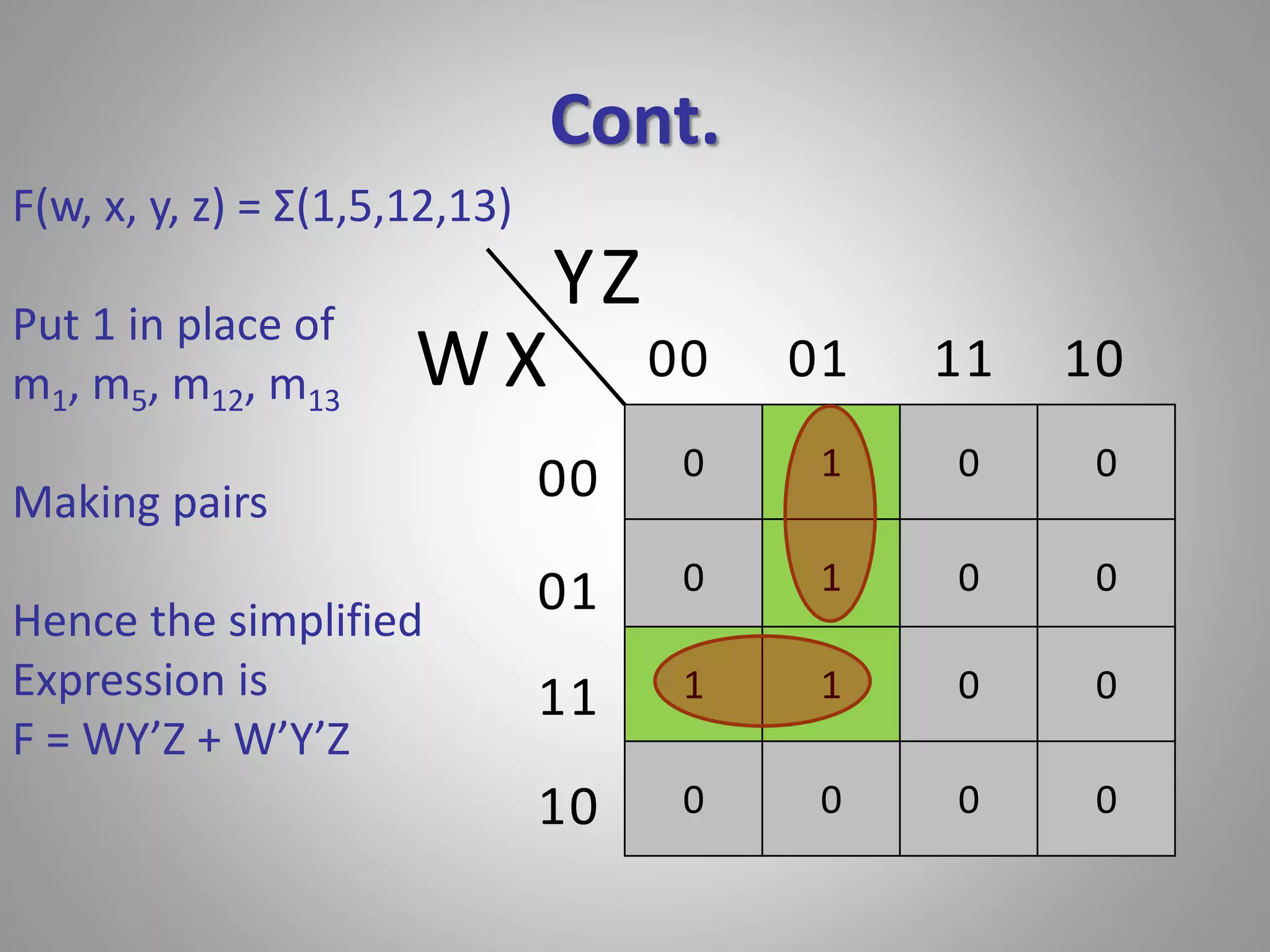

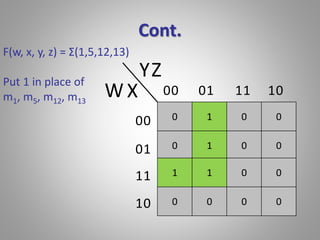

F(w, x, y, z) = Σ(1,5,12,13)
59. Cont.
0 1 0 0
0 1 0 0
1 1 0 0
0 0 0 0
W
Z
X
Y
00 01 11 10
00
01
11
10
F(w, x, y, z) = Σ(1,5,12,13)

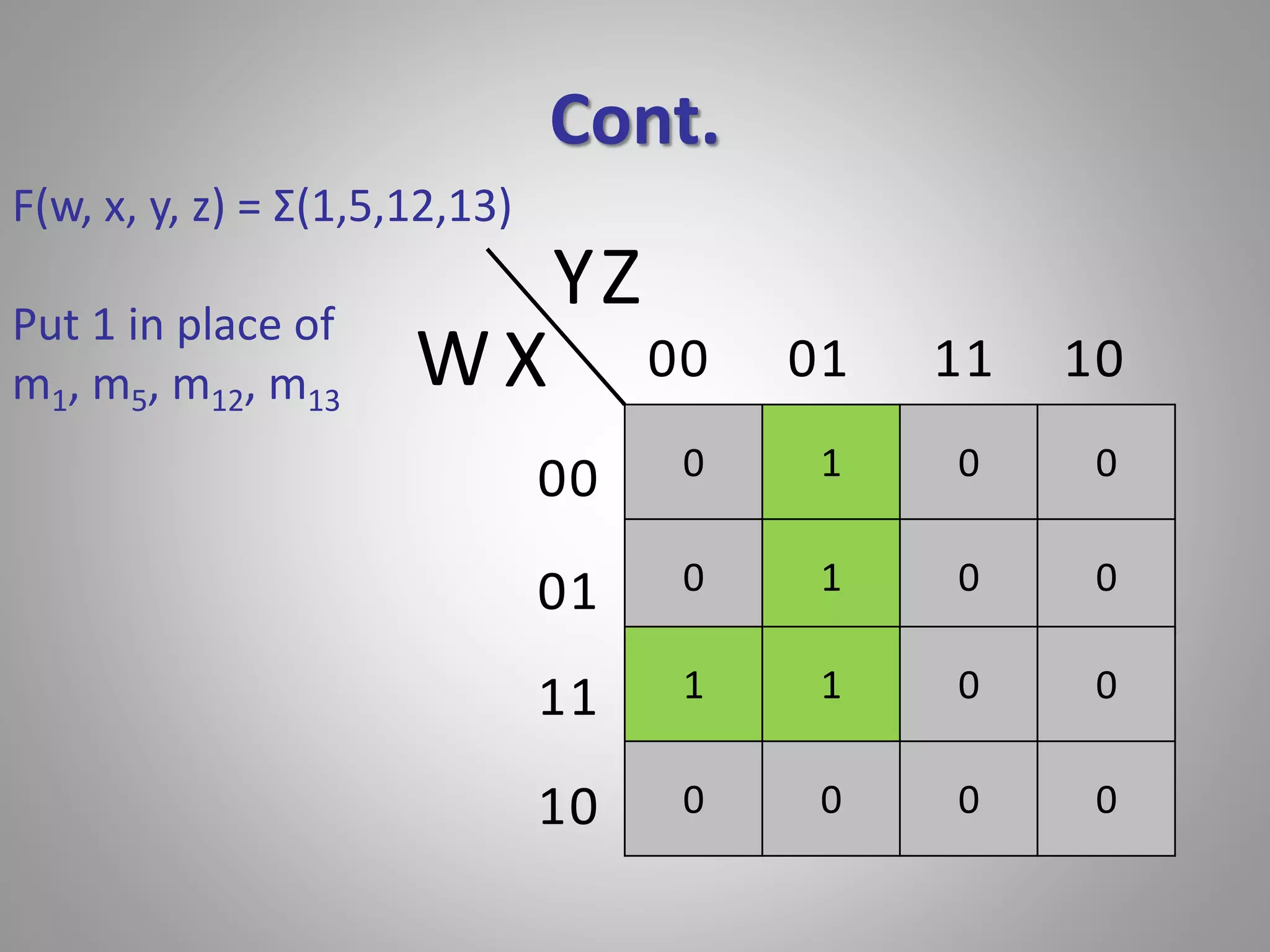

Put 1 in place of
m1, m5, m12, m13
60. Cont.
0 1 0 0
0 1 0 0
1 1 0 0
0 0 0 0
W
Z
X
Y
00 01 11 10
00
01
11
10
F(w, x, y, z) = Σ(1,5,12,13)
Put 1 in place of
m1, m5, m12, m13

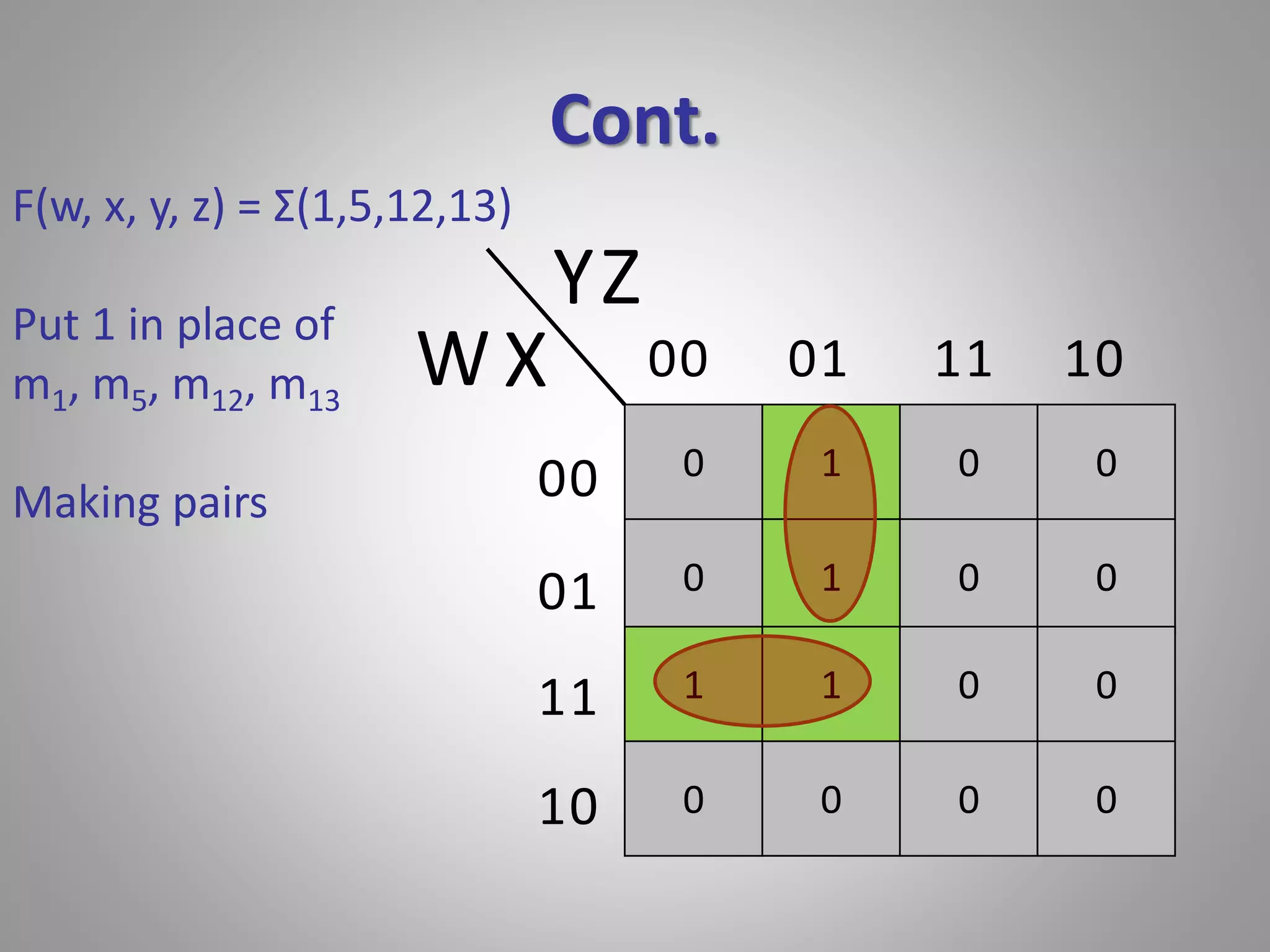

Making pairs
61. Cont.
0 1 0 0
0 1 0 0
1 1 0 0
0 0 0 0
W
Z
X
Y
00 01 11 10
00
01
11
10
F(w, x, y, z) = Σ(1,5,12,13)
Put 1 in place of
m1, m5, m12, m13
Making pairs
Hence the simplified
Expression is
F = WY’Z + W’Y’Z
62. Five variable K-map
• There thirty two minterms for five binary
variables. Therefore, a map consists of thirty
two squares.

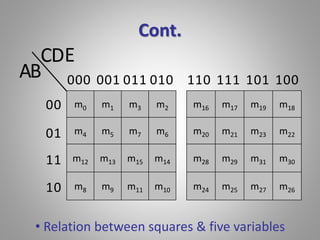

m16 m17 m19 m18
m20 m21 m23 m22
M28 m29 M31 m30
m24 m25 m27 m26
m0 m1 m3 m2
m4 m5 m7 m6
m12 m13 m15 m14
m8 m9 m11 m10
64. Cont.

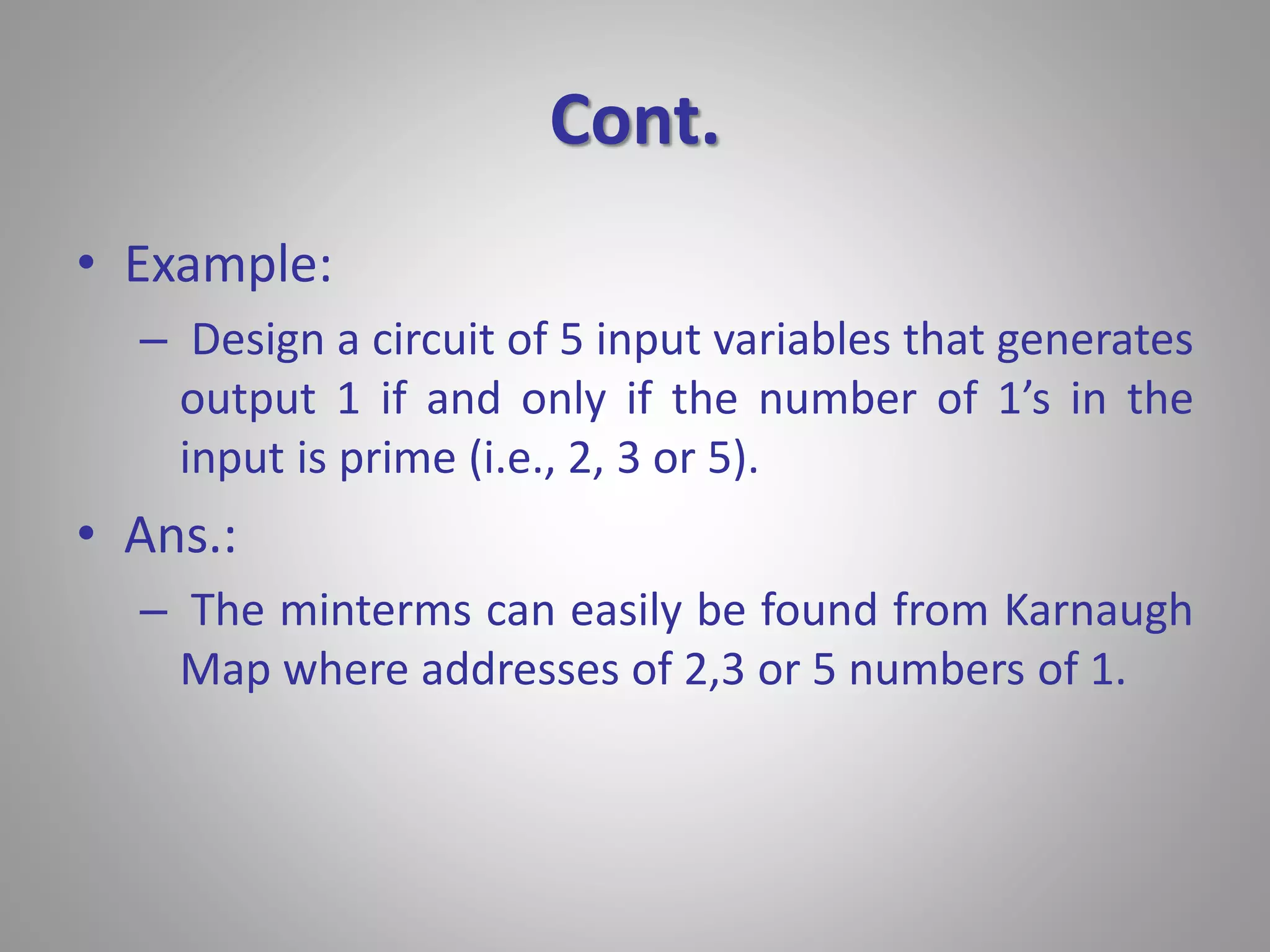

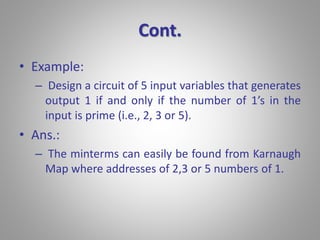

• Example:
– Design a circuit of 5 input variables that generates
output 1 if and only if the number of 1’s in the
input is prime (i.e., 2, 3 or 5).

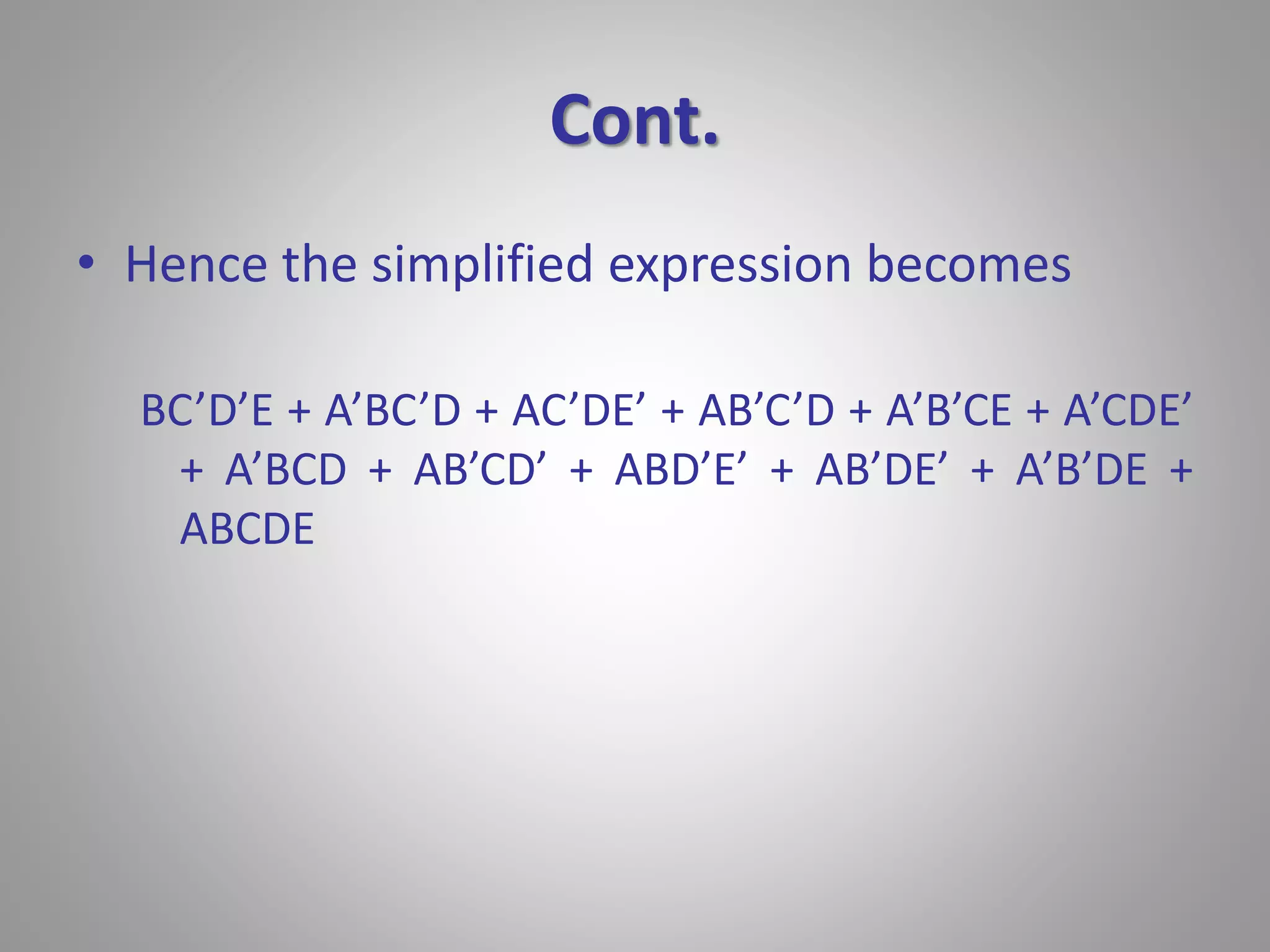

• Ans.:

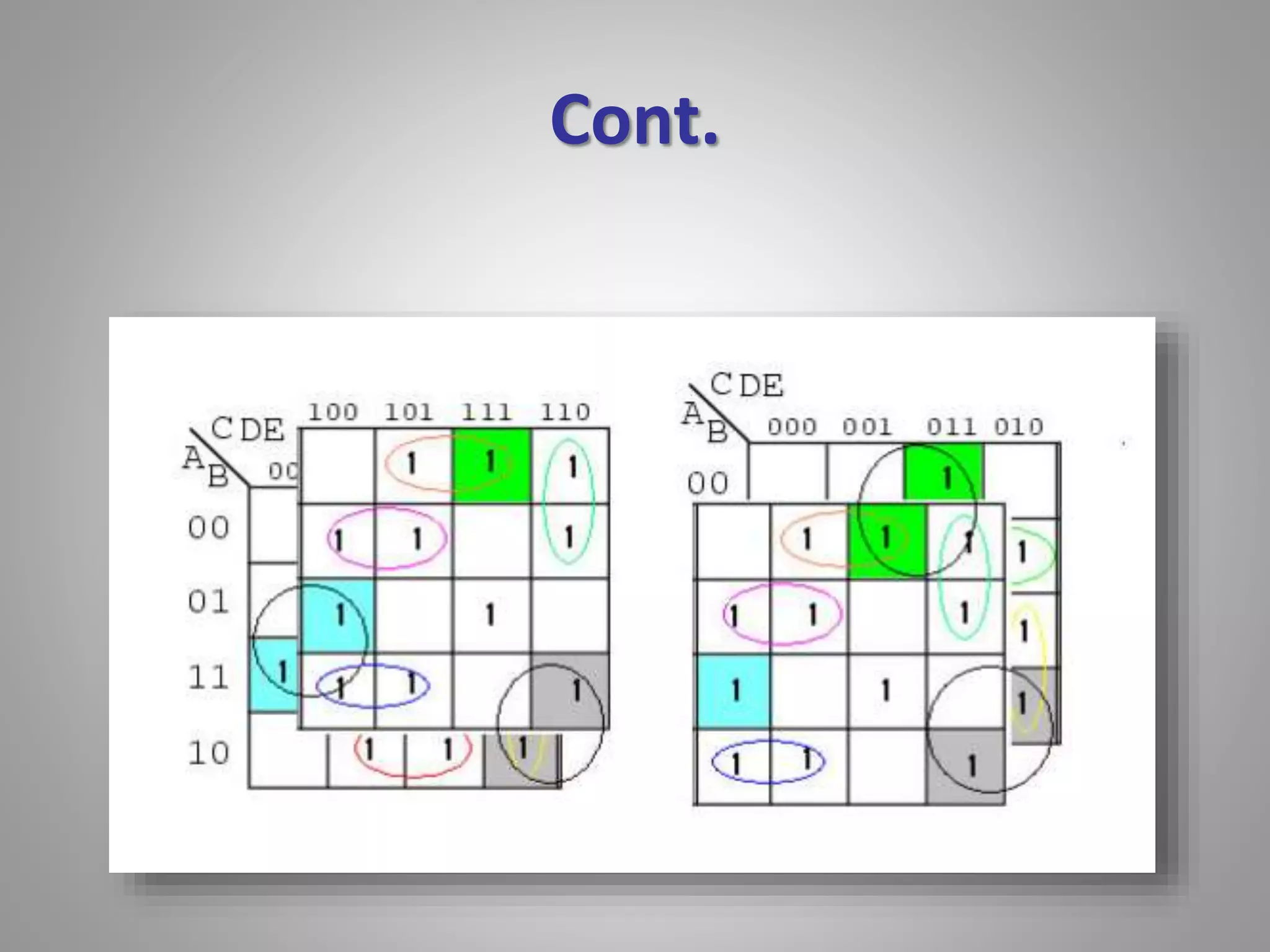

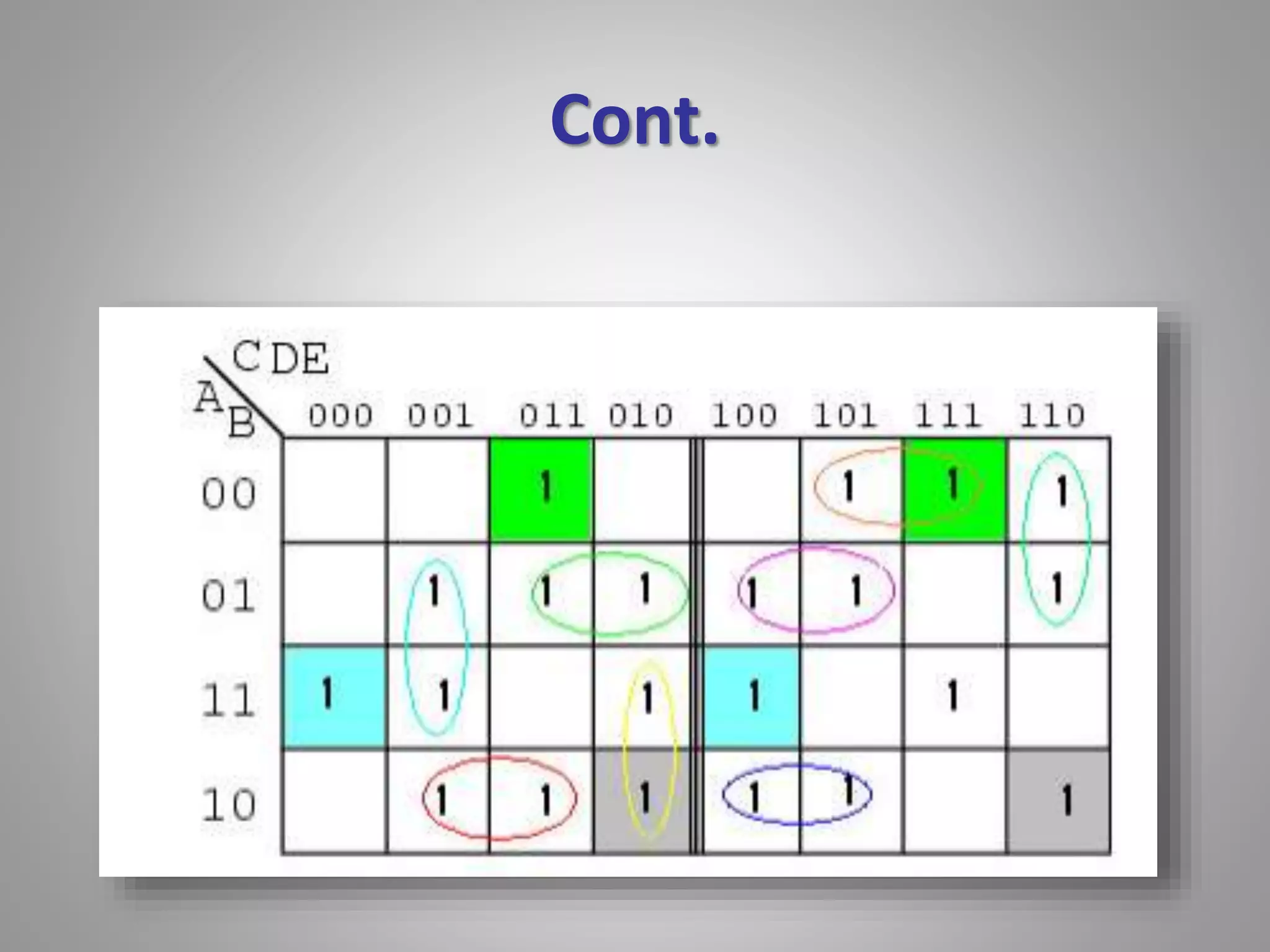

– The minterms can easily be found from Karnaugh
Map where addresses of 2,3 or 5 numbers of 1.

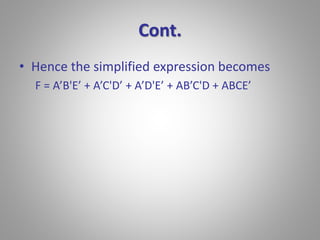

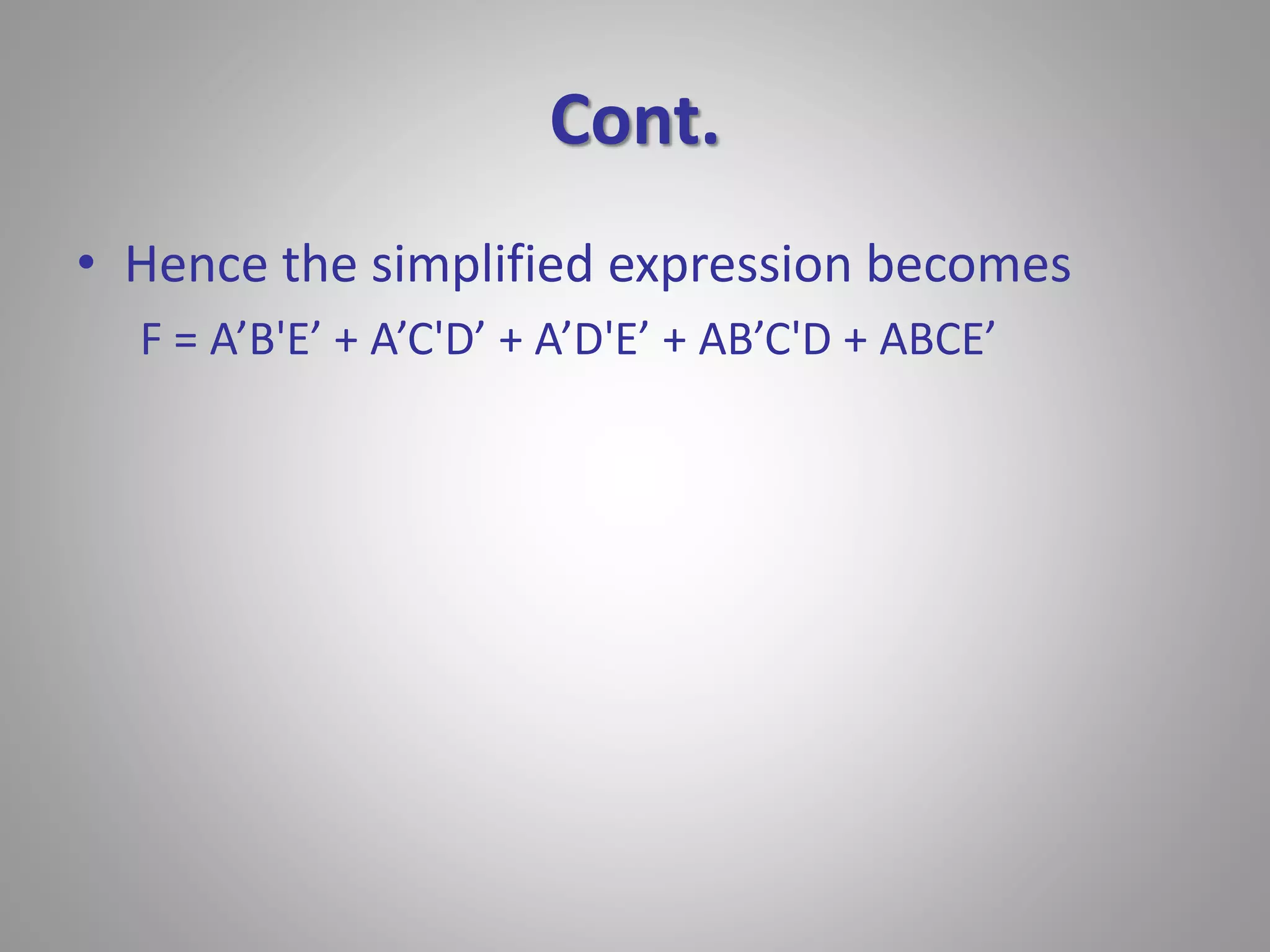

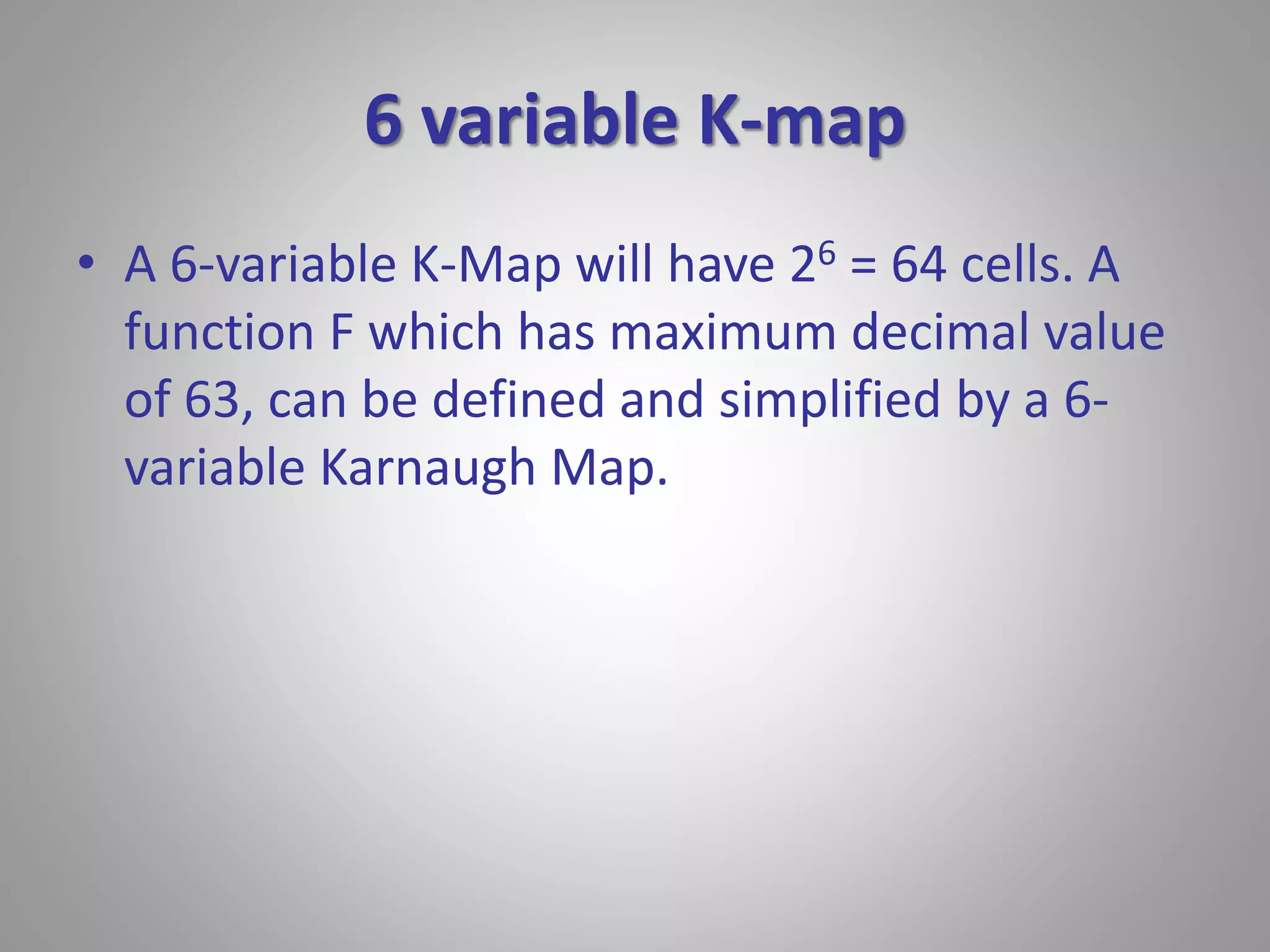

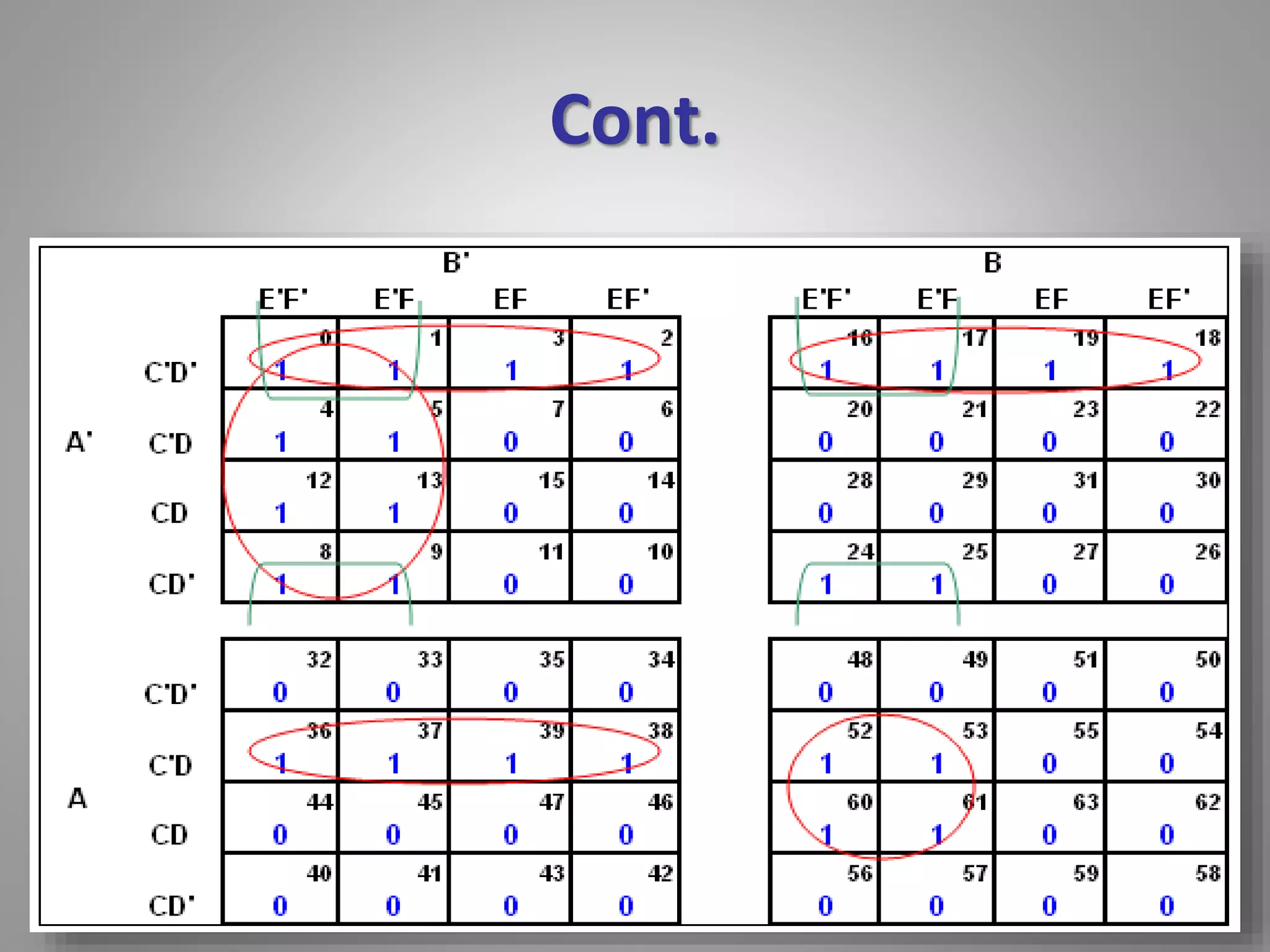

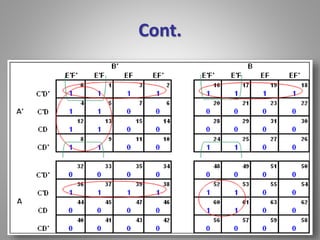

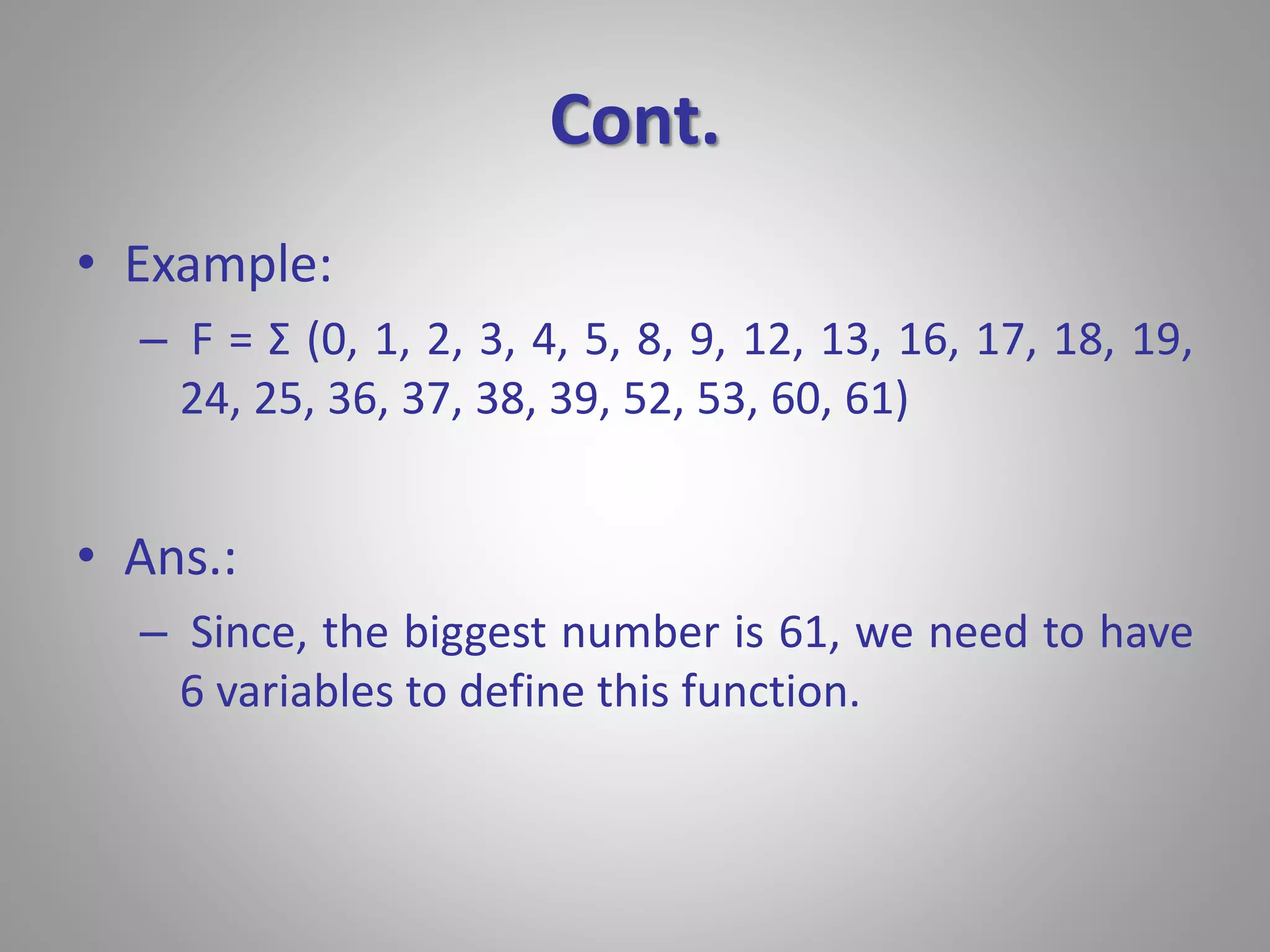

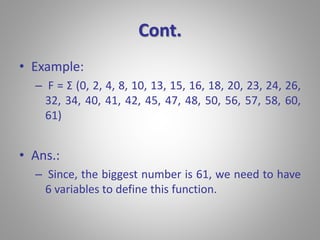

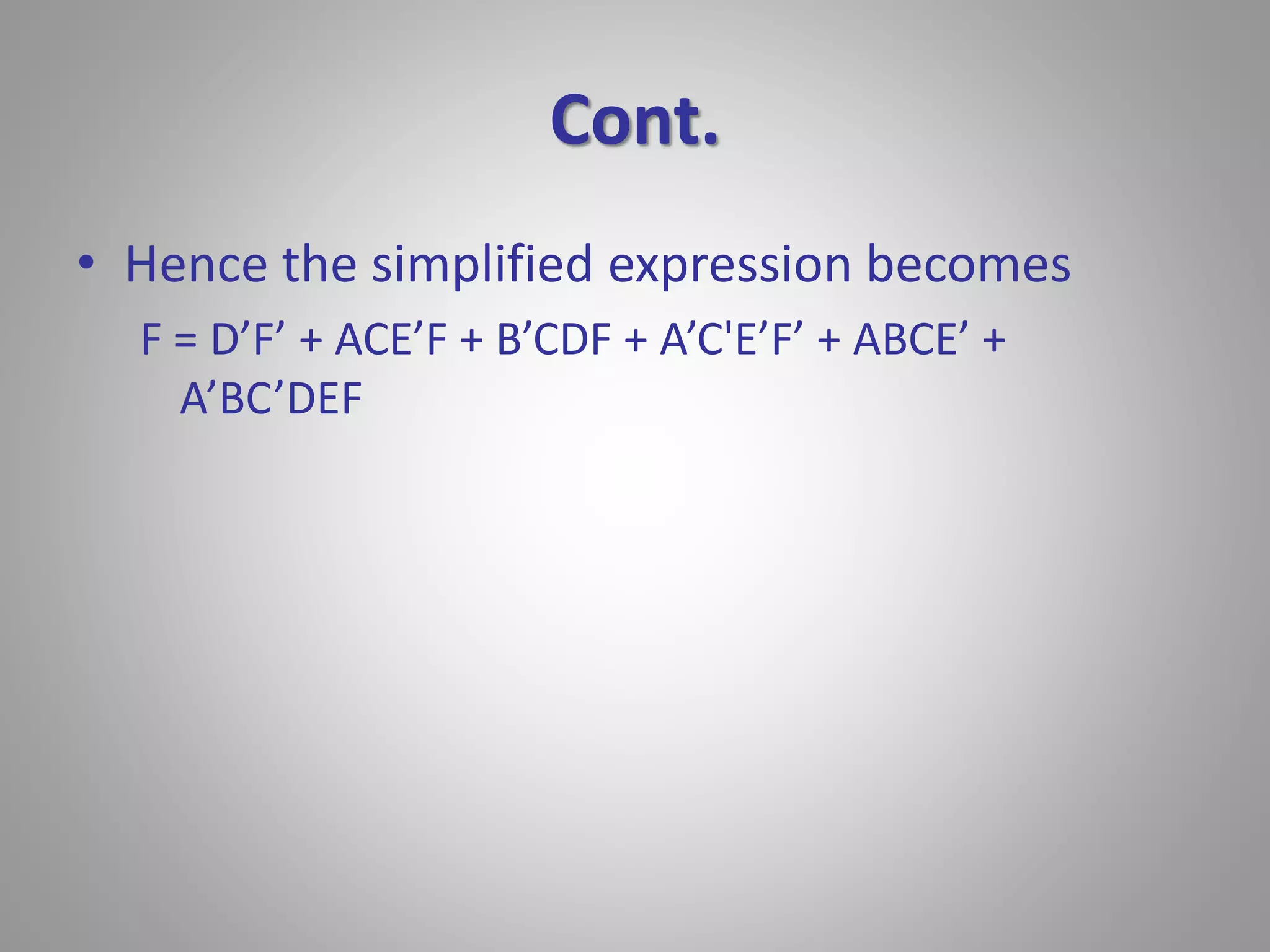

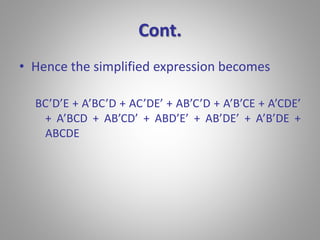

68. 6 variable K-map
• A 6-variable K-Map will have 26 = 64 cells. A
function F which has maximum decimal value
of 63, can be defined and simplified by a 6-
variable Karnaugh Map.

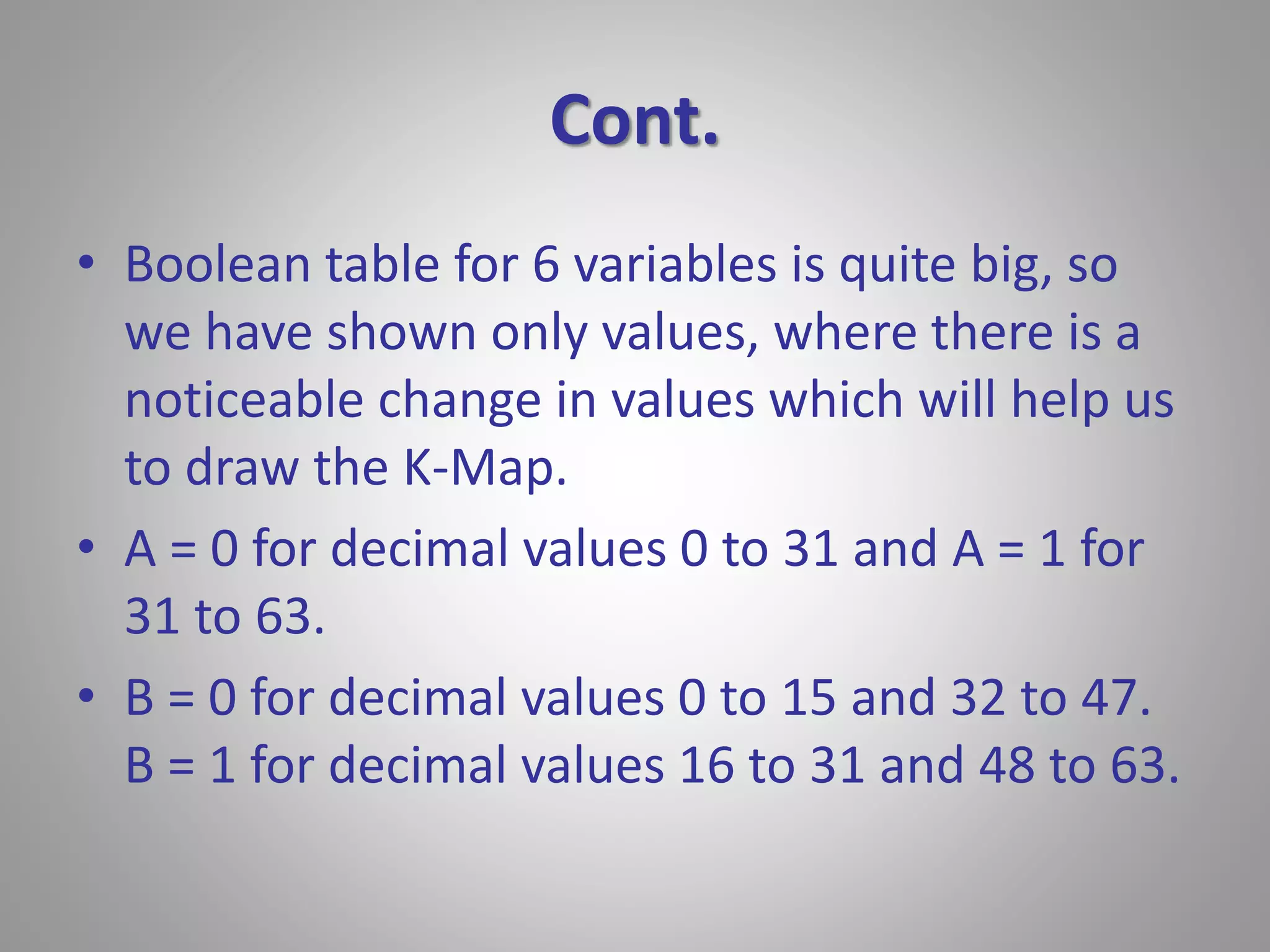

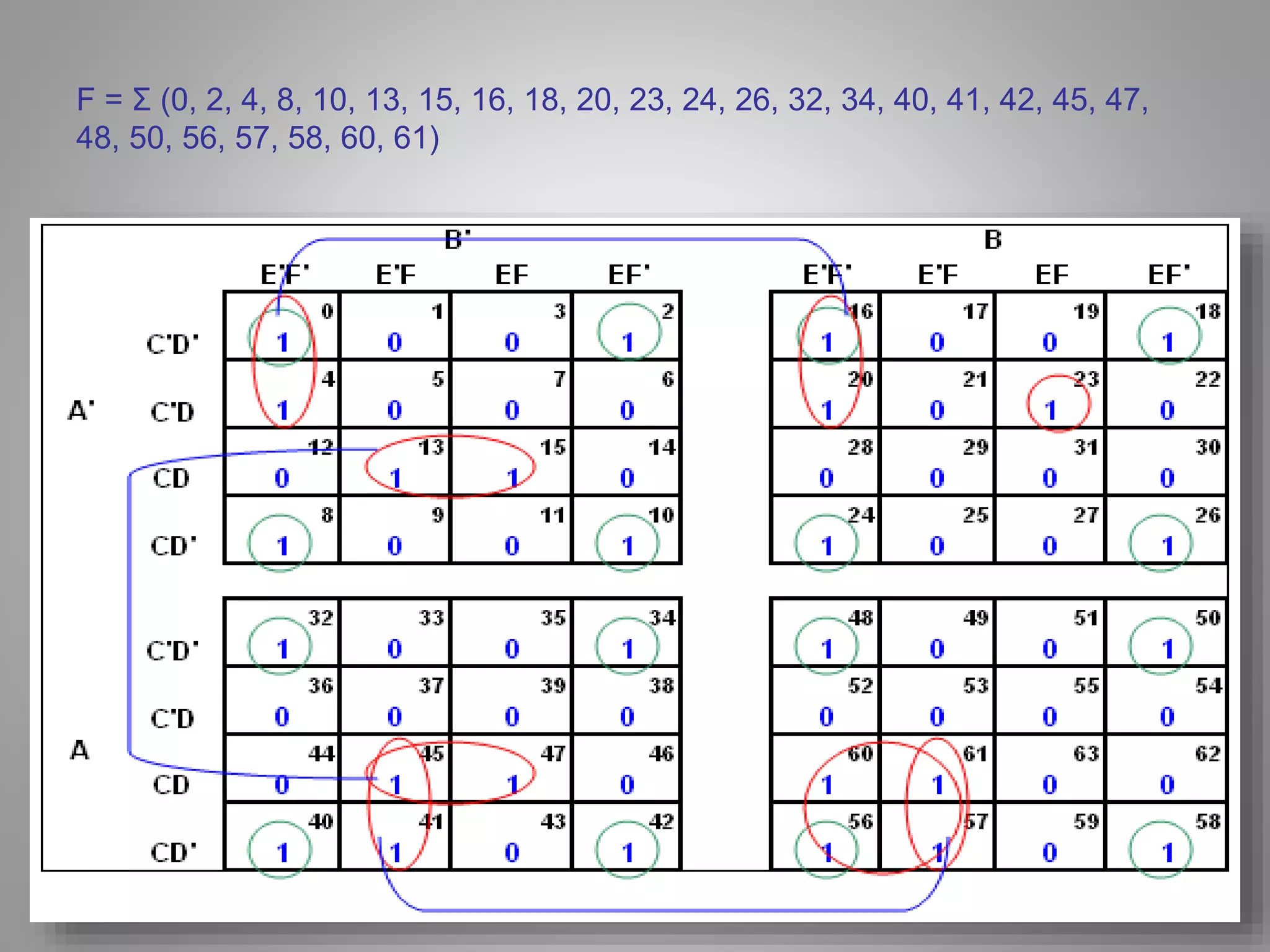

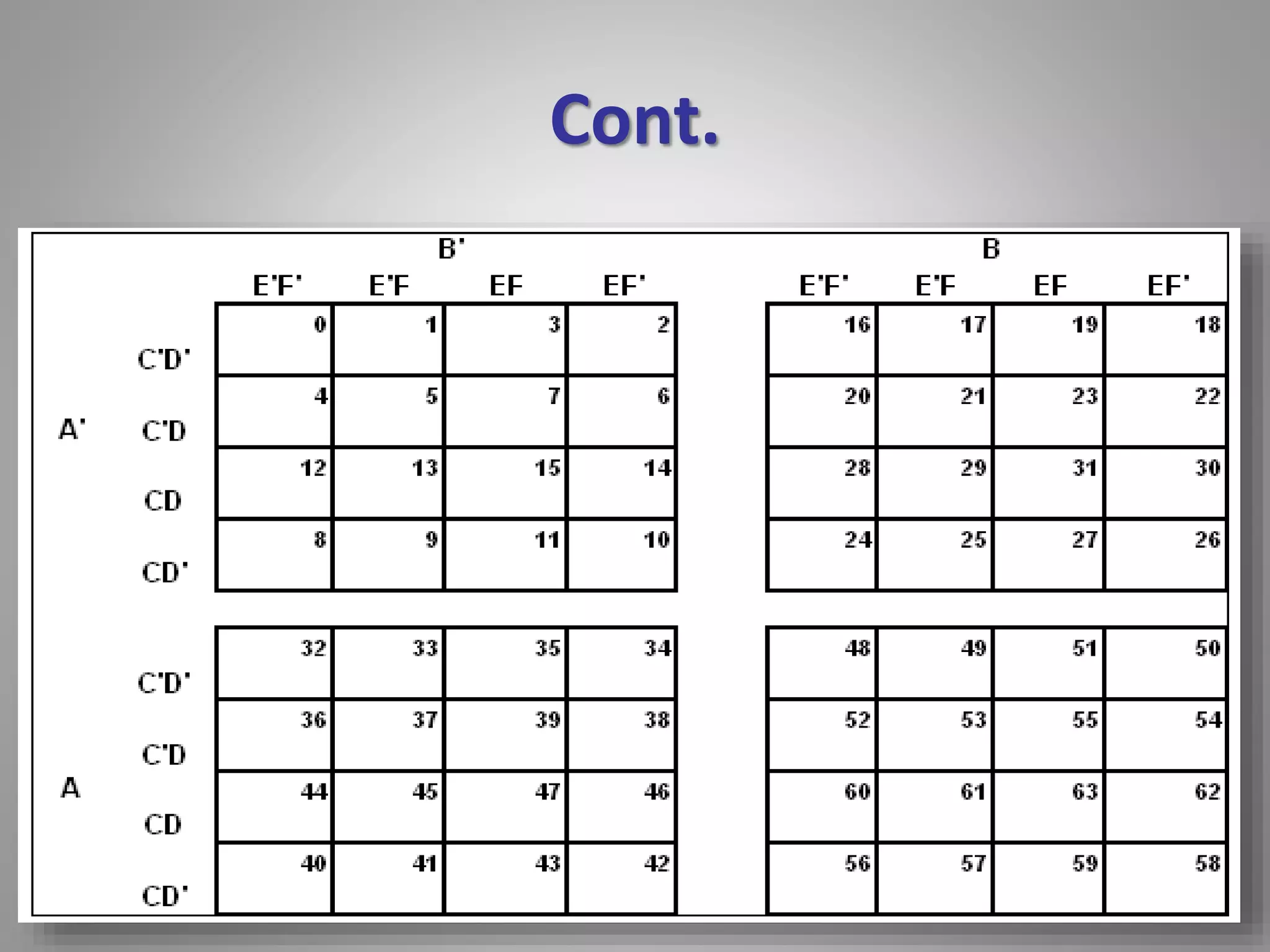

70. Cont.
• Boolean table for 6 variables is quite big, so
we have shown only values, where there is a
noticeable change in values which will help us
to draw the K-Map.

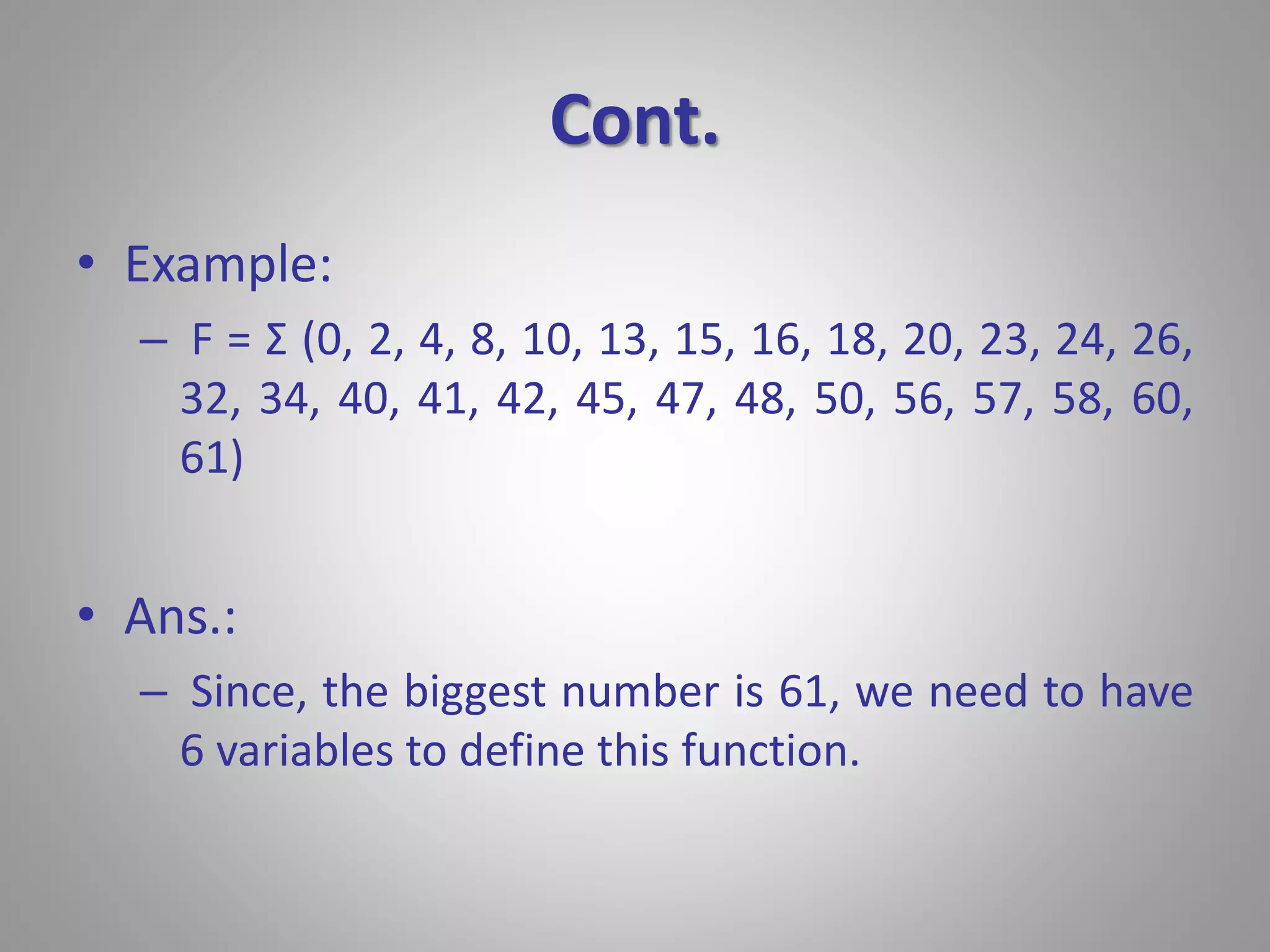

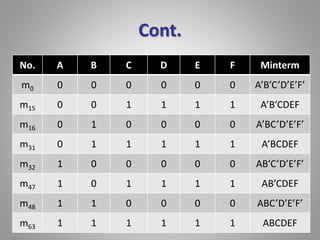

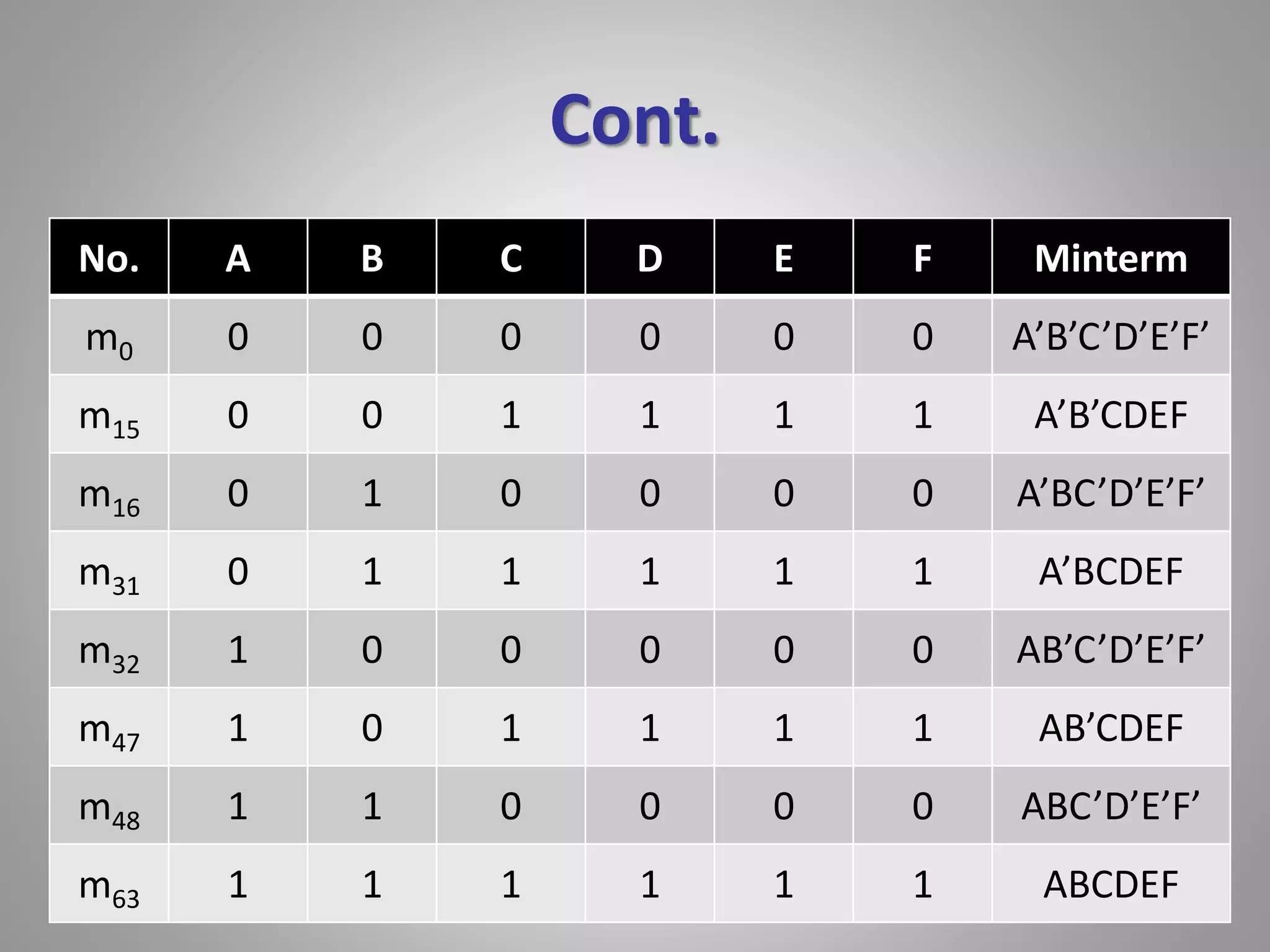

• A = 0 for decimal values 0 to 31 and A = 1 for
31 to 63.
• B = 0 for decimal values 0 to 15 and 32 to 47.
B = 1 for decimal values 16 to 31 and 48 to 63.
