This document summarizes Metro, JAX-WS, WSIT and REST web services technologies. It provides an overview of Project Metro and its key components JAX-WS and WSIT. JAX-WS allows developing web services from POJOs using annotations and generates WSDL. It can be used with Java SE, Java EE and various app servers. WSIT enables interoperability with Microsoft .NET by supporting reliable messaging, transactions and security. The document also discusses developing and consuming web services clients using JAX-WS APIs and proxies generated from WSDL.

1. Metro: JAX-WS, WSIT and REST Carol McDonald Java Architect Sun Microsystems

2. About the Speaker Carol cDonald: Java Architect at Sun Microsystems Before Sun, worked on software development of: Application to manage car Loans for Toyota (>10 million loans) Pharmaceutical Intranet apps ( Roche Switzerland) Telecom Network Mgmt ( Digital France) X.400 Email Server ( IBM Germany)

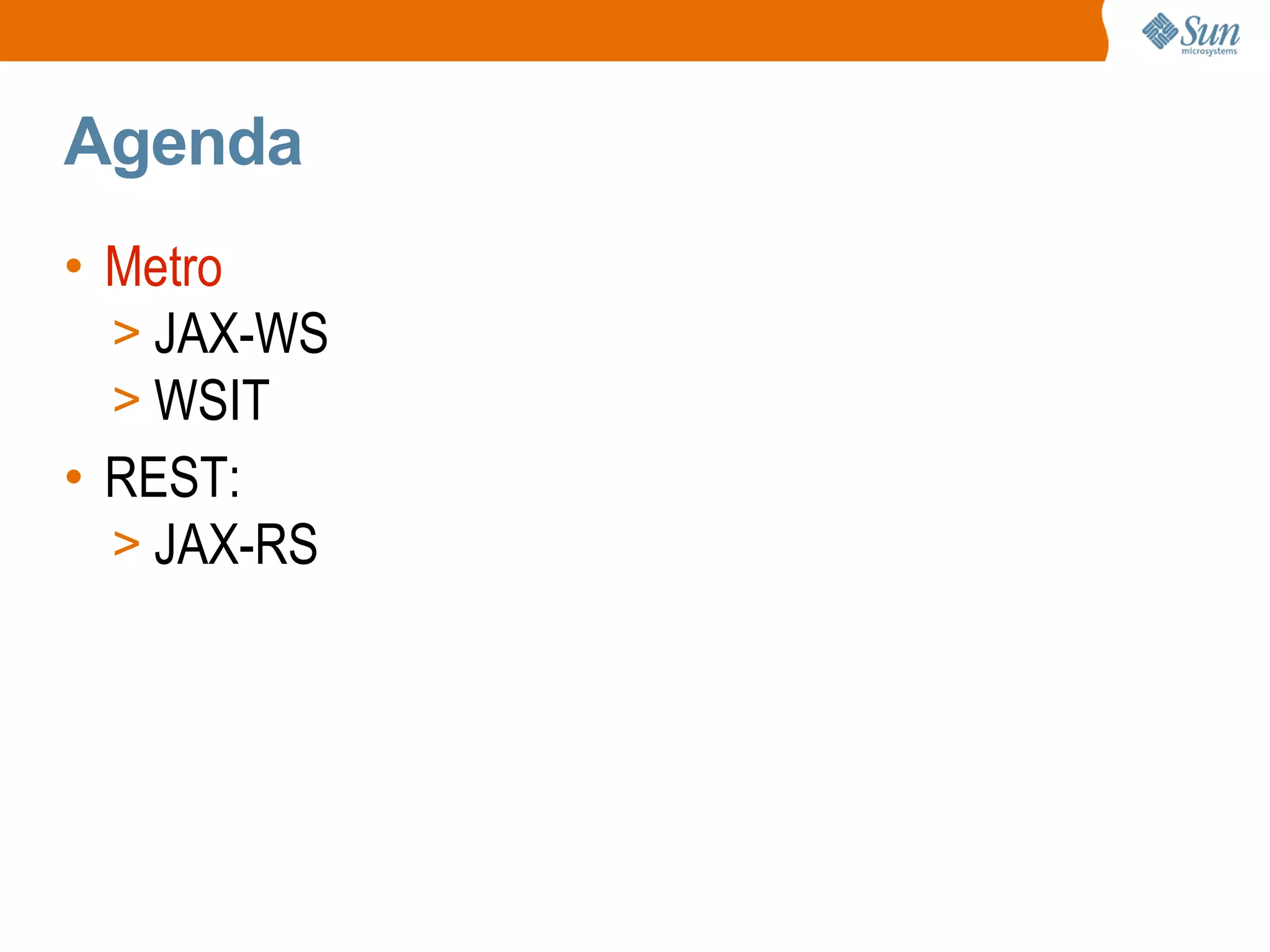

3. Agenda Metro JAX-WS WSIT REST: JAX-RS

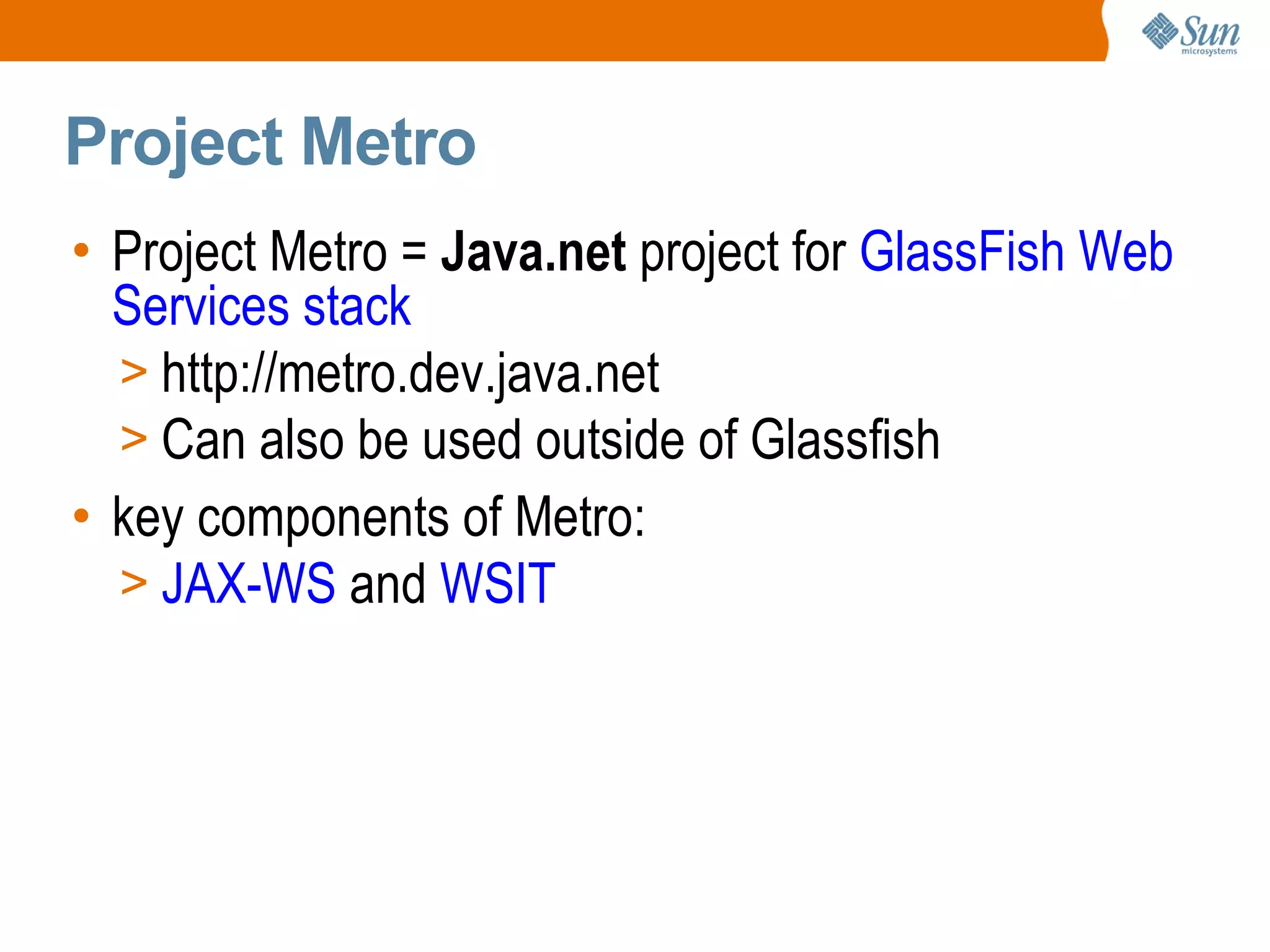

4. Project Metro Project Metro = Java.net project for GlassFish Web Services stack http://metro.dev.java.net Can also be used outside of Glassfish key components of Metro: JAX-WS and WSIT

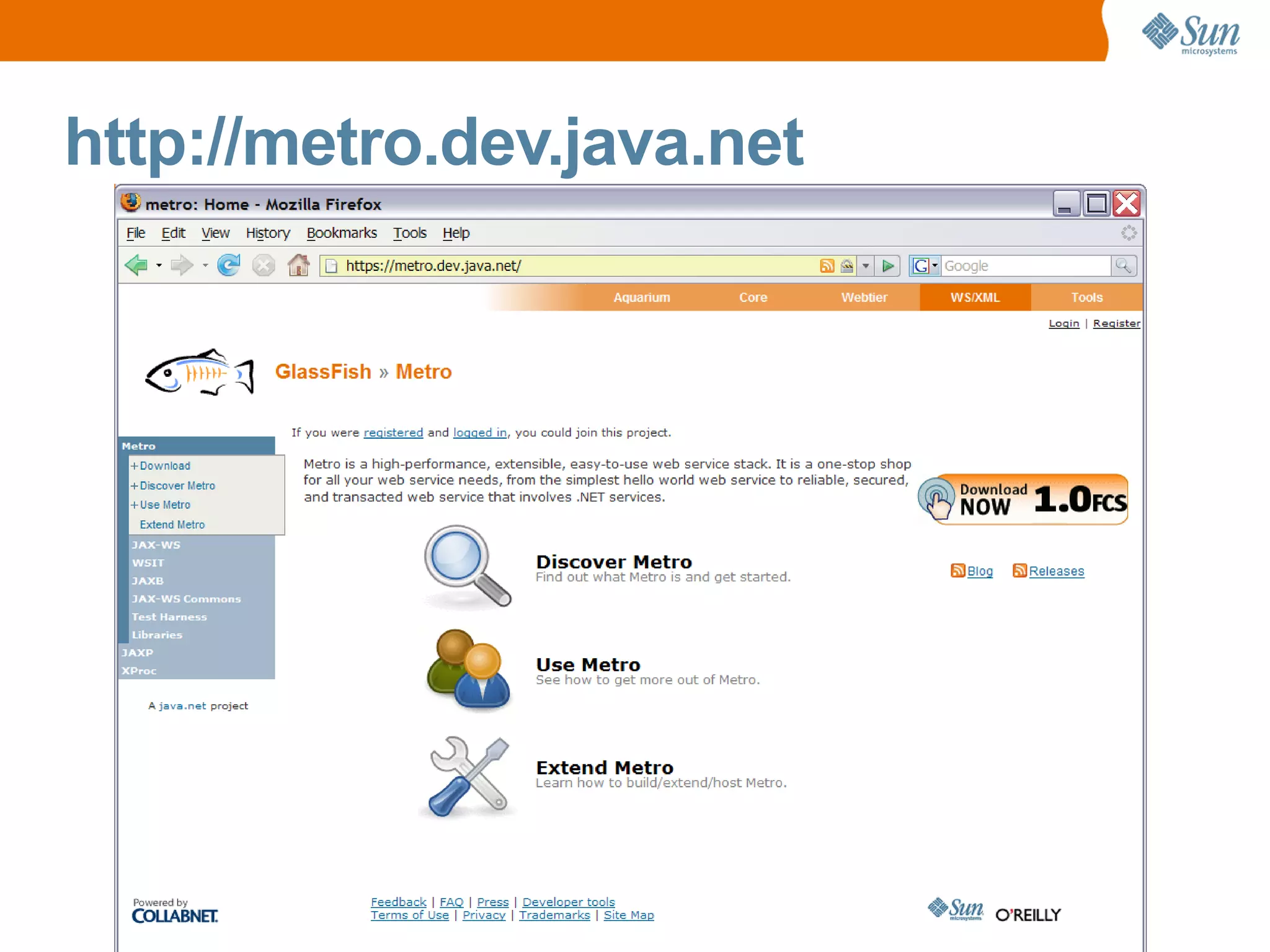

5. http://metro.dev.java.net

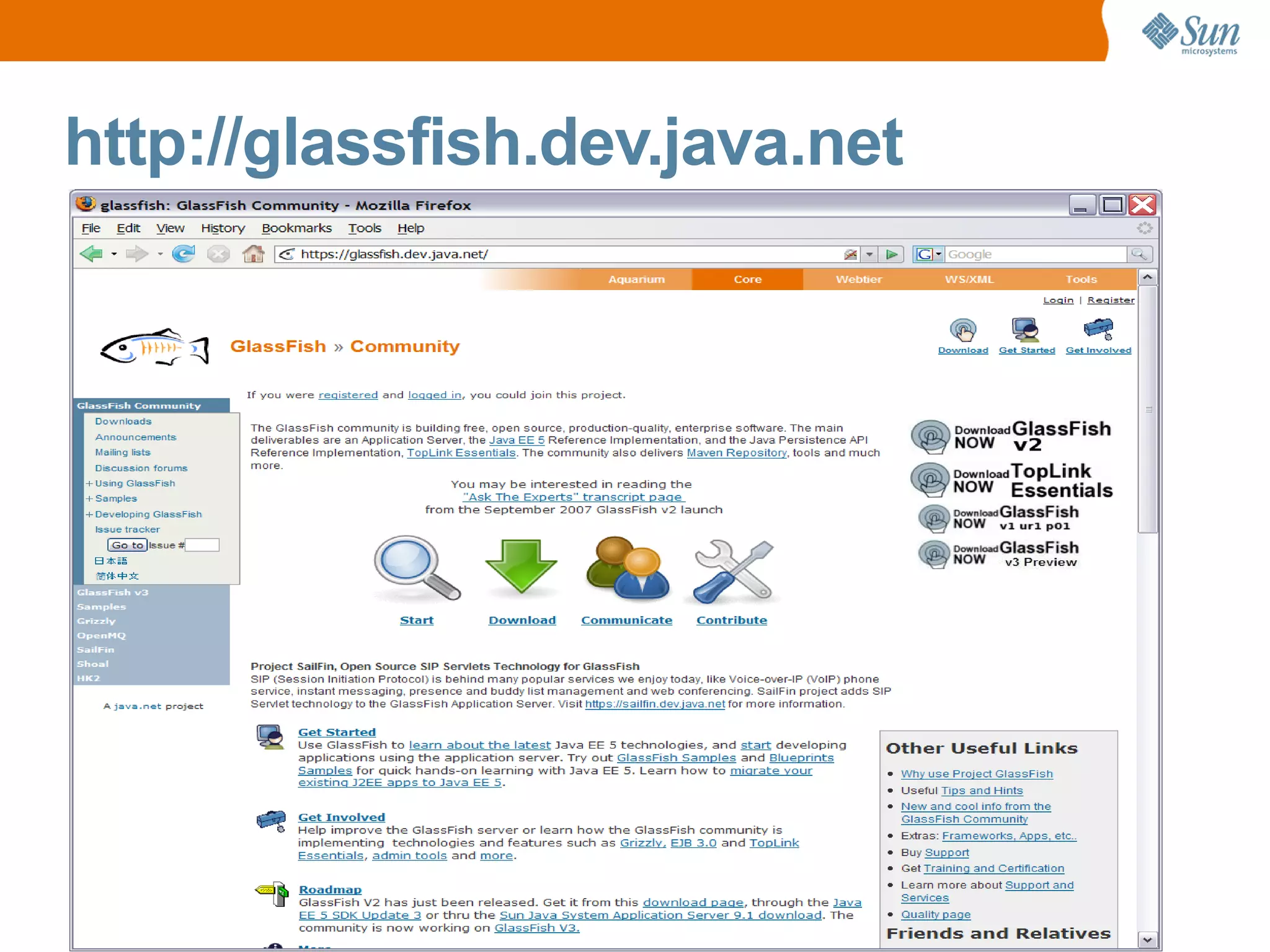

6. http://glassfish.dev.java.net

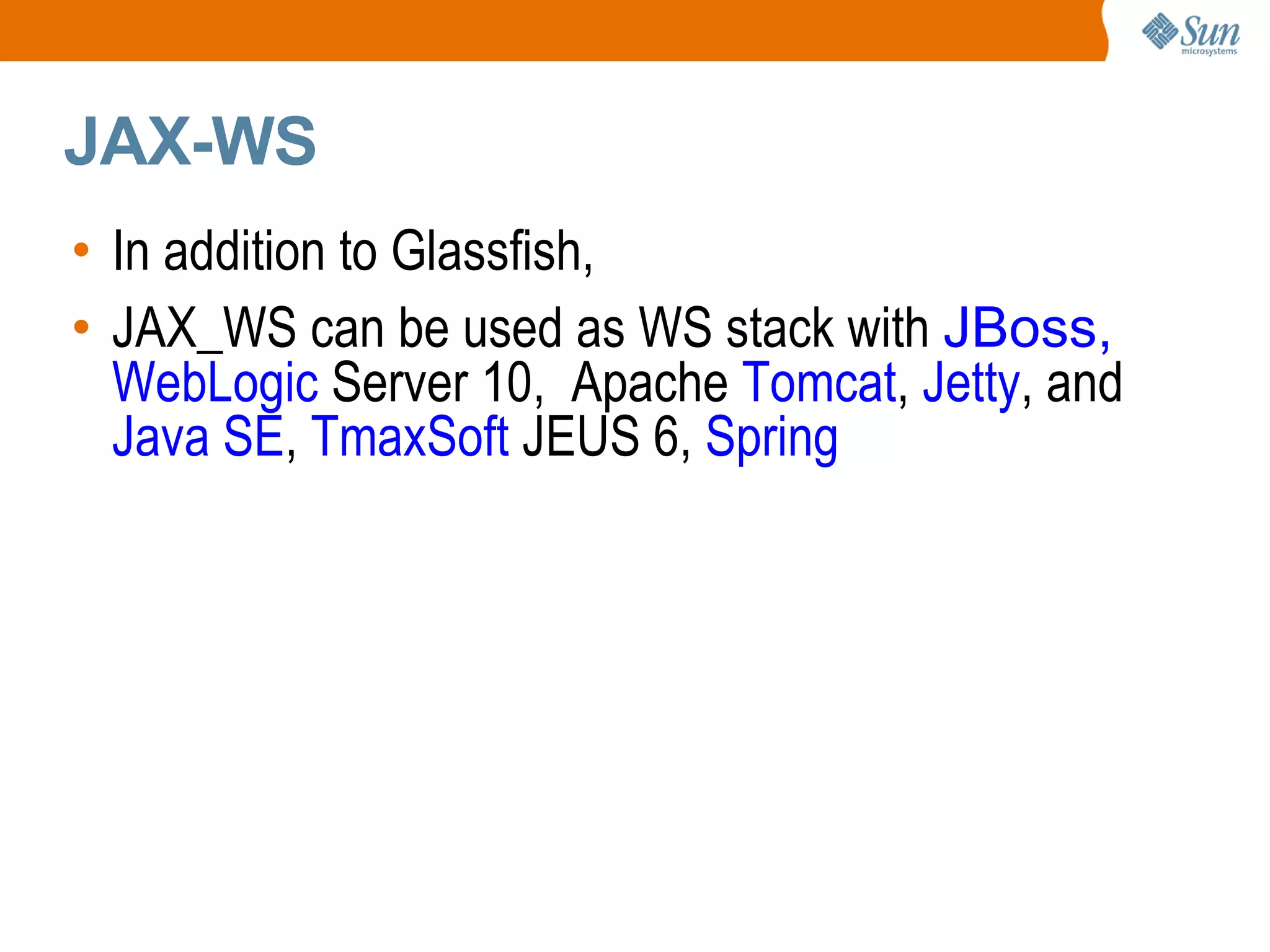

7. JAX-WS In addition to Glassfish, JAX_WS can be used as WS stack with JBoss, WebLogic Server 10, Apache Tomcat , Jetty , and Java SE , TmaxSoft JEUS 6, Spring

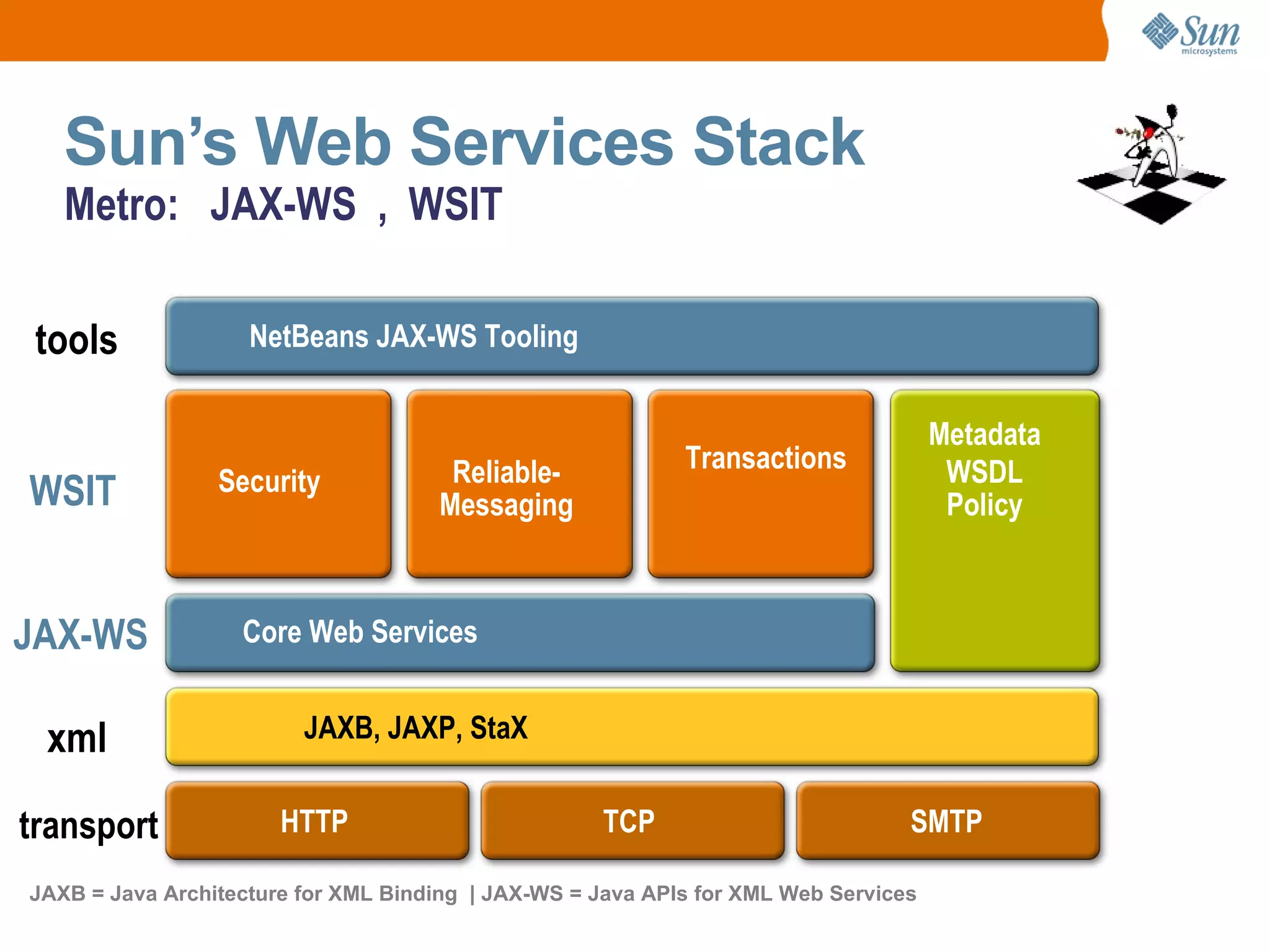

8. Sun’s Web Services Stack Metro: JAX-WS , WSIT JAXB = Java Architecture for XML Binding | JAX-WS = Java APIs for XML Web Services NetBeans JAX-WS Tooling Transactions Reliable- Messaging Security Metadata WSDL Policy Core Web Services HTTP TCP SMTP JAXB, JAXP, StaX JAX-WS WSIT tools transport xml

9. Agenda Metro JAX-WS WSIT REST

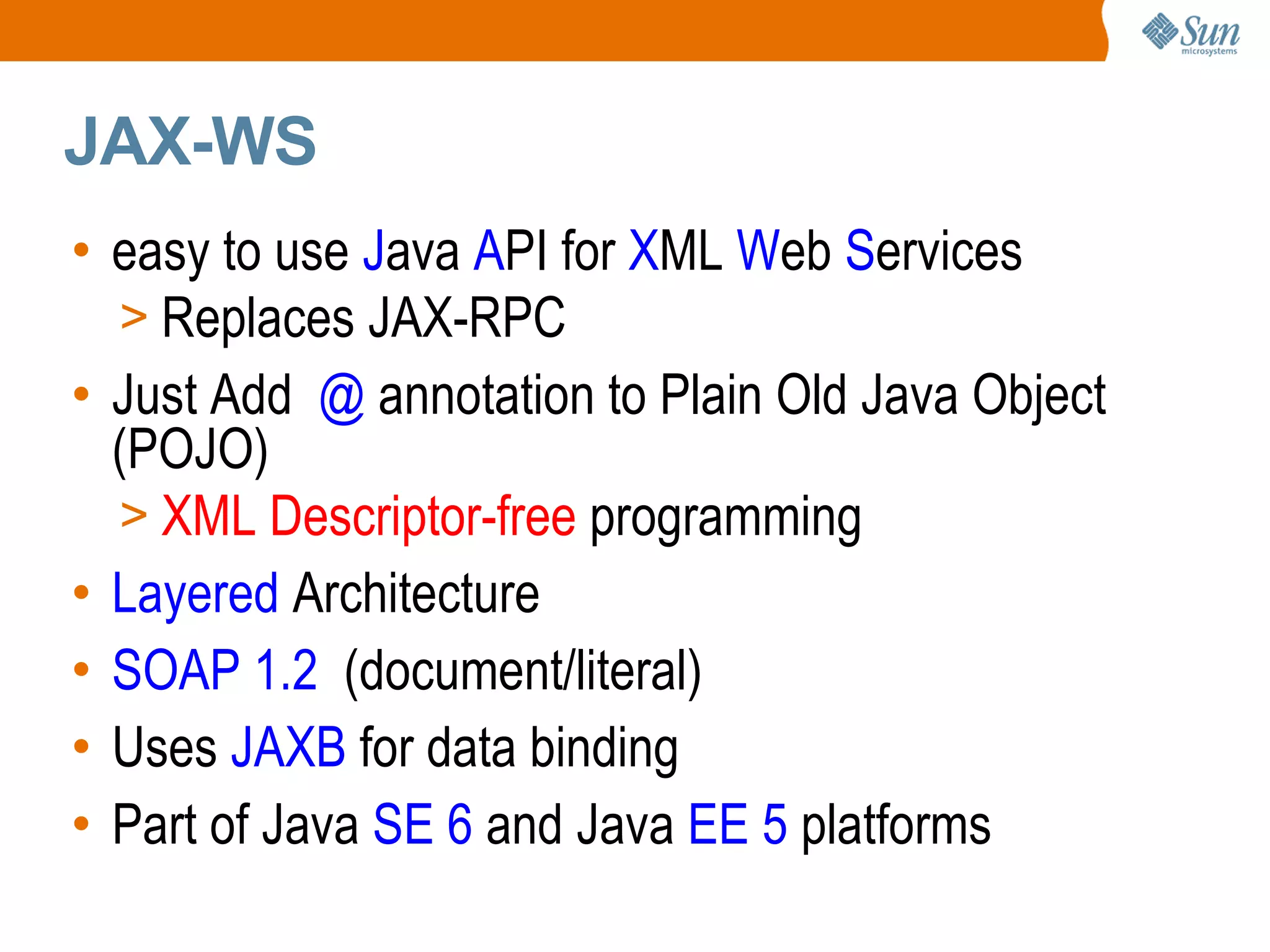

10. JAX-WS easy to use J ava A PI for X ML W eb S ervices Replaces JAX-RPC Just Add @ annotation to Plain Old Java Object (POJO) XML Descriptor-free programming Layered Architecture SOAP 1.2 (document/literal) Uses JAXB for data binding Part of Java SE 6 and Java EE 5 platforms

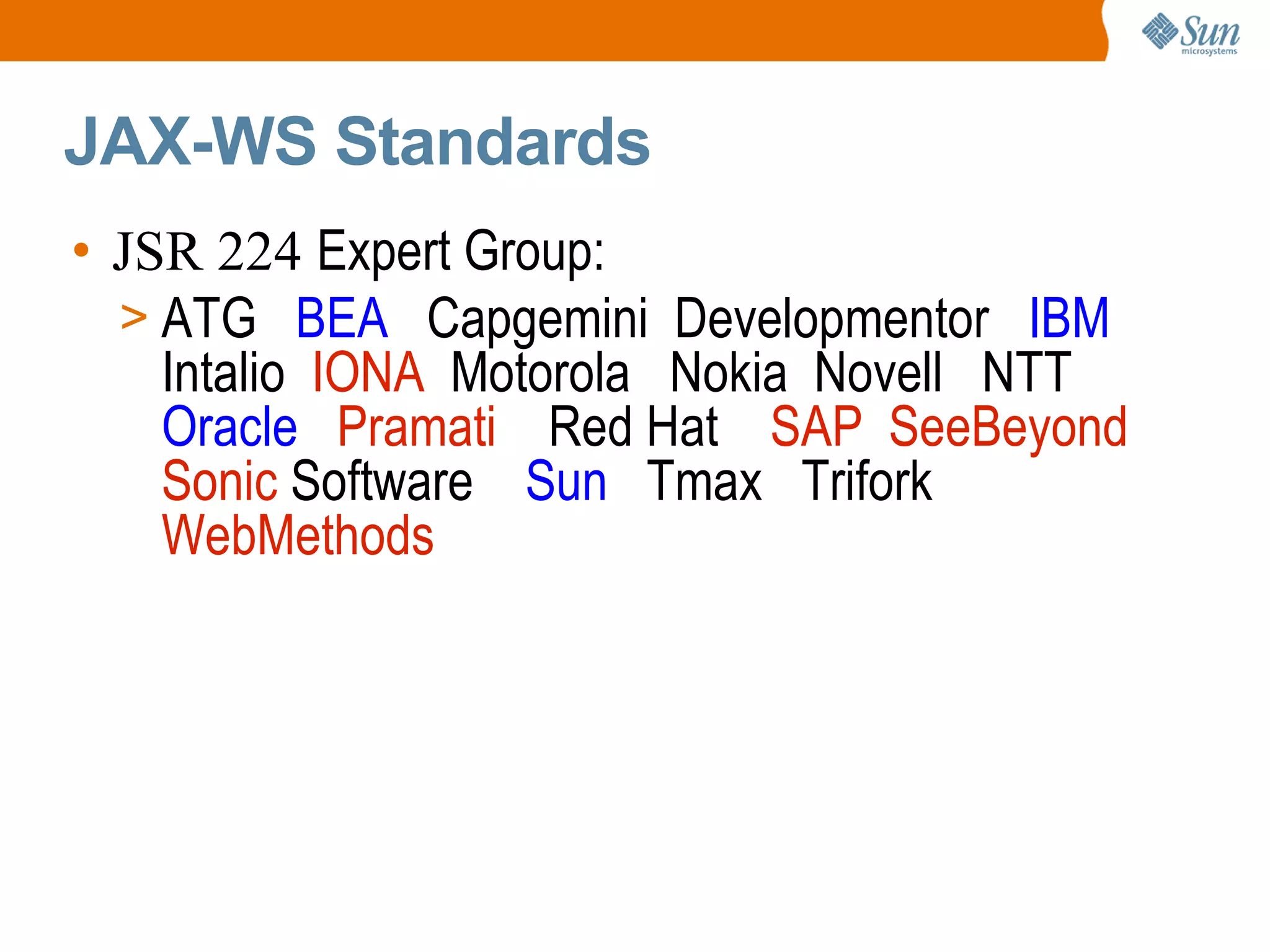

11. JAX-WS Standards JSR 224 Expert Group: ATG BEA Capgemini Developmentor IBM Intalio IONA Motorola Nokia Novell NTT Oracle Pramati Red Hat SAP SeeBeyond Sonic Software Sun Tmax Trifork WebMethods

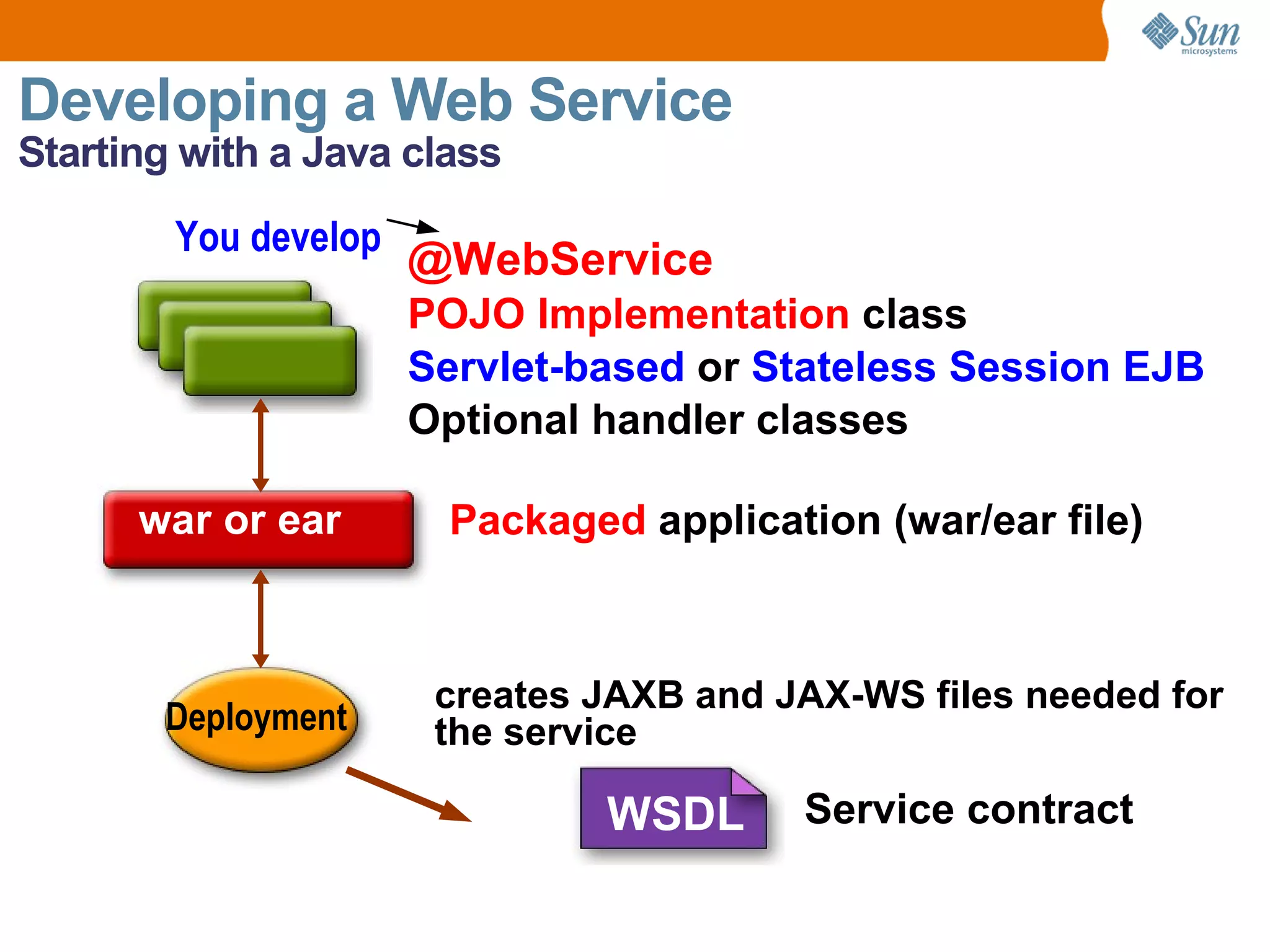

12. Developing a Web Service Starting with a Java class war or ear @WebService POJO Implementation class Servlet-based or Stateless Session EJB Optional handler classes Packaged application (war/ear file) You develop Service contract WSDL Deployment creates JAXB and JAX-WS files needed for the service

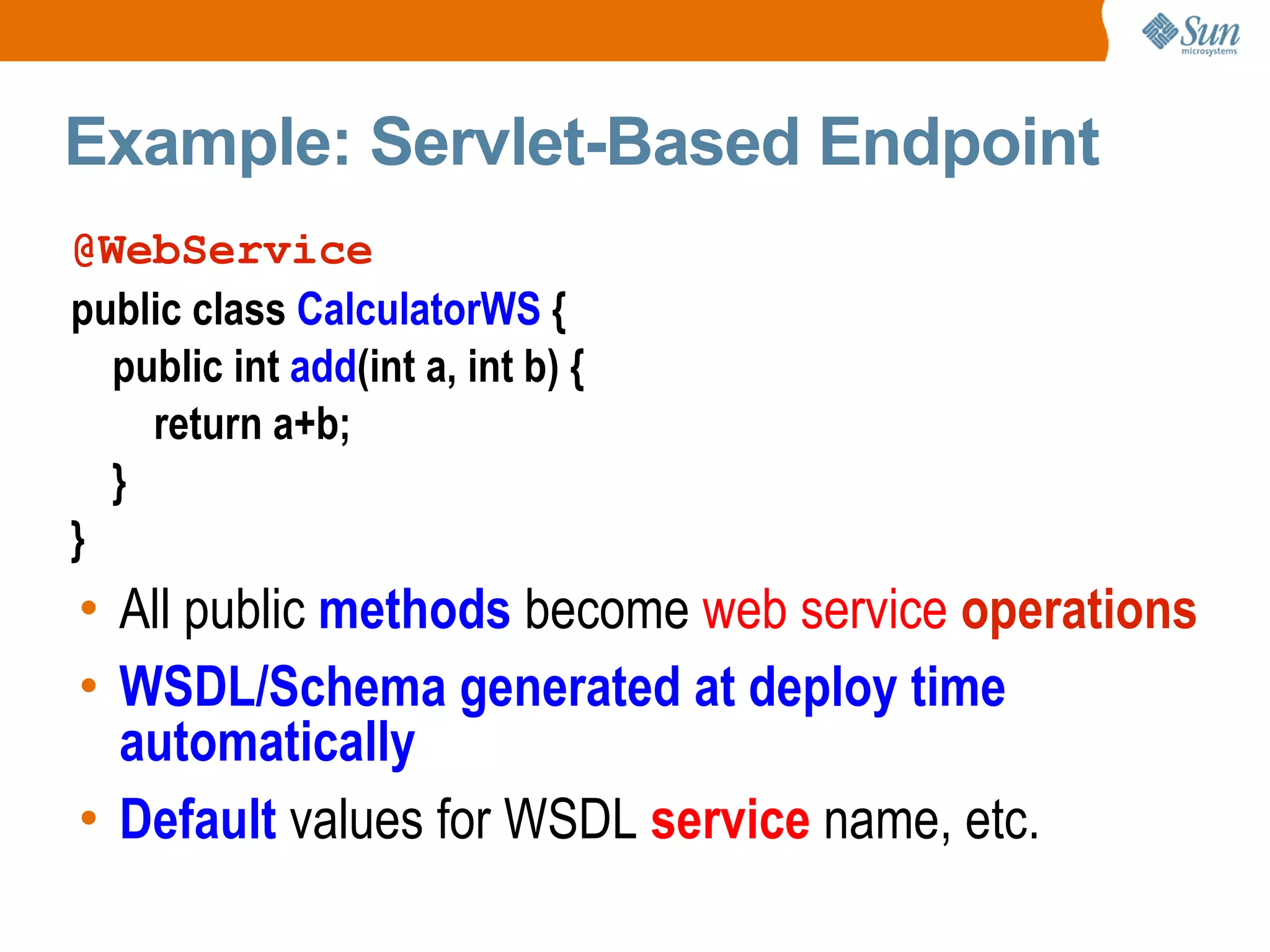

13. Example: Servlet-Based Endpoint @WebService public class CalculatorWS { public int add (int a, int b) { return a+b; } } All public methods become web service operations WSDL/Schema generated at deploy time automatically Default values for WSDL service name, etc.

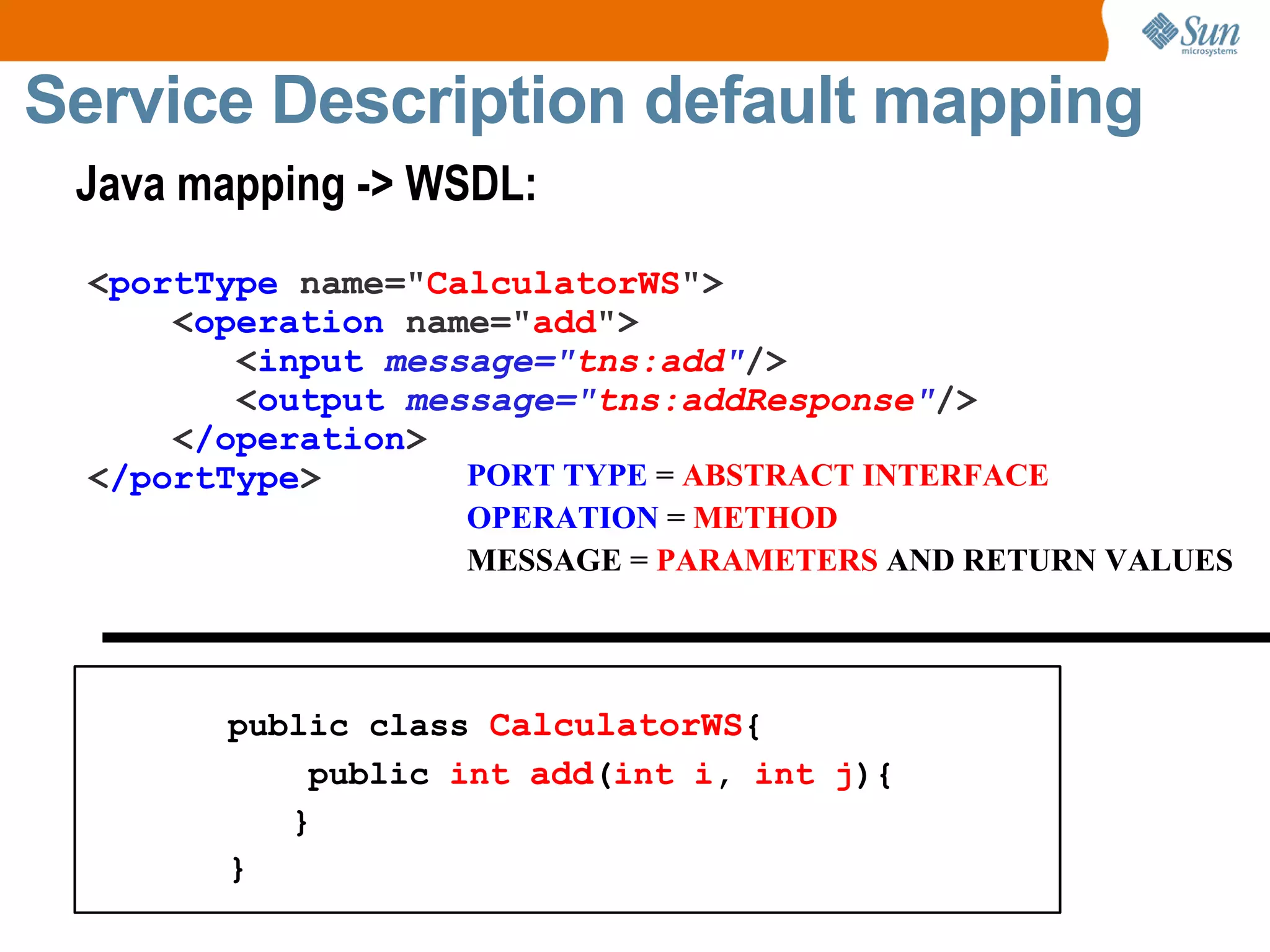

14. Service Description default mapping Java mapping -> WSDL: public class CalculatorWS { public int add ( int i , int j ){ } } < portType name=&quot; CalculatorWS &quot;> < operation name=&quot; add &quot;> < input message=&quot; tns:add &quot; /> < output message=&quot; tns:addResponse &quot; /> < /operation > < /portType > PORT TYPE = ABSTRACT INTERFACE OPERATION = METHOD MESSAGE = PARAMETERS AND RETURN VALUES

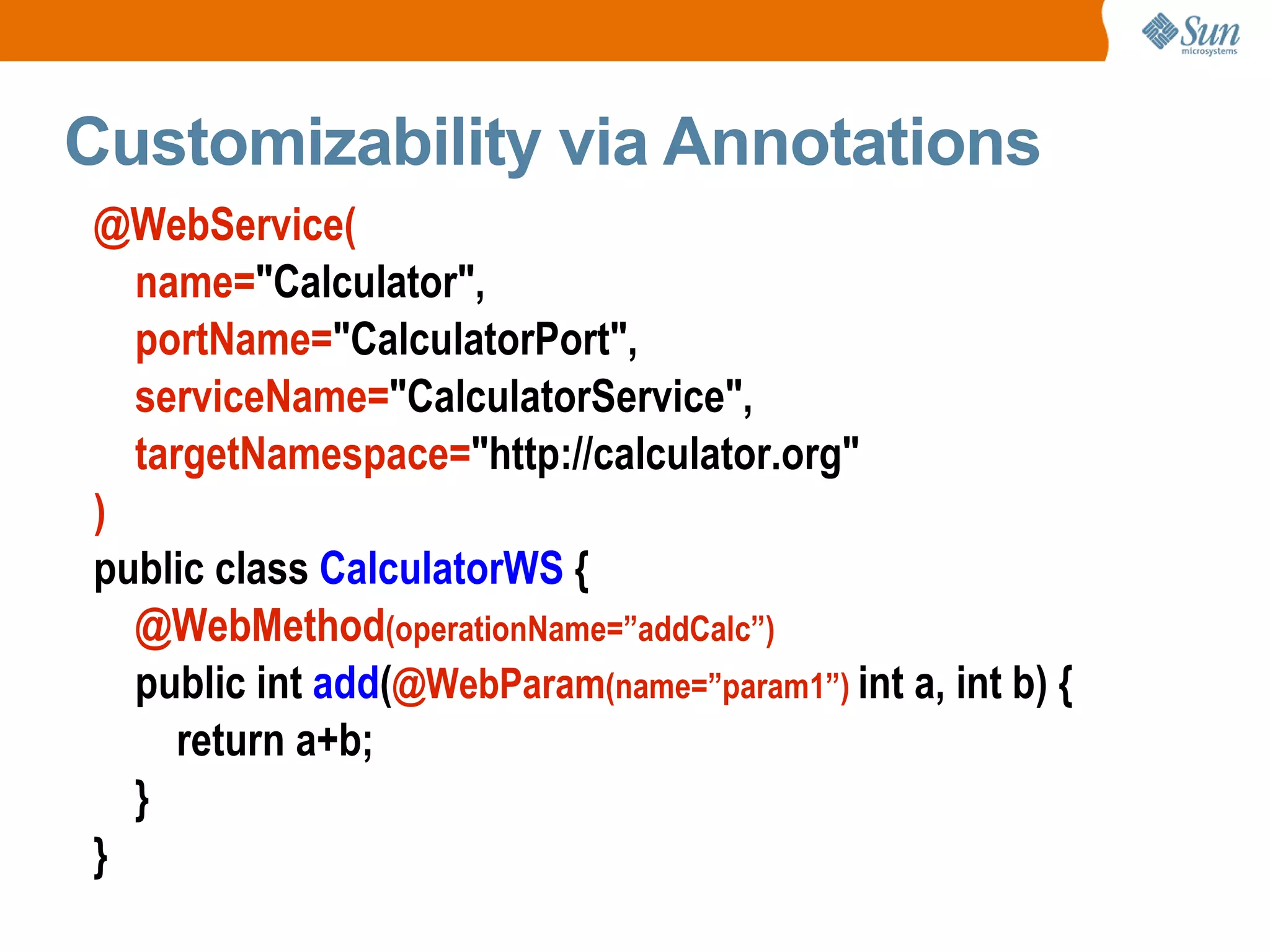

15. Customizability via Annotations @WebService( name= &quot;Calculator&quot;, portName= &quot;CalculatorPort&quot;, serviceName= &quot;CalculatorService&quot;, targetNamespace= &quot;http://calculator.org&quot; ) public class CalculatorWS { @WebMethod (operationName=”addCalc”) public int add ( @WebParam (name=”param1”) int a, int b) { return a+b; } }

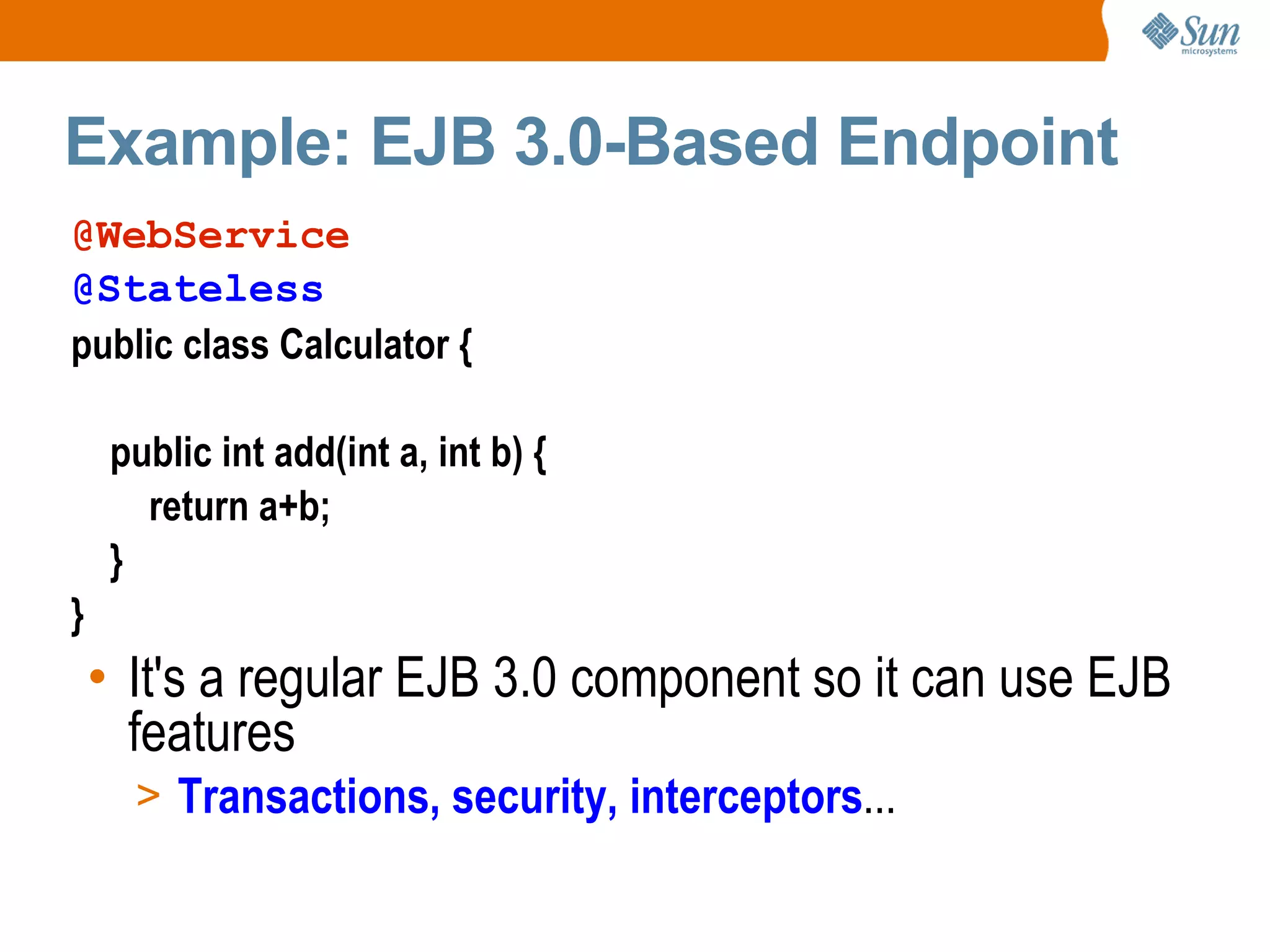

16. Example: EJB 3.0-Based Endpoint It's a regular EJB 3.0 component so it can use EJB features Transactions, security, interceptors ... @WebService @Stateless public class Calculator { public int add(int a, int b) { return a+b; } }

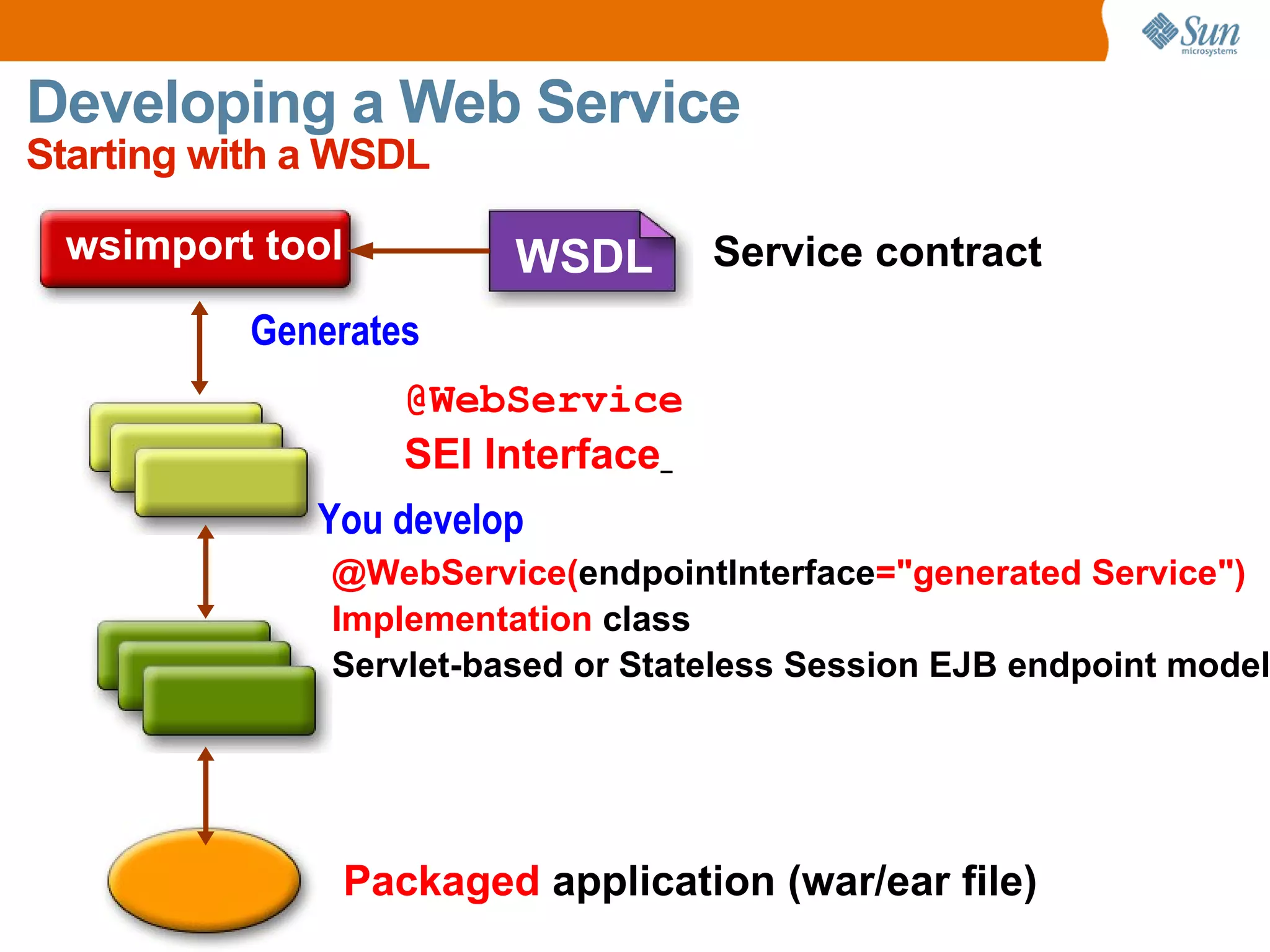

17. Developing a Web Service Starting with a WSDL wsimport tool @WebService SEI Interface @WebService( endpointInterface =&quot;generated Service&quot;) Implementation class Servlet-based or Stateless Session EJB endpoint model Packaged application (war/ear file) Service contract WSDL Generates You develop

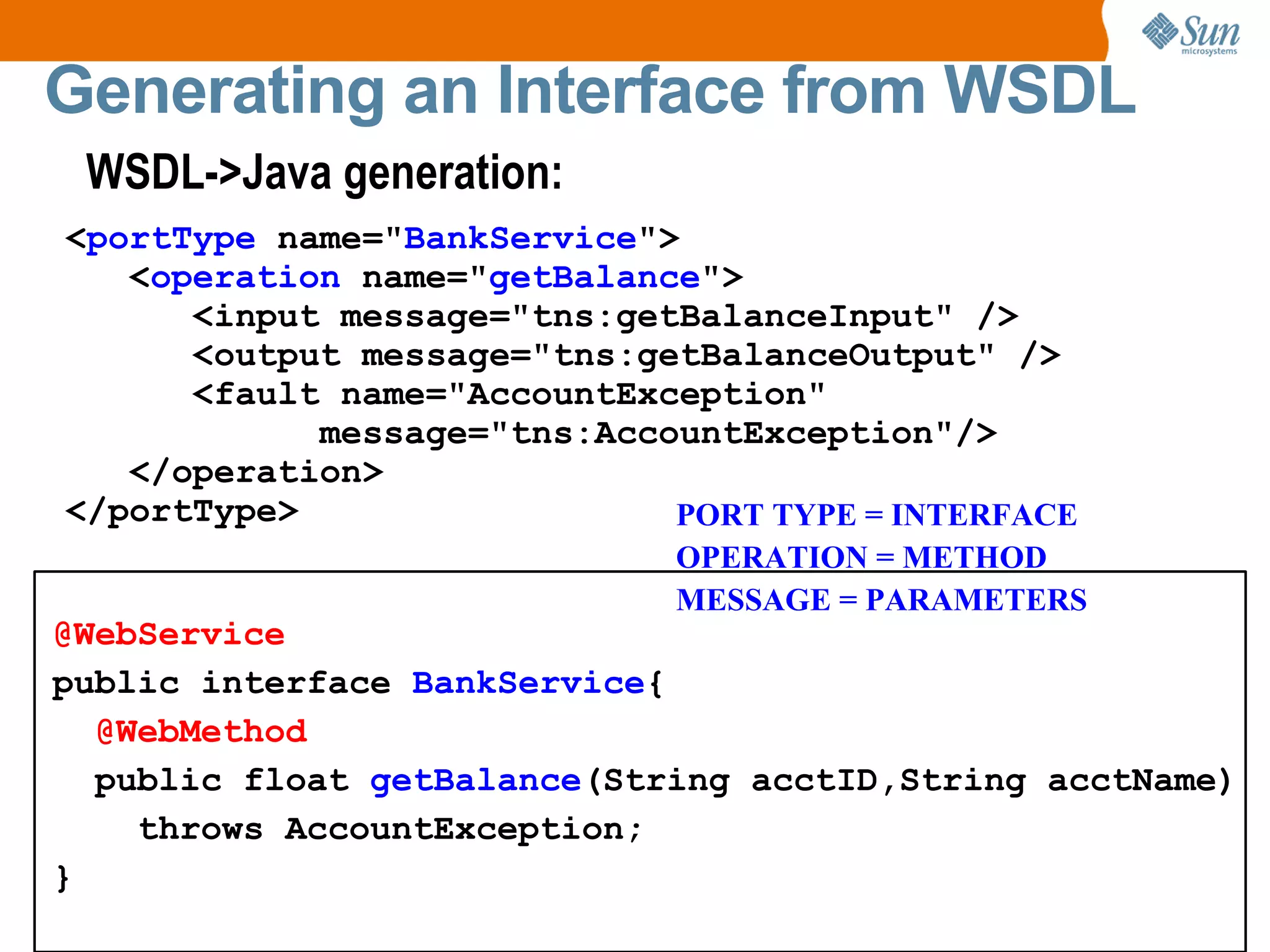

18. Generating an Interface from WSDL WSDL->Java generation: @WebService public interface BankService { @WebMethod public float getBalance (String acctID,String acctName) throws AccountException; } < portType name=&quot; BankService &quot;> < operation name=&quot; getBalance &quot;> <input message=&quot;tns:getBalanceInput&quot; /> <output message=&quot;tns:getBalanceOutput&quot; /> <fault name=&quot;AccountException&quot; message=&quot;tns:AccountException&quot;/> </operation> </portType> PORT TYPE = INTERFACE OPERATION = METHOD MESSAGE = PARAMETERS

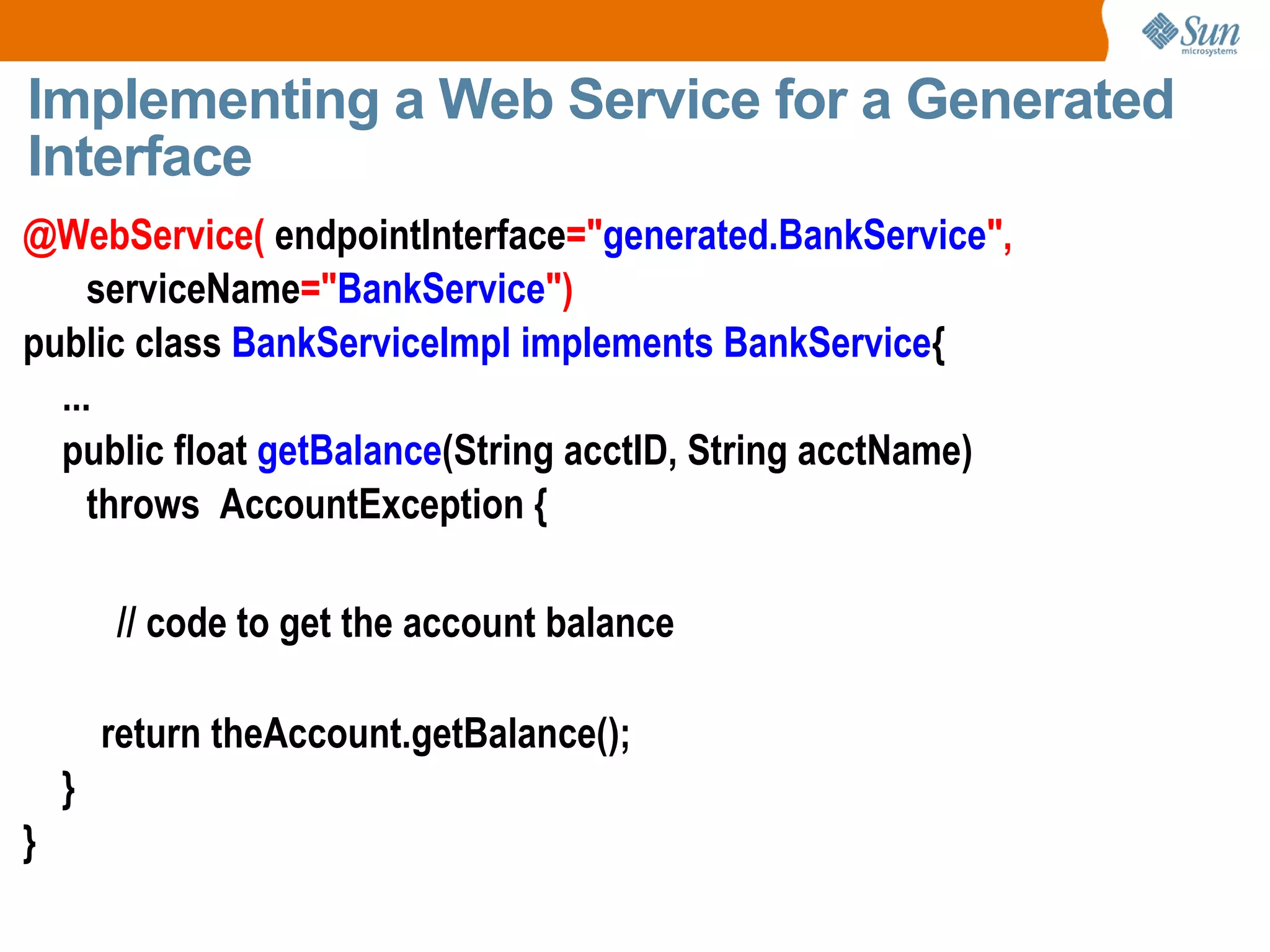

19. Implementing a Web Service for a Generated Interface @WebService( endpointInterface =&quot; generated.BankService &quot;, serviceName =&quot; BankService &quot;) public class BankServiceImpl implements BankService { ... public float getBalance (String acctID, String acctName) throws AccountException { // code to get the account balance return theAccount.getBalance(); } }

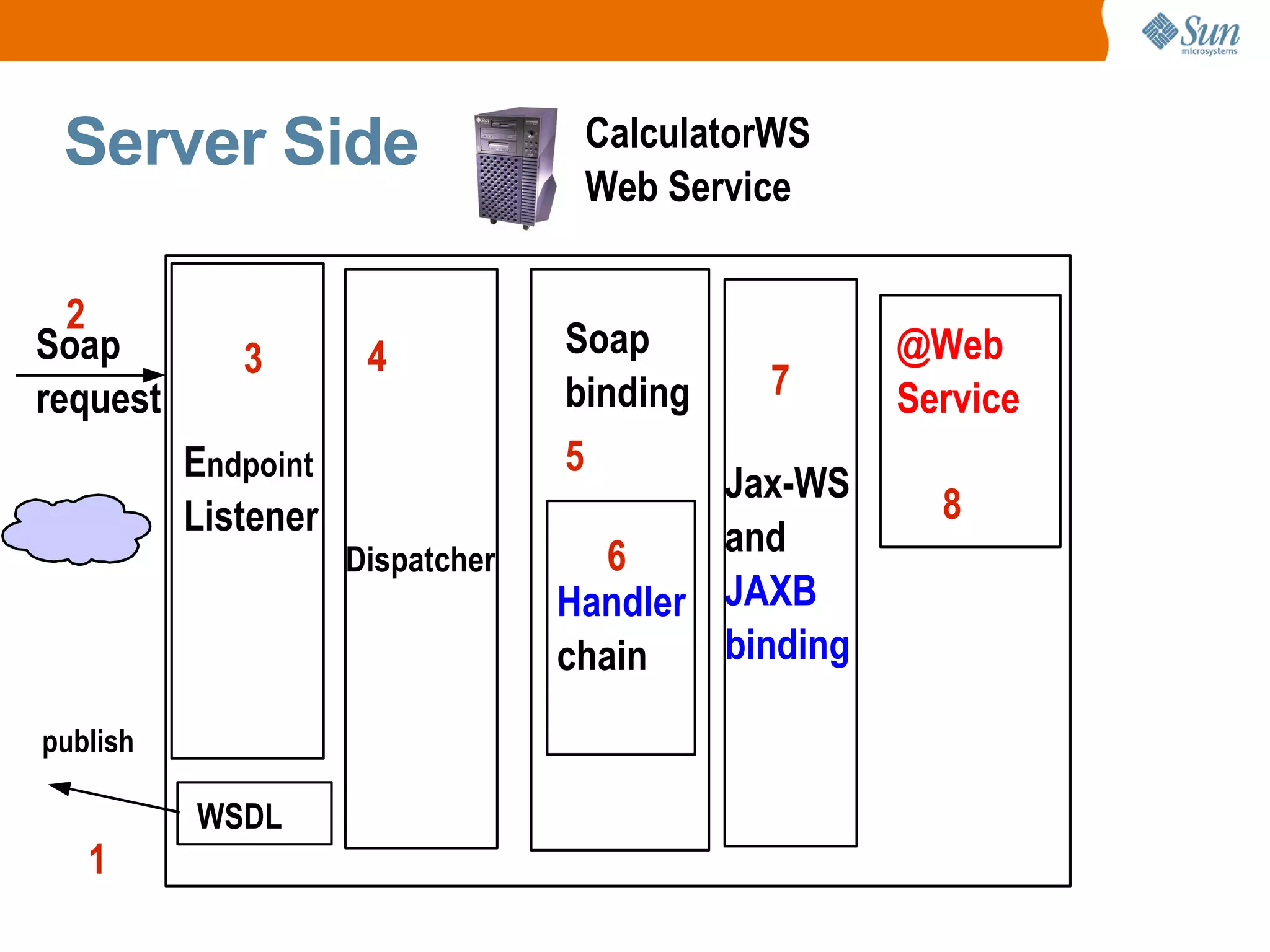

20. Server Side CalculatorWS Web Service E ndpoint Listener Soap binding @Web Service Soap request publish 1 2 3 4 5 6 7 8

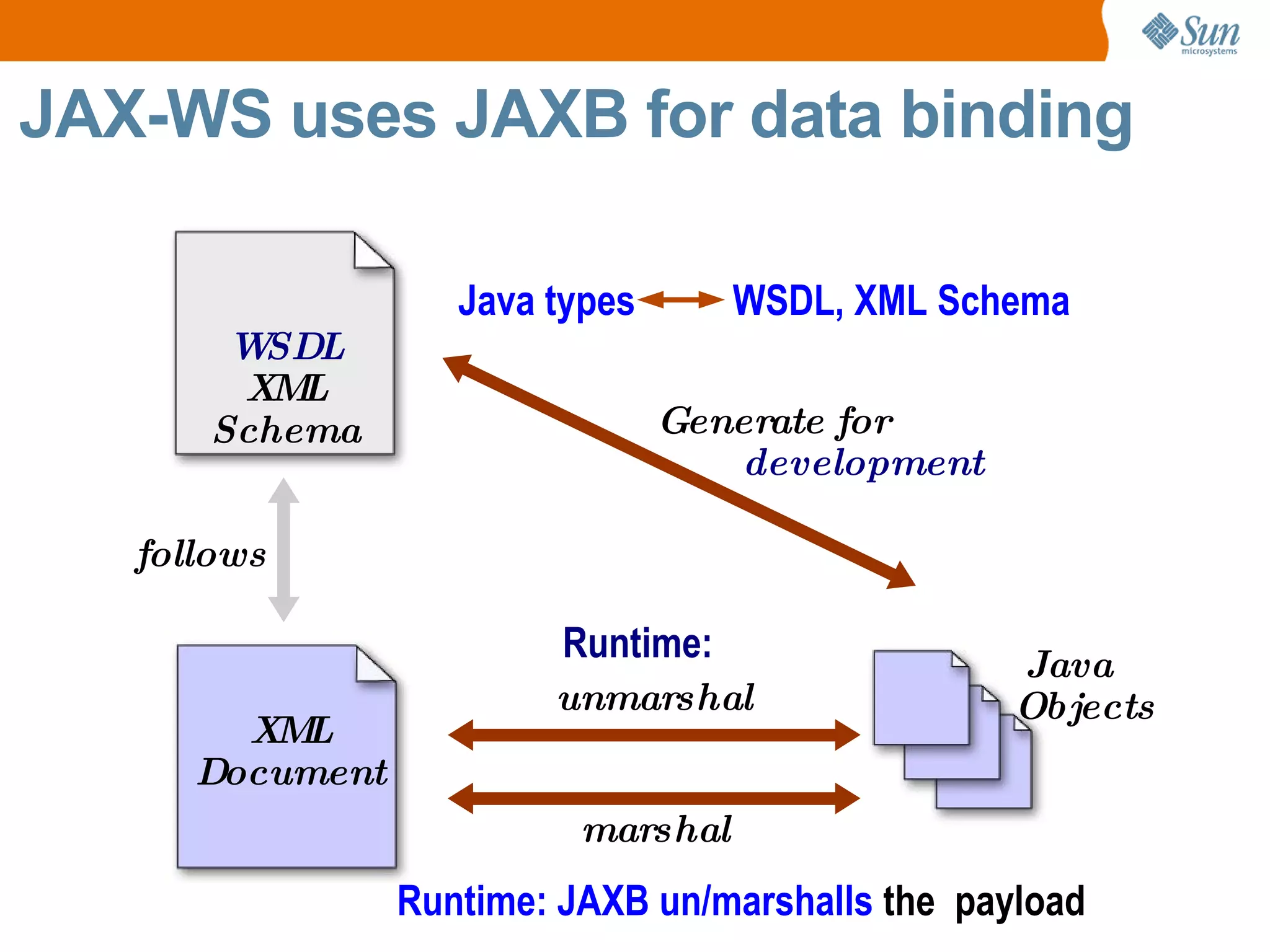

21. Runtime: Java types WSDL, XML Schema JAX-WS uses JAXB for data binding Runtime: JAXB un/marshalls the payload WSDL XML Schema XML Document unmarshal marshal Generate for development Java Objects follows

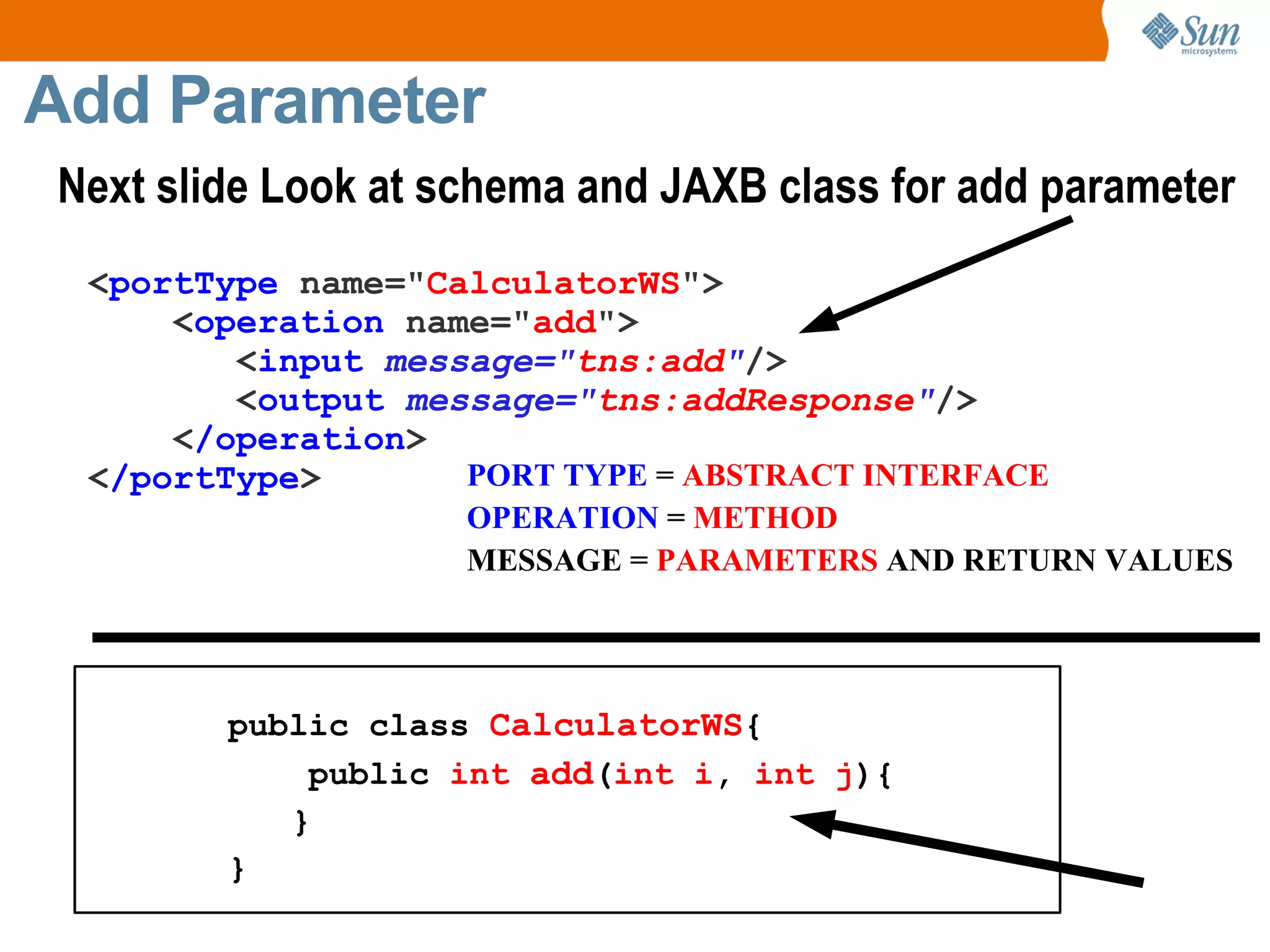

22. Add Parameter Next slide Look at schema and JAXB class for add parameter public class CalculatorWS { public int add ( int i , int j ){ } } < portType name=&quot; CalculatorWS &quot;> < operation name=&quot; add &quot;> < input message=&quot; tns:add &quot; /> < output message=&quot; tns:addResponse &quot; /> < /operation > < /portType > PORT TYPE = ABSTRACT INTERFACE OPERATION = METHOD MESSAGE = PARAMETERS AND RETURN VALUES

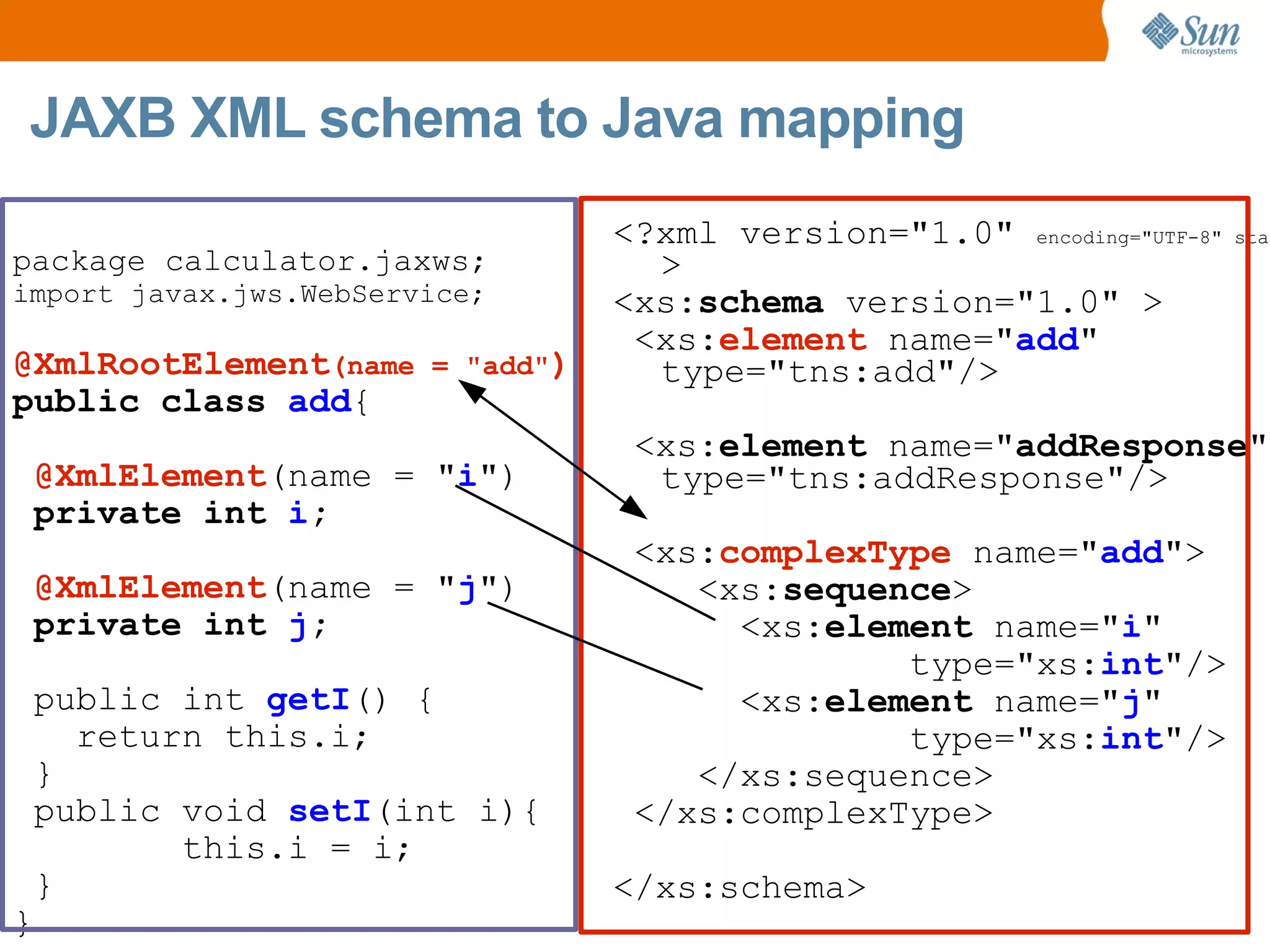

23. JAXB XML schema to Java mapping package calculator.jaxws; import javax.jws.WebService; @XmlRootElement (name = &quot;add&quot; ) public class add { @XmlElement (name = &quot; i &quot;) private int i ; @XmlElement (name = &quot; j &quot;) private int j ; public int getI () { return this.i; } public void setI (int i){ this.i = i; } } <?xml version=&quot;1.0&quot; encoding=&quot;UTF-8&quot; standalone=&quot;yes&quot;? > <xs: schema version=&quot;1.0&quot; > <xs: element name=&quot; add &quot; type=&quot;tns:add&quot;/> <xs: element name=&quot; addResponse &quot; type=&quot;tns:addResponse&quot;/> <xs: complexType name=&quot; add &quot;> <xs: sequence > <xs: element name=&quot; i &quot; type=&quot;xs: int &quot;/> <xs: element name=&quot; j &quot; type=&quot;xs: int &quot;/> </xs:sequence> </xs:complexType> </xs:schema>

24. demo

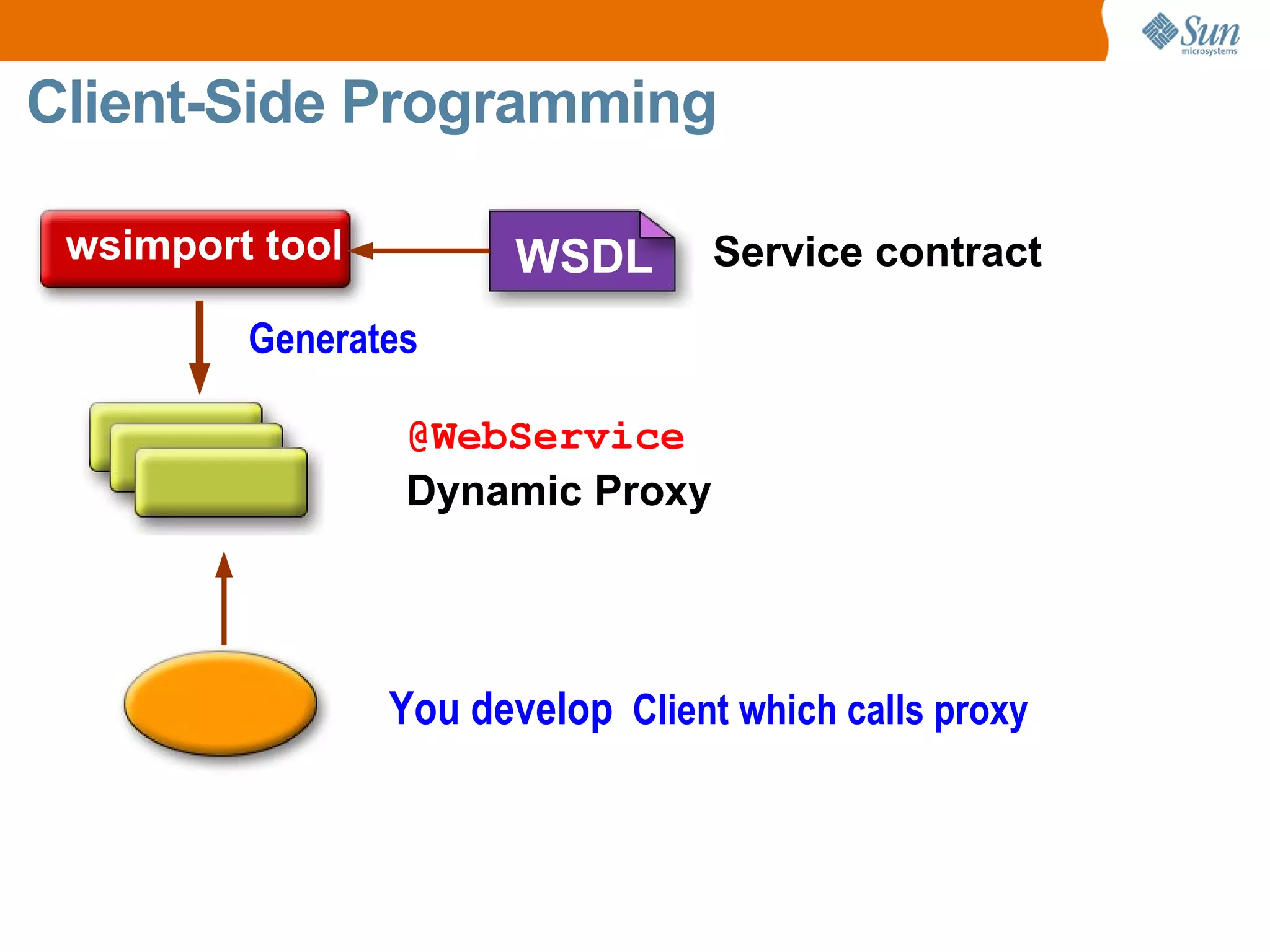

25. Client-Side Programming wsimport tool @WebService Dynamic Proxy Service contract WSDL Generates You develop Client which calls proxy

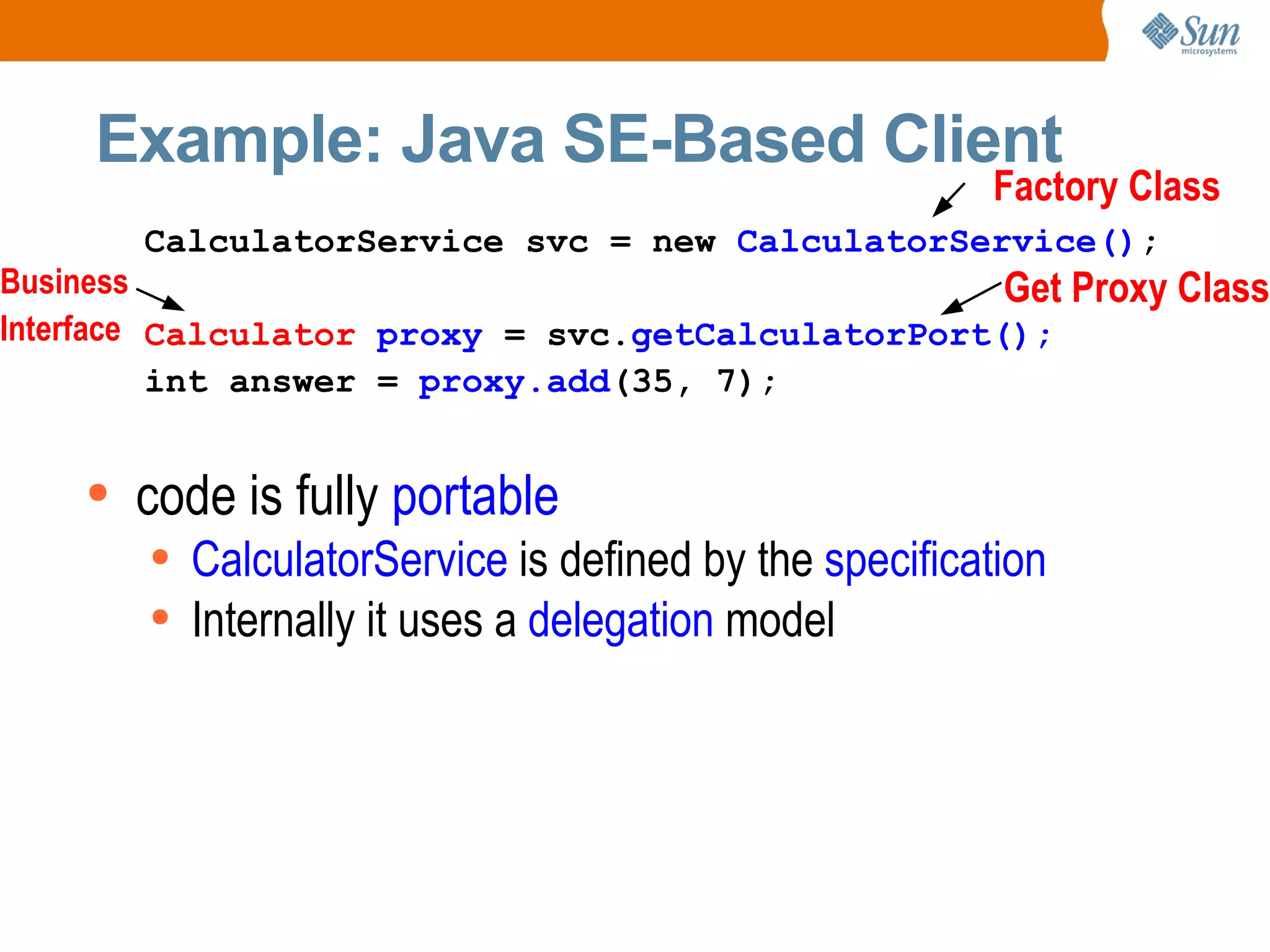

26. Example: Java SE-Based Client code is fully portable CalculatorService is defined by the specification Internally it uses a delegation model CalculatorService svc = new CalculatorService() ; Calculator proxy = svc. getCalculatorPort(); int answer = proxy.add (35, 7); Factory Class Get Proxy Class Business Interface

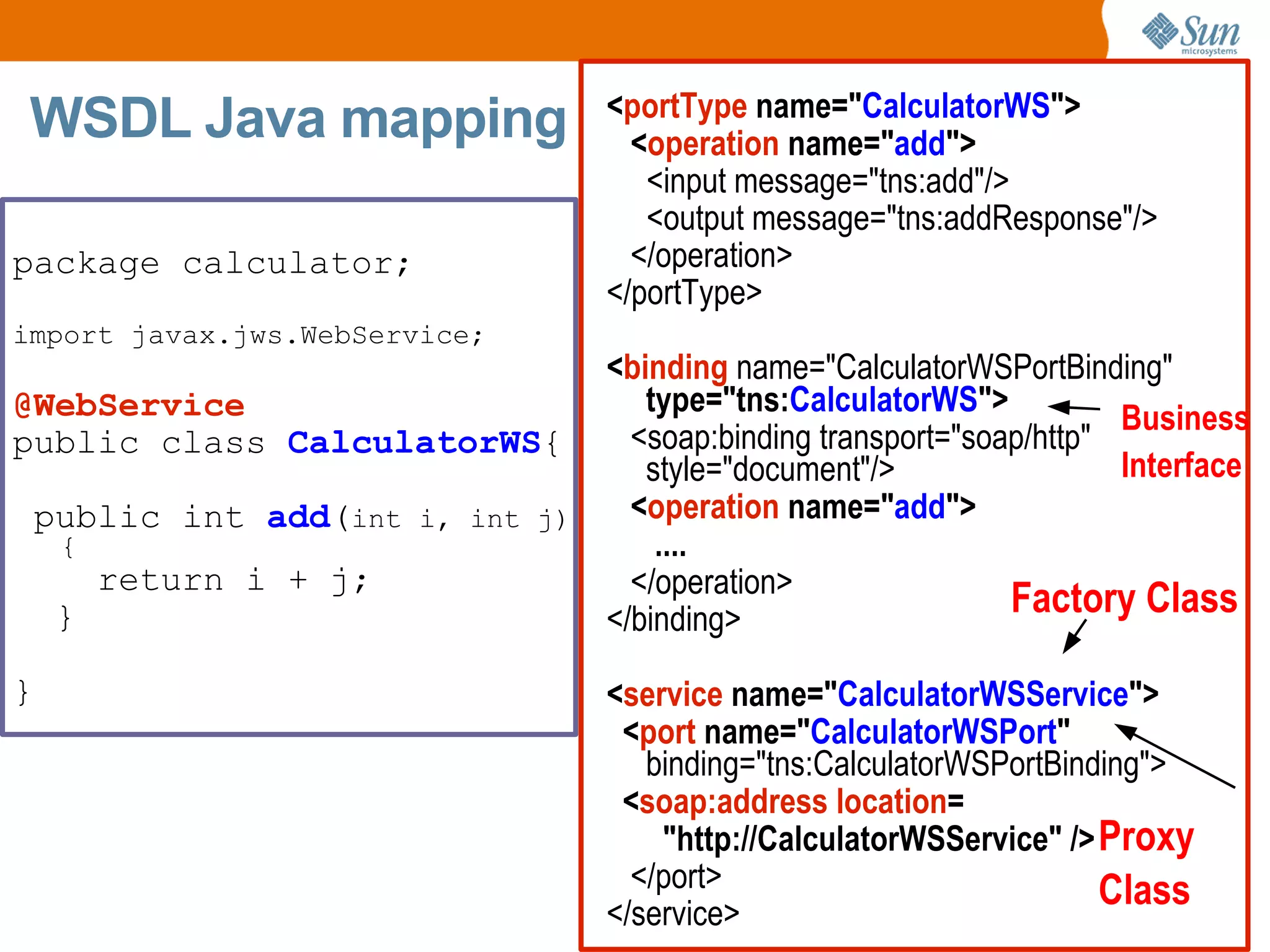

27. WSDL Java mapping package calculator; import javax.jws.WebService; @WebService public class CalculatorWS { public int add ( int i, int j) { return i + j; } } < portType name=&quot; CalculatorWS &quot;> < operation name=&quot; add &quot;> <input message=&quot;tns:add&quot;/> <output message=&quot;tns:addResponse&quot;/> </operation> </portType> < binding name=&quot;CalculatorWSPortBinding&quot; type=&quot;tns: CalculatorWS &quot;> <soap:binding transport=&quot;soap/http&quot; style=&quot;document&quot;/> < operation name=&quot; add &quot;> .... </operation> </binding> < service name=&quot; CalculatorWSService &quot;> < port name=&quot; CalculatorWSPort &quot; binding=&quot;tns:CalculatorWSPortBinding&quot;> < soap:address location = &quot;http://CalculatorWSService&quot; /> </port> </service> Factory Class Proxy Class Business Interface

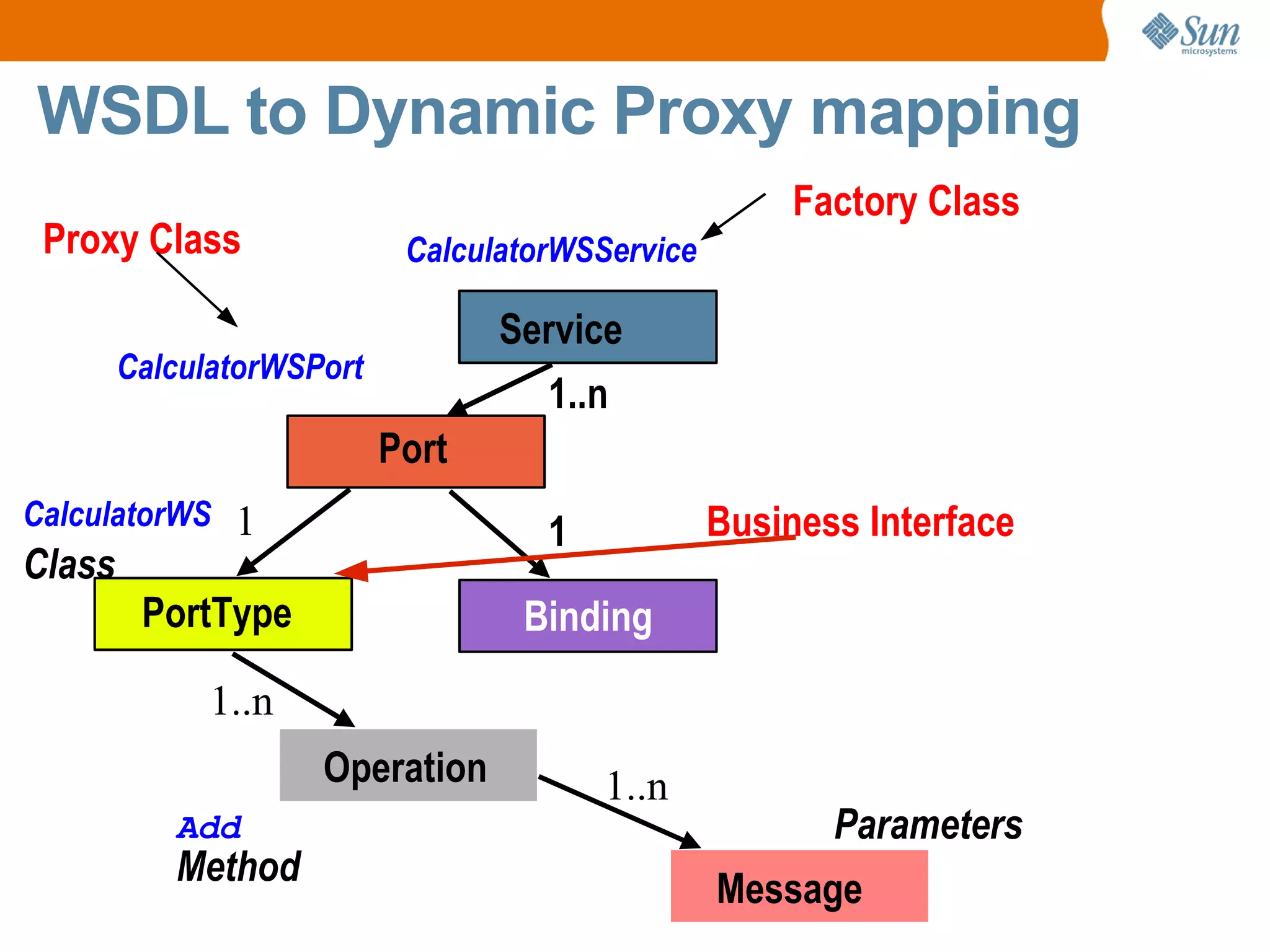

28. WSDL to Dynamic Proxy mapping Service Port PortType Binding 1..n 1 1 1..n 1..n CalculatorWSPort CalculatorWS Class CalculatorWSService Add Method Parameters Business Interface Factory Class Proxy Class Operation Message

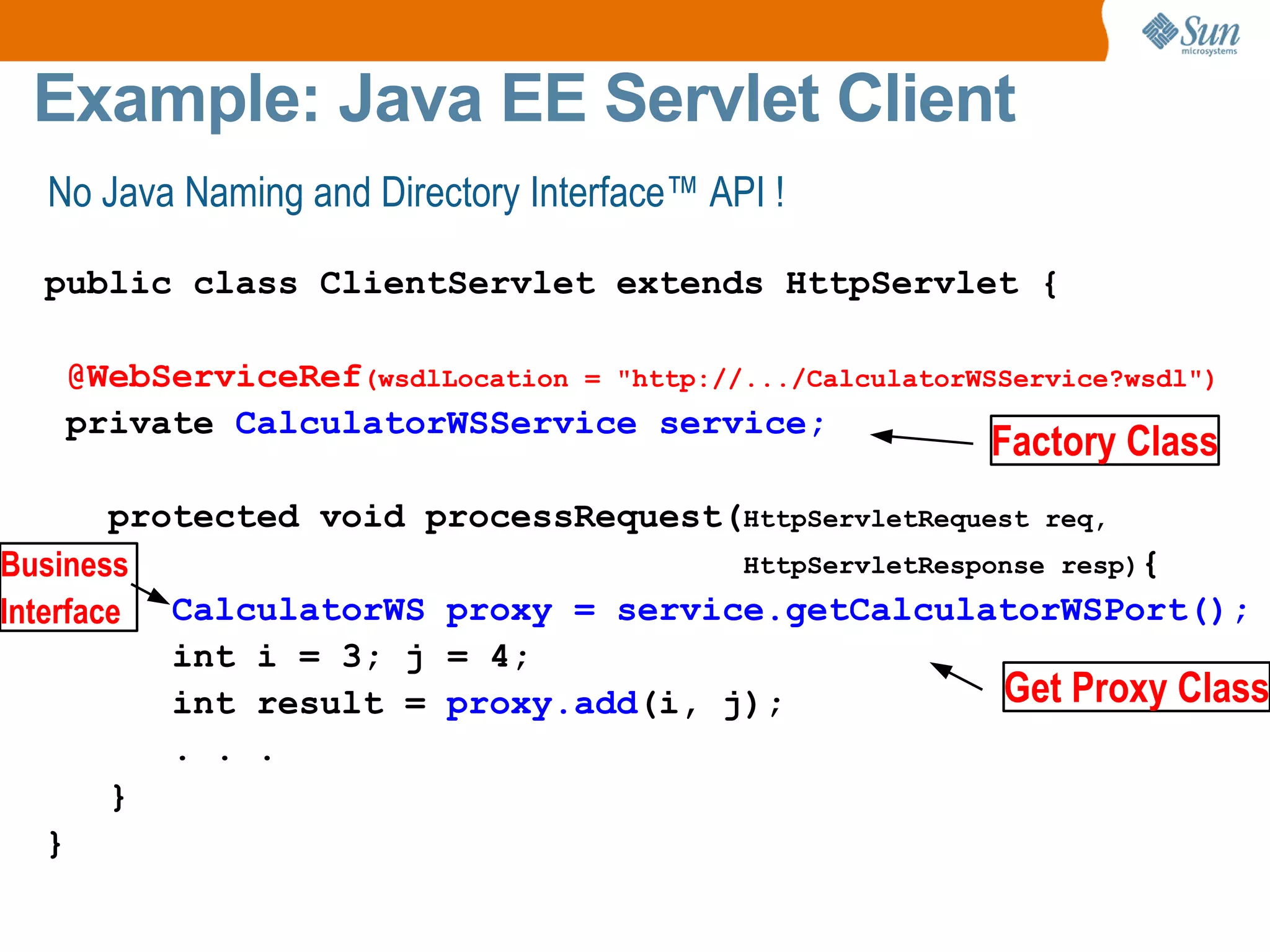

29. Example: Java EE Servlet Client No Java Naming and Directory Interface™ API ! public class ClientServlet extends HttpServlet { @WebServiceRef (wsdlLocation = &quot;http://.../CalculatorWSService?wsdl&quot;) private CalculatorWSService service; protected void processRequest( HttpServletRequest req, HttpServletResponse resp) { CalculatorWS proxy = service.getCalculatorWSPort(); int i = 3; j = 4; int result = proxy.add (i, j); . . . } } Get Proxy Class Business Interface Factory Class

30. demo

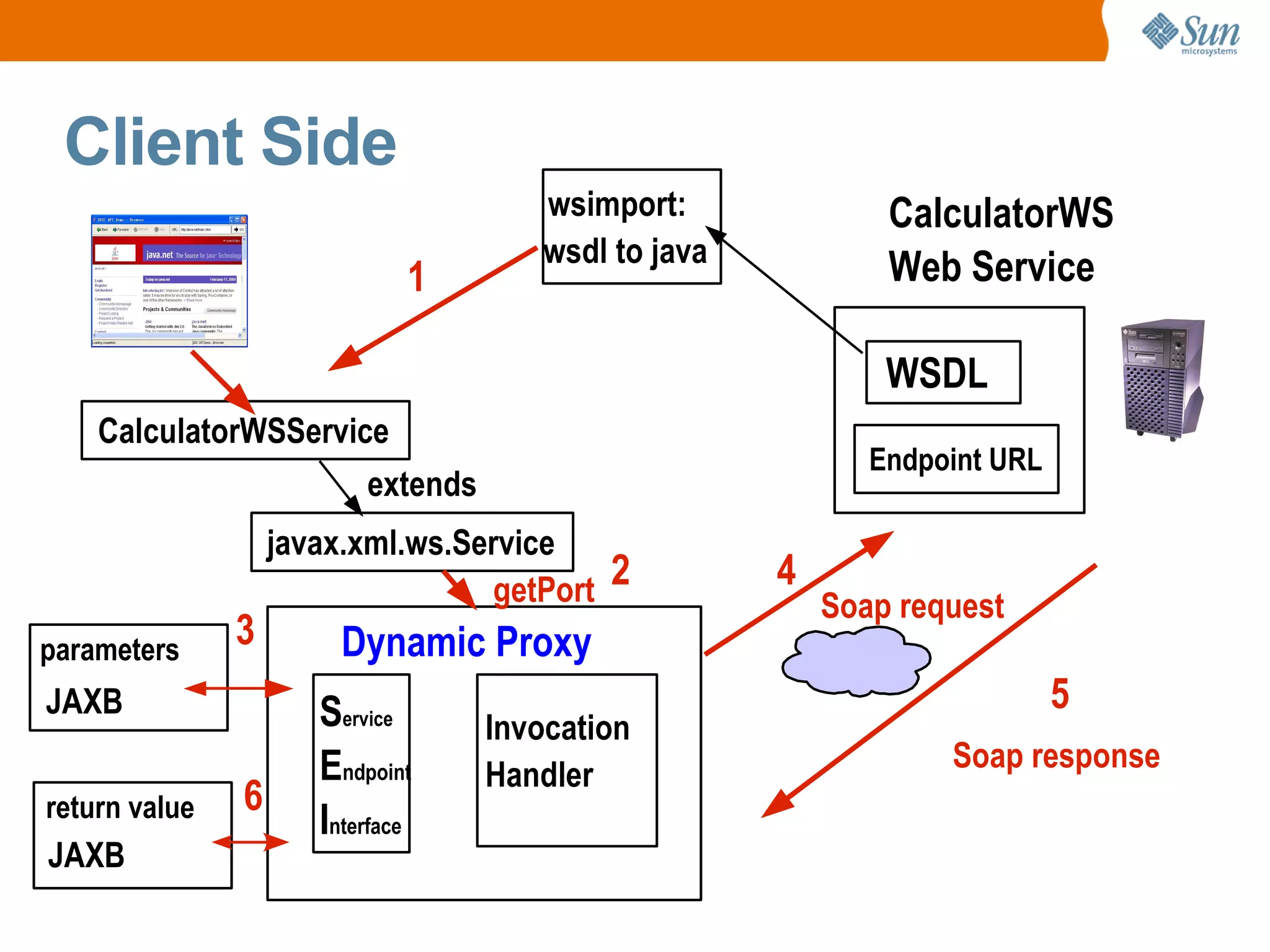

31. Client Side CalculatorWS Web Service extends Dynamic Proxy S ervice E ndpoint I nterface Invocation Handler JAXB JAXB return value parameters getPort 1 2 3 6 Soap request Soap response 4 5

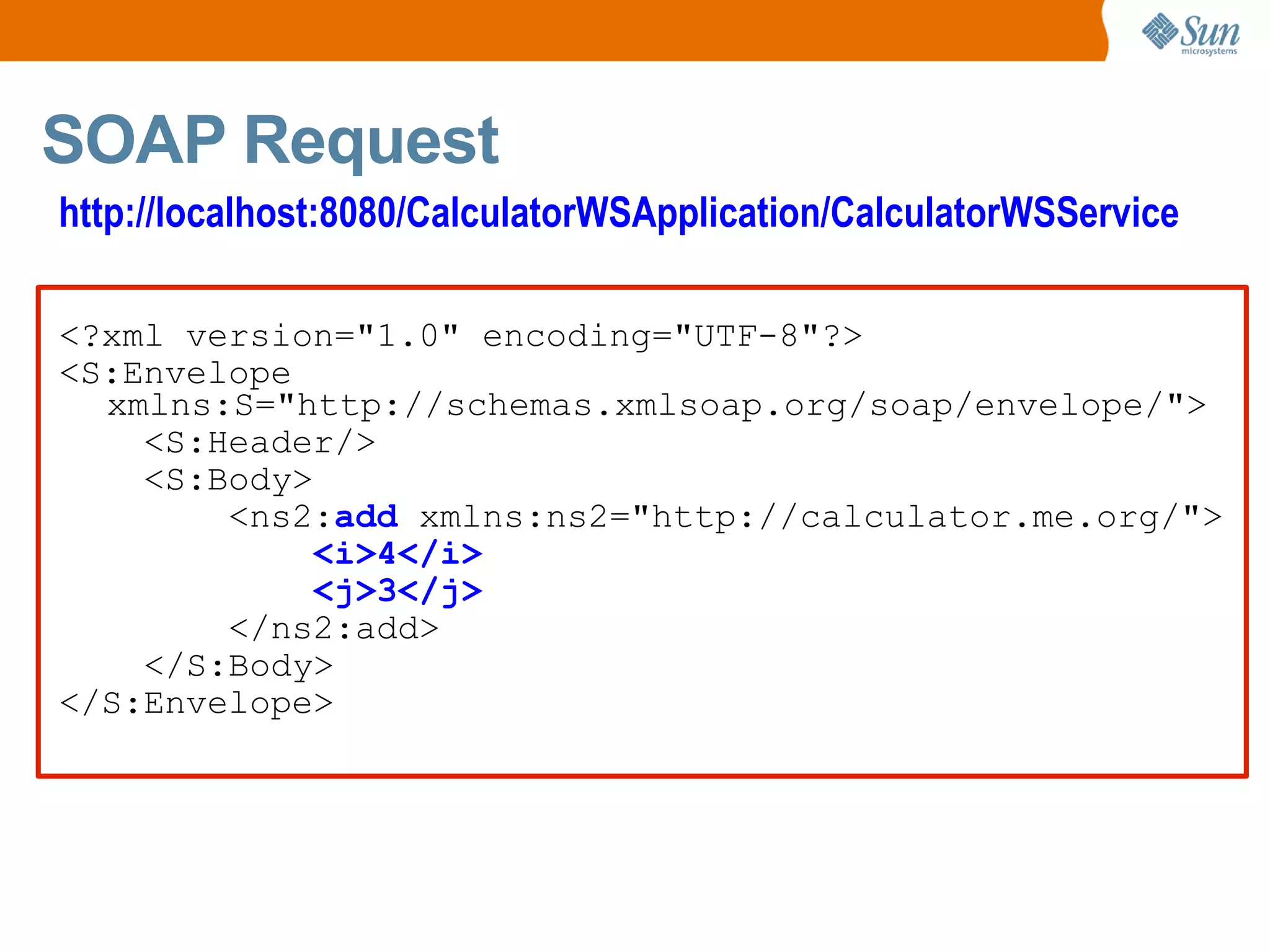

32. SOAP Request <?xml version=&quot;1.0&quot; encoding=&quot;UTF-8&quot;?> <S:Envelope xmlns:S=&quot;http://schemas.xmlsoap.org/soap/envelope/&quot;> <S:Header/> <S:Body> <ns2: add xmlns:ns2=&quot;http://calculator.me.org/&quot;> <i>4</i> <j>3</j> </ns2:add> </S:Body> </S:Envelope> http://localhost:8080/CalculatorWSApplication/CalculatorWSService

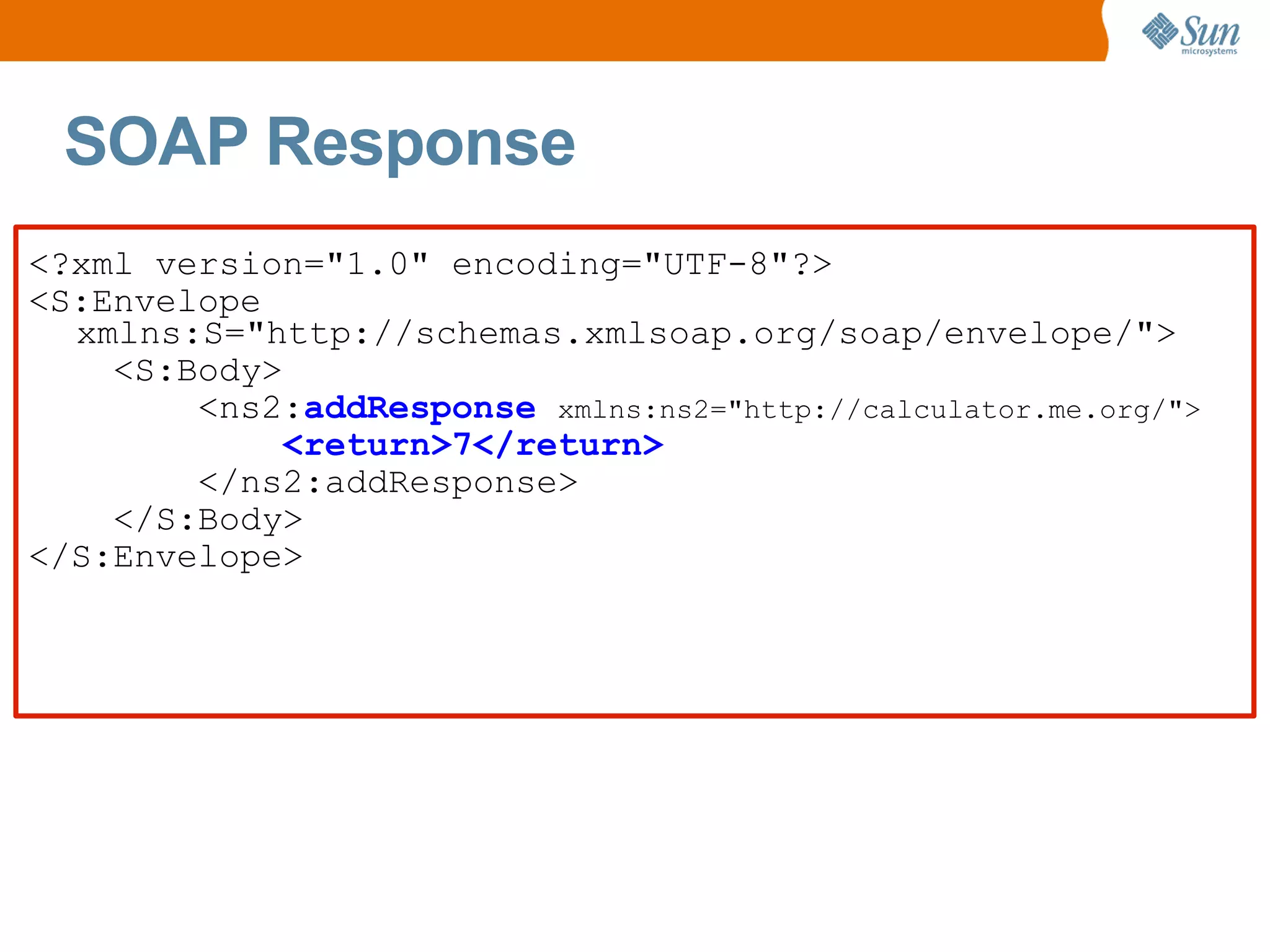

33. SOAP Response <?xml version=&quot;1.0&quot; encoding=&quot;UTF-8&quot;?> <S:Envelope xmlns:S=&quot;http://schemas.xmlsoap.org/soap/envelope/&quot;> <S:Body> <ns2: addResponse xmlns:ns2=&quot;http://calculator.me.org/&quot;> <return>7</return> </ns2:addResponse> </S:Body> </S:Envelope>

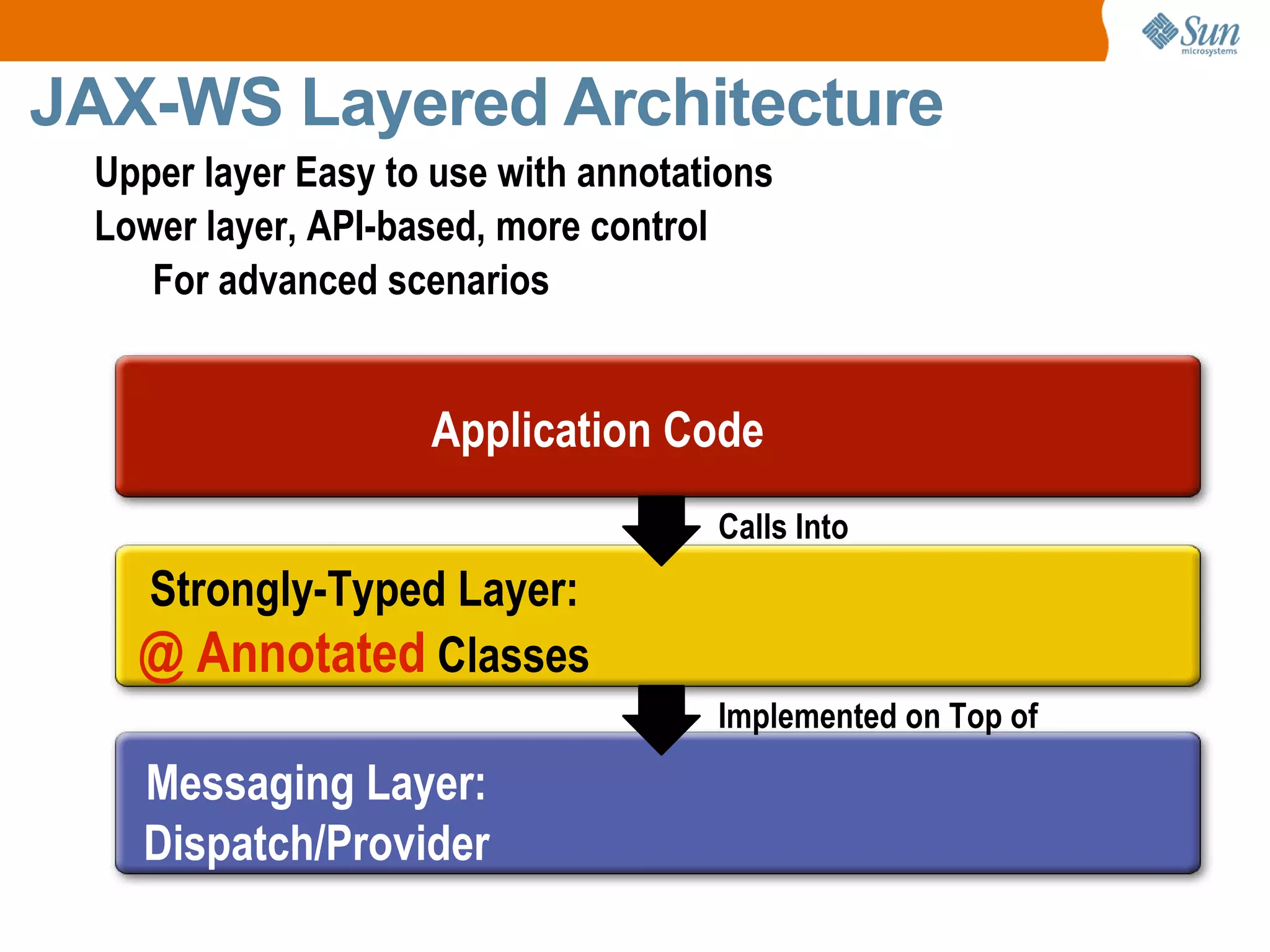

34. JAX-WS Layered Architecture Calls Into Implemented on Top of Messaging Layer: Dispatch/Provider Application Code Strongly-Typed Layer: @ Annotated Classes Upper layer Easy to use with annotations Lower layer, API-based, more control For advanced scenarios

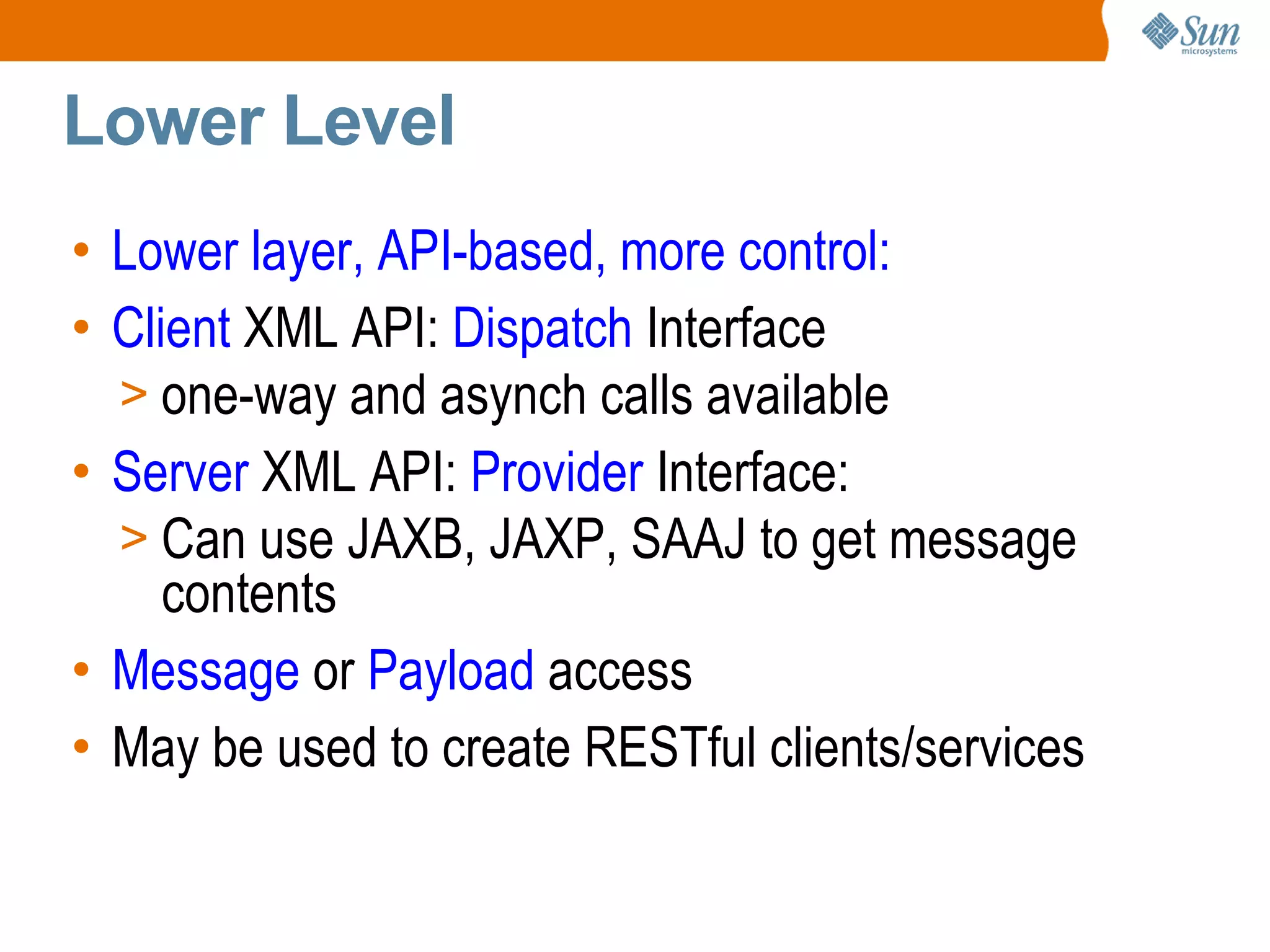

35. Lower Level Lower layer, API-based, more control: Client XML API: Dispatch Interface one-way and asynch calls available Server XML API: Provider Interface: Can use JAXB, JAXP, SAAJ to get message contents Message or Payload access May be used to create RESTful clients/services

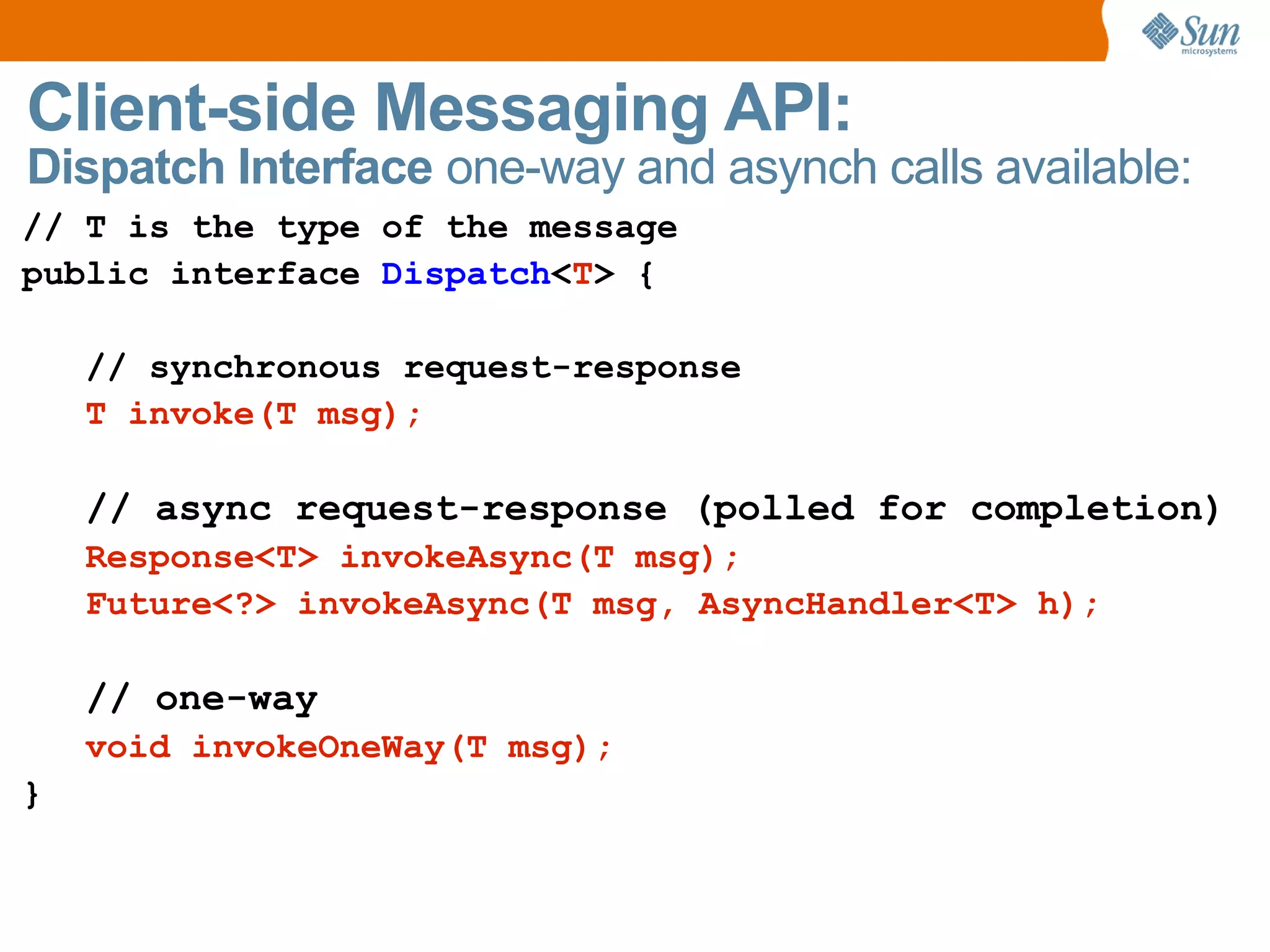

36. Client-side Messaging API: Dispatch Interface one-way and asynch calls available: // T is the type of the message public interface Dispatch < T > { // synchronous request-response T invoke(T msg); // async request-response ( polled for completion) Response<T> invokeAsync(T msg); Future<?> invokeAsync(T msg, AsyncHandler<T> h); // one-way void invokeOneWay(T msg); }

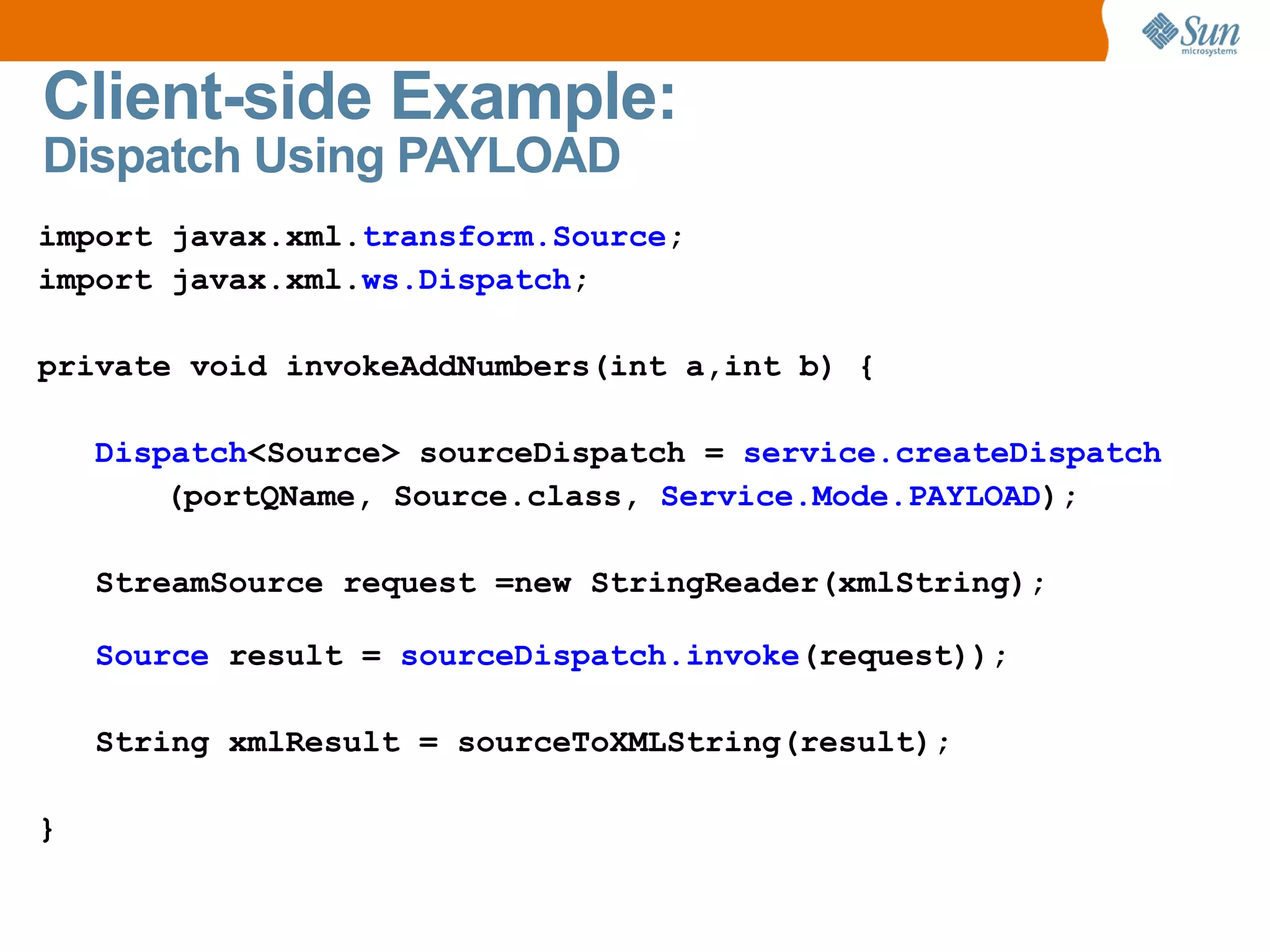

37. Client-side Example: Dispatch Using PAYLOAD import javax.xml. transform.Source ; import javax.xml. ws.Dispatch ; private void invokeAddNumbers(int a,int b) { Dispatch <Source> sourceDispatch = service.createDispatch (portQName, Source.class, Service.Mode.PAYLOAD ); StreamSource request =new StringReader(xmlString); Source result = sourceDispatch.invoke (request)); String xmlResult = sourceToXMLString(result); }

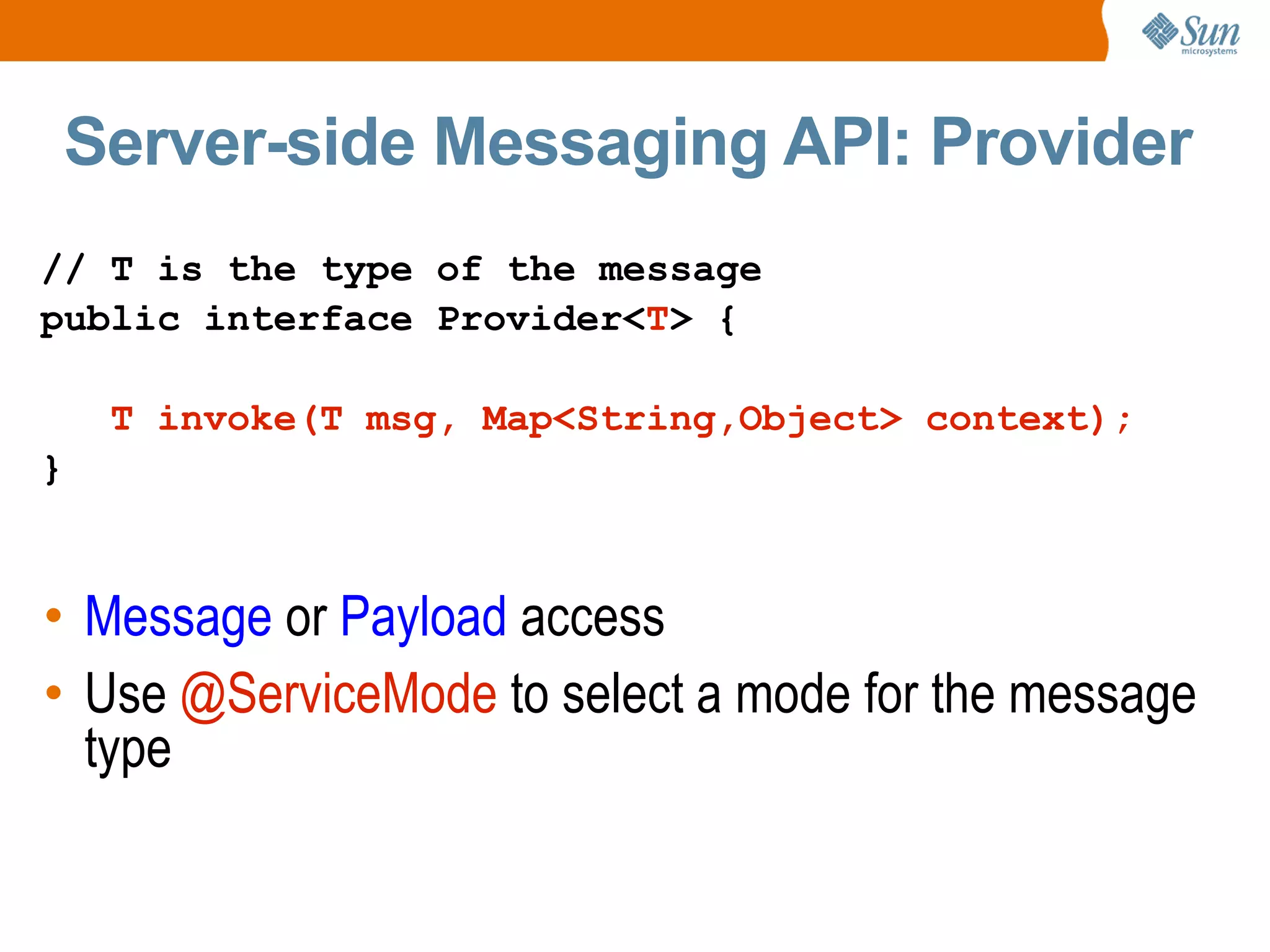

38. Server-side Messaging API: Provider // T is the type of the message public interface Provider< T > { T invoke(T msg, Map<String,Object> context); } Message or Payload access Use @ServiceMode to select a mode for the message type

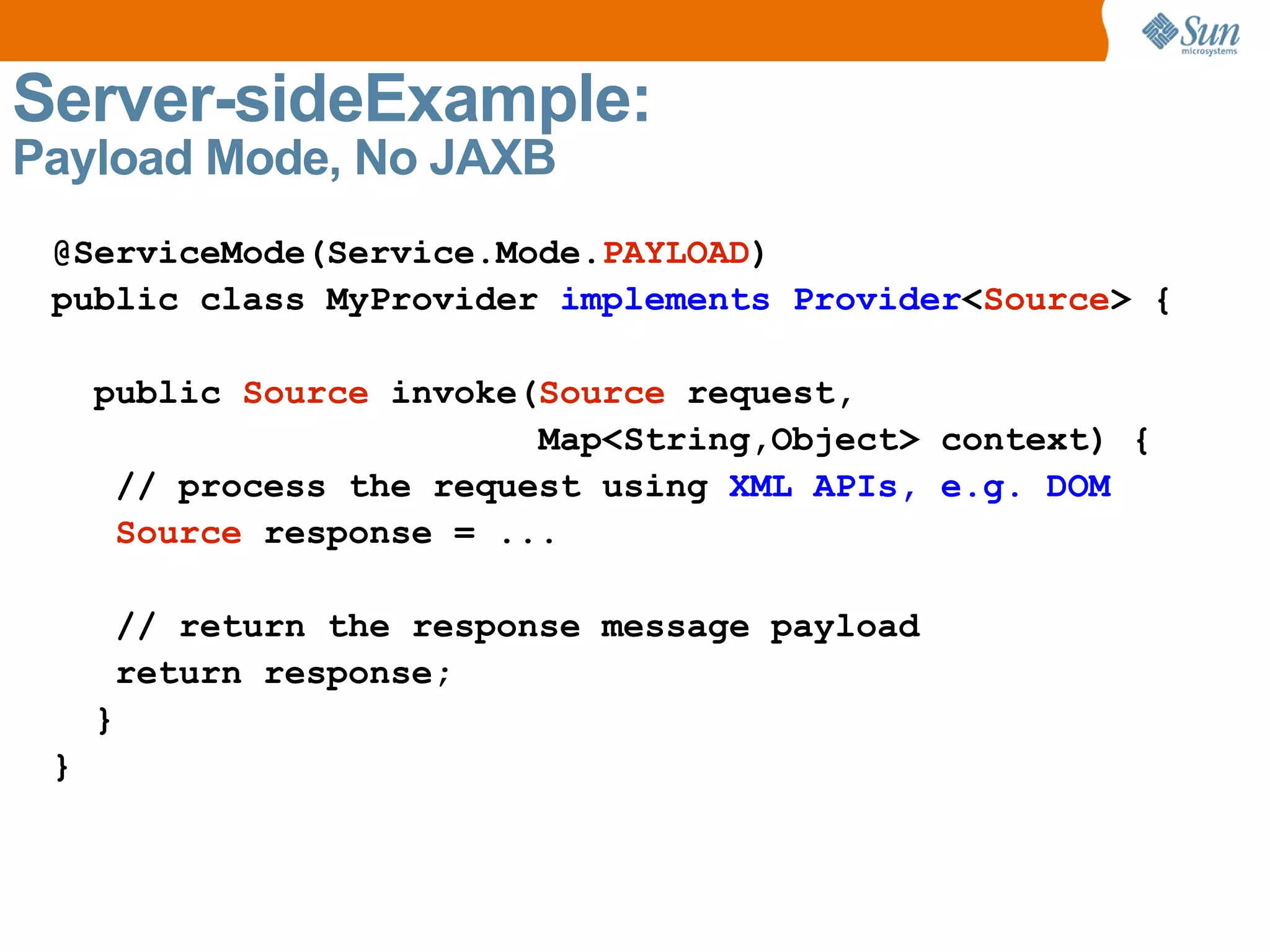

39. Server-sideExample: Payload Mode, No JAXB @ServiceMode(Service.Mode. PAYLOAD ) public class MyProvider implements Provider < Source > { public Source invoke( Source request, Map<String,Object> context) { // process the request using XML APIs, e.g. DOM Source response = ... // return the response message payload return response; } }

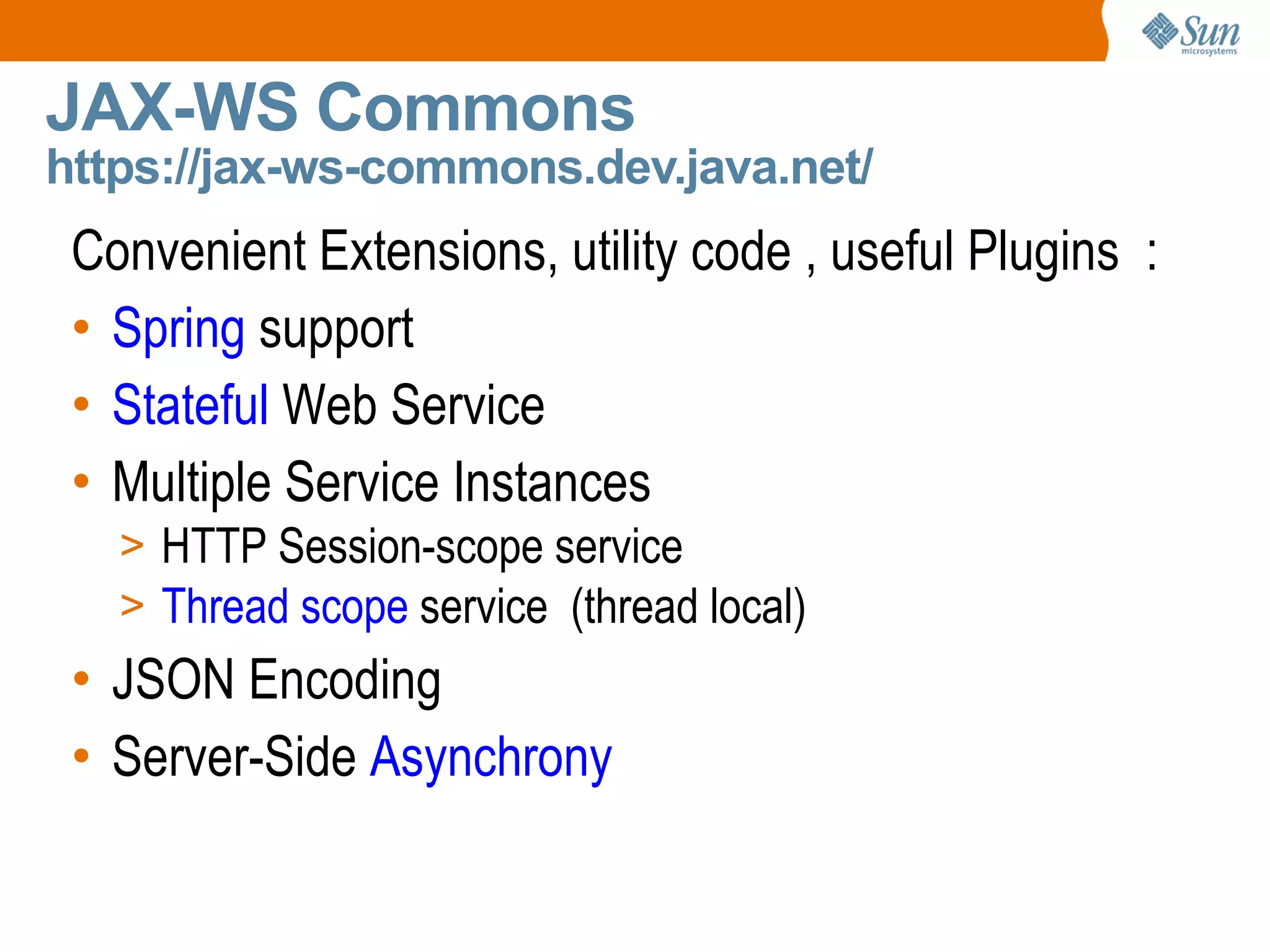

40. JAX-WS Commons https://jax-ws-commons.dev.java.net/ Convenient Extensions, utility code , useful Plugins : Spring support Stateful Web Service Multiple Service Instances HTTP Session-scope service Thread scope service (thread local) JSON Encoding Server-Side Asynchrony

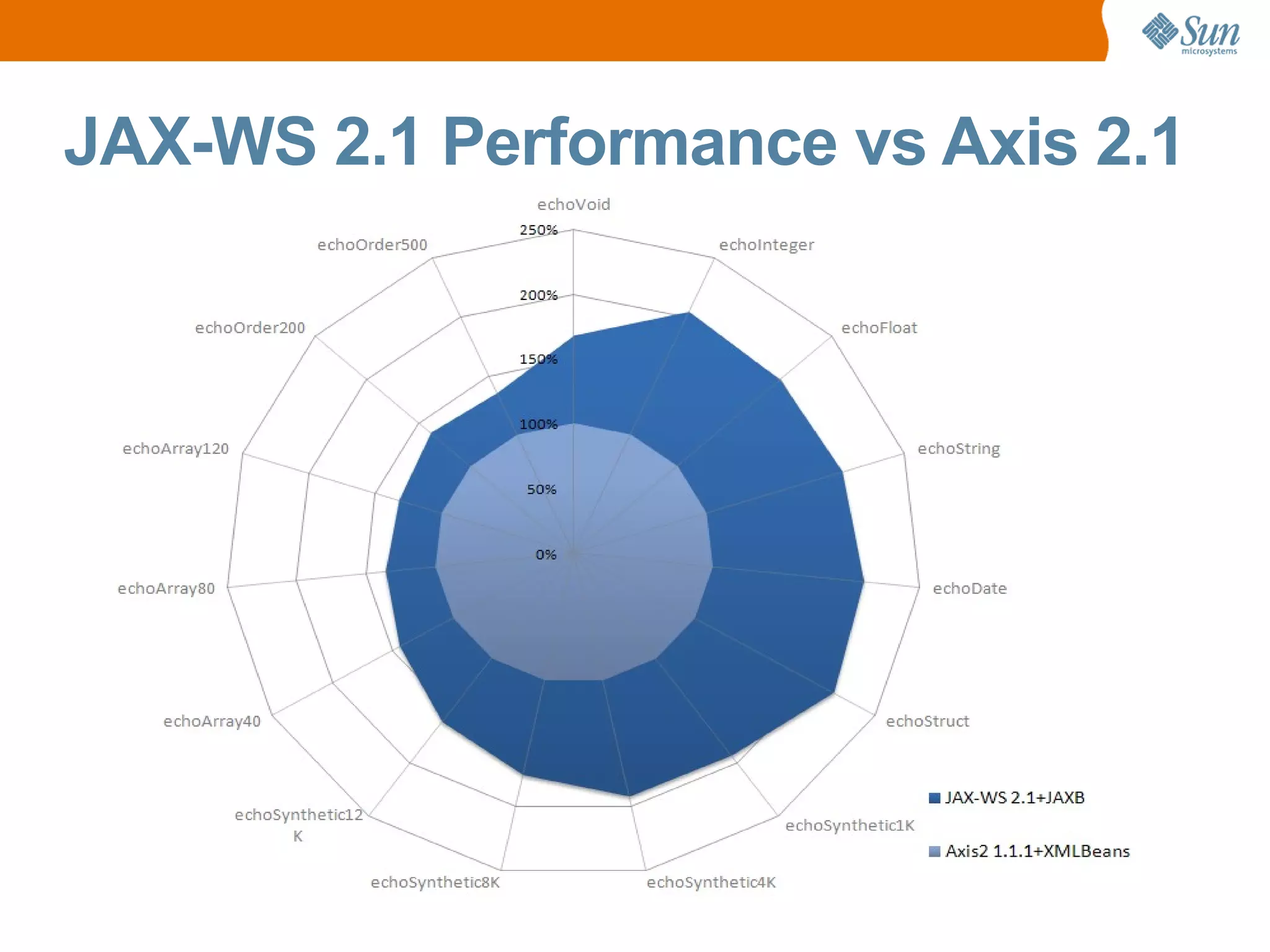

41. JAX-WS 2.1 Performance vs Axis 2.1

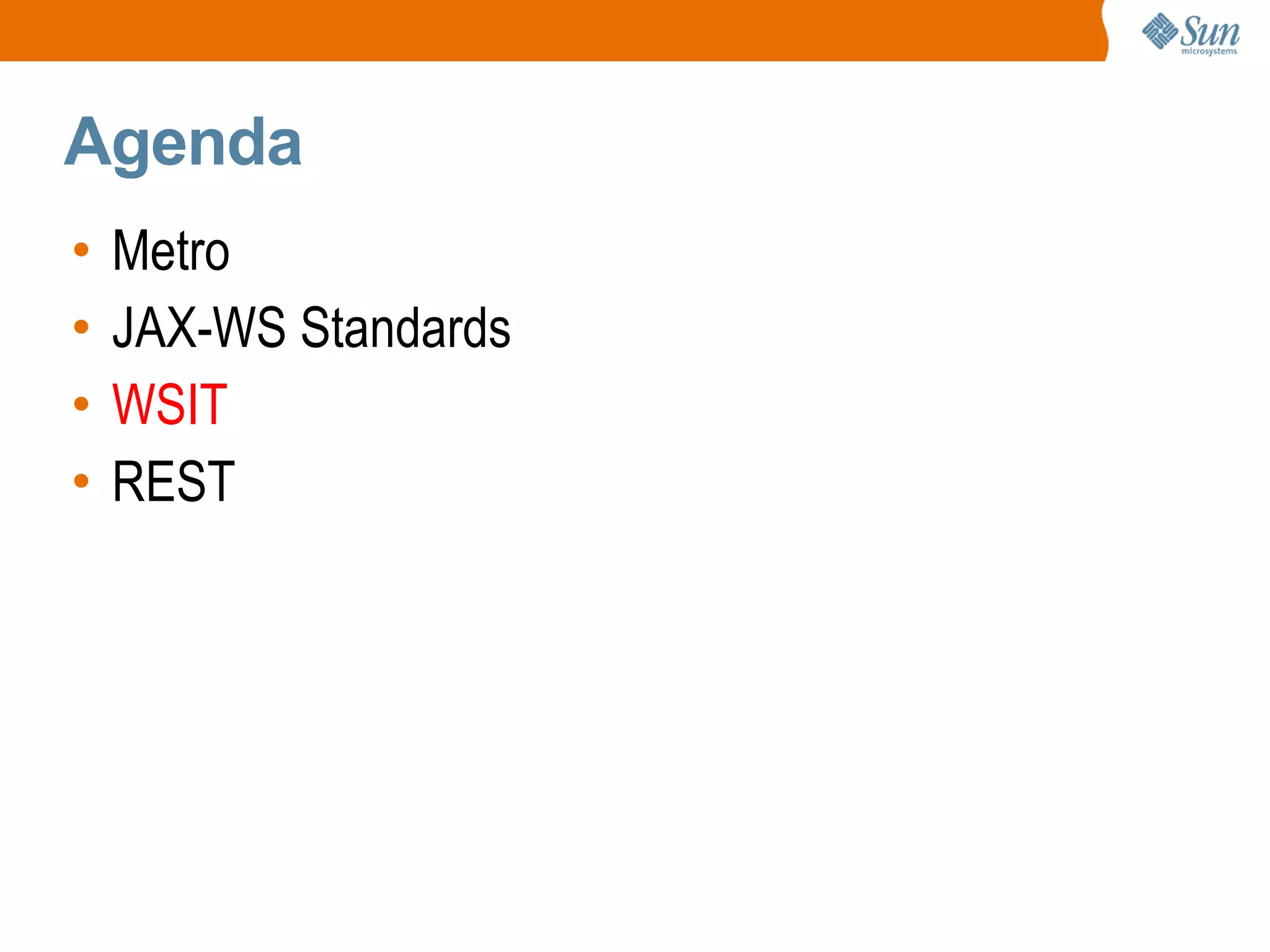

42. Agenda Metro JAX-WS Standards WSIT REST

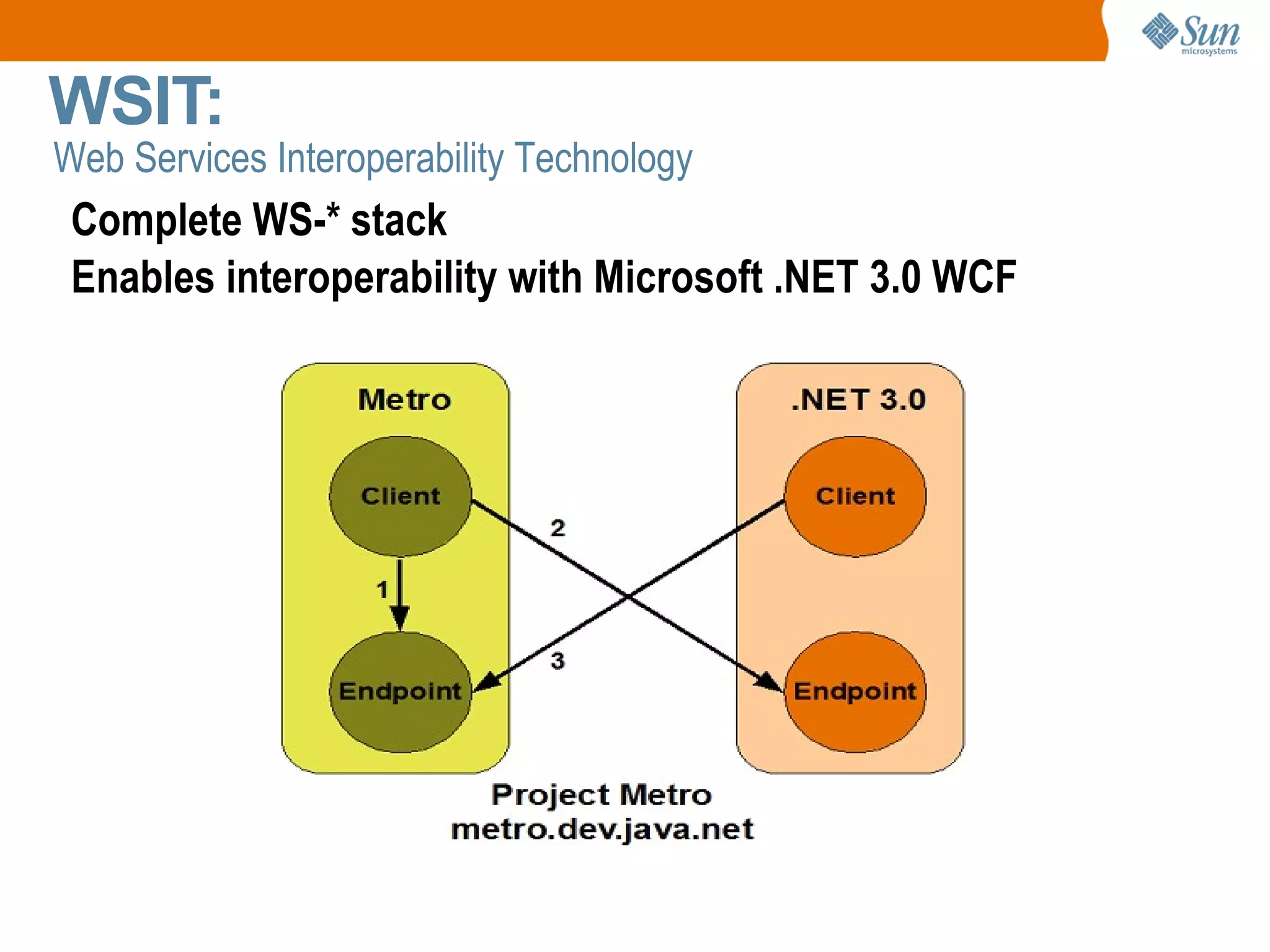

43. WSIT: Web Services Interoperability Technology Complete WS-* stack Enables interoperability with Microsoft .NET 3.0 WCF

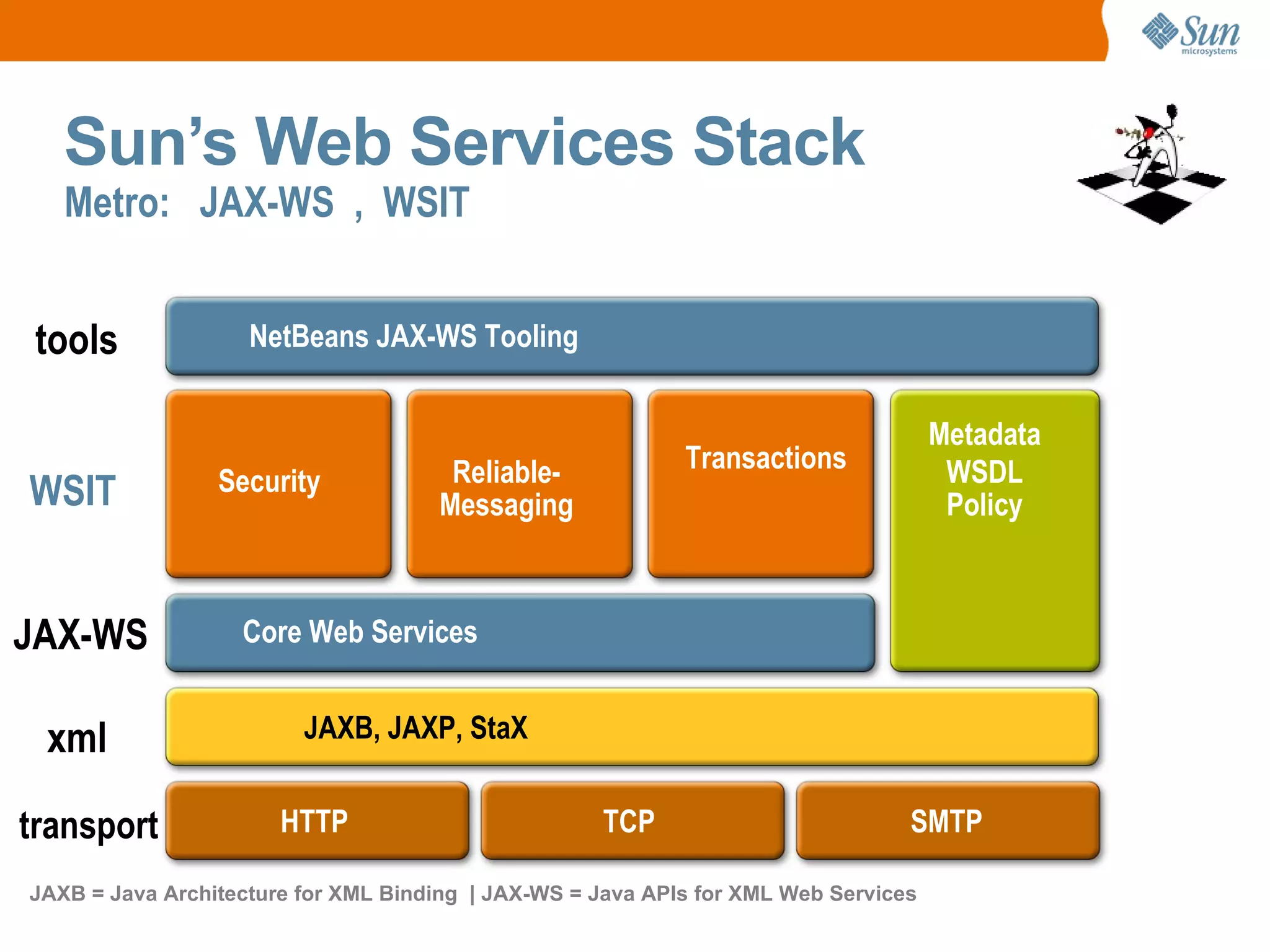

44. Sun’s Web Services Stack Metro: JAX-WS , WSIT JAXB = Java Architecture for XML Binding | JAX-WS = Java APIs for XML Web Services NetBeans JAX-WS Tooling Transactions Reliable- Messaging Security Metadata WSDL Policy Core Web Services HTTP TCP SMTP JAXB, JAXP, StaX JAX-WS WSIT tools transport xml

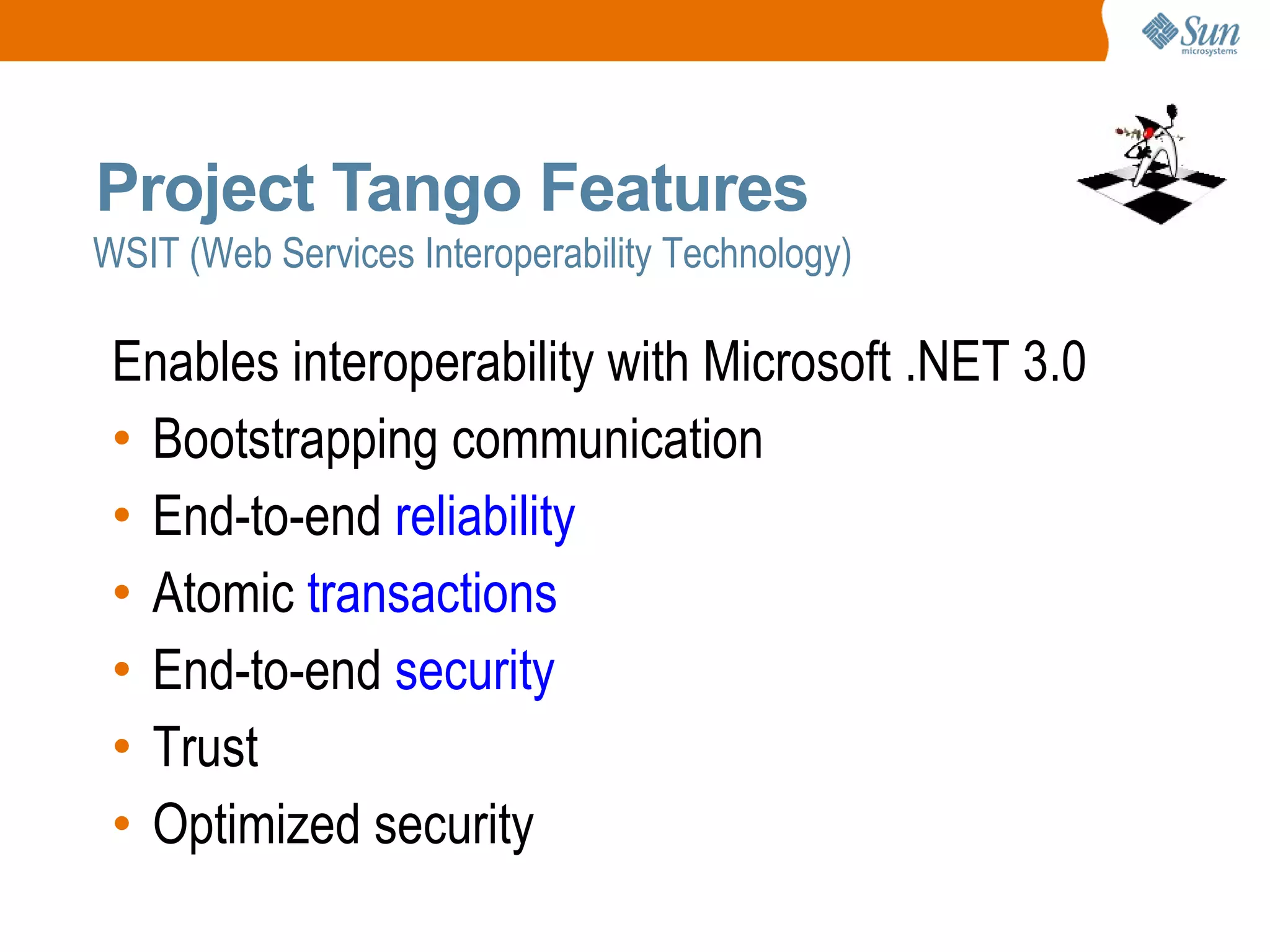

45. WSIT (Web Services Interoperability Technology) Project Tango Features Enables interoperability with Microsoft .NET 3.0 Bootstrapping communication End-to-end reliability Atomic transactions End-to-end security Trust Optimized security

46. Metro WSIT Reliable Messaging

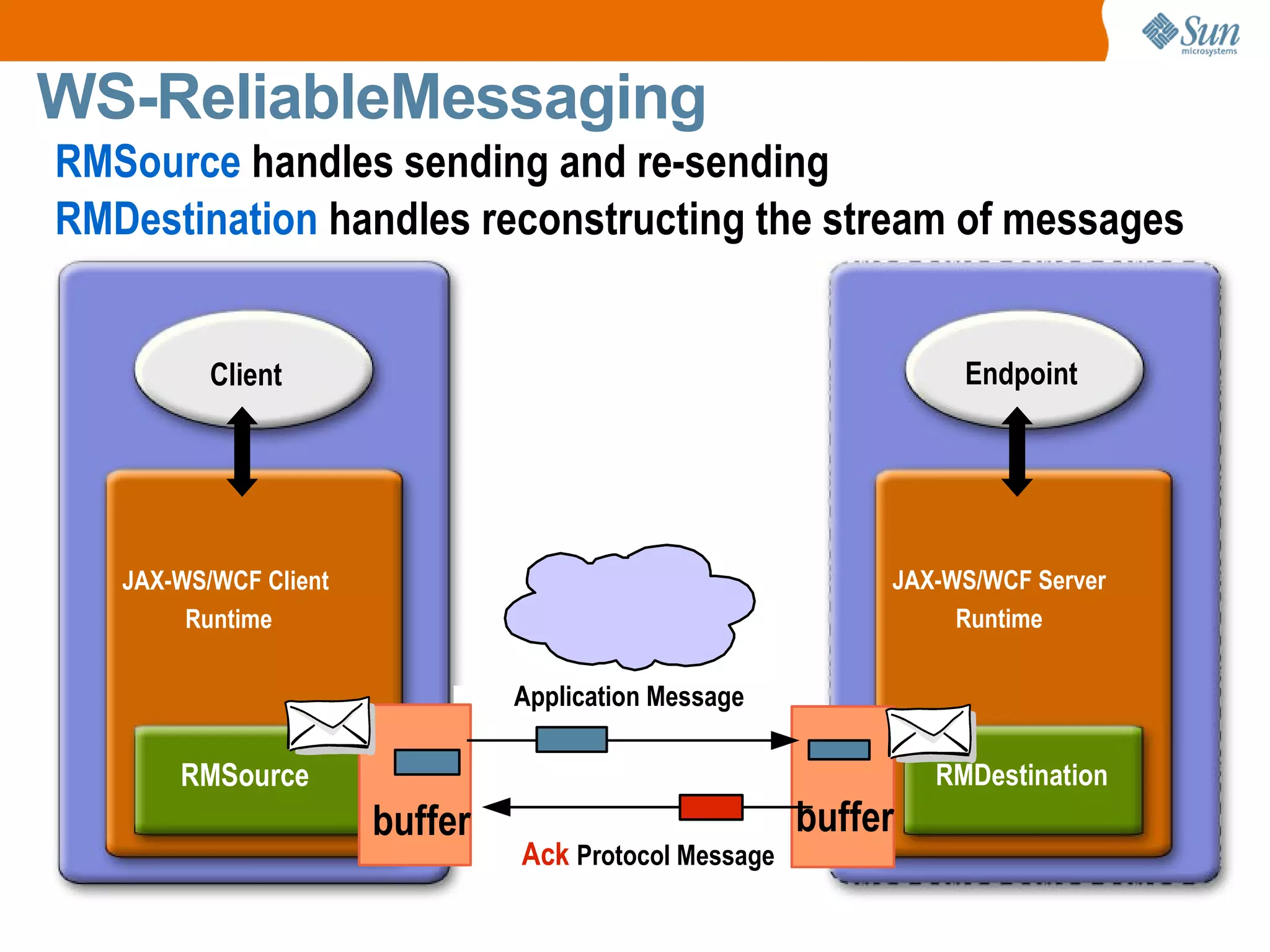

47. WS-ReliableMessaging JAX-WS/WCF Server Runtime JAX-WS/WCF Client Runtime Application Message Ack Protocol Message buffer buffer RMSource handles sending and re-sending RMDestination handles reconstructing the stream of messages

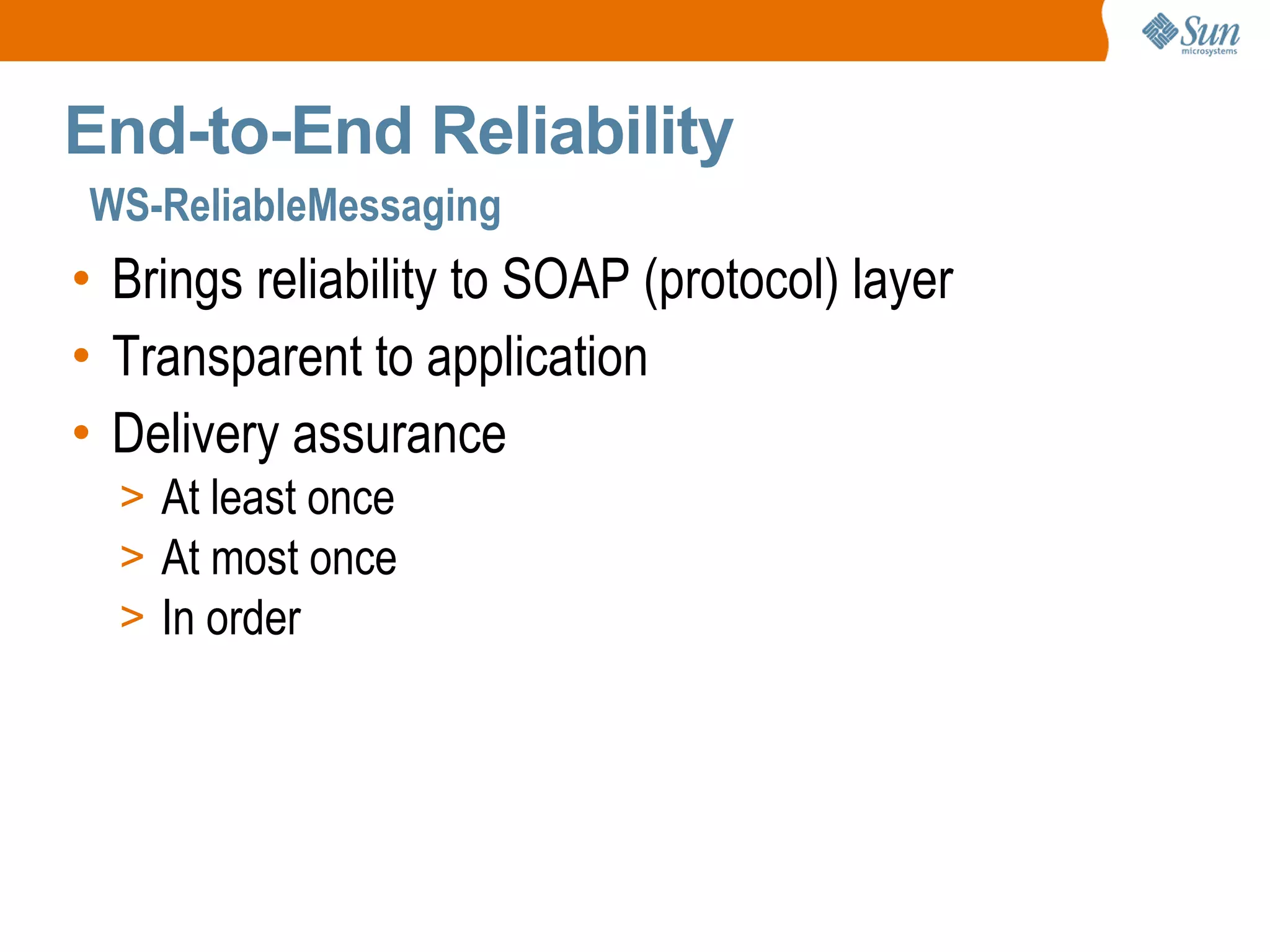

48. Brings reliability to SOAP (protocol) layer Transparent to application Delivery assurance At least once At most once In order End-to-End Reliability WS-ReliableMessaging

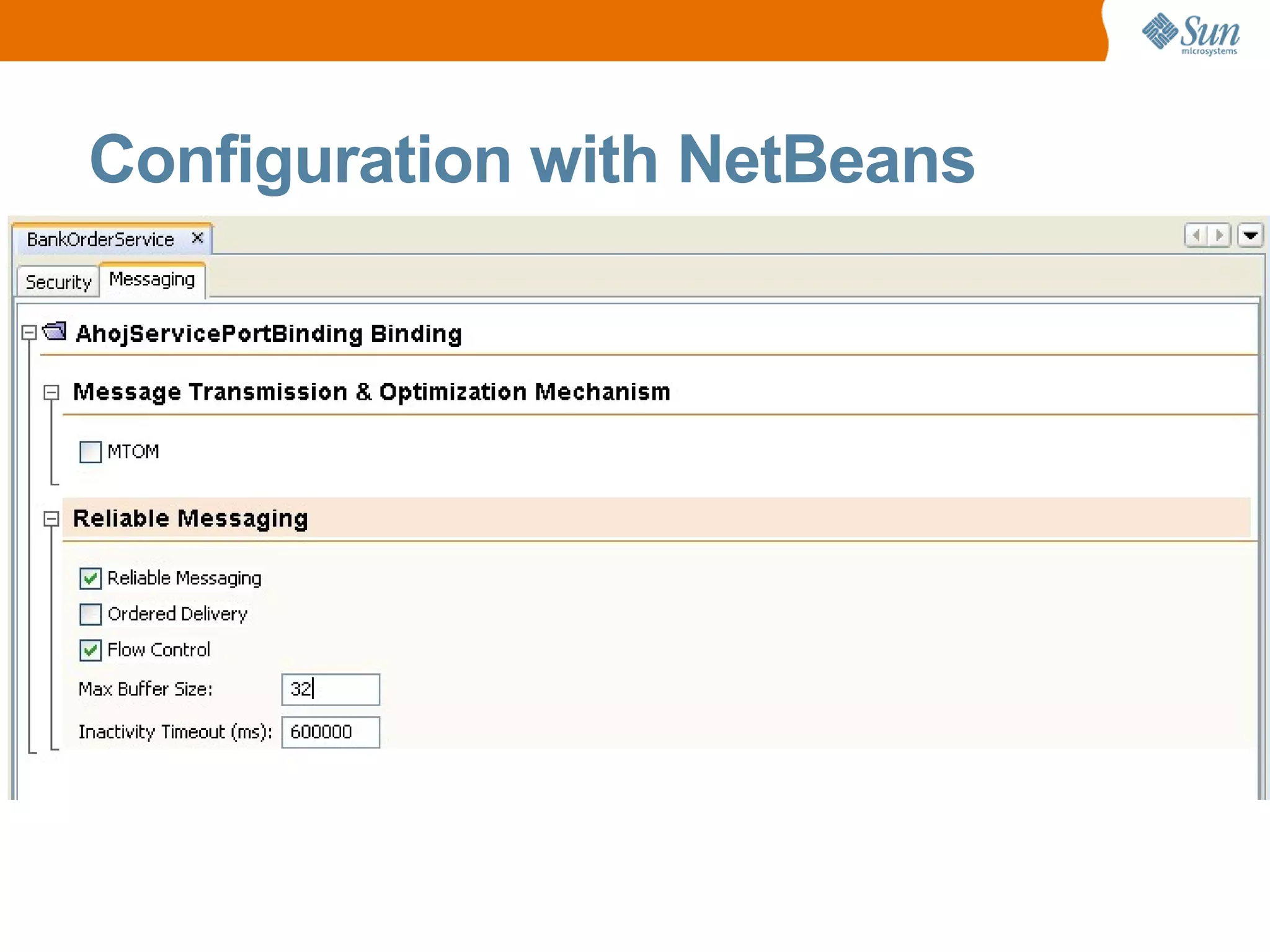

49. Configuration with NetBeans

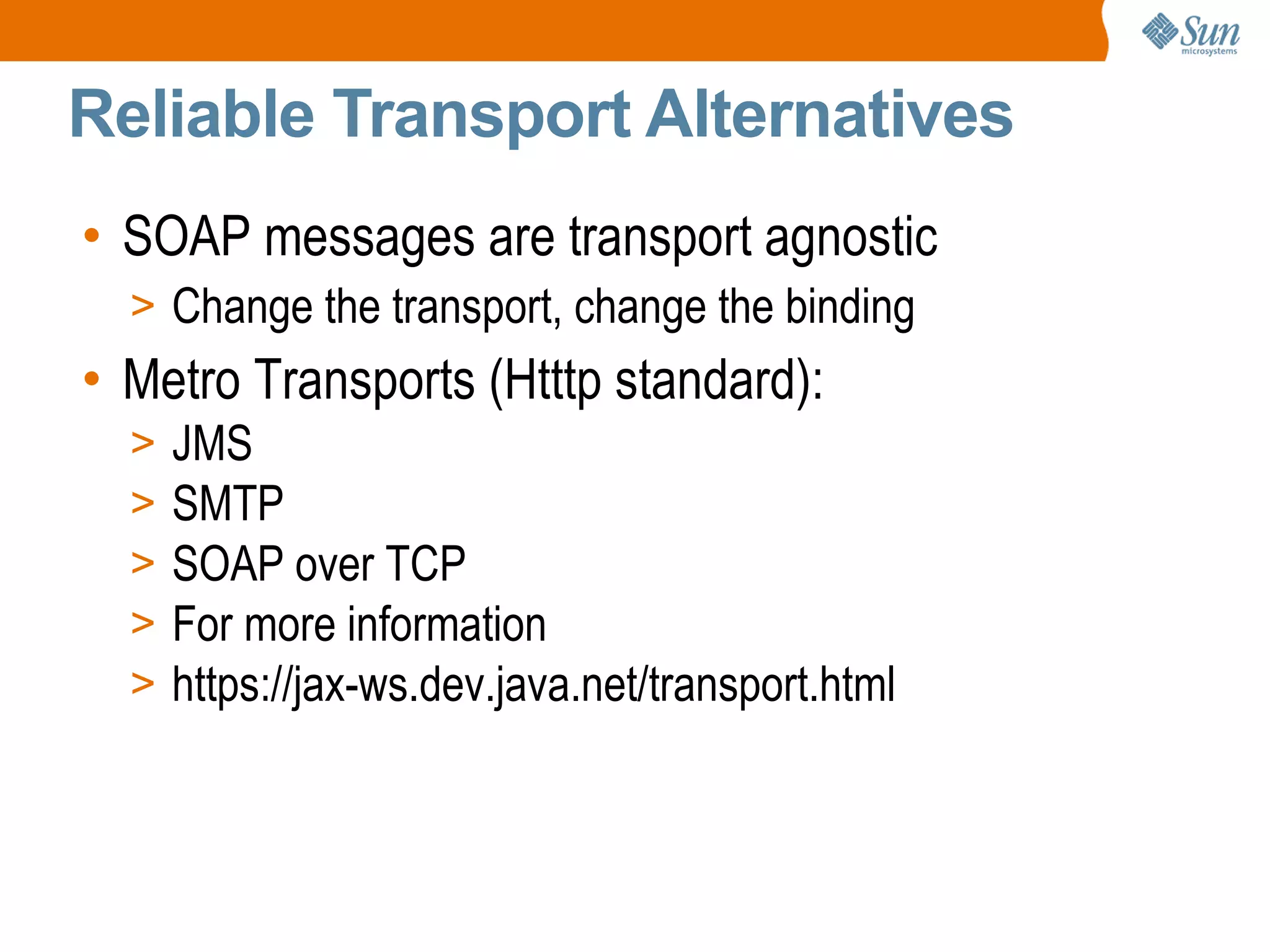

50. Reliable Transport Alternatives SOAP messages are transport agnostic Change the transport, change the binding Metro Transports (Htttp standard): JMS SMTP SOAP over TCP For more information https://jax-ws.dev.java.net/transport.html

51. Metro WSIT Transactions

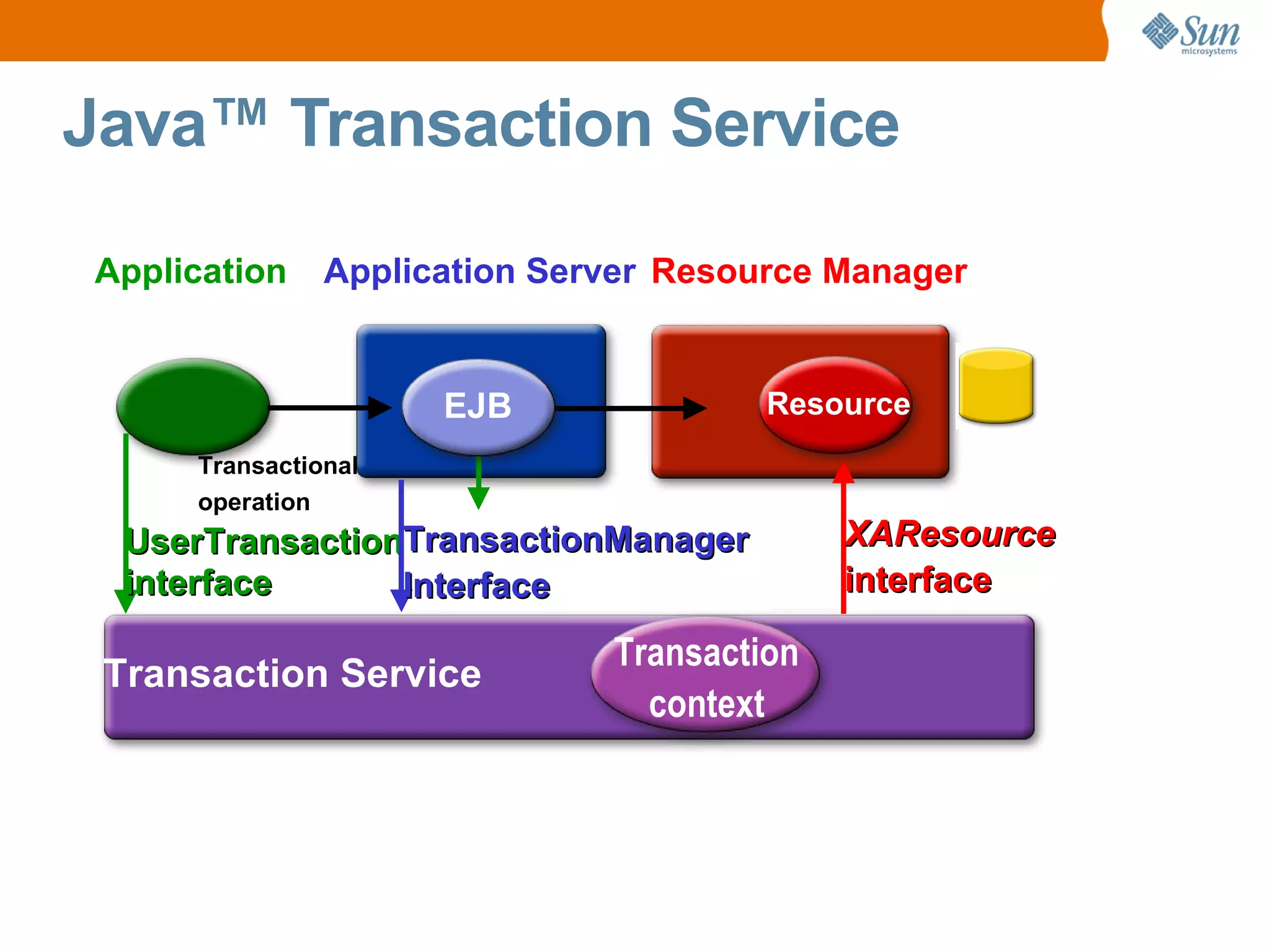

52. Java™ Transaction Service Application Server Transaction Service Application UserTransaction interface Resource Manager XAResource interface Transactional operation TransactionManager Interface Resource EJB Transaction context

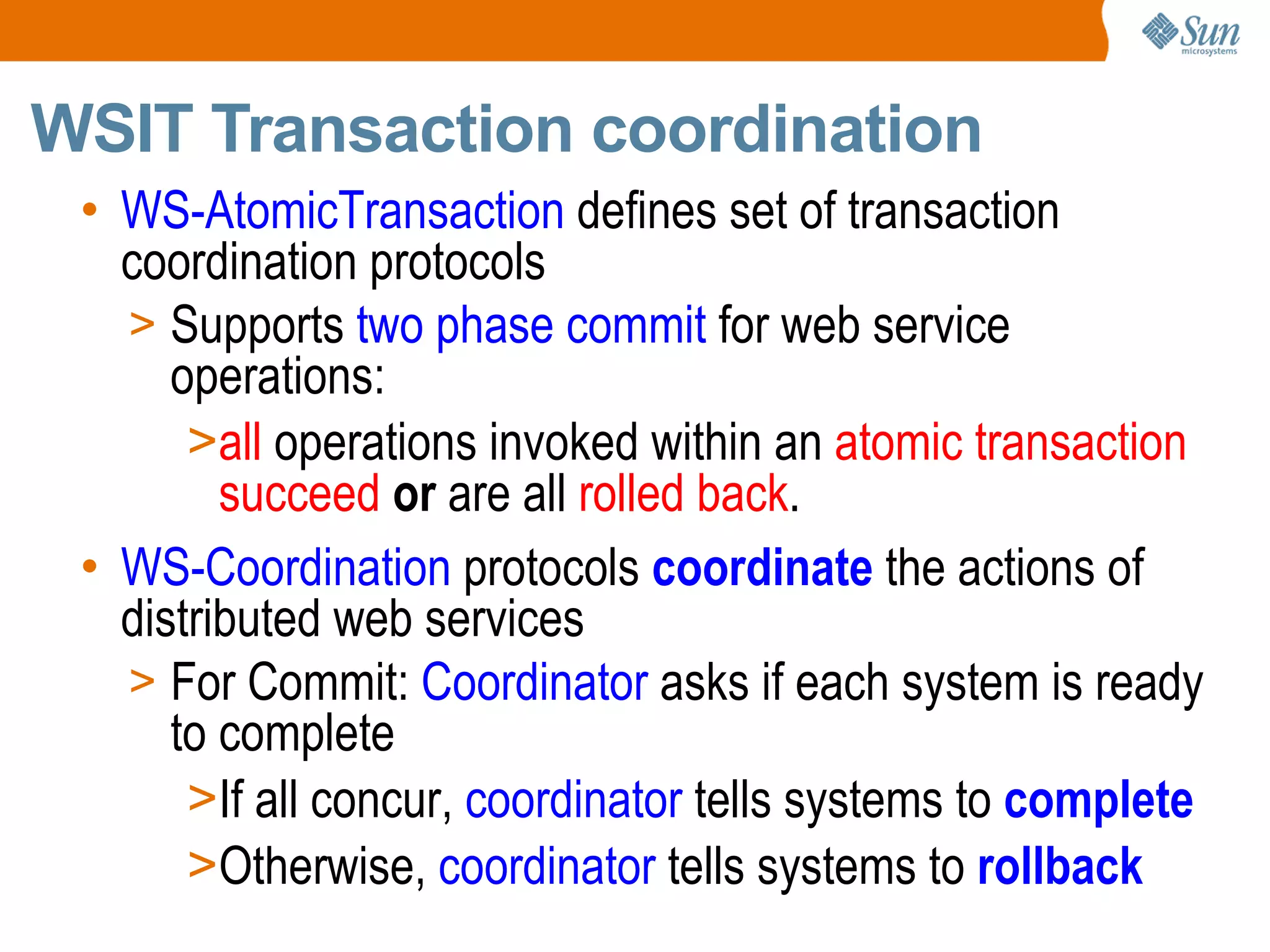

53. WS-AtomicTransaction defines set of transaction coordination protocols Supports two phase commit for web service operations: all operations invoked within an atomic transaction succeed or are all rolled back . WS-Coordination protocols coordinate the actions of distributed web services For Commit: Coordinator asks if each system is ready to complete If all concur, coordinator tells systems to complete Otherwise, coordinator tells systems to rollback WSIT Transaction coordination

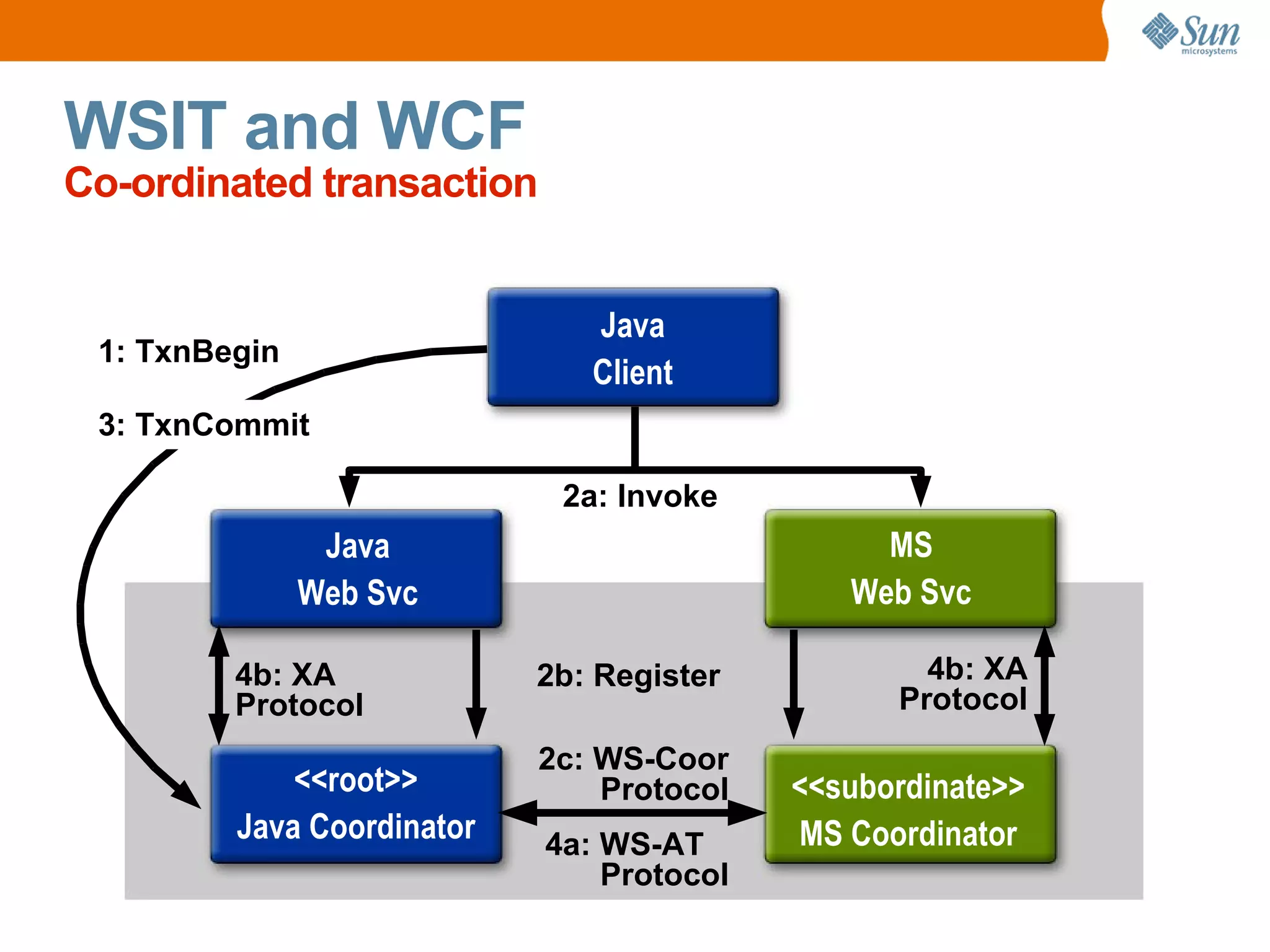

54. WSIT and WCF Co-ordinated transaction 4a: WS-AT Protocol 3: TxnCommit 2c: WS-Coor Protocol 2b: Register 4b: XA Protocol 4b: XA Protocol 2a: Invoke 1: TxnBegin

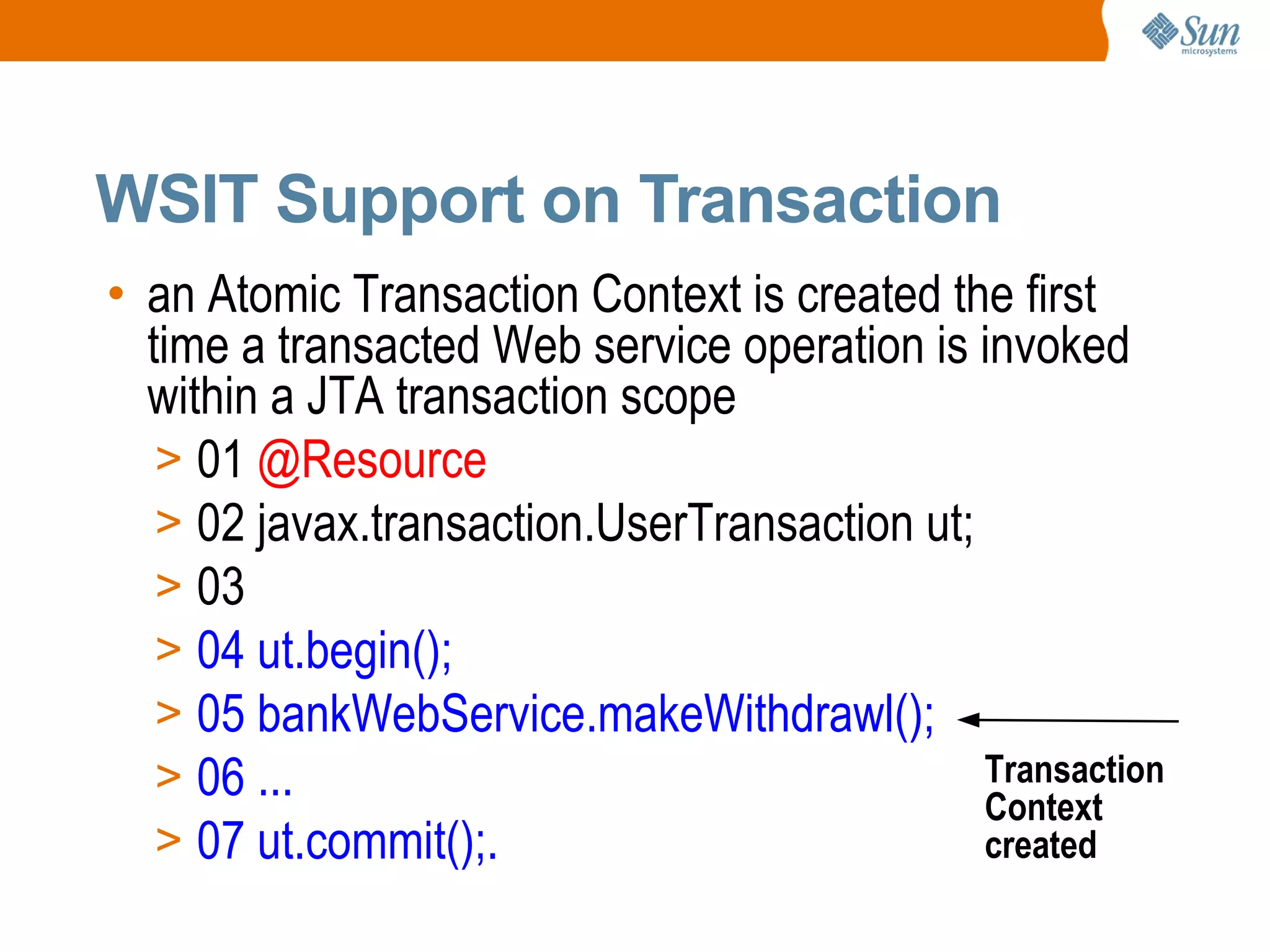

55. an Atomic Transaction Context is created the first time a transacted Web service operation is invoked within a JTA transaction scope 01 @Resource 02 javax.transaction.UserTransaction ut; 03 04 ut.begin(); 05 bankWebService.makeWithdrawl(); 06 ... 07 ut.commit();. WSIT Support on Transaction Transaction Context created

56. Transactions in Action @WebService @Stateless public class Wirerer { @TransactionAttribute(REQUIRED) void wireFunds(...) throws ... { websrvc1.withdrawFromBankX(...); websrvc2.depositIntoBankY(...); } }

57. Metro WSIT Security

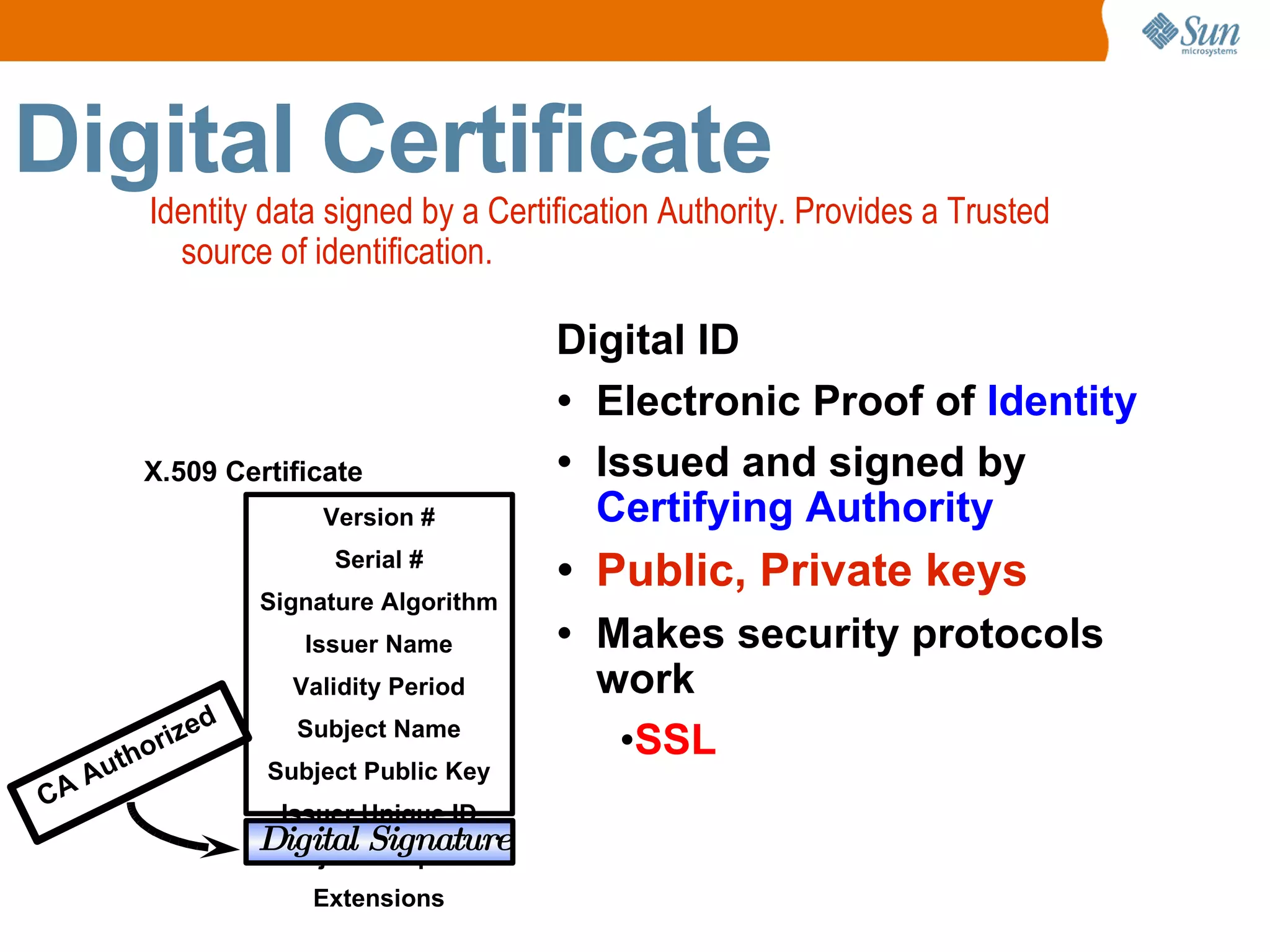

58. Digital Certificate Identity data signed by a Certification Authority. Provides a Trusted source of identification. Version # Serial # Signature Algorithm Issuer Name Validity Period Subject Name Subject Public Key Issuer Unique ID Subject Unique ID Extensions Digital Signature X.509 Certificate Digital ID Electronic Proof of Identity Issued and signed by Certifying Authority Public, Private keys Makes security protocols work SSL CA Authorized

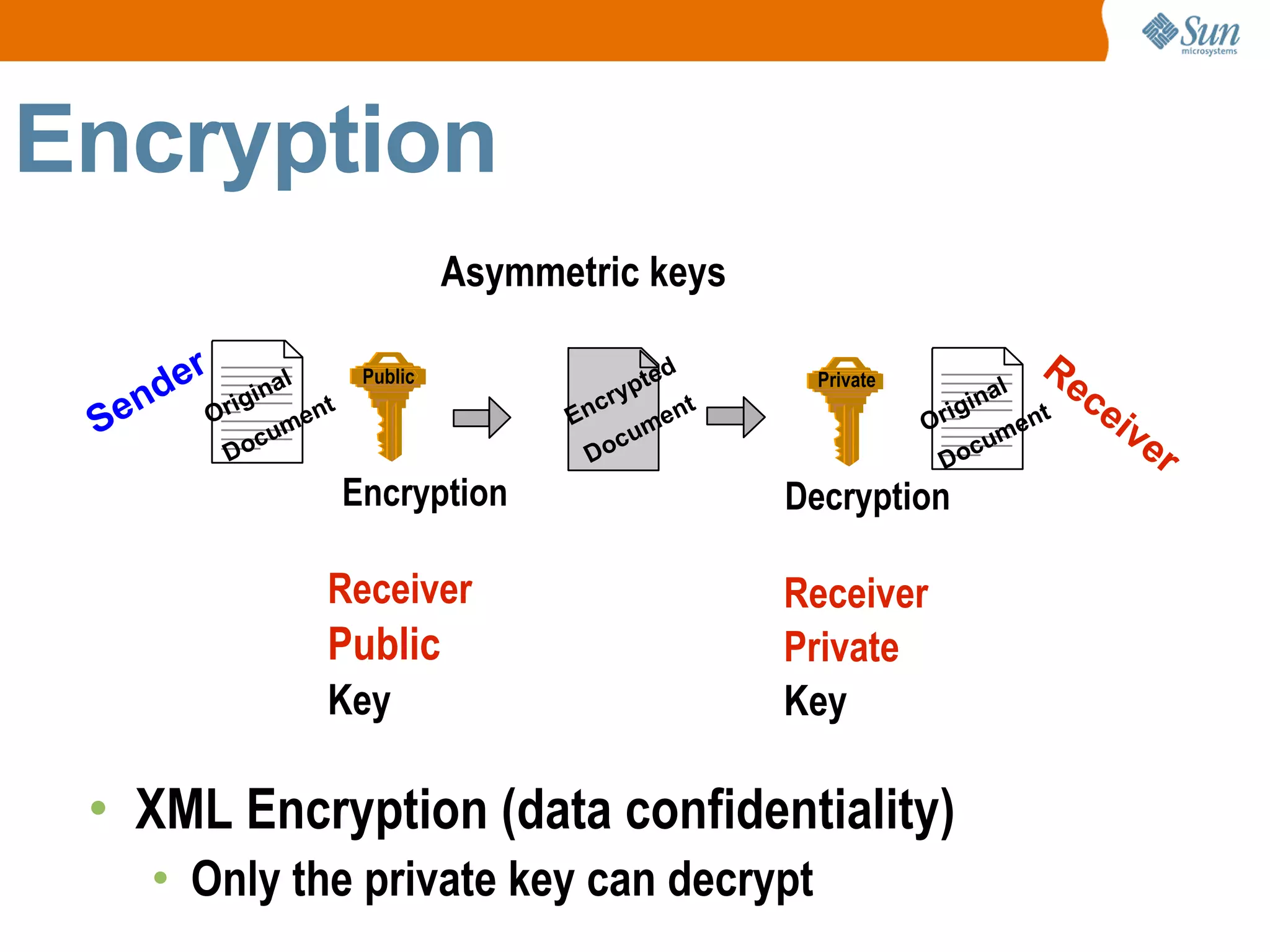

59. Encryption Receiver Public Key Receiver Private Key XML Encryption (data confidentiality) Only the private key can decrypt Asymmetric keys Public Encryption Original Document Encrypted Document Private Decryption Original Document Sender Receiver

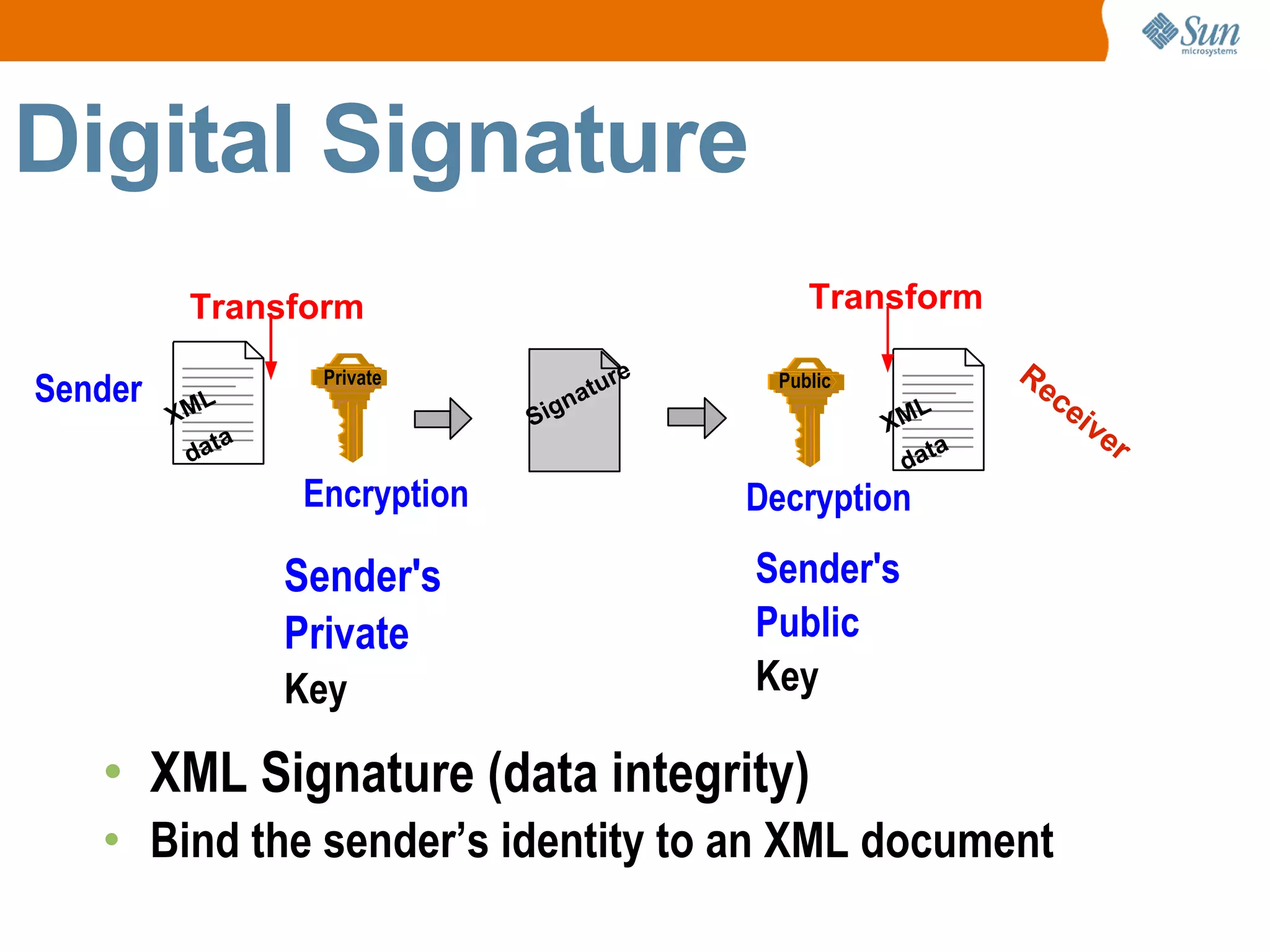

60. Digital Signature Transform Transform Sender Sender's Private Key Sender's Public Key XML Signature (data integrity) Bind the sender’s identity to an XML document Private Encryption XML data Signature Public Decryption XML data Receiver

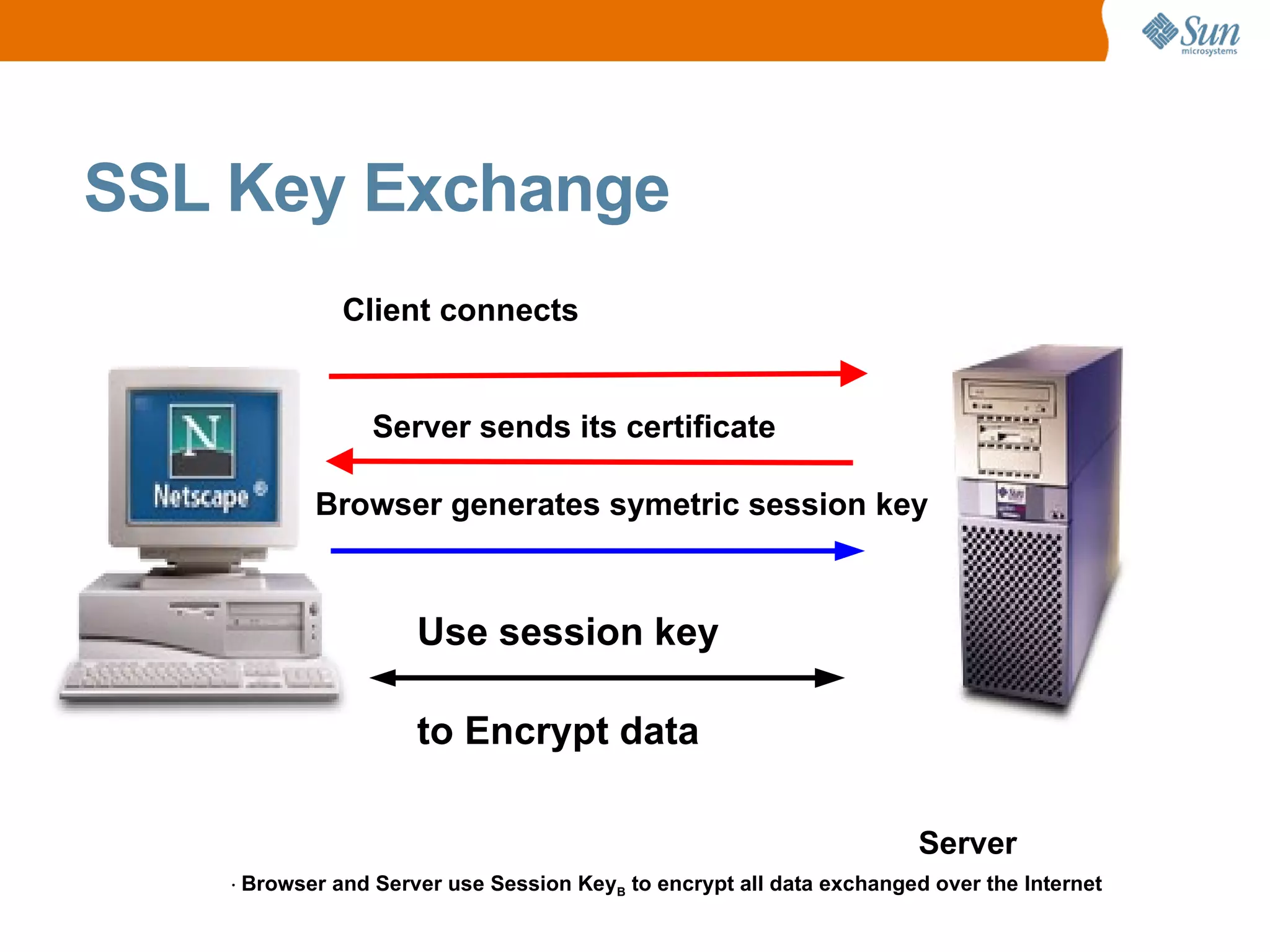

61. SSL Key Exchange Server Client connects Browser generates symetric session key Use session key to Encrypt data Browser and Server use Session Key B to encrypt all data exchanged over the Internet

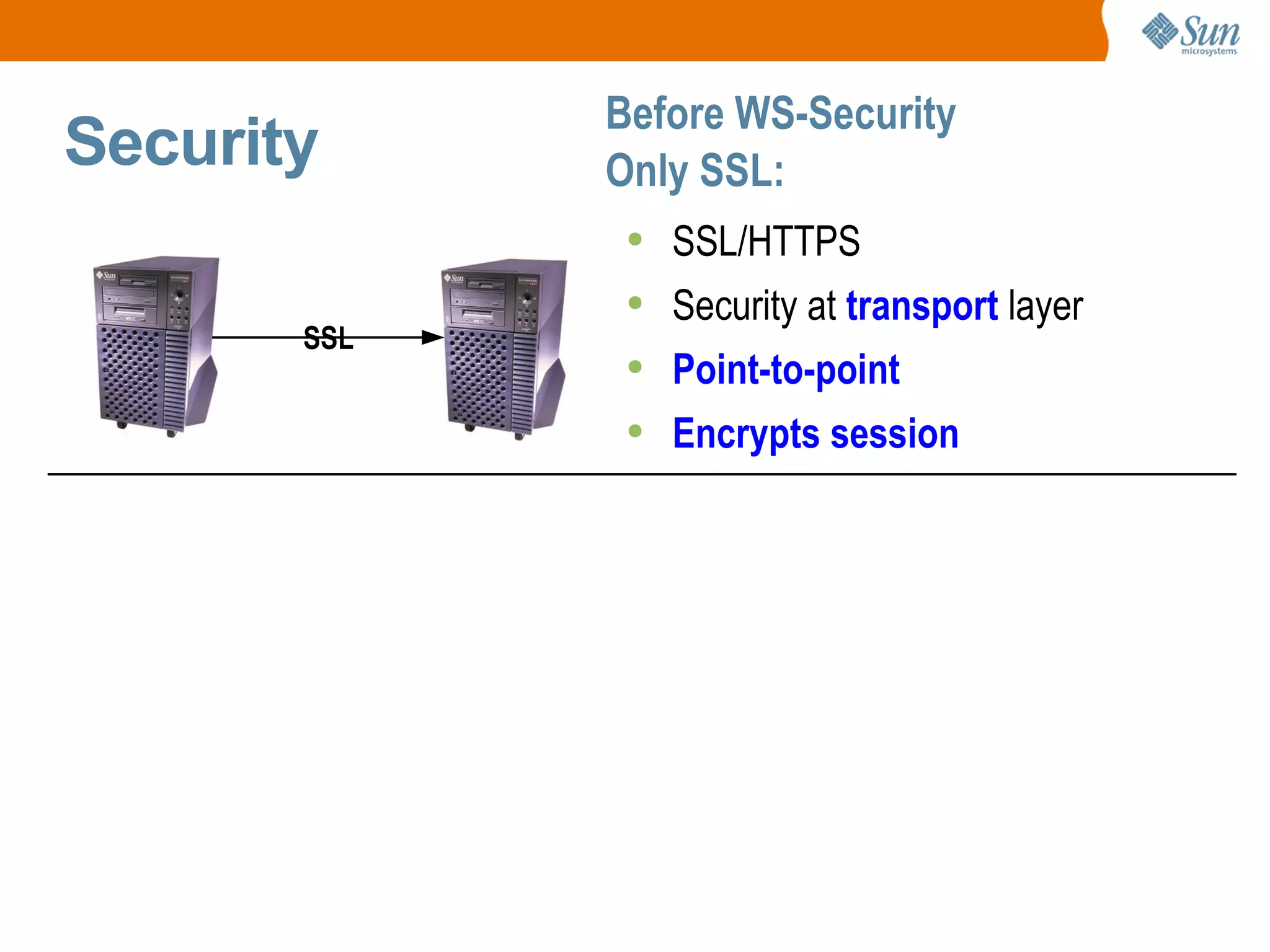

62. Security Before WS-Security Only SSL: WS-Security Security at SOAP (protocol) layer Fine granularity possible Only sign/encrypt credit card # (e.g., XML subtree) Works on non-TCP/IP transports Integrity, Confidentiality, Auth W3C XML Signature/Encryption SSL/HTTPS Security at transport layer Point-to-point Encrypts session

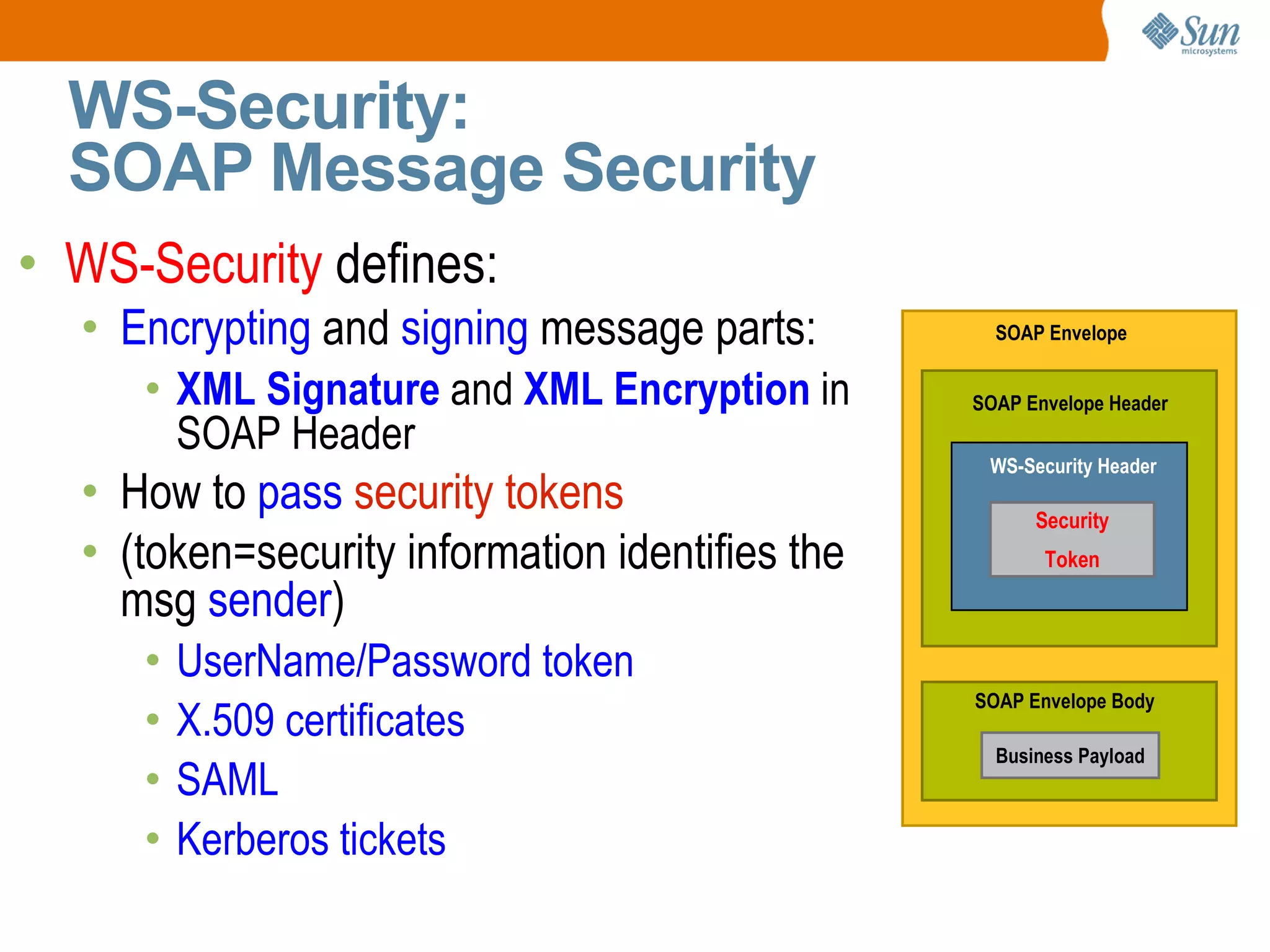

63. WS-Security: SOAP Message Security WS-Security defines: Encrypting and signing message parts: XML Signature and XML Encryption in SOAP Header How to pass security tokens (token=security information identifies the msg sender ) UserName/Password token X.509 certificates SAML Kerberos tickets SOAP Envelope SOAP Envelope Header SOAP Envelope Body WS-Security Header Security Token Business Payload

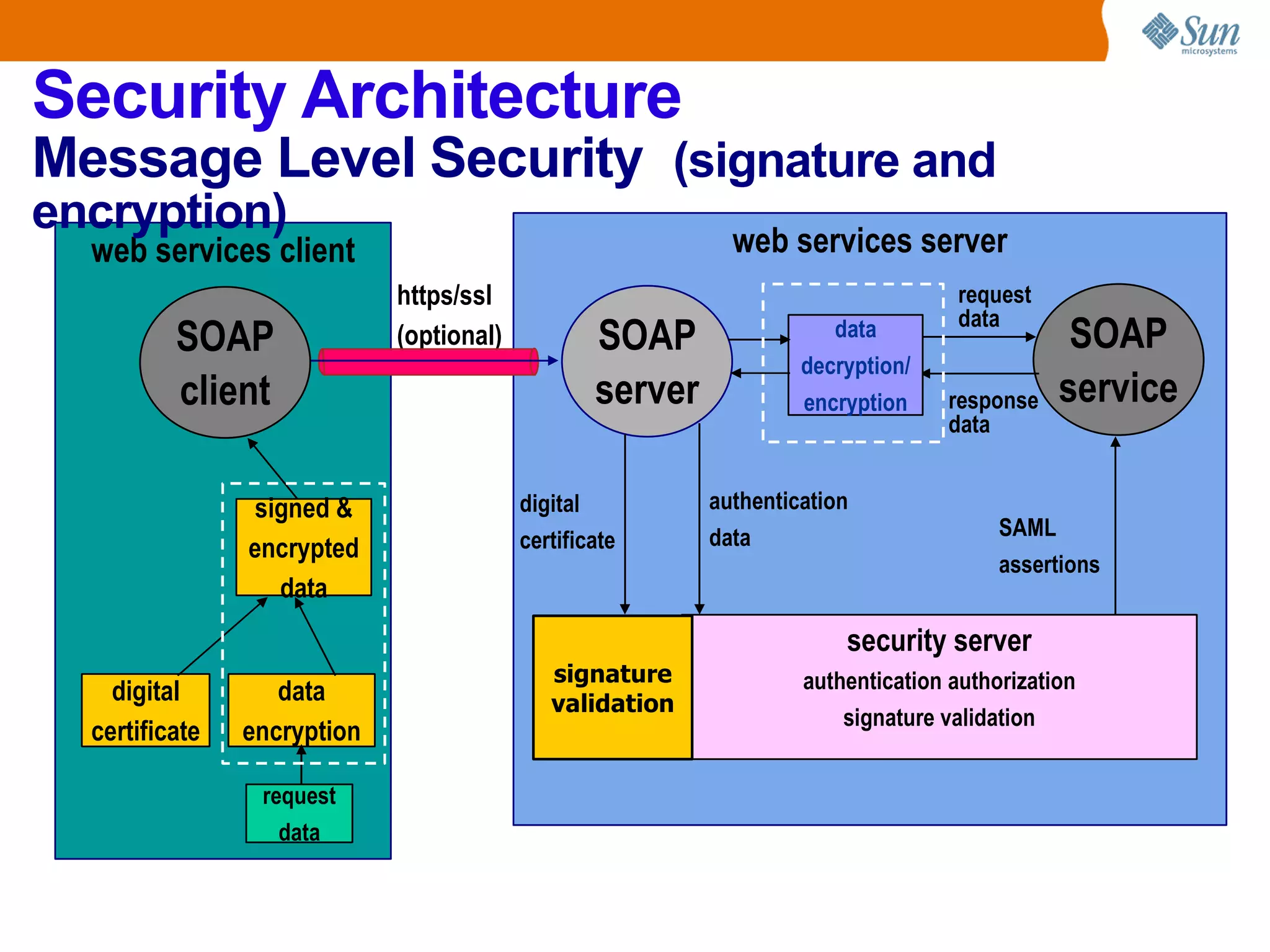

64. request data response data authentication data SAML assertions https/ssl (optional) digital certificate Security Architecture Message Level Security (signature and encryption) web services client SOAP client signed & encrypted data web services server SOAP server SOAP service security server authentication authorization signature validation data encryption digital certificate request data data decryption/ encryption signature validation

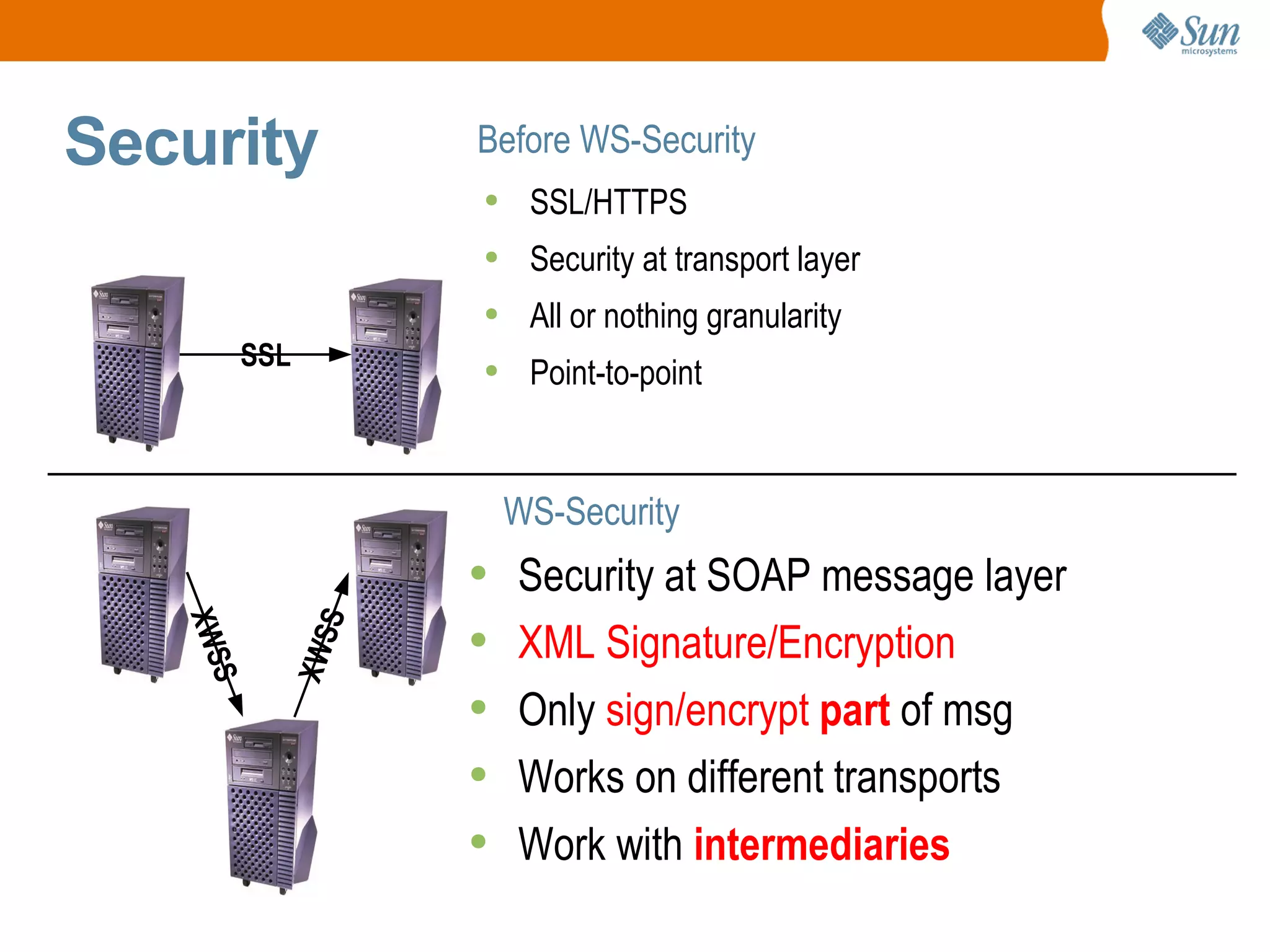

65. Security Before WS-Security WS-Security Security at SOAP message layer XML Signature/Encryption Only sign/encrypt part of msg Works on different transports Work with intermediaries SSL/HTTPS Security at transport layer All or nothing granularity Point-to-point

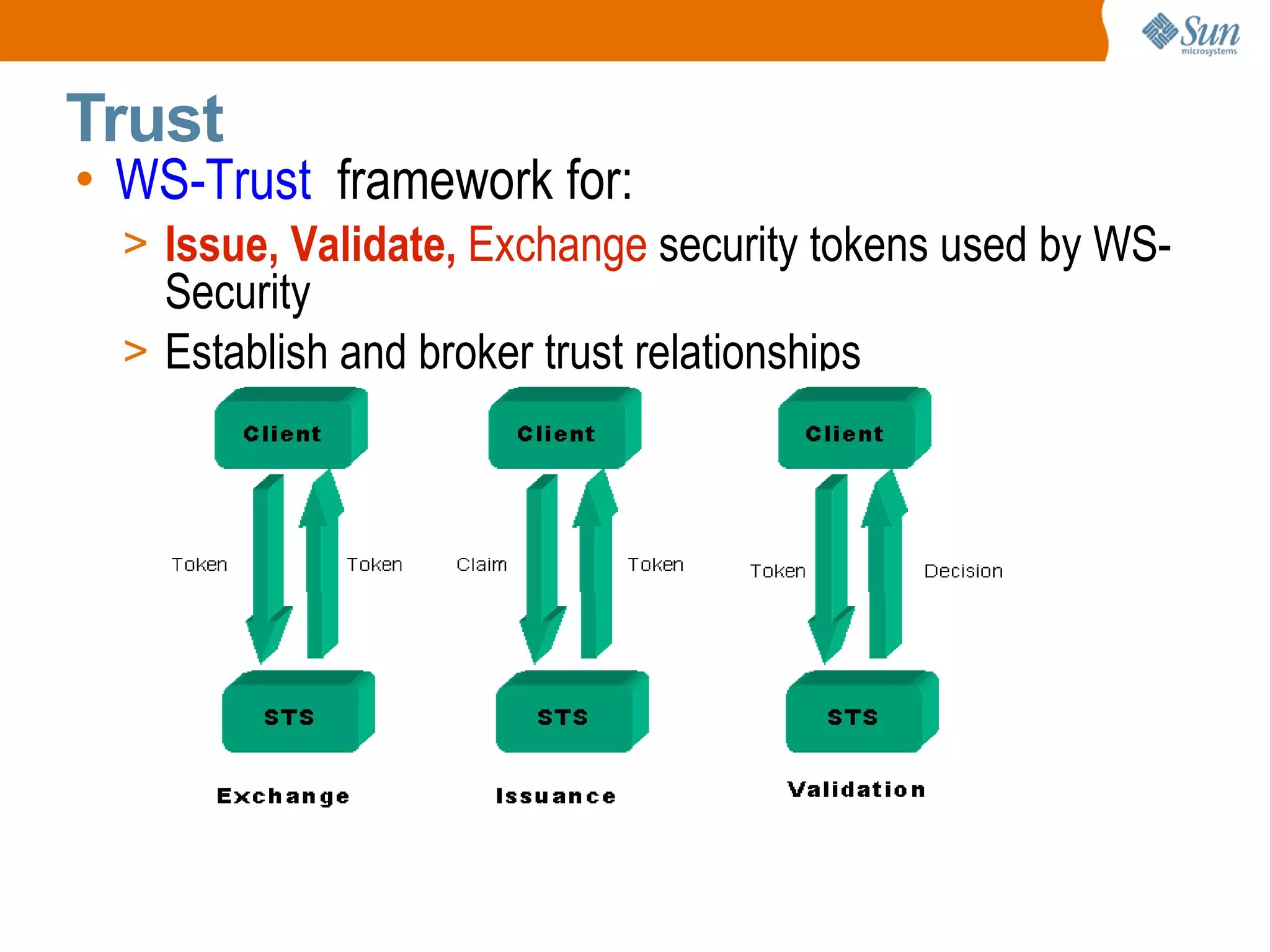

66. WS-Trust framework for: Issue, Validate, Exchange security tokens used by WS-Security Establish and broker trust relationships Trust

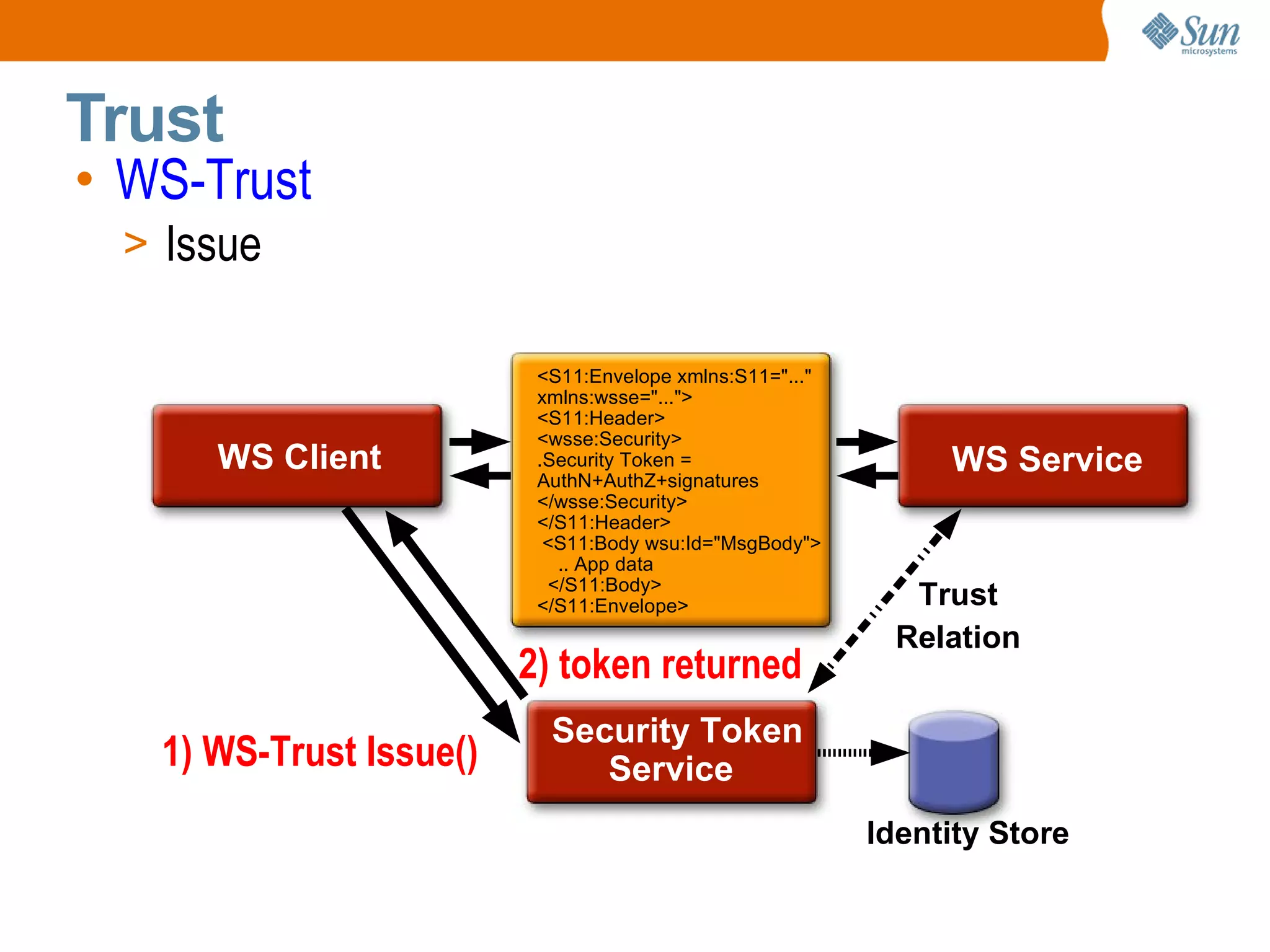

67. WS-Trust Issue Trust Trust Relation Identity Store WS Client WS Service Security Token Service 1) WS-Trust Issue() 2) token returned <S11:Envelope xmlns:S11=&quot;...&quot; xmlns:wsse=&quot;...&quot;> <S11:Header> <wsse:Security> .Security Token = AuthN+AuthZ+signatures </wsse:Security> </S11:Header> <S11:Body wsu:Id=&quot;MsgBody&quot;> .. App data </S11:Body> </S11:Envelope>

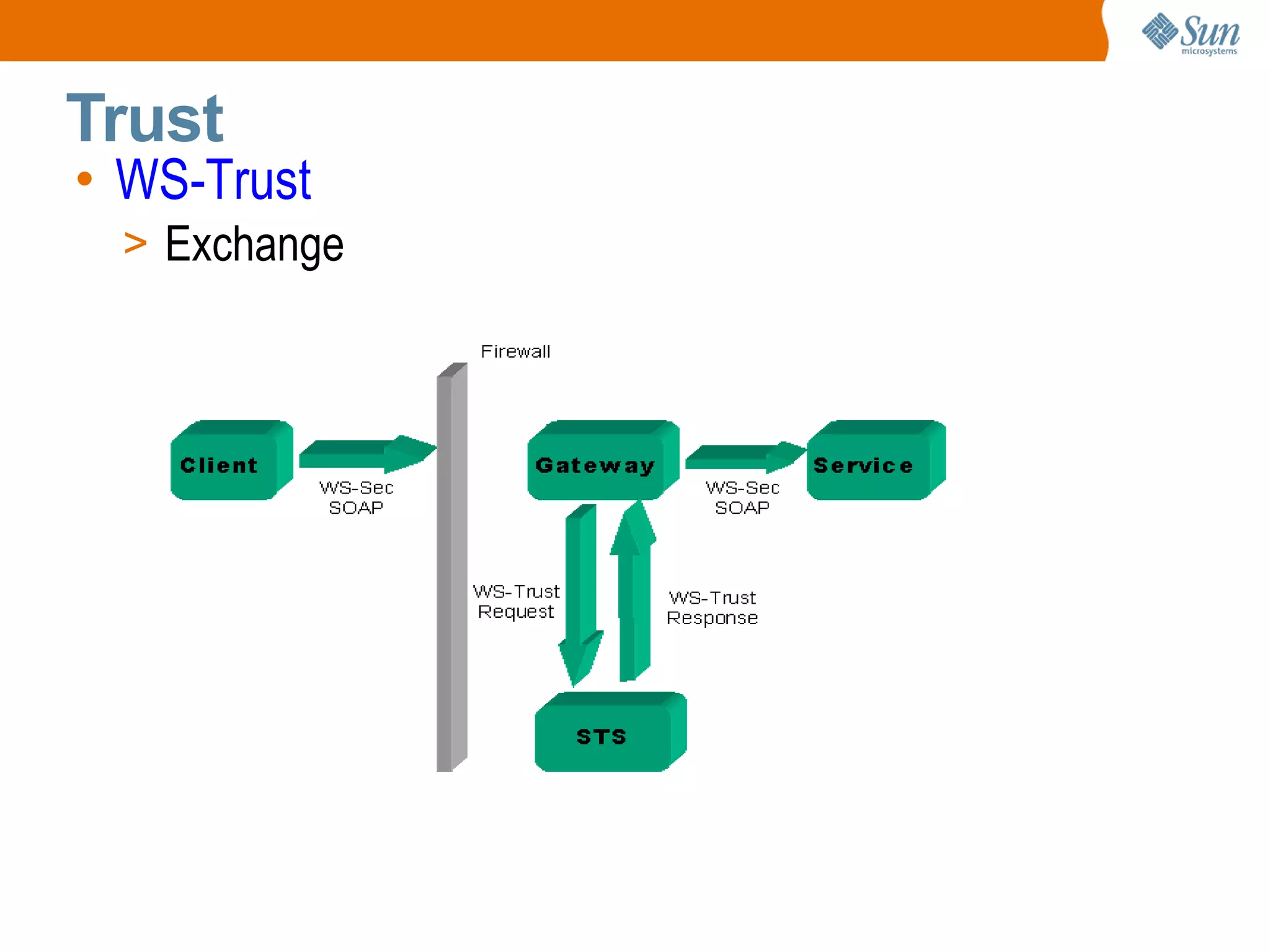

68. WS-Trust Exchange Trust

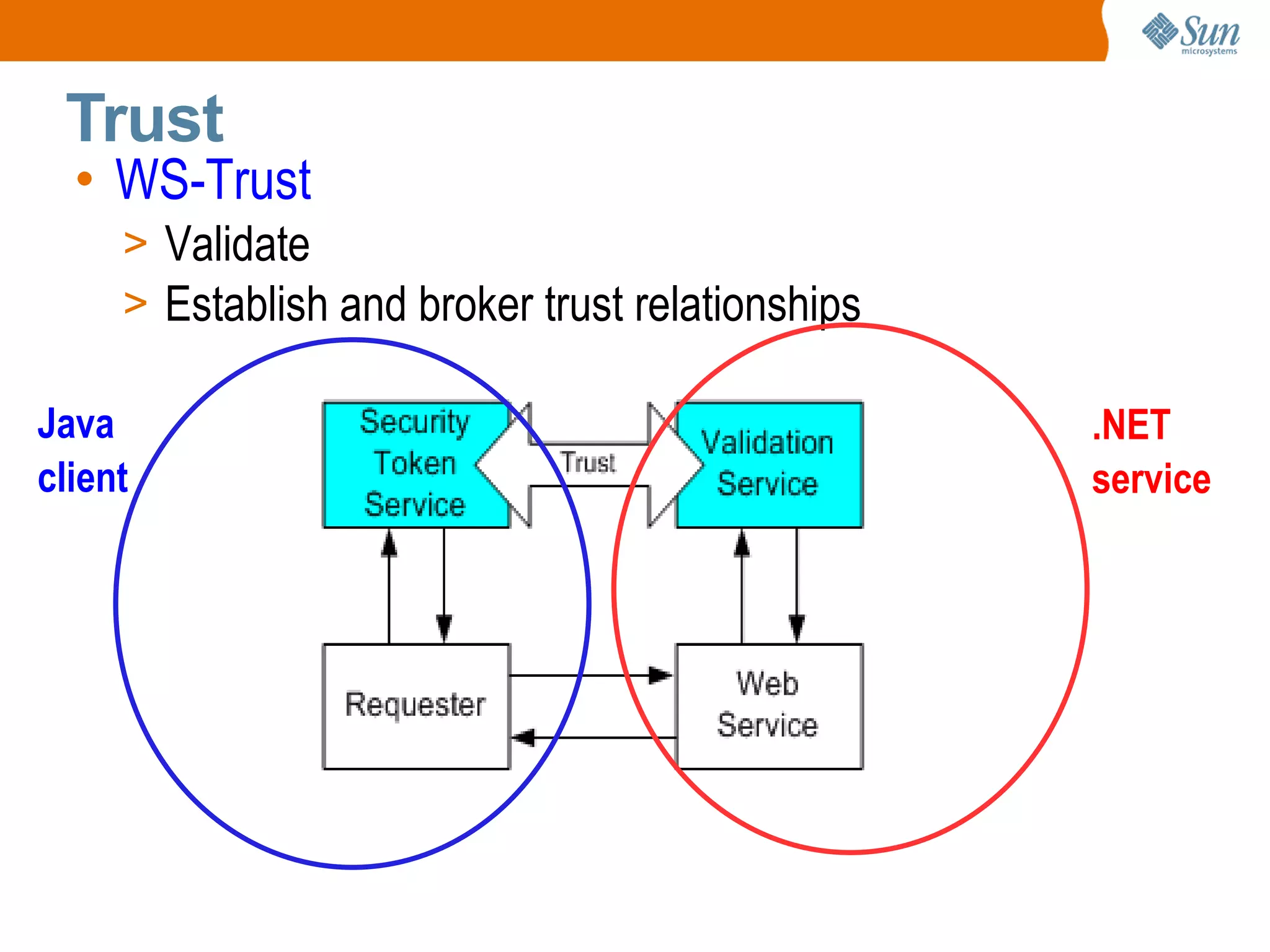

69. WS-Trust Validate Establish and broker trust relationships Trust .NET service Java client

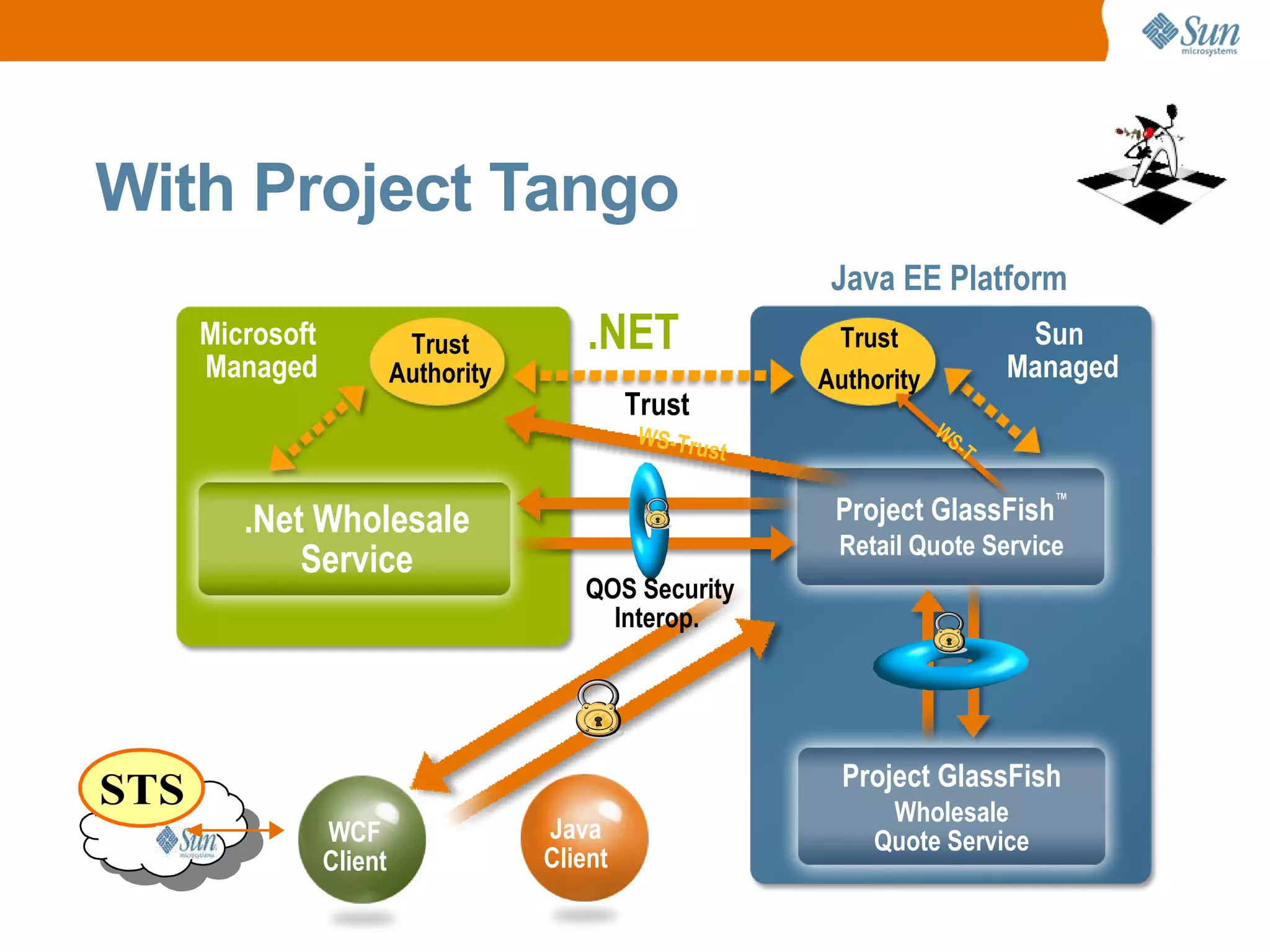

70. .NET Trust Authority Trust Authority Sun Managed Microsoft Managed Project GlassFish ™ Retail Quote Service Project GlassFish Wholesale Quote Service .Net Wholesale Service Java EE Platform With Project Tango WCF Client Java Client WS-Trust WS-T Trust QOS Security Interop.

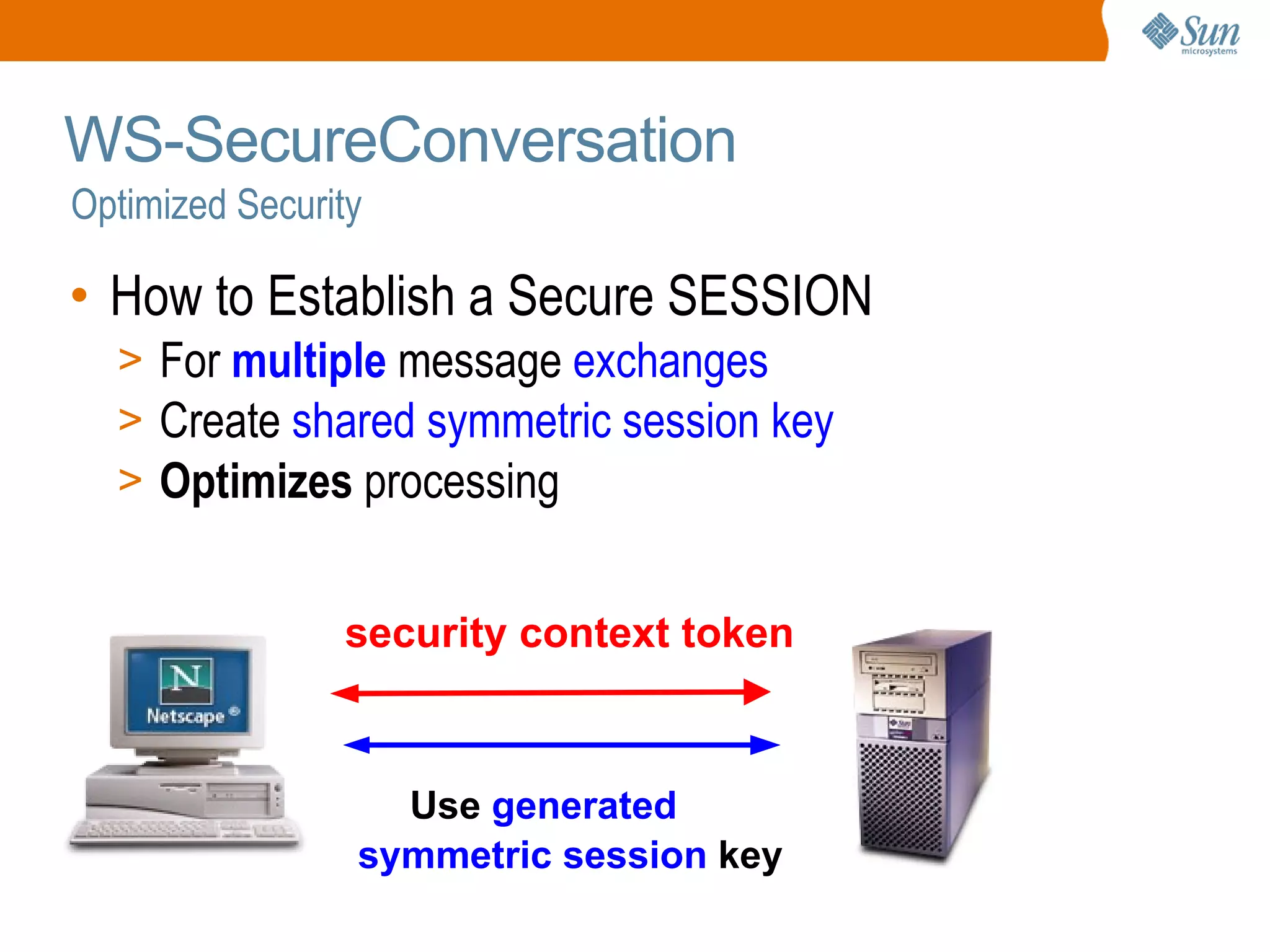

71. How to Establish a Secure SESSION For multiple message exchanges Create shared symmetric session key Optimizes processing WS-SecureConversation Optimized Security security context token Use generated symmetric session key

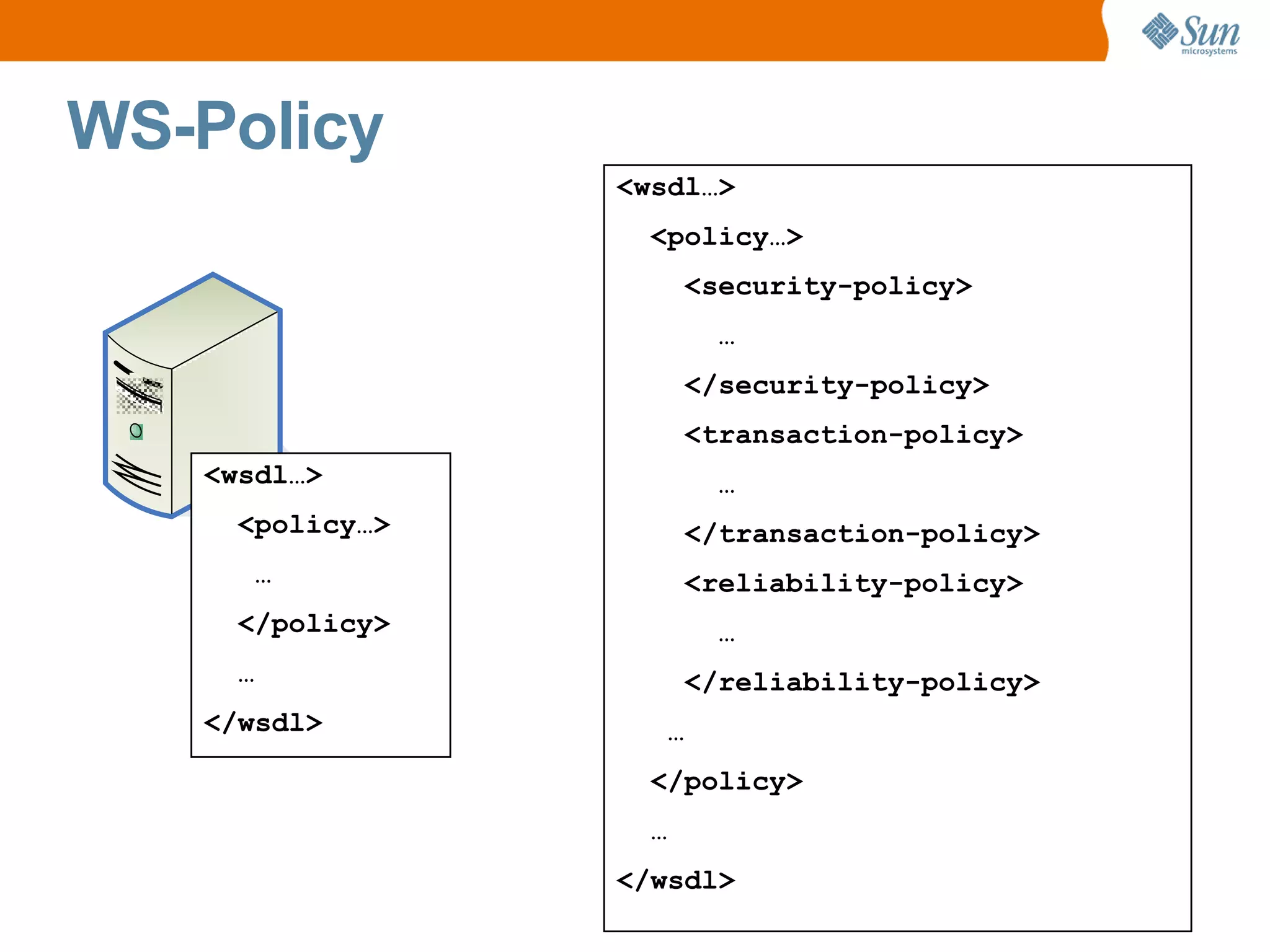

72. WS-Policy <wsdl…> <policy…> … </policy> … </wsdl> <wsdl…> <policy…> <security-policy> … </security-policy> <transaction-policy> … </transaction-policy> <reliability-policy> … </reliability-policy> … </policy> … </wsdl>

73. Metro: Bootstrapping

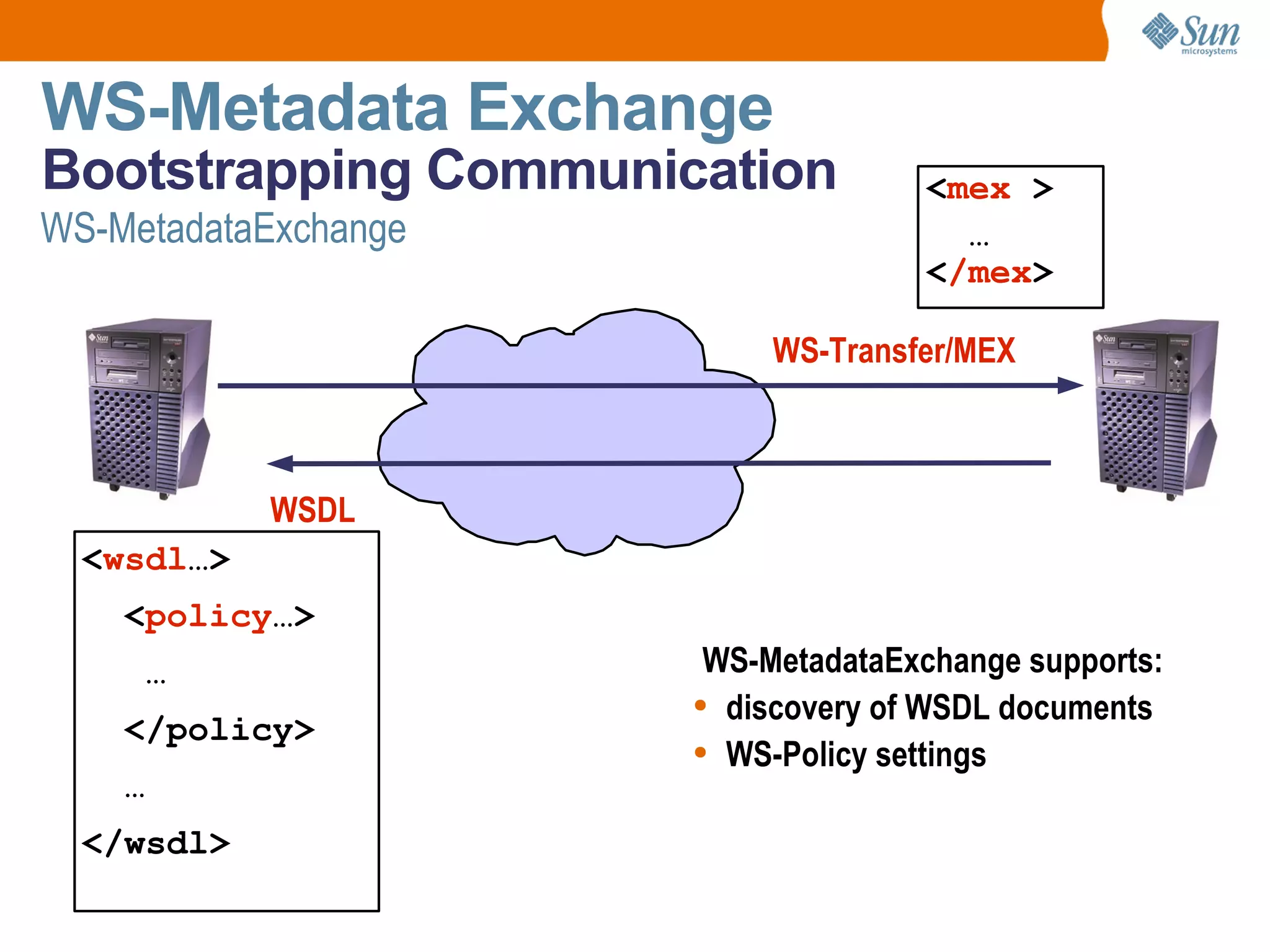

74. WS-Metadata Exchange Bootstrapping Communication < mex > … < /mex > < wsdl …> < policy …> … </policy> … </wsdl> WS-MetadataExchange supports: discovery of WSDL documents WS-Policy settings WS-MetadataExchange WS-Transfer/MEX WSDL

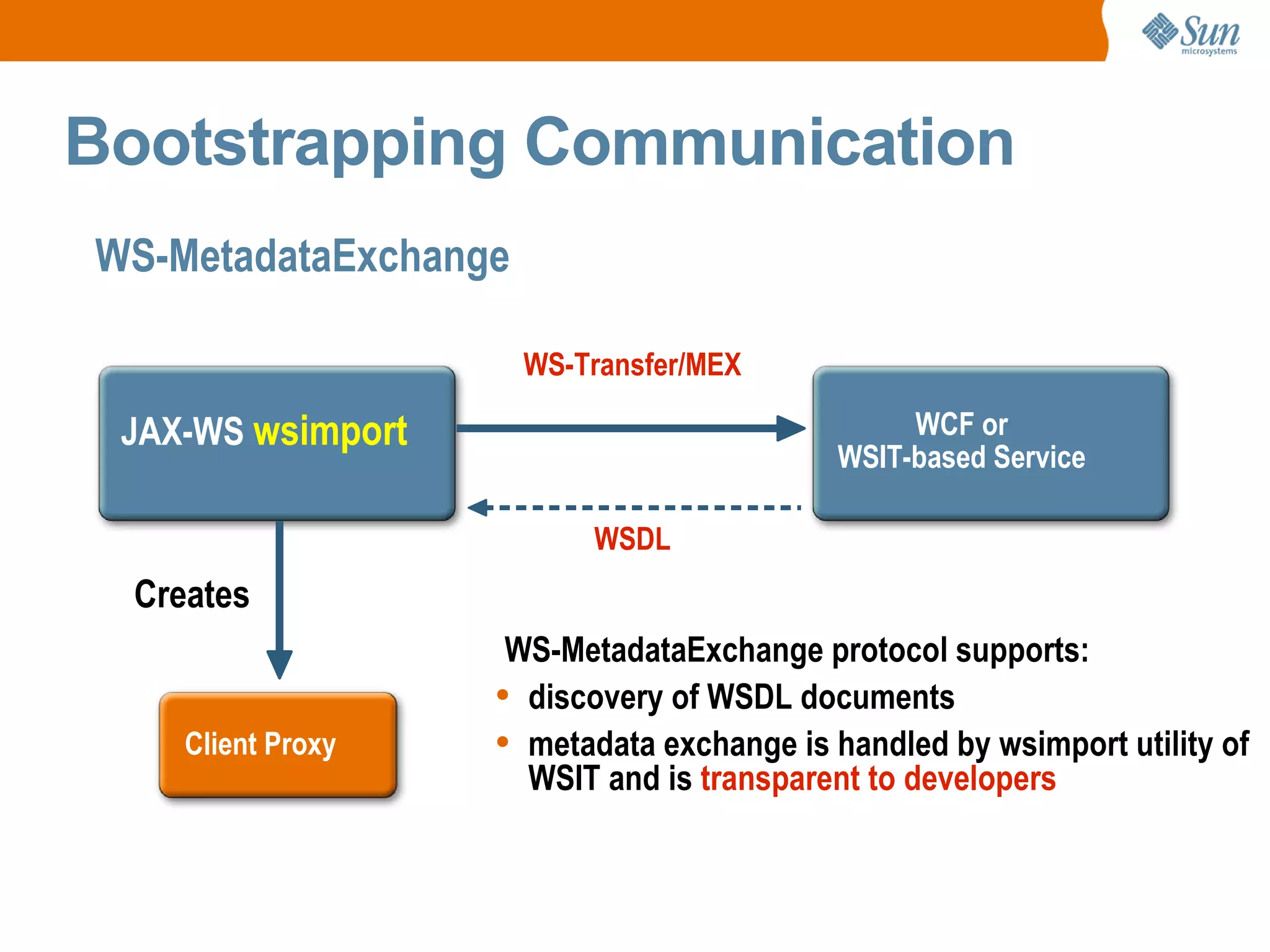

75. Bootstrapping Communication JAX-WS wsimport WCF or WSIT-based Service Creates Client Proxy WS-Transfer/MEX WSDL WS-MetadataExchange WS-MetadataExchange protocol supports: discovery of WSDL documents metadata exchange is handled by wsimport utility of WSIT and is transparent to developers

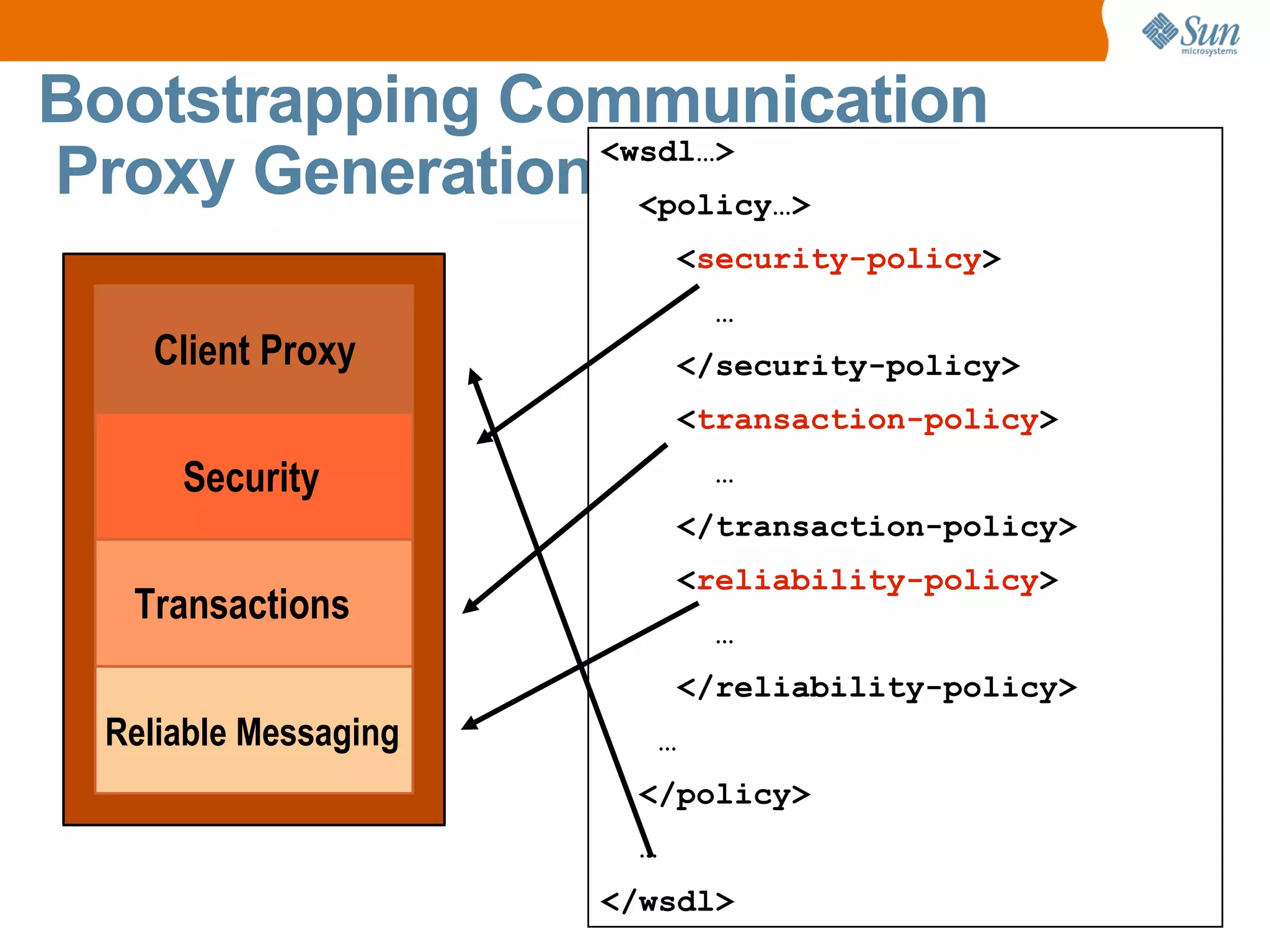

76. Proxy Generation Bootstrapping Communication <wsdl…> <policy…> < security-policy > … </security-policy> < transaction-policy > … </transaction-policy> < reliability-policy > … </reliability-policy> … </policy> … </wsdl>

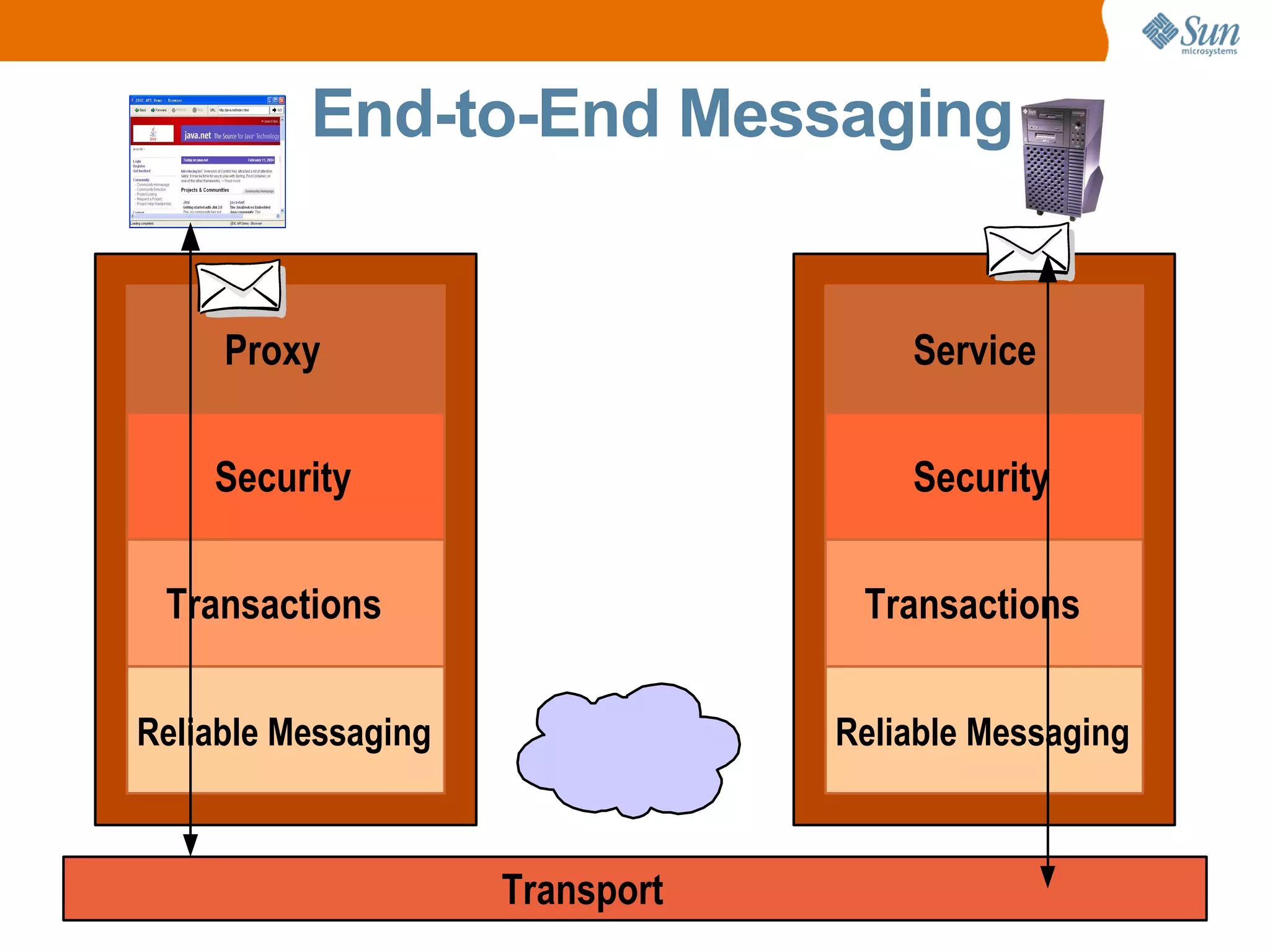

77. End-to-End Messaging

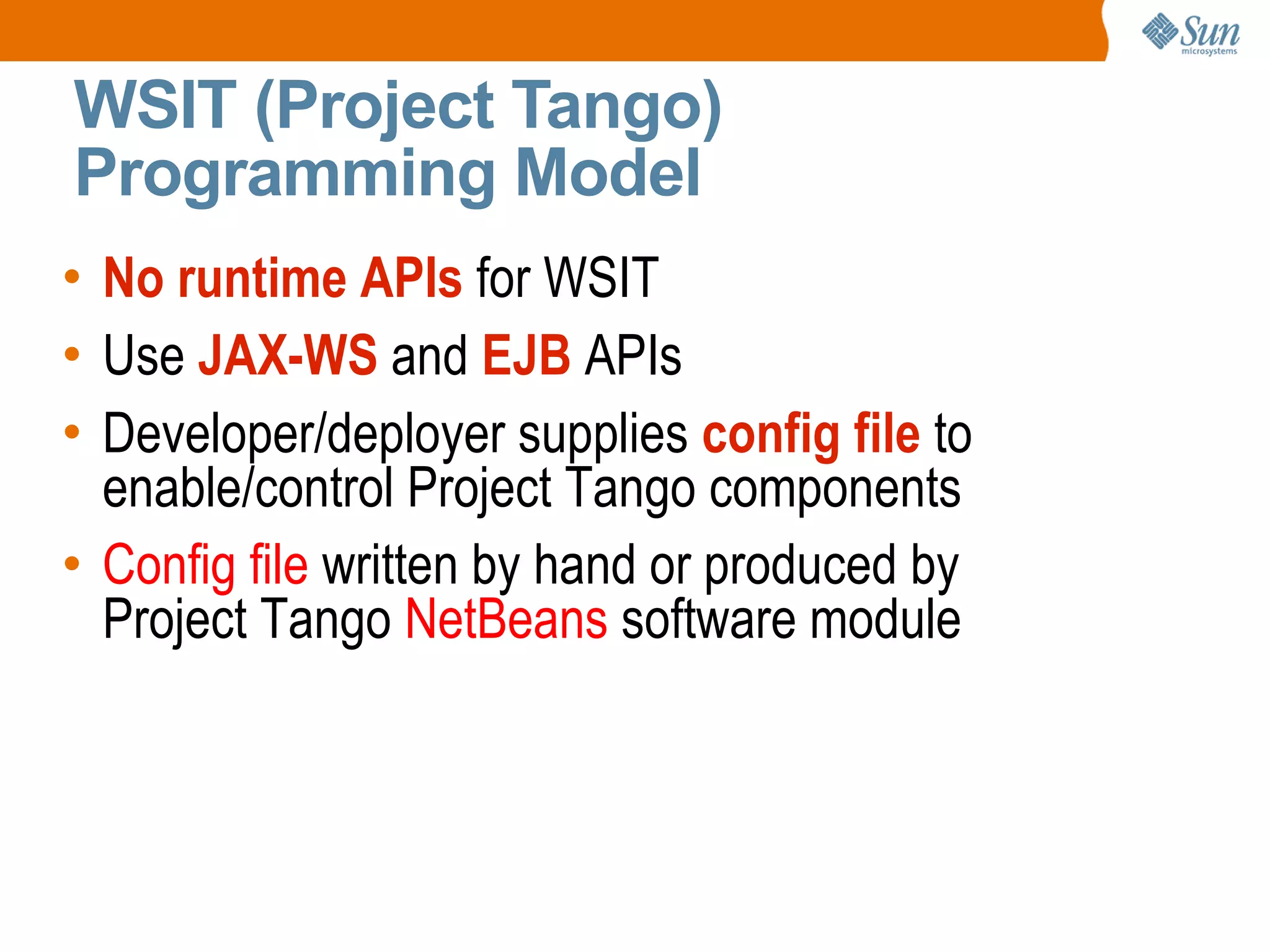

78. No runtime APIs for WSIT Use JAX-WS and EJB APIs Developer/deployer supplies config file to enable/control Project Tango components Config file written by hand or produced by Project Tango NetBeans software module WSIT (Project Tango) Programming Model

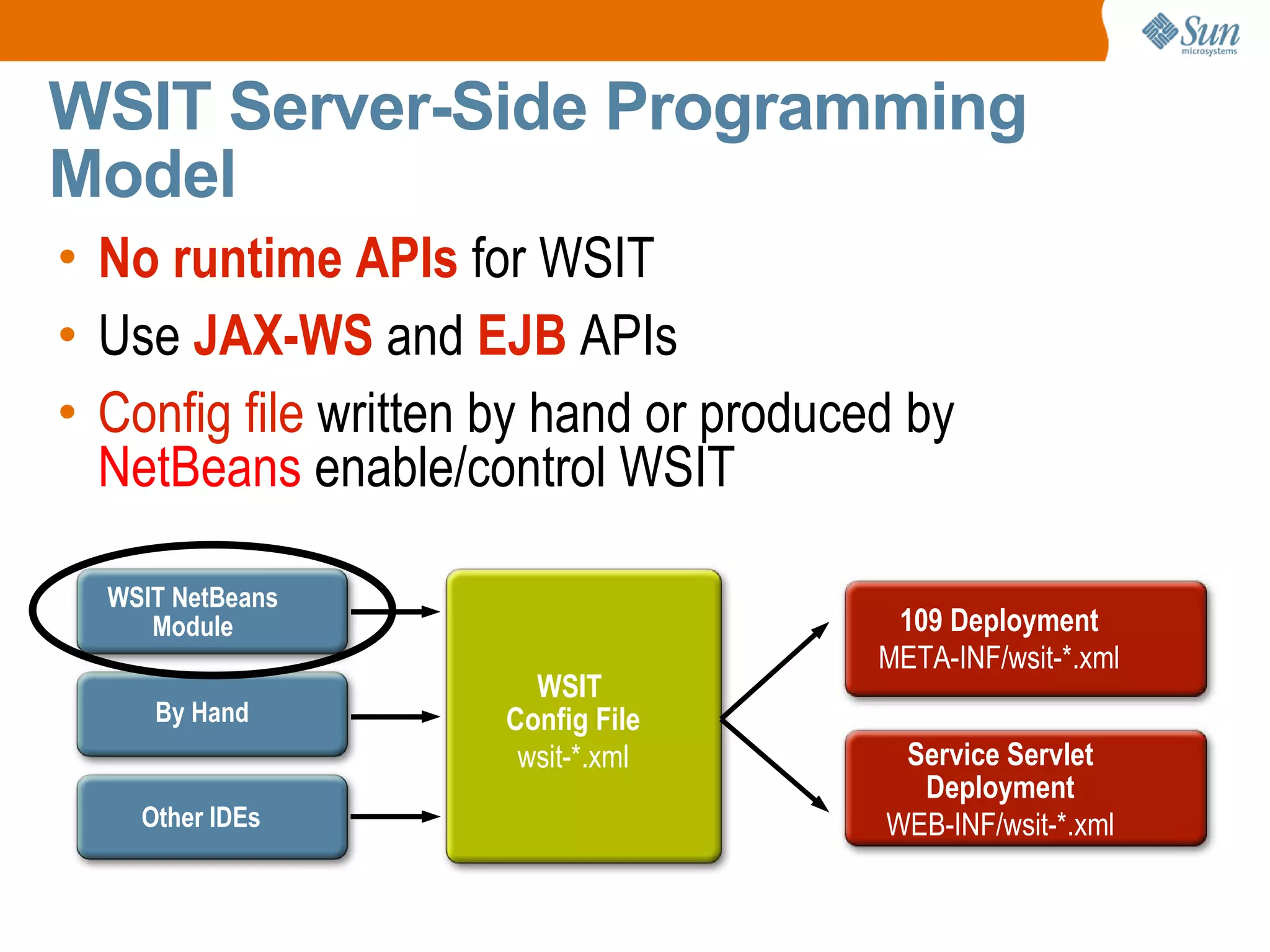

79. WSIT NetBeans Module By Hand Other IDEs 109 Deployment META-INF/wsit-*.xml Service Servlet Deployment WEB-INF/wsit-*.xml WSIT Server-Side Programming Model WSIT Config File wsit-*.xml No runtime APIs for WSIT Use JAX-WS and EJB APIs Config file written by hand or produced by NetBeans enable/control WSIT

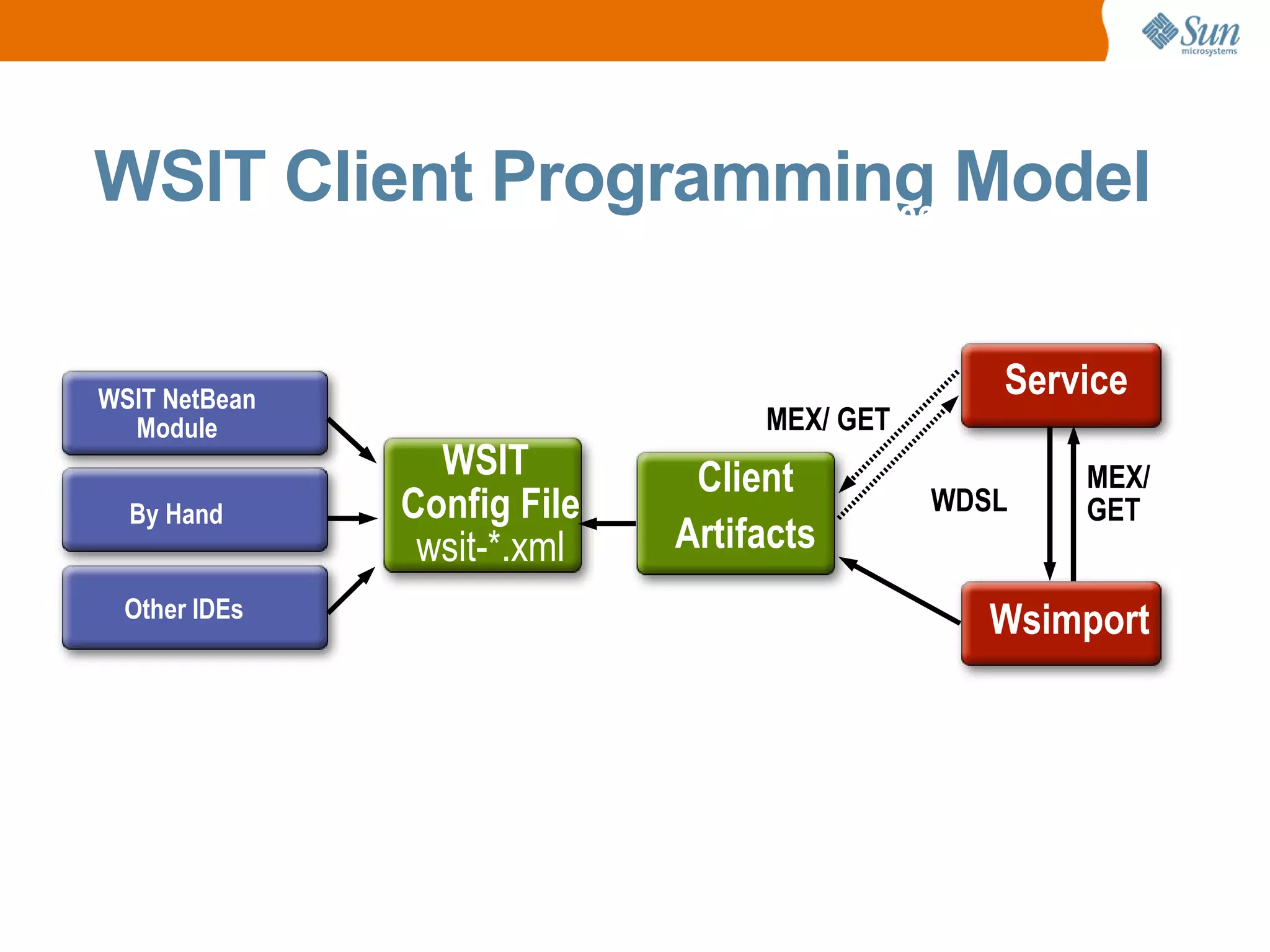

80. WSIT Client Programming Model 109 Service Wsimport Client Artifacts WSIT Config File wsit-*.xml WSIT NetBean Module By Hand Other IDEs MEX/ GET WDSL MEX/ GET

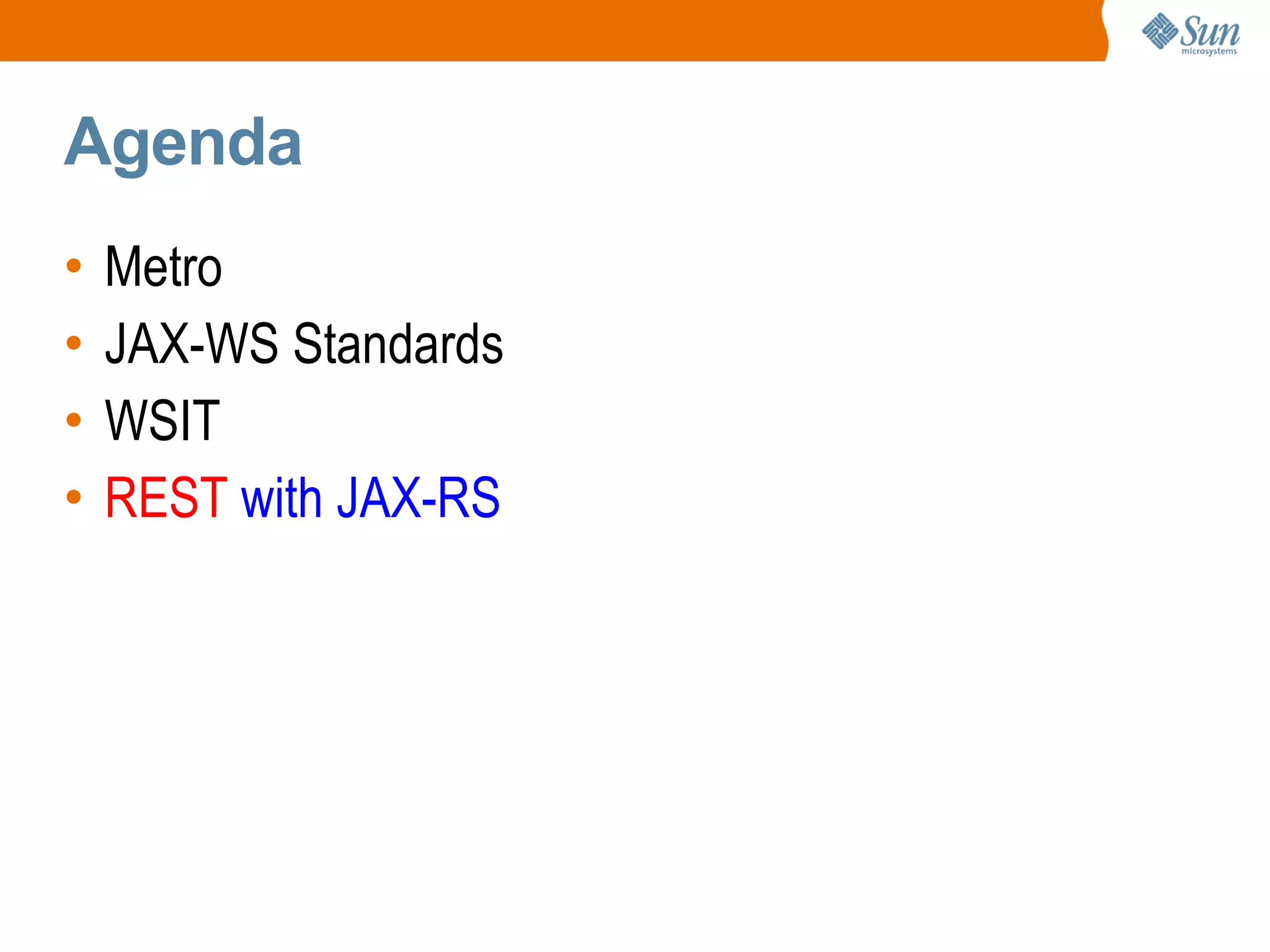

82. Agenda Metro JAX-WS Standards WSIT REST with JAX-RS

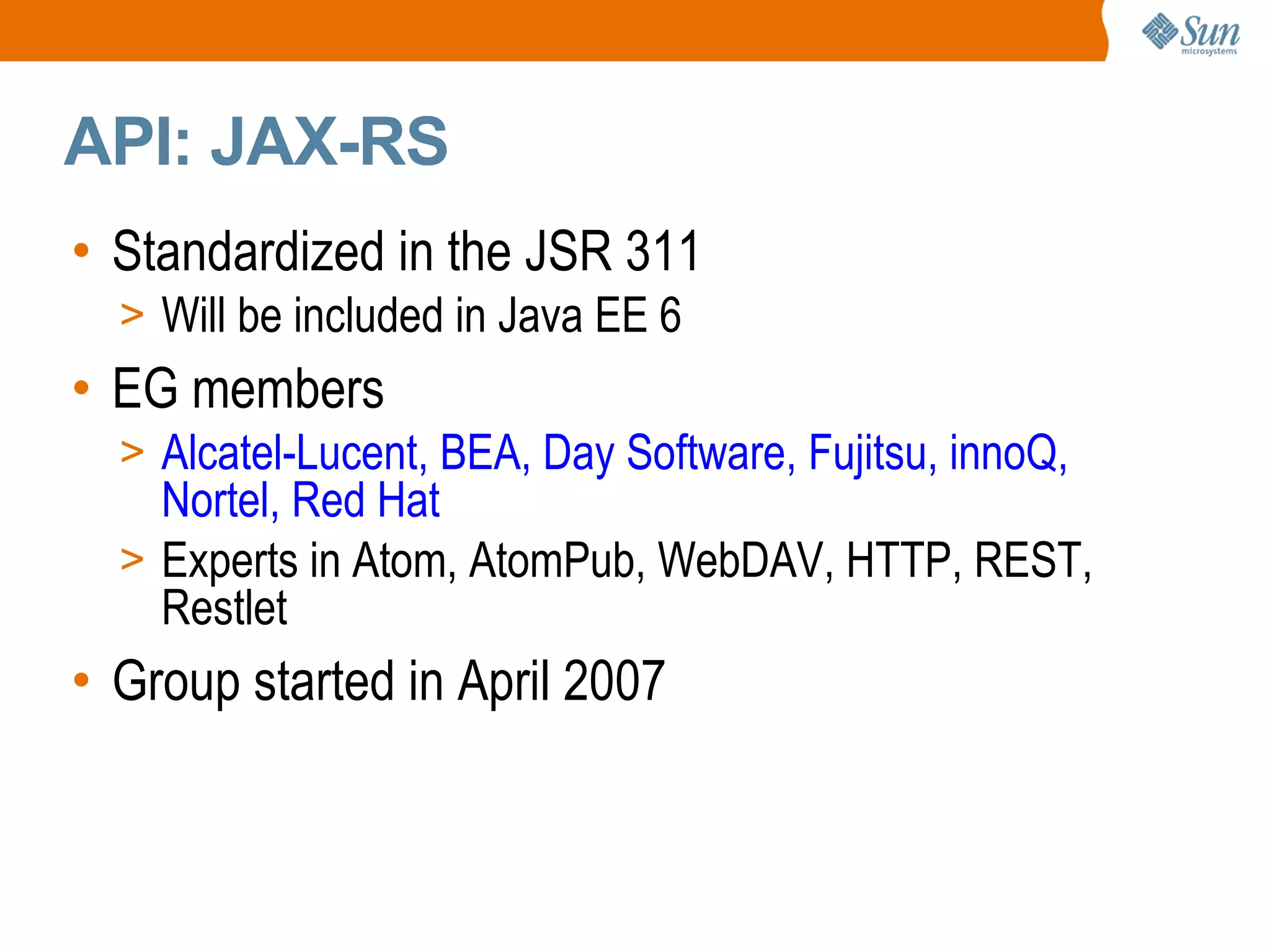

83. API: JAX-RS Standardized in the JSR 311 Will be included in Java EE 6 EG members Alcatel-Lucent, BEA, Day Software, Fujitsu, innoQ, Nortel, Red Hat Experts in Atom, AtomPub, WebDAV, HTTP, REST, Restlet Group started in April 2007

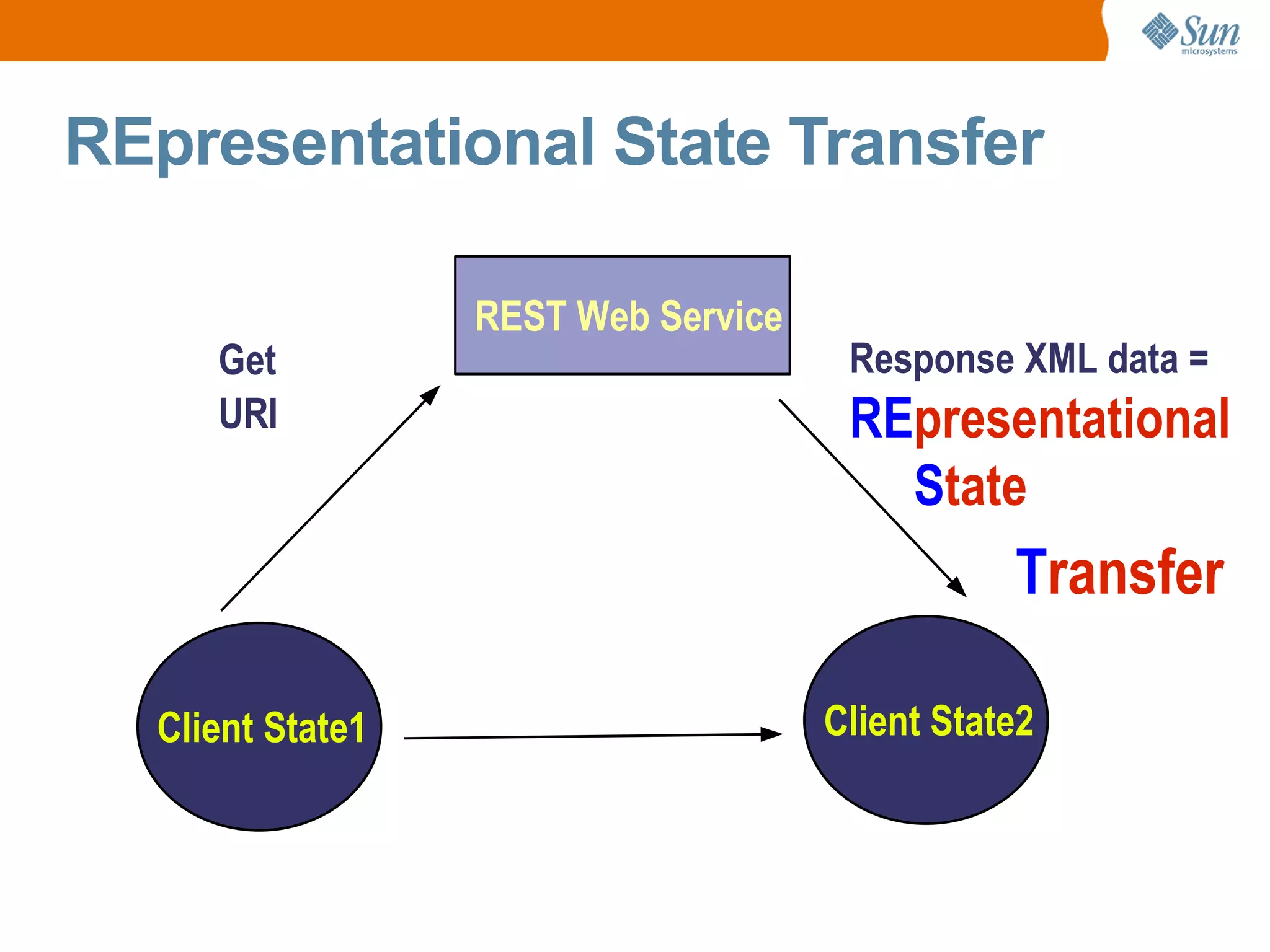

84. REpresentational State Transfer Get URI Response XML data = RE presentational S tate T ransfer

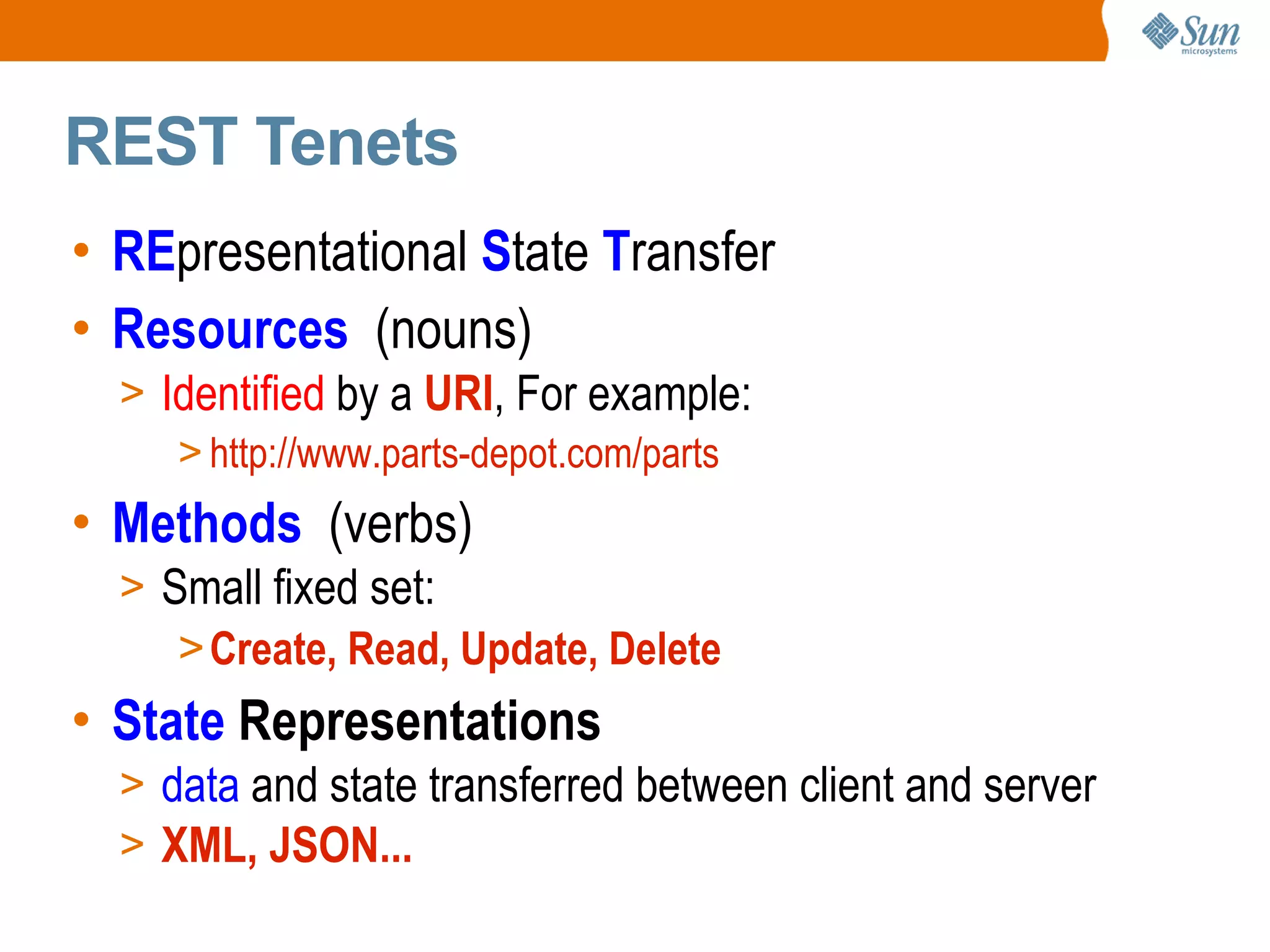

85. REST Tenets RE presentational S tate T ransfer Resources (nouns) Identified by a URI , For example: http://www.parts-depot.com/parts Methods (verbs) Small fixed set: Create, Read, Update, Delete State Representations data and state transferred between client and server XML, JSON...

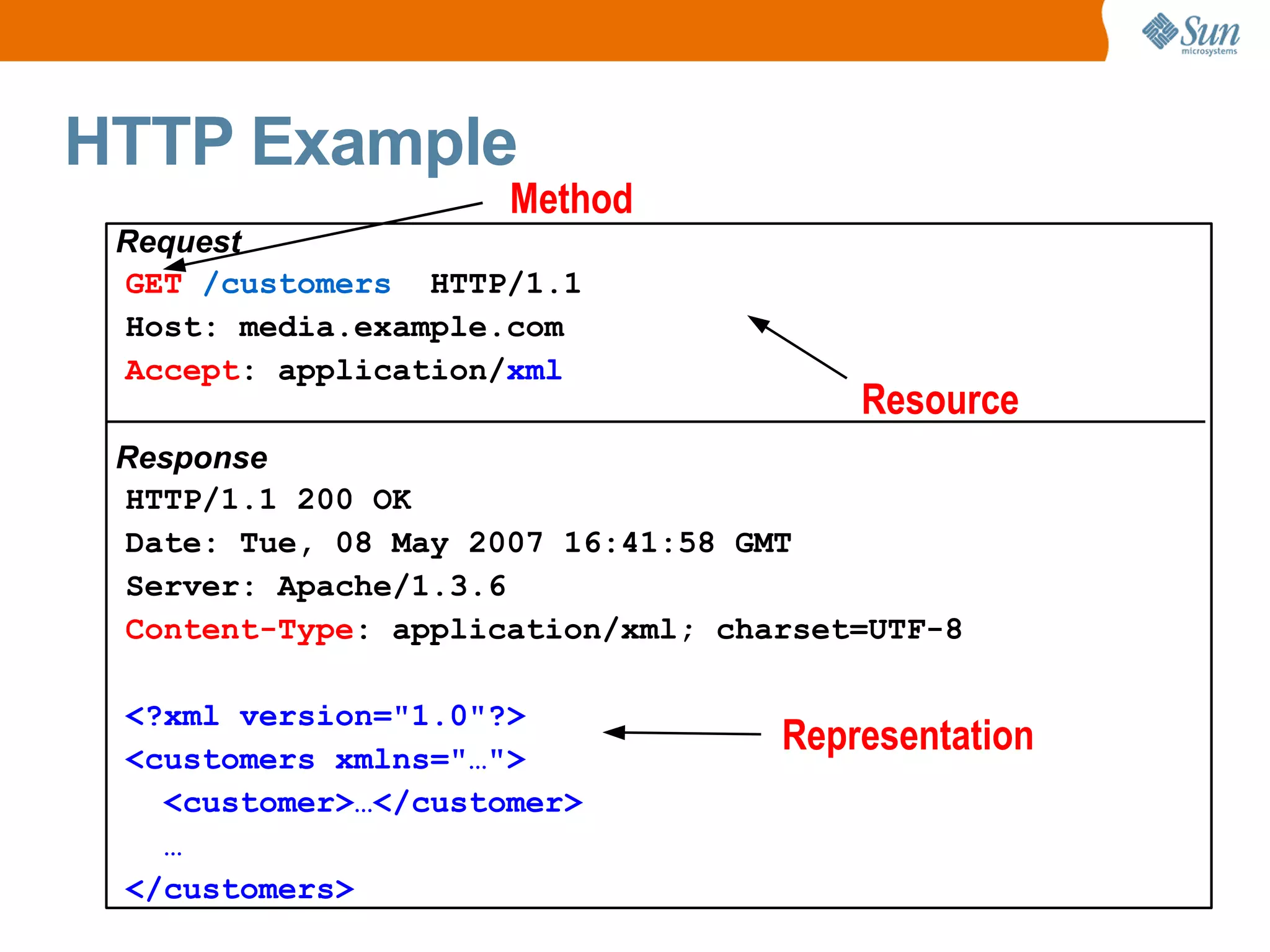

86. HTTP Example Request GET /customers HTTP/1.1 Host: media.example.com Accept : application/ xml Response HTTP/1.1 200 OK Date: Tue, 08 May 2007 16:41:58 GMT Server: Apache/1.3.6 Content-Type : application/xml; charset=UTF-8 <?xml version=&quot;1.0&quot;?> <customers xmlns=&quot;…&quot;> <customer>…</customer> … </customers> Resource Method Representation

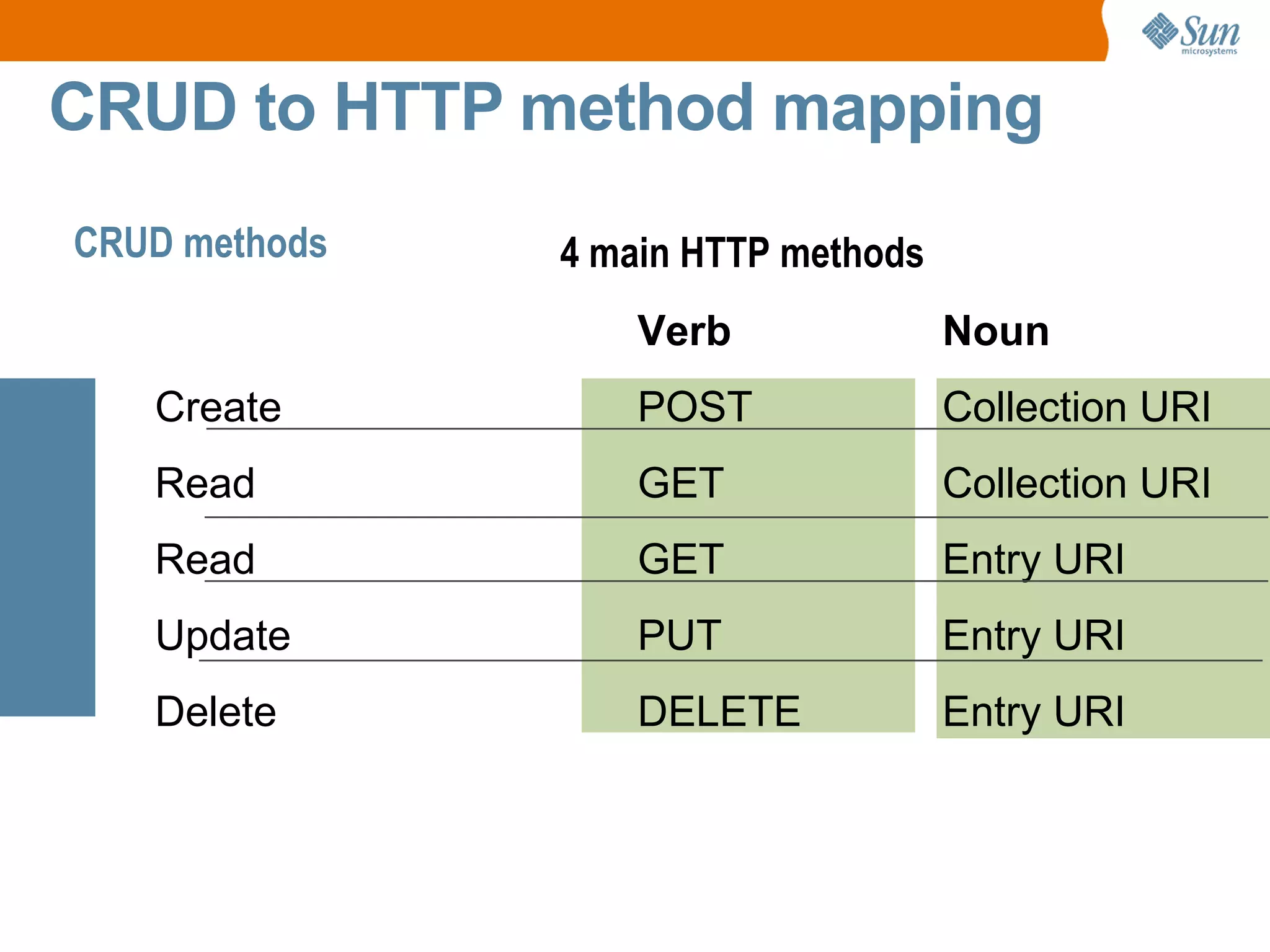

87. Verb Noun Create POST Collection URI Read GET Collection URI Read GET Entry URI Update PUT Entry URI Delete DELETE Entry URI CRUD to HTTP method mapping 4 main HTTP methods CRUD methods

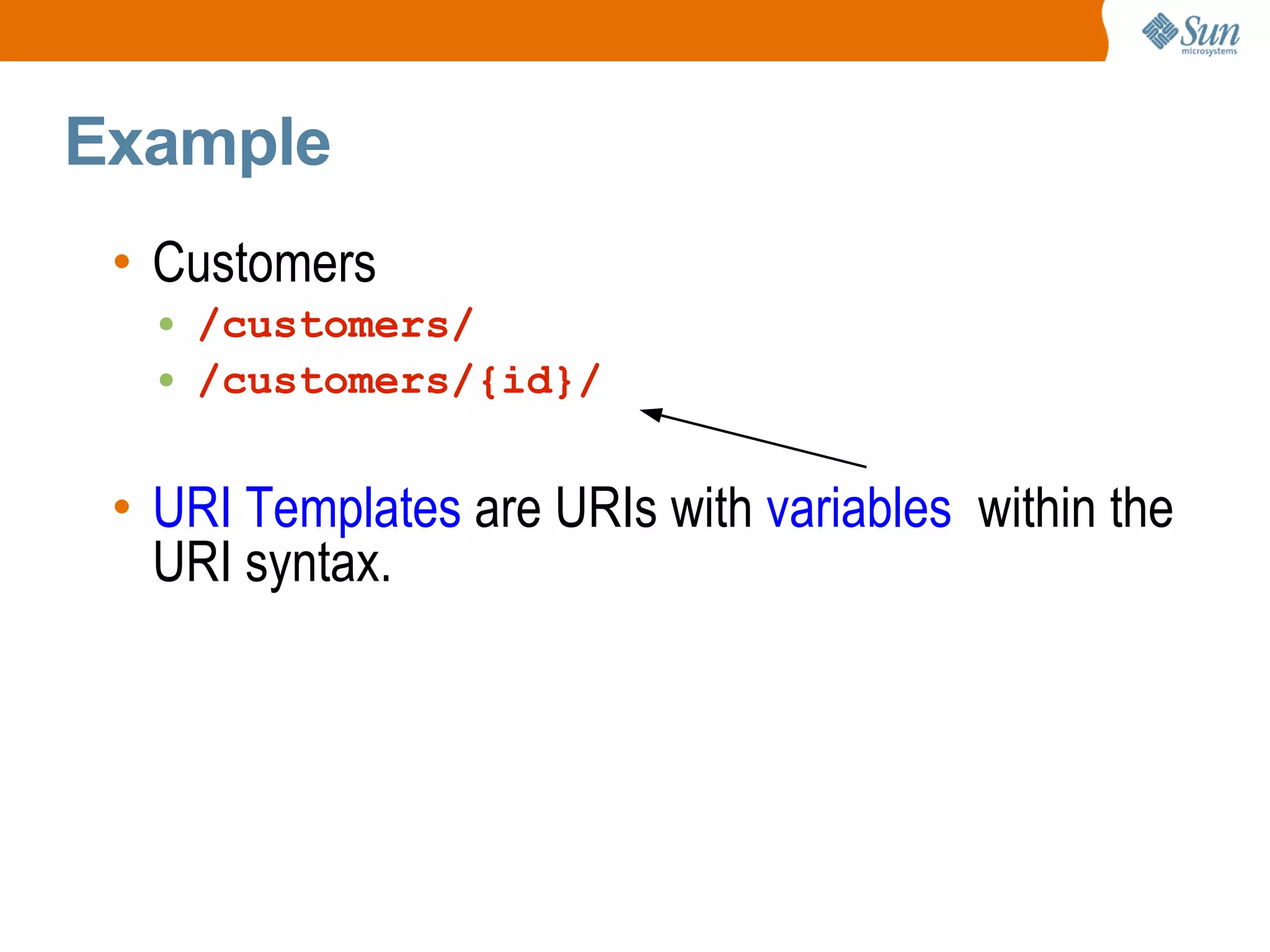

88. Example Customers /customers/ /customers/{id}/ URI Templates are URIs with variables within the URI syntax.

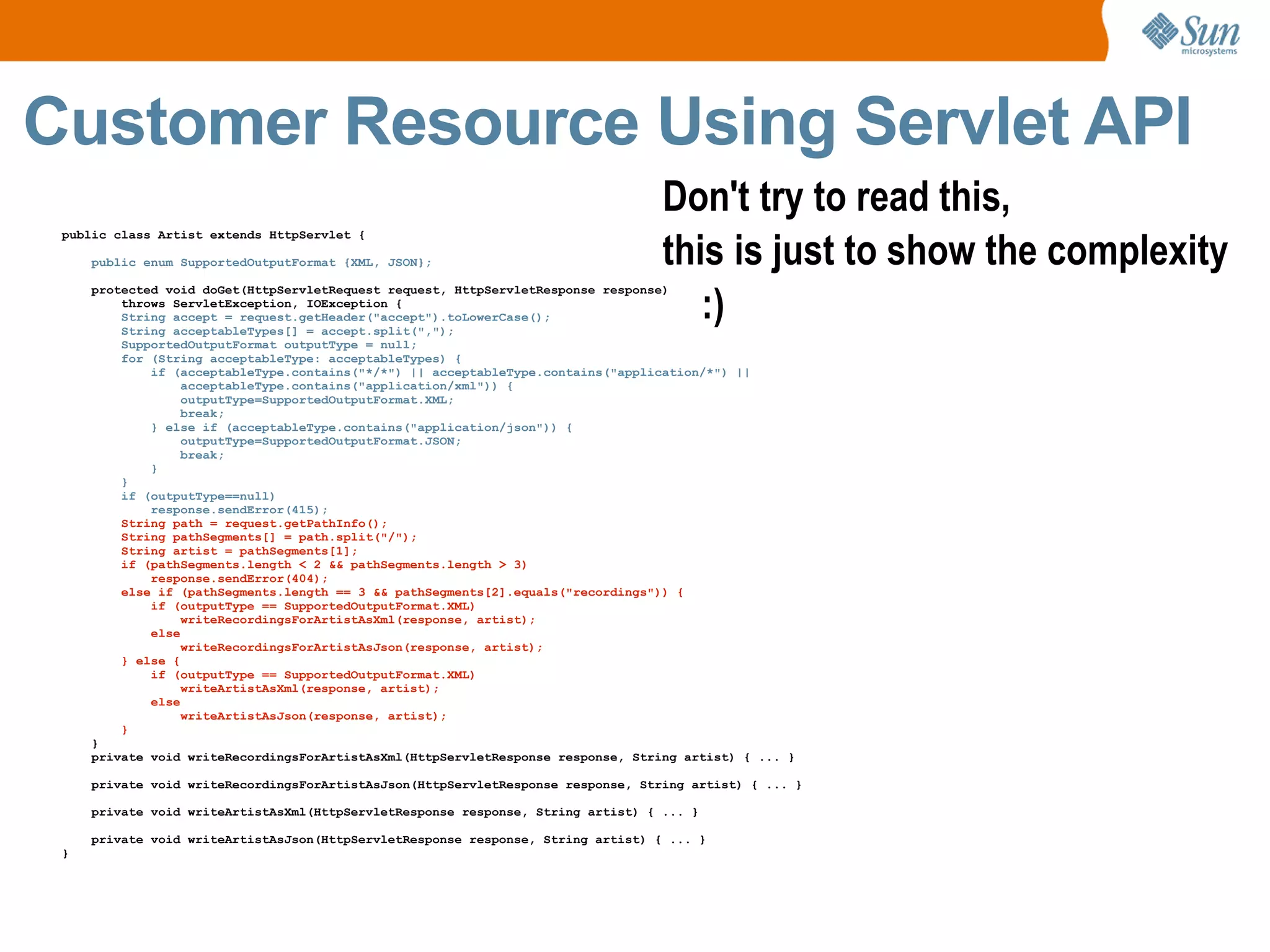

89. Customer Resource Using Servlet API public class Artist extends HttpServlet { public enum SupportedOutputFormat {XML, JSON}; protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { String accept = request.getHeader(&quot;accept&quot;).toLowerCase(); String acceptableTypes[] = accept.split(&quot;,&quot;); SupportedOutputFormat outputType = null; for (String acceptableType: acceptableTypes) { if (acceptableType.contains(&quot;*/*&quot;) || acceptableType.contains(&quot;application/*&quot;) || acceptableType.contains(&quot;application/xml&quot;)) { outputType=SupportedOutputFormat.XML; break; } else if (acceptableType.contains(&quot;application/json&quot;)) { outputType=SupportedOutputFormat.JSON; break; } } if (outputType==null) response.sendError(415); String path = request.getPathInfo(); String pathSegments[] = path.split(&quot;/&quot;); String artist = pathSegments[1]; if (pathSegments.length < 2 && pathSegments.length > 3) response.sendError(404); else if (pathSegments.length == 3 && pathSegments[2].equals(&quot;recordings&quot;)) { if (outputType == SupportedOutputFormat.XML) writeRecordingsForArtistAsXml(response, artist); else writeRecordingsForArtistAsJson(response, artist); } else { if (outputType == SupportedOutputFormat.XML) writeArtistAsXml(response, artist); else writeArtistAsJson(response, artist); } } private void writeRecordingsForArtistAsXml(HttpServletResponse response, String artist) { ... } private void writeRecordingsForArtistAsJson(HttpServletResponse response, String artist) { ... } private void writeArtistAsXml(HttpServletResponse response, String artist) { ... } private void writeArtistAsJson(HttpServletResponse response, String artist) { ... } } Don't try to read this, this is just to show the complexity :)

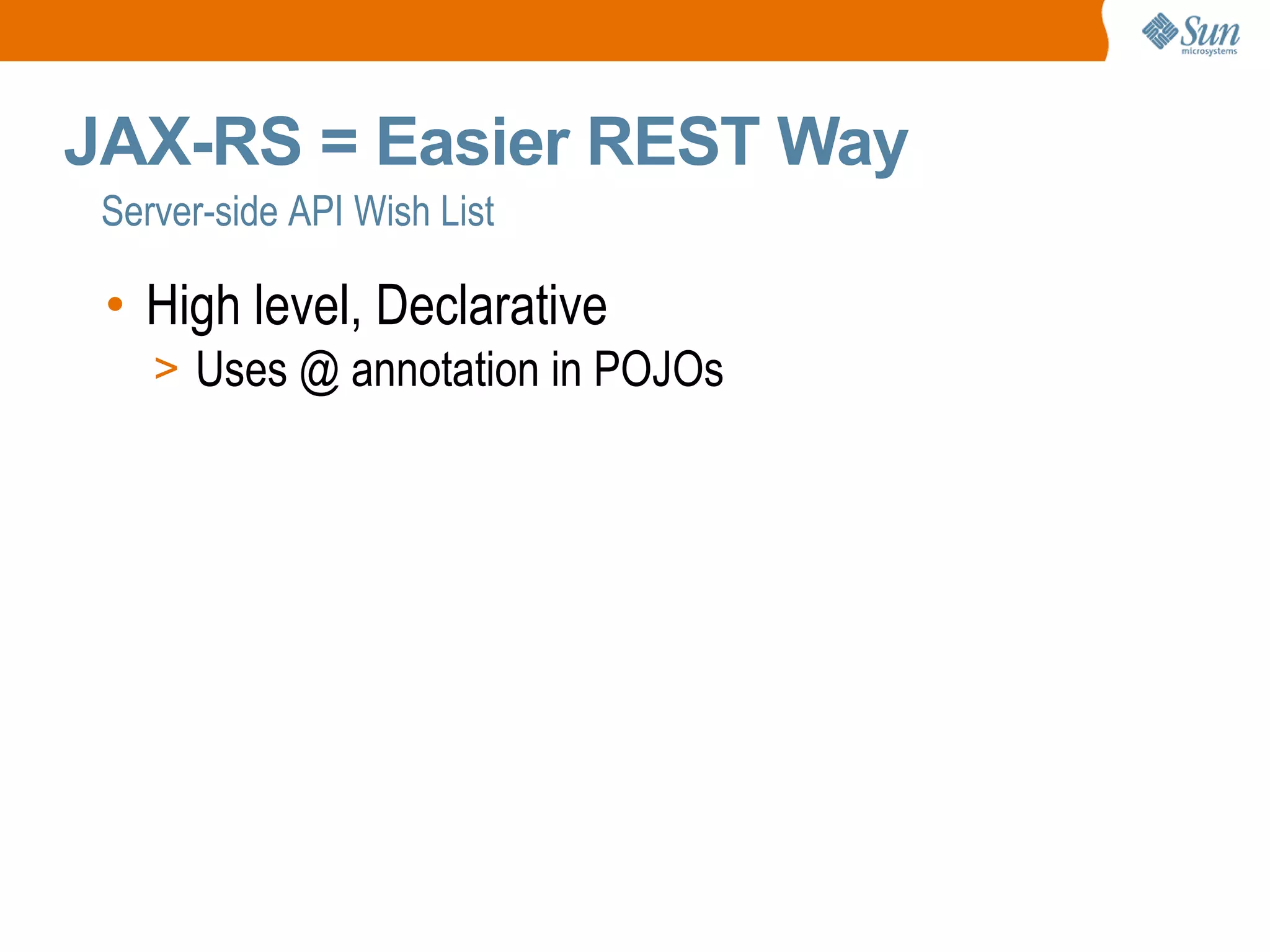

90. Server-side API Wish List JAX-RS = Easier REST Way High level, Declarative Uses @ annotation in POJOs

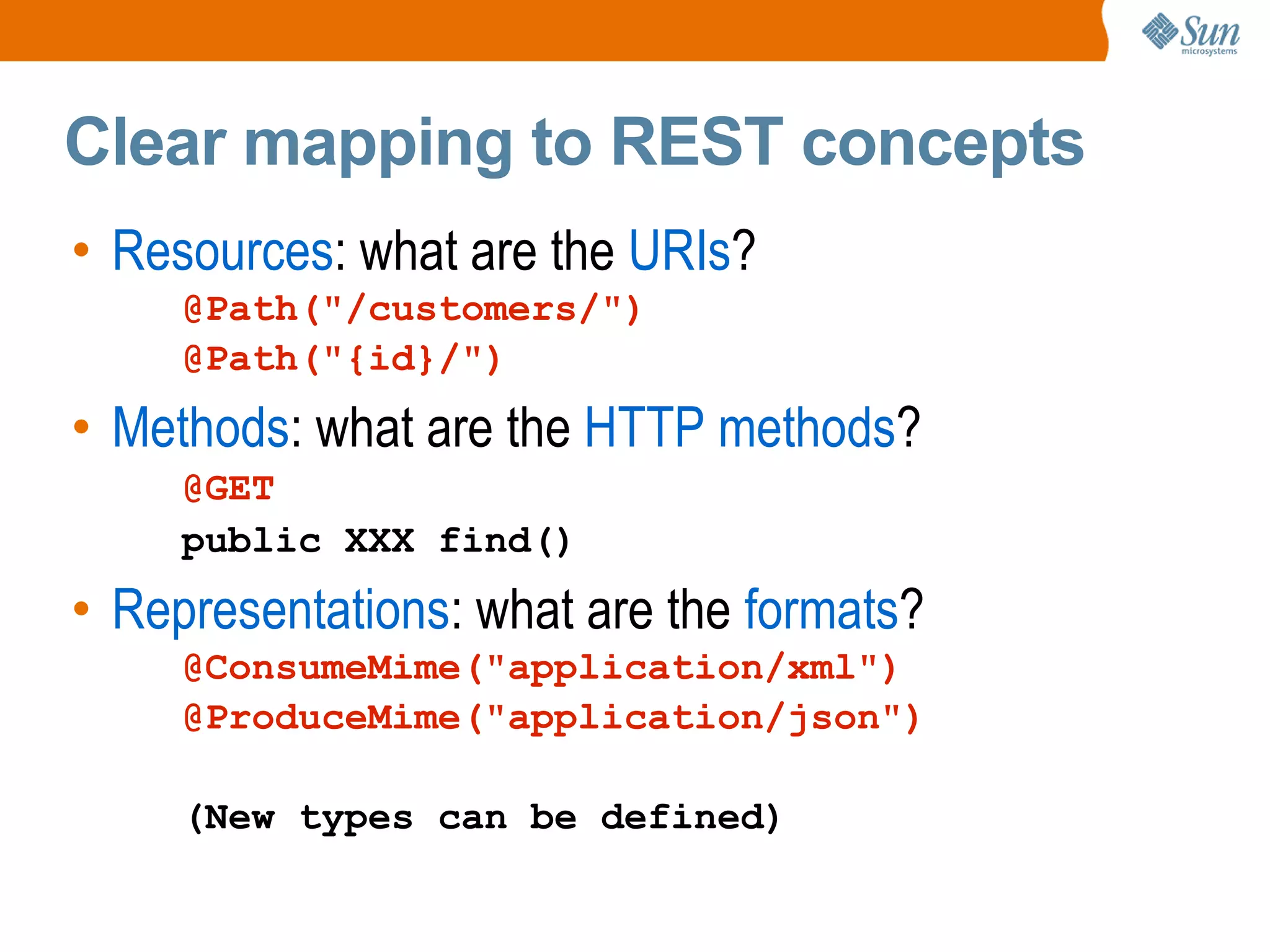

91. Clear mapping to REST concepts Resources : what are the URIs ? @Path(&quot;/customers/&quot;) @Path(&quot;{id}/&quot;) Methods : what are the HTTP methods ? @GET public XXX find() Representations : what are the formats ? @ConsumeMime(&quot;application/xml&quot;) @ProduceMime(&quot;application/json&quot;) (New types can be defined)

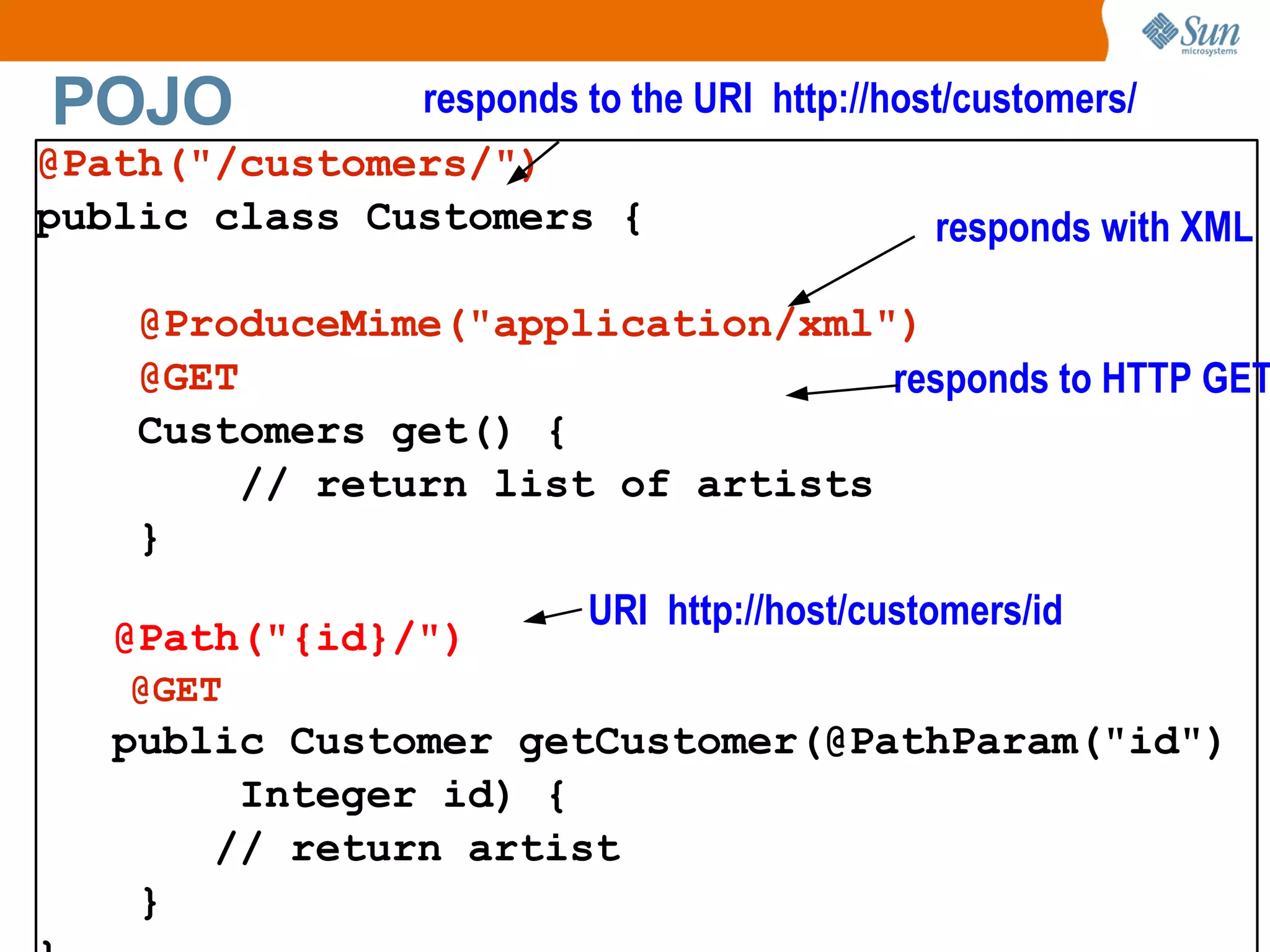

92. POJO @Path(&quot;/customers/&quot;) public class Customers { @ProduceMime(&quot;application/xml&quot;) @GET Customers get() { // return list of artists } @Path(&quot;{id}/&quot;) @GET public Customer getCustomer(@PathParam(&quot;id&quot;) Integer id) { // return artist } } responds to the URI http://host/customers/ responds with XML responds to HTTP GET URI http://host/customers/id

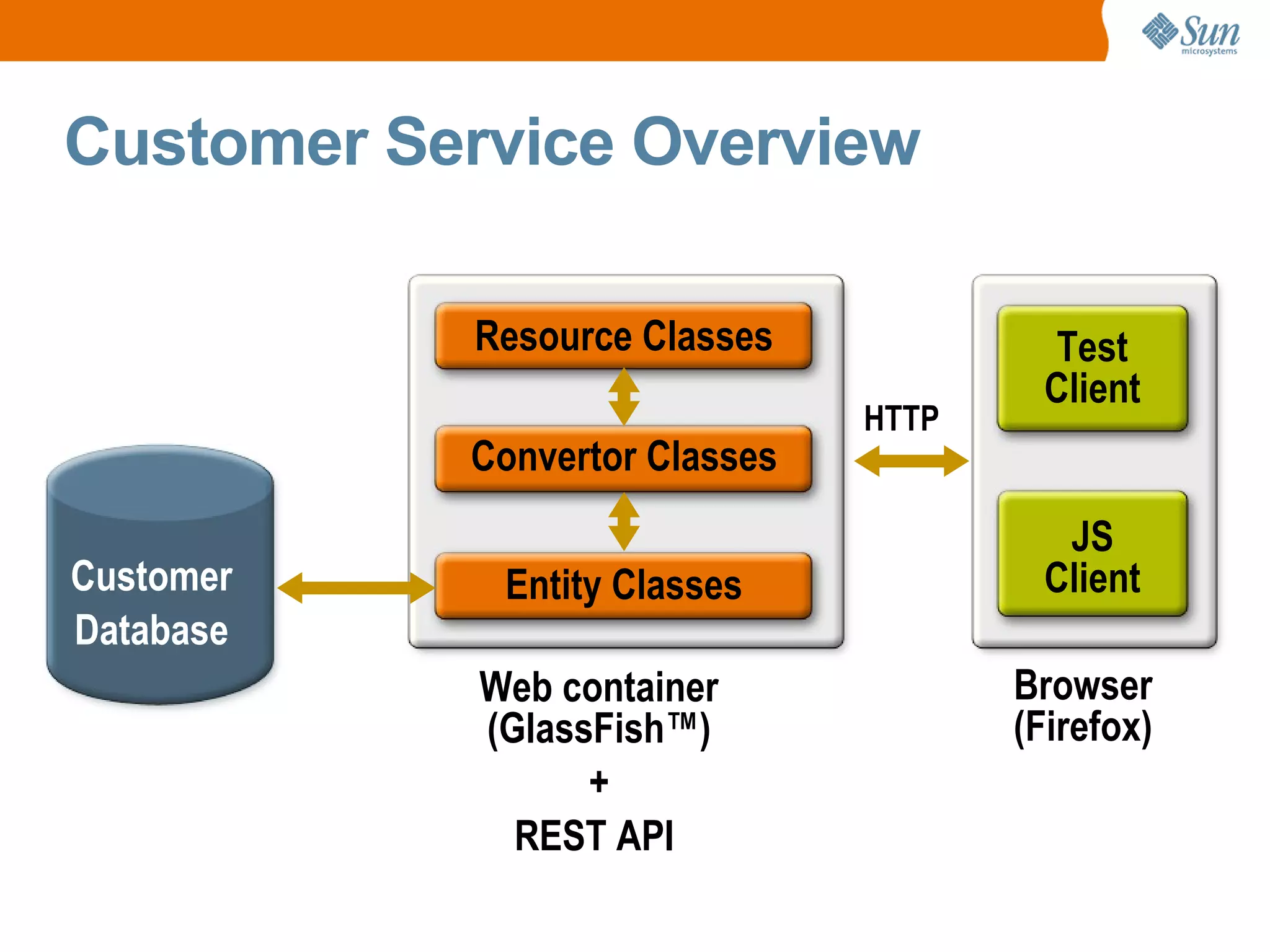

93. Customer Service Overview Customer Database Web container (GlassFish™) + REST API Browser (Firefox) HTTP

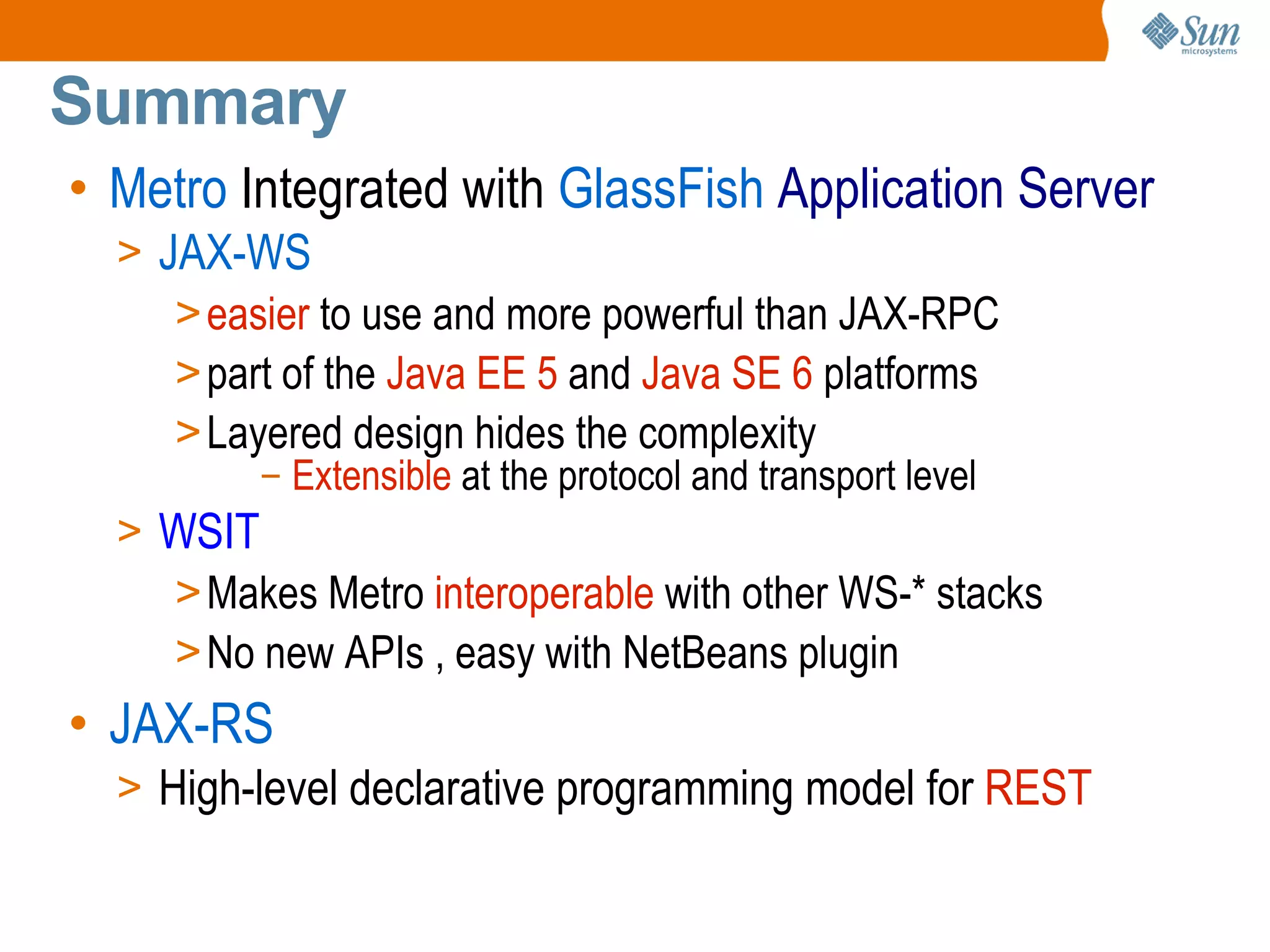

94. Summary Metro Integrated with GlassFish Application Server JAX-WS easier to use and more powerful than JAX-RPC part of the Java EE 5 and Java SE 6 platforms Layered design hides the complexity Extensible at the protocol and transport level WSIT Makes Metro interoperable with other WS-* stacks No new APIs , easy with NetBeans plugin JAX-RS High-level declarative programming model for REST

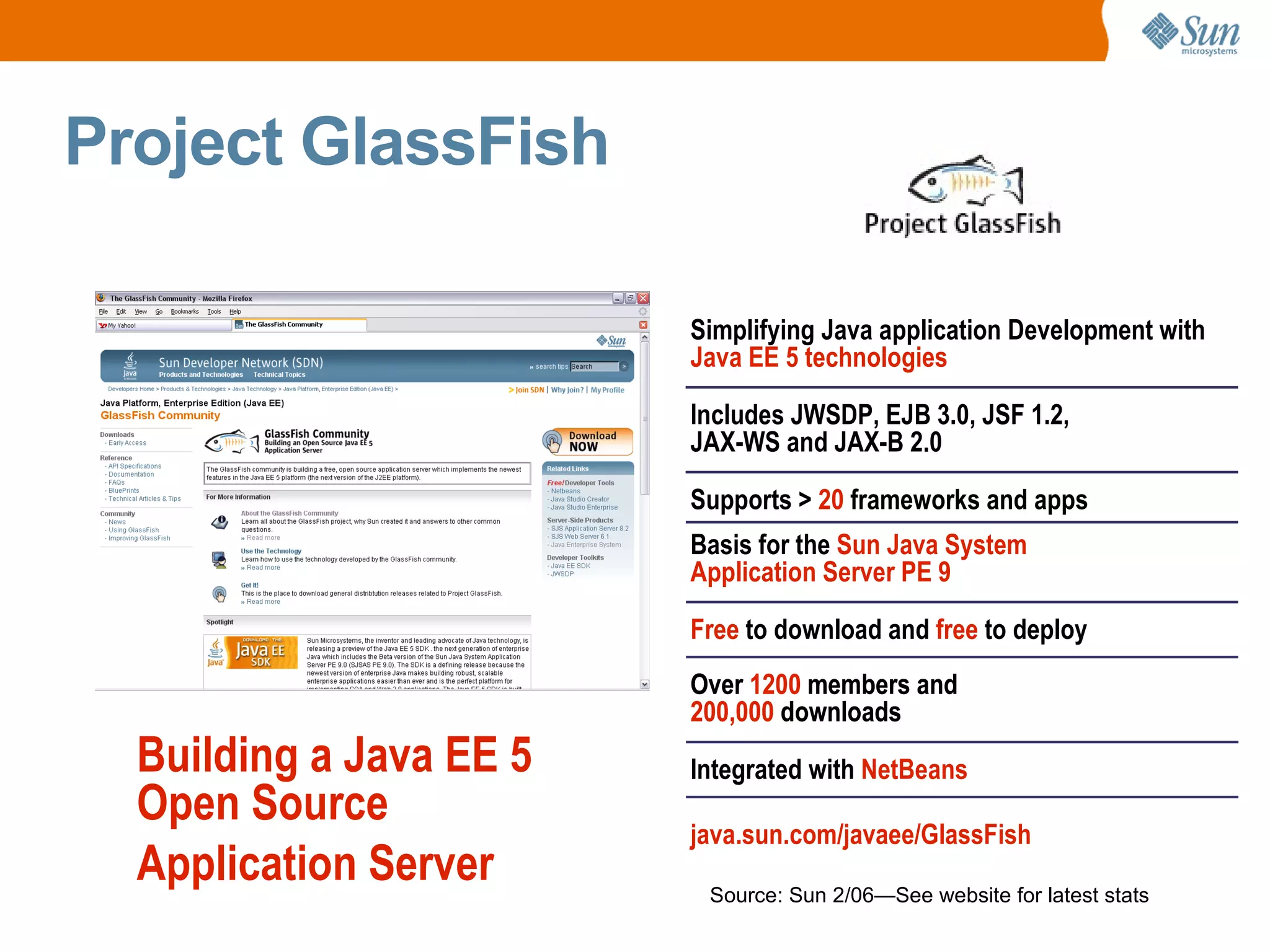

95. Building a Java EE 5 Open Source Application Server Source: Sun 2/06—See website for latest stats Project GlassFish Simplifying Java application Development with Java EE 5 technologies Includes JWSDP, EJB 3.0, JSF 1.2, JAX-WS and JAX-B 2.0 Supports > 20 frameworks and apps Basis for the Sun Java System Application Server PE 9 Free to download and free to deploy Over 1200 members and 200,000 downloads Over 1200 members and 200,000 downloads Integrated with NetBeans java.sun.com/javaee/GlassFish

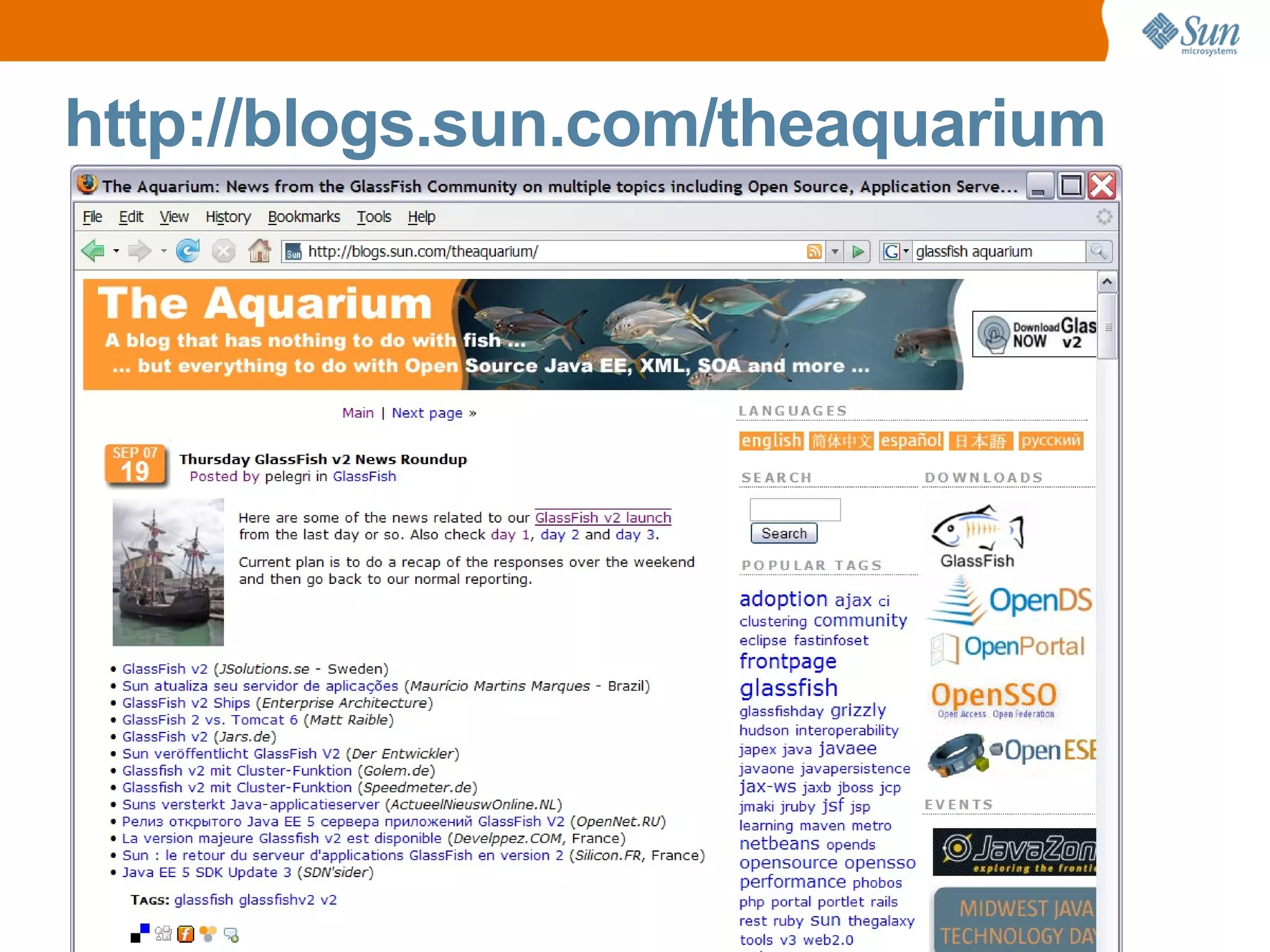

96. http://blogs.sun.com/theaquarium

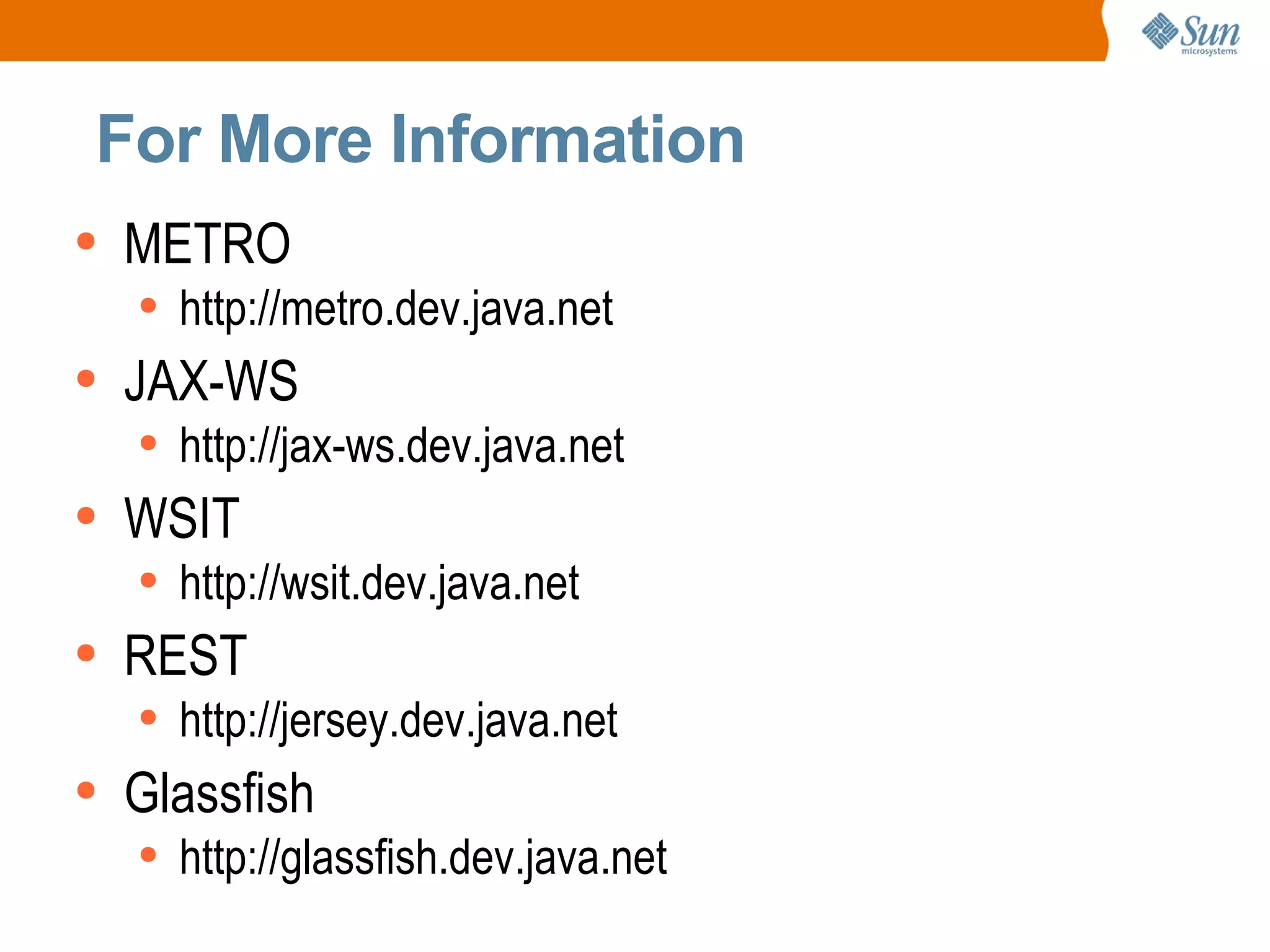

97. For More Information METRO http://metro.dev.java.net JAX-WS http://jax-ws.dev.java.net WSIT http://wsit.dev.java.net REST http://jersey.dev.java.net Glassfish http://glassfish.dev.java.net

98. Carol McDonald [email_address] Metro: JAX-WS, WSIT and REST
