Slides for the workshop session on “XML and XSLT” (session B4) at the IWMW 2001 event held at Queen's University Belfast on 25-27 June 2001. See http://www.ukoln.ac.uk/web-focus/events/workshops/webmaster-2001/sessions.html#b4

1. XML and XSL
Institutional Web Management 2001:
Organising Chaos

2. Running order

Background

All about XML

All about XSL

Hands-on XML and XSL

Publishing engines

Example applications

Crystal balls

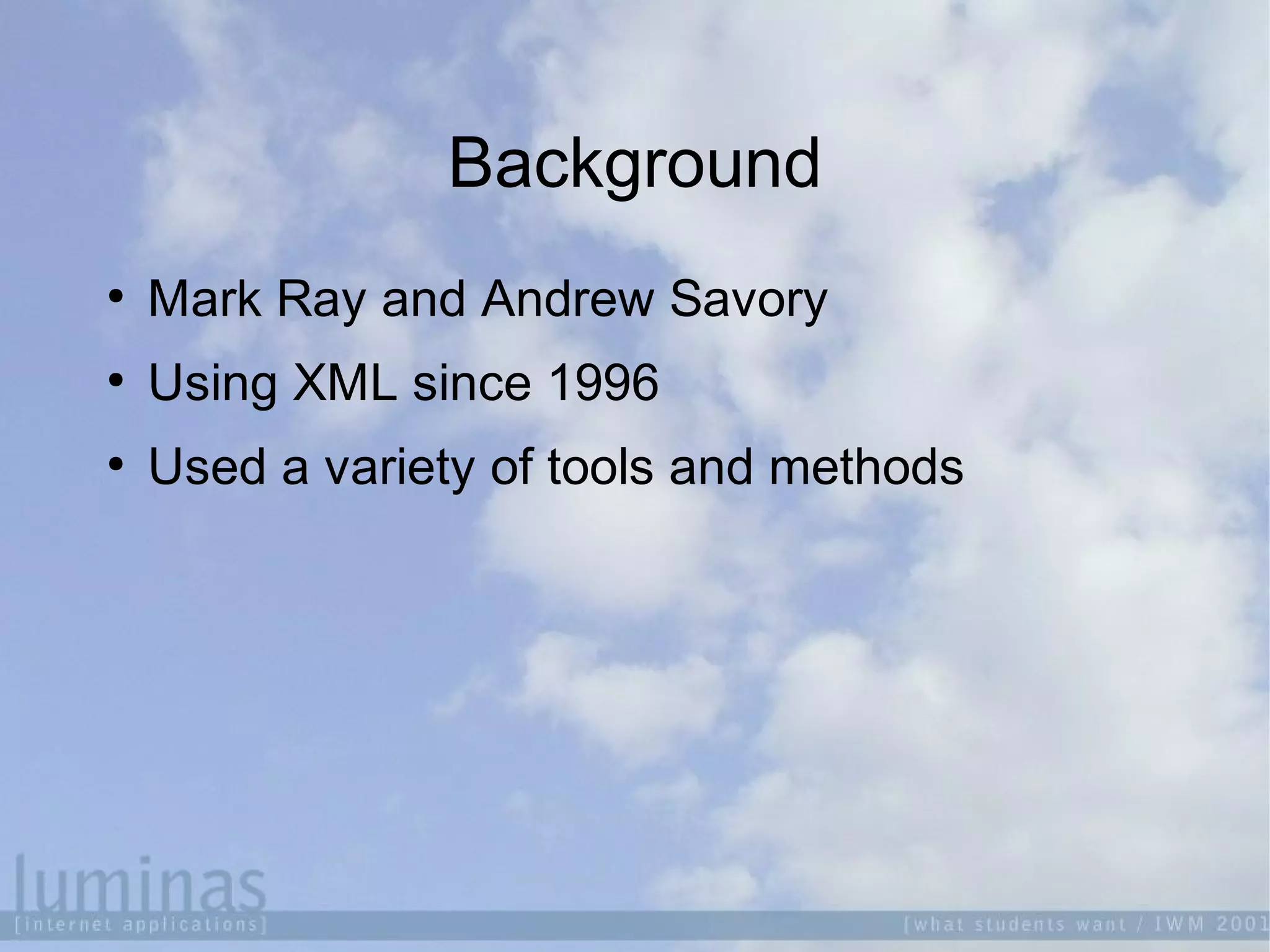

3. Background

Mark Ray and Andrew Savory

Using XML since 1996

Used a variety of tools and methods

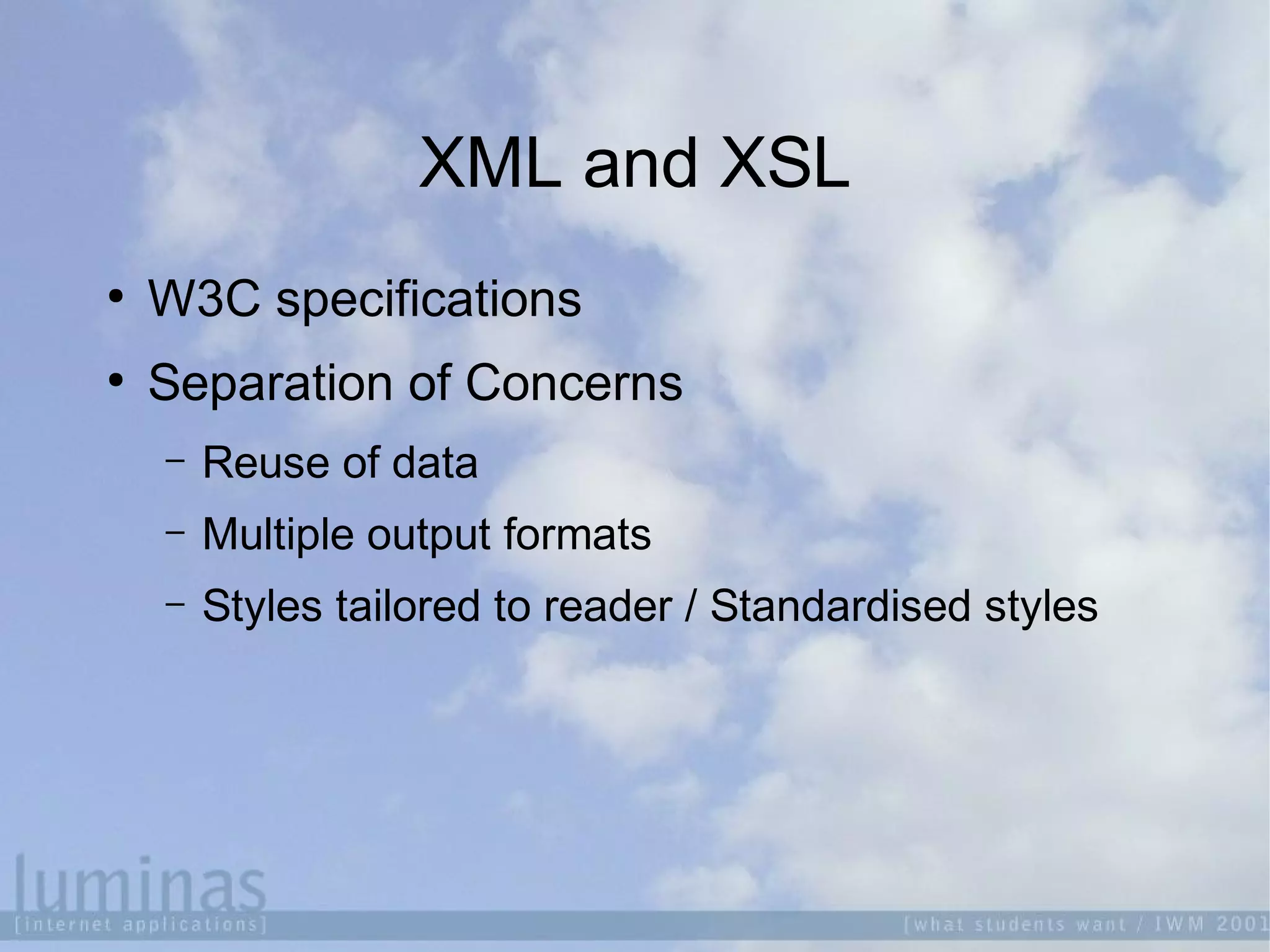

4. XML and XSL

W3C specifications

Separation of Concerns
 Reuse of data
 Multiple output formats
 Styles tailored to reader / Standardised styles

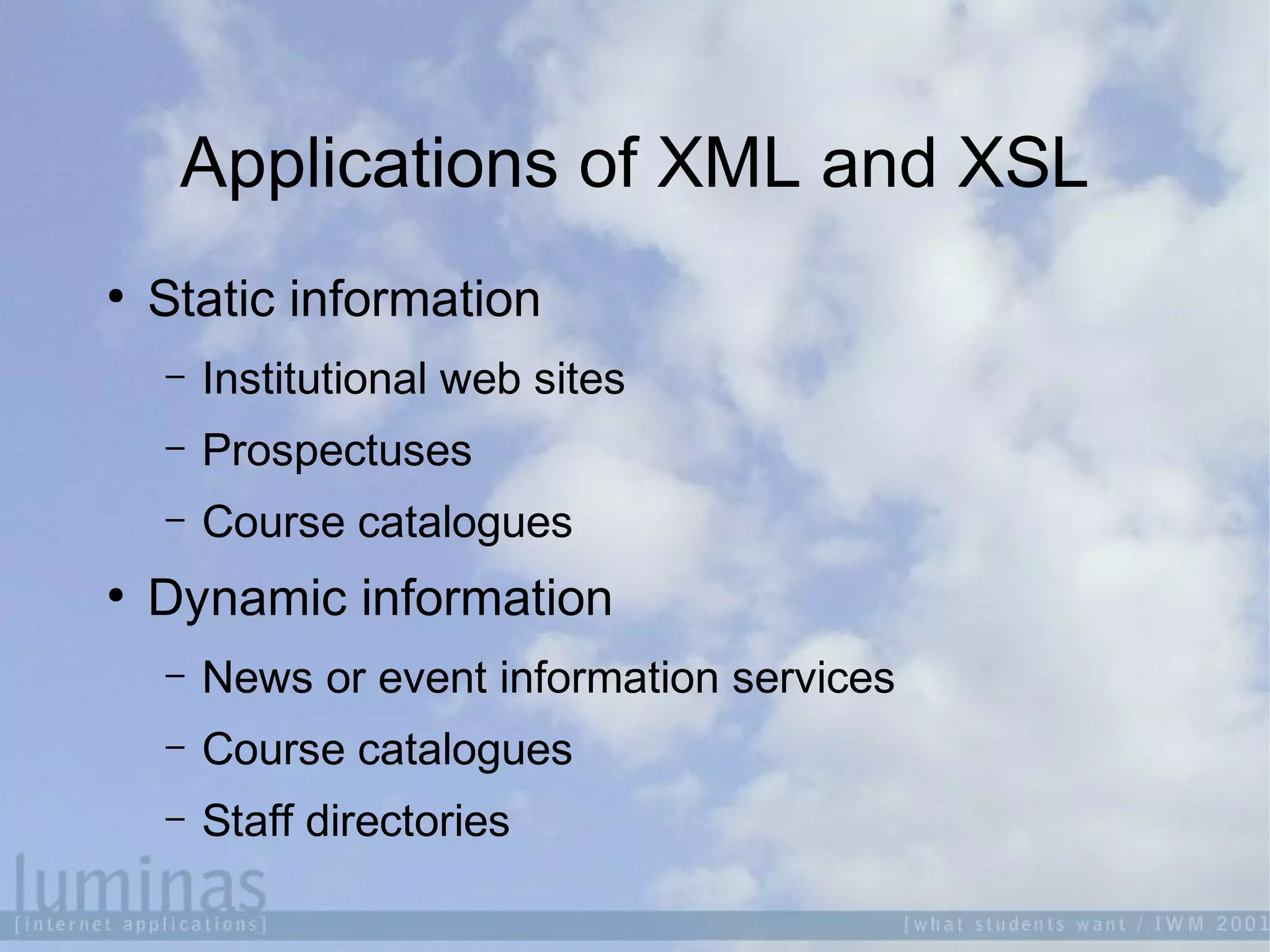

5. Applications of XML and XSL

Static information
 Institutional web sites
 Prospectuses
 Course catalogues

Dynamic information
 News or event information services
 Course catalogues
 Staff directories

6. Benefits of XML and XSL

Standards-based, format-independent

Serve sites and formats based on user need
 Text-based (text readers, slow links, low-tech)
 Netscape / Internet Explorer specifc
 TV, Phone, PDA
 PDF, SVG, VRML, ...

Simplification of web site management...

7. The management bit

Management
 Decide what the site
should contain, how
it should behave and
how it should appear

Content
 Responsible for
writing, owning,
managing the site
content

8. The management bit
 Logic
 Responsible for
integration with
dynamic content
generation
 Style
 Responsible for
information
presentation, look &
feel, site graphics
and maintenance

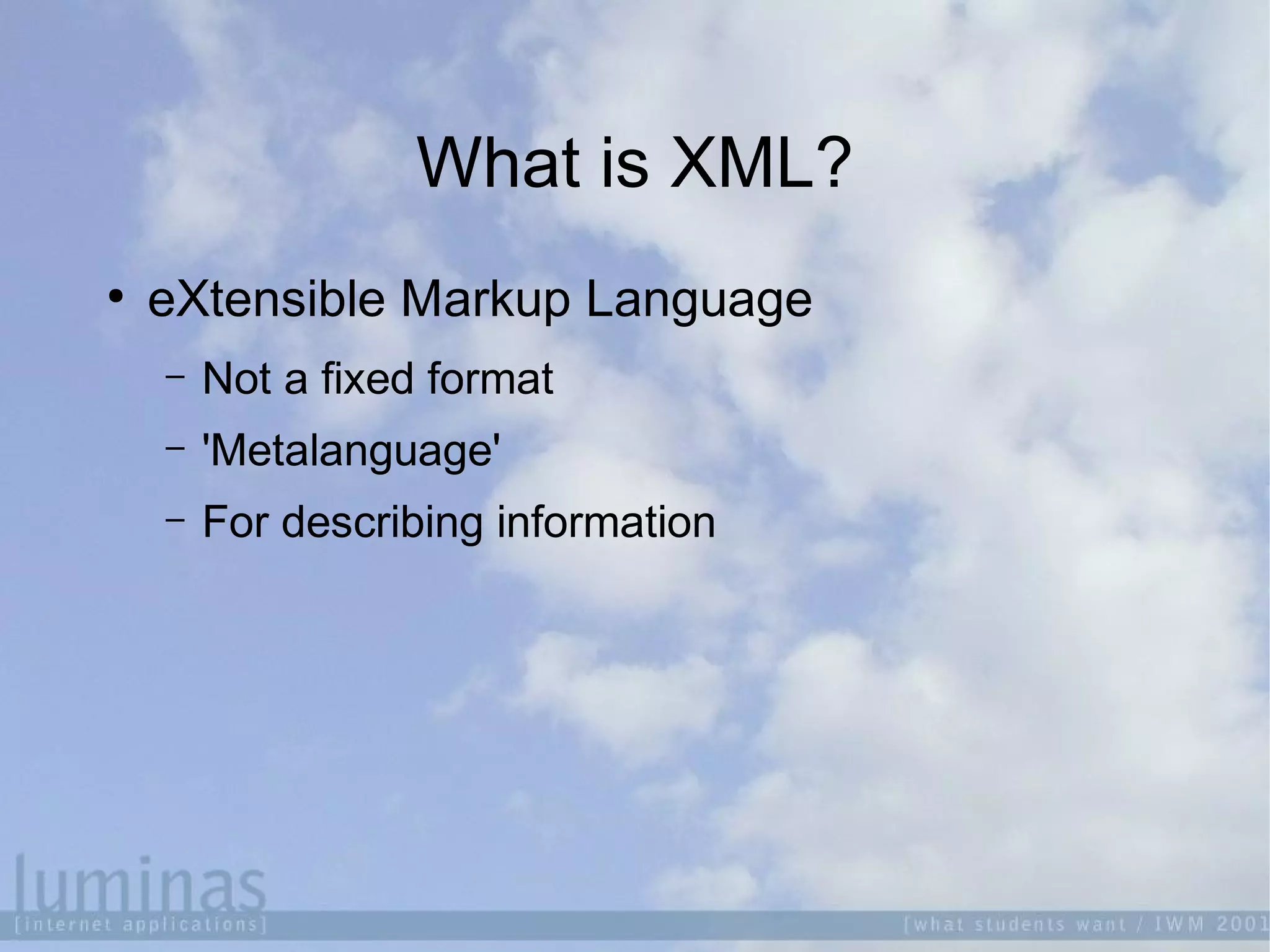

9. What is XML?

eXtensible Markup Language
 Not a fixed format
 'Metalanguage'
 For describing information

10. XML Design Goals
1 XML shall be straightforwardly usable over the
Internet.
2 XML shall support a wide variety of applications.
3 XML shall be compatible with SGML.
4 It shall be easy to write programs which process
XML documents.
5 The number of optional features in XML is to be
kept to the absolute minimum, ideally zero.

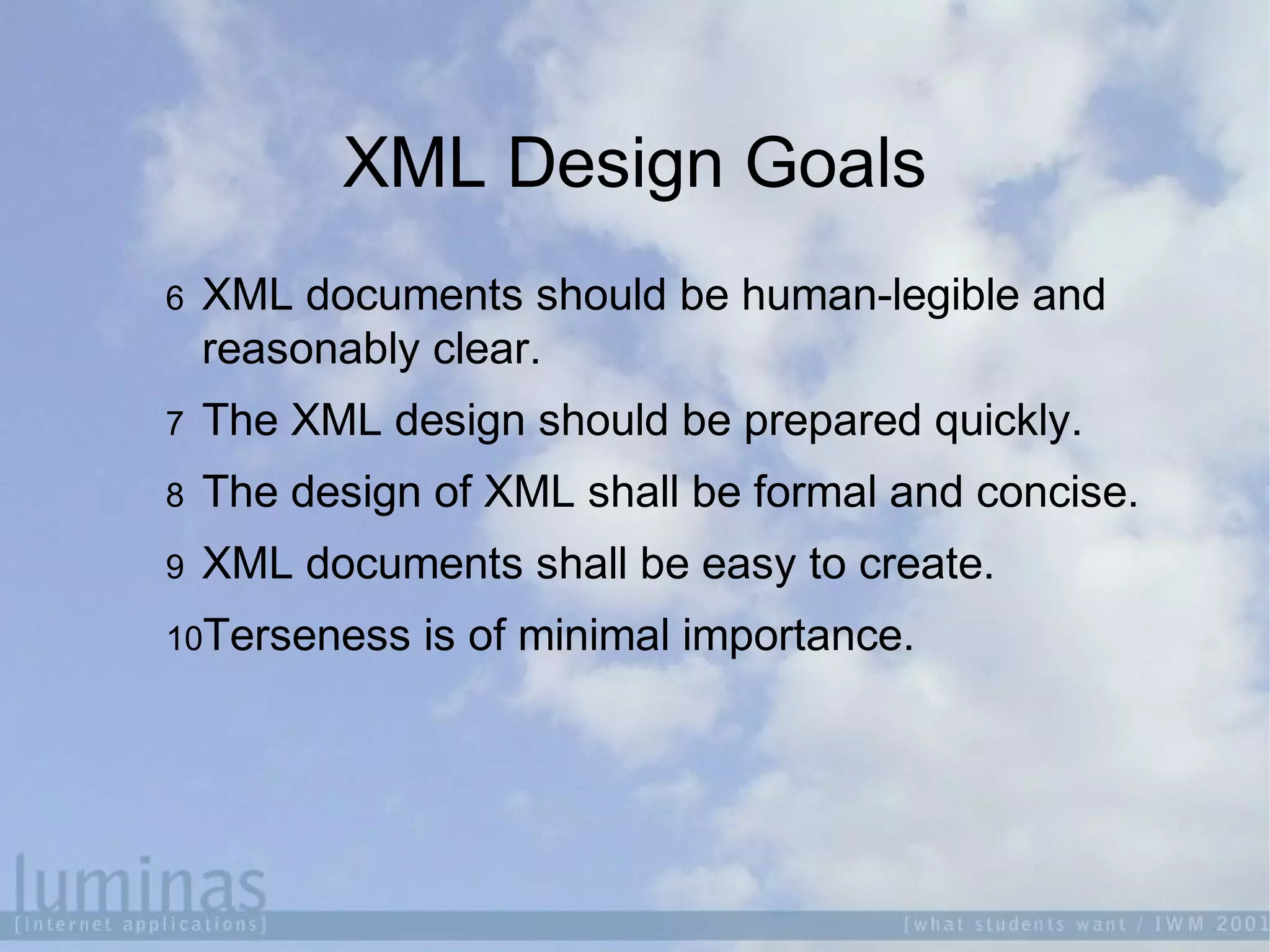

11. XML Design Goals
6 XML documents should be human-legible and
reasonably clear.
7 The XML design should be prepared quickly.
8 The design of XML shall be formal and concise.
9 XML documents shall be easy to create.
10Terseness is of minimal importance.

12. Structure of an XML document
<?xml version="1.0"?>
<PARENT>
<CHILD>
This is content.
</CHILD>
<EMPTY/>
</PARENT>

13. A first XML document
Construct a well-formed XML document using
the following tags:
 xml opening tag
 page
 title
 content
 para
Don't forget to add the closing tags!

14. Differences to HTML

Order:
<tag1><tag2></tag1></tag2> WRONG
<tag1><tag2></tag2></tag1> RIGHT

Balance
<tag1><tag2></tag2> WRONG
<tag1><tag2></tag2></tag1> RIGHT

Case
<tag1><tag2></TAG2></TAG1> WRONG
<tag1><tag2></tag2></tag1> RIGHT

15. Differences to HTML

Attributes
<tag1 class=wrong> WRONG
<tag1 class="right"> RIGHT

Empty Tags
<tag1 class="wrong"> WRONG
<tag1 class="wrong" /> RIGHT

XML is stricter
...and therefore better!

16. Well-formed vs. Valid

Exactly what they say:
 Well-formed means it's written correctly
 Valid means we can validate it

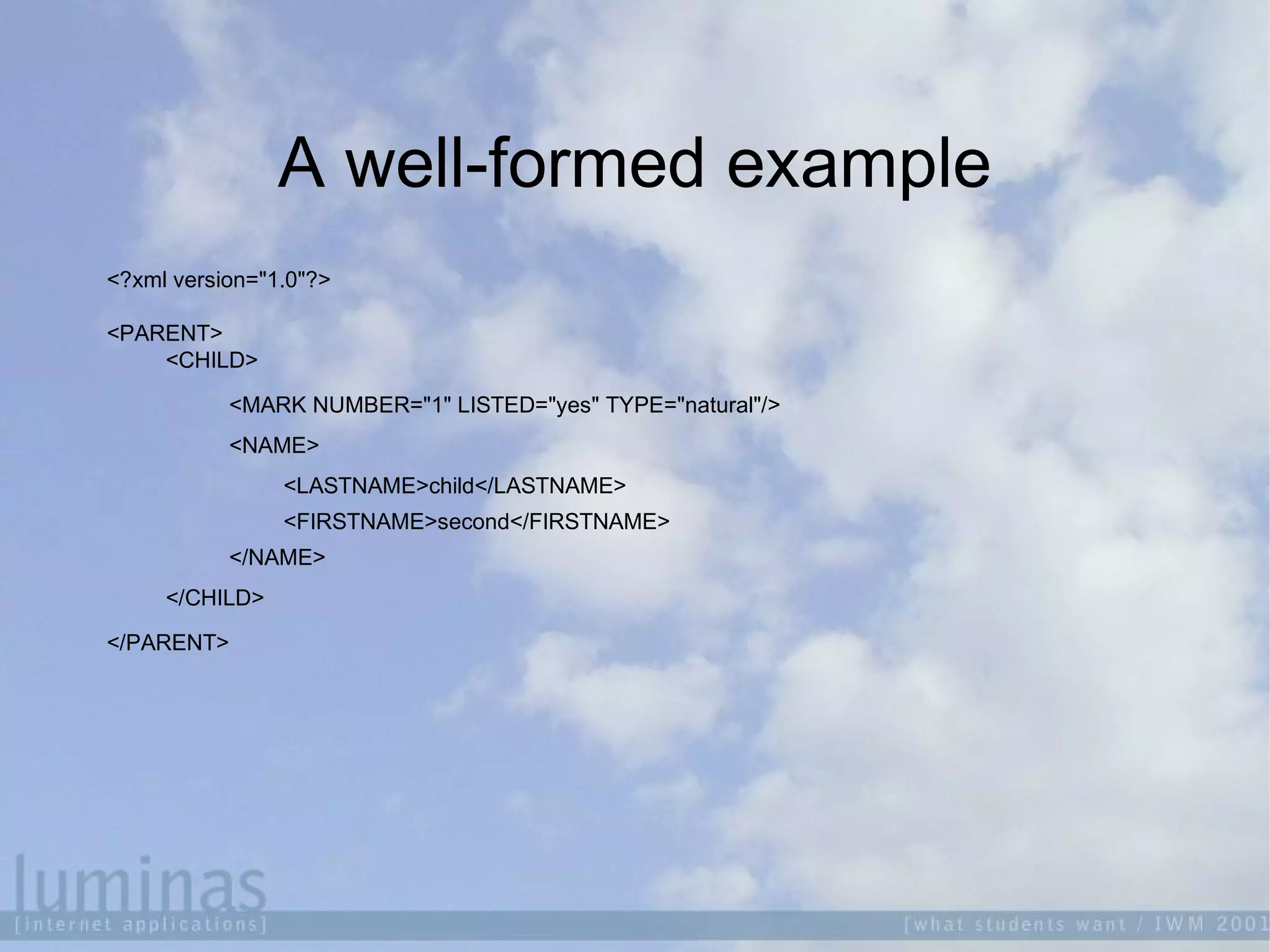

17. A well-formed example
<?xml version="1.0"?>
<PARENT>
<CHILD>
<MARK NUMBER="1" LISTED="yes" TYPE="natural"/>
<NAME>
<LASTNAME>child</LASTNAME>
<FIRSTNAME>second</FIRSTNAME>
</NAME>
</CHILD>
</PARENT>

18. A valid example
<?xml version="1.0"?>
<!DOCTYPE PARENT [
<!ELEMENT PARENT (CHILD*)>
<!ELEMENT CHILD (MARK?,NAME+)>
<!ELEMENT MARK EMPTY>
<!ELEMENT NAME (LASTNAME+,FIRSTNAME+)*>
<!ELEMENT LASTNAME (#PCDATA)>
<!ELEMENT FIRSTNAME (#PCDATA)>
<!ATTLIST MARK
NUMBER ID #REQUIRED
LISTED CDATA #FIXED "yes"
TYPE (natural|adopted) "natural">
<!ENTITY STATEMENT "This is well-formed XML">
]>
<PARENT>
&STATEMENT;
<CHILD>
<MARK NUMBER="1" LISTED="yes" TYPE="natural"/>
<NAME>
<LASTNAME>child</LASTNAME>
<FIRSTNAME>second</FIRSTNAME>
</NAME>
</CHILD>
</PARENT>

19. Document Type Definitions

First standard mechanism for XML validation

Define the role and structure of XML
elements

Sufficient for simple XML schemas

Don't support namespaces

Use non-XML syntax

20. XSchema

XML structural definition language of choice

Defines a class of XML document

Supports name spaces

More powerful

21. Xschema example
<?xml version="1.0"?>
<xsd:schema xmlns:xsd="http://www.w3.org/2001/XMLSchema">
<xsd:annotation>
<xsd:documentation xml:lang="en">
Example Schema for IWM workshop
</xsd:documentation>
</xsd:annotation>
<xsd:element name="page" type="page"/>
<xsd:complexType name="page">
<xsd:sequence>
<xsd:element name="title" type="xsd:string"/>
<xsd:element name="content" type="pageContent"/>
</xsd:sequence>
</xsd:complexType>
<xsd:complexType name="pageContent">
<xsd:sequence>
<xsd:element name="para" type="xsd:string" minOccurs="0"/>
</xsd:sequence>
</xsd:complexType>
</xsd:schema>

22. What is XSL?

Preferred style sheet language of XML
 a method for transforming XML documents
 a method for defining XML parts and patterns
 a method for formatting XML documents

An application of XML (same formatting
rules)

23. Hands-on XML

Create the following XML document:
<?xml version="1.0"?>
<page>
<title>Hello</title>
<content>
<para>This is my first XML page!</para>
</content>
</page>

Save it as hello_world.xml

24. Uploading the file

Navigate to the site provided

Click on "upload.html"

Beside the "file to upload" box, click on
"choose"

Select the file you want to upload

Click on "upload"

25. Viewing the file
If you see the file you wanted to upload and
receive a "File written successfully" message...

Click on "Content", then the name of the file

26. Structure of an XSL stylesheet

Most templates have the following form:
<xsl:template match="emphasis">
<i><xsl:apply-templates/></i>
</xsl:template>

The whole <xsl:template> element is a
template

The match pattern determines where this
template applies

27. Structure of an XSL stylesheet

Literal result element(s) come from non-XSL
namespace(s)

XSLT elements come from the XSL
namespace

28. Hands-on XSL

Create the following XSL stylesheet:
<?xml version="1.0"?>
<xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform">
<xsl:template match="page">
<html>
<head>
<title><xsl:value-of select="title"/></title>
</head>
<body bgcolor="white" alink="red" link="blue" vlink="blue">
<xsl:apply-templates/>
</body>
</html>
</xsl:template>
</xsl:stylesheet>

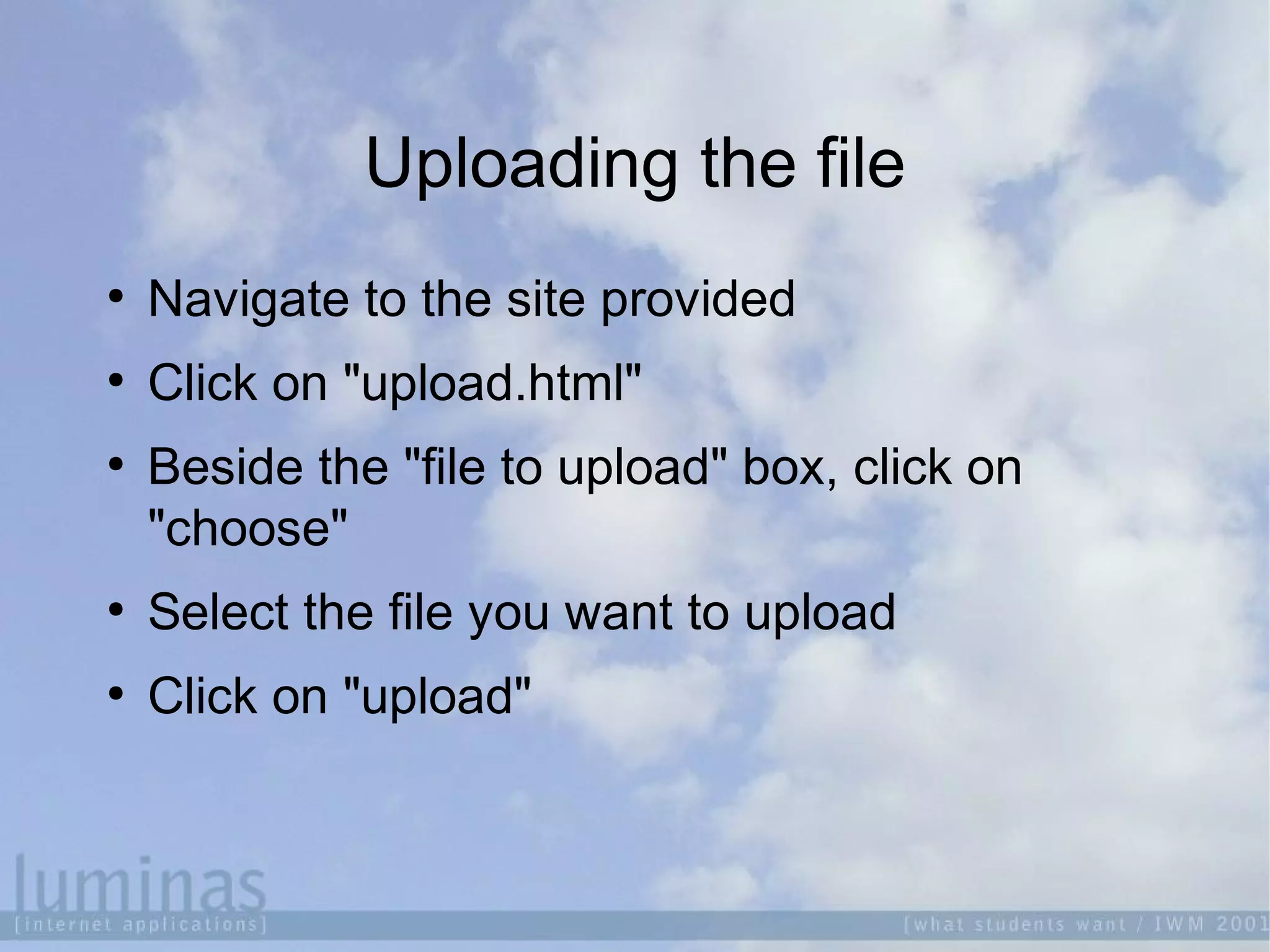

29. Uploading the file

Navigate to the site provided

Click on "upload.html"

Beside the "file to upload" box, click on
"choose"

Select the file you want to upload

Click on "upload"

30. Publishing engines

Cocoon
 Java-based

AxKit
 Perl-based

4Suite
 Python

Others or roll your own

31. Viewing the file
If you see the file you wanted to upload and
receive a "File written successfully" message...

Click on "View site in cocoon"

Select the file you uploaded and the
stylesheet you want to view it in

32. Hands-on XSL

Add the following to the XSL stylesheet:
<xsl:template match="title">
<h2 style="color: navy; text-align: center">
<xsl:apply-templates/>
</h2>
</xsl:template>
<xsl:template match="para">
<p align="left">
<i><xsl:apply-templates/></i>
</p>
</xsl:template>

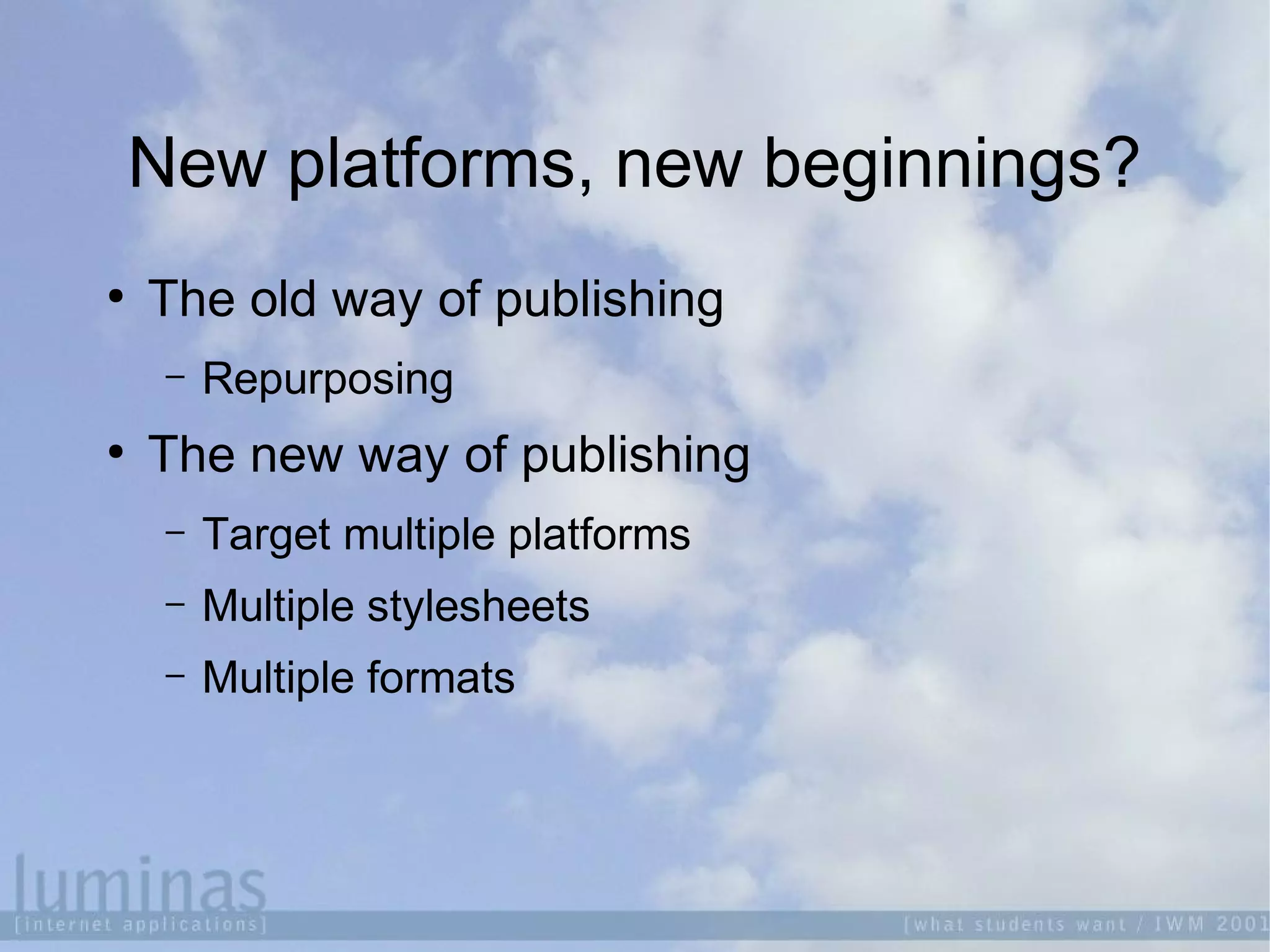

33. New platforms, new beginnings?

The old way of publishing
 Repurposing

The new way of publishing
 Target multiple platforms
 Multiple stylesheets
 Multiple formats

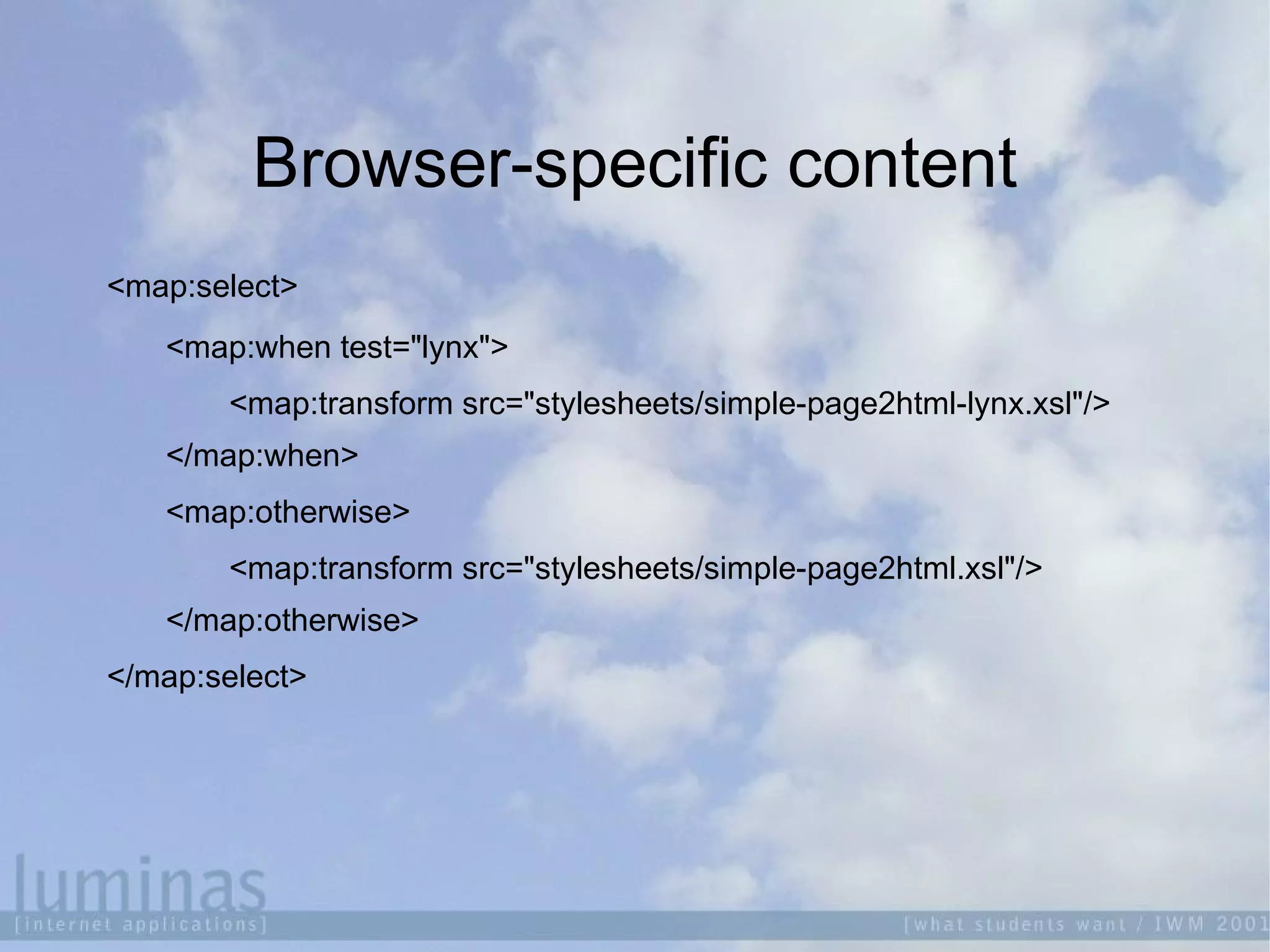

34. Browser-specific content
<map:select>
<map:when test="lynx">
<map:transform src="stylesheets/simple-page2html-lynx.xsl"/>
</map:when>
<map:otherwise>
<map:transform src="stylesheets/simple-page2html.xsl"/>
</map:otherwise>
</map:select>

35. Lynx-friendly XSL stylesheet

Add the following to your XSL stylesheet:
<h2>This site is lynx-friendly</h2>

Save the stylesheet as
simple-page2html-lynx.xsl

36. Uploading the file

Navigate to the site provided

Click on "upload.html"

Beside the "file to upload" box, click on
"choose"

Select the file you want to upload

Click on "upload"

37. Viewing the file
If you see the file you wanted to upload and
receive a "File written successfully" message...

Click on "View site in cocoon"

Select the file you uploaded and the
stylesheet you want to view it in

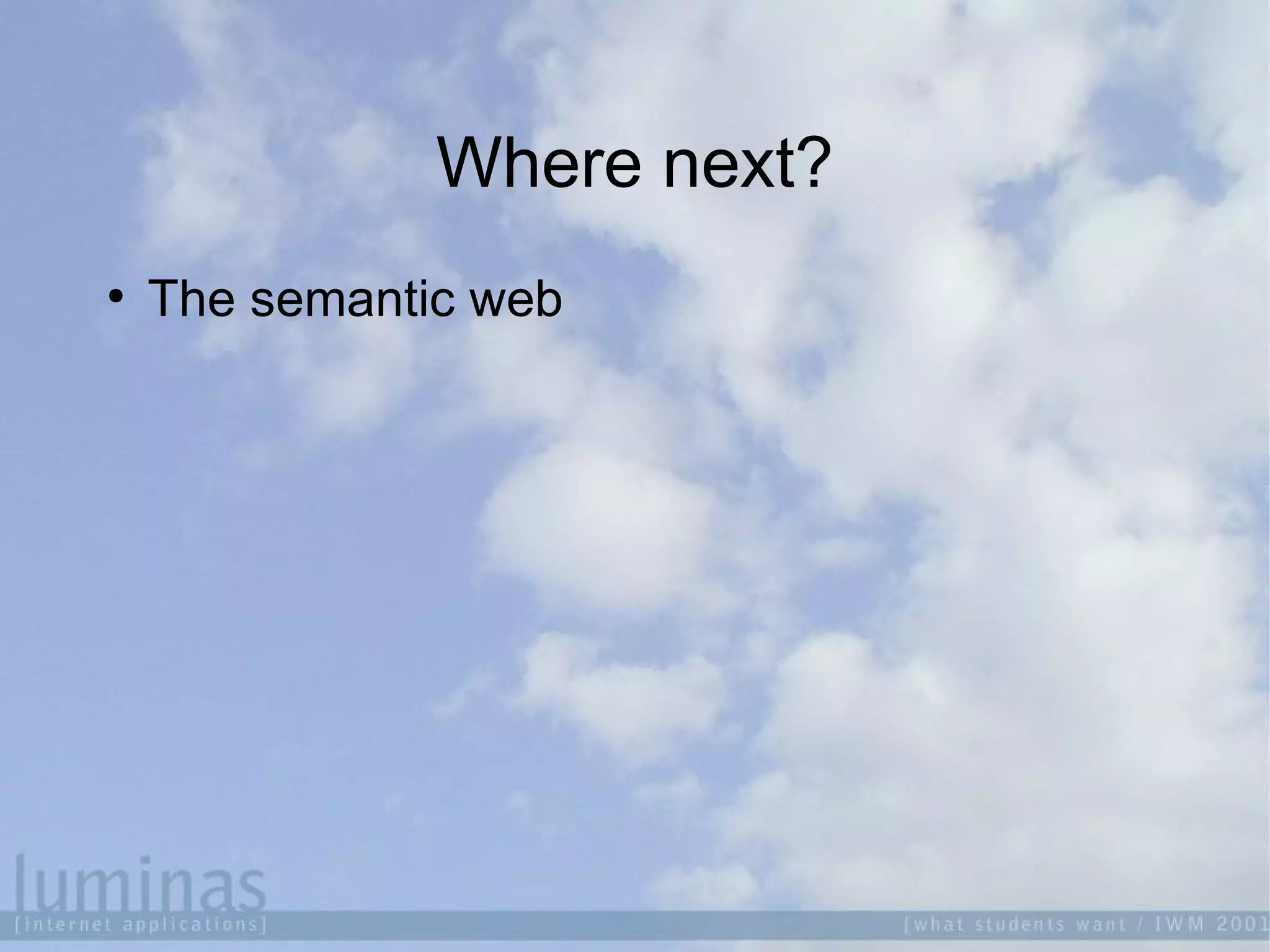

38. Where next?

The semantic web

39. References

http://www.ibm.com/developerworks/papers.nsf/dw

http://www.xml101.com/

http://nwalsh.com/docs/tutorials/xsl/
