IoT Innovation Forum (2015)

1
COPYRIGHT © 2015 ALCATEL-LUCENT. ALL RIGHTS RESERVED.
The Unbearable Lightness of IoT Forecasting
Marc Jadoul ( @mjadoul)
Dallas, 21 April 2015

2
Good morning.
How was your breakfast?
Photo:pictures.4ever.eu

3
Breakfast in 2020
Perfectly baked bread
thanks to the wireless
temperature sensor
implants in the dough.(1)
A connected egg tray tells
you how many eggs you have
left in your smart fridge.(2)(3)
Your cup monitors the
temperature of your tea.(6)
The smart bowl calculates the
calories you’re taking in.(4)
A smart spoon assists people
with hand tremors.(7)
(1) http://www.powerretail.com.au/case-profiles-studies/high-tech-bread/
(2) http://gigaom.com/2013/08/20/podcast-hard-boiled-quirky-and-ge-will-connect-your-eggs-and-crack-open-the-iot-space/
(3) http://www.nbcnews.com/tech/gift-guide/out-milk-lgs-new-smart-fridge-will-let-you-know-n99531
(4) http://www.npr.org/blogs/thesalt/2014/07/15/331402697/calorie-counting-machine-may-make-dieting-easier-in-the-future
(5) http://www.telegraph.co.uk/technology/10364890/WiFi-kettle-allows-you-to-boil-water-from-bed.html
(6) http://www.instructables.com/id/Smart-Coffer-Cup-Temperature-Reminds-For-Your-Hot-/
(7) http://www.voanews.com/content/smart-spoon-allows-parkinsons-sufferers-to-feed-themselves/1830217.html
The iKettle was switched on
while you were still in bed.(5)

4
A typical family home
could contain more than
500 smart devices by 2022.
Gartner, September 2014

5

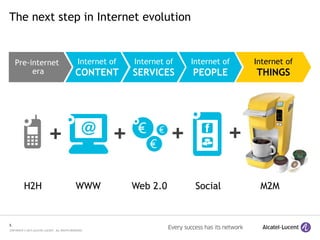

The next step in Internet evolution
Pre-internet
era
Internet of
CONTENT
Internet of
SERVICES
Internet of
PEOPLE
Internet of
THINGS
SocialWeb 2.0WWWH2H M2M
+ + + +

6

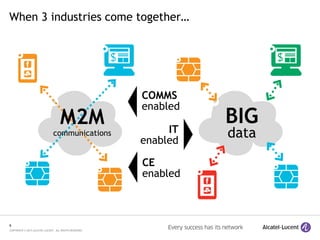

When 3 industries come together…
BIG
data
M2M
communications IT
enabled
COMMS
enabled
CE
enabled

7

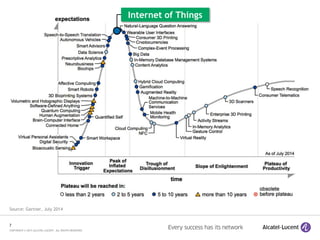

Source: Gartner, July 2014
Internet of Things

8
Source: gsmaintelligence.com
Image: http://gizmodo.com/a-map-of-every-device-in-the-world-thats-connected-to-t-1628171291
At the end of 2014 the number of mobile-connected
devices exceeded the world’s population
And this is just a beginning …
8

9

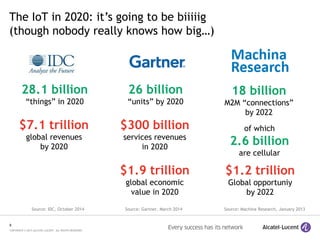

The IoT in 2020: it’s going to be biiiiig
(though nobody really knows how big…)
28.1 billion
“things” in 2020
26 billion
“units” by 2020
$7.1 trillion
global revenues
by 2020
$300 billion
services revenues
in 2020
$1.9 trillion
global economic
value in 2020
Source: IDC, October 2014 Source: Gartner, March 2014
18 billion
M2M “connections”
by 2022
$1.2 trillion
Global opportuniy
by 2022
of which
2.6 billion
are cellular
Source: Machina Research, January 2013

10

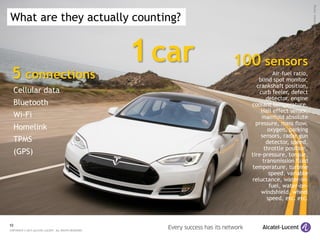

1car
Cellular data
Bluetooth
Wi-Fi
Homelink
TPMS
(GPS)
5 connections
100 sensors
Air–fuel ratio,
blind spot monitor,
crankshaft position,
curb feeler, defect
detector, engine
coolant temperature,
Hall effect sensor,
manifold absolute
pressure, mass flow,
oxygen, parking
sensors, radar gun
detector, speed,
throttle position,
tire-pressure, torque,
transmission fluid
temperature, turbine
speed, variable
reluctance, water-in-
fuel, water-on-
windshield, wheel
speed, etc. etc.
What are they actually counting?
Photo:motortrend.com

11
Image:http://www.bobmcmahon.com
Did they count everything?

12
(1) http://www.m2mnow.biz/2013/05/11/11795-container-tracking-systems-installed-base-grew-54-in-2012-says-new-berg-insight-report/
(2) http://www.dutchnews.nl/news/archives/2014/09/schiphol_airport_tests_cameras.php
(3) http://www.bbc.com/news/technology-25197917
(4) http://www.psfk.com/2014/01/true-love-bra.html
(5) http://www.idownloadblog.com/2014/01/06/ces-2014-kolibree-toothbrush/
(6) http://smartinteractionlab.com/whistle-connected-dog-collar/
(7) http://www.cnet.com/news/how-googles-robo-cars-mean-the-end-of-driving-as-we-know-it/
(8) http://www.independent.co.uk/life-style/gadgets-and-tech/baidu-launches-smart-chopsticks-to-detect-contaminated-food-9711478.html
(6)
(3, 4)
(8)
(1)
(2)

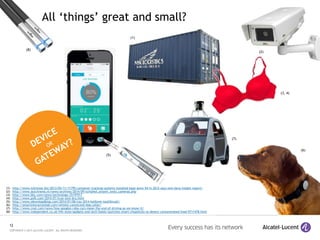

All ‘things’ great and small?
(5)
(7)

13

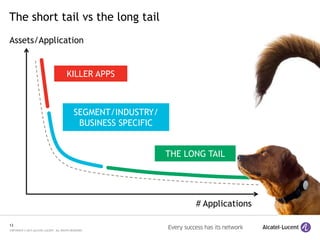

The short tail vs the long tail
# Applications
KILLER APPS
THE LONG TAIL
SEGMENT/INDUSTRY/
BUSINESS SPECIFIC
Assets/Application

14

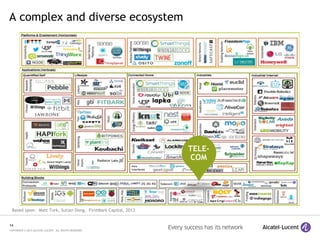

A complex and diverse ecosystem
Based upon: Matt Turk, Sutian Dong, FirstMark Capital, 2013
TELE-
COM

15
Photo:visitoakdaleca.Com
Why should we care about the network?

16
Photo:visitoakdaleca.Com
Within 3 years, 50% of IT networks will transition
from having excess capacity to handle the additional
IoT devices to being network constrained with nearly
10% of sites being overwhelmed.
Within the next 5 years, more than 90% of all IoT
data will be hosted on cloud-based service provider
platforms.
IDC, December 2014

17

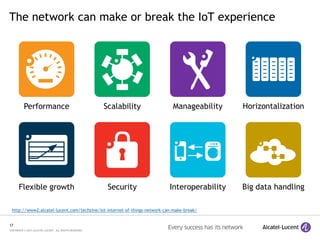

The network can make or break the IoT experience
http://www2.alcatel-lucent.com/techzine/iot-internet-of-things-network-can-make-break/
Performance Scalability Manageability Horizontalization
Flexible growth Security Interoperability Big data handling

18

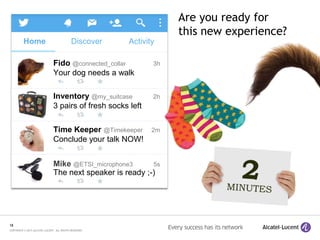

Are you ready for
this new experience?
Fido @connected_collar 3h
Your dog needs a walk
Inventory @my_suitcase 2h
3 pairs of fresh socks left
Time Keeper @Timekeeper 2m
Conclude your talk NOW!
Mike @ETSI_microphone3 5s
The next speaker is ready ;-)
Home Discover Activity

19
Photo:http://www.picturesonwalls.com
Thought of the day…

20
