1. Introduction to the NetBSD kernel
Mahendra M
Mahendra_M@infosys.com
http://www.infosys.com
This work is licensed under a Creative Commons License
http://creativecommons.org/licenses/by-sa/2.5/

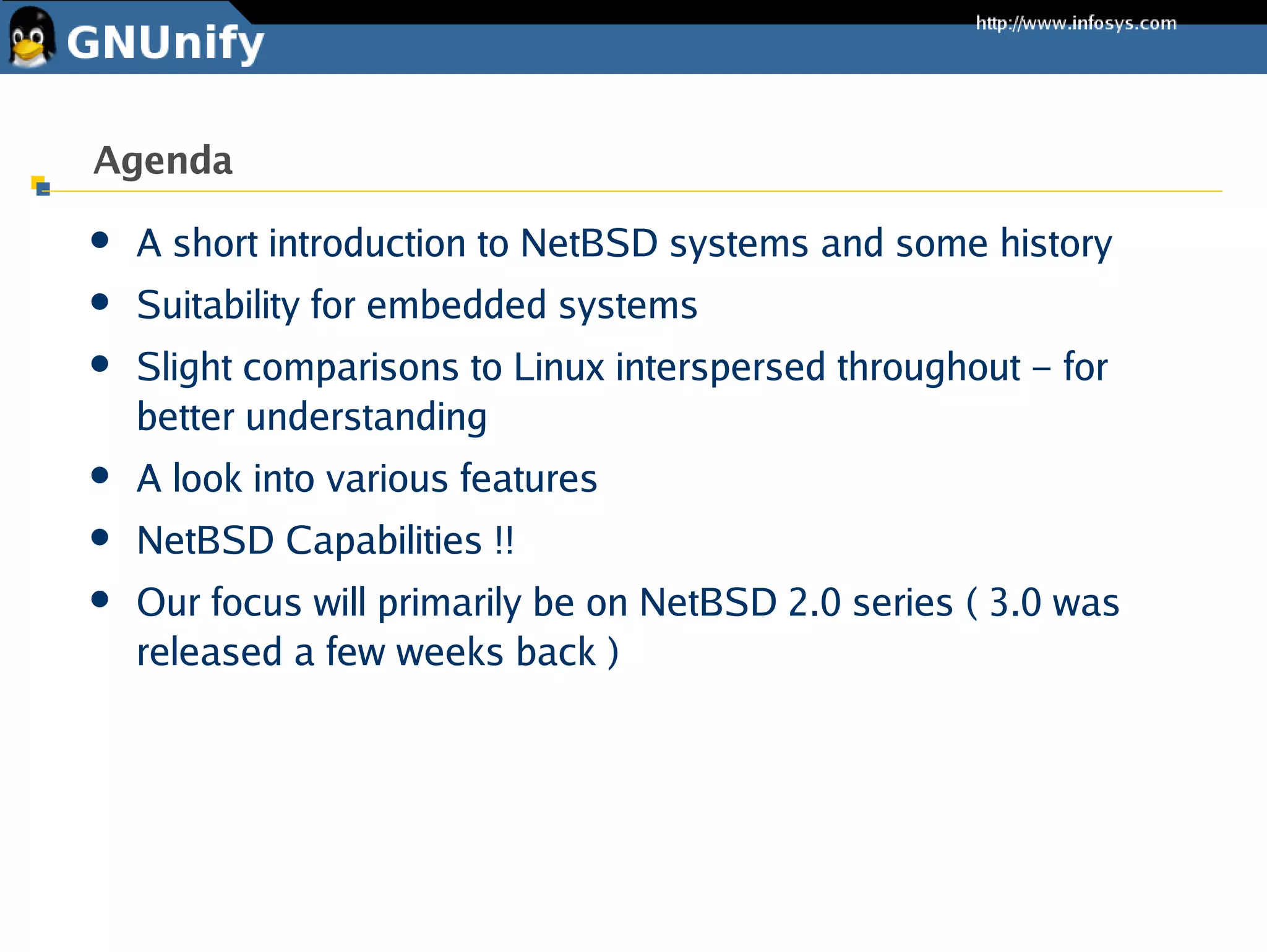

2. Agenda
 A short introduction to NetBSD systems and some history
 Suitability for embedded systems
 Slight comparisons to Linux interspersed throughout – for
better understanding
 A look into various features
 NetBSD Capabilities !!
 Our focus will primarily be on NetBSD 2.0 series ( 3.0 was
released a few weeks back )

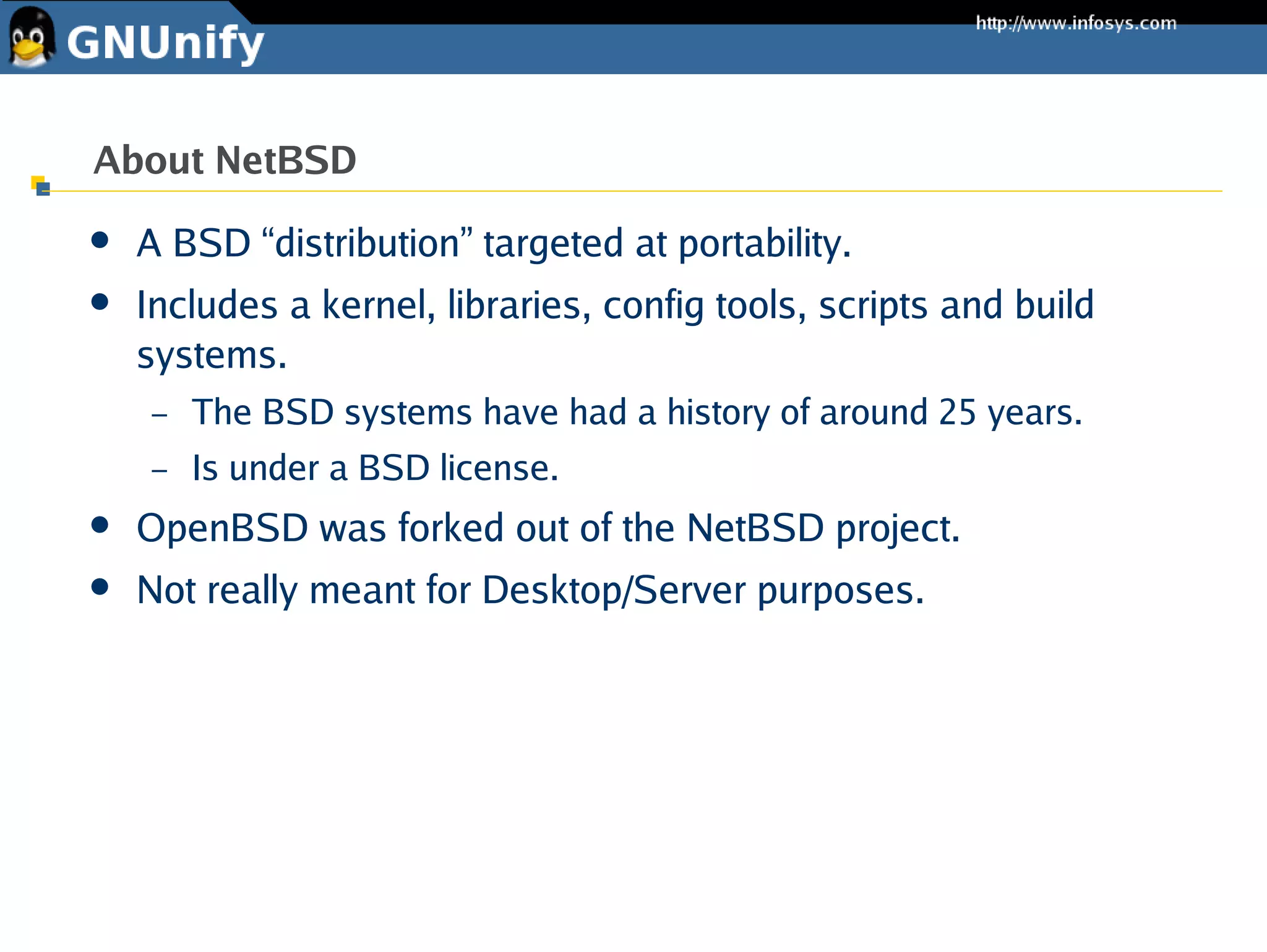

3. About NetBSD
 A BSD “ distribution” targeted at portability.
 Includes a kernel, libraries, config tools, scripts and build
systems.
– The BSD systems have had a history of around 25 years.
– Is under a BSD license.
 OpenBSD was forked out of the NetBSD project.
 Not really meant for Desktop/Server purposes.

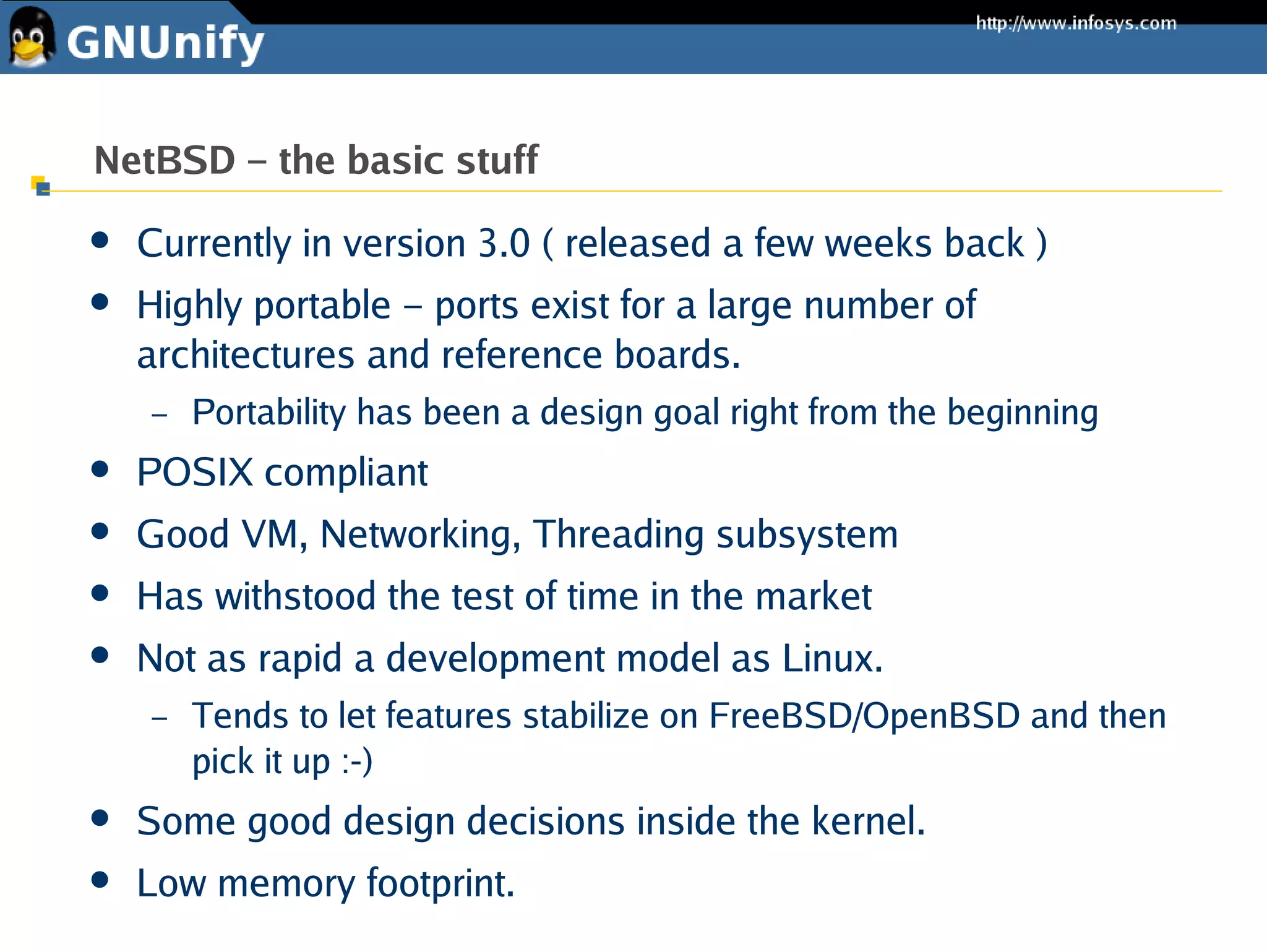

4. NetBSD – the basic stuff
 Currently in version 3.0 ( released a few weeks back )
 Highly portable – ports exist for a large number of
architectures and reference boards.
– Portability has been a design goal right from the beginning
 POSIX compliant
 Good VM, Networking, Threading subsystem
 Has withstood the test of time in the market
 Not as rapid a development model as Linux.
– Tends to let features stabilize on FreeBSD/OpenBSD and then
pick it up :-)
 Some good design decisions inside the kernel.
 Low memory footprint.

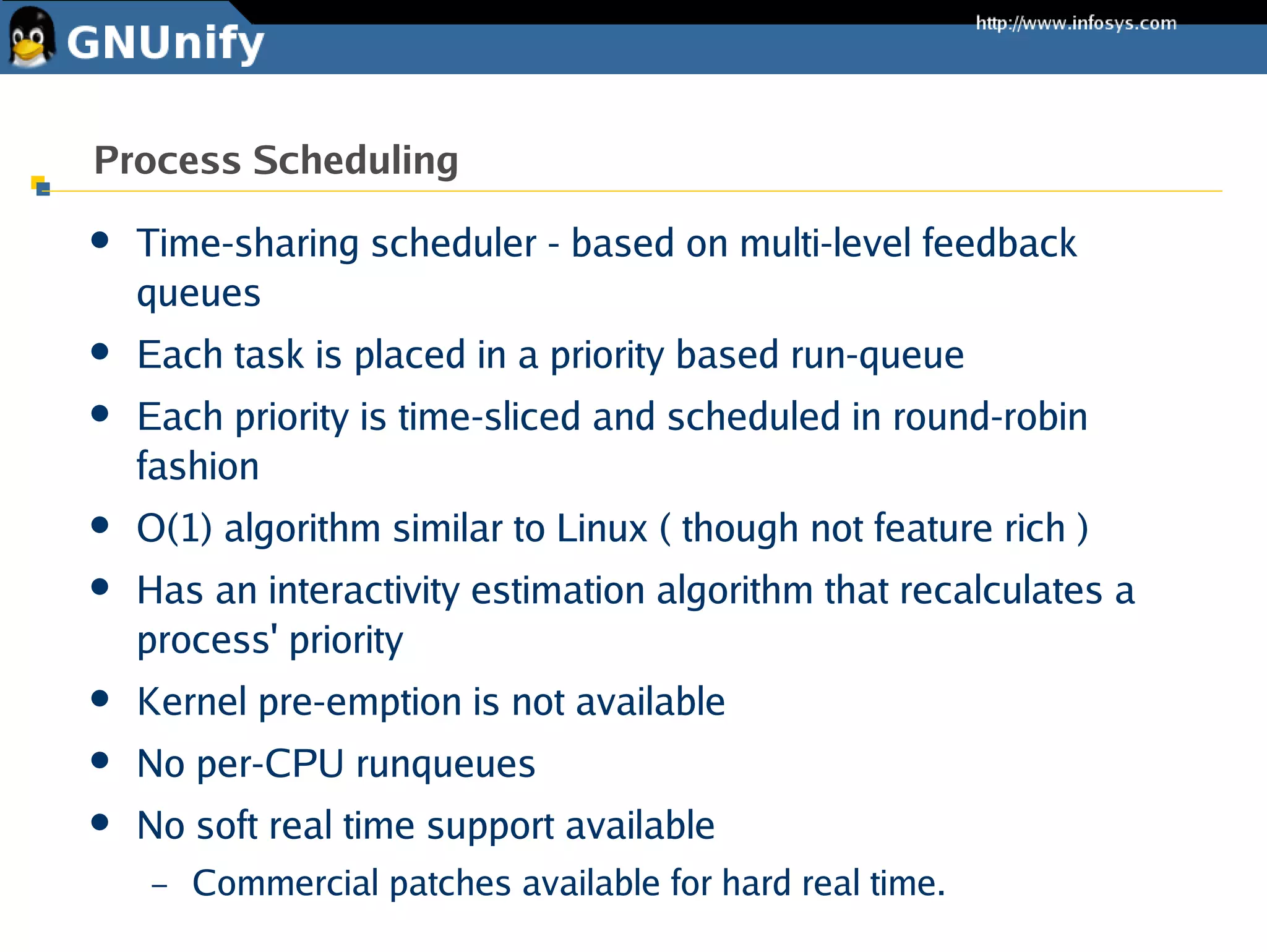

5. Process Scheduling
 Time-sharing scheduler - based on multi-level feedback
queues
 Each task is placed in a priority based run-queue
 Each priority is time-sliced and scheduled in round-robin
fashion
 O(1) algorithm similar to Linux ( though not feature rich )
 Has an interactivity estimation algorithm that recalculates a
process' priority
 Kernel pre-emption is not available
 No per-CPU runqueues
 No soft real time support available
– Commercial patches available for hard real time.

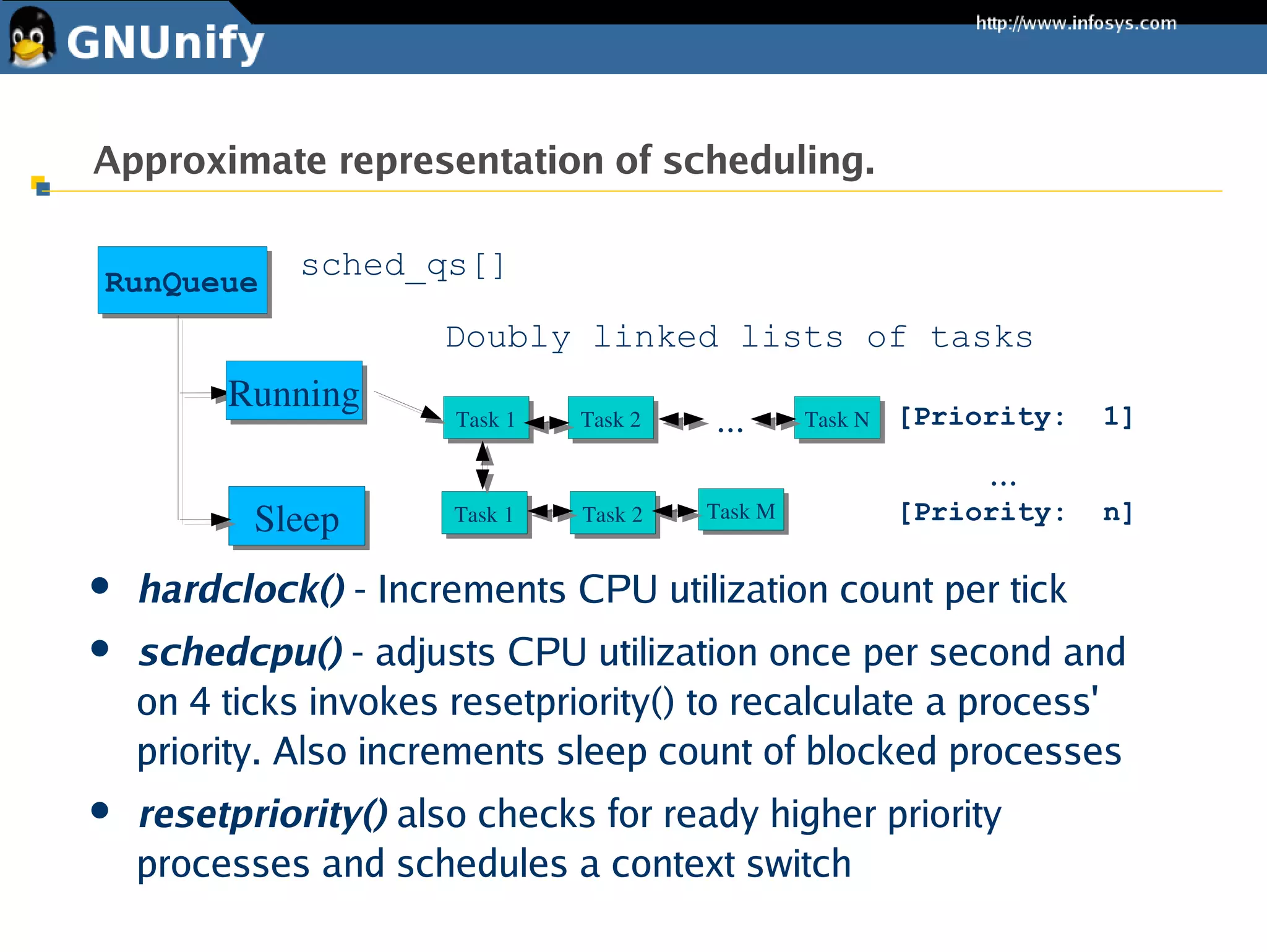

6. Approximate representation of scheduling.
RunQueue
sched_qs[]
Doubly linked lists of tasks
Running
Task 1 Task 2 ... Task N [Priority: 1]
...
Sleep Task 1 Task 2 Task M [Priority: n]
 hardclock() - Increments CPU utilization count per tick
 schedcpu() - adjusts CPU utilization once per second and
on 4 ticks invokes resetpriority() to recalculate a process'
priority. Also increments sleep count of blocked processes
 resetpriority() also checks for ready higher priority
processes and schedules a context switch

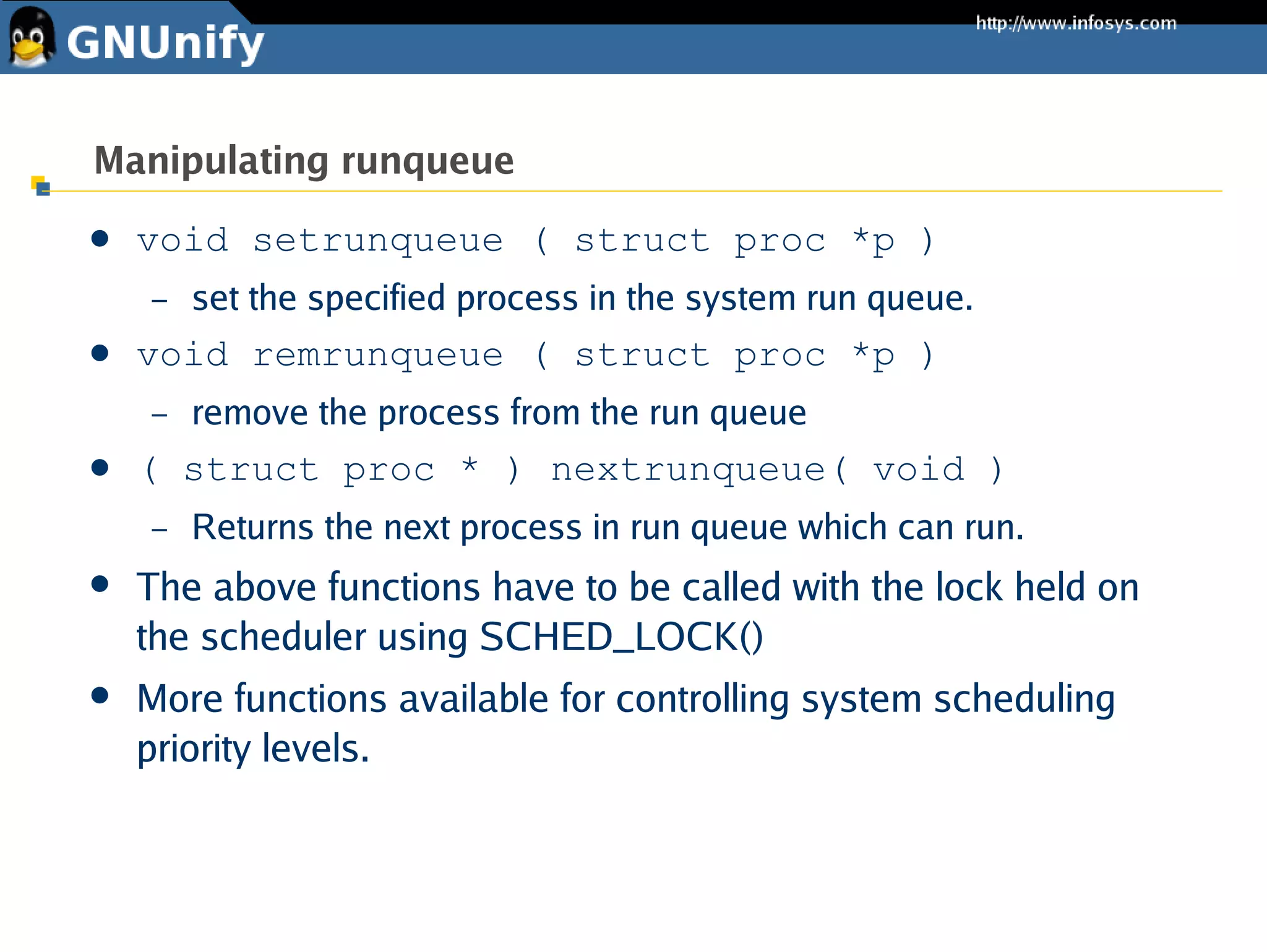

7. Manipulating runqueue
 void setrunqueue ( struct proc *p )
– set the specified process in the system run queue.
 void remrunqueue ( struct proc *p )
– remove the process from the run queue
 ( struct proc * ) nextrunqueue( void )
– Returns the next process in run queue which can run.
 The above functions have to be called with the lock held on
the scheduler using SCHED_LOCK()
 More functions available for controlling system scheduling
priority levels.

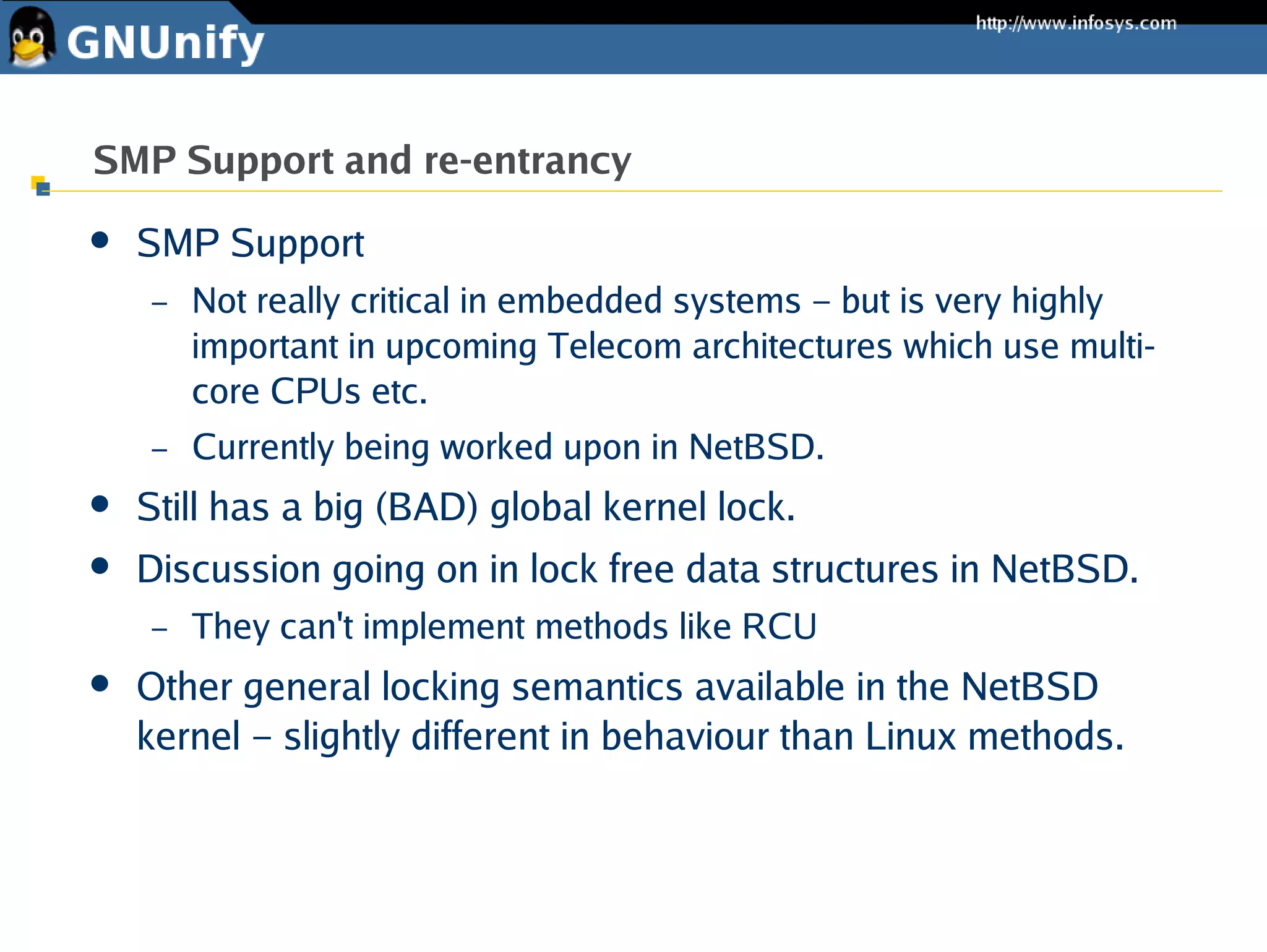

8. SMP Support and re-entrancy
 SMP Support
– Not really critical in embedded systems – but is very highly
important in upcoming Telecom architectures which use multi-
core CPUs etc.
– Currently being worked upon in NetBSD.
 Still has a big (BAD) global kernel lock.
 Discussion going on in lock free data structures in NetBSD.
– They can't implement methods like RCU
 Other general locking semantics available in the NetBSD
kernel – slightly different in behaviour than Linux methods.

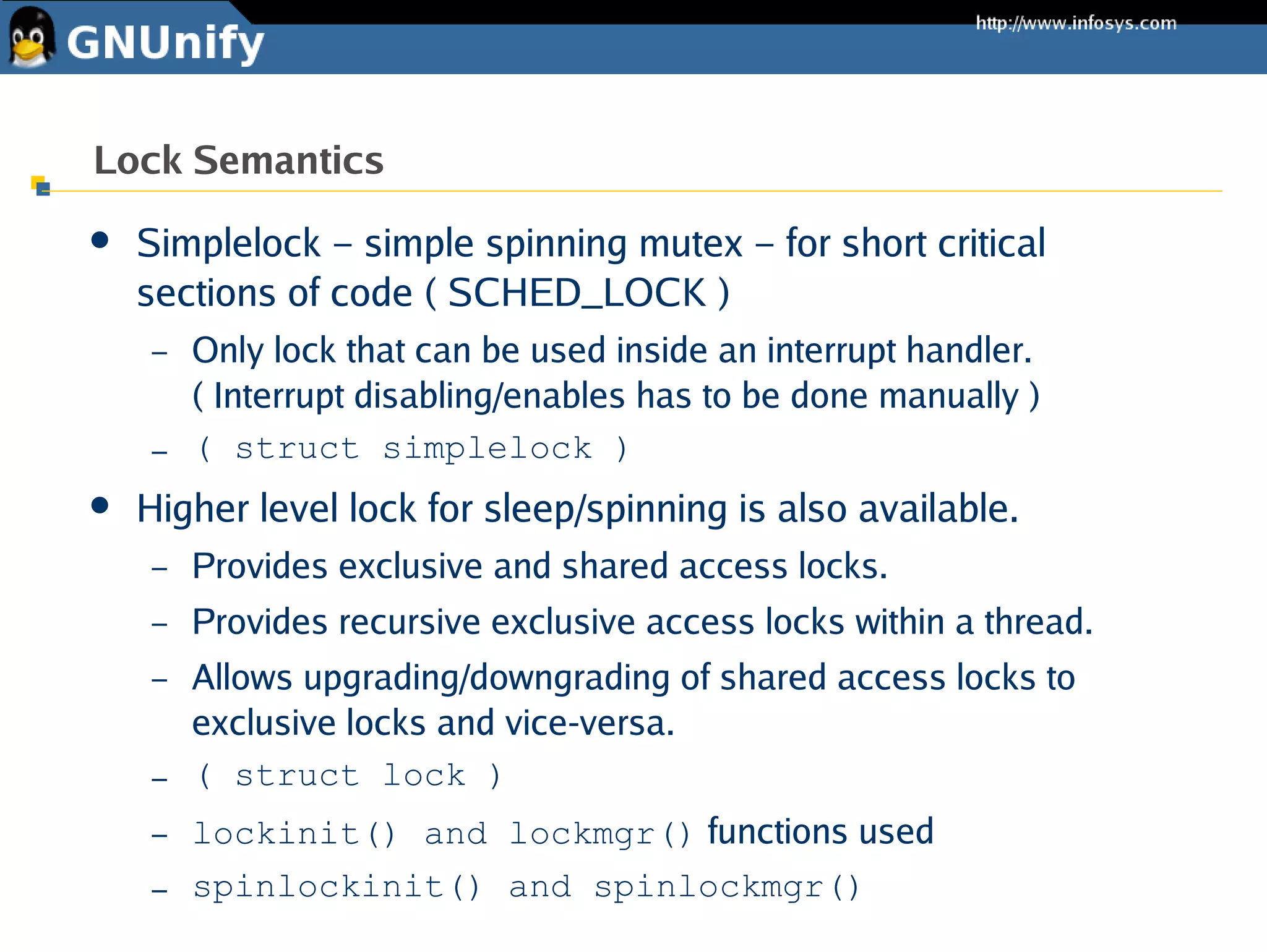

9. Lock Semantics
 Simplelock – simple spinning mutex – for short critical
sections of code ( SCHED_LOCK )
– Only lock that can be used inside an interrupt handler.
( Interrupt disabling/enables has to be done manually )
– ( struct simplelock )
 Higher level lock for sleep/spinning is also available.
– Provides exclusive and shared access locks.
– Provides recursive exclusive access locks within a thread.
– Allows upgrading/downgrading of shared access locks to
exclusive locks and vice-versa.
– ( struct lock )
– lockinit() and lockmgr() functions used
– spinlockinit() and spinlockmgr()

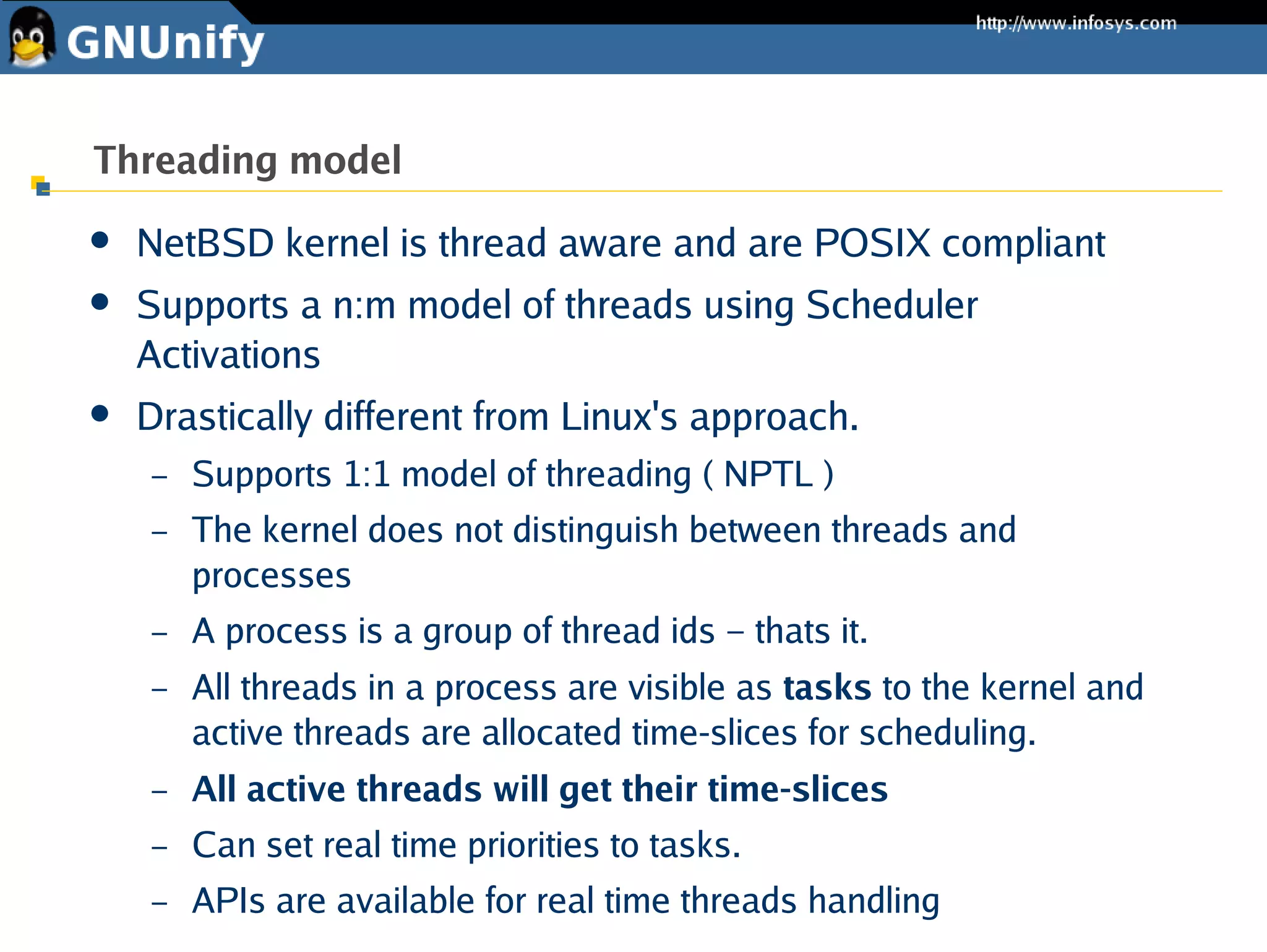

10. Threading model
 NetBSD kernel is thread aware and are POSIX compliant
 Supports a n:m model of threads using Scheduler
Activations
 Drastically different from Linux's approach.
– Supports 1:1 model of threading ( NPTL )
– The kernel does not distinguish between threads and
processes
– A process is a group of thread ids – thats it.
– All threads in a process are visible as tasks to the kernel and
active threads are allocated time-slices for scheduling.
– All active threads will get their time-slices
– Can set real time priorities to tasks.
– APIs are available for real time threads handling

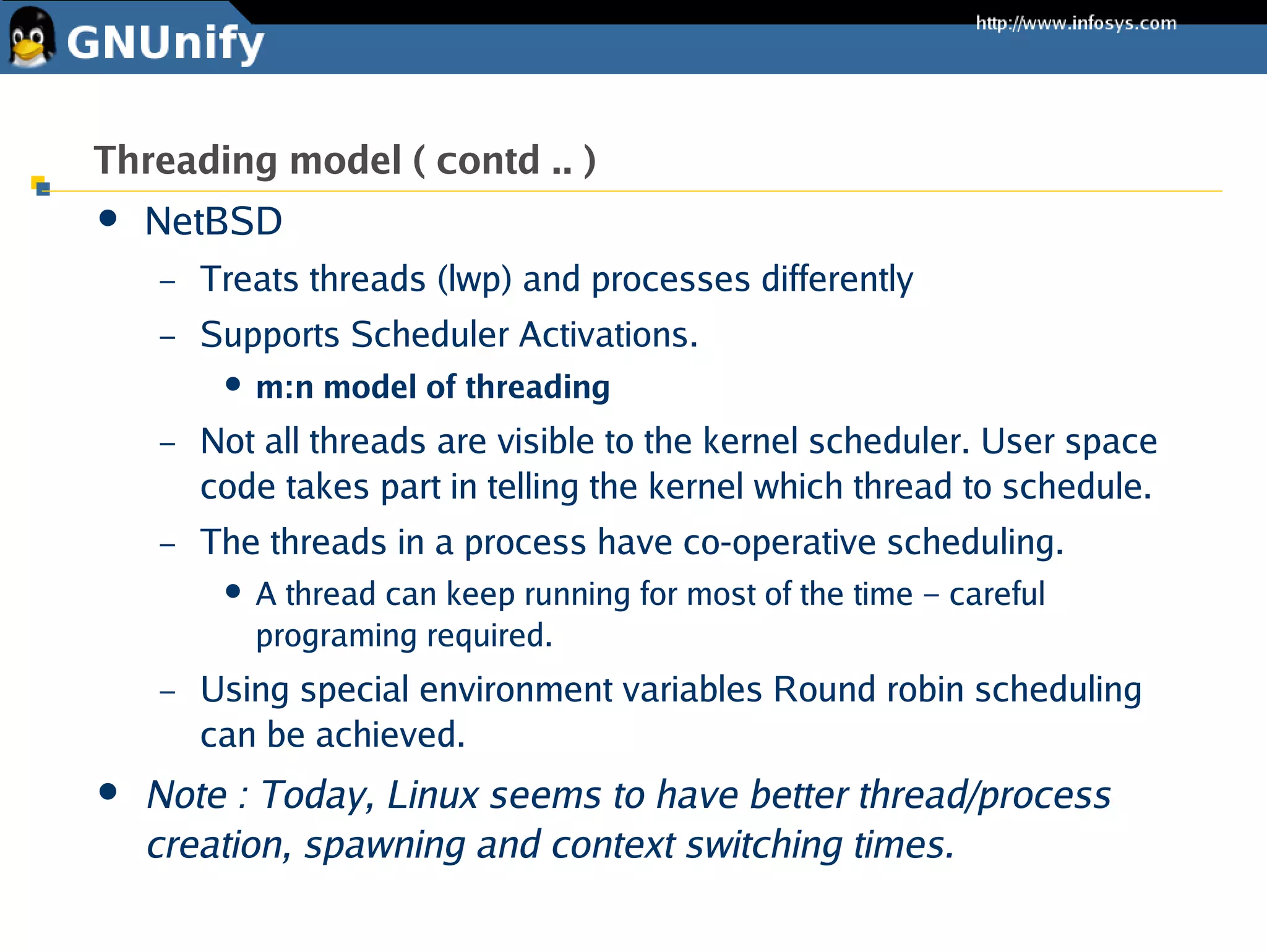

11. Threading model ( contd .. )
 NetBSD
– Treats threads (lwp) and processes differently
– Supports Scheduler Activations.
 m:n model of threading
– Not all threads are visible to the kernel scheduler. User space
code takes part in telling the kernel which thread to schedule.
– The threads in a process have co-operative scheduling.
 A thread can keep running for most of the time – careful
programing required.
– Using special environment variables Round robin scheduling
can be achieved.
 Note : Today, Linux seems to have better thread/process
creation, spawning and context switching times.

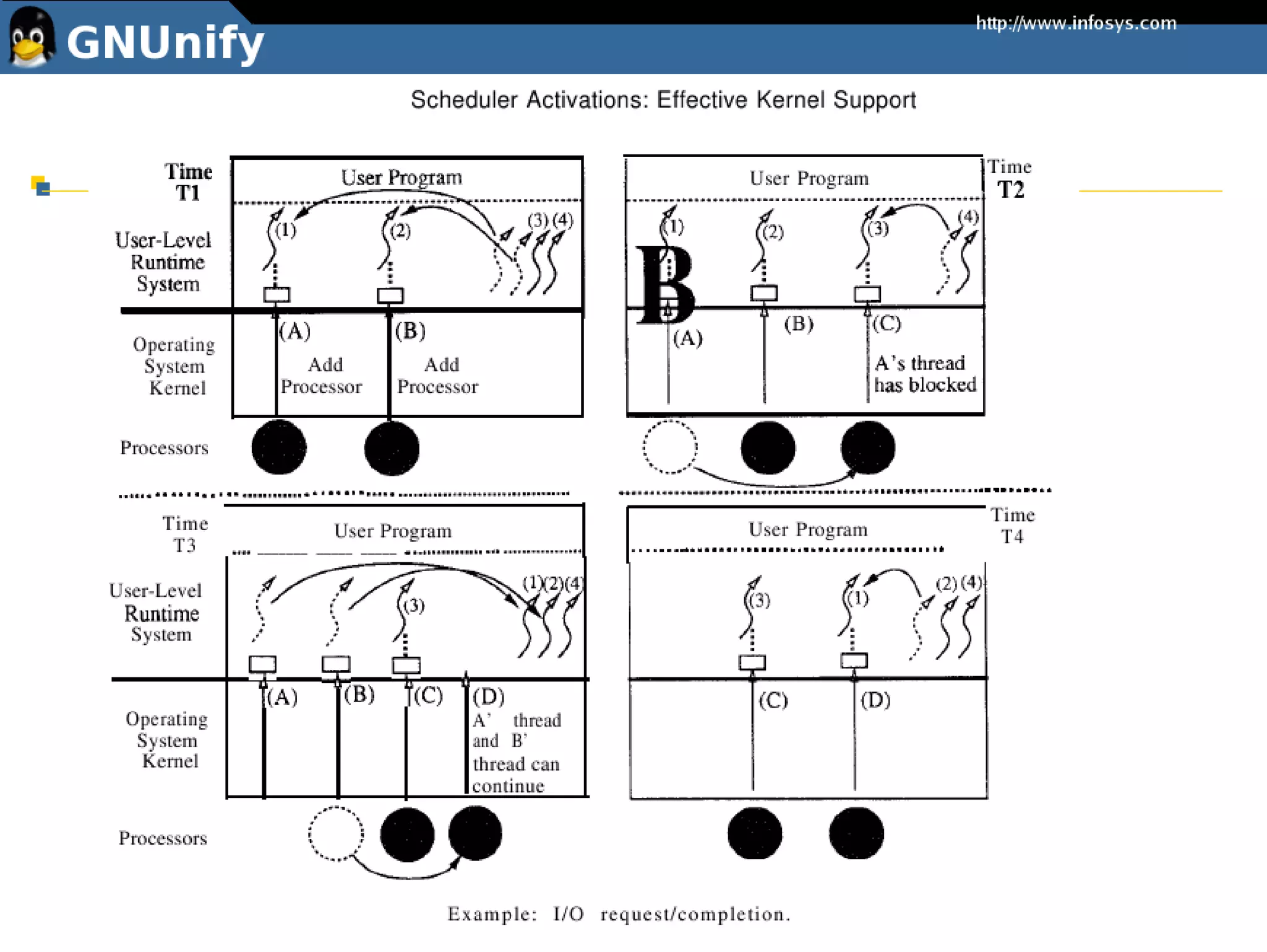

12. Threading model ( contd.. )

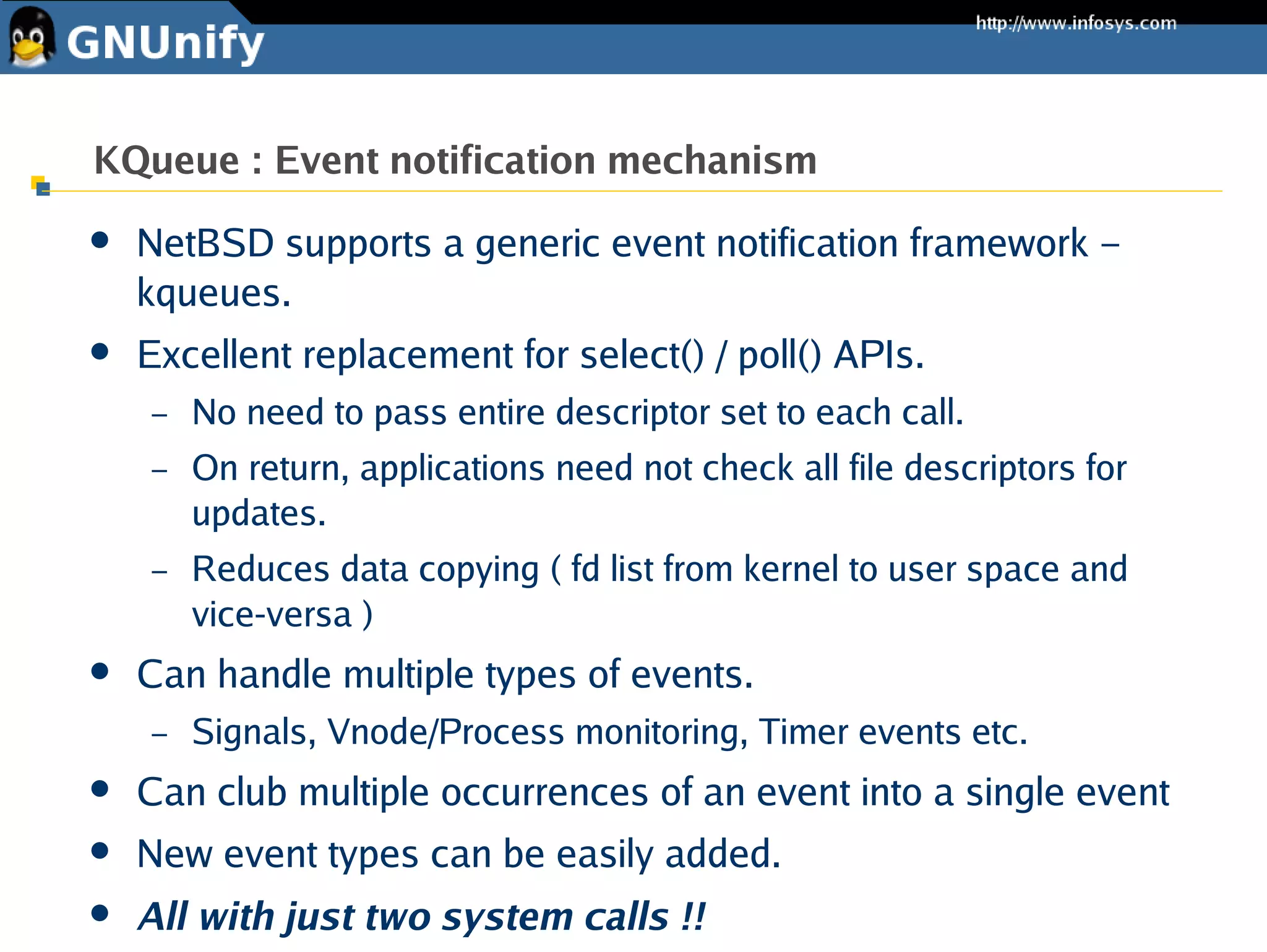

13. KQueue : Event notification mechanism
 NetBSD supports a generic event notification framework –
kqueues.
 Excellent replacement for select() / poll() APIs.
– No need to pass entire descriptor set to each call.
– On return, applications need not check all file descriptors for
updates.
– Reduces data copying ( fd list from kernel to user space and
vice-versa )
 Can handle multiple types of events.
– Signals, Vnode/Process monitoring, Timer events etc.
 Can club multiple occurrences of an event into a single event
 New event types can be easily added.
 All with just two system calls !!

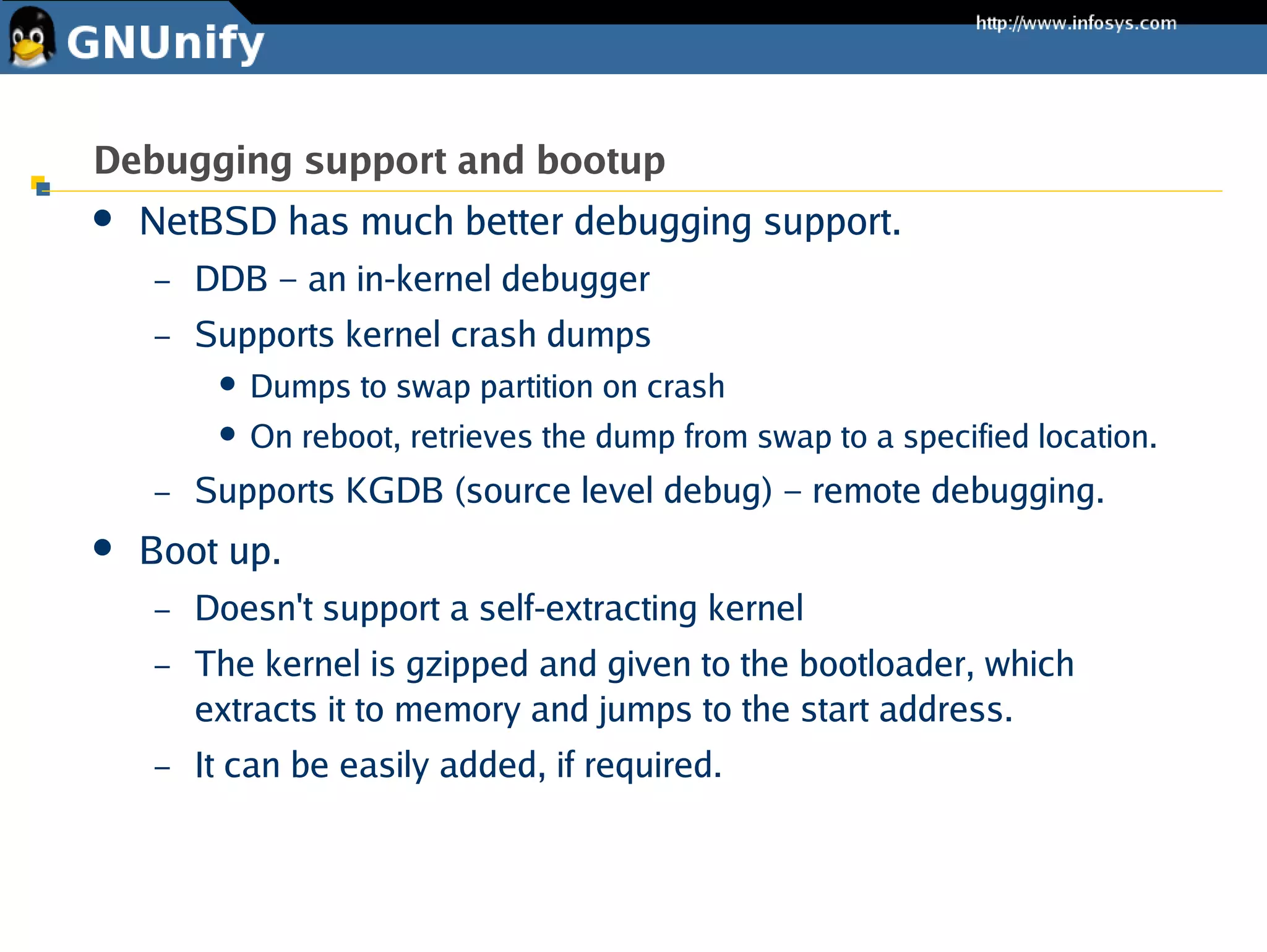

14. Debugging support and bootup
 NetBSD has much better debugging support.
– DDB – an in-kernel debugger
– Supports kernel crash dumps
 Dumps to swap partition on crash
 On reboot, retrieves the dump from swap to a specified location.
– Supports KGDB (source level debug) – remote debugging.
 Boot up.
– Doesn't support a self-extracting kernel
– The kernel is gzipped and given to the bootloader, which
extracts it to memory and jumps to the start address.
– It can be easily added, if required.

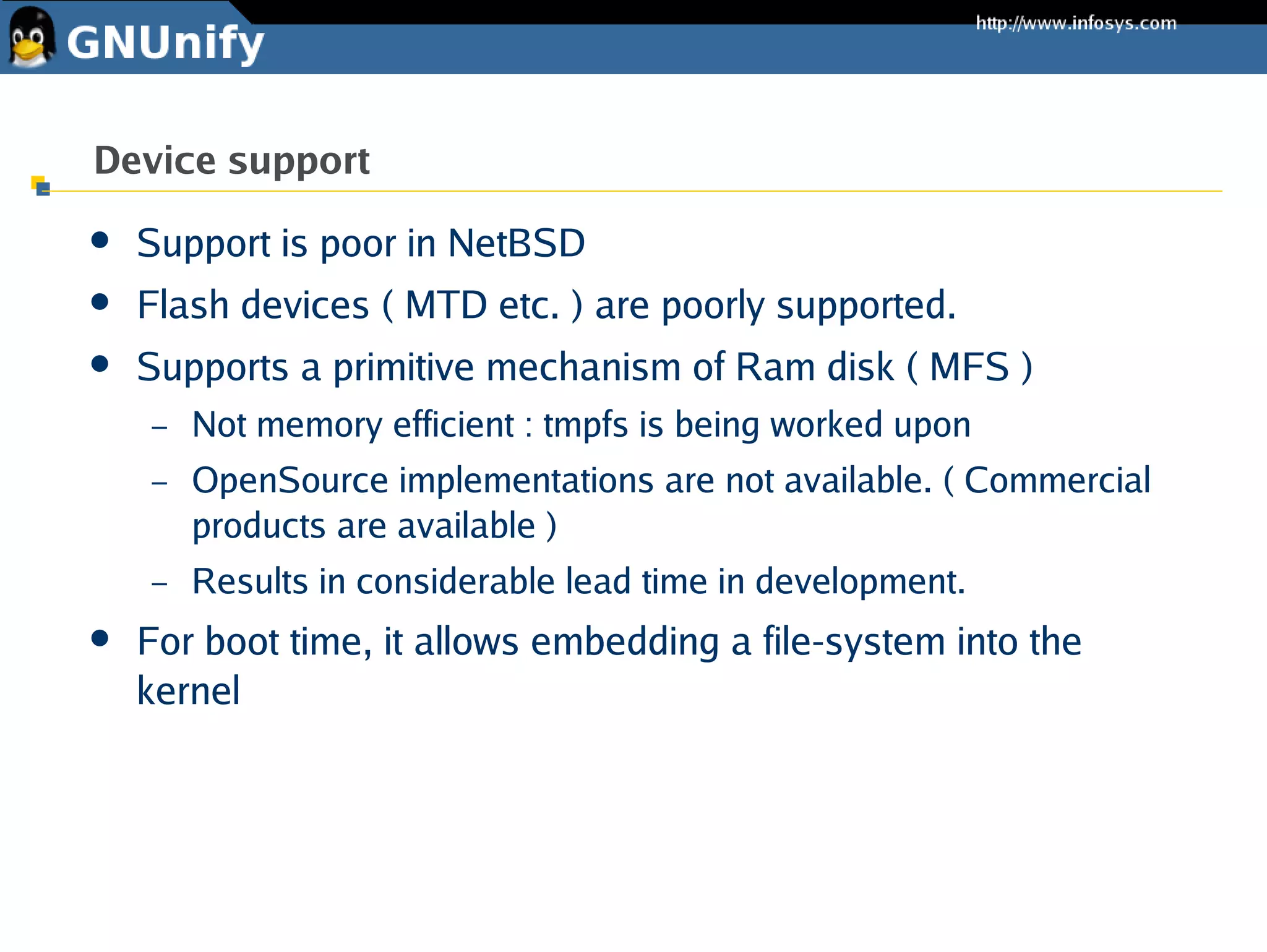

15. Device support
 Support is poor in NetBSD
 Flash devices ( MTD etc. ) are poorly supported.
 Supports a primitive mechanism of Ram disk ( MFS )
– Not memory efficient : tmpfs is being worked upon
– OpenSource implementations are not available. ( Commercial
products are available )
– Results in considerable lead time in development.
 For boot time, it allows embedding a file-system into the
kernel

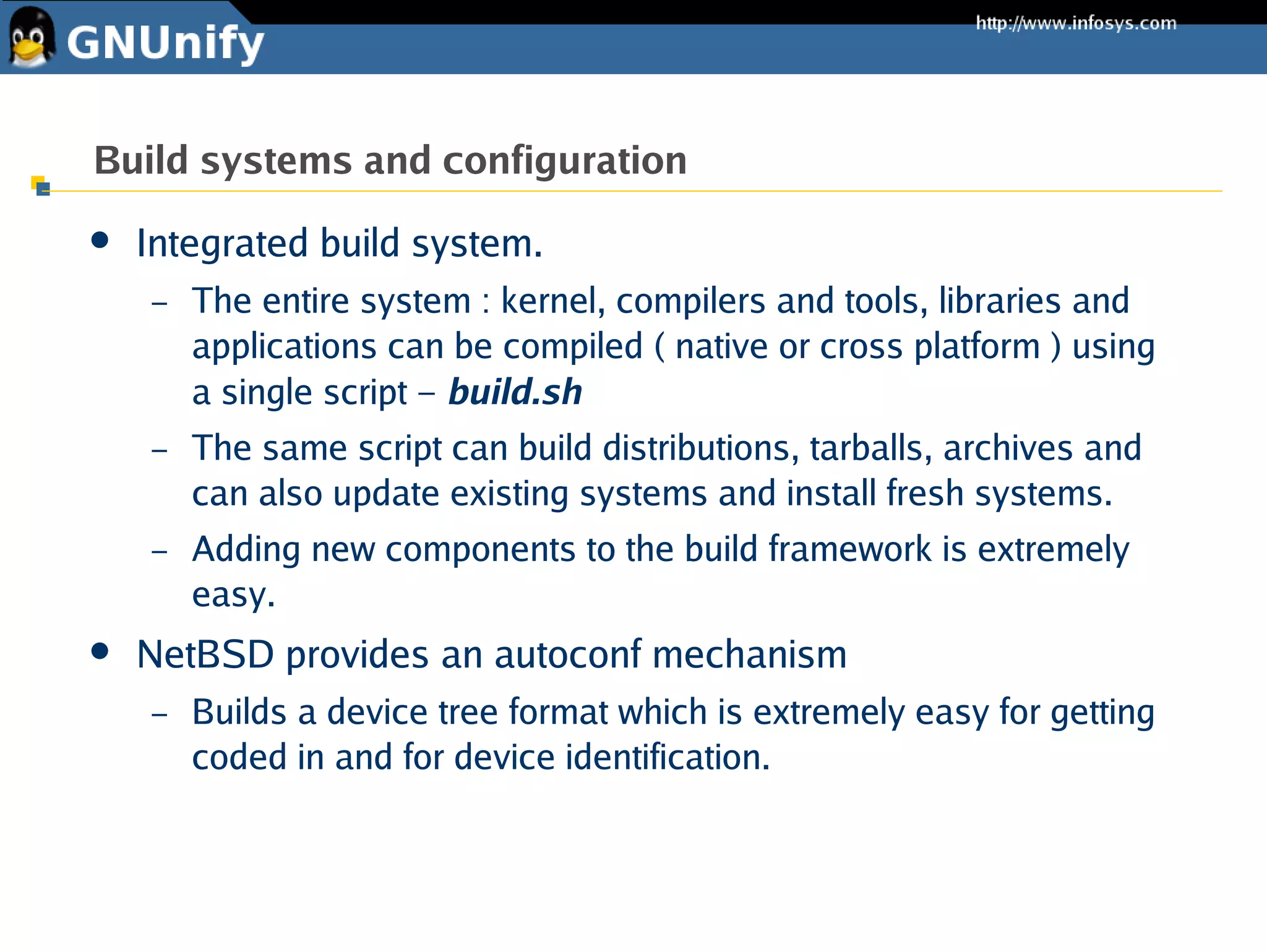

16. Build systems and configuration
 Integrated build system.
– The entire system : kernel, compilers and tools, libraries and
applications can be compiled ( native or cross platform ) using
a single script – build.sh
– The same script can build distributions, tarballs, archives and
can also update existing systems and install fresh systems.
– Adding new components to the build framework is extremely
easy.
 NetBSD provides an autoconf mechanism
– Builds a device tree format which is extremely easy for getting
coded in and for device identification.

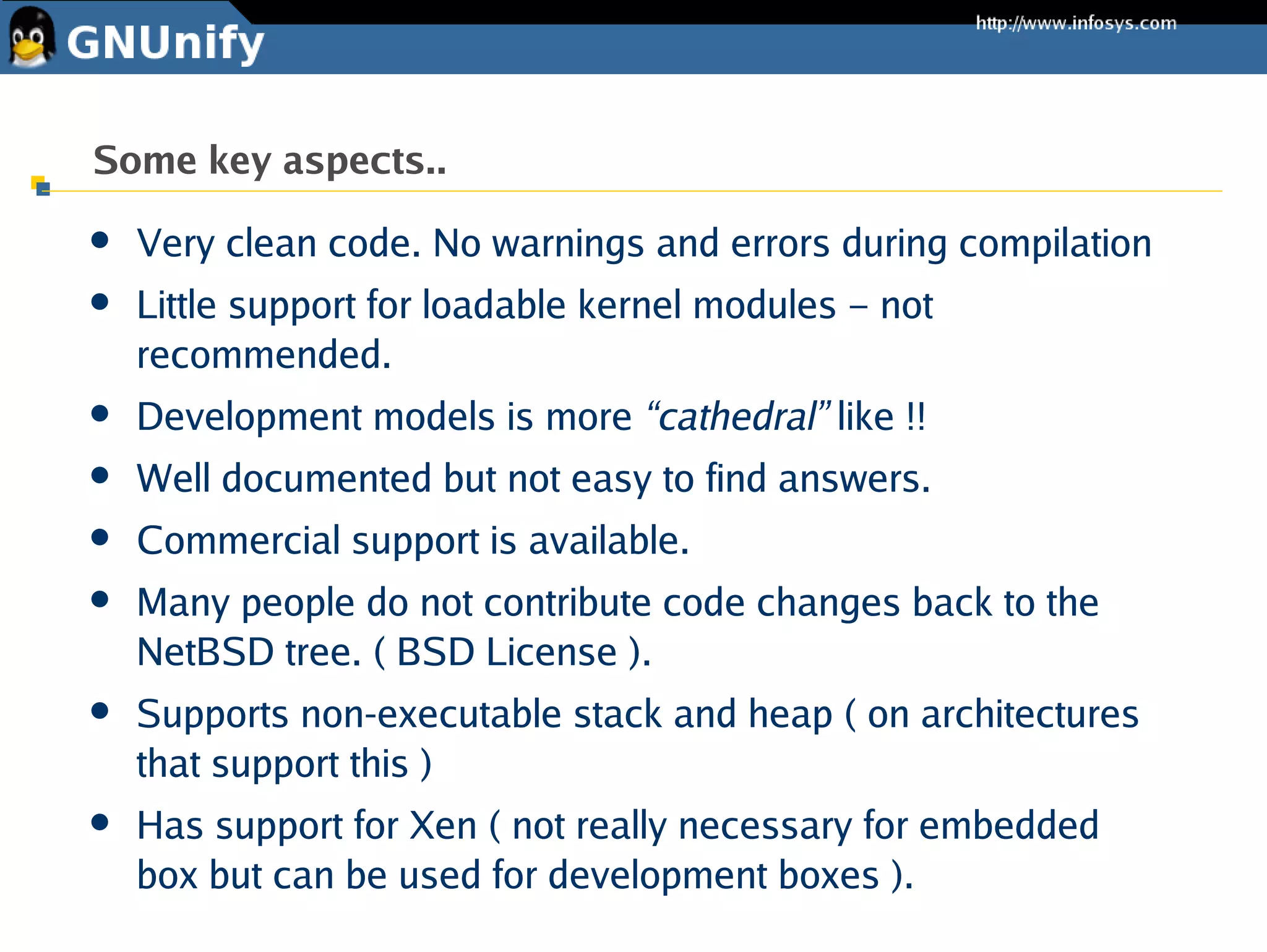

17. Some key aspects..
 Very clean code. No warnings and errors during compilation
 Little support for loadable kernel modules – not
recommended.
 Development models is more “ cathedral” like !!
 Well documented but not easy to find answers.
 Commercial support is available.
 Many people do not contribute code changes back to the
NetBSD tree. ( BSD License ).
 Supports non-executable stack and heap ( on architectures
that support this )
 Has support for Xen ( not really necessary for embedded
box but can be used for development boxes ).

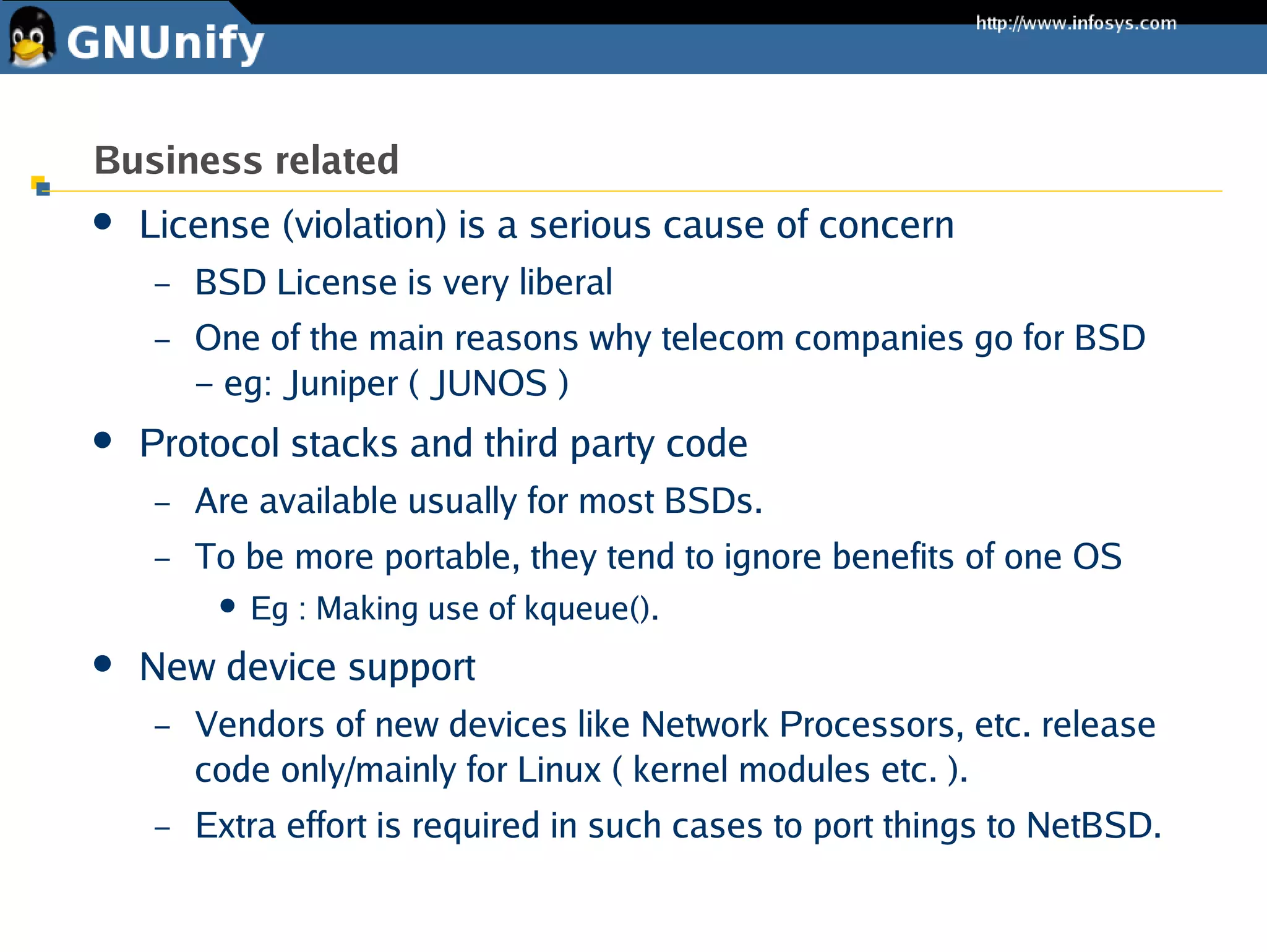

18. Business related
 License (violation) is a serious cause of concern
– BSD License is very liberal
– One of the main reasons why telecom companies go for BSD
– eg: Juniper ( JUNOS )
 Protocol stacks and third party code
– Are available usually for most BSDs.
– To be more portable, they tend to ignore benefits of one OS
 Eg : Making use of kqueue().
 New device support
– Vendors of new devices like Network Processors, etc. release
code only/mainly for Linux ( kernel modules etc. ).
– Extra effort is required in such cases to port things to NetBSD.

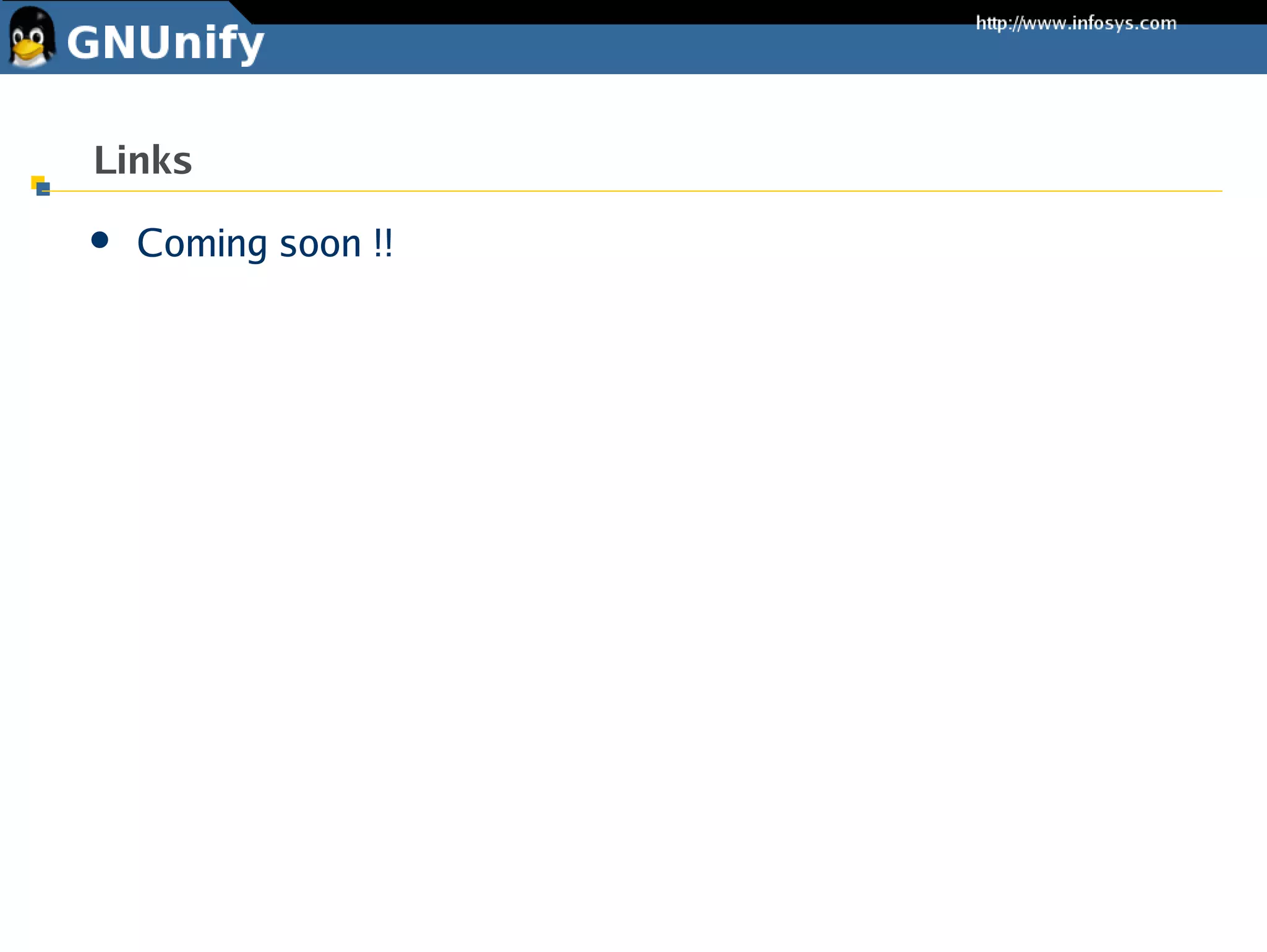

19. Links
 Coming soon !!

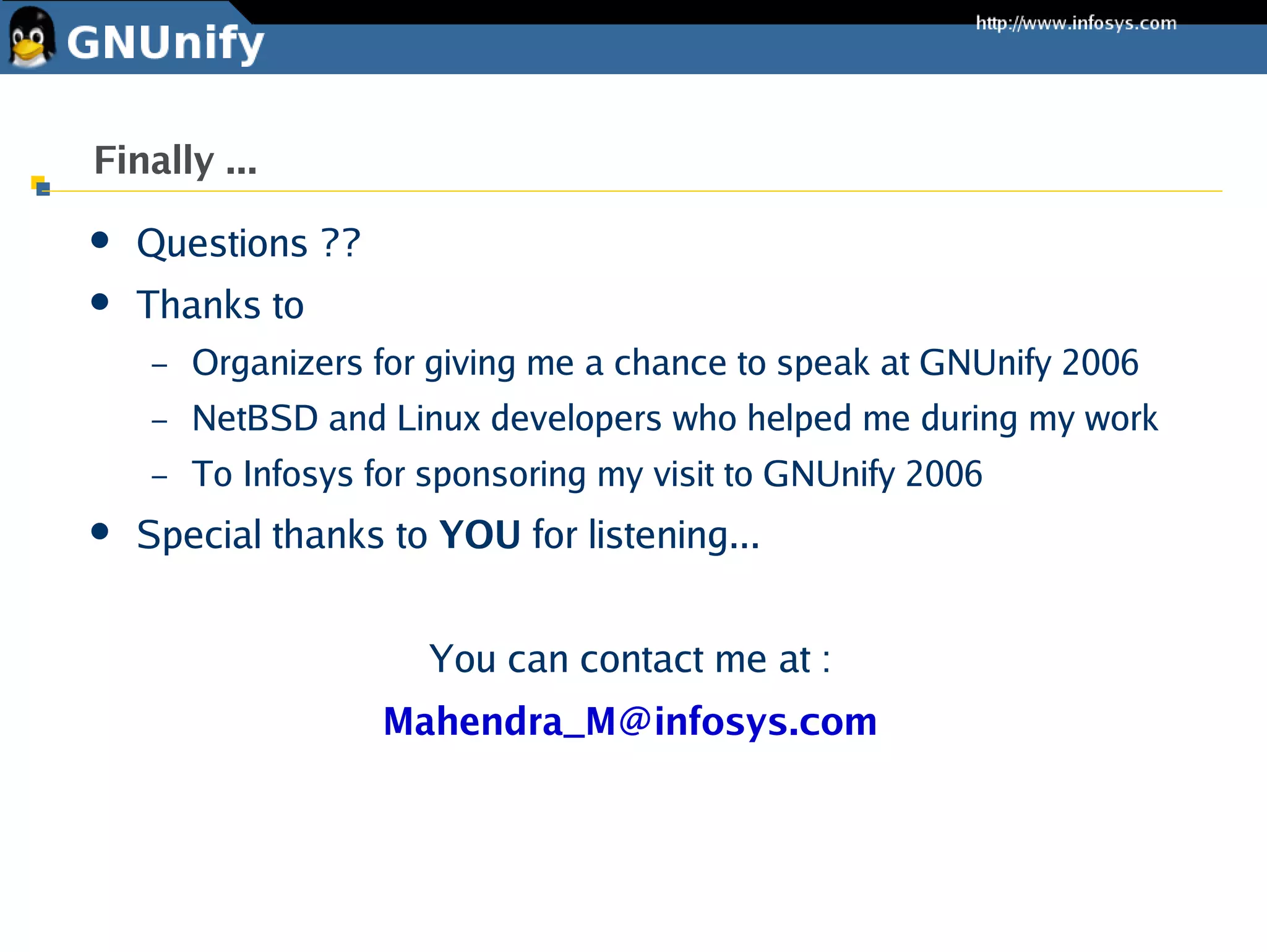

20. Finally ...
 Questions ??
 Thanks to
– Organizers for giving me a chance to speak at GNUnify 2006
– NetBSD and Linux developers who helped me during my work
– To Infosys for sponsoring my visit to GNUnify 2006
 Special thanks to YOU for listening...
You can contact me at :
Mahendra_M@infosys.com
