1. Dave Probert, Ph.D. - Windows Kernel Architect
MicrosoftWindows Division
Copyright Microsoft Corporation

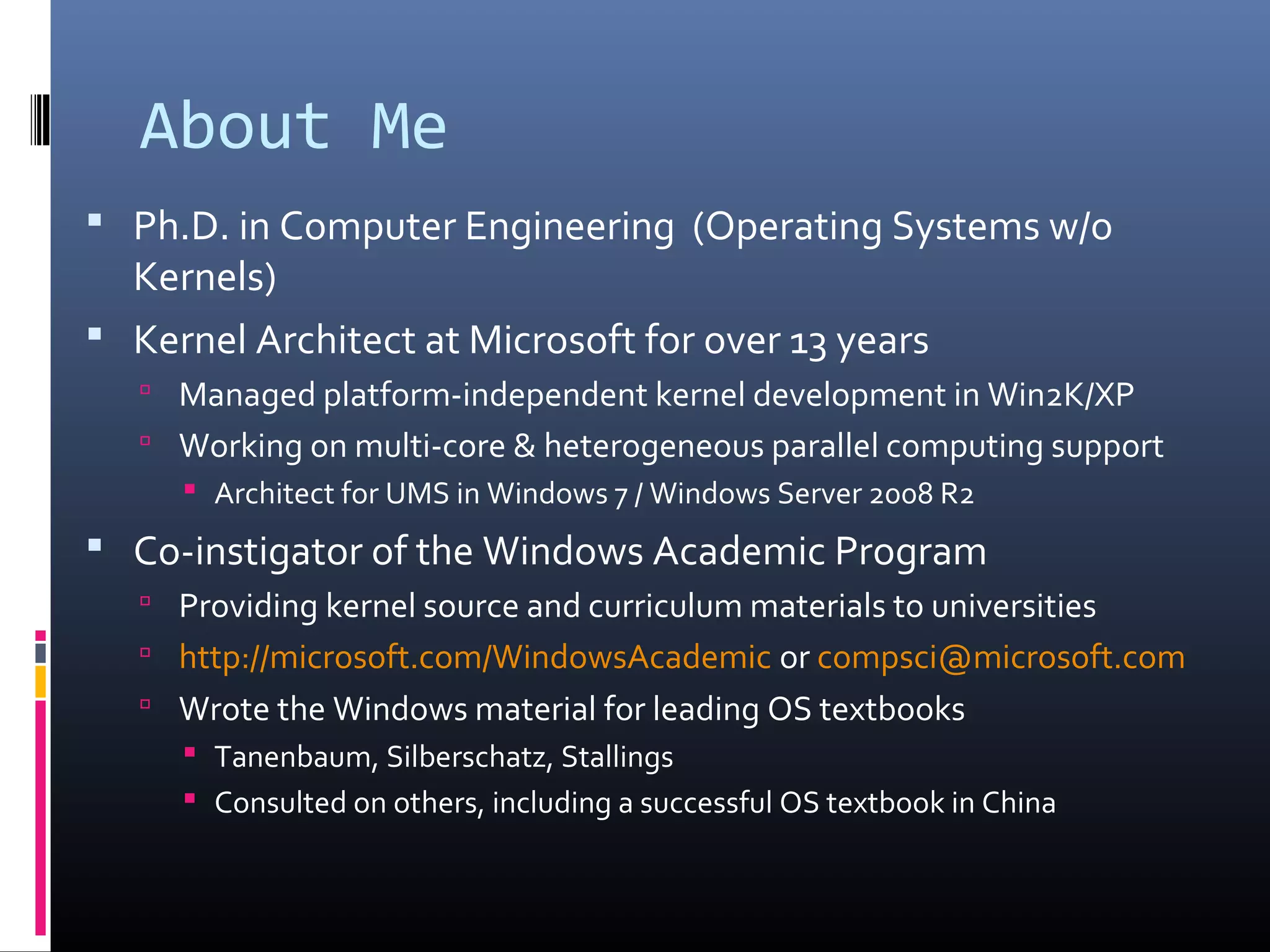

2. About Me
 Ph.D. in Computer Engineering (Operating Systems w/o
Kernels)
 Kernel Architect at Microsoft for over 13 years
 Managed platform-independent kernel development in Win2K/XP
 Working on multi-core & heterogeneous parallel computing support
 Architect for UMS in Windows 7 / Windows Server 2008 R2
 Co-instigator of the Windows Academic Program
 Providing kernel source and curriculum materials to universities
 http://microsoft.com/WindowsAcademic or compsci@microsoft.com
 Wrote the Windows material for leading OS textbooks
 Tanenbaum, Silberschatz, Stallings
 Consulted on others, including a successful OS textbook in China

3. UNIX vs NT Design Environments
Environment which influenced
fundamental design decisions
UNIX [1969] Windows (NT) [1989]
16-bit program address space
Kbytes of physical memory
Swapping system with memory mapping
Kbytes of disk, fixed disks
Uniprocessor
State-machine based I/O devices
Standalone interactive systems
Small number of friendly users
32-bit program address space
Mbytes of physical memory
Virtual memory
Mbytes of disk, removable disks
Multiprocessor (4-way)
Micro-controller based I/O devices
Client/Server distributed computing
Large, diverse user populations
Copyright Microsoft Corporation

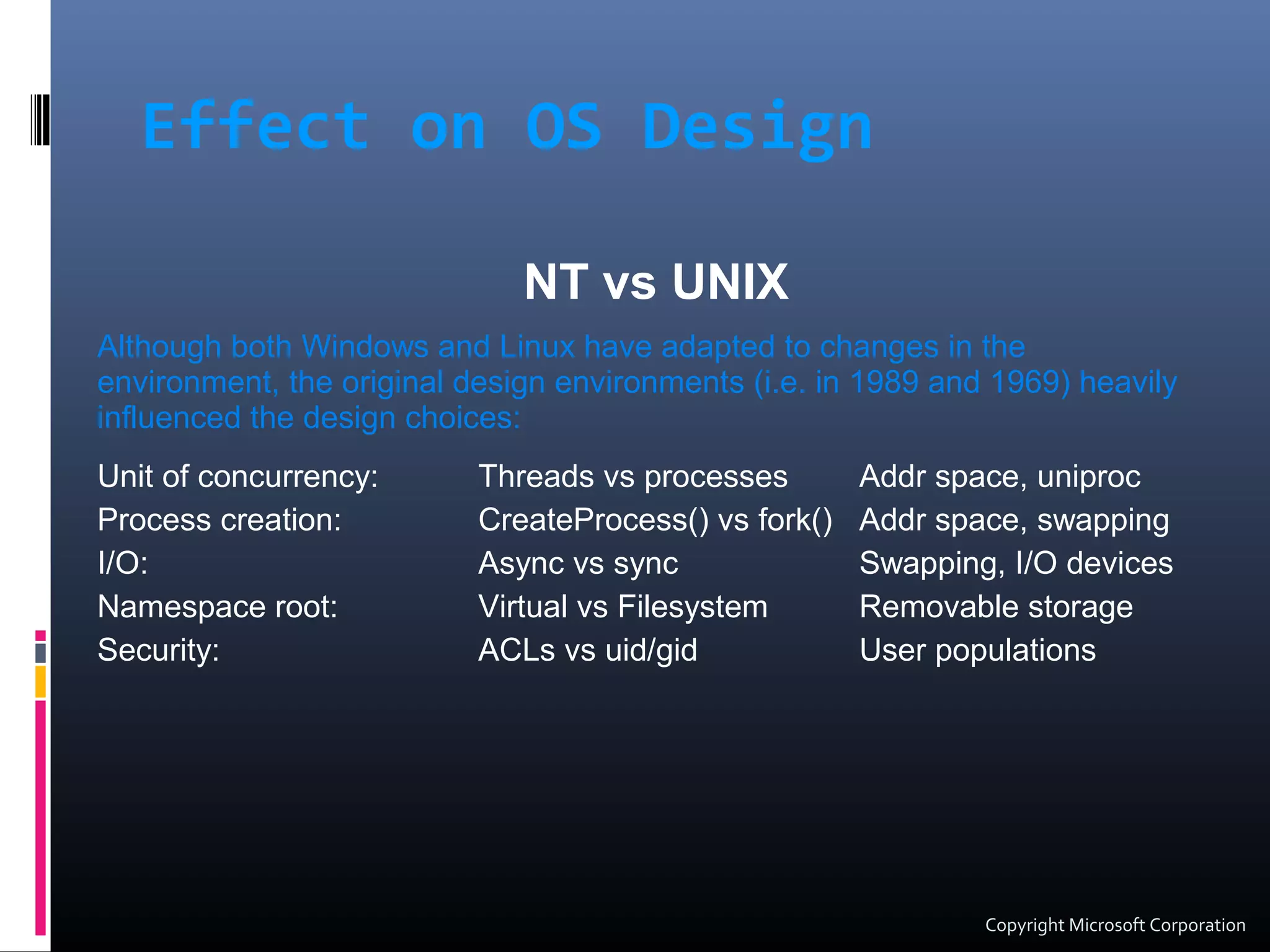

4. Effect on OS Design
NT vs UNIX
Although both Windows and Linux have adapted to changes in the
environment, the original design environments (i.e. in 1989 and 1969) heavily
influenced the design choices:
Unit of concurrency:
Process creation:
I/O:
Namespace root:
Security:
Threads vs processes
CreateProcess() vs fork()
Async vs sync
Virtual vs Filesystem
ACLs vs uid/gid
Addr space, uniproc
Addr space, swapping
Swapping, I/O devices
Removable storage
User populations
Copyright Microsoft Corporation

5. Today’s Environment [2009]
64-bit addresses
GBytes of physical memory
TBytes of rotational disk
New Storage hierarchies (SSDs)
Hypervisors, virtual processors
Multi-core/Many-core
Heterogeneous CPU architectures, Fixed function hardware
High-speed internet/intranet, Web Services
Media-rich applications
Single user, but vulnerable to hackers worldwide
Convergence: Smartphone / Netbook / Laptop / Desktop / TV / Web / Cloud
Copyright Microsoft Corporation

6. Windows Architecture
hardware interfaces (buses, I/O devices, interrupts,
interval timers, DMA, memory cache control, etc., etc.)
System Service Dispatcher
Task Manager
Explorer
SvcHost.Exe
WinMgt.Exe
SpoolSv.Exe
Service
Control Mgr.
LSASS
Object
Mgr.
Windows
USER,
GDI
File
System
Cache
I/O Mgr
Environment
Subsystems
User
Application
Subsystem DLLs
System Processes Services Applications
System
Threads
User
Mode
Kernel
Mode
NTDLL.DLL
Device &
File Sys.
Drivers
WinLogon
Session Manager
Services.Exe POSIX
Windows DLLs
Plugand
PlayMgr.
Power
Mgr.
Security
Reference
Monitor
Virtual
Memory
Processes
&
Threads
Local
Procedure
Call
Graphics
Drivers
Kernel
Hardware Abstraction Layer (HAL)
(kernel mode callable interfaces)
Configura-
tionMgr
(registry)
OS/2
Windows
Copyright Microsoft Corporation

7. Kernel-mode Architecture of
Windows
Copyright Microsoft Corporation
NT API stubs (wrap sysenter) -- system library (ntdll.dll)
user
mode
kernel
mode
NTOS executive layer
Trap/Exception/Interrupt Dispatch
CPU mgmt: scheduling, synchr, ISRs/DPCs/APCs
Drivers
Devices, Filters,
Volumes,
Networking,
Graphics
Hardware Abstraction Layer (HAL): BIOS/chipset details
firmware/
hardware CPU, MMU, APIC, BIOS/ACPI, memory, devices
NTOS
kernel
layer
Caching Mgr
Security
Procs/Threads
Virtual Memory
IPC
glue
I/O
Object Mgr
Registry
Copyright Microsoft Corporation

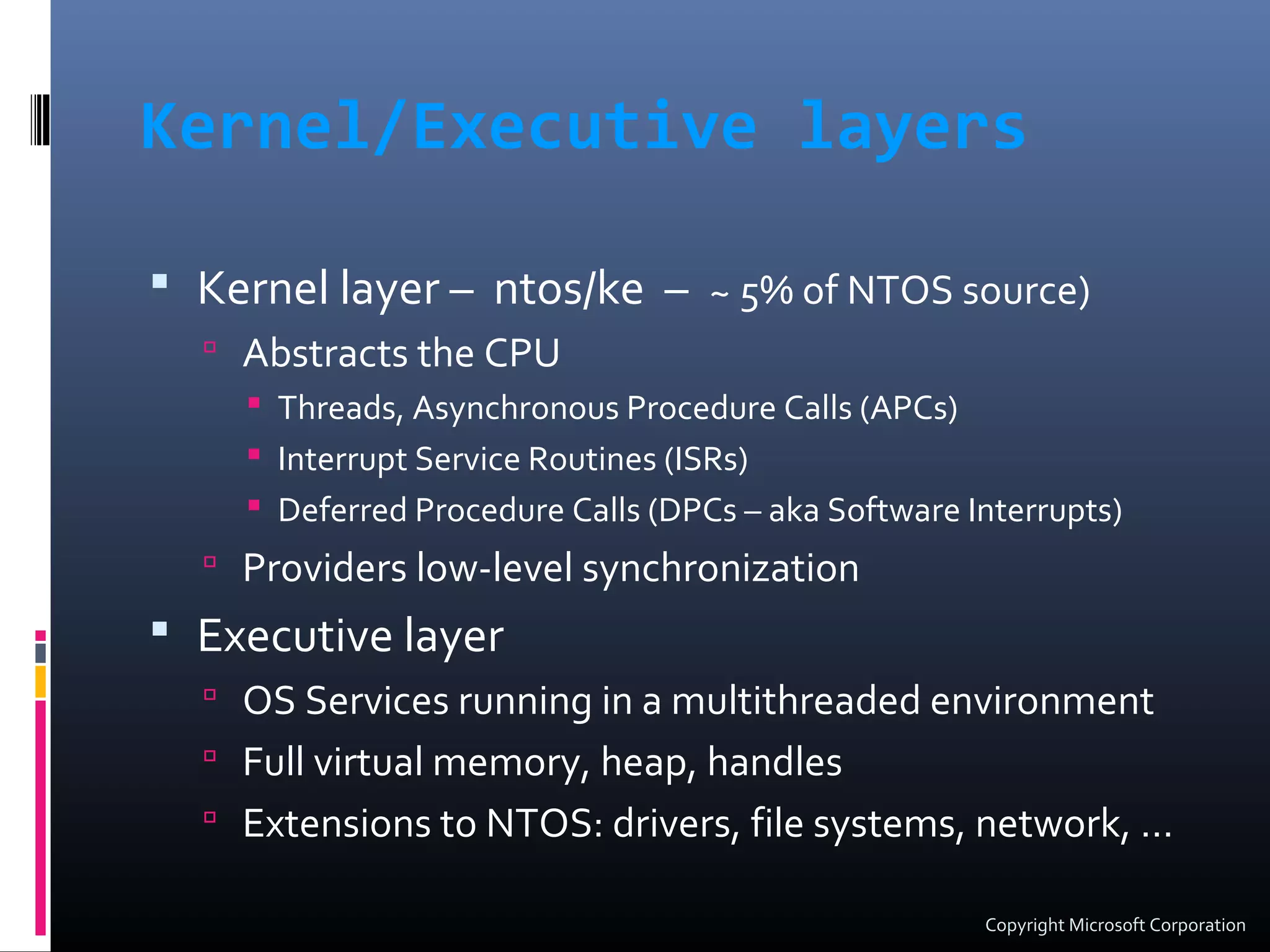

8. Kernel/Executive layers
 Kernel layer – ntos/ke – ~ 5% of NTOS source)
 Abstracts the CPU
 Threads, Asynchronous Procedure Calls (APCs)
 Interrupt Service Routines (ISRs)
 Deferred Procedure Calls (DPCs – aka Software Interrupts)
 Providers low-level synchronization
 Executive layer
 OS Services running in a multithreaded environment
 Full virtual memory, heap, handles
 Extensions to NTOS: drivers, file systems, network, …
Copyright Microsoft Corporation

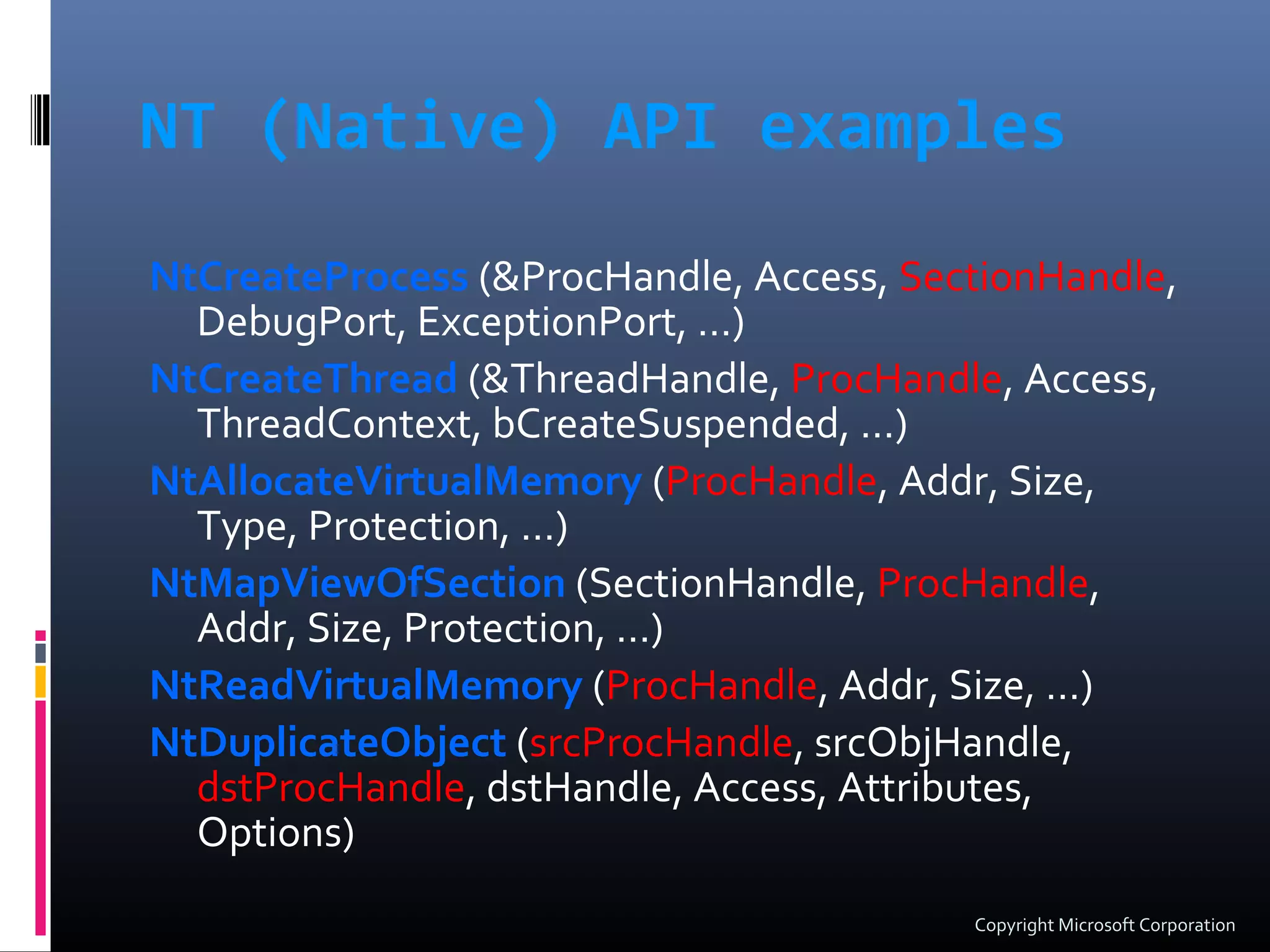

9. NT (Native) API examples
NtCreateProcess (&ProcHandle, Access, SectionHandle,
DebugPort, ExceptionPort, …)
NtCreateThread (&ThreadHandle, ProcHandle, Access,
ThreadContext, bCreateSuspended, …)
NtAllocateVirtualMemory (ProcHandle, Addr, Size,
Type, Protection, …)
NtMapViewOfSection (SectionHandle, ProcHandle,
Addr, Size, Protection, …)
NtReadVirtualMemory (ProcHandle, Addr, Size, …)
NtDuplicateObject (srcProcHandle, srcObjHandle,
dstProcHandle, dstHandle, Access, Attributes,
Options)
Copyright Microsoft Corporation

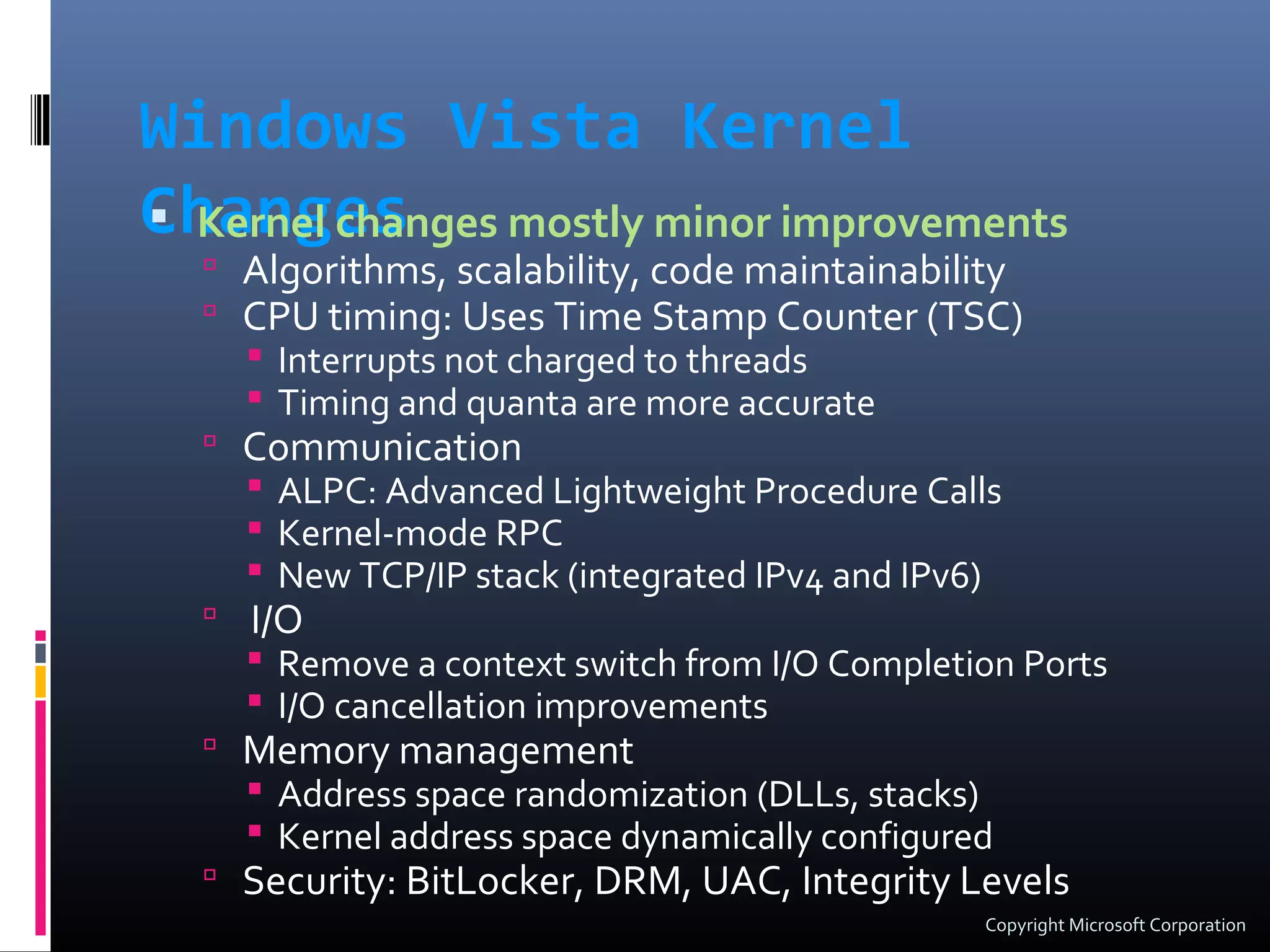

10. Windows Vista Kernel
Changes Kernel changes mostly minor improvements
 Algorithms, scalability, code maintainability
 CPU timing: Uses Time Stamp Counter (TSC)
 Interrupts not charged to threads
 Timing and quanta are more accurate
 Communication
 ALPC: Advanced Lightweight Procedure Calls
 Kernel-mode RPC
 New TCP/IP stack (integrated IPv4 and IPv6)
 I/O
 Remove a context switch from I/O Completion Ports
 I/O cancellation improvements
 Memory management
 Address space randomization (DLLs, stacks)
 Kernel address space dynamically configured
 Security: BitLocker, DRM, UAC, Integrity Levels
Copyright Microsoft Corporation

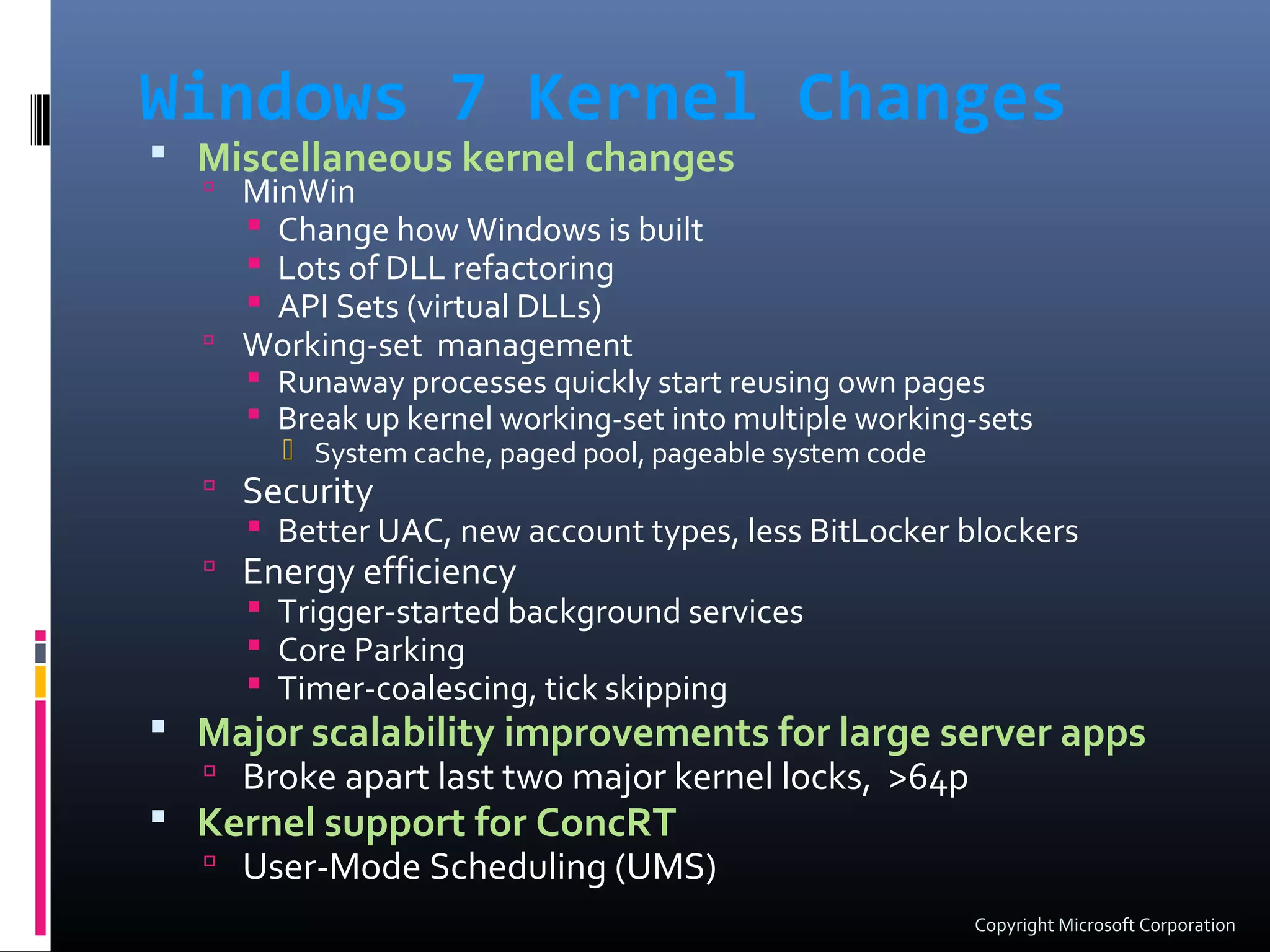

11. Windows 7 Kernel Changes
 Miscellaneous kernel changes
 MinWin
 Change how Windows is built
 Lots of DLL refactoring
 API Sets (virtual DLLs)
 Working-set management
 Runaway processes quickly start reusing own pages
 Break up kernel working-set into multiple working-sets
 System cache, paged pool, pageable system code
 Security
 Better UAC, new account types, less BitLocker blockers
 Energy efficiency
 Trigger-started background services
 Core Parking
 Timer-coalescing, tick skipping
 Major scalability improvements for large server apps
 Broke apart last two major kernel locks, >64p
 Kernel support for ConcRT
 User-Mode Scheduling (UMS)
Copyright Microsoft Corporation

12. MinWin
 MinWin is first step at creating architectural
partitions
 Can be built, booted and tested separately from the rest of the
system
 Higher layers can evolve independently
 An engineering process improvement, not a microkernel NT!
 MinWin was defined as set of components required to
boot and access network
 Kernel, file system driver, TCP/IP stack, device drivers, services
 No servicing, WMI, graphics, audio or shell, etc, etc, etc
 MinWin footprint:
 150 binaries, 25MB on disk, 40MB in-memory

13. MinWin Layering
Shell,
Graphics,
Multimedia,
Layered Services,
Applets,
Etc.
Kernel,
HAL,
TCP/IP,
File Systems,
Drivers,
Core System Services
MinWin

14. Timer Coalescing
 Secret of energy efficiency: Go idle and Stay idle
 Staying idle requires minimizing timer interrupts
 Before, periodic timers had independent cycles even when period
was the same
 New timer APIs permit timer coalescing
 Application or driver specifies tolerable delay
 Timer system shifts timer firing
MarkRuss

15. Broke apart the Dispatcher
Lock Scheduler Dispatcher lock hottest on server workloads
 Lock protects all thread state changes (wait, unwait)
 Very lock at >64x
 Dispatcher lock broken up inWindows 7 / Server 2008 R2
 Each object protected by its own lock
 Many operations are lock-free
Copyright Microsoft Corporation

16. Removed PFN Lock
 Windows tracks the state of pages in physical memory
 In use: in working sets:
 Not assigned: on paging lists: freemodified, standby, …
 Before, all page state changes protected by global PFN
(Physical Frame Number) lock
 As of Windows 7 the PFN lock is gone
 Pages are now locked individually
 Improves scalability for large memory applications
Copyright Microsoft Corporation

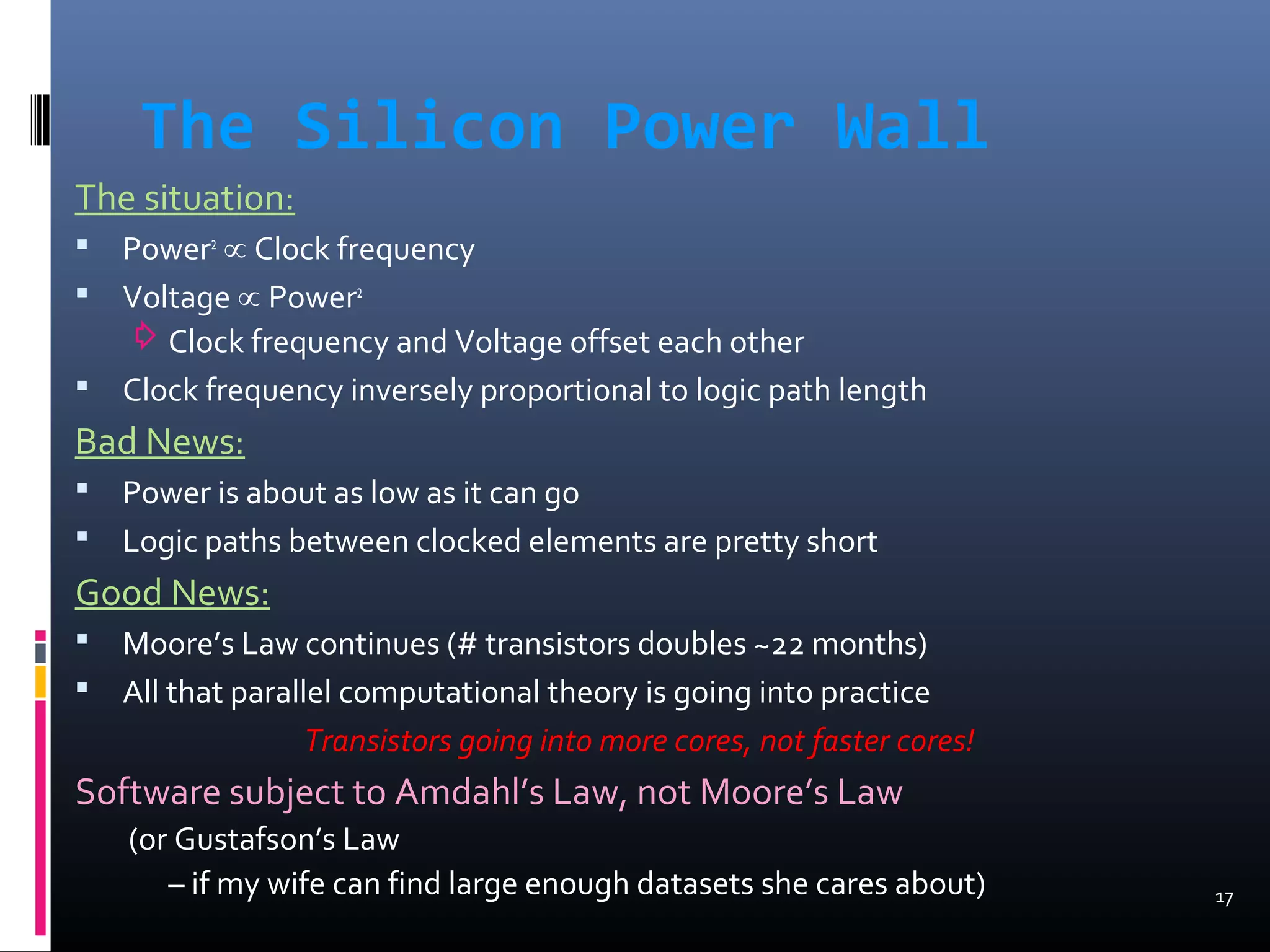

17. The Silicon Power Wall
The situation:
 Power2
∝ Clock frequency
 Voltage ∝ Power2
⇨Clock frequency and Voltage offset each other
 Clock frequency inversely proportional to logic path length
Bad News:
 Power is about as low as it can go
 Logic paths between clocked elements are pretty short
Good News:
 Moore’s Law continues (# transistors doubles ~22 months)
 All that parallel computational theory is going into practice
Transistors going into more cores, not faster cores!
Software subject to Amdahl’s Law, not Moore’s Law
(or Gustafson’s Law
– if my wife can find large enough datasets she cares about) 17

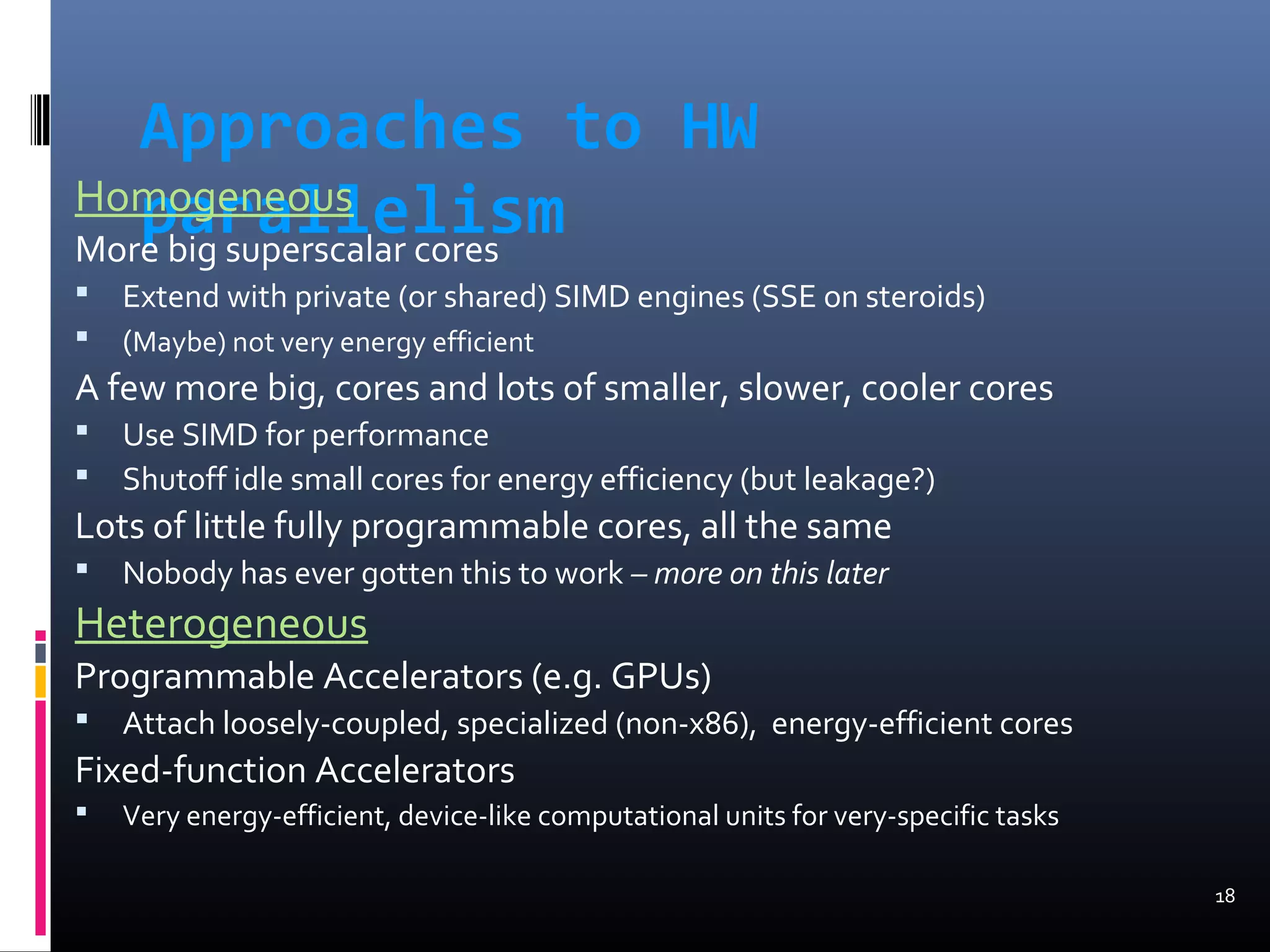

18. Approaches to HW
parallelismHomogeneous
More big superscalar cores
 Extend with private (or shared) SIMD engines (SSE on steroids)
 (Maybe) not very energy efficient
A few more big, cores and lots of smaller, slower, cooler cores
 Use SIMD for performance
 Shutoff idle small cores for energy efficiency (but leakage?)
Lots of little fully programmable cores, all the same
 Nobody has ever gotten this to work – more on this later
Heterogeneous
Programmable Accelerators (e.g. GPUs)
 Attach loosely-coupled, specialized (non-x86), energy-efficient cores
Fixed-function Accelerators
 Very energy-efficient, device-like computational units for very-specific tasks
18

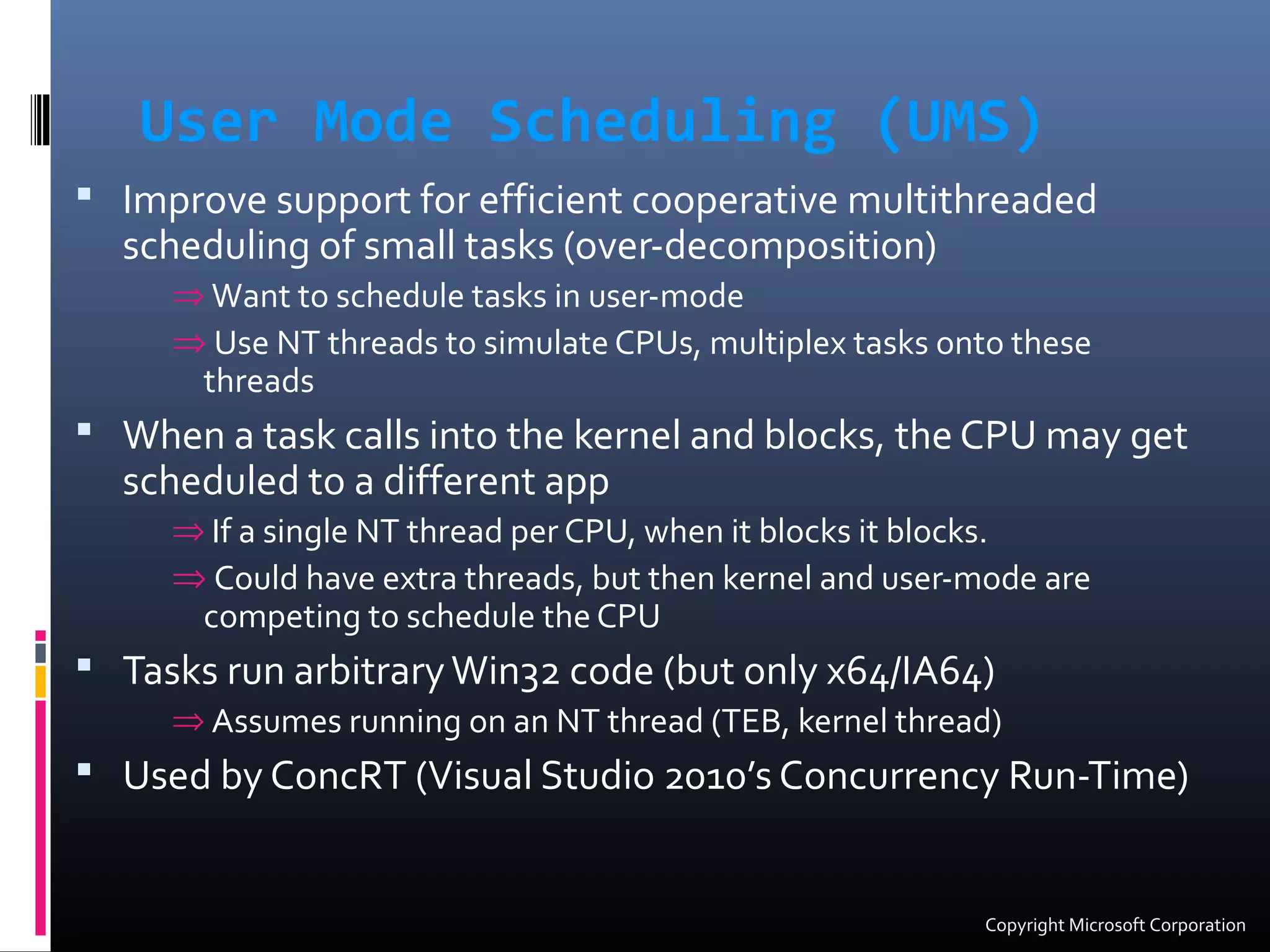

19. User Mode Scheduling (UMS)
 Improve support for efficient cooperative multithreaded
scheduling of small tasks (over-decomposition)
⇒ Want to schedule tasks in user-mode
⇒ Use NT threads to simulate CPUs, multiplex tasks onto these
threads
 When a task calls into the kernel and blocks, the CPU may get
scheduled to a different app
⇒ If a single NT thread per CPU, when it blocks it blocks.
⇒ Could have extra threads, but then kernel and user-mode are
competing to schedule the CPU
 Tasks run arbitraryWin32 code (but only x64/IA64)
⇒ Assumes running on an NT thread (TEB, kernel thread)
 Used by ConcRT (Visual Studio 2010’s Concurrency Run-Time)
Copyright Microsoft Corporation

20. Windows 7 User-Mode Scheduling
 UMS breaks NT thread into two parts:
 UT: user-mode portion (TEB, ustack, registers)
 KT: kernel-mode portion (ETHREAD, kstack, registers)
 Three key properties:
 User-mode scheduler switches UTs w/o ring crossing
 KT switch is lazy: at kernel entry (e.g. syscall, pagefault)
 CPU returned to user-mode scheduler when KT blocks
 KT “returns” to user-mode by queuing completion
 User-mode scheduler schedules corresponding UT
 (similar to scheduler activations, etc)
Copyright Microsoft Corporation

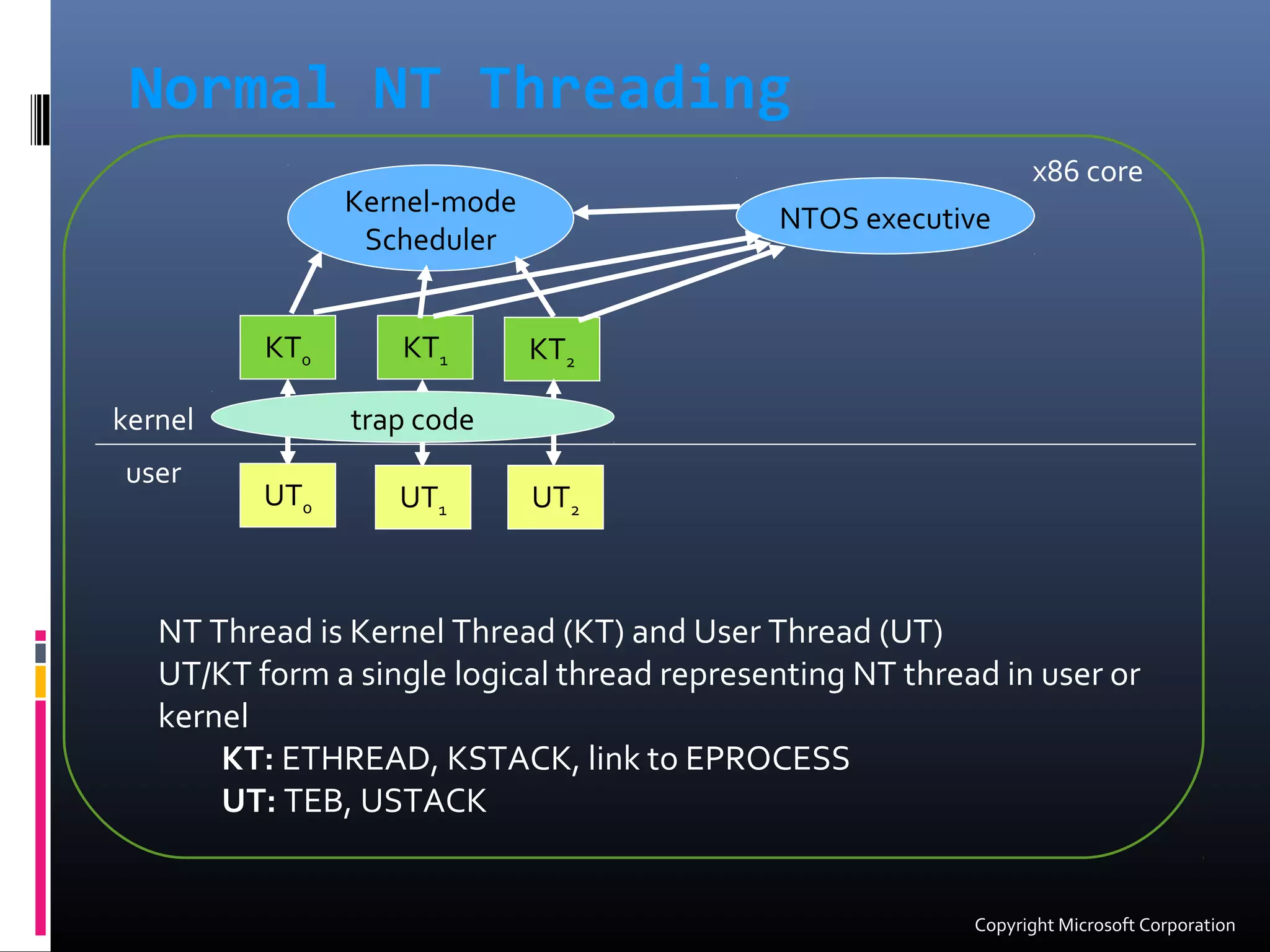

21. Normal NT Threading
kernel
user
KT0 KT1 KT2
UT2UT1
UT0
Kernel-mode
Scheduler
NTOS executive
trap code
NT Thread is Kernel Thread (KT) and User Thread (UT)
UT/KT form a single logical thread representing NT thread in user or
kernel
KT: ETHREAD, KSTACK, link to EPROCESS
UT: TEB, USTACK
x86 core
Copyright Microsoft Corporation

22. User-Mode Scheduling (UMS)
kernel
user
Thread Parking
KT0 KT1 KT2
UT Completion list
Primary
Thread
UT0
UT1
UT0
User-mode
Scheduler
trap code
NTOS executive
KT0 blocks
Only primary thread runs in user-mode
Trap code switches to parked KT
KT blocks ⇒ primary returns to user-mode
KT unblocks & parks ⇒ queue UT completion
Copyright Microsoft Corporation

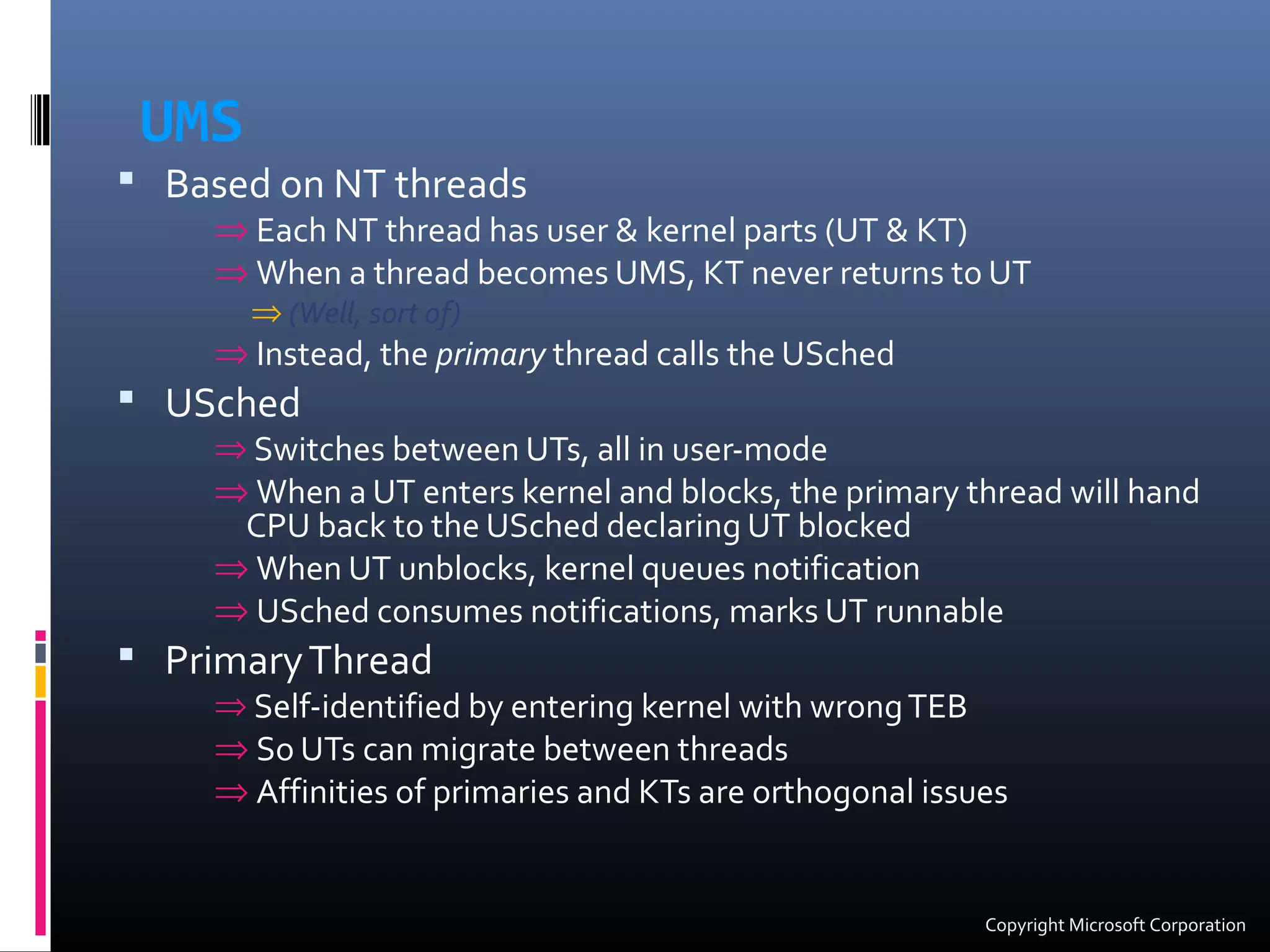

23. UMS
 Based on NT threads
⇒ Each NT thread has user & kernel parts (UT & KT)
⇒ When a thread becomes UMS, KT never returns to UT
⇒ (Well, sort of)
⇒ Instead, the primary thread calls the USched
 USched
⇒ Switches between UTs, all in user-mode
⇒ When a UT enters kernel and blocks, the primary thread will hand
CPU back to the USched declaring UT blocked
⇒ When UT unblocks, kernel queues notification
⇒ USched consumes notifications, marks UT runnable
 PrimaryThread
⇒ Self-identified by entering kernel with wrongTEB
⇒ So UTs can migrate between threads
⇒ Affinities of primaries and KTs are orthogonal issues
Copyright Microsoft Corporation

24. UMS Thread Roles
 Primary threads: represent CPUs, normal app threads enter the
USched world and become primaries, primaries also can be created
by UScheds to allow parallel execution
 Primaries represent concurrent execution
 UMS threads (UT/KTs): allow blocking in the kernel without losing
the CPU
 UMS thread represent concurrent blocking in kernel
Copyright Microsoft Corporation

25. Thread Scheduling vs UMS
Core 2
Thread
3
Non-running threads
Core 1
Thread
4
Thread
5
Thread
1
Thread
2
Thread
6
Core 2Core 1
User
Thread
2
Kernel
Thread
2
User
Thread
1
Kernel
Thread
1
User
Thread
3
Kernel
Thread
3
User
Thread
4
Kernel
Thread
4
User
Thread
5
Kernel
Thread
5
User
Thread
6
Kernel
Thread
6
MarkRuss

26. Win32 compat considerations
Why not Win32 fibers?
 TEB issues
⇒ ContainsTLS andWin32-specific fields (incl LastError)
⇒ Fibers run on multiple threads, soTEB state doesn’t track
 Kernel thread issues
⇒ Visibility toTEB
⇒ I/O is queued to thread
⇒ Mutexes record thread owner
⇒ Impersonation
⇒ Cross-thread operations expect to find threads and IDs
⇒ Win32 code has thread and affinity awareness
Copyright Microsoft Corporation

27. Futures: Master/Slave UMS?
remote kernel
Remote x86
Thread Parking
KT0 KT1 KT2
UT2
UT1
Remote
Scheduler
trap code
NTOS executiveKernel-mode
Scheduler
Syscall Completion QueueSyscall Request Queue
UT0
x86 core
UTs (can) run on accelerators or x86s
KTs run on x86s, syscalls remoted/batched
Pagefaults are just like syscalls
Accelerator never “loses the CPU” (implicit primary)
Copyright Microsoft Corporation

28. Operating Systems Futures
 Many-core challenge
 New driving force in software innovation:
Amdahl’s Law overtakes Moore’s Law as high-order bit
 Heterogeneous cores?
 OS Scalability
 Loosely –coupled OS: mem + cpu + services?
 Energy efficiency
 Shrink-wrap and Freeze-dry applications?
 Hypervisor/Kernel/Runtime relationships
 Move kernel scheduling (cpu/memory) into run-times?
 Move kernel resource management into Hypervisor?
Copyright Microsoft Corporation

29. Windows Academic Program
 Windows Kernel Internals
 Windows kernel in source (Windows Research Kernel –WRK)
 Windows kernel in PowerPoint (Curriculum Resource Kit – CRK)
 Based onWindows Server 2008 Service Pack 1
 Latest kernel at time of release
 First kernel release with AMD64 support
 Joint program betweenWindows Product Group and MS
Academic Groups
 Program directed by Arkady Retik (Need a DVD? Have questions?)
Information available at
 http://microsoft.com/WindowsAcademic OR
 compsci@microsoft.com
 Microsoft Academic Contacts in Buenos Aires
Miguel Saez (masaez@microsoft.com) or
Ezequiel Glinsky (eglinsky@microsoft.com)
Copyright Microsoft Corporation

30. 30
muchas gracias
