1. Microprocessor &
Interfacing
Subject Code : EEE - 323

2. Introduction to Microprocessor & Code
Presenter :
Avijit Adhikary
ID : 173-33-549
MD. Sajib RANA
ID : 173-33-551
Presentation Name

3. Index • Definition of Microprocessor
• Operations of Microprocessor
• Inside of a Microprocessor
• An Executed Code that is performed by
EMU8086 Emulator

4. Definition
What is Microprocessor?
 Microprocessor is an electronic circuit that
functions as the central processing unit
(CPU) of a computer, providing
computational control.
 Microprocessor is the core of the system.
 It called as heart of a computer.

5. Operations

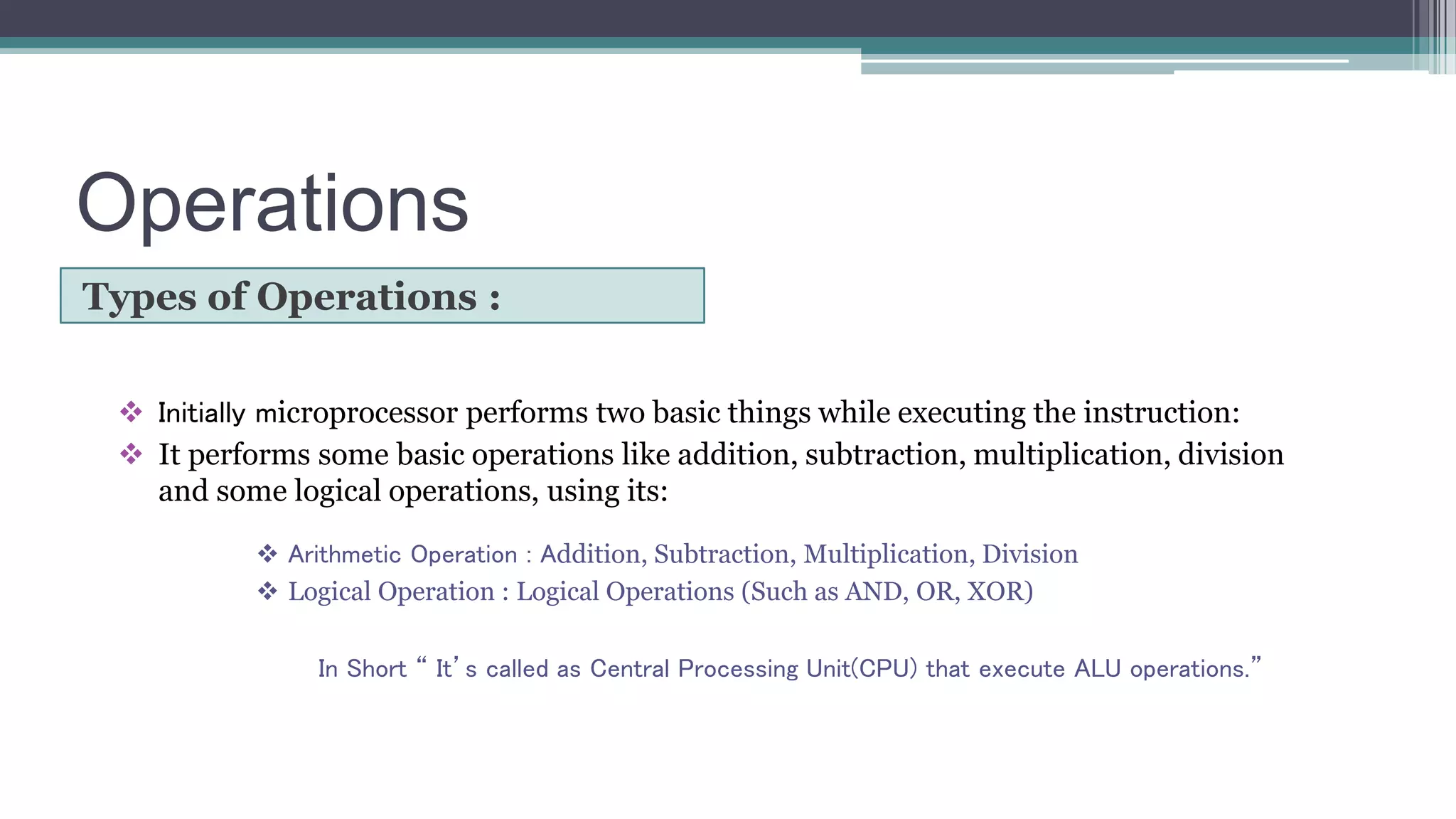

Types of Operations :
 Initially microprocessor performs two basic things while executing the instruction:
 It performs some basic operations like addition, subtraction, multiplication, division
and some logical operations, using its:
 Arithmetic Operation : Addition, Subtraction, Multiplication, Division
 Logical Operation : Logical Operations (Such as AND, OR, XOR)
In Short “ It’s called as Central Processing Unit(CPU) that execute ALU operations.”

6. Inside
Inside of a Microprocessor :
 Internally, the microprocessor is
made up of three main units.
 Arithmetic and Logic Unit (ALU)
 Control Unit
 Array of Registers

7. Executed Code

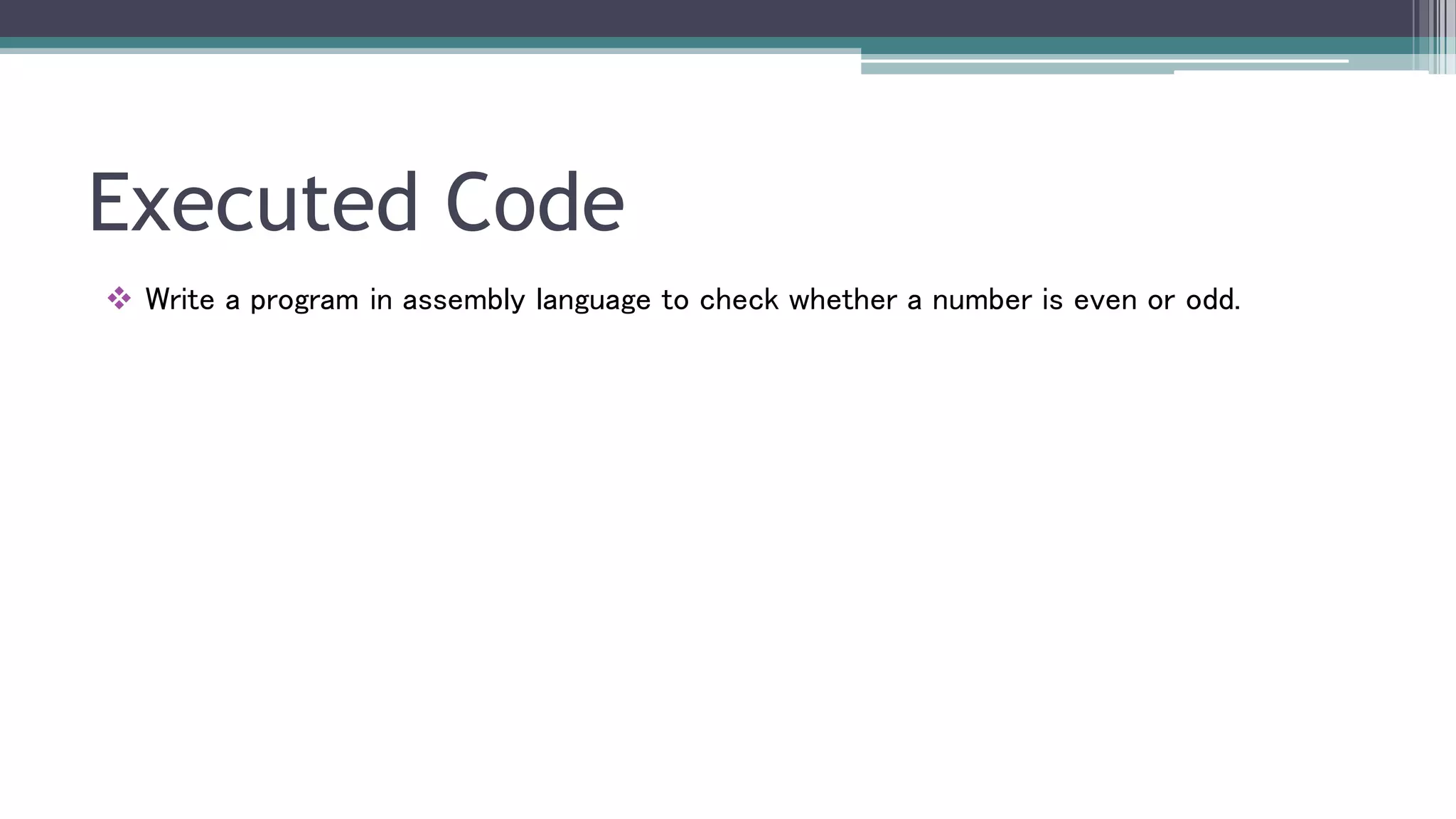

 Write a program in assembly language to check whether a number is even or odd.

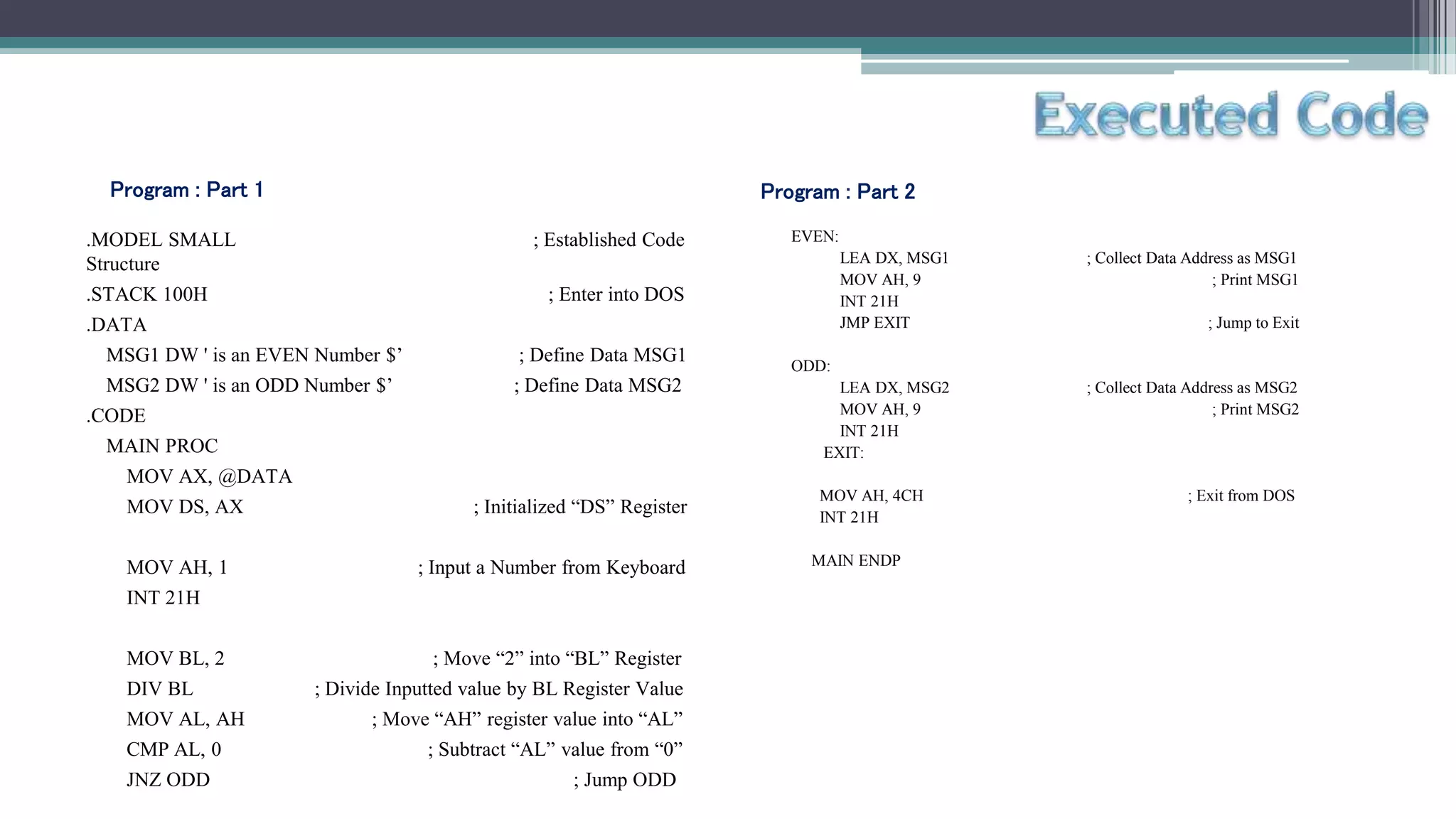

8. .MODEL SMALL ; Established Code
Structure
.STACK 100H ; Enter into DOS
.DATA
MSG1 DW ' is an EVEN Number $’ ; Define Data MSG1
MSG2 DW ' is an ODD Number $’ ; Define Data MSG2
.CODE
MAIN PROC
MOV AX, @DATA
MOV DS, AX ; Initialized “DS” Register
MOV AH, 1 ; Input a Number from Keyboard
INT 21H
MOV BL, 2 ; Move “2” into “BL” Register
DIV BL ; Divide Inputted value by BL Register Value
MOV AL, AH ; Move “AH” register value into “AL”
CMP AL, 0 ; Subtract “AL” value from “0”
JNZ ODD ; Jump ODD
EVEN:
LEA DX, MSG1 ; Collect Data Address as MSG1
MOV AH, 9 ; Print MSG1
INT 21H
JMP EXIT ; Jump to Exit
ODD:
LEA DX, MSG2 ; Collect Data Address as MSG2
MOV AH, 9 ; Print MSG2
INT 21H
EXIT:
MOV AH, 4CH ; Exit from DOS
INT 21H
MAIN ENDP
Program : Part 1 Program : Part 2

9. Executed Code

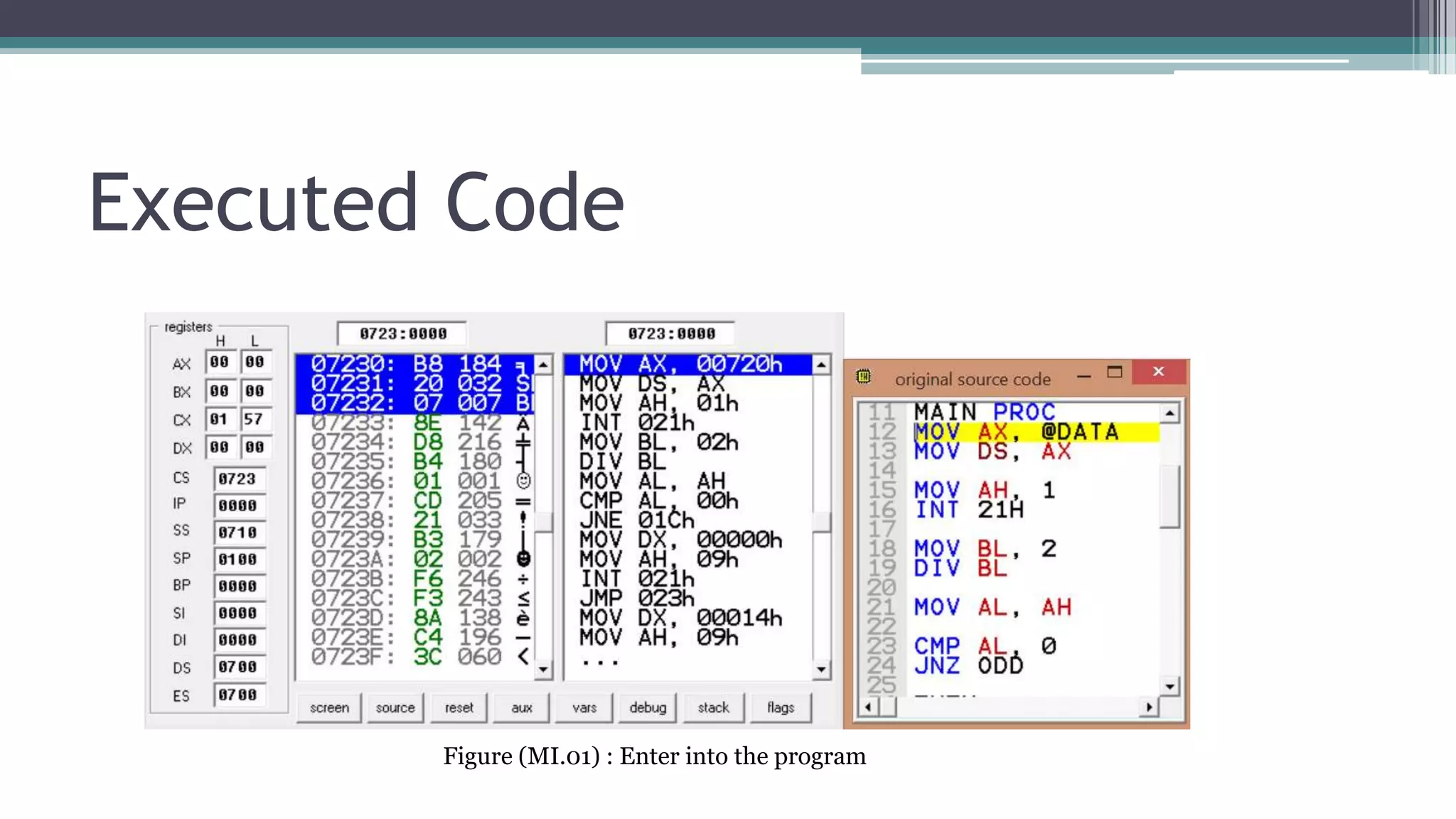

Figure (MI.01) : Enter into the program

10. Executed Code

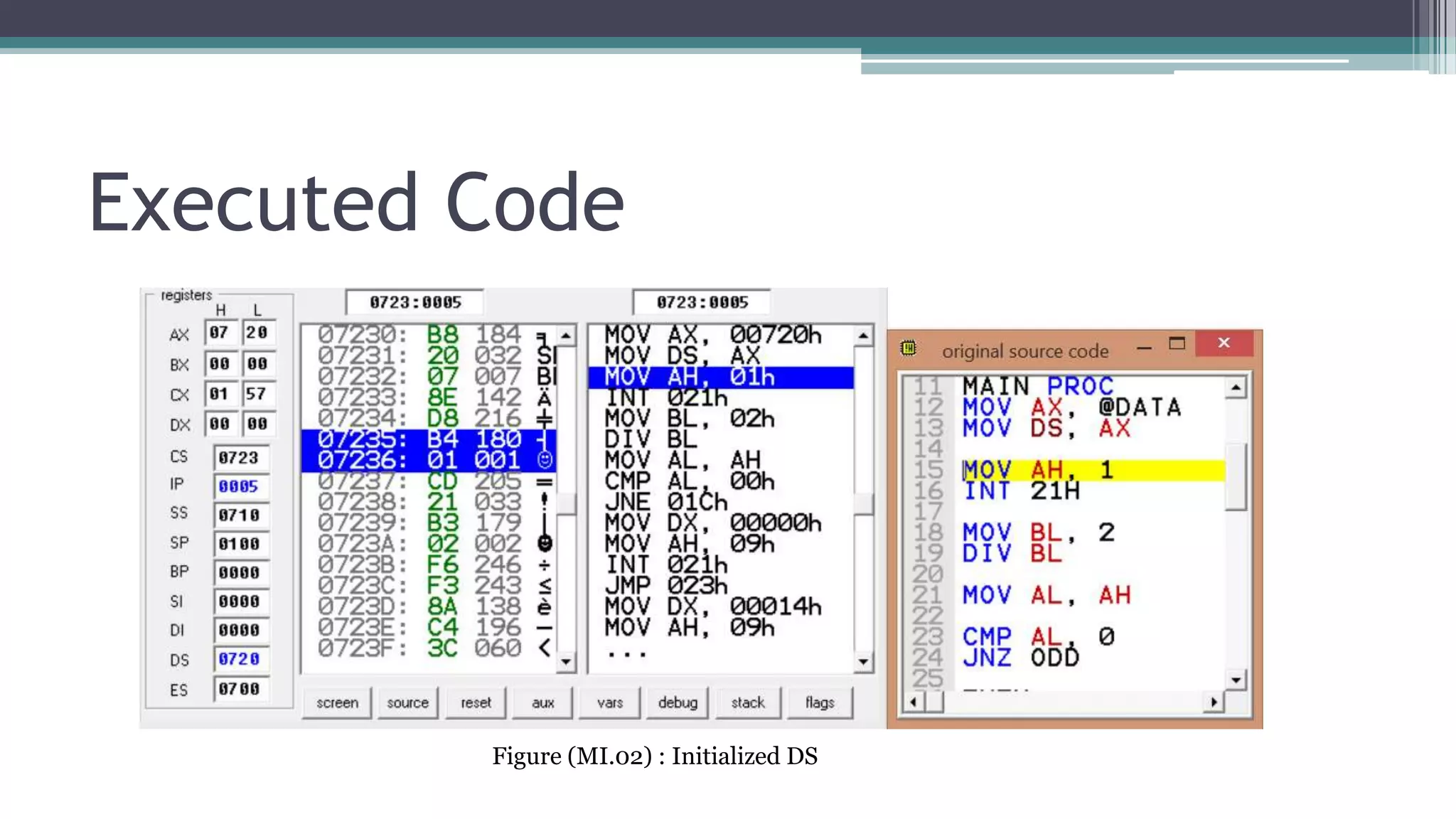

Figure (MI.02) : Initialized DS

11. Executed Code

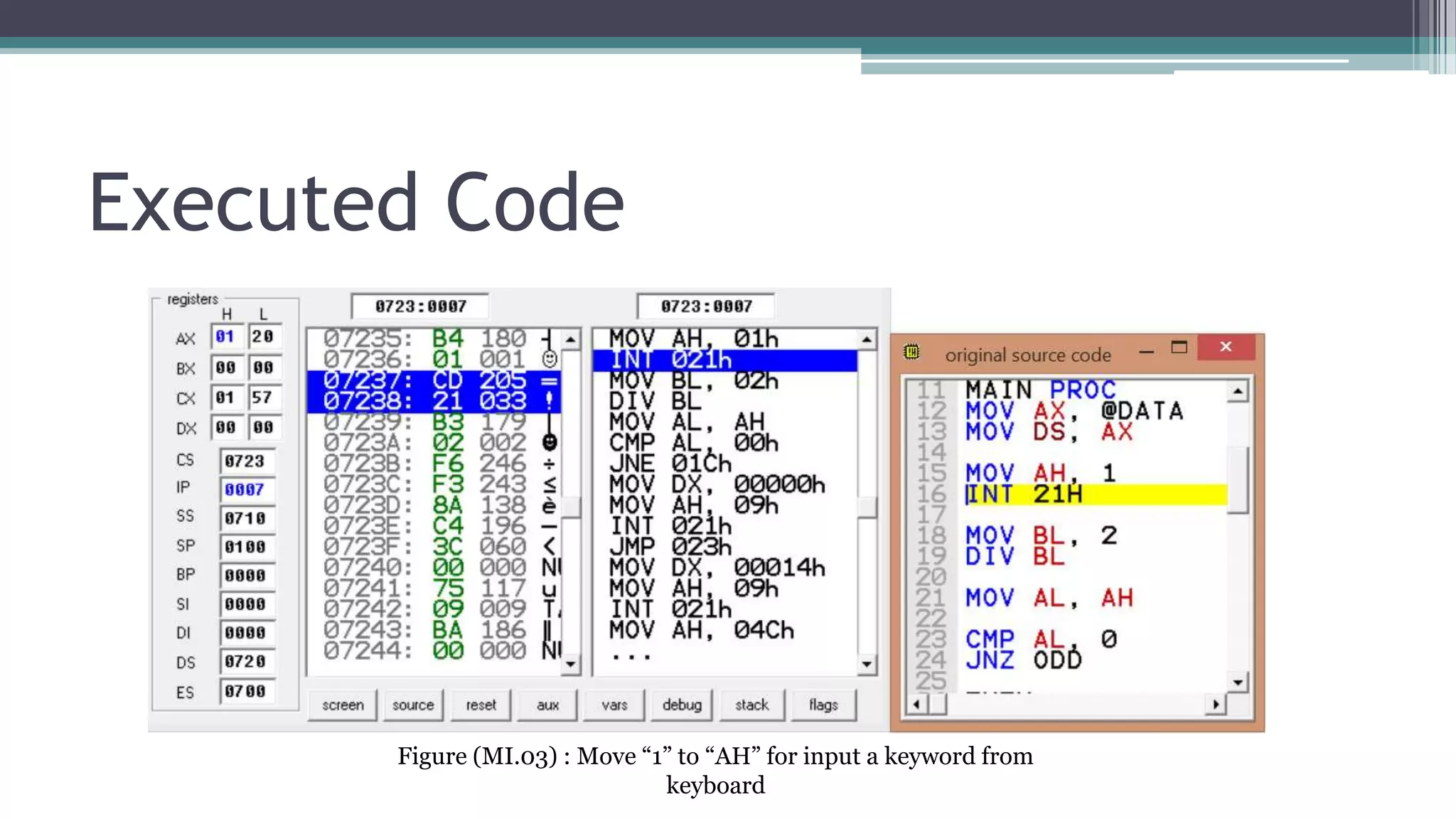

Figure (MI.03) : Move “1” to “AH” for input a keyword from
keyboard

12. Executed Code

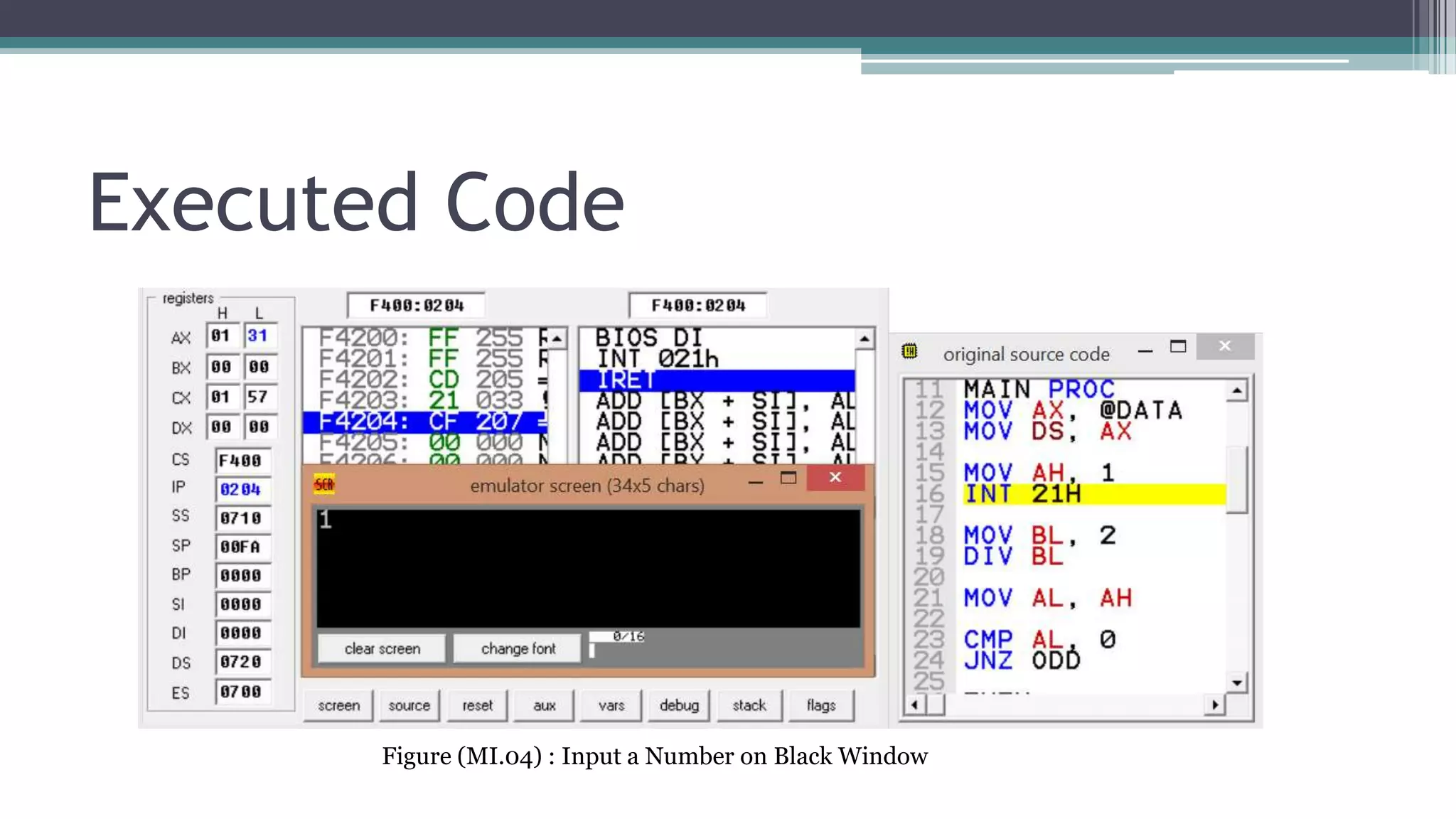

Figure (MI.04) : Input a Number on Black Window

13. Executed Code

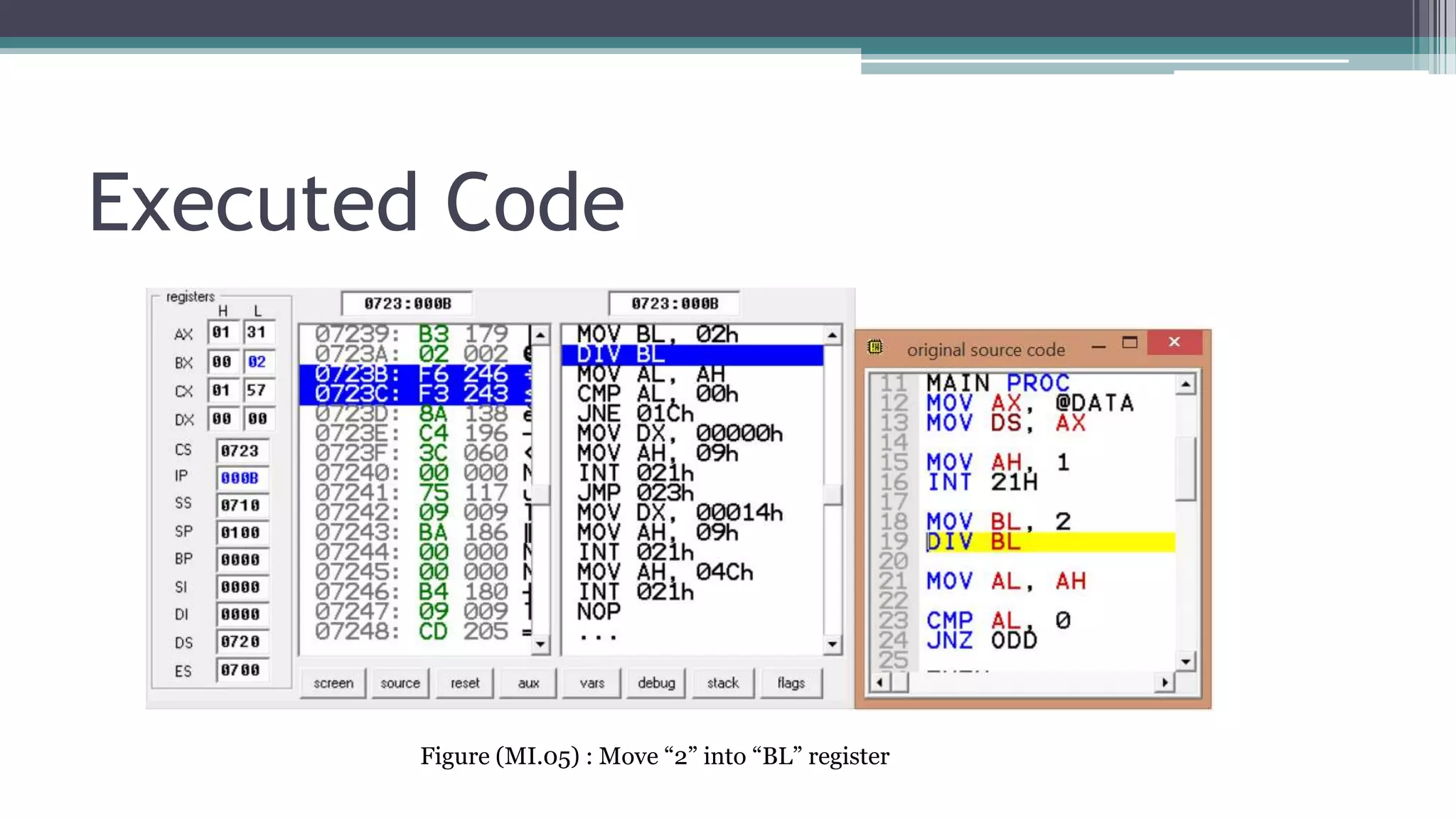

Figure (MI.05) : Move “2” into “BL” register

14. Executed Code

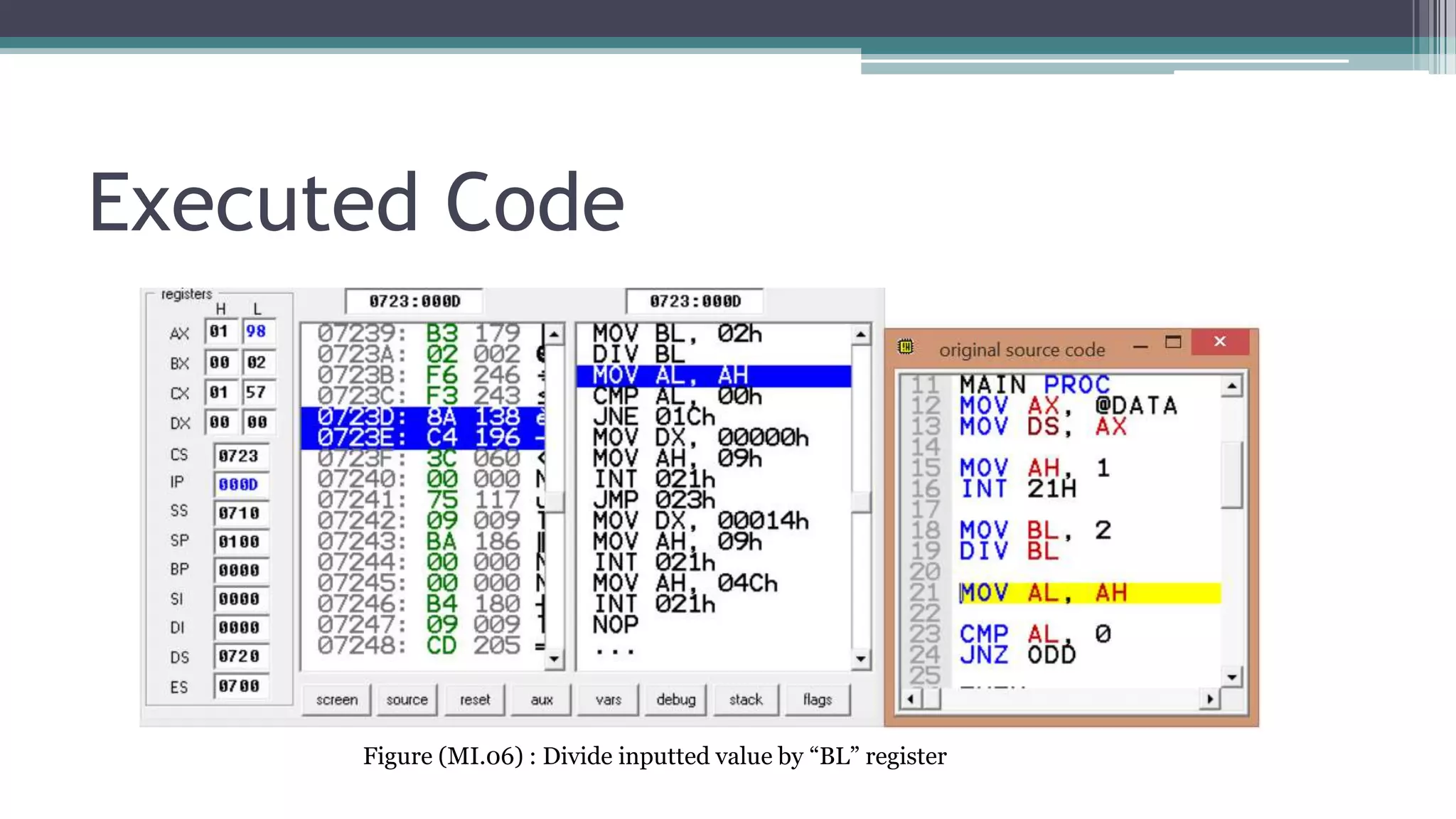

Figure (MI.06) : Divide inputted value by “BL” register

15. Executed Code
Figure (MI.07) : Move “AH” register Value into “AL”
Register

16. Executed Code

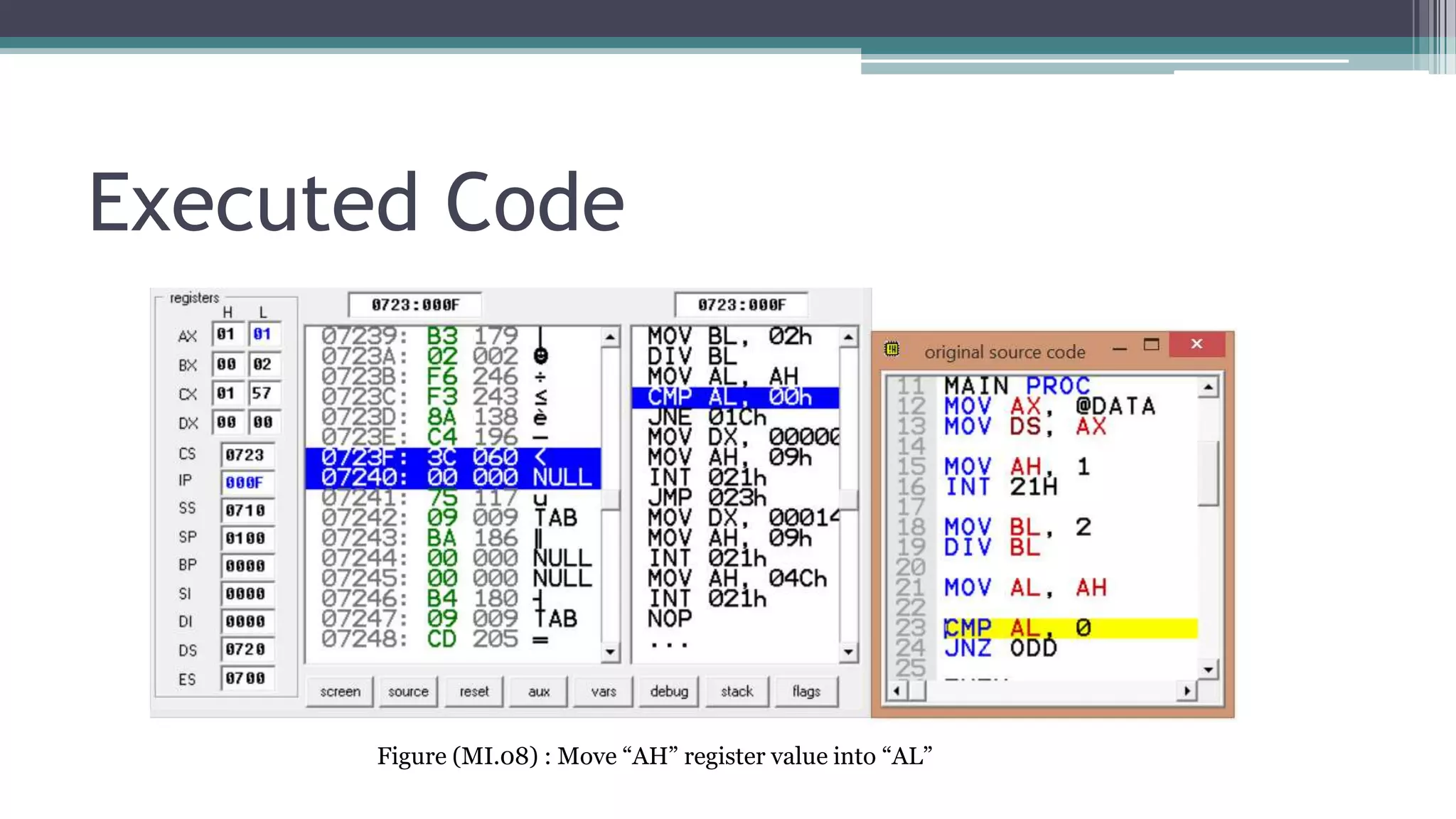

Figure (MI.08) : Move “AH” register value into “AL”

17. Executed Code

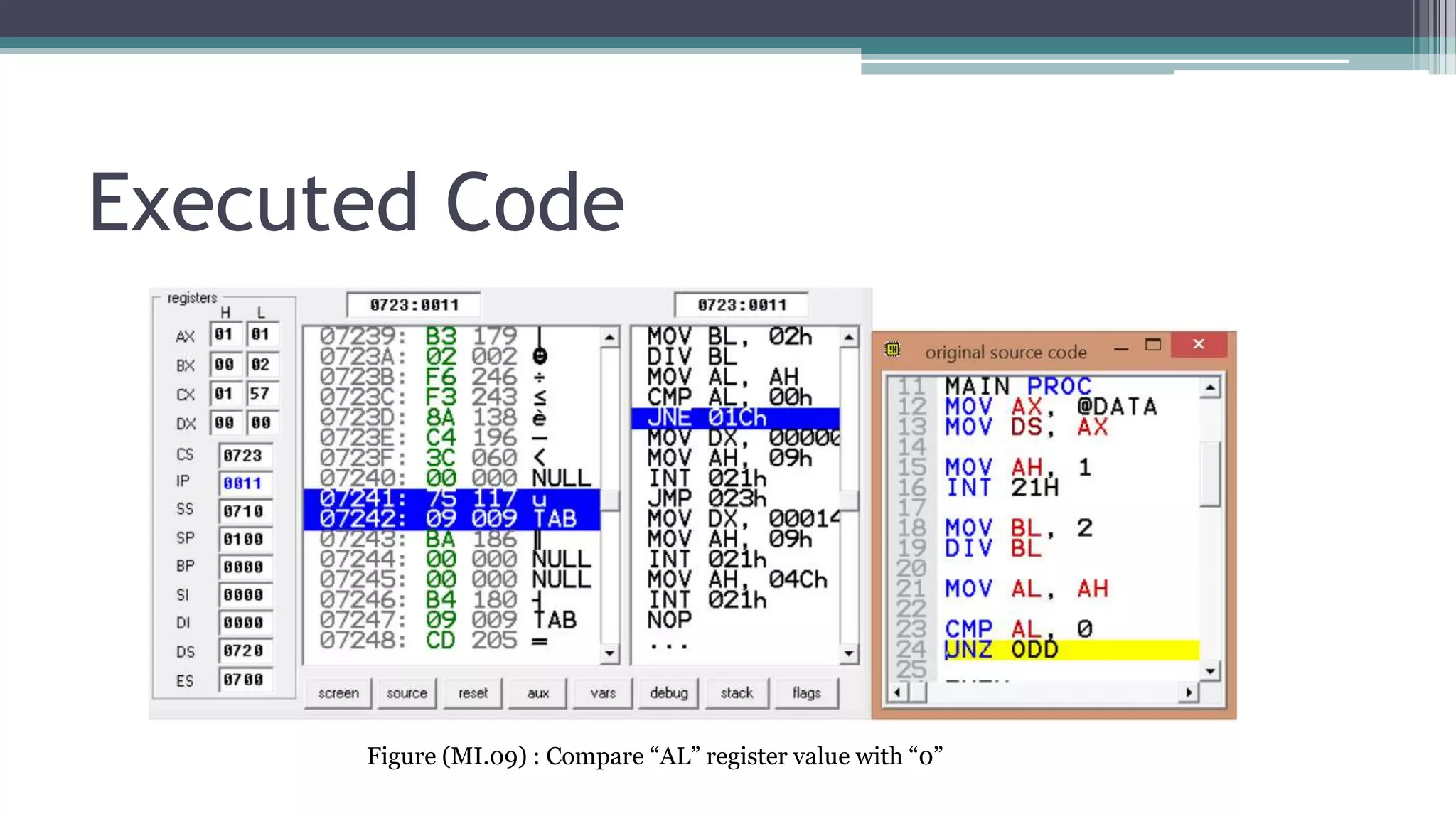

Figure (MI.09) : Compare “AL” register value with “0”

18. Executed Code

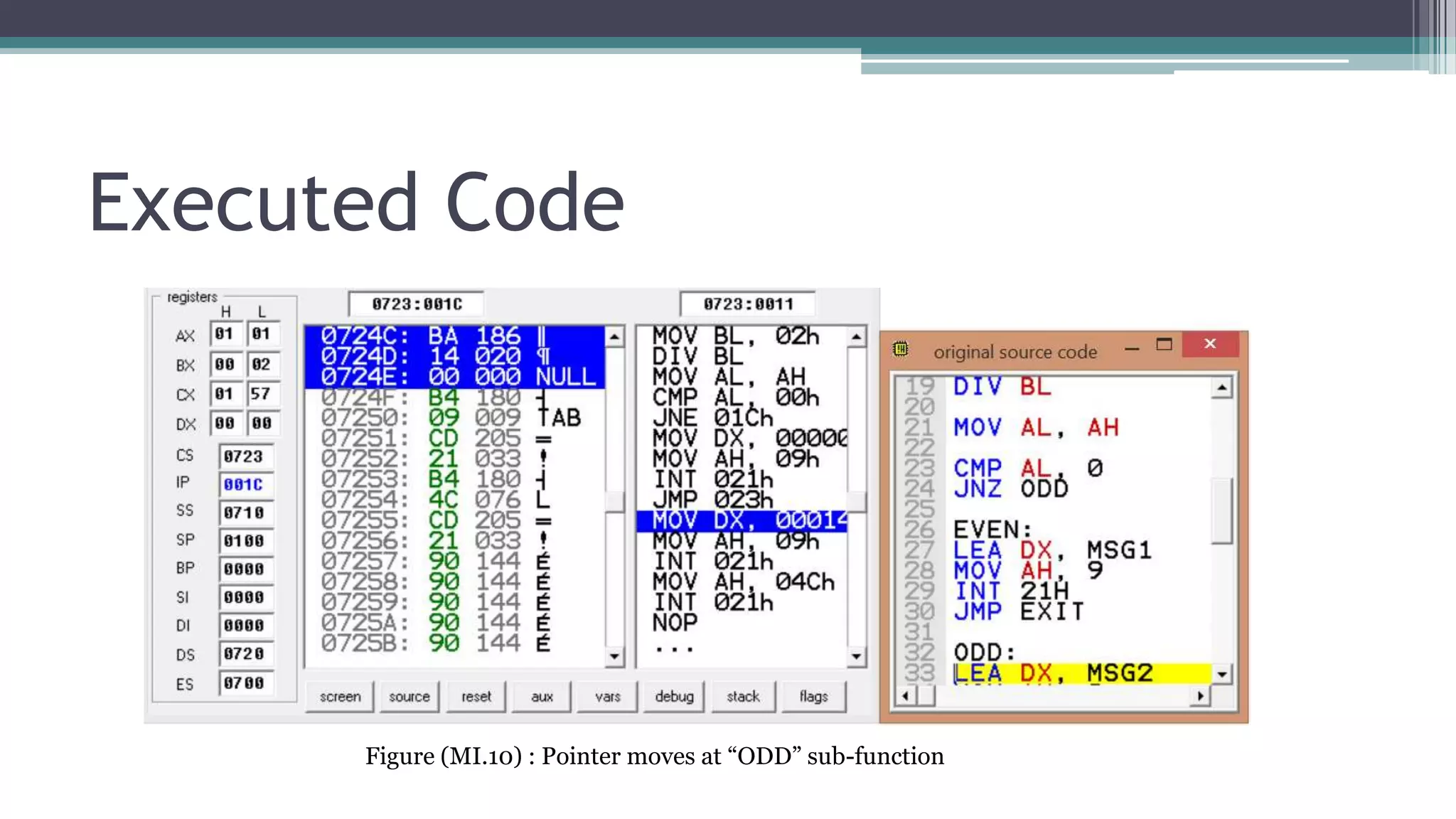

Figure (MI.10) : Pointer moves at “ODD” sub-function

19. Executed Code

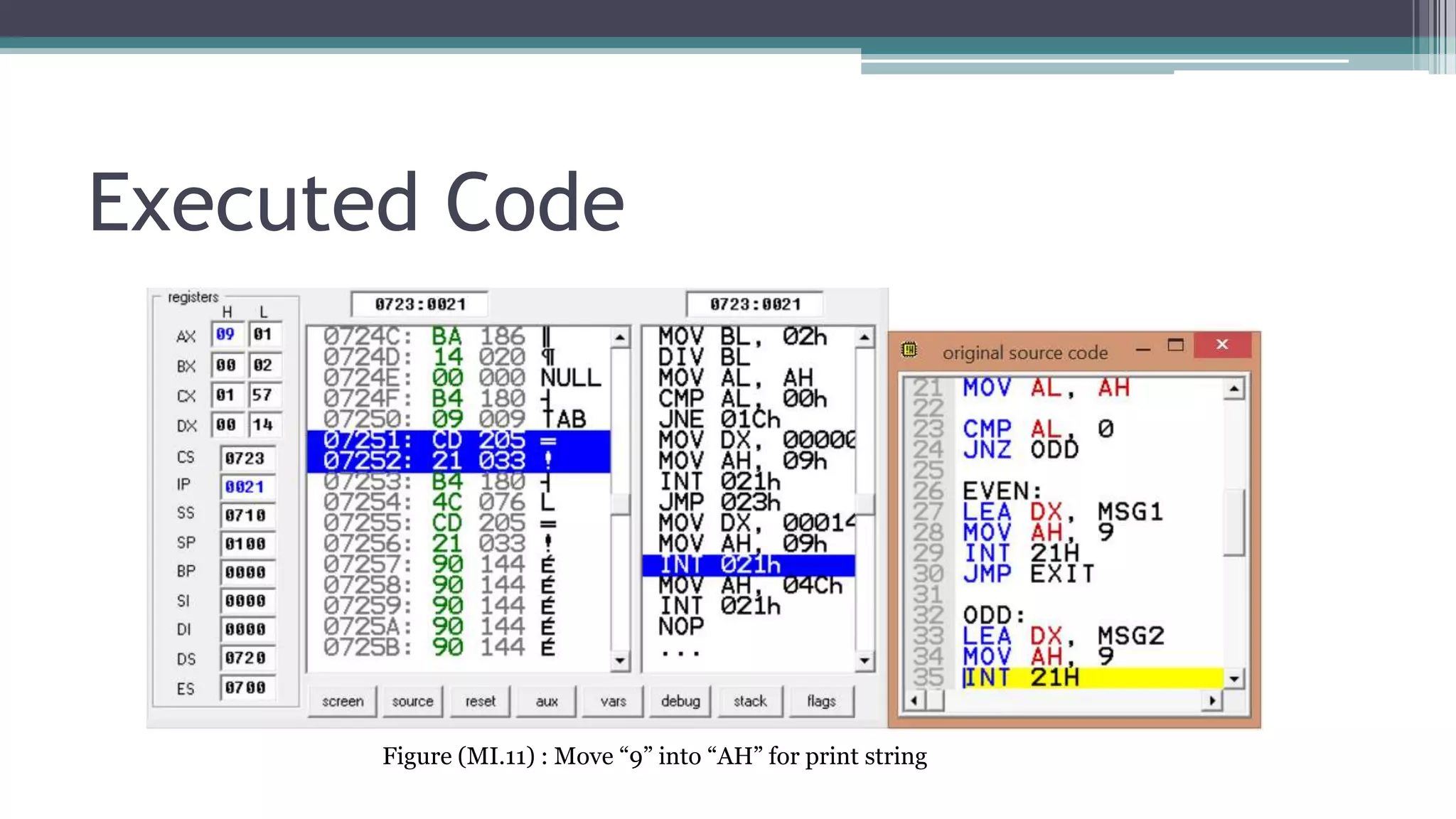

Figure (MI.11) : Move “9” into “AH” for print string

20. Executed Code

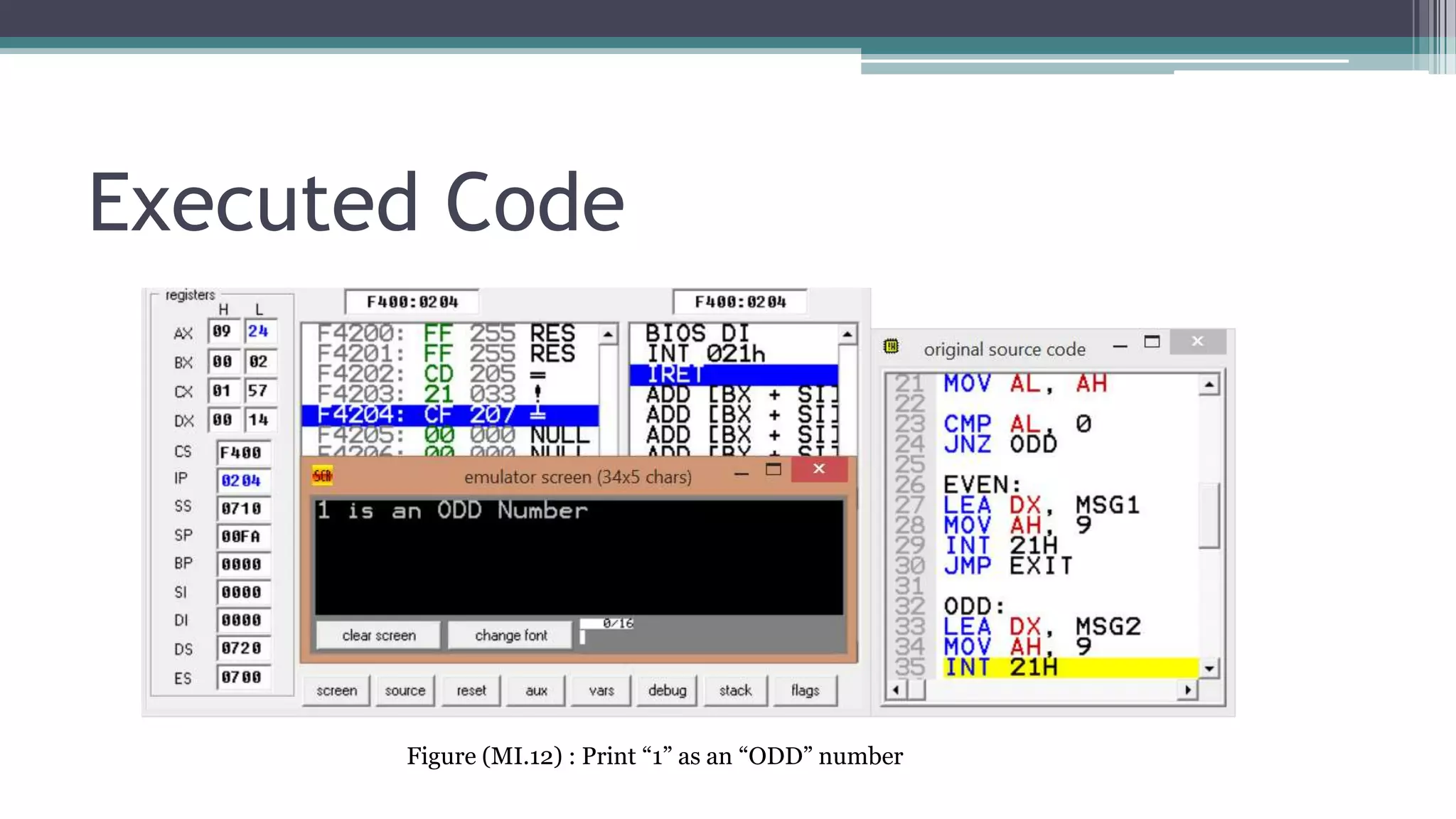

Figure (MI.12) : Print “1” as an “ODD” number

21. Executed Code

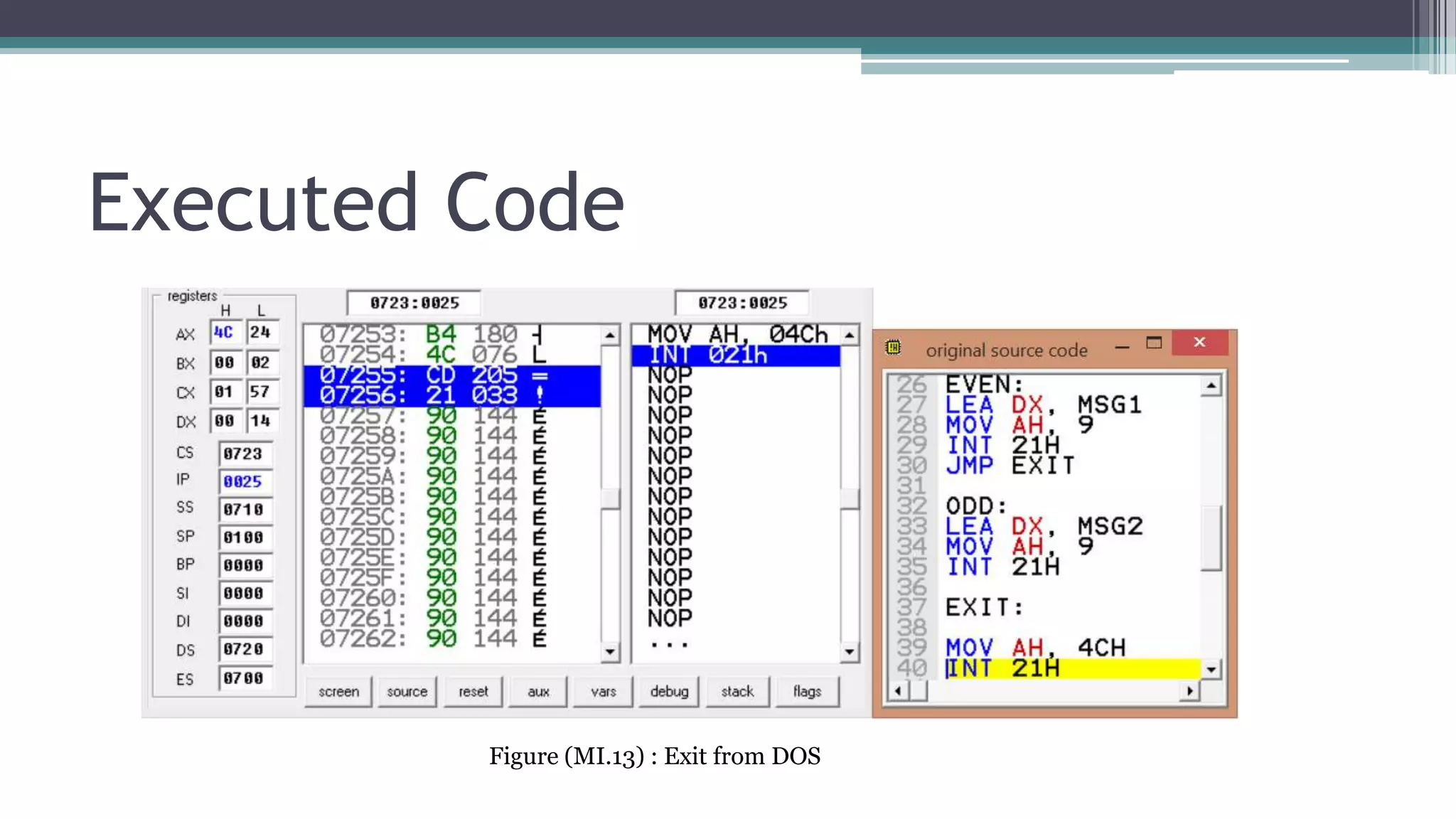

Figure (MI.13) : Exit from DOS

22. Executed Code

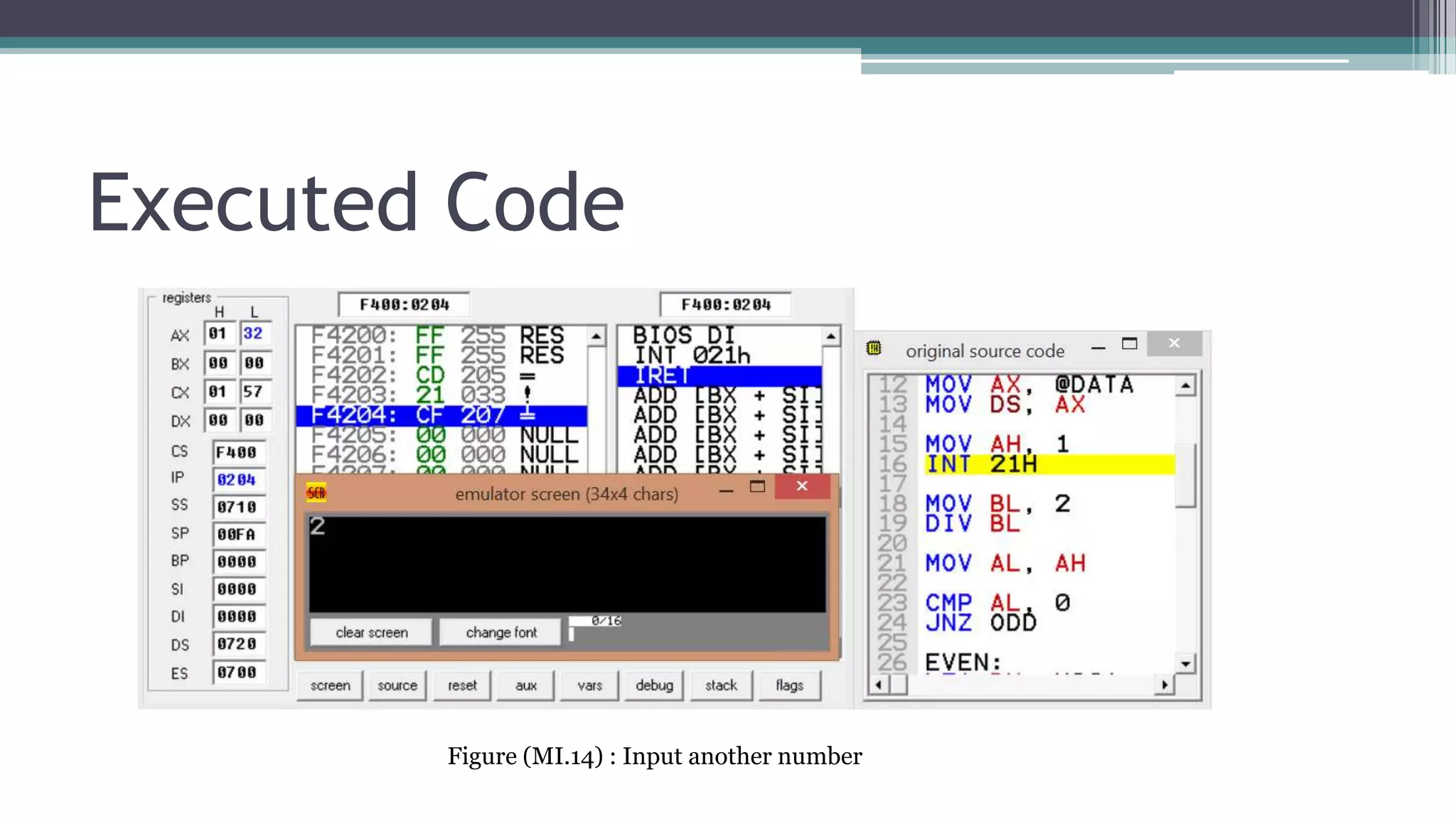

Figure (MI.14) : Input another number

23. Executed Code

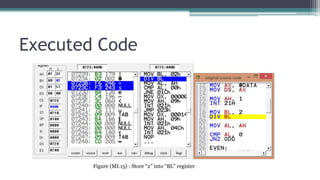

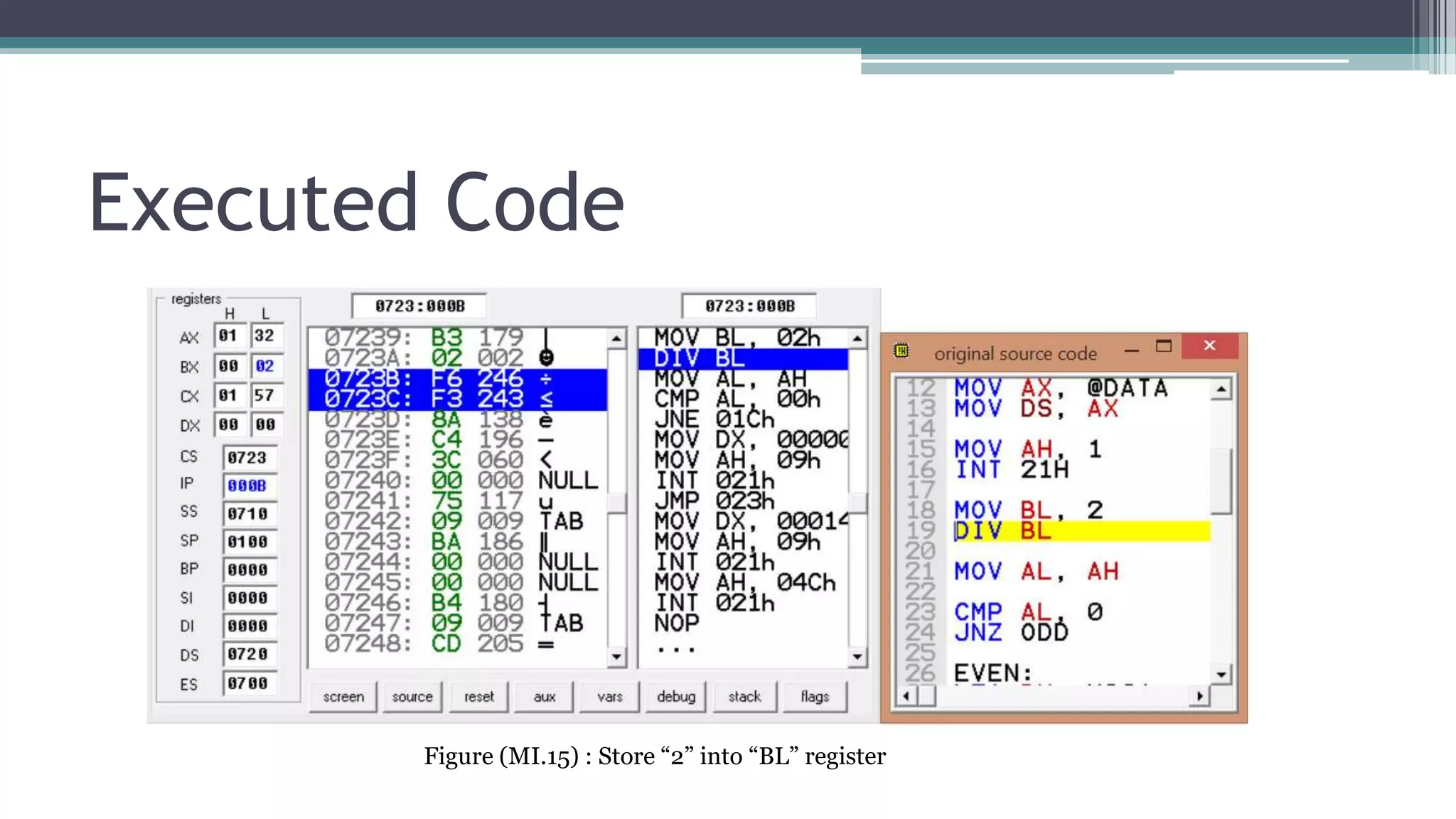

Figure (MI.15) : Store “2” into “BL” register

24. Executed Code
Figure (MI.16) : Compare “AL” register value with “0”

25. Executed Code

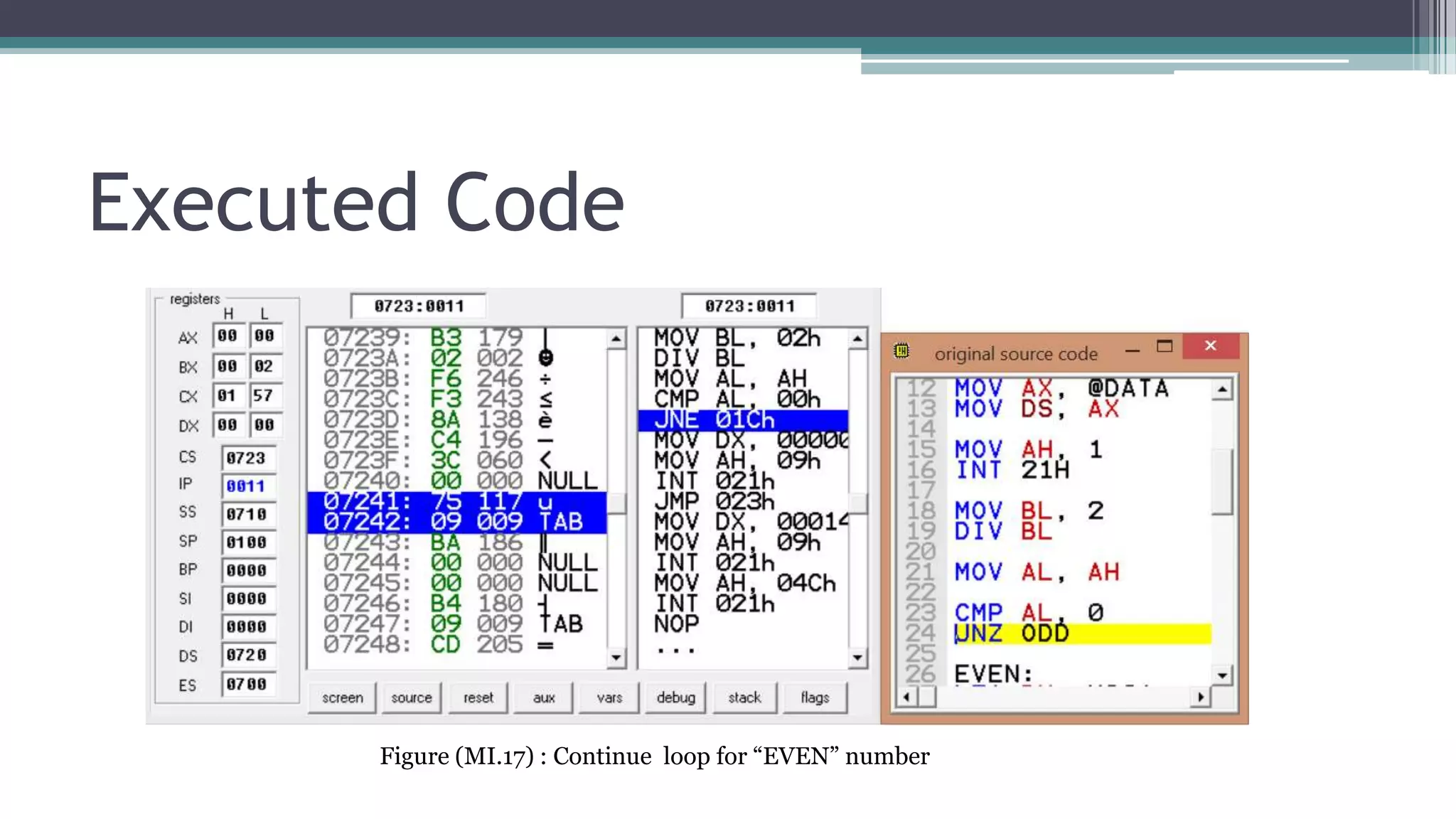

Figure (MI.17) : Continue loop for “EVEN” number

26. Executed Code

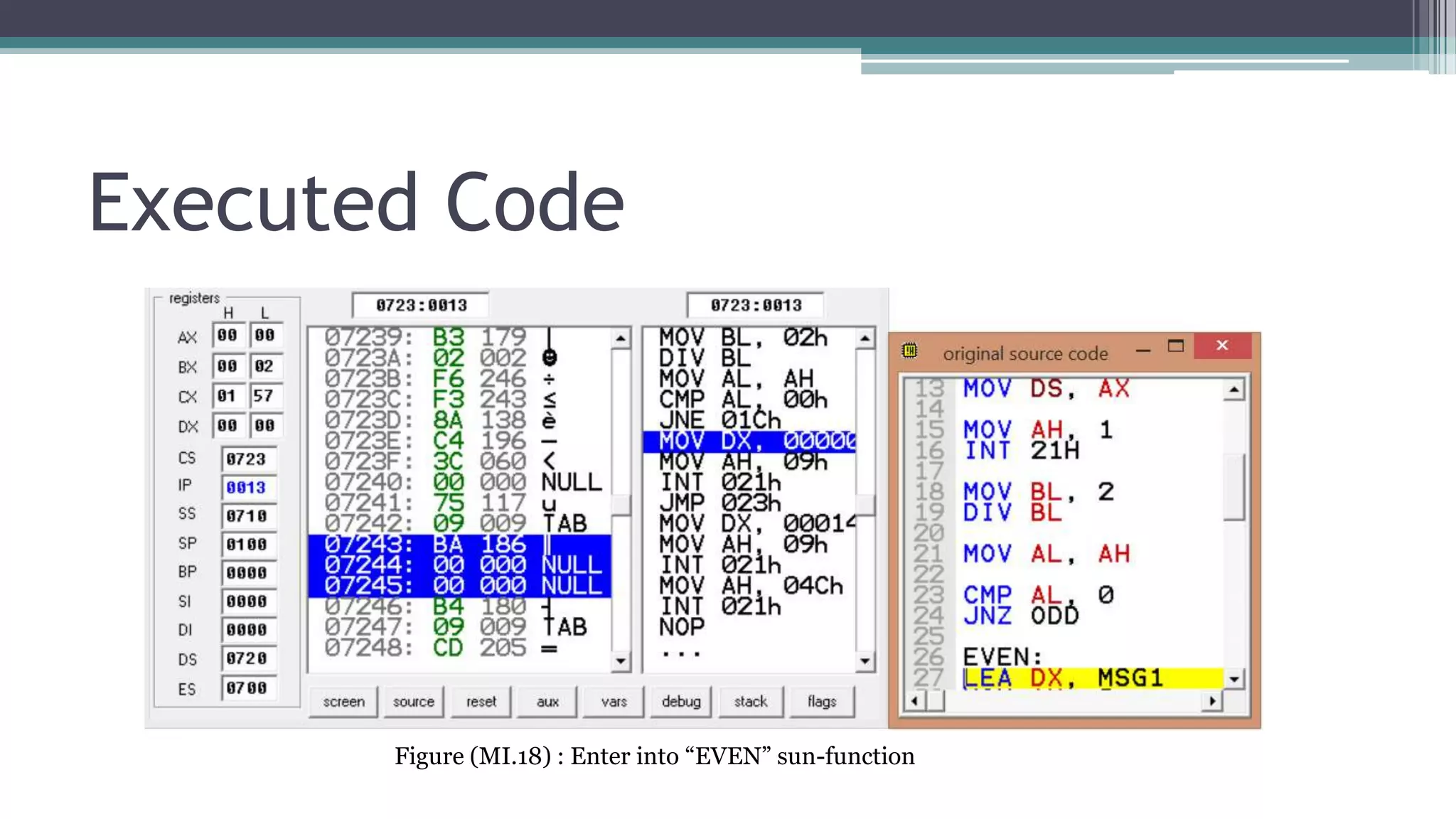

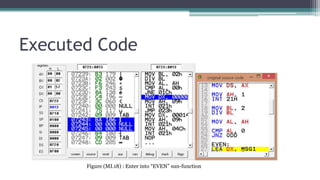

Figure (MI.18) : Enter into “EVEN” sun-function

27. Executed Code

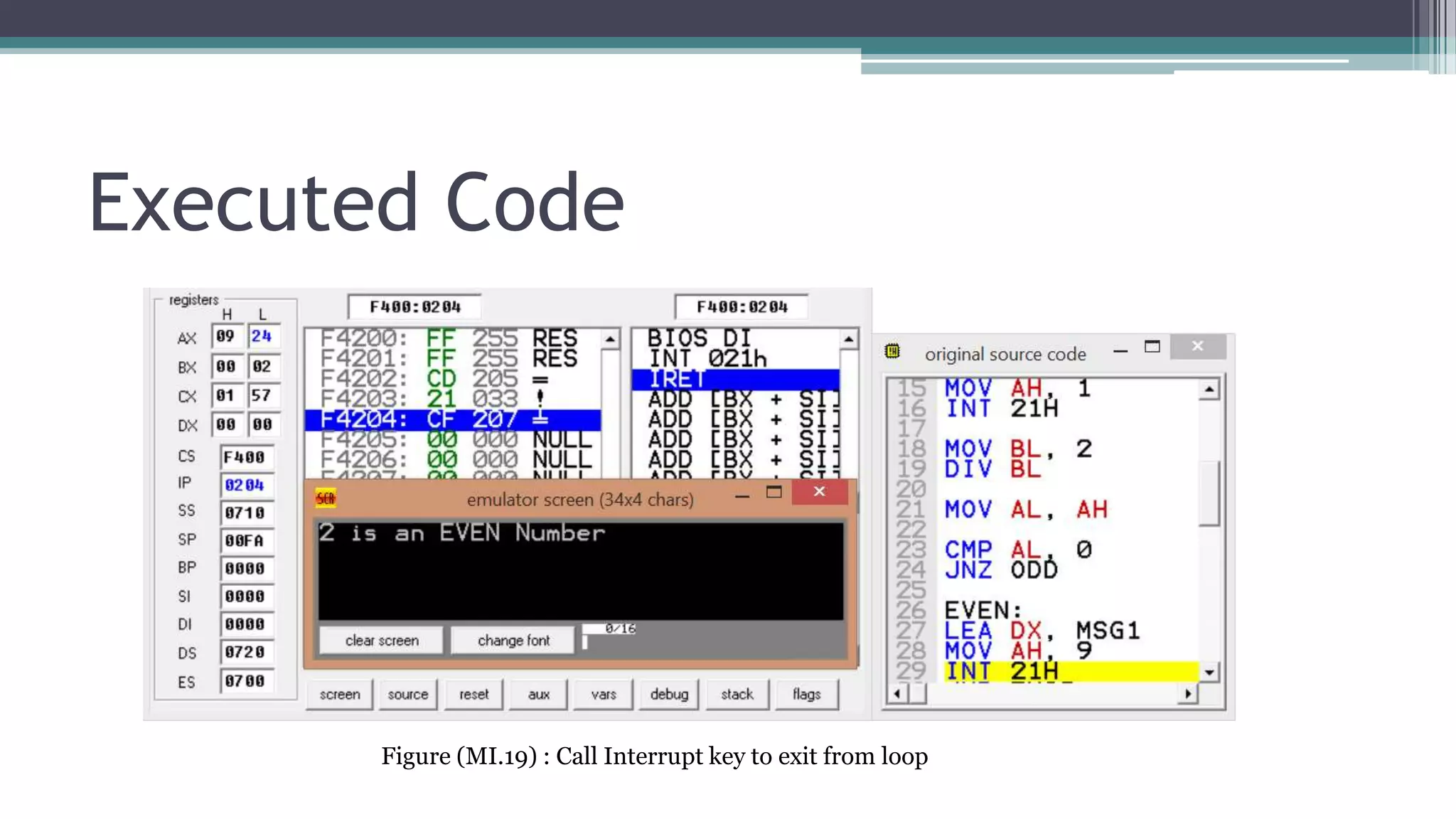

Figure (MI.19) : Call Interrupt key to exit from loop

28. Executed Code
Figure (MI.20) : Exit from DOS
