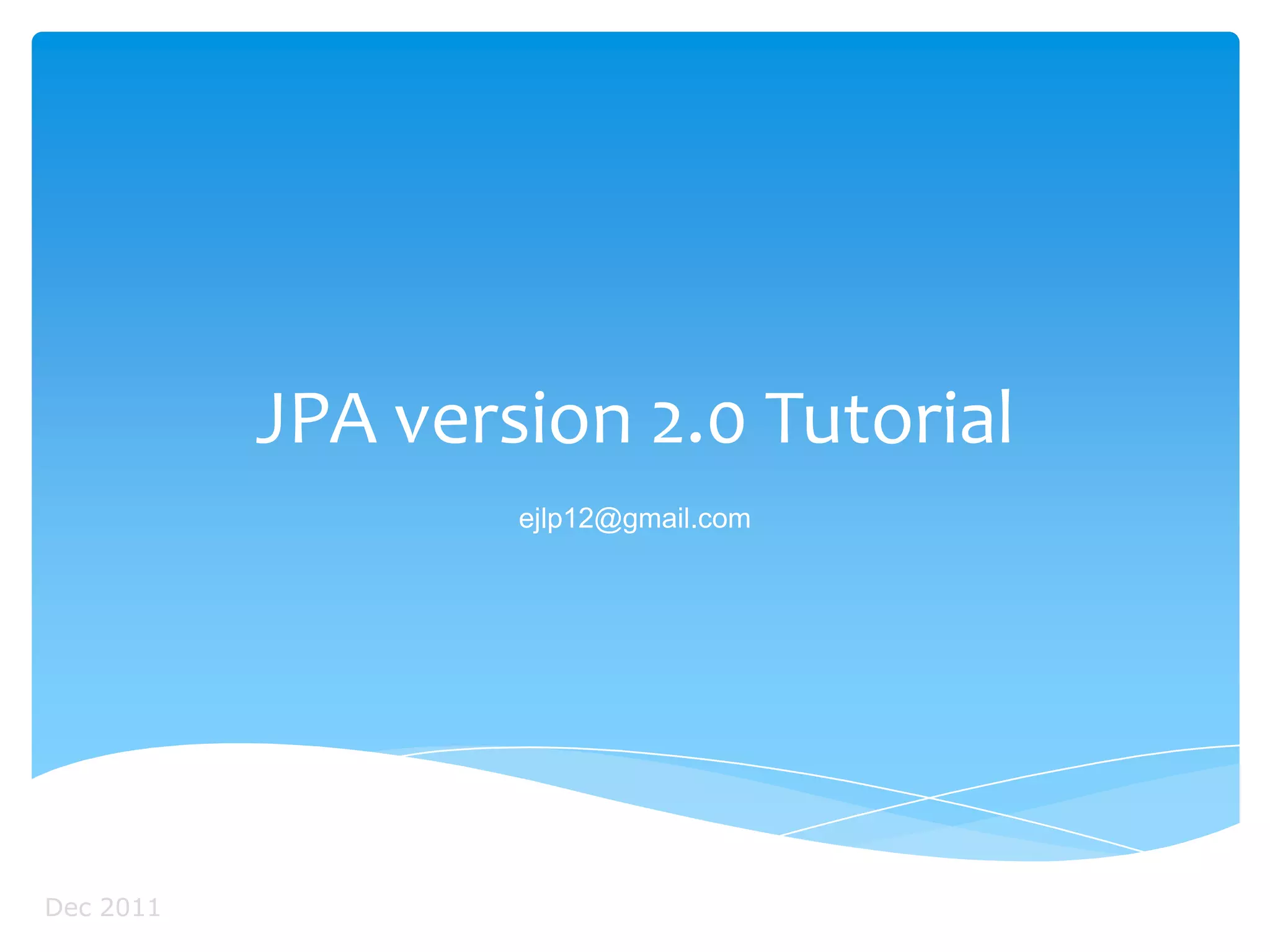

JPA version 2.0 Tutorial
                   ejlp12@gmail.com




Dec 2011

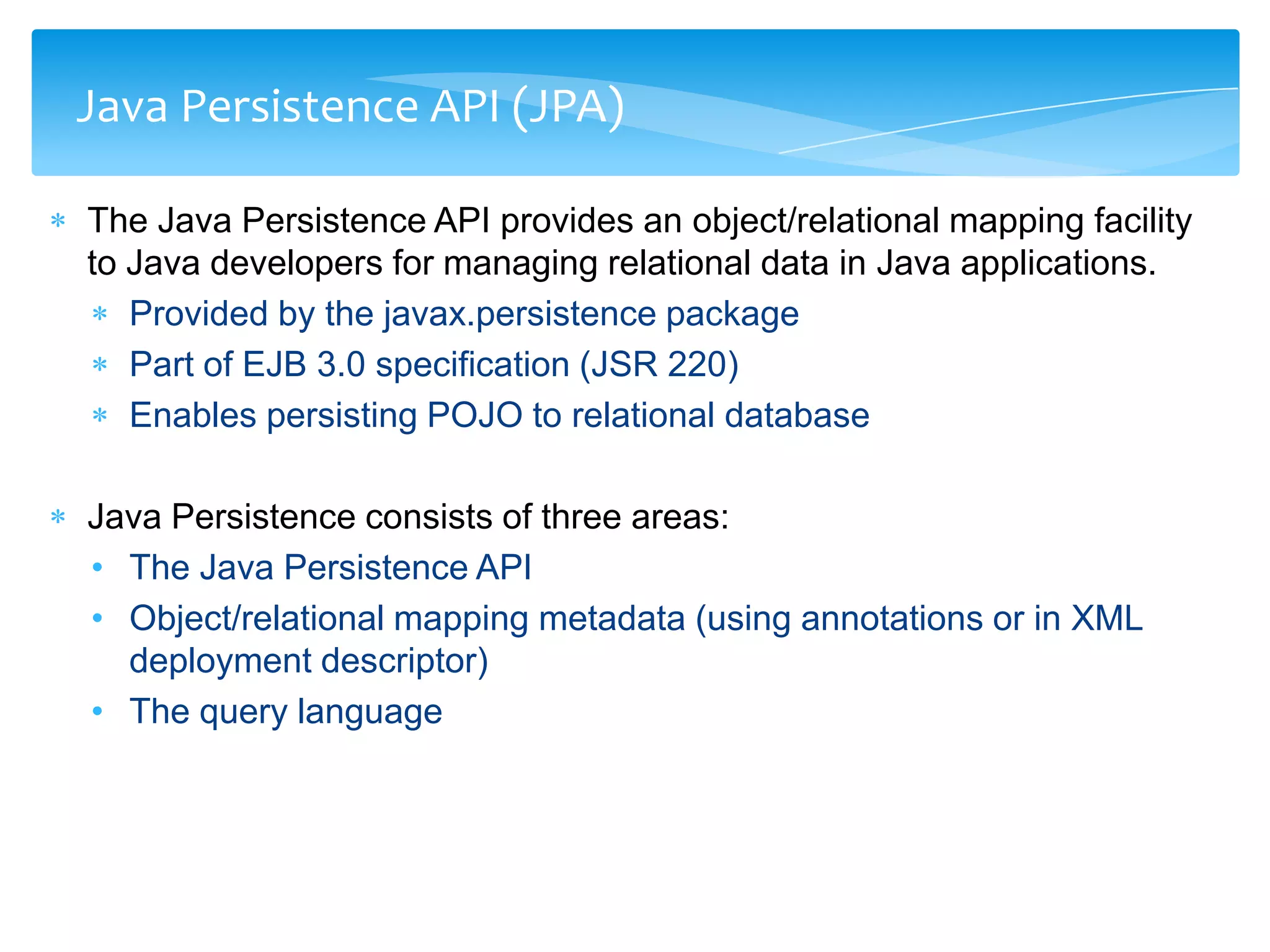

Java Persistence API (JPA)

The Java Persistence API provides an object/relational mapping facility
to Java developers for managing relational data in Java applications.
   Provided by the javax.persistence package
   Part of EJB 3.0 specification (JSR 220)
   Enables persisting POJO to relational database

Java Persistence consists of three areas:
• The Java Persistence API
• Object/relational mapping metadata (using annotations or in XML
  deployment descriptor)
• The query language
Entity

An entity is a lightweight persistence domain object.
Typically, represents a table in a relational database
An entity class must follow these requirements:
  annotated with the javax.persistence.Entity annotation.
  have a public or protected, no-argument constructor.
  not be declared final, including methods or persistent instance variables
  If an entity instance be passed by value as a detached object, such as through a
  session bean’s remote business interface, the class must implement the Serializable
  interface.
  may extend both entity and non-entity classes.
  persistent instance variables must be declared private, protected, or package-private,
  and can only be accessed directly by the entity class’s methods (get/set)
Code Example: Entity
Persistence Context & Entity Manager

Persistence context
  a set of managed entity instances that exist in a particular data store.




The EntityManager interface
  defines the methods that are used to interact with the persistence context
  creates and removes persistent entity instances
  finds entities by the entity’s primary key
  allows queries to be run on entities
Entity Manager

Container-Managed Entity Managers
  an EntityManager instance’s persistence context is automatically propagated by the container to all
  application components instance within a single Java Transaction Architecture (JTA) transaction.
  Usually used in Java EE environment


  @PersistenceContext
  EntityManager em;



Application-Managed Entity Managers
  the persistence context is not propagated to application components, and the life cycle
  of EntityManager instances is managed by the application.
  Usually used in Java SE environment


  @PersistenceUnit
  EntityManagerFactory emf;
  EntityManager em = emf.createEntityManager();
Code Example: Insert data (persist object)
XML Configuration files

persistance.xml
  Defines the database and entity manager options for deploying JPA
  applications
  Packaged in the META-INF directory of the project

orm.xml
  Stores metadata to describe object-relational mappings
  Not really required – JPA spec emphasizes using annotation
  Mapping on this file overrides any mapping defined using annotations
persistence.xml in Java SE
<persistence xmlns="http://java.sun.com/xml/ns/persistence" version="1.0">
    <persistence-unit name="pu1">
        <provider>oracle.toplink.essentials.ejb.cmp3.EntityManagerFactoryProvider</provider
>
        <!-- All persistence classes must be listed -->
        <class>entity.Customer</class>
        <class>entity.Order</class>
        <class>entity.Item</class>
        <properties>
            <!-- Provider-specific connection properties -->
            <property name="toplink.jdbc.driver" value="<database driver>"/>
            <property name="toplink.jdbc.url" value="<database url>"/>
            <property name="toplink.jdbc.user" value="<user>"/>
            <property name="toplink.jdbc.password" value="<password>"/>
            <!-- Provider-specific settings -->
            <property name="toplink.logging.level" value="INFO"/>
        </properties>
    </persistence-unit>
</persistence>
