Евгений Капинос "Advanced JPA (Java Persistent API)"

1. www.luxoft.com
Advanced
Java Persistence API
Evgeniy Kapinos

2. www.luxoft.com

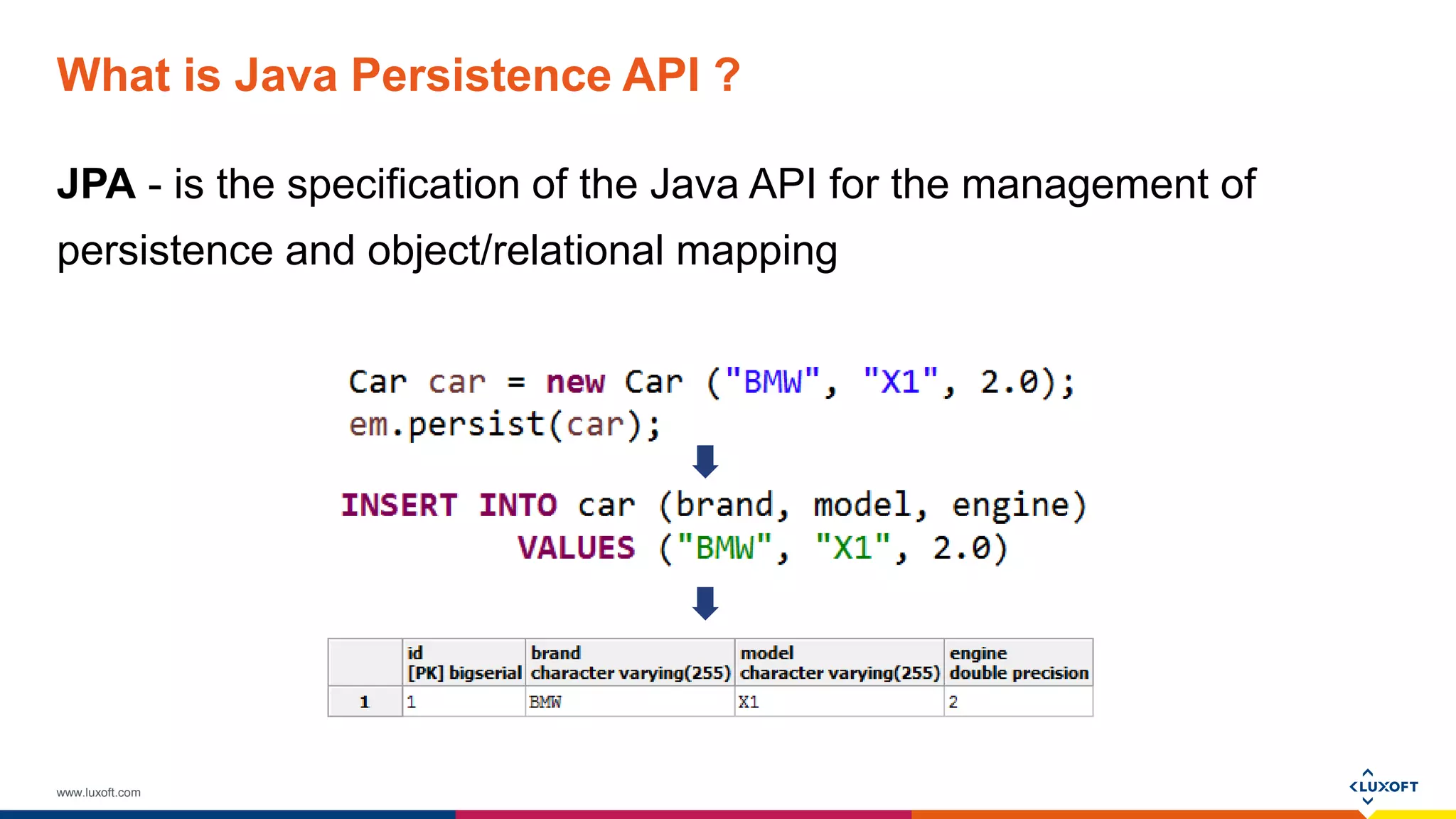

What is Java Persistence API ?
JPA - is the specification of the Java API for the management of
persistence and object/relational mapping

3. www.luxoft.com

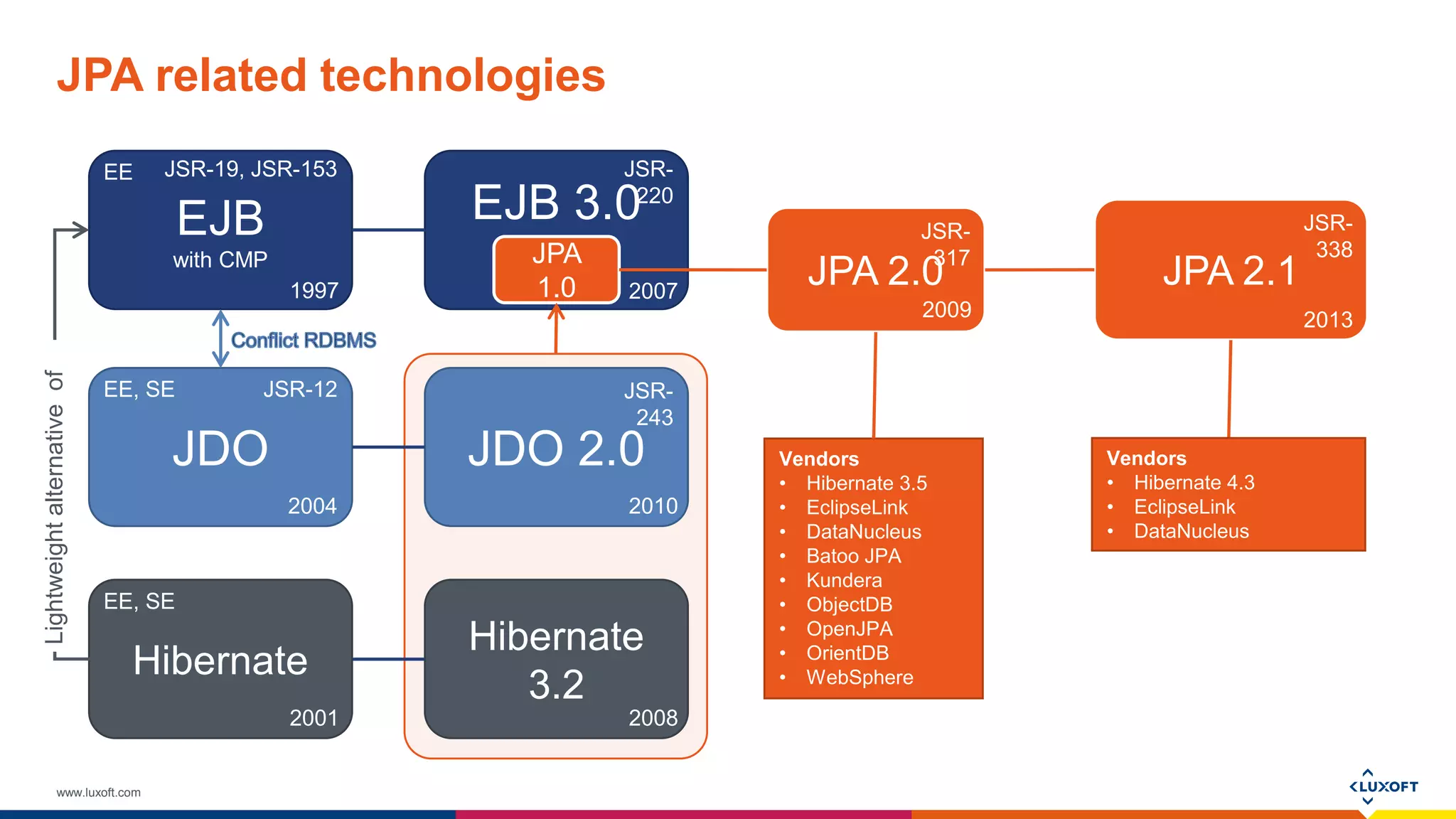

JPA related technologies
EJB
with CMP
EJB 3.0
JPA
1.0 JPA 2.0 JPA 2.1
JDO JDO 2.0
Hibernate
Hibernate
3.2
EE
EE, SE
EE, SE
JSR-
220
JSR-
317
JSR-
338
JSR-
243
2010
2008
1997
2004
JSR-19, JSR-153
JSR-12
2001
Vendors
• Hibernate 3.5
• EclipseLink
• DataNucleus
• Batoo JPA
• Kundera
• ObjectDB
• OpenJPA
• OrientDB
• WebSphere
2007
2009 2013
Vendors
• Hibernate 4.3
• EclipseLink
• DataNucleus
Lightweightalternativeof

4. www.luxoft.com

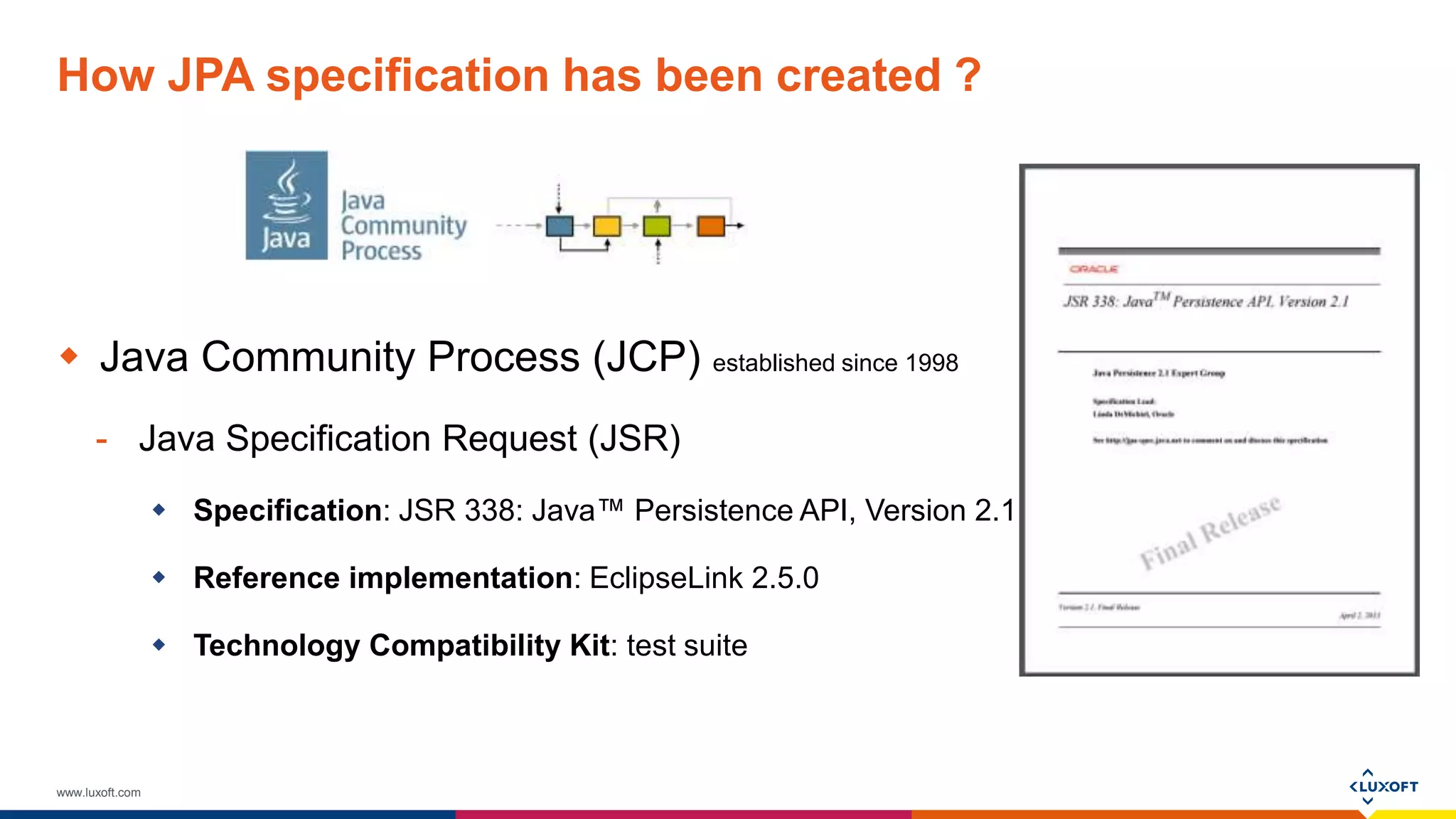

How JPA specification has been created ?
 Java Community Process (JCP) established since 1998
- Java Specification Request (JSR)
 Specification: JSR 338: Java™ Persistence API, Version 2.1
 Reference implementation: EclipseLink 2.5.0
 Technology Compatibility Kit: test suite

5. www.luxoft.com

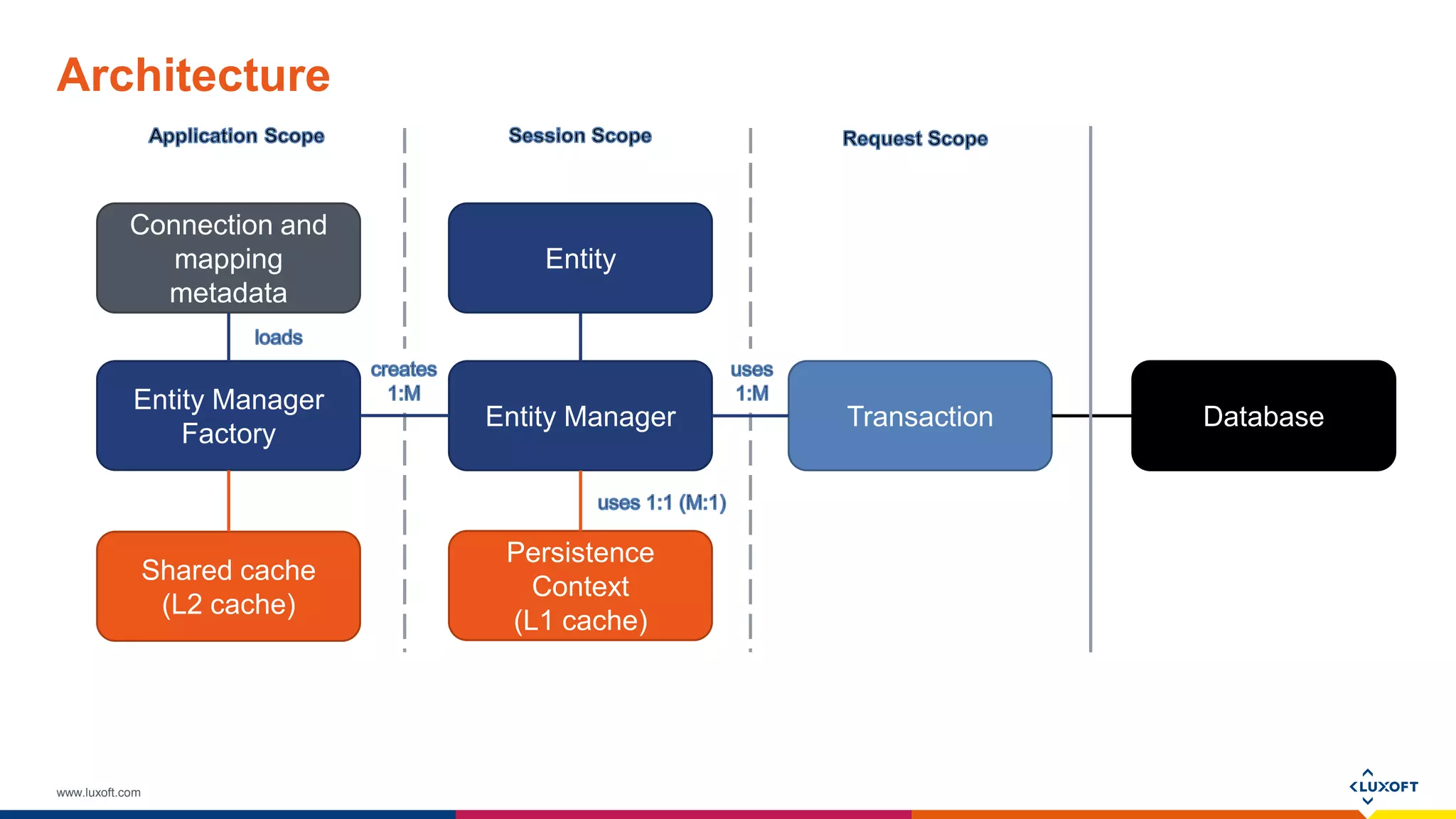

Architecture
Entity Manager
Factory
Entity Manager
Persistence
Context
(L1 cache)
Transaction Database
Connection and
mapping
metadata
Entity
Shared cache
(L2 cache)

6. www.luxoft.com

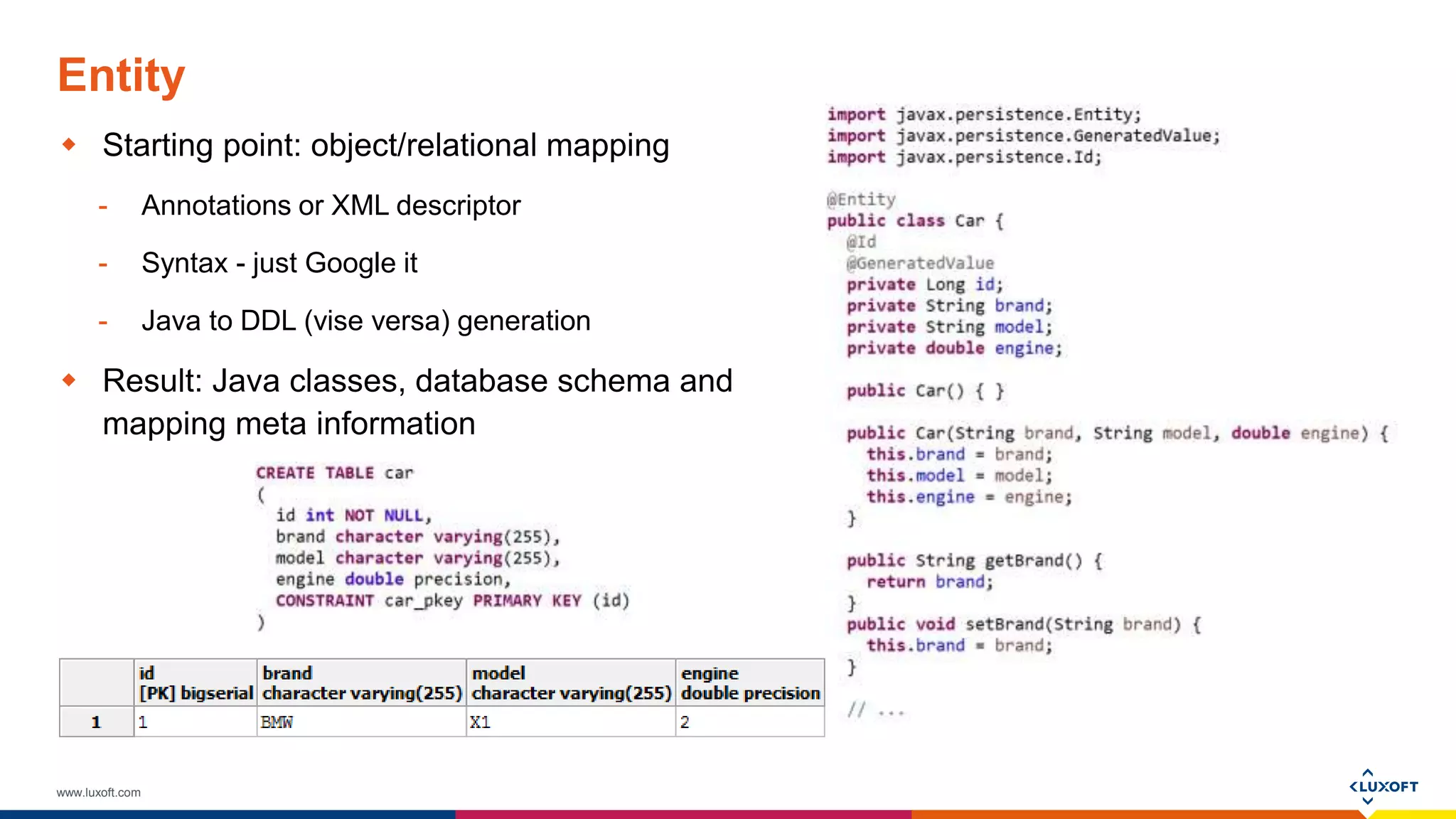

Entity
 Starting point: object/relational mapping
- Annotations or XML descriptor
- Syntax - just Google it
- Java to DDL (vise versa) generation
 Result: Java classes, database schema and
mapping meta information

7. www.luxoft.com

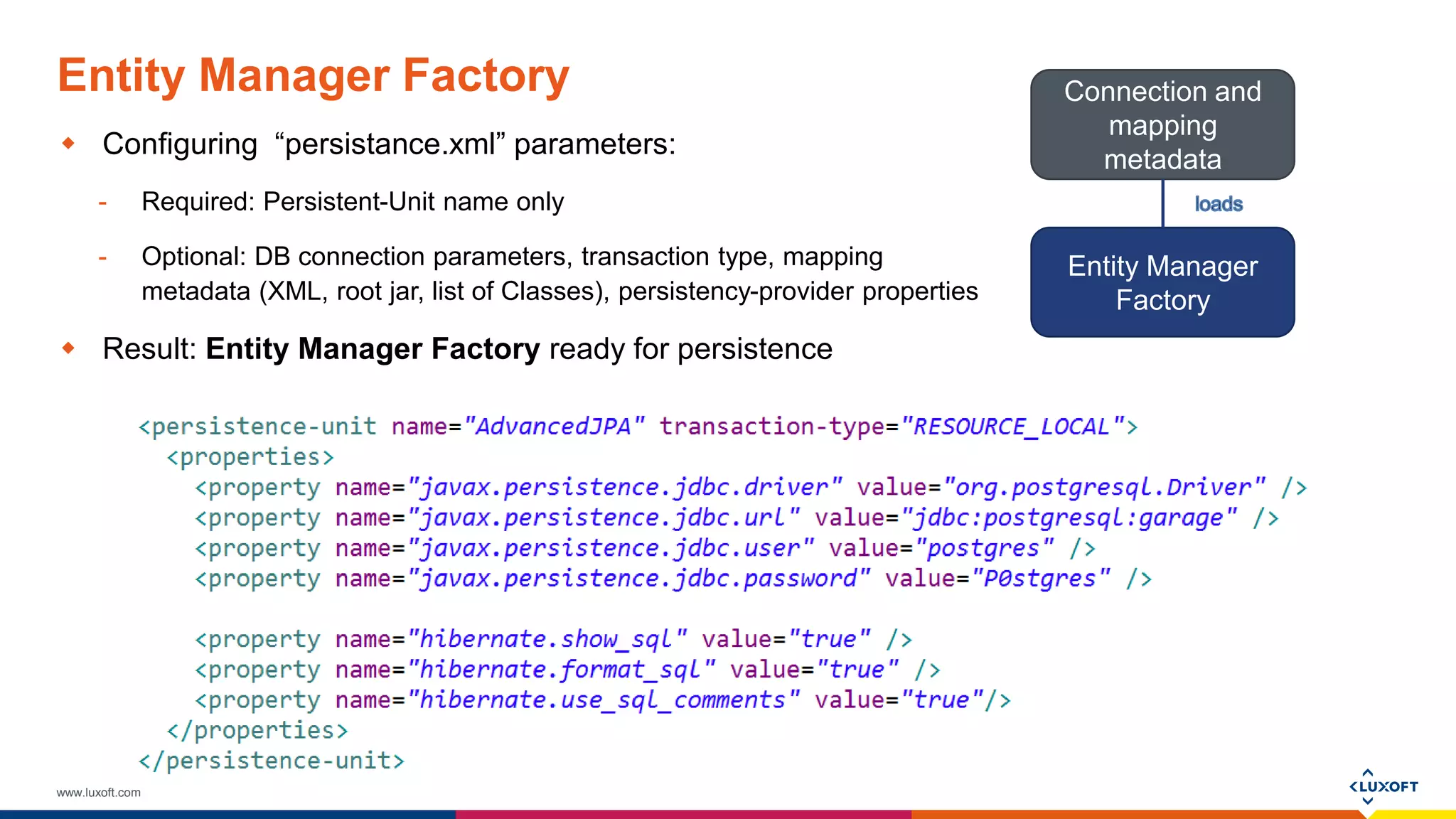

Entity Manager Factory
 Configuring “persistance.xml” parameters:
- Required: Persistent-Unit name only
- Optional: DB connection parameters, transaction type, mapping
metadata (XML, root jar, list of Classes), persistency-provider properties
 Result: Entity Manager Factory ready for persistence
Entity Manager
Factory
Connection and
mapping
metadata

8. www.luxoft.com

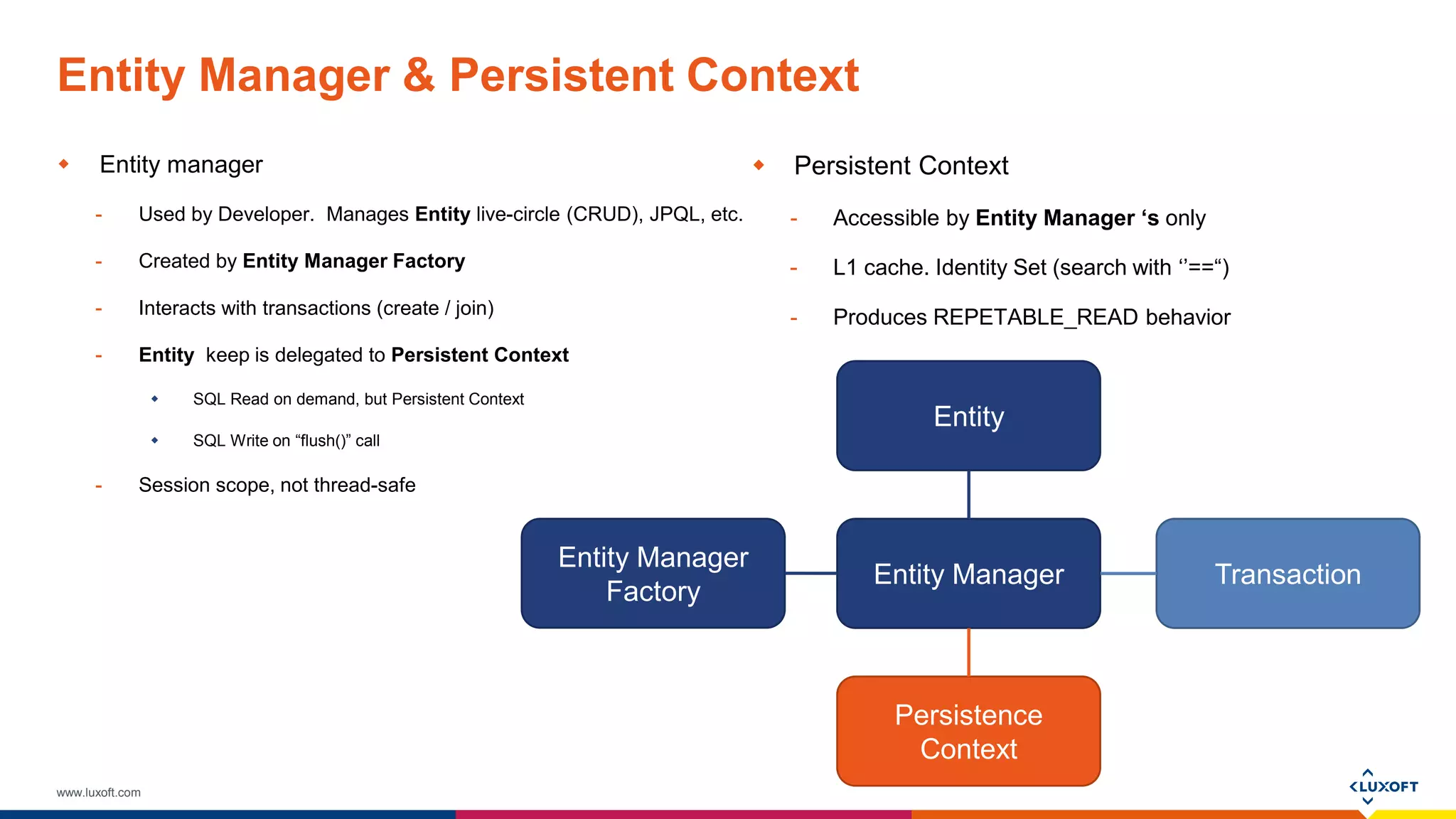

Entity Manager & Persistent Context
 Entity manager
- Used by Developer. Manages Entity live-circle (CRUD), JPQL, etc.
- Created by Entity Manager Factory
- Interacts with transactions (create / join)
- Entity keep is delegated to Persistent Context
 SQL Read on demand, but Persistent Context
 SQL Write on “flush()” call
- Session scope, not thread-safe
Entity Manager
Persistence
Context
Entity
Entity Manager
Factory
 Persistent Context
- Accessible by Entity Manager ‘s only
- L1 cache. Identity Set (search with ‘’==“)
- Produces REPETABLE_READ behavior
Transaction

9. www.luxoft.com

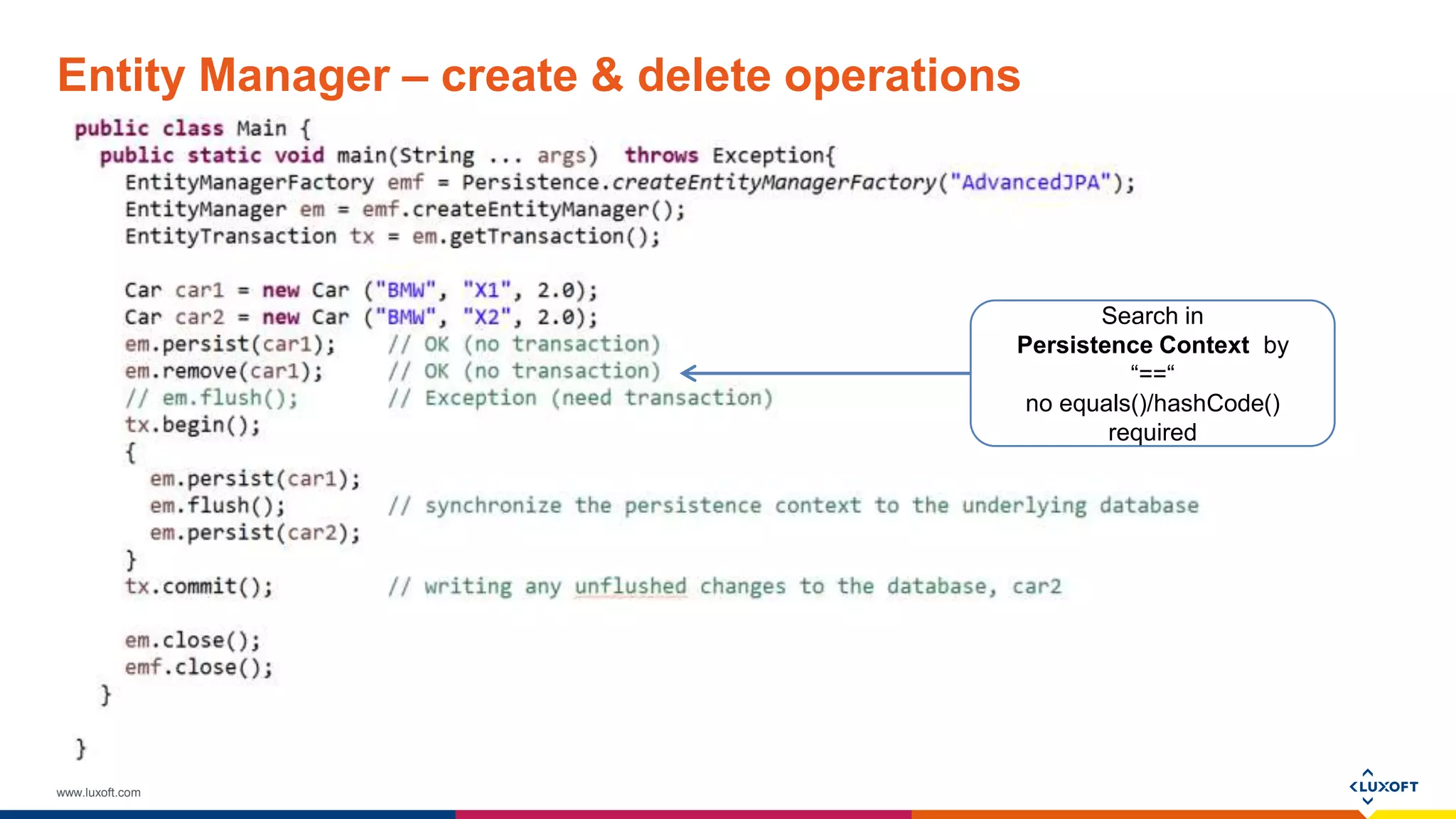

Entity Manager – create & delete operations
Search in
Persistence Context by
“==“
no equals()/hashCode()
required

10. www.luxoft.com

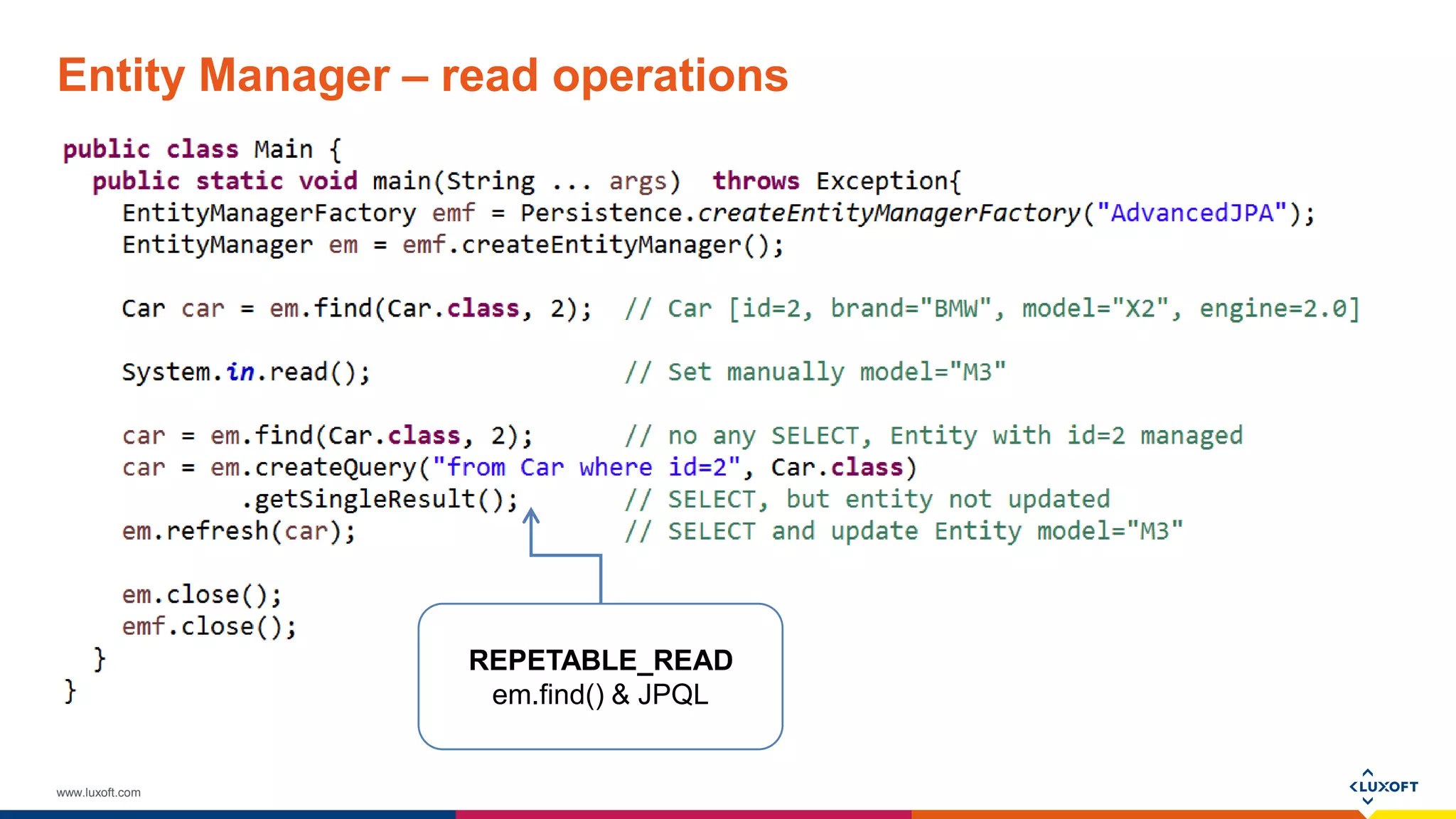

Entity Manager – read operations
REPETABLE_READ
em.find() & JPQL

11. www.luxoft.com

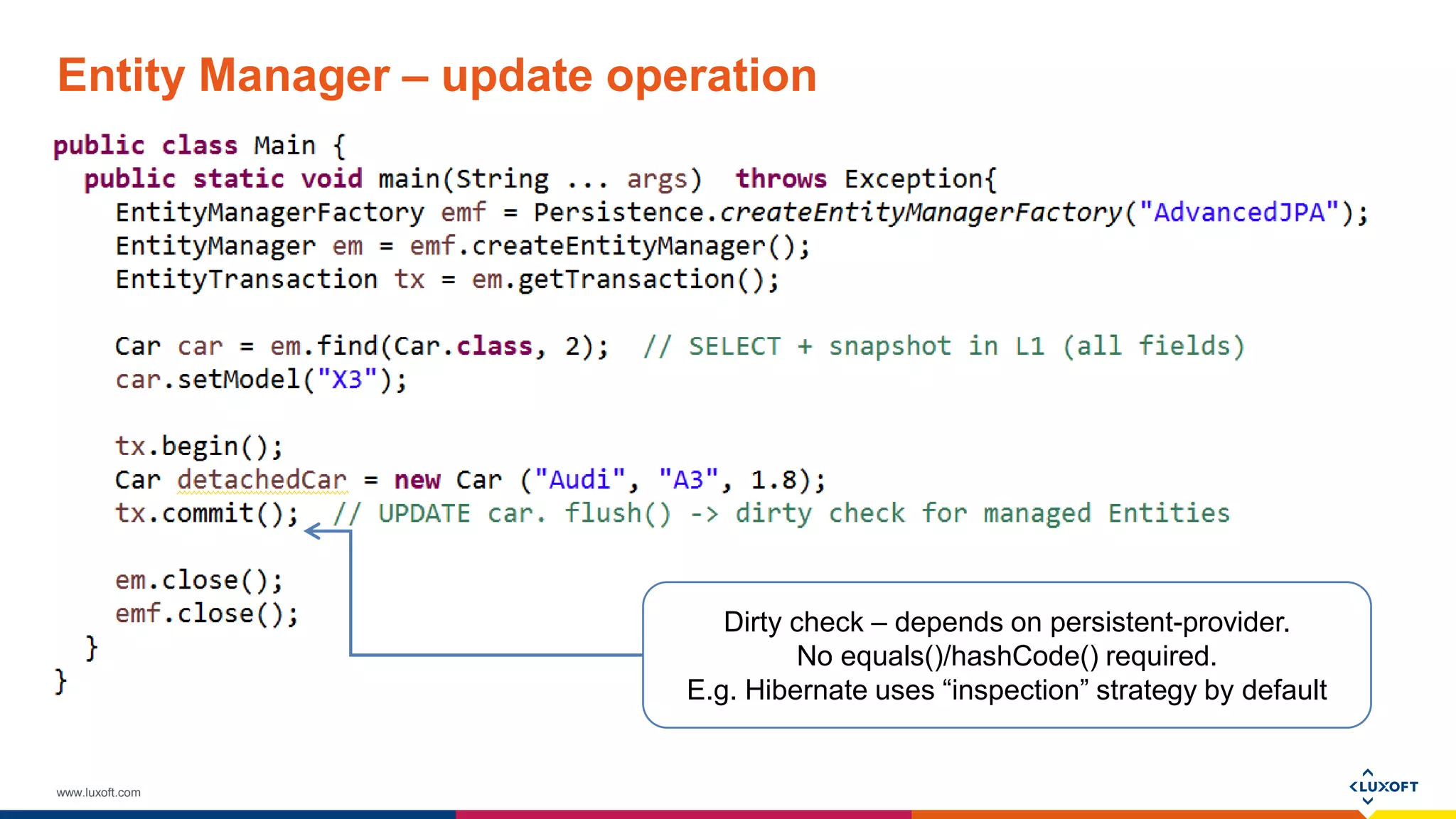

Entity Manager – update operation
Dirty check – depends on persistent-provider.
No equals()/hashCode() required.
E.g. Hibernate uses “inspection” strategy by default

12. www.luxoft.com

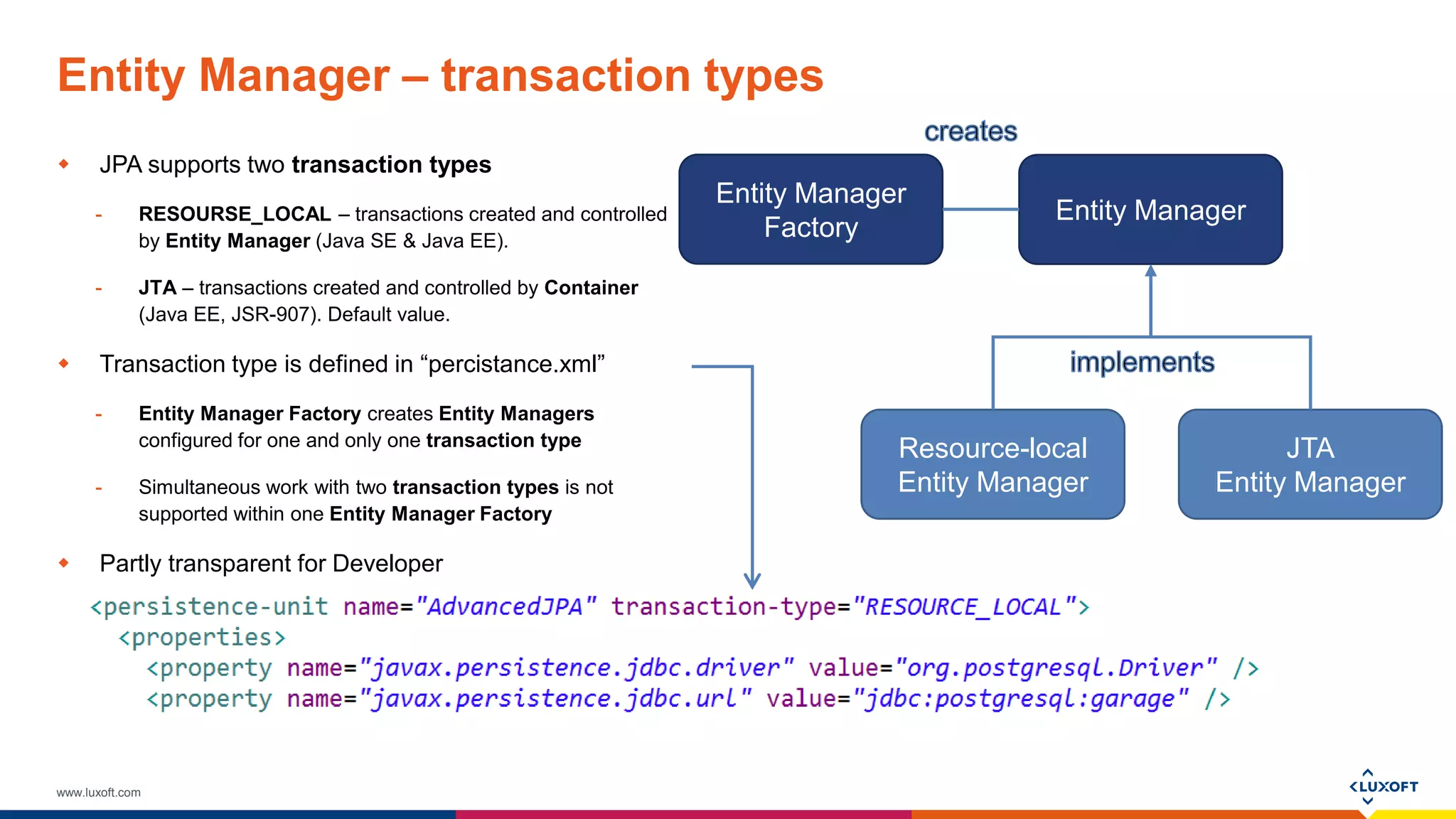

Entity Manager – transaction types
 JPA supports two transaction types
- RESOURSE_LOCAL – transactions created and controlled
by Entity Manager (Java SE & Java EE).
- JTA – transactions created and controlled by Container
(Java EE, JSR-907). Default value.
 Transaction type is defined in “percistance.xml”
- Entity Manager Factory creates Entity Managers
configured for one and only one transaction type
- Simultaneous work with two transaction types is not
supported within one Entity Manager Factory
 Partly transparent for Developer
Entity Manager
Entity Manager
Factory
Resource-local
Entity Manager
JTA
Entity Manager

13. www.luxoft.com

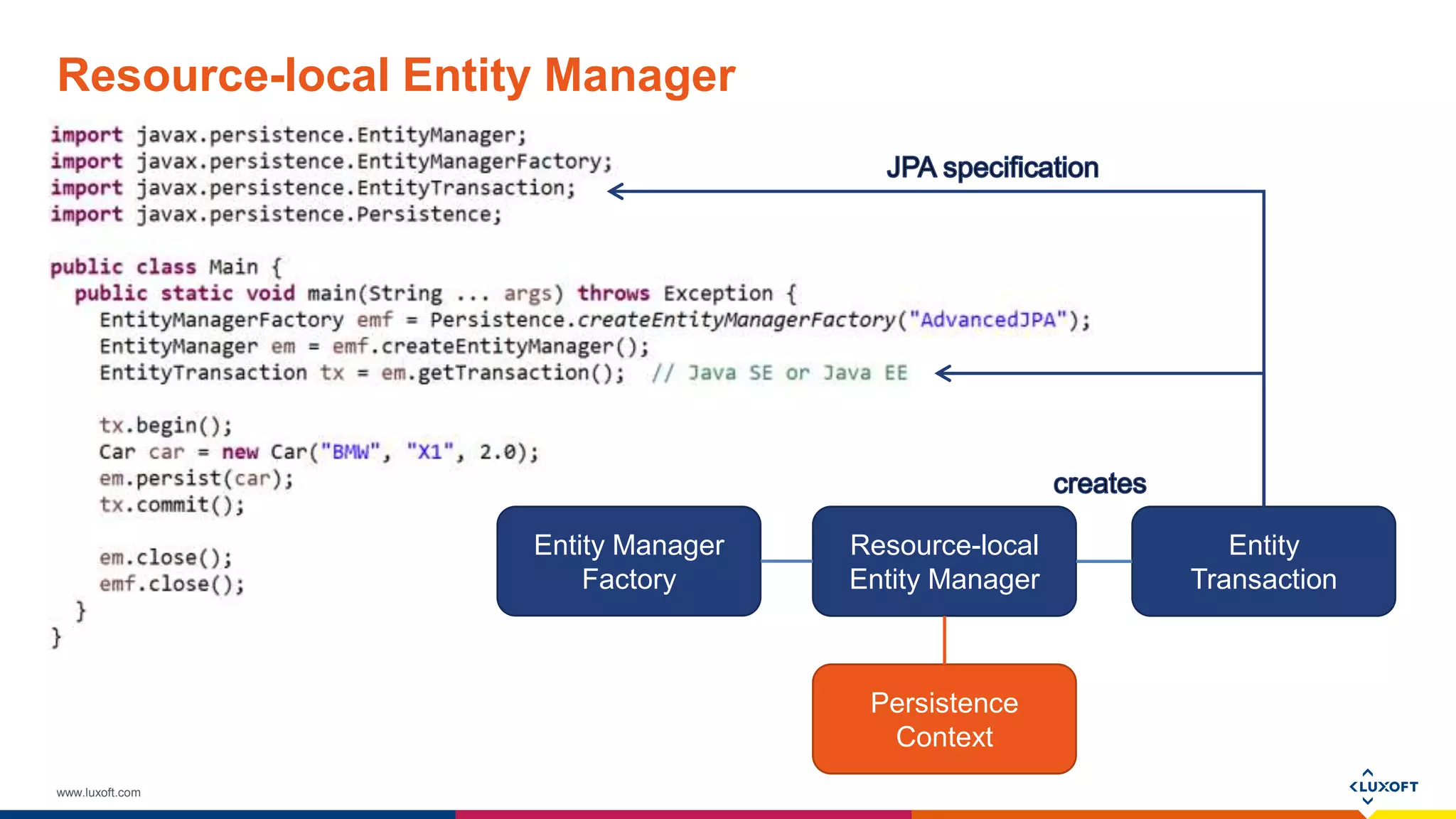

Resource-local Entity Manager
Resource-local
Entity Manager
Persistence
Context
Entity Manager
Factory
Entity
Transaction

14. www.luxoft.com
EJB

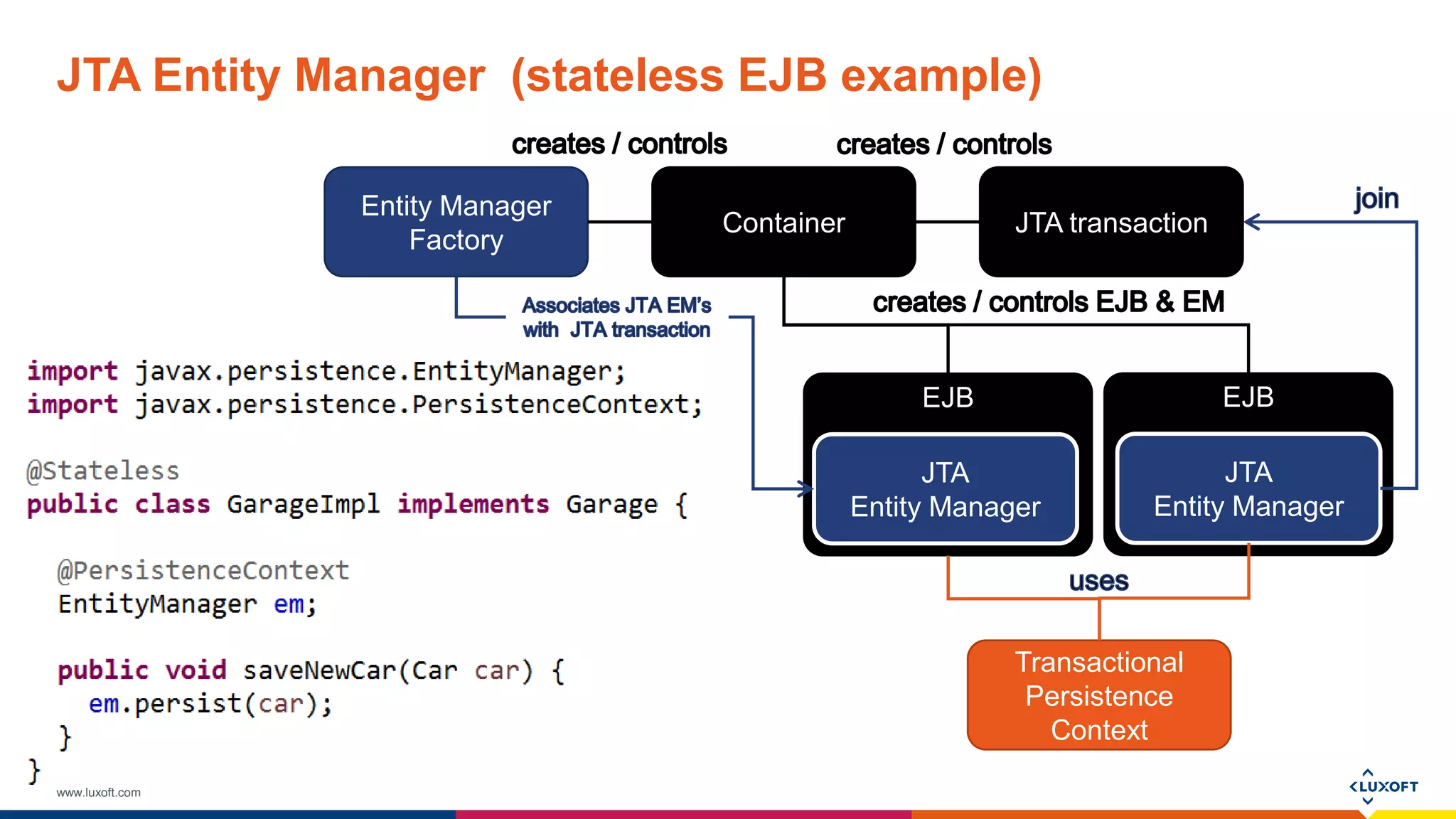

JTA Entity Manager (stateless EJB example)
JTA
Entity Manager
Transactional
Persistence
Context
Entity Manager
Factory
Container JTA transaction
EJB
JTA
Entity Manager

15. www.luxoft.com
THE END
