Virtual reality (VR) allows users to interact with simulated 3D environments through specialized computer hardware and software. This document describes the process of creating VR simulations of the human skull and heart using medical imaging data. CT and MRI scans were converted into 3D models and rendered into stereo image sequences. These sequences could be viewed through VR headsets or monitors to provide an interactive educational experience, allowing students to fly through virtual tours of the human body. While high resolution VR is possible, limitations remain in hardware and software. Researchers continue working to improve VR technology for medical education applications.

1. Introduction
What is Virtual Reality?
Virtural Reality (VR) is a human-computer interface that simulates a realistic environment and
allows users to interact with it. It is studying 3-D images on a 2-D computer screen. It can be
compared to looking through a glass-bottom boat. VR allows one to put on the scuba equipment
and interact with the surroundings without getting wet.
Why is it used?
VR offers invaluable educational advantages. It is ideal for showing clients products that are
otherwise too expensive to physically demonstrate. The 3-D sensory impact is unmistakable
VIrtual Visual Environment Display - VIVED
Developed by NASA Johnson Space Center (JSC)/LinCom Corporation, the University of Texas
Medical Branch at Galveston and the Galveston Independent School District. VIVID provides a
unique educational experience using VR technologies. It integrates prescribed fly-throughs of the
human skull and heart with other interactive multi-media (audio, video, etc.) capabilities.
Steps required to create a Virtual Reality experience through the human body.

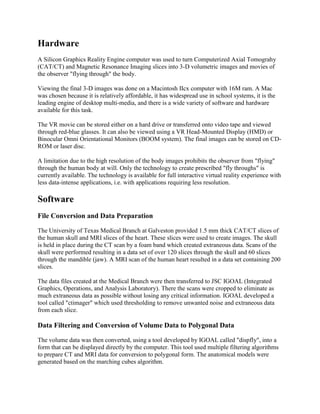

2. Hardware
A Silicon Graphics Reality Engine computer was used to turn Computerized Axial Tomograhy
(CAT/CT) and Magnetic Resonance Imaging slices into 3-D volumetric images and movies of
the observer "flying through" the body.
Viewing the final 3-D images was done on a Macintosh IIcx computer with 16M ram. A Mac
was chosen because it is relatively affordable, it has widespread use in school systems, it is the
leading engine of desktop multi-media, and there is a wide variety of software and hardware
available for this task.
The VR movie can be stored either on a hard drive or transferred onto video tape and viewed
through red-blue glasses. It can also be viewed using a VR Head-Mounted Display (HMD) or
Binocular Omni Orientational Monitors (BOOM system). The final images can be stored on CD-
ROM or laser disc.
A limitation due to the high resolution of the body images prohibits the observer from "flying"
through the human body at will. Only the technology to create prescribed "fly throughs" is
currently available. The technology is available for full interactive virtual reality experience with
less data-intense applications, i.e. with applications requiring less resolution.
Software
File Conversion and Data Preparation
The University of Texas Medical Branch at Galveston provided 1.5 mm thick CAT/CT slices of
the human skull and MRI slices of the heart. These slices were used to create images. The skull
is held in place during the CT scan by a foam band which created extraneous data. Scans of the
skull were performed resulting in a data set of over 120 slices through the skull and 60 slices
through the mandible (jaw). A MRI scan of the human heart resulted in a data set containing 200
slices.
The data files created at the Medical Branch were then transferred to JSC IGOAL (Integrated
Graphics, Operations, and Analysis Laboratory). There the scans were cropped to eliminate as
much extraneous data as possible without losing any critical information. IGOAL developed a
tool called "ctimager" which used thresholding to remove unwanted noise and extraneous data
from each slice.
Data Filtering and Conversion of Volume Data to Polygonal Data
The volume data was then converted, using a tool developed by IGOAL called "dispfly", into a
form that can be displayed directly by the computer. This tool used multiple filtering algorithms
to prepare CT and MRI data for conversion to polygonal form. The anatomical models were
generated based on the marching cubes algorithm.

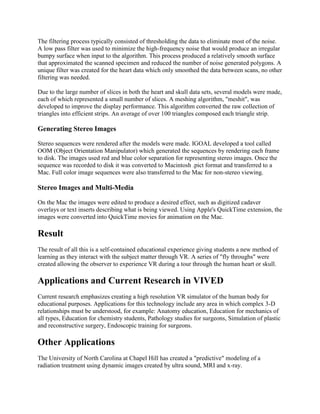

3. The filtering process typically consisted of thresholding the data to eliminate most of the noise.
A low pass filter was used to minimize the high-frequency noise that would produce an irregular
bumpy surface when input to the algorithm. This process produced a relatively smooth surface
that approximated the scanned specimen and reduced the number of noise generated polygons. A
unique filter was created for the heart data which only smoothed the data between scans, no other
filtering was needed.
Due to the large number of slices in both the heart and skull data sets, several models were made,
each of which represented a small number of slices. A meshing algorithm, "meshit", was
developed to improve the display performance. This algorithm converted the raw collection of
triangles into efficient strips. An average of over 100 triangles composed each triangle strip.
Generating Stereo Images
Stereo sequences were rendered after the models were made. IGOAL developed a tool called
OOM (Object Orientation Manipulator) which generated the sequences by rendering each frame
to disk. The images used red and blue color separation for representing stereo images. Once the
sequence was recorded to disk it was converted to Macintosh .pict format and transferred to a
Mac. Full color image sequences were also transferred to the Mac for non-stereo viewing.
Stereo Images and Multi-Media
On the Mac the images were edited to produce a desired effect, such as digitized cadaver
overlays or text inserts describing what is being viewed. Using Apple's QuickTime extension, the
images were converted into QuickTime movies for animation on the Mac.
Result
The result of all this is a self-contained educational experience giving students a new method of
learning as they interact with the subject matter through VR. A series of "fly throughs" were
created allowing the observer to experience VR during a tour through the human heart or skull.
Applications and Current Research in VIVED
Current research emphasizes creating a high resolution VR simulator of the human body for
educational purposes. Applications for this technology include any area in which complex 3-D
relationships must be understood, for example: Anatomy education, Education for mechanics of
all types, Education for chemistry students, Pathology studies for surgeons, Simulation of plastic
and reconstructive surgery, Endoscopic training for surgeons.
Other Applications
The University of North Carolina at Chapel Hill has created a "predictive" modeling of a
radiation treatment using dynamic images created by ultra sound, MRI and x-ray.

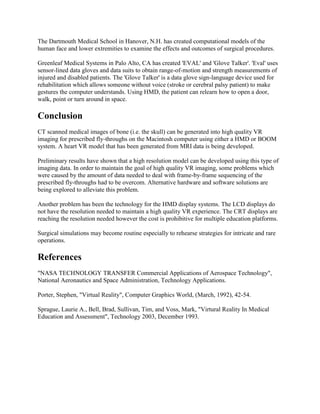

4. The Dartmouth Medical School in Hanover, N.H. has created computational models of the
human face and lower extremities to examine the effects and outcomes of surgical procedures.
Greenleaf Medical Systems in Palo Alto, CA has created 'EVAL' and 'Glove Talker'. 'Eval' uses
sensor-lined data gloves and data suits to obtain range-of-motion and strength measurements of
injured and disabled patients. The 'Glove Talker' is a data glove sign-language device used for
rehabilitation which allows someone without voice (stroke or cerebral palsy patient) to make
gestures the computer understands. Using HMD, the patient can relearn how to open a door,
walk, point or turn around in space.
Conclusion
CT scanned medical images of bone (i.e. the skull) can be generated into high quality VR
imaging for prescribed fly-throughs on the Macintosh computer using either a HMD or BOOM
system. A heart VR model that has been generated from MRI data is being developed.
Preliminary results have shown that a high resolution model can be developed using this type of
imaging data. In order to maintain the goal of high quality VR imaging, some problems which
were caused by the amount of data needed to deal with frame-by-frame sequencing of the
prescribed fly-throughs had to be overcom. Alternative hardware and software solutions are
being explored to alleviate this problem.
Another problem has been the technology for the HMD display systems. The LCD displays do
not have the resolution needed to maintain a high quality VR experience. The CRT displays are
reaching the resolution needed however the cost is prohibitive for multiple education platforms.
Surgical simulations may become routine especially to rehearse strategies for intricate and rare
operations.
References
"NASA TECHNOLOGY TRANSFER Commercial Applications of Aerospace Technology",
National Aeronautics and Space Administration, Technology Applications.
Porter, Stephen, "Virtual Reality", Computer Graphics World, (March, 1992), 42-54.
Sprague, Laurie A., Bell, Brad, Sullivan, Tim, and Voss, Mark, "Virtural Reality In Medical
Education and Assessment", Technology 2003, December 1993.
