5G Spectrum
Long Version
@3g4gUK
©3G4G
THIS IS LONG VERSION – FOR SHORT VERSION CLICK ON THE LINK ON TOP RIGHT
©3G4G
©3G4G

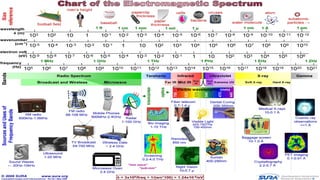

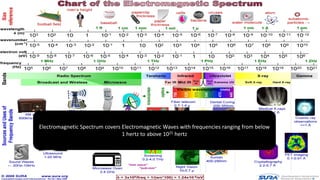

Electromagnetic Spectrum covers Electromagnetic Waves with frequencies ranging from below
1 hertz to above 1025 hertz
©3G4G

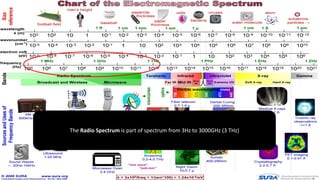

The Radio Spectrum is part of spectrum from 3Hz to 3000GHz (3 THz)
©3G4G

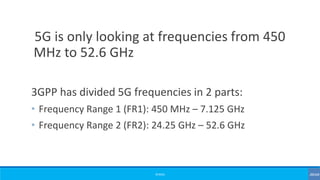

5G is only looking at frequencies from 450
MHz to 52.6 GHz
3GPP has divided 5G frequencies in 2 parts:
• Frequency Range 1 (FR1): 450 MHz – 7.125 GHz
• Frequency Range 2 (FR2): 24.25 GHz – 52.6 GHz
©3G4G

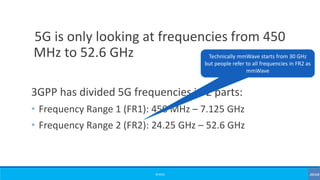

5G is only looking at frequencies from 450
MHz to 52.6 GHz
3GPP has divided 5G frequencies in 2 parts:
• Frequency Range 1 (FR1): 450 MHz – 7.125 GHz
• Frequency Range 2 (FR2): 24.25 GHz – 52.6 GHz
Technically mmWave starts from 30 GHz
but people refer to all frequencies in FR2 as
mmWave
©3G4G

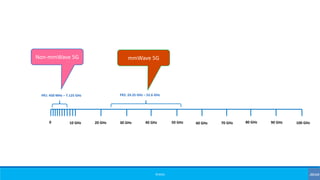

0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz
FR1: 450 MHz – 7.125 GHz FR2: 24.25 GHz – 52.6 GHz
Non-mmWave 5G mmWave 5G

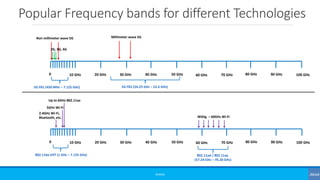

Popular Frequency bands for different Technologies
©3G4G
0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz
2G, 3G, 4G
Non millimeter wave 5G Millimeter wave 5G
0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz
2.4GHz Wi-Fi,
Bluetooth, etc.
5GHz Wi-Fi
WiGig – 60GHz Wi-Fi
Up to 6GHz 802.11ax
5G FR1 (450 MHz – 7.125 GHz) 5G FR2 (24.25 GHz – 52.6 GHz)
802.11be EHT (1 GHz – 7.125 GHz) 802.11ad / 802.11ay
(57.24 GHz – 70.20 GHz)
Wi-Fi Spectrum around the world
©3G4G

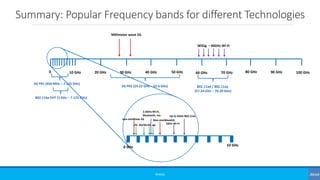

Summary: Popular Frequency bands for different Technologies
©3G4G
0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz
Millimeter wave 5G
2.4GHz Wi-Fi,
Bluetooth, etc.
5GHz Wi-Fi
WiGig – 60GHz Wi-Fi
Up to 6GHz 802.11ax
5G FR1 (450 MHz – 7.125 GHz)
5G FR2 (24.25 GHz – 52.6 GHz)
802.11be EHT (1 GHz – 7.125 GHz)
802.11ad / 802.11ay
(57.24 GHz – 70.20 GHz)
2G 2G/4G3G 4G
Non-mmWave5Gnon-mmWave 5G
10 GHz0 GHz

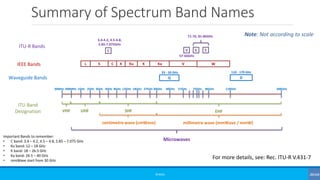

Summary of Spectrum Band Names
©3G4G
Note: Not according to scale
300MHz 1GHz 2GHz 3GHz 4GHz
UHF
8GHz 12GHz 18GHz 27GHz 30GHz 40GHz
SHF
75GHz 110GHz 300GHz
EHF
30MHz
VHF
millimetre wave (mmWave / mmW)centimetre wave (cmWave)
Microwaves
LIEEE Bands S C X Ku K Ka V W
ITU-R Bands
E E
86GHz57GHz
V
71-76, 81-86GHz
57-66GHz
ITU Band
Designation
Important Bands to remember:
• C band: 3.4 – 4.2, 4.5 – 4.8, 5.85 – 7.075 GHz
• Ku band: 12 – 18 GHz
• K band: 18 – 26.5 GHz
• Ka band: 26.5 – 40 GHz
• mmWave start from 30 GHz
C
3.4-4.2, 4.5-4.8,
5.85-7.075GHz
For more details, see: Rec. ITU-R V.431-7
DWaveguide Bands
110 - 170 GHz
Q
33 - 50 GHz

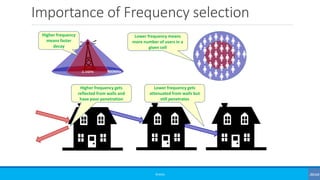

Importance of Frequency selection
©3G4G
2.1GHz 900MHz
Higher frequency
means faster
decay
Lower frequency means
more number of users in a
given cell
Higher frequency gets
reflected from walls and
have poor penetration
Lower frequency gets
attenuated from walls but
still penetrates

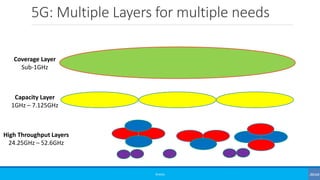

5G: Multiple Layers for multiple needs
©3G4G
Coverage Layer
Sub-1GHz
Capacity Layer
1GHz – 7.125GHz
High Throughput Layers
24.25GHz – 52.6GHz

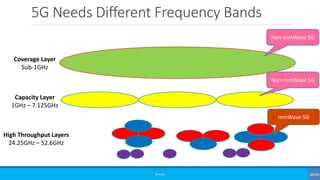

5G Needs Different Frequency Bands
©3G4G
Coverage Layer
Sub-1GHz
Capacity Layer
1GHz – 7.125GHz
High Throughput Layers
24.25GHz – 52.6GHz
Non-mmWave 5G
mmWave 5G
Non-mmWave 5G

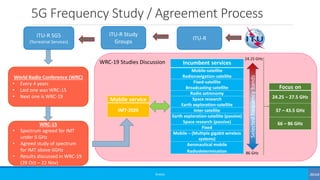

5G Frequency Study / Agreement Process
©3G4G
World Radio Conference (WRC)
• Every 4 years
• Last one was WRC-15
• Next one is WRC-19
WRC-15
• Spectrum agreed for IMT
under 6 GHz
• Agreed study of spectrum
for IMT above 6GHz
• Results discussed in WRC-19
(28 Oct – 22 Nov)
ITU-R
ITU-R Study
Groups
ITU-R SG5
(Terrestrial Services)
WRC-19 Studies Discussion

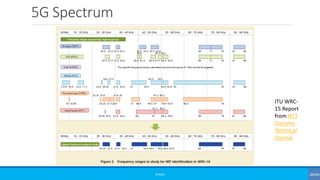

5G Spectrum
©3G4G
ITU WRC-
15 Report
from NTT
Docomo
Technical
Journal

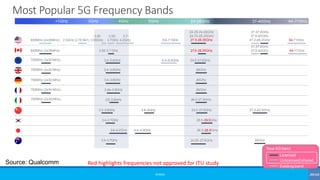

Most Popular 5G Frequency Bands
©3G4G
600MHz (2x35MHz)
24.25-24.45GHz
24.75-25.25GHz
27.5-28.35GHz
700MHz (2x30 MHz) 3.4–3.8GHz 24.5-27.5GHz
3.4–3.8GHz 26GHz
3.4–3.8GHz 26GHz
3.46–3.8GHz 26GHz
3.6–3.8GHz
3.3–3.6GHz 4.8–5GHz 24.5-27.5GHz 37.5-42.5GHz
3.4–3.7GHz 26.5-29.5GHz
4.4–4.9GHz 26.5-28.5GHz
3.4–3.7GHz 39GHz
3.6–4.2GHz
64-71GHz
37-37.6GHz
37.6-40GHz
47.2-48.2GHz
5.9–6.4GHz
5.9–7.1GHz
600MHz (2x35MHz) 27.5-28.35GHz 64-71GHz
37-37.6GHz
37.6-40GHz
24.25-27.5GHz
26.5-27.5GHz
3.55- 3.7-
3.7GHz 4.2GHz
3.55-3.7 GHz
700MHz (2x30 MHz)
700MHz (2x30 MHz)
700MHz (2x30 MHz)
700MHz (2x30 MHz)
5GHz4GHz3GHz<1GHz 24-28GHz 37-40GHz 64-71GHz
3.45-
2.5GHz (LTE B41) 3.55GHz
Source: Qualcomm
Licensed
Unlicensed/shared
Existing band
New 5G band
Red highlights frequencies not approved for ITU study

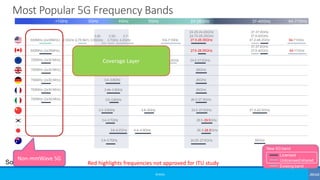

Most Popular 5G Frequency Bands
©3G4G
600MHz (2x35MHz)
24.25-24.45GHz
24.75-25.25GHz
27.5-28.35GHz
700MHz (2x30 MHz) 3.4–3.8GHz 24.5-27.5GHz
3.4–3.8GHz 26GHz
3.4–3.8GHz 26GHz
3.46–3.8GHz 26GHz
3.6–3.8GHz
3.3–3.6GHz 4.8–5GHz 24.5-27.5GHz 37.5-42.5GHz
3.4–3.7GHz 26.5-29.5GHz
4.4–4.9GHz 26.5-28.5GHz
3.4–3.7GHz 39GHz
3.6–4.2GHz
64-71GHz
37-37.6GHz
37.6-40GHz
47.2-48.2GHz
5.9–6.4GHz
5.9–7.1GHz
600MHz (2x35MHz) 27.5-28.35GHz 64-71GHz
37-37.6GHz
37.6-40GHz
24.25-27.5GHz
26.5-27.5GHz
3.55- 3.7-
3.7GHz 4.2GHz
3.55-3.7 GHz
700MHz (2x30 MHz)
700MHz (2x30 MHz)
700MHz (2x30 MHz)
700MHz (2x30 MHz)
5GHz4GHz3GHz<1GHz 24-28GHz 37-40GHz 64-71GHz
3.45-
2.5GHz (LTE B41) 3.55GHz
Source: Qualcomm
Licensed
Unlicensed/shared
Existing band
New 5G band
Red highlights frequencies not approved for ITU study
Non-mmWave 5G
Coverage Layer
Most Popular 5G Frequency Bands
©3G4G
600MHz (2x35MHz)
24.25-24.45GHz
24.75-25.25GHz
27.5-28.35GHz
700MHz (2x30 MHz) 3.4–3.8GHz 24.5-27.5GHz
3.4–3.8GHz 26GHz
3.4–3.8GHz 26GHz
3.46–3.8GHz 26GHz
3.6–3.8GHz
3.3–3.6GHz 4.8–5GHz 24.5-27.5GHz 37.5-42.5GHz
3.4–3.7GHz 26.5-29.5GHz
4.4–4.9GHz 26.5-28.5GHz
3.4–3.7GHz 39GHz
3.6–4.2GHz
64-71GHz
37-37.6GHz
37.6-40GHz
47.2-48.2GHz
5.9–6.4GHz
5.9–7.1GHz
600MHz (2x35MHz) 27.5-28.35GHz 64-71GHz
37-37.6GHz
37.6-40GHz
24.25-27.5GHz
26.5-27.5GHz
3.55- 3.7-
3.7GHz 4.2GHz
3.55-3.7 GHz
700MHz (2x30 MHz)
700MHz (2x30 MHz)
700MHz (2x30 MHz)
700MHz (2x30 MHz)
5GHz4GHz3GHz<1GHz 24-28GHz 37-40GHz 64-71GHz
3.45-
2.5GHz (LTE B41) 3.55GHz
Source: Qualcomm
Licensed
Unlicensed/shared
Existing band
New 5G band
Red highlights frequencies not approved for ITU study
Non-mmWave 5G
Capacity Layer

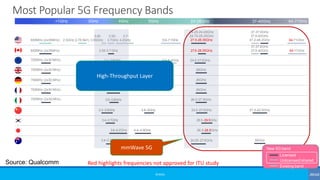

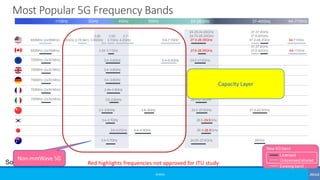

Most Popular 5G Frequency Bands
©3G4G
600MHz (2x35MHz)
24.25-24.45GHz
24.75-25.25GHz
27.5-28.35GHz
700MHz (2x30 MHz) 3.4–3.8GHz 24.5-27.5GHz
3.4–3.8GHz 26GHz
3.4–3.8GHz 26GHz
3.46–3.8GHz 26GHz
3.6–3.8GHz
3.3–3.6GHz 4.8–5GHz 24.5-27.5GHz 37.5-42.5GHz
3.4–3.7GHz 26.5-29.5GHz
4.4–4.9GHz 26.5-28.5GHz
3.4–3.7GHz 39GHz
3.6–4.2GHz
64-71GHz
37-37.6GHz
37.6-40GHz
47.2-48.2GHz
5.9–6.4GHz
5.9–7.1GHz
600MHz (2x35MHz) 27.5-28.35GHz 64-71GHz
37-37.6GHz
37.6-40GHz
24.25-27.5GHz
26.5-27.5GHz
3.55- 3.7-
3.7GHz 4.2GHz
3.55-3.7 GHz
700MHz (2x30 MHz)
700MHz (2x30 MHz)
700MHz (2x30 MHz)
700MHz (2x30 MHz)
5GHz4GHz3GHz<1GHz 24-28GHz 37-40GHz 64-71GHz
3.45-
2.5GHz (LTE B41) 3.55GHz
Source: Qualcomm Red highlights frequencies not approved for ITU study
mmWave 5G
High-Throughput Layer
Licensed
Unlicensed/shared
Existing band
New 5G band

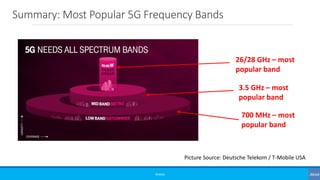

Summary: Most Popular 5G Frequency Bands
©3G4G
Picture Source: Deutsche Telekom / T-Mobile USA
700 MHz – most
popular band
3.5 GHz – most
popular band
26/28 GHz – most
popular band

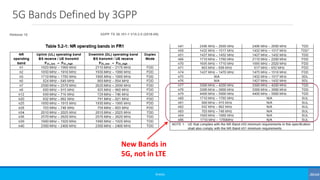

5G Bands Defined by 3GPP
©3G4G
New Bands in
5G, not in LTE

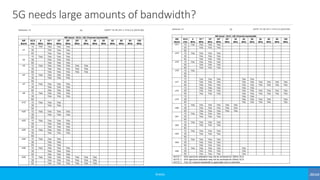

5G needs large amounts of bandwidth?
©3G4G

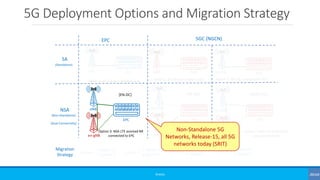

5G Deployment Options and Migration Strategy
©3G4G
EPC 5GC (NGCN)
SA
NSA
eNB EPC
Option 1: SA LTE connected to EPC Option 2: SA NR connected to 5GC
(Standalone)
(Non-Standalone)
[Dual Connectivity]
ng-eNBgNB 5GC
Option 5: SA LTE connected to 5GC
Option 3: NSA LTE assisted NR
connected to EPC
Option 4: NSA NR assisted LTE
connected to 5GC
Option 7: NSA LTE assisted NR
connected to 5GC
Migration
Strategy Option 1
↗ Option 2
↘ Option 3
Option 3
↗ Option 7
↘ Option 5
Option 3
↗ Option 3
↘ Option 2
Option 3
↗ Option 4
↘ Option 2
[EN-DC] [NE-DC] [NGEN-DC]
5GC
5GC
gNB
ng-eNB
5GC
gNB
ng-eNB
EPC
eNB
en-gNB
Non-Standalone 5G
Networks, Release-15, all 5G
networks today (SRIT)

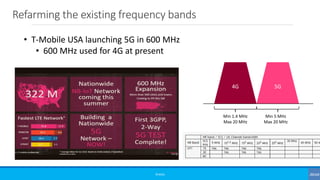

Refarming the existing frequency bands
©3G4G
• T-Mobile USA launching 5G in 600 MHz
• 600 MHz used for 4G at present
4G 5G
Min 1.4 MHz
Max 20 MHz
Min 5 MHz
Max 20 MHz

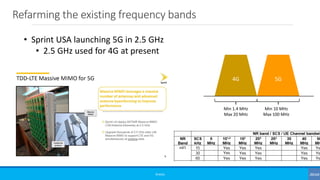

Refarming the existing frequency bands
©3G4G
• Sprint USA launching 5G in 2.5 GHz
• 2.5 GHz used for 4G at present
4G 5G
Min 1.4 MHz
Max 20 MHz
Min 10 MHz
Max 100 MHz

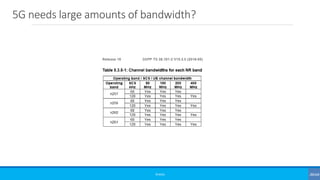

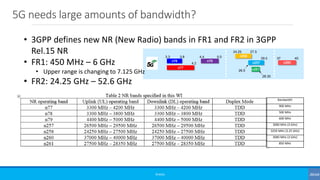

5G needs large amounts of bandwidth?
©3G4G
3.3 3.8
4.2
4.4 5.0
24.25 27.5
29.5 37 40
26.5
n78 n79
n77
n258
n260
n261
28.35
n257
Bandwidth
900 MHz
500 MHz
600 MHz
3000 MHz (3 GHz)
3250 MHz (3.25 GHz)
3000 MHz (3 GHz)
850 MHz
• 3GPP defines new NR (New Radio) bands in FR1 and FR2 in 3GPP
Rel.15 NR
• FR1: 450 MHz – 6 GHz
• Upper range is changing to 7.125 GHz
• FR2: 24.25 GHz – 52.6 GHz
5G needs large amounts of bandwidth?
©3G4G

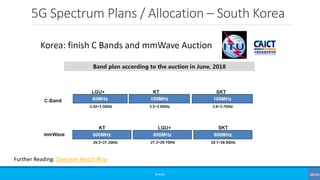

5G Spectrum Plans / Allocation – South Korea
©3G4G
Further Reading: Operator Watch Blog
South Korea: Both non-mmWave & mmWave 5G
©3G4G
0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz
FR1: 450 MHz – 7.125 GHz FR2: 24.25 GHz – 52.6 GHz
Non-mmWave 5G mmWave 5G

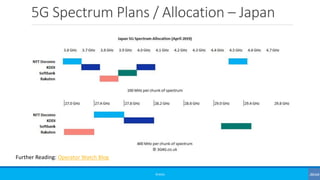

5G Spectrum Plans / Allocation – Japan
©3G4G
Further Reading: Operator Watch Blog

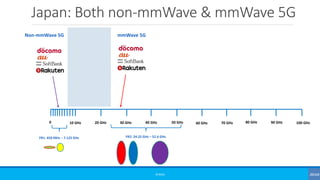

Japan: Both non-mmWave & mmWave 5G
©3G4G
0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz
FR1: 450 MHz – 7.125 GHz FR2: 24.25 GHz – 52.6 GHz
Non-mmWave 5G mmWave 5G
5G Spectrum Plans / Allocation – Italy
©3G4G
Source

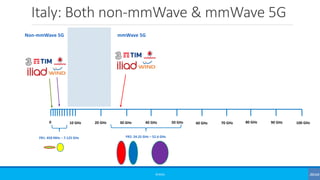

Italy: Both non-mmWave & mmWave 5G
©3G4G
0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz
FR1: 450 MHz – 7.125 GHz FR2: 24.25 GHz – 52.6 GHz
Non-mmWave 5G mmWave 5G

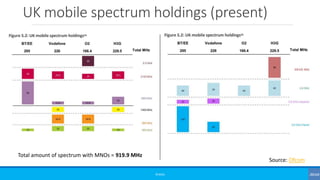

UK mobile spectrum holdings (present)
©3G4G
Source: Ofcom
Total amount of spectrum with MNOs = 919.9 MHz
UK: Only non-mmWave 5G right now
©3G4G
0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz
FR1: 450 MHz – 7.125 GHz FR2: 24.25 GHz – 52.6 GHz
Non-mmWave 5G mmWave 5G

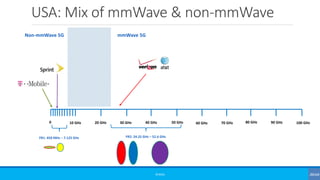

USA: Mix of mmWave & non-mmWave
©3G4G
0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz
FR1: 450 MHz – 7.125 GHz FR2: 24.25 GHz – 52.6 GHz
Non-mmWave 5G mmWave 5G

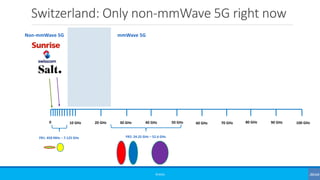

Switzerland: Only non-mmWave 5G right now
©3G4G
0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz
FR1: 450 MHz – 7.125 GHz FR2: 24.25 GHz – 52.6 GHz
Non-mmWave 5G mmWave 5G

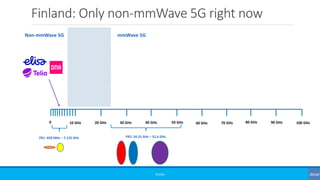

Finland: Only non-mmWave 5G right now
©3G4G
0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz
FR1: 450 MHz – 7.125 GHz FR2: 24.25 GHz – 52.6 GHz
Non-mmWave 5G mmWave 5G

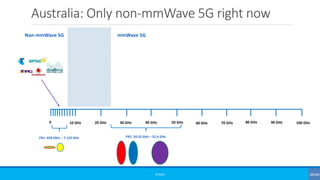

Australia: Only non-mmWave 5G right now
©3G4G
0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz
FR1: 450 MHz – 7.125 GHz FR2: 24.25 GHz – 52.6 GHz
Non-mmWave 5G mmWave 5G

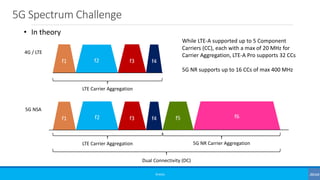

5G Spectrum Challenge
©3G4G
f1 f2 f3 f4
LTE Carrier Aggregation
4G / LTE
f1 f2 f3 f4
Dual Connectivity (DC)
5G NSA
f5
• In theory
f6
LTE Carrier Aggregation 5G NR Carrier Aggregation
While LTE-A supported up to 5 Component
Carriers (CC), each with a max of 20 MHz for
Carrier Aggregation, LTE-A Pro supports 32 CCs
5G NR supports up to 16 CCs of max 400 MHz

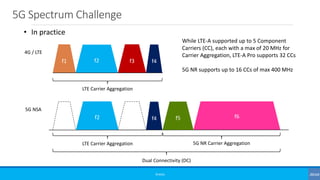

5G Spectrum Challenge
©3G4G
f1 f2 f3 f4
LTE Carrier Aggregation
4G / LTE
f1 f2 f3 f4
Dual Connectivity (DC)
5G NSA
f5
• In practice
f6
LTE Carrier Aggregation 5G NR Carrier Aggregation
While LTE-A supported up to 5 Component
Carriers (CC), each with a max of 20 MHz for
Carrier Aggregation, LTE-A Pro supports 32 CCs
5G NR supports up to 16 CCs of max 400 MHz
5G Spectrum Challenge – Interference
©3G4G
• With so many different bands in use, there is a small possibility of interference between them
• A recent whitepaper from Keysight points out that the 5G Uplink transmission in 3.5 GHz band
might significantly interfere with 4G in the 1.8 GHz band in downlink direction. Maybe bad news,
especially in Europe, where these are heavily used
Popular mmWave Frequency bands for different Technologies
©3G4G
0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz
Millimeter wave 5G
2.4GHz Wi-Fi,
Bluetooth, etc.
5GHz Wi-Fi
WiGig – 60GHz Wi-Fi
Up to 6GHz 802.11ax
5G FR1 (450 MHz – 7.125 GHz)
5G FR2 (24.25 GHz – 52.6 GHz)
802.11be EHT (1 GHz – 7.125 GHz)
802.11ad / 802.11ay
(57.24 GHz – 70.20 GHz)
2G 2G/4G3G 4G
Non-mmWave5Gnon-mmWave 5G
10 GHz0 GHz
mmWave
Various Satellite Based Services
(including Satellite Broadband)

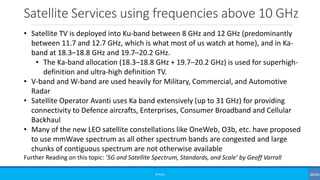

Satellite Services using frequencies above 10 GHz
©3G4G
• Satellite TV is deployed into Ku-band between 8 GHz and 12 GHz (predominantly
between 11.7 and 12.7 GHz, which is what most of us watch at home), and in Ka-
band at 18.3–18.8 GHz and 19.7–20.2 GHz.
• The Ka-band allocation (18.3–18.8 GHz + 19.7–20.2 GHz) is used for superhigh-
definition and ultra-high definition TV.
• V-band and W-band are used heavily for Military, Commercial, and Automotive
Radar
• Satellite Operator Avanti uses Ka band extensively (up to 31 GHz) for providing
connectivity to Defence aircrafts, Enterprises, Consumer Broadband and Cellular
Backhaul
• Many of the new LEO satellite constellations like OneWeb, O3b, etc. have proposed
to use mmWave spectrum as all other spectrum bands are congested and large
chunks of contiguous spectrum are not otherwise available
Further Reading on this topic: ‘5G and Satellite Spectrum, Standards, and Scale’ by Geoff Varrall

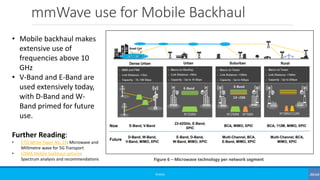

mmWave use for Mobile Backhaul
©3G4G
• Mobile backhaul makes
extensive use of
frequencies above 10
GHz
• V-Band and E-Band are
used extensively today,
with D-Band and W-
Band primed for future
use.
Further Reading:
• ETSI White Paper No. 25: Microwave and
Millimetre wave for 5G Transport
• GSMA Mobile backhaul options:
Spectrum analysis and recommendations

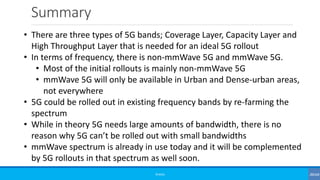

Summary
©3G4G
• There are three types of 5G bands; Coverage Layer, Capacity Layer and
High Throughput Layer that is needed for an ideal 5G rollout
• In terms of frequency, there is non-mmWave 5G and mmWave 5G.
• Most of the initial rollouts is mainly non-mmWave 5G
• mmWave 5G will only be available in Urban and Dense-urban areas,
not everywhere
• 5G could be rolled out in existing frequency bands by re-farming the
spectrum
• While in theory 5G needs large amounts of bandwidth, there is no
reason why 5G can’t be rolled out with small bandwidths
• mmWave spectrum is already in use today and it will be complemented
by 5G rollouts in that spectrum as well soon.
Thank You
To learn more, visit:
3G4G Website – http://www.3g4g.co.uk/
3G4G Blog – http://blog.3g4g.co.uk/
3G4G Small Cells Blog – http://smallcells.3g4g.co.uk/
Operator Watch - http://operatorwatch.3g4g.co.uk/
Follow us on Twitter: https://twitter.com/3g4gUK
Follow us on Facebook: https://www.facebook.com/3g4gUK/
Follow us on Linkedin: https://www.linkedin.com/company/3g4g
Follow us on Slideshare: https://www.slideshare.net/3G4GLtd
Follow us on Youtube: https://www.youtube.com/3G4G5G
©3G4G

More Related Content

What's hot

5G Network Architecture, Design and Optimisation
5G Network Architecture, Design and Optimisation5G Network Architecture, Design and Optimisation
5G Network Architecture, Design and Optimisation3G4G

Part 10: 5G Use cases - 5G for Absolute Beginners
Part 10: 5G Use cases - 5G for Absolute BeginnersPart 10: 5G Use cases - 5G for Absolute Beginners
Part 10: 5G Use cases - 5G for Absolute Beginners3G4G

5G physical layer
5G physical layer 5G physical layer
5G physical layer Ali Nikfal

5G Technology Tutorial
5G Technology Tutorial5G Technology Tutorial
5G Technology TutorialAPNIC

Intermediate: Bandwidth Parts (BWP)
Intermediate: Bandwidth Parts (BWP)Intermediate: Bandwidth Parts (BWP)
Intermediate: Bandwidth Parts (BWP)3G4G

4 g LTE, LTE Advance
4 g LTE, LTE Advance 4 g LTE, LTE Advance
4 g LTE, LTE Advance Sajid Marwat

Overview 5G NR Radio Protocols by Intel
Overview 5G NR Radio Protocols by Intel Overview 5G NR Radio Protocols by Intel
Overview 5G NR Radio Protocols by Intel Eiko Seidel

6G Training Course Part 5: 6G Requirements
6G Training Course Part 5: 6G Requirements6G Training Course Part 5: 6G Requirements
6G Training Course Part 5: 6G Requirements3G4G

Opinion: The Politics of SA vs NSA 5G & 4G Speeds
Opinion: The Politics of SA vs NSA 5G & 4G SpeedsOpinion: The Politics of SA vs NSA 5G & 4G Speeds
Opinion: The Politics of SA vs NSA 5G & 4G Speeds3G4G

6G Training Course Part 1: Introduction
6G Training Course Part 1: Introduction6G Training Course Part 1: Introduction
6G Training Course Part 1: Introduction3G4G

Introduction to 5G by Doug Hohulin
Introduction to 5G by Doug HohulinIntroduction to 5G by Doug Hohulin
Introduction to 5G by Doug HohulinGigabit City Summit

Setting off the 5G Advanced evolution with 3GPP Release 18
Setting off the 5G Advanced evolution with 3GPP Release 18Setting off the 5G Advanced evolution with 3GPP Release 18
Setting off the 5G Advanced evolution with 3GPP Release 18Qualcomm Research

Designing the 5G Unified Air Interface
Designing the 5G Unified Air InterfaceDesigning the 5G Unified Air Interface
Designing the 5G Unified Air InterfaceQualcomm Research

5G massive mimo & planning.pdf
5G massive mimo & planning.pdf5G massive mimo & planning.pdf
5G massive mimo & planning.pdfbagusmardani1

Expanding the 5G NR (New Radio) ecosystem
Expanding the 5G NR (New Radio) ecosystemExpanding the 5G NR (New Radio) ecosystem
Expanding the 5G NR (New Radio) ecosystemQualcomm Research

Overview 3GPP NR Physical Layer
Overview 3GPP NR Physical LayerOverview 3GPP NR Physical Layer
Overview 3GPP NR Physical LayerEiko Seidel


What's hot (20)

5G Network Architecture, Design and Optimisation
5G Network Architecture, Design and Optimisation5G Network Architecture, Design and Optimisation
5G Network Architecture, Design and Optimisation

Part 10: 5G Use cases - 5G for Absolute Beginners
Part 10: 5G Use cases - 5G for Absolute BeginnersPart 10: 5G Use cases - 5G for Absolute Beginners
Part 10: 5G Use cases - 5G for Absolute Beginners

5g introduction_NR
5g introduction_NR5g introduction_NR
5g introduction_NR

Introduction to 5G NR
Introduction to 5G NRIntroduction to 5G NR
Introduction to 5G NR

5G physical layer
5G physical layer 5G physical layer
5G physical layer

5G Technology Tutorial
5G Technology Tutorial5G Technology Tutorial
5G Technology Tutorial

Intermediate: Bandwidth Parts (BWP)
Intermediate: Bandwidth Parts (BWP)Intermediate: Bandwidth Parts (BWP)
Intermediate: Bandwidth Parts (BWP)

4 g LTE, LTE Advance
4 g LTE, LTE Advance 4 g LTE, LTE Advance
4 g LTE, LTE Advance

Designing 5G NR (New Radio)
Designing 5G NR (New Radio)Designing 5G NR (New Radio)
Designing 5G NR (New Radio)

Overview 5G NR Radio Protocols by Intel
Overview 5G NR Radio Protocols by Intel Overview 5G NR Radio Protocols by Intel
Overview 5G NR Radio Protocols by Intel

6G Training Course Part 5: 6G Requirements
6G Training Course Part 5: 6G Requirements6G Training Course Part 5: 6G Requirements
6G Training Course Part 5: 6G Requirements

Opinion: The Politics of SA vs NSA 5G & 4G Speeds
Opinion: The Politics of SA vs NSA 5G & 4G SpeedsOpinion: The Politics of SA vs NSA 5G & 4G Speeds
Opinion: The Politics of SA vs NSA 5G & 4G Speeds

LTE Basic
LTE BasicLTE Basic
LTE Basic

6G Training Course Part 1: Introduction
6G Training Course Part 1: Introduction6G Training Course Part 1: Introduction
6G Training Course Part 1: Introduction

Introduction to 5G by Doug Hohulin
Introduction to 5G by Doug HohulinIntroduction to 5G by Doug Hohulin
Introduction to 5G by Doug Hohulin

Setting off the 5G Advanced evolution with 3GPP Release 18
Setting off the 5G Advanced evolution with 3GPP Release 18Setting off the 5G Advanced evolution with 3GPP Release 18
Setting off the 5G Advanced evolution with 3GPP Release 18

Designing the 5G Unified Air Interface
Designing the 5G Unified Air InterfaceDesigning the 5G Unified Air Interface
Designing the 5G Unified Air Interface

5G massive mimo & planning.pdf
5G massive mimo & planning.pdf5G massive mimo & planning.pdf
5G massive mimo & planning.pdf

Expanding the 5G NR (New Radio) ecosystem
Expanding the 5G NR (New Radio) ecosystemExpanding the 5G NR (New Radio) ecosystem
Expanding the 5G NR (New Radio) ecosystem

Overview 3GPP NR Physical Layer
Overview 3GPP NR Physical LayerOverview 3GPP NR Physical Layer
Overview 3GPP NR Physical Layer


Similar to Beginners: 5G Spectrum - Long Version

Misc: Non millimeter Wave (mmWave) 5G
Misc: Non millimeter Wave (mmWave) 5GMisc: Non millimeter Wave (mmWave) 5G
Misc: Non millimeter Wave (mmWave) 5G3G4G

ETSI mWT ISG
ETSI mWT ISGETSI mWT ISG
ETSI mWT ISGtechUK

Different Types of Backhaul
Different Types of BackhaulDifferent Types of Backhaul
Different Types of Backhaul3G4G

Part 8: 5G Spectrum - 5G for Absolute Beginners
Part 8: 5G Spectrum - 5G for Absolute BeginnersPart 8: 5G Spectrum - 5G for Absolute Beginners
Part 8: 5G Spectrum - 5G for Absolute Beginners3G4G

5G Interview Questions: 50 Questions on Spectrum
5G Interview Questions: 50 Questions on Spectrum5G Interview Questions: 50 Questions on Spectrum
5G Interview Questions: 50 Questions on Spectrum3G4G

01 5 g-nr_introduction_190205
01 5 g-nr_introduction_19020501 5 g-nr_introduction_190205
01 5 g-nr_introduction_190205Muntazir Mehdi

5G Demystified; the what, when and where
5G Demystified; the what, when and where5G Demystified; the what, when and where
5G Demystified; the what, when and where3G4G

BSN 5G Pathway Presentation January 2019
BSN 5G Pathway Presentation January 2019BSN 5G Pathway Presentation January 2019
BSN 5G Pathway Presentation January 2019Maureen Donovan

Overview of standardisation status and 3GPP technology evolution trend
Overview of standardisation status and 3GPP technology evolution trendOverview of standardisation status and 3GPP technology evolution trend
Overview of standardisation status and 3GPP technology evolution trendSylvia Lu

Overview of standardisation status and 3GPP technology evolution trend
Overview of standardisation status and 3GPP technology evolution trendOverview of standardisation status and 3GPP technology evolution trend
Overview of standardisation status and 3GPP technology evolution trend3G4G

Opinion: Would 5G NSA undergo Sunset?
Opinion: Would 5G NSA undergo Sunset?Opinion: Would 5G NSA undergo Sunset?
Opinion: Would 5G NSA undergo Sunset?3G4G

mmWave: Fixed Wireless –Regulatory Aspects
mmWave: Fixed Wireless –Regulatory AspectsmmWave: Fixed Wireless –Regulatory Aspects
mmWave: Fixed Wireless –Regulatory AspectstechUK

5G technical_overview_training_sec_1
5G technical_overview_training_sec_15G technical_overview_training_sec_1
5G technical_overview_training_sec_1Sajal Kumar Das

Opinion: What is “Real 5G”? (and “Real 4G”?)
Opinion: What is “Real 5G”? (and “Real 4G”?)Opinion: What is “Real 5G”? (and “Real 4G”?)
Opinion: What is “Real 5G”? (and “Real 4G”?)3G4G

5G Spectrum in EUROPE
5G Spectrum in EUROPE5G Spectrum in EUROPE
5G Spectrum in EUROPESitha Sok

Future use of millimetre waves – outcome of WRC-15 and study priorities for W...
Future use of millimetre waves – outcome of WRC-15 and study priorities for W...Future use of millimetre waves – outcome of WRC-15 and study priorities for W...
Future use of millimetre waves – outcome of WRC-15 and study priorities for W...techUK

powerpoint_presentation_-_making_5g_nr_a_reality_february_2020_web.pdf
powerpoint_presentation_-_making_5g_nr_a_reality_february_2020_web.pdfpowerpoint_presentation_-_making_5g_nr_a_reality_february_2020_web.pdf
powerpoint_presentation_-_making_5g_nr_a_reality_february_2020_web.pdfAhmedHashi22


Similar to Beginners: 5G Spectrum - Long Version (20)

Misc: Non millimeter Wave (mmWave) 5G
Misc: Non millimeter Wave (mmWave) 5GMisc: Non millimeter Wave (mmWave) 5G
Misc: Non millimeter Wave (mmWave) 5G

ETSI mWT ISG
ETSI mWT ISGETSI mWT ISG
ETSI mWT ISG

Different Types of Backhaul
Different Types of BackhaulDifferent Types of Backhaul
Different Types of Backhaul

Part 8: 5G Spectrum - 5G for Absolute Beginners
Part 8: 5G Spectrum - 5G for Absolute BeginnersPart 8: 5G Spectrum - 5G for Absolute Beginners
Part 8: 5G Spectrum - 5G for Absolute Beginners

5G Interview Questions: 50 Questions on Spectrum
5G Interview Questions: 50 Questions on Spectrum5G Interview Questions: 50 Questions on Spectrum
5G Interview Questions: 50 Questions on Spectrum

01 5 g-nr_introduction_190205
01 5 g-nr_introduction_19020501 5 g-nr_introduction_190205
01 5 g-nr_introduction_190205

5G Demystified; the what, when and where
5G Demystified; the what, when and where5G Demystified; the what, when and where
5G Demystified; the what, when and where

BSN 5G Pathway Presentation January 2019
BSN 5G Pathway Presentation January 2019BSN 5G Pathway Presentation January 2019
BSN 5G Pathway Presentation January 2019

Overview of standardisation status and 3GPP technology evolution trend
Overview of standardisation status and 3GPP technology evolution trendOverview of standardisation status and 3GPP technology evolution trend
Overview of standardisation status and 3GPP technology evolution trend

Overview of standardisation status and 3GPP technology evolution trend
Overview of standardisation status and 3GPP technology evolution trendOverview of standardisation status and 3GPP technology evolution trend
Overview of standardisation status and 3GPP technology evolution trend

Opinion: Would 5G NSA undergo Sunset?
Opinion: Would 5G NSA undergo Sunset?Opinion: Would 5G NSA undergo Sunset?
Opinion: Would 5G NSA undergo Sunset?

mmWave: Fixed Wireless –Regulatory Aspects
mmWave: Fixed Wireless –Regulatory AspectsmmWave: Fixed Wireless –Regulatory Aspects
mmWave: Fixed Wireless –Regulatory Aspects

5G Readiness
5G Readiness5G Readiness
5G Readiness

5G technical_overview_training_sec_1
5G technical_overview_training_sec_15G technical_overview_training_sec_1
5G technical_overview_training_sec_1

Datenblatt neo
Datenblatt neoDatenblatt neo
Datenblatt neo

Opinion: What is “Real 5G”? (and “Real 4G”?)
Opinion: What is “Real 5G”? (and “Real 4G”?)Opinion: What is “Real 5G”? (and “Real 4G”?)
Opinion: What is “Real 5G”? (and “Real 4G”?)

5G Spectrum in EUROPE
5G Spectrum in EUROPE5G Spectrum in EUROPE
5G Spectrum in EUROPE

Future use of millimetre waves – outcome of WRC-15 and study priorities for W...
Future use of millimetre waves – outcome of WRC-15 and study priorities for W...Future use of millimetre waves – outcome of WRC-15 and study priorities for W...
Future use of millimetre waves – outcome of WRC-15 and study priorities for W...

5.8GHz wireless
5.8GHz wireless 5.8GHz wireless
5.8GHz wireless

powerpoint_presentation_-_making_5g_nr_a_reality_february_2020_web.pdf
powerpoint_presentation_-_making_5g_nr_a_reality_february_2020_web.pdfpowerpoint_presentation_-_making_5g_nr_a_reality_february_2020_web.pdf
powerpoint_presentation_-_making_5g_nr_a_reality_february_2020_web.pdf


More from 3G4G

TechKnowledge Technology Stories - Part 3: Satellites - Our Friends In The Sk...
TechKnowledge Technology Stories - Part 3: Satellites - Our Friends In The Sk...TechKnowledge Technology Stories - Part 3: Satellites - Our Friends In The Sk...
TechKnowledge Technology Stories - Part 3: Satellites - Our Friends In The Sk...3G4G

Misc: What are No Mobile Coverage Zones called?
Misc: What are No Mobile Coverage Zones called?Misc: What are No Mobile Coverage Zones called?
Misc: What are No Mobile Coverage Zones called?3G4G

TechKnowledge Technology Stories - Part 2: Connecting Everything Everywhere…
TechKnowledge Technology Stories - Part 2: Connecting Everything Everywhere…TechKnowledge Technology Stories - Part 2: Connecting Everything Everywhere…
TechKnowledge Technology Stories - Part 2: Connecting Everything Everywhere…3G4G

TechKnowledge Technology Stories - Part 1: Smaller, Faster, Cheaper and More…
TechKnowledge Technology Stories - Part 1: Smaller, Faster, Cheaper and More…TechKnowledge Technology Stories - Part 1: Smaller, Faster, Cheaper and More…
TechKnowledge Technology Stories - Part 1: Smaller, Faster, Cheaper and More…3G4G

Beginners: An Quick Introduction to 3GPP
Beginners: An Quick Introduction to 3GPPBeginners: An Quick Introduction to 3GPP
Beginners: An Quick Introduction to 3GPP3G4G

Misc: Mobile Technology and Healthcare
Misc: Mobile Technology and HealthcareMisc: Mobile Technology and Healthcare
Misc: Mobile Technology and Healthcare3G4G

Should we stop the shutdown of 2G/3G to save lives??
Should we stop the shutdown of 2G/3G to save lives??Should we stop the shutdown of 2G/3G to save lives??
Should we stop the shutdown of 2G/3G to save lives??3G4G

Opinion – 5G Reality Check: Speeds
Opinion – 5G Reality Check: SpeedsOpinion – 5G Reality Check: Speeds
Opinion – 5G Reality Check: Speeds3G4G

Technology Introduction Series: Edge Computing tutorial.pdf
Technology Introduction Series: Edge Computing tutorial.pdfTechnology Introduction Series: Edge Computing tutorial.pdf
Technology Introduction Series: Edge Computing tutorial.pdf3G4G

6G: Potential Use Cases and Enabling Technologies
6G: Potential Use Cases and Enabling Technologies6G: Potential Use Cases and Enabling Technologies
6G: Potential Use Cases and Enabling Technologies3G4G

3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)
3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)
3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)3G4G

3GPP SON Series: Energy Savings (ES)
3GPP SON Series: Energy Savings (ES)3GPP SON Series: Energy Savings (ES)
3GPP SON Series: Energy Savings (ES)3G4G

3GPP SON Series: Cell Outage Detection and Compensation (COD & COC)
3GPP SON Series: Cell Outage Detection and Compensation (COD & COC)3GPP SON Series: Cell Outage Detection and Compensation (COD & COC)
3GPP SON Series: Cell Outage Detection and Compensation (COD & COC)3G4G

3GPP SON Series: Minimization of Drive Testing (MDT)
3GPP SON Series: Minimization of Drive Testing (MDT)3GPP SON Series: Minimization of Drive Testing (MDT)
3GPP SON Series: Minimization of Drive Testing (MDT)3G4G

3GPP SON Series: Coverage and Capacity Optimization (CCO)
3GPP SON Series: Coverage and Capacity Optimization (CCO)3GPP SON Series: Coverage and Capacity Optimization (CCO)
3GPP SON Series: Coverage and Capacity Optimization (CCO)3G4G

3GPP SON Series: SON in 3GPP Release-10 – Self-healing
3GPP SON Series: SON in 3GPP Release-10 – Self-healing3GPP SON Series: SON in 3GPP Release-10 – Self-healing
3GPP SON Series: SON in 3GPP Release-10 – Self-healing3G4G

3GPP SON Series: RACH Optimization
3GPP SON Series: RACH Optimization3GPP SON Series: RACH Optimization
3GPP SON Series: RACH Optimization3G4G

3GPP SON Series: Mobility Robustness Optimization (MRO)
3GPP SON Series: Mobility Robustness Optimization (MRO)3GPP SON Series: Mobility Robustness Optimization (MRO)
3GPP SON Series: Mobility Robustness Optimization (MRO)3G4G

3GPP SON Series: SON in 3GPP Release-9 – Self-optimization
3GPP SON Series: SON in 3GPP Release-9 – Self-optimization3GPP SON Series: SON in 3GPP Release-9 – Self-optimization
3GPP SON Series: SON in 3GPP Release-9 – Self-optimization3G4G

Beginners: Energy Consumption in Mobile Networks - RAN Power Saving Schemes
Beginners: Energy Consumption in Mobile Networks - RAN Power Saving SchemesBeginners: Energy Consumption in Mobile Networks - RAN Power Saving Schemes
Beginners: Energy Consumption in Mobile Networks - RAN Power Saving Schemes3G4G


More from 3G4G (20)

TechKnowledge Technology Stories - Part 3: Satellites - Our Friends In The Sk...
TechKnowledge Technology Stories - Part 3: Satellites - Our Friends In The Sk...TechKnowledge Technology Stories - Part 3: Satellites - Our Friends In The Sk...
TechKnowledge Technology Stories - Part 3: Satellites - Our Friends In The Sk...

Misc: What are No Mobile Coverage Zones called?
Misc: What are No Mobile Coverage Zones called?Misc: What are No Mobile Coverage Zones called?
Misc: What are No Mobile Coverage Zones called?

TechKnowledge Technology Stories - Part 2: Connecting Everything Everywhere…
TechKnowledge Technology Stories - Part 2: Connecting Everything Everywhere…TechKnowledge Technology Stories - Part 2: Connecting Everything Everywhere…
TechKnowledge Technology Stories - Part 2: Connecting Everything Everywhere…

TechKnowledge Technology Stories - Part 1: Smaller, Faster, Cheaper and More…
TechKnowledge Technology Stories - Part 1: Smaller, Faster, Cheaper and More…TechKnowledge Technology Stories - Part 1: Smaller, Faster, Cheaper and More…
TechKnowledge Technology Stories - Part 1: Smaller, Faster, Cheaper and More…

Beginners: An Quick Introduction to 3GPP
Beginners: An Quick Introduction to 3GPPBeginners: An Quick Introduction to 3GPP
Beginners: An Quick Introduction to 3GPP

Misc: Mobile Technology and Healthcare
Misc: Mobile Technology and HealthcareMisc: Mobile Technology and Healthcare
Misc: Mobile Technology and Healthcare

Should we stop the shutdown of 2G/3G to save lives??
Should we stop the shutdown of 2G/3G to save lives??Should we stop the shutdown of 2G/3G to save lives??
Should we stop the shutdown of 2G/3G to save lives??

Opinion – 5G Reality Check: Speeds
Opinion – 5G Reality Check: SpeedsOpinion – 5G Reality Check: Speeds
Opinion – 5G Reality Check: Speeds

Technology Introduction Series: Edge Computing tutorial.pdf
Technology Introduction Series: Edge Computing tutorial.pdfTechnology Introduction Series: Edge Computing tutorial.pdf
Technology Introduction Series: Edge Computing tutorial.pdf

6G: Potential Use Cases and Enabling Technologies
6G: Potential Use Cases and Enabling Technologies6G: Potential Use Cases and Enabling Technologies
6G: Potential Use Cases and Enabling Technologies

3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)
3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)
3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)

3GPP SON Series: Energy Savings (ES)
3GPP SON Series: Energy Savings (ES)3GPP SON Series: Energy Savings (ES)
3GPP SON Series: Energy Savings (ES)

3GPP SON Series: Cell Outage Detection and Compensation (COD & COC)
3GPP SON Series: Cell Outage Detection and Compensation (COD & COC)3GPP SON Series: Cell Outage Detection and Compensation (COD & COC)
3GPP SON Series: Cell Outage Detection and Compensation (COD & COC)

3GPP SON Series: Minimization of Drive Testing (MDT)
3GPP SON Series: Minimization of Drive Testing (MDT)3GPP SON Series: Minimization of Drive Testing (MDT)
3GPP SON Series: Minimization of Drive Testing (MDT)

3GPP SON Series: Coverage and Capacity Optimization (CCO)
3GPP SON Series: Coverage and Capacity Optimization (CCO)3GPP SON Series: Coverage and Capacity Optimization (CCO)
3GPP SON Series: Coverage and Capacity Optimization (CCO)

3GPP SON Series: SON in 3GPP Release-10 – Self-healing
3GPP SON Series: SON in 3GPP Release-10 – Self-healing3GPP SON Series: SON in 3GPP Release-10 – Self-healing
3GPP SON Series: SON in 3GPP Release-10 – Self-healing

3GPP SON Series: RACH Optimization
3GPP SON Series: RACH Optimization3GPP SON Series: RACH Optimization
3GPP SON Series: RACH Optimization

3GPP SON Series: Mobility Robustness Optimization (MRO)
3GPP SON Series: Mobility Robustness Optimization (MRO)3GPP SON Series: Mobility Robustness Optimization (MRO)
3GPP SON Series: Mobility Robustness Optimization (MRO)

3GPP SON Series: SON in 3GPP Release-9 – Self-optimization
3GPP SON Series: SON in 3GPP Release-9 – Self-optimization3GPP SON Series: SON in 3GPP Release-9 – Self-optimization
3GPP SON Series: SON in 3GPP Release-9 – Self-optimization

Beginners: Energy Consumption in Mobile Networks - RAN Power Saving Schemes
Beginners: Energy Consumption in Mobile Networks - RAN Power Saving SchemesBeginners: Energy Consumption in Mobile Networks - RAN Power Saving Schemes
Beginners: Energy Consumption in Mobile Networks - RAN Power Saving Schemes


Recently uploaded

Decarbonising Buildings: Making a net-zero built environment a reality
Decarbonising Buildings: Making a net-zero built environment a realityDecarbonising Buildings: Making a net-zero built environment a reality
Decarbonising Buildings: Making a net-zero built environment a realityIES VE

How to write a Business Continuity Plan
How to write a Business Continuity PlanHow to write a Business Continuity Plan
How to write a Business Continuity PlanDatabarracks

From Family Reminiscence to Scholarly Archive .
From Family Reminiscence to Scholarly Archive .From Family Reminiscence to Scholarly Archive .
From Family Reminiscence to Scholarly Archive .Alan Dix

Emixa Mendix Meetup 11 April 2024 about Mendix Native development
Emixa Mendix Meetup 11 April 2024 about Mendix Native developmentEmixa Mendix Meetup 11 April 2024 about Mendix Native development
Emixa Mendix Meetup 11 April 2024 about Mendix Native developmentPim van der Noll

Modern Roaming for Notes and Nomad – Cheaper Faster Better Stronger
Modern Roaming for Notes and Nomad – Cheaper Faster Better StrongerModern Roaming for Notes and Nomad – Cheaper Faster Better Stronger
Modern Roaming for Notes and Nomad – Cheaper Faster Better Strongerpanagenda

Manual 508 Accessibility Compliance Audit
Manual 508 Accessibility Compliance AuditManual 508 Accessibility Compliance Audit
Manual 508 Accessibility Compliance AuditSkynet Technologies

So einfach geht modernes Roaming fuer Notes und Nomad.pdf
So einfach geht modernes Roaming fuer Notes und Nomad.pdfSo einfach geht modernes Roaming fuer Notes und Nomad.pdf
So einfach geht modernes Roaming fuer Notes und Nomad.pdfpanagenda

TrustArc Webinar - How to Build Consumer Trust Through Data Privacy
TrustArc Webinar - How to Build Consumer Trust Through Data PrivacyTrustArc Webinar - How to Build Consumer Trust Through Data Privacy
TrustArc Webinar - How to Build Consumer Trust Through Data PrivacyTrustArc

Moving Beyond Passwords: FIDO Paris Seminar.pdf
Moving Beyond Passwords: FIDO Paris Seminar.pdfMoving Beyond Passwords: FIDO Paris Seminar.pdf
Moving Beyond Passwords: FIDO Paris Seminar.pdfLoriGlavin3

Potential of AI (Generative AI) in Business: Learnings and Insights
Potential of AI (Generative AI) in Business: Learnings and InsightsPotential of AI (Generative AI) in Business: Learnings and Insights
Potential of AI (Generative AI) in Business: Learnings and InsightsRavi Sanghani

Passkey Providers and Enabling Portability: FIDO Paris Seminar.pptx
Passkey Providers and Enabling Portability: FIDO Paris Seminar.pptxPasskey Providers and Enabling Portability: FIDO Paris Seminar.pptx
Passkey Providers and Enabling Portability: FIDO Paris Seminar.pptxLoriGlavin3

Why device, WIFI, and ISP insights are crucial to supporting remote Microsoft...
Why device, WIFI, and ISP insights are crucial to supporting remote Microsoft...Why device, WIFI, and ISP insights are crucial to supporting remote Microsoft...
Why device, WIFI, and ISP insights are crucial to supporting remote Microsoft...panagenda

Sample pptx for embedding into website for demo
Sample pptx for embedding into website for demoSample pptx for embedding into website for demo
Sample pptx for embedding into website for demoHarshalMandlekar2

Genislab builds better products and faster go-to-market with Lean project man...
Genislab builds better products and faster go-to-market with Lean project man...Genislab builds better products and faster go-to-market with Lean project man...
Genislab builds better products and faster go-to-market with Lean project man...Farhan Tariq

[Webinar] SpiraTest - Setting New Standards in Quality Assurance
[Webinar] SpiraTest - Setting New Standards in Quality Assurance[Webinar] SpiraTest - Setting New Standards in Quality Assurance
[Webinar] SpiraTest - Setting New Standards in Quality AssuranceInflectra

Use of FIDO in the Payments and Identity Landscape: FIDO Paris Seminar.pptx
Use of FIDO in the Payments and Identity Landscape: FIDO Paris Seminar.pptxUse of FIDO in the Payments and Identity Landscape: FIDO Paris Seminar.pptx
Use of FIDO in the Payments and Identity Landscape: FIDO Paris Seminar.pptxLoriGlavin3

How to Effectively Monitor SD-WAN and SASE Environments with ThousandEyes
How to Effectively Monitor SD-WAN and SASE Environments with ThousandEyesHow to Effectively Monitor SD-WAN and SASE Environments with ThousandEyes
How to Effectively Monitor SD-WAN and SASE Environments with ThousandEyesThousandEyes

Testing tools and AI - ideas what to try with some tool examples
Testing tools and AI - ideas what to try with some tool examplesTesting tools and AI - ideas what to try with some tool examples
Testing tools and AI - ideas what to try with some tool examplesKari Kakkonen

How AI, OpenAI, and ChatGPT impact business and software.
How AI, OpenAI, and ChatGPT impact business and software.How AI, OpenAI, and ChatGPT impact business and software.
How AI, OpenAI, and ChatGPT impact business and software.Curtis Poe

Data governance with Unity Catalog Presentation
Data governance with Unity Catalog PresentationData governance with Unity Catalog Presentation
Data governance with Unity Catalog PresentationKnoldus Inc.


Recently uploaded (20)

Decarbonising Buildings: Making a net-zero built environment a reality
Decarbonising Buildings: Making a net-zero built environment a realityDecarbonising Buildings: Making a net-zero built environment a reality
Decarbonising Buildings: Making a net-zero built environment a reality

How to write a Business Continuity Plan
How to write a Business Continuity PlanHow to write a Business Continuity Plan
How to write a Business Continuity Plan

From Family Reminiscence to Scholarly Archive .
From Family Reminiscence to Scholarly Archive .From Family Reminiscence to Scholarly Archive .
From Family Reminiscence to Scholarly Archive .

Emixa Mendix Meetup 11 April 2024 about Mendix Native development
Emixa Mendix Meetup 11 April 2024 about Mendix Native developmentEmixa Mendix Meetup 11 April 2024 about Mendix Native development
Emixa Mendix Meetup 11 April 2024 about Mendix Native development

Modern Roaming for Notes and Nomad – Cheaper Faster Better Stronger
Modern Roaming for Notes and Nomad – Cheaper Faster Better StrongerModern Roaming for Notes and Nomad – Cheaper Faster Better Stronger
Modern Roaming for Notes and Nomad – Cheaper Faster Better Stronger

Manual 508 Accessibility Compliance Audit
Manual 508 Accessibility Compliance AuditManual 508 Accessibility Compliance Audit
Manual 508 Accessibility Compliance Audit

So einfach geht modernes Roaming fuer Notes und Nomad.pdf
So einfach geht modernes Roaming fuer Notes und Nomad.pdfSo einfach geht modernes Roaming fuer Notes und Nomad.pdf
So einfach geht modernes Roaming fuer Notes und Nomad.pdf

TrustArc Webinar - How to Build Consumer Trust Through Data Privacy
TrustArc Webinar - How to Build Consumer Trust Through Data PrivacyTrustArc Webinar - How to Build Consumer Trust Through Data Privacy
TrustArc Webinar - How to Build Consumer Trust Through Data Privacy

Moving Beyond Passwords: FIDO Paris Seminar.pdf
Moving Beyond Passwords: FIDO Paris Seminar.pdfMoving Beyond Passwords: FIDO Paris Seminar.pdf
Moving Beyond Passwords: FIDO Paris Seminar.pdf

Potential of AI (Generative AI) in Business: Learnings and Insights
Potential of AI (Generative AI) in Business: Learnings and InsightsPotential of AI (Generative AI) in Business: Learnings and Insights
Potential of AI (Generative AI) in Business: Learnings and Insights

Passkey Providers and Enabling Portability: FIDO Paris Seminar.pptx
Passkey Providers and Enabling Portability: FIDO Paris Seminar.pptxPasskey Providers and Enabling Portability: FIDO Paris Seminar.pptx
Passkey Providers and Enabling Portability: FIDO Paris Seminar.pptx

Why device, WIFI, and ISP insights are crucial to supporting remote Microsoft...
Why device, WIFI, and ISP insights are crucial to supporting remote Microsoft...Why device, WIFI, and ISP insights are crucial to supporting remote Microsoft...
Why device, WIFI, and ISP insights are crucial to supporting remote Microsoft...

Sample pptx for embedding into website for demo
Sample pptx for embedding into website for demoSample pptx for embedding into website for demo
Sample pptx for embedding into website for demo

Genislab builds better products and faster go-to-market with Lean project man...
Genislab builds better products and faster go-to-market with Lean project man...Genislab builds better products and faster go-to-market with Lean project man...
Genislab builds better products and faster go-to-market with Lean project man...

[Webinar] SpiraTest - Setting New Standards in Quality Assurance
[Webinar] SpiraTest - Setting New Standards in Quality Assurance[Webinar] SpiraTest - Setting New Standards in Quality Assurance
[Webinar] SpiraTest - Setting New Standards in Quality Assurance

Use of FIDO in the Payments and Identity Landscape: FIDO Paris Seminar.pptx
Use of FIDO in the Payments and Identity Landscape: FIDO Paris Seminar.pptxUse of FIDO in the Payments and Identity Landscape: FIDO Paris Seminar.pptx
Use of FIDO in the Payments and Identity Landscape: FIDO Paris Seminar.pptx

How to Effectively Monitor SD-WAN and SASE Environments with ThousandEyes
How to Effectively Monitor SD-WAN and SASE Environments with ThousandEyesHow to Effectively Monitor SD-WAN and SASE Environments with ThousandEyes
How to Effectively Monitor SD-WAN and SASE Environments with ThousandEyes

Testing tools and AI - ideas what to try with some tool examples
Testing tools and AI - ideas what to try with some tool examplesTesting tools and AI - ideas what to try with some tool examples
Testing tools and AI - ideas what to try with some tool examples

How AI, OpenAI, and ChatGPT impact business and software.
How AI, OpenAI, and ChatGPT impact business and software.How AI, OpenAI, and ChatGPT impact business and software.
How AI, OpenAI, and ChatGPT impact business and software.

Data governance with Unity Catalog Presentation
Data governance with Unity Catalog PresentationData governance with Unity Catalog Presentation
Data governance with Unity Catalog Presentation


Beginners: 5G Spectrum - Long Version

  • 2. ©3G4G THIS IS LONG VERSION – FOR SHORT VERSION CLICK ON THE LINK ON TOP RIGHT
  • 4. ©3G4G Electromagnetic Spectrum covers Electromagnetic Waves with frequencies ranging from below 1 hertz to above 1025 hertz
  • 5. ©3G4G The Radio Spectrum is part of spectrum from 3Hz to 3000GHz (3 THz)
  • 6. ©3G4G 5G is only looking at frequencies from 450 MHz to 52.6 GHz 3GPP has divided 5G frequencies in 2 parts: • Frequency Range 1 (FR1): 450 MHz – 7.125 GHz • Frequency Range 2 (FR2): 24.25 GHz – 52.6 GHz
  • 7. ©3G4G 5G is only looking at frequencies from 450 MHz to 52.6 GHz 3GPP has divided 5G frequencies in 2 parts: • Frequency Range 1 (FR1): 450 MHz – 7.125 GHz • Frequency Range 2 (FR2): 24.25 GHz – 52.6 GHz Technically mmWave starts from 30 GHz but people refer to all frequencies in FR2 as mmWave
  • 8. ©3G4G 0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz FR1: 450 MHz – 7.125 GHz FR2: 24.25 GHz – 52.6 GHz Non-mmWave 5G mmWave 5G
  • 9. Popular Frequency bands for different Technologies ©3G4G 0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz 2G, 3G, 4G Non millimeter wave 5G Millimeter wave 5G 0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz 2.4GHz Wi-Fi, Bluetooth, etc. 5GHz Wi-Fi WiGig – 60GHz Wi-Fi Up to 6GHz 802.11ax 5G FR1 (450 MHz – 7.125 GHz) 5G FR2 (24.25 GHz – 52.6 GHz) 802.11be EHT (1 GHz – 7.125 GHz) 802.11ad / 802.11ay (57.24 GHz – 70.20 GHz)
  • 10. Wi-Fi Spectrum around the world ©3G4G
  • 11. Summary: Popular Frequency bands for different Technologies ©3G4G 0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz Millimeter wave 5G 2.4GHz Wi-Fi, Bluetooth, etc. 5GHz Wi-Fi WiGig – 60GHz Wi-Fi Up to 6GHz 802.11ax 5G FR1 (450 MHz – 7.125 GHz) 5G FR2 (24.25 GHz – 52.6 GHz) 802.11be EHT (1 GHz – 7.125 GHz) 802.11ad / 802.11ay (57.24 GHz – 70.20 GHz) 2G 2G/4G3G 4G Non-mmWave5Gnon-mmWave 5G 10 GHz0 GHz
  • 12. Summary of Spectrum Band Names ©3G4G Note: Not according to scale 300MHz 1GHz 2GHz 3GHz 4GHz UHF 8GHz 12GHz 18GHz 27GHz 30GHz 40GHz SHF 75GHz 110GHz 300GHz EHF 30MHz VHF millimetre wave (mmWave / mmW)centimetre wave (cmWave) Microwaves LIEEE Bands S C X Ku K Ka V W ITU-R Bands E E 86GHz57GHz V 71-76, 81-86GHz 57-66GHz ITU Band Designation Important Bands to remember: • C band: 3.4 – 4.2, 4.5 – 4.8, 5.85 – 7.075 GHz • Ku band: 12 – 18 GHz • K band: 18 – 26.5 GHz • Ka band: 26.5 – 40 GHz • mmWave start from 30 GHz C 3.4-4.2, 4.5-4.8, 5.85-7.075GHz For more details, see: Rec. ITU-R V.431-7 DWaveguide Bands 110 - 170 GHz Q 33 - 50 GHz
  • 13. Importance of Frequency selection ©3G4G 2.1GHz 900MHz Higher frequency means faster decay Lower frequency means more number of users in a given cell Higher frequency gets reflected from walls and have poor penetration Lower frequency gets attenuated from walls but still penetrates
  • 14. 5G: Multiple Layers for multiple needs ©3G4G Coverage Layer Sub-1GHz Capacity Layer 1GHz – 7.125GHz High Throughput Layers 24.25GHz – 52.6GHz
  • 15. 5G Needs Different Frequency Bands ©3G4G Coverage Layer Sub-1GHz Capacity Layer 1GHz – 7.125GHz High Throughput Layers 24.25GHz – 52.6GHz Non-mmWave 5G mmWave 5G Non-mmWave 5G
  • 16. 5G Frequency Study / Agreement Process ©3G4G World Radio Conference (WRC) • Every 4 years • Last one was WRC-15 • Next one is WRC-19 WRC-15 • Spectrum agreed for IMT under 6 GHz • Agreed study of spectrum for IMT above 6GHz • Results discussed in WRC-19 (28 Oct – 22 Nov) ITU-R ITU-R Study Groups ITU-R SG5 (Terrestrial Services) WRC-19 Studies Discussion
  • 17. 5G Spectrum ©3G4G ITU WRC- 15 Report from NTT Docomo Technical Journal
  • 18. Most Popular 5G Frequency Bands ©3G4G 600MHz (2x35MHz) 24.25-24.45GHz 24.75-25.25GHz 27.5-28.35GHz 700MHz (2x30 MHz) 3.4–3.8GHz 24.5-27.5GHz 3.4–3.8GHz 26GHz 3.4–3.8GHz 26GHz 3.46–3.8GHz 26GHz 3.6–3.8GHz 3.3–3.6GHz 4.8–5GHz 24.5-27.5GHz 37.5-42.5GHz 3.4–3.7GHz 26.5-29.5GHz 4.4–4.9GHz 26.5-28.5GHz 3.4–3.7GHz 39GHz 3.6–4.2GHz 64-71GHz 37-37.6GHz 37.6-40GHz 47.2-48.2GHz 5.9–6.4GHz 5.9–7.1GHz 600MHz (2x35MHz) 27.5-28.35GHz 64-71GHz 37-37.6GHz 37.6-40GHz 24.25-27.5GHz 26.5-27.5GHz 3.55- 3.7- 3.7GHz 4.2GHz 3.55-3.7 GHz 700MHz (2x30 MHz) 700MHz (2x30 MHz) 700MHz (2x30 MHz) 700MHz (2x30 MHz) 5GHz4GHz3GHz<1GHz 24-28GHz 37-40GHz 64-71GHz 3.45- 2.5GHz (LTE B41) 3.55GHz Source: Qualcomm Licensed Unlicensed/shared Existing band New 5G band Red highlights frequencies not approved for ITU study
  • 19. Most Popular 5G Frequency Bands ©3G4G 600MHz (2x35MHz) 24.25-24.45GHz 24.75-25.25GHz 27.5-28.35GHz 700MHz (2x30 MHz) 3.4–3.8GHz 24.5-27.5GHz 3.4–3.8GHz 26GHz 3.4–3.8GHz 26GHz 3.46–3.8GHz 26GHz 3.6–3.8GHz 3.3–3.6GHz 4.8–5GHz 24.5-27.5GHz 37.5-42.5GHz 3.4–3.7GHz 26.5-29.5GHz 4.4–4.9GHz 26.5-28.5GHz 3.4–3.7GHz 39GHz 3.6–4.2GHz 64-71GHz 37-37.6GHz 37.6-40GHz 47.2-48.2GHz 5.9–6.4GHz 5.9–7.1GHz 600MHz (2x35MHz) 27.5-28.35GHz 64-71GHz 37-37.6GHz 37.6-40GHz 24.25-27.5GHz 26.5-27.5GHz 3.55- 3.7- 3.7GHz 4.2GHz 3.55-3.7 GHz 700MHz (2x30 MHz) 700MHz (2x30 MHz) 700MHz (2x30 MHz) 700MHz (2x30 MHz) 5GHz4GHz3GHz<1GHz 24-28GHz 37-40GHz 64-71GHz 3.45- 2.5GHz (LTE B41) 3.55GHz Source: Qualcomm Licensed Unlicensed/shared Existing band New 5G band Red highlights frequencies not approved for ITU study Non-mmWave 5G Coverage Layer
  • 20. Most Popular 5G Frequency Bands ©3G4G 600MHz (2x35MHz) 24.25-24.45GHz 24.75-25.25GHz 27.5-28.35GHz 700MHz (2x30 MHz) 3.4–3.8GHz 24.5-27.5GHz 3.4–3.8GHz 26GHz 3.4–3.8GHz 26GHz 3.46–3.8GHz 26GHz 3.6–3.8GHz 3.3–3.6GHz 4.8–5GHz 24.5-27.5GHz 37.5-42.5GHz 3.4–3.7GHz 26.5-29.5GHz 4.4–4.9GHz 26.5-28.5GHz 3.4–3.7GHz 39GHz 3.6–4.2GHz 64-71GHz 37-37.6GHz 37.6-40GHz 47.2-48.2GHz 5.9–6.4GHz 5.9–7.1GHz 600MHz (2x35MHz) 27.5-28.35GHz 64-71GHz 37-37.6GHz 37.6-40GHz 24.25-27.5GHz 26.5-27.5GHz 3.55- 3.7- 3.7GHz 4.2GHz 3.55-3.7 GHz 700MHz (2x30 MHz) 700MHz (2x30 MHz) 700MHz (2x30 MHz) 700MHz (2x30 MHz) 5GHz4GHz3GHz<1GHz 24-28GHz 37-40GHz 64-71GHz 3.45- 2.5GHz (LTE B41) 3.55GHz Source: Qualcomm Licensed Unlicensed/shared Existing band New 5G band Red highlights frequencies not approved for ITU study Non-mmWave 5G Capacity Layer
  • 21. Most Popular 5G Frequency Bands ©3G4G 600MHz (2x35MHz) 24.25-24.45GHz 24.75-25.25GHz 27.5-28.35GHz 700MHz (2x30 MHz) 3.4–3.8GHz 24.5-27.5GHz 3.4–3.8GHz 26GHz 3.4–3.8GHz 26GHz 3.46–3.8GHz 26GHz 3.6–3.8GHz 3.3–3.6GHz 4.8–5GHz 24.5-27.5GHz 37.5-42.5GHz 3.4–3.7GHz 26.5-29.5GHz 4.4–4.9GHz 26.5-28.5GHz 3.4–3.7GHz 39GHz 3.6–4.2GHz 64-71GHz 37-37.6GHz 37.6-40GHz 47.2-48.2GHz 5.9–6.4GHz 5.9–7.1GHz 600MHz (2x35MHz) 27.5-28.35GHz 64-71GHz 37-37.6GHz 37.6-40GHz 24.25-27.5GHz 26.5-27.5GHz 3.55- 3.7- 3.7GHz 4.2GHz 3.55-3.7 GHz 700MHz (2x30 MHz) 700MHz (2x30 MHz) 700MHz (2x30 MHz) 700MHz (2x30 MHz) 5GHz4GHz3GHz<1GHz 24-28GHz 37-40GHz 64-71GHz 3.45- 2.5GHz (LTE B41) 3.55GHz Source: Qualcomm Red highlights frequencies not approved for ITU study mmWave 5G High-Throughput Layer Licensed Unlicensed/shared Existing band New 5G band
  • 22. Summary: Most Popular 5G Frequency Bands ©3G4G Picture Source: Deutsche Telekom / T-Mobile USA 700 MHz – most popular band 3.5 GHz – most popular band 26/28 GHz – most popular band
  • 23. 5G Bands Defined by 3GPP ©3G4G New Bands in 5G, not in LTE
  • 24. 5G needs large amounts of bandwidth? ©3G4G
  • 25. 5G Deployment Options and Migration Strategy ©3G4G EPC 5GC (NGCN) SA NSA eNB EPC Option 1: SA LTE connected to EPC Option 2: SA NR connected to 5GC (Standalone) (Non-Standalone) [Dual Connectivity] ng-eNBgNB 5GC Option 5: SA LTE connected to 5GC Option 3: NSA LTE assisted NR connected to EPC Option 4: NSA NR assisted LTE connected to 5GC Option 7: NSA LTE assisted NR connected to 5GC Migration Strategy Option 1 ↗ Option 2 ↘ Option 3 Option 3 ↗ Option 7 ↘ Option 5 Option 3 ↗ Option 3 ↘ Option 2 Option 3 ↗ Option 4 ↘ Option 2 [EN-DC] [NE-DC] [NGEN-DC] 5GC 5GC gNB ng-eNB 5GC gNB ng-eNB EPC eNB en-gNB Non-Standalone 5G Networks, Release-15, all 5G networks today (SRIT)
  • 26. Refarming the existing frequency bands ©3G4G • T-Mobile USA launching 5G in 600 MHz • 600 MHz used for 4G at present 4G 5G Min 1.4 MHz Max 20 MHz Min 5 MHz Max 20 MHz
  • 27. Refarming the existing frequency bands ©3G4G • Sprint USA launching 5G in 2.5 GHz • 2.5 GHz used for 4G at present 4G 5G Min 1.4 MHz Max 20 MHz Min 10 MHz Max 100 MHz
  • 28. 5G needs large amounts of bandwidth? ©3G4G 3.3 3.8 4.2 4.4 5.0 24.25 27.5 29.5 37 40 26.5 n78 n79 n77 n258 n260 n261 28.35 n257 Bandwidth 900 MHz 500 MHz 600 MHz 3000 MHz (3 GHz) 3250 MHz (3.25 GHz) 3000 MHz (3 GHz) 850 MHz • 3GPP defines new NR (New Radio) bands in FR1 and FR2 in 3GPP Rel.15 NR • FR1: 450 MHz – 6 GHz • Upper range is changing to 7.125 GHz • FR2: 24.25 GHz – 52.6 GHz
  • 29. 5G needs large amounts of bandwidth? ©3G4G
  • 30. 5G Spectrum Plans / Allocation – South Korea ©3G4G Further Reading: Operator Watch Blog
  • 31. South Korea: Both non-mmWave & mmWave 5G ©3G4G 0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz FR1: 450 MHz – 7.125 GHz FR2: 24.25 GHz – 52.6 GHz Non-mmWave 5G mmWave 5G
  • 32. 5G Spectrum Plans / Allocation – Japan ©3G4G Further Reading: Operator Watch Blog
  • 33. Japan: Both non-mmWave & mmWave 5G ©3G4G 0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz FR1: 450 MHz – 7.125 GHz FR2: 24.25 GHz – 52.6 GHz Non-mmWave 5G mmWave 5G
  • 34. 5G Spectrum Plans / Allocation – Italy ©3G4G Source
  • 35. Italy: Both non-mmWave & mmWave 5G ©3G4G 0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz FR1: 450 MHz – 7.125 GHz FR2: 24.25 GHz – 52.6 GHz Non-mmWave 5G mmWave 5G
  • 36. UK mobile spectrum holdings (present) ©3G4G Source: Ofcom Total amount of spectrum with MNOs = 919.9 MHz
  • 37. UK: Only non-mmWave 5G right now ©3G4G 0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz FR1: 450 MHz – 7.125 GHz FR2: 24.25 GHz – 52.6 GHz Non-mmWave 5G mmWave 5G
  • 38. USA: Mix of mmWave & non-mmWave ©3G4G 0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz FR1: 450 MHz – 7.125 GHz FR2: 24.25 GHz – 52.6 GHz Non-mmWave 5G mmWave 5G
  • 39. Switzerland: Only non-mmWave 5G right now ©3G4G 0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz FR1: 450 MHz – 7.125 GHz FR2: 24.25 GHz – 52.6 GHz Non-mmWave 5G mmWave 5G
  • 40. Finland: Only non-mmWave 5G right now ©3G4G 0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz FR1: 450 MHz – 7.125 GHz FR2: 24.25 GHz – 52.6 GHz Non-mmWave 5G mmWave 5G
  • 41. Australia: Only non-mmWave 5G right now ©3G4G 0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz FR1: 450 MHz – 7.125 GHz FR2: 24.25 GHz – 52.6 GHz Non-mmWave 5G mmWave 5G
  • 42. 5G Spectrum Challenge ©3G4G f1 f2 f3 f4 LTE Carrier Aggregation 4G / LTE f1 f2 f3 f4 Dual Connectivity (DC) 5G NSA f5 • In theory f6 LTE Carrier Aggregation 5G NR Carrier Aggregation While LTE-A supported up to 5 Component Carriers (CC), each with a max of 20 MHz for Carrier Aggregation, LTE-A Pro supports 32 CCs 5G NR supports up to 16 CCs of max 400 MHz
  • 43. 5G Spectrum Challenge ©3G4G f1 f2 f3 f4 LTE Carrier Aggregation 4G / LTE f1 f2 f3 f4 Dual Connectivity (DC) 5G NSA f5 • In practice f6 LTE Carrier Aggregation 5G NR Carrier Aggregation While LTE-A supported up to 5 Component Carriers (CC), each with a max of 20 MHz for Carrier Aggregation, LTE-A Pro supports 32 CCs 5G NR supports up to 16 CCs of max 400 MHz
  • 44. 5G Spectrum Challenge – Interference ©3G4G • With so many different bands in use, there is a small possibility of interference between them • A recent whitepaper from Keysight points out that the 5G Uplink transmission in 3.5 GHz band might significantly interfere with 4G in the 1.8 GHz band in downlink direction. Maybe bad news, especially in Europe, where these are heavily used
  • 45. Popular mmWave Frequency bands for different Technologies ©3G4G 0 10 GHz 20 GHz 30 GHz 40 GHz 50 GHz 60 GHz 70 GHz 80 GHz 90 GHz 100 GHz Millimeter wave 5G 2.4GHz Wi-Fi, Bluetooth, etc. 5GHz Wi-Fi WiGig – 60GHz Wi-Fi Up to 6GHz 802.11ax 5G FR1 (450 MHz – 7.125 GHz) 5G FR2 (24.25 GHz – 52.6 GHz) 802.11be EHT (1 GHz – 7.125 GHz) 802.11ad / 802.11ay (57.24 GHz – 70.20 GHz) 2G 2G/4G3G 4G Non-mmWave5Gnon-mmWave 5G 10 GHz0 GHz mmWave Various Satellite Based Services (including Satellite Broadband)
  • 46. Satellite Services using frequencies above 10 GHz ©3G4G • Satellite TV is deployed into Ku-band between 8 GHz and 12 GHz (predominantly between 11.7 and 12.7 GHz, which is what most of us watch at home), and in Ka- band at 18.3–18.8 GHz and 19.7–20.2 GHz. • The Ka-band allocation (18.3–18.8 GHz + 19.7–20.2 GHz) is used for superhigh- definition and ultra-high definition TV. • V-band and W-band are used heavily for Military, Commercial, and Automotive Radar • Satellite Operator Avanti uses Ka band extensively (up to 31 GHz) for providing connectivity to Defence aircrafts, Enterprises, Consumer Broadband and Cellular Backhaul • Many of the new LEO satellite constellations like OneWeb, O3b, etc. have proposed to use mmWave spectrum as all other spectrum bands are congested and large chunks of contiguous spectrum are not otherwise available Further Reading on this topic: ‘5G and Satellite Spectrum, Standards, and Scale’ by Geoff Varrall
  • 47. mmWave use for Mobile Backhaul ©3G4G • Mobile backhaul makes extensive use of frequencies above 10 GHz • V-Band and E-Band are used extensively today, with D-Band and W- Band primed for future use. Further Reading: • ETSI White Paper No. 25: Microwave and Millimetre wave for 5G Transport • GSMA Mobile backhaul options: Spectrum analysis and recommendations
  • 48. Summary ©3G4G • There are three types of 5G bands; Coverage Layer, Capacity Layer and High Throughput Layer that is needed for an ideal 5G rollout • In terms of frequency, there is non-mmWave 5G and mmWave 5G. • Most of the initial rollouts is mainly non-mmWave 5G • mmWave 5G will only be available in Urban and Dense-urban areas, not everywhere • 5G could be rolled out in existing frequency bands by re-farming the spectrum • While in theory 5G needs large amounts of bandwidth, there is no reason why 5G can’t be rolled out with small bandwidths • mmWave spectrum is already in use today and it will be complemented by 5G rollouts in that spectrum as well soon.
  • 49. Thank You To learn more, visit: 3G4G Website – http://www.3g4g.co.uk/ 3G4G Blog – http://blog.3g4g.co.uk/ 3G4G Small Cells Blog – http://smallcells.3g4g.co.uk/ Operator Watch - http://operatorwatch.3g4g.co.uk/ Follow us on Twitter: https://twitter.com/3g4gUK Follow us on Facebook: https://www.facebook.com/3g4gUK/ Follow us on Linkedin: https://www.linkedin.com/company/3g4g Follow us on Slideshare: https://www.slideshare.net/3G4GLtd Follow us on Youtube: https://www.youtube.com/3G4G5G ©3G4G
