Rook/Ceph on K8S Introduction
Oleg Chunikhin | CTO, Kublr
Oleg Chunikhin
CTO, Kublr
• 25 years in software architecture & development
• Working w/ Kubernetes since its release in 2015
• Software architect behind Kublr—an enterprise
ready container management platform
• @olgch
Introductions

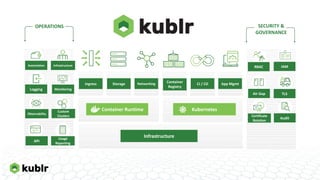

Automation
Ingress
Custom
Clusters
Infrastructure
Logging Monitoring
Observability
API
Usage
Reporting
RBAC IAM
Air Gap TLS
Certificate
Rotation
Audit
Storage Networking Container
Registry
CI / CD App Mgmt
Infrastructure
Container Runtime Kubernetes
OPERATIONS SECURITY &
GOVERNANCE

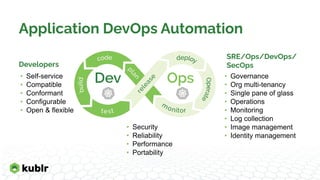

Application DevOps Automation
Developers
SRE/Ops/DevOps/
SecOps
• Self-service
• Compatible
• Conformant
• Configurable
• Open & flexible
• Governance
• Org multi-tenancy
• Single pane of glass
• Operations
• Monitoring
• Log collection
• Image management
• Identity management
• Security
• Reliability
• Performance
• Portability

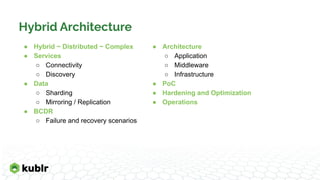

Hybrid Architecture
● Hybrid ~ Distributed ~ Complex
● Services
○ Connectivity
○ Discovery
● Data
○ Sharding
○ Mirroring / Replication
● BCDR
○ Failure and recovery scenarios
● Architecture
○ Application
○ Middleware
○ Infrastructure
● PoC
● Hardening and Optimization
● Operations

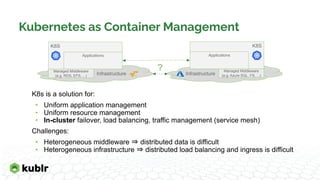

Kubernetes as Container Management
K8s is a solution for:
• Uniform application management
• Uniform resource management
• In-cluster failover, load balancing, traffic management (service mesh)
Challenges:
• Heterogeneous middleware ⇒ distributed data is difficult
• Heterogeneous infrastructure ⇒ distributed load balancing and ingress is difficult
Infrastructure
K8S
Applications
Infrastructure
K8S
Applications
Managed Middleware
(e.g. RDS, EFS, ...)
Managed Middleware
(e.g. Azure SQL, FS, ...)
?

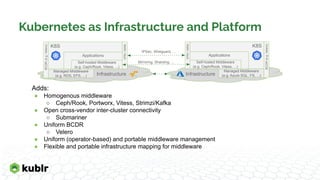

Kubernetes as Infrastructure and Platform
Adds:
● Homogenous middleware
○ Ceph/Rook, Portworx, Vitess, Strimzi/Kafka
● Open cross-vendor inter-cluster connectivity
○ Submariner
● Uniform BCDR
○ Velero
● Uniform (operator-based) and portable middleware management
● Flexible and portable infrastructure mapping for middleware
Infrastructure
K8S
Applications
VPN
/
WAN
Self-hosted Middleware
(e.g. Ceph/Rook, Vitess, ...)
Infrastructure
K8S
Applications
Managed Middleware
(e.g. RDS, EFS, ...)
Managed Middleware
(e.g. Azure SQL, FS, ...)
VPN
/
WAN
Self-hosted Middleware
(e.g. Ceph/Rook, Vitess, ...)
BCDR
(e.g.
Velero)
BCDR
(e.g.
Velero)
IPSec, Wireguard, ...
Mirroring, Sharding, ...

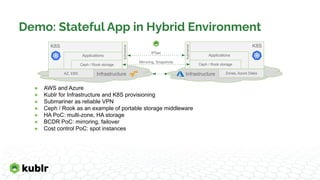

Demo: Stateful App in Hybrid Environment
● AWS and Azure
● Kublr for Infrastructure and K8S provisioning
● Submariner as reliable VPN
● Ceph / Rook as an example of portable storage middleware
● HA PoC: multi-zone, HA storage
● BCDR PoC: mirroring, failover
● Cost control PoC: spot instances
Infrastructure
K8S
Applications
Submariner
Ceph / Rook storage
Infrastructure
K8S
Applications
AZ, EBS Zones, Azure Disks
Submariner
Ceph / Rook storage
IPSec
Mirroring, Snapshots
Kubernetes Operators
● Operator Pattern
● CRD
○ Spec: component definition
○ Status: component status
● Operator
○ Links the component and CRD
● Operator in this demo
○ Submariner
○ Rook
○ ~ Kublr

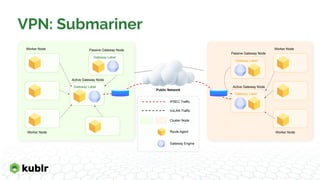

VPN: Submariner
Worker Node
Worker Node
Passive Gateway Node
Active Gateway Node
Gateway Label
Gateway Label
Public Network
Passive Gateway Node
Active Gateway Node
Gateway Label
Gateway Label
Worker Node
Worker Node
Cluster Node
Route Agent
Gateway Engine
VxLAN Traffic
IPSEC Traffic

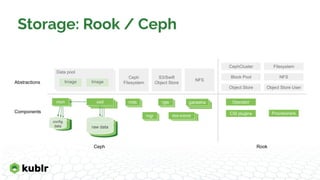

Storage: Rook / Ceph
Data pool
mon
mon
mon
config
data
raw data
osd
raw data
osd
raw data
mds
osd
Data pool
Image Image
Ceph
Filesystem
Components
Abstractions
Ceph
rgw
S3/Swift
Object Store
mgr
Rook
Operator
CSI plugins
osd
osd
ganesha
NFS
CephCluster
Block Pool
Object Store
Filesystem
NFS
Object Store User
Provisioners
rbd-mirror

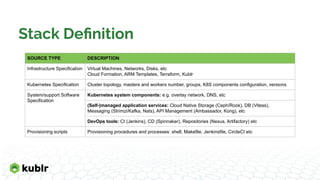

Stack Definition
SOURCE TYPE DESCRIPTION
Infrastructure Specification Virtual Machines, Networks, Disks, etc
Cloud Formation, ARM Templates, Terraform, Kublr
Kubernetes Specification Cluster topology, masters and workers number, groups, K8S components configuration, versions
System/support Software
Specification
Kubernetes system components: e.g. overlay network, DNS, etc
(Self-)managed application services: Cloud Native Storage (Ceph/Rook), DB (Vitess),
Messaging (Strimzi/Kafka, Nats), API Management (Ambassador, Kong), etc
DevOps tools: CI (Jenkins), CD (Spinnaker), Repositories (Nexus, Artifactory) etc
Provisioning scripts Provisioning procedures and processes: shell, Makefile, Jenkinsfile, CircleCI etc

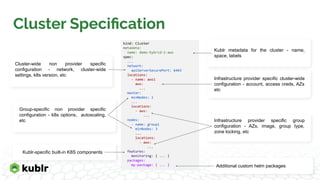

kind: Cluster
metadata:
name: demo-hybrid-1-aws
spec:
...
network:
apiServerSecurePort: 6443
locations:
- name: aws1
aws:
...
master:
minNodes: 1
...
locations:
- aws:
...
nodes:
- name: group1
minNodes: 3
...
locations:
- aws:
...
features:
monitoring: { ... }
packages:
my-package: { ... }
Cluster Specification
Kublr metadata for the cluster - name,
space, labels
Cluster-wide non provider specific
configuration - network, cluster-wide
settings, k8s version, etc
Infrastructure provider specific cluster-wide
configuration - account, access creds, AZs
etc
Infrastructure provider specific group
configuration - AZs, image, group type,
zone locking, etc
Group-specific non provider specific
configuration - k8s options, autoscaling,
etc
Kublr-specific built-in K8S components
Additional custom helm packages
kind: Cluster
metadata:
name: demo-hybrid-1-aws
spec:
...
network:
clusterCIDR: 100.64.0.0/10
dnsDomain: cluster1.local
stubDomains:
- dns: cluster2.local
servers:
- 100.128.0.10
locations:
- name: aws1
aws:
resourcesCloudFormationExtras:
SgDefaultSubmariner500:
Type: AWS::EC2::SecurityGroupIngress
...
...
master:
minNodes: 1
...
locations:
- aws:
groupType: asg-mip
mixedInstancesPolicyCloudFormationExtras:
...
nodes:
- name: group1
minNodes: 3
...
locations:
- aws:
groupType: asg-mip
mixedInstancesPolicyCloudFormationExtras:
...
pinToZone: pin
availabilityZones:
- us-east-1a
- us-east-1b
- us-east-1c

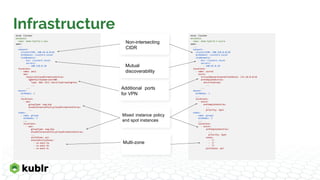

Infrastructure
Additional ports
for VPN
kind: Cluster
metadata:
name: demo-hybrid-2-azure
spec:
...
network:
clusterCIDR: 100.128.0.0/10
dnsDomain: cluster2.local
stubDomains:
- dns: cluster1.local
servers:
- 100.64.0.10
locations:
- name: azure1
azure:
virtualNetworkSubnetCidrBlock: 172.18.0.0/16
armTemplateExtras:
securityGroup:
...
...
master:
minNodes: 1
...
locations:
- azure:
armTemplateExtras:
...
priority: Spot
nodes:
- name: group1
minNodes: 3
...
locations:
- azure:
armTemplateExtras:
...
priority: Spot
zones:
- '1'
- '2'
- '3'
pinToZone: pin
Non-intersecting
CIDR
Mutual
discoverability
Mixed instance policy
and spot instances
Multi-zone

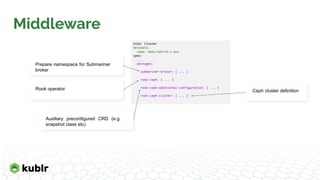

kind: Cluster
metadata:
name: demo-hybrid-1-aws
spec:
...
packages:
submariner-broker: { ... }
rook-ceph: { ... }
rook-ceph-additional-configuration: { ... }
rook-ceph-cluster: { ... }
Middleware
Prepare namespace for Submariner
broker
Ceph cluster definition
Rook operator
Auxiliary preconfigured CRD (e.g.
snapshot class etc)

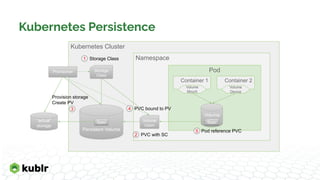

Kubernetes Persistence
Kubernetes Cluster
Namespace
Pod
Container 1 Container 2
Volume
Volume
Mount
Volume
Device
“actual”
storage
Persistent Volume
Volume
Claim
Spec
Spec
2 PVC with SC
5 Pod reference PVC
1 Storage Class
Storage
Class
Provisioner
3
Provision storage
Create PV
4 PVC bound to PV
Demo: RBD and CephFS
Data pool
Data pool
mon
mon
mon
config
data
raw data
osd
raw data
osd
raw data
mds
osd
Data pool
Image Image
Ceph Filesystem
Data pool (data)
Data pool (md)
PV
Pod
PVC
PV
Pod
PVC
PV
Pod
PVC
PV
PVC
Pod Pod
Pod
sub-volumes
Rook
Operators
CephBlockPool
CephBlockPool CephFilesystem
StorageClass StorageClass
Demo: Mirroring
Data pool
mon
mon
mon
config
data
raw data
osd
raw data
osd
raw data
osd
Data pool
PV
Pod
PVC
rbd-mirror
Rook
Operators
Data pool
mon
mon
mon
config
data
raw data
osd
raw data
osd
raw data
osd
Data pool
PV
Pod
PVC
rbd-mirror
Rook
Operators
primary replay
CephBlockPool
mirroring:
enabled:
true
mode: image
peers: ...
CephBlockPool
mirroring:
enabled:
true
mode: image
peers: ...
VolumeReplicationClass VolumeReplicationClass
VolumeReplication VolumeReplication
Snapshot

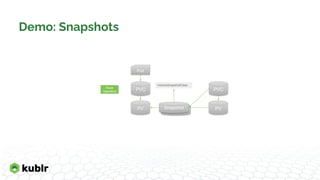

Demo: Snapshots
PV
Pod
PVC
Rook
Operators
VolumeSnapshotClass
Snapshot PV
PVC
Demo: Cloning
PV
Pod
PVC
Rook
Operators
PV
PVC

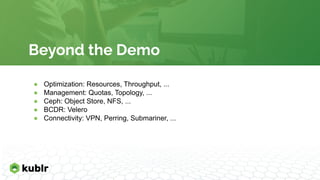

Beyond the Demo
● Optimization: Resources, Throughput, ...
● Management: Quotas, Topology, ...
● Ceph: Object Store, NFS, ...
● BCDR: Velero
● Connectivity: VPN, Perring, Submariner, ...

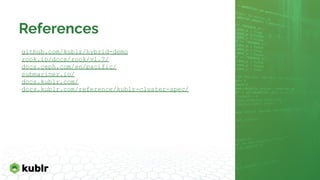

References
@olgch; @kublr
github.com/kublr/hybrid-demo
rook.io/docs/rook/v1.7/
docs.ceph.com/en/pacific/
submariner.io/
docs.kublr.com/
docs.kublr.com/reference/kublr-cluster-spec/
Q&A
Oleg Chunikhin
CTO
oleg@kublr.com
@olgch
Follow Us
@kublr
Thank You

More Related Content

What's hot

ceph optimization on ssd ilsoo byun-short
ceph optimization on ssd ilsoo byun-shortceph optimization on ssd ilsoo byun-short
ceph optimization on ssd ilsoo byun-short
NAVER D2

Anthos
AnthosAnthos
Oracle Spatial Studio: Fast and Easy Spatial Analytics and Maps
Oracle Spatial Studio:  Fast and Easy Spatial Analytics and MapsOracle Spatial Studio:  Fast and Easy Spatial Analytics and Maps
Oracle Spatial Studio: Fast and Easy Spatial Analytics and Maps
Jean Ihm

[넥슨] kubernetes 소개 (2018)
[넥슨] kubernetes 소개 (2018)[넥슨] kubernetes 소개 (2018)
[넥슨] kubernetes 소개 (2018)
용호 최

MSA 전략 1: 마이크로서비스, 어떻게 디자인 할 것인가?
MSA 전략 1: 마이크로서비스, 어떻게 디자인 할 것인가?MSA 전략 1: 마이크로서비스, 어떻게 디자인 할 것인가?
MSA 전략 1: 마이크로서비스, 어떻게 디자인 할 것인가?
VMware Tanzu Korea

EKS workshop 살펴보기
EKS workshop 살펴보기EKS workshop 살펴보기
EKS workshop 살펴보기
Jinwoong Kim

Java 기반의 오픈 소스 GIS를 지원하는 국내 공간 DBMS 드라이버 개발
Java 기반의 오픈 소스 GIS를 지원하는 국내 공간 DBMS 드라이버 개발Java 기반의 오픈 소스 GIS를 지원하는 국내 공간 DBMS 드라이버 개발
Java 기반의 오픈 소스 GIS를 지원하는 국내 공간 DBMS 드라이버 개발
MinPa Lee

PUBG: Battlegrounds 라이브 서비스 EKS 전환 사례 공유 [크래프톤 - 레벨 300] - 발표자: 김정헌, PUBG Dev...
PUBG: Battlegrounds 라이브 서비스 EKS 전환 사례 공유 [크래프톤 - 레벨 300] - 발표자: 김정헌, PUBG Dev...PUBG: Battlegrounds 라이브 서비스 EKS 전환 사례 공유 [크래프톤 - 레벨 300] - 발표자: 김정헌, PUBG Dev...
PUBG: Battlegrounds 라이브 서비스 EKS 전환 사례 공유 [크래프톤 - 레벨 300] - 발표자: 김정헌, PUBG Dev...
Amazon Web Services Korea

쿠버네티스 ( Kubernetes ) 소개 자료
쿠버네티스 ( Kubernetes ) 소개 자료쿠버네티스 ( Kubernetes ) 소개 자료
쿠버네티스 ( Kubernetes ) 소개 자료
Opennaru, inc.

Orion Context Broker 20220301
Orion Context Broker 20220301Orion Context Broker 20220301
Orion Context Broker 20220301
Fermin Galan

Qemu Introduction
Qemu IntroductionQemu Introduction
Qemu Introduction
Chiawei Wang

Amazon EKS로 간단한 웹 애플리케이션 구축하기 - 김주영 (AWS) :: AWS Community Day Online 2021
Amazon EKS로 간단한 웹 애플리케이션 구축하기 - 김주영 (AWS) :: AWS Community Day Online 2021Amazon EKS로 간단한 웹 애플리케이션 구축하기 - 김주영 (AWS) :: AWS Community Day Online 2021
Amazon EKS로 간단한 웹 애플리케이션 구축하기 - 김주영 (AWS) :: AWS Community Day Online 2021
AWSKRUG - AWS한국사용자모임

Delivering High-Availability Web Services with NGINX Plus on AWS
Delivering High-Availability Web Services with NGINX Plus on AWSDelivering High-Availability Web Services with NGINX Plus on AWS
Delivering High-Availability Web Services with NGINX Plus on AWS
NGINX, Inc.

Serverless with IAC - terraform과 cloudformation 비교
Serverless with IAC - terraform과 cloudformation 비교Serverless with IAC - terraform과 cloudformation 비교
Serverless with IAC - terraform과 cloudformation 비교
재현 신

Hardware accelerated Virtualization in the ARM Cortex™ Processors
Hardware accelerated Virtualization in the ARM Cortex™ ProcessorsHardware accelerated Virtualization in the ARM Cortex™ Processors
Hardware accelerated Virtualization in the ARM Cortex™ Processors
The Linux Foundation

Red Hat Openshift Container Platform
Red Hat Openshift Container Platform Red Hat Openshift Container Platform
Red Hat Openshift Container Platform
rockplace

오픈소스GIS의 이해와 활용
오픈소스GIS의 이해와 활용오픈소스GIS의 이해와 활용
오픈소스GIS의 이해와 활용
SANGHEE SHIN

왜 컨테이너인가? - OpenShift 구축 사례와 컨테이너로 환경 전환 시 고려사항
왜 컨테이너인가? - OpenShift 구축 사례와 컨테이너로 환경 전환 시 고려사항왜 컨테이너인가? - OpenShift 구축 사례와 컨테이너로 환경 전환 시 고려사항
왜 컨테이너인가? - OpenShift 구축 사례와 컨테이너로 환경 전환 시 고려사항
rockplace

A la découverte de kubernetes
A la découverte de kubernetesA la découverte de kubernetes
A la découverte de kubernetes
Julien Maitrehenry

Implementation & Comparison Of Rdma Over Ethernet
Implementation & Comparison Of Rdma Over EthernetImplementation & Comparison Of Rdma Over Ethernet
Implementation & Comparison Of Rdma Over Ethernet
James Wernicke


What's hot (20)

ceph optimization on ssd ilsoo byun-short
ceph optimization on ssd ilsoo byun-shortceph optimization on ssd ilsoo byun-short
ceph optimization on ssd ilsoo byun-short

Anthos
AnthosAnthos
Anthos

Oracle Spatial Studio: Fast and Easy Spatial Analytics and Maps
Oracle Spatial Studio:  Fast and Easy Spatial Analytics and MapsOracle Spatial Studio:  Fast and Easy Spatial Analytics and Maps
Oracle Spatial Studio: Fast and Easy Spatial Analytics and Maps

[넥슨] kubernetes 소개 (2018)
[넥슨] kubernetes 소개 (2018)[넥슨] kubernetes 소개 (2018)
[넥슨] kubernetes 소개 (2018)

MSA 전략 1: 마이크로서비스, 어떻게 디자인 할 것인가?
MSA 전략 1: 마이크로서비스, 어떻게 디자인 할 것인가?MSA 전략 1: 마이크로서비스, 어떻게 디자인 할 것인가?
MSA 전략 1: 마이크로서비스, 어떻게 디자인 할 것인가?

EKS workshop 살펴보기
EKS workshop 살펴보기EKS workshop 살펴보기
EKS workshop 살펴보기

Java 기반의 오픈 소스 GIS를 지원하는 국내 공간 DBMS 드라이버 개발
Java 기반의 오픈 소스 GIS를 지원하는 국내 공간 DBMS 드라이버 개발Java 기반의 오픈 소스 GIS를 지원하는 국내 공간 DBMS 드라이버 개발
Java 기반의 오픈 소스 GIS를 지원하는 국내 공간 DBMS 드라이버 개발

PUBG: Battlegrounds 라이브 서비스 EKS 전환 사례 공유 [크래프톤 - 레벨 300] - 발표자: 김정헌, PUBG Dev...
PUBG: Battlegrounds 라이브 서비스 EKS 전환 사례 공유 [크래프톤 - 레벨 300] - 발표자: 김정헌, PUBG Dev...PUBG: Battlegrounds 라이브 서비스 EKS 전환 사례 공유 [크래프톤 - 레벨 300] - 발표자: 김정헌, PUBG Dev...
PUBG: Battlegrounds 라이브 서비스 EKS 전환 사례 공유 [크래프톤 - 레벨 300] - 발표자: 김정헌, PUBG Dev...

쿠버네티스 ( Kubernetes ) 소개 자료
쿠버네티스 ( Kubernetes ) 소개 자료쿠버네티스 ( Kubernetes ) 소개 자료
쿠버네티스 ( Kubernetes ) 소개 자료

Orion Context Broker 20220301
Orion Context Broker 20220301Orion Context Broker 20220301
Orion Context Broker 20220301

Qemu Introduction
Qemu IntroductionQemu Introduction
Qemu Introduction

Amazon EKS로 간단한 웹 애플리케이션 구축하기 - 김주영 (AWS) :: AWS Community Day Online 2021
Amazon EKS로 간단한 웹 애플리케이션 구축하기 - 김주영 (AWS) :: AWS Community Day Online 2021Amazon EKS로 간단한 웹 애플리케이션 구축하기 - 김주영 (AWS) :: AWS Community Day Online 2021
Amazon EKS로 간단한 웹 애플리케이션 구축하기 - 김주영 (AWS) :: AWS Community Day Online 2021

Delivering High-Availability Web Services with NGINX Plus on AWS
Delivering High-Availability Web Services with NGINX Plus on AWSDelivering High-Availability Web Services with NGINX Plus on AWS
Delivering High-Availability Web Services with NGINX Plus on AWS

Serverless with IAC - terraform과 cloudformation 비교
Serverless with IAC - terraform과 cloudformation 비교Serverless with IAC - terraform과 cloudformation 비교
Serverless with IAC - terraform과 cloudformation 비교

Hardware accelerated Virtualization in the ARM Cortex™ Processors
Hardware accelerated Virtualization in the ARM Cortex™ ProcessorsHardware accelerated Virtualization in the ARM Cortex™ Processors
Hardware accelerated Virtualization in the ARM Cortex™ Processors

Red Hat Openshift Container Platform
Red Hat Openshift Container Platform Red Hat Openshift Container Platform
Red Hat Openshift Container Platform

오픈소스GIS의 이해와 활용
오픈소스GIS의 이해와 활용오픈소스GIS의 이해와 활용
오픈소스GIS의 이해와 활용

왜 컨테이너인가? - OpenShift 구축 사례와 컨테이너로 환경 전환 시 고려사항
왜 컨테이너인가? - OpenShift 구축 사례와 컨테이너로 환경 전환 시 고려사항왜 컨테이너인가? - OpenShift 구축 사례와 컨테이너로 환경 전환 시 고려사항
왜 컨테이너인가? - OpenShift 구축 사례와 컨테이너로 환경 전환 시 고려사항

A la découverte de kubernetes
A la découverte de kubernetesA la découverte de kubernetes
A la découverte de kubernetes

Implementation & Comparison Of Rdma Over Ethernet
Implementation & Comparison Of Rdma Over EthernetImplementation & Comparison Of Rdma Over Ethernet
Implementation & Comparison Of Rdma Over Ethernet


Similar to Intro into Rook and Ceph on Kubernetes

Hybrid architecture solutions with kubernetes and the cloud native stack
Hybrid architecture solutions with kubernetes and the cloud native stackHybrid architecture solutions with kubernetes and the cloud native stack
Hybrid architecture solutions with kubernetes and the cloud native stack
Kublr

Kubernetes in Hybrid Environments with Submariner
Kubernetes in Hybrid Environments with SubmarinerKubernetes in Hybrid Environments with Submariner
Kubernetes in Hybrid Environments with Submariner
Kublr

Centralizing Kubernetes and Container Operations
Centralizing Kubernetes and Container OperationsCentralizing Kubernetes and Container Operations
Centralizing Kubernetes and Container Operations
Kublr

Kubernetes stack reliability
Kubernetes stack reliabilityKubernetes stack reliability
Kubernetes stack reliability
Oleg Chunikhin

How Self-Healing Nodes and Infrastructure Management Impact Reliability
How Self-Healing Nodes and Infrastructure Management Impact ReliabilityHow Self-Healing Nodes and Infrastructure Management Impact Reliability
How Self-Healing Nodes and Infrastructure Management Impact Reliability
Kublr

Application portability with kubernetes
Application portability with kubernetesApplication portability with kubernetes
Application portability with kubernetes
Oleg Chunikhin

Nodeless scaling with Karpenter
Nodeless scaling with KarpenterNodeless scaling with Karpenter
Nodeless scaling with Karpenter
Marko Bevc

Clocker - How to Train your Docker Cloud
Clocker - How to Train your Docker CloudClocker - How to Train your Docker Cloud
Clocker - How to Train your Docker Cloud
Andrew Kennedy

How Kubernetes helps Devops
How Kubernetes helps DevopsHow Kubernetes helps Devops
How Kubernetes helps Devops
Sreenivas Makam

DevOpsDays Houston 2019 - Terry Shea - Centralizing Kubernetes Operations
DevOpsDays Houston 2019 - Terry Shea - Centralizing Kubernetes OperationsDevOpsDays Houston 2019 - Terry Shea - Centralizing Kubernetes Operations
DevOpsDays Houston 2019 - Terry Shea - Centralizing Kubernetes Operations
DevOpsDays Houston

OSDC 2018 | Three years running containers with Kubernetes in Production by T...
OSDC 2018 | Three years running containers with Kubernetes in Production by T...OSDC 2018 | Three years running containers with Kubernetes in Production by T...
OSDC 2018 | Three years running containers with Kubernetes in Production by T...
NETWAYS

Container orchestration k8s azure kubernetes services
Container orchestration  k8s azure kubernetes servicesContainer orchestration  k8s azure kubernetes services
Container orchestration k8s azure kubernetes services
Rajesh Kolla

The Evolution of your Kubernetes Cluster
The Evolution of your Kubernetes ClusterThe Evolution of your Kubernetes Cluster
The Evolution of your Kubernetes Cluster
Kublr

Kubernetes Multitenancy Karl Isenberg - KubeCon NA 2019
Kubernetes Multitenancy   Karl Isenberg - KubeCon NA 2019Kubernetes Multitenancy   Karl Isenberg - KubeCon NA 2019
Kubernetes Multitenancy Karl Isenberg - KubeCon NA 2019
Karl Isenberg

Ivan Zhuravel and Ihor Khlaponin "DC/OS vs Kubernetes. Let the Fight Begin!"
Ivan Zhuravel and Ihor Khlaponin "DC/OS vs Kubernetes. Let the Fight Begin!"Ivan Zhuravel and Ihor Khlaponin "DC/OS vs Kubernetes. Let the Fight Begin!"
Ivan Zhuravel and Ihor Khlaponin "DC/OS vs Kubernetes. Let the Fight Begin!"
LogeekNightUkraine

DevEx | there’s no place like k3s
DevEx | there’s no place like k3sDevEx | there’s no place like k3s
DevEx | there’s no place like k3s
Haggai Philip Zagury

Building Portable Applications with Kubernetes
Building Portable Applications with KubernetesBuilding Portable Applications with Kubernetes
Building Portable Applications with Kubernetes
Kublr

Netflix oss season 1 episode 3
Netflix oss season 1 episode 3 Netflix oss season 1 episode 3
Netflix oss season 1 episode 3
Ruslan Meshenberg

DCEU 18: Docker Container Networking
DCEU 18: Docker Container NetworkingDCEU 18: Docker Container Networking
DCEU 18: Docker Container Networking
Docker, Inc.

DevConf.cz - Introduction to Kubernetes Operators for Databases
DevConf.cz - Introduction to Kubernetes Operators for DatabasesDevConf.cz - Introduction to Kubernetes Operators for Databases
DevConf.cz - Introduction to Kubernetes Operators for Databases
Juarez Junior


Similar to Intro into Rook and Ceph on Kubernetes (20)

Hybrid architecture solutions with kubernetes and the cloud native stack
Hybrid architecture solutions with kubernetes and the cloud native stackHybrid architecture solutions with kubernetes and the cloud native stack
Hybrid architecture solutions with kubernetes and the cloud native stack

Kubernetes in Hybrid Environments with Submariner
Kubernetes in Hybrid Environments with SubmarinerKubernetes in Hybrid Environments with Submariner
Kubernetes in Hybrid Environments with Submariner

Centralizing Kubernetes and Container Operations
Centralizing Kubernetes and Container OperationsCentralizing Kubernetes and Container Operations
Centralizing Kubernetes and Container Operations

Kubernetes stack reliability
Kubernetes stack reliabilityKubernetes stack reliability
Kubernetes stack reliability

How Self-Healing Nodes and Infrastructure Management Impact Reliability
How Self-Healing Nodes and Infrastructure Management Impact ReliabilityHow Self-Healing Nodes and Infrastructure Management Impact Reliability
How Self-Healing Nodes and Infrastructure Management Impact Reliability

Application portability with kubernetes
Application portability with kubernetesApplication portability with kubernetes
Application portability with kubernetes

Nodeless scaling with Karpenter
Nodeless scaling with KarpenterNodeless scaling with Karpenter
Nodeless scaling with Karpenter

Clocker - How to Train your Docker Cloud
Clocker - How to Train your Docker CloudClocker - How to Train your Docker Cloud
Clocker - How to Train your Docker Cloud

How Kubernetes helps Devops
How Kubernetes helps DevopsHow Kubernetes helps Devops
How Kubernetes helps Devops

DevOpsDays Houston 2019 - Terry Shea - Centralizing Kubernetes Operations
DevOpsDays Houston 2019 - Terry Shea - Centralizing Kubernetes OperationsDevOpsDays Houston 2019 - Terry Shea - Centralizing Kubernetes Operations
DevOpsDays Houston 2019 - Terry Shea - Centralizing Kubernetes Operations

OSDC 2018 | Three years running containers with Kubernetes in Production by T...
OSDC 2018 | Three years running containers with Kubernetes in Production by T...OSDC 2018 | Three years running containers with Kubernetes in Production by T...
OSDC 2018 | Three years running containers with Kubernetes in Production by T...

Container orchestration k8s azure kubernetes services
Container orchestration  k8s azure kubernetes servicesContainer orchestration  k8s azure kubernetes services
Container orchestration k8s azure kubernetes services

The Evolution of your Kubernetes Cluster
The Evolution of your Kubernetes ClusterThe Evolution of your Kubernetes Cluster
The Evolution of your Kubernetes Cluster

Kubernetes Multitenancy Karl Isenberg - KubeCon NA 2019
Kubernetes Multitenancy   Karl Isenberg - KubeCon NA 2019Kubernetes Multitenancy   Karl Isenberg - KubeCon NA 2019
Kubernetes Multitenancy Karl Isenberg - KubeCon NA 2019

Ivan Zhuravel and Ihor Khlaponin "DC/OS vs Kubernetes. Let the Fight Begin!"
Ivan Zhuravel and Ihor Khlaponin "DC/OS vs Kubernetes. Let the Fight Begin!"Ivan Zhuravel and Ihor Khlaponin "DC/OS vs Kubernetes. Let the Fight Begin!"
Ivan Zhuravel and Ihor Khlaponin "DC/OS vs Kubernetes. Let the Fight Begin!"

DevEx | there’s no place like k3s
DevEx | there’s no place like k3sDevEx | there’s no place like k3s
DevEx | there’s no place like k3s

Building Portable Applications with Kubernetes
Building Portable Applications with KubernetesBuilding Portable Applications with Kubernetes
Building Portable Applications with Kubernetes

Netflix oss season 1 episode 3
Netflix oss season 1 episode 3 Netflix oss season 1 episode 3
Netflix oss season 1 episode 3

DCEU 18: Docker Container Networking
DCEU 18: Docker Container NetworkingDCEU 18: Docker Container Networking
DCEU 18: Docker Container Networking

DevConf.cz - Introduction to Kubernetes Operators for Databases
DevConf.cz - Introduction to Kubernetes Operators for DatabasesDevConf.cz - Introduction to Kubernetes Operators for Databases
DevConf.cz - Introduction to Kubernetes Operators for Databases


More from Kublr

Container Runtimes and Tooling, v2
Container Runtimes and Tooling, v2Container Runtimes and Tooling, v2
Container Runtimes and Tooling, v2
Kublr

Container Runtimes and Tooling
Container Runtimes and ToolingContainer Runtimes and Tooling
Container Runtimes and Tooling
Kublr

Multi-cloud Kubernetes BCDR with Velero
Multi-cloud Kubernetes BCDR with VeleroMulti-cloud Kubernetes BCDR with Velero
Multi-cloud Kubernetes BCDR with Velero
Kublr

Kubernetes Networking 101
Kubernetes Networking 101Kubernetes Networking 101
Kubernetes Networking 101
Kublr

Kubernetes Ingress 101
Kubernetes Ingress 101Kubernetes Ingress 101
Kubernetes Ingress 101
Kublr

Kubernetes persistence 101
Kubernetes persistence 101Kubernetes persistence 101
Kubernetes persistence 101
Kublr

Portable CI/CD Environment as Code with Kubernetes, Kublr and Jenkins
Portable CI/CD Environment as Code with Kubernetes, Kublr and JenkinsPortable CI/CD Environment as Code with Kubernetes, Kublr and Jenkins
Portable CI/CD Environment as Code with Kubernetes, Kublr and Jenkins
Kublr

Kubernetes 101
Kubernetes 101Kubernetes 101
Kubernetes 101
Kublr

Advanced Scheduling in Kubernetes
Advanced Scheduling in KubernetesAdvanced Scheduling in Kubernetes
Advanced Scheduling in Kubernetes
Kublr

Setting up CI/CD Pipeline with Kubernetes and Kublr step by-step
Setting up CI/CD Pipeline with Kubernetes and Kublr step by-stepSetting up CI/CD Pipeline with Kubernetes and Kublr step by-step
Setting up CI/CD Pipeline with Kubernetes and Kublr step by-step
Kublr

Canary Releases on Kubernetes with Spinnaker, Istio, & Prometheus (2020)
Canary Releases on Kubernetes with Spinnaker, Istio, & Prometheus (2020)Canary Releases on Kubernetes with Spinnaker, Istio, & Prometheus (2020)
Canary Releases on Kubernetes with Spinnaker, Istio, & Prometheus (2020)
Kublr

How to Run Kubernetes in Restrictive Environments
How to Run Kubernetes in Restrictive EnvironmentsHow to Run Kubernetes in Restrictive Environments
How to Run Kubernetes in Restrictive Environments
Kublr

Introduction to Kubernetes RBAC
Introduction to Kubernetes RBACIntroduction to Kubernetes RBAC
Introduction to Kubernetes RBAC
Kublr

Kubernetes as Infrastructure Abstraction
Kubernetes as Infrastructure AbstractionKubernetes as Infrastructure Abstraction
Kubernetes as Infrastructure Abstraction
Kublr

Centralizing Kubernetes Management in Restrictive Environments
Centralizing Kubernetes Management in Restrictive EnvironmentsCentralizing Kubernetes Management in Restrictive Environments
Centralizing Kubernetes Management in Restrictive Environments
Kublr

Kubernetes in Highly Restrictive Environments
Kubernetes in Highly Restrictive EnvironmentsKubernetes in Highly Restrictive Environments
Kubernetes in Highly Restrictive Environments
Kublr

Canary Releases on Kubernetes w/ Spinnaker, Istio, and Prometheus
Canary Releases on Kubernetes w/ Spinnaker, Istio, and PrometheusCanary Releases on Kubernetes w/ Spinnaker, Istio, and Prometheus
Canary Releases on Kubernetes w/ Spinnaker, Istio, and Prometheus
Kublr

Kubernetes data science and machine learning
Kubernetes data science and machine learningKubernetes data science and machine learning
Kubernetes data science and machine learning
Kublr

Implement Advanced Scheduling Techniques in Kubernetes
Implement Advanced Scheduling Techniques in Kubernetes Implement Advanced Scheduling Techniques in Kubernetes
Implement Advanced Scheduling Techniques in Kubernetes
Kublr

Application Portability with Kubernetes (k8)
Application Portability with Kubernetes (k8)Application Portability with Kubernetes (k8)
Application Portability with Kubernetes (k8)
Kublr


More from Kublr (20)

Container Runtimes and Tooling, v2
Container Runtimes and Tooling, v2Container Runtimes and Tooling, v2
Container Runtimes and Tooling, v2

Container Runtimes and Tooling
Container Runtimes and ToolingContainer Runtimes and Tooling
Container Runtimes and Tooling

Multi-cloud Kubernetes BCDR with Velero
Multi-cloud Kubernetes BCDR with VeleroMulti-cloud Kubernetes BCDR with Velero
Multi-cloud Kubernetes BCDR with Velero

Kubernetes Networking 101
Kubernetes Networking 101Kubernetes Networking 101
Kubernetes Networking 101

Kubernetes Ingress 101
Kubernetes Ingress 101Kubernetes Ingress 101
Kubernetes Ingress 101

Kubernetes persistence 101
Kubernetes persistence 101Kubernetes persistence 101
Kubernetes persistence 101

Portable CI/CD Environment as Code with Kubernetes, Kublr and Jenkins
Portable CI/CD Environment as Code with Kubernetes, Kublr and JenkinsPortable CI/CD Environment as Code with Kubernetes, Kublr and Jenkins
Portable CI/CD Environment as Code with Kubernetes, Kublr and Jenkins

Kubernetes 101
Kubernetes 101Kubernetes 101
Kubernetes 101

Advanced Scheduling in Kubernetes
Advanced Scheduling in KubernetesAdvanced Scheduling in Kubernetes
Advanced Scheduling in Kubernetes

Setting up CI/CD Pipeline with Kubernetes and Kublr step by-step
Setting up CI/CD Pipeline with Kubernetes and Kublr step by-stepSetting up CI/CD Pipeline with Kubernetes and Kublr step by-step
Setting up CI/CD Pipeline with Kubernetes and Kublr step by-step

Canary Releases on Kubernetes with Spinnaker, Istio, & Prometheus (2020)
Canary Releases on Kubernetes with Spinnaker, Istio, & Prometheus (2020)Canary Releases on Kubernetes with Spinnaker, Istio, & Prometheus (2020)
Canary Releases on Kubernetes with Spinnaker, Istio, & Prometheus (2020)

How to Run Kubernetes in Restrictive Environments
How to Run Kubernetes in Restrictive EnvironmentsHow to Run Kubernetes in Restrictive Environments
How to Run Kubernetes in Restrictive Environments

Introduction to Kubernetes RBAC
Introduction to Kubernetes RBACIntroduction to Kubernetes RBAC
Introduction to Kubernetes RBAC

Kubernetes as Infrastructure Abstraction
Kubernetes as Infrastructure AbstractionKubernetes as Infrastructure Abstraction
Kubernetes as Infrastructure Abstraction

Centralizing Kubernetes Management in Restrictive Environments
Centralizing Kubernetes Management in Restrictive EnvironmentsCentralizing Kubernetes Management in Restrictive Environments
Centralizing Kubernetes Management in Restrictive Environments

Kubernetes in Highly Restrictive Environments
Kubernetes in Highly Restrictive EnvironmentsKubernetes in Highly Restrictive Environments
Kubernetes in Highly Restrictive Environments

Canary Releases on Kubernetes w/ Spinnaker, Istio, and Prometheus
Canary Releases on Kubernetes w/ Spinnaker, Istio, and PrometheusCanary Releases on Kubernetes w/ Spinnaker, Istio, and Prometheus
Canary Releases on Kubernetes w/ Spinnaker, Istio, and Prometheus

Kubernetes data science and machine learning
Kubernetes data science and machine learningKubernetes data science and machine learning
Kubernetes data science and machine learning

Implement Advanced Scheduling Techniques in Kubernetes
Implement Advanced Scheduling Techniques in Kubernetes Implement Advanced Scheduling Techniques in Kubernetes
Implement Advanced Scheduling Techniques in Kubernetes

Application Portability with Kubernetes (k8)
Application Portability with Kubernetes (k8)Application Portability with Kubernetes (k8)
Application Portability with Kubernetes (k8)


Recently uploaded

Atelier - Innover avec l’IA Générative et les graphes de connaissances
Atelier - Innover avec l’IA Générative et les graphes de connaissancesAtelier - Innover avec l’IA Générative et les graphes de connaissances
Atelier - Innover avec l’IA Générative et les graphes de connaissances
Neo4j

Oracle 23c New Features For DBAs and Developers.pptx
Oracle 23c New Features For DBAs and Developers.pptxOracle 23c New Features For DBAs and Developers.pptx
Oracle 23c New Features For DBAs and Developers.pptx
Remote DBA Services

2024 eCommerceDays Toulouse - Sylius 2.0.pdf
2024 eCommerceDays Toulouse - Sylius 2.0.pdf2024 eCommerceDays Toulouse - Sylius 2.0.pdf
2024 eCommerceDays Toulouse - Sylius 2.0.pdf
Łukasz Chruściel

Need for Speed: Removing speed bumps from your Symfony projects ⚡️
Need for Speed: Removing speed bumps from your Symfony projects ⚡️Need for Speed: Removing speed bumps from your Symfony projects ⚡️
Need for Speed: Removing speed bumps from your Symfony projects ⚡️
Łukasz Chruściel

原版定制美国纽约州立大学奥尔巴尼分校毕业证学位证书原版一模一样
原版定制美国纽约州立大学奥尔巴尼分校毕业证学位证书原版一模一样原版定制美国纽约州立大学奥尔巴尼分校毕业证学位证书原版一模一样
原版定制美国纽约州立大学奥尔巴尼分校毕业证学位证书原版一模一样
mz5nrf0n

UI5con 2024 - Boost Your Development Experience with UI5 Tooling Extensions
UI5con 2024 - Boost Your Development Experience with UI5 Tooling ExtensionsUI5con 2024 - Boost Your Development Experience with UI5 Tooling Extensions
UI5con 2024 - Boost Your Development Experience with UI5 Tooling Extensions
Peter Muessig

How to write a program in any programming language
How to write a program in any programming languageHow to write a program in any programming language
How to write a program in any programming language
Rakesh Kumar R

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME
Safe Software

GreenCode-A-VSCode-Plugin--Dario-Jurisic
GreenCode-A-VSCode-Plugin--Dario-JurisicGreenCode-A-VSCode-Plugin--Dario-Jurisic
GreenCode-A-VSCode-Plugin--Dario-Jurisic
Green Software Development

socradar-q1-2024-aviation-industry-report.pdf
socradar-q1-2024-aviation-industry-report.pdfsocradar-q1-2024-aviation-industry-report.pdf
socradar-q1-2024-aviation-industry-report.pdf
SOCRadar

E-Invoicing Implementation: A Step-by-Step Guide for Saudi Arabian Companies
E-Invoicing Implementation: A Step-by-Step Guide for Saudi Arabian CompaniesE-Invoicing Implementation: A Step-by-Step Guide for Saudi Arabian Companies
E-Invoicing Implementation: A Step-by-Step Guide for Saudi Arabian Companies
Quickdice ERP

8 Best Automated Android App Testing Tool and Framework in 2024.pdf
8 Best Automated Android App Testing Tool and Framework in 2024.pdf8 Best Automated Android App Testing Tool and Framework in 2024.pdf
8 Best Automated Android App Testing Tool and Framework in 2024.pdf
kalichargn70th171

E-commerce Development Services- Hornet Dynamics
E-commerce Development Services- Hornet DynamicsE-commerce Development Services- Hornet Dynamics
E-commerce Development Services- Hornet Dynamics
Hornet Dynamics

Oracle Database 19c New Features for DBAs and Developers.pptx
Oracle Database 19c New Features for DBAs and Developers.pptxOracle Database 19c New Features for DBAs and Developers.pptx
Oracle Database 19c New Features for DBAs and Developers.pptx
Remote DBA Services

LORRAINE ANDREI_LEQUIGAN_HOW TO USE ZOOM
LORRAINE ANDREI_LEQUIGAN_HOW TO USE ZOOMLORRAINE ANDREI_LEQUIGAN_HOW TO USE ZOOM
LORRAINE ANDREI_LEQUIGAN_HOW TO USE ZOOM
lorraineandreiamcidl

openEuler Case Study - The Journey to Supply Chain Security
openEuler Case Study - The Journey to Supply Chain SecurityopenEuler Case Study - The Journey to Supply Chain Security
openEuler Case Study - The Journey to Supply Chain Security
Shane Coughlan

Neo4j - Product Vision and Knowledge Graphs - GraphSummit Paris
Neo4j - Product Vision and Knowledge Graphs - GraphSummit ParisNeo4j - Product Vision and Knowledge Graphs - GraphSummit Paris
Neo4j - Product Vision and Knowledge Graphs - GraphSummit Paris
Neo4j

Artificia Intellicence and XPath Extension Functions
Artificia Intellicence and XPath Extension FunctionsArtificia Intellicence and XPath Extension Functions
Artificia Intellicence and XPath Extension Functions
Octavian Nadolu

What is Augmented Reality Image Tracking
What is Augmented Reality Image TrackingWhat is Augmented Reality Image Tracking
What is Augmented Reality Image Tracking
pavan998932

Empowering Growth with Best Software Development Company in Noida - Deuglo
Empowering Growth with Best Software  Development Company in Noida - DeugloEmpowering Growth with Best Software  Development Company in Noida - Deuglo
Empowering Growth with Best Software Development Company in Noida - Deuglo
Deuglo Infosystem Pvt Ltd


Recently uploaded (20)

Atelier - Innover avec l’IA Générative et les graphes de connaissances
Atelier - Innover avec l’IA Générative et les graphes de connaissancesAtelier - Innover avec l’IA Générative et les graphes de connaissances
Atelier - Innover avec l’IA Générative et les graphes de connaissances

Oracle 23c New Features For DBAs and Developers.pptx
Oracle 23c New Features For DBAs and Developers.pptxOracle 23c New Features For DBAs and Developers.pptx
Oracle 23c New Features For DBAs and Developers.pptx

2024 eCommerceDays Toulouse - Sylius 2.0.pdf
2024 eCommerceDays Toulouse - Sylius 2.0.pdf2024 eCommerceDays Toulouse - Sylius 2.0.pdf
2024 eCommerceDays Toulouse - Sylius 2.0.pdf

Need for Speed: Removing speed bumps from your Symfony projects ⚡️
Need for Speed: Removing speed bumps from your Symfony projects ⚡️Need for Speed: Removing speed bumps from your Symfony projects ⚡️
Need for Speed: Removing speed bumps from your Symfony projects ⚡️

原版定制美国纽约州立大学奥尔巴尼分校毕业证学位证书原版一模一样
原版定制美国纽约州立大学奥尔巴尼分校毕业证学位证书原版一模一样原版定制美国纽约州立大学奥尔巴尼分校毕业证学位证书原版一模一样
原版定制美国纽约州立大学奥尔巴尼分校毕业证学位证书原版一模一样

UI5con 2024 - Boost Your Development Experience with UI5 Tooling Extensions
UI5con 2024 - Boost Your Development Experience with UI5 Tooling ExtensionsUI5con 2024 - Boost Your Development Experience with UI5 Tooling Extensions
UI5con 2024 - Boost Your Development Experience with UI5 Tooling Extensions

How to write a program in any programming language
How to write a program in any programming languageHow to write a program in any programming language
How to write a program in any programming language

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME

GreenCode-A-VSCode-Plugin--Dario-Jurisic
GreenCode-A-VSCode-Plugin--Dario-JurisicGreenCode-A-VSCode-Plugin--Dario-Jurisic
GreenCode-A-VSCode-Plugin--Dario-Jurisic

socradar-q1-2024-aviation-industry-report.pdf
socradar-q1-2024-aviation-industry-report.pdfsocradar-q1-2024-aviation-industry-report.pdf
socradar-q1-2024-aviation-industry-report.pdf

E-Invoicing Implementation: A Step-by-Step Guide for Saudi Arabian Companies
E-Invoicing Implementation: A Step-by-Step Guide for Saudi Arabian CompaniesE-Invoicing Implementation: A Step-by-Step Guide for Saudi Arabian Companies
E-Invoicing Implementation: A Step-by-Step Guide for Saudi Arabian Companies

8 Best Automated Android App Testing Tool and Framework in 2024.pdf
8 Best Automated Android App Testing Tool and Framework in 2024.pdf8 Best Automated Android App Testing Tool and Framework in 2024.pdf
8 Best Automated Android App Testing Tool and Framework in 2024.pdf

E-commerce Development Services- Hornet Dynamics
E-commerce Development Services- Hornet DynamicsE-commerce Development Services- Hornet Dynamics
E-commerce Development Services- Hornet Dynamics

Oracle Database 19c New Features for DBAs and Developers.pptx
Oracle Database 19c New Features for DBAs and Developers.pptxOracle Database 19c New Features for DBAs and Developers.pptx
Oracle Database 19c New Features for DBAs and Developers.pptx

LORRAINE ANDREI_LEQUIGAN_HOW TO USE ZOOM
LORRAINE ANDREI_LEQUIGAN_HOW TO USE ZOOMLORRAINE ANDREI_LEQUIGAN_HOW TO USE ZOOM
LORRAINE ANDREI_LEQUIGAN_HOW TO USE ZOOM

openEuler Case Study - The Journey to Supply Chain Security
openEuler Case Study - The Journey to Supply Chain SecurityopenEuler Case Study - The Journey to Supply Chain Security
openEuler Case Study - The Journey to Supply Chain Security

Neo4j - Product Vision and Knowledge Graphs - GraphSummit Paris
Neo4j - Product Vision and Knowledge Graphs - GraphSummit ParisNeo4j - Product Vision and Knowledge Graphs - GraphSummit Paris
Neo4j - Product Vision and Knowledge Graphs - GraphSummit Paris

Artificia Intellicence and XPath Extension Functions
Artificia Intellicence and XPath Extension FunctionsArtificia Intellicence and XPath Extension Functions
Artificia Intellicence and XPath Extension Functions

What is Augmented Reality Image Tracking
What is Augmented Reality Image TrackingWhat is Augmented Reality Image Tracking
What is Augmented Reality Image Tracking

Empowering Growth with Best Software Development Company in Noida - Deuglo
Empowering Growth with Best Software  Development Company in Noida - DeugloEmpowering Growth with Best Software  Development Company in Noida - Deuglo
Empowering Growth with Best Software Development Company in Noida - Deuglo


Intro into Rook and Ceph on Kubernetes

  • 1. Rook/Ceph on K8S Introduction Oleg Chunikhin | CTO, Kublr
  • 2. Oleg Chunikhin CTO, Kublr • 25 years in software architecture & development • Working w/ Kubernetes since its release in 2015 • Software architect behind Kublr—an enterprise ready container management platform • @olgch Introductions
  • 3. Automation Ingress Custom Clusters Infrastructure Logging Monitoring Observability API Usage Reporting RBAC IAM Air Gap TLS Certificate Rotation Audit Storage Networking Container Registry CI / CD App Mgmt Infrastructure Container Runtime Kubernetes OPERATIONS SECURITY & GOVERNANCE
  • 4. Application DevOps Automation Developers SRE/Ops/DevOps/ SecOps • Self-service • Compatible • Conformant • Configurable • Open & flexible • Governance • Org multi-tenancy • Single pane of glass • Operations • Monitoring • Log collection • Image management • Identity management • Security • Reliability • Performance • Portability
  • 5. Hybrid Architecture ● Hybrid ~ Distributed ~ Complex ● Services ○ Connectivity ○ Discovery ● Data ○ Sharding ○ Mirroring / Replication ● BCDR ○ Failure and recovery scenarios ● Architecture ○ Application ○ Middleware ○ Infrastructure ● PoC ● Hardening and Optimization ● Operations
  • 6. Kubernetes as Container Management K8s is a solution for: • Uniform application management • Uniform resource management • In-cluster failover, load balancing, traffic management (service mesh) Challenges: • Heterogeneous middleware ⇒ distributed data is difficult • Heterogeneous infrastructure ⇒ distributed load balancing and ingress is difficult Infrastructure K8S Applications Infrastructure K8S Applications Managed Middleware (e.g. RDS, EFS, ...) Managed Middleware (e.g. Azure SQL, FS, ...) ?
  • 7. Kubernetes as Infrastructure and Platform Adds: ● Homogenous middleware ○ Ceph/Rook, Portworx, Vitess, Strimzi/Kafka ● Open cross-vendor inter-cluster connectivity ○ Submariner ● Uniform BCDR ○ Velero ● Uniform (operator-based) and portable middleware management ● Flexible and portable infrastructure mapping for middleware Infrastructure K8S Applications VPN / WAN Self-hosted Middleware (e.g. Ceph/Rook, Vitess, ...) Infrastructure K8S Applications Managed Middleware (e.g. RDS, EFS, ...) Managed Middleware (e.g. Azure SQL, FS, ...) VPN / WAN Self-hosted Middleware (e.g. Ceph/Rook, Vitess, ...) BCDR (e.g. Velero) BCDR (e.g. Velero) IPSec, Wireguard, ... Mirroring, Sharding, ...
  • 8. Demo: Stateful App in Hybrid Environment ● AWS and Azure ● Kublr for Infrastructure and K8S provisioning ● Submariner as reliable VPN ● Ceph / Rook as an example of portable storage middleware ● HA PoC: multi-zone, HA storage ● BCDR PoC: mirroring, failover ● Cost control PoC: spot instances Infrastructure K8S Applications Submariner Ceph / Rook storage Infrastructure K8S Applications AZ, EBS Zones, Azure Disks Submariner Ceph / Rook storage IPSec Mirroring, Snapshots
  • 9. Kubernetes Operators ● Operator Pattern ● CRD ○ Spec: component definition ○ Status: component status ● Operator ○ Links the component and CRD ● Operator in this demo ○ Submariner ○ Rook ○ ~ Kublr
  • 10. VPN: Submariner Worker Node Worker Node Passive Gateway Node Active Gateway Node Gateway Label Gateway Label Public Network Passive Gateway Node Active Gateway Node Gateway Label Gateway Label Worker Node Worker Node Cluster Node Route Agent Gateway Engine VxLAN Traffic IPSEC Traffic
  • 11. Storage: Rook / Ceph Data pool mon mon mon config data raw data osd raw data osd raw data mds osd Data pool Image Image Ceph Filesystem Components Abstractions Ceph rgw S3/Swift Object Store mgr Rook Operator CSI plugins osd osd ganesha NFS CephCluster Block Pool Object Store Filesystem NFS Object Store User Provisioners rbd-mirror
  • 12. Stack Definition SOURCE TYPE DESCRIPTION Infrastructure Specification Virtual Machines, Networks, Disks, etc Cloud Formation, ARM Templates, Terraform, Kublr Kubernetes Specification Cluster topology, masters and workers number, groups, K8S components configuration, versions System/support Software Specification Kubernetes system components: e.g. overlay network, DNS, etc (Self-)managed application services: Cloud Native Storage (Ceph/Rook), DB (Vitess), Messaging (Strimzi/Kafka, Nats), API Management (Ambassador, Kong), etc DevOps tools: CI (Jenkins), CD (Spinnaker), Repositories (Nexus, Artifactory) etc Provisioning scripts Provisioning procedures and processes: shell, Makefile, Jenkinsfile, CircleCI etc
  • 13. kind: Cluster metadata: name: demo-hybrid-1-aws spec: ... network: apiServerSecurePort: 6443 locations: - name: aws1 aws: ... master: minNodes: 1 ... locations: - aws: ... nodes: - name: group1 minNodes: 3 ... locations: - aws: ... features: monitoring: { ... } packages: my-package: { ... } Cluster Specification Kublr metadata for the cluster - name, space, labels Cluster-wide non provider specific configuration - network, cluster-wide settings, k8s version, etc Infrastructure provider specific cluster-wide configuration - account, access creds, AZs etc Infrastructure provider specific group configuration - AZs, image, group type, zone locking, etc Group-specific non provider specific configuration - k8s options, autoscaling, etc Kublr-specific built-in K8S components Additional custom helm packages
  • 14. kind: Cluster metadata: name: demo-hybrid-1-aws spec: ... network: clusterCIDR: 100.64.0.0/10 dnsDomain: cluster1.local stubDomains: - dns: cluster2.local servers: - 100.128.0.10 locations: - name: aws1 aws: resourcesCloudFormationExtras: SgDefaultSubmariner500: Type: AWS::EC2::SecurityGroupIngress ... ... master: minNodes: 1 ... locations: - aws: groupType: asg-mip mixedInstancesPolicyCloudFormationExtras: ... nodes: - name: group1 minNodes: 3 ... locations: - aws: groupType: asg-mip mixedInstancesPolicyCloudFormationExtras: ... pinToZone: pin availabilityZones: - us-east-1a - us-east-1b - us-east-1c Infrastructure Additional ports for VPN kind: Cluster metadata: name: demo-hybrid-2-azure spec: ... network: clusterCIDR: 100.128.0.0/10 dnsDomain: cluster2.local stubDomains: - dns: cluster1.local servers: - 100.64.0.10 locations: - name: azure1 azure: virtualNetworkSubnetCidrBlock: 172.18.0.0/16 armTemplateExtras: securityGroup: ... ... master: minNodes: 1 ... locations: - azure: armTemplateExtras: ... priority: Spot nodes: - name: group1 minNodes: 3 ... locations: - azure: armTemplateExtras: ... priority: Spot zones: - '1' - '2' - '3' pinToZone: pin Non-intersecting CIDR Mutual discoverability Mixed instance policy and spot instances Multi-zone
  • 15. kind: Cluster metadata: name: demo-hybrid-1-aws spec: ... packages: submariner-broker: { ... } rook-ceph: { ... } rook-ceph-additional-configuration: { ... } rook-ceph-cluster: { ... } Middleware Prepare namespace for Submariner broker Ceph cluster definition Rook operator Auxiliary preconfigured CRD (e.g. snapshot class etc)
  • 16. Kubernetes Persistence Kubernetes Cluster Namespace Pod Container 1 Container 2 Volume Volume Mount Volume Device “actual” storage Persistent Volume Volume Claim Spec Spec 2 PVC with SC 5 Pod reference PVC 1 Storage Class Storage Class Provisioner 3 Provision storage Create PV 4 PVC bound to PV
  • 17. Demo: RBD and CephFS Data pool Image Data pool mon mon mon config data raw data osd raw data osd raw data mds osd Data pool Image Image Ceph Filesystem Data pool (data) Data pool (md) PV Pod PVC PV Pod PVC PV Pod PVC PV PVC Pod Pod Pod sub-volumes Rook Operators CephBlockPool CephBlockPool CephFilesystem StorageClass StorageClass
  • 18. Demo: Mirroring Data pool Image mon mon mon config data raw data osd raw data osd raw data osd Data pool Image PV Pod PVC rbd-mirror Rook Operators Data pool Image mon mon mon config data raw data osd raw data osd raw data osd Data pool Image PV Pod PVC rbd-mirror Rook Operators primary replay CephBlockPool mirroring: enabled: true mode: image peers: ... CephBlockPool mirroring: enabled: true mode: image peers: ... VolumeReplicationClass VolumeReplicationClass VolumeReplication VolumeReplication
  • 21. Beyond the Demo ● Optimization: Resources, Throughput, ... ● Management: Quotas, Topology, ... ● Ceph: Object Store, NFS, ... ● BCDR: Velero ● Connectivity: VPN, Perring, Submariner, ...
  • 23. Q&A
