1. INTRA-ABDOMINAL
PRESSURE
Libin JOSE
Registered Nurse – Intensive Care Unit, Cairns Hospital

2. LEARNING
OBJECTIVES
Outline
The IAP monitoring procedure including steps, equipment and Key
principles.
Identify The ranges of IAP and interpret IAP to differentiate IAH and ACS.
State The diagnostic criteria for Abdominal Compartment Syndrome.
Define Intraabdominal hypertension.
Define Intra – Abdominal Pressure

3. WHAT IS INTRA-ABDOMINAL PRESSURE?
Intra-abdominal
Pressure is defined as
“a steady – state
pressure concealed
within the abdominal
cavity”.

4. WHAT IS AN ACCEPTABLE
IAP?
•Any Guess?
•Normal = 5mmhg.
•A critically ill patient = 5 - 7 mmhg.
•Obese patients = 15 mmhg.

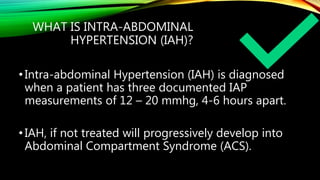

5. WHAT IS INTRA-ABDOMINAL
HYPERTENSION (IAH)?
•Intra-abdominal Hypertension (IAH) is diagnosed
when a patient has three documented IAP
measurements of 12 – 20 mmhg, 4-6 hours apart.
•IAH, if not treated will progressively develop into
Abdominal Compartment Syndrome (ACS).

6. • Grade I, IAP 12-15 mmHg
• Grade II, IAP 16-20 mmHg
• Grade III, IAP 21-25 mmHg
• Grade IV, IAP > 25 mmHg
HOW TO GRADE INTRA-
ABDOMINAL HYPERTENSION?

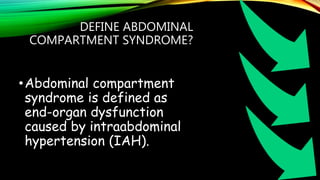

7. DEFINE ABDOMINAL
COMPARTMENT SYNDROME?
•Abdominal compartment
syndrome is defined as
end-organ dysfunction
caused by intraabdominal
hypertension (IAH).

8. THE DIAGNOSTIC CRITERIA OF ACS
1. A patient has an IAP of more than
20 mmhg
2. With or without an abdominal
perfusion pressure (APP) <
60mmHg
3. Associated with single or multiple
organ dysfunction or failure.

9. HOW TO CALCULATE APP?
• Abdominal Perfusion pressure is calculated
by subtracting the IAP from simultaneous
mean arterial pressure (MAP) measurement.
APP = MAP - IAP

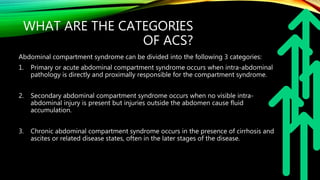

10. WHAT ARE THE CATEGORIES
OF ACS?
Abdominal compartment syndrome can be divided into the following 3 categories:
1. Primary or acute abdominal compartment syndrome occurs when intra-abdominal
pathology is directly and proximally responsible for the compartment syndrome.
2. Secondary abdominal compartment syndrome occurs when no visible intra-
abdominal injury is present but injuries outside the abdomen cause fluid
accumulation.
3. Chronic abdominal compartment syndrome occurs in the presence of cirrhosis and
ascites or related disease states, often in the later stages of the disease.

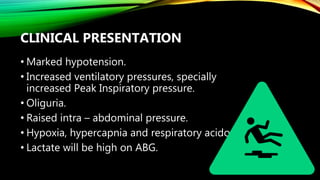

11. CLINICAL PRESENTATION
• Marked hypotension.
• Increased ventilatory pressures, specially
increased Peak Inspiratory pressure.
• Oliguria.
• Raised intra – abdominal pressure.
• Hypoxia, hypercapnia and respiratory acidosis.
• Lactate will be high on ABG.

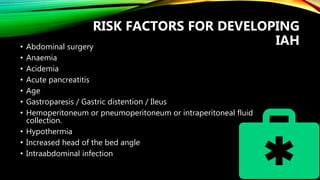

12. RISK FACTORS FOR DEVELOPING
IAH• Abdominal surgery
• Anaemia
• Acidemia
• Acute pancreatitis
• Age
• Gastroparesis / Gastric distention / Ileus
• Hemoperitoneum or pneumoperitoneum or intraperitoneal fluid
collection.
• Hypothermia
• Increased head of the bed angle
• Intraabdominal infection

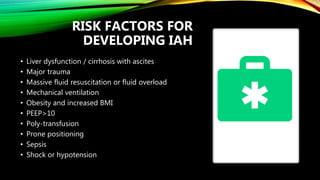

13. RISK FACTORS FOR
DEVELOPING IAH
• Liver dysfunction / cirrhosis with ascites
• Major trauma
• Massive fluid resuscitation or fluid overload
• Mechanical ventilation
• Obesity and increased BMI
• PEEP>10
• Poly-transfusion
• Prone positioning
• Sepsis
• Shock or hypotension

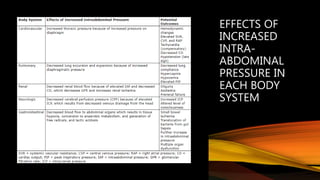

14. EFFECTS OF
INCREASED
INTRA-
ABDOMINAL
PRESSURE IN
EACH BODY
SYSTEM

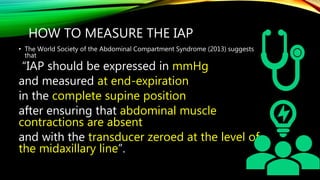

15. HOW TO MEASURE THE IAP
• The World Society of the Abdominal Compartment Syndrome (2013) suggests
that
“IAP should be expressed in mmHg
and measured at end-expiration
in the complete supine position
after ensuring that abdominal muscle
contractions are absent
and with the transducer zeroed at the level of
the midaxillary line”.

16. THE GOLD STANDARD FOR
IAP MEASUREMENT
• IAP monitoring using a Foley’s catheter is known as
the gold standard where urinary bladder is acting
as the medium for the monitoring.
• Intermittent or continuous IAP monitoring using
bladder is the most commonly used and the
recommended method.

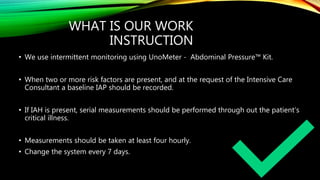

17. WHAT IS OUR WORK
INSTRUCTION
• We use intermittent monitoring using UnoMeter - Abdominal Pressure™ Kit.
• When two or more risk factors are present, and at the request of the Intensive Care
Consultant a baseline IAP should be recorded.
• If IAH is present, serial measurements should be performed through out the patient’s
critical illness.
• Measurements should be taken at least four hourly.
• Change the system every 7 days.

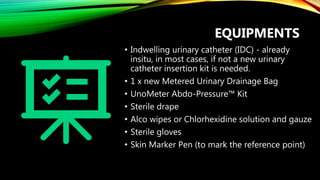

18. EQUIPMENTS
• Indwelling urinary catheter (IDC) - already
insitu, in most cases, if not a new urinary
catheter insertion kit is needed.
• 1 x new Metered Urinary Drainage Bag
• UnoMeter Abdo-Pressure™ Kit
• Sterile drape
• Alco wipes or Chlorhexidine solution and gauze
• Sterile gloves
• Skin Marker Pen (to mark the reference point)

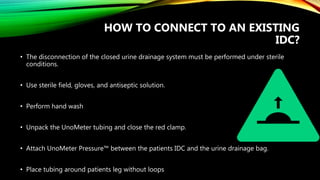

19. HOW TO CONNECT TO AN EXISTING
IDC?
• The disconnection of the closed urine drainage system must be performed under sterile
conditions.
• Use sterile field, gloves, and antiseptic solution.
• Perform hand wash
• Unpack the UnoMeter tubing and close the red clamp.
• Attach UnoMeter Pressure™ between the patients IDC and the urine drainage bag.
• Place tubing around patients leg without loops

20. IAP MEASUREMENT
• Clean the IDC latex port with an AlcoWipe
• Prime UnoMeter™ with 20ml sterile 0.9% saline
• Place zero point on tubing next to patients reference point
• Open the red clamp. Measure intra-abdominal pressure
• Close the red clamp. Place tubing around patients leg without loops.
• Document pressure under “Abdominal Pressure” on the Metavision Neurovascular
Observations page

21. THE PRINCIPLES OF IAP
MESUREMENT
1. Expressed in mmHg (scaling on UnoMeter Abdo-Pressure™
Kit is in mmHg).
2. Measured in end-expiration.
3. Performed in supine position (standard head position: flat.
Can be in 30 degree head elevation as per special agreement
e.g. head trauma) Must be measured in the same position
every time.
4. Performed with an instillation volume of 20ml of NaCl 0.9%.
5. Measured 30-60 seconds after instillation to allow for bladder
detrusor muscle relaxation.
6. Measured in the absence of active abdominal muscle
contractions (no coughing or active movements.

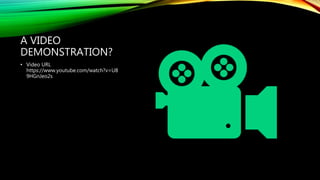

22. A VIDEO
DEMONSTRATION?
• Video URL
https://www.youtube.com/watch?v=U8
9HGnJeo2s

23. WATCH A VIDEO

24. Any Questions?

25. FEEDBACKS

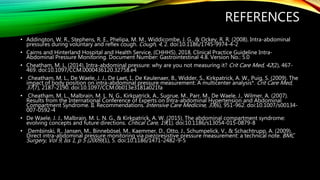

26. REFERENCES
• Addington, W. R., Stephens, R. E., Phelipa, M. M., Widdicombe, J. G., & Ockey, R. R. (2008). Intra-abdominal
pressures during voluntary and reflex cough. Cough, 4, 2. doi:10.1186/1745-9974-4-2
• Cairns and Hinterland Hospital and Health Service, (CHHHS). 2018. Clinical Practice Guideline Intra-
Abdominal Pressure Monitoring. Document Number: Gastrointestinal 4.8. Version No.: 5.0
• Cheatham, M. L. (2014). Intra-abdominal pressure: why are you not measuring it? Crit Care Med, 42(2), 467-
469. doi:10.1097/CCM.0000436120.32758.e4
• Cheatham, M. L., De Waele, J. J., De Laet, I., De Keulenaer, B., Widder, S., Kirkpatrick, A. W., Puig, S. (2009). The
impact of body position on intra-abdominal pressure measurement: A multicenter analysis*. Crit Care Med,
37(7), 2187-2190. doi:10.1097/CCM.0b013e3181a021fa
• Cheatham, M. L., Malbrain, M. L. N. G., Kirkpatrick, A., Sugrue, M., Parr, M., De Waele, J., Wilmer, A. (2007).
Results from the International Conference of Experts on Intra-abdominal Hypertension and Abdominal
Compartment Syndrome. II. Recommendations. Intensive Care Medicine, 33(6), 951-962. doi:10.1007/s00134-
007-0592-4
• De Waele, J. J., Malbrain, M. L. N. G., & Kirkpatrick, A. W. (2015). The abdominal compartment syndrome:
evolving concepts and future directions. Critical Care, 19(1). doi:10.1186/s13054-015-0879-8
• Dembinski, R., Jansen, M., Binnebösel, M., Kaemmer, D., Otto, J., Schumpelick, V., & Schachtrupp, A. (2009).
Direct intra-abdominal pressure monitoring via piezoresistive pressure measurement: a technical note. BMC
Surgery, Vol 9, Iss 1, p 5 (2009)(1), 5. doi:10.1186/1471-2482-9-5

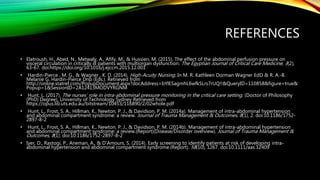

27. REFERENCES
• Elatroush, H., Abed, N., Metwaly, A., Afify, M., & Hussien, M. (2015). The effect of the abdominal perfusion pressure on
visceral circulation in critically ill patients with multiorgan dysfunction. The Egyptian Journal of Critical Care Medicine, 3(2),
63-67. doi:https://doi.org/10.1016/j.ejccm.2015.12.001
• Hardin-Pierce , M. G., & Wagner , K. D. (2014). High-Acuity Nursing. In M. R. Kathleen Dorman Wagner EdD & R. A.-B.
Melanie G. Hardin-Pierce Dnp (Eds.). Retrieved from
http://online.statref.com/PopupDocument.aspx?docAddress=bYlESagmhL6wfkSLrs7rUQ!!&QueryID=110858&figure=true&
Popup=1&SessionID=2A12413MODVYRGNM
• Hunt, L. (2017). The nurses’ role in intra-abdominal pressure monitoring in the critical care setting. (Doctor of Philosophy
(PhD) Degree), University of Technology Sydney Retrieved from
https://opus.lib.uts.edu.au/bitstream/10453/116890/2/02whole.pdf
• Hunt, L., Frost, S. A., Hillman, K., Newton, P. J., & Davidson, P. M. (2014a). Management of intra-abdominal hypertension
and abdominal compartment syndrome: a review. Journal of Trauma Management & Outcomes, 8(1), 2. doi:10.1186/1752-
2897-8-2
• Hunt, L., Frost, S. A., Hillman, K., Newton, P. J., & Davidson, P. M. (2014b). Management of intra-abdominal hypertension
and abdominal compartment syndrome: a review.(Report)(Disease/Disorder overview). Journal of Trauma Management &
Outcomes, 8(1). doi:10.1186/1752-2897-8-2
• Iyer, D., Rastogi, P., Aneman, A., & D'Amours, S. (2014). Early screening to identify patients at risk of developing intra-
abdominal hypertension and abdominal compartment syndrome.(Report). 58(10), 1267. doi:10.1111/aas.12409

28. REFERENCES
• Kirkpatrick, A. W., Roberts, D. J., Waele, J., Jaeschke, R., Malbrain, M. L. N. G., Keulenaer, B., . . . Olvera, C.
(2013). Intra-abdominal hypertension and the abdominal compartment syndrome: updated consensus
definitions and clinical practice guidelines from the World Society of the Abdominal Compartment Syndrome.
Intensive Care Medicine, 39(7), 1190. doi:10.1007/s00134-013-2906-z
• Kovač, N., Širanović, M., & Mazul-Sunko, B. (2007). Clinical significance of intraabdominal pressure and
abdominal perfusion pressure in patients with acute abdominal syndrome. Signa vitae: journal for intesive
care and emergency medicine, 2(2), 14-17.
• Malbrain, M. L., & Cheatham, M. L. (2011). Definitions and pathophysiological implications of intra-
abdominal hypertension and abdominal compartment syndrome. Am Surg, 77 Suppl 1, S6-11.
• Malbrain, M. L. N. G., Chiumello, D., Pelosi, P., Wilmer, A., Brienza, N., Malcangi, V., Gattinoni, L. (2004).
Prevalence of intra-abdominal hypertension in critically ill patients: a multicentre epidemiological study.
Intensive Care Medicine, 30(5), 822-829. doi:10.1007/s00134-004-2169-9
• Malbrain, M. L. N. G., De laet, I. E., De Waele, J. J., & Kirkpatrick, A. W. (2013). Intra-abdominal hypertension:
Definitions, monitoring, interpretation and management. Best Practice & Research Clinical Anaesthesiology,
27(2), 249-270. doi:https://doi.org/10.1016/j.bpa.2013.06.009
• Milanesi, R., & Caregnato, R. C. (2016). Intra-abdominal pressure: an integrative review. Einstein (São Paulo),
14(3), 423-430. doi:10.1590/S1679-45082016RW3088

29. REFERENCES
• Norisue, Y., Kataoka, J., Homma, Y., Naito, T., Tsukuda, J., Okamoto, K., . . . Fujitani, S. (2018). Increase in intra-
abdominal pressure during airway suctioning-induced cough after a successful spontaneous breathing trial is
associated with extubation outcome. Annals of Intensive Care, 8(1), 61. doi:10.1186/s13613-018-0410-x
• Prasad, G. R., Subba Rao, J. V., Aziz, A., & Rashmi, T. M. (2017). The Role of Routine Measurement of Intra-
abdominal Pressure in Preventing Abdominal Compartment Syndrome. Journal of Indian Association of
Pediatric Surgeons, 22(3), 134-138. doi:10.4103/jiaps.JIAPS_222_15
• Reintam Blaser, A., Parm, P., Kitus, R., & Starkopf, J. (2011). Risk factors for intra-abdominal hypertension in
mechanically ventilated patients. Acta Anaesthesiol Scand, 55(5), 607-614. doi:10.1111/j.1399-
6576.2011.02415.x
• Richard, P. (2017, Aug 21, 2017). Abdominal Compartment Syndrome. Retrieved from
https://emedicine.medscape.com/article/829008-overview
• Spencer, P., Kinsman, L., & Fuzzard, K. (2008). A critical care nurse's guide to intra abdominal hypertension
and abdominal compartment syndrome. Australian Critical Care, 21(1), 18-28. doi:10.1016/j.aucc.2007.10.005
• Thabet, F. C., & Ejike, J. C. (2017). Intra-abdominal hypertension and abdominal compartment syndrome in
pediatrics. A review.(Report). Journal of Critical Care, 41, 275. doi:10.1016/j.jcrc.2017.06.004

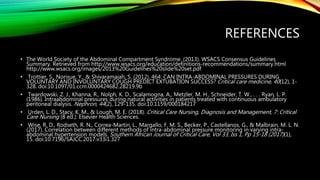

30. REFERENCES
• The World Society of the Abdominal Compartment Syndrome. (2013). WSACS Consensus Guidelines
Summary. Retrieved from http://www.wsacs.org/education/definitions-recommendations/summary.html
http://www.wsacs.org/images/2013%20Guidelines%20slide%20set.pdf
• Trottier, S., Norisue, Y., & Shivaramaiah, S. (2012). 464: CAN INTRA-ABDOMINAL PRESSURES DURING
VOLUNTARY AND INVOLUNTARY COUGH PREDICT EXTUBATION SUCCESS? Critical care medicine, 40(12), 1-
328. doi:10.1097/01.ccm.0000424682.28219.9b
• Twardowski, Z. J., Khanna, R., Nolph, K. D., Scalamogna, A., Metzler, M. H., Schneider, T. W., . . . Ryan, L. P.
(1986). Intraabdominal pressures during natural activities in patients treated with continuous ambulatory
peritoneal dialysis. Nephron, 44(2), 129-135. doi:10.1159/000184217
• Urden, L. D., Stacy, K. M., & Lough, M. E. (2018). Critical Care Nursing, Diagnosis and Management, 7: Critical
Care Nursing (8 ed.): Elsevier Health Sciences.
• Wise, R. D., Rodseth, R. N., Correa-Martin, L., Margallo, F. M. S., Becker, P., Castellanos, G., & Malbrain, M. L. N.
(2017). Correlation between different methods of intra-abdominal pressure monitoring in varying intra-
abdominal hypertension models. Southern African Journal of Critical Care, Vol 33, Iss 1, Pp 15-18 (2017)(1),
15. doi:10.7196/SAJCC.2017.v33i1.327

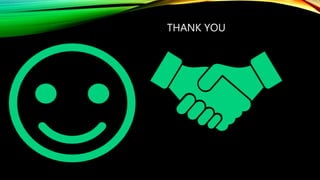

31. THANK YOU
