A REPORT ON INTERNSHIP
AT
“VAICHAL CONSTRUCTION PVT.LTD.”
Submitted by
MOHAMMAD KAZIM SULTANI
B. E. Civil
Under the guidance of
Asst. Prof. M. S. Injal
DEPARTMENT OF CIVIL ENGINEERING
STES’S
SINHGAD COLLEGE OF ENGINEERING VADGAON BK., OFF
SINHGAD ROAD
PUNE 411041
2015

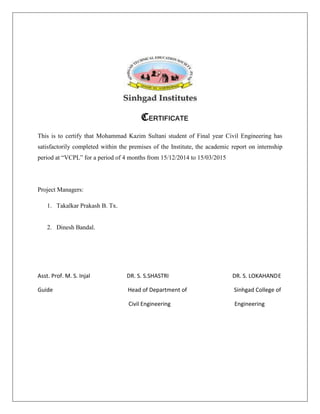

CERTIFICATE
This is to certify that Mohammad Kazim Sultani student of Final year Civil Engineering has
satisfactorily completed within the premises of the Institute, the academic report on internship
period at “VCPL” for a period of 4 months from 15/12/2014 to 15/03/2015
Project Managers:
1. Takalkar Prakash B. Tx.
2. Dinesh Bandal.
Asst. Prof. M. S. Injal DR. S. S.SHASTRI DR. S. LOKAHANDE
Guide Head of Department of Sinhgad College of
Civil Engineering Engineering

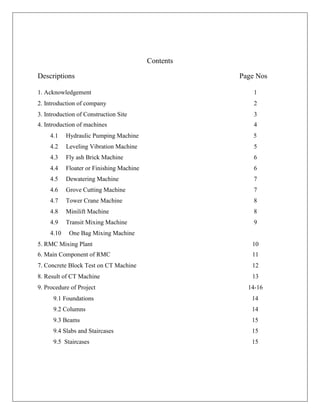

Contents
Descriptions Page Nos
1. Acknowledgement 1
2. Introduction of company 2
3. Introduction of Construction Site 3
4. Introduction of machines 4
4.1 Hydraulic Pumping Machine
4.2 Leveling Vibration Machine
4.3 Fly ash Brick Machine
4.4 Floater or Finishing Machine
4.5 Dewatering Machine
4.6 Grove Cutting Machine
4.7 Tower Crane Machine
4.8 Minilift Machine
4.9 Transit Mixing Machine
4.10 One Bag Mixing Machine
5
5
6
6
7
7
8
8
9
5. RMC Mixing Plant 10
6. Main Component of RMC 11
7. Concrete Block Test on CT Machine 12
8. Result of CT Machine 13
9. Procedure of Project 14-16

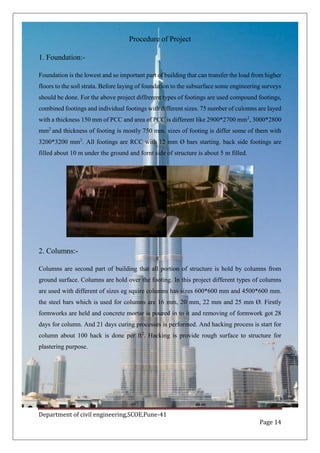

9.1 Foundations
9.2 Columns
9.3 Beams
9.4 Slabs and Staircases
9.5 Staircases
14
14
15
15
15

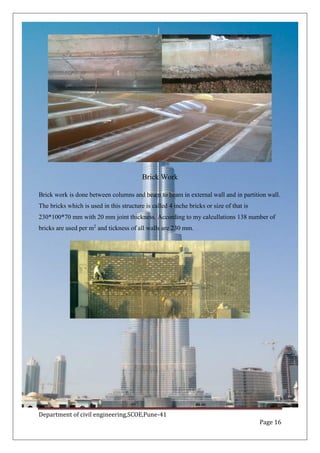

10. Brick 16

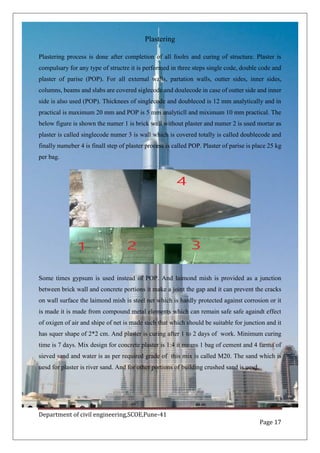

11. Plastering 17

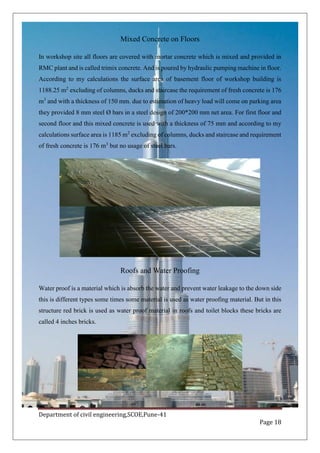

12. Mixed Concrete on Floors 18
13.Roofs and Water Proofing 18
14. Conplast 19
15.Mullein Columns 19

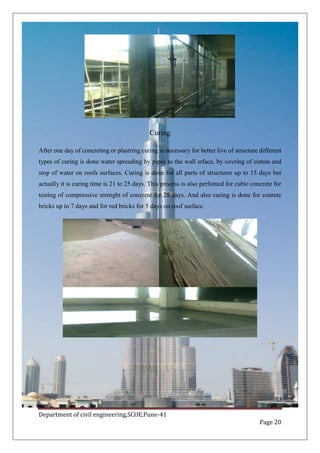

16. Curing
17. Guide lines of Roads Marking
18. Photos
19. Conclusion
20
21
22-24
25
Department of civil engineering,SCOE,Pune-41
Page 1

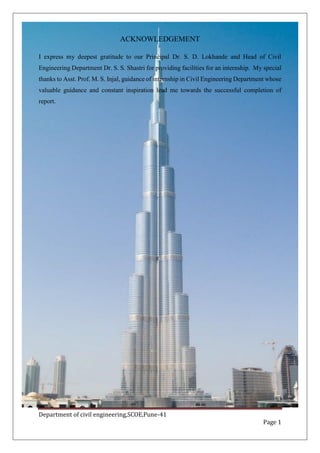

ACKNOWLEDGEMENT
I express my deepest gratitude to our Principal Dr. S. D. Lokhande and Head of Civil
Engineering Department Dr. S. S. Shastri for providing facilities for an internship. My special
thanks to Asst. Prof. M. S. Injal, guidance of internship in Civil Engineering Department whose
valuable guidance and constant inspiration lead me towards the successful completion of
report.
Department of civil engineering,SCOE,Pune-41
Page 2

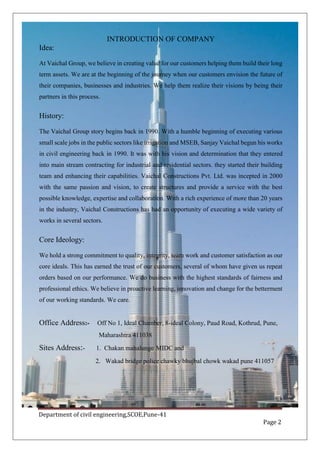

INTRODUCTION OF COMPANY
Idea:
At Vaichal Group, we believe in creating value for our customers helping them build their long
term assets. We are at the beginning of the journey when our customers envision the future of
their companies, businesses and industries. We help them realize their visions by being their
partners in this process.
History:
The Vaichal Group story begins back in 1990. With a humble beginning of executing various
small scale jobs in the public sectors like irrigation and MSEB, Sanjay Vaichal begun his works
in civil engineering back in 1990. It was with his vision and determination that they entered
into main stream contracting for industrial and residential sectors. they started their building
team and enhancing their capabilities. Vaichal Constructions Pvt. Ltd. was incepted in 2000
with the same passion and vision, to create structures and provide a service with the best
possible knowledge, expertise and collaboration. With a rich experience of more than 20 years
in the industry, Vaichal Constructions has had an opportunity of executing a wide variety of
works in several sectors.
Core Ideology:
We hold a strong commitment to quality, integrity, team work and customer satisfaction as our
core ideals. This has earned the trust of our customers, several of whom have given us repeat
orders based on our performance. We do business with the highest standards of fairness and
professional ethics. We believe in proactive learning, innovation and change for the betterment
of our working standards. We care.
Office Address:- Off No 1, Ideal Chamber, 8-ideal Colony, Paud Road, Kothrud, Pune,
Maharashtra 411038
Sites Address:- 1. Chakan mahalunge MIDC and
2. Wakad bridge police chawky bhujbal chowk wakad pune 411057
Department of civil engineering,SCOE,Pune-41
Page 3
Chakan Project: 15/12/14 to 15/01/15

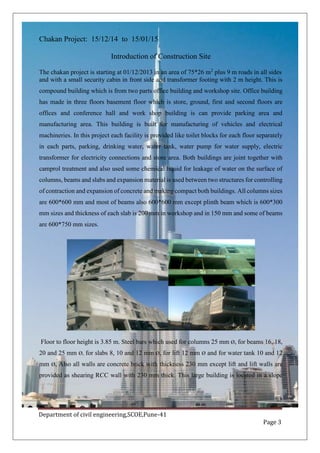

Introduction of Construction Site
The chakan project is starting at 01/12/2013 in an area of 75*26 m2
plus 9 m roads in all sides
and with a small security cabin in front side and transformer footing with 2 m height. This is
compound building which is from two parts office building and workshop site. Office building
has made in three floors basement floor which is store, ground, first and second floors are
offices and conference hall and work shop building is can provide parking area and
manufacturing area. This building is built for manufacturing of vehicles and electrical
machineries. In this project each facility is provided like toilet blocks for each floor separately
in each parts, parking, drinking water, water tank, water pump for water supply, electric
transformer for electricity connections and store area. Both buildings are joint together with
camprol treatment and also used some chemical liquid for leakage of water on the surface of
columns, beams and slabs and expansion material is used between two structures for controlling
of contraction and expansion of concrete and making compact both buildings. All columns sizes
are 600*600 mm and most of beams also 600*600 mm except plinth beam which is 600*300
mm sizes and thickness of each slab is 200 mm in workshop and in 150 mm and some of beams
are 600*750 mm sizes.
Floor to floor height is 3.85 m. Steel bars which used for columns 25 mm Ø, for beams 16, 18,
20 and 25 mm Ø, for slabs 8, 10 and 12 mm Ø, for lift 12 mm Ø and for water tank 10 and 12
mm Ø, Also all walls are concrete brick with thickness 230 mm except lift and lift walls are
provided as shearing RCC wall with 230 mm thick. This large building is located in a slope
Department of civil engineering,SCOE,Pune-41
Page 4
area which footing height about 10 m below the ground surface. Before of construction filling
process is performed.
The material which is used for filling is murum is done layer wise such that each layer is 300
mm thick and rolling compaction machines are used in each layer and height of filling in back
side of building is about 10 m and front side is about 5. Tremix concrete is used for all floors.
For basement floor tremix plus steel reinforced is poured with mm thick and for others only
tremix is used about 7.5 mm thick.
It is also provided with two doglegged staircase, one straight staircase and one electrical lift
with shearing wall. In each roof they used red brick as water proofing material in radially shape
for water flowing purpose. Drainage pipes are provided underground surface which is RCC
hume pipe with facility of manhole or chamber and rain water is also can flow to ground surface
with the help of gutter which is from made plastic pipe. And finally a water tank is made in
front side of building which has one lakh litter capacity walls are RCC with 275 mm thick. And
at final the value of this project is a bout 100.5 million.
Department of civil engineering,SCOE,Pune-41
Page 5

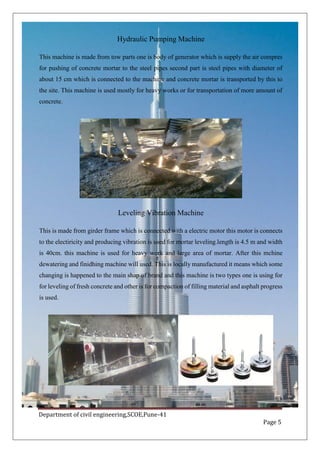

Hydraulic Pumping Machine
This machine is made from tow parts one is body of generator which is supply the air compres
for pushing of concrete mortar to the steel pipes second part is steel pipes with diameter of
about 15 cm which is connected to the machine and concrete mortar is transported by this to
the site. This machine is used mostly for heavy works or for transportation of more amount of
concrete.
Leveling Vibration Machine
This is made from girder frame which is connected with a electric motor this motor is connects
to the electiricity and producing vibration is used for mortar leveling.length is 4.5 m and width
is 40cm. this machine is used for heavy work and large area of mortar. After this mchine
dewatering and finidhing machine will used. This is locally manufactured it means which some
changing is happened to the main shap of brand and this machine is two types one is using for
for leveling of fresh concrete and other is for compaction of filling material and asphalt progress
is used.
Department of civil engineering,SCOE,Pune-41
Page 6

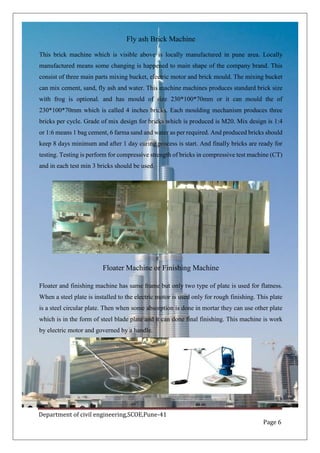

Fly ash Brick Machine
This brick machine which is visible above is locally manufactured in pune area. Locally
manufactured means some changing is happened to main shape of the company brand. This
consist of three main parts mixing bucket, electric motor and brick mould. The mixing bucket
can mix cement, sand, fly ash and water. This machine machines produces standard brick size
with frog is optional. and has mould of size 230*100*70mm or it can mould the of
230*100*70mm which is called 4 inches bricks. Each moulding mechanism produces three
bricks per cycle. Grade of mix design for bricks which is produced is M20. Mix design is 1:4
or 1:6 means 1 bag cement, 6 farma sand and water as per required. And produced bricks should
keep 8 days minimum and after 1 day curing process is start. And finally bricks are ready for
testing. Testing is perform for compressive strength of bricks in compressive test machine (CT)
and in each test min 3 bricks should be used.
Floater Machine or Finishing Machine
Floater and finishing machine has same frame but only two type of plate is used for flatness.
When a steel plate is installed to the electric motor is used only for rough finishing. This plate
is a steel circular plate. Then when some absorption is done in mortar they can use other plate
which is in the form of steel blade plate and it can done final finishing. This machine is work
by electric motor and governed by a handle.
Department of civil engineering,SCOE,Pune-41
Page 7

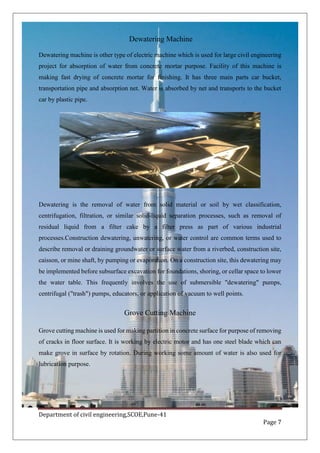

Dewatering Machine
Dewatering machine is other type of electric machine which is used for large civil engineering
project for absorption of water from concrete mortar purpose. Facility of this machine is
making fast drying of concrete mortar for finishing. It has three main parts car bucket,
transportation pipe and absorption net. Water is absorbed by net and transports to the bucket
car by plastic pipe.
Dewatering is the removal of water from solid material or soil by wet classification,
centrifugation, filtration, or similar solid-liquid separation processes, such as removal of
residual liquid from a filter cake by a filter press as part of various industrial
processes.Construction dewatering, unwatering, or water control are common terms used to
describe removal or draining groundwater or surface water from a riverbed, construction site,
caisson, or mine shaft, by pumping or evaporation. On a construction site, this dewatering may
be implemented before subsurface excavation for foundations, shoring, or cellar space to lower
the water table. This frequently involves the use of submersible "dewatering" pumps,
centrifugal ("trash") pumps, educators, or application of vacuum to well points.
Grove Cutting Machine
Grove cutting machine is used for making partition in concrete surface for purpose of removing
of cracks in floor surface. It is working by electric motor and has one steel blade which can
make grove in surface by rotation. During working some amount of water is also used for
lubrication purpose.
Department of civil engineering,SCOE,Pune-41
Page 8

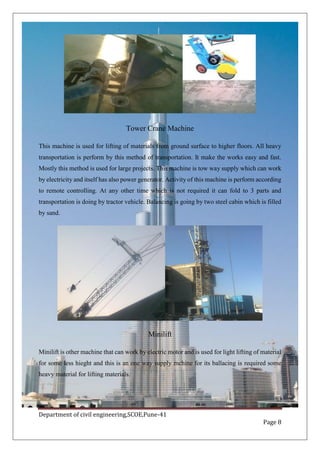

Tower Crane Machine
This machine is used for lifting of materials from ground surface to higher floors. All heavy
transportation is perform by this method of transportation. It make the works easy and fast.
Mostly this method is used for large projects. This machine is tow way supply which can work
by electricity and itself has also power generator. Activity of this machine is perform according
to remote controlling. At any other time which is not required it can fold to 3 parts and
transportation is doing by tractor vehicle. Balancing is going by two steel cabin which is filled
by sand.
Minilift
Minilift is other machine that can work by electric motor and is used for light lifting of material
for some less hieght and this is an one way supply mchine for its ballacing is required some
heavy material for lifting materials.
Department of civil engineering,SCOE,Pune-41
Page 9

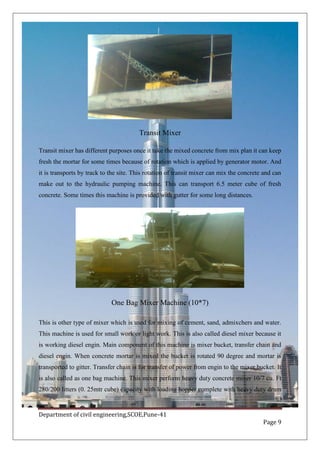

Transit Mixer
Transit mixer has different purposes once it take the mixed concrete from mix plan it can keep
fresh the mortar for some times because of rotation which is applied by generator motor. And
it is transports by track to the site. This rotation of transit mixer can mix the concrete and can
make out to the hydraulic pumping machine. This can transport 6.5 meter cube of fresh
concrete. Some times this machine is provided with gutter for some long distances.
One Bag Mixer Machine (10*7)
This is other type of mixer which is used for mixing of cement, sand, admixchers and water.
This machine is used for small work or light work. This is also called diesel mixer because it
is working diesel engin. Main component of this machine is mixer bucket, transfer chain and
diesel engin. When concrete mortar is mixed the bucket is rotated 90 degree and mortar is
transported to gitter. Transfer chain is for transfer of power from engin to the mixer bucket. It
is also called as one bag machine. This mixer perform heavy duty concrete mixer 10/7 cu. Ft
280/200 litters (0. 25mtr cube) capacity with loading hopper complete with heavy duty drum
Department of civil engineering,SCOE,Pune-41
Page 10
using thick 10 gauge m. S sheet, bearings, blades, pulley, v-belts, wire ropes complete on heavy
duty structure on 4 pneumatic jeep type tires fitted with kirloskar 5 h. P*1440 rpm

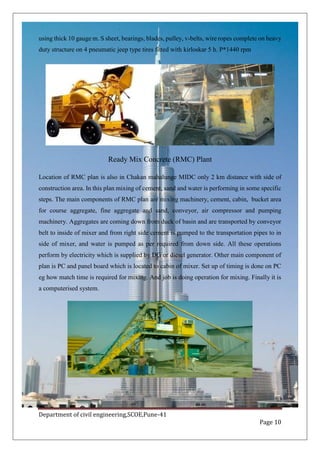

Ready Mix Concrete (RMC) Plant
Location of RMC plan is also in Chakan mahalunge MIDC only 2 km distance with side of
construction area. In this plan mixing of cement, sand and water is performing in some specific
steps. The main components of RMC plan are mixing machinery, cement, cabin, bucket area
for course aggregate, fine aggregate and sand, conveyor, air compressor and pumping
machinery. Aggregates are coming down from duck of basin and are transported by conveyor
belt to inside of mixer and from right side cement is pumped to the transportation pipes to in
side of mixer, and water is pumped as per required from down side. All these operations
perform by electricity which is supplied by DG or diesel generator. Other main component of
plan is PC and panel board which is located to cabin of mixer. Set up of timing is done on PC
eg how match time is required for mixing. And job is doing operation for mixing. Finally it is
a computerised system.
Department of civil engineering,SCOE,Pune-41
Page 11

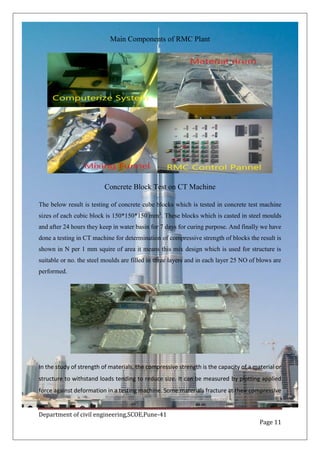

Main Components of RMC Plant
Concrete Block Test on CT Machine
The below result is testing of concrete cube blocks which is tested in concrete test machine
sizes of each cubic block is 150*150*150 mm3
. These blocks which is casted in steel moulds
and after 24 hours they keep in water basin for 7 days for curing purpose. And finally we have
done a testing in CT machine for determination of compressive strength of blocks the result is
shown in N per 1 mm squire of area it means this mix design which is used for structure is
suitable or no. the steel moulds are filled in three layers and in each layer 25 NO of blows are
performed.
In the study of strength of materials, the compressive strength is the capacity of a material or
structure to withstand loads tending to reduce size. It can be measured by plotting applied
force against deformation in a testing machine. Some materials fracture at their compressive
Department of civil engineering,SCOE,Pune-41
Page 12

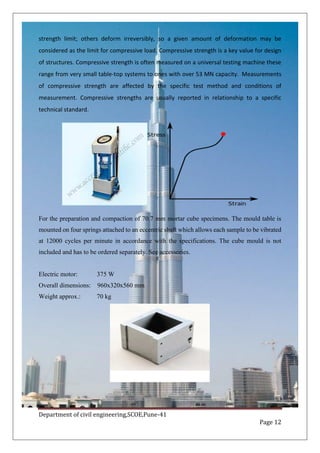

strength limit; others deform irreversibly, so a given amount of deformation may be
considered as the limit for compressive load. Compressive strength is a key value for design
of structures. Compressive strength is often measured on a universal testing machine these
range from very small table-top systems to ones with over 53 MN capacity. Measurements
of compressive strength are affected by the specific test method and conditions of
measurement. Compressive strengths are usually reported in relationship to a specific
technical standard.
For the preparation and compaction of 70.7 mm mortar cube specimens. The mould table is
mounted on four springs attached to an eccentric shaft which allows each sample to be vibrated
at 12000 cycles per minute in accordance with the specifications. The cube mould is not
included and has to be ordered separately. See accessories.
Electric motor: 375 W
Overall dimensions: 960x320x560 mm
Weight approx.: 70 kg
Department of civil engineering,SCOE,Pune-41
Page 13

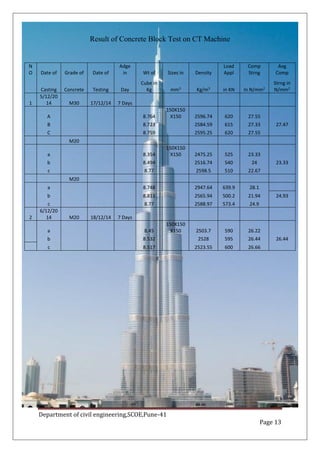

Result of Concrete Block Test on CT Machine
N
O Date of Grade of Date of
Adge
in Wt of Sizes in Density
Load
Appl
Comp
Strng
Avg
Comp
Casting Concrete Testing Day
Cube in
Kg mm3
Kg/m3
in KN In N/mm2
Strng in
N/mm2
1
5/12/20
14 M30 17/12/14 7 Days
A 8.764
150X150
X150 2596.74 620 27.55
B 8.723 2584.59 615 27.33 27.47
C 8.759 2595.25 620 27.55
M20
a 8.354
150X150
X150 2475.25 525 23.33
b 8.494 2516.74 540 24 23.33
c 8.77 2598.5 510 22.67
M20
a 8.748 2947.64 639.9 28.1
b 8.811 2565.94 500.2 21.94 24.93
c 8.77 2588.97 573.4 24.9
2
6/12/20
14 M20 18/12/14 7 Days
a 8.45
150X150
X150 2503.7 590 26.22
b 8.532 2528 595 26.44 26.44
c 8.517 2523.55 600 26.66
Department of civil engineering,SCOE,Pune-41
Page 14
Procedure of Project
1. Foundation:-
Foundation is the lowest and so important part of building that can transfer the load from higher
floors to the soil strata. Before laying of foundation to the subsurface some engineering surveys
should be done. For the above project diffrerent types of footings are used compound footings,
combined footings and individual footings with different sizes. 75 number of culomns are layed
with a thickness 150 mm of PCC and area of PCC is different like 2900*2700 mm2
, 3000*2800
mm2
and thickness of footing is mostly 750 mm. sizes of footing is differ some of them with
3200*3200 mm2
. All footings are RCC with 12 mm Ø bars starting. back side footings are
filled about 10 m under the ground and fornt side of structure is about 5 m filled.
2. Columns:-
Columns are second part of building that all portion of structure is hold by columns from
ground surface. Columns are hold over the footing. In this project different types of columns
are used with different of sizes eg squire columns has sizes 600*600 mm and 4500*600 mm.
the steel bars which is used for columns are 16 mm, 20 mm, 22 mm and 25 mm Ø. Firstly
formworks are held and concrete mortar is poured in to it and removing of formwork got 28
days for column. And 21 days curing processes is performed. And hacking process is start for
column about 100 hack is done per ft2
. Hacking is provide rough surface to structure for
plastering purpose.
Department of civil engineering,SCOE,Pune-41
Page 15
3. Beams:-

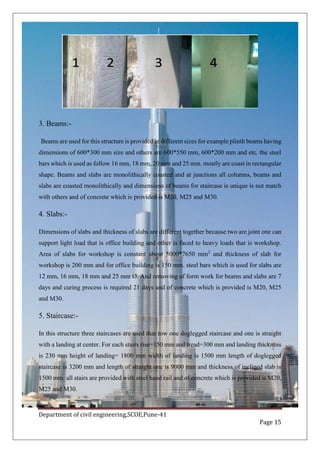

Beams are used for this structure is provided in different sizes for example plinth beams having
dimensions of 600*300 mm size and others are 600*550 mm, 600*200 mm and etc. the steel
bars which is used as follow 16 mm, 18 mm, 20 mm and 25 mm. mostly are coast in rectangular
shape. Beams and slabs are monolithically coasted and at junctions all columns, beams and
slabs are coasted monolithically and dimensions of beams for staircase is unique is not match
with others and of concrete which is provided is M20, M25 and M30.
4. Slabs:-
Dimensions of slabs and thickness of slabs are different together because two are joint one can
support light load that is office building and other is faced to heavy loads that is workshop.
Area of slabs for workshop is constant about 5000*7650 mm2
and thickness of slab for
workshop is 200 mm and for office building is 150 mm. steel bars which is used for slabs are
12 mm, 16 mm, 18 mm and 25 mm Ø. And removing of form work for beams and slabs are 7
days and curing process is required 21 days and of concrete which is provided is M20, M25
and M30.
5. Staircase:-
In this structure three staircases are used that tow one doglegged staircase and one is straight
with a landing at center. For each stairs rise=150 mm and tread=300 mm and landing thickness
is 230 mm height of landing= 1800 mm width of landing is 1500 mm length of doglegged
staircase is 3200 mm and length of straight one is 9000 mm and thickness of inclined slab is
1500 mm. all stairs are provided with steel hand rail and of concrete which is provided is M20,
M25 and M30.
Department of civil engineering,SCOE,Pune-41
Page 16
Brick Work
Brick work is done between columns and beam to beam in external wall and in partition wall.
The bricks which is used in this structure is called 4 inche bricks or size of that is
230*100*70 mm with 20 mm joint thickness. According to my calcullations 138 number of
bricks are used per m2
and tickness of all walls are 230 mm.
Department of civil engineering,SCOE,Pune-41
Page 17
Plastering
Plastering process is done after completion of all foolrs and curing of structure. Plaster is
compulsary for any type of structre it is performed in three steps single code, double code and
plaster of parise (POP). For all external walls, partation walls, outter sides, inner sides,
columns, beams and slabs are covered siglecode and doulecode in case of outter side and inner
side is also used (POP). Thicknees of singlecode and doublecod is 12 mm analytically and in
practical is maximum 20 mm and POP is 5 mm analyticll and miximum 10 mm practical. The
below figure is shown the numer 1 is brick wall without plaster and numer 2 is used mortar as
plaster is called singlecode numer 3 is wall which is covered totally is called doublecode and
finally numeber 4 is finall step of plaster process is called POP. Plaster of parise is place 25 kg
per bag.
Some times gypsum is used instead of POP. And laimond mish is provided as a junction
between brick wall and concrete portions it make a joint the gap and it can prevent the cracks
on wall surface the laimond mish is steel net which is hardly protected against corrosion or it
is made it is made from compound metal elements which can remain safe safe againdt effect
of oxigen of air and shipe of net is made such that which should be suitable for junction and it
has squer shape of 2*2 cm. And plaster is curing after 1 to 2 days of work. Minimum curing
time is 7 days. Mix design for concrete plaster is 1:4 it means 1 bag of cement and 4 farma of
sieved sand and water is as per required grade of this mix is called M20. The sand which is
uesd for plaster is river sand. And for other portions of building crushed sand is uesd.
Department of civil engineering,SCOE,Pune-41
Page 18
Mixed Concrete on Floors
In workshop site all floors are covered with mortar concrete which is mixed and provided in
RMC plant and is called trimix concrete. And is poured by hydraulic pumping machine in floor.
According to my calculations the surface area of basement floor of workshop building is
1188.25 m2
excluding of columns, ducks and staircase the requirement of fresh concrete is 176
m3
and with a thickness of 150 mm. due to estimation of heavy load will come on parking area
they provided 8 mm steel Ø bars in a steel design of 200*200 mm net area. For first floor and
second floor and this mixed concrete is used with a thickness of 75 mm and according to my
calculations surface area is 1185 m2
excluding of columns, ducks and staircase and requirement
of fresh concrete is 176 m3
but no usage of steel bars.
Roofs and Water Proofing
Water proof is a material which is absorb the water and prevent water leakage to the down side
this is different types some times some material is used as water proofing material. But in this
structure red brick is used as water proof material in roofs and toilet blocks these bricks are
called 4 inches bricks.
Department of civil engineering,SCOE,Pune-41
Page 19

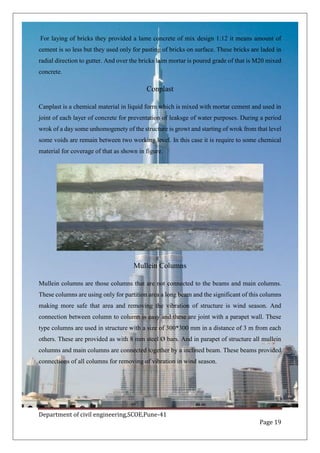

For laying of bricks they provided a lame concrete of mix design 1:12 it means amount of
cement is so less but they used only for pasting of bricks on surface. These bricks are laded in
radial direction to gutter. And over the bricks laim mortar is poured grade of that is M20 mixed
concrete.
Conplast
Canplast is a chemical material in liquid form which is mixed with mortar cement and used in
joint of each layer of concrete for preventation of leaksge of water purposes. During a period
wrok of a day some unhomogenety of the structure is growt and starting of wrok from that level
some voids are remain between two working level. In this case it is require to some chemical
material for coverage of that as shown in figure.
Mullein Columns
Mullein columns are those columns that are not connected to the beams and main columns.
These columns are using only for partition area a long beam and the significant of this columns
making more safe that area and removing the vibration of structure is wind season. And
connection between column to column is easy and these are joint with a parapet wall. These
type columns are used in structure with a size of 300*300 mm in a distance of 3 m from each
others. These are provided as with 8 mm steel Ø bars. And in parapet of structure all mullein
columns and main columns are connected together by a inclined beam. These beams provided
connections of all columns for removing of vibration in wind season.
Department of civil engineering,SCOE,Pune-41
Page 20
Curing
After one day of concreting or plastring curing is necessary for better live of structure different
types of curing is done water spreading by pipes to the wall srface, by covring of cotton and
stop of water on roofs surfaces. Curing is done for all parts of structures up to 15 days but
actually it is curing time is 21 to 25 days. This process is also perfomed for cubic concrete for
testing of compressive strenght of concrete for 28 days. And also curing is done for conrete
bricks up to 7 days and for red bricks for 5 days on roof surface.
Department of civil engineering,SCOE,Pune-41
Page 21

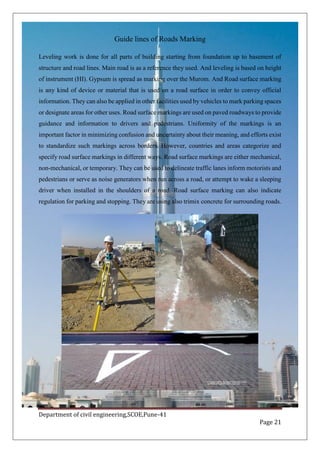

Guide lines of Roads Marking
Leveling work is done for all parts of building starting from foundation up to basement of
structure and road lines. Main road is as a reference they used. And leveling is based on height
of instrument (HI). Gypsum is spread as marking over the Murom. And Road surface marking
is any kind of device or material that is used on a road surface in order to convey official
information. They can also be applied in other facilities used by vehicles to mark parking spaces
or designate areas for other uses. Road surface markings are used on paved roadways to provide
guidance and information to drivers and pedestrians. Uniformity of the markings is an
important factor in minimizing confusion and uncertainty about their meaning, and efforts exist
to standardize such markings across borders. However, countries and areas categorize and
specify road surface markings in different ways. Road surface markings are either mechanical,
non-mechanical, or temporary. They can be used to delineate traffic lanes inform motorists and
pedestrians or serve as noise generators when run across a road, or attempt to wake a sleeping
driver when installed in the shoulders of a road. Road surface marking can also indicate
regulation for parking and stopping. They are using also trimix concrete for surrounding roads.
Department of civil engineering,SCOE,Pune-41
Page 22

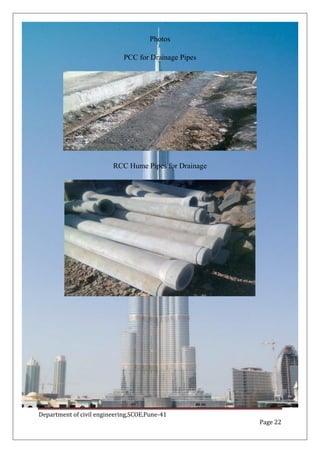

Photos
PCC for Drainage Pipes
RCC Hume Pipes for Drainage
Department of civil engineering,SCOE,Pune-41
Page 23

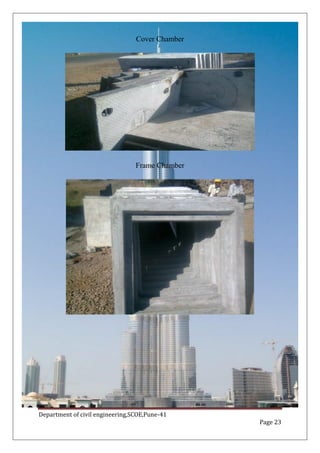

Cover Chamber
Frame Chamber
Department of civil engineering,SCOE,Pune-41
Page 24

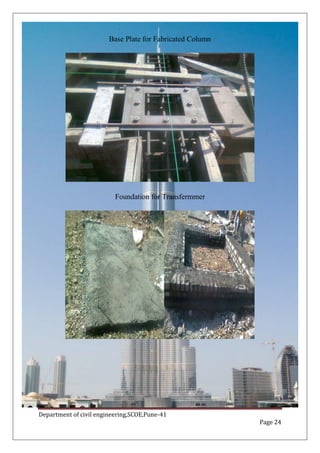

Base Plate for Fabricated Column
Foundation for Transfermmer
Department of civil engineering,SCOE,Pune-41
Page 25

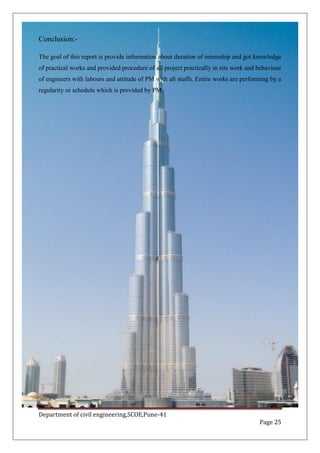

Conclusion:-
The goal of this report is provide information about duration of internship and got knowledge
of practical works and provided procedure of all project practically in site work and behaviour
of engineers with labours and attitude of PM with all stuffs. Entire works are performing by a
regularity or schedule which is provided by PM.
Department of civil engineering,SCOE,Pune-41
Page 26

More Related Content

What's hot

Internship Report
Internship ReportInternship Report
Internship Report
prathagarg

Internship front pages (3 files merged)
Internship front pages (3 files merged)Internship front pages (3 files merged)
Internship front pages (3 files merged)
tp jayamohan


What's hot (20)

Village networking ppt
Village networking pptVillage networking ppt
Village networking ppt

Multistorey residential building construction training report
Multistorey residential building construction training  reportMultistorey residential building construction training  report
Multistorey residential building construction training report

Industrial training report of construction of the residential building
Industrial training report of construction of the residential buildingIndustrial training report of construction of the residential building
Industrial training report of construction of the residential building

Construction Of Multistoreyed Building
Construction Of Multistoreyed BuildingConstruction Of Multistoreyed Building
Construction Of Multistoreyed Building

TRAINING REPORT A PROJECT ON ROAD WIDENI...
                       TRAINING REPORT              A PROJECT  ON ROAD WIDENI...                       TRAINING REPORT              A PROJECT  ON ROAD WIDENI...
TRAINING REPORT A PROJECT ON ROAD WIDENI...

Training project report NHAI by Amit Kumar
Training project report NHAI by Amit KumarTraining project report NHAI by Amit Kumar
Training project report NHAI by Amit Kumar

SUMMER TRAINING REPORT ON BUILDING CONSTRUCTION
SUMMER TRAINING REPORT ON BUILDING CONSTRUCTIONSUMMER TRAINING REPORT ON BUILDING CONSTRUCTION
SUMMER TRAINING REPORT ON BUILDING CONSTRUCTION

Internship Report
Internship ReportInternship Report
Internship Report

L&T B&F IC SUMMER INTERNSHIP REPORT BIHAR MUSEUM PROJECT
L&T B&F IC SUMMER INTERNSHIP REPORT BIHAR MUSEUM PROJECTL&T B&F IC SUMMER INTERNSHIP REPORT BIHAR MUSEUM PROJECT
L&T B&F IC SUMMER INTERNSHIP REPORT BIHAR MUSEUM PROJECT

widening of flexible pavement AND construction of drainage system
widening of flexible pavement AND construction of drainage systemwidening of flexible pavement AND construction of drainage system
widening of flexible pavement AND construction of drainage system

A Comparative Analysis on Design of Rigid Runway Pavements
A Comparative Analysis on Design of Rigid Runway PavementsA Comparative Analysis on Design of Rigid Runway Pavements
A Comparative Analysis on Design of Rigid Runway Pavements

Central Public Works Department (CPWD) summer training report
Central Public Works Department (CPWD) summer training reportCentral Public Works Department (CPWD) summer training report
Central Public Works Department (CPWD) summer training report

A project report on flyover internship bihar rajya pul nirman nigam limited p...
A project report on flyover internship bihar rajya pul nirman nigam limited p...A project report on flyover internship bihar rajya pul nirman nigam limited p...
A project report on flyover internship bihar rajya pul nirman nigam limited p...

Civil-Report on industrial training at URCC
Civil-Report on industrial training at URCCCivil-Report on industrial training at URCC
Civil-Report on industrial training at URCC

Internship front pages (3 files merged)
Internship front pages (3 files merged)Internship front pages (3 files merged)
Internship front pages (3 files merged)

4 week summer training report
4 week summer training report4 week summer training report
4 week summer training report

Industrial Summer Training Report at Construction Site of CPWD
Industrial Summer Training Report at Construction Site of CPWD Industrial Summer Training Report at Construction Site of CPWD
Industrial Summer Training Report at Construction Site of CPWD

Road construction report
Road construction reportRoad construction report
Road construction report

Summer Internship Report of Civil Engineering in Construction Site
Summer Internship Report of Civil Engineering in Construction SiteSummer Internship Report of Civil Engineering in Construction Site
Summer Internship Report of Civil Engineering in Construction Site

Bcon Report
Bcon Report Bcon Report
Bcon Report


Viewers also liked

AN INTERNSHIP REPORT ON RESIDENTIAL BUILDING CONSTRUCTION
AN INTERNSHIP  REPORT  ON  RESIDENTIAL  BUILDING  CONSTRUCTIONAN INTERNSHIP  REPORT  ON  RESIDENTIAL  BUILDING  CONSTRUCTION
AN INTERNSHIP REPORT ON RESIDENTIAL BUILDING CONSTRUCTION
Abhishek Singh

Construction activities and Process
Construction activities and ProcessConstruction activities and Process
Construction activities and Process
Ibrahim Adhnan

Final BUILDING CONSTRUCTION 1
Final BUILDING CONSTRUCTION 1 Final BUILDING CONSTRUCTION 1
Final BUILDING CONSTRUCTION 1
Dexter Ng

Construction process
Construction processConstruction process
Construction process
Mazen Al-Qadi

Arc2615 report file khorhaoxiang0318065
Arc2615 report file khorhaoxiang0318065Arc2615 report file khorhaoxiang0318065
Arc2615 report file khorhaoxiang0318065
Khor Hao Xiang

Building construction-report (1)
Building construction-report (1)Building construction-report (1)
Building construction-report (1)
Soh Shing

Building Construction
Building ConstructionBuilding Construction
Building Construction
Wilden How


Viewers also liked (16)

Report technology-in-costruction-site-the-élysée-from-mam-to-itc
Report technology-in-costruction-site-the-élysée-from-mam-to-itcReport technology-in-costruction-site-the-élysée-from-mam-to-itc
Report technology-in-costruction-site-the-élysée-from-mam-to-itc

Civil enginerring internship report
Civil enginerring internship reportCivil enginerring internship report
Civil enginerring internship report

Civil engineering internship report
Civil engineering internship reportCivil engineering internship report
Civil engineering internship report

Internship report on rcc road
Internship report on rcc roadInternship report on rcc road
Internship report on rcc road

CIVIL ENGINEERING INTERNSHIP FULL REPORT ON BUILDING CONSTRUCTION
CIVIL ENGINEERING INTERNSHIP FULL REPORT ON BUILDING CONSTRUCTION CIVIL ENGINEERING INTERNSHIP FULL REPORT ON BUILDING CONSTRUCTION
CIVIL ENGINEERING INTERNSHIP FULL REPORT ON BUILDING CONSTRUCTION

AN INTERNSHIP REPORT ON RESIDENTIAL BUILDING CONSTRUCTION
AN INTERNSHIP  REPORT  ON  RESIDENTIAL  BUILDING  CONSTRUCTIONAN INTERNSHIP  REPORT  ON  RESIDENTIAL  BUILDING  CONSTRUCTION
AN INTERNSHIP REPORT ON RESIDENTIAL BUILDING CONSTRUCTION

Construction activities and Process
Construction activities and ProcessConstruction activities and Process
Construction activities and Process

Final BUILDING CONSTRUCTION 1
Final BUILDING CONSTRUCTION 1 Final BUILDING CONSTRUCTION 1
Final BUILDING CONSTRUCTION 1

Construction process
Construction processConstruction process
Construction process

Arc2615 report file khorhaoxiang0318065
Arc2615 report file khorhaoxiang0318065Arc2615 report file khorhaoxiang0318065
Arc2615 report file khorhaoxiang0318065

Building construction-report (1)
Building construction-report (1)Building construction-report (1)
Building construction-report (1)

Internship Report on Building Construction
Internship Report on Building ConstructionInternship Report on Building Construction
Internship Report on Building Construction

Building Construction
Building ConstructionBuilding Construction
Building Construction

Super-Structural Construction Work of a Six Storied Residential Building
Super-Structural Construction Work of a Six Storied Residential BuildingSuper-Structural Construction Work of a Six Storied Residential Building
Super-Structural Construction Work of a Six Storied Residential Building

project on construction of house report.
project on construction of house report.project on construction of house report.
project on construction of house report.

DLF Internship Report
DLF Internship ReportDLF Internship Report
DLF Internship Report


Similar to Internshipe report

An industrial training report
An industrial training reportAn industrial training report
An industrial training report
borokinni

Belihul Oya Mini Hydropower Plant project under LTL holdings (Pvt) Ltd
Belihul Oya Mini Hydropower Plant project under LTL holdings (Pvt) LtdBelihul Oya Mini Hydropower Plant project under LTL holdings (Pvt) Ltd
Belihul Oya Mini Hydropower Plant project under LTL holdings (Pvt) Ltd
Sandeepa Edirisooriya

CT III IBS Formwork System
CT III IBS Formwork System CT III IBS Formwork System
CT III IBS Formwork System
ashleyyeap

Report on Residential Construction
Report on Residential ConstructionReport on Residential Construction
Report on Residential Construction
Mayank Walecha

V.BASKAR CV
V.BASKAR CVV.BASKAR CV
V.BASKAR CV
Baskar v

flyover internship 2
flyover internship 2flyover internship 2
flyover internship 2
Ravi Mehta


Similar to Internshipe report (20)

Internship report with background
Internship report  with backgroundInternship report  with background
Internship report with background

PHC pile Installation methods
PHC  pile Installation methodsPHC  pile Installation methods
PHC pile Installation methods

An industrial training report
An industrial training reportAn industrial training report
An industrial training report

DMRC SUMMER INTERNSHIP REPORT
DMRC SUMMER INTERNSHIP REPORT DMRC SUMMER INTERNSHIP REPORT
DMRC SUMMER INTERNSHIP REPORT

om industrial training report.pptx
om industrial training report.pptxom industrial training report.pptx
om industrial training report.pptx

JEEVA.pptx
JEEVA.pptxJEEVA.pptx
JEEVA.pptx

Training Report
Training ReportTraining Report
Training Report

Field visit report 2019
Field visit report 2019Field visit report 2019
Field visit report 2019

Project report
Project reportProject report
Project report

Belihul Oya Mini Hydropower Plant project under LTL holdings (Pvt) Ltd
Belihul Oya Mini Hydropower Plant project under LTL holdings (Pvt) LtdBelihul Oya Mini Hydropower Plant project under LTL holdings (Pvt) Ltd
Belihul Oya Mini Hydropower Plant project under LTL holdings (Pvt) Ltd

SPCL
SPCLSPCL
SPCL

JMRC TRAINING FINAL REPORT
JMRC TRAINING FINAL   REPORT JMRC TRAINING FINAL   REPORT
JMRC TRAINING FINAL REPORT

CT III IBS Formwork System
CT III IBS Formwork System CT III IBS Formwork System
CT III IBS Formwork System

Sajeevresume_June-28-2015
Sajeevresume_June-28-2015Sajeevresume_June-28-2015
Sajeevresume_June-28-2015

Advanced Tunnel Form Construction Technique, Case Study of Rohan-Abhilasha, ...
Advanced Tunnel Form Construction Technique, Case Study of  Rohan-Abhilasha, ...Advanced Tunnel Form Construction Technique, Case Study of  Rohan-Abhilasha, ...
Advanced Tunnel Form Construction Technique, Case Study of Rohan-Abhilasha, ...

Report on Residential Construction
Report on Residential ConstructionReport on Residential Construction
Report on Residential Construction

Construction and Architecture Magazine 13 sept oct 2011
Construction and Architecture Magazine 13 sept oct 2011Construction and Architecture Magazine 13 sept oct 2011
Construction and Architecture Magazine 13 sept oct 2011

IRJET- Water Supply through Underground Tunnel from Thane to Bhandup using TBM
IRJET- Water Supply through Underground Tunnel from Thane to Bhandup using TBMIRJET- Water Supply through Underground Tunnel from Thane to Bhandup using TBM
IRJET- Water Supply through Underground Tunnel from Thane to Bhandup using TBM

V.BASKAR CV
V.BASKAR CVV.BASKAR CV
V.BASKAR CV

flyover internship 2
flyover internship 2flyover internship 2
flyover internship 2


Recently uploaded

notes on Evolution Of Analytic Scalability.ppt
notes on Evolution Of Analytic Scalability.pptnotes on Evolution Of Analytic Scalability.ppt
notes on Evolution Of Analytic Scalability.ppt
MsecMca

VIP Call Girls Ankleshwar 7001035870 Whatsapp Number, 24/07 Booking
VIP Call Girls Ankleshwar 7001035870 Whatsapp Number, 24/07 BookingVIP Call Girls Ankleshwar 7001035870 Whatsapp Number, 24/07 Booking
VIP Call Girls Ankleshwar 7001035870 Whatsapp Number, 24/07 Booking
dharasingh5698

Cara Menggugurkan Sperma Yang Masuk Rahim Biyar Tidak Hamil
Cara Menggugurkan Sperma Yang Masuk Rahim Biyar Tidak HamilCara Menggugurkan Sperma Yang Masuk Rahim Biyar Tidak Hamil
Cara Menggugurkan Sperma Yang Masuk Rahim Biyar Tidak Hamil
Cara Menggugurkan Kandungan 087776558899

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
ssuser89054b

Call Now ≽ 9953056974 ≼🔝 Call Girls In New Ashok Nagar ≼🔝 Delhi door step de...
Call Now ≽ 9953056974 ≼🔝 Call Girls In New Ashok Nagar  ≼🔝 Delhi door step de...Call Now ≽ 9953056974 ≼🔝 Call Girls In New Ashok Nagar  ≼🔝 Delhi door step de...
Call Now ≽ 9953056974 ≼🔝 Call Girls In New Ashok Nagar ≼🔝 Delhi door step de...
9953056974 Low Rate Call Girls In Saket, Delhi NCR


Recently uploaded (20)

notes on Evolution Of Analytic Scalability.ppt
notes on Evolution Of Analytic Scalability.pptnotes on Evolution Of Analytic Scalability.ppt
notes on Evolution Of Analytic Scalability.ppt

Bhosari ( Call Girls ) Pune 6297143586 Hot Model With Sexy Bhabi Ready For ...
Bhosari ( Call Girls ) Pune  6297143586  Hot Model With Sexy Bhabi Ready For ...Bhosari ( Call Girls ) Pune  6297143586  Hot Model With Sexy Bhabi Ready For ...
Bhosari ( Call Girls ) Pune 6297143586 Hot Model With Sexy Bhabi Ready For ...

(INDIRA) Call Girl Bhosari Call Now 8617697112 Bhosari Escorts 24x7
(INDIRA) Call Girl Bhosari Call Now 8617697112 Bhosari Escorts 24x7(INDIRA) Call Girl Bhosari Call Now 8617697112 Bhosari Escorts 24x7
(INDIRA) Call Girl Bhosari Call Now 8617697112 Bhosari Escorts 24x7

VIP Call Girls Ankleshwar 7001035870 Whatsapp Number, 24/07 Booking
VIP Call Girls Ankleshwar 7001035870 Whatsapp Number, 24/07 BookingVIP Call Girls Ankleshwar 7001035870 Whatsapp Number, 24/07 Booking
VIP Call Girls Ankleshwar 7001035870 Whatsapp Number, 24/07 Booking

Unit 1 - Soil Classification and Compaction.pdf
Unit 1 - Soil Classification and Compaction.pdfUnit 1 - Soil Classification and Compaction.pdf
Unit 1 - Soil Classification and Compaction.pdf

UNIT - IV - Air Compressors and its Performance
UNIT - IV - Air Compressors and its PerformanceUNIT - IV - Air Compressors and its Performance
UNIT - IV - Air Compressors and its Performance

Cara Menggugurkan Sperma Yang Masuk Rahim Biyar Tidak Hamil
Cara Menggugurkan Sperma Yang Masuk Rahim Biyar Tidak HamilCara Menggugurkan Sperma Yang Masuk Rahim Biyar Tidak Hamil
Cara Menggugurkan Sperma Yang Masuk Rahim Biyar Tidak Hamil

Call Girls Walvekar Nagar Call Me 7737669865 Budget Friendly No Advance Booking
Call Girls Walvekar Nagar Call Me 7737669865 Budget Friendly No Advance BookingCall Girls Walvekar Nagar Call Me 7737669865 Budget Friendly No Advance Booking
Call Girls Walvekar Nagar Call Me 7737669865 Budget Friendly No Advance Booking

NFPA 5000 2024 standard .
NFPA 5000 2024 standard                                  .NFPA 5000 2024 standard                                  .
NFPA 5000 2024 standard .

chapter 5.pptx: drainage and irrigation engineering
chapter 5.pptx: drainage and irrigation engineeringchapter 5.pptx: drainage and irrigation engineering
chapter 5.pptx: drainage and irrigation engineering

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

University management System project report..pdf
University management System project report..pdfUniversity management System project report..pdf
University management System project report..pdf

Top Rated Pune Call Girls Budhwar Peth ⟟ 6297143586 ⟟ Call Me For Genuine Se...
Top Rated  Pune Call Girls Budhwar Peth ⟟ 6297143586 ⟟ Call Me For Genuine Se...Top Rated  Pune Call Girls Budhwar Peth ⟟ 6297143586 ⟟ Call Me For Genuine Se...
Top Rated Pune Call Girls Budhwar Peth ⟟ 6297143586 ⟟ Call Me For Genuine Se...

Water Industry Process Automation & Control Monthly - April 2024
Water Industry Process Automation & Control Monthly - April 2024Water Industry Process Automation & Control Monthly - April 2024
Water Industry Process Automation & Control Monthly - April 2024

Call Now ≽ 9953056974 ≼🔝 Call Girls In New Ashok Nagar ≼🔝 Delhi door step de...
Call Now ≽ 9953056974 ≼🔝 Call Girls In New Ashok Nagar  ≼🔝 Delhi door step de...Call Now ≽ 9953056974 ≼🔝 Call Girls In New Ashok Nagar  ≼🔝 Delhi door step de...
Call Now ≽ 9953056974 ≼🔝 Call Girls In New Ashok Nagar ≼🔝 Delhi door step de...

Double Revolving field theory-how the rotor develops torque
Double Revolving field theory-how the rotor develops torqueDouble Revolving field theory-how the rotor develops torque
Double Revolving field theory-how the rotor develops torque

Navigating Complexity: The Role of Trusted Partners and VIAS3D in Dassault Sy...
Navigating Complexity: The Role of Trusted Partners and VIAS3D in Dassault Sy...Navigating Complexity: The Role of Trusted Partners and VIAS3D in Dassault Sy...
Navigating Complexity: The Role of Trusted Partners and VIAS3D in Dassault Sy...

(INDIRA) Call Girl Aurangabad Call Now 8617697112 Aurangabad Escorts 24x7
(INDIRA) Call Girl Aurangabad Call Now 8617697112 Aurangabad Escorts 24x7(INDIRA) Call Girl Aurangabad Call Now 8617697112 Aurangabad Escorts 24x7
(INDIRA) Call Girl Aurangabad Call Now 8617697112 Aurangabad Escorts 24x7

Work-Permit-Receiver-in-Saudi-Aramco.pptx
Work-Permit-Receiver-in-Saudi-Aramco.pptxWork-Permit-Receiver-in-Saudi-Aramco.pptx
Work-Permit-Receiver-in-Saudi-Aramco.pptx

FEA Based Level 3 Assessment of Deformed Tanks with Fluid Induced Loads
FEA Based Level 3 Assessment of Deformed Tanks with Fluid Induced LoadsFEA Based Level 3 Assessment of Deformed Tanks with Fluid Induced Loads
FEA Based Level 3 Assessment of Deformed Tanks with Fluid Induced Loads


Internshipe report

  • 1. A REPORT ON INTERNSHIP AT “VAICHAL CONSTRUCTION PVT.LTD.” Submitted by MOHAMMAD KAZIM SULTANI B. E. Civil Under the guidance of Asst. Prof. M. S. Injal DEPARTMENT OF CIVIL ENGINEERING STES’S SINHGAD COLLEGE OF ENGINEERING VADGAON BK., OFF SINHGAD ROAD PUNE 411041 2015
  • 2. CERTIFICATE This is to certify that Mohammad Kazim Sultani student of Final year Civil Engineering has satisfactorily completed within the premises of the Institute, the academic report on internship period at “VCPL” for a period of 4 months from 15/12/2014 to 15/03/2015 Project Managers: 1. Takalkar Prakash B. Tx. 2. Dinesh Bandal. Asst. Prof. M. S. Injal DR. S. S.SHASTRI DR. S. LOKAHANDE Guide Head of Department of Sinhgad College of Civil Engineering Engineering
  • 3. Contents Descriptions Page Nos 1. Acknowledgement 1 2. Introduction of company 2 3. Introduction of Construction Site 3 4. Introduction of machines 4 4.1 Hydraulic Pumping Machine 4.2 Leveling Vibration Machine 4.3 Fly ash Brick Machine 4.4 Floater or Finishing Machine 4.5 Dewatering Machine 4.6 Grove Cutting Machine 4.7 Tower Crane Machine 4.8 Minilift Machine 4.9 Transit Mixing Machine 4.10 One Bag Mixing Machine 5 5 6 6 7 7 8 8 9 5. RMC Mixing Plant 10 6. Main Component of RMC 11 7. Concrete Block Test on CT Machine 12 8. Result of CT Machine 13 9. Procedure of Project 14-16 9.1 Foundations 9.2 Columns 9.3 Beams 9.4 Slabs and Staircases 9.5 Staircases 14 14 15 15 15
  • 4. 10. Brick 16 11. Plastering 17 12. Mixed Concrete on Floors 18 13.Roofs and Water Proofing 18 14. Conplast 19 15.Mullein Columns 19 16. Curing 17. Guide lines of Roads Marking 18. Photos 19. Conclusion 20 21 22-24 25
  • 5. Department of civil engineering,SCOE,Pune-41 Page 1 ACKNOWLEDGEMENT I express my deepest gratitude to our Principal Dr. S. D. Lokhande and Head of Civil Engineering Department Dr. S. S. Shastri for providing facilities for an internship. My special thanks to Asst. Prof. M. S. Injal, guidance of internship in Civil Engineering Department whose valuable guidance and constant inspiration lead me towards the successful completion of report.
  • 6. Department of civil engineering,SCOE,Pune-41 Page 2 INTRODUCTION OF COMPANY Idea: At Vaichal Group, we believe in creating value for our customers helping them build their long term assets. We are at the beginning of the journey when our customers envision the future of their companies, businesses and industries. We help them realize their visions by being their partners in this process. History: The Vaichal Group story begins back in 1990. With a humble beginning of executing various small scale jobs in the public sectors like irrigation and MSEB, Sanjay Vaichal begun his works in civil engineering back in 1990. It was with his vision and determination that they entered into main stream contracting for industrial and residential sectors. they started their building team and enhancing their capabilities. Vaichal Constructions Pvt. Ltd. was incepted in 2000 with the same passion and vision, to create structures and provide a service with the best possible knowledge, expertise and collaboration. With a rich experience of more than 20 years in the industry, Vaichal Constructions has had an opportunity of executing a wide variety of works in several sectors. Core Ideology: We hold a strong commitment to quality, integrity, team work and customer satisfaction as our core ideals. This has earned the trust of our customers, several of whom have given us repeat orders based on our performance. We do business with the highest standards of fairness and professional ethics. We believe in proactive learning, innovation and change for the betterment of our working standards. We care. Office Address:- Off No 1, Ideal Chamber, 8-ideal Colony, Paud Road, Kothrud, Pune, Maharashtra 411038 Sites Address:- 1. Chakan mahalunge MIDC and 2. Wakad bridge police chawky bhujbal chowk wakad pune 411057
  • 7. Department of civil engineering,SCOE,Pune-41 Page 3 Chakan Project: 15/12/14 to 15/01/15 Introduction of Construction Site The chakan project is starting at 01/12/2013 in an area of 75*26 m2 plus 9 m roads in all sides and with a small security cabin in front side and transformer footing with 2 m height. This is compound building which is from two parts office building and workshop site. Office building has made in three floors basement floor which is store, ground, first and second floors are offices and conference hall and work shop building is can provide parking area and manufacturing area. This building is built for manufacturing of vehicles and electrical machineries. In this project each facility is provided like toilet blocks for each floor separately in each parts, parking, drinking water, water tank, water pump for water supply, electric transformer for electricity connections and store area. Both buildings are joint together with camprol treatment and also used some chemical liquid for leakage of water on the surface of columns, beams and slabs and expansion material is used between two structures for controlling of contraction and expansion of concrete and making compact both buildings. All columns sizes are 600*600 mm and most of beams also 600*600 mm except plinth beam which is 600*300 mm sizes and thickness of each slab is 200 mm in workshop and in 150 mm and some of beams are 600*750 mm sizes. Floor to floor height is 3.85 m. Steel bars which used for columns 25 mm Ø, for beams 16, 18, 20 and 25 mm Ø, for slabs 8, 10 and 12 mm Ø, for lift 12 mm Ø and for water tank 10 and 12 mm Ø, Also all walls are concrete brick with thickness 230 mm except lift and lift walls are provided as shearing RCC wall with 230 mm thick. This large building is located in a slope
  • 8. Department of civil engineering,SCOE,Pune-41 Page 4 area which footing height about 10 m below the ground surface. Before of construction filling process is performed. The material which is used for filling is murum is done layer wise such that each layer is 300 mm thick and rolling compaction machines are used in each layer and height of filling in back side of building is about 10 m and front side is about 5. Tremix concrete is used for all floors. For basement floor tremix plus steel reinforced is poured with mm thick and for others only tremix is used about 7.5 mm thick. It is also provided with two doglegged staircase, one straight staircase and one electrical lift with shearing wall. In each roof they used red brick as water proofing material in radially shape for water flowing purpose. Drainage pipes are provided underground surface which is RCC hume pipe with facility of manhole or chamber and rain water is also can flow to ground surface with the help of gutter which is from made plastic pipe. And finally a water tank is made in front side of building which has one lakh litter capacity walls are RCC with 275 mm thick. And at final the value of this project is a bout 100.5 million.
  • 9. Department of civil engineering,SCOE,Pune-41 Page 5 Hydraulic Pumping Machine This machine is made from tow parts one is body of generator which is supply the air compres for pushing of concrete mortar to the steel pipes second part is steel pipes with diameter of about 15 cm which is connected to the machine and concrete mortar is transported by this to the site. This machine is used mostly for heavy works or for transportation of more amount of concrete. Leveling Vibration Machine This is made from girder frame which is connected with a electric motor this motor is connects to the electiricity and producing vibration is used for mortar leveling.length is 4.5 m and width is 40cm. this machine is used for heavy work and large area of mortar. After this mchine dewatering and finidhing machine will used. This is locally manufactured it means which some changing is happened to the main shap of brand and this machine is two types one is using for for leveling of fresh concrete and other is for compaction of filling material and asphalt progress is used.
  • 10. Department of civil engineering,SCOE,Pune-41 Page 6 Fly ash Brick Machine This brick machine which is visible above is locally manufactured in pune area. Locally manufactured means some changing is happened to main shape of the company brand. This consist of three main parts mixing bucket, electric motor and brick mould. The mixing bucket can mix cement, sand, fly ash and water. This machine machines produces standard brick size with frog is optional. and has mould of size 230*100*70mm or it can mould the of 230*100*70mm which is called 4 inches bricks. Each moulding mechanism produces three bricks per cycle. Grade of mix design for bricks which is produced is M20. Mix design is 1:4 or 1:6 means 1 bag cement, 6 farma sand and water as per required. And produced bricks should keep 8 days minimum and after 1 day curing process is start. And finally bricks are ready for testing. Testing is perform for compressive strength of bricks in compressive test machine (CT) and in each test min 3 bricks should be used. Floater Machine or Finishing Machine Floater and finishing machine has same frame but only two type of plate is used for flatness. When a steel plate is installed to the electric motor is used only for rough finishing. This plate is a steel circular plate. Then when some absorption is done in mortar they can use other plate which is in the form of steel blade plate and it can done final finishing. This machine is work by electric motor and governed by a handle.
  • 11. Department of civil engineering,SCOE,Pune-41 Page 7 Dewatering Machine Dewatering machine is other type of electric machine which is used for large civil engineering project for absorption of water from concrete mortar purpose. Facility of this machine is making fast drying of concrete mortar for finishing. It has three main parts car bucket, transportation pipe and absorption net. Water is absorbed by net and transports to the bucket car by plastic pipe. Dewatering is the removal of water from solid material or soil by wet classification, centrifugation, filtration, or similar solid-liquid separation processes, such as removal of residual liquid from a filter cake by a filter press as part of various industrial processes.Construction dewatering, unwatering, or water control are common terms used to describe removal or draining groundwater or surface water from a riverbed, construction site, caisson, or mine shaft, by pumping or evaporation. On a construction site, this dewatering may be implemented before subsurface excavation for foundations, shoring, or cellar space to lower the water table. This frequently involves the use of submersible "dewatering" pumps, centrifugal ("trash") pumps, educators, or application of vacuum to well points. Grove Cutting Machine Grove cutting machine is used for making partition in concrete surface for purpose of removing of cracks in floor surface. It is working by electric motor and has one steel blade which can make grove in surface by rotation. During working some amount of water is also used for lubrication purpose.
  • 12. Department of civil engineering,SCOE,Pune-41 Page 8 Tower Crane Machine This machine is used for lifting of materials from ground surface to higher floors. All heavy transportation is perform by this method of transportation. It make the works easy and fast. Mostly this method is used for large projects. This machine is tow way supply which can work by electricity and itself has also power generator. Activity of this machine is perform according to remote controlling. At any other time which is not required it can fold to 3 parts and transportation is doing by tractor vehicle. Balancing is going by two steel cabin which is filled by sand. Minilift Minilift is other machine that can work by electric motor and is used for light lifting of material for some less hieght and this is an one way supply mchine for its ballacing is required some heavy material for lifting materials.
  • 13. Department of civil engineering,SCOE,Pune-41 Page 9 Transit Mixer Transit mixer has different purposes once it take the mixed concrete from mix plan it can keep fresh the mortar for some times because of rotation which is applied by generator motor. And it is transports by track to the site. This rotation of transit mixer can mix the concrete and can make out to the hydraulic pumping machine. This can transport 6.5 meter cube of fresh concrete. Some times this machine is provided with gutter for some long distances. One Bag Mixer Machine (10*7) This is other type of mixer which is used for mixing of cement, sand, admixchers and water. This machine is used for small work or light work. This is also called diesel mixer because it is working diesel engin. Main component of this machine is mixer bucket, transfer chain and diesel engin. When concrete mortar is mixed the bucket is rotated 90 degree and mortar is transported to gitter. Transfer chain is for transfer of power from engin to the mixer bucket. It is also called as one bag machine. This mixer perform heavy duty concrete mixer 10/7 cu. Ft 280/200 litters (0. 25mtr cube) capacity with loading hopper complete with heavy duty drum
  • 14. Department of civil engineering,SCOE,Pune-41 Page 10 using thick 10 gauge m. S sheet, bearings, blades, pulley, v-belts, wire ropes complete on heavy duty structure on 4 pneumatic jeep type tires fitted with kirloskar 5 h. P*1440 rpm Ready Mix Concrete (RMC) Plant Location of RMC plan is also in Chakan mahalunge MIDC only 2 km distance with side of construction area. In this plan mixing of cement, sand and water is performing in some specific steps. The main components of RMC plan are mixing machinery, cement, cabin, bucket area for course aggregate, fine aggregate and sand, conveyor, air compressor and pumping machinery. Aggregates are coming down from duck of basin and are transported by conveyor belt to inside of mixer and from right side cement is pumped to the transportation pipes to in side of mixer, and water is pumped as per required from down side. All these operations perform by electricity which is supplied by DG or diesel generator. Other main component of plan is PC and panel board which is located to cabin of mixer. Set up of timing is done on PC eg how match time is required for mixing. And job is doing operation for mixing. Finally it is a computerised system.
  • 15. Department of civil engineering,SCOE,Pune-41 Page 11 Main Components of RMC Plant Concrete Block Test on CT Machine The below result is testing of concrete cube blocks which is tested in concrete test machine sizes of each cubic block is 150*150*150 mm3 . These blocks which is casted in steel moulds and after 24 hours they keep in water basin for 7 days for curing purpose. And finally we have done a testing in CT machine for determination of compressive strength of blocks the result is shown in N per 1 mm squire of area it means this mix design which is used for structure is suitable or no. the steel moulds are filled in three layers and in each layer 25 NO of blows are performed. In the study of strength of materials, the compressive strength is the capacity of a material or structure to withstand loads tending to reduce size. It can be measured by plotting applied force against deformation in a testing machine. Some materials fracture at their compressive
  • 16. Department of civil engineering,SCOE,Pune-41 Page 12 strength limit; others deform irreversibly, so a given amount of deformation may be considered as the limit for compressive load. Compressive strength is a key value for design of structures. Compressive strength is often measured on a universal testing machine these range from very small table-top systems to ones with over 53 MN capacity. Measurements of compressive strength are affected by the specific test method and conditions of measurement. Compressive strengths are usually reported in relationship to a specific technical standard. For the preparation and compaction of 70.7 mm mortar cube specimens. The mould table is mounted on four springs attached to an eccentric shaft which allows each sample to be vibrated at 12000 cycles per minute in accordance with the specifications. The cube mould is not included and has to be ordered separately. See accessories. Electric motor: 375 W Overall dimensions: 960x320x560 mm Weight approx.: 70 kg
  • 17. Department of civil engineering,SCOE,Pune-41 Page 13 Result of Concrete Block Test on CT Machine N O Date of Grade of Date of Adge in Wt of Sizes in Density Load Appl Comp Strng Avg Comp Casting Concrete Testing Day Cube in Kg mm3 Kg/m3 in KN In N/mm2 Strng in N/mm2 1 5/12/20 14 M30 17/12/14 7 Days A 8.764 150X150 X150 2596.74 620 27.55 B 8.723 2584.59 615 27.33 27.47 C 8.759 2595.25 620 27.55 M20 a 8.354 150X150 X150 2475.25 525 23.33 b 8.494 2516.74 540 24 23.33 c 8.77 2598.5 510 22.67 M20 a 8.748 2947.64 639.9 28.1 b 8.811 2565.94 500.2 21.94 24.93 c 8.77 2588.97 573.4 24.9 2 6/12/20 14 M20 18/12/14 7 Days a 8.45 150X150 X150 2503.7 590 26.22 b 8.532 2528 595 26.44 26.44 c 8.517 2523.55 600 26.66
  • 18. Department of civil engineering,SCOE,Pune-41 Page 14 Procedure of Project 1. Foundation:- Foundation is the lowest and so important part of building that can transfer the load from higher floors to the soil strata. Before laying of foundation to the subsurface some engineering surveys should be done. For the above project diffrerent types of footings are used compound footings, combined footings and individual footings with different sizes. 75 number of culomns are layed with a thickness 150 mm of PCC and area of PCC is different like 2900*2700 mm2 , 3000*2800 mm2 and thickness of footing is mostly 750 mm. sizes of footing is differ some of them with 3200*3200 mm2 . All footings are RCC with 12 mm Ø bars starting. back side footings are filled about 10 m under the ground and fornt side of structure is about 5 m filled. 2. Columns:- Columns are second part of building that all portion of structure is hold by columns from ground surface. Columns are hold over the footing. In this project different types of columns are used with different of sizes eg squire columns has sizes 600*600 mm and 4500*600 mm. the steel bars which is used for columns are 16 mm, 20 mm, 22 mm and 25 mm Ø. Firstly formworks are held and concrete mortar is poured in to it and removing of formwork got 28 days for column. And 21 days curing processes is performed. And hacking process is start for column about 100 hack is done per ft2 . Hacking is provide rough surface to structure for plastering purpose.
  • 19. Department of civil engineering,SCOE,Pune-41 Page 15 3. Beams:- Beams are used for this structure is provided in different sizes for example plinth beams having dimensions of 600*300 mm size and others are 600*550 mm, 600*200 mm and etc. the steel bars which is used as follow 16 mm, 18 mm, 20 mm and 25 mm. mostly are coast in rectangular shape. Beams and slabs are monolithically coasted and at junctions all columns, beams and slabs are coasted monolithically and dimensions of beams for staircase is unique is not match with others and of concrete which is provided is M20, M25 and M30. 4. Slabs:- Dimensions of slabs and thickness of slabs are different together because two are joint one can support light load that is office building and other is faced to heavy loads that is workshop. Area of slabs for workshop is constant about 5000*7650 mm2 and thickness of slab for workshop is 200 mm and for office building is 150 mm. steel bars which is used for slabs are 12 mm, 16 mm, 18 mm and 25 mm Ø. And removing of form work for beams and slabs are 7 days and curing process is required 21 days and of concrete which is provided is M20, M25 and M30. 5. Staircase:- In this structure three staircases are used that tow one doglegged staircase and one is straight with a landing at center. For each stairs rise=150 mm and tread=300 mm and landing thickness is 230 mm height of landing= 1800 mm width of landing is 1500 mm length of doglegged staircase is 3200 mm and length of straight one is 9000 mm and thickness of inclined slab is 1500 mm. all stairs are provided with steel hand rail and of concrete which is provided is M20, M25 and M30.
  • 20. Department of civil engineering,SCOE,Pune-41 Page 16 Brick Work Brick work is done between columns and beam to beam in external wall and in partition wall. The bricks which is used in this structure is called 4 inche bricks or size of that is 230*100*70 mm with 20 mm joint thickness. According to my calcullations 138 number of bricks are used per m2 and tickness of all walls are 230 mm.
  • 21. Department of civil engineering,SCOE,Pune-41 Page 17 Plastering Plastering process is done after completion of all foolrs and curing of structure. Plaster is compulsary for any type of structre it is performed in three steps single code, double code and plaster of parise (POP). For all external walls, partation walls, outter sides, inner sides, columns, beams and slabs are covered siglecode and doulecode in case of outter side and inner side is also used (POP). Thicknees of singlecode and doublecod is 12 mm analytically and in practical is maximum 20 mm and POP is 5 mm analyticll and miximum 10 mm practical. The below figure is shown the numer 1 is brick wall without plaster and numer 2 is used mortar as plaster is called singlecode numer 3 is wall which is covered totally is called doublecode and finally numeber 4 is finall step of plaster process is called POP. Plaster of parise is place 25 kg per bag. Some times gypsum is used instead of POP. And laimond mish is provided as a junction between brick wall and concrete portions it make a joint the gap and it can prevent the cracks on wall surface the laimond mish is steel net which is hardly protected against corrosion or it is made it is made from compound metal elements which can remain safe safe againdt effect of oxigen of air and shipe of net is made such that which should be suitable for junction and it has squer shape of 2*2 cm. And plaster is curing after 1 to 2 days of work. Minimum curing time is 7 days. Mix design for concrete plaster is 1:4 it means 1 bag of cement and 4 farma of sieved sand and water is as per required grade of this mix is called M20. The sand which is uesd for plaster is river sand. And for other portions of building crushed sand is uesd.
  • 22. Department of civil engineering,SCOE,Pune-41 Page 18 Mixed Concrete on Floors In workshop site all floors are covered with mortar concrete which is mixed and provided in RMC plant and is called trimix concrete. And is poured by hydraulic pumping machine in floor. According to my calculations the surface area of basement floor of workshop building is 1188.25 m2 excluding of columns, ducks and staircase the requirement of fresh concrete is 176 m3 and with a thickness of 150 mm. due to estimation of heavy load will come on parking area they provided 8 mm steel Ø bars in a steel design of 200*200 mm net area. For first floor and second floor and this mixed concrete is used with a thickness of 75 mm and according to my calculations surface area is 1185 m2 excluding of columns, ducks and staircase and requirement of fresh concrete is 176 m3 but no usage of steel bars. Roofs and Water Proofing Water proof is a material which is absorb the water and prevent water leakage to the down side this is different types some times some material is used as water proofing material. But in this structure red brick is used as water proof material in roofs and toilet blocks these bricks are called 4 inches bricks.
  • 23. Department of civil engineering,SCOE,Pune-41 Page 19 For laying of bricks they provided a lame concrete of mix design 1:12 it means amount of cement is so less but they used only for pasting of bricks on surface. These bricks are laded in radial direction to gutter. And over the bricks laim mortar is poured grade of that is M20 mixed concrete. Conplast Canplast is a chemical material in liquid form which is mixed with mortar cement and used in joint of each layer of concrete for preventation of leaksge of water purposes. During a period wrok of a day some unhomogenety of the structure is growt and starting of wrok from that level some voids are remain between two working level. In this case it is require to some chemical material for coverage of that as shown in figure. Mullein Columns Mullein columns are those columns that are not connected to the beams and main columns. These columns are using only for partition area a long beam and the significant of this columns making more safe that area and removing the vibration of structure is wind season. And connection between column to column is easy and these are joint with a parapet wall. These type columns are used in structure with a size of 300*300 mm in a distance of 3 m from each others. These are provided as with 8 mm steel Ø bars. And in parapet of structure all mullein columns and main columns are connected together by a inclined beam. These beams provided connections of all columns for removing of vibration in wind season.
  • 24. Department of civil engineering,SCOE,Pune-41 Page 20 Curing After one day of concreting or plastring curing is necessary for better live of structure different types of curing is done water spreading by pipes to the wall srface, by covring of cotton and stop of water on roofs surfaces. Curing is done for all parts of structures up to 15 days but actually it is curing time is 21 to 25 days. This process is also perfomed for cubic concrete for testing of compressive strenght of concrete for 28 days. And also curing is done for conrete bricks up to 7 days and for red bricks for 5 days on roof surface.
  • 25. Department of civil engineering,SCOE,Pune-41 Page 21 Guide lines of Roads Marking Leveling work is done for all parts of building starting from foundation up to basement of structure and road lines. Main road is as a reference they used. And leveling is based on height of instrument (HI). Gypsum is spread as marking over the Murom. And Road surface marking is any kind of device or material that is used on a road surface in order to convey official information. They can also be applied in other facilities used by vehicles to mark parking spaces or designate areas for other uses. Road surface markings are used on paved roadways to provide guidance and information to drivers and pedestrians. Uniformity of the markings is an important factor in minimizing confusion and uncertainty about their meaning, and efforts exist to standardize such markings across borders. However, countries and areas categorize and specify road surface markings in different ways. Road surface markings are either mechanical, non-mechanical, or temporary. They can be used to delineate traffic lanes inform motorists and pedestrians or serve as noise generators when run across a road, or attempt to wake a sleeping driver when installed in the shoulders of a road. Road surface marking can also indicate regulation for parking and stopping. They are using also trimix concrete for surrounding roads.
  • 26. Department of civil engineering,SCOE,Pune-41 Page 22 Photos PCC for Drainage Pipes RCC Hume Pipes for Drainage
  • 27. Department of civil engineering,SCOE,Pune-41 Page 23 Cover Chamber Frame Chamber
  • 28. Department of civil engineering,SCOE,Pune-41 Page 24 Base Plate for Fabricated Column Foundation for Transfermmer
  • 29. Department of civil engineering,SCOE,Pune-41 Page 25 Conclusion:- The goal of this report is provide information about duration of internship and got knowledge of practical works and provided procedure of all project practically in site work and behaviour of engineers with labours and attitude of PM with all stuffs. Entire works are performing by a regularity or schedule which is provided by PM.
  • 30. Department of civil engineering,SCOE,Pune-41 Page 26
