1. Presentation of 4 weeks
summer training ,Dept of civil
engineering ,ABES ENGINEERING
COLLEGE .

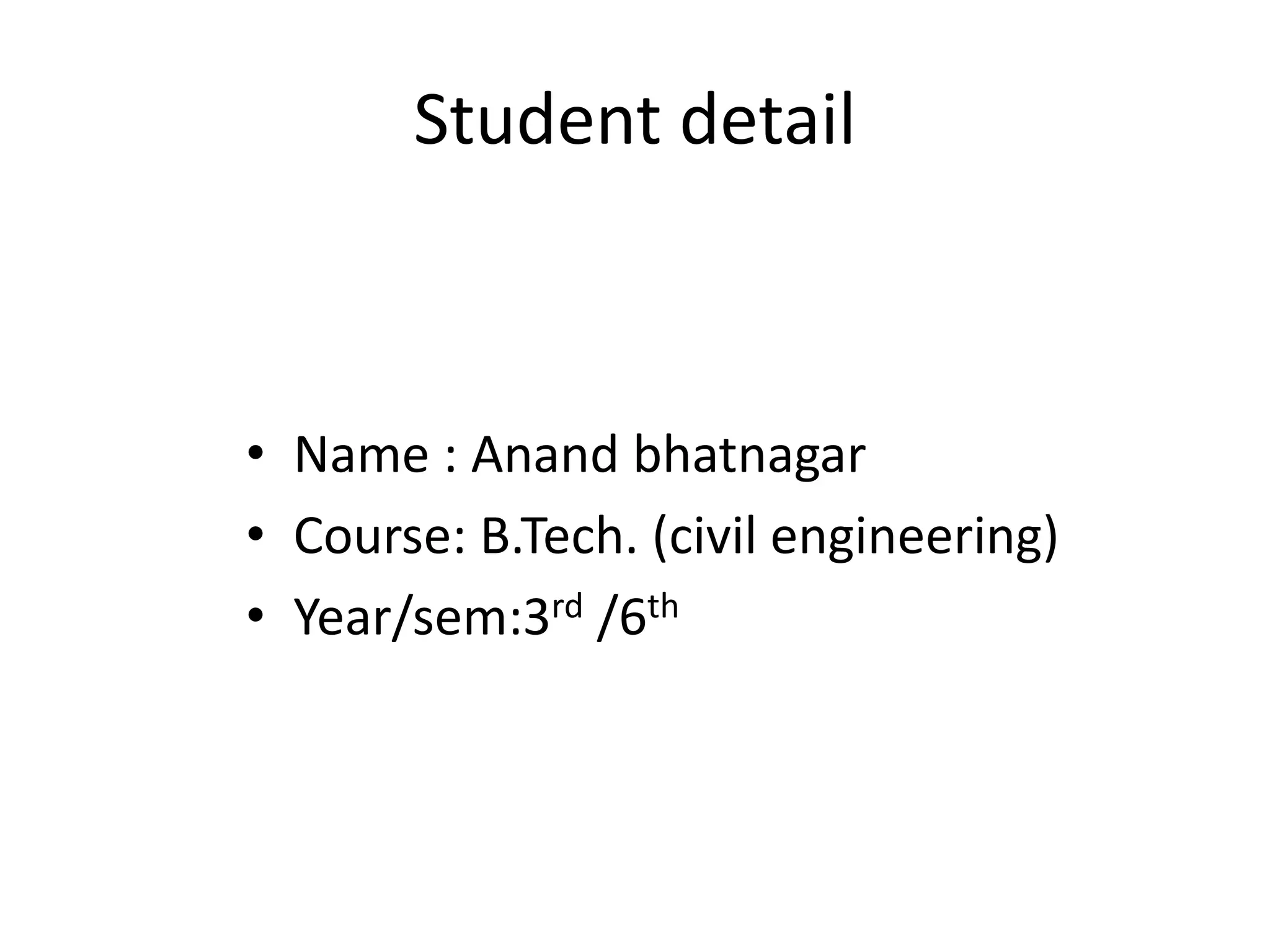

2. Student detail
• Name : Anand bhatnagar
• Course: B.Tech. (civil engineering)
• Year/sem:3rd /6th

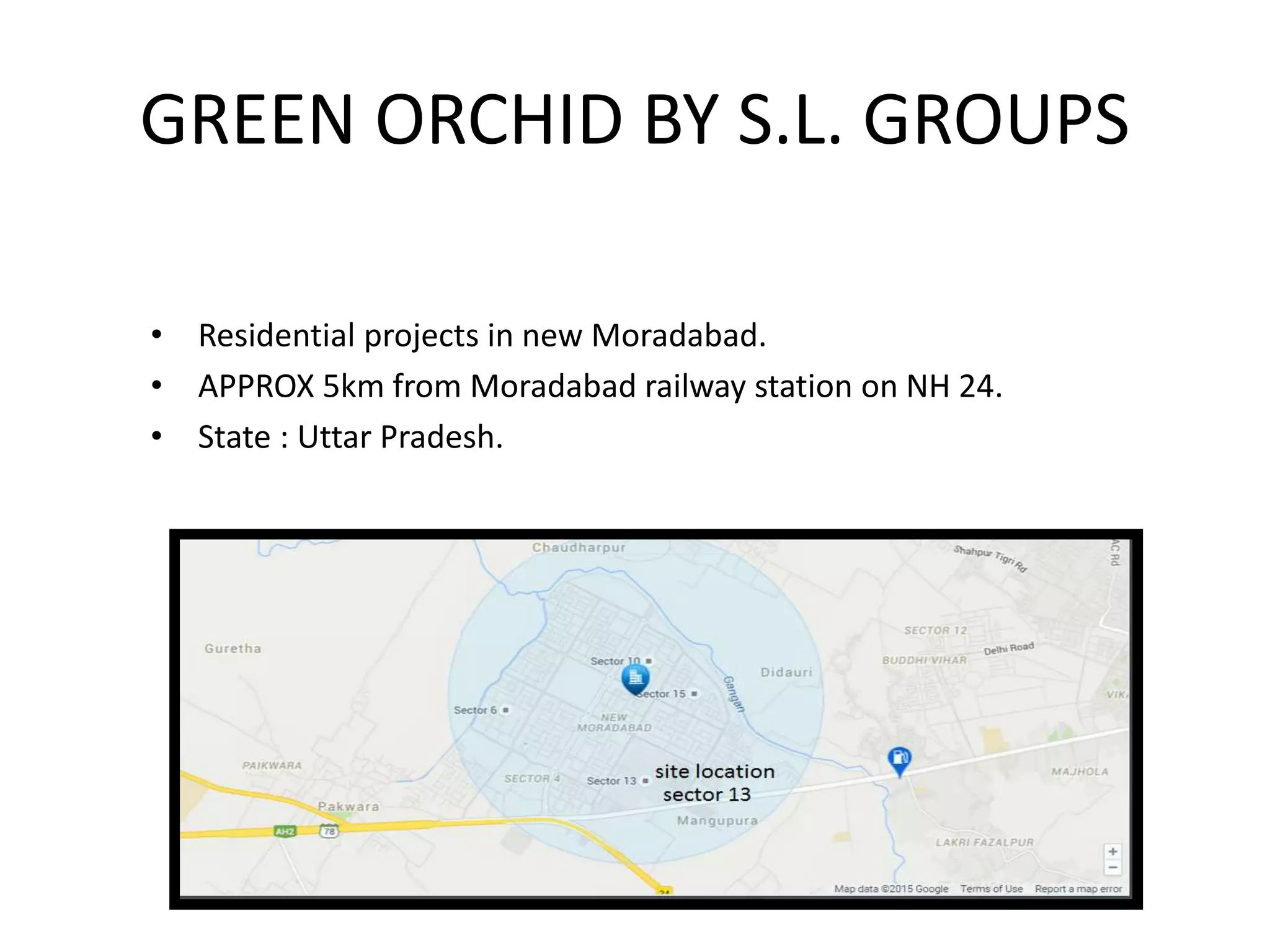

3. GREEN ORCHID BY S.L. GROUPS
• Residential projects in new Moradabad.
• APPROX 5km from Moradabad railway station on NH 24.
• State : Uttar Pradesh.

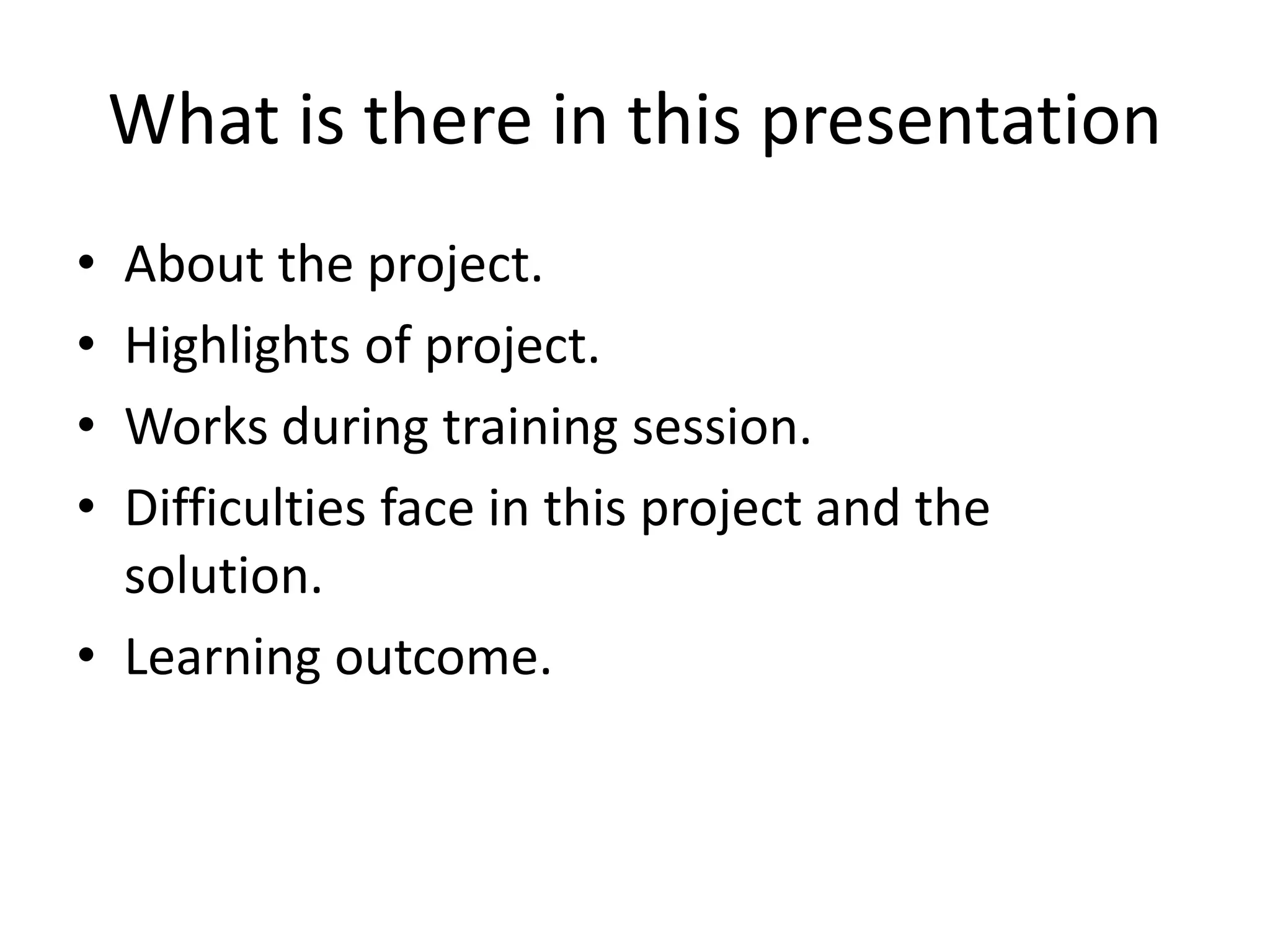

4. What is there in this presentation
• About the project.
• Highlights of project.
• Works during training session.
• Difficulties face in this project and the
solution.
• Learning outcome.

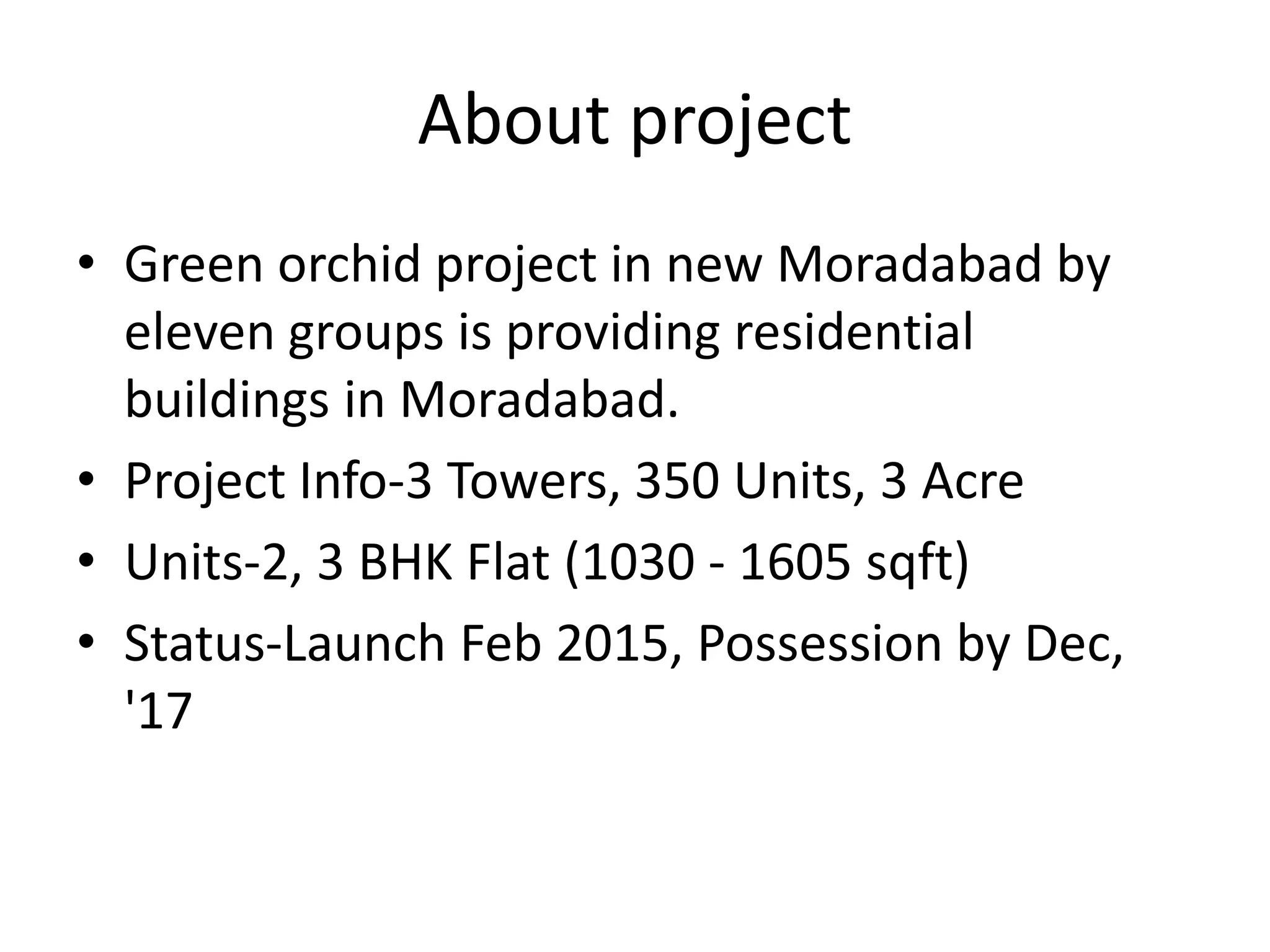

5. About project
• Green orchid project in new Moradabad by
eleven groups is providing residential
buildings in Moradabad.
• Project Info-3 Towers, 350 Units, 3 Acre
• Units-2, 3 BHK Flat (1030 - 1605 sqft)
• Status-Launch Feb 2015, Possession by Dec,
'17

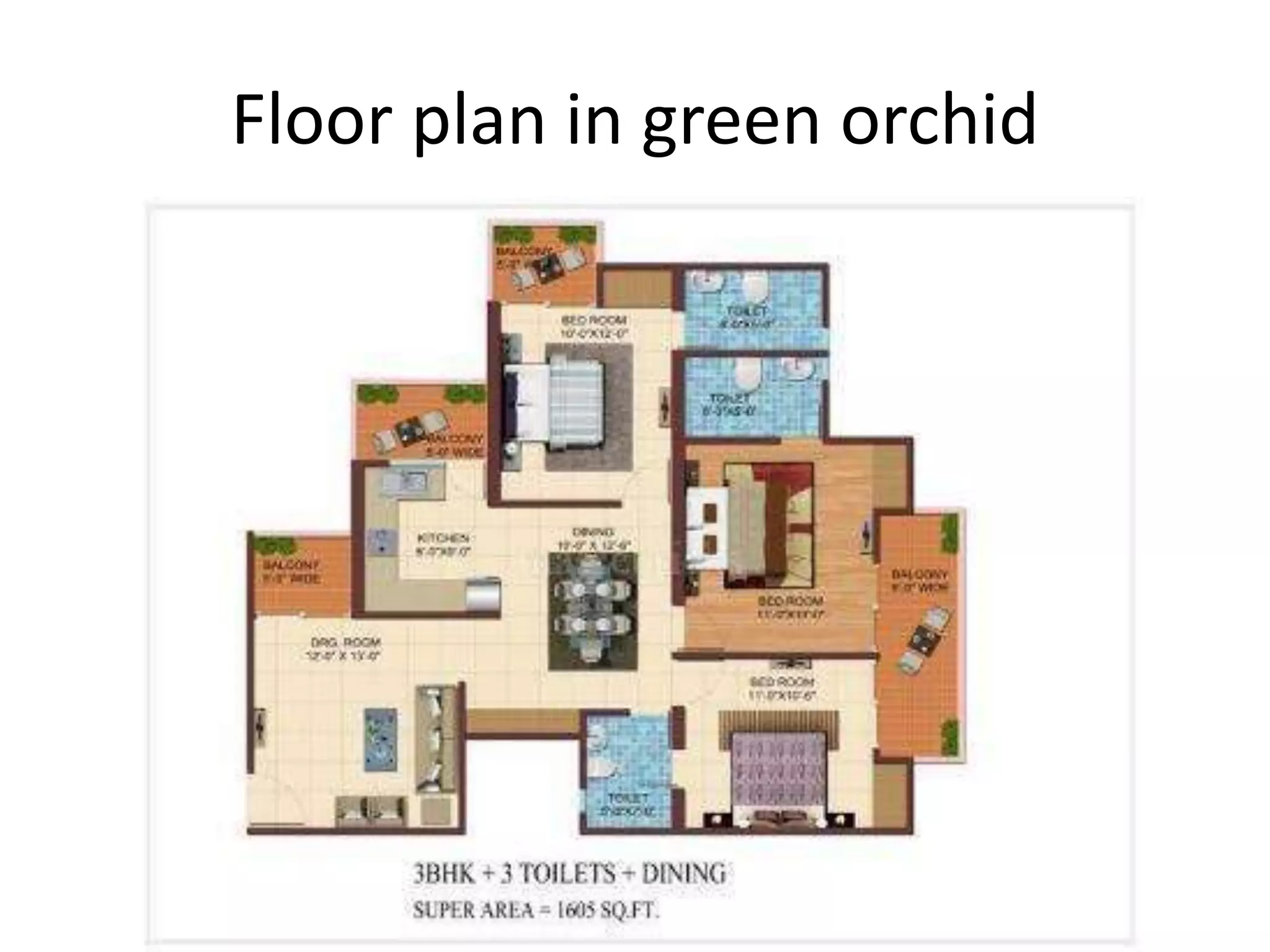

6. Floor plan in green orchid

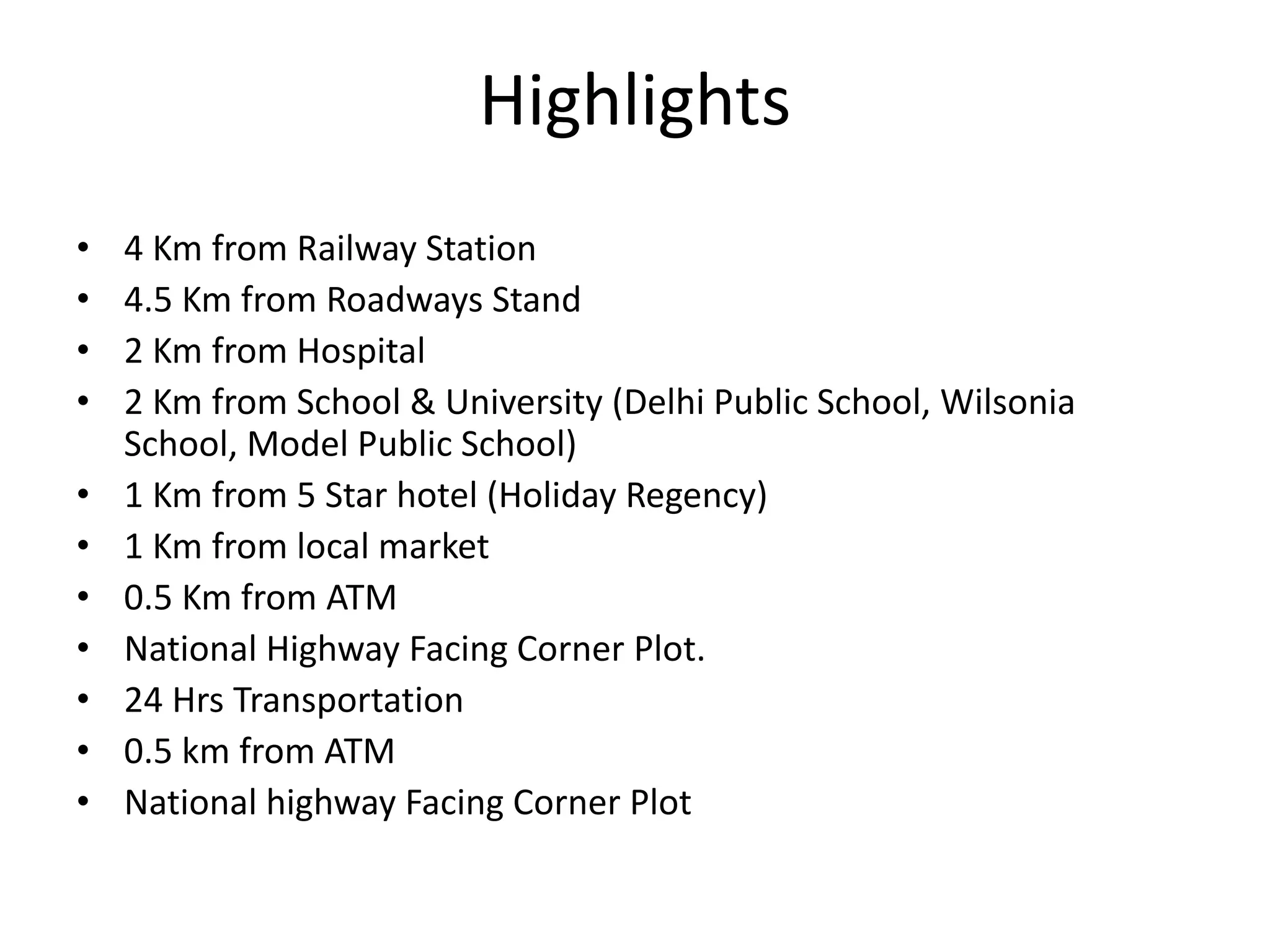

7. Highlights
• 4 Km from Railway Station
• 4.5 Km from Roadways Stand
• 2 Km from Hospital
• 2 Km from School & University (Delhi Public School, Wilsonia
School, Model Public School)
• 1 Km from 5 Star hotel (Holiday Regency)
• 1 Km from local market
• 0.5 Km from ATM
• National Highway Facing Corner Plot.
• 24 Hrs Transportation
• 0.5 km from ATM
• National highway Facing Corner Plot

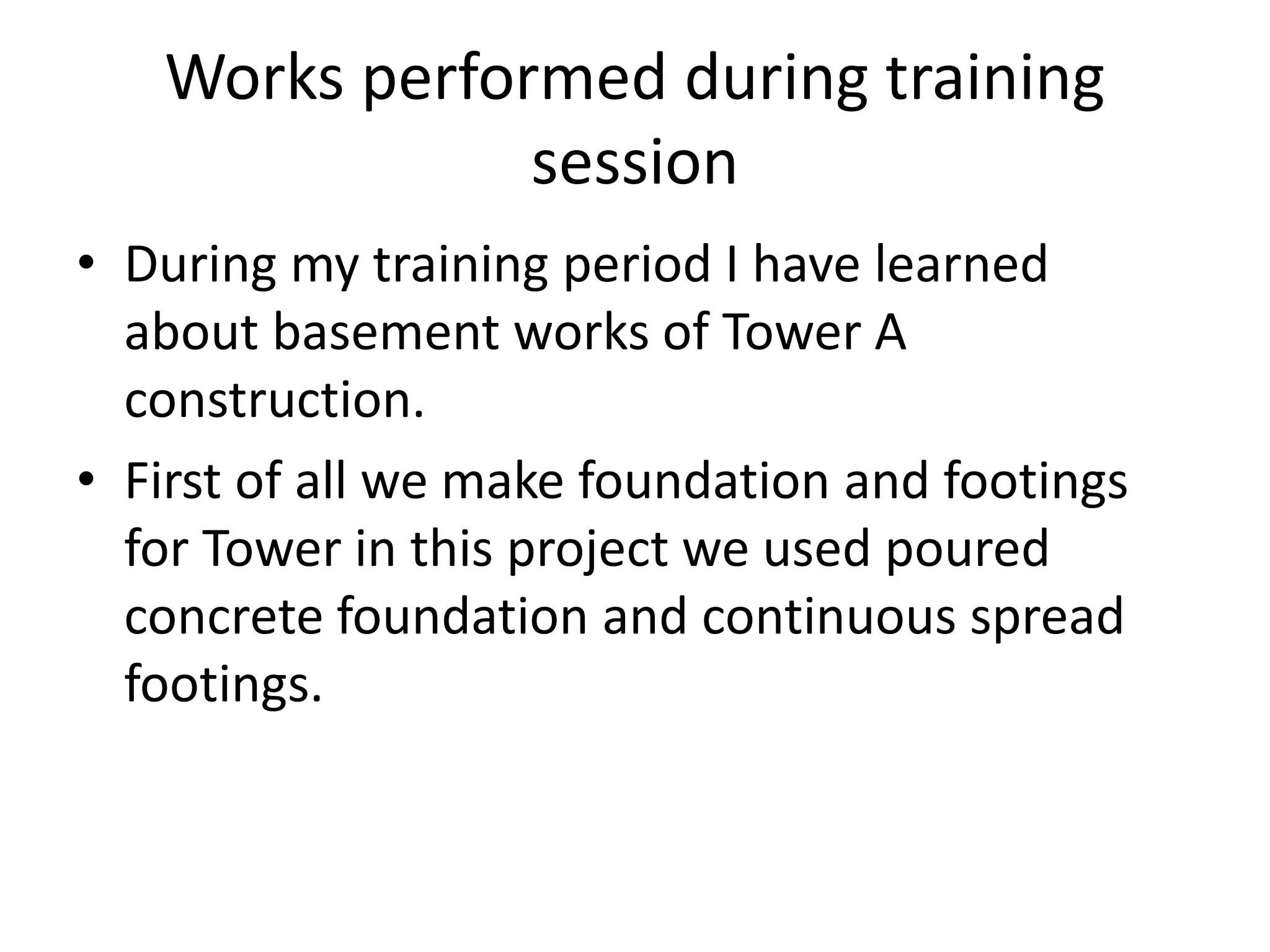

8. Works performed during training
session
• During my training period I have learned
about basement works of Tower A
construction.
• First of all we make foundation and footings
for Tower in this project we used poured
concrete foundation and continuous spread
footings.

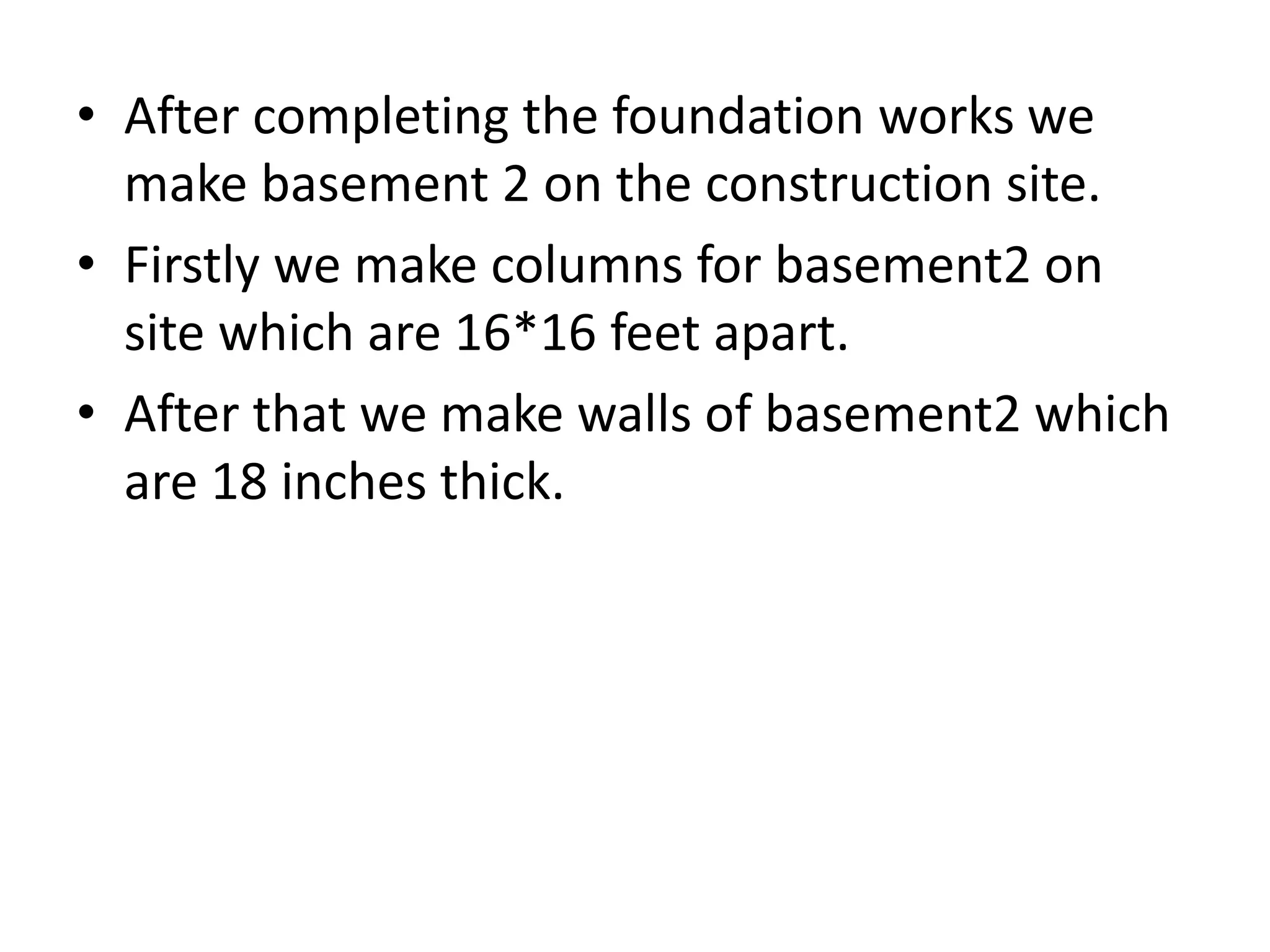

9. • After completing the foundation works we
make basement 2 on the construction site.
• Firstly we make columns for basement2 on
site which are 16*16 feet apart.
• After that we make walls of basement2 which
are 18 inches thick.

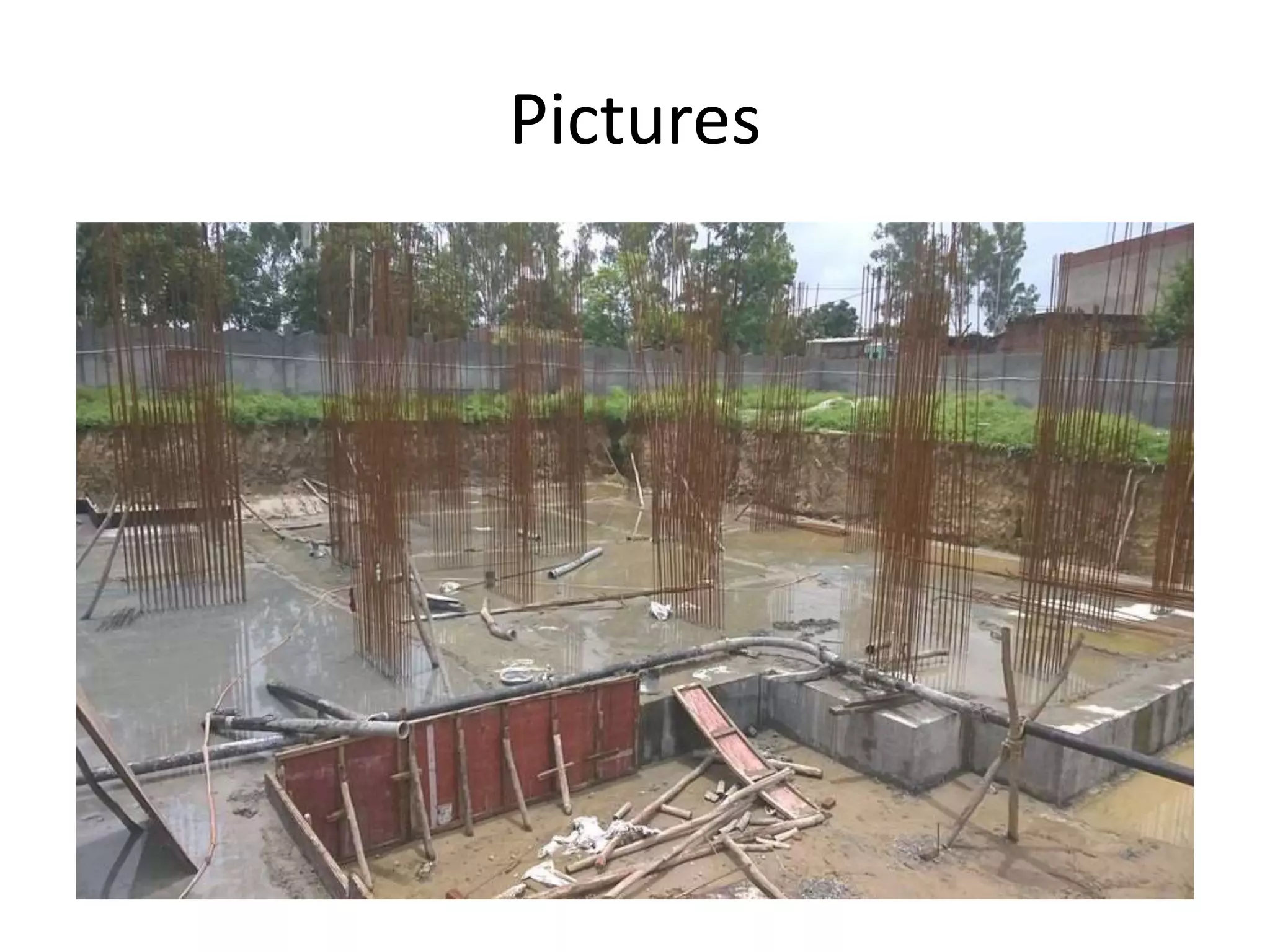

10. Pictures

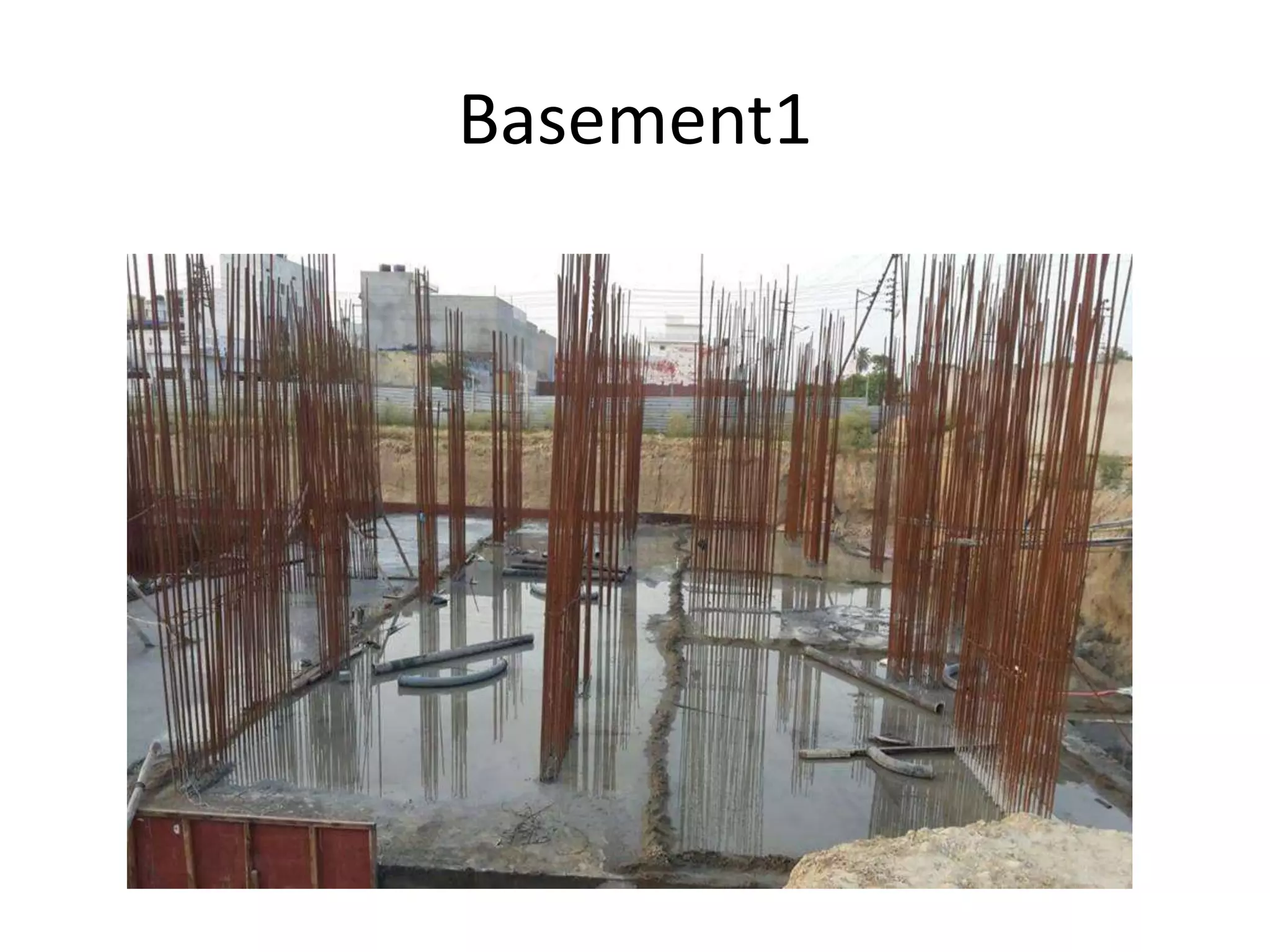

11. Basement1

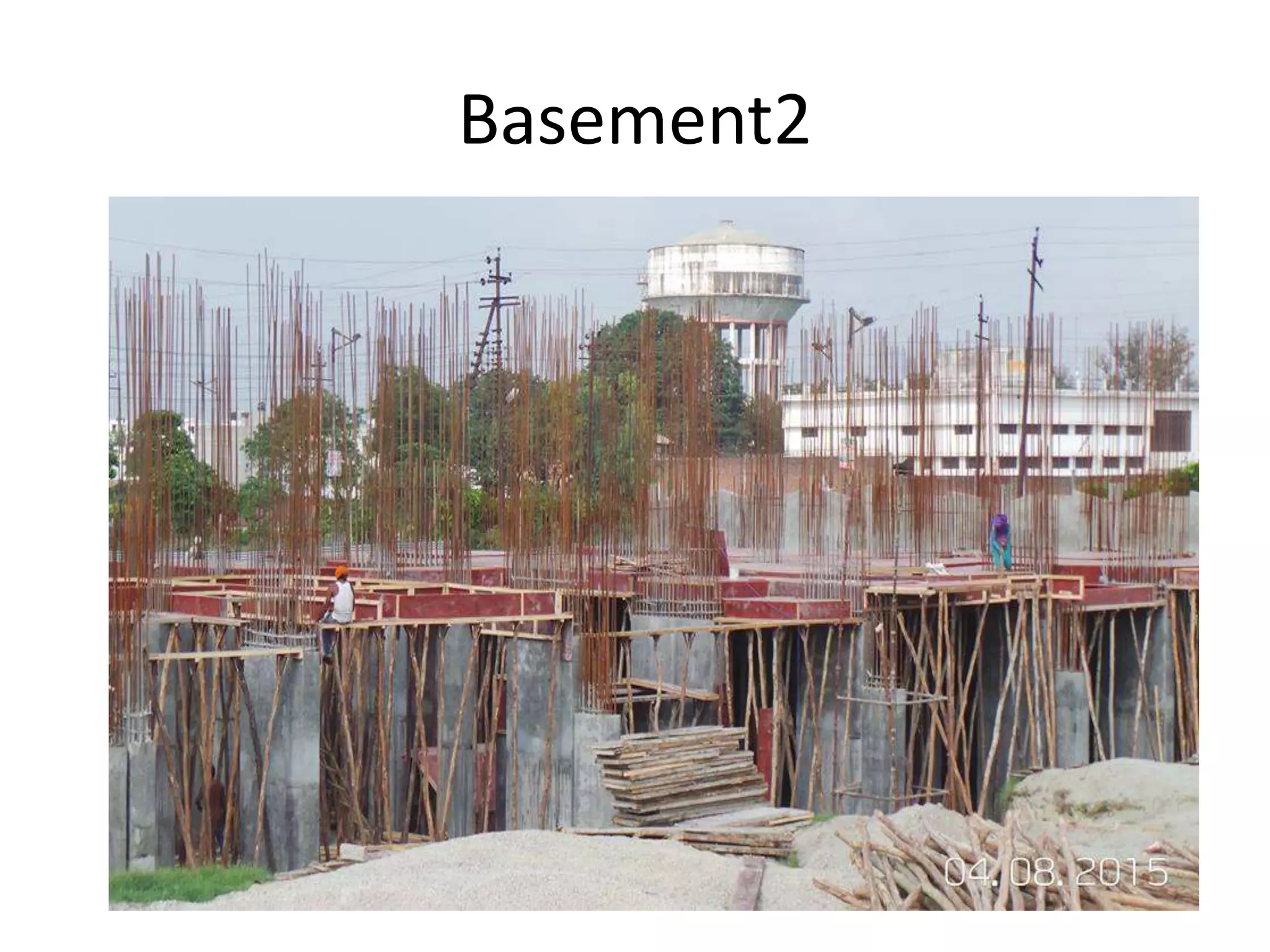

12. Basement2

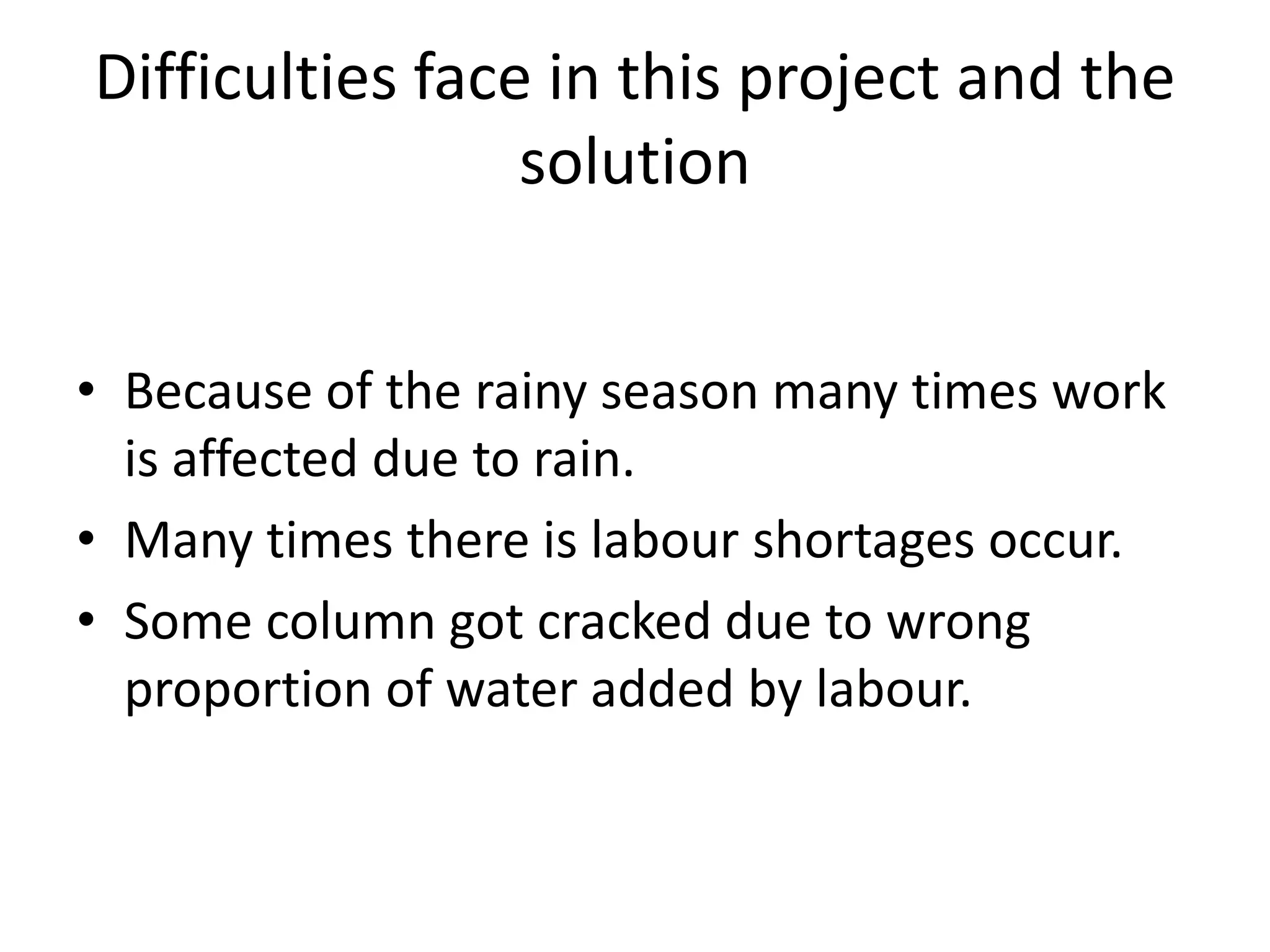

13. Difficulties face in this project and the
solution
• Because of the rainy season many times work
is affected due to rain.
• Many times there is labour shortages occur.
• Some column got cracked due to wrong
proportion of water added by labour.

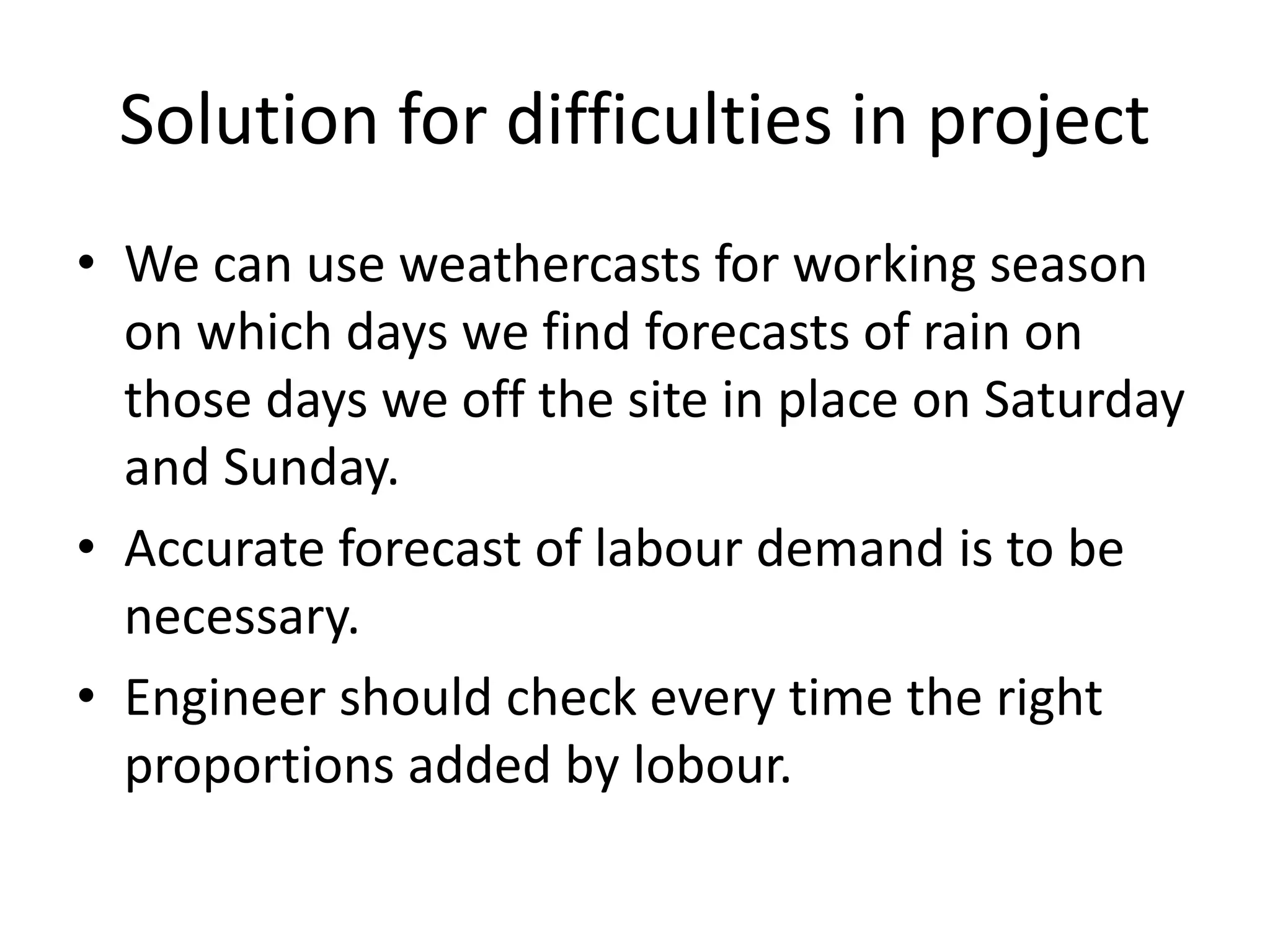

14. Solution for difficulties in project
• We can use weathercasts for working season
on which days we find forecasts of rain on
those days we off the site in place on Saturday
and Sunday.
• Accurate forecast of labour demand is to be
necessary.
• Engineer should check every time the right
proportions added by lobour.

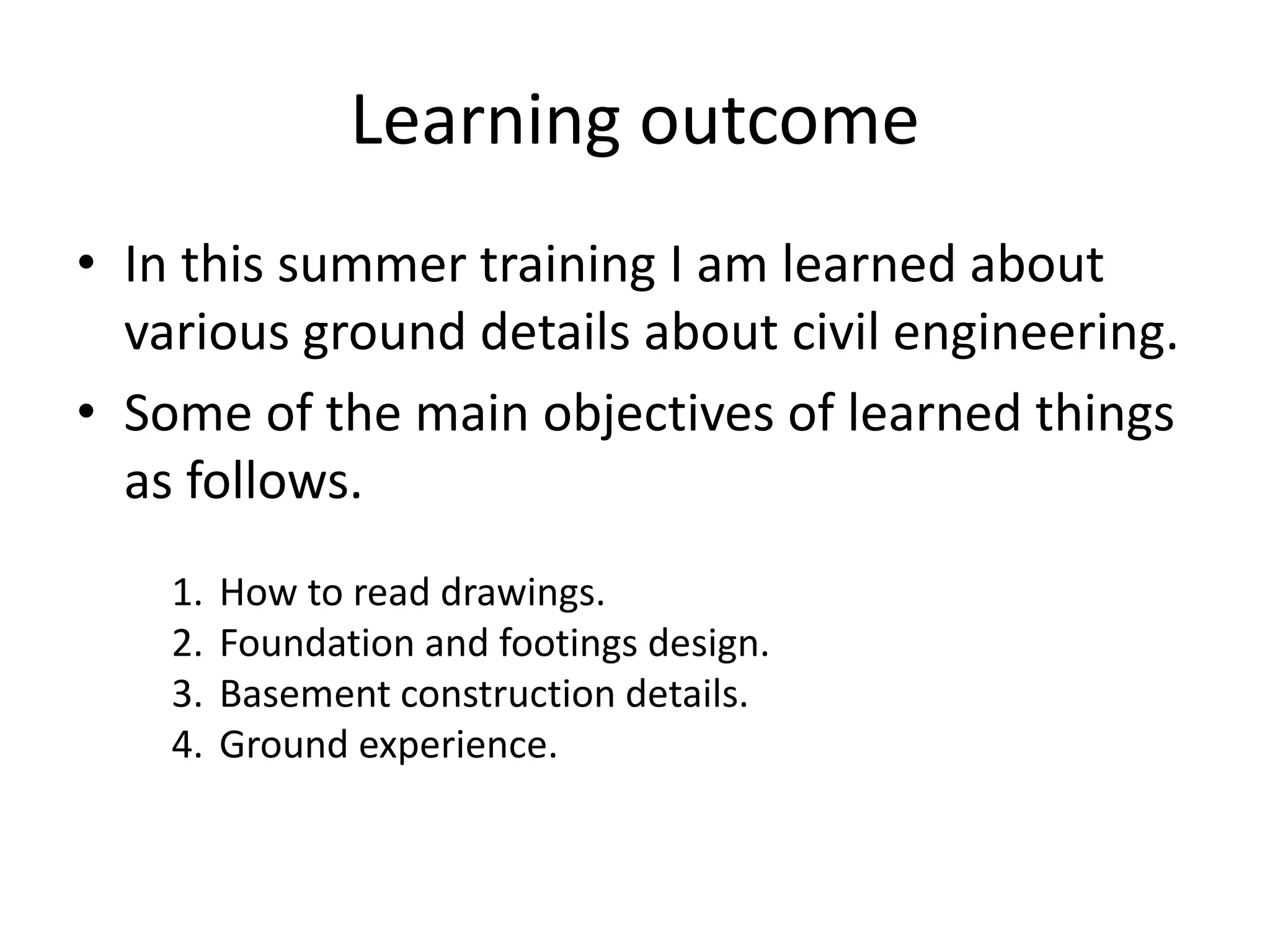

15. Learning outcome
• In this summer training I am learned about
various ground details about civil engineering.
• Some of the main objectives of learned things
as follows.
1. How to read drawings.
2. Foundation and footings design.
3. Basement construction details.
4. Ground experience.

16. AND SPECIAL THANKS TO ABES
ENGINEERING FACULTY FOR GIVING
RIGHT GUIDENCE TO THEIR STUDENTS.
