This seminar discusses smart home technologies based on the Internet of Things. It provides an introduction and overview of key topics including the significance of smart homes, literature on the subject, and examples of smart home systems that have been implemented using technologies like ZigBee and virtualization of wireless sensor networks. The seminar concludes by discussing potential future work involving frameworks to share physical resources across multiple smart home applications.

1. Seminar – I
on
Smart Home based on IOT
By Khwaja Aamer
MEIT 1328
Guided by Dr.Anil Hiwale
11/18/2014 Smart home based on IOT 1

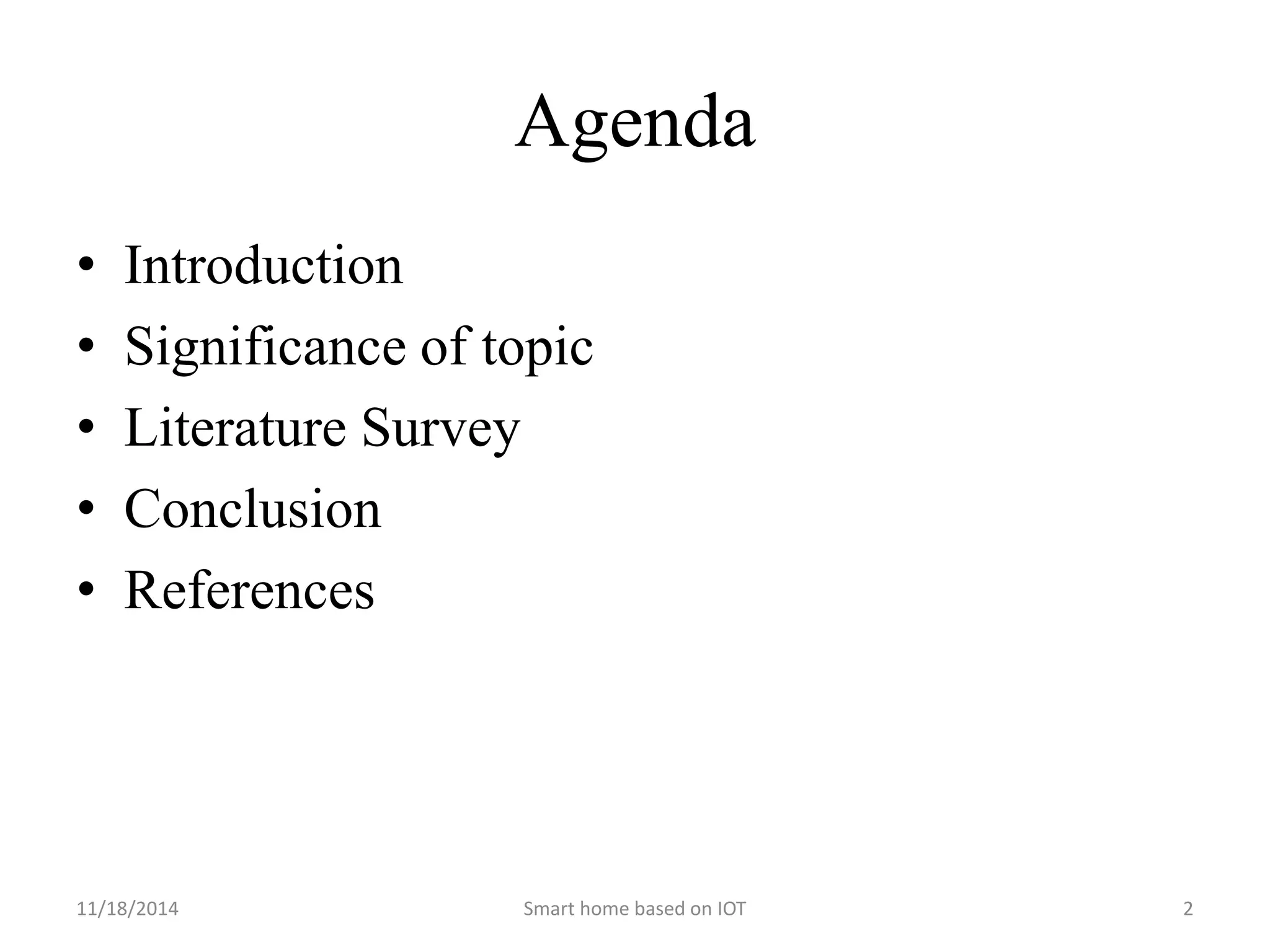

2. Agenda
• Introduction
• Significance of topic
• Literature Survey
• Conclusion
• References
11/18/2014 Smart home based on IOT 2

3. Introduction
• Internet of things or internet of objects
• unique identifiers and the ability to automatically transfer
data
• By 2020 there will be 50 billion objects in “Internet of
Things”
E.g
• While shopping goods will introduce themselves
• Car will generate alarm if driver made any mistake
• But many challenges waiting us
11/18/2014 smart home based on IOT 3

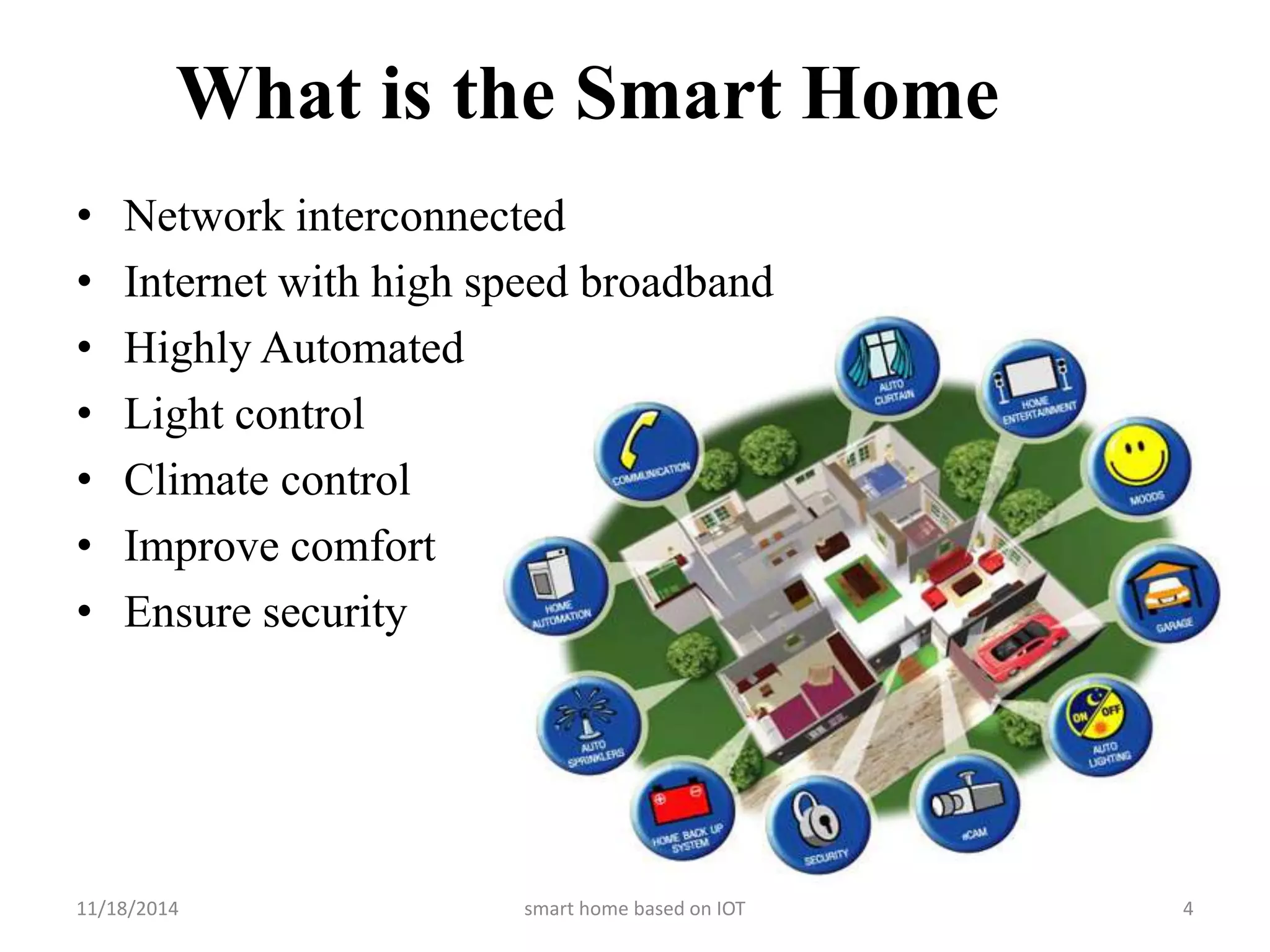

4. What is the Smart Home
• Network interconnected
• Internet with high speed broadband
• Highly Automated
• Light control
• Climate control
• Improve comfort
• Ensure security
11/18/2014 smart home based on IOT 4

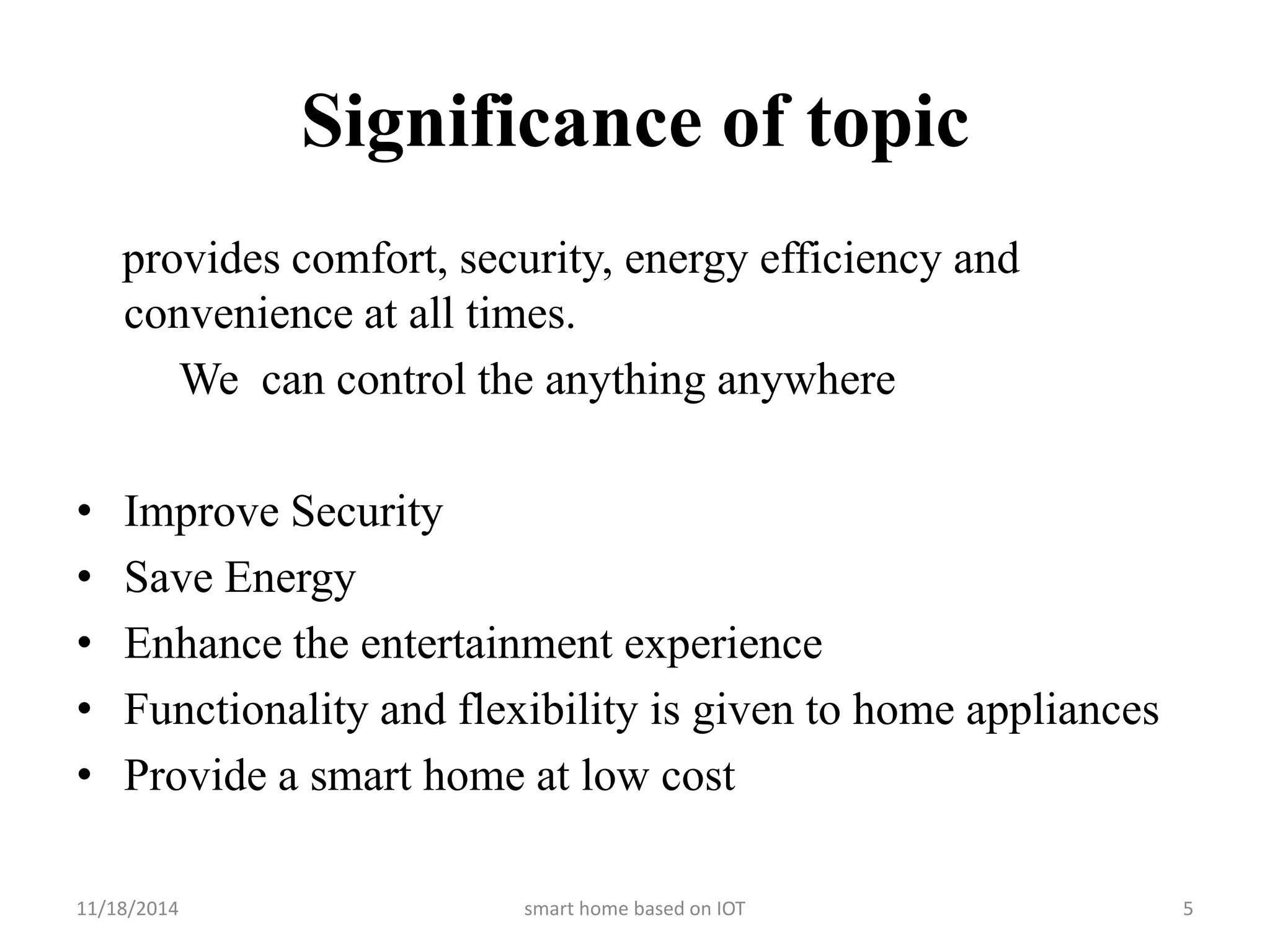

5. Significance of topic
provides comfort, security, energy efficiency and
convenience at all times.
We can control the anything anywhere
• Improve Security
• Save Energy
• Enhance the entertainment experience
• Functionality and flexibility is given to home appliances
• Provide a smart home at low cost
11/18/2014 smart home based on IOT 5

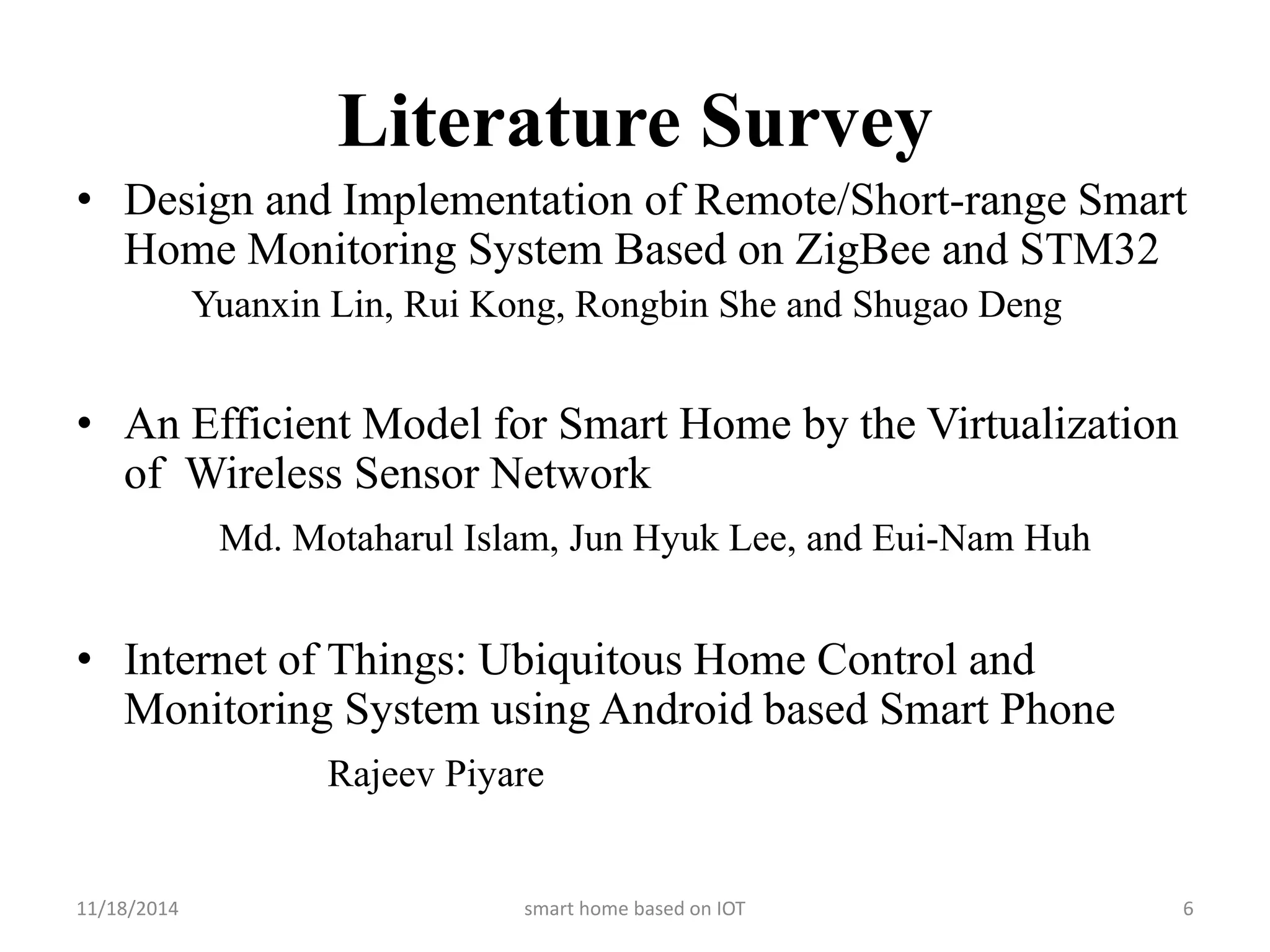

6. Literature Survey
• Design and Implementation of Remote/Short-range Smart
Home Monitoring System Based on ZigBee and STM32
Yuanxin Lin, Rui Kong, Rongbin She and Shugao Deng
• An Efficient Model for Smart Home by the Virtualization
of Wireless Sensor Network
Md. Motaharul Islam, Jun Hyuk Lee, and Eui-Nam Huh
• Internet of Things: Ubiquitous Home Control and
Monitoring System using Android based Smart Phone
Rajeev Piyare
11/18/2014 smart home based on IOT 6

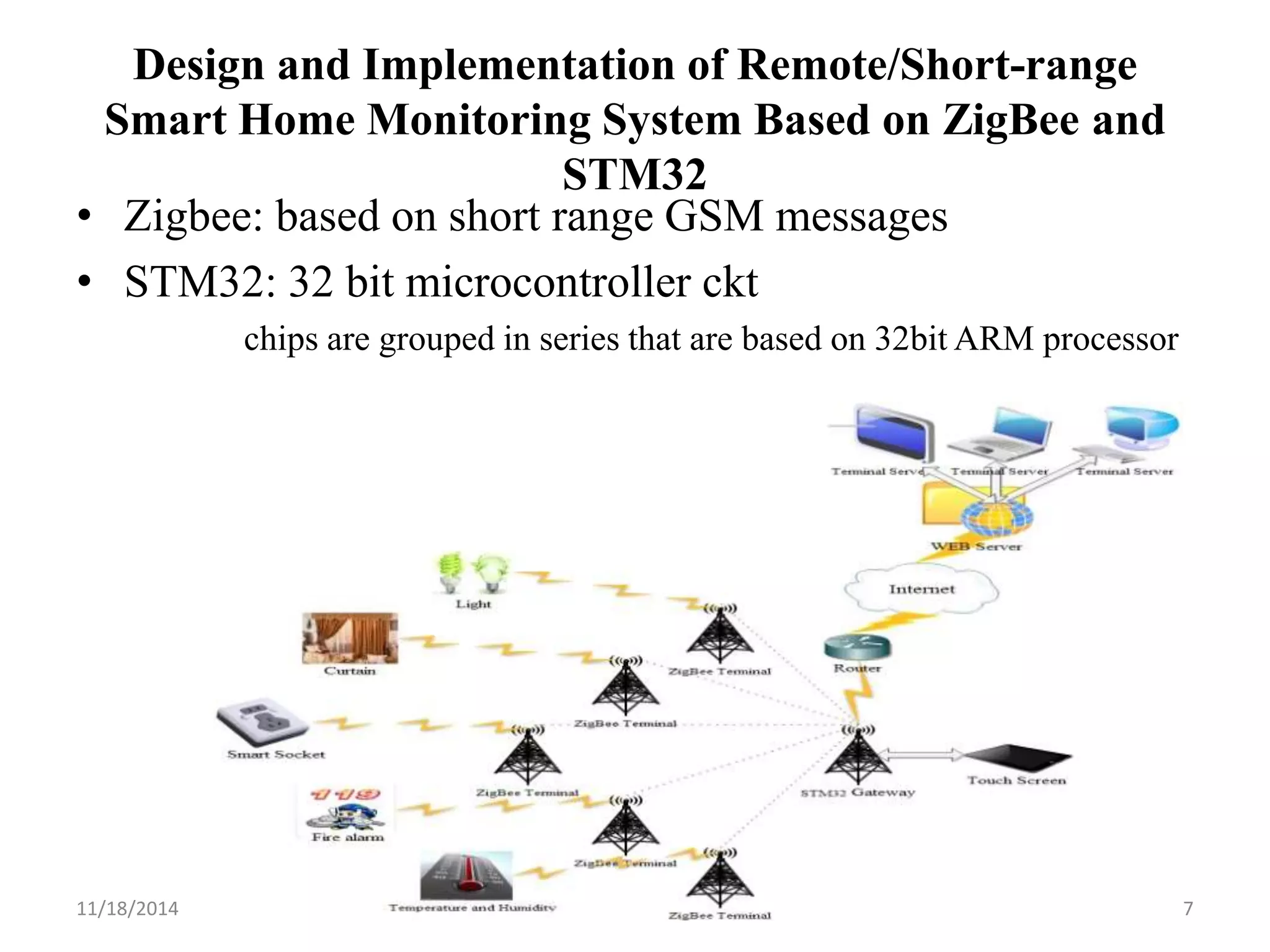

7. Design and Implementation of Remote/Short-range
Smart Home Monitoring System Based on ZigBee and
STM32
• Zigbee: based on short range GSM messages
• STM32: 32 bit microcontroller ckt
chips are grouped in series that are based on 32bit ARM processor
11/18/2014 smart home based on IOT 7

8. • S/w design:
- Open source embedded OS μC/OS-II
-Open source embedded GUI interface μC/GUI
-Short range protocol zigbee
-Open source embedded network protocol
11/18/2014 Smart home based on IOT 8

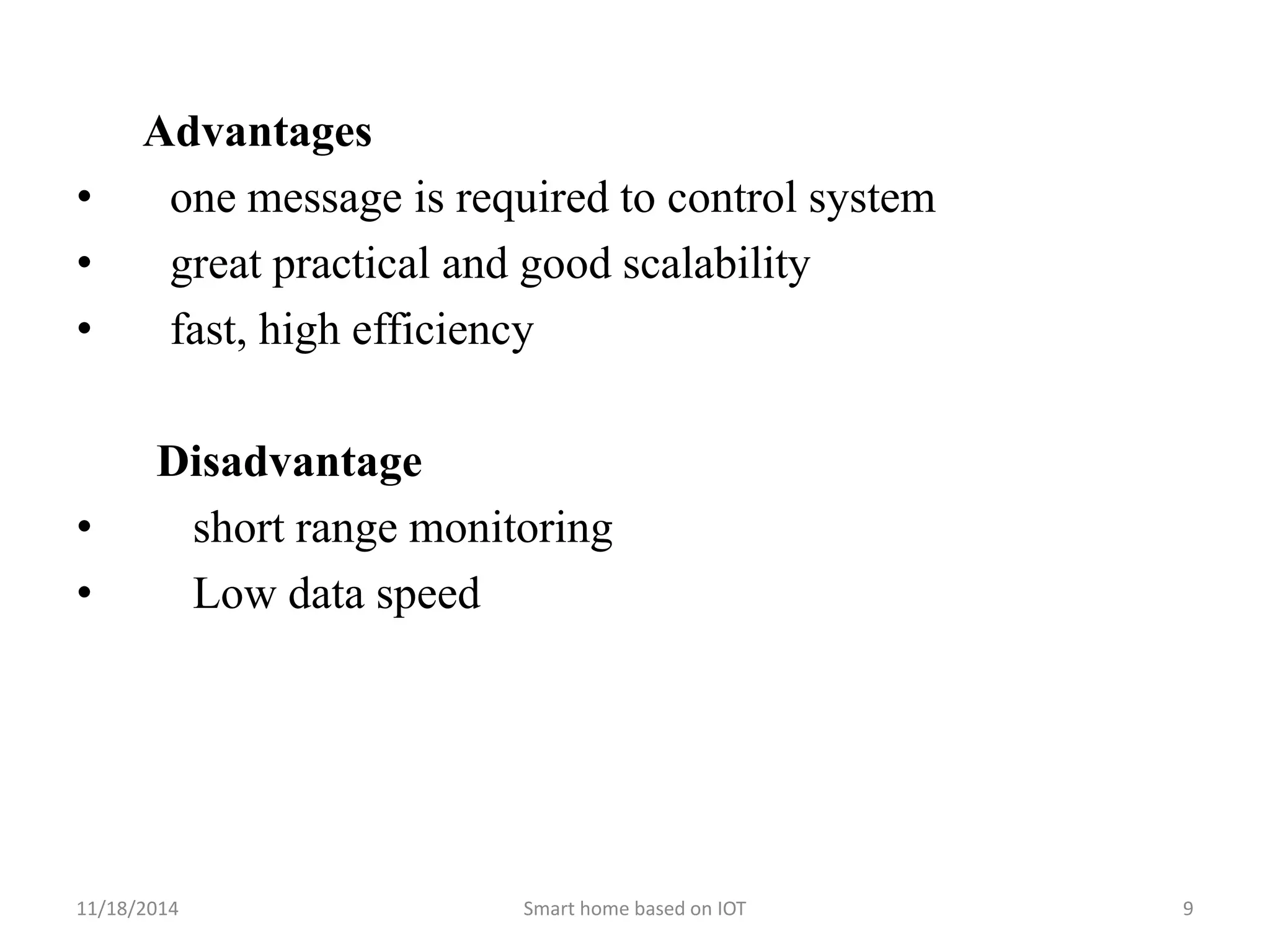

9. Advantages
• one message is required to control system
• great practical and good scalability
• fast, high efficiency
Disadvantage
• short range monitoring
• Low data speed
11/18/2014 Smart home based on IOT 9

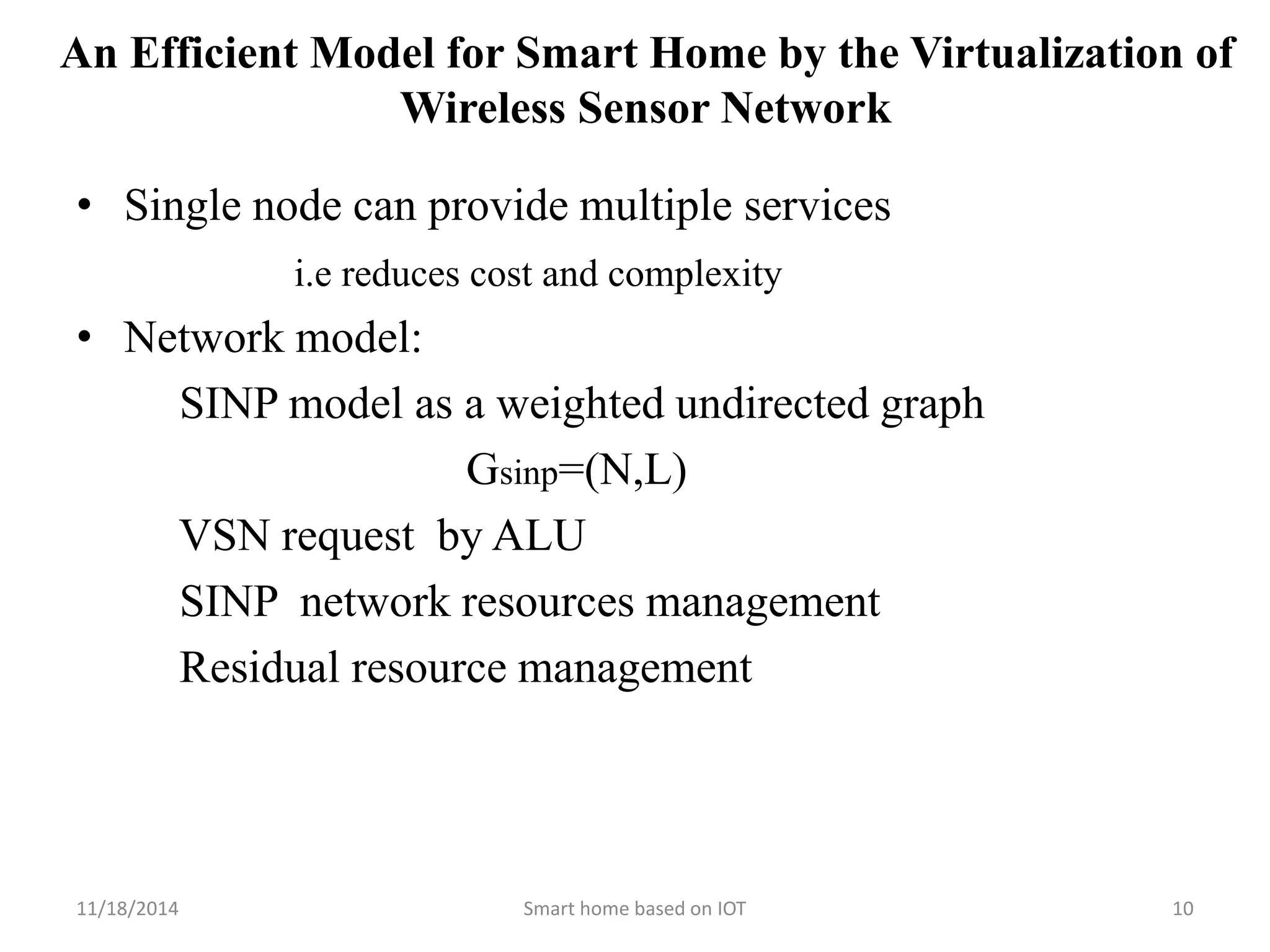

10. An Efficient Model for Smart Home by the Virtualization of
Wireless Sensor Network
• Single node can provide multiple services
i.e reduces cost and complexity
• Network model:
SINP model as a weighted undirected graph
Gsinp=(N,L)
VSN request by ALU
SINP network resources management
Residual resource management
11/18/2014 Smart home based on IOT 10

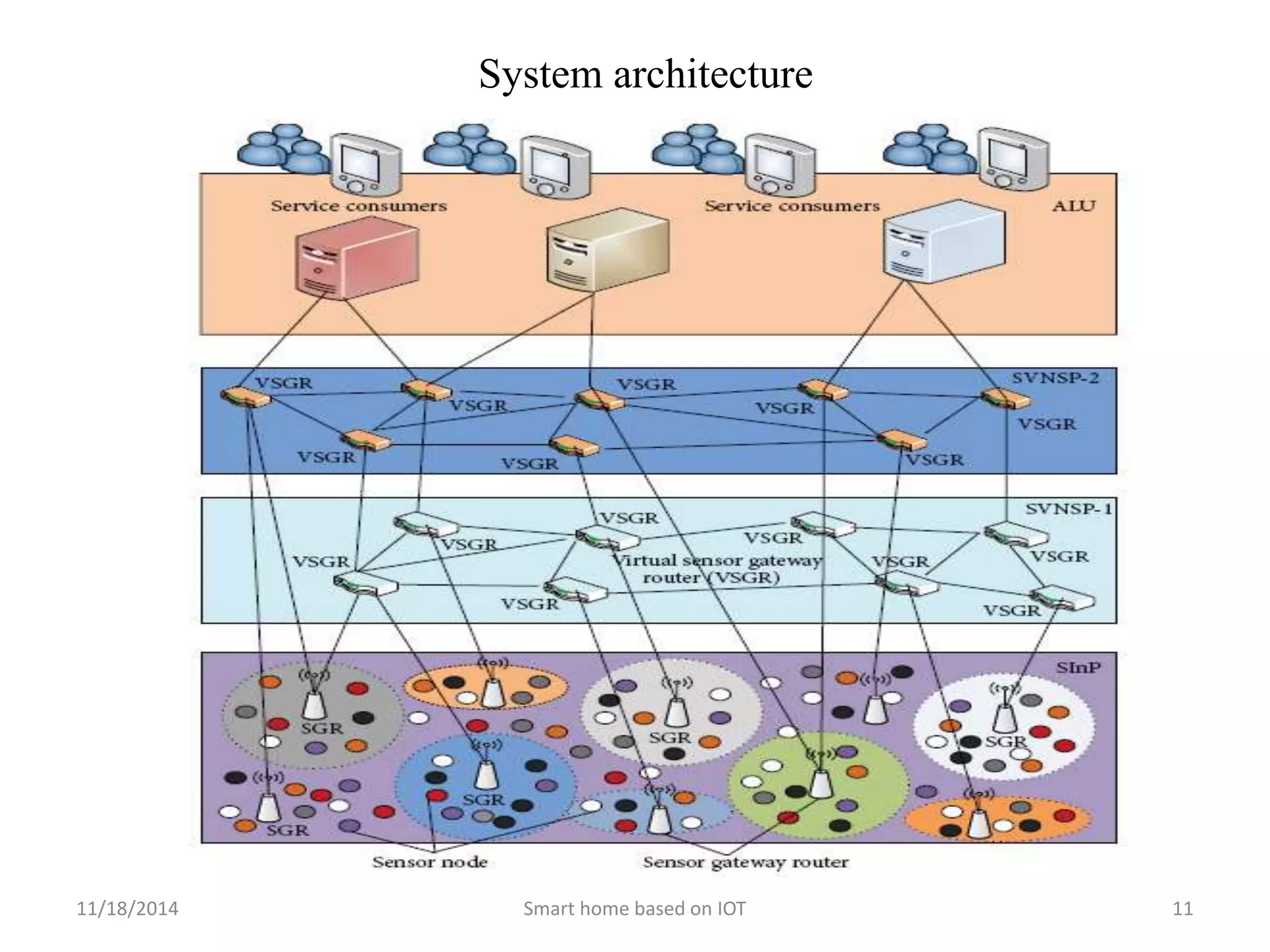

11. System architecture
11/18/2014 Smart home based on IOT 11

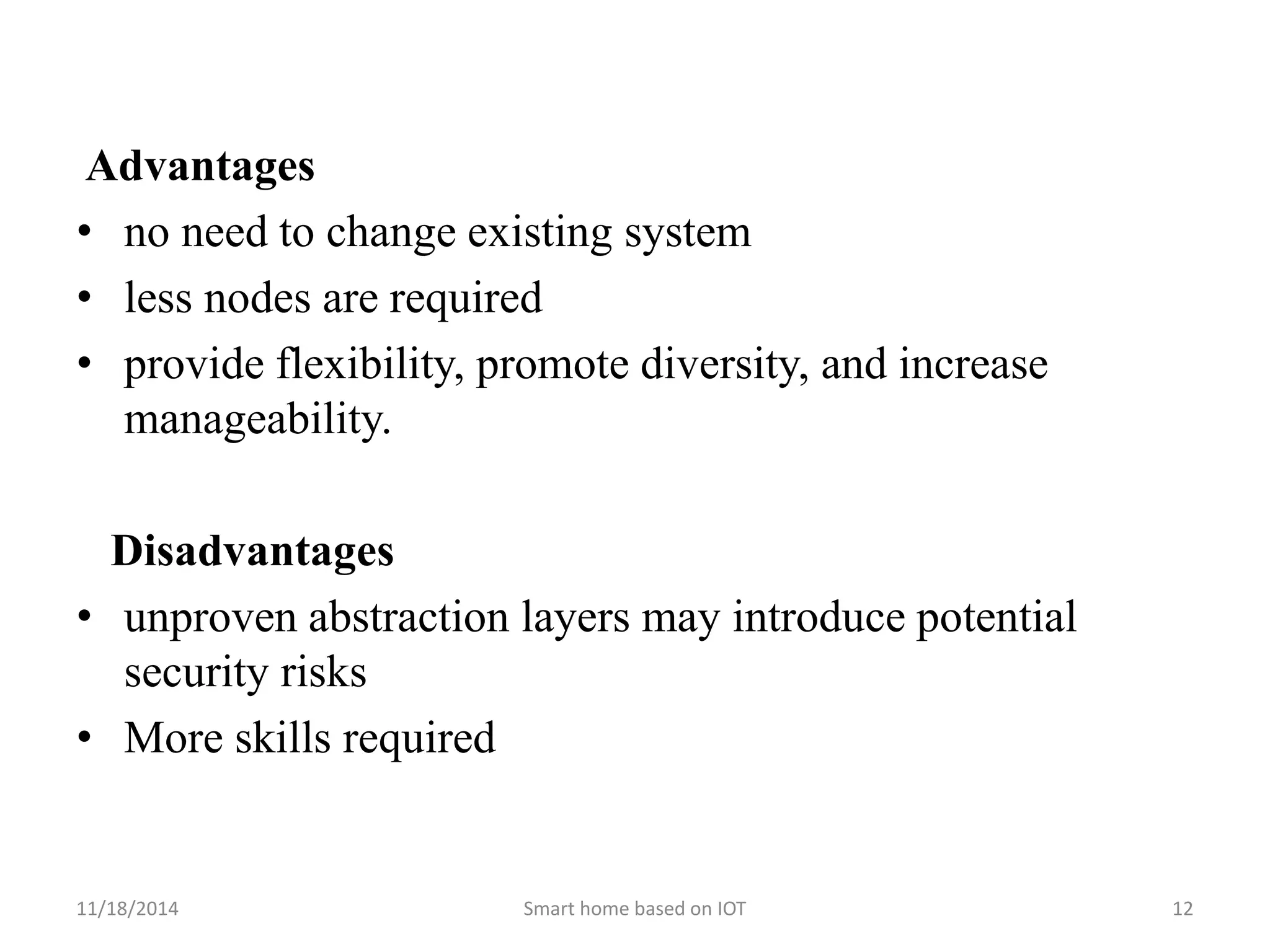

12. Advantages
• no need to change existing system
• less nodes are required
• provide flexibility, promote diversity, and increase
manageability.
Disadvantages
• unproven abstraction layers may introduce potential
security risks
• More skills required
11/18/2014 Smart home based on IOT 12

13. Internet of Things: Ubiquitous Home Control and
Monitoring System using Android based Smart Phone
– Uses an embedded microwave server with IP
• Proposed system :-
11/18/2014 Smart home based on IOT 13

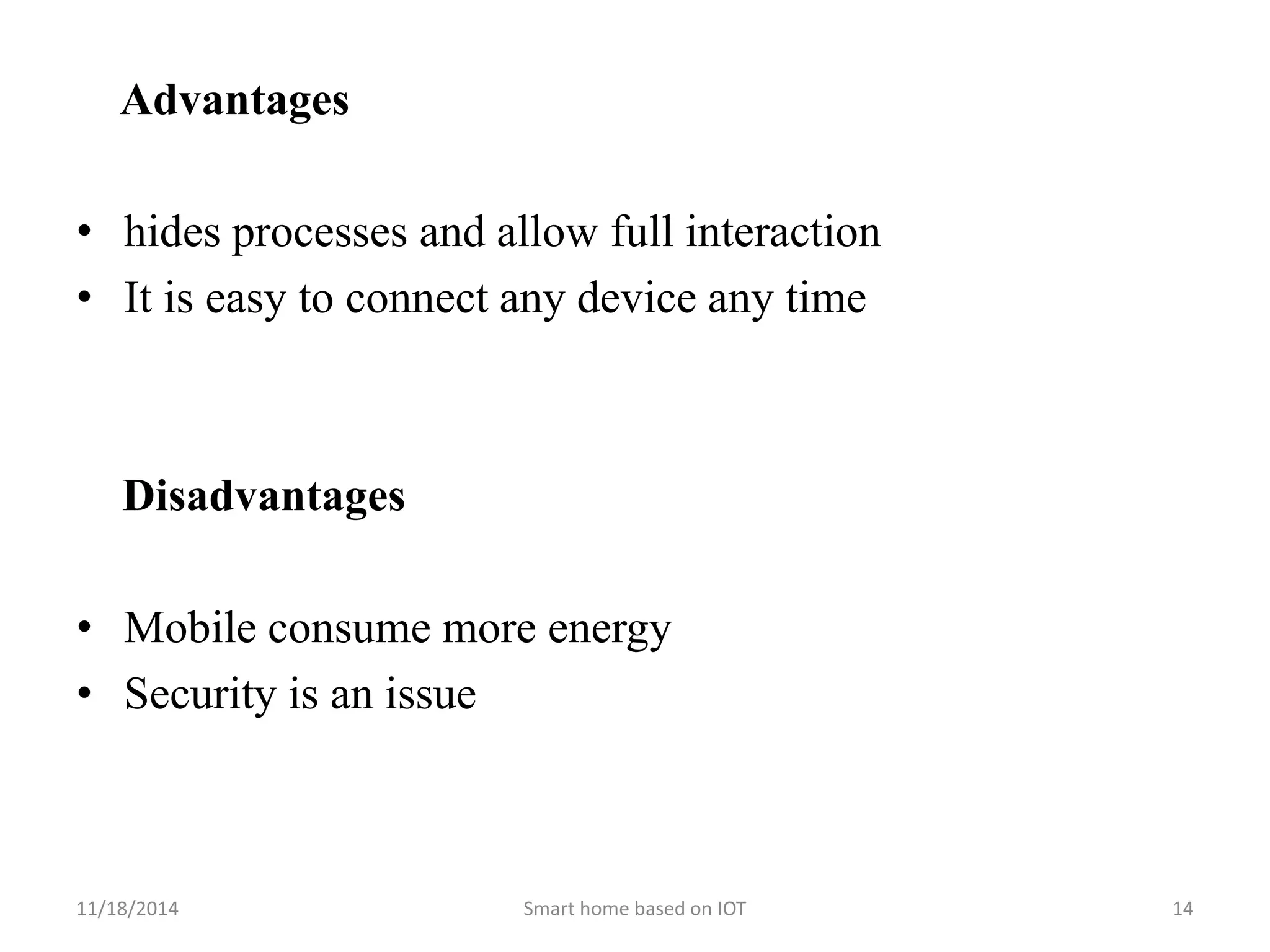

14. Advantages
• hides processes and allow full interaction
• It is easy to connect any device any time
Disadvantages
• Mobile consume more energy
• Security is an issue
11/18/2014 Smart home based on IOT 14

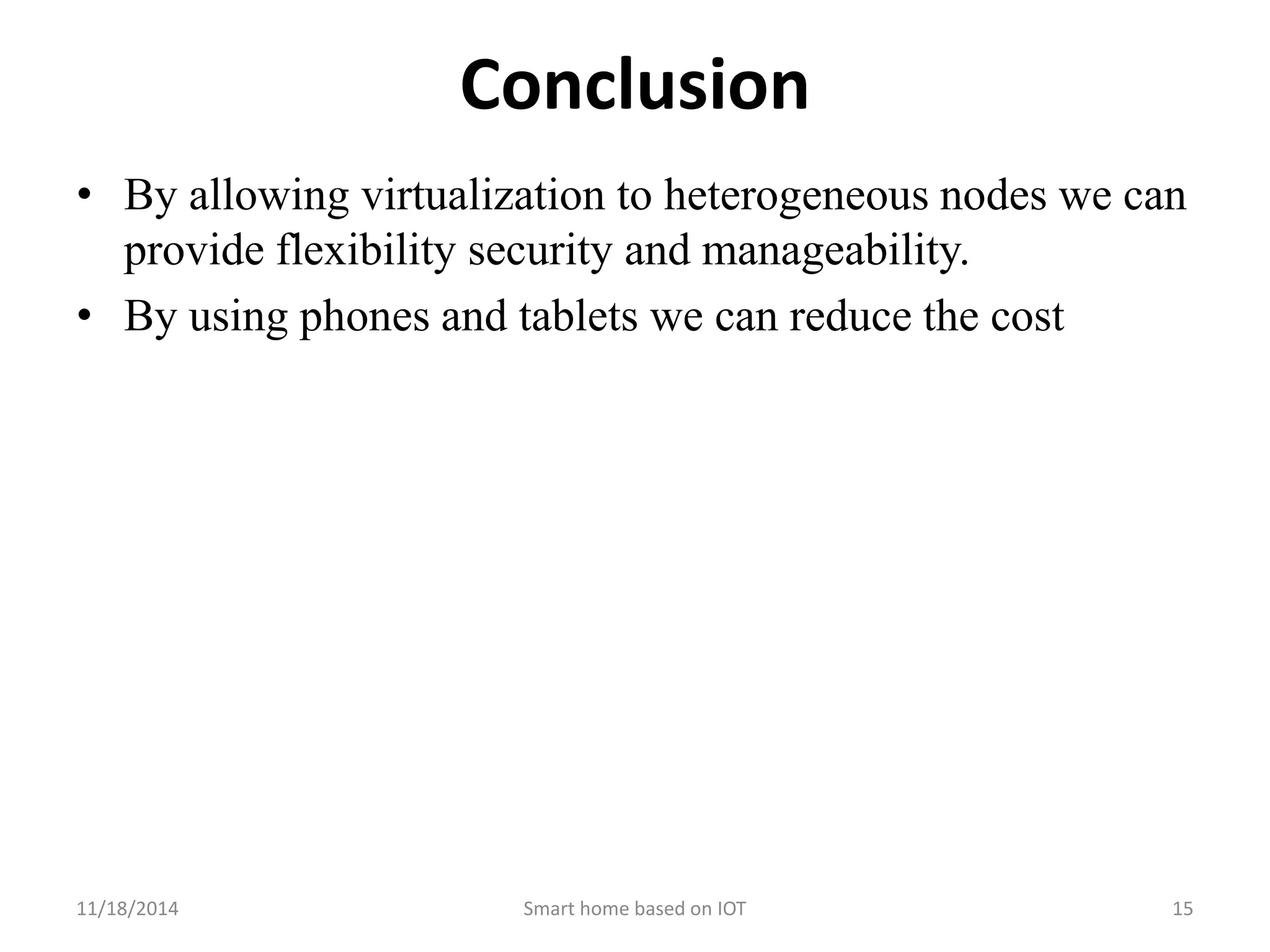

15. Conclusion
• By allowing virtualization to heterogeneous nodes we can
provide flexibility security and manageability.
• By using phones and tablets we can reduce the cost
11/18/2014 Smart home based on IOT 15

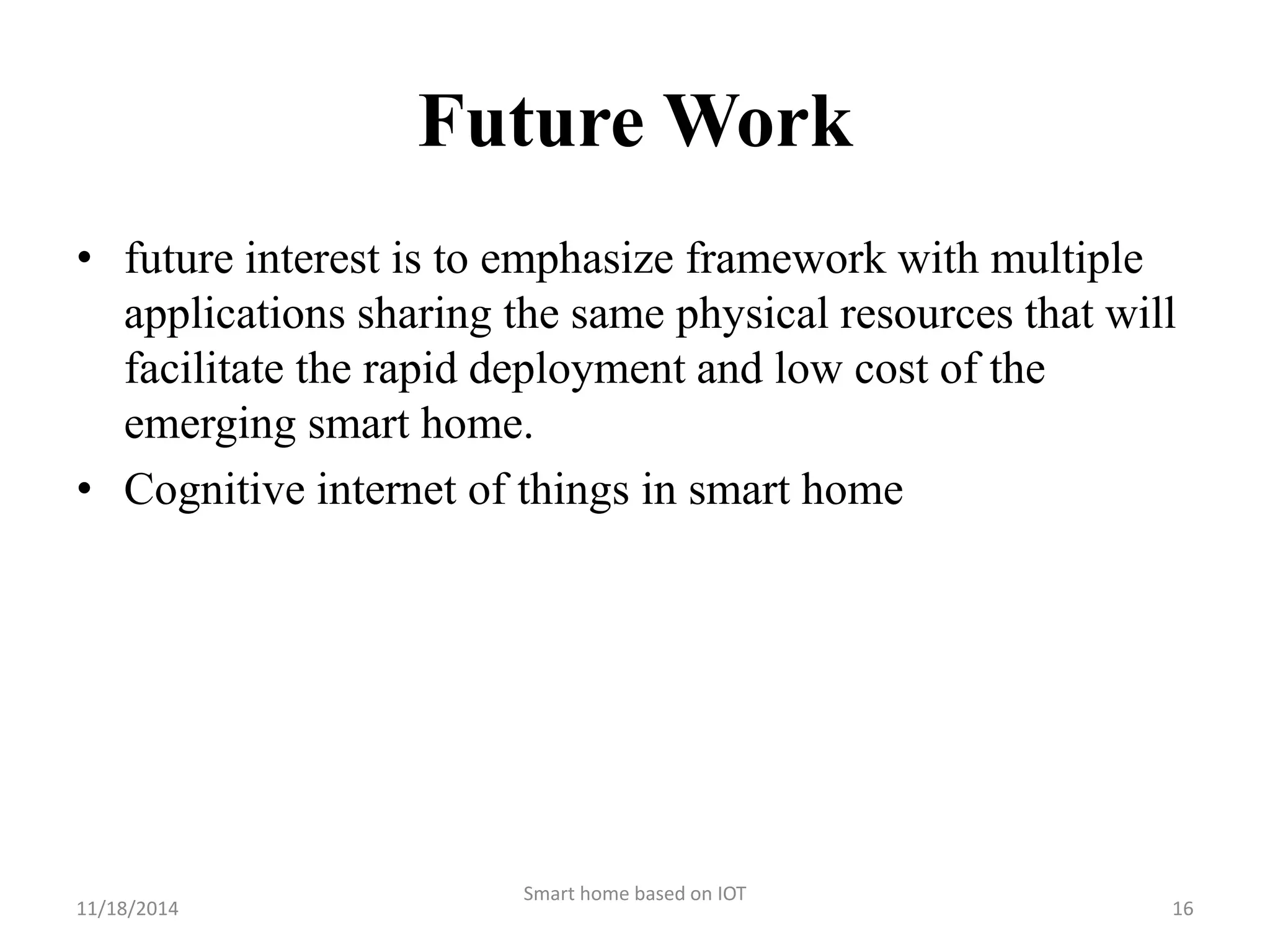

16. Future Work
• future interest is to emphasize framework with multiple
applications sharing the same physical resources that will
facilitate the rapid deployment and low cost of the
emerging smart home.
• Cognitive internet of things in smart home
Smart home based on IOT
11/18/2014 16

17. References
• [1] Design and Implementation of Remote/Short-range Smart Home Monitoring
System Based on ZigBee and STM32
Yuanxin Lin, Rui Kong, Rongbin She and Shugao Deng
• An Efficient Model for Smart Home by the Virtualization of Wireless Sensor
Network
Md. Motaharul Islam, Jun Hyuk Lee, and Eui-Nam Huh
• Internet of Things: Ubiquitous Home Control and Monitoring System using
Android based Smart Phone
Rajeev Piyare
• The Implementation of Smart Home System Based on 3G and ZigBee in Wireless
Network Systems
Gwang Jun Kim, Chang Soo Jang, Chan Ho Yoon, Seung Jin Jang and Jin Woo
Lee
• . Cognitive Internet of Things: A New Paradigm beyond Connection
QihuiWu,, Guoru Ding, , Yuhua Xu,, Shuo Feng, Zhiyong Du, JinlongWang,
11/18/2014 Smart home based on IOT 17

18. References
• The Design of Wireless Smart Home System based on ZigBee
Gao Mingming+ and Shao Liangshan
• Home Computing Unplugged: Why, Where and When People Use
Different Connected Devices at Home
Fahim Kawsar A. J. Bernheim Brush
• Preserving Privacy in Social City Networks via Small Cells
Geert Vanderhulst Fahim Kawsar
• Location Aware Resource Management in Smart Homes
Abhishek Roy, Soumya K. Das Bhaumik, Amiya Bhattacharya
• Conceptual framework for IOT, virtualization via openFlow in context
aware networks
Rahim Rahmani, Arif Mahmud
11/18/2014 <Title of Seminar> 18

19. Thank You!!!
11/18/2014 Smart home based on IOT 19
