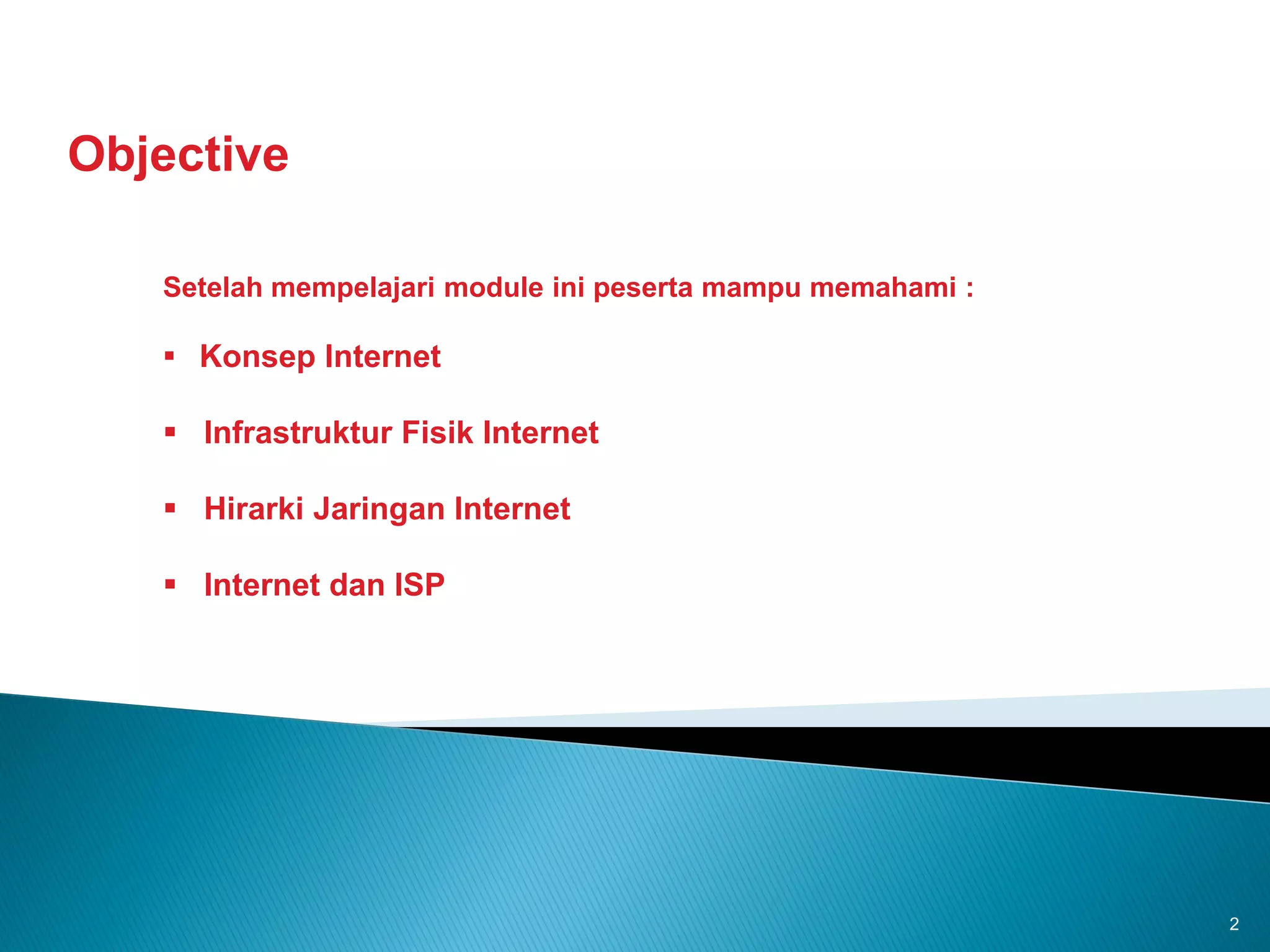

2. Objective
Setelah mempelajari module ini peserta mampu memahami :
Konsep Internet
Infrastruktur Fisik Internet
Hirarki Jaringan Internet
Internet dan ISP
2
3. Internet adalah :
Kumpulan jaringan packet switching yang terinterkoneksi dengan
berbasis pada protokol TCP/IP
3
4. Terdiri dari jutaan host (end system) yang dihubungkan oleh
link dan router
Host mempertukarkan message dg menggunakan protocol,
Router meneruskan data
◦ Berdasarkan service best effort
◦ Tdk ada jaminan terhadap kehilangan atau ketepatan waktu
“Networks of networks”
◦ Loosely hierarchical
◦ Akses Internet disediakan oleh ISP (Internet Service Provider)
4
5. • Jaringan dikoneksikan via router membentuk entitas
yg lebih besar
• Paket IP dikirimkankan melewati banyak jaringan
5
6. • user dihubungkan ke core network
lewat access network
• Link speed relatif rendah:
Teknologi akses: dial up (modem over
twisted pair), XDSL, Cable modem
• Mencakup fungsionalitas billing,
managemen traffic utk tiap access
• Topologi tree
• Tdk ada user dihubungkan
langsung ke core network
• Link speed tinggi:
GE, 10GE
• Fungsionalitas sederhana
(forward packet)
• Topologi mesh
“access network” “core network”
6
8. Internet terdiri dari hirarki Tier ISP (Internet Service
Provider)
◦ Tier -1 ISP :
backbone utama dari global IP network
Backbone utama : tidak membeli koneksi ke ISP lain.
◦ Tier -2 ISP :
terhubung ke Tier – 1 ISP dan ke Tier - 2 ISP yang lain
◦ Tier - 3 ISP :
terhubung ke Tier -2 ISP dan ke Tier - 3 ISP yang lain
Definisi ISP : perusahaan (badan usaha) yang
menjual koneksi internet atau sejenisnya kepada
pelanggan.
8
10. Hirarki Jaringan Internet
C&WTier1
Tier2
Hutchison STIX Reach
Tier3
ISP A
ISP B
ISP C
ISP D
ISP E
NTT Communications
ANCKDDI
ISP FISP G
ISP ISP ISP ISP ISPISP ISP
SprintUUNet
Global
Crossing
OCN
CNC
10
