The document discusses different types of intermediate representations (IR) used in compilers. It describes how the front-end produces an IR, the middle-end transforms the IR into an equivalent more efficient form, and the back-end transforms the IR into native code. The three major categories of IRs are structural like trees and DAGs, linear like three-address code, and hybrid forms that combine graphs and linear code. Decisions in IR design affect compiler speed and efficiency.

1. Intermediate Code
Representations

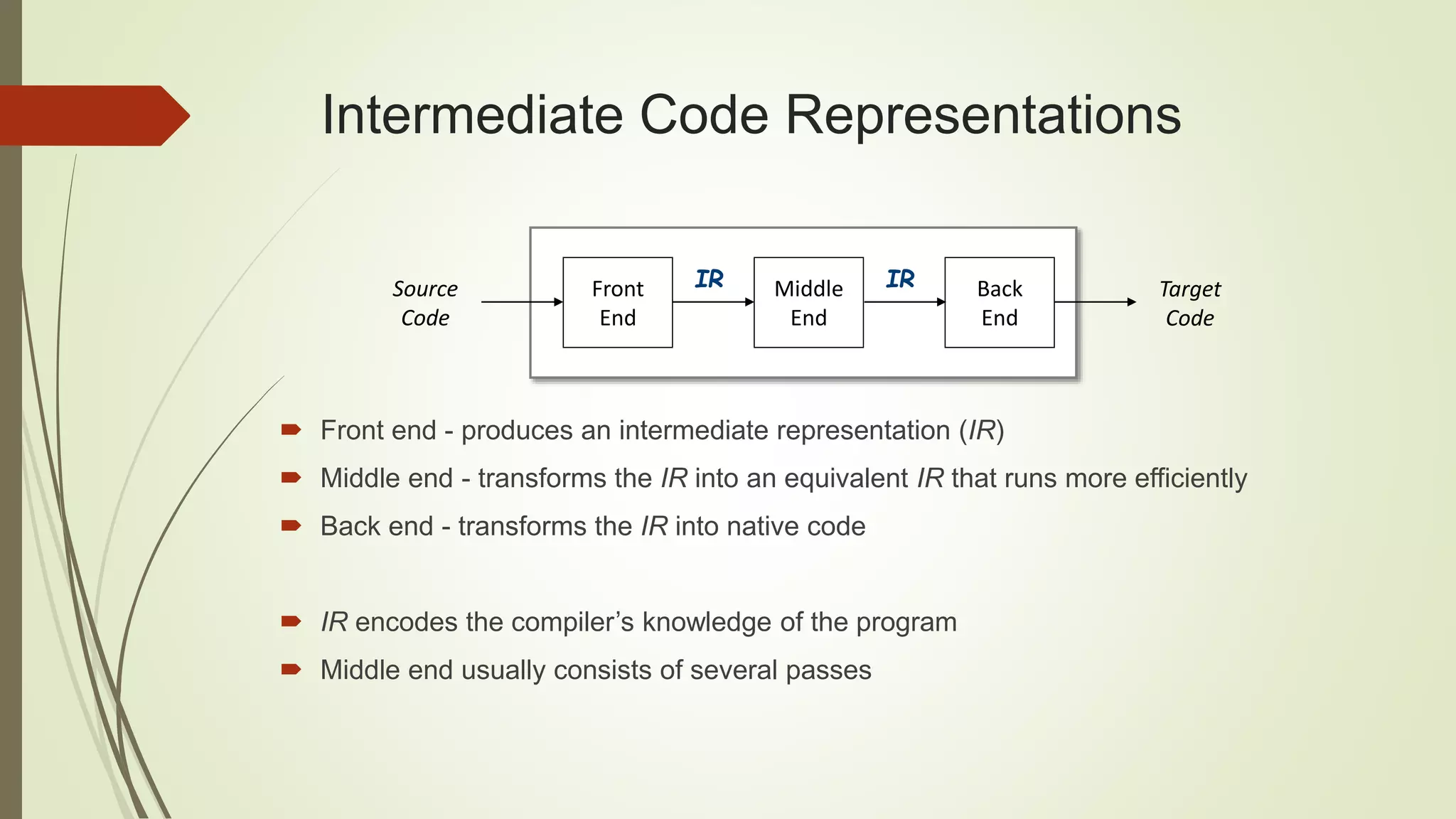

2. Intermediate Code Representations
 Front end - produces an intermediate representation (IR)
 Middle end - transforms the IR into an equivalent IR that runs more efficiently
 Back end - transforms the IR into native code
 IR encodes the compiler’s knowledge of the program
 Middle end usually consists of several passes
Front
End
Middle
End
Back
End
IR IRSource
Code
Target
Code

3. Intermediate Code Representations
 Decisions in IR design affect the speed and efficiency
of the compiler
 Some important IR properties
 Ease of generation
 Ease of manipulation
 Procedure size
 Freedom of expression
 Level of abstraction
 The importance of different properties varies between compilers

4. Types of Intermediate Representations
Three major categories
 Structural
 Graphically oriented
 Heavily used in source-to-source translators
 Tend to be large
 Examples: Trees, DAGs
 Linear
 Pseudo-code for an abstract machine
 Level of abstraction varies
 Simple, compact data structures
 Easier to rearrange
 Example: 3 Address Code, Stack Machine Code

5. Types of Intermediate Representations
 Hybrid
 Combination of graphs and linear code
 Example: control-flow graph
Structural
DAG’s Syntax Tree
 It is sometimes beneficial to crate a DAG instead of tree for Expressions.
 This way we can easily show the common sub-expressions and then use that
knowledge during code generation
 Example: a+a*(b-c)+(b-c)*d

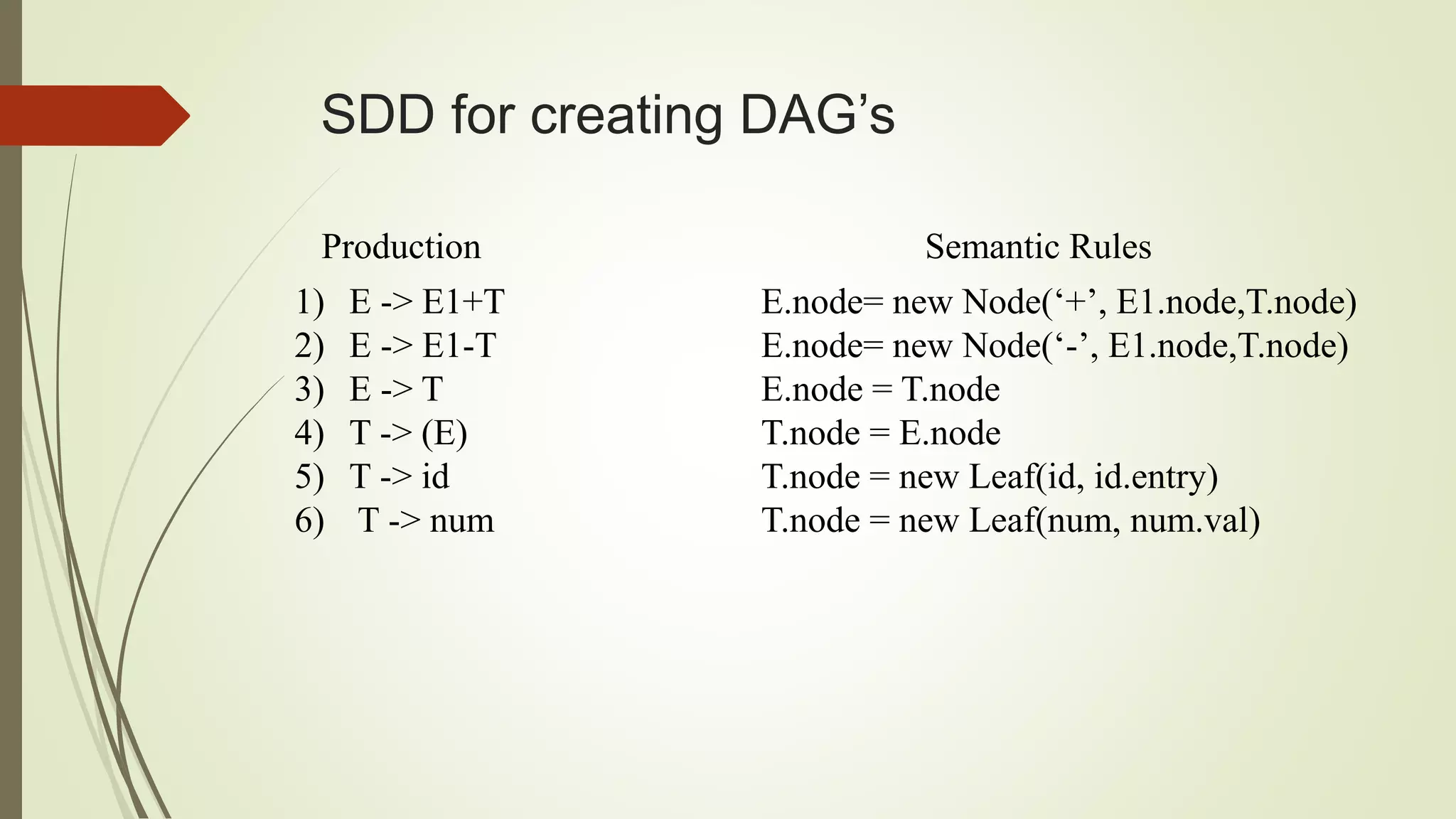

6. SDD for creating DAG’s
Production Semantic Rules
1) E -> E1+T
2) E -> E1-T
3) E -> T
4) T -> (E)
5) T -> id
6) T -> num
E.node= new Node(‘+’, E1.node,T.node)
E.node= new Node(‘-’, E1.node,T.node)
E.node = T.node
T.node = E.node
T.node = new Leaf(id, id.entry)
T.node = new Leaf(num, num.val)

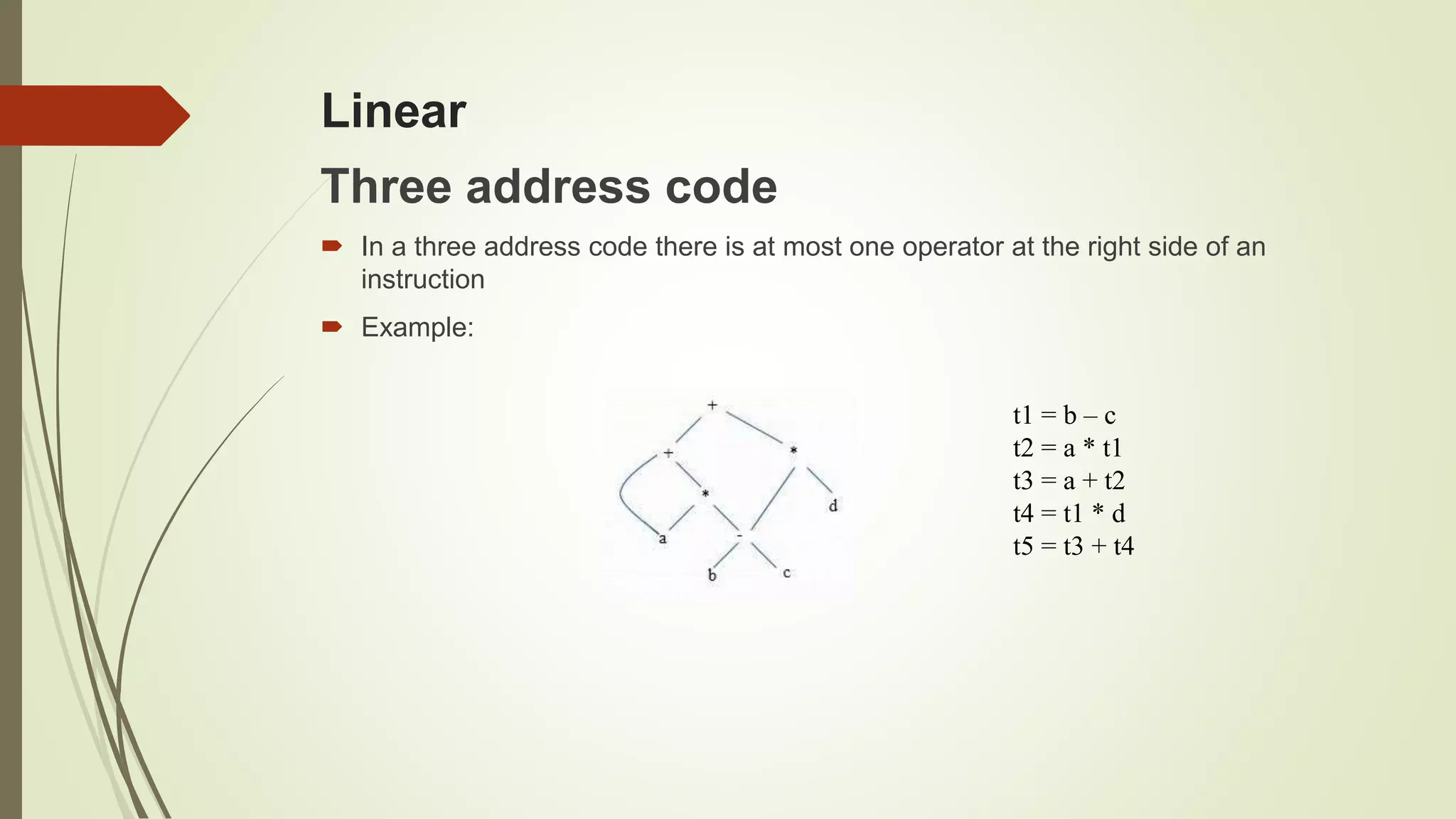

7. Linear
Three address code
 In a three address code there is at most one operator at the right side of an
instruction
 Example:
t1 = b – c
t2 = a * t1
t3 = a + t2
t4 = t1 * d
t5 = t3 + t4

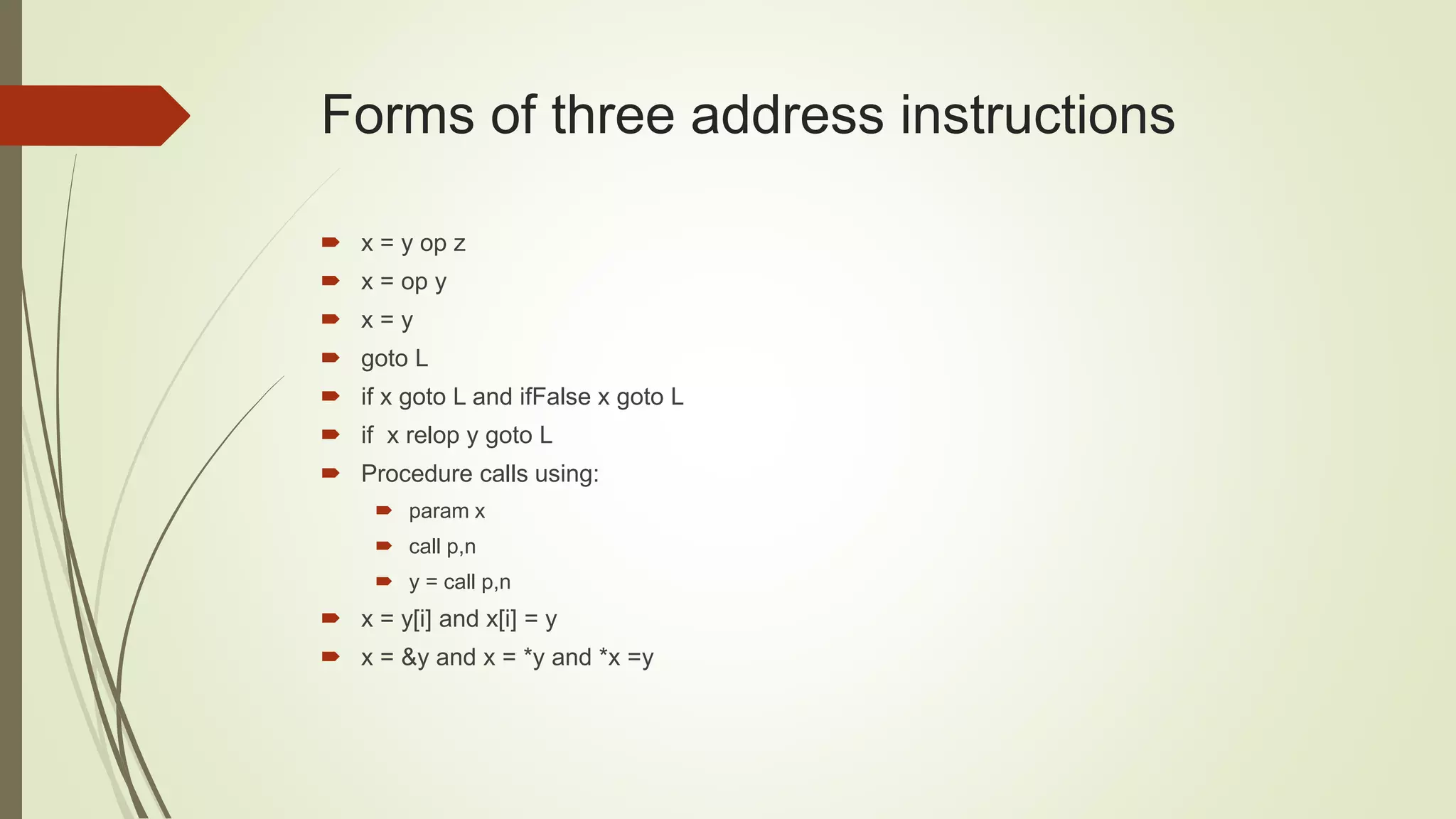

8. Forms of three address instructions
 x = y op z
 x = op y
 x = y
 goto L
 if x goto L and ifFalse x goto L
 if x relop y goto L
 Procedure calls using:
 param x
 call p,n
 y = call p,n
 x = y[i] and x[i] = y
 x = &y and x = *y and *x =y

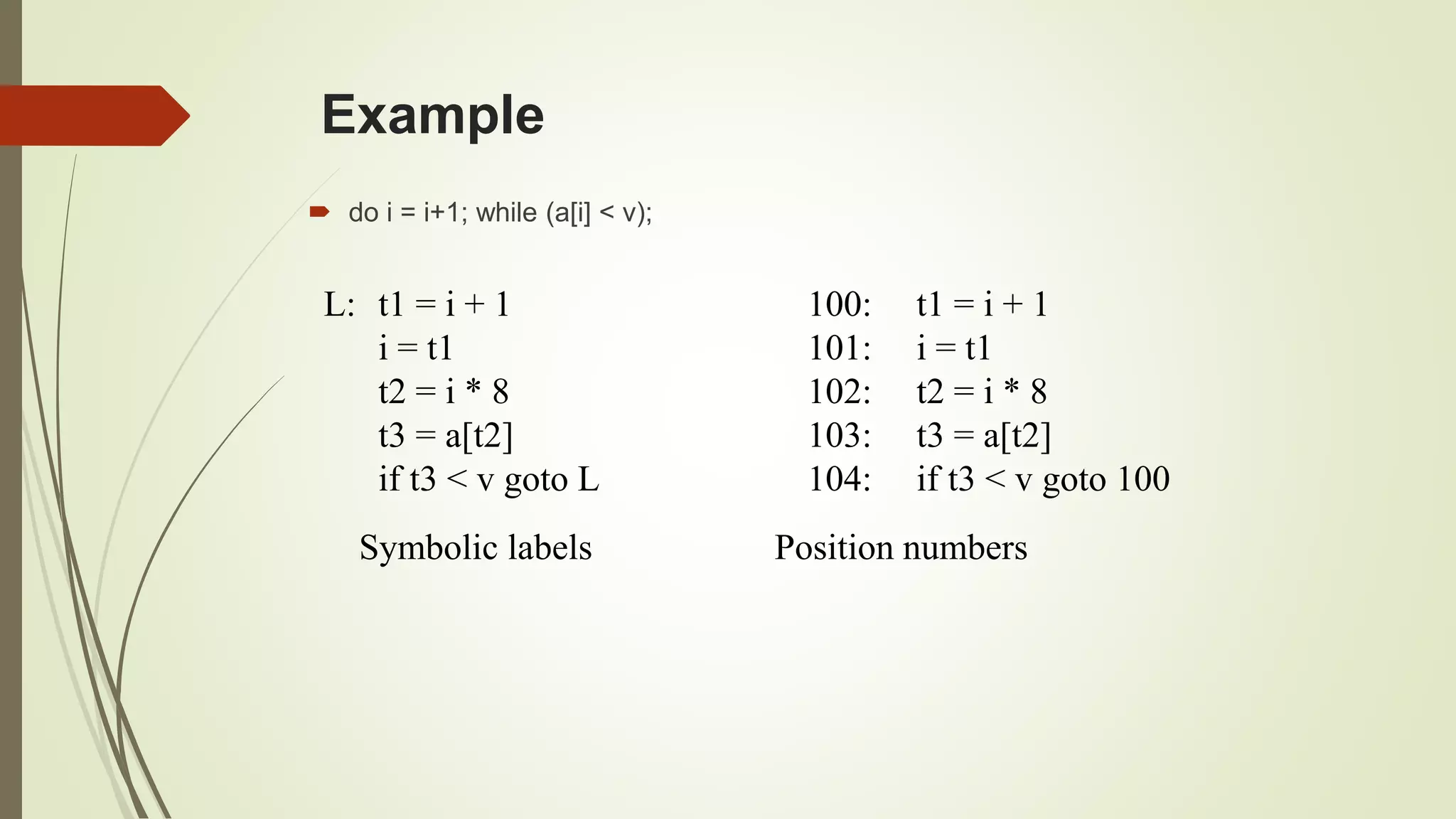

9. Example
 do i = i+1; while (a[i] < v);
L: t1 = i + 1
i = t1
t2 = i * 8
t3 = a[t2]
if t3 < v goto L
100: t1 = i + 1
101: i = t1
102: t2 = i * 8
103: t3 = a[t2]
104: if t3 < v goto 100
Symbolic labels Position numbers

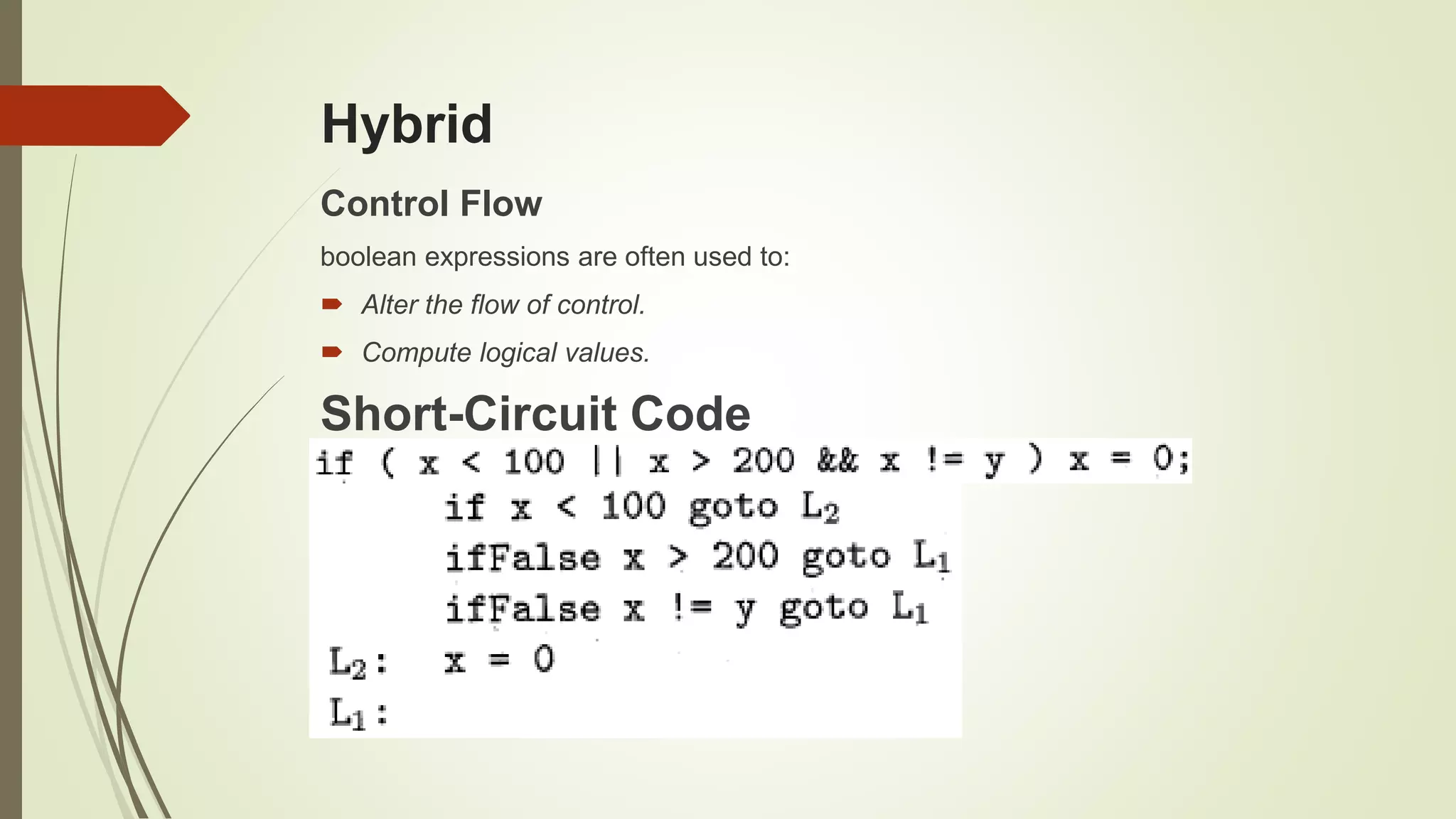

10. Hybrid
Control Flow
boolean expressions are often used to:
 Alter the flow of control.
 Compute logical values.
Short-Circuit Code

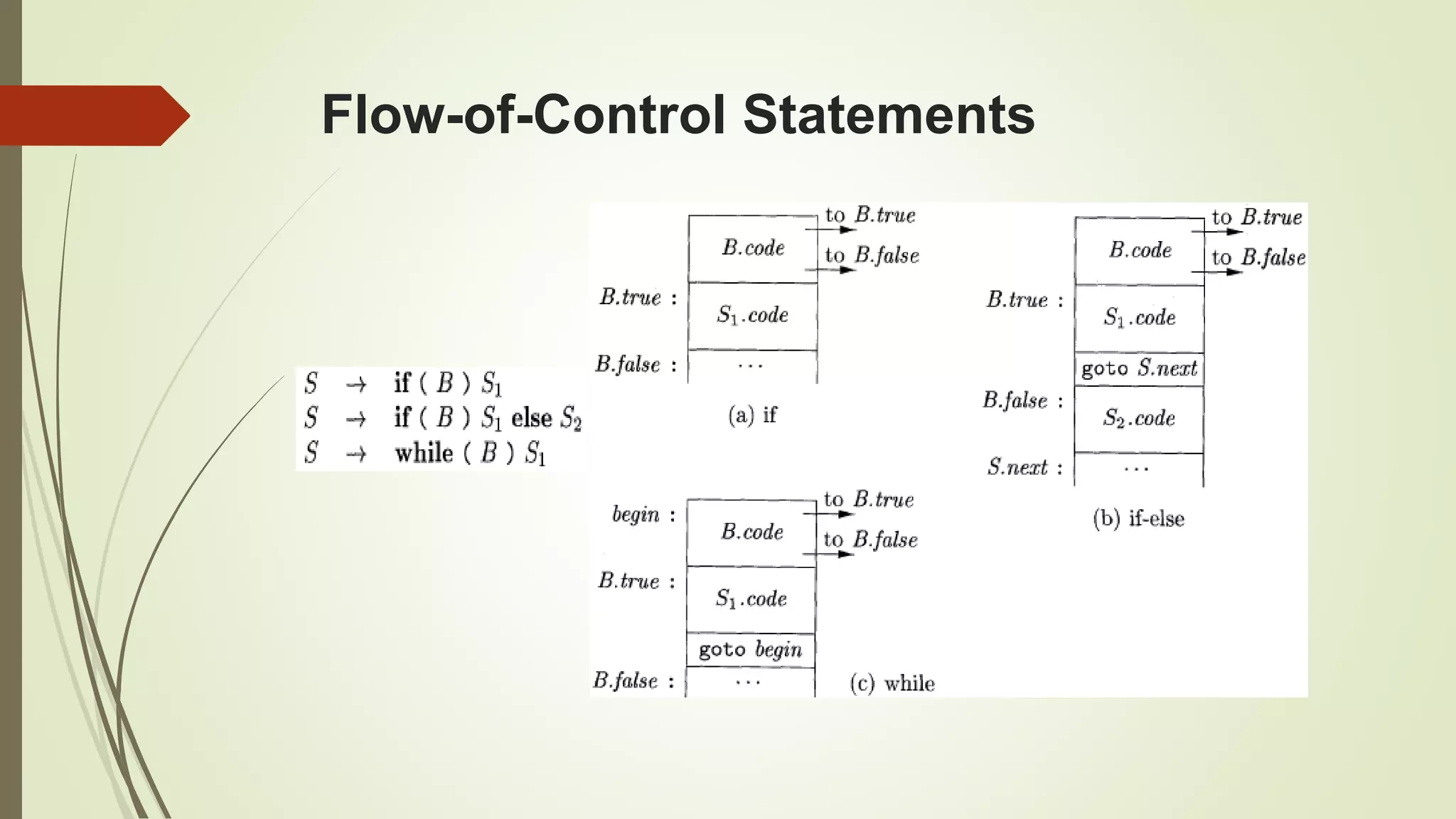

11. Flow-of-Control Statements
