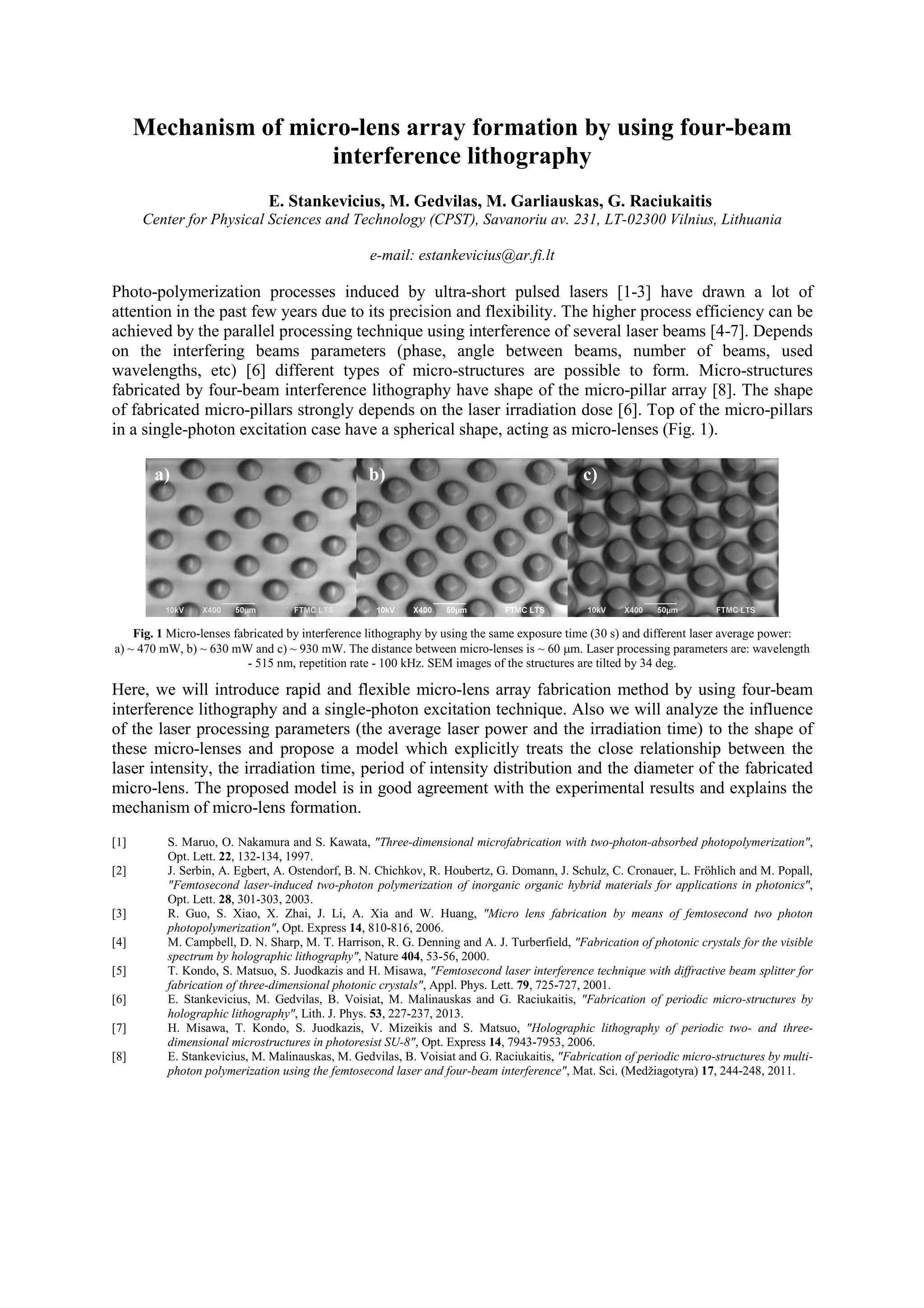

![Mechanism of micro-lens array formation by using four-beam
interference lithography
E. Stankevicius, M. Gedvilas, M. Garliauskas, G. Raciukaitis
Center for Physical Sciences and Technology (CPST), Savanoriu av. 231, LT-02300 Vilnius, Lithuania
e-mail: estankevicius@ar.fi.lt
Photo-polymerization processes induced by ultra-short pulsed lasers [1-3] have drawn a lot of
attention in the past few years due to its precision and flexibility. The higher process efficiency can be
achieved by the parallel processing technique using interference of several laser beams [4-7]. Depends
on the interfering beams parameters (phase, angle between beams, number of beams, used
wavelengths, etc) [6] different types of micro-structures are possible to form. Micro-structures
fabricated by four-beam interference lithography have shape of the micro-pillar array [8]. The shape
of fabricated micro-pillars strongly depends on the laser irradiation dose [6]. Top of the micro-pillars
in a single-photon excitation case have a spherical shape, acting as micro-lenses (Fig. 1).
Fig. 1 Micro-lenses fabricated by interference lithography by using the same exposure time (30 s) and different laser average power:
a) ~ 470 mW, b) ~ 630 mW and c) ~ 930 mW. The distance between micro-lenses is ~ 60 µm. Laser processing parameters are: wavelength
- 515 nm, repetition rate - 100 kHz. SEM images of the structures are tilted by 34 deg.
Here, we will introduce rapid and flexible micro-lens array fabrication method by using four-beam
interference lithography and a single-photon excitation technique. Also we will analyze the influence
of the laser processing parameters (the average laser power and the irradiation time) to the shape of
these micro-lenses and propose a model which explicitly treats the close relationship between the
laser intensity, the irradiation time, period of intensity distribution and the diameter of the fabricated
micro-lens. The proposed model is in good agreement with the experimental results and explains the
mechanism of micro-lens formation.
[1] S. Maruo, O. Nakamura and S. Kawata, "Three-dimensional microfabrication with two-photon-absorbed photopolymerization",
Opt. Lett. 22, 132-134, 1997.
[2] J. Serbin, A. Egbert, A. Ostendorf, B. N. Chichkov, R. Houbertz, G. Domann, J. Schulz, C. Cronauer, L. Fröhlich and M. Popall,
"Femtosecond laser-induced two-photon polymerization of inorganic organic hybrid materials for applications in photonics",
Opt. Lett. 28, 301-303, 2003.
[3] R. Guo, S. Xiao, X. Zhai, J. Li, A. Xia and W. Huang, "Micro lens fabrication by means of femtosecond two photon
photopolymerization", Opt. Express 14, 810-816, 2006.
[4] M. Campbell, D. N. Sharp, M. T. Harrison, R. G. Denning and A. J. Turberfield, "Fabrication of photonic crystals for the visible
spectrum by holographic lithography", Nature 404, 53-56, 2000.
[5] T. Kondo, S. Matsuo, S. Juodkazis and H. Misawa, "Femtosecond laser interference technique with diffractive beam splitter for
fabrication of three-dimensional photonic crystals", Appl. Phys. Lett. 79, 725-727, 2001.
[6] E. Stankevicius, M. Gedvilas, B. Voisiat, M. Malinauskas and G. Raciukaitis, "Fabrication of periodic micro-structures by
holographic lithography", Lith. J. Phys. 53, 227-237, 2013.
[7] H. Misawa, T. Kondo, S. Juodkazis, V. Mizeikis and S. Matsuo, "Holographic lithography of periodic two- and three-
dimensional microstructures in photoresist SU-8", Opt. Express 14, 7943-7953, 2006.
[8] E. Stankevicius, M. Malinauskas, M. Gedvilas, B. Voisiat and G. Raciukaitis, "Fabrication of periodic micro-structures by multi-
photon polymerization using the femtosecond laser and four-beam interference", Mat. Sci. (Medžiagotyra) 17, 244-248, 2011.
a) b) c)](https://image.slidesharecdn.com/e-150515111436-lva1-app6891/85/interference-lithography-1-320.jpg)
