This document discusses Intel technologies for cloud computing solutions, focusing on the Intel Xeon E5-2600 v3 processor family. It highlights improvements in performance, power efficiency, and storage optimization capabilities enabled by the new processor family. These include increased floating point and vector processing performance from AVX 2.0, higher power efficiency from per-core power states, and faster encryption and compression from new instructions. The document also outlines networking and storage technologies integrated with the processors, such as Intel SSDs and 40Gb Ethernet controllers.

1. Технологии Intel® для облачных решений
Игорь Сысоев
17 сентября 2014

2. IT Challenges: What to Worry About Next?
Implement
Private Cloud
Data
Analytics
Performance
Improvement
Improved
Utilization
Energy
Efficiency
Operating
Expense
2

3. Compute Storage Network
• Data management and media
management
• Automated tiers and
management
• Massively scalable
3

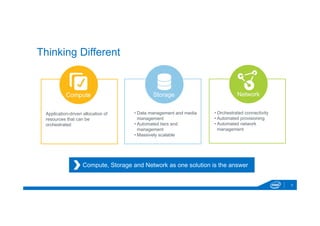

Thinking Different
Application-driven allocation of
resources that can be
orchestrated
• Orchestrated connectivity
• Automated provisioning
• Automated network
management
Compute, Storage and Network as one solution is the answer

4. 4
Intel® Xeon® E5-2600 v3 Product Family
Up to 70% increase in workload performance with Intel® AVX 2^
Up to 36% increase in power efficiency with smarter power cores
with Per Core P-States (PCPS)+
Enabling virtualization orchestration with
Cache QoS monitoring

5. • Node Manager 3.0
• Cache QoS Monitoring
5
Product Family Features
• Advanced Vector Extensions (AVX) 2.0
• PCPS (Per Core P-States)
• DDR4 Memory
• Virtual Machine Control Structure (VMCS) Shadowing
• Data Deduplication
• Intelligent Tiering
• Thin Provisioning
• Data Encryption
• SSDs
Compute
Storage
Network
• 10/40 Gb Ethernet Controller
• Network virtualization offloads
• Flow Director
• Network Functions Virtualizations

6. • Node Manager 3.0
• Cache QoS Monitoring
6
Product Family Features
• Advanced Vector Extensions (AVX) 2.0
• PCPS (Per Core P-States)
• DDR4 Memory
• Virtual Machine Control Structure (VMCS) Shadowing
• Data Deduplication
• Intelligent Tiering
• Thin Provisioning
• Data Encryption
• SSDs
Compute
Storage
Network
• 10/40 Gb Ethernet Controller
• Network virtualization offloads
• Flow Director
• Network Functions Virtualizations

7. 7

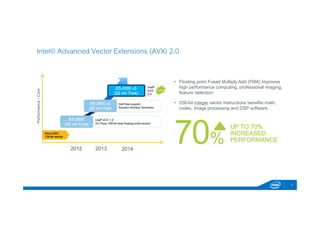

Intel® Advanced Vector Extensions (AVX) 2.0
2012 2013 2014
Performance Core
Intel®
AVX
2.0
Intel® AVX 1.0
2X Flops: 256-bit wide floating point-vectors
E5-2600
(32 nm Tock)
Half-float support,
Random Number Generator
E5-2600 v2
(22 nm Tick)
E5-2600 v3
(22 nm Tock)
Since 2001:
128-bit vectors
new
• Floating point Fused Multiply Add (FMA) improves
high performance computing, professional imaging,
feature detection
• 256-bit integer vector instructions benefits math,
codec, image processing and DSP software.
% UP TO 70%
INCREASED
PERFORMANCE

8. 8

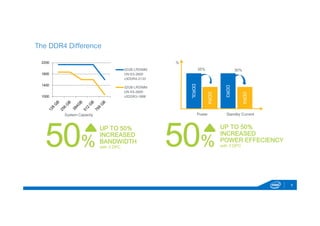

The DDR4 Difference
2200
1800
1400
1000
32GB LRDIMM
ON E5-2600
v3DDR4-2133
32GB LRDIMM
ON E5-2600
v2DDR3-1866
System Capacity
DDR3L
DDR3
DDR4
DDR4
Power Standby Current
%
35% 30%
UP TO 50%
UP TO 50%
INCREASED
INCREASED
%
BANDWIDTH
POWER EFFECIENCY
with 3 DPC
%
with 3 DPC

9. 9

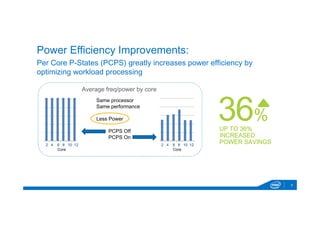

Power Efficiency Improvements:
Per Core P-States (PCPS) greatly increases power efficiency by
optimizing workload processing
Average freq/power by core
Same processor
Same performance
Less Power
PCPS Off
PCPS On
2 4 6 8 10 12
Core
2 4 6 8 10 12
Core
%
UP TO 36%
INCREASED
POWER SAVINGS

10. Management Console
Intel® Data Center Manager SDK
Report
Generation
Policy
Engine
Multi-Node Data
Aggregation
BMC
3rd Party Device
Telemetry
Platform Power Inlet
Temperature
Outlet
New New New New
Temperature
(No sensor req’d)
Volumetric Airflow
(No sensor req’d)
CPU, Memory &
I/O Utilization
Metrics
Compute
Utilization Per
Second (CUPS)
1001
1101
0001
1111
0101
1011
10

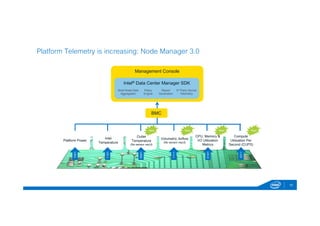

Platform Telemetry is increasing: Node Manager 3.0

11. • Node Manager 3.0
• Cache QoS Monitoring
11
Product Family Features
• Advanced Vector Extensions (AVX) 2.0
• PCPS (Per Core P-States)
• DDR4 Memory
• Virtual Machine Control Structure (VMCS) Shadowing
• Data Deduplication
• Intelligent Tiering
• Thin Provisioning
• Data Encryption
• SSDs
Compute
Storage
Network
• 10/40 Gb Ethernet Controller
• Network virtualization offloads
• Flow Director
• Network Functions Virtualizations

12. 12

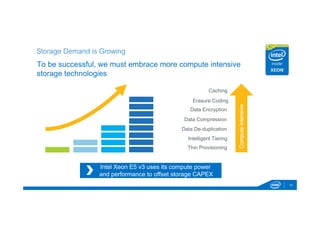

Storage Demand is Growing
To be successful, we must embrace more compute intensive
storage technologies
Caching
Erasure Coding
Data Encryption
Data Compression
Intelligent Tiering
Thin Provisioning
Compute Intensive
Data De-duplication
Intel Xeon E5 v3 uses its compute power
and performance to offset storage CAPEX

13. 13

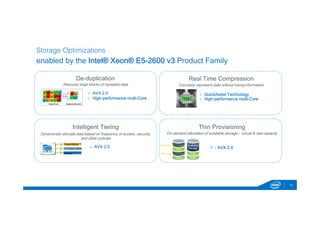

Storage Optimizations
enabled by the Intel® Xeon® E5-2600 v3 Product Family
Intelligent Tiering
Dynamically allocate data based on frequency of access, security,
and other policies
Real Time Compression
Concisely represent data without losing information
Thin Provisioning
On-demand allocation of available storage – virtual & real capacity
De-duplication
Reduces large blocks of repeated data
√ AVX 2.0
√ High-performance multi-Core
√ QuickAssist Technology
√ High-performance multi-Core
√ AVX 2.0  - AVX 2.0
Flash/SSDs
FC/SAS HDDs
& Sata
Allocated & Unused
Data
Allocated & Unused
Data
Available
Storage
Data
Data

14. 14

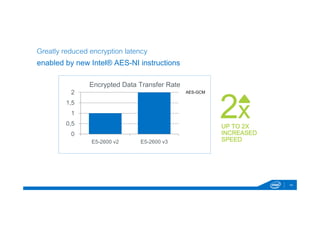

Greatly reduced encryption latency
enabled by new Intel® AES-NI instructions
x UP TO 2X
INCREASED
SPEED
2
1,5
1
0,5
0
Encrypted Data Transfer Rate
E5-2600 v2 E5-2600 v3
AES-GCM

15. 15
Intel® SSDs for the Data Center
Feed your Starving Apps
Consistent performance providing
high minimum IOP performance
Stress Free Protection
Enterprise class End-to-end data
and power loss protection to help
ensure data integrity
Non-Volatile Memory Express
(NVMe)
Lowers memory latency
PCI Express Interface
Designed to deliver amazing
speeds
Intel® SSD Data Center Family
Maximize your $/IOPs with consistent
performance, data protection, and reliability
Fantastic
Highest
Performance
High Endurance
for high performance,
write intensive
applications
Great
Higher Performance
Mid Endurance
for high performance,
mixed workloads
DC S3500
Series
SATA
Good
High Performance
Standard
Endurance
for read intensive
applications
DC S3610
Series
SATA
DC S3700
Series
SATA
DC P3500
Series
PCIe
DC P3700
Series
PCIe
DC P3600
Series
PCIe
New
New
New

16. • Node Manager 3.0
• Cache QoS Monitoring
16

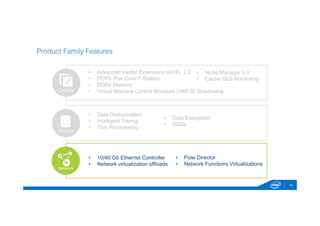

Product Family Features
• Advanced Vector Extensions (AVX) 2.0
• PCPS (Per Core P-States)
• DDR4 Memory
• Virtual Machine Control Structure (VMCS) Shadowing
• Data Deduplication
• Intelligent Tiering
• Thin Provisioning
• Data Encryption
• SSDs
• 10/40 Gb Ethernet Controller
• Network virtualization offloads
Compute
Storage
Network
• Flow Director
• Network Functions Virtualizations

17. Fortville 10GbE / 40GbE Designed for E5 v3
Fortville Differentiation
• Next Gen 10 / 40GbE – Architected for next generation
virtualized cloud environments
• SW Defined Infrastructure - Network Virtualization Offload, Intel®
Ethernet Flow director for traffic steering
• Network Functions Virtualization – Excellent small packet
performance, Intel® DPDK
Performance
Virtualization: VMDq, SR-IOV,
Flow Director
DPDK Optimized
17
Proven
Platform validation
Intel Drivers
30 years – Just Works
Flexible
Converged: LAN / SAN
Broad Interfaces: 2x40,
1x40, 4x10, 2x10
Designed for Software Defined Infrastructure

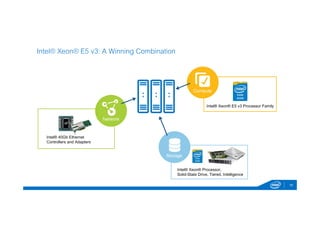

18. Intel® Xeon® E5 v3 Processor Family
Intel® Xeon® Processor,
Solid-State Drive, Tiered, Intelligence
Intel® 40Gb Ethernet
Controllers and Adapters
18
Intel® Xeon® E5 v3: A Winning Combination
Compute
Network
Storage
