This document provides descriptions and uses of various surgical instruments and implants used in orthopedic procedures. It discusses retractors, bone levers, awls, hooks, elevators, forceps, nibblers, cutters, mallets, chisels, osteotomes, gouges, curettes, clamps, drills, guides, handles, gauges, drivers, cutters, saws, files, implants, plates, screws, nails, wires, prostheses and external fixation devices. Each tool is defined along with its orthopedic applications.

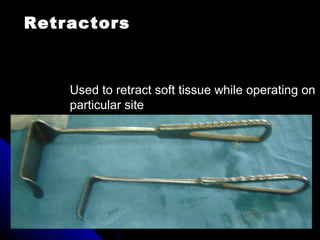

2. Retractors
Used to retract soft tissue while operating on
particular site

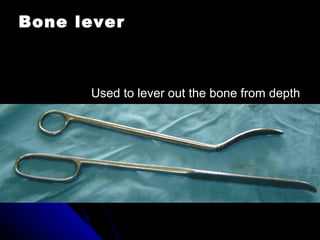

3. Bone lever
Used to lever out the bone from depth

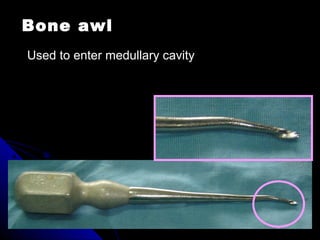

4. Bone awl
Used to enter medullary cavity

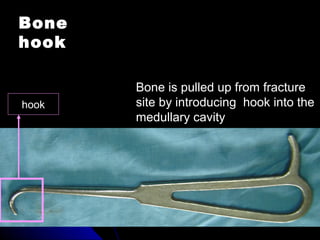

5. Bone
hook
Bone is pulled up from fracture
site by introducing hook into the
medullary cavity
hook

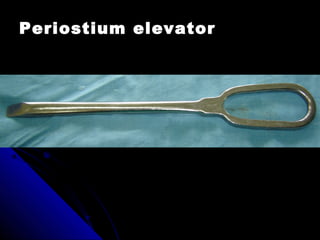

6. Periostium elevator

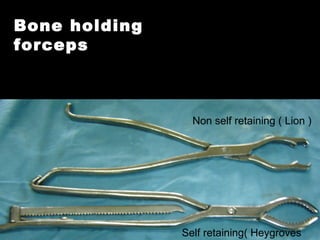

7. Bone holding
forceps
Self retaining( Heygroves
Non self retaining ( Lion )

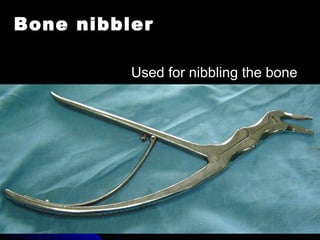

8. Bone nibbler
Used for nibbling the bone

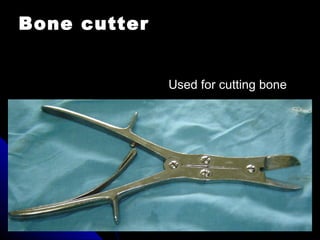

9. Bone cutter
Used for cutting bone

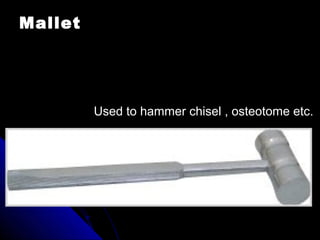

10. Mallet
Used to hammer chisel , osteotome etc.

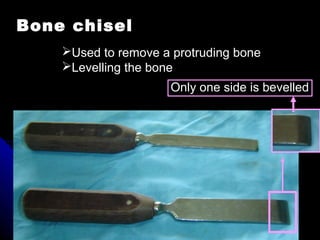

11. Bone chisel
Only one side is bevelled
Used to remove a protruding bone
Levelling the bone

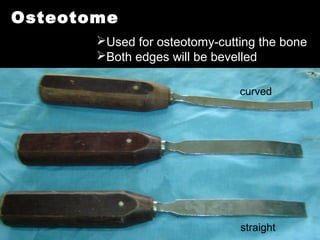

12. Osteotome
Used for osteotomy-cutting the bone
Both edges will be bevelled
curved
straight

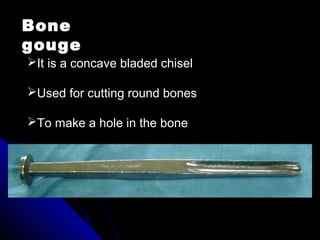

13. Bone
gouge
It is a concave bladed chisel
Used for cutting round bones
To make a hole in the bone

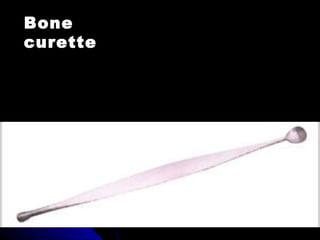

14. Bone
curette

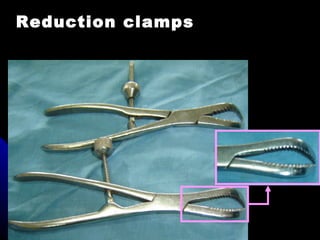

15. Reduction clamps

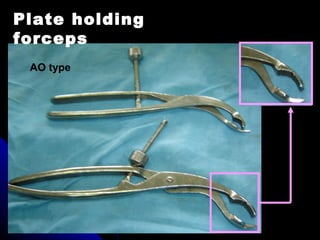

16. Plate holding
forceps
AO type

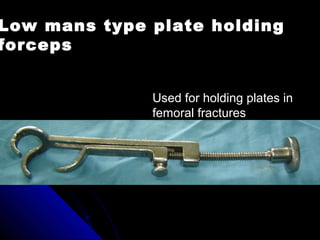

17. Low mans type plate holding
forceps
Used for holding plates in
femoral fractures

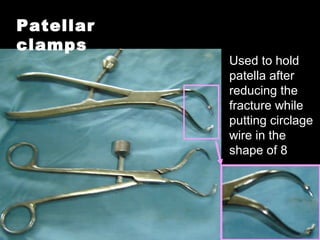

18. Patellar
clamps
Used to hold
patella after
reducing the
fracture while
putting circlage
wire in the
shape of 8

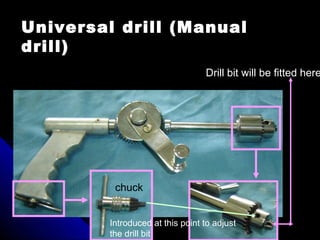

19. chuck
Introduced at this point to adjust
the drill bit
Drill bit will be fitted here
Universal drill (Manual
drill)

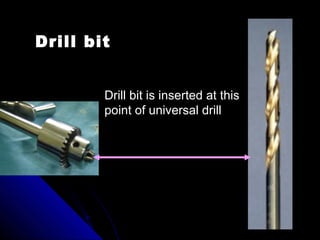

20. Drill bit
Drill bit is inserted at this
point of universal drill

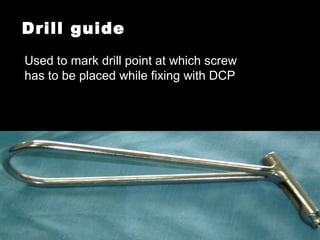

21. Drill guide
Used to mark drill point at which screw
has to be placed while fixing with DCP

22. T handle
Used to hold shanz
pin while introducing
into bone Pin is
introduced at
this point

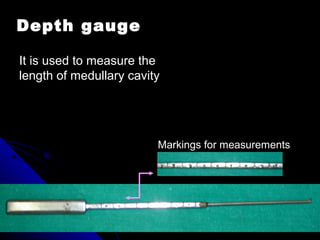

23. 2 3 4 5 6 7 8 9 10
Depth gauge
It is used to measure the
length of medullary cavity
Markings for measurements

24. Screw
driver
Different type of tips are available
– hexagonal, square etc.

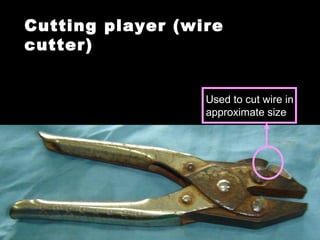

25. Cutting player (wire
cutter)
Used to cut wire in
approximate size

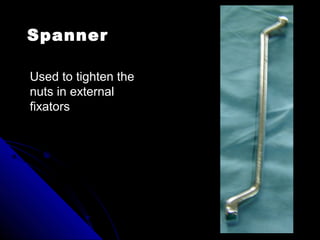

26. Spanner
Used to tighten the
nuts in external
fixators

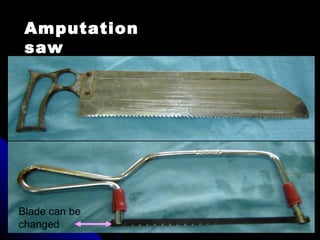

27. Amputation
saw
Blade can be
changed

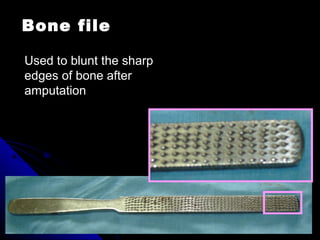

28. Bone file
Used to blunt the sharp
edges of bone after
amputation

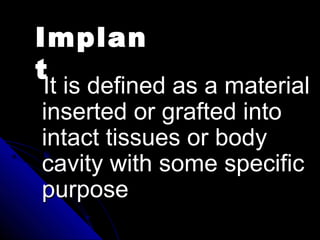

30. It is defined as a materialIt is defined as a material
inserted or grafted intoinserted or grafted into
intact tissues or bodyintact tissues or body
cavity with some specificcavity with some specific
purposepurpose
Implan
t

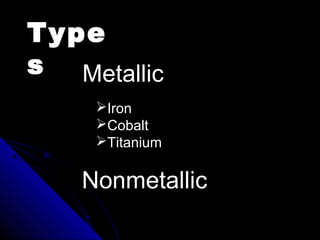

31. MetallicMetallic
Iron
Cobalt
Titanium
Nonmetallic
Type
s

32. PlatesPlates
ScrewsScrews
Extra medullary
fixation

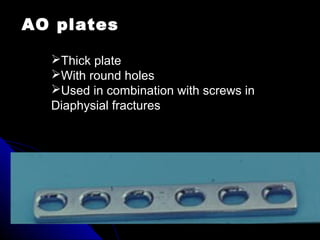

33. Thick plate
With round holes
Used in combination with screws in
Diaphysial fractures
AO plates

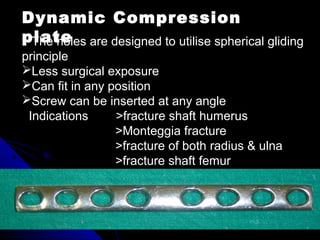

34. The holes are designed to utilise spherical gliding
principle
Less surgical exposure
Can fit in any position
Screw can be inserted at any angle
Indications >fracture shaft humerus
>Monteggia fracture
>fracture of both radius & ulna
>fracture shaft femur
Dynamic Compression
plate

35. Least contact dynamic
compression
plate(LCDCP)
Used In osteoporotic bone
Indications >fracture of both radius & ulna
>Montegia fracture

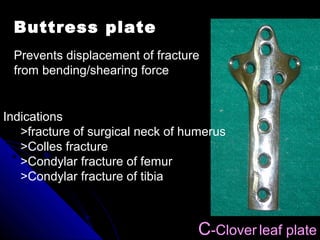

36. Prevents displacement of fracture
from bending/shearing force
C-Clover leaf plate
Buttress plate
Indications
>fracture of surgical neck of humerus
>Colles fracture
>Condylar fracture of femur
>Condylar fracture of tibia

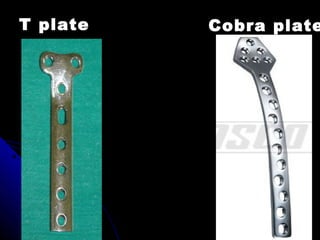

37. Cobra plateT plate

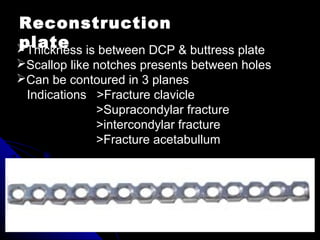

38. Reconstruction
plateThickness is between DCP & buttress plate
Scallop like notches presents between holes
Can be contoured in 3 planes
Indications >Fracture clavicle
>Supracondylar fracture
>intercondylar fracture
>Fracture acetabullum

39. T - plate
Oblique T plate
Indications
>intercondylar fracture of humerus
>Condylar fracture of tibia

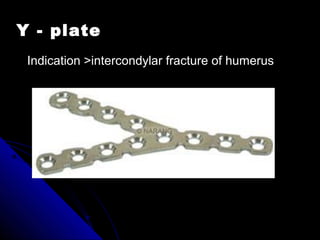

40. Y - plate
Indication >intercondylar fracture of humerus

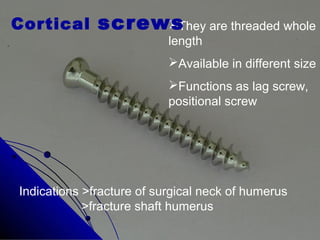

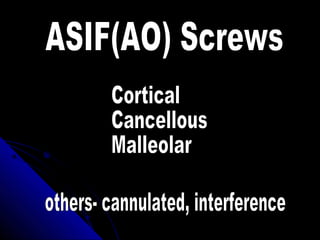

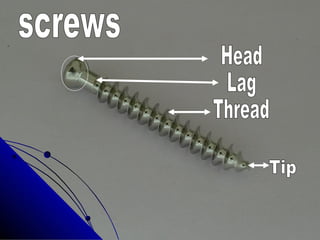

43. They are threaded whole
length
Available in different size
Functions as lag screw,
positional screw
Cortical screws
Indications >fracture of surgical neck of humerus
>fracture shaft humerus

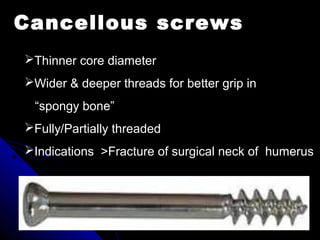

44. Thinner core diameter
Wider & deeper threads for better grip in
“spongy bone”
Fully/Partially threaded
Indications >Fracture of surgical neck of humerus
Cancellous screws

45. head
tip
Modified hollow screws
Indications
>fracture neck femur
>Intercondylar fracture of femur
>Intercondylar fracture of tibia

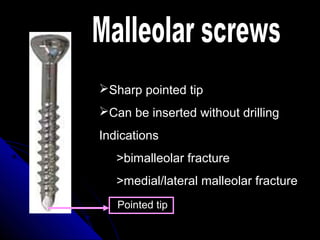

46. Sharp pointed tip
Can be inserted without drilling
Indications
>bimalleolar fracture
>medial/lateral malleolar fracture
Pointed tip

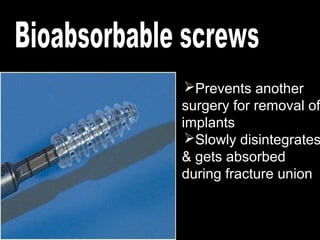

47. Prevents another
surgery for removal of
implants
Slowly disintegrates
& gets absorbed
during fracture union

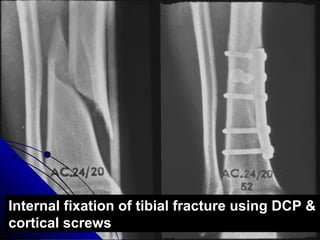

48. Internal fixation of tibial fracture using DCP &
cortical screws

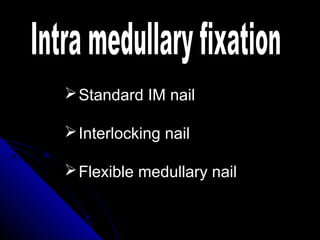

49. Standard IM nail
Interlocking nail
Flexible medullary nail

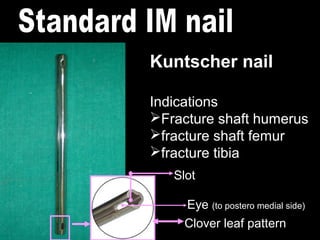

50. Kuntscher nail
Indications
Fracture shaft humerus
fracture shaft femur
fracture tibia
Clover leaf pattern
Eye (to postero medial side)
Slot

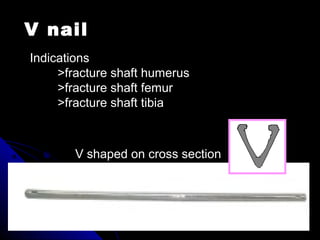

51. V nail
V shaped on cross section
Indications
>fracture shaft humerus
>fracture shaft femur
>fracture shaft tibia

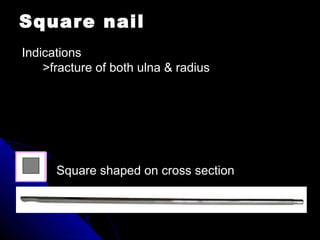

52. Square nail
Square shaped on cross section
Indications
>fracture of both ulna & radius

53. Rush nail
Indication
>fracture of ulna & radius

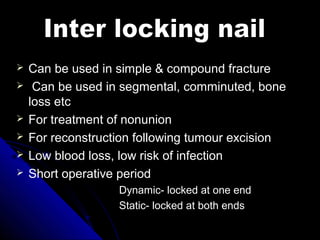

54.  Can be used in simple & compound fracture
 Can be used in segmental, comminuted, bone
loss etc
 For treatment of nonunion
 For reconstruction following tumour excision
 Low blood loss, low risk of infection
 Short operative period
Dynamic- locked at one end
Static- locked at both ends

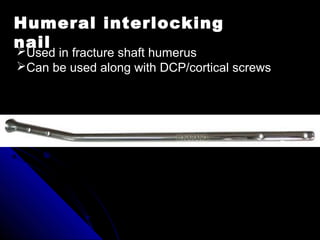

55. Humeral interlocking
nailUsed in fracture shaft humerus
Can be used along with DCP/cortical screws

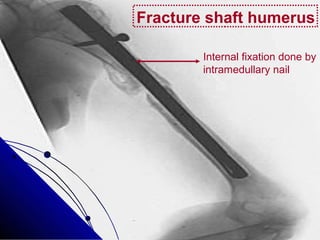

56. Fracture shaft humerus
Internal fixation done by
intramedullary nail

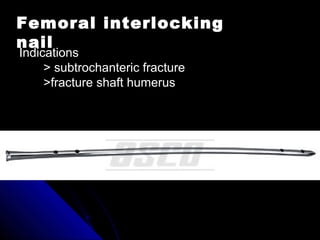

57. Femoral interlocking
nail
Indications
> subtrochanteric fracture
>fracture shaft humerus

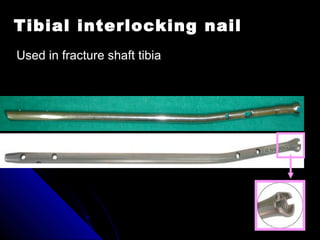

58. Tibial interlocking nail
Used in fracture shaft tibia

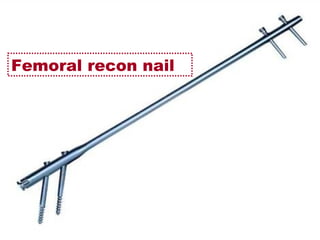

59. Femoral recon nail

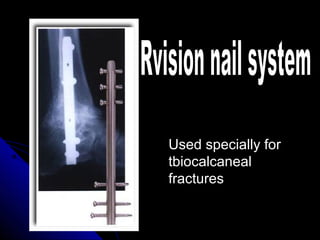

60. Used specially for
tbiocalcaneal
fractures

61. Enders nail
Rush nail
Flexible medullary nail
(condylo cephalic
nail)
Passed from distal to proximal
Fracture fixation is achieved by three
point pressure system

62. K wire
Threaded tip
Trocar tip

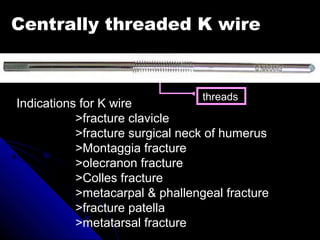

63. Centrally threaded K wire
threads
Indications for K wire
>fracture clavicle
>fracture surgical neck of humerus
>Montaggia fracture
>olecranon fracture
>Colles fracture
>metacarpal & phallengeal fracture
>fracture patella
>metatarsal fracture

64. Reduction achieved through the K wire

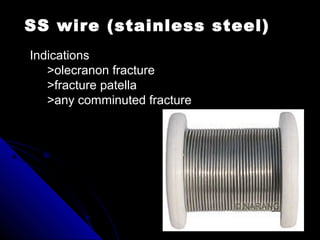

65. SS wire (stainless steel)
Indications
>olecranon fracture
>fracture patella
>any comminuted fracture

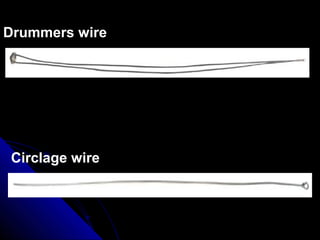

66. Drummers wire
Circlage wire

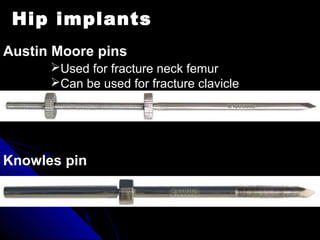

67. Hip implants
Austin Moore pins
Knowles pin
Used for fracture neck femur
Can be used for fracture clavicle

68. Dynamic hip screw
Has lag screw & barrel
Indications
>fracture neck femur
>trochanteric fracture
of femur
>subtrochanteric
fracture

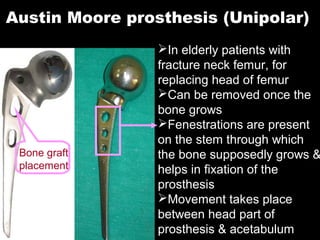

69. Austin Moore prosthesis (Unipolar)
In elderly patients with
fracture neck femur, for
replacing head of femur
Can be removed once the
bone grows
Fenestrations are present
on the stem through which
the bone supposedly grows &
helps in fixation of the
prosthesis
Movement takes place
between head part of
prosthesis & acetabulum
Bone graft
placement

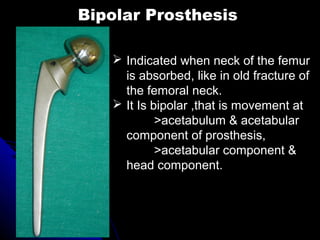

70. Bipolar Prosthesis
 Indicated when neck of the femur
is absorbed, like in old fracture of
the femoral neck.
 It Is bipolar ,that is movement at
>acetabulum & acetabular
component of prosthesis,
>acetabular component &
head component.

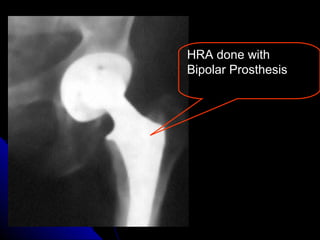

71. HRA done with
Bipolar Prosthesis

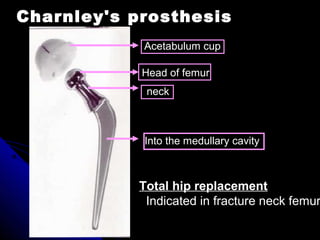

72. Charnley's prosthesis
Into the medullary cavity
neck
Head of femur
Acetabulum cup
Total hip replacement
Indicated in fracture neck femur

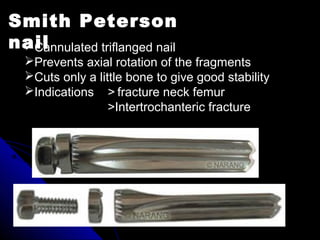

73. Smith Peterson
nailCannulated triflanged nail
Prevents axial rotation of the fragments
Cuts only a little bone to give good stability
Indications > fracture neck femur
>Intertrochanteric fracture

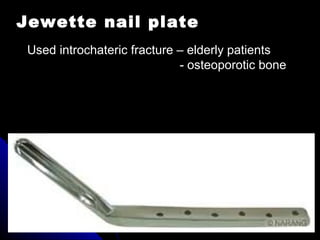

74. Jewette nail plate
Used introchateric fracture – elderly patients
- osteoporotic bone

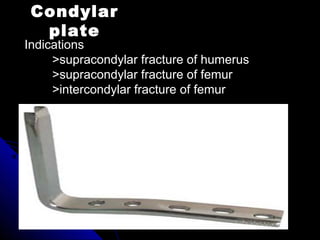

75. Condylar
plate
Indications
>supracondylar fracture of humerus
>supracondylar fracture of femur
>intercondylar fracture of femur

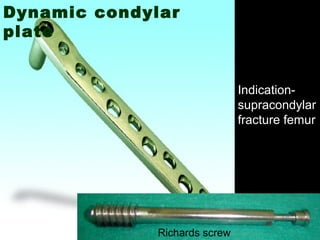

76. Dynamic condylar
plate
Richards screw
Indication-
supracondylar
fracture femur

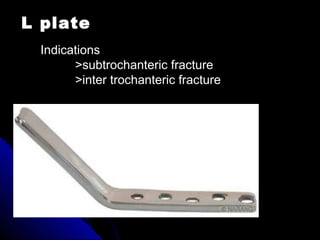

77. L plate
Indications
>subtrochanteric fracture
>inter trochanteric fracture

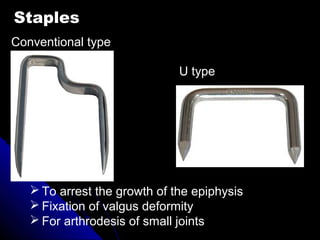

78. Staples
Conventional type
U type
 To arrest the growth of the epiphysis
 Fixation of valgus deformity
 For arthrodesis of small joints

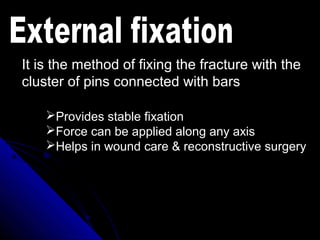

79. It is the method of fixing the fracture with the
cluster of pins connected with bars
Provides stable fixation
Force can be applied along any axis
Helps in wound care & reconstructive surgery

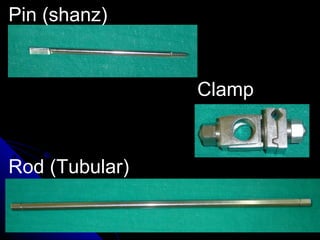

80. Pin (shanz)
Clamp
Rod (Tubular)

81. External fixators for
forearm
Used for
comminuted
fracture of
distal end of
radius

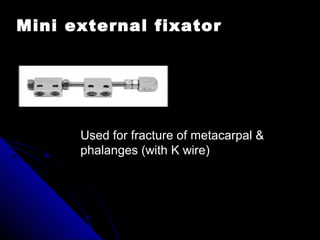

82. Mini external fixator
Used for fracture of metacarpal &
phalanges (with K wire)

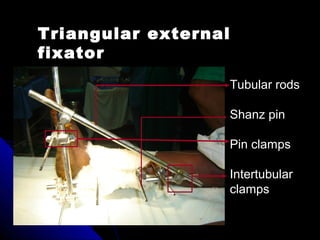

83. Triangular external
fixator
Tubular rods
Shanz pin
Pin clamps
Intertubular
clamps

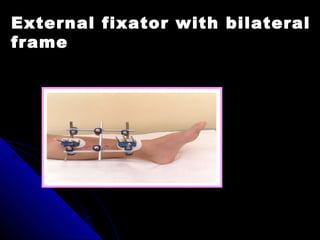

84. External fixator with bilateral
frame

85. Adjustable external fixator

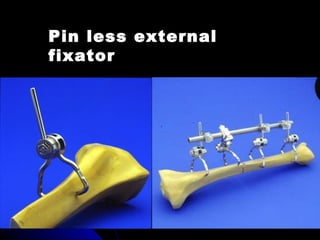

86. Pin less external
fixator

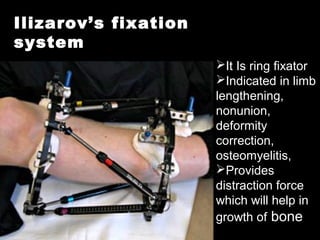

87. Ilizarov’s fixation
system
It Is ring fixator
Indicated in limb
lengthening,
nonunion,
deformity
correction,
osteomyelitis,
Provides
distraction force
which will help in
growth of bone
