1. Sam Dillard, Solutions Architect
Getting Started Series
Optimizing InfluxDB
Performance

2. © 2017 InfluxData. All rights reserved.2 © 2017 InfluxData. All rights reserved.2

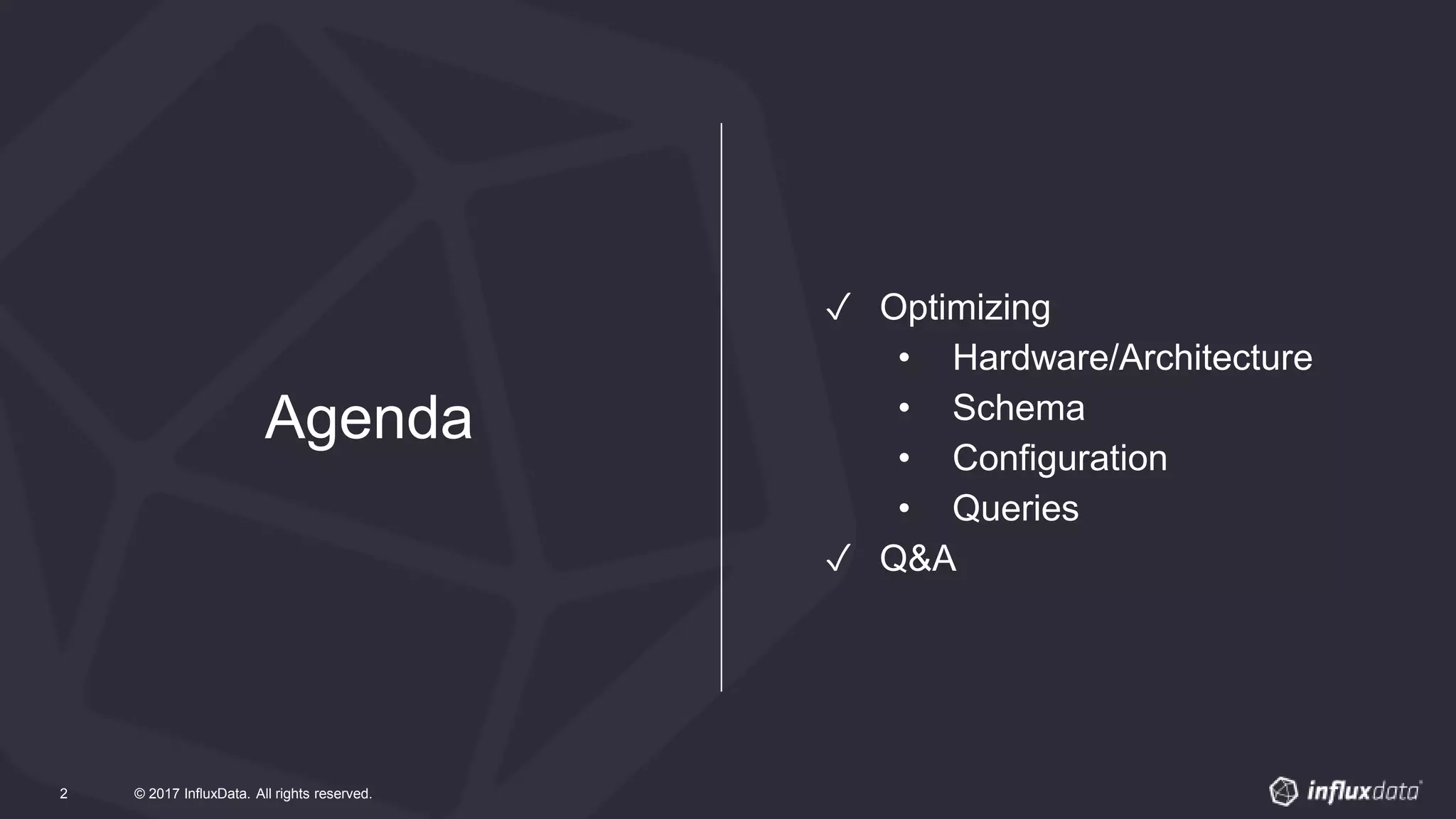

✓ Optimizing
• Hardware/Architecture
• Schema
• Configuration
• Queries
✓ Q&A
Agenda

3. Hardware & Architecture

4. © 2017 InfluxData. All rights reserved.4

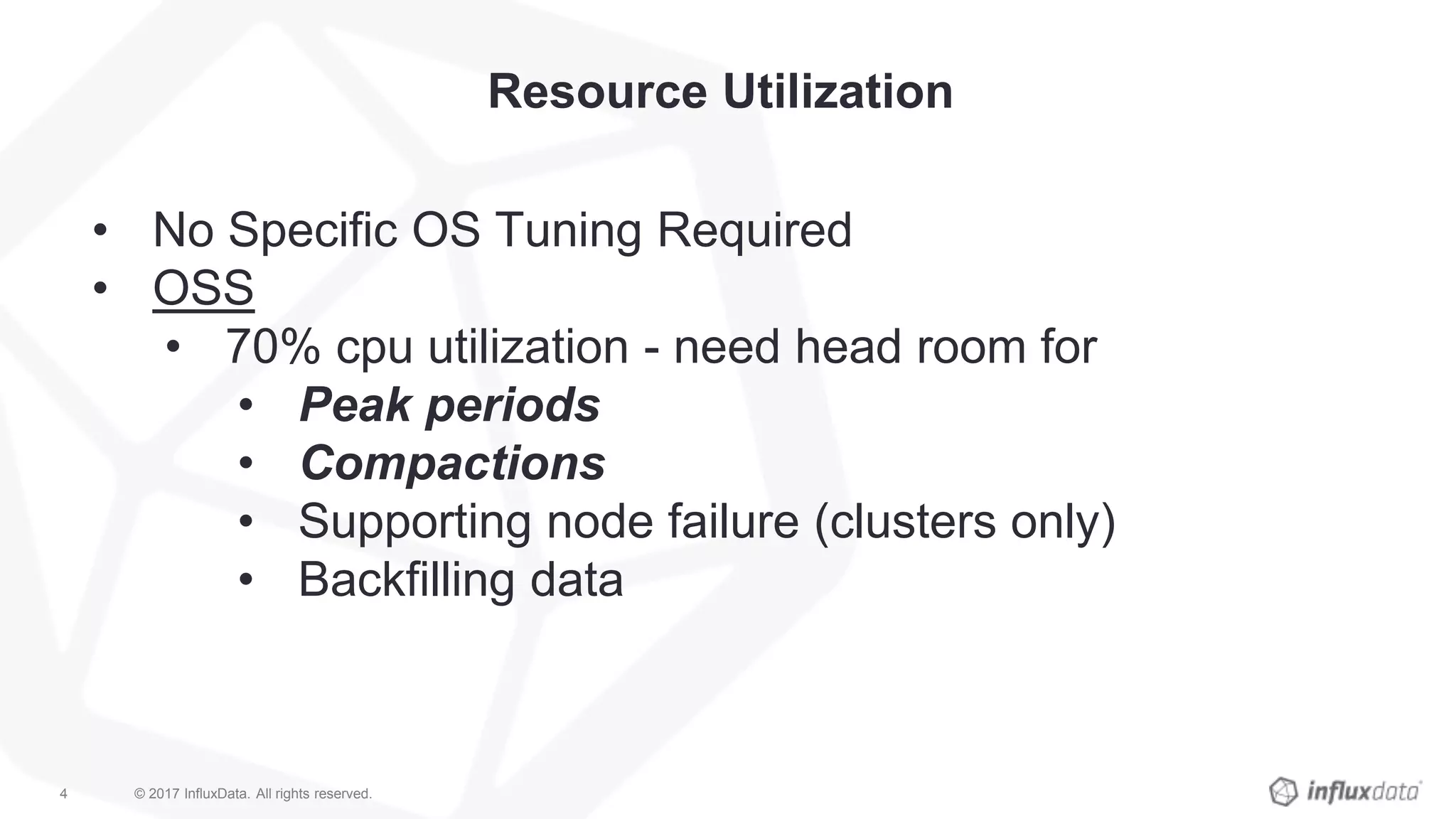

Resource Utilization
• No Specific OS Tuning Required
• OSS
• 70% cpu utilization - need head room for
• Peak periods
• Compactions
• Supporting node failure (clusters only)
• Backfilling data

5. © 2017 InfluxData. All rights reserved.5 © 2017 InfluxData. All rights reserved.5

6. © 2017 InfluxData. All rights reserved.6

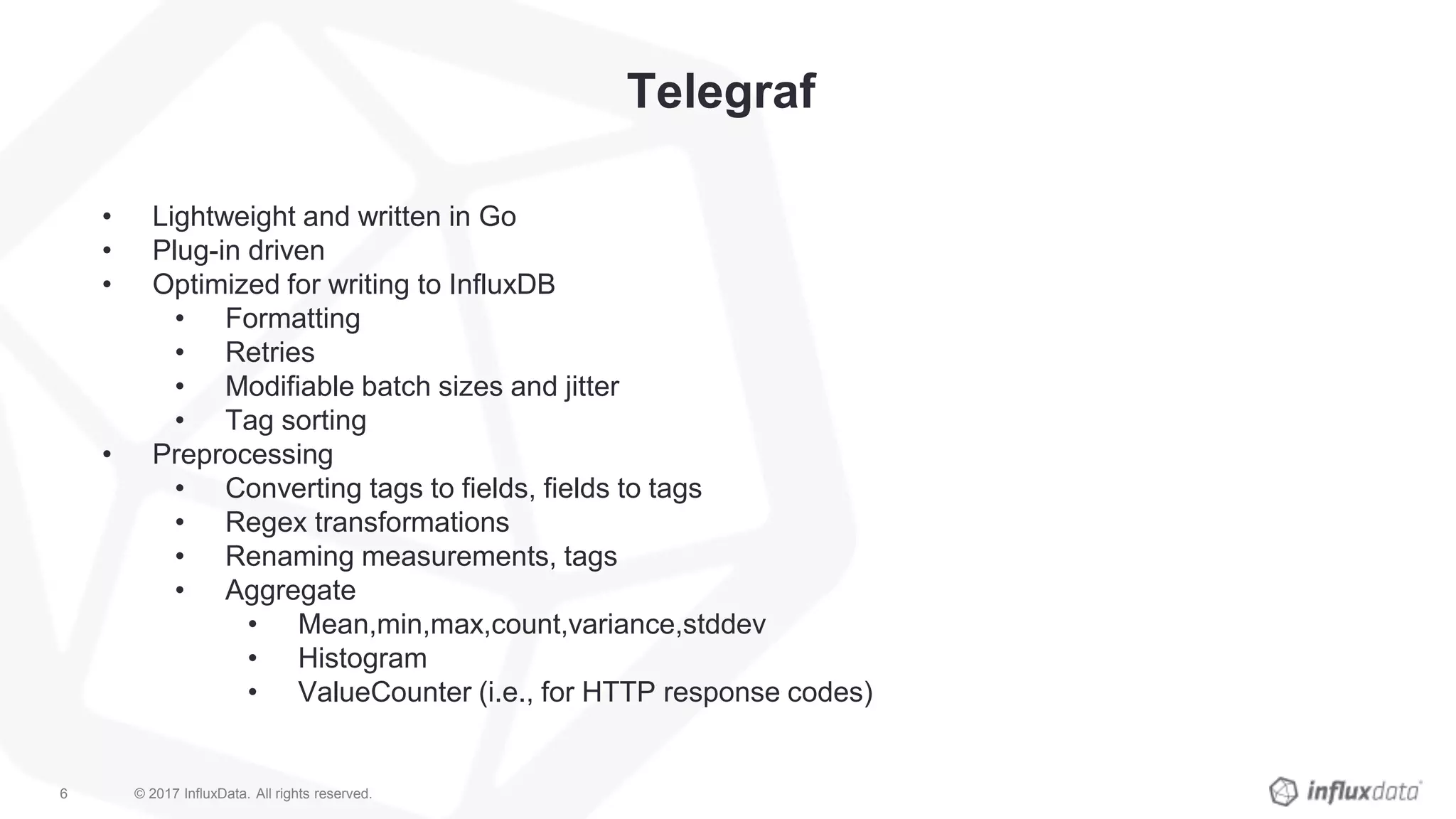

Telegraf
• Lightweight and written in Go
• Plug-in driven
• Optimized for writing to InfluxDB
• Formatting
• Retries
• Modifiable batch sizes and jitter
• Tag sorting
• Preprocessing
• Converting tags to fields, fields to tags
• Regex transformations
• Renaming measurements, tags
• Aggregate
• Mean,min,max,count,variance,stddev
• Histogram
• ValueCounter (i.e., for HTTP response codes)

7. © 2017 InfluxData. All rights reserved.7

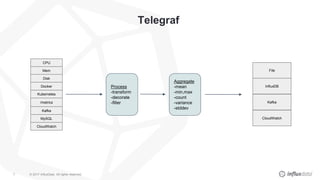

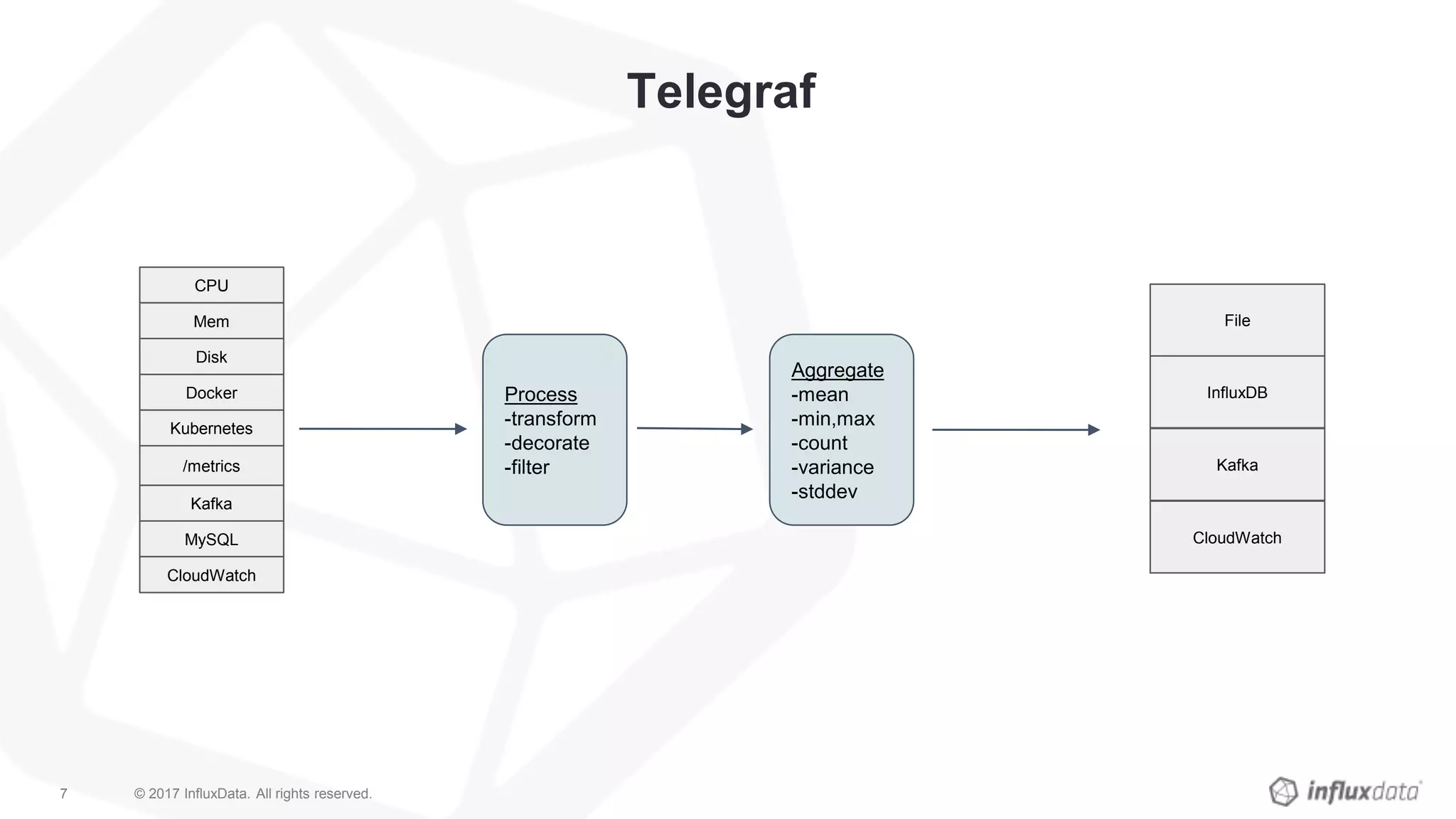

Telegraf
CPU
Mem
Disk
Docker
Kubernetes
/metrics
Kafka
MySQL
Process
-transform
-decorate
-filter
Aggregate
-mean
-min,max
-count
-variance
-stddev
File
InfluxDB
Kafka
CloudWatch
CloudWatch

8. © 2017 InfluxData. All rights reserved.8

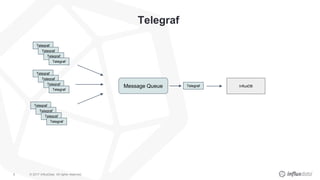

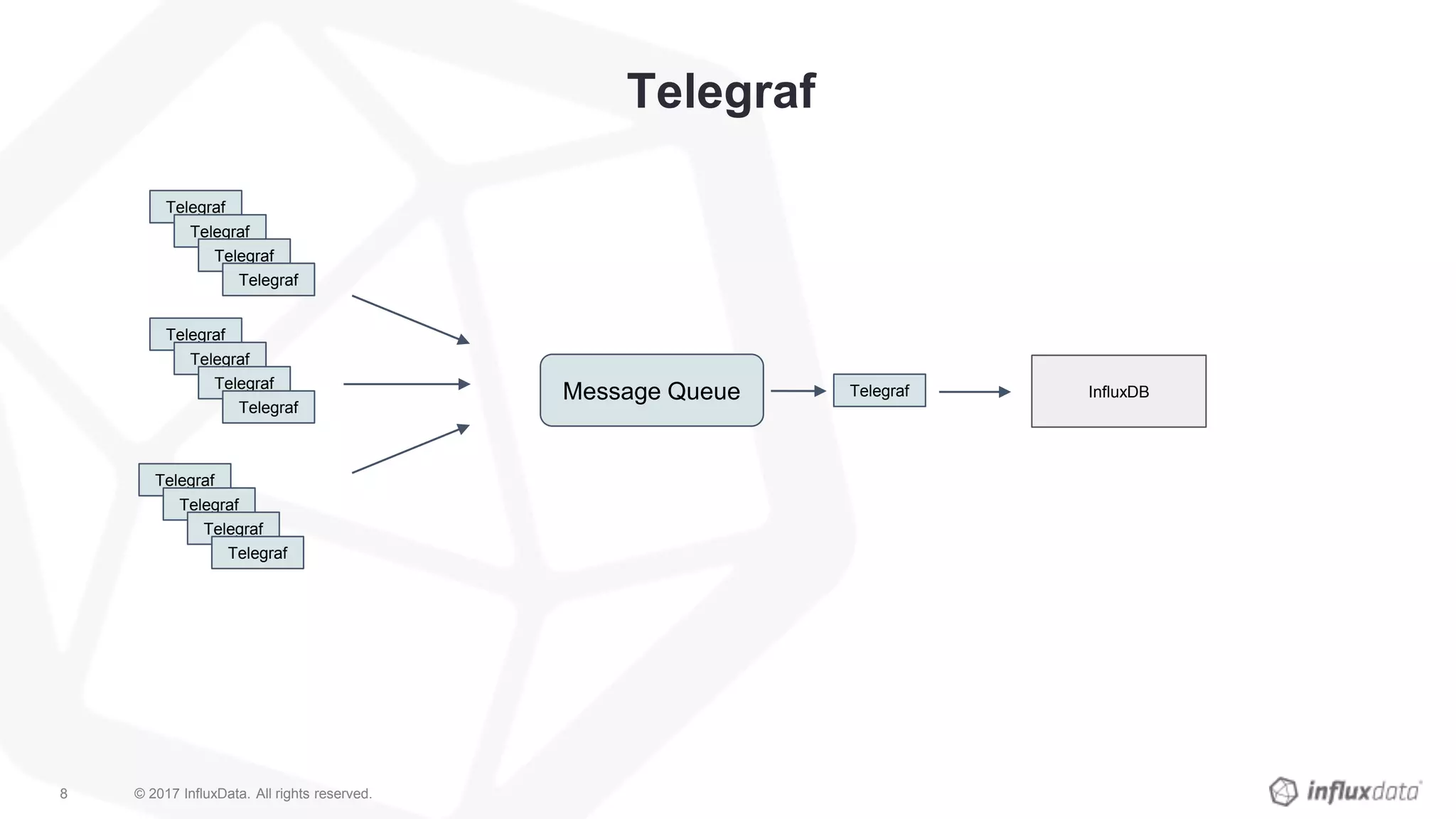

Telegraf
InfluxDB
Telegraf
Telegraf
Telegraf
Telegraf
Telegraf
Telegraf
Telegraf
Telegraf
Telegraf
Telegraf
Telegraf
Telegraf
Message Queue Telegraf

9. Schema

10. © 2017 InfluxData. All rights reserved.10

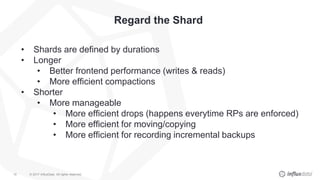

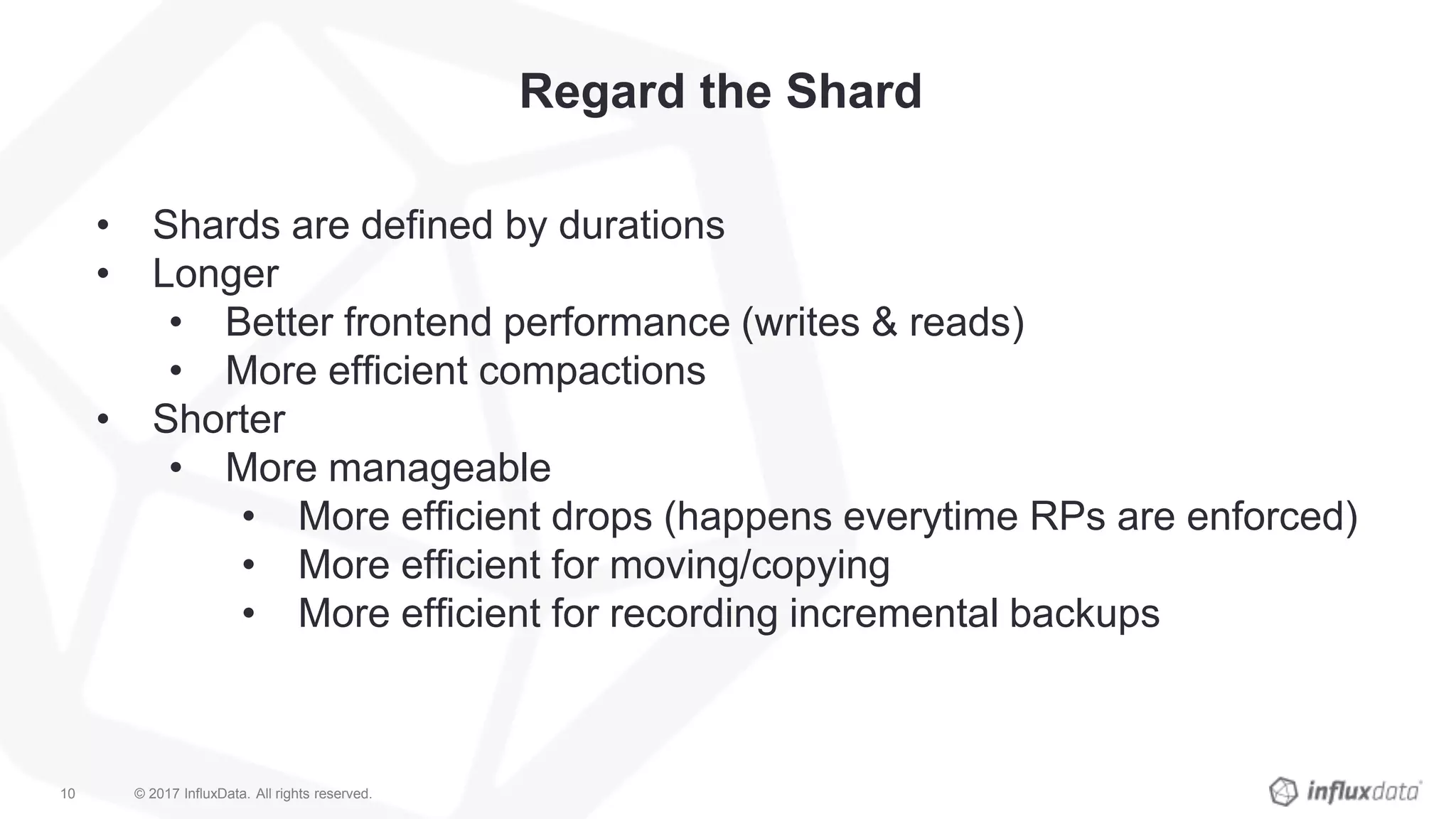

Regard the Shard
• Shards are defined by durations
• Longer
• Better frontend performance (writes & reads)
• More efficient compactions
• Shorter
• More manageable
• More efficient drops (happens everytime RPs are enforced)
• More efficient for moving/copying
• More efficient for recording incremental backups

11. © 2018 InfluxData. All rights reserved.11

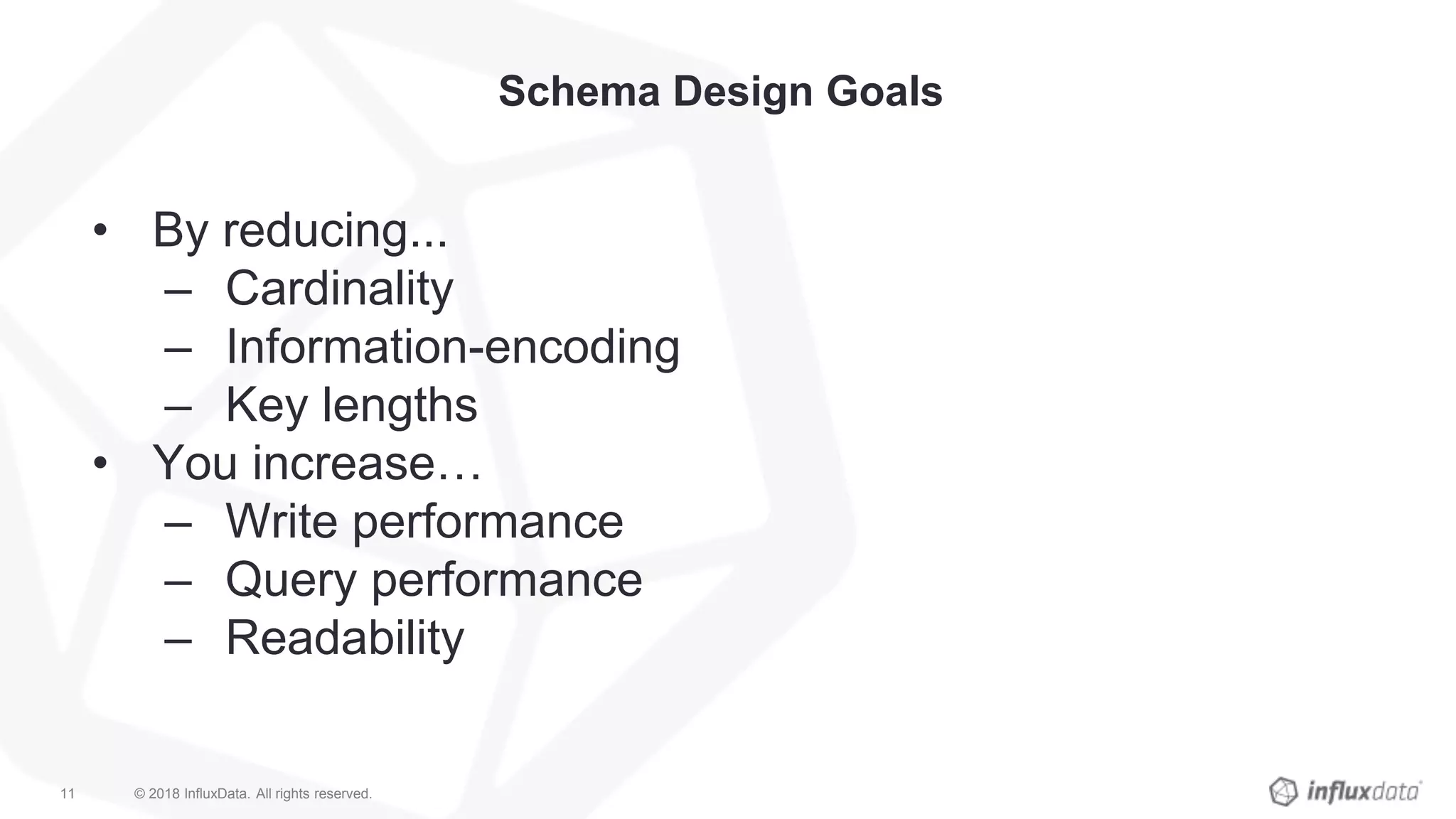

Schema Design Goals
• By reducing...
– Cardinality
– Information-encoding
– Key lengths
• You increase…
– Write performance
– Query performance
– Readability

12. © 2018 InfluxData. All rights reserved.12 © 2017 InfluxData. All rights reserved.12

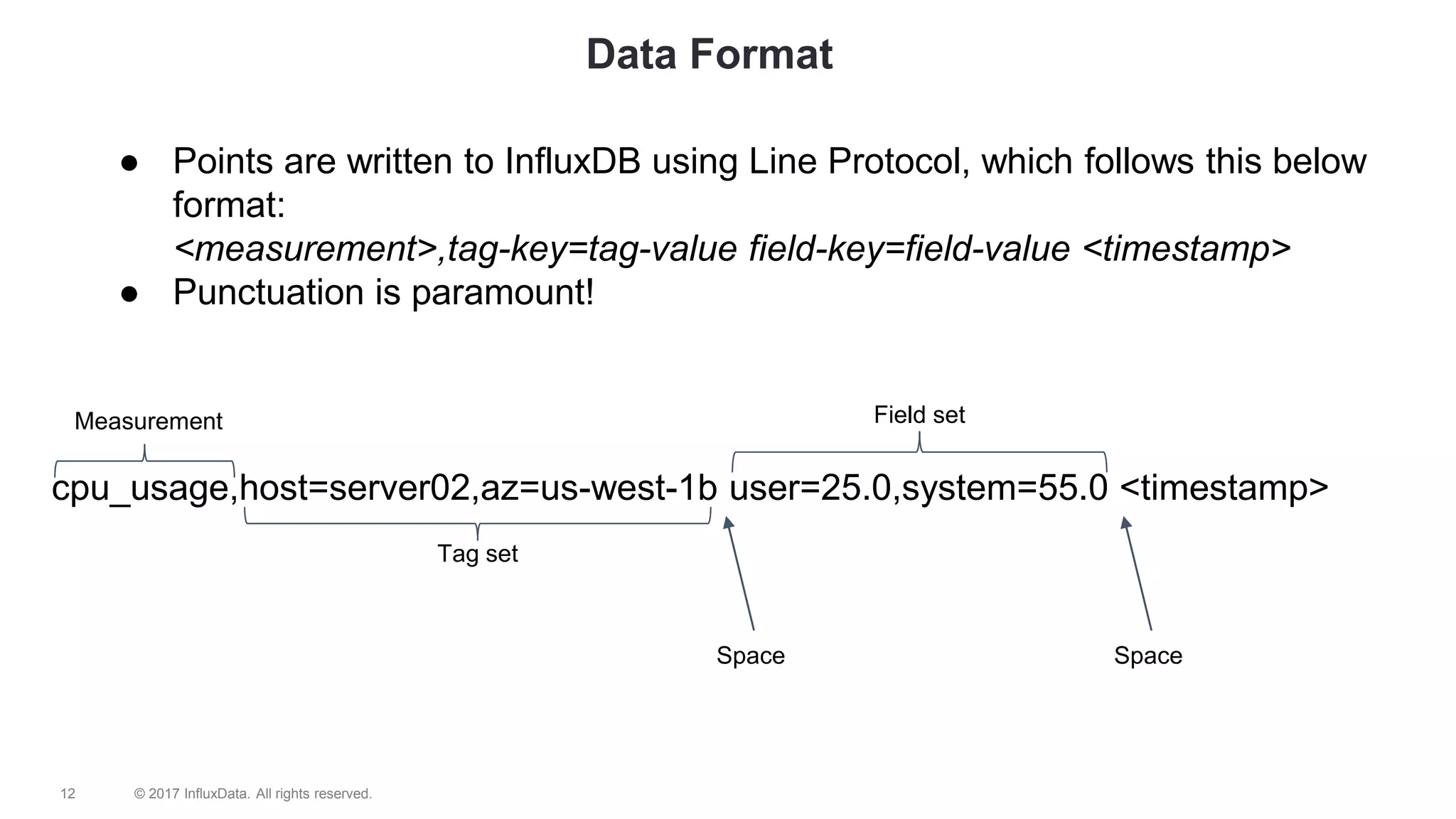

Data Format
● Points are written to InfluxDB using Line Protocol, which follows this below
format:
<measurement>,tag-key=tag-value field-key=field-value <timestamp>
● Punctuation is paramount!
cpu_usage,host=server02,az=us-west-1b user=25.0,system=55.0 <timestamp>
Measurement
Tag set
Field set
Space Space

13. © 2018 InfluxData. All rights reserved.13 © 2017 InfluxData. All rights reserved.13

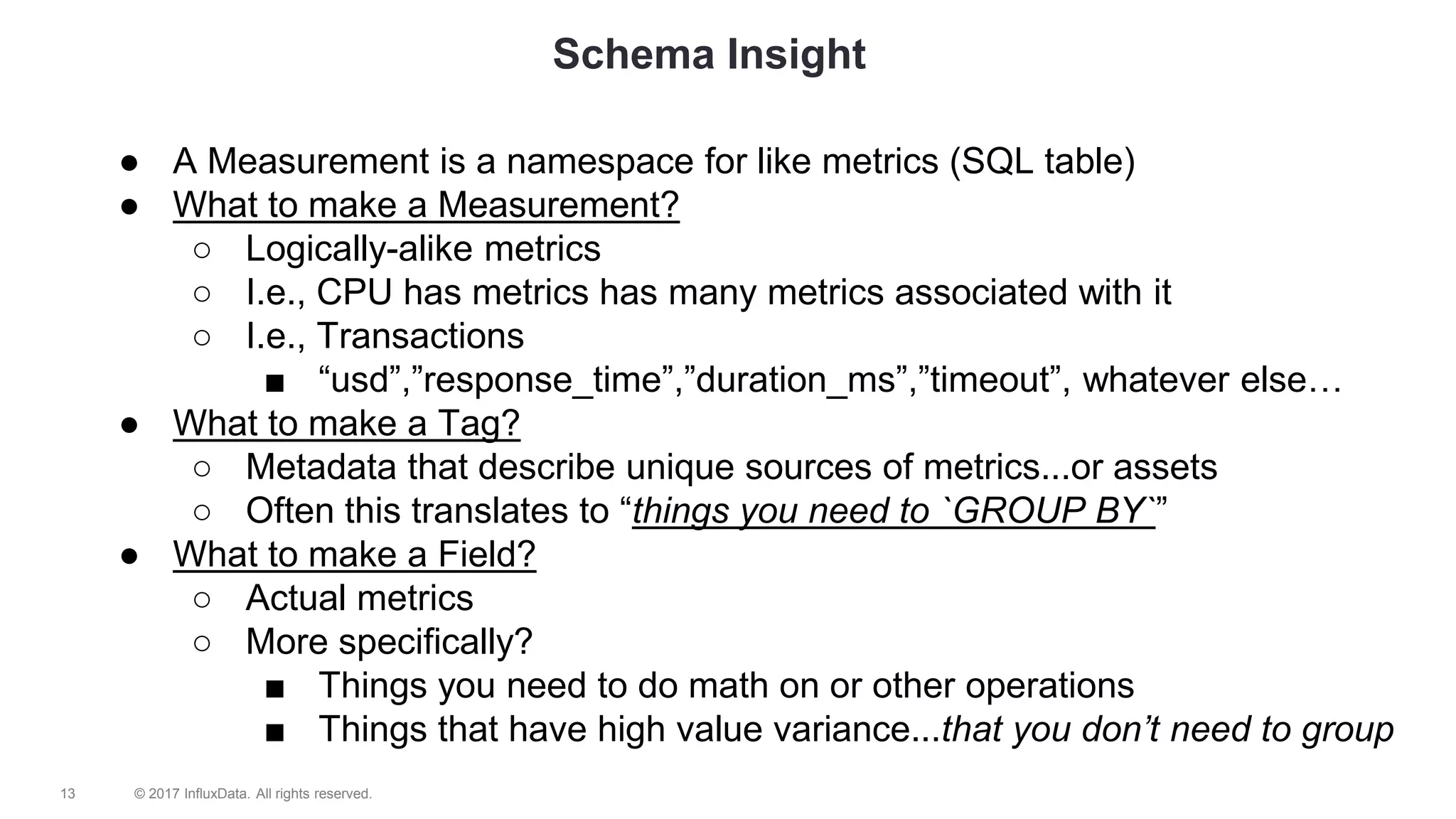

Schema Insight
● A Measurement is a namespace for like metrics (SQL table)
● What to make a Measurement?
○ Logically-alike metrics
○ I.e., CPU has metrics has many metrics associated with it
○ I.e., Transactions
■ “usd”,”response_time”,”duration_ms”,”timeout”, whatever else…
● What to make a Tag?
○ Metadata that describe unique sources of metrics...or assets
○ Often this translates to “things you need to `GROUP BY`”
● What to make a Field?
○ Actual metrics
○ More specifically?
■ Things you need to do math on or other operations
■ Things that have high value variance...that you don’t need to group

14. © 2018 InfluxData. All rights reserved.14

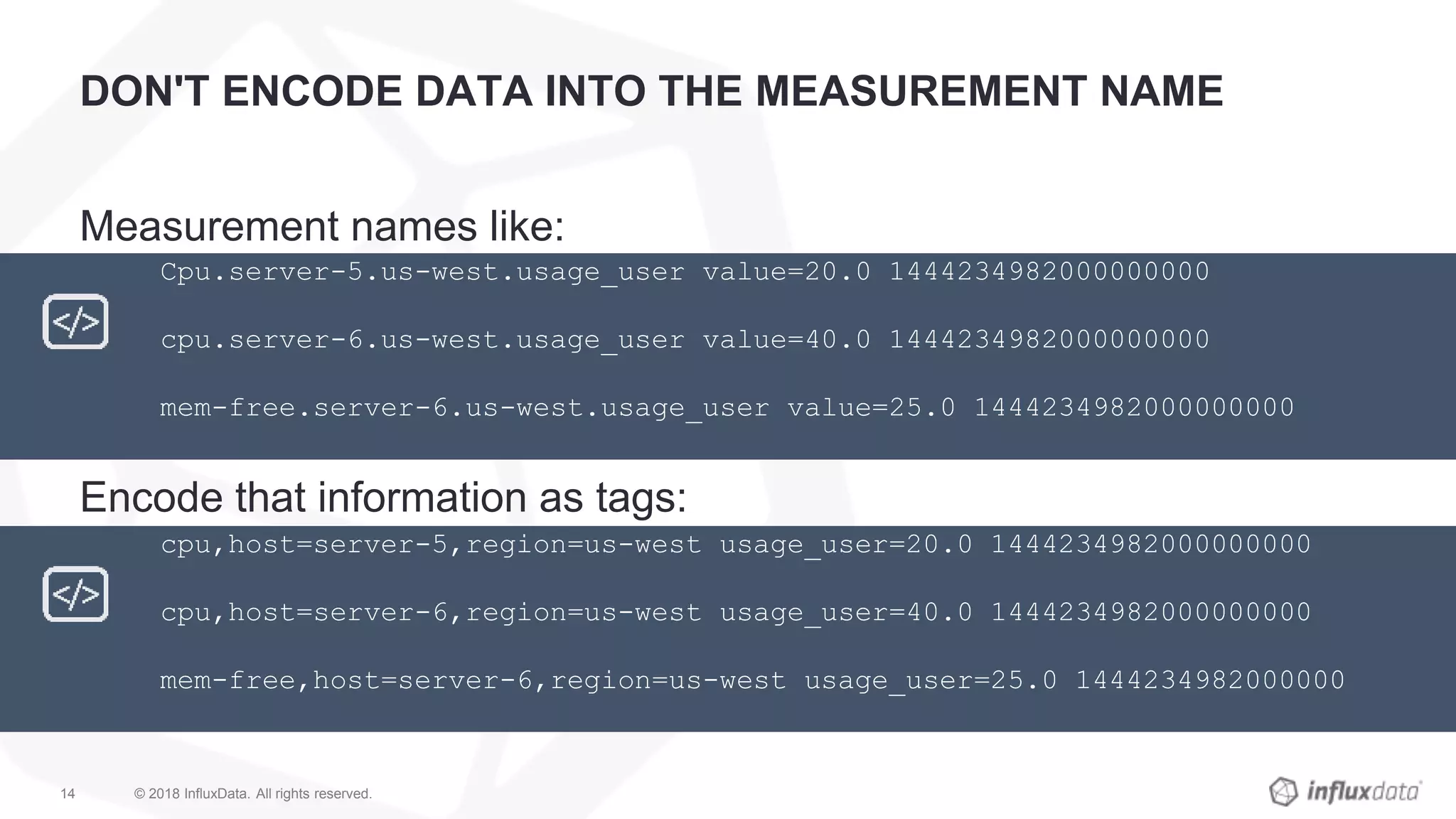

DON'T ENCODE DATA INTO THE MEASUREMENT NAME
Measurement names like:
Encode that information as tags:
Cpu.server-5.us-west.usage_user value=20.0 1444234982000000000
cpu.server-6.us-west.usage_user value=40.0 1444234982000000000
mem-free.server-6.us-west.usage_user value=25.0 1444234982000000000
cpu,host=server-5,region=us-west usage_user=20.0 1444234982000000000
cpu,host=server-6,region=us-west usage_user=40.0 1444234982000000000
mem-free,host=server-6,region=us-west usage_user=25.0 1444234982000000

15. © 2018 InfluxData. All rights reserved.15

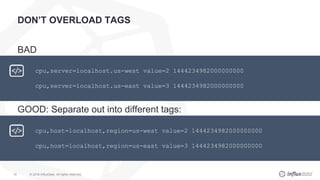

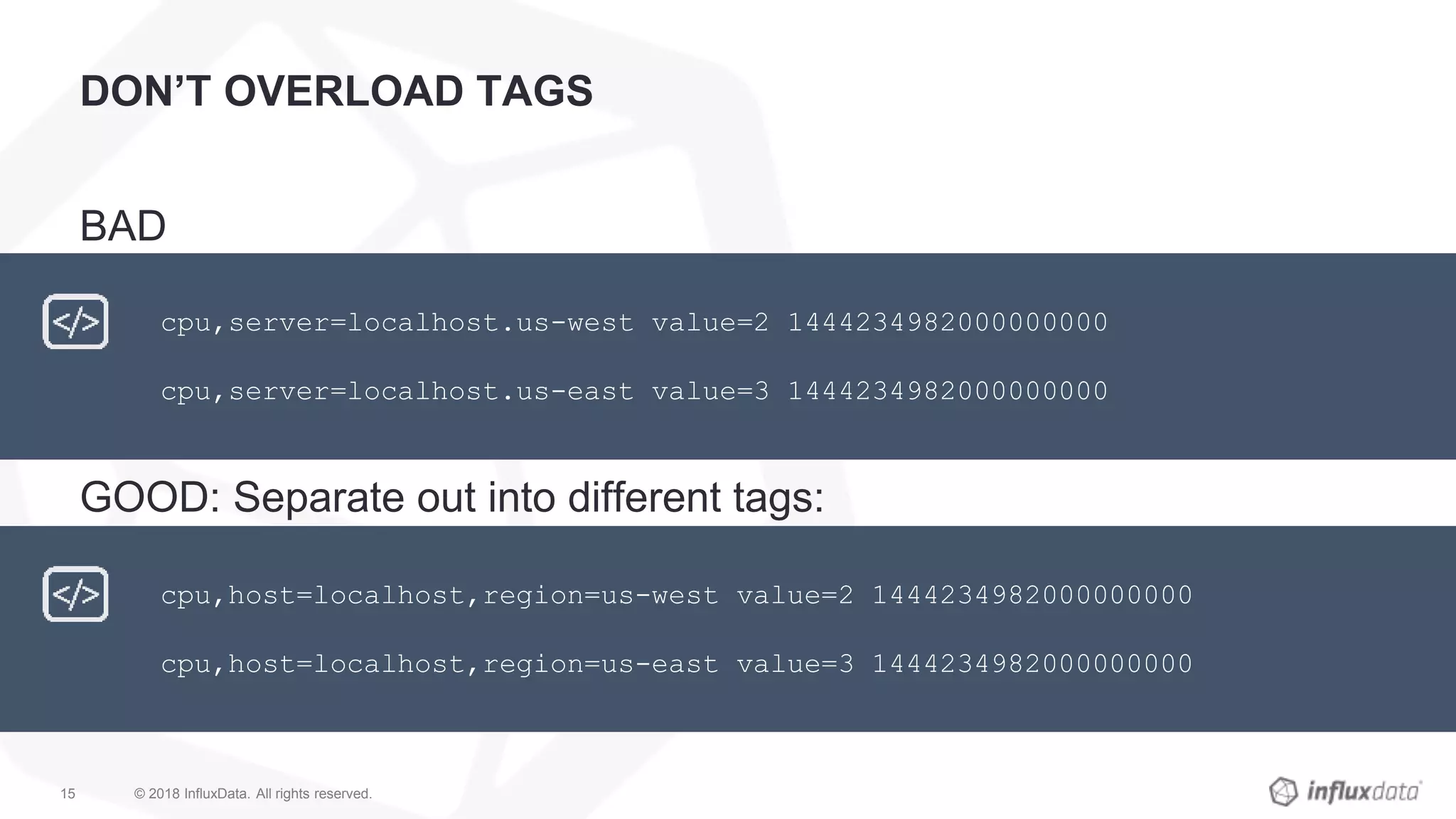

DON’T OVERLOAD TAGS
BAD
GOOD: Separate out into different tags:
xxx
cpu,server=localhost.us-west value=2 1444234982000000000
cpu,server=localhost.us-east value=3 1444234982000000000
cpu,host=localhost,region=us-west value=2 1444234982000000000
cpu,host=localhost,region=us-east value=3 1444234982000000000

16. © 2018 InfluxData. All rights reserved.16 © 2018 InfluxData. All rights reserved.16

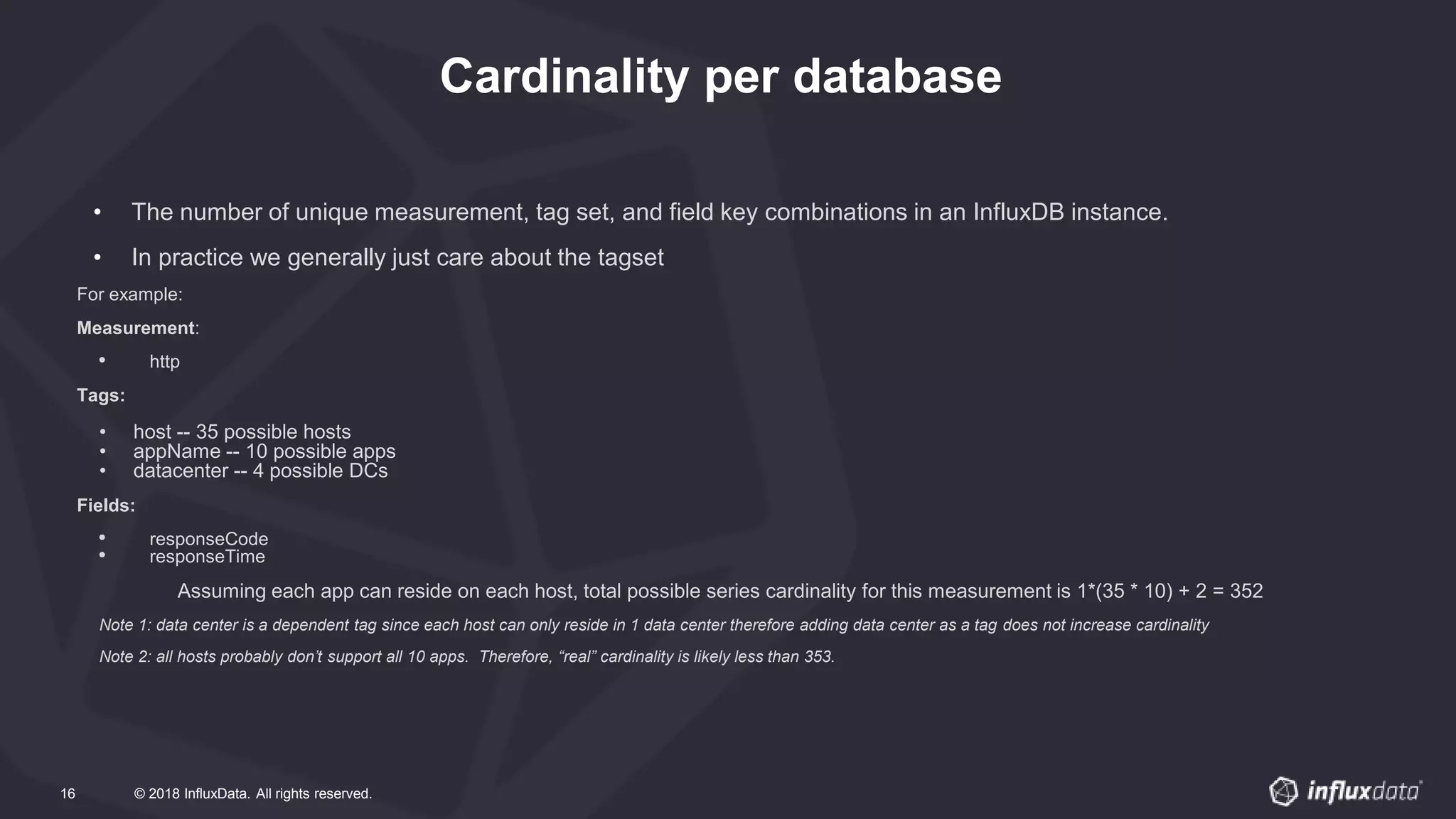

Cardinality per database
• The number of unique measurement, tag set, and field key combinations in an InfluxDB instance.
• In practice we generally just care about the tagset
For example:
Measurement:
• http
Tags:
• host -- 35 possible hosts
• appName -- 10 possible apps
• datacenter -- 4 possible DCs
Fields:
• responseCode
• responseTime
Assuming each app can reside on each host, total possible series cardinality for this measurement is 1*(35 * 10) + 2 = 352
Note 1: data center is a dependent tag since each host can only reside in 1 data center therefore adding data center as a tag does not increase cardinality
Note 2: all hosts probably don’t support all 10 apps. Therefore, “real” cardinality is likely less than 353.

17. Configuration

18. © 2017 InfluxData. All rights reserved.18

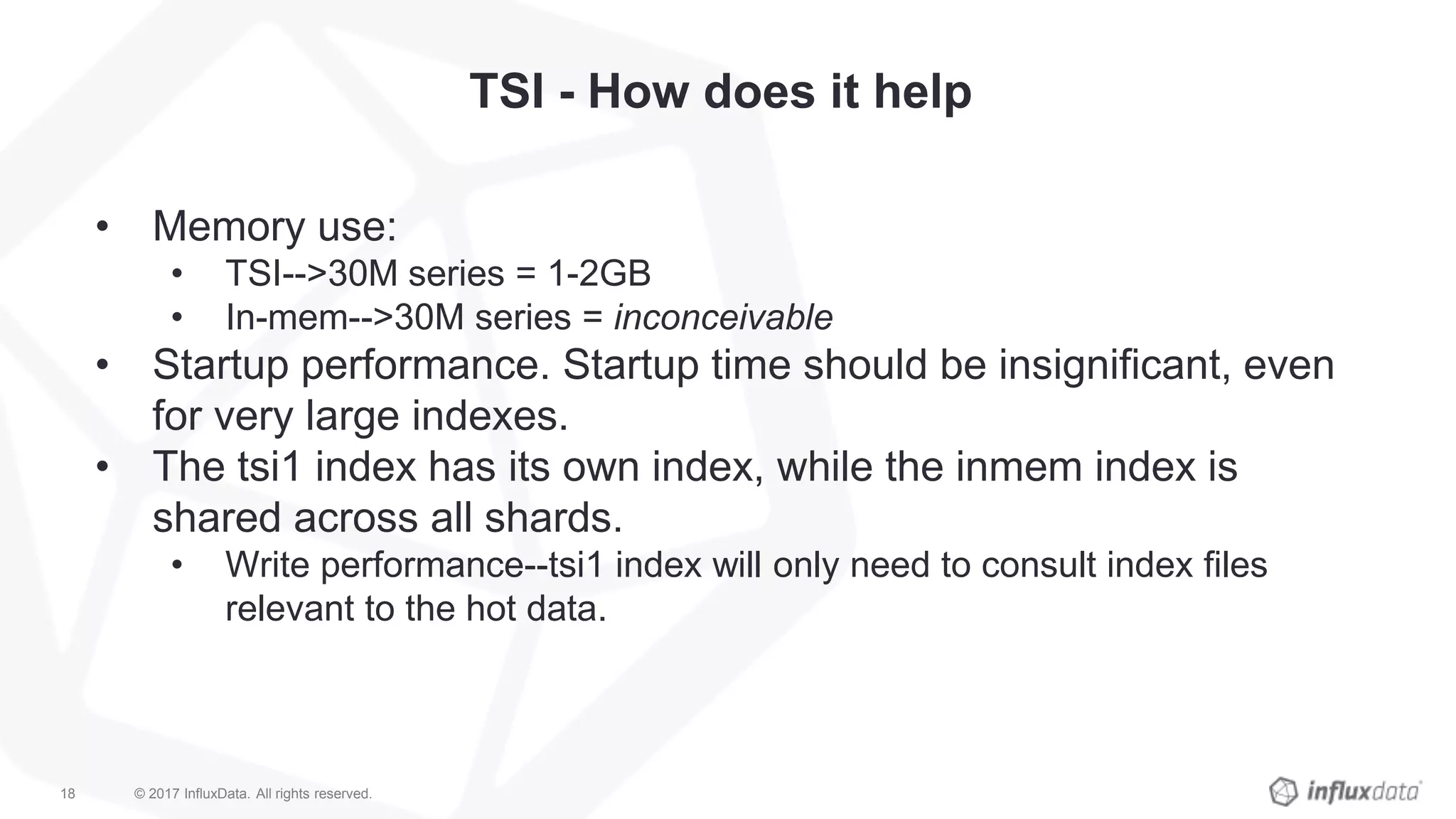

TSI - How does it help
• Memory use:
• TSI-->30M series = 1-2GB
• In-mem-->30M series = inconceivable
• Startup performance. Startup time should be insignificant, even
for very large indexes.
• The tsi1 index has its own index, while the inmem index is
shared across all shards.
• Write performance--tsi1 index will only need to consult index files
relevant to the hot data.

19. © 2017 InfluxData. All rights reserved.19

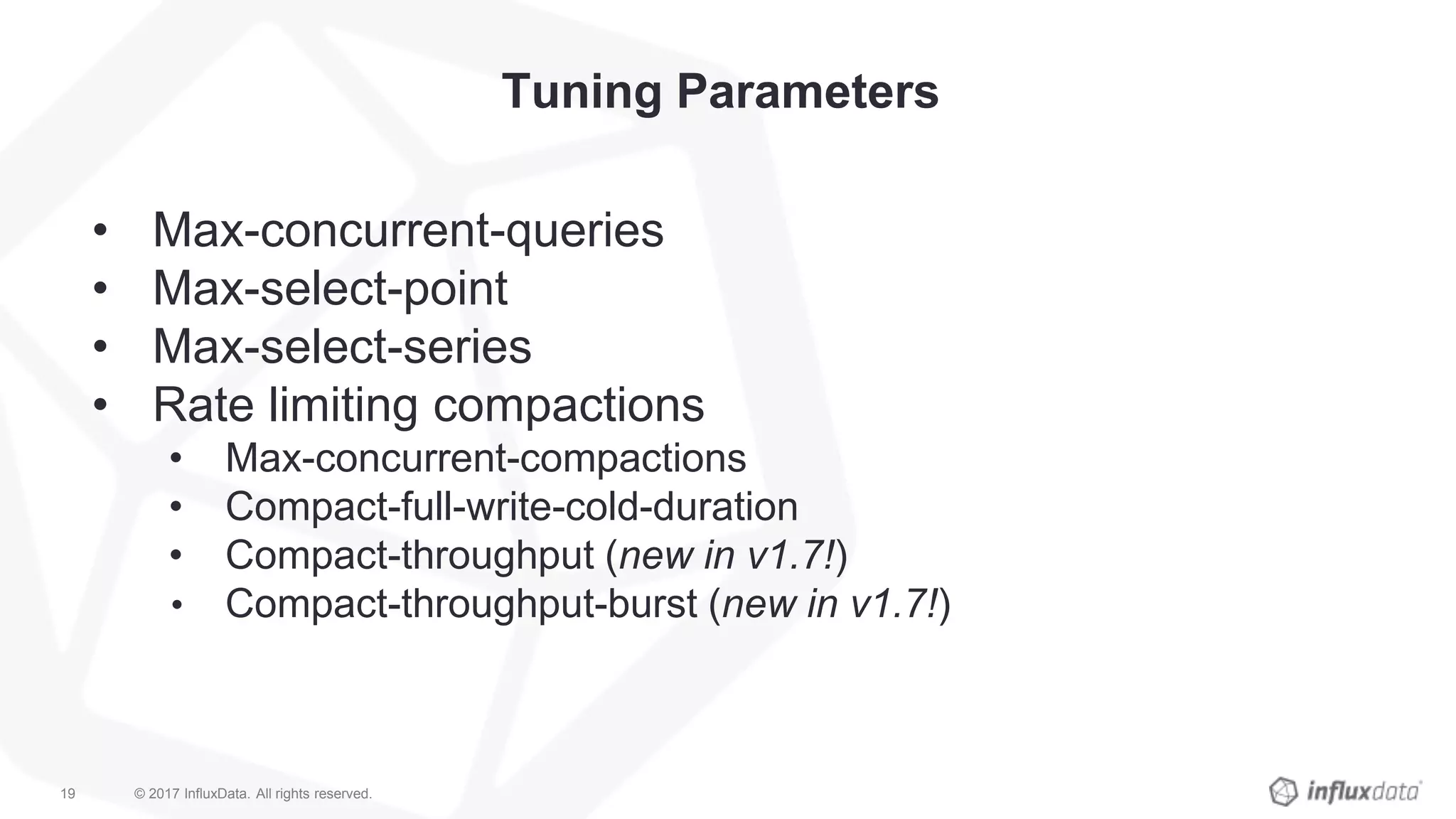

Tuning Parameters
• Max-concurrent-queries
• Max-select-point
• Max-select-series
• Rate limiting compactions
• Max-concurrent-compactions
• Compact-full-write-cold-duration
• Compact-throughput (new in v1.7!)
• Compact-throughput-burst (new in v1.7!)

20. © 2017 InfluxData. All rights reserved.20

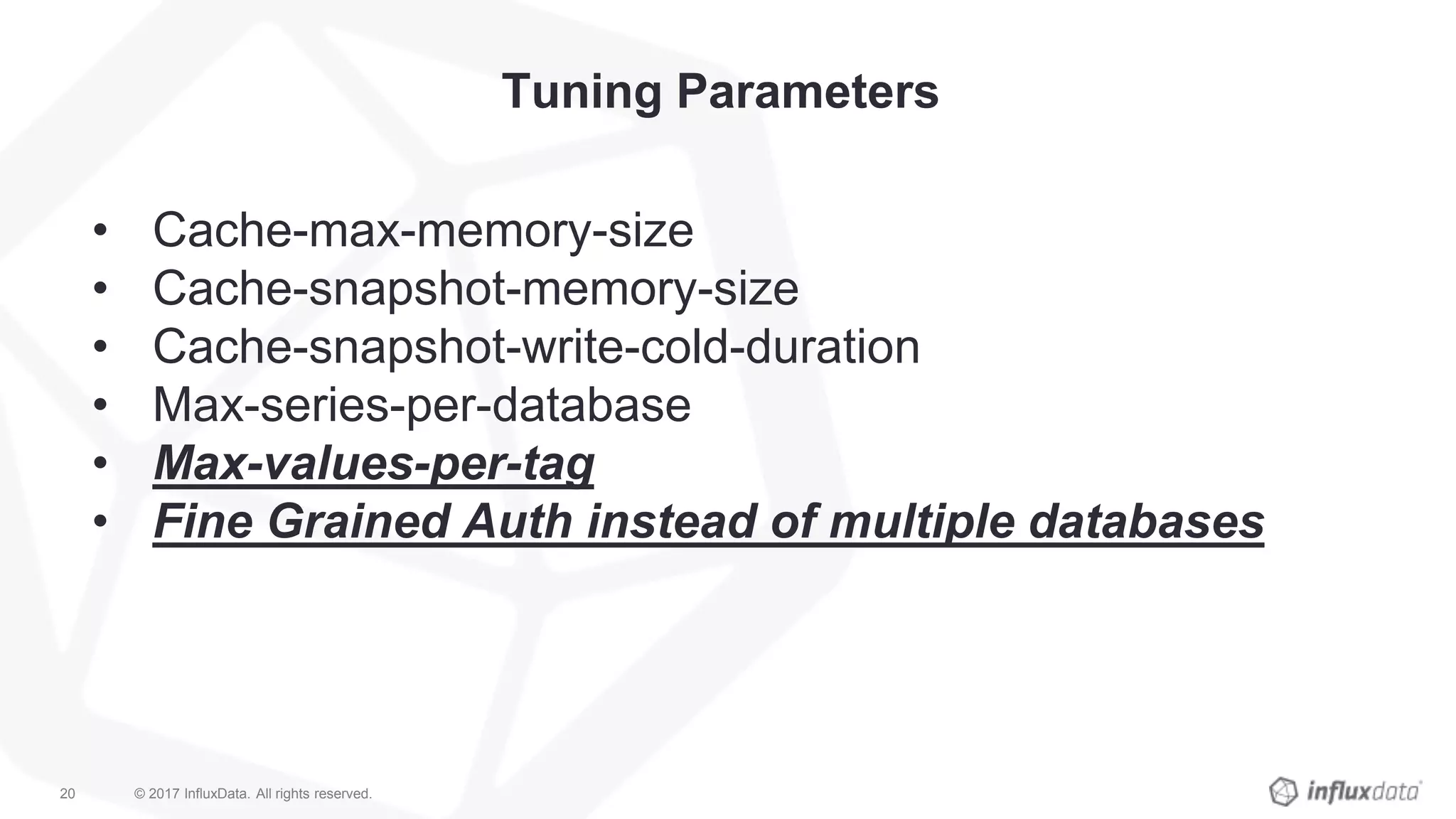

Tuning Parameters
• Cache-max-memory-size
• Cache-snapshot-memory-size
• Cache-snapshot-write-cold-duration
• Max-series-per-database
• Max-values-per-tag
• Fine Grained Auth instead of multiple databases

21. Queries

22. © 2017 InfluxData. All rights reserved.22 © 2017 InfluxData. All rights reserved.22

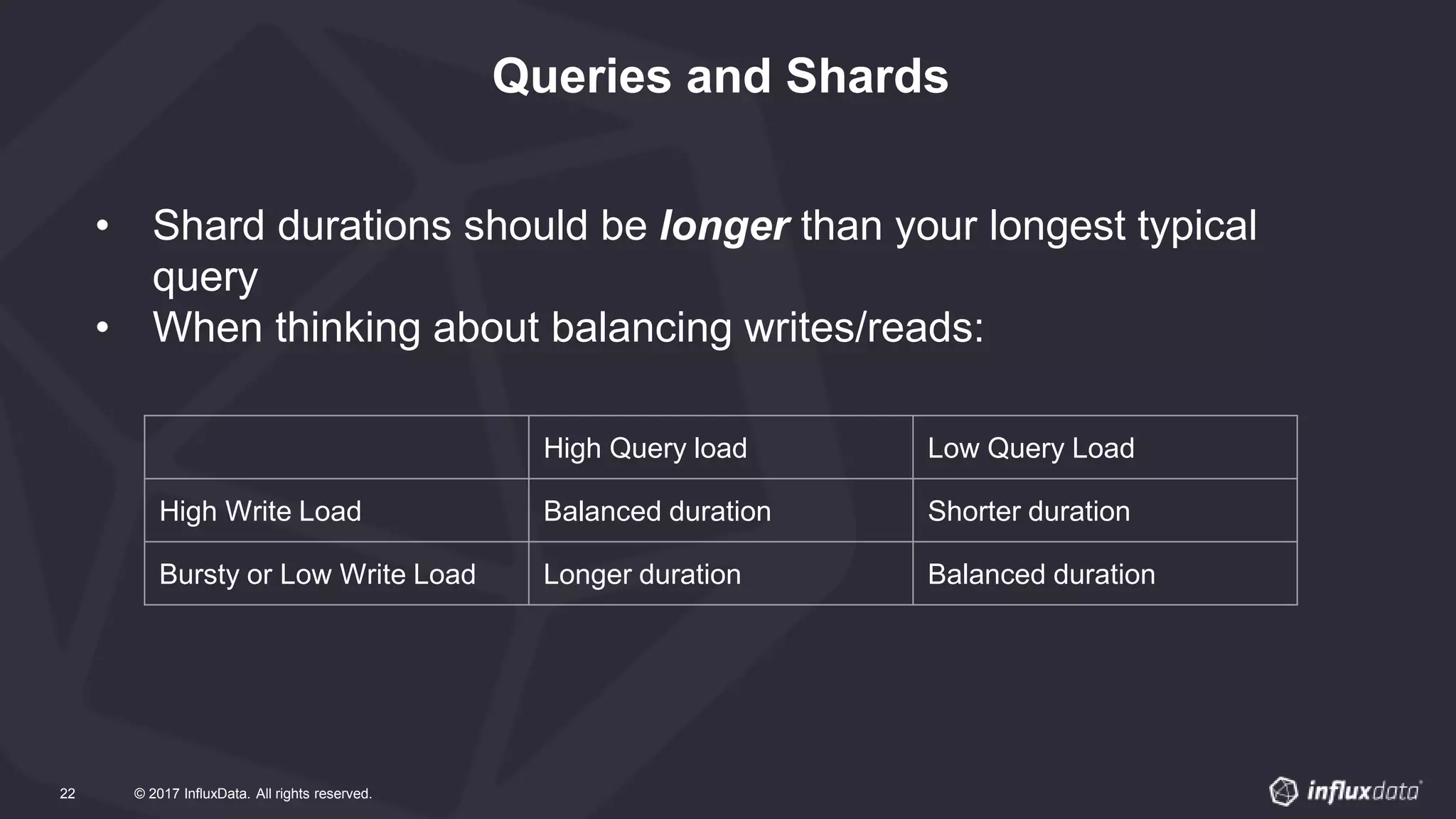

Queries and Shards
• Shard durations should be longer than your longest typical
query
• When thinking about balancing writes/reads:
High Query load Low Query Load
High Write Load Balanced duration Shorter duration
Bursty or Low Write Load Longer duration Balanced duration

23. © 2017 InfluxData. All rights reserved.23 © 2017 InfluxData. All rights reserved.23

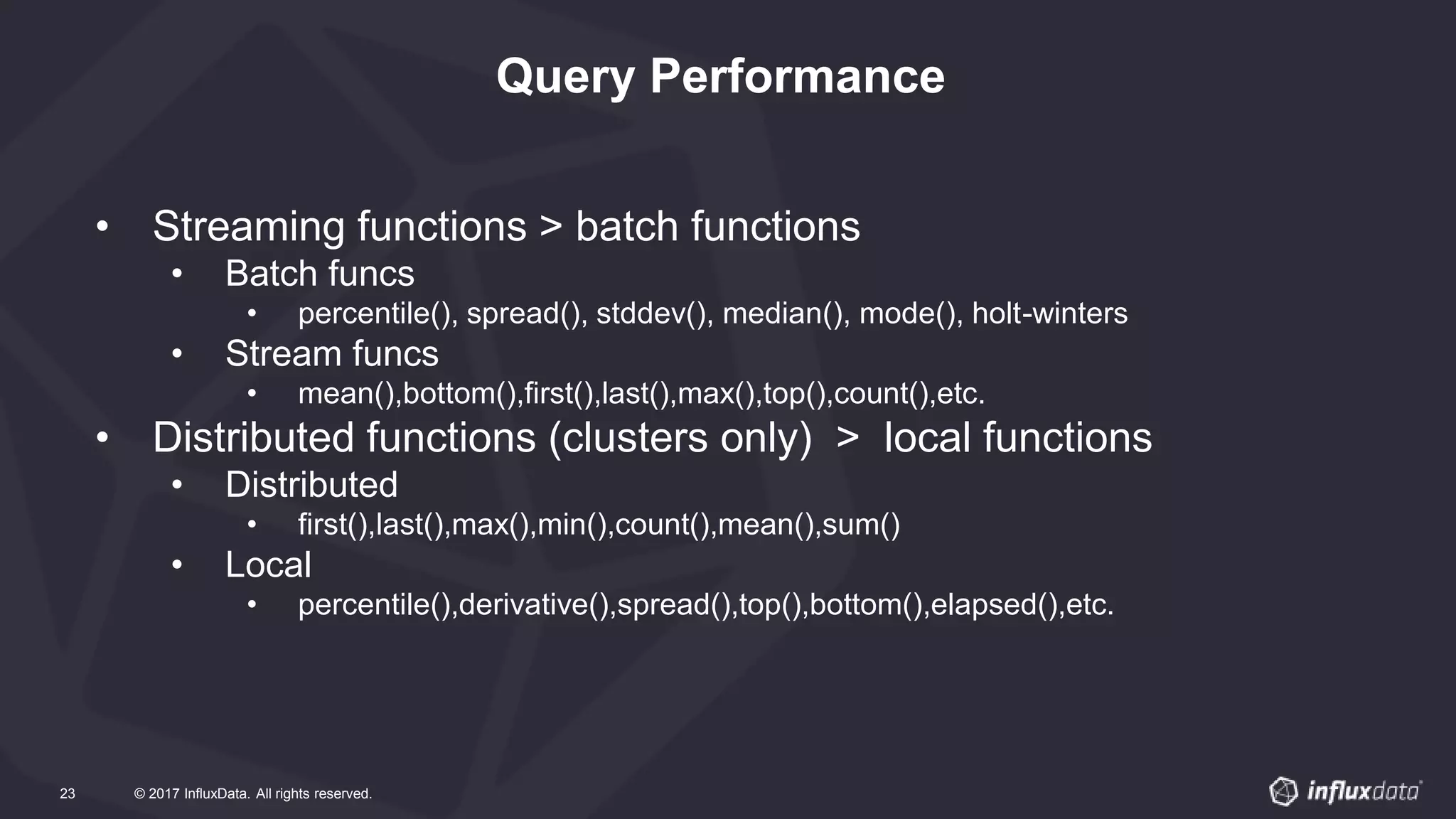

Query Performance
• Streaming functions > batch functions
• Batch funcs
• percentile(), spread(), stddev(), median(), mode(), holt-winters
• Stream funcs
• mean(),bottom(),first(),last(),max(),top(),count(),etc.
• Distributed functions (clusters only) > local functions
• Distributed
• first(),last(),max(),min(),count(),mean(),sum()
• Local
• percentile(),derivative(),spread(),top(),bottom(),elapsed(),etc.

24. © 2017 InfluxData. All rights reserved.24 © 2017 InfluxData. All rights reserved.24

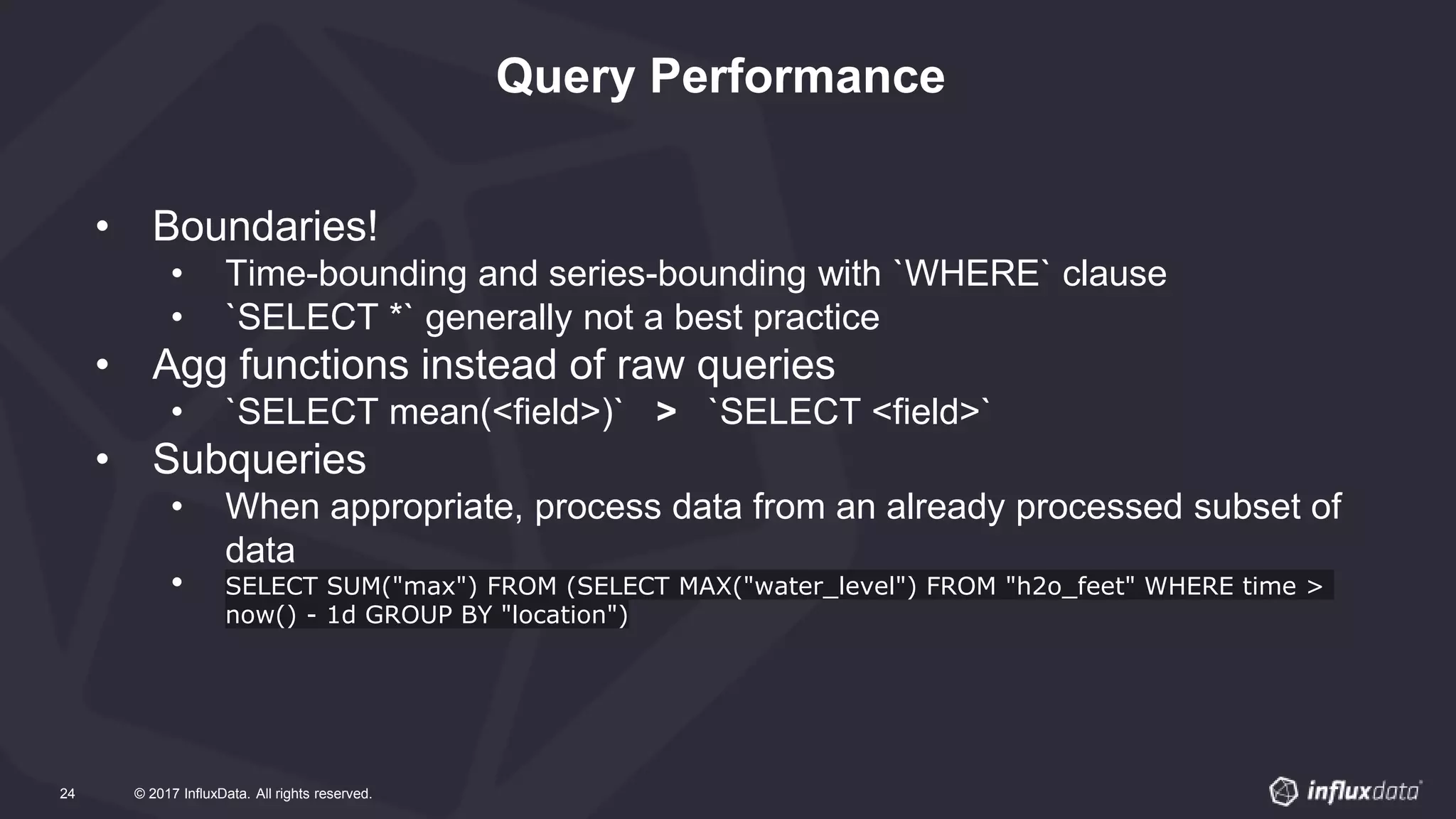

Query Performance
• Boundaries!
• Time-bounding and series-bounding with `WHERE` clause
• `SELECT *` generally not a best practice
• Agg functions instead of raw queries
• `SELECT mean(<field>)` > `SELECT <field>`
• Subqueries
• When appropriate, process data from an already processed subset of
data
• SELECT SUM("max") FROM (SELECT MAX("water_level") FROM "h2o_feet" WHERE time >
now() - 1d GROUP BY "location")

25. © 2018 InfluxData. All rights reserved.25

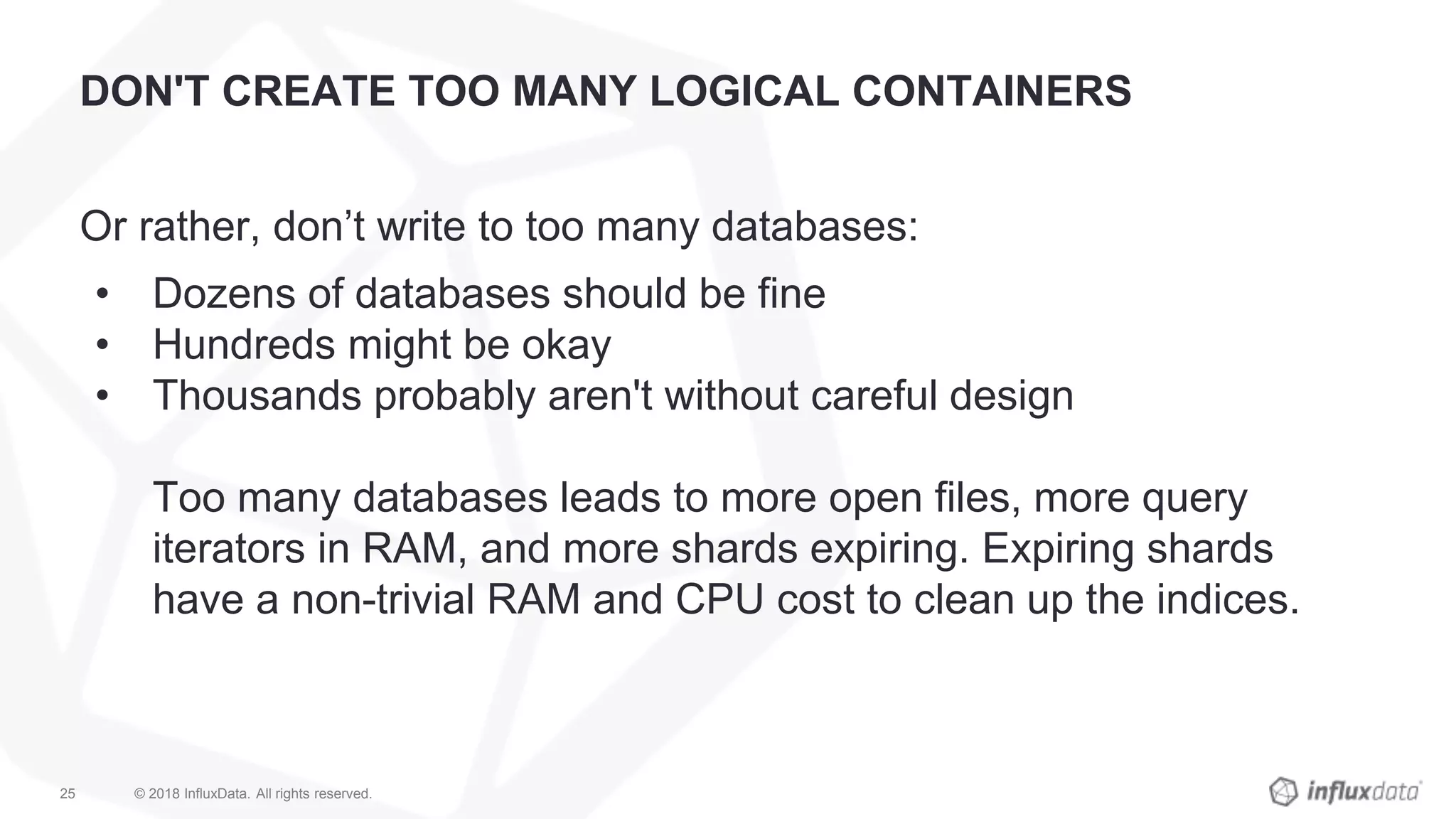

DON'T CREATE TOO MANY LOGICAL CONTAINERS
Or rather, don’t write to too many databases:
• Dozens of databases should be fine
• Hundreds might be okay
• Thousands probably aren't without careful design
Too many databases leads to more open files, more query
iterators in RAM, and more shards expiring. Expiring shards
have a non-trivial RAM and CPU cost to clean up the indices.

26. sam@influxdata.com @SDillard12
