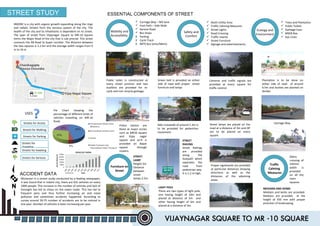

1. STREET STUDY
INDORE is a city with organic growth expanding along the rings
and radials. Streets form the nervous system of the city. The
health of the city and its inhabitants is dependent on its street.
The span of street from Vijaynagar Square to MR-10 Square
forms the Major Road of the city that is sub-arterial. This street
connects the AB Road to Super corridor. The distance between
the two squares is 3.2 km and the average width ranges from 9
m to 16 m
USES
Streets for Access
Streets for Walking
Streets for
Traveling
Streets for Services
Streets for Parking
Streets for Hawking
ESSENTIAL COMPONENTS OF STREET
Mobility and
Accessibility
 Carriage Way – MV lane
 Foot Path – Side Walk
 Service Road
 Bus Stops
X Parking
X Cycle Track
X BRTS Bus lanes/Metro
Safety and
Comfort
 Multi-Utility Area
 Traffic Calming Measures
 Street Lights
 Road Crossing
 Traffic Islands
 Street Furniture
 Signage and advertisements
Ecology and
Environment
 Trees and Plantation
 Public Toilets
 Garbage Cans
 MSEB Box
 Gas Lines
Public toilet is constructed at
every street junction and two
dustbins are provided for re-
cycle and non-recycle garbage.
Plantation is to be done on
either side of road of around
0.5m and bushes are planted on
divider.
Street lamps are placed on the
road at a distance of 3m and DP
are to be placed on every
square.
Green belt is provided on either
side of road with proper street
furniture and lamps
Cameras and traffic signals are
provided at every square for
traffic control.
Police station are
there at major circles
such as MR10 square
and Vijay nagar
square and wi-fi is
provided on Bapat
square through
routers.
ACCIDENT DATA
Moreover in a recent study conducted by a leading newspaper,
it was found that in Indore city, there are 631 vehicles on every
1000 people. This increase in the number of vehicles and lack of
foresight has led to chaos on the major roads. This has led to
frequent jams and thus further increasing air and noise
pollution and sometimes accidents happened. According to
survey around 50-75 number of accidents are to be noticed in
one year. Number of vehicles is been increasing per year.
STREET
RAILING
Street Railings
are provided
along the
footpath which
seperates the
road from
pedestrian way.
It is 1.2 m high.
LIGHT POLE
There are two types of light pole,
one having height of 10m and
placed at distance of 5m and
other having height of 6m and
placed at a distance of 3m.
STREET
LAMP
Height-3m
Distance
between
street
lamps-2.5m
Zebra
crossing of
150mm
width is
provided
on all the
main
squares.
Side crosswalk of around 1.2m is
to be provided for pedestrian
movement.
Proper signboards are provided
at particular distances showing
directions as well as the
distances of the adjoining
areas.
MEDIANS AND KERBS
Medians and kerbs are provided.
Medians are provided at the
height of 250 mm with proper
provision of landscaping.
Furniture on
Street
Traffic
Calming
Measures
Pie Chart showing the
percentage of different kinds of
vehicles travelling on MR-10
Road.
Carriage Way

2. MIXED USED BUILDING
GREEN/OPEN AREA
COMMERCIAL BUILDING
MAIN ROAD
RESIDENTIAL BUILDING
CHANDRAGUPTA
MOURYA SQUARE
Fortune landmark
hotel Sayaji hotel
GROUND FLOOR
G+1
G+2
G+3
G+4
G+5
More than 7 floors
VIJAY NAGAR
SQUARE
BUILDING
HEIGHT MAP
BAPAT SQUARE
BUILT UP MAP
Pie Chart showing the Building Heights
Glass on windows and
façade
AC panels on façade
Iron fencing on rotary
, green belt, plot
boundaries
Materials
used
RCC structure
Iron Railing
at footpath for
separation of
pedestrian and
vehicular
movement on
road.
Residential buildings
and shops are
constructed
of rcc structure
having 5 to 6 floors
ACTIVITIES (at different duration at a day):
Morning (8am-12pm) Noon (12pm-2pm) After Noon (2pm-5pm) Evening (5pm-8pm)
Temple near bapat squareTea and snacks stall on
morning time.
Geographic details:
Latitude :
22.7195687N
Longitude :
75.8577258E
Sea level: 553 m
Topography: gentle
slope
Geographic details:
Latitude :
22.7195687N
Longitude :
75.8577258E
Sea level: 553 m
Topography: gentle
slope
Occasional activity at bapat
square at which different
activities are to be carried
out at different interval of
time such as handloom fare,
book fare,etc.
Activities slow down on
afternoon
Major commutes for
interstate bus on evening
time
These drawings and graphs depict the building typology
based on
Building use- Entire road had a variety of buildings based
on their use . We can find Commercial complexes, Hotels,
Hospitals, Banks Restaurants, Temples Community
Centres as well as residential buildings
Building construction – With the variety of uses comes use
of different types of building having different heights and
different material.
All of this creates a unique and varying profile for the road.
Which in turn gives different fabrics, views and sections of
a single road at all junctions
These drawings and graphs depict the building typology
based on
Building use- Entire road had a variety of buildings based
on their use . We can find Commercial complexes, Hotels,
Hospitals, Banks Restaurants, Temples Community
Centres as well as residential buildings
Building construction – With the variety of uses comes use
of different types of building having different heights and
different material.
All of this creates a unique and varying profile for the road.
Which in turn gives different fabrics, views and sections of
a single road at all junctions
These activities noticed on
different time which shows
multiple use of place throughout
a day. Expressing social outlook
of the road.
These activities noticed on
different time which shows
multiple use of place throughout
a day. Expressing social outlook
of the road.

3. HIRA NAGAR SQUARE
Carriage Way- 10m, 10m
Service Road- 9.1m
Green Belt- 9.2m
Connecting Road- 10.1m
Pedestrian Pathway- 3.3m
BAPAT SQUARE
Carriage Way- 12m, 12.5m
Service Road- 7.1m
Green Belt- 9.5m
Connecting Road- m
Pedestrian Pathway- 1.5m
Paved Pathway- 3m
SAYAJI HOTEL SQUARE
Carriage Way- 15m, 9.3m
Service Road- 9.7m
Green Belt- 5.7m
Connecting Road- 16.5m
Pedestrian Pathway- 2.5m
Paved Pathway- 5.2m
VIJAY NAGAR SQUARE
Carriage Way- 11m, 10m
Service Road- 9.7m
Green Belt- 5.7m
Connecting Road- 14.2m
Pedestrian Pathway- 2.5m
Paved Pathway- 5.2m
CHANDRAGUPTA MOURYA SQUARE
Carriage Way- 16.5m, 16.5m
Service Road- 9.3m
Green Belt- 5.7m
Connecting Road- 12m
AVG INTERNAL DISTANCE (m)
JUNCTION 500
DISTANCE BOARDS 1600
BUS STOPS 2500
ROAD
DETAILS
CONGESTION POINTS
There are two major
congestion points because of
improper islands Sayaji, Bapat
and Hiranagar Square.
MISSING TRAFFIC LIGHTS
•Can be seen only at Vijay
nagar square
•Smaller junctions do not
have traffic lights
TRAFFIC JAM POINT
Two things cause traffic
jam
•Un-built intercity bus
stop
•Cars parked on service
road
22
11
33
44
55

4. Road Section between Chandragupta Mourya Square and Royal Bungalow City
Road Section between Royal Bungalow City and Heera Nagar Square
Road Section between Bapat Square and Vijay Nagar Square
Road Section between Heera Nagar Square and Bapat Square
1.7m
STREET SECTIONS
Carriage Way
(Concrete and Tar Road)
Carriage Way
(Concrete and Tar Road)
Carriage Way
(Concrete and Tar Road) Carriage Way
(Concrete and Tar Road)
Green Belt
Green Belt
Green Belt
Green Belt
Green Belt Green Belt
Green Belt Green Belt
Service
Lane
Service
Lane
Service
Lane
Service
Lane
Service
Lane
Service
Lane
Service
Lane

5. GOVERNMENT INITIATIVES
No traffic lights post Vijay
Nagar Square hence causing
haphazard moment
No traffic lights post Vijay
Nagar Square hence causing
haphazard moment
PROVISIONS FOR PUBLIC
Full Grown trees
interrupting pedestrian
pathways and service lane.
Full Grown trees
interrupting pedestrian
pathways and service lane.
PROS
PROPOSALS
Lack of provisions for
handicapped people.
Lack of provisions for
handicapped people.
No separately allotted
parking spaces hence
vehicles are parked along the
road causing hindrance.
No separately allotted
parking spaces hence
vehicles are parked along the
road causing hindrance.
Good and spacious
connectivity between
service lanes and main
road. These are separated
by a green belt.
Good and spacious
connectivity between
service lanes and main
road. These are separated
by a green belt.
Properly marked Zebra
crossing and road
markings.
Properly marked Zebra
crossing and road
markings.
Proper drainage facility is
given at either side of
roads.
Proper drainage facility is
given at either side of
roads.
Public transports
Proper radium Sign
boards and distance
boards
Proper radium Sign
boards and distance
boards
CONS
i- Bike
Sky Bus
City Bus
Tata- Magic
Auto Rickshaw
These are the various roads on which expansion of
brt lines is proposed including MR10 as stated in
CMP (City Mobility Plan) of Indore.
These are the various roads on which expansion of
brt lines is proposed including MR10 as stated in
CMP (City Mobility Plan) of Indore.
Proper drinking
water facilities
available for public.
There are number of city bus provided on this road such
as 5,17,22 and i bus is provided on perpendicular AB
road.
Traffic Islands near sayaji
block the vision of the
drivers shifting from main
carriageway to service lane.
Traffic Islands near sayaji
block the vision of the
drivers shifting from main
carriageway to service lane.
After studying and analysing the current status of the road and its
details, its pros and cons some things can be proposed for further
development of the road:
•Building barrier free pathways for ease of movement
•Plantation can be suitably selected as per its growth style its use
•Empty plots can be turned into parking spots to avoid on road
parking

6. GOVERNMENT INITIATIVES
No traffic lights post Vijay
Nagar Square hence causing
haphazard moment
No traffic lights post Vijay
Nagar Square hence causing
haphazard moment
PROVISIONS FOR PUBLIC
Full Grown trees
interrupting pedestrian
pathways and service lane.
Full Grown trees
interrupting pedestrian
pathways and service lane.
PROS
PROPOSALS
Lack of provisions for
handicapped people.
Lack of provisions for
handicapped people.
No separately allotted
parking spaces hence
vehicles are parked along the
road causing hindrance.
No separately allotted
parking spaces hence
vehicles are parked along the
road causing hindrance.
Good and spacious
connectivity between
service lanes and main
road. These are separated
by a green belt.
Good and spacious
connectivity between
service lanes and main
road. These are separated
by a green belt.
Properly marked Zebra
crossing and road
markings.
Properly marked Zebra
crossing and road
markings.
Proper drainage facility is
given at either side of
roads.
Proper drainage facility is
given at either side of
roads.
Public transports
Proper radium Sign
boards and distance
boards
Proper radium Sign
boards and distance
boards
CONS
i- Bike
Sky Bus
City Bus
Tata- Magic
Auto Rickshaw
These are the various roads on which expansion of
brt lines is proposed including MR10 as stated in
CMP (City Mobility Plan) of Indore.
These are the various roads on which expansion of
brt lines is proposed including MR10 as stated in
CMP (City Mobility Plan) of Indore.
Proper drinking
water facilities
available for public.
There are number of city bus provided on this road such
as 5,17,22 and i bus is provided on perpendicular AB
road.
Traffic Islands near sayaji
block the vision of the
drivers shifting from main
carriageway to service lane.
Traffic Islands near sayaji
block the vision of the
drivers shifting from main
carriageway to service lane.
After studying and analysing the current status of the road and its
details, its pros and cons some things can be proposed for further
development of the road:
•Building barrier free pathways for ease of movement
•Plantation can be suitably selected as per its growth style its use
•Empty plots can be turned into parking spots to avoid on road
parking
