2. Emergency Management & Safety Solutions
Agenda
• ICS 101 – what is ICS and why you should use it!
• The eight hallmarks of ICS
• The journey to change a company – converting
PG&E to ICS.
• The tools that were developed.
• How it was rolled out.
• Lessons learned and suggestions for you.
• Orientation exercise highlighting the Incident Action
Planning process
March 2010 www.ems-solutionsinc.com 2
3. Emergency Management & Safety Solutions

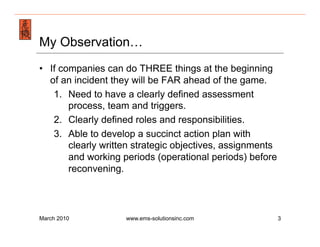

My Observation…
• If companies can do THREE things at the beginning
of an incident they will be FAR ahead of the game.
1. Need to have a clearly defined assessment
process, team and triggers.
2. Clearly defined roles and responsibilities.
3. Able to develop a succinct action plan with
clearly written strategic objectives, assignments
and working periods (operational periods) before
reconvening.
March 2010 www.ems-solutionsinc.com 3

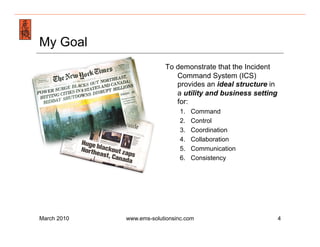

4. Emergency Management & Safety Solutions
My Goal
To demonstrate that the Incident
Command System (ICS)
provides an ideal structure in
a utility and business setting
for:
1. Command
2. Control
3. Coordination
4. Collaboration
5. Communication
6. Consistency
March 2010 www.ems-solutionsinc.com 4

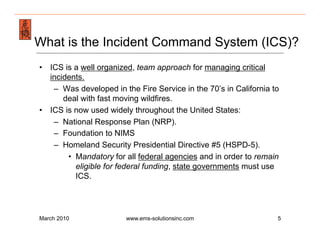

5. Emergency Management & Safety Solutions
What is the Incident Command System (ICS)?
• ICS is a well organized, team approach for managing critical
incidents.
– Was developed in the Fire Service in the 70’s in California to
deal with fast moving wildfires.
• ICS is now used widely throughout the United States:
– National Response Plan (NRP).
– Foundation to NIMS
– Homeland Security Presidential Directive #5 (HSPD-5).
• Mandatory for all federal agencies and in order to remain
eligible for federal funding, state governments must use
ICS.
March 2010 www.ems-solutionsinc.com 5
6. Emergency Management & Safety Solutions

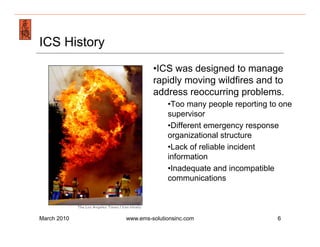

ICS History
• ICS was designed to manage
rapidly moving wildfires and to
address reoccurring problems.
• Too many people reporting to one
supervisor
• Different emergency response
organizational structure
• Lack of reliable incident
information
• Inadequate and incompatible
communications
March 2010 www.ems-solutionsinc.com 6

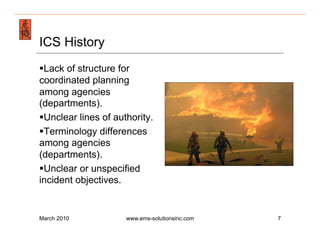

7. Emergency Management & Safety Solutions
ICS History
§ Lack of structure for
coordinated planning
among agencies
(departments).
§ Unclear lines of authority.
§ Terminology differences
among agencies
(departments).
§ Unclear or unspecified
incident objectives.
March 2010 www.ems-solutionsinc.com 7
8. Emergency Management & Safety Solutions

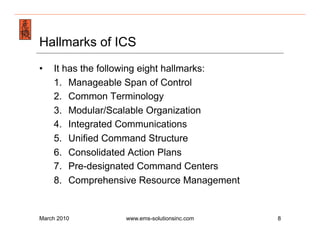

Hallmarks of ICS
• It has the following eight hallmarks:
1. Manageable Span of Control
2. Common Terminology
3. Modular/Scalable Organization
4. Integrated Communications
5. Unified Command Structure
6. Consolidated Action Plans
7. Pre-designated Command Centers
8. Comprehensive Resource Management
March 2010 www.ems-solutionsinc.com 8
9. Emergency Management & Safety Solutions

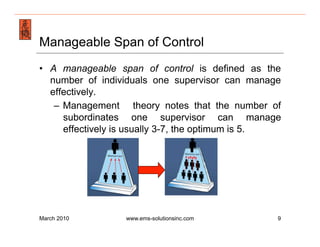

Manageable Span of Control
• A manageable span of control is defined as the
number of individuals one supervisor can manage
effectively.
– Management theory notes that the number of
subordinates one supervisor can manage
effectively is usually 3-7, the optimum is 5.
March 2010 www.ems-solutionsinc.com 9

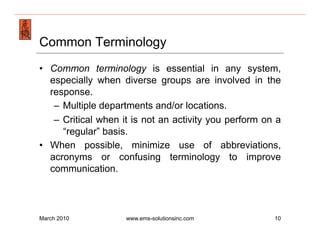

10. Emergency Management & Safety Solutions
Common Terminology
• Common terminology is essential in any system,
especially when diverse groups are involved in the
response.
– Multiple departments and/or locations.
– Critical when it is not an activity you perform on a
“regular” basis.
• When possible, minimize use of abbreviations,
acronyms or confusing terminology to improve
communication.
March 2010 www.ems-solutionsinc.com 10
11. Emergency Management & Safety Solutions

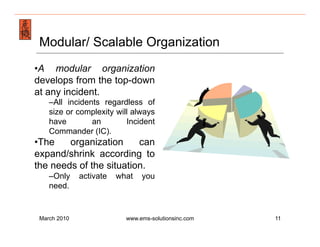

Modular/ Scalable Organization
• A modular organization
develops from the top-down
at any incident.
– All incidents regardless of
size or complexity will always
have an Incident
Commander (IC).
• The organization can
expand/shrink according to
the needs of the situation.
– Only activate what you
need.
March 2010 www.ems-solutionsinc.com 11
12. Emergency Management & Safety Solutions

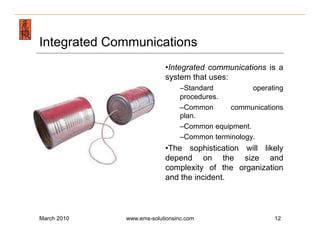

Integrated Communications
• Integrated communications is a
system that uses:
– Standard operating
procedures.
– Common communications
plan.
– Common equipment.
– Common terminology.
• The sophistication will likely
depend on the size and
complexity of the organization
and the incident.
March 2010 www.ems-solutionsinc.com 12
13. Emergency Management & Safety Solutions
Unified Command Structure
• A unified command allows all departments or groups
with responsibility for the incident, to manage an
incident.
– By establishing a common set of incident
objectives and strategies.
• Unified command does not mean losing or giving up
agency (departmental) authority, responsibility, or
accountability.
– It simply provides for a coordinated response.
March 2010 www.ems-solutionsinc.com 13
14. Emergency Management & Safety Solutions

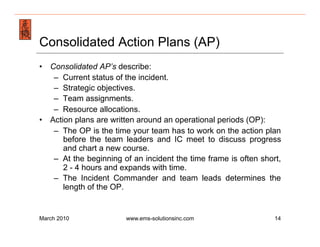

Consolidated Action Plans (AP)
• Consolidated AP’s describe:
– Current status of the incident.
– Strategic objectives.
– Team assignments.
– Resource allocations.
• Action plans are written around an operational periods (OP):
– The OP is the time your team has to work on the action plan
before the team leaders and IC meet to discuss progress
and chart a new course.
– At the beginning of an incident the time frame is often short,
2 - 4 hours and expands with time.
– The Incident Commander and team leads determines the
length of the OP.
March 2010 www.ems-solutionsinc.com 14
15. Emergency Management & Safety Solutions

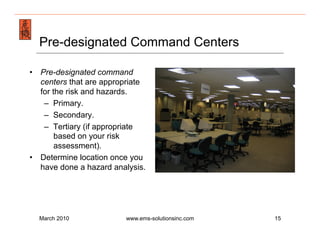

Pre-designated Command Centers
• Pre-designated command
centers that are appropriate
for the risk and hazards.
– Primary.
– Secondary.
– Tertiary (if appropriate
based on your risk
assessment).
• Determine location once you
have done a hazard analysis.
March 2010 www.ems-solutionsinc.com 15
16. Emergency Management & Safety Solutions
Comprehensive Resource Management
• Comprehensive resource
management allows an
organization to:
– Maximize resource use.
– Consolidate control of
single resources.
– Reduce the
communications load.
– Provide accountability.
– Ensure personnel safety.
March 2010 www.ems-solutionsinc.com 16

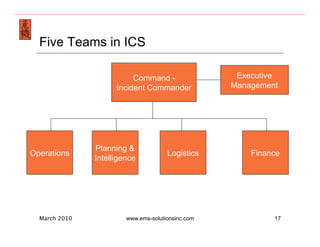

17. Emergency Management & Safety Solutions
Five Teams in ICS
Command - Executive
Incident Commander Management
Planning &
Operations Logistics Finance
Intelligence
March 2010 www.ems-solutionsinc.com 17
18. Emergency Management & Safety Solutions

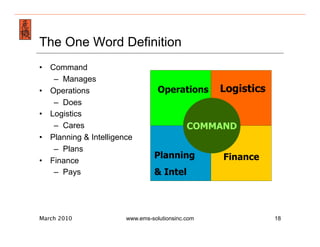

The One Word Definition
• Command
– Manages
• Operations
– Does
• Logistics
– Cares
• Planning & Intelligence
– Plans
• Finance
– Pays
March 2010 www.ems-solutionsinc.com 18
19. Emergency Management & Safety Solutions

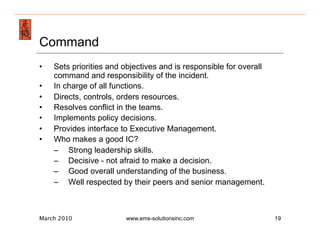

Command
• Sets priorities and objectives and is responsible for overall
command and responsibility of the incident.
• In charge of all functions.
• Directs, controls, orders resources.
• Resolves conflict in the teams.
• Implements policy decisions.
• Provides interface to Executive Management.
• Who makes a good IC?
– Strong leadership skills.
– Decisive - not afraid to make a decision.
– Good overall understanding of the business.
– Well respected by their peers and senior management.
March 2010 www.ems-solutionsinc.com 19

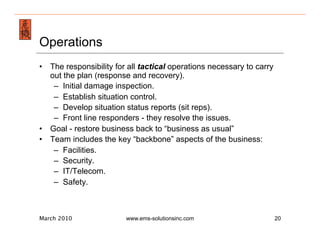

20. Emergency Management & Safety Solutions
Operations
• The responsibility for all tactical operations necessary to carry
out the plan (response and recovery).
– Initial damage inspection.
– Establish situation control.
– Develop situation status reports (sit reps).
– Front line responders - they resolve the issues.
• Goal - restore business back to “business as usual”
• Team includes the key “backbone” aspects of the business:
– Facilities.
– Security.
– IT/Telecom.
– Safety.
March 2010 www.ems-solutionsinc.com 20
21. Emergency Management & Safety Solutions
Planning & Intelligence
• Responsible for the collection, evaluation, and dissemination of
information concerning incident development.
• Takes the situation reports (from Ops) and evaluates
information.
• Applies “intelligence” to the situation and action plans.
• Make recommendations for action based on event & plans.
• Team is comprised of:
– BCP.
– Key lines of business.
– Corporate Communications.
– Legal.
– Investor Relations.
March 2010 www.ems-solutionsinc.com 21
22. Emergency Management & Safety Solutions
Logistics
• Responsible for providing the necessary support to meet
incident human needs.
– Food.
– Shelter.
– Transportation.
– Medical support.
– Counseling.
• Primary responsibility is the “care & feeding” of the teams.
– All of the human aspects of the disaster.
• Team is comprised of:
– Human Resources.
– Meeting Services/Travel.
– Employee Assistance.
March 2010 www.ems-solutionsinc.com 22
23. Emergency Management & Safety Solutions

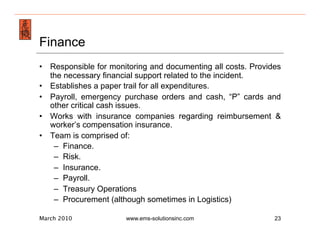

Finance
• Responsible for monitoring and documenting all costs. Provides
the necessary financial support related to the incident.
• Establishes a paper trail for all expenditures.
• Payroll, emergency purchase orders and cash, “P” cards and
other critical cash issues.
• Works with insurance companies regarding reimbursement &
worker’s compensation insurance.
• Team is comprised of:
– Finance.
– Risk.
– Insurance.
– Payroll.
– Treasury Operations
– Procurement (although sometimes in Logistics)
March 2010 www.ems-solutionsinc.com 23
24. Emergency Management & Safety Solutions
ICS Benefits
• Flow of information and resources within and
between all teams and at all levels of the
organization.
– Especially helpful for companies with multiple
locations.
• Coordination between teams.
• Rapid mobilization, deployment & tracking of
resources.
• Development of trends & patterns.
• Minimizes confusion & errors.
March 2010 www.ems-solutionsinc.com 24
25. Emergency Management & Safety Solutions
Executives - Where are they?
• Ideally not part of the Incident Response Team.
• They have four overall responsibilities:
1. Strategic and policy oversight
2. Approval of large expenditure requests.
3. Senior statesperson role to all key stakeholders-
employees, major customers, investor
community, board of directors, etc.
4. Media spokesperson if the situation warrants it.
March 2010 www.ems-solutionsinc.com 25

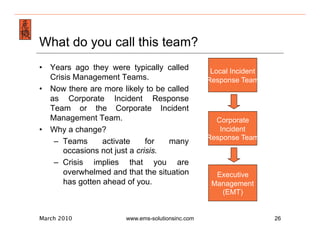

26. Emergency Management & Safety Solutions
What do you call this team?
• Years ago they were typically called Local Incident
Crisis Management Teams. Response Team
• Now there are more likely to be called
as Corporate Incident Response
Team or the Corporate Incident
Management Team. Corporate
• Why a change? Incident
Response Team
– Teams activate for many
occasions not just a crisis.
– Crisis implies that you are
overwhelmed and that the situation Executive
has gotten ahead of you. Management
(EMT)
March 2010 www.ems-solutionsinc.com 26

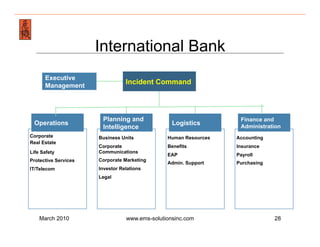

28. Emergency Management & Safety Solutions
International Bank
Executive
Management
Incident Command
Planning and Finance and
Operations Logistics
Intelligence Administration
Corporate Business Units Human Resources Accounting
Real Estate
Corporate Benefits Insurance
Life Safety Communications
EAP Payroll
Protective Services Corporate Marketing
Admin. Support Purchasing
IT/Telecom Investor Relations
Legal
March 2010 www.ems-solutionsinc.com 28

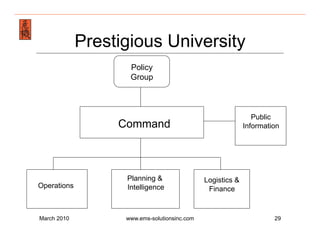

29. Emergency Management & Safety Solutions
Prestigious University
Policy
Group
Public
Command Information
Planning & Logistics &
Operations Intelligence Finance
March 2010 www.ems-solutionsinc.com 29
30. Emergency Management & Safety Solutions
ICS to the Rescue!
ICS
March 2010 www.ems-solutionsinc.com 30
31. Emergency Management & Safety Solutions
THANK YOU!
Regina Phelps, CEM, RN, BSN, MPA
Emergency Management & Safety Solutions
San Francisco, California
415-643-4300
www.ems-solutionsinc.com
March 2010 www.ems-solutionsinc.com 31
