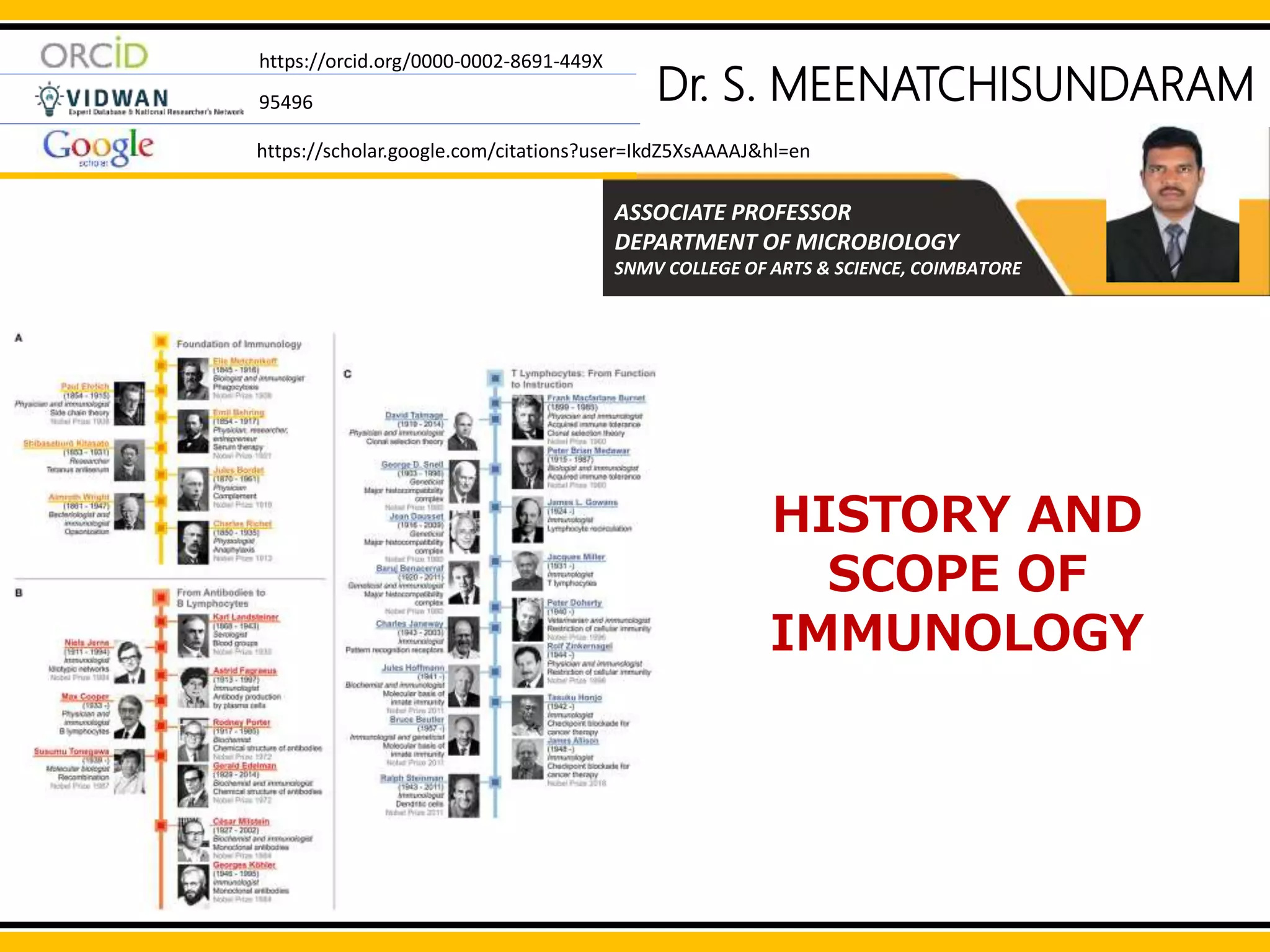

1. Dr. S. MEENATCHISUNDARAM
ASSOCIATE PROFESSOR
DEPARTMENT OF MICROBIOLOGY
SNMV COLLEGE OF ARTS & SCIENCE, COIMBATORE
https://orcid.org/0000-0002-8691-449X
95496
https://scholar.google.com/citations?user=IkdZ5XsAAAAJ&hl=en
HISTORY AND
SCOPE OF
IMMUNOLOGY

2. HISTORY AND SCOPE OF IMMUNOLOGY

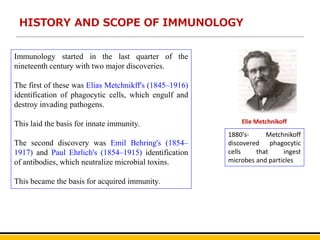

Immunology started in the last quarter of the
nineteenth century with two major discoveries.
The first of these was Elias Metchnikff's (1845–1916)
identification of phagocytic cells, which engulf and
destroy invading pathogens.
This laid the basis for innate immunity.
The second discovery was Emil Behring's (1854–
1917) and Paul Ehrlich's (1854–1915) identification
of antibodies, which neutralize microbial toxins.
This became the basis for acquired immunity.
Elie Metchnikoff
1880's- Metchnikoff
discovered phagocytic
cells that ingest
microbes and particles

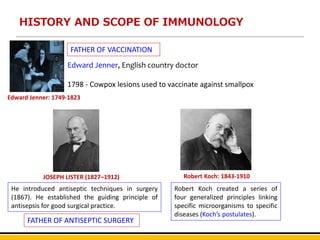

3. HISTORY AND SCOPE OF IMMUNOLOGY
JOSEPH LISTER (1827–1912) Robert Koch: 1843-1910
He introduced antiseptic techniques in surgery
(1867). He established the guiding principle of
antisepsis for good surgical practice.
Edward Jenner, English country doctor
1798 - Cowpox lesions used to vaccinate against smallpox
Robert Koch created a series of
four generalized principles linking
specific microorganisms to specific
diseases (Koch’s postulates).
Edward Jenner: 1749-1823
FATHER OF VACCINATION
FATHER OF ANTISEPTIC SURGERY

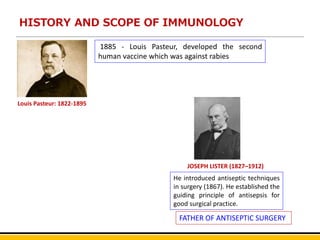

4. HISTORY AND SCOPE OF IMMUNOLOGY
Louis Pasteur: 1822-1895
1885 - Louis Pasteur, developed the second
human vaccine which was against rabies
JOSEPH LISTER (1827–1912)
He introduced antiseptic techniques
in surgery (1867). He established the
guiding principle of antisepsis for
good surgical practice.
FATHER OF ANTISEPTIC SURGERY

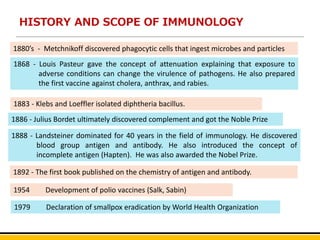

5. 1880’s - Metchnikoff discovered phagocytic cells that ingest microbes and particles
1868 - Louis Pasteur gave the concept of attenuation explaining that exposure to
adverse conditions can change the virulence of pathogens. He also prepared
the first vaccine against cholera, anthrax, and rabies.
1883 - Klebs and Loeffler isolated diphtheria bacillus.
1888 - Landsteiner dominated for 40 years in the field of immunology. He discovered
blood group antigen and antibody. He also introduced the concept of
incomplete antigen (Hapten). He was also awarded the Nobel Prize.
1892 - The first book published on the chemistry of antigen and antibody.
1886 - Julius Bordet ultimately discovered complement and got the Noble Prize
1954 Development of polio vaccines (Salk, Sabin)
HISTORY AND SCOPE OF IMMUNOLOGY
1979 Declaration of smallpox eradication by World Health Organization

6. 1990 Development of first human gene therapy with a retrovirus vector (Anderson, Blaese)
2006 Development of vaccine against human papillomavirus, the first vaccine designed
to prevent human cancer
2011 World Organisation for Animal Health officially declared the eradication of
Rinderpest, a contagious viral disease of cattle disease
HISTORY AND SCOPE OF IMMUNOLOGY
In 1975, Georges Köhler and César Milstein succeeded in making fusions of myeloma cell lines
with B cells to create hybridomas that could produce antibodies, specific to known antigens and
that were immortalized (Monoclonal Antibodies).
Susumu Tonegawa is a Japanese molecular biologist who won the Nobel Prize for Physiology or
Medicine in 1987 for his discovery of "the genetic principle for generation of antibody diversity".
In 1996 Peter C Doherty and Rolf M Zinkernagel got Nobel Prize for their discoveries concerning
“the specificity of the cell mediated immune defence”.

7. THE BASIS OF DEFENCE MECHANISMS
Immunity [Latin immunis, free of burden] refers to the resistance exhibited by the host
towards injury caused by microorganisms and their products.

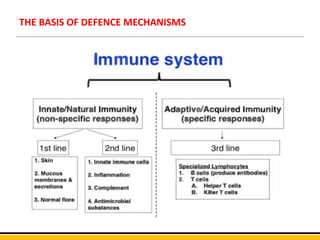

The human body has three primary lines of defence to fight against foreign invaders,
including viruses, bacteria, and fungi. The immune system’s three lines of defence include
physical and chemical barriers, non-specific innate responses, and specific adaptive
responses.

8. THE BASIS OF DEFENCE MECHANISMS

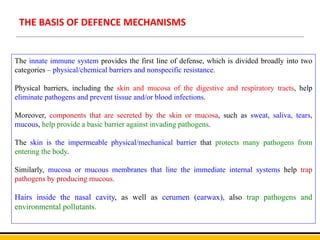

9. THE BASIS OF DEFENCE MECHANISMS
The innate immune system provides the first line of defense, which is divided broadly into two
categories – physical/chemical barriers and nonspecific resistance.
Physical barriers, including the skin and mucosa of the digestive and respiratory tracts, help
eliminate pathogens and prevent tissue and/or blood infections.
Moreover, components that are secreted by the skin or mucosa, such as sweat, saliva, tears,
mucous, help provide a basic barrier against invading pathogens.
The skin is the impermeable physical/mechanical barrier that protects many pathogens from
entering the body.
Similarly, mucosa or mucous membranes that line the immediate internal systems help trap
pathogens by producing mucous.
Hairs inside the nasal cavity, as well as cerumen (earwax), also trap pathogens and
environmental pollutants.

10. THE BASIS OF DEFENCE MECHANISMS

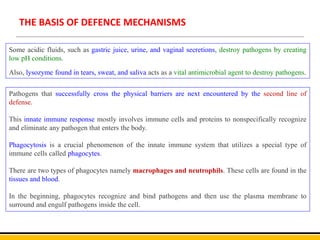

Some acidic fluids, such as gastric juice, urine, and vaginal secretions, destroy pathogens by creating
low pH conditions.
Also, lysozyme found in tears, sweat, and saliva acts as a vital antimicrobial agent to destroy pathogens.
Pathogens that successfully cross the physical barriers are next encountered by the second line of
defense.
This innate immune response mostly involves immune cells and proteins to nonspecifically recognize
and eliminate any pathogen that enters the body.

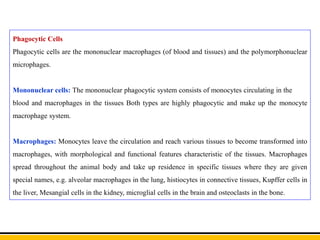

Phagocytosis is a crucial phenomenon of the innate immune system that utilizes a special type of
immune cells called phagocytes.
There are two types of phagocytes namely macrophages and neutrophils. These cells are found in the
tissues and blood.
In the beginning, phagocytes recognize and bind pathogens and then use the plasma membrane to
surround and engulf pathogens inside the cell.

11. THE BASIS OF DEFENCE MECHANISMS

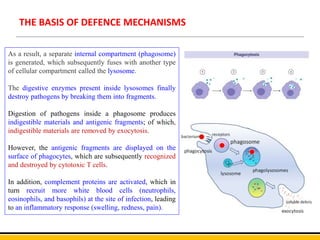

As a result, a separate internal compartment (phagosome)
is generated, which subsequently fuses with another type
of cellular compartment called the lysosome.
The digestive enzymes present inside lysosomes finally
destroy pathogens by breaking them into fragments.
Digestion of pathogens inside a phagosome produces
indigestible materials and antigenic fragments; of which,
indigestible materials are removed by exocytosis.
However, the antigenic fragments are displayed on the
surface of phagocytes, which are subsequently recognized
and destroyed by cytotoxic T cells.
In addition, complement proteins are activated, which in
turn recruit more white blood cells (neutrophils,
eosinophils, and basophils) at the site of infection, leading
to an inflammatory response (swelling, redness, pain).

12. THE BASIS OF DEFENCE MECHANISMS

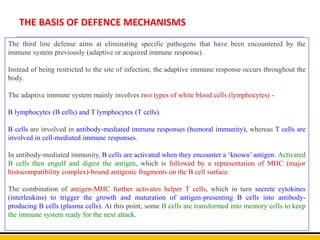

The third line defense aims at eliminating specific pathogens that have been encountered by the
immune system previously (adaptive or acquired immune response).
Instead of being restricted to the site of infection, the adaptive immune response occurs throughout the
body.
The adaptive immune system mainly involves two types of white blood cells (lymphocytes) -
B lymphocytes (B cells) and T lymphocytes (T cells).
B cells are involved in antibody-mediated immune responses (humoral immunity), whereas T cells are
involved in cell-mediated immune responses.
In antibody-mediated immunity, B cells are activated when they encounter a ‘known’ antigen. Activated
B cells then engulf and digest the antigen, which is followed by a representation of MHC (major
histocompatibility complex)-bound antigenic fragments on the B cell surface.
The combination of antigen-MHC further activates helper T cells, which in turn secrete cytokines
(interleukins) to trigger the growth and maturation of antigen-presenting B cells into antibody-
producing B cells (plasma cells). At this point, some B cells are transformed into memory cells to keep
the immune system ready for the next attack.

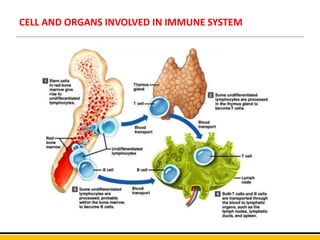

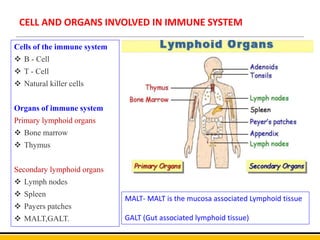

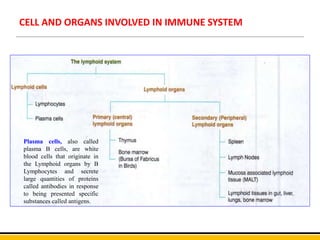

14. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM

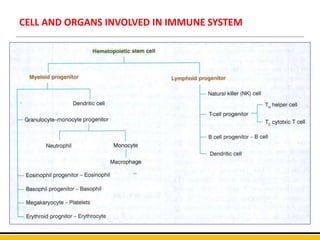

Cells of the immune system
 B - Cell
 T - Cell
 Natural killer cells
Organs of immune system
Primary lymphoid organs
 Bone marrow
 Thymus
Secondary lymphoid organs
 Lymph nodes
 Spleen
 Payers patches
 MALT,GALT.

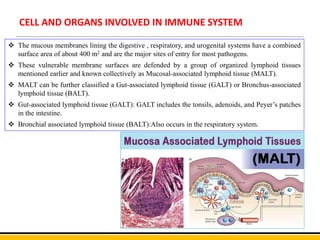

MALT- MALT is the mucosa associated Lymphoid tissue
GALT (Gut associated lymphoid tissue)

15. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM

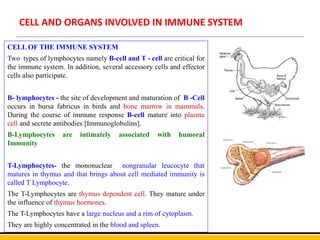

CELL OF THE IMMUNE SYSTEM
Two types of lymphocytes namely B-cell and T - cell are critical for
the immune system. In addition, several accessory cells and effector
cells also participate.
B- lymphocytes - the site of development and maturation of B -Cell
occurs in bursa fabricus in birds and bone marrow in mammals.

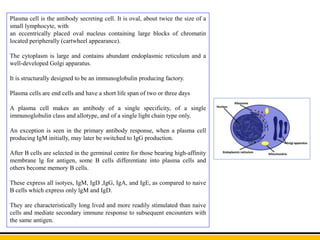

During the course of immune response B-cell mature into plasma
cell and secrete antibodies [Immunoglobulins].
B-Lymphocytes are intimately associated with humoral
Immunity

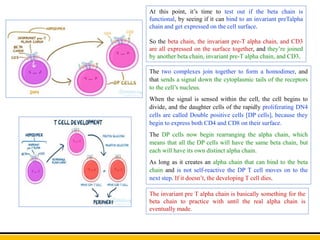

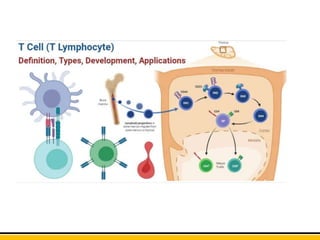

T-Lymphocytes- the mononuclear nongranular leucocyte that
matures in thymus and that brings about cell mediated immunity is
called T Lymphocyte.
The T-Lymphocytes are thymus dependent cell. They mature under
the influence of thymus hormones.
The T-Lymphocytes have a large nucleus and a rim of cytoplasm.
They are highly concentrated in the blood and spleen.

16. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM

17. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM

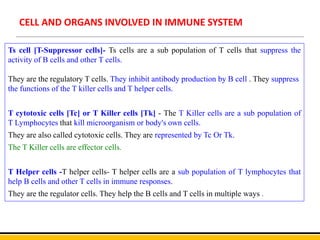

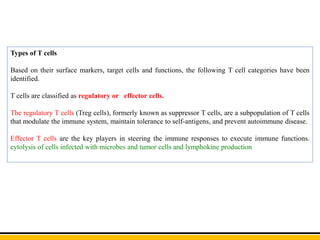

Ts cell [T-Suppressor cells]- Ts cells are a sub population of T cells that suppress the
activity of B cells and other T cells.
They are the regulatory T cells. They inhibit antibody production by B cell . They suppress
the functions of the T killer cells and T helper cells.

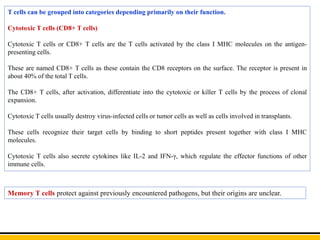

T cytotoxic cells [Tc] or T Killer cells [Tk] - The T Killer cells are a sub population of
T Lymphocytes that kill microorganism or body's own cells.
They are also called cytotoxic cells. They are represented by Tc Or Tk.
The T Killer cells are effector cells.

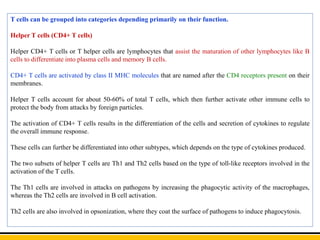

T Helper cells -T helper cells- T helper cells are a sub population of T lymphocytes that
help B cells and other T cells in immune responses.
They are the regulator cells. They help the B cells and T cells in multiple ways .

18. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM

19. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM

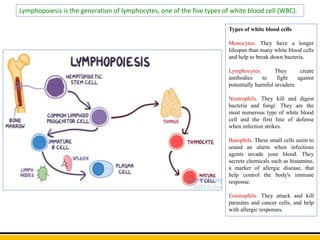

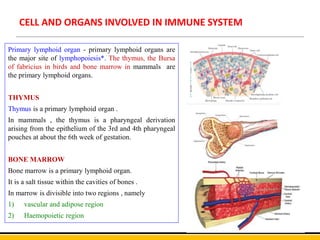

Primary lymphoid organ - primary lymphoid organs are
the major site of lymphopoiesis*. The thymus, the Bursa
of fabricius in birds and bone marrow in mammals are
the primary lymphoid organs.

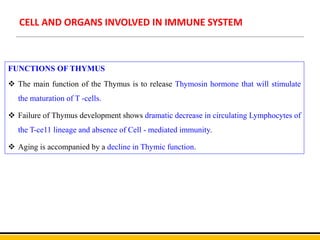

THYMUS
Thymus is a primary lymphoid organ .
In mammals , the thymus is a pharyngeal derivation
arising from the epithelium of the 3rd and 4th pharyngeal
pouches at about the 6th week of gestation.

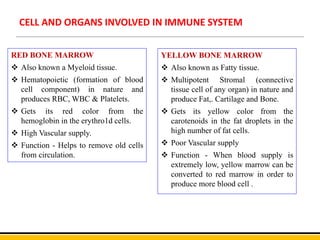

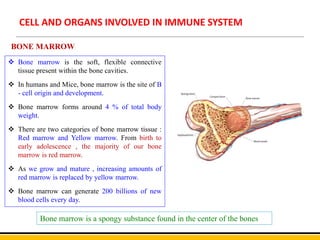

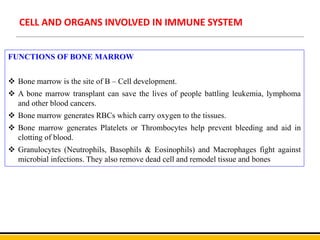

BONE MARROW
Bone marrow is a primary lymphoid organ.
It is a salt tissue within the cavities of bones .
In marrow is divisible into two regions , namely
1) vascular and adipose region
2) Haemopoietic region

20. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM

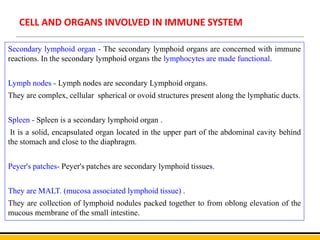

Secondary lymphoid organ - The secondary lymphoid organs are concerned with immune
reactions. In the secondary lymphoid organs the lymphocytes are made functional.

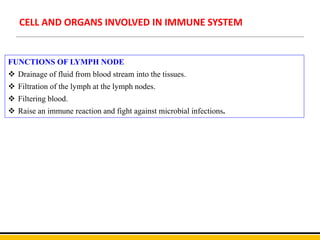

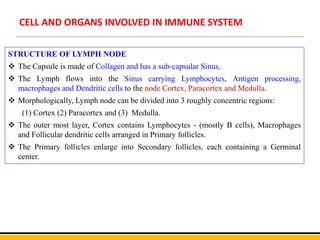

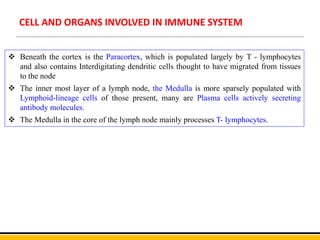

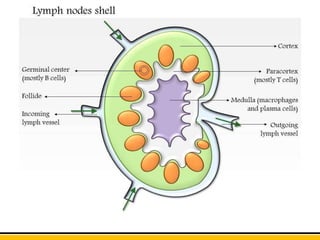

Lymph nodes - Lymph nodes are secondary Lymphoid organs.
They are complex, cellular spherical or ovoid structures present along the lymphatic ducts.

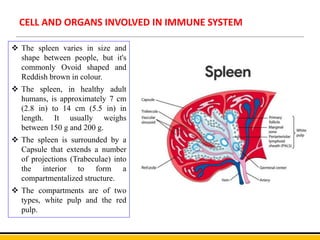

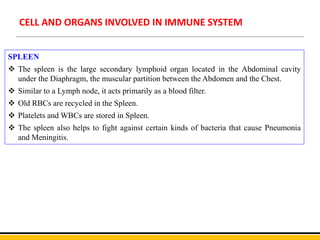

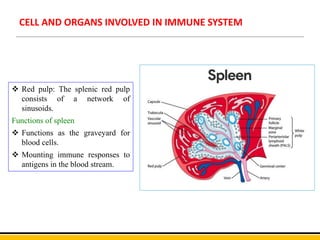

Spleen - Spleen is a secondary lymphoid organ .
It is a solid, encapsulated organ located in the upper part of the abdominal cavity behind
the stomach and close to the diaphragm.

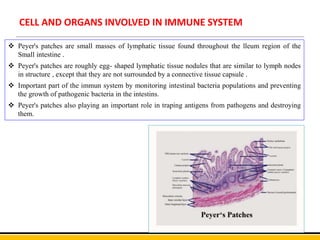

Peyer's patches- Peyer's patches are secondary lymphoid tissues.
They are MALT. (mucosa associated lymphoid tissue) .
They are collection of lymphoid nodules packed together to from oblong elevation of the
mucous membrane of the small intestine.

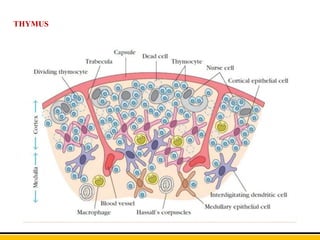

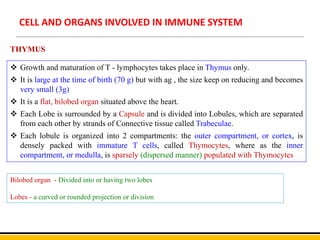

21. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM
 Growth and maturation of T - lymphocytes takes place in Thymus only.
 It is large at the time of birth (70 g) but with ag , the size keep on reducing and becomes
very small (3g)
 It is a flat, bilobed organ situated above the heart.
 Each Lobe is surrounded by a Capsule and is divided into Lobules, which are separated
from each other by strands of Connective tissue called Trabeculae.
 Each lobule is organized into 2 compartments: the outer compartment, or cortex, is
densely packed with immature T cells, called Thymocytes, where as the inner
compartment, or medulla, is sparsely (dispersed manner) populated with Thymocytes
THYMUS
Bilobed organ - Divided into or having two lobes
Lobes - a curved or rounded projection or division

22. THYMUS

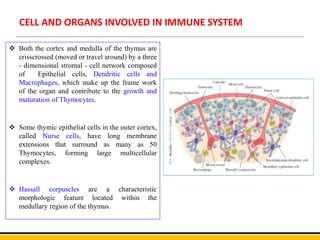

23. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM
 Both the cortex and medulla of the thymus are
crisscrossed (moved or travel around) by a three
- dimensional stromal - cell network composed
of Epithelial cells, Dendritic cells and
Macrophages, which make up the frame work
of the organ and contribute to the growth and
maturation of Thymocytes.
 Some thymic epithelial cells in the outer cortex,
called Nurse cells, have long membrane
extensions that surround as many as 50
Thymocytes, forming large multicellular
complexes.
 Hassall corpuscles are a characteristic
morphologic feature located within the
medullary region of the thymus.

24. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM
FUNCTIONS OF THYMUS
 The main function of the Thymus is to release Thymosin hormone that will stimulate
the maturation of T -cells.
 Failure of Thymus development shows dramatic decrease in circulating Lymphocytes of
the T-ce11 lineage and absence of Cell - mediated immunity.
 Aging is accompanied by a decline in Thymic function.

25. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM
 Bone marrow is the soft, flexible connective
tissue present within the bone cavities.
 In humans and Mice, bone marrow is the site of B
- cell origin and development.
 Bone marrow forms around 4 % of total body
weight.
 There are two categories of bone marrow tissue :
Red marrow and Yellow marrow. From birth to
early adolescence , the majority of our bone
marrow is red marrow.
 As we grow and mature , increasing amounts of
red marrow is replaced by yellow marrow.
 Bone marrow can generate 200 billions of new
blood cells every day.
BONE MARROW
Bone marrow is a spongy substance found in the center of the bones

26. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM
RED BONE MARROW
 Also known a Myeloid tissue.
 Hematopoietic (formation of blood
cell component) in nature and
produces RBC, WBC & Platelets.
 Gets its red color from the
hemoglobin in the erythro1d cells.
 High Vascular supply.
 Function - Helps to remove old cells
from circulation.
YELLOW BONE MARROW
 Also known as Fatty tissue.
 Multipotent Stromal (connective
tissue cell of any organ) in nature and
produce Fat,. Cartilage and Bone.
 Gets its yellow color from the
carotenoids in the fat droplets in the
high number of fat cells.
 Poor Vascular supply
 Function - When blood supply is
extremely low, yellow marrow can be
converted to red marrow in order to
produce more blood cell .

27. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM
FUNCTIONS OF BONE MARROW
 Bone marrow is the site of B – Cell development.
 A bone marrow transplant can save the lives of people battling leukemia, lymphoma
and other blood cancers.
 Bone marrow generates RBCs which carry oxygen to the tissues.
 Bone marrow generates Platelets or Thrombocytes help prevent bleeding and aid in
clotting of blood.
 Granulocytes (Neutrophils, Basophils & Eosinophils) and Macrophages fight against
microbial infections. They also remove dead cell and remodel tissue and bones

28. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM
 Lymph nodes are a group of small, bean-
shaped organs (2.6 cm in length) found
mainly in the neck and trunk of the
human body.
 They play vital roles in the filtration of
antigens and debris from Lymph
(circulating colourless watery fluid) and
in the generation of immune responses to
pathogens.
 Lymph nodes are often removed from
cancer patients as their filtration function
catches tumor cells metastasized (spread
to other sites in the body) from primary
tumors.
LYMPH NODE

30. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM
STRUCTURE OF LYMPH NODE
 The Capsule is made of Collagen and has a sub-capsular Sinus.
 The Lymph flows into the Sinus carrying Lymphocytes, Antigen processing,
macrophages and Dendritic cells to the node Cortex, Paracortex and Medulla.
 Morphologically, Lymph node can be divided into 3 roughly concentric regions:
(1) Cortex (2) Paracortex and (3) Medulla.
 The outer most layer, Cortex contains Lymphocytes - (mostly B cells), Macrophages
and Follicular dendritic cells arranged in Primary follicles.
 The Primary follicles enlarge into Secondary follicles, each containing a Germinal
center.

31. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM
 Beneath the cortex is the Paracortex, which is populated largely by T - lymphocytes
and also contains Interdigitating dendritic cells thought to have migrated from tissues
to the node
 The inner most layer of a lymph node, the Medulla is more sparsely populated with
Lymphoid-lineage cells of those present, many are Plasma cells actively secreting
antibody molecules.
 The Medulla in the core of the lymph node mainly processes T- lymphocytes.

32. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM
FUNCTIONS OF LYMPH NODE
 Drainage of fluid from blood stream into the tissues.
 Filtration of the lymph at the lymph nodes.
 Filtering blood.
 Raise an immune reaction and fight against microbial infections.

33. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM
SPLEEN
 The spleen is the large secondary lymphoid organ located in the Abdominal cavity
under the Diaphragm, the muscular partition between the Abdomen and the Chest.
 Similar to a Lymph node, it acts primarily as a blood filter.
 Old RBCs are recycled in the Spleen.
 Platelets and WBCs are stored in Spleen.
 The spleen also helps to fight against certain kinds of bacteria that cause Pneumonia
and Meningitis.

34. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM
Plasma cells, also called
plasma B cells, are white
blood cells that originate in
the Lymphoid organs by B
Lymphocytes and secrete
large quantities of proteins
called antibodies in response
to being presented specific
substances called antigens.

35. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM
 The spleen varies in size and
shape between people, but it's
commonly Ovoid shaped and
Reddish brown in colour.
 The spleen, in healthy adult
humans, is approximately 7 cm
(2.8 in) to 14 cm (5.5 in) in
length. It usually weighs
between 150 g and 200 g.
 The spleen is surrounded by a
Capsule that extends a number
of projections (Trabeculae) into
the interior to form a
compartmentalized structure.
 The compartments are of two
types, white pulp and the red
pulp.

36. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM
 White pulp: The splenic
white pulp surrounds the
branches of the splenic
artery, forming a
periarteriolar lymphoid
sheath (PALS) populated
mainly by T-lymphocytes.
 Primary lymphoid follicles
are attached to the PALS.
 These follicles are rich in B-
cells and some of them
contain germinal centers
which develop following
antigenic stimulation.

37. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM
 Red pulp: The splenic red pulp
consists of a network of
sinusoids.
Functions of spleen
 Functions as the graveyard for
blood cells.
 Mounting immune responses to
antigens in the blood stream.

38. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM
 The mucous membranes lining the digestive , respiratory, and urogenital systems have a combined
surface area of about 400 m2 and are the major sites of entry for most pathogens.
 These vulnerable membrane surfaces are defended by a group of organized lymphoid tissues
mentioned earlier and known collectively as Mucosal-associated lymphoid tissue (MALT).
 MALT can be further classified a Gut-associated lymphoid tissue (GALT) or Bronchus-associated
lymphoid tissue (BALT).
 Gut-associated lymphoid tissue (GALT): GALT includes the tonsils, adenoids, and Peyer’s patches
in the intestine.
 Bronchial associated lymphoid tissue (BALT):Also occurs in the respiratory system.

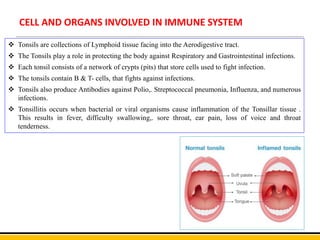

39. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM
 Tonsils are collections of Lymphoid tissue facing into the Aerodigestive tract.
 The Tonsils play a role in protecting the body against Respiratory and Gastrointestinal infections.
 Each tonsil consists of a network of crypts (pits) that store cells used to fight infection.
 The tonsils contain B & T- cells, that fights against infections.
 Tonsils also produce Antibodies against Polio,. Streptococcal pneumonia, Influenza, and numerous
infections.
 Tonsillitis occurs when bacterial or viral organisms cause inflammation of the Tonsillar tissue .
This results in fever, difficulty swallowing,. sore throat, ear pain, loss of voice and throat
tenderness.

40. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM
 Peyer's patches are small masses of lymphatic tissue found throughout the lleum region of the
Small intestine .
 Peyer's patches are roughly egg- shaped lymphatic tissue nodules that are similar to lymph nodes
in structure , except that they are not surrounded by a connective tissue capsule .
 Important part of the immun system by monitoring intestinal bacteria populations and preventing
the growth of pathogenic bacteria in the intestins.
 Peyer's patches also playing an important role in traping antigens from pathogens and destroying
them.

41. CELL AND ORGANS INVOLVED IN IMMUNE SYSTEM

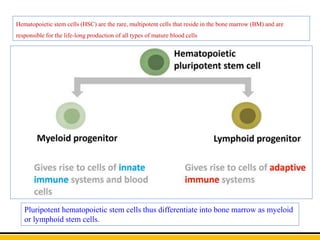

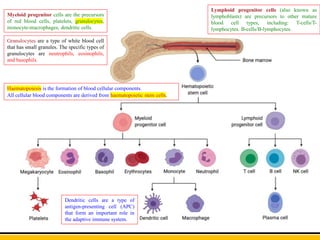

42. Pluripotent hematopoietic stem cells thus differentiate into bone marrow as myeloid
or lymphoid stem cells.
Hematopoietic stem cells (HSC) are the rare, multipotent cells that reside in the bone marrow (BM) and are
responsible for the life-long production of all types of mature blood cells

43. Haematopoiesis is the formation of blood cellular components.
All cellular blood components are derived from haematopoietic stem cells.
Myeloid progenitor cells are the precursors
of red blood cells, platelets, granulocytes,
monocyte-macrophages, dendritic cells.
Lymphoid progenitor cells (also known as
lymphoblasts) are precursors to other mature
blood cell types, including: T-cells/T-
lymphocytes. B-cells/B-lymphocytes.
Granulocytes are a type of white blood cell
that has small granules. The specific types of
granulocytes are neutrophils, eosinophils,
and basophils.

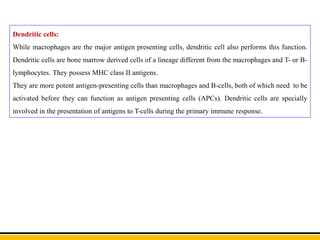

Dendritic cells are a type of
antigen-presenting cell (APC)
that form an important role in
the adaptive immune system.

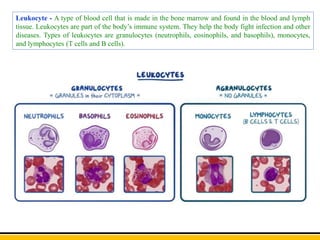

44. Leukocyte - A type of blood cell that is made in the bone marrow and found in the blood and lymph
tissue. Leukocytes are part of the body’s immune system. They help the body fight infection and other
diseases. Types of leukocytes are granulocytes (neutrophils, eosinophils, and basophils), monocytes,
and lymphocytes (T cells and B cells).

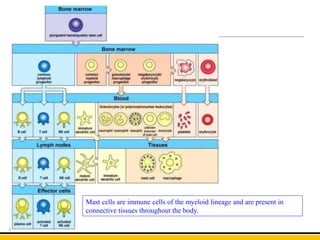

45. Mast cells are immune cells of the myeloid lineage and are present in
connective tissues throughout the body.

46. Lymphopoiesis is the generation of lymphocytes, one of the five types of white blood cell (WBC).
Types of white blood cells
Monocytes. They have a longer
lifespan than many white blood cells
and help to break down bacteria.
Lymphocytes. They create
antibodies to fight against
potentially harmful invaders.
Neutrophils. They kill and digest
bacteria and fungi. They are the
most numerous type of white blood
cell and the first line of defense
when infection strikes.
Basophils. These small cells seem to
sound an alarm when infectious
agents invade your blood. They
secrete chemicals such as histamine,
a marker of allergic disease, that
help control the body's immune
response.
Eosinophils. They attack and kill
parasites and cancer cells, and help
with allergic responses.

47. Types of T cells
Based on their surface markers, target cells and functions, the following T cell categories have been
identified.
T cells are classified as regulatory or effector cells.
The regulatory T cells (Treg cells), formerly known as suppressor T cells, are a subpopulation of T cells
that modulate the immune system, maintain tolerance to self-antigens, and prevent autoimmune disease.
Effector T cells are the key players in steering the immune responses to execute immune functions.
cytolysis of cells infected with microbes and tumor cells and lymphokine production

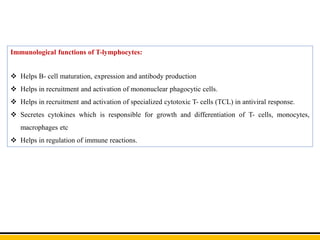

48. Immunological functions of T-lymphocytes:
 Helps B- cell maturation, expression and antibody production
 Helps in recruitment and activation of mononuclear phagocytic cells.
 Helps in recruitment and activation of specialized cytotoxic T- cells (TCL) in antiviral response.
 Secretes cytokines which is responsible for growth and differentiation of T- cells, monocytes,
macrophages etc
 Helps in regulation of immune reactions.

49. T cells can be grouped into categories depending primarily on their function.
Helper T cells (CD4+ T cells)
Helper CD4+ T cells or T helper cells are lymphocytes that assist the maturation of other lymphocytes like B
cells to differentiate into plasma cells and memory B cells.
CD4+ T cells are activated by class II MHC molecules that are named after the CD4 receptors present on their
membranes.
Helper T cells account for about 50-60% of total T cells, which then further activate other immune cells to
protect the body from attacks by foreign particles.
The activation of CD4+ T cells results in the differentiation of the cells and secretion of cytokines to regulate
the overall immune response.
These cells can further be differentiated into other subtypes, which depends on the type of cytokines produced.
The two subsets of helper T cells are Th1 and Th2 cells based on the type of toll-like receptors involved in the
activation of the T cells.
The Th1 cells are involved in attacks on pathogens by increasing the phagocytic activity of the macrophages,
whereas the Th2 cells are involved in B cell activation.
Th2 cells are also involved in opsonization, where they coat the surface of pathogens to induce phagocytosis.

50. T cells can be grouped into categories depending primarily on their function.
Cytotoxic T cells (CD8+ T cells)
Cytotoxic T cells or CD8+ T cells are the T cells activated by the class I MHC molecules on the antigen-
presenting cells.
These are named CD8+ T cells as these contain the CD8 receptors on the surface. The receptor is present in
about 40% of the total T cells.
The CD8+ T cells, after activation, differentiate into the cytotoxic or killer T cells by the process of clonal
expansion.
Cytotoxic T cells usually destroy virus-infected cells or tumor cells as well as cells involved in transplants.
These cells recognize their target cells by binding to short peptides present together with class I MHC
molecules.
Cytotoxic T cells also secrete cytokines like IL-2 and IFN-γ, which regulate the effector functions of other
immune cells.
Memory T cells protect against previously encountered pathogens, but their origins are unclear.

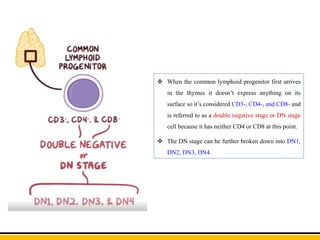

51.  When the common lymphoid progenitor first arrives
in the thymus it doesn’t express anything on its
surface so it’s considered CD3-, CD4-, and CD8- and
is referred to as a double negative stage or DN stage
cell because it has neither CD4 or CD8 at this point.
 The DN stage can be further broken down into DN1,
DN2, DN3, DN4.

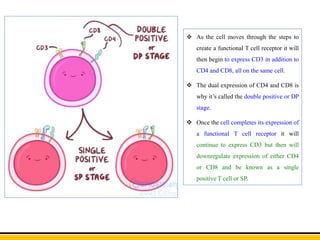

52.  As the cell moves through the steps to
create a functional T cell receptor it will
then begin to express CD3 in addition to
CD4 and CD8, all on the same cell.
 The dual expression of CD4 and CD8 is
why it’s called the double positive or DP
stage.
 Once the cell completes its expression of
a functional T cell receptor it will
continue to express CD3 but then will
downregulate expression of either CD4
or CD8 and be known as a single
positive T cell or SP.

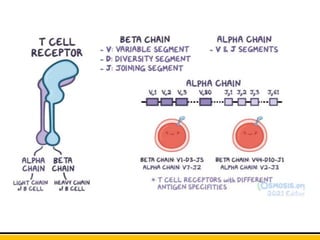

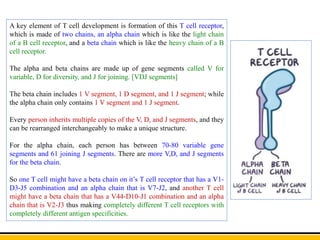

53. A key element of T cell development is formation of this T cell receptor,
which is made of two chains, an alpha chain which is like the light chain
of a B cell receptor, and a beta chain which is like the heavy chain of a B
cell receptor.
The alpha and beta chains are made up of gene segments called V for
variable, D for diversity, and J for joining. [VDJ segments]
The beta chain includes 1 V segment, 1 D segment, and 1 J segment; while
the alpha chain only contains 1 V segment and 1 J segment.
Every person inherits multiple copies of the V, D, and J segments, and they
can be rearranged interchangeably to make a unique structure.
For the alpha chain, each person has between 70-80 variable gene
segments and 61 joining J segments. There are more V,D, and J segments
for the beta chain.
So one T cell might have a beta chain on it’s T cell receptor that has a V1-
D3-J5 combination and an alpha chain that is V7-J2, and another T cell
might have a beta chain that has a V44-D10-J1 combination and an alpha
chain that is V2-J3 thus making completely different T cell receptors with
completely different antigen specificities.

55. Throughout all of these stages the T cell interacts
with epithelial cells of the thymus which release
growth factors as well as molecules like interleukin 7
and 2 which makes these DN1 cells mature.
Two enzymes, Rag-1 and Rag-2, start getting
expressed, and that signifies that the cell is now a
DN2 cell.
To begin forming the beta chain, Rag-1 and Rag-2
help to splice together D and J segments on both
chromosomes, and the chromosome that successfully
rearranges first will then suppress the other
chromosome from rearranging - a process called
allelic exclusion.
If a cell successfully joins a D segment to a J
segment, then it’s considered a DN3 cell.
Next, the DN3 cell has to attach its D-J gene segment
to a V gene segment, with the help of an additional
enzyme called V(D)J recombinase.
Once the VDJ segment are combined, the full beta
chain’s antigen binding site is complete and needs to
be recombined with the constant region of the T cell
receptor. Once that’s complete, it’s considered a DN4
cell.
Allelic exclusion is a process by which only one allele of a
gene is expressed while the other allele is silenced.

56. The two complexes join together to form a homodimer, and
that sends a signal down the cytoplasmic tails of the receptors
to the cell’s nucleus.
When the signal is sensed within the cell, the cell begins to
divide, and the daughter cells of the rapidly proliferating DN4
cells are called Double positive cells [DP cells], because they
begin to express both CD4 and CD8 on their surface.
The DP cells now begin rearranging the alpha chain, which
means that all the DP cells will have the same beta chain, but
each will have its own distinct alpha chain.
As long as it creates an alpha chain that can bind to the beta
chain and is not self-reactive the DP T cell moves on to the
next step. If it doesn’t, the developing T cell dies.
At this point, it’s time to test out if the beta chain is
functional, by seeing if it can bind to an invariant preTalpha
chain and get expressed on the cell surface.
So the beta chain, the invariant pre-T alpha chain, and CD3
are all expressed on the surface together, and they’re joined
by another beta chain, invariant pre-T alpha chain, and CD3.
The invariant pre T alpha chain is basically something for the
beta chain to practice with until the real alpha chain is
eventually made.

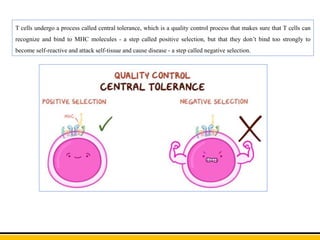

57. T cells undergo a process called central tolerance, which is a quality control process that makes sure that T cells can
recognize and bind to MHC molecules - a step called positive selection, but that they don’t bind too strongly to
become self-reactive and attack self-tissue and cause disease - a step called negative selection.

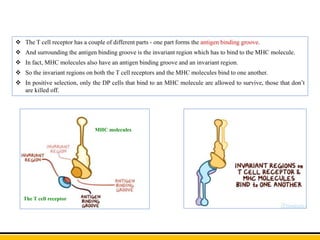

58.  The T cell receptor has a couple of different parts - one part forms the antigen binding groove.
 And surrounding the antigen binding groove is the invariant region which has to bind to the MHC molecule.
 In fact, MHC molecules also have an antigen binding groove and an invariant region.
 So the invariant regions on both the T cell receptors and the MHC molecules bind to one another.
 In positive selection, only the DP cells that bind to an MHC molecule are allowed to survive, those that don’t
are killed off.
The T cell receptor
MHC molecules

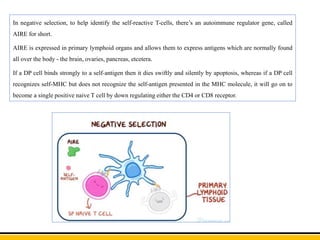

59. In negative selection, to help identify the self-reactive T-cells, there’s an autoimmune regulator gene, called
AIRE for short.
AIRE is expressed in primary lymphoid organs and allows them to express antigens which are normally found
all over the body - the brain, ovaries, pancreas, etcetera.
If a DP cell binds strongly to a self-antigen then it dies swiftly and silently by apoptosis, whereas if a DP cell
recognizes self-MHC but does not recognize the self-antigen presented in the MHC molecule, it will go on to
become a single positive naive T cell by down regulating either the CD4 or CD8 receptor.

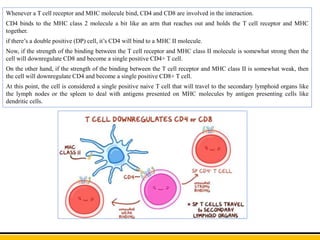

60. Whenever a T cell receptor and MHC molecule bind, CD4 and CD8 are involved in the interaction.
CD4 binds to the MHC class 2 molecule a bit like an arm that reaches out and holds the T cell receptor and MHC
together.
if there’s a double positive (DP) cell, it’s CD4 will bind to a MHC II molecule.
Now, if the strength of the binding between the T cell receptor and MHC class II molecule is somewhat strong then the
cell will downregulate CD8 and become a single positive CD4+ T cell.
On the other hand, if the strength of the binding between the T cell receptor and MHC class II is somewhat weak, then
the cell will downregulate CD4 and become a single positive CD8+ T cell.
At this point, the cell is considered a single positive naive T cell that will travel to the secondary lymphoid organs like
the lymph nodes or the spleen to deal with antigens presented on MHC molecules by antigen presenting cells like
dendritic cells.

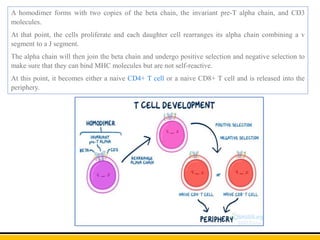

61. A homodimer forms with two copies of the beta chain, the invariant pre-T alpha chain, and CD3
molecules.
At that point, the cells proliferate and each daughter cell rearranges its alpha chain combining a v
segment to a J segment.
The alpha chain will then join the beta chain and undergo positive selection and negative selection to
make sure that they can bind MHC molecules but are not self-reactive.
At this point, it becomes either a naive CD4+ T cell or a naive CD8+ T cell and is released into the
periphery.

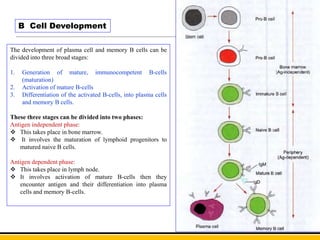

63. The development of plasma cell and memory B cells can be
divided into three broad stages:
1. Generation of mature, immunocompetent B-cells
(maturation)
2. Activation of mature B-cells
3. Differentiation of the activated B-cells, into plasma cells
and memory B cells.
These three stages can be divided into two phases:
Antigen independent phase:
 This takes place in bone marrow.
 It involves the maturation of lymphoid progenitors to
matured naive B cells.
Antigen dependent phase:
 This takes place in lymph node.
 It involves activation of mature B-cells then they
encounter antigen and their differentiation into plasma
cells and memory B-cells.
B Cell Development

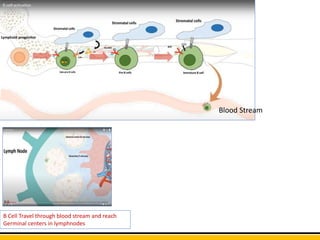

64. Blood Stream
B Cell Travel through blood stream and reach
Germinal centers in lymphnodes

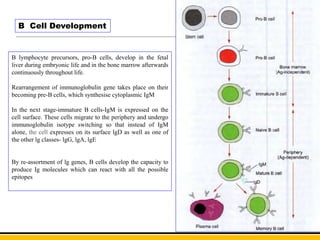

65. B lymphocyte precursors, pro-B cells, develop in the fetal
liver during embryonic life and in the bone marrow afterwards
continuously throughout life.
Rearrangement of immunoglobulin gene takes place on their
becoming pre-B cells, which synthesise cytoplasmic IgM
In the next stage-immature B cells-IgM is expressed on the
cell surface. These cells migrate to the periphery and undergo
immunoglobulin isotype switching so that instead of IgM
alone, the cell expresses on its surface lgD as well as one of
the other lg classes- lgG, lgA, lgE
By re-assortment of lg genes, B cells develop the capacity to
produce Ig molecules which can react with all the possible
epitopes
B Cell Development

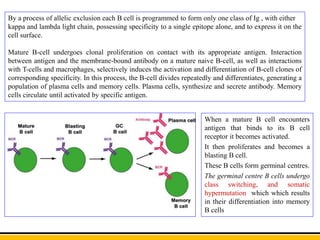

66. By a process of allelic exclusion each B cell is programmed to form only one class of Ig , with either
kappa and lambda light chain, possessing specificity to a single epitope alone, and to express it on the
cell surface.
Mature B-cell undergoes clonal proliferation on contact with its appropriate antigen. Interaction
between antigen and the membrane-bound antibody on a mature naive B-cell, as well as interactions
with T-cells and macrophages, selectively induces the activation and differentiation of B-cell clones of
corresponding specificity. In this process, the B-cell divides repeatedly and differentiates, generating a
population of plasma cells and memory cells. Plasma cells, synthesize and secrete antibody. Memory
cells circulate until activated by specific antigen.
When a mature B cell encounters
antigen that binds to its B cell
receptor it becomes activated.
It then proliferates and becomes a
blasting B cell.
These B cells form germinal centres.
The germinal centre B cells undergo
class switching, and somatic
hypermutation which which results
in their differentiation into memory
B cells

67. Plasma cell is the antibody secreting cell. It is oval, about twice the size of a
small lymphocyte, with
an eccentrically placed oval nucleus containing large blocks of chromatin
located peripherally (cartwheel appearance).
The cytoplasm is large and contains abundant endoplasmic reticulum and a
well-developed Golgi apparatus.
It is structurally designed to be an immunoglobulin producing factory.
Plasma cells are end cells and have a short life span of two or three days
A plasma cell makes an antibody of a single specificity, of a single
immunoglobulin class and allotype, and of a single light chain type only.
An exception is seen in the primary antibody response, when a plasma cell
producing IgM initially, may later be switched to IgG production.
After B cells are selected in the germinal centre for those bearing high-affinity
membrane lg for antigen, some B cells differentiate into plasma cells and
others become memory B cells.
These express all isotyes, IgM, IgD ,IgG, IgA, and IgE, as compared to naive
B cells which express only lgM and IgD.
They are characteristically long lived and more readily stimulated than naive
cells and mediate secondary immune response to subsequent encounters with
the same antigen.

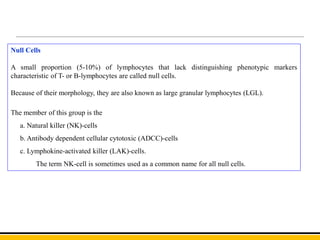

68. Null Cells
A small proportion (5-10%) of lymphocytes that lack distinguishing phenotypic markers
characteristic of T- or B-lymphocytes are called null cells.
Because of their morphology, they are also known as large granular lymphocytes (LGL).
The member of this group is the
a. Natural killer (NK)-cells
b. Antibody dependent cellular cytotoxic (ADCC)-cells
c. Lymphokine-activated killer (LAK)-cells.
The term NK-cell is sometimes used as a common name for all null cells.

69. Natural Killer (NK) Cells
Natural killer (NK) cells are derived from large granular lymphocytes (LGL). They differ from K-
cells in being independent of antibody.
NK-cells differ Tc cells in other properties as well
 They are not inducible by antigen.
 They lack the classic antigen-specificity of T-cells and B-cells.
 They are not restricted by MHC-encoded proteins.
 NK activity is ‘natural’ or ‘nonimmune’ as it does not require sensitisation by prior antigenic
contact.
 They belong to a different lineage from T- and B-cells.
Functions: They are considered to be important
 Immune surveillance
 Natural defence against virus infected and maliganant mutant cells.
 NK-cells are capable of nonspecific killing of virus-transformed target cells and are involved in
allograft and tumour rejection.

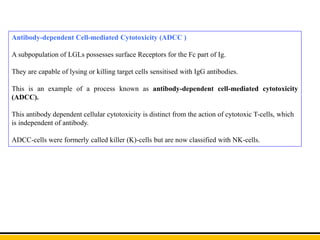

70. Antibody-dependent Cell-mediated Cytotoxicity (ADCC )
A subpopulation of LGLs possesses surface Receptors for the Fc part of Ig.
They are capable of lysing or killing target cells sensitised with IgG antibodies.
This is an example of a process known as antibody-dependent cell-mediated cytotoxicity
(ADCC).
This antibody dependent cellular cytotoxicity is distinct from the action of cytotoxic T-cells, which
is independent of antibody.
ADCC-cells were formerly called killer (K)-cells but are now classified with NK-cells.

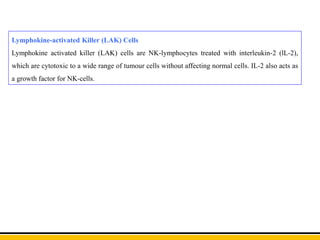

71. Lymphokine-activated Killer (LAK) Cells
Lymphokine activated killer (LAK) cells are NK-lymphocytes treated with interleukin-2 (lL-2),
which are cytotoxic to a wide range of tumour cells without affecting normal cells. IL-2 also acts as
a growth factor for NK-cells.

72. Phagocytic Cells
Phagocytic cells are the mononuclear macrophages (of blood and tissues) and the polymorphonuclear
microphages.
Mononuclear cells: The mononuclear phagocytic system consists of monocytes circulating in the
blood and macrophages in the tissues Both types are highly phagocytic and make up the monocyte
macrophage system.
Macrophages: Monocytes leave the circulation and reach various tissues to become transformed into
macrophages, with morphological and functional features characteristic of the tissues. Macrophages
spread throughout the animal body and take up residence in specific tissues where they are given
special names, e.g. alveolar macrophages in the lung, histiocytes in connective tissues, Kupffer cells in
the liver, Mesangial cells in the kidney, microglial cells in the brain and osteoclasts in the bone.

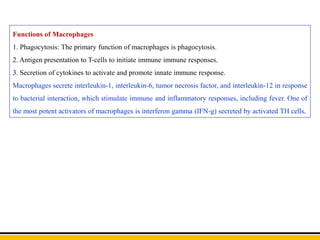

73. Functions of Macrophages
1. Phagocytosis: The primary function of macrophages is phagocytosis.
2. Antigen presentation to T-cells to initiate immune immune responses.
3. Secretion of cytokines to activate and promote innate immune response.
Macrophages secrete interleukin-1, interleukin-6, tumor necrosis factor, and interleukin-12 in response
to bacterial interaction, which stimulate immune and inflammatory responses, including fever. One of
the most potent activators of macrophages is interferon gamma (IFN-g) secreted by activated TH cells.

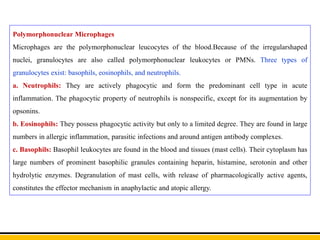

74. Polymorphonuclear Microphages
Microphages are the polymorphonuclear leucocytes of the blood.Because of the irregularshaped
nuclei, granulocytes are also called polymorphonuclear leukocytes or PMNs. Three types of
granulocytes exist: basophils, eosinophils, and neutrophils.
a. Neutrophils: They are actively phagocytic and form the predominant cell type in acute
inflammation. The phagocytic property of neutrophils is nonspecific, except for its augmentation by
opsonins.
b. Eosinophils: They possess phagocytic activity but only to a limited degree. They are found in large
numbers in allergic inflammation, parasitic infections and around antigen antibody complexes.
c. Basophils: Basophil leukocytes are found in the blood and tissues (mast cells). Their cytoplasm has
large numbers of prominent basophilic granules containing heparin, histamine, serotonin and other
hydrolytic enzymes. Degranulation of mast cells, with release of pharmacologically active agents,
constitutes the effector mechanism in anaphylactic and atopic allergy.

75. Dendritic cells:
While macrophages are the major antigen presenting cells, dendritic cell also performs this function.
Dendritic cells are bone marrow derived cells of a lineage different from the macrophages and T- or B-
lymphocytes. They possess MHC class II antigens.
They are more potent antigen-presenting cells than macrophages and B-cells, both of which need to be
activated before they can function as antigen presenting cells (APCs). Dendritic cells are specially
involved in the presentation of antigens to T-cells during the primary immune response.
