IFI7184.DT – Lesson 7
2015 @ Sonia Sousa 1

Lesson 7 - Outline
22015 @ Sonia Sousa
Method Design
Creating Objects
Loop statements
Identifying Classes and Objects
Enumerated Types
Static Variables and Methods
Wrapper Classes
Class Relationships
extra

Program Development
• The creation of software involves four basic
activities:
– establishing the requirements
– creating a design
– implementing the code
– testing the implementation
• These activities are not strictly linear – they
overlap and interact

Requirements
• Software requirements specify the tasks that a
program must accomplish
– what to do, not how to do it
• Often an initial set of requirements is provided, but
they should be critiqued and expanded
• It is difficult to establish detailed, unambiguous,
and complete requirements
• Careful attention to the requirements can save
significant time and expense in the overall project

Design
• A software design specifies how a program will
accomplish its requirements
• A software design specifies how the solution can be
broken down into manageable pieces and what each
piece will do
• An object-oriented design determines which classes
and objects are needed, and specifies how they will
interact
• Low level design details include how individual
methods will accomplish their tasks

Implementation
• Implementation is the process of translating a
design into source code
• Novice programmers often think that writing code
is the heart of software development, but actually
it should be the least creative step
• Almost all important decisions are made during
requirements and design stages
• Implementation should focus on coding details,
including style guidelines and documentation

Testing
• Testing attempts to ensure that the program will
solve the intended problem under all the
constraints specified in the requirements
• A program should be thoroughly tested with the
goal of finding errors
• Debugging is the process of determining the
cause of a problem and fixing it
• We revisit the details of the testing process later in
this chapter

Lesson 7 - Outline
82015 @ Sonia Sousa
Method Design
Creating Objects
Loop statements
Enumerated Types
Wrapper Classes
Class Relationships
extra

Anatomy of a Class
Creating Students objects

Classes (Student, StudentCompare)
• Write a class that compares the grades of two
students and tells who is the best
• Classes Student and main class StudentCompare
• The Student class contains two data
values
• a String name that represents the student's name
• an double grade that represents the student’s grade
– Write a Student constructor to set the name and
the initial grade
10@ Sonia Sousa2015

Creating Objects
• An object has:
– state (attributes)
– String name
– double grade
• descriptive characteristics
– behaviors (what he can
do)
– compareStudents
11
StudentCompare
Name
Grade
compareStudents
Student
@ Sonia Sousa2015

Data scope
• The scope of data is the area in a program
in which that data can be referenced
(used)
– Data declared at the class level can be
referenced by all methods in that class
– Data declared within a method can be used
only in that method
– Data declared within a method is called local
data
12@ Sonia Sousa2015

Instance Data
• A variable declared at the class level (such as name)
– is called class attribute or instance variable
• Each instance (object) has its own instance variable
– A class declares the type of the data, but it does not reserve
memory space for it
• Each time a Student object is created,
– a new name variable is created as well
• The objects of a class share the method definitions,
– but each object has its own data space
• That's the only way two objects can have different states
13@ Sonia Sousa2015

// Student.java Author: Sónia Sousa
// Demonstrates the creation and use of a user-defined class.
public class Student {
private String name;
private double grade;
public Student(String name, double grade) {
this.name = name;
this.grade = grade;
}
public static void compareStudents(Student st1, Student st2)
{
if (st1.grade > st2.grade)
{ System.out.print(st1.name +" is a better student");}
else
{
if (st2.grade > st1.grade)
{System.out.print(st2.name +" is a better student");}
else
{System.out.println(st1.name+ " and " + st2.name+ "
are on the same level");}
}
}
continue 14
2015 @ Sonia Sousa

package studentManager;
import java.util.Scanner;
public class StudentCompare {
public static void main(String[] args) {
Student st1, st2, st3;
String name;
double grade;
Scanner scan = new Scanner(System.in);
System.out.println("Insert the first name for Student
1");
name = scan.next();
System.out.println("Insert the grade for Student 1");
grade = scan.nextDouble();
st1 = new Student(name,grade);
System.out.println("Insert the first name for Student
2");
name = scan.next();
Student.compareStudents(st1, st2);
} 15@ Sonia Sousa
continue
2015

Instance Data
• We can depict the two Student objects
from the Student program as follows:
16
st1 Johnname
st2 Maryname
Each object maintains its own name variable, and
thus its own state
@ Sonia Sousa2015

Quick Check
• Why was the grade variable declared as
private in the Student class?
– By making it private, each Student object
controls its own data and allows it to be modified
only by the well-defined operations it provides.
17@ Sonia Sousa2015

Classes
• The values of the data define the state of an object
created from the class
• The functionality of the methods define the behaviors
of the object
• For our Die class, we might declare an integer called
faceValue that represents the current value
showing on the face
• One of the methods would “roll” the die by setting
faceValue to a random number between one and
six
@ Sonia Sousa 182015

Anatomy of a Class
Creating Die objects

Classes (Die,RollingDice)
• Write a class that creates two six-sided
Die objects, both with an initial face value
of one.
– Rolls both dice and returns the combined
result.
– Returns the current combined dice total.
– Returns the current value of the first die.
– Returns the current value of the second die.
20@ Sonia Sousa2015

Creating Objects
• An object has:
– state (attributes)
• constant MAX that represents the maximum face value
int MAX = 6
• integer faceValue that represents the current face value
int faceValue = 1
– behaviors (what he can do)
• Rolls the die and returns the result.
– The roll method uses the random method of the Math class to
determine a new face value
faceValue = (int) (Math.random() * MAX) + 1;
21@ Sonia Sousa2015

Constructors
• As mentioned previously, a constructor is
used to set up an object when it is initially
created
• A constructor has the same name as the
class
• The Die constructor is used to set the
initial face value of each new die object to
one

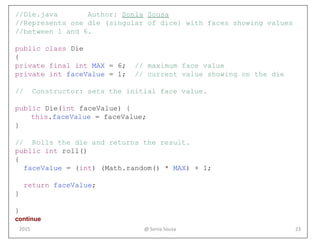

//Die.java Author: Sonia Sousa
//Represents one die (singular of dice) with faces showing values
//between 1 and 6.
public class Die
{
private final int MAX = 6; // maximum face value
private int faceValue = 1; // current value showing on the die
// Constructor: sets the initial face value.
public Die(int faceValue) {
this.faceValue = faceValue;
}
// Rolls the die and returns the result.
public int roll()
{
faceValue = (int) (Math.random() * MAX) + 1;
return faceValue;
}
}
continue

continue
public class RollingDice2 {
// Creates two six-sided Die objects, both with an initial
// face value of one.
int faceValue = 1;
Die die1 = new Die(faceValue);
Die die2 = new Die(faceValue);
System.out.println (die1.roll());
System.out.println (die2.roll());
System.out.println ("Total: " + (die1.roll() +
die2.roll()));
}
}

Instance Data
• We can depict the two Die objects from
the RollingDice program as follows:
die1 5faceValue
die2 2faceValue
Each object maintains its own faceValue
variable, and thus its own state

Quick Check
Where is instance data declared?
What is the scope of instance data?
What is local data?
At the class level.
It can be referenced in any method of the class.
Local data is declared within a method, and is
only accessible in that method.

Anatomy of a Class
Additional examples

Lesson 7 - Outline
282015 @ Sonia Sousa
Method Design
Creating Objects
Loop statements
Enumerated Types
Wrapper Classes
Class Relationships
extra

The for Statement
• A for statement has the following syntax:
for ( initialization ; condition ; increment )
statement;
The initialization
is executed once
before the loop begins
The statement is
executed until the
condition becomes false
The increment portion is executed at
the end of each iteration

Logic of a for loop
statement
true
condition
evaluated
false
increment
initialization

The for Statement
• A for loop is functionally equivalent to the
following while loop structure:
initialization;
while ( condition )
{
statement;
increment;
}

The for Statement
• The initialization section can be used to
declare a variable
for (int count=1; count <= 5; count++)
System.out.println (count);
• Like a while loop, the condition of a for
loop is tested prior to executing the loop
body
• Therefore, the body of a for loop will
execute zero or more times

The for Statement
• The increment section can perform any calculation:
for (int num=100; num > 0; num -= 5)
System.out.println (num);
• A for loop is well suited for executing statements a
specific number of times that can be calculated or
determined in advance
• See ForLoop.java
• See Multiples.java
• See Stars.java
@ Sonia Sousa2015 33

The For Statement
Demonstrating a for loop using an array
of Strings

Main class (ForLoop) package (loop)
• Start by creating the object array
– with the days of the week
static private String[] weekDays= {"Monday", "Tuesday”,
"Wednesday", "Thursday", "Friday", "Saturday", "Sunday"};
– Then print the results using a for iterate over an
array
• For loop that iterate over an array to print the String[]
for (int i = 0; i < weekDays.length; i++) {
System.out.println(weekDays[i]);
}
for ( initialization ; condition ; increment )
statement;

// ForLoop.java Author: Sónia Sousa
package loops;
public class repeatedLoop {
static private String[] weekDays= {"Monday",
"Tuesday", "Wednesday", "Thursday", "Friday", "Saturday",
"Sunday"};
// Demonstrates the use of a For loop
for (int i = 0; i < weekDays.length; i++) {
System.out.println(weekDays[i]);
}
}
}

The For Statement
Demonstrates the use of a for loop to
print a sequence of numbers.

Main class (Multiples) package (loop)
• Create a java application that
– Prints multiples of a user-specified number up to a
user-specified limit.
• Start by
– Scan a positive number and the upper limit and
print them
• Do a for loop that
– Print a specific number of values per line of
output

//********************************************************************
// Multiples.java Author: Lewis/Loftus
//
// Demonstrates the use of a for loop.
//********************************************************************
public class Multiples
{
//-----------------------------------------------------------------
// Prints multiples of a user-specified number up to a user-
// specified limit.
//-----------------------------------------------------------------
public static void main (String[] args)
{
final int PER_LINE = 5;
int value, limit, mult, count = 0;
Scanner scan = new Scanner (System.in);
System.out.print ("Enter a positive value: ");
value = scan.nextInt();
continue

continue
System.out.print ("Enter an upper limit: ");
limit = scan.nextInt();
System.out.println ();
System.out.println ("The multiples of " + value + " between " +
value + " and " + limit + " (inclusive) are:");
for (mult = value; mult <= limit; mult += value)
{
System.out.print (mult + "t");
// Print a specific number of values per line of output
count++;
if (count % PER_LINE == 0)
System.out.println();
}
}
}

continue
System.out.print ("Enter an upper limit: ");
limit = scan.nextInt();
System.out.println ("The multiples of " + value + " between " +
value + " and " + limit + " (inclusive) are:");
for (mult = value; mult <= limit; mult += value)
{
System.out.print (mult + "t");
// Print a specific number of values per line of output
count++;
if (count % PER_LINE == 0)
}
}
}
Sample Run
Enter a positive value: 7
Enter an upper limit: 400
The multiples of 7 between 7 and 400 (inclusive) are:
7 14 21 28 35
42 49 56 63 70
77 84 91 98 105
112 119 126 133 140
147 154 161 168 175
182 189 196 203 210
217 224 231 238 245
252 259 266 273 280
287 294 301 308 315
322 329 336 343 350
357 364 371 378 385
392 399

The For Statement
Demonstrates the use of nested for
loops.

Main class (Stars) package (loop)
• Create a java application that
– Prints a triangle shape using asterisk (star)
characters.
• Start by
– Create and initialize MAX_ROWS variable to 10
• Do a for loop that
– Print a specific number of values per line of
output

//********************************************************************
// Stars.java Author: Lewis/Loftus
//
// Demonstrates the use of nested for loops.
//********************************************************************
public class Stars
{
//-----------------------------------------------------------------
// Prints a triangle shape using asterisk (star) characters.
//-----------------------------------------------------------------
{
final int MAX_ROWS = 10;
for (int row = 1; row <= MAX_ROWS; row++)
{
for (int star = 1; star <= row; star++)
System.out.print ("*");
}
}
}

@ Sonia Sousa
//********************************************************************
// Stars.java Author: Lewis/Loftus
//
// Demonstrates the use of nested for loops.
//********************************************************************
public class Stars
{
//-----------------------------------------------------------------
// Prints a triangle shape using asterisk (star) characters.
//-----------------------------------------------------------------
{
final int MAX_ROWS = 10;
for (int row = 1; row <= MAX_ROWS; row++)
{
for (int star = 1; star <= row; star++)
System.out.print ("*");
}
}
}
Output
*
**
***
****
*****
******
*******
********
*********
**********
2015 45

Quick Check
• Write a code fragment that rolls a die 100 times
and counts the number of times a 3 comes up.
Die die = new Die();
int count = 0;
for (int num=1; num <= 100; num++)
if (die.roll() == 3)
count++;
Sytem.out.println (count);

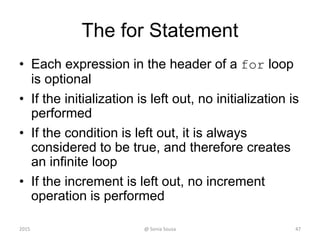

The for Statement
• Each expression in the header of a for loop
is optional
• If the initialization is left out, no initialization is
performed
• If the condition is left out, it is always
considered to be true, and therefore creates
an infinite loop
• If the increment is left out, no increment
operation is performed

Lesson 7 - Outline
Method Design
Creating Objects
Loop statements
Enumerated Types
Wrapper Classes
Class Relationships
extra

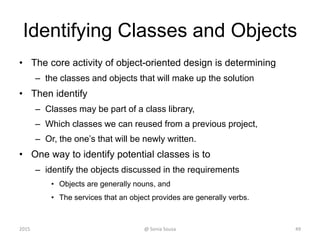

• The core activity of object-oriented design is determining
– the classes and objects that will make up the solution
• Then identify
– Classes may be part of a class library,
– Which classes we can reused from a previous project,
– Or, the one’s that will be newly written.
• One way to identify potential classes is to
– identify the objects discussed in the requirements
• Objects are generally nouns, and
• The services that an object provides are generally verbs.

• A partial requirements document:
• Of course, not all nouns will correspond to a
class or object in the final solution
The user must be allowed to specify each product by
its primary characteristics, including its name and
product number. If the bar code does not match the
product, then an error should be generated to the
message window and entered into the error log. The
summary report of all transactions must be structured
as specified in section 7.A.

• Remember that a class represents a group
(classification) of objects with the same behaviors
• Generally, classes that represent objects should
– Be given names that are singular nouns
• Examples: Coin, Student, Message
– A class represents the concept of one such object
• We are free to instantiate as many of each object as needed

• Sometimes it is challenging to decide whether
something should be represented as a class
– For example, should an employee's address be
represented as a set of instance variables or as an
Address object
• The more you examine the problem and its details
the more clear these issues become
• When a class becomes too complex,
– it often should be decomposed into multiple smaller
classes to distribute the responsibilities

• We want to define classes with the proper amount
of detail
– For example, it may be unnecessary to create
separate classes for each type of appliance in a
house
• It may be sufficient to define a more general
Appliance class with appropriate instance data
• It all depends on the details of the problem being
solved

• Part of identifying the classes we need is the
process of assigning responsibilities to each class
• Every activity that a program must accomplish
must be represented by one or more methods in
one or more classes
• We generally use verbs for the names of methods
• In early stages it is not necessary to determine
every method of every class – begin with primary
responsibilities and evolve the design

Lesson 7 - Outline
Method Design
Creating Objects
Loop statements
Enumerated Types
Wrapper Classes
Class Relationships
Extra

Enumerated Types
• An enumerated type declaration
– lists all possible values for a variable of that type
– The values are identifiers of your own choosing
• The following declaration creates an
enumerated type called Season
enum Season {winter, spring, summer, fall};
• Any number of values can be listed

Enumerated Types
• Once a type is defined,
– a variable of that type can be declared:
Season time;
• And it can be assigned a value:
time = Season.fall;
– The values are referenced through the name of the type
• Enumerated types are type-safe
– you cannot assign any value other than those listed

Ordinal Values
• Internally, each value of an enumerated type
is stored as an integer,
– called its ordinal value
• The first value in an enumerated type
– has an ordinal value of zero, the second one, and
so on
• However, you cannot assign a numeric value
to an enumerated type,
– even if it corresponds to a valid ordinal value

Enumerated Types
• The declaration of an enumerated type is a
special type of class, and
– each variable of that type is an object
– cone1.ordinal()
• The ordinal method returns the ordinal value of the
object
– cone1.name()
• The name method returns the name of the identifier
corresponding to the object's value
• See IceCream.java

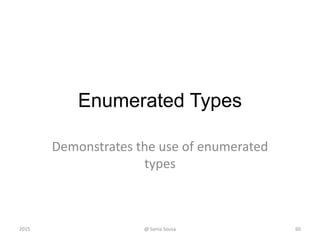

Enumerated Types
Demonstrates the use of enumerated
types

//********************************************************************
// IceCream.java Author: Lewis/Loftus
//
// Demonstrates the use of enumerated types.
//********************************************************************
public class IceCream
{
enum Flavor {vanilla, chocolate, strawberry, fudgeRipple, coffee,
rockyRoad, mintChocolateChip, cookieDough}
//-----------------------------------------------------------------
// Creates and uses variables of the Flavor type.
//-----------------------------------------------------------------
{
Flavor cone1, cone2, cone3;
cone1 = Flavor.rockyRoad;
cone2 = Flavor.chocolate;
System.out.println ("cone1 value: " + cone1);
System.out.println ("cone1 ordinal: " + cone1.ordinal());
System.out.println ("cone1 name: " + cone1.name());
continued

continued
cone3 = cone1;
}
}

continued
cone3 = cone1;
}
}
Output
cone1 value: rockyRoad
cone1 ordinal: 5
cone1 name: rockyRoad
cone2 value: chocolate
cone2 ordinal: 1
cone2 name: chocolate
cone3 value: rockyRoad
cone3 ordinal: 5
cone3 name: rockyRoad

Lesson 7 - Outline
Method Design
Creating Objects
Loop statements
Enumerated Types
Wrapper Classes
Class Relationships
Extra

Static Class Members
• Recall that a static method is one that can be
invoked through its class name
• For example, the methods of the Math class
are static:
result = Math.sqrt(25)
• Variables can be static as well
• Determining if a method or variable should be
static is an important design decision

The static Modifier
• We declare static methods and variables
using the static modifier
• It associates the method or variable with the
class rather than with an object of that class
• Static methods are sometimes called class
methods and static variables are sometimes
called class variables
• Let's carefully consider the implications of
each

Static Variables
• Normally, each object has its own data space, but
if a variable is declared as static, only one copy of
the variable exists
private static float price;
• Memory space for a static variable is created
when the class is first referenced
• All objects instantiated from the class share its
static variables
• Changing the value of a static variable in one
object changes it for all others

Static Methods
• Because it is declared as static, the cube
method can be invoked through the class name:
value = Helper.cube(4);
public class Helper
{
public static int cube (int num)
{
return num * num * num;
}
}

• The order of the modifiers can be interchanged,
but by convention visibility modifiers come first
• Recall that the main method is static – it is
invoked by the Java interpreter without creating an
object

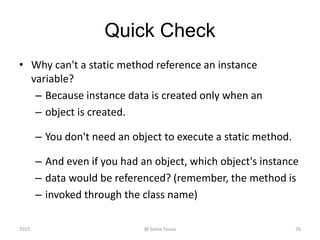

• Static methods cannot reference instance
variables because instance variables don't exist
until an object exists
• However, a static method can reference static
variables or local variables

• Static methods and static variables often
work together
• The following example keeps track of how
many Slogan objects have been created
using a static variable, and makes that
information available using a static method
• See SloganCounter.java
• See Slogan.java

//********************************************************************
// SloganCounter.java Author: Lewis/Loftus
//
// Demonstrates the use of the static modifier.
//********************************************************************
public class SloganCounter
{
//-----------------------------------------------------------------
// Creates several Slogan objects and prints the number of
// objects that were created.
//-----------------------------------------------------------------
{
Slogan obj;
obj = new Slogan ("Remember the Alamo.");
System.out.println (obj);
obj = new Slogan ("Don't Worry. Be Happy.");
continue

continue
obj = new Slogan ("Live Free or Die.");
obj = new Slogan ("Talk is Cheap.");
obj = new Slogan ("Write Once, Run Anywhere.");
System.out.println ("Slogans created: " + Slogan.getCount());
}
}

continue
obj = new Slogan ("Live Free or Die.");
obj = new Slogan ("Talk is Cheap.");
obj = new Slogan ("Write Once, Run Anywhere.");
System.out.println ("Slogans created: " + Slogan.getCount());
}
}
Output
Remember the Alamo.
Don't Worry. Be Happy.
Live Free or Die.
Talk is Cheap.
Write Once, Run Anywhere.
Slogans created: 5

@ Sonia Sousa
//********************************************************************
// Slogan.java Author: Lewis/Loftus
//
// Represents a single slogan string.
//********************************************************************
public class Slogan
{
private String phrase;
private static int count = 0;
//-----------------------------------------------------------------
// Constructor: Sets up the slogan and counts the number of
// instances created.
//-----------------------------------------------------------------
public Slogan (String str)
{
phrase = str;
count++;
}
continue
2015 74

continue
//-----------------------------------------------------------------
// Returns this slogan as a string.
//-----------------------------------------------------------------
public String toString()
{
return phrase;
}
//-----------------------------------------------------------------
// Returns the number of instances of this class that have been
// created.
//-----------------------------------------------------------------
public static int getCount ()
{
return count;
}
}

Quick Check
• Why can't a static method reference an instance
variable?
– Because instance data is created only when an
– object is created.
– You don't need an object to execute a static method.
– And even if you had an object, which object's instance
– data would be referenced? (remember, the method is
– invoked through the class name)

Lesson 7 - Outline
Method Design
Creating Objects
Loop statements
Enumerated Types
Wrapper Classes
Class Relationships
Extra

Wrapper Classes
Primitive Type Wrapper Class
byte Byte
short Short
int Integer
long Long
float Float
double Double
char Character
boolean Boolean
• The java.lang package contains wrapper
classes that correspond to each primitive type:

Wrapper Classes
• The following declaration creates an Integer object
which represents the integer 40 as an object
Integer age = new Integer(40);
• An object of a wrapper class can be used in any
situation where a primitive value will not suffice
• For example, some objects serve as containers of
other objects
• Primitive values could not be stored in such
containers, but wrapper objects could be

Wrapper Classes
• Wrapper classes also contain static methods that help
manage the associated type
• For example, the Integer class contains a method to
convert an integer stored in a String to an int
value:
num = Integer.parseInt(str);
• They often contain useful constants as well
• For example, the Integer class contains MIN_VALUE
and MAX_VALUE which hold the smallest and largest
int values

Autoboxing
• Autoboxing is the automatic conversion of a primitive
value to a corresponding wrapper object:
Integer obj;
int num = 42;
obj = num;
• The assignment creates the appropriate Integer
object
• The reverse conversion (called unboxing) also occurs
automatically as needed

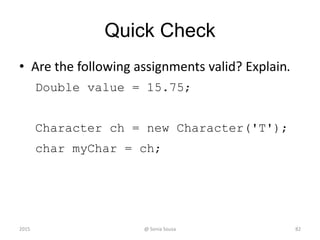

Quick Check
• Are the following assignments valid? Explain.
Double value = 15.75;
Character ch = new Character('T');
char myChar = ch;

Quick Check
• Are the following assignments valid? Explain.
– Double value = 15.75;
• Yes. The double literal is autoboxed into a
Double object.
– Character ch = new Character('T');
• Yes, the char in the object is unboxed before the
assignment.
– char myChar = ch;

Lesson 7 - Outline
Method Design
Creating Objects
Loop statements
Enumerated Types
Wrapper Classes
Class Relationships
Extra

Class Relationships
• Classes in a software system can have
various types of relationships to each other
• Three of the most common relationships:
– Dependency: A uses B
– Aggregation: A has-a B
– Inheritance: A is-a B
• Let's discuss dependency and aggregation
further

Dependency
• A dependency exists when one class relies on another
in some way, usually by invoking the methods of the
other
• We've seen dependencies in many previous examples
• We don't want numerous or complex dependencies
among classes
• Nor do we want complex classes that don't depend on
others
• A good design strikes the right balance

Dependency
• Some dependencies occur between objects
of the same class
• A method of the class may accept an object
of the same class as a parameter
• For example, the concat method of the
String class takes as a parameter another
String object
str3 = str1.concat(str2);

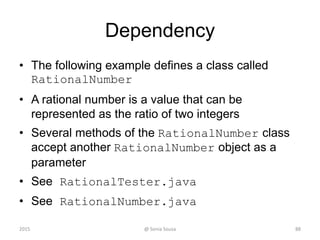

Dependency
• The following example defines a class called
RationalNumber
• A rational number is a value that can be
represented as the ratio of two integers
• Several methods of the RationalNumber class
accept another RationalNumber object as a
parameter
• See RationalTester.java
• See RationalNumber.java

//********************************************************************
// RationalTester.java Author: Lewis/Loftus
//
// Driver to exercise the use of multiple Rational objects.
//********************************************************************
public class RationalTester
{
//-----------------------------------------------------------------
// Creates some rational number objects and performs various
// operations on them.
//-----------------------------------------------------------------
{
RationalNumber r1 = new RationalNumber (6, 8);
RationalNumber r2 = new RationalNumber (1, 3);
RationalNumber r3, r4, r5, r6, r7;
System.out.println ("First rational number: " + r1);
System.out.println ("Second rational number: " + r2);
continue

continue
if (r1.isLike(r2))
System.out.println ("r1 and r2 are equal.");
else
System.out.println ("r1 and r2 are NOT equal.");
r3 = r1.reciprocal();
System.out.println ("The reciprocal of r1 is: " + r3);
r4 = r1.add(r2);
r5 = r1.subtract(r2);
r6 = r1.multiply(r2);
r7 = r1.divide(r2);
System.out.println ("r1 + r2: " + r4);
System.out.println ("r1 - r2: " + r5);
System.out.println ("r1 * r2: " + r6);
System.out.println ("r1 / r2: " + r7);
}
}

continue
if (r1.isLike(r2))
System.out.println ("r1 and r2 are equal.");
else
System.out.println ("r1 and r2 are NOT equal.");
r3 = r1.reciprocal();
System.out.println ("The reciprocal of r1 is: " + r3);
r4 = r1.add(r2);
r5 = r1.subtract(r2);
r6 = r1.multiply(r2);
r7 = r1.divide(r2);
System.out.println ("r1 + r2: " + r4);
System.out.println ("r1 - r2: " + r5);
System.out.println ("r1 * r2: " + r6);
System.out.println ("r1 / r2: " + r7);
}
}
Output
First rational number: 3/4
Second rational number: 1/3
r1 and r2 are NOT equal.
The reciprocal of r1 is: 4/3
r1 + r2: 13/12
r1 - r2: 5/12
r1 * r2: 1/4
r1 / r2: 9/4

//********************************************************************
// RationalNumber.java Author: Lewis/Loftus
//
// Represents one rational number with a numerator and denominator.
//********************************************************************
public class RationalNumber
{
private int numerator, denominator;
//-----------------------------------------------------------------
// Constructor: Sets up the rational number by ensuring a nonzero
// denominator and making only the numerator signed.
//-----------------------------------------------------------------
public RationalNumber (int numer, int denom)
{
if (denom == 0)
denom = 1;
// Make the numerator "store" the sign
if (denom < 0)
{
numer = numer * -1;
denom = denom * -1;
}
continue

continue
numerator = numer;
denominator = denom;
reduce();
}
//-----------------------------------------------------------------
// Returns the numerator of this rational number.
//-----------------------------------------------------------------
public int getNumerator ()
{
return numerator;
}
//-----------------------------------------------------------------
// Returns the denominator of this rational number.
//-----------------------------------------------------------------
public int getDenominator ()
{
return denominator;
}
continue

continue
//-----------------------------------------------------------------

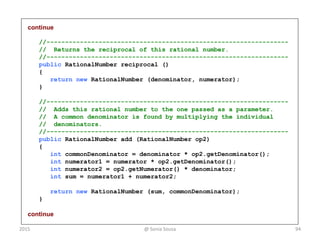

// Returns the reciprocal of this rational number.
//-----------------------------------------------------------------
public RationalNumber reciprocal ()
{
return new RationalNumber (denominator, numerator);
}
//-----------------------------------------------------------------
// Adds this rational number to the one passed as a parameter.
// A common denominator is found by multiplying the individual
// denominators.
//-----------------------------------------------------------------
public RationalNumber add (RationalNumber op2)
{
int commonDenominator = denominator * op2.getDenominator();
int numerator1 = numerator * op2.getDenominator();
int numerator2 = op2.getNumerator() * denominator;
int sum = numerator1 + numerator2;
return new RationalNumber (sum, commonDenominator);
}
continue

continue
//-----------------------------------------------------------------
// Subtracts the rational number passed as a parameter from this
// rational number.
//-----------------------------------------------------------------
public RationalNumber subtract (RationalNumber op2)
{
int commonDenominator = denominator * op2.getDenominator();
int numerator1 = numerator * op2.getDenominator();
int numerator2 = op2.getNumerator() * denominator;
int difference = numerator1 - numerator2;
return new RationalNumber (difference, commonDenominator);
}
//-----------------------------------------------------------------
// Multiplies this rational number by the one passed as a
// parameter.
//-----------------------------------------------------------------
public RationalNumber multiply (RationalNumber op2)
{
int numer = numerator * op2.getNumerator();
int denom = denominator * op2.getDenominator();
return new RationalNumber (numer, denom);
}
continue

continue
//-----------------------------------------------------------------
// Divides this rational number by the one passed as a parameter
// by multiplying by the reciprocal of the second rational.
//-----------------------------------------------------------------
public RationalNumber divide (RationalNumber op2)
{
return multiply (op2.reciprocal());
}
//-----------------------------------------------------------------
// Determines if this rational number is equal to the one passed
// as a parameter. Assumes they are both reduced.
//-----------------------------------------------------------------
public boolean isLike (RationalNumber op2)
{
return ( numerator == op2.getNumerator() &&
denominator == op2.getDenominator() );
}
continue

continue
//-----------------------------------------------------------------
// Returns this rational number as a string.
//-----------------------------------------------------------------
public String toString ()
{
String result;
if (numerator == 0)
result = "0";
else
if (denominator == 1)
result = numerator + "";
else
result = numerator + "/" + denominator;
return result;
}
continue

continue
//-----------------------------------------------------------------
// Reduces this rational number by dividing both the numerator
// and the denominator by their greatest common divisor.
//-----------------------------------------------------------------
private void reduce ()
{
if (numerator != 0)
{
int common = gcd (Math.abs(numerator), denominator);
numerator = numerator / common;
denominator = denominator / common;
}
}
continue

continue
//-----------------------------------------------------------------
// Computes and returns the greatest common divisor of the two
// positive parameters. Uses Euclid's algorithm.
//-----------------------------------------------------------------
private int gcd (int num1, int num2)
{
while (num1 != num2)
if (num1 > num2)
num1 = num1 - num2;
else
num2 = num2 - num1;
return num1;
}
}

Aggregation
• An aggregate is an object that is made up of
other objects
• Therefore aggregation is a has-a relationship
– A car has a chassis
• An aggregate object contains references to
other objects as instance data
• This is a special kind of dependency; the
aggregate relies on the objects that compose
it

Aggregation
• In the following example, a Student object
is composed, in part, of Address objects
• A student has an address (in fact each
student has two addresses)
• See StudentBody.java
• See Student.java
• See Address.java

//********************************************************************
// StudentBody.java Author: Lewis/Loftus
//
// Demonstrates the use of an aggregate class.
//********************************************************************
public class StudentBody
{
//-----------------------------------------------------------------
// Creates some Address and Student objects and prints them.
//-----------------------------------------------------------------
{
Address school = new Address ("800 Lancaster Ave.", "Villanova",
"PA", 19085);
Address jHome = new Address ("21 Jump Street", "Lynchburg",
"VA", 24551);
Student john = new Student ("John", "Smith", jHome, school);
Address mHome = new Address ("123 Main Street", "Euclid", "OH",
44132);
Student marsha = new Student ("Marsha", "Jones", mHome, school);
System.out.println (john);
System.out.println (marsha);
}
}

//********************************************************************
// StudentBody.java Author: Lewis/Loftus
//
// Demonstrates the use of an aggregate class.
//********************************************************************
public class StudentBody
{
//-----------------------------------------------------------------
// Creates some Address and Student objects and prints them.
//-----------------------------------------------------------------
{
Address school = new Address ("800 Lancaster Ave.", "Villanova",
"PA", 19085);
Address jHome = new Address ("21 Jump Street", "Lynchburg",
"VA", 24551);
Student john = new Student ("John", "Smith", jHome, school);
Address mHome = new Address ("123 Main Street", "Euclid", "OH",
44132);
Student marsha = new Student ("Marsha", "Jones", mHome, school);
System.out.println (john);
System.out.println (marsha);
}
}
Output
John Smith
Home Address:
21 Jump Street
Lynchburg, VA 24551
School Address:
800 Lancaster Ave.
Villanova, PA 19085
Marsha Jones
Home Address:
123 Main Street
Euclid, OH 44132
School Address:
800 Lancaster Ave.
Villanova, PA 19085

//********************************************************************
// Student.java Author: Lewis/Loftus
//
// Represents a college student.
//********************************************************************
public class Student
{
private String firstName, lastName;
private Address homeAddress, schoolAddress;
//-----------------------------------------------------------------
// Constructor: Sets up this student with the specified values.
//-----------------------------------------------------------------
public Student (String first, String last, Address home,
Address school)
{
firstName = first;
lastName = last;
homeAddress = home;
schoolAddress = school;
}
continue

continue
//-----------------------------------------------------------------
// Returns a string description of this Student object.
//-----------------------------------------------------------------
{
String result;
result = firstName + " " + lastName + "n";
result += "Home Address:n" + homeAddress + "n";
result += "School Address:n" + schoolAddress;
return result;
}
}

//********************************************************************
// Address.java Author: Lewis/Loftus
//
// Represents a street address.
//********************************************************************
public class Address
{
private String streetAddress, city, state;
private long zipCode;
//-----------------------------------------------------------------
// Constructor: Sets up this address with the specified data.
//-----------------------------------------------------------------
public Address (String street, String town, String st, long zip)
{
streetAddress = street;
city = town;
state = st;
zipCode = zip;
}
continue

continue
//-----------------------------------------------------------------
// Returns a description of this Address object.
//-----------------------------------------------------------------
{
String result;
result = streetAddress + "n";
result += city + ", " + state + " " + zipCode;
return result;
}
}

Aggregation in UML
StudentBody
+ main (args : String[]) : void
+ toString() : String
Student
- firstName : String
- lastName : String
- homeAddress : Address
- schoolAddress : Address
+ toString() : String
- streetAddress : String
- city : String
- state : String
- zipCode : long
Address

The this Reference
• The this reference allows an object to refer to itself
• That is, the this reference, used inside a method,
refers to the object through which the method is being
executed
• Suppose the this reference is used inside a method
called tryMe, which is invoked as follows:
obj1.tryMe();
obj2.tryMe();
• In the first invocation, the this reference refers to
obj1; in the second it refers to obj2

The this reference
• The this reference can be used to distinguish the
instance variables of a class from corresponding
method parameters with the same names
• The constructor of the Account class from Chapter 4
could have been written as follows:
public Account (String name, long acctNumber,
double balance)
{
this.name = name;
this.acctNumber = acctNumber;
this.balance = balance;
}

Lesson 7 - Outline
Method Design
Creating Objects
Loop statements
Enumerated Types
Wrapper Classes
Class Relationships
extra

Anatomy of a Class
Additional examples

// StudentManager.java Author: Isaias Barreto da Rosa
//
package studentmanager;
public class StudentManager {
// Compares the grades of two students and tells who is the best
static void compareStudents(Student st1, Student st2)
{
if (st1.getGrade() > st2.getGrade())
{ System.out.print(st1.getName +" is a better student");}
else
{
if (st2.getGrade() > st1.geGrade())
{System.out.print(st2.getName() +" is a better student");}
else
{System.out.println(st1.getNname() + " and " + st2.getName()
+ "are on the same level");}
}
}
113@ Sonia Sousa2015
continue

Continue
Student st1, st2, st3;
String name;
double grade;
Scanner scan = new Scanner(System.in);
System.out.println("Insert the first name for Student 1");
name = scan.nextLine();
System.out.println("Insert the first name for Student 2");
name = scan.nextLine();
compareStudents(st1,st2);
}
}

class Student{
private String name;
private double grade;
public final double MAXGRADE=20;
// Constructor: Sets the student’s name and initial grade.
public Student (String name1, double grade1){
name = name1;
grade = grade1;
}
// Returns the student's name
String getName(){ return name;}
// Returns the student's grade
double getGrade(){return grade;}
// Increase the studens's grade
double increaseGrade(){
if (grade < MAXGRADE);
{grade++;}
return grade;
}
}
Continue

Data Scope
• The scope of data is the area in a program in which
that data can be referenced (used)
• Data declared at the class level can be referenced by
all methods in that class
• Data declared within a method can be used only in
that method
• Data declared within a method is called local data
• In the compareStudents class, the variable scan
is declared inside the main method -- it is local to that
method and cannot be referenced anywhere else

Instance Data
• A variable declared at the class level (such as name) is called
class attribute or instance variable
• A class declares the type of the data, but it does not reserve
memory space for it
• Each time a Student object is created, a new name
variable is created as well
• The objects of a class share the method definitions, but each
object has its own data space

See
• RollingDice.java
• Die.java

@ Sonia Sousa
//********************************************************************
// RollingDice.java Author: Lewis/Loftus
//
//********************************************************************
public class RollingDice
{
//-----------------------------------------------------------------
// Creates two Die objects and rolls them several times.
//-----------------------------------------------------------------
{
Die die1, die2;
int sum;
die1 = new Die();
die2 = new Die();
die1.roll();
die2.roll();
System.out.println ("Die One: " + die1 + ", Die Two: " + die2);
continue
1192015

continue
die1.roll();
die2.setFaceValue(4);
sum = die1.getFaceValue() + die2.getFaceValue();
System.out.println ("Sum: " + sum);
sum = die1.roll() + die2.roll();
System.out.println ("New sum: " + sum);
}
}

continue
die1.roll();
die2.setFaceValue(4);
sum = die1.getFaceValue() + die2.getFaceValue();
System.out.println ("Sum: " + sum);
sum = die1.roll() + die2.roll();
System.out.println ("New sum: " + sum);
}
}
Sample Run
Die One: 5, Die Two: 2
Sum: 5
New sum: 6

//********************************************************************
// Die.java Author: Lewis/Loftus
//
// Represents one die (singular of dice) with faces showing values
// between 1 and 6.
//********************************************************************
public class Die
{
private final int MAX = 6; // maximum face value
private int faceValue; // current value showing on the die
//-----------------------------------------------------------------
// Constructor: Sets the initial face value.
//-----------------------------------------------------------------
public Die()
{
faceValue = 1;
}
continue

continue
//-----------------------------------------------------------------
// Rolls the die and returns the result.
//-----------------------------------------------------------------
public int roll()
{
faceValue = (int)(Math.random() * MAX) + 1;
return faceValue;
}
//-----------------------------------------------------------------
// Face value mutator.
//-----------------------------------------------------------------
public void setFaceValue (int value)
{
faceValue = value;
}
//-----------------------------------------------------------------
// Face value accessor.
//-----------------------------------------------------------------
public int getFaceValue()
{
return faceValue;
}
continue

continue
//-----------------------------------------------------------------
// Returns a string representation of this die.
//-----------------------------------------------------------------
{
String result = Integer.toString(faceValue);
return result;
}
}

The toString Method
• It's good practice to define a toString
method for a class
• The toString method returns a character
string that represents the object in some way
• It is called automatically when an object is
concatenated to a string or when it is passed
to the println method
• It's also convenient for debugging problems

Data Scope
• The scope of data is the area in a program in which
that data can be referenced (used)
• Data declared at the class level can be referenced by
all methods in that class
• Data declared within a method can be used only in
that method
• Data declared within a method is called local data
• In the Die class, the variable result is declared
inside the toString method -- it is local to that
method and cannot be referenced anywhere else

Instance Data
• A variable declared at the class level (such as faceValue) is
called instance data
• A class declares the type of the data, but it does not reserve
memory space for it
• Each time a Die object is created, a new faceValue
variable is created as well
• The objects of a class share the method definitions, but each
object has its own data space

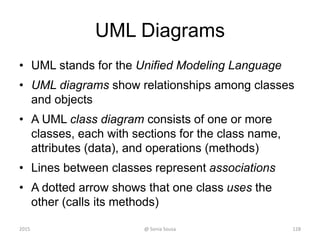

UML Diagrams
• UML stands for the Unified Modeling Language
• UML diagrams show relationships among classes
and objects
• A UML class diagram consists of one or more
classes, each with sections for the class name,
attributes (data), and operations (methods)
• Lines between classes represent associations
• A dotted arrow shows that one class uses the
other (calls its methods)

UML Class Diagrams
• A UML class diagram for the RollingDice
program:
RollingDice
main (args : String[]) : void
Die
faceValue : int
roll() : int
3-129

Ifi7184 lesson7

More Related Content

What's hot

Viewers also liked

Similar to Ifi7184 lesson7

More from Sónia

Recently uploaded

Ifi7184 lesson7
