An abstract class is a base class that is meant to be inherited from but cannot be instantiated. It may contain implemented and unimplemented members, with unimplemented members denoted as abstract. Derived classes must implement all abstract members. An interface defines a contract that classes can implement but contains no implementation. Classes implementing an interface must provide method bodies for all interface members. Interfaces can inherit other interfaces.

1. Chapter 8
Abstract Class

2. Abstract Class/Interface
• In object-oriented programming, an abstract class is used as a
base class of a hierarchy, and represents common
functionality of a diverse set of object types
• It is defined as same way as class
• Abstract classes are classes that leave some or all members
unimplemented, so that implementations can be provided by
derived classes.
• Abstract classes are those which don't provide full
implementation of class members

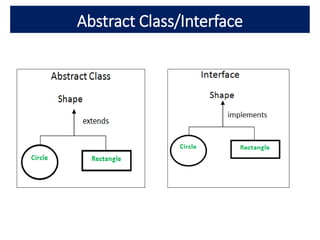

3. Abstract Class/Interface

4. Abstract Class
used as a base class of a hierarchy and represents
common functionality
can have implemented and unimplemented
members.
A class that inherits abstract class must provide
implementation of all abstract methods & Class
Abstract classes are used to achieve abstraction.
We cannot create an instance of an abstract class
because the class is not fully implemented.

5. Syntax
[<AbstractClass>]
type [ accessibility-modifier ] abstract-class-name =
[ inherit base-class-or-interface-name ]
[ abstract-member-declarations-and-member-
definitions ]
// Abstract member syntax.
abstract member member-name : type-signature

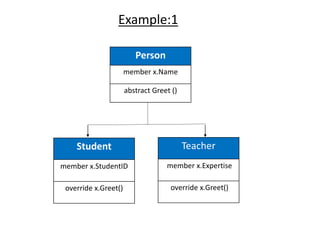

6. Example:1
Person
member x.Name
abstract Greet ()
Student
member x.StudentID
override x.Greet()
Teacher
member x.Expertise
override x.Greet()

7. [<AbstractClass>]
type Person(name) =
member x.Name = name
abstract Greet : unit -> unit
type Student(name, studentID : int) =
inherit Person(name)
member x.StudentID = studentID
override x.Greet() = printfn "Student %s" x.Name
type Teacher(name, expertise : string) =
inherit Person(name)
member x.Expertise = expertise
override x.Greet() = printfn "Teacher %s." x.Name
let st = new Student("Amit", 1234)
let tr = new Teacher("Apurva", "Java")
//Overriden Greet
st.Greet()
tr.Greet()

8. [<AbstractClass>]
type AbstractClass1() =
class
abstract member ShowClassName : unit -> unit
end
type DerivedClass1() =
class
inherit AbstractClass1()
override this.ShowClassName() = printf "This is derived class."
end
let a = new DerivedClass1()
a.ShowClassName()

9. Interface
• It provides pure abstraction.
• Abstraction is about hiding unwanted details while showing
most essential information.
• It is a collection of abstract methods.
• A Class which implements interface must provide definition
for its all methods.

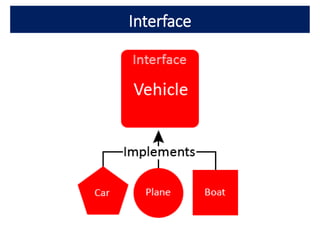

10. Interface

11. Interface Class
In an interface declaration the members are not
implemented.
The members are abstract, declared by
the abstract keyword.
We may provide a default implementation using
the default keyword.
We can implement interfaces either by using object
expressions or by using class types.
In class or object implementation, We need to
provide method bodies for abstract methods of the
interface..

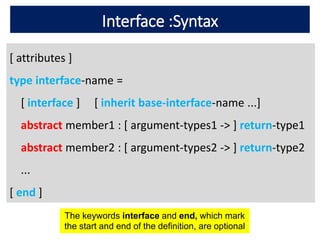

12. Interface :Syntax
[ attributes ]
type interface-name =
[ interface ] [ inherit base-interface-name ...]
abstract member1 : [ argument-types1 -> ] return-type1
abstract member2 : [ argument-types2 -> ] return-type2
...
[ end ]
The keywords interface and end, which mark
the start and end of the definition, are optional

13. Interface :Example
type Person =
abstract Name : string
abstract Enter : unit -> unit
abstract Leave : unit -> unit

14. Calling Interface Methods
• Interface methods are called through the interface,
• not through the instance of the class or type
implementing interface.
• To call an interface method, you up cast to the
interface type by using the :> operator (upcast
operator).
Example :
(s :> Person).Enter()
(s :> Person).Leave()

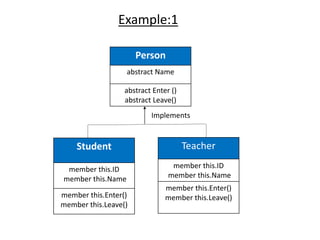

15. Example:1
Person
abstract Name
abstract Enter ()
abstract Leave()
Student
member this.ID
member this.Name
member this.Enter()
member this.Leave()
Teacher
member this.ID
member this.Name
member this.Enter()
member this.Leave()
Implements

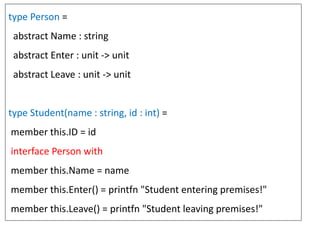

16. type Person =
abstract Name : string
abstract Enter : unit -> unit
abstract Leave : unit -> unit
type Student(name : string, id : int) =
member this.ID = id
interface Person with
member this.Name = name
member this.Enter() = printfn "Student entering premises!"
member this.Leave() = printfn "Student leaving premises!"

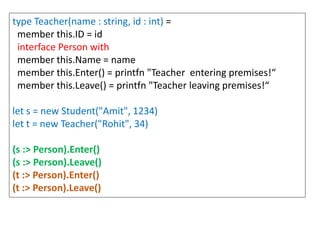

17. type Teacher(name : string, id : int) =
member this.ID = id
interface Person with
member this.Name = name
member this.Enter() = printfn "Teacher entering premises!“
member this.Leave() = printfn "Teacher leaving premises!“
let s = new Student("Amit", 1234)
let t = new Teacher("Rohit", 34)
(s :> Person).Enter()
(s :> Person).Leave()
(t :> Person).Enter()
(t :> Person).Leave()

18. Interface Inheritance
Interfaces can inherit from one or more base interfaces.
Interface1
abstract member doubleIt
Interface2
abstract member tripleIt
Interface3
inherit Interface1
inherit Interface2
abstract member printIt()
multiplierClass
member this.doubleIt(a)
member this.tripleIt(a)
member this.printIt(a)
Implements

19. type Interface2 =
abstract member tripleIt: int -> int
type Interface3 =
inherit Interface1
inherit Interface2
abstract member printIt: int -> string
type multiplierClass() =
interface Interface3 with
member this.doubleIt(a) = 2 * a
member this.tripleIt(a) = 3 * a
member this.printIt(a) = a.ToString()
let ml = multiplierClass()
printfn "%d" ((ml:>Interface3).doubleIt(5))
printfn "%d" ((ml:>Interface3).tripleIt(5))
printfn "%s" ((ml:>Interface3).printIt(5))
