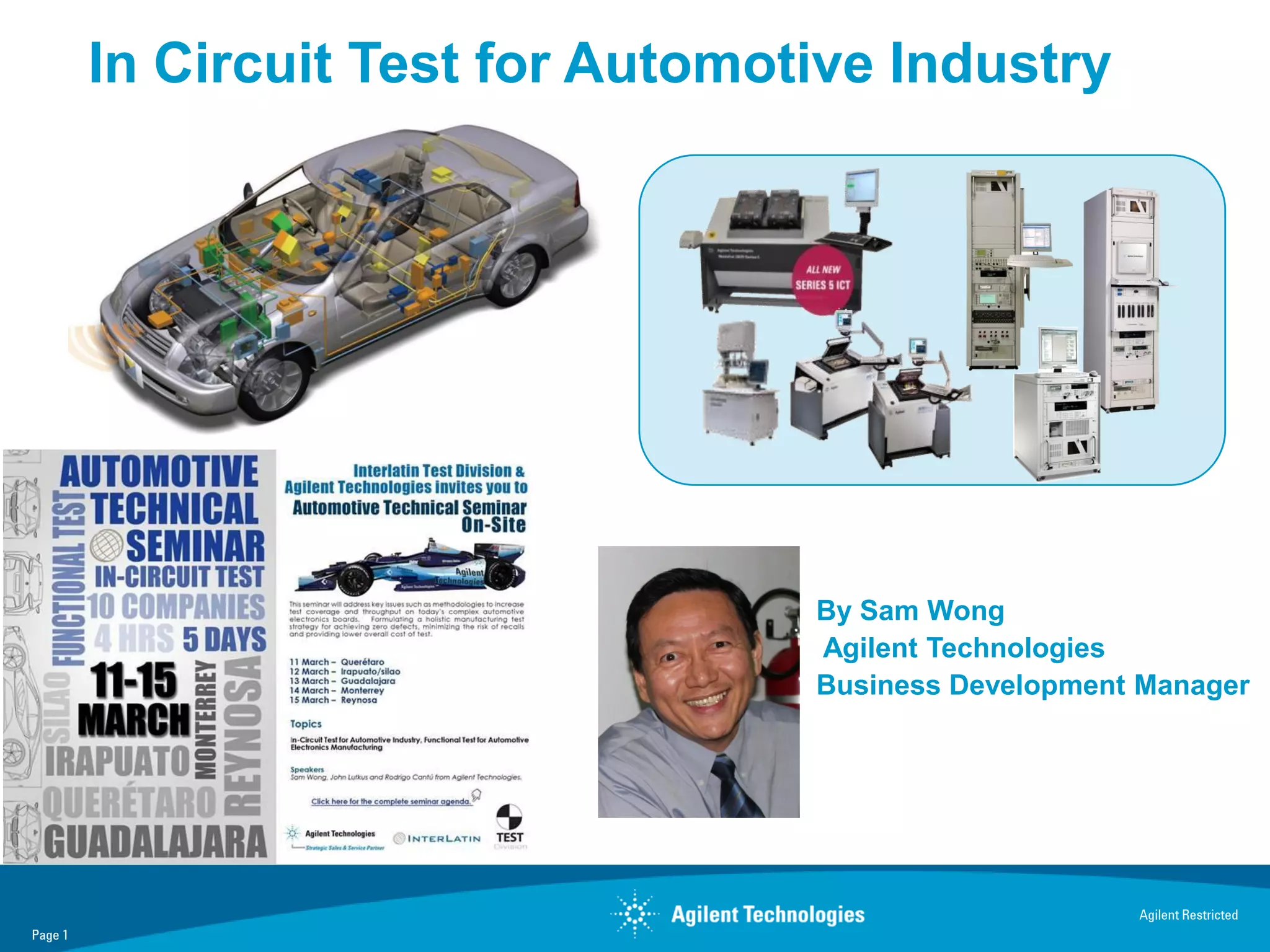

1. In Circuit Test for Automotive Industry
By Sam Wong
Agilent Technologies
Business Development Manager
Agilent Restricted
Page 1
2. Agenda
1. The Automotive Electronics Industry
2. Challenges in the Automotive industry ICT
3. How did Agilent solved these Challenges
4. More of Agilent ICT Features to meet your needs
5. Questions and Answers
Agilent Restricted
Page 2
3. Agenda
1. The Automotive Electronics Industry
2. Challenges in the Automotive industry ICT
3. How did Agilent solved these Challenges
4. More of Agilent ICT Features to meet your needs
5. Questions and Answers
Agilent Restricted
Page 3
4. Automotive Electronics in Cars Today
Power Train & Hybrid
- Engine Management
- Braking System
- Power Steering
- EV and HV
Body Electronics
- Comfort / Convenience
- Instrument Cluster
- Remote Keyless Entry
- Climate Control
Infotainment &
Communications
- Audio Systems
Safety and Driver - Multimedia Systems
Assistance - Rear Seat Entertainment
- Adaptive Cruise Control
- Collision Warning
-Tire pressure Monitoring
- Airbag Time to market and market penetration periods
are becoming shorter , example ABS started in
1970s and take 20 years for mass acceptance.
It’s typically accepted to be 2 to 7 years today
Agilent Restricted
Page 4
5. Agenda
1. The Automotive Electronics Industry
2. Challenges in the Automotive industry ICT
3. How did Agilent solved these Challenges
4. More of Agilent ICT Features to meet your needs
5. Questions and Answers
Agilent Restricted
Page 5

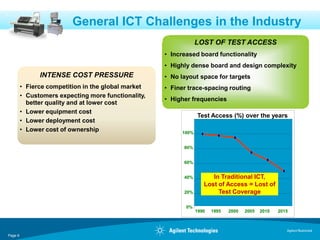

6. General ICT Challenges in the Industry
LOST OF TEST ACCESS
• Increased board functionality
• Highly dense board and design complexity
INTENSE COST PRESSURE • No layout space for targets
• Fierce competition in the global market • Finer trace-spacing routing
• Customers expecting more functionality,
• Higher frequencies
better quality and at lower cost
• Lower equipment cost
Test Access (%) over the years
• Lower deployment cost
• Lower cost of ownership 100%
80%
60%
40% In Traditional ICT,
Lost of Access = Lost of
20% Test Coverage
0%
1990 1995 2000 2005 2010 2015
Agilent Restricted
Page 6

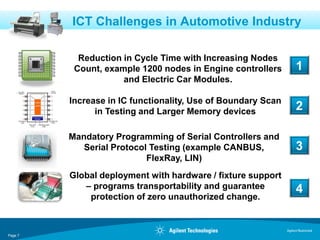

7. ICT Challenges in Automotive Industry
Reduction in Cycle Time with Increasing Nodes
Count, example 1200 nodes in Engine controllers 1
and Electric Car Modules.
Increase in IC functionality, Use of Boundary Scan
in Testing and Larger Memory devices 2
Mandatory Programming of Serial Controllers and
Serial Protocol Testing (example CANBUS, 3
FlexRay, LIN)

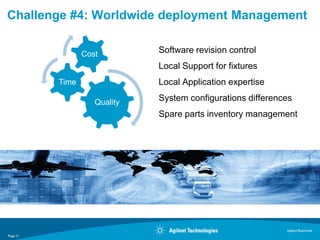

Global deployment with hardware / fixture support
– programs transportability and guarantee 4
protection of zero unauthorized change.
Agilent Restricted
Page 7
8. Challenge #1: Larger Boards and Faster Cycle Time
Production
In Pretest Challenges and
Circuit Final Programming Concerns:
with/without
Test Test Station Quality, Product
temperature
Traceability,
Costs, etc
Engine controllers modules have node counts that
are close to the limit of a single 3070 module.
Fastest
Faster
Fast
Agilent Restricted
Page 8

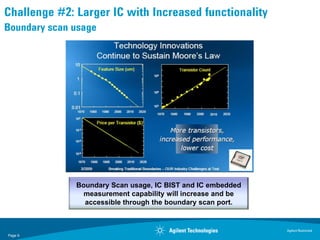

9. Challenge #2: Larger IC with Increased functionality
Boundary scan usage
Boundary Scan usage, IC BIST and IC embedded
measurement capability will increase and be
accessible through the boundary scan port.
Agilent Restricted
Page 9
11. Challenge #4: Worldwide deployment Management
Cost Software revision control
Local Support for fixtures
Time Local Application expertise
Quality System configurations differences
Spare parts inventory management
Agilent Restricted
Page 11
12. Agenda
1. The Automotive Electronics Industry
2. Challenges in the Automotive industry ICT
3. How did Agilent solved these Challenges
4. More of Agilent ICT Features to meet your needs
5. Questions and Answers
Agilent Restricted
Page 12

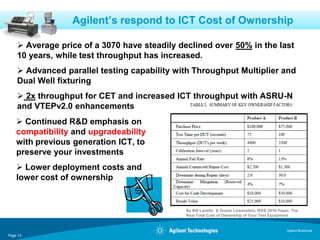

13. Agilent’s respond to ICT Cost of Ownership
Average price of a 3070 have steadily declined over 50% in the last
10 years, while test throughput has increased.
Advanced parallel testing capability with Throughput Multiplier and
Dual Well fixturing
2x throughput for CET and increased ICT throughput with ASRU-N
and VTEPv2.0 enhancements
Continued R&D emphasis on
compatibility and upgradeability
with previous generation ICT, to
preserve your investments
Lower deployment costs and
lower cost of ownership
By Bill Lycette & Duane Lowenstein, IEEE 2010 Paper, The
Real Total Cost of Ownership of Your Test Equipment
Agilent Restricted
Page 13
14. Agilent’s Respond to Limited Access Challenges
Suite of Test Point Accessibility Technology
Agilent Restricted
Page 14
15. Agilent’s Response to challenge #1 Platform Scalability
Larger Boards and Faster Cycle Time • S1, S2 to S5
• Expandable slots
• Module Activation
New ASRU-N cards will give
20% to 30% faster Tests Time by
using the Digitized Measurement
Circuits
Build in Features
Includes Power Monitoring • Panel Test
Circuit to prevent damage to ICs • Throughput Multiplier
during debug and testing • Dual Well Fixture
• Vacuum Fixture
• FPY Monitoring
Throughput by bank
Coming
Soon
A 1259 node board with 1670 Analog and 44 Digital Components
Agilent Restricted
Page 15

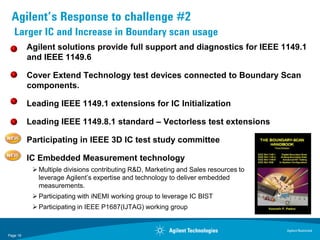

16. Agilent’s Response to challenge #2
Larger IC and Increase in Boundary scan usage
Agilent solutions provide full support and diagnostics for IEEE 1149.1
and IEEE 1149.6
Cover Extend Technology test devices connected to Boundary Scan
components.
Leading IEEE 1149.1 extensions for IC Initialization
Leading IEEE 1149.8.1 standard – Vectorless test extensions
Participating in IEEE 3D IC test study committee
IC Embedded Measurement technology
Multiple divisions contributing R&D, Marketing and Sales resources to
leverage Agilent’s expertise and technology to deliver embedded
measurements.
Participating with iNEMI working group to leverage IC BIST
Participating in IEEE P1687(IJTAG) working group
Agilent Restricted
Page 16

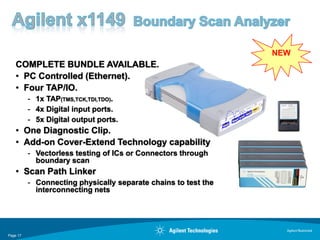

17. NEW
COMPLETE BUNDLE AVAILABLE.
• PC Controlled (Ethernet).
• Four TAP/IO.
- 1x TAP(TMS,TCK,TDI,TDO).
- 4x Digital input ports.
- 5x Digital output ports.
• One Diagnostic Clip.
• Add-on Cover-Extend Technology capability
- Vectorless testing of ICs or Connectors through
boundary scan
• Scan Path Linker
- Connecting physically separate chains to test the
interconnecting nets
Agilent Restricted
Page 17

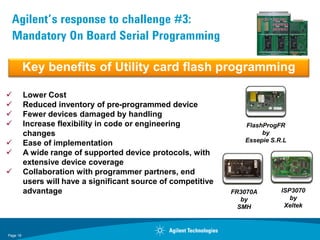

18. Agilent’s response to challenge #3:
Mandatory On Board Serial Programming
Key benefits of Utility card flash programming
Lower Cost
Reduced inventory of pre-programmed device
Fewer devices damaged by handling
Increase flexibility in code or engineering FlashProgFR
changes by
Essepie S.R.L
Ease of implementation
A wide range of supported device protocols, with
extensive device coverage
Collaboration with programmer partners, end
users will have a significant source of competitive
advantage FR3070A ISP3070
by by
SMH Xeltek
Page 18
19. Agilent’s Response to challenge #4
Worldwide Deployment Management
ONE
STOP
SHOP
ONE supplier
NEW hardware upgrades
Stable, Reliable, Repeatable System EXPERT help
• Highest accuracy and signal fidelity SOFTWARE upgrades
• Fast analog 2/4 wire Analog Stimulus TRACEABLE and trusted
Response Unit calibration
• Power monitoring protection & per pin ORIGINAL and qualified parts
programmability
PARTS availability worldwide
Agilent Restricted
Page 19
20. Agenda
1. The Automotive Electronics Industry
2. Challenges in the Automotive industry ICT
3. How did Agilent solved these Challenges
4. More of Agilent ICT Features to meet your needs
5. Questions and Answers
Agilent Restricted
Page 20
21. Agilent Medalist ICT Family History
Continuous series of compatible upgrades to:
Preserve program and fixture investments
Extend the test capability and support life of the 3070
Continuous product improvement and features enhancement
Provide the best balance between compatibility and low cost
The introduction of i3070 Series 5 and i1000.
Series I Series II Series III 3070 Window/i5000 i3070/i1000
1989 1994 1998 2000/2005 2007
Agilent Restricted
Page 21

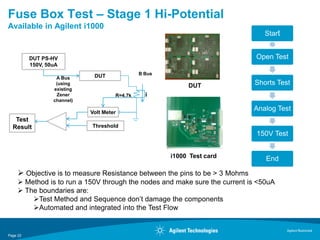

22. Fuse Box Test – Stage 1 Hi-Potential
Available in Agilent i1000
Start
DUT PS-HV Open Test
150V, 50uA
B Bus
A Bus DUT
(using
DUT Shorts Test
existing
Zener R=4.7k i
channel)
Volt Meter
Analog Test
Test Com
pare
Result Threshold
150V Test
i1000 Test card End
Objective is to measure Resistance between the pins to be > 3 Mohms
Method is to run a 150V through the nodes and make sure the current is <50uA
The boundaries are:
Test Method and Sequence don’t damage the components
Automated and integrated into the Test Flow
Agilent Restricted
Page 22

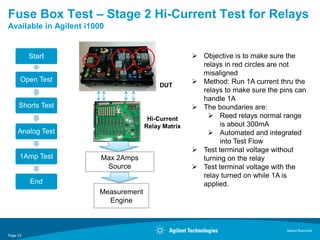

23. Fuse Box Test – Stage 2 Hi-Current Test for Relays
Available in Agilent i1000
Start Objective is to make sure the
relays in red circles are not
misaligned
Open Test Method: Run 1A current thru the
DUT
relays to make sure the pins can
handle 1A
Shorts Test The boundaries are:
Hi-Current Reed relays normal range
Relay Matrix is about 300mA
Analog Test Automated and integrated
into Test Flow
Test terminal voltage without
1Amp Test Max 2Amps turning on the relay
Source Test terminal voltage with the
relay turned on while 1A is
End applied.
Measurement
Engine
Agilent Restricted
Page 23
24. LED Testing
Available in Agilent i3070 Series 5 and i1000
Flexibility on the ICT to
LED Test modules add external
Using digital camera functional circuits.
Software and
Integrated with i1000D hardware support
powered test included I3070 LED Test
Technology will test your
Each module provides
FEASA LED Analyser LEDs to
154 LED tests
i1000D tests voltage and 3rd Party Solution +/-3nm for color
current
Test up to 480 LEDs in 1 Luminosity within +/-10%
LED module test color Integrated
and brightness Utility card
and 128 LEDs in <1.5
www.feasa.ie
seconds
Agilent Restricted
Page 24

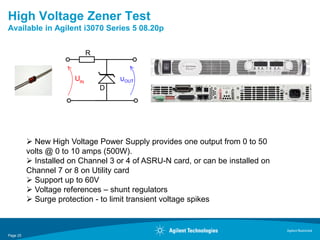

25. High Voltage Zener Test
Available in Agilent i3070 Series 5 08.20p
New High Voltage Power Supply provides one output from 0 to 50
volts @ 0 to 10 amps (500W).
Installed on Channel 3 or 4 of ASRU-N card, or can be installed on
Channel 7 or 8 on Utility card
Support up to 60V
Voltage references – shunt regulators
Surge protection - to limit transient voltage spikes
Agilent Restricted
Page 25

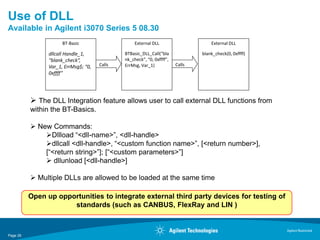

26. Use of DLL
Available in Agilent i3070 Series 5 08.30
BT-Basic External DLL External DLL
dllcall Handle_1, BTBasic_DLL_Call(“bla blank_check(0, 0xffff)
“blank_check”, nk_check”, “0, 0xffff”,
Var_1, ErrMsg$; “0, Calls ErrMsg, Var_1) Calls
0xffff”
The DLL Integration feature allows user to call external DLL functions from
within the BT-Basics.
New Commands:
Dllload “<dll-name>”, <dll-handle>
dllcall <dll-handle>, “<custom function name>”, [<return number>],
[“<return string>”]; [“<custom parameters>”]
dllunload [<dll-handle>]
Multiple DLLs are allowed to be loaded at the same time
Open up opportunities to integrate external third party devices for testing of
standards (such as CANBUS, FlexRay and LIN )
Agilent Restricted
Page 26

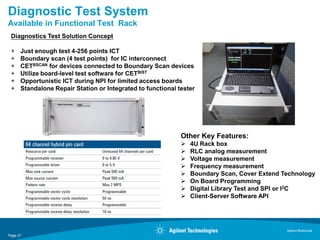

27. Diagnostic Test System
Available in Functional Test Rack
Diagnostics Test Solution Concept
+ Just enough test 4-256 points ICT
+ Boundary scan (4 test points) for IC interconnect
+ CETBSCAN for devices connected to Boundary Scan devices
+ Utilize board-level test software for CETBIST
+ Opportunistic ICT during NPI for limited access boards
+ Standalone Repair Station or Integrated to functional tester
Other Key Features:
4U Rack box
RLC analog measurement
Voltage measurement
Frequency measurement
Boundary Scan, Cover Extend Technology
On Board Programming
Digital Library Test and SPI or I2C
Client-Server Software API
Agilent Restricted
Page 27

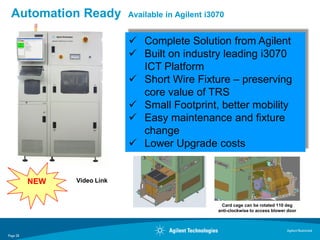

28. Automation Ready Available in Agilent i3070
Complete Solution from Agilent
Built on industry leading i3070
ICT Platform
Short Wire Fixture – preserving
core value of TRS
Small Footprint, better mobility
Easy maintenance and fixture
change
Lower Upgrade costs
NEW Video Link
Card cage can be rotated 110 deg
anti-clockwise to access blower door
Agilent Restricted
Page 28

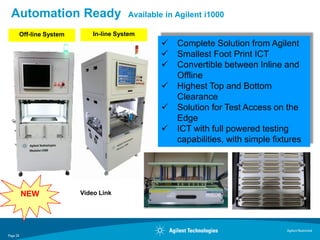

29. Automation Ready Available in Agilent i1000
Off-line System In-line System
Complete Solution from Agilent
Smallest Foot Print ICT
Convertible between Inline and
Offline
Highest Top and Bottom
Clearance
Solution for Test Access on the
Edge
ICT with full powered testing
capabilities, with simple fixtures
NEW Video Link
Agilent Restricted
Page 29

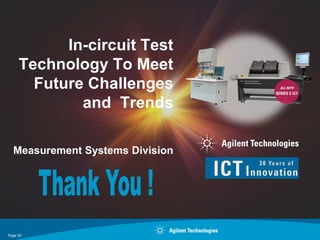

30. In-circuit Test
Technology To Meet
Future Challenges
and Trends
Measurement Systems Division
Page 30

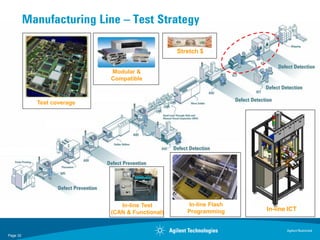

32. Manufacturing Line – Test Strategy
Stretch $
Modular &
Compatible
Test coverage
In-line Test In-line Flash
(CAN & Functional) Programming In-line ICT
Agilent Restricted
Page 32

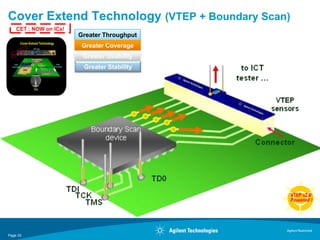

33. Cover Extend Technology (VTEP + Boundary Scan)
CET : NOW on ICs!
Greater Throughput
Greater Coverage
Greater Usability
Greater Stability to ICT
tester …
VTEP
sensors
Boundary Scan
device
Connector or
other device
Remove Test Access
TD0
TDI
TCK
TMS Test Access
pins
Agilent Restricted
Page 33

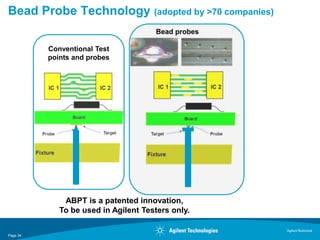

34. Bead Probe Technology (adopted by >70 companies)
Bead probes
Conventional Test
points and probes
ABPT is a patented innovation,
To be used in Agilent Testers only.
Agilent Restricted
Page 34

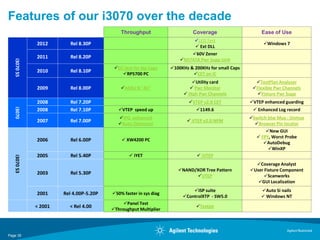

35. Features of our i3070 over the decade
Throughput Coverage Ease of Use
LED Test
2012 Rel 8.30P Windows 7
Ext DLL
60V Zener
2011 Rel 8.20P
N5747A Pwr Supp Unit
i3070 S5
DC test for big Caps 100KHz & 200KHz for small Caps
2010 Rel 8.10P
RP5700 PC CET on IC
Utility card TestPlan Analyzer
2009 Rel 8.00P ASRU N "AS" Pwr Monitor Flexible Pwr Channels
High Pwr Channels Fixture Pwr Supp
2008 Rel 7.20P VTEP v2.0 CET VTEP enhanced guarding
i3070
2008 Rel 7.10P VTEP speed up 1149.6 Enhanced Log record
IPG enhanced Switch btw Mux : Unmux
2007 Rel 7.00P VTEP v2.0 NPM
Auto Optimizer Browser Pin locator
New GUI
FPY, Worst Probe
2006 Rel 6.00P XW4200 PC
AutoDebug
WinXP
2005 Rel 5.40P iYET iVTEP
i3070 S3
Coverage Analyst
NAND/XOR Tree Pattern User Fixture Component
2003 Rel 5.30P
VTEP Scanworks
GUI Localization
ISP suite Auto Si nails
2001 Rel 4.00P-5.20P 50% faster in sys diag
ControlXTP - SW5.0 Windows NT
Panel Test
< 2001 < Rel 4.00 Testjet
Throughput Multiplier
Agilent Restricted
Page 35

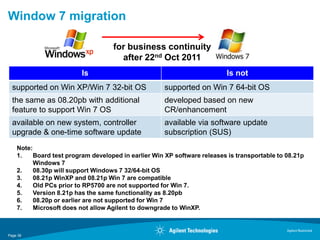

36. Window 7 migration
for business continuity
after 22nd Oct 2011
Is Is not
supported on Win XP/Win 7 32-bit OS supported on Win 7 64-bit OS
the same as 08.20pb with additional developed based on new
feature to support Win 7 OS CR/enhancement
available on new system, controller available via software update
upgrade & one-time software update subscription (SUS)
Note:
1. Board test program developed in earlier Win XP software releases is transportable to 08.21p
Windows 7
2. 08.30p will support Windows 7 32/64-bit OS
3. 08.21p WinXP and 08.21p Win 7 are compatible
4. Old PCs prior to RP5700 are not supported for Win 7.
5. Version 8.21p has the same functionality as 8.20pb
6. 08.20p or earlier are not supported for Win 7
7. Microsoft does not allow Agilent to downgrade to WinXP.
Agilent Restricted
Page 36
