The document outlines the market landscape and benefits of intelligent outdoor lighting systems, detailing issues with traditional street lights, such as high energy costs and maintenance challenges. Key players in this market include municipalities, lighting companies, and service providers, with a focus on cost-saving and environmentally friendly solutions. The overview includes system architecture, installation processes, and real-world project examples showcasing energy savings and reduced CO2 emissions.

1. 1

2. Section 1
Building the Business Case
2

3. Street Lights Market Size
POPULATION (MILLIONS) EST. # OF STREETLIGHTS
Europe 728 73
North America 400 40
South & Latin America 450 23
Japan 130 13
South Korea 50 5
TOTAL 1,758 154
(Rest of the world) (4,400) (Unknown)
3

4. Issues with Traditional Outdoor Lights
Energy cost
- Outdoor light energy costs makes up to 50% of municipal
budget
Maintenance cost and limitations -
Expensive manual failure check
- Many hours between lamp failure and replacement
Dark areas and broken lights lower safety and security
Light pollution
- Energy wasted illuminating the sky -
Ecological damage to birds and insects
Limited use of illumination for city centers beautification
4

5. Intelligent Outdoor Lighting - System Requirements
Energy efficient
Environmentally friendly
Networked system
- Allows two-way communication to
each luminaire
- Control of individual luminaires
Low installation costs
Low maintenance & operations costs
Supplier independent
5

6. Wish list for Dynamic Outdoor Lighting
Individual luminaire on/off
Individual step-less dimming
Bulb status and burn hours
Automatic fault detection and notification
Astronomical-clock driven schedules Energy
consumption per luminaire (calculated) Energy
consumption per segment (measured) Ambient light
sensors for light level optimisation Traffic density
measurement
Weather sensors
Centralised installation, maintenance and control
Seamless integration with existing IT systems (billing, GIS, maintenance, etc.)
Open and interoperable communication protocols
6

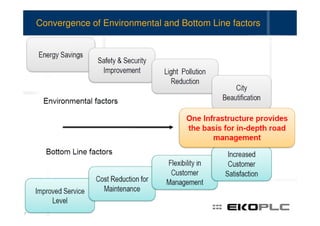

7. Convergence of Environmental and Bottom Line factors
7

8. The Important Players in the Market
Municipalities, city counsels and road authorities.
Lighting companies that manufacture luminaires,
ballasts and intelligent controllers
The system integrators packaging the solution and
selling it to the municipalities
Service companies running outdoor lighting on
behalf of the end-user
Consultants that revolve around the governments
8

9. Benefits of a Networked, Infrastructure Approach
Environmental
- Dramatic reductions in energy use -
Reduced CO2 emissions
- Reduced light pollution -
City Beautification
Cost & quality of maintenance -
Individual luminaire monitoring -
Outage detection
- Early failure monitoring Liability, security and
safety - Real-time status reporting and
monitoring - Historical performance data
9

10. Benefits of a Networked, Infrastructure Approach
Not limited to single luminaire choice
- Compatible with future lamp technology -
Phased approach as existing
technology rides the cost curve - HPS,
LED, induction, metal halide Single,
multi-purpose city network - Easily add
future sensing devices
Traffic, environmental, others…
- Independent of wide-area network choices -
Implement new services without changing
the infrastructure
Electric vehicle smart chargers
10

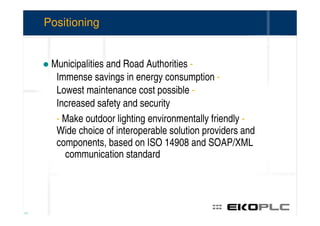

11. Positioning
Municipalities and Road Authorities -
Immense savings in energy consumption -
Lowest maintenance cost possible -
Increased safety and security
- Make outdoor lighting environmentally friendly -
Wide choice of interoperable solution providers and
components, based on ISO 14908 and SOAP/XML
communication standard
11

12. Positioning
Public Lighting Service Providers -
Lower maintenance cost
- Increased service level -
Increased customer control
- Generate new revenue by providing additional e-
street related services
12

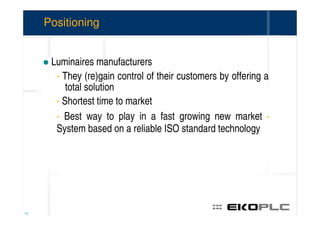

13. Positioning
Luminaires manufacturers
- They (re)gain control of their customers by offering a
total solution
- Shortest time to market
- Best way to play in a fast growing new market -
System based on a reliable ISO standard technology
13

14. Main Elements of a Streetlight Network
Extremely reliable power line light controller
- Use existing city electricity wires for power and
communications: no new wires needed -
Standards-based signaling - Many suppliers on
the market
e-controls (SCS) , Aditel, Romlight, SELC, Intron,
Philips, etc.
EkoLum Segment Gateway ® segment controller -
Standards-based advanced bridge to IP networks -
Power line network, meter interface,
connection to future equipment
- Powerful segment controller
Installation and management central software -
Automatic installation
- Information flow management -
Maintenance management
14

15. Distribution of Costs
Typical Retrofit Installation
Electronic Ballast Lamp Controller Field Installation PL Technology
29%
23%
11%
34%
3%
15

16. Distribution of Costs
New Installation
Field Installation Pole Luminaire Intelligent ballast PL Technology
25%
19%
50% 6%
0%
16

17. Typical Saving Calculations - Retrofit
Hardware cost: $400 per pole (ballast, fixture etc)
EkoLum $5 per pole (assuming 100 poles/segment)
Segment Gateway ®:
HMI software: $2 per pole (assuming 100 poles/segment)
Installation costs: $50 (depends upon location)
Cost per point: $457
Total cost: $45,700,000 (assuming 100k lights)
Energy Saving $3,000,000 (assuming 60% reduction)*
Maintenance Saving $3,000,000
*(68 million kWh/yr used by 100k lights @ $0,07/kWh)
17

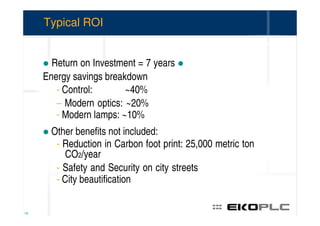

18. Typical ROI
Return on Investment = 7 years
Energy savings breakdown
- Control: ~40%
– Modern optics: ~20%
- Modern lamps: ~10%
Other benefits not included:
- Reduction in Carbon foot print: 25,000 metric ton
CO2/year
- Safety and Security on city streets
- City beautification
18

19. Financing models
Self-financed
- City pays for the system and receives direct benefits
Bank loan
- Bank finances the system for the city and recover the
investment with interests
Service provider-financed - Service
provider pays for the system
- City keeps paying the SP what was paying before
(energy and maintenance)
- SP recovers the investment from savings in energy and
maintenance
19

20. Section 2
System Architecture
Overview
2

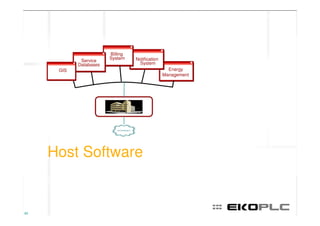

21. 4-Layer Solution
Billing
System Notification
Service
Databases System
GIS Energy 4
Management
3
2
… …
… …
1
Segment n Segment n+1
21

22. Luminaires and
PL Controller
22

23. In the Street…
Intelligent Ballasts
Dimming
- Configurable % increments
Automatic failure identification
Data collection
Lamp burning hours
Voltage, Current, Ballast Temperature, etc.
Consumed energy (calculated)
Standard Protocol for Communication -
Utilizes ISO 14908-2 global standard - Bi-
directional real-time communication
23

24. Most Common Types of Lamp
Mercury Vapor
- Very common
- Being replaced because of poor energy
efficiency
HPS and MH
- Second most efficient and are
- Currently being used to replace MV lamps -
Standard for traditional new installations and
replacements
- Poor CRI
LPS
- Most efficient
- Very poor color rendering
LED
- Great CRI
- Higher life span -
Decreasing costs -
Improving efficiency -
Improving lenses/optics
- More favourable power reduction normative
24

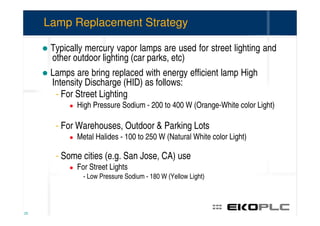

25. Lamp Replacement Strategy
Typically mercury vapor lamps are used for street lighting and
other outdoor lighting (car parks, etc)
Lamps are bring replaced with energy efficient lamp High
Intensity Discharge (HID) as follows:
- For Street Lighting
High Pressure Sodium - 200 to 400 W (Orange-White color Light)
- For Warehouses, Outdoor & Parking Lots
Metal Halides - 100 to 250 W (Natural White color Light)
- Some cities (e.g. San Jose, CA) use
For Street Lights
- Low Pressure Sodium - 180 W (Yellow Light)
25

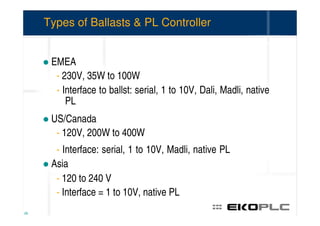

26. Types of Ballasts & PL Controller
EMEA
- 230V, 35W to 100W
- Interface to ballst: serial, 1 to 10V, Dali, Madli, native
PL
US/Canada
- 120V, 200W to 400W
- Interface: serial, 1 to 10V, Madli, native PL
Asia
- 120 to 240 V
- Interface = 1 to 10V, native PL
26

27. Power Line for Outdoor Lighting
Why PowerLine?
- Avoids deadspot issues typical of RF -
No external repeaters
- No problematic radio emissions -
Integrated repeating
Robust and field proven
- Over 30 million smart meters installed worldwide -
Based on ISO 14908 standard
- Tens of installations and pilots in intelligent street lighting systems -
Supported by multiple manufacturers
Open system
- Devices are interoperable -
No customer lock-in
- Modular and future-proof system deployment
Reduced time-to-market and certified device development
27

28. Power Line vs. RF
Independent from future road environment
modifications (new buildings, etc.)
Built-in repeating
Extremely reliable, proven technology
One worldwide standard
Physical communication medium less susceptible to
tampering and more easily detectable
28

29. PL Controller Versions - 1
Filter PL Magnetic Mercury
Controller Ballast Lamp
For lowest cost retrofit -
Limited functionality
On/off, bi-level dimming only, limited diagnostics
- Low cost
- Multi-box solution
Possibly size-constrained installation
29

30. PL Controller Versions - 2
Filter PL Electronic HPS
Controller Ballast Lamp
For advanced retrofit -
Advanced functionality
On/off, stepless dimming, advanced diagnostics
- Higher cost
- Larger energy savings
- Better ROI
- Multi-box solution
Possibly size-constrained installation
30

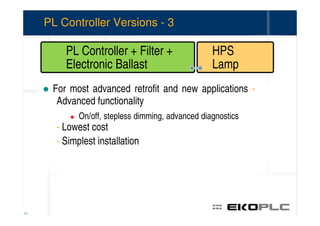

31. PL Controller Versions - 3
PL Controller + Filter + HPS
Electronic Ballast Lamp
For most advanced retrofit and new applications -
Advanced functionality
On/off, stepless dimming, advanced diagnostics
- Lowest cost
- Simplest installation
31

32. PL Controller Versions - 4
PL Controller + Filter + LEDs
Driver
For new installations -
The future
- Not fully mature yet -
Best energy savings -
Top functionality
32

33. OEM Differentiation
OEMs using EkoLum’s PL protocol for communication in
their controllers can differentiate: - By feature
On/Off, dimming, voltage measurement, run hours, fault
detection, etc.
- By price
- By form factor
- By supported lamp technology
Just like web browsers are all based on TCP/IP but
very different…
33

34. …
…
Segment Controller
34

35. In the Street…
The EkoLum Segment Gateway ® Smart Server Segment Controller
Local Master Controller

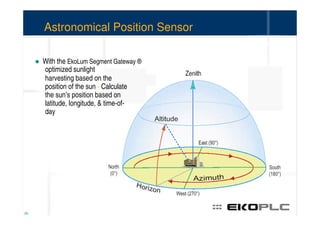

• Built-in Astronomical clock & Real-time clock
• Multiple schedulers
• Built-in data logging, alarming, HTML Web Server,
etc.
• Built-in I/O (metering inputs, digital, relays)
• MODBUS extensions for additional data
measurement
• Programmable
• Powerline Interface with signal repeating
Bridge to Data Networks
• Integrated 10/100 Ethernet port
• Integrated serial ports for connectivity to GSM/GPRS modems
• Realtime collection using SOAP/XML protocol
• Remote Commissioning, troubleshooting, & Upgrades
• No on-site system services required post installation
35

36. Smart Streetlighting Network
Behind the Panel
EkoLum Segment
Gateway ®
Poly Phase Meter
(optional)
36

37. PL Repeating
Power line repeating dynamically discovers and maintains the best
communication path to every luminaire
- Extreme robustness even on very noisy lines - Longer
distances and lower installation costs - Not impacted by
road modification (new buildings, etc.) – EkoLum
Segment Gateway ® manages the network
- Up to 200 nodes supported
37

38. Astronomical Position Sensor
With the EkoLum Segment Gateway ®
optimized sunlight
harvesting based on the
position of the sun - Calculate
the sun’s position based on
latitude, longitude, & time-of-
day
38

39. Billing
System Notification
Service
Databases System
GIS Energy
Management
Host Software
40

40. Host software : EkoLum Plattform
Billing
System Notification
Service
Databases System
GIS Energy
Management
Manages field installation
Track where the failures are
Check the system health
Collects, Organizes & Stores Data
Extends data to higher level
applications in usable format
• Streetlight Management Software - www.ekolum.net
41

41. Simple Installation & Ease of Use
Web Portal Centralizes Management
Secured | Customized Multi-City Web portal
42

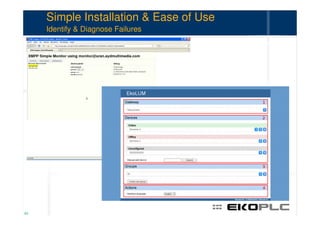

42. Simple Installation & Ease of Use
Identify & Diagnose Failures
43

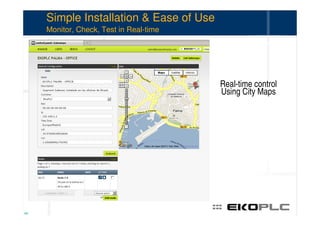

43. Simple Installation & Ease of Use
Monitor, Check, Test in Real-time
Real-time control
Using City Maps
44

44. Section 3
Installation
4

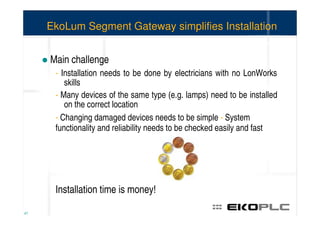

45. EkoLum Segment Gateway simplifies Installation
Main challenge
- Installation needs to be done by electricians with no LonWorks
skills
- Many devices of the same type (e.g. lamps) need to be installed
on the correct location
- Changing damaged devices needs to be simple - System
functionality and reliability needs to be checked easily and fast
Installation time is money!
47

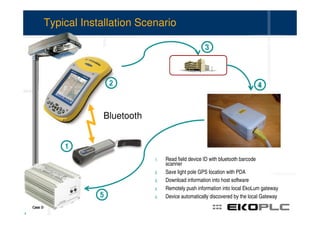

46. Typical Installation Scenario
3
2 4
Bluetooth
1
1. Read field device ID with bluetooth barcode
scanner
2. Save light pole GPS location with PDA
3. Download information into host software
4. Remotely push information into local EkoLum gateway
5 5. Device automatically discovered by the local Gateway
4

47. Smart Network Management
Node
Configuration
GateWay
Configuration
Device
Configuration
49

48. Smart Network Management
50

49. Smart Network Management
51

50. Smart Network Management
Searching for a node Lat and Lon
52

51. Section 4
Projects and Pilots
5

52. Applicability
The architecture for intelligent lights seen above is
successfully applied in
- Public street lighting
- Warehouse lighting -
Car parks
56

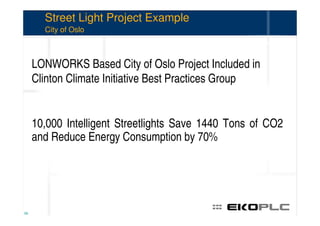

53. Street Light Project Example
City of Oslo
LONWORKS Based City of Oslo Project Included in
Clinton Climate Initiative Best Practices Group
10,000 Intelligent Streetlights Save 1440 Tons of CO2
and Reduce Energy Consumption by 70%
58

54. Street Light Project Example
Oslo Energy Savings
5

55. 6

56. 6

57. 6

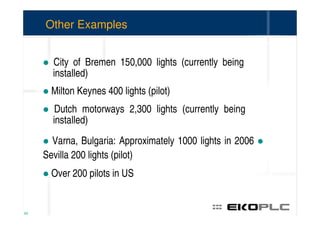

58. Other Examples
City of Bremen 150,000 lights (currently being
installed)
Milton Keynes 400 lights (pilot)
Dutch motorways 2,300 lights (currently being
installed)
Varna, Bulgaria: Approximately 1000 lights in 2006
Sevilla 200 lights (pilot)
Over 200 pilots in US
63

59. Thanks
Please visit www.ekolum.net/en/
6
