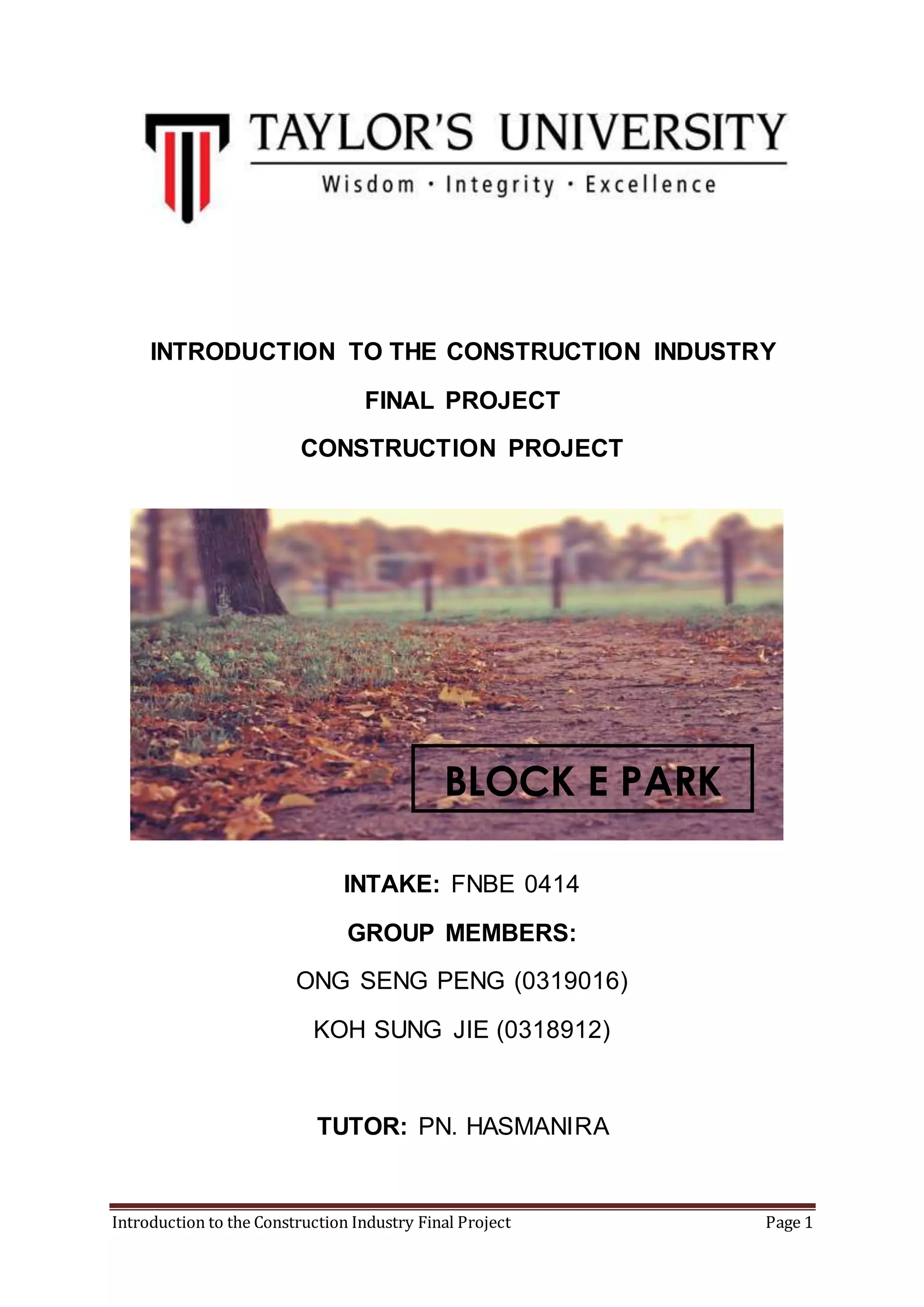

1. Introduction to the Construction Industry Final Project Page 1
INTRODUCTION TO THE CONSTRUCTION INDUSTRY
FINAL PROJECT
CONSTRUCTION PROJECT
INTAKE: FNBE 0414
GROUP MEMBERS:
ONG SENG PENG (0319016)
KOH SUNG JIE (0318912)
TUTOR: PN. HASMANIRA
BLOCK E PARK

2. Introduction to the Construction Industry Final Project Page 2

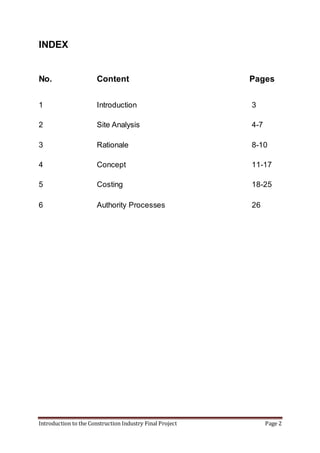

INDEX
No. Content Pages
1 Introduction 3
2 Site Analysis 4-7
3 Rationale 8-10
4 Concept 11-17
5 Costing 18-25
6 Authority Processes 26

3. Introduction to the Construction Industry Final Project Page 3

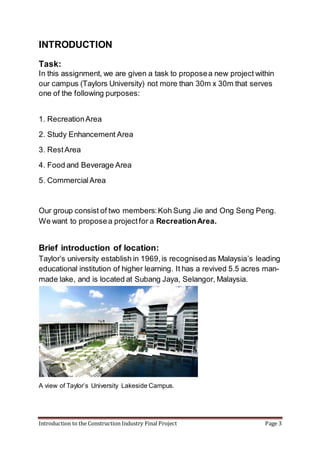

INTRODUCTION
Task:
In this assignment, we are given a task to proposea new project within
our campus (Taylors University) not more than 30m x 30m that serves
one of the following purposes:
1. RecreationArea
2. Study Enhancement Area
3. RestArea
4. Food and Beverage Area
5. CommercialArea
Our group consist of two members:Koh Sung Jie and Ong Seng Peng.
We want to proposea projectfor a RecreationArea.
Brief introduction of location:
Taylor’s university establish in 1969,is recognisedas Malaysia’s leading
educational institution of higher learning. It has a revived 5.5 acres man-
made lake, and is located at Subang Jaya, Selangor, Malaysia.
A view of Taylor’s University Lakeside Campus.

4. Introduction to the Construction Industry Final Project Page 4

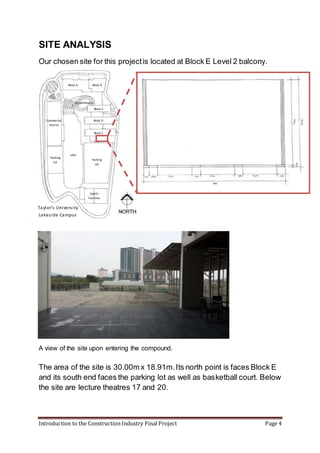

SITE ANALYSIS
Our chosen site for this projectis located at Block E Level 2 balcony.
A view of the site upon entering the compound.
The area of the site is 30.00m x 18.91m.Its north point is faces Block E
and its south end faces the parking lot as well as basketball court. Below
the site are lecture theatres 17 and 20.
Block BBlock A
Block C
Block D
Block E
Parking
Lot
Parking
Lot
Lake
Sports
Facilities
Commercial
District
Amphitheatre
Taylor’s University
Lakeside Campus

5. Introduction to the Construction Industry Final Project Page 5

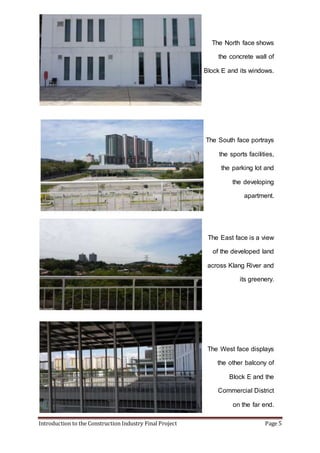

The North face shows
the concrete wall of
Block E and its windows.
The South face portrays
the sports facilities,
the parking lot and
the developing
apartment.
The East face is a view
of the developed land
across Klang River and
its greenery.
The West face displays
the other balcony of
Block E and the
Commercial District
on the far end.

6. Introduction to the Construction Industry Final Project Page 6
The site is laid with concrete flooring and fenced with steel railings; only
the north face is the entrance and the concrete wall of BlockE. The
overall site has no roof exceptthe west face. The site is currently empty
and serves no major purpose.There is no circulation within the site
The concrete floor with white painted steel railings for safety measures.
There is a roof constructed on the east face but it serves no major purpose to the
site as nobody visits this place.

7. Introduction to the Construction Industry Final Project Page 7

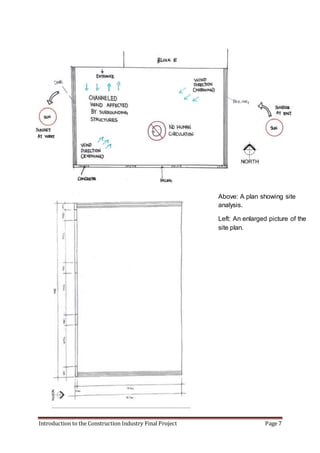

Above: A plan showing site
analysis.
Left: An enlarged picture of the
site plan.

8. Introduction to the Construction Industry Final Project Page 8

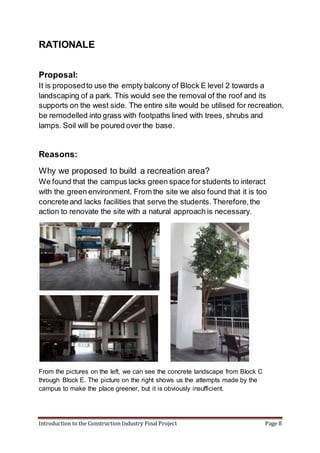

RATIONALE
Proposal:
It is proposedto use the empty balcony of Block E level 2 towards a
landscaping of a park. This would see the removal of the roof and its
supports on the west side. The entire site would be utilised for recreation,
be remodelled into grass with footpaths lined with trees, shrubs and
lamps. Soil will be poured over the base.
Reasons:
Why we proposed to build a recreation area?
We found that the campus lacks green space for students to interact
with the green environment. From the site we also found that it is too
concrete and lacks facilities that serve the students. Therefore,the
action to renovate the site with a natural approach is necessary.
From the pictures on the left, we can see the concrete landscape from Block C
through Block E. The picture on the right shows us the attempts made by the
campus to make the place greener, but it is obviously insufficient.

9. Introduction to the Construction Industry Final Project Page 9

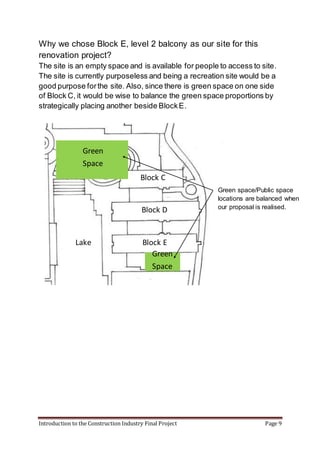

Why we chose Block E, level 2 balcony as our site for this
renovation project?
The site is an empty space and is available for people to access to site.
The site is currently purposeless and being a recreation site would be a
good purpose forthe site. Also, since there is green space on one side
of Block C, it would be wise to balance the green space proportions by
strategically placing another beside BlockE.
Block C
Block D
Block E
Green space/Public space
locations are balanced when
our proposal is realised.
Lake
Green
Space
Green
Space

10. Introduction to the Construction Industry Final Project Page 10

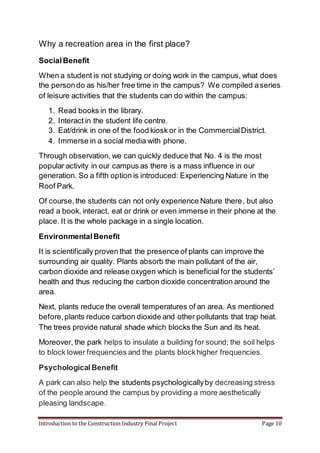

Why a recreation area in the first place?
SocialBenefit
When a student is not studying or doing work in the campus, what does
the persondo as his/her free time in the campus? We compiled aseries
of leisure activities that the students can do within the campus:
1. Read books in the library.
2. Interact in the student life centre.
3. Eat/drink in one of the food kiosk or in the CommercialDistrict.
4. Immerse in a social media with phone.
Through observation, we can quickly deduce that No. 4 is the most
popular activity in our campus as there is a mass influence in our
generation. So a fifth option is introduced: Experiencing Nature in the
Roof Park.
Of course,the students can not only experience Nature there, but also
read a book, interact, eat or drink or even immerse in their phone at the
place. It is the whole package in a single location.
EnvironmentalBenefit
It is scientifically proven that the presence of plants can improve the
surrounding air quality. Plants absorb the main pollutant of the air,
carbon dioxide and release oxygen which is beneficial for the students’
health and thus reducing the carbon dioxide concentration around the
area.
Next, plants reduce the overall temperatures of an area. As mentioned
before,plants reduce carbon dioxide and other pollutants that trap heat.
The trees provide natural shade which blocks the Sun and its heat.
Moreover, the park helps to insulate a building for sound; the soil helps
to block lower frequencies and the plants blockhigher frequencies.
PsychologicalBenefit
A park can also help the students psychologicallyby decreasing stress
of the people around the campus by providing a more aesthetically
pleasing landscape.

11. Introduction to the Construction Industry Final Project Page 11

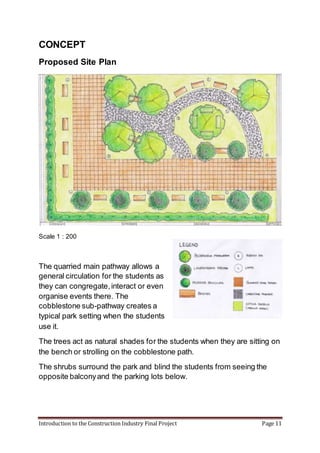

CONCEPT
Proposed Site Plan
Scale 1 : 200
The quarried main pathway allows a
general circulation for the students as
they can congregate,interact or even
organise events there. The
cobblestone sub-pathway creates a
typical park setting when the students
use it.
The trees act as natural shades for the students when they are sitting on
the bench or strolling on the cobblestone path.
The shrubs surround the park and blind the students from seeing the
opposite balconyand the parking lots below.

12. Introduction to the Construction Industry Final Project Page 12

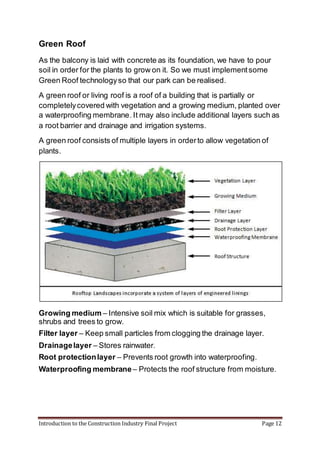

Green Roof
As the balcony is laid with concrete as its foundation, we have to pour
soil in order for the plants to grow on it. So we must implementsome
Green Roof technologyso that our park can be realised.
A green roof or living roof is a roof of a building that is partially or
completelycovered with vegetation and a growing medium, planted over
a waterproofing membrane. It may also include additional layers such as
a root barrier and drainage and irrigation systems.
A green roof consists of multiple layers in orderto allow vegetation of
plants.
Growing medium – Intensive soil mix which is suitable for grasses,
shrubs and trees to grow.
Filter layer – Keep small particles from clogging the drainage layer.
Drainagelayer – Stores rainwater.
Root protectionlayer – Prevents root growth into waterproofing.
Waterproofing membrane – Protects the roof structure from moisture.

13. Introduction to the Construction Industry Final Project Page 13
Softscapes
Murraya paniculata 'Lakeview'
Category:
Shrubs
Trees
Tropicals and Tender Perennials
Height:
3-3.6 m
Spacing:
90-120 cm
Sun Exposure:
Sun to Partial Shade
Danger:
N/A
Bloom Color:
White/Near White
Bloom Time:
Blooms repeatedly
Foliage:
Evergreen
Other details:
This plant is attractive to bees, butterflies and/or birds
Flowers are fragrant
This plant is suitable for growing indoors
Requires consistently moist soil; do not let dry out between waterings
Soil pH requirements:
6.6 to 7.5 (neutral)
Propagation Methods:
From semi-hardwood cuttings
Seed Collecting:
Remove fleshy coating on seeds before storing
Seed does not store well; sow as soon as possible

14. Introduction to the Construction Industry Final Project Page 14

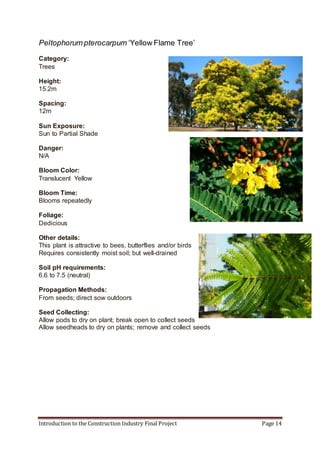

Peltophorum pterocarpum ‘Yellow Flame Tree’
Category:
Trees
Height:
15.2m
Spacing:
12m
Sun Exposure:
Sun to Partial Shade
Danger:
N/A
Bloom Color:
Translucent Yellow
Bloom Time:
Blooms repeatedly
Foliage:
Dedicious
Other details:
This plant is attractive to bees, butterflies and/or birds
Requires consistently moist soil; but well-drained
Soil pH requirements:
6.6 to 7.5 (neutral)
Propagation Methods:
From seeds; direct sow outdoors
Seed Collecting:
Allow pods to dry on plant; break open to collect seeds
Allow seedheads to dry on plants; remove and collect seeds

15. Introduction to the Construction Industry Final Project Page 15

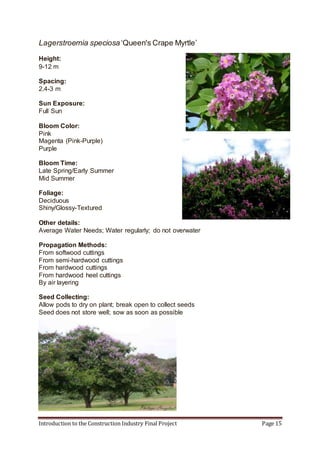

Lagerstroemia speciosa‘Queen's Crape Myrtle’
Height:
9-12 m
Spacing:
2.4-3 m
Sun Exposure:
Full Sun
Bloom Color:
Pink
Magenta (Pink-Purple)
Purple
Bloom Time:
Late Spring/Early Summer
Mid Summer
Foliage:
Deciduous
Shiny/Glossy-Textured
Other details:
Average Water Needs; Water regularly; do not overwater
Propagation Methods:
From softwood cuttings
From semi-hardwood cuttings
From hardwood cuttings
From hardwood heel cuttings
By air layering
Seed Collecting:
Allow pods to dry on plant; break open to collect seeds
Seed does not store well; sow as soon as possible

16. Introduction to the Construction Industry Final Project Page 16

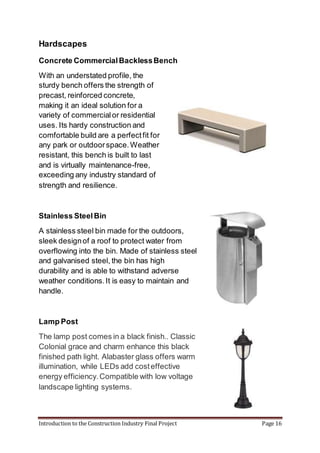

Hardscapes
Concrete CommercialBacklessBench
With an understated profile, the
sturdy bench offers the strength of
precast, reinforced concrete,
making it an ideal solution for a
variety of commercialor residential
uses. Its hardy construction and
comfortable build are a perfectfit for
any park or outdoorspace.Weather
resistant, this bench is built to last
and is virtually maintenance-free,
exceeding any industry standard of
strength and resilience.
Stainless SteelBin
A stainless steel bin made for the outdoors,
sleek designof a roof to protect water from
overflowing into the bin. Made of stainless steel
and galvanised steel, the bin has high
durability and is able to withstand adverse
weather conditions.It is easy to maintain and
handle.
Lamp Post
The lamp post comes in a black finish.. Classic
Colonial grace and charm enhance this black
finished path light. Alabaster glass offers warm
illumination, while LEDs add costeffective
energy efficiency.Compatible with low voltage
landscape lighting systems.

17. Introduction to the Construction Industry Final Project Page 17

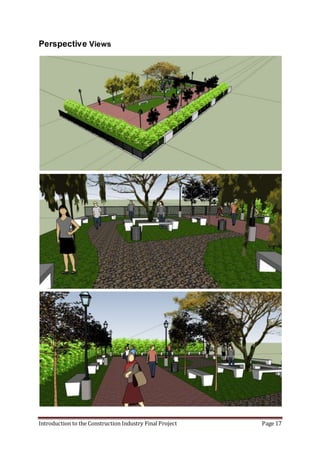

Perspective Views

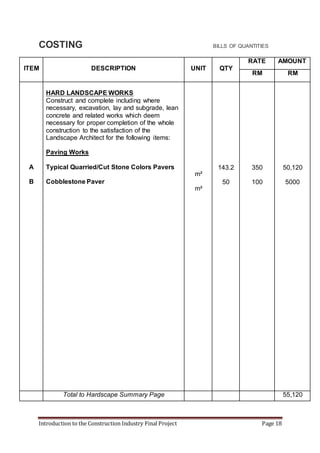

18. Introduction to the Construction Industry Final Project Page 18
COSTING BILLS OF QUANTITIES
ITEM DESCRIPTION UNIT QTY
RATE AMOUNT
RM RM
A
B
HARD LANDSCAPE WORKS
Construct and complete including where
necessary, excavation, lay and subgrade, lean
concrete and related works which deem
necessary for proper completion of the whole
construction to the satisfaction of the
Landscape Architect for the following items:
Paving Works
Typical Quarried/Cut Stone Colors Pavers
Cobblestone Paver
m²
m²
143.2
50
350
100
50,120
5000
Total to Hardscape Summary Page 55,120

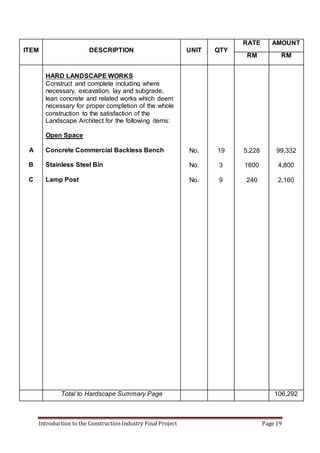

19. Introduction to the Construction Industry Final Project Page 19
ITEM DESCRIPTION UNIT QTY
RATE AMOUNT
RM RM
A
B
C
HARD LANDSCAPE WORKS
Construct and complete including where
necessary, excavation, lay and subgrade,
lean concrete and related works which deem
necessary for proper completion of the whole
construction to the satisfaction of the
Landscape Architect for the following items:
Open Space
Concrete Commercial Backless Bench
Stainless Steel Bin
Lamp Post
No.
No.
No.
19
3
9
5,228
1600
240
99,332
4,800
2,160
Total to Hardscape Summary Page 106,292

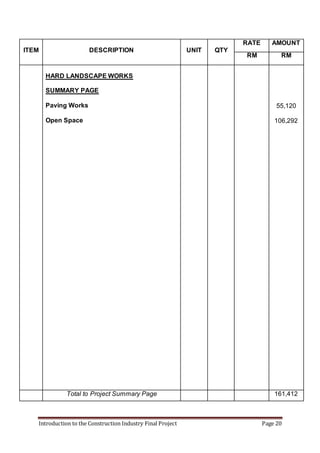

20. Introduction to the Construction Industry Final Project Page 20
ITEM DESCRIPTION UNIT QTY
RATE AMOUNT
RM RM
HARD LANDSCAPE WORKS
SUMMARY PAGE
Paving Works
Open Space
55,120
106,292
Total to Project Summary Page 161,412

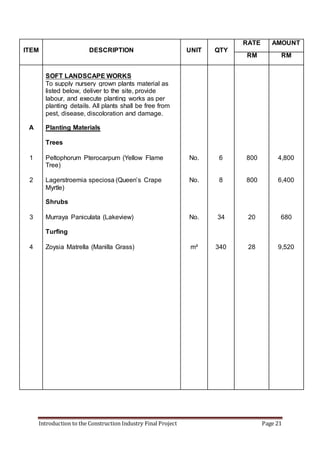

21. Introduction to the Construction Industry Final Project Page 21
ITEM DESCRIPTION UNIT QTY
RATE AMOUNT
RM RM
A
1
2
3
4
SOFT LANDSCAPE WORKS
To supply nursery grown plants material as
listed below, deliver to the site, provide
labour, and execute planting works as per
planting details. All plants shall be free from
pest, disease, discoloration and damage.
Planting Materials
Trees
Peltophorum Pterocarpum (Yellow Flame
Tree)
Lagerstroemia speciosa (Queen’s Crape
Myrtle)
Shrubs
Murraya Paniculata (Lakeview)
Turfing
Zoysia Matrella (Manilla Grass)
No.
No.
No.
m²
6
8
34
340
800
800
20
28
4,800
6,400
680
9,520

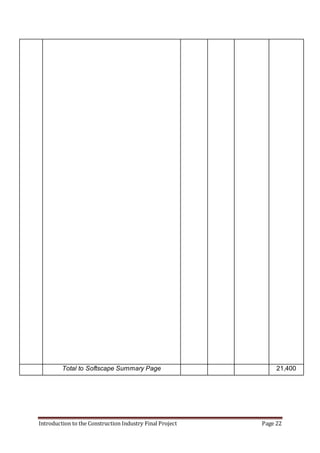

22. Introduction to the Construction Industry Final Project Page 22
Total to Softscape Summary Page 21,400

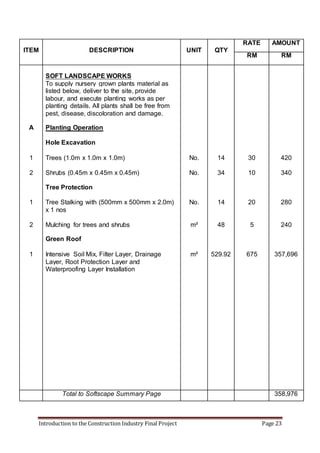

23. Introduction to the Construction Industry Final Project Page 23
ITEM DESCRIPTION UNIT QTY
RATE AMOUNT
RM RM
A
1
2
1
2
1
SOFT LANDSCAPE WORKS
To supply nursery grown plants material as
listed below, deliver to the site, provide
labour, and execute planting works as per
planting details. All plants shall be free from
pest, disease, discoloration and damage.
Planting Operation
Hole Excavation
Trees (1.0m x 1.0m x 1.0m)
Shrubs (0.45m x 0.45m x 0.45m)
Tree Protection
Tree Stalking with (500mm x 500mm x 2.0m)
x 1 nos
Mulching for trees and shrubs
Green Roof
Intensive Soil Mix, Filter Layer, Drainage
Layer, Root Protection Layer and
Waterproofing Layer Installation
No.
No.
No.
m²
m²
14
34
14
48
529.92
30
10
20
5
675
420
340
280
240
357,696
Total to Softscape Summary Page 358,976

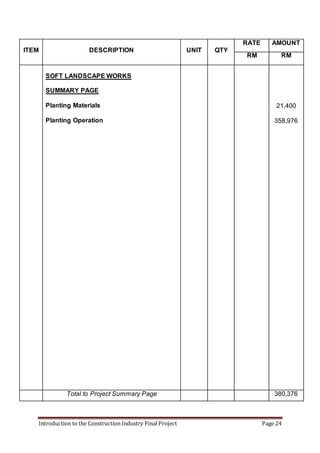

24. Introduction to the Construction Industry Final Project Page 24
ITEM DESCRIPTION UNIT QTY
RATE AMOUNT
RM RM
SOFT LANDSCAPE WORKS
SUMMARY PAGE
Planting Materials
Planting Operation
21,400
358,976
Total to Project Summary Page 380,376

25. Introduction to the Construction Industry Final Project Page 25
ITEM DESCRIPTION UNIT QTY
RATE AMOUNT
RM RM
MAINTENANCE
The maintenance shall be carried during
planting works and defect liability period
which includes watering, fertilising, pruning,
aerifying the soil, site cleaning, pest control,
thriving the unhealthy, replacing dead plants
and other maintenance works and procedures
plants as specified.
During the maintenance period, contractors
provide the following matters:
i. 3 full time maintenance workers
ii. Fertilizer, insecticide
iii. Provision of maintenance
machineries
iv. To remove landscape debris away
from the site to contractor’s own
dumping ground
During warranty period, Landscape
Contractors to prepare the following matters:
i. Monthly maintenance work
programme
ii. Maintenance daily work programme
on site
iii. Attendance to be recorded and
acknowledges by the project
management, client representative
and verified by Landscape Architect
at site for monthly maintenance
claim procedure.
mth 12 1500 18,000
Total to Project Summary Page 18,000

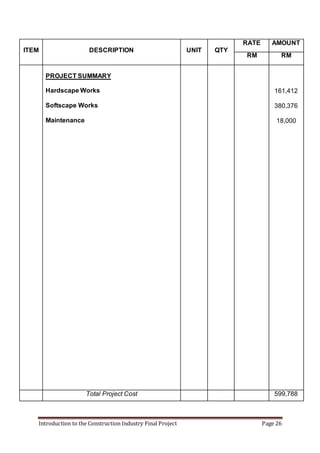

26. Introduction to the Construction Industry Final Project Page 26
ITEM DESCRIPTION UNIT QTY
RATE AMOUNT
RM RM
PROJECT SUMMARY
Hardscape Works
Softscape Works
Maintenance
161,412
380,376
18,000
Total Project Cost 599,788

27. Introduction to the Construction Industry Final Project Page 27
AUTHORITY PROCESSES
