HYBRID
ENERGY
SYSTEM

2. www.company.com

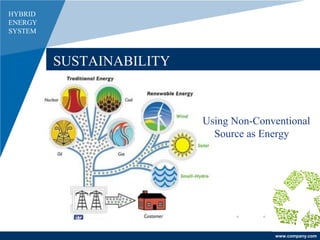

SUSTAINABILITY
Using Non-Conventional
Source as Energy
HYBRID
ENERGY
SYSTEM

3. www.company.com

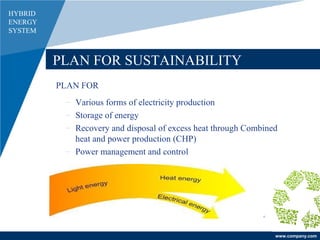

PLAN FOR SUSTAINABILITY
– Various forms of electricity production
– Storage of energy
– Recovery and disposal of excess heat through Combined
heat and power production (CHP)
– Power management and control
PLAN FOR
HYBRID
ENERGY
SYSTEM

4. www.company.com

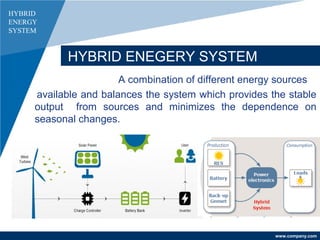

HYBRID ENEGERY SYSTEM
A combination of different energy sources
available and balances the system which provides the stable
output from sources and minimizes the dependence on
seasonal changes.
HYBRID
ENERGY
SYSTEM

5. www.company.com

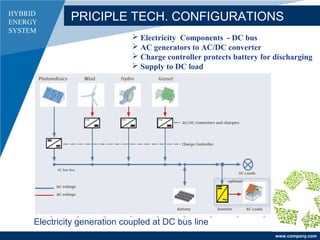

PRICIPLE TECH. CONFIGURATIONS
Electricity generation coupled at DC bus line
HYBRID
ENERGY
SYSTEM
 Electricity Components - DC bus
 AC generators to AC/DC converter
 Charge controller protects battery for discharging
 Supply to DC load

6. www.company.com
Electricity generation coupled at AC bus line
HYBRID
ENERGY
SYSTEM  Electricity Components - AC bus
 AC generators to AC or AC/DC converter
 Inverter controls energy supply to AC load &
battery
 Supply to DC load is optinal

7. www.company.com
Electricity generation coupled at AC/DC bus line :
HYBRID
ENERGY
SYSTEM
On the AC bus line, AC generating components
may be directly connected to the AC bus line
(**) or may need a AC/AC converter to enable
stable coupling of the components (*).
NOTE :

8. www.company.com
SIGNIFICANT ASPECTS
HYBRID
ENERGY
SYSTEM
• feasibility study based on gathering field data.
• Location, resource evaluation and load analysis
• Technical, economic, financial, and sociocultural
considerations.
• quality (reliability), yield, regular maintenance
requirements
• solar and wind power fluctuate in intensity due to the
weather and seasonal changes, consequently backup is
needed.

9. www.company.com
Make a Sustainable Living !!
