HPLC Parameters

1. HPLC Parameters,
Factors affecting
Resolution
BY DHINESHKUMAR V
IM.PHARM (PHARMACOLOGY)
PSG COLLEGE OF PHARMACY 1

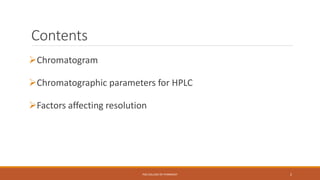

2. Contents
Chromatogram
Chromatographic parameters for HPLC
Factors affecting resolution
PSG COLLEGE OF PHARMACY 2

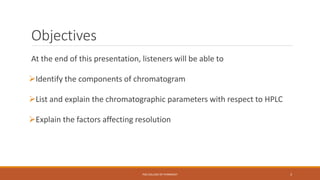

3. Objectives
At the end of this presentation, listeners will be able to
Identify the components of chromatogram
List and explain the chromatographic parameters with respect to HPLC
Explain the factors affecting resolution
PSG COLLEGE OF PHARMACY 3

4. Chromatogram
PSG COLLEGE OF PHARMACY 4
 A chromatogram is a pictorial record of the detector
response

5. Chromatographic parameters
Retention time
Adjusted Retention time
Retention volume
Retention or factor
Selectivity factor
Theoretical plate
Column efficiency
Asymmetry peaks
Resolution
PSG COLLEGE OF PHARMACY 5

6. Retention time
Difference in time between the sample injection and appearance of peak maxima. The
retention time is given by the symbol tR
Different compounds have different retention times.
Retention time may vary depending on:
i. Pressure used
ii. Nature of the stationary phase
iii. composition of the mobile phase
iv. Temperature of the column
PSG COLLEGE OF PHARMACY 6

7. Adjusted retention time
It is a measurement between retention time(𝑡 𝑅) and unretained time (𝑡0)
𝑡 𝑅
′
= 𝑡 𝑅 − 𝑡0
PSG COLLEGE OF PHARMACY 7

8. Adjusted retention time
Example:
Retention time of a compound (𝑡 𝑅) = 5 min
Unretained time (𝑡0)= 1 min
Then, the adjusted retention time(𝑡 𝑅
′
) will be (𝑡 𝑅−𝑡0)= 4 min
jump
PSG COLLEGE OF PHARMACY 8

9. Retention volume
The volume of mobile phase that passed through the column from the point
of injection to the detector is called as retention volume.
𝑉𝑅 = 𝑡 𝑅 × 𝐹
PSG COLLEGE OF PHARMACY 9

10. Retention factor
It is defined as the ratio of adjusted retention time (𝑡 𝑅′) and unretained time (𝑡0)
𝐾 =
𝑡 𝑅− 𝑡0
𝑡0
Example:
Adjusted retention time (𝑡 𝑅′) = 8 min
unretained time (𝑡0) = 2 min
Then, Retention factor (K) =
8−2
2
=
6
2
= 3
Higher the K value, greater the resolution.
PSG COLLEGE OF PHARMACY 10

11. Retention factor
PSG COLLEGE OF PHARMACY 11
K value
1-10. Good separation
<1.0 Poorly retained
>10 Too long to separate and
broaden the peaks

12. Selectivity factor (Separation factor)
Separation factor is defined as the ratio of the partition coefficient of two components to be
separated OR ratio of adjusted retention time of two components
∝=
𝐾 𝐵
𝐾𝐴
=
(𝑡 𝑅(𝐵)−𝑡0)
(𝑡 𝑅(𝐴)−𝑡0)
KB, KA= partition coefficient or distribution constant of substance B and A
𝑡 𝑅(𝐵) , 𝑡 𝑅(𝐴) = retention time of the substance B and A
𝑡0 = unretained time
Higher the selectivity factor, greater the resolution
PSG COLLEGE OF PHARMACY 12

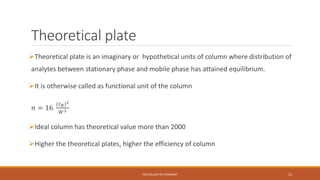

13. Theoretical plate
Theoretical plate is an imaginary or hypothetical units of column where distribution of
analytes between stationary phase and mobile phase has attained equilibrium.
It is otherwise called as functional unit of the column
𝑛 = 16
(𝑡 𝑅)2
𝑊2
Ideal column has theoretical value more than 2000
Higher the theoretical plates, higher the efficiency of column
PSG COLLEGE OF PHARMACY 13

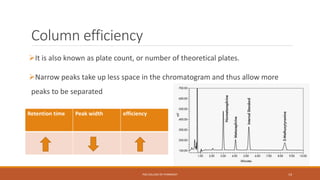

14. Column efficiency
It is also known as plate count, or number of theoretical plates.
Narrow peaks take up less space in the chromatogram and thus allow more
peaks to be separated
PSG COLLEGE OF PHARMACY 14
Retention time Peak width efficiency

15. Column efficiency
High equivalent theoretical plate (HETP)
HETP =
𝑳
𝑵
=
𝑳𝒆𝒏𝒈𝒕𝒉 𝒐𝒇 𝒕𝒉𝒆 𝒄𝒐𝒍𝒖𝒎𝒏
𝒏𝒐 𝒐𝒇 𝒕𝒉𝒆𝒐𝒓𝒆𝒕𝒊𝒄𝒂𝒍 𝒑𝒍𝒂𝒕𝒆𝒔
Higher the column efficiency, higher the resolution
PSG COLLEGE OF PHARMACY 15
HETP Column efficiency

16. Peak asymmetry
Ideal chromatographic peaks are symmetrical, if asymmetrical peaks are
obtained then it is said to be inappropriate
There are two types of asymmetrical peaks, fronting and tailing
PSG COLLEGE OF PHARMACY 16
Tailing is due to saturation of stationary phase
Fronting is due to more active adsorptive site in
the stationary phase

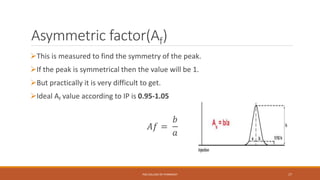

17. Asymmetric factor(Af)
This is measured to find the symmetry of the peak.
If the peak is symmetrical then the value will be 1.
But practically it is very difficult to get.
Ideal Af value according to IP is 0.95-1.05
𝐴𝑓 =
𝑏
𝑎
PSG COLLEGE OF PHARMACY 17

18. Resolution
 Resolution is defined as the difference in retention times between the two
components divided by the combined widths of the elution peaks.
It is otherwise defined as the measure of the extent of separation of two components
and the baseline separation achieved
𝑅 𝑠 =
2(𝑡 𝑅 𝐵 − 𝑡 𝑅(𝐴))
𝑤 𝑎+ 𝑤 𝑏
Ideal resolution value should be greater than 2
PSG COLLEGE OF PHARMACY 18

19. Factors affecting resolution
Resolution is affected by three important parameters, they are
1. Selectivity (separation factor)
2. Efficiency
3. Retention (capacity factor)
PSG COLLEGE OF PHARMACY 19

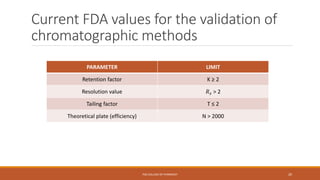

20. Current FDA values for the validation of
chromatographic methods
PSG COLLEGE OF PHARMACY 20
PARAMETER LIMIT
Retention factor K ≥ 2
Resolution value 𝑅 𝑠 > 2
Tailing factor T ≤ 2
Theoretical plate (efficiency) N > 2000
