- 1. How To UseA… Digital Multimeter
- 2. How To UseA… Digital Multimeter
- 3.
- 4. Wait, what isa Multimeter??
- 5.
- 6.
- 7.
- 8.
- 9. AUTION CAUTION CAUTIONCAUTION CAUTION CAUTION CAU Safety N CAUTION CAUTION CAUTION CAUTION CAUTION CAUTION

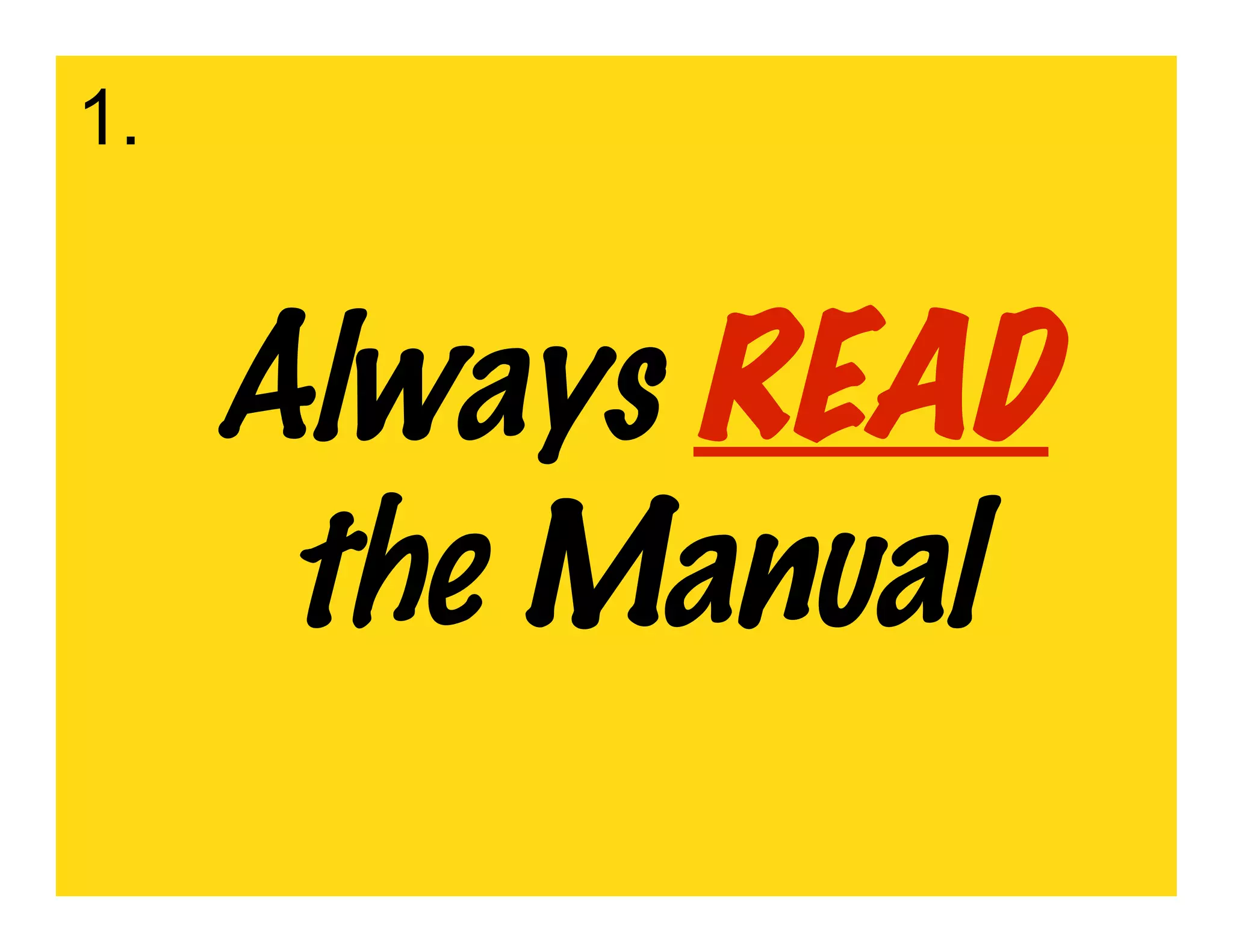

- 10. 1. Always READ the Manual
- 11. 2. Know the Equipment
- 12. 2. Know the …and the Safety Precautions for Equipment the Equipment

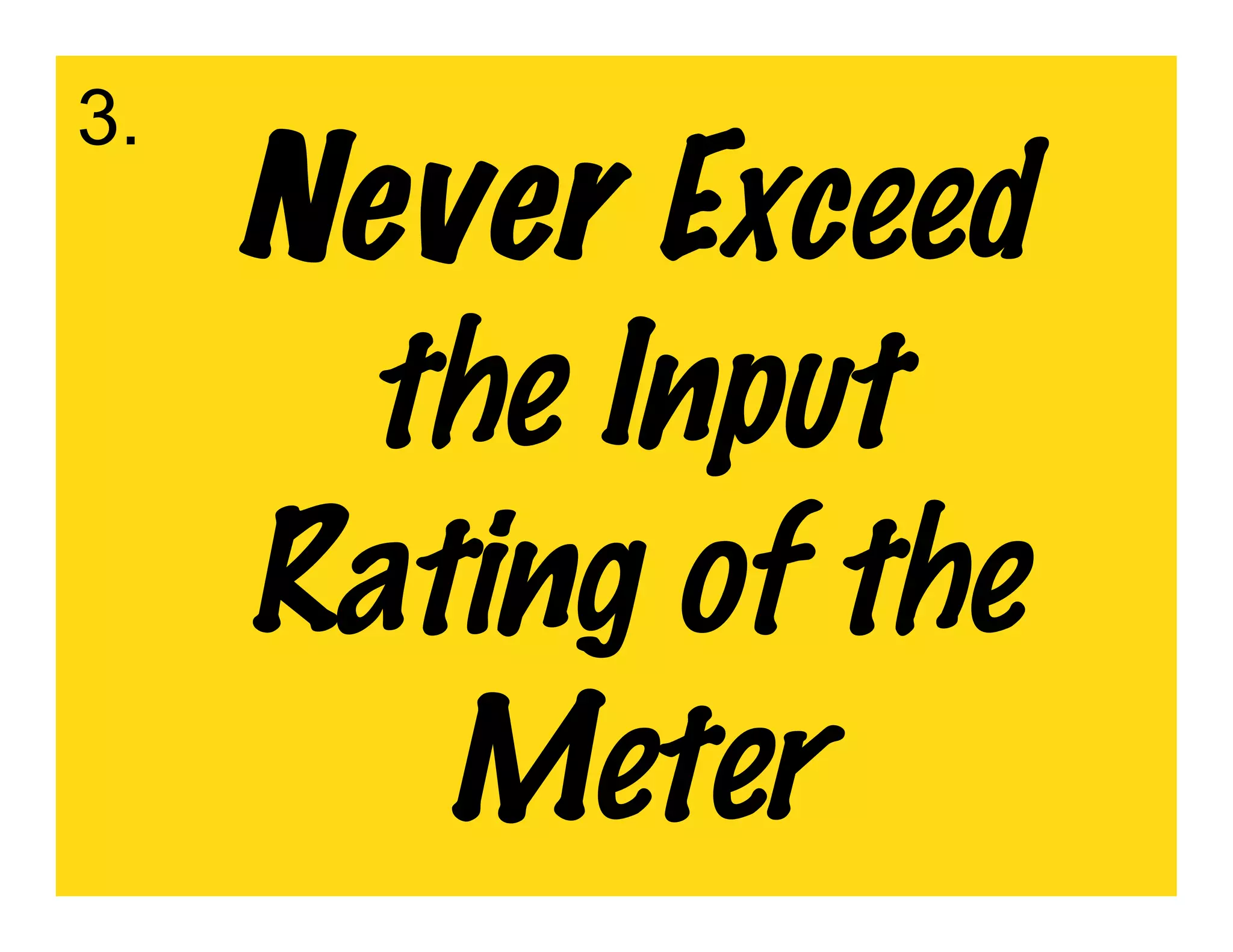

- 13. 3. Never Exceed the Input Rating of the Meter

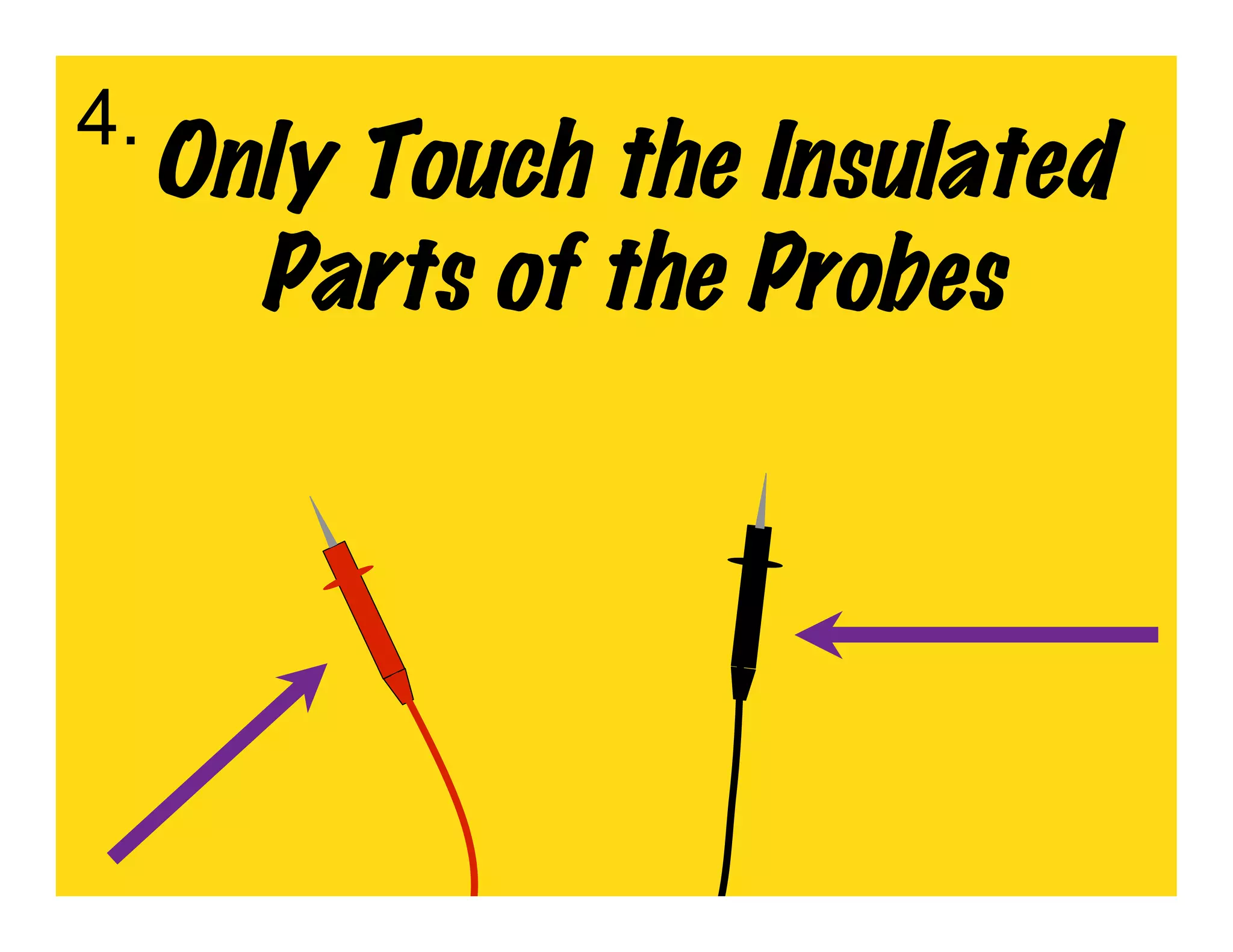

- 14. 4. Only Touch the Insulated Parts of the Probes
- 15. 4. Only Touch the Insulated Parts of the Probes NOT THE METAL TIPS…
- 16. Why Not the MetalTips?
- 17. To avoid Why Notthe Metal Tips? ELECTRICAL SHOCK Or INJURY!!!!!!

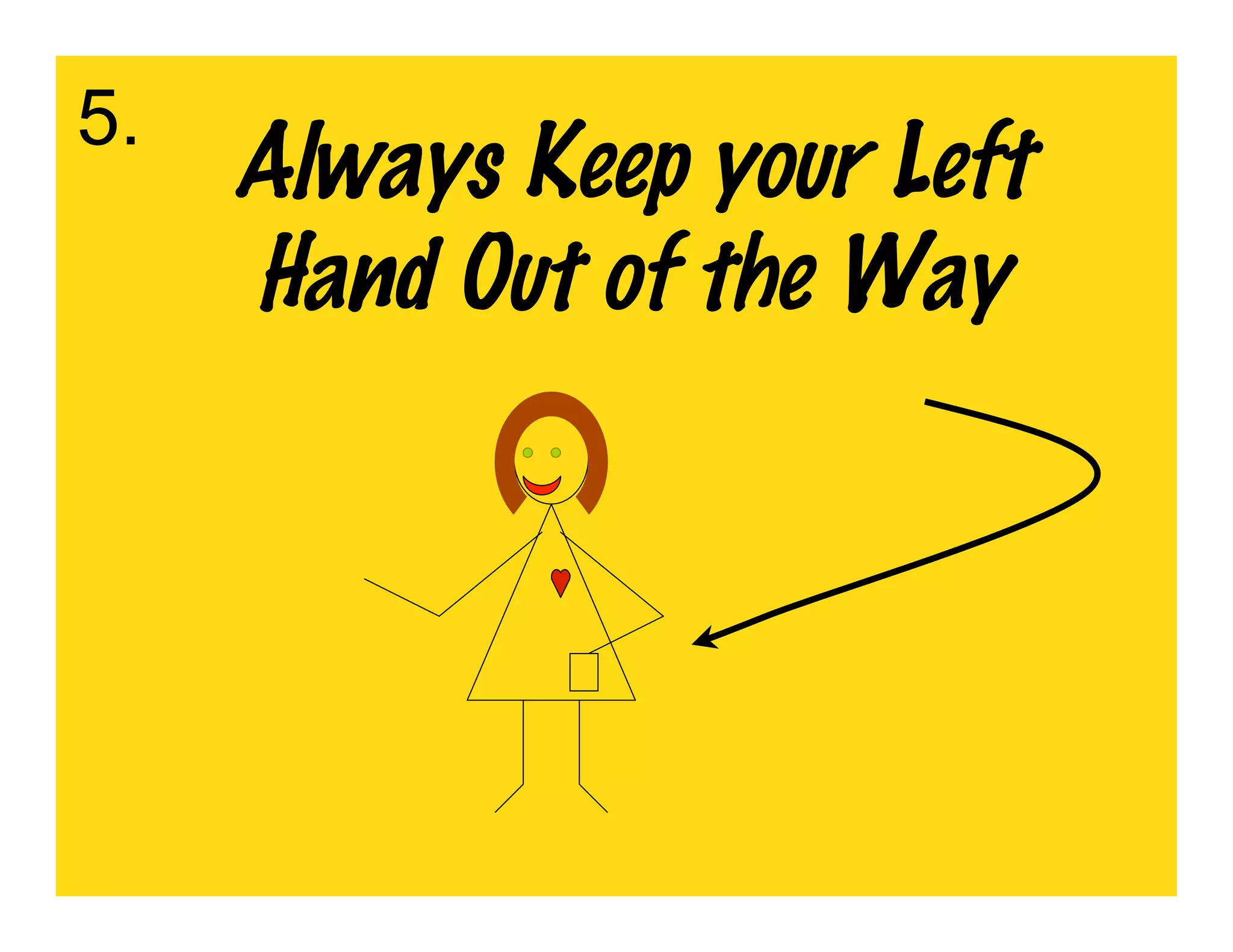

- 18. 5. Always Keep your Left Hand Out of the Way

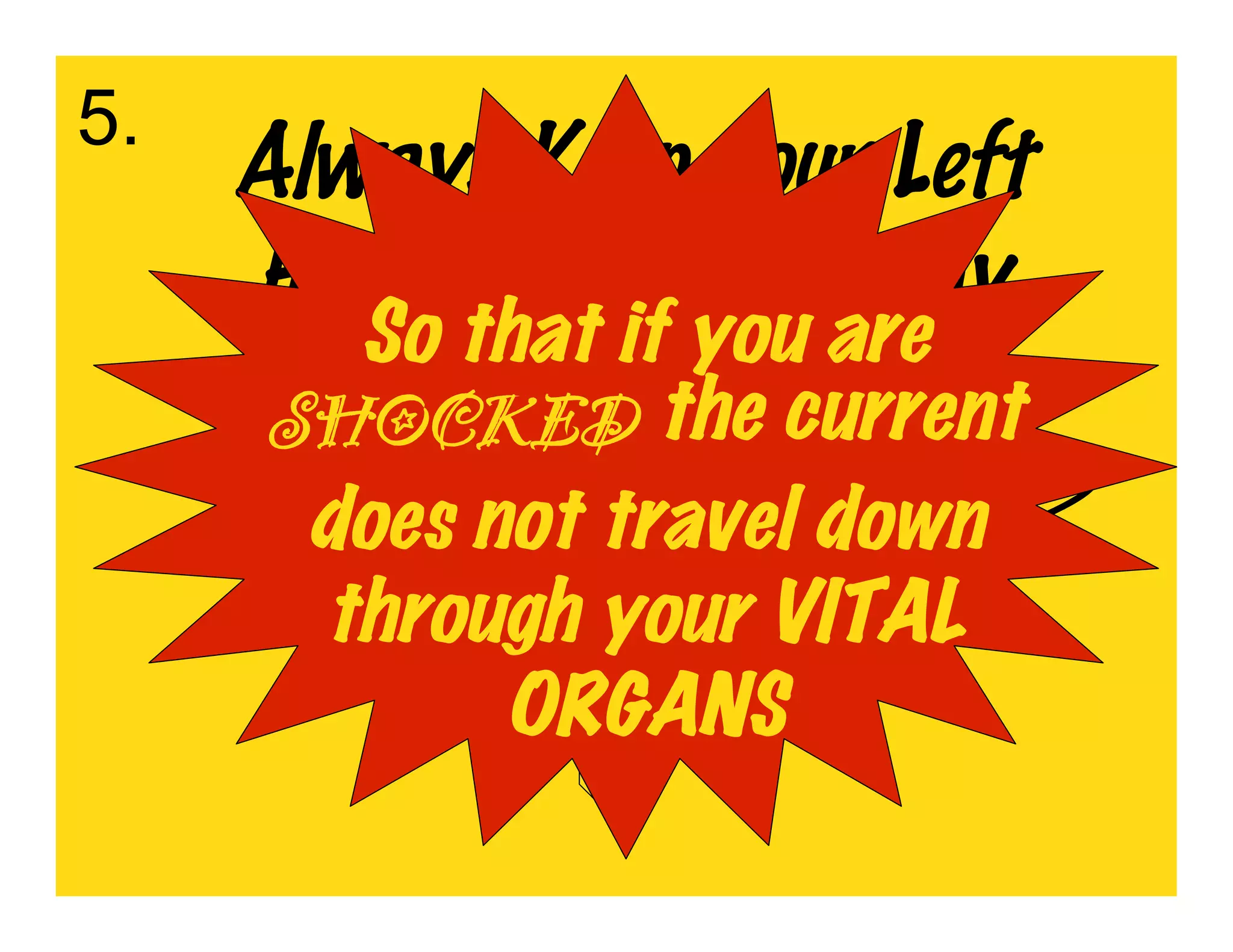

- 19. 5. Always Keep your Left Hand Out of the Way So that if you are SHOCKED the current does not travel down through your VITAL ORGANS

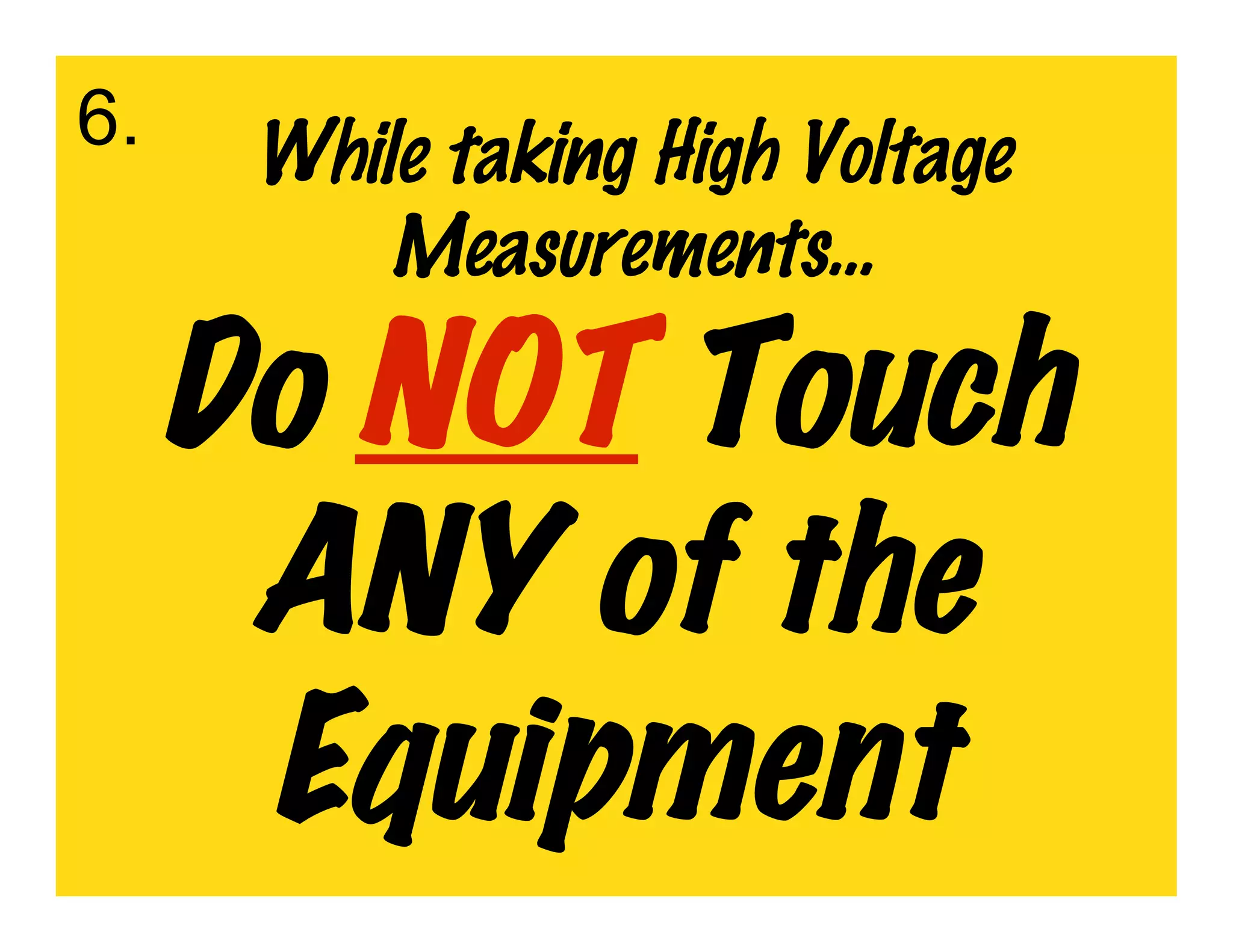

- 20. 6. While taking High Voltage Measurements… Do NOT Touch ANY of the Equipment

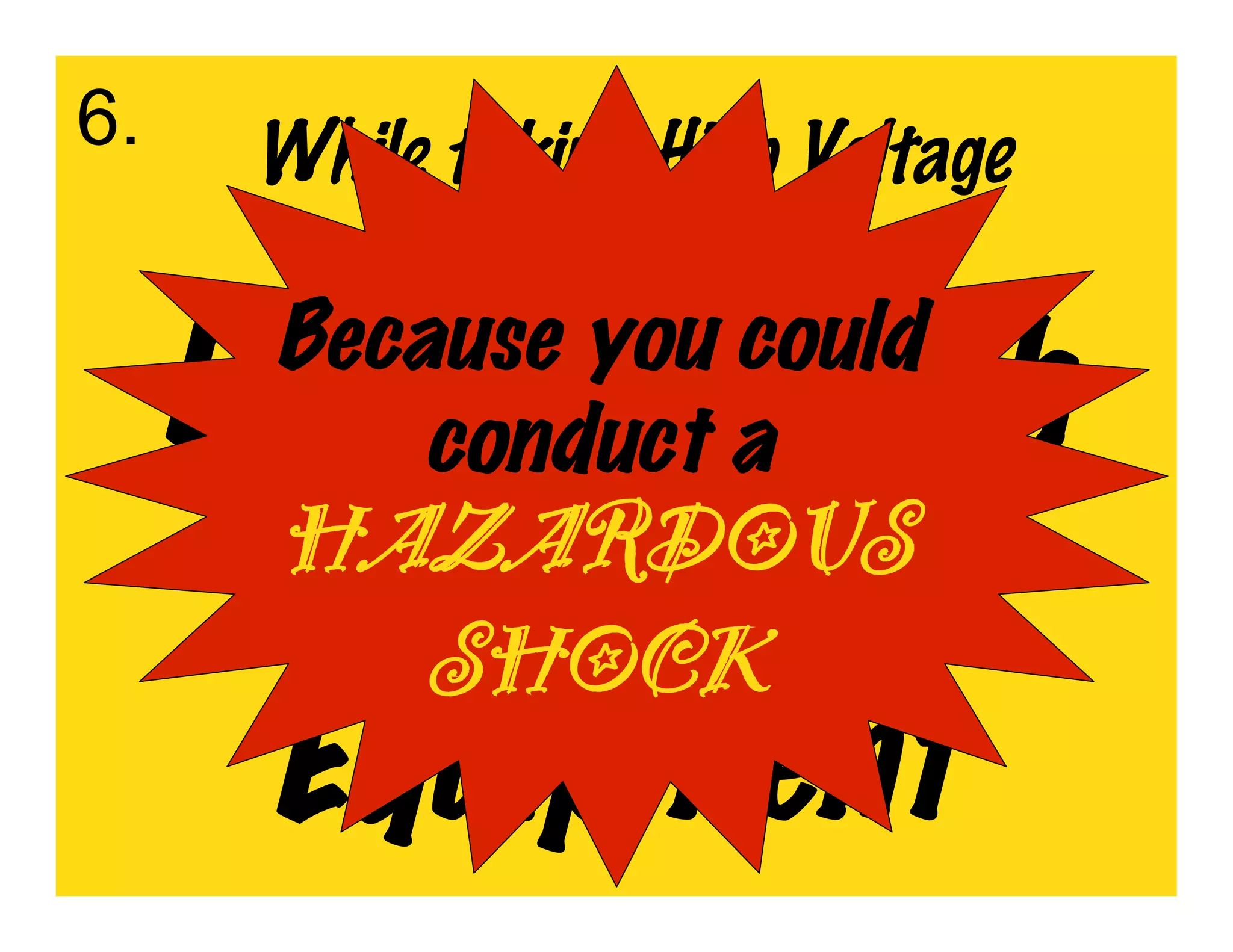

- 21. 6. While taking High Voltage Measurements… Because you could Do NOT Touch conduct a ANY of the HAZARDOUS SHOCK Equipment

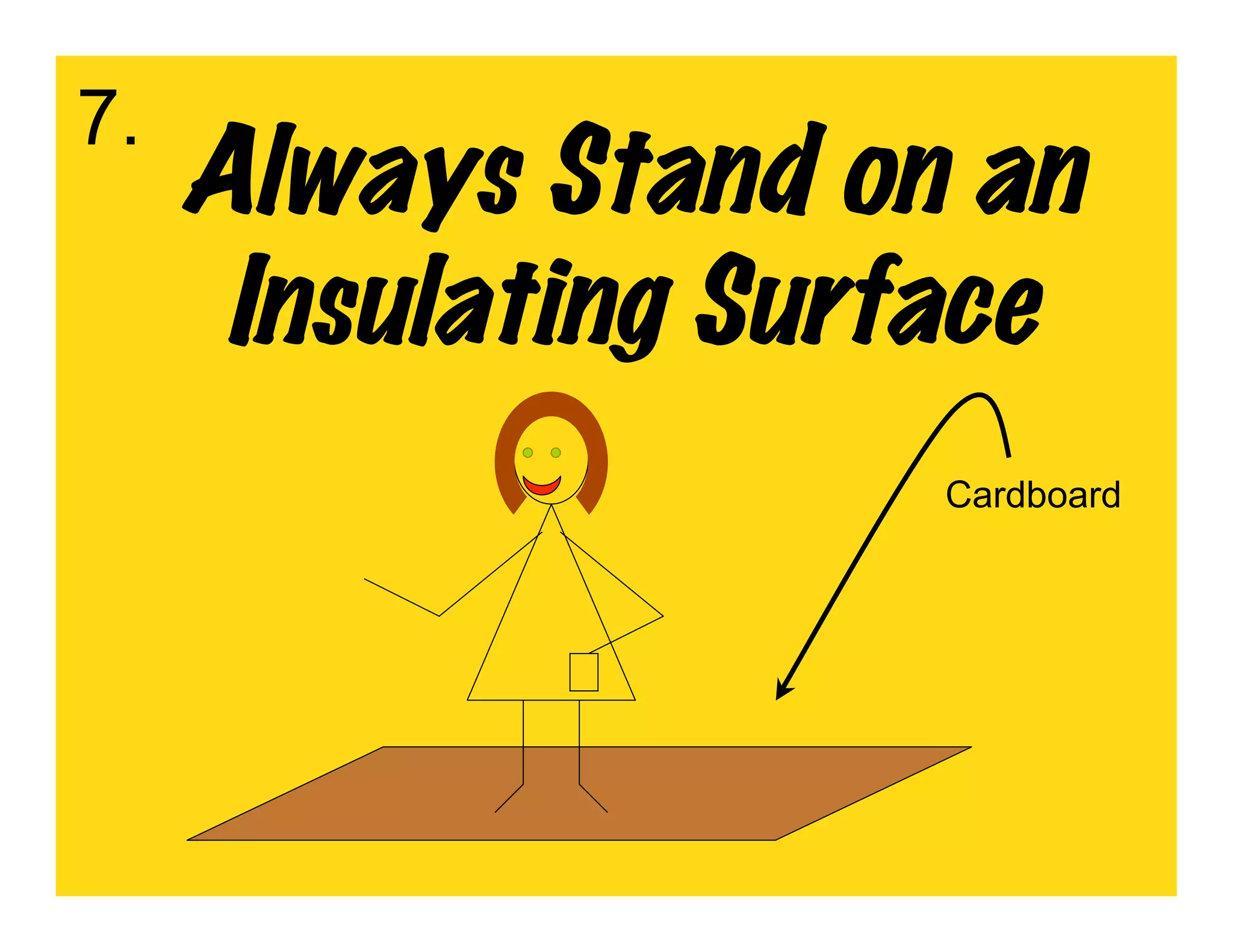

- 22. 7. Always Stand on an Insulating Surface Cardboard

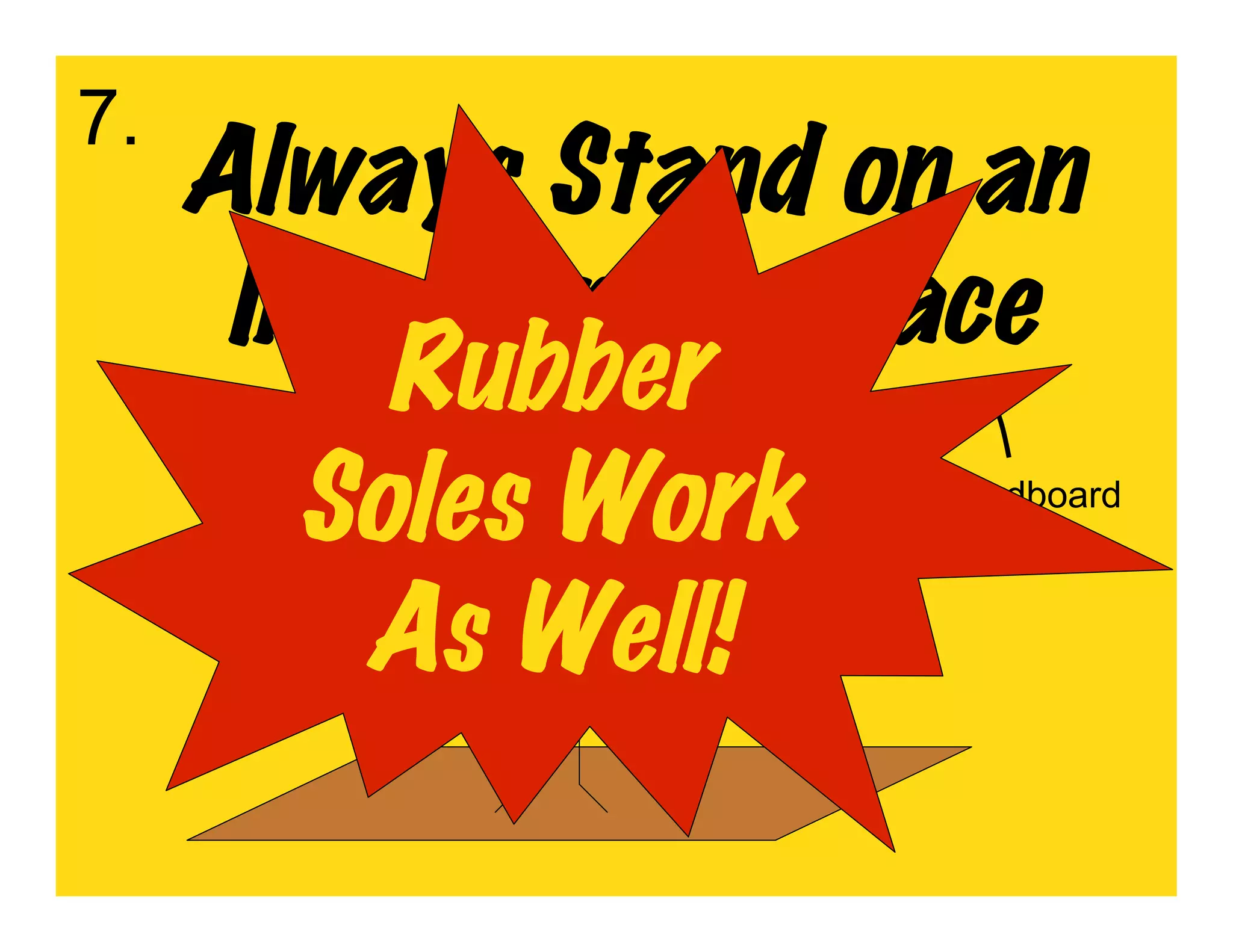

- 23. 7. Always Stand on an Insulating Surface Rubber Soles Work Cardboard As Well!
- 24. 7. Always Stand on an Insulating Surface To Prevent SHOCK! Cardboard
- 25. 8. Never Work Alone

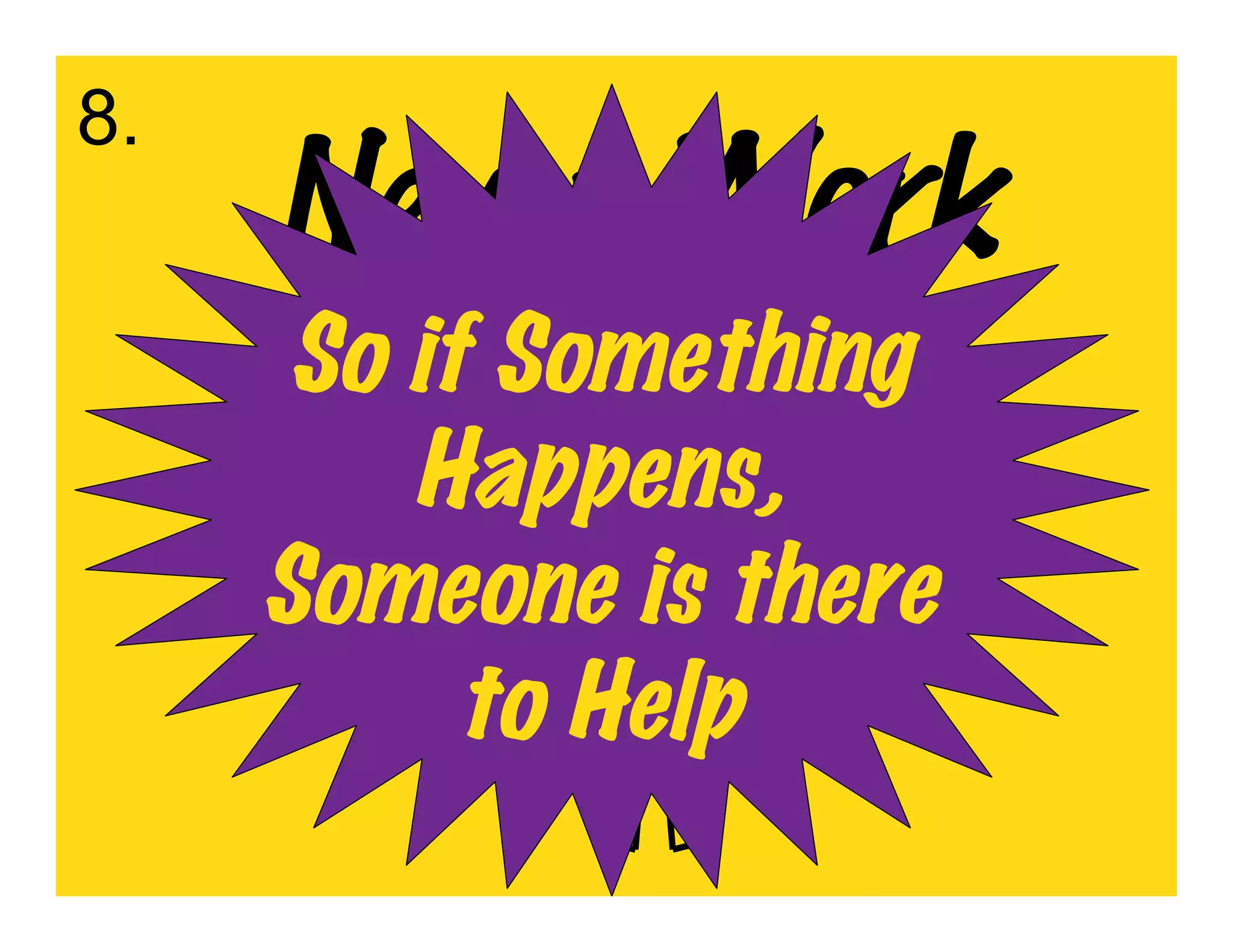

- 26. 8. Never Work So if Something Alone Happens, Someone is there to Help

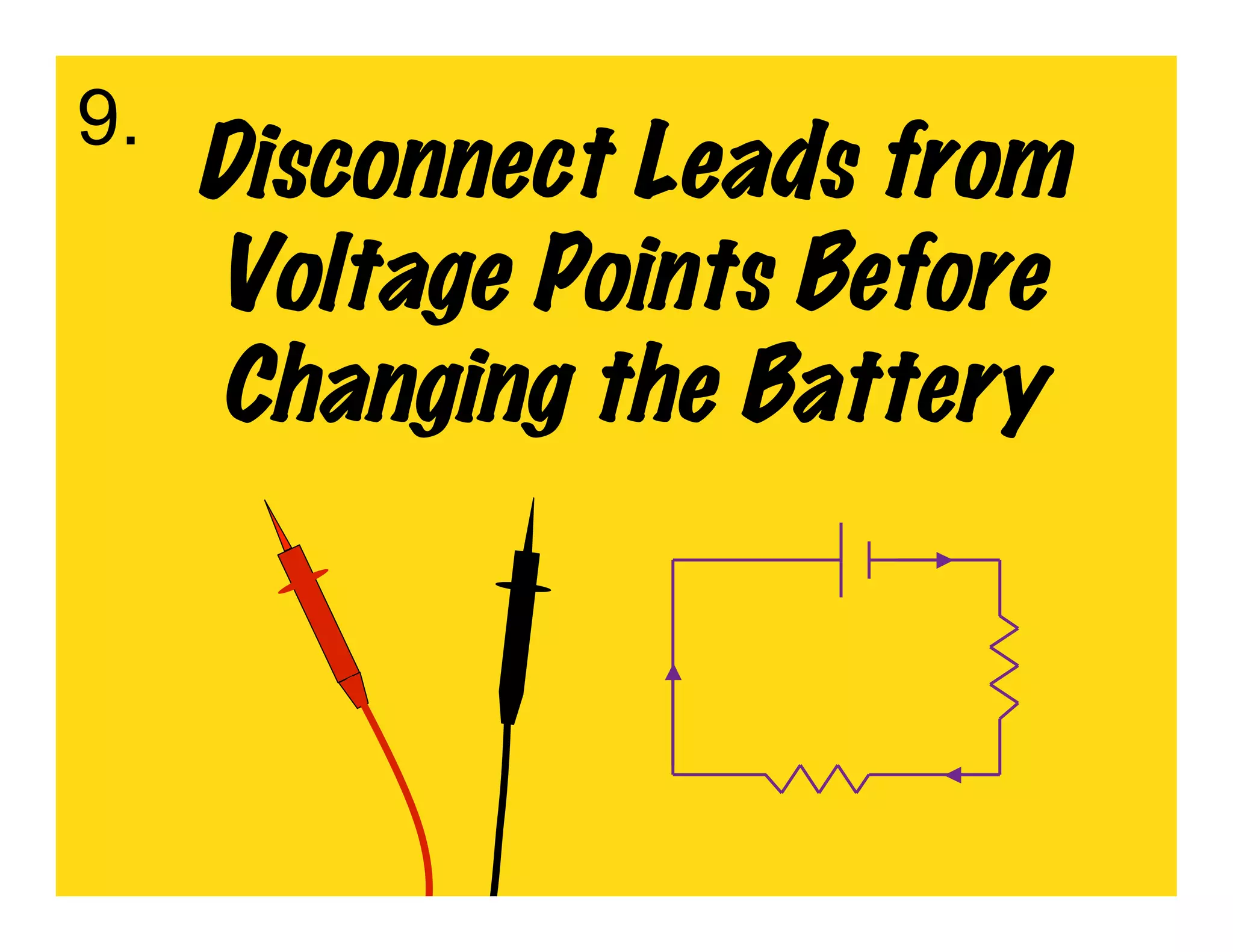

- 27. 9. Disconnect Leads from Voltage Points Before Changing the Battery
- 28. 9. Disconnect Leads from Voltage Points Before Why? To avoid…Battery Changing the HAZORDUOS SHOCK!!

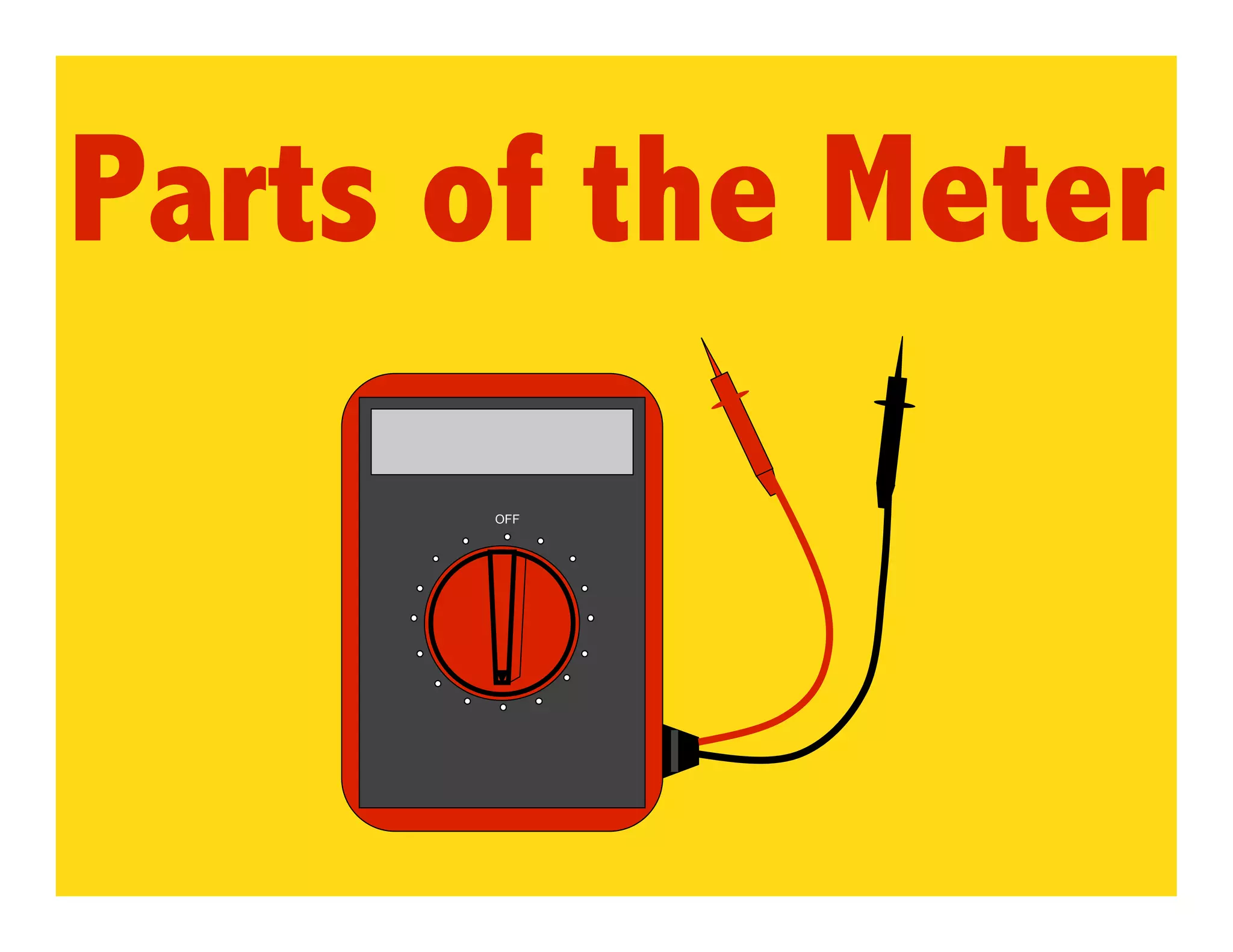

- 29. Parts of theMeter OFF
- 30.

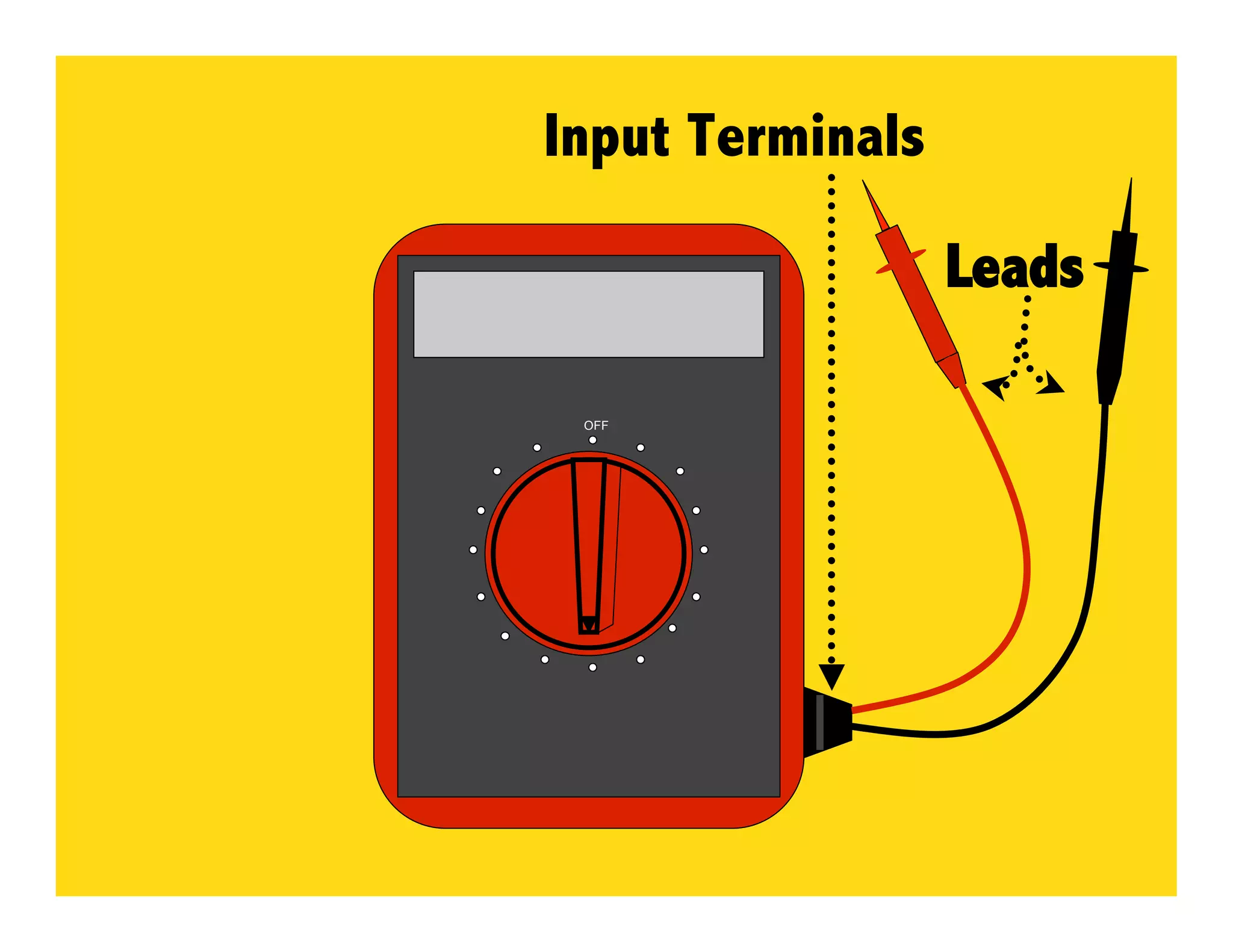

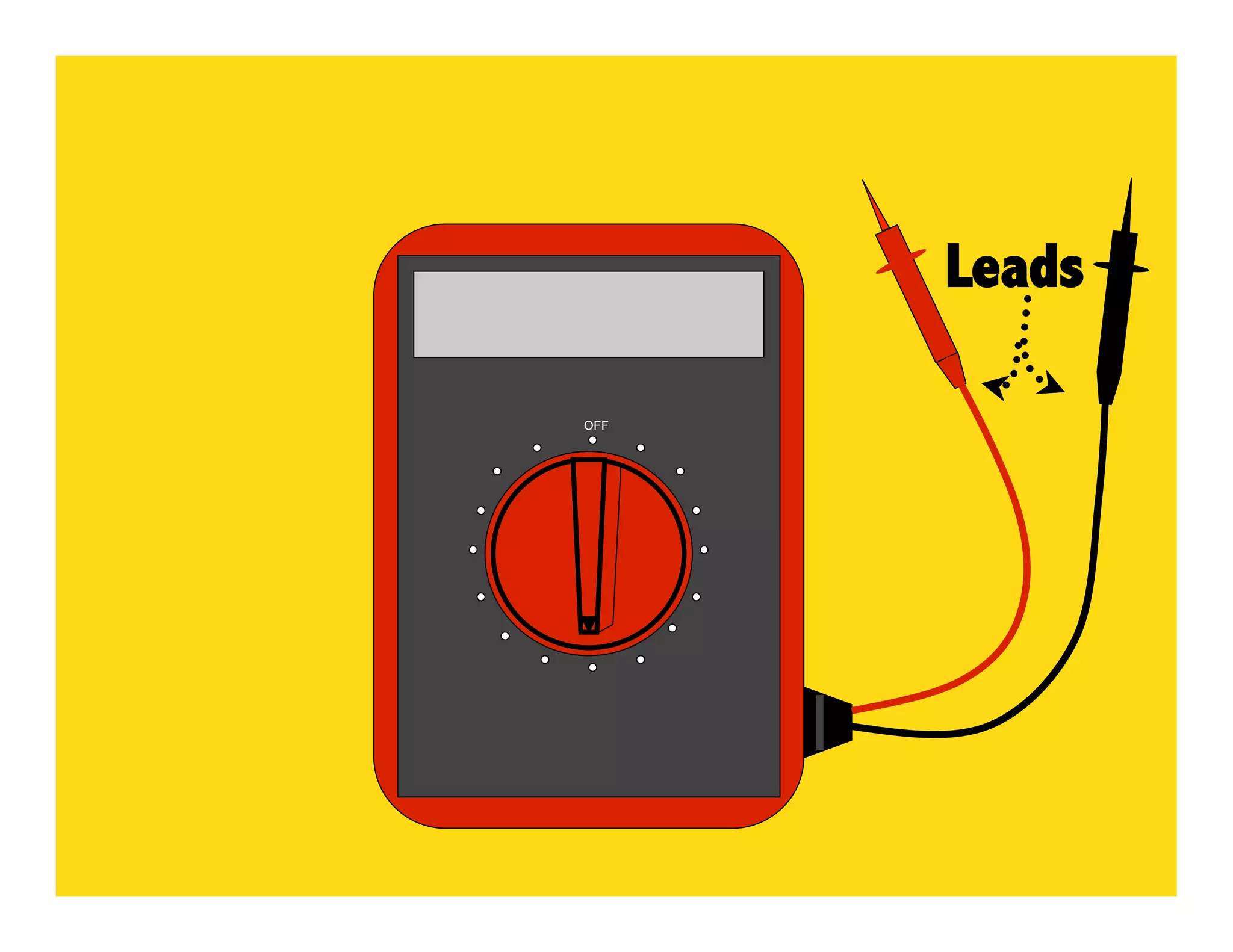

- 31. Input Terminals Leads OFF

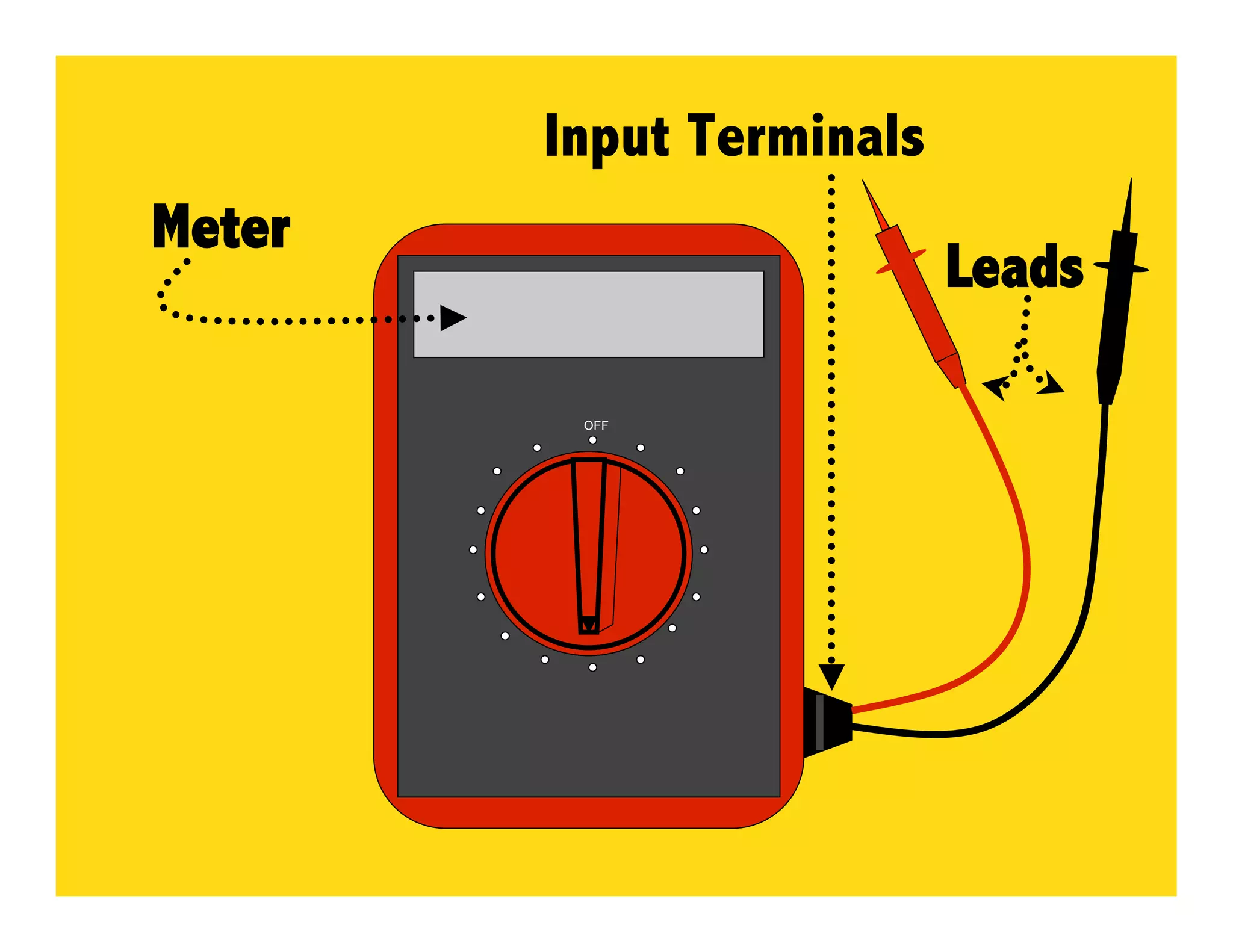

- 32. Input Terminals Meter Leads OFF

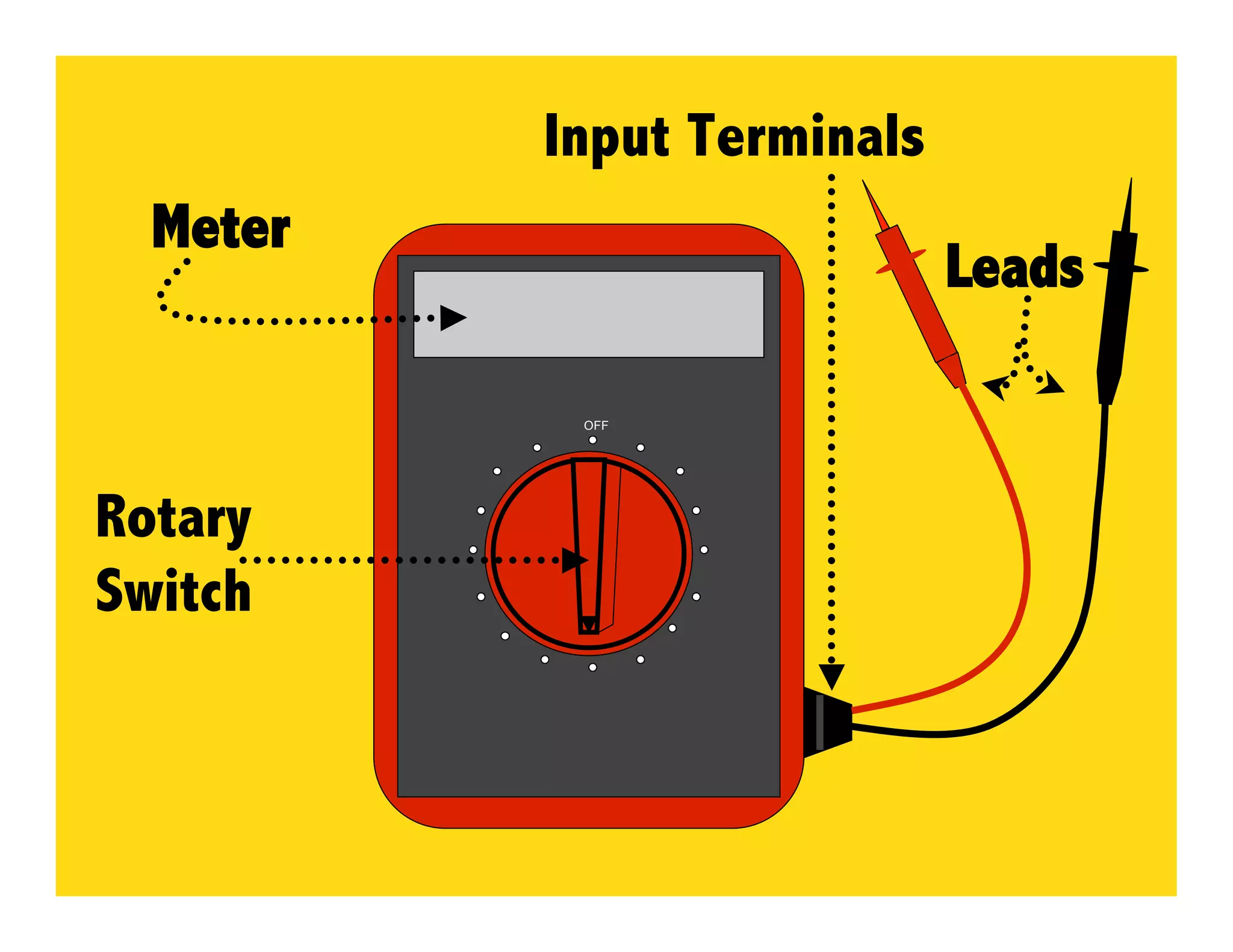

- 33. Input Terminals Meter Leads OFF Rotary Switch

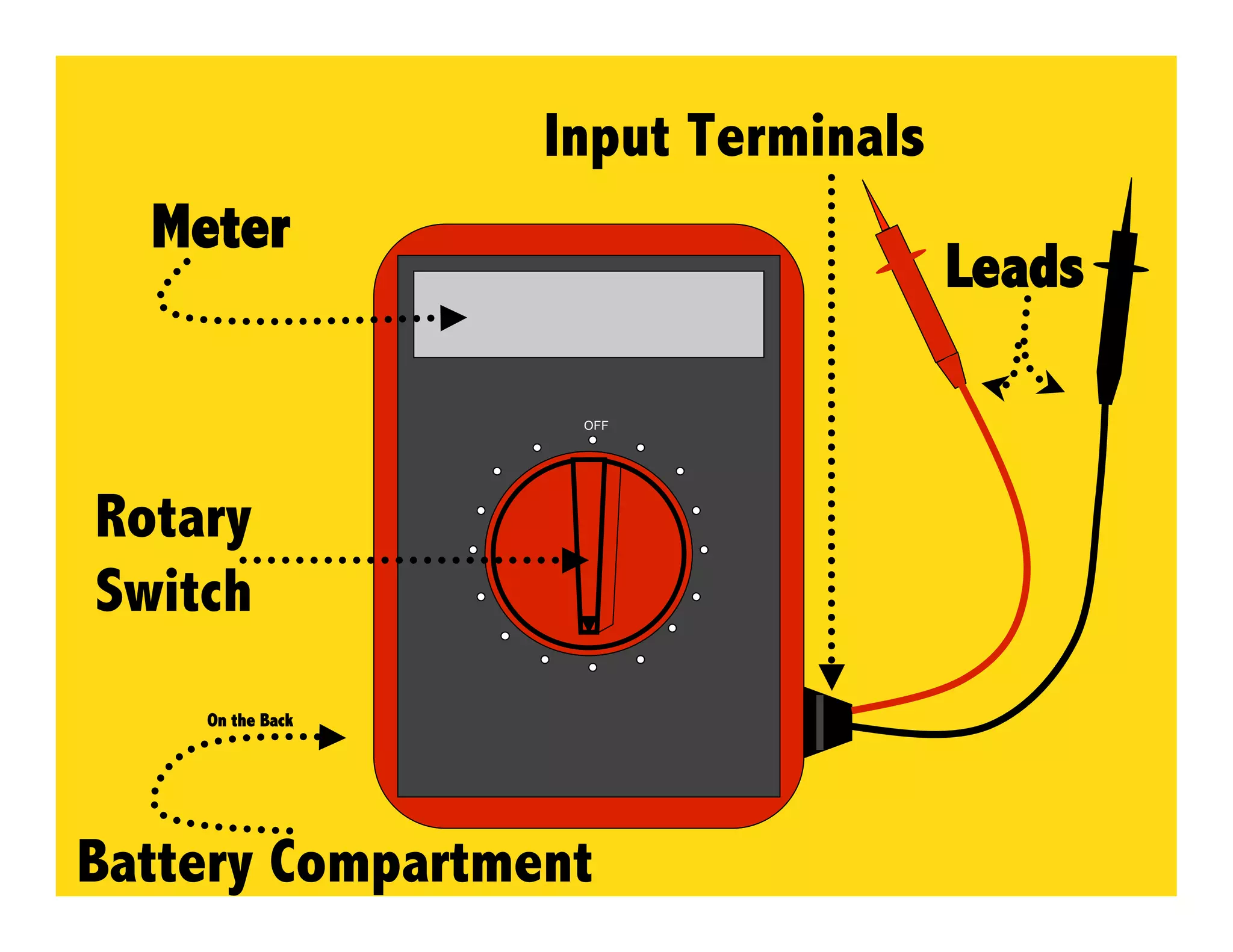

- 34. Input Terminals Meter Leads OFF Rotary Switch On the Back Battery Compartment

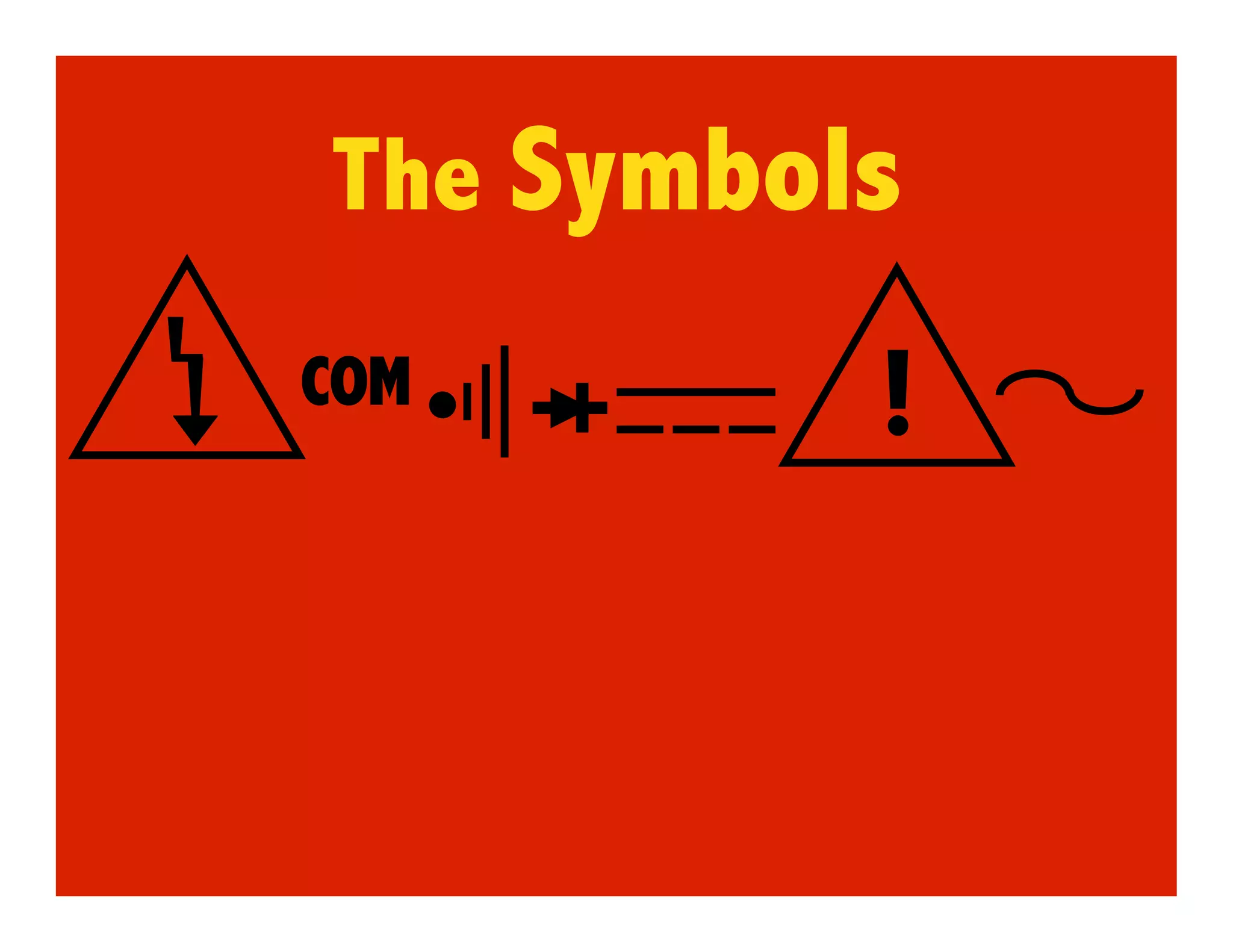

- 35.
- 37.
- 38.
- 39.
- 40.
- 41.
- 42.

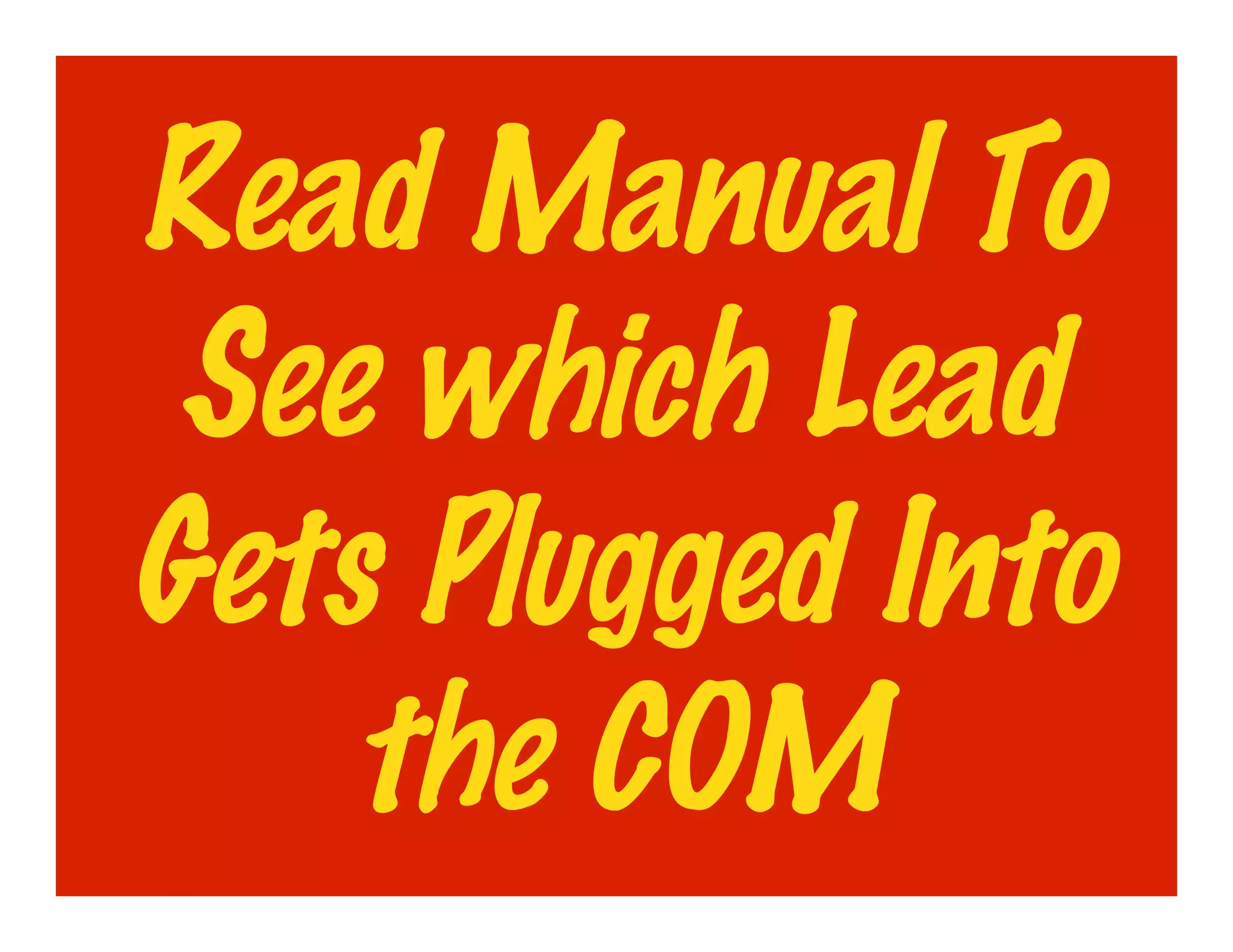

- 43. Read Manual To See which Lead Gets Plugged Into the COM
- 44. Read Manual To See which Lead This is Meter Specific Into Gets Plugged the COM
- 46.
- 47.

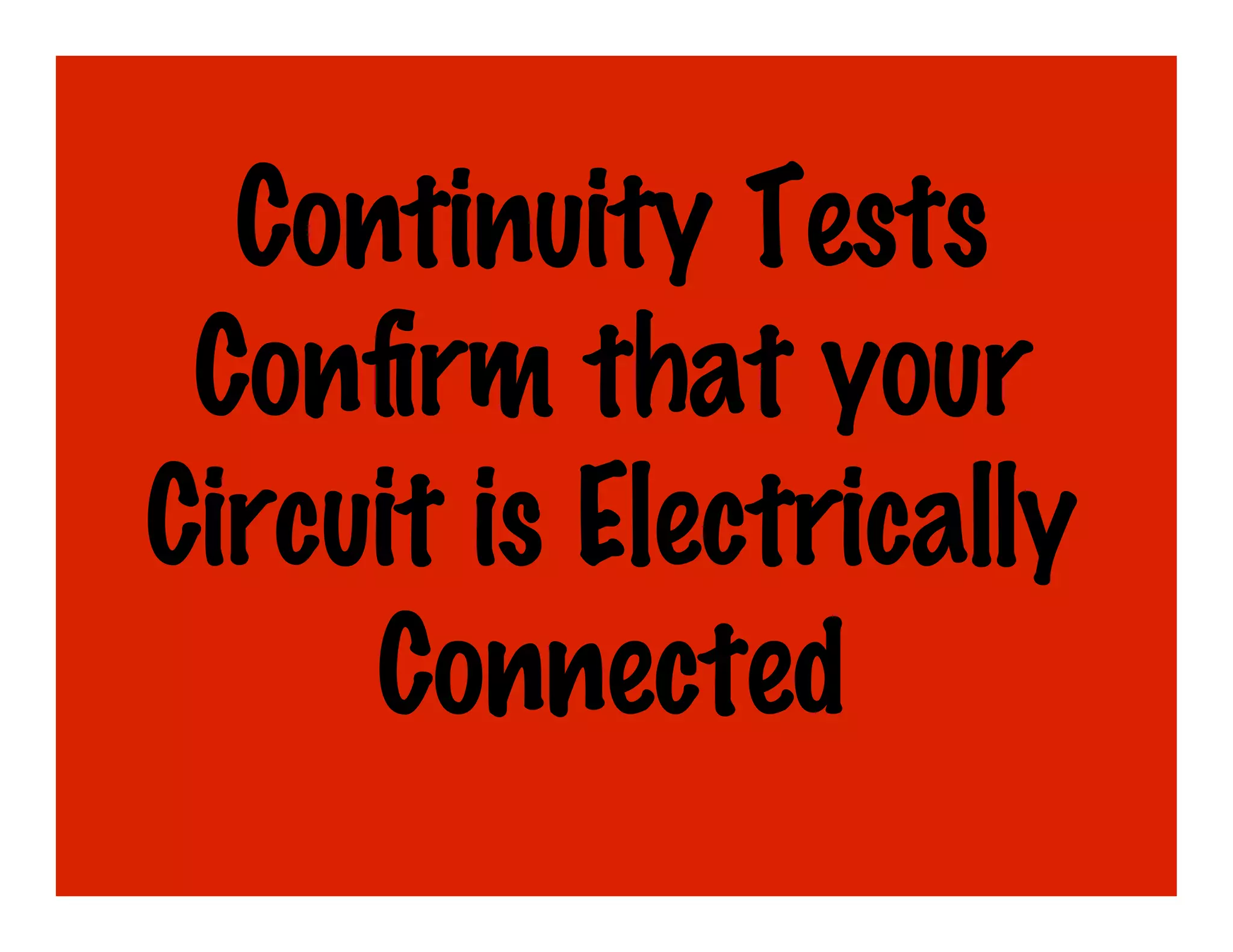

- 48. Continuity Tests Confirmthat your Circuit is Electrically Connected

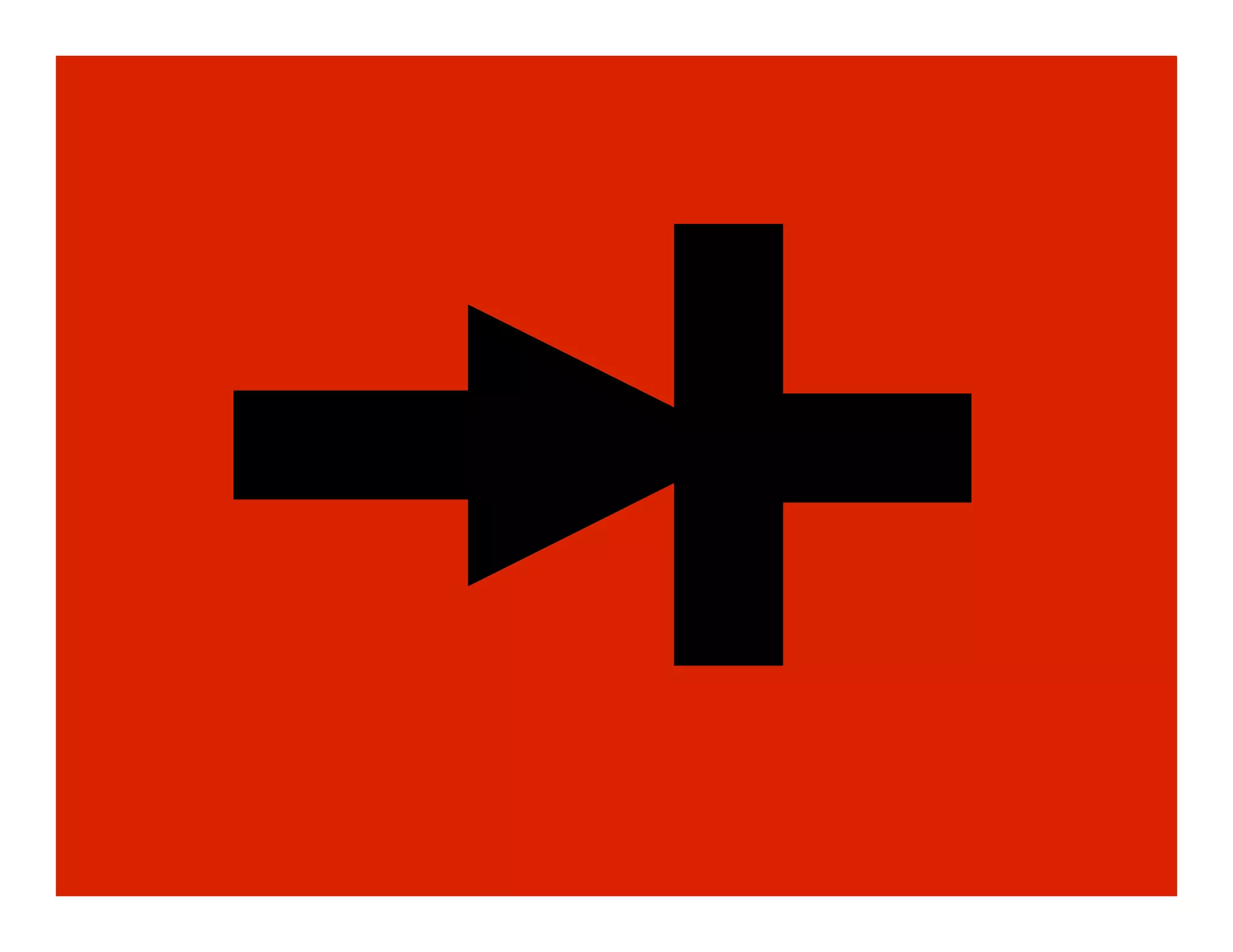

- 50.
- 51.

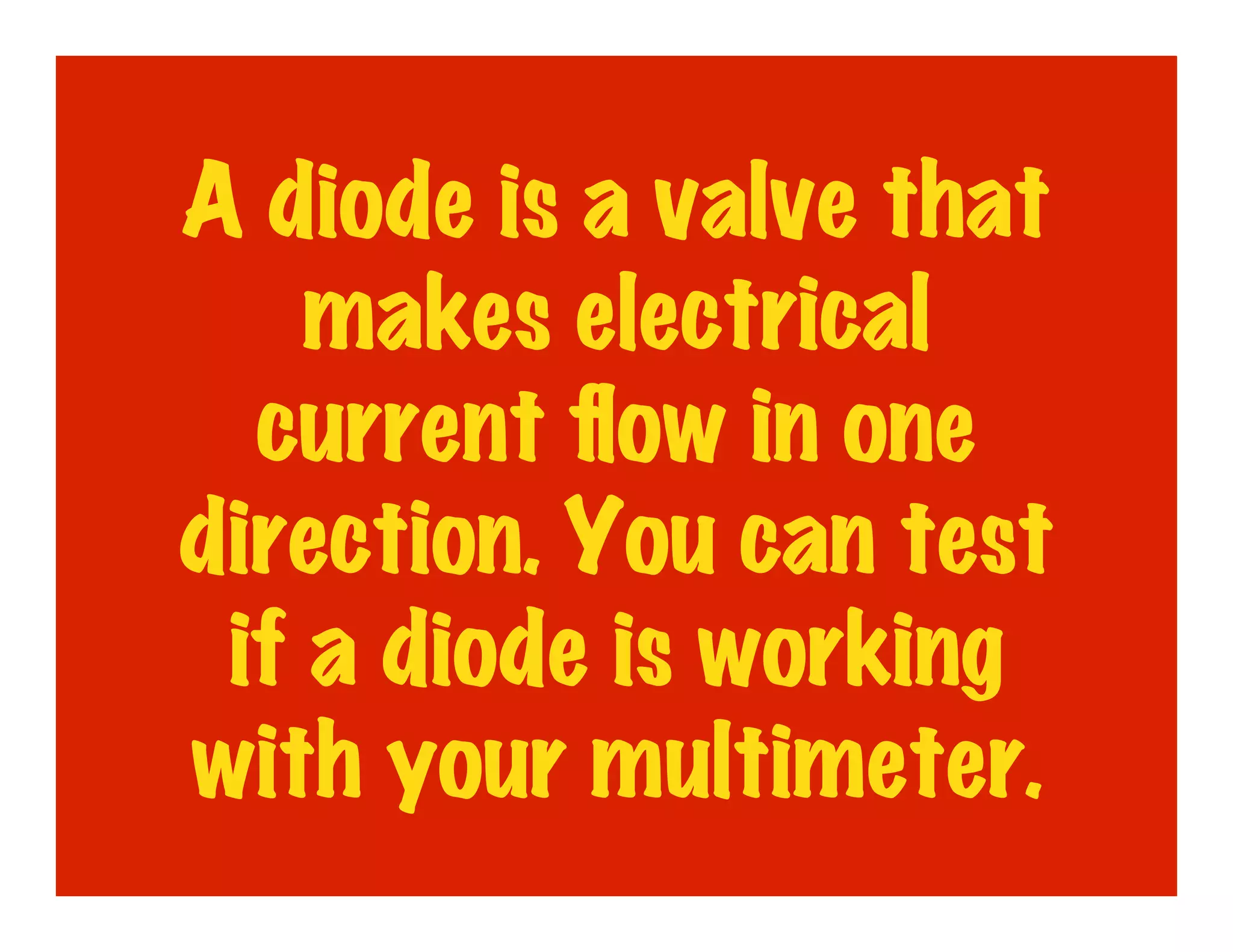

- 52. A diode isa valve that makes electrical current flow in one direction. You can test if a diode is working with your multimeter.

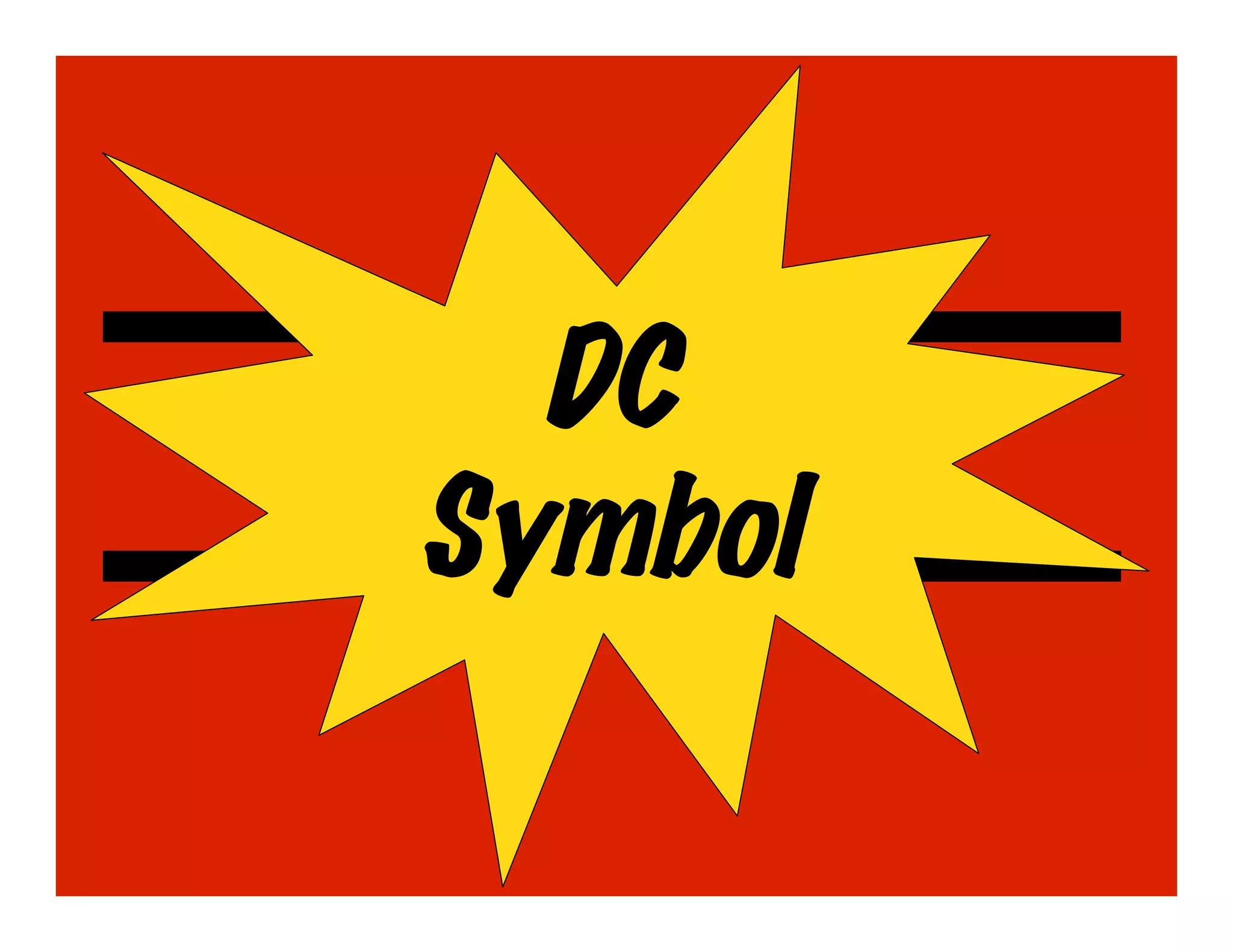

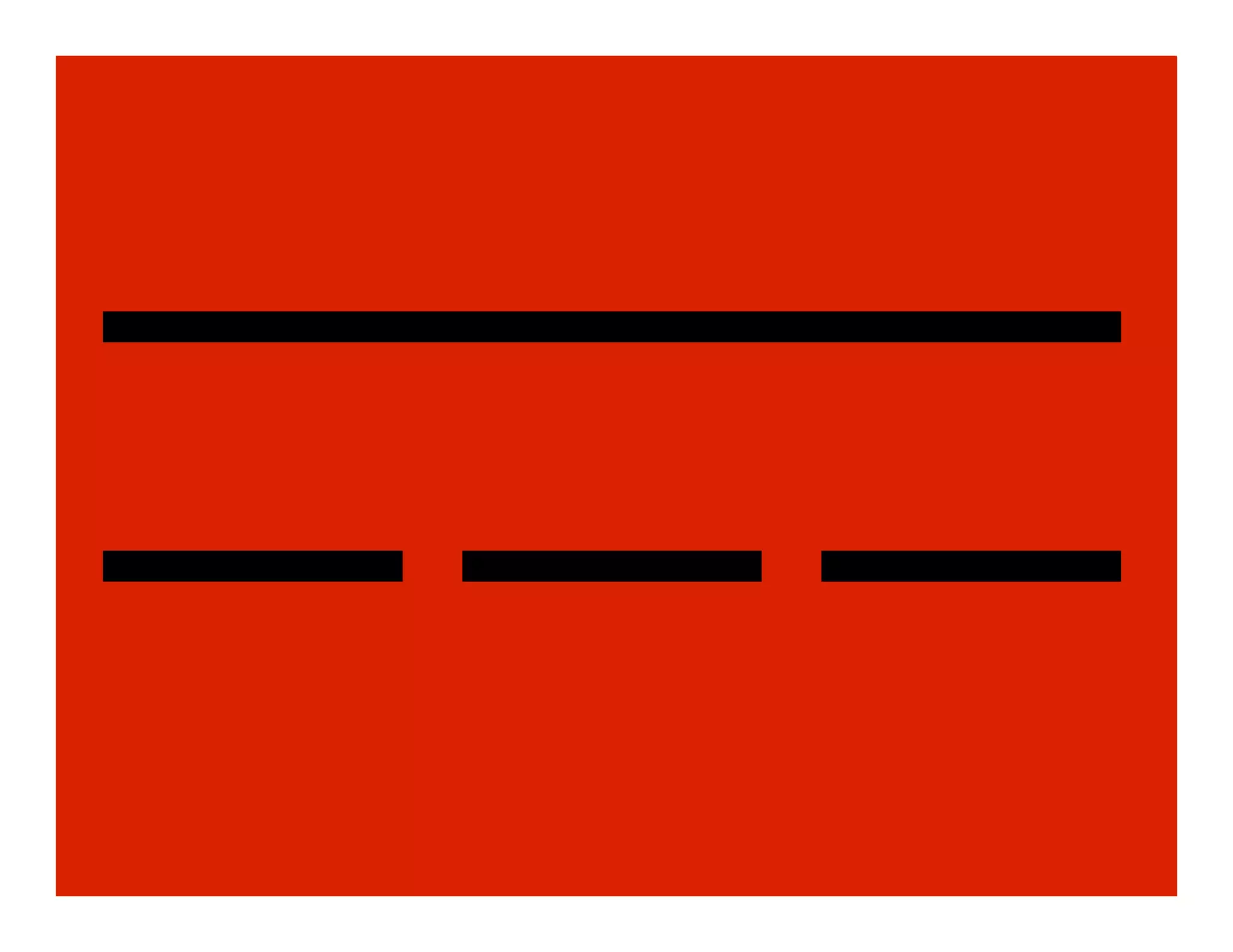

- 54.
- 56.
- 57. AC DC vs.

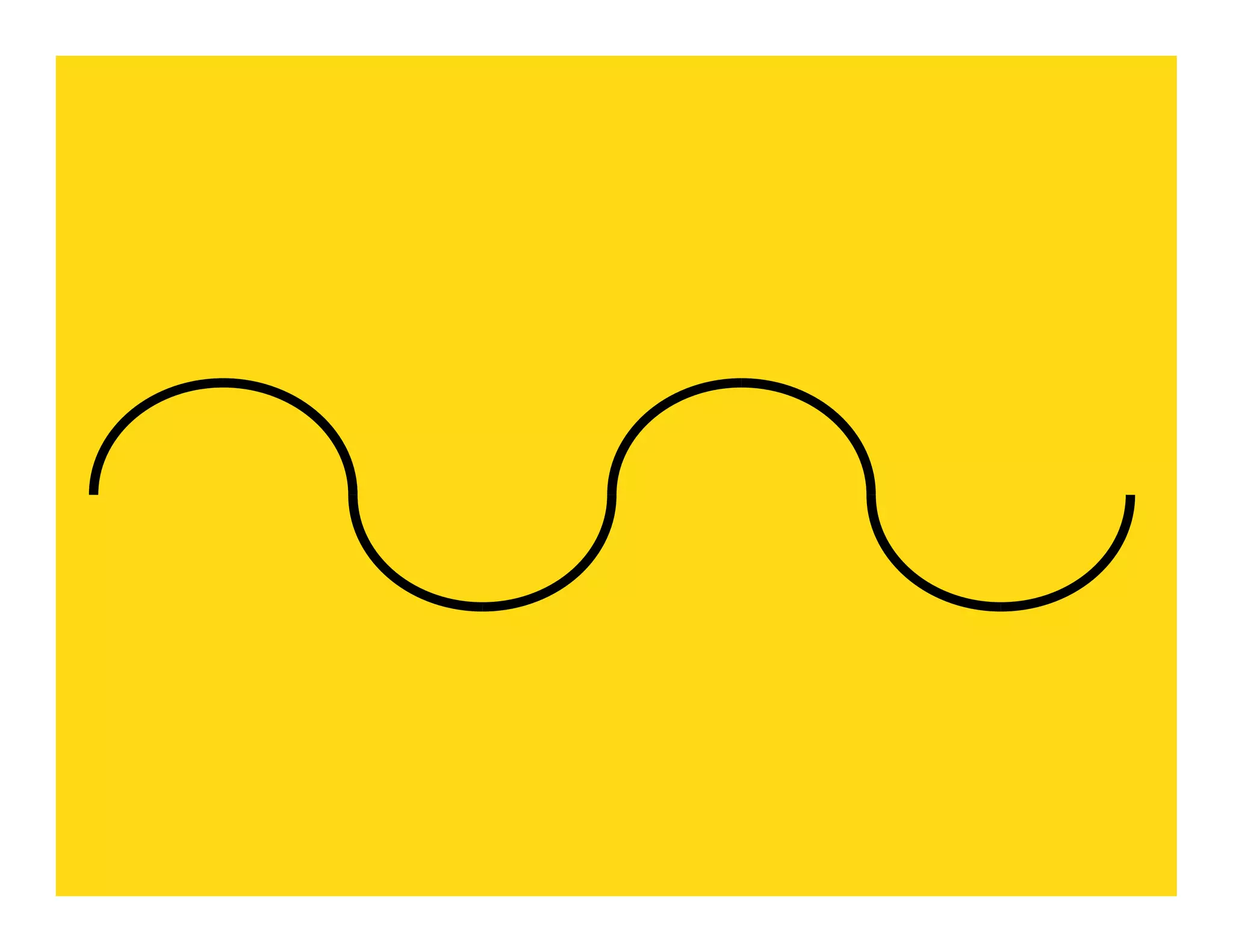

- 59.
- 60.

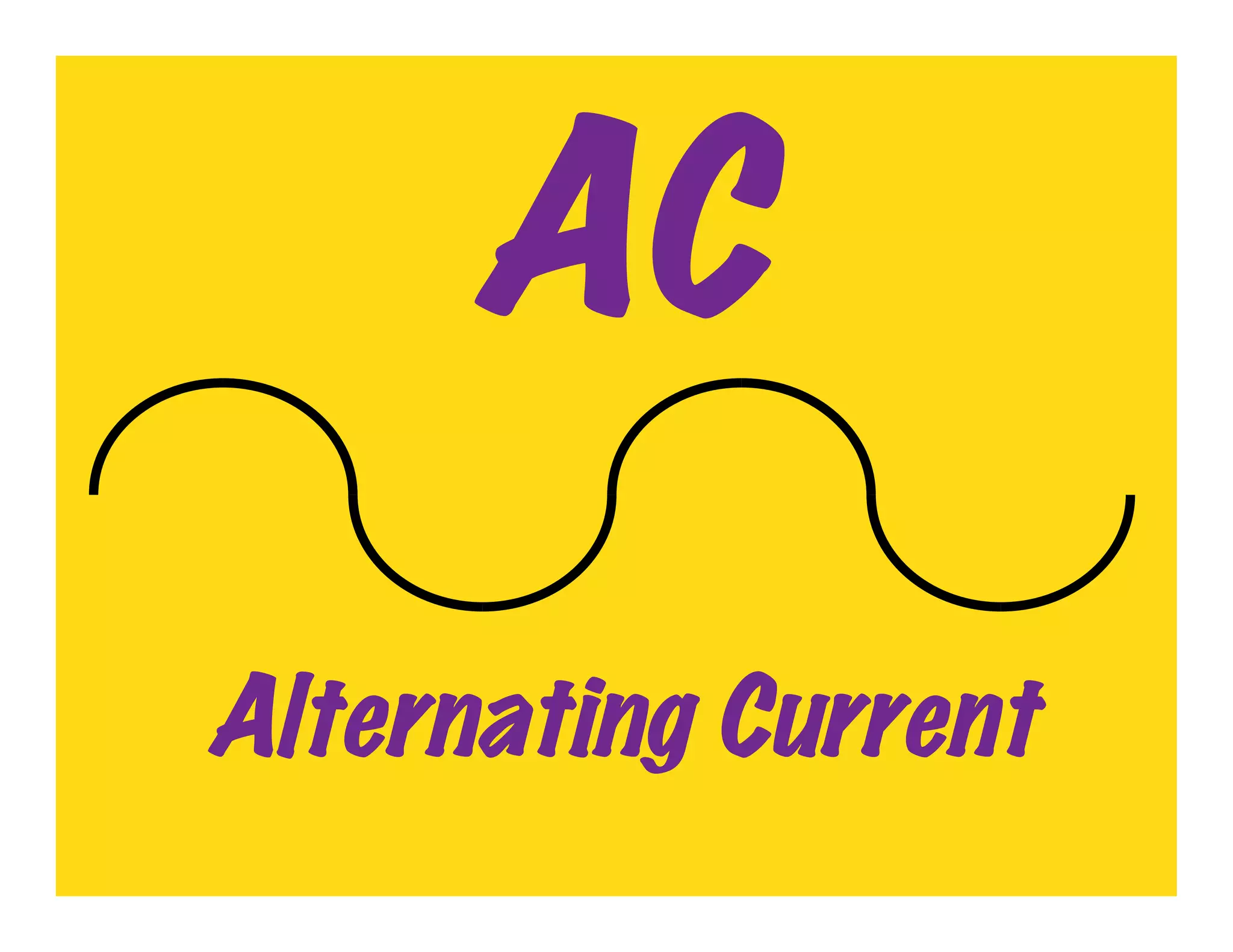

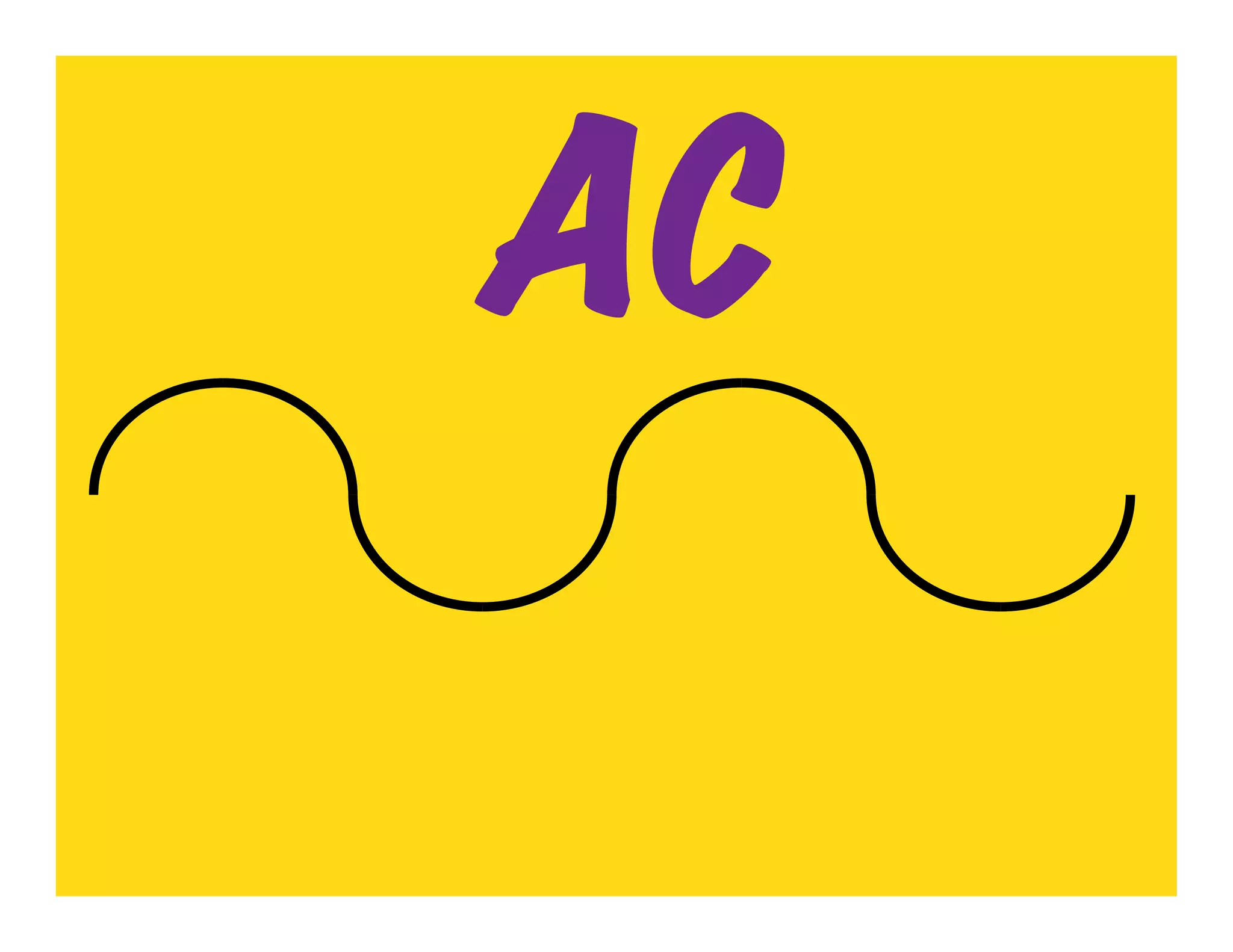

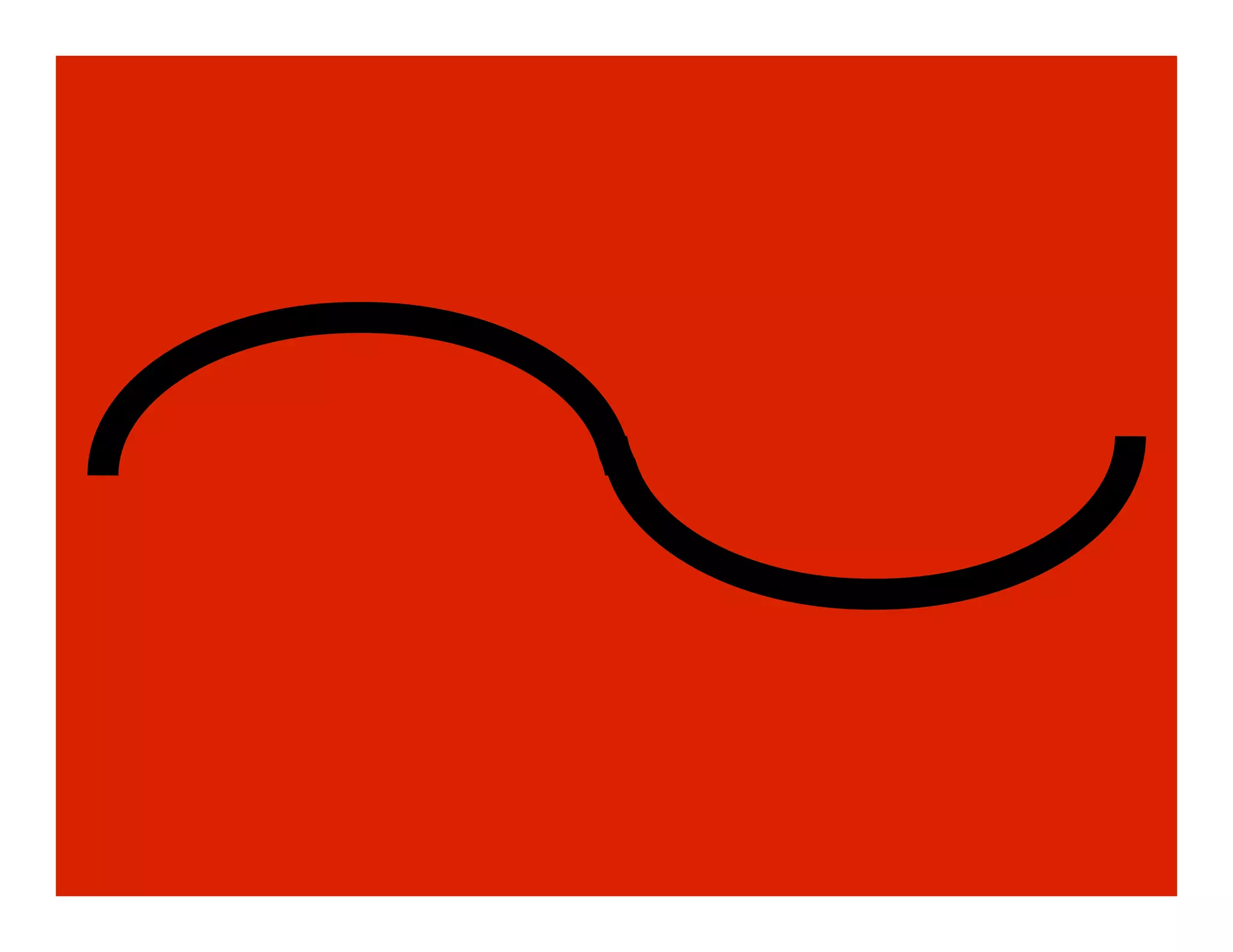

- 61. AC Current Periodically Reverses Direction Alternating Current

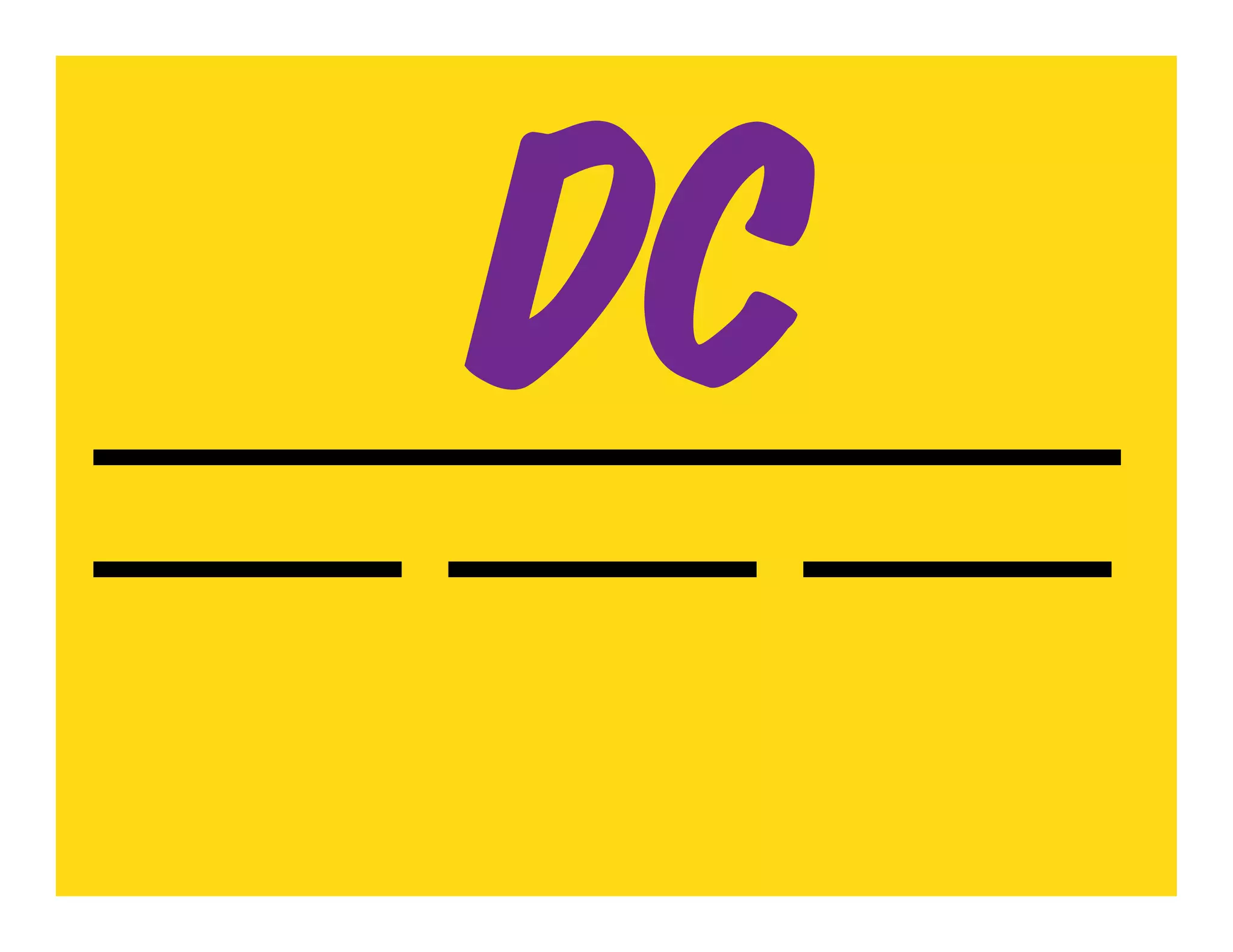

- 63.

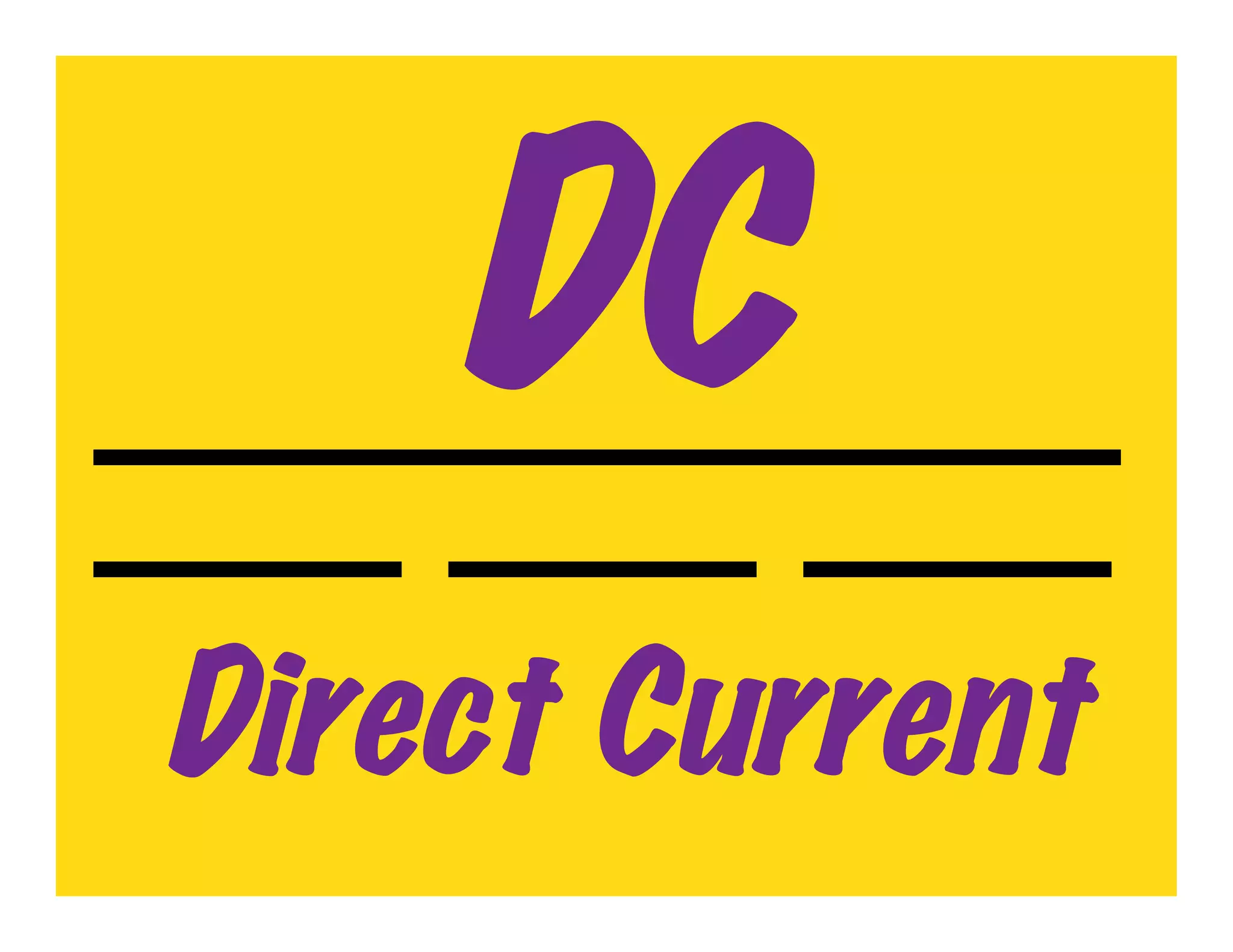

- 64.

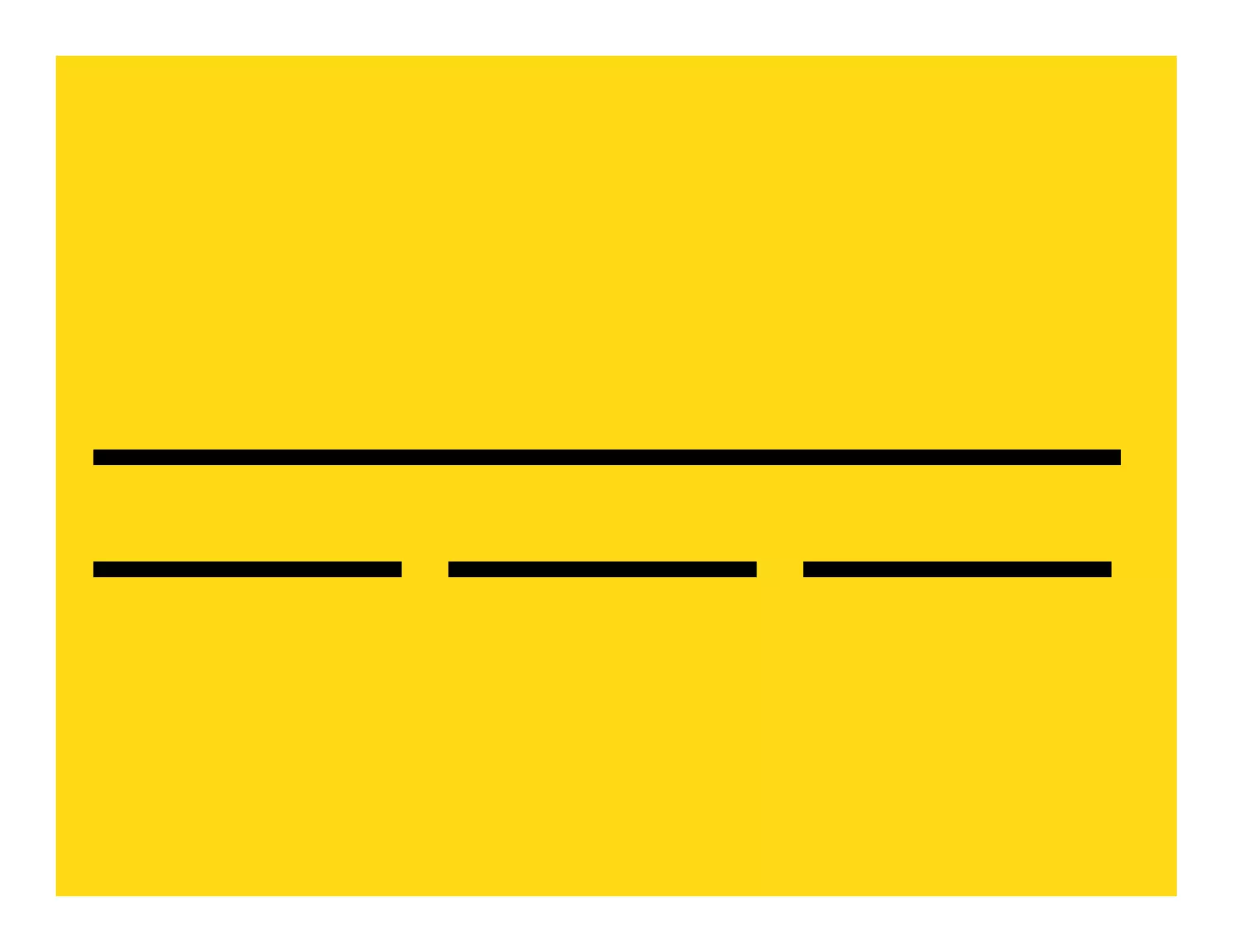

- 65. DC Current Moves in Only ONE Direction Direct Current
- 66. Connecting the Multimeter

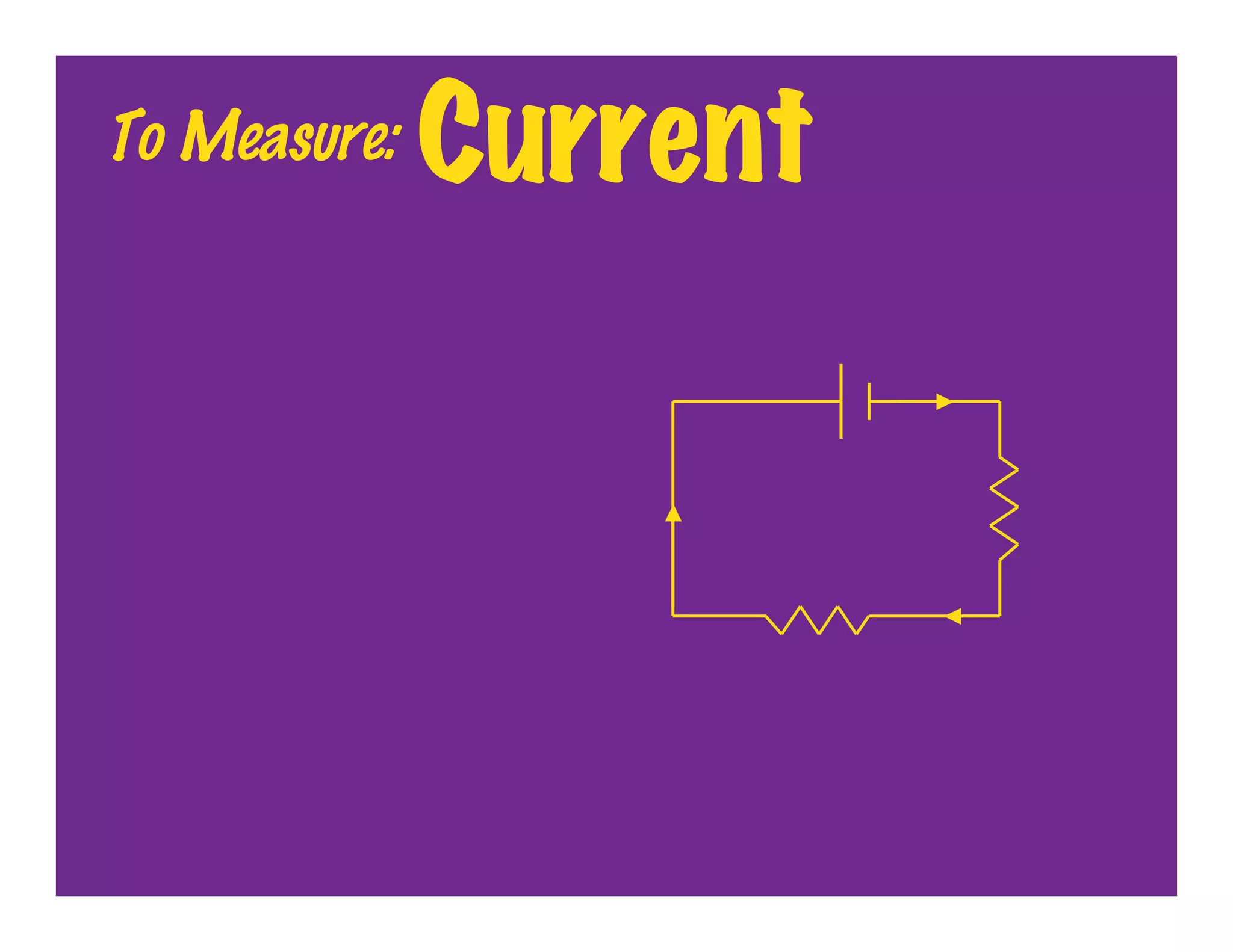

- 67. To Measure: Current

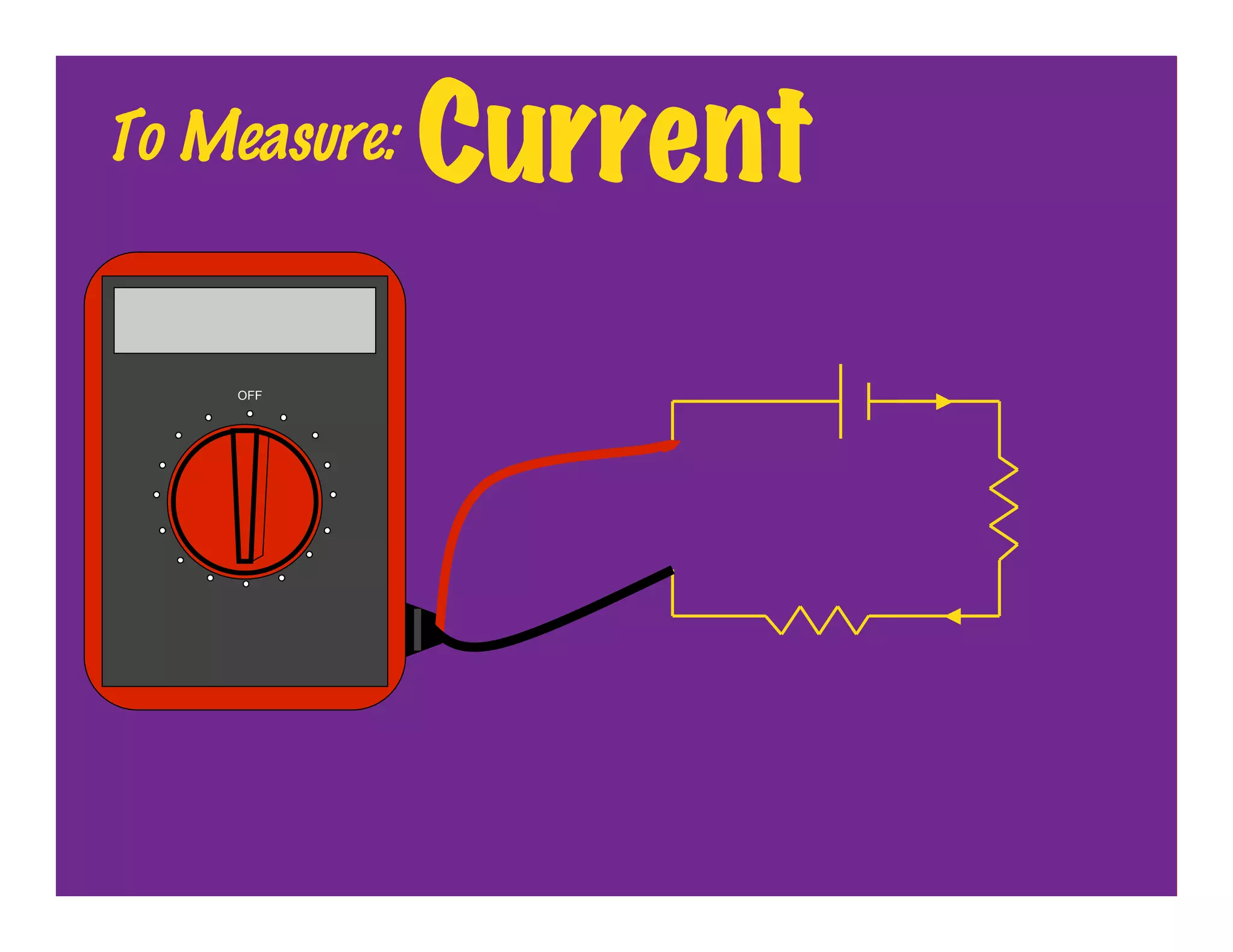

- 68. To Measure: Current OFF

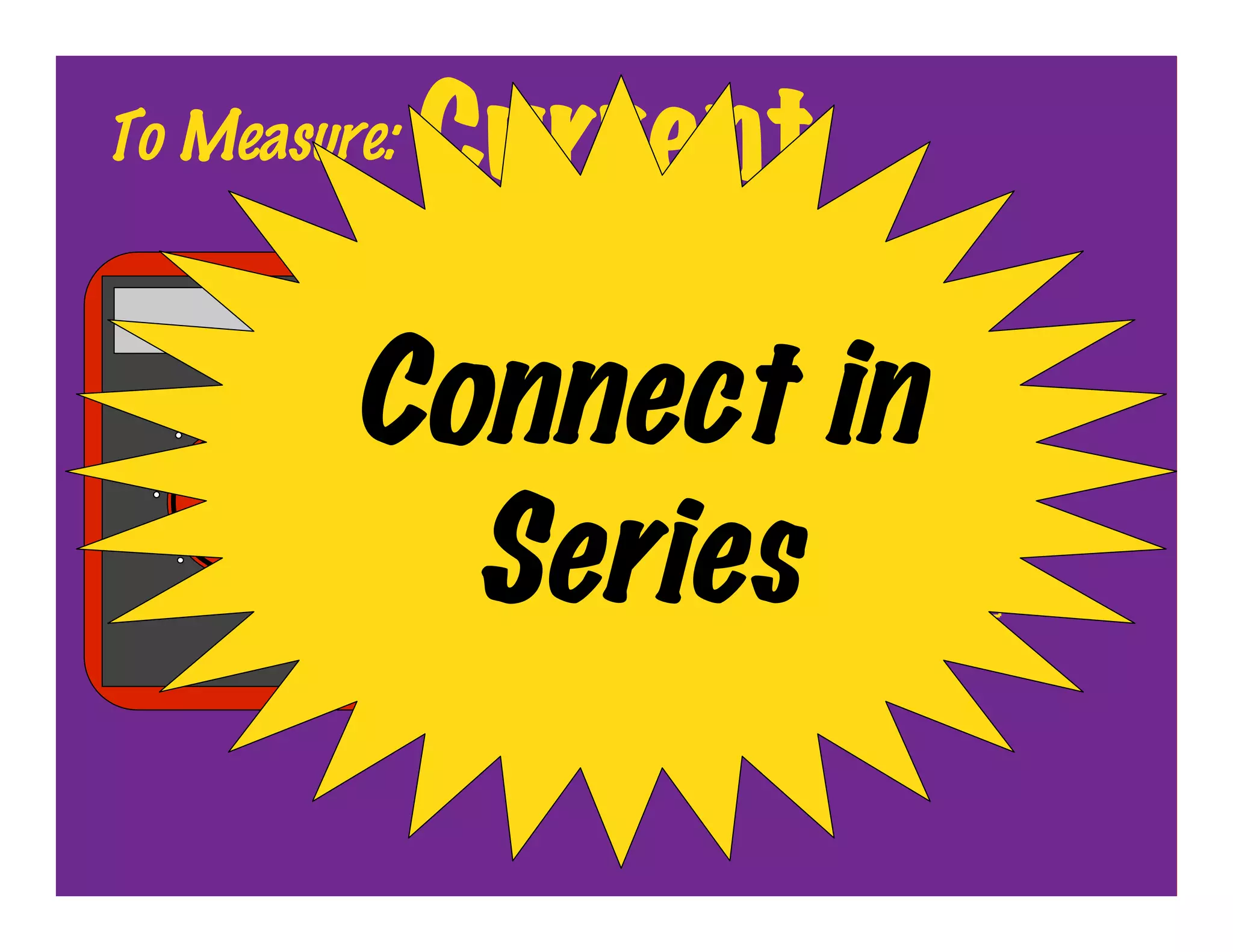

- 69. To Measure: Current OFF Connect in Series

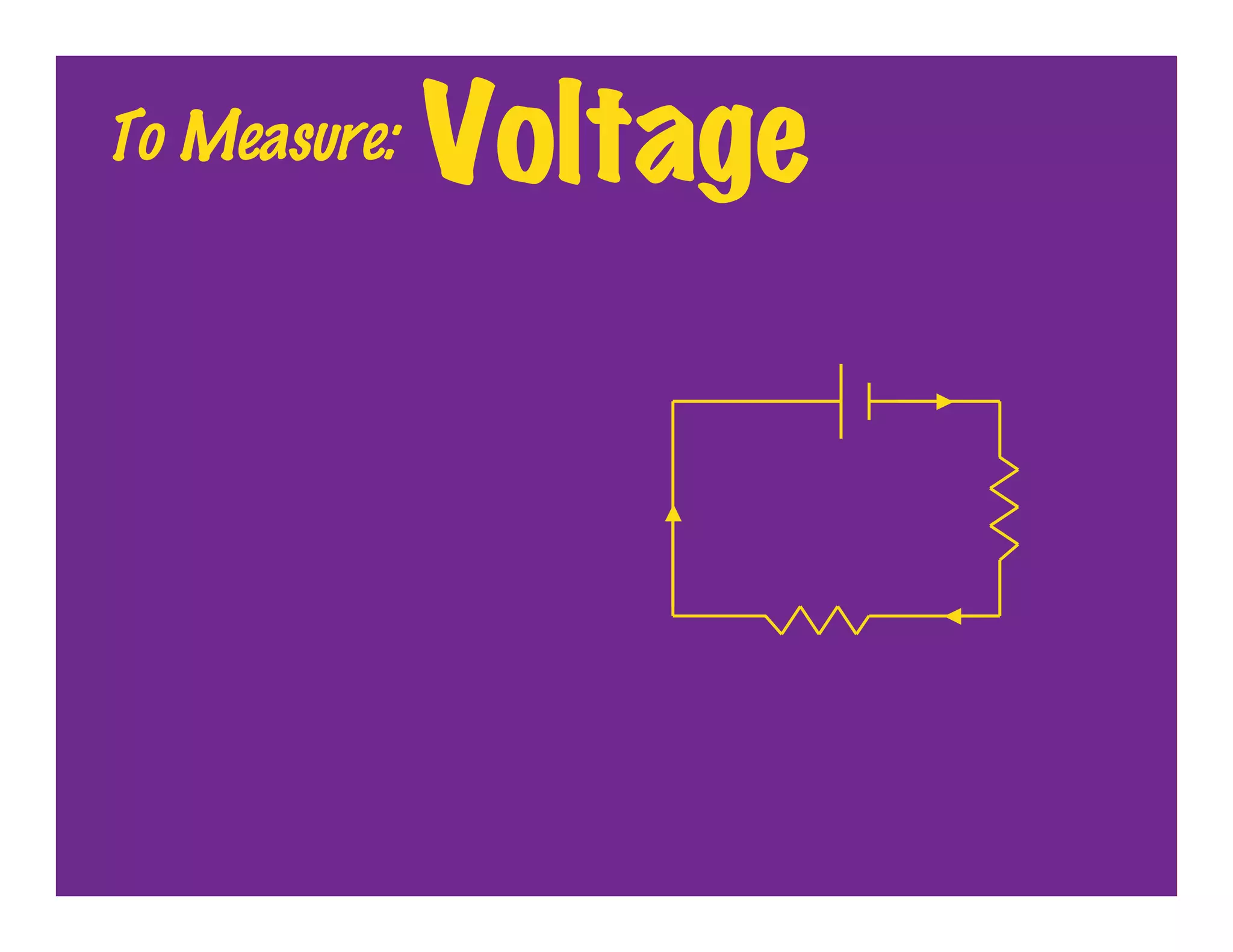

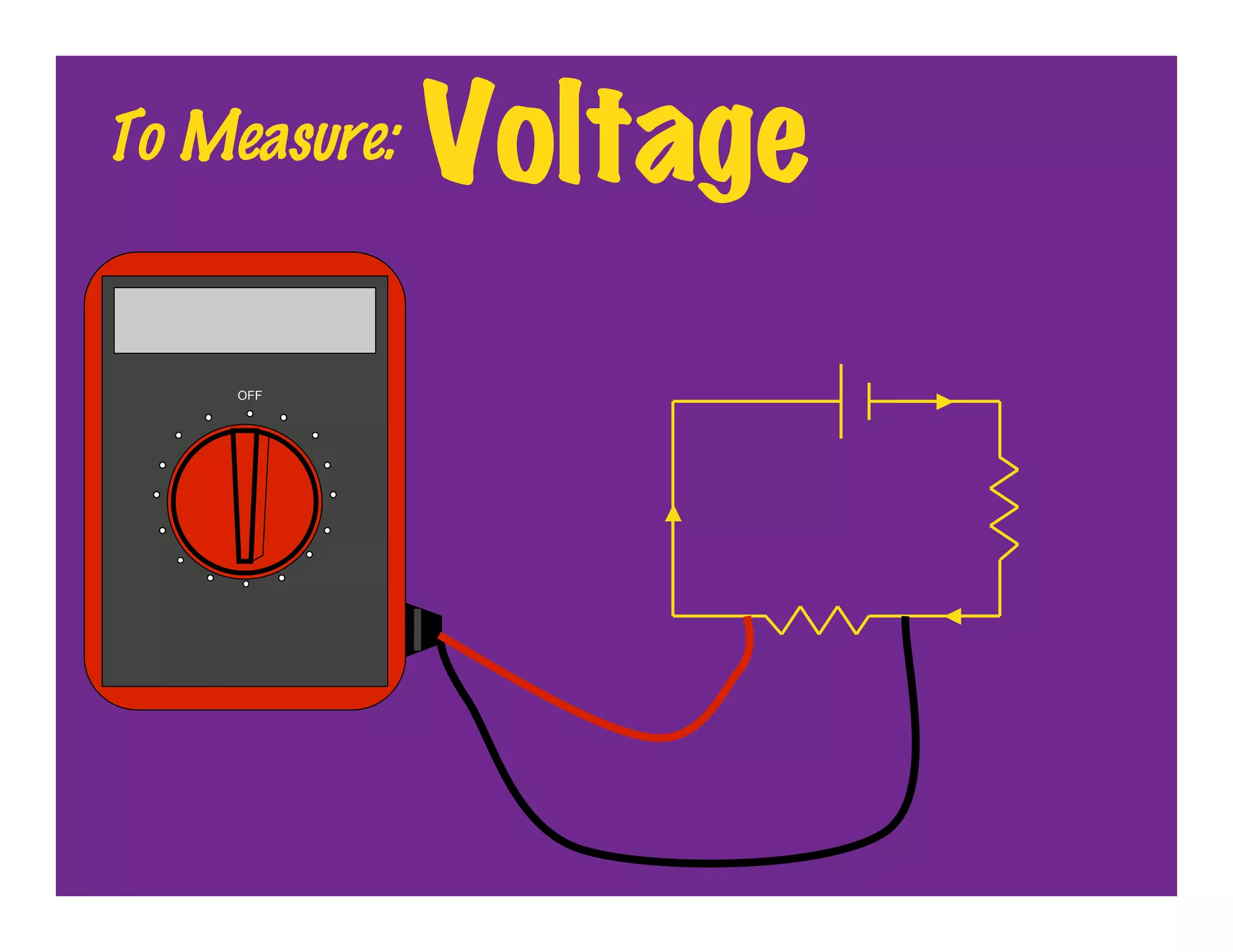

- 70. To Measure: Voltage
- 71. To Measure: Voltage OFF

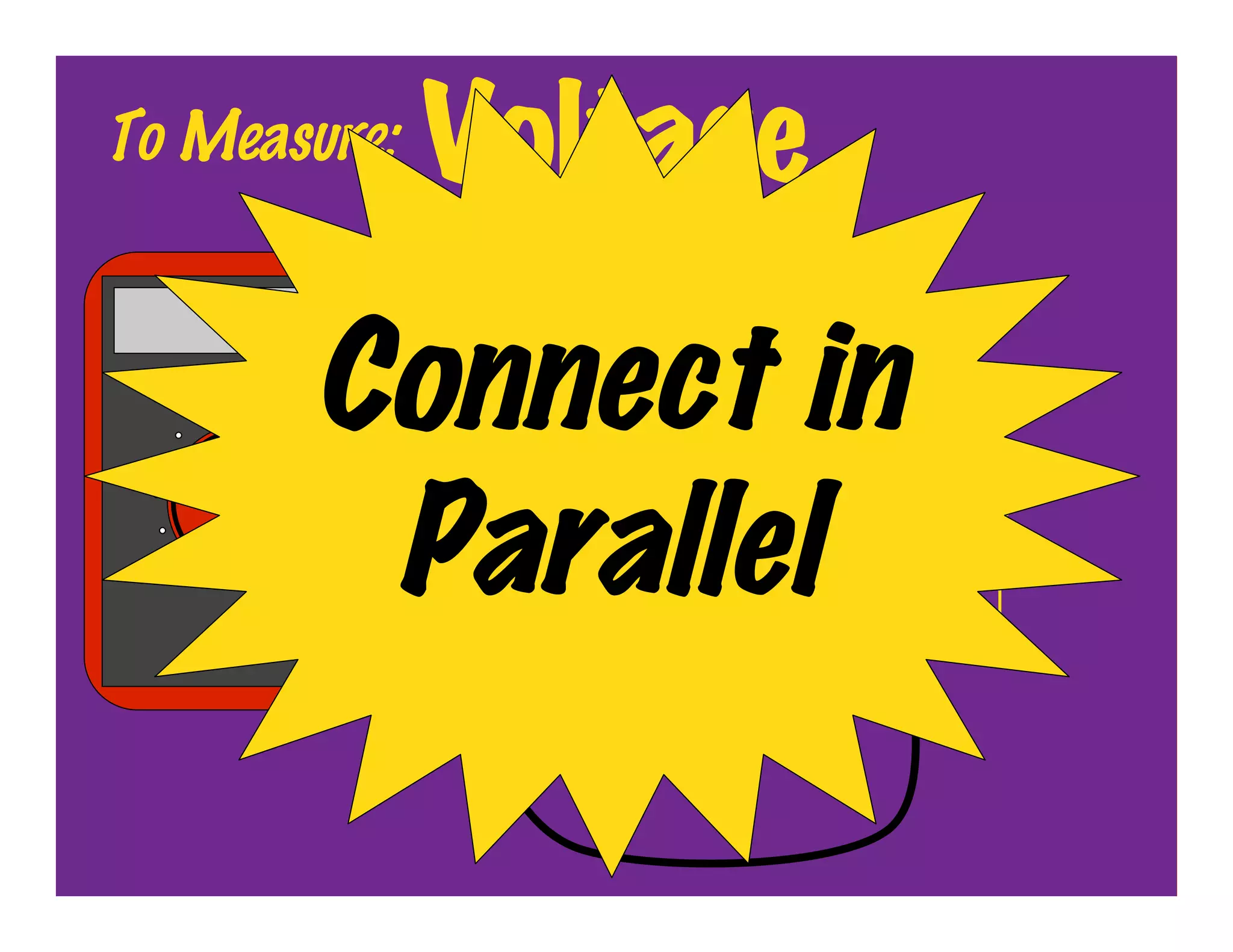

- 72. To Measure: Voltage OFF Connect in Parallel

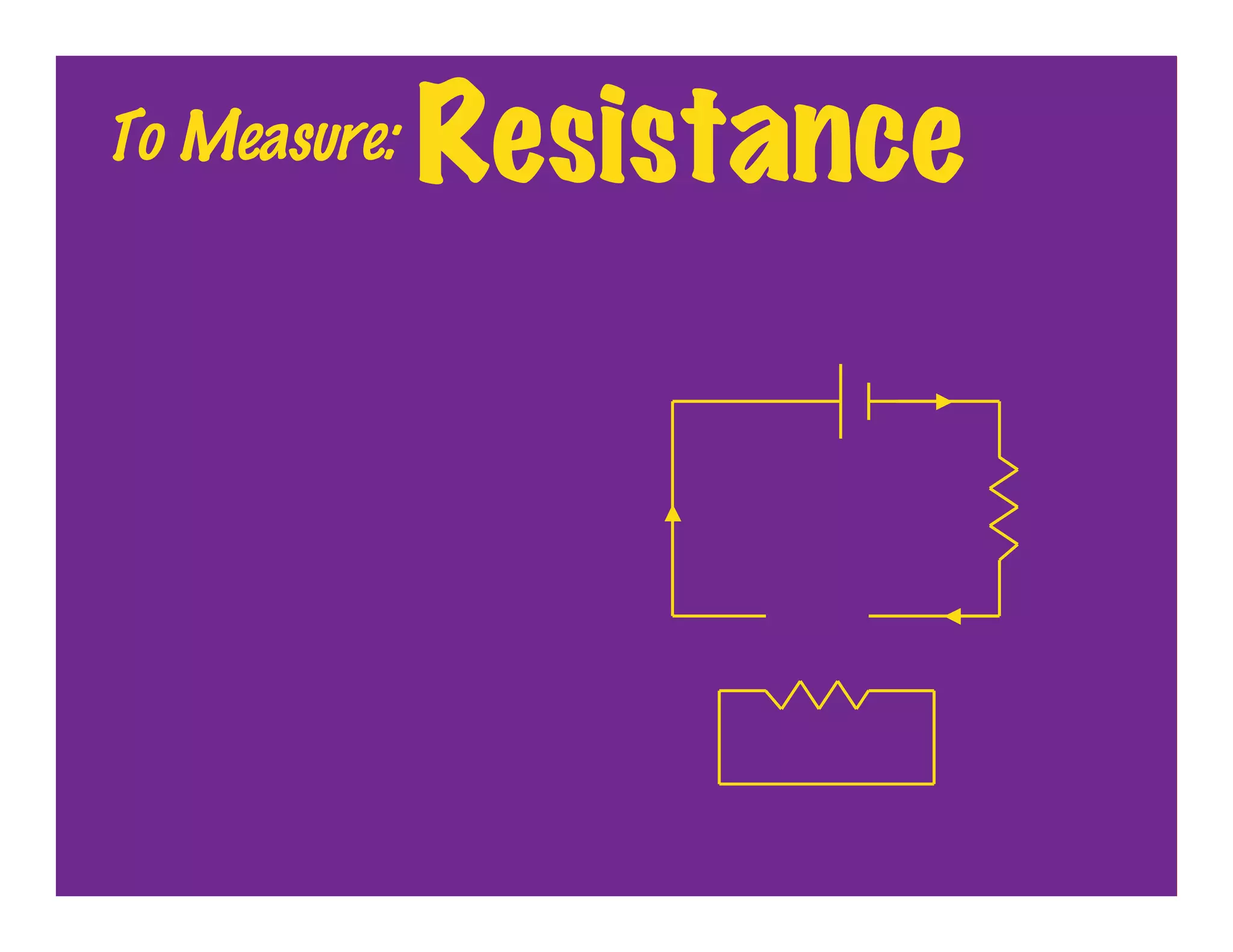

- 73. To Measure: Resistance

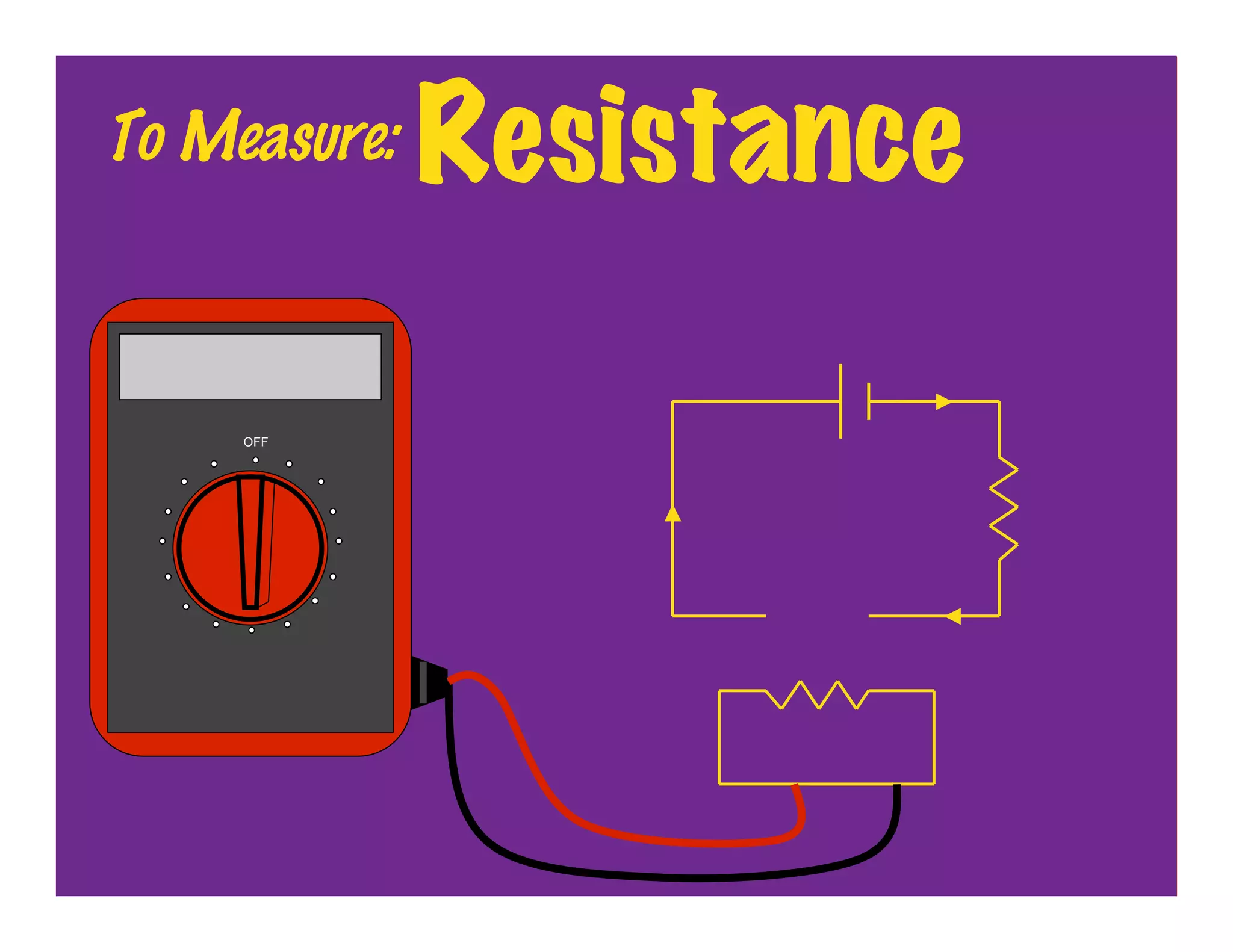

- 74. To Measure: Resistance OFF

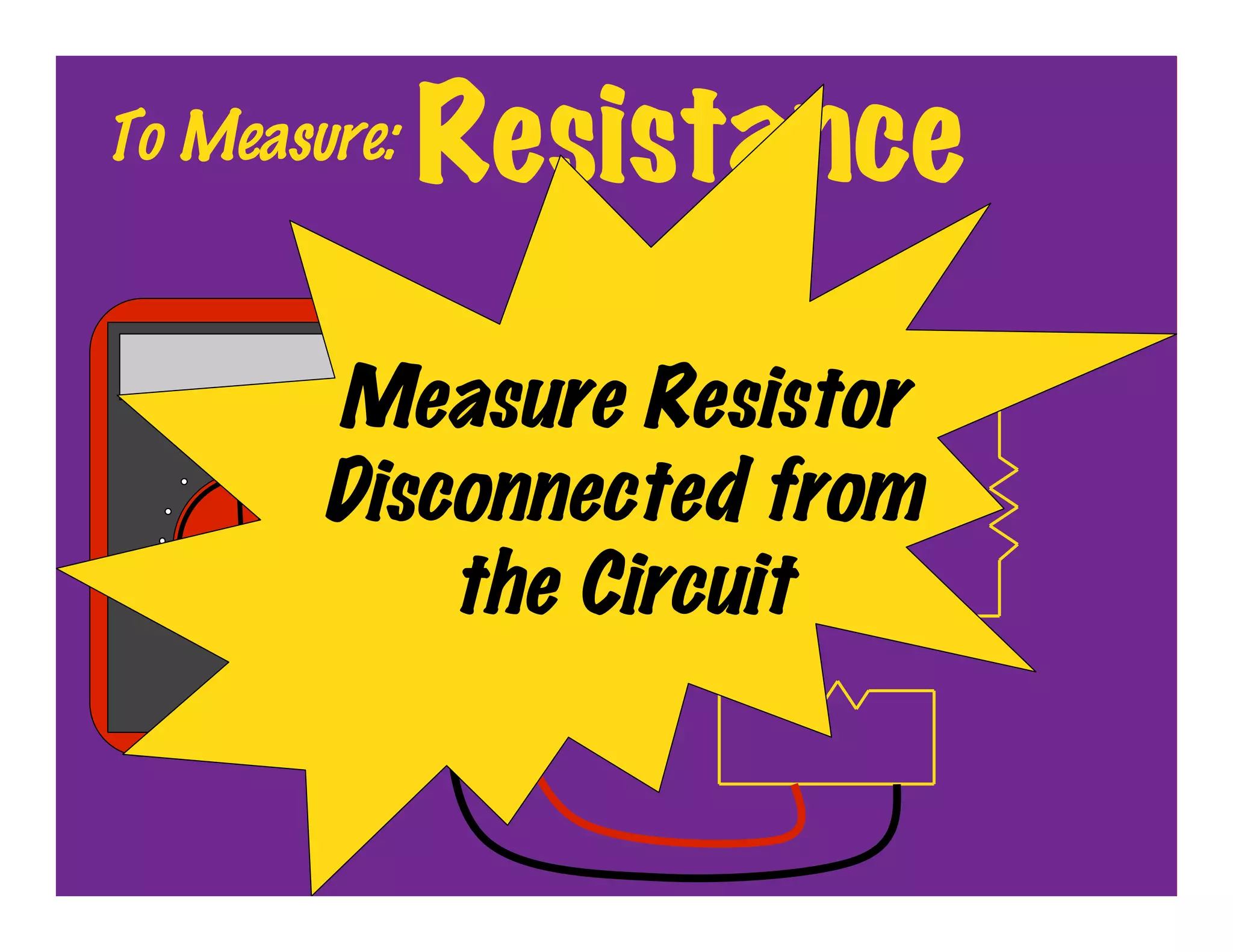

- 75. To Measure: Resistance OFF Measure Resistor Disconnected from the Circuit
- 76.
- 77.

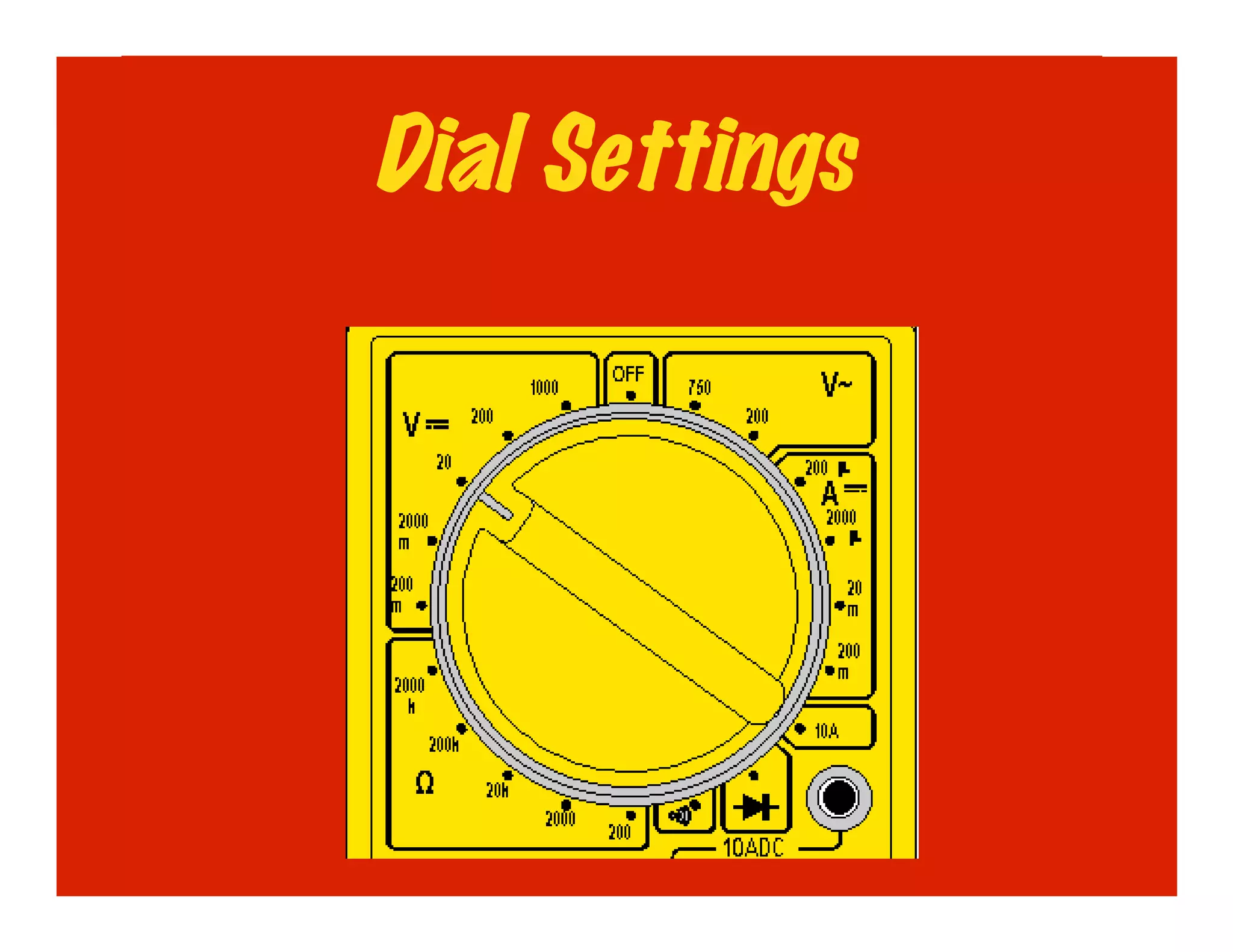

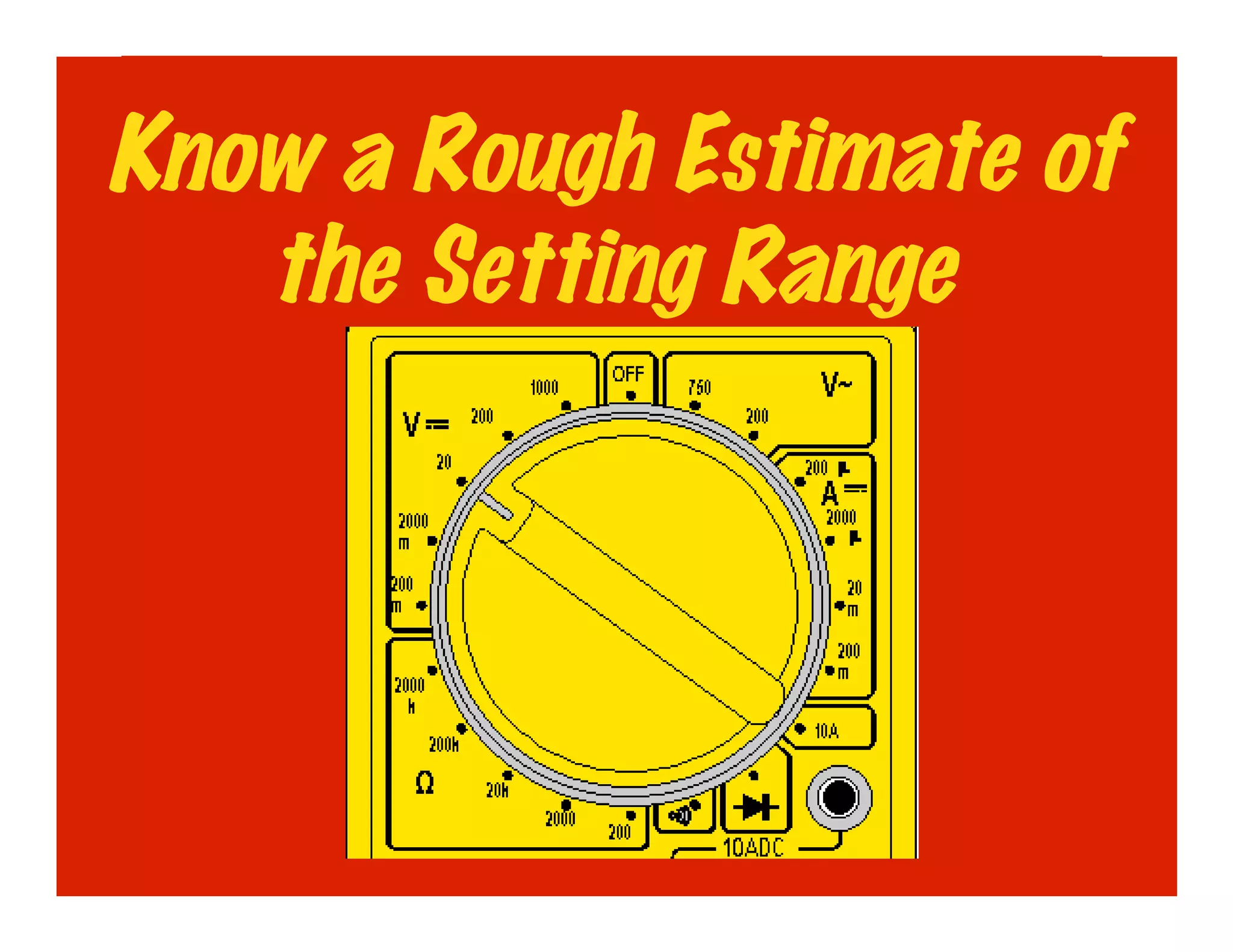

- 78. Know a RoughEstimate of the Setting Range
- 79. Hmmm…I think the Voltageis about 15v
- 80. Select the (2,20 or 200…) After Conferring With the Manual and Plug in the Appropriate Leads
- 81. Select the (2,20 or 200…) Select Always After Conferring With the the Highest Manual and Plug in Setting Possible the Appropriate Leads

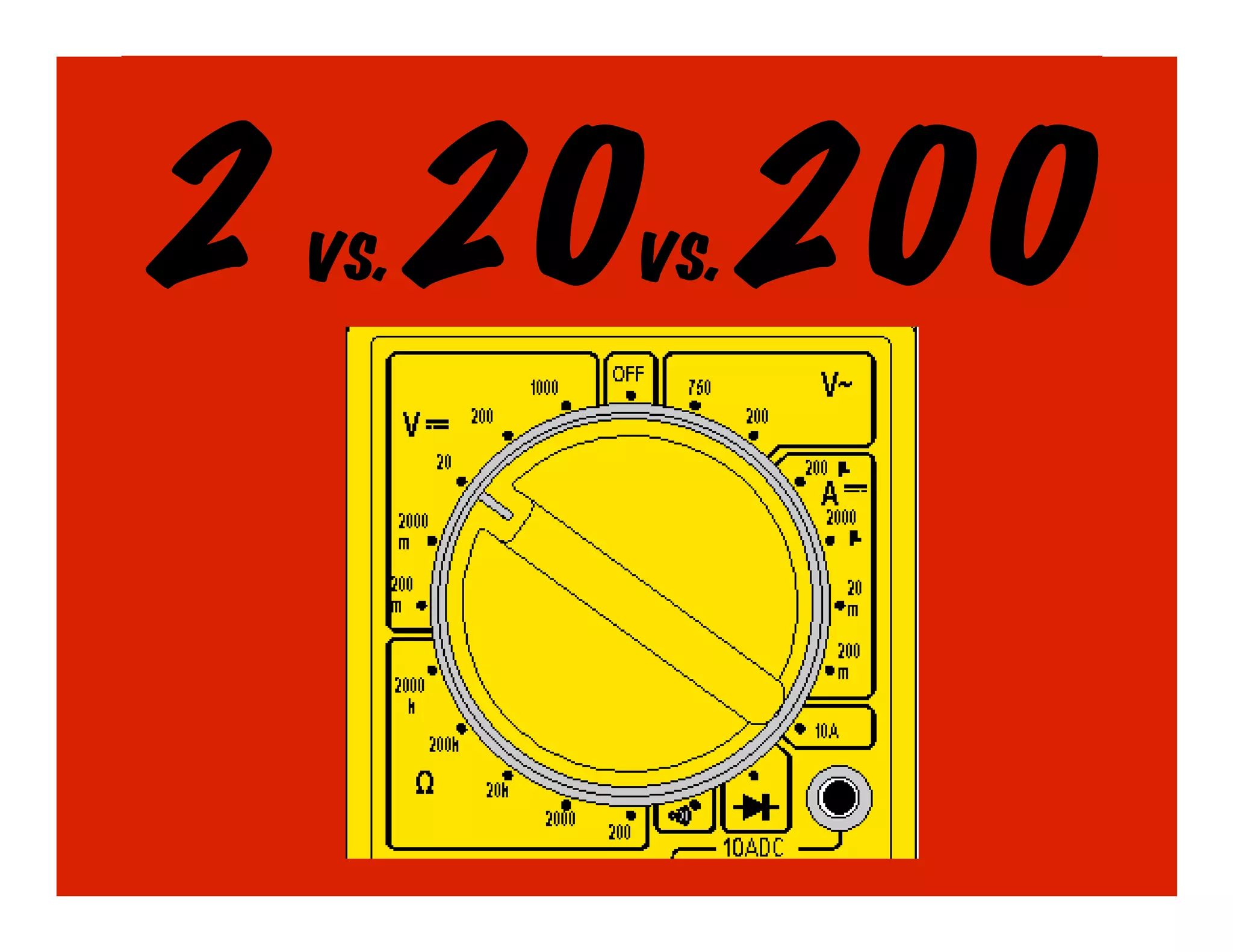

- 82. So, a 20vSetting would be Good!

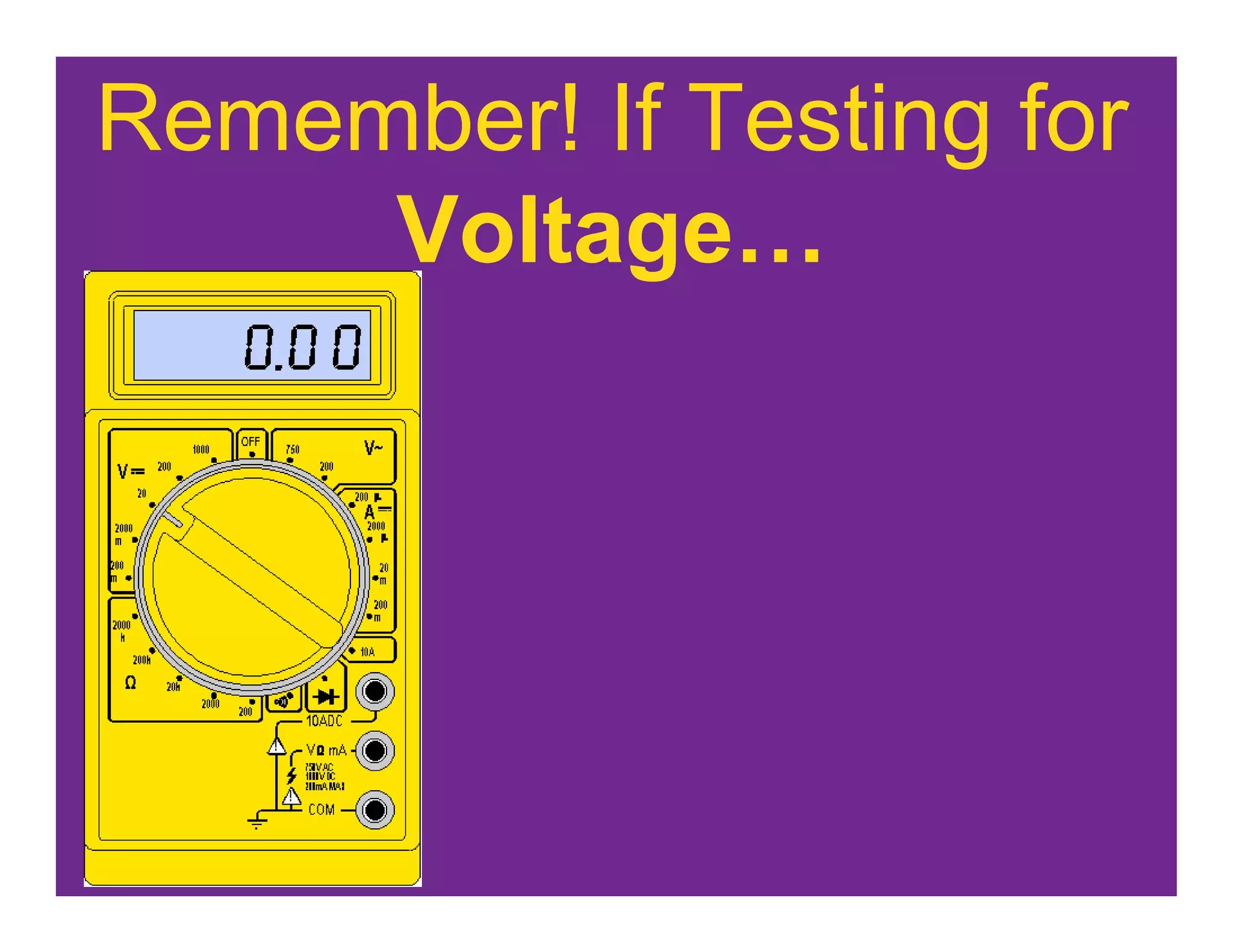

- 83. Remember! If Testingfor Voltage…

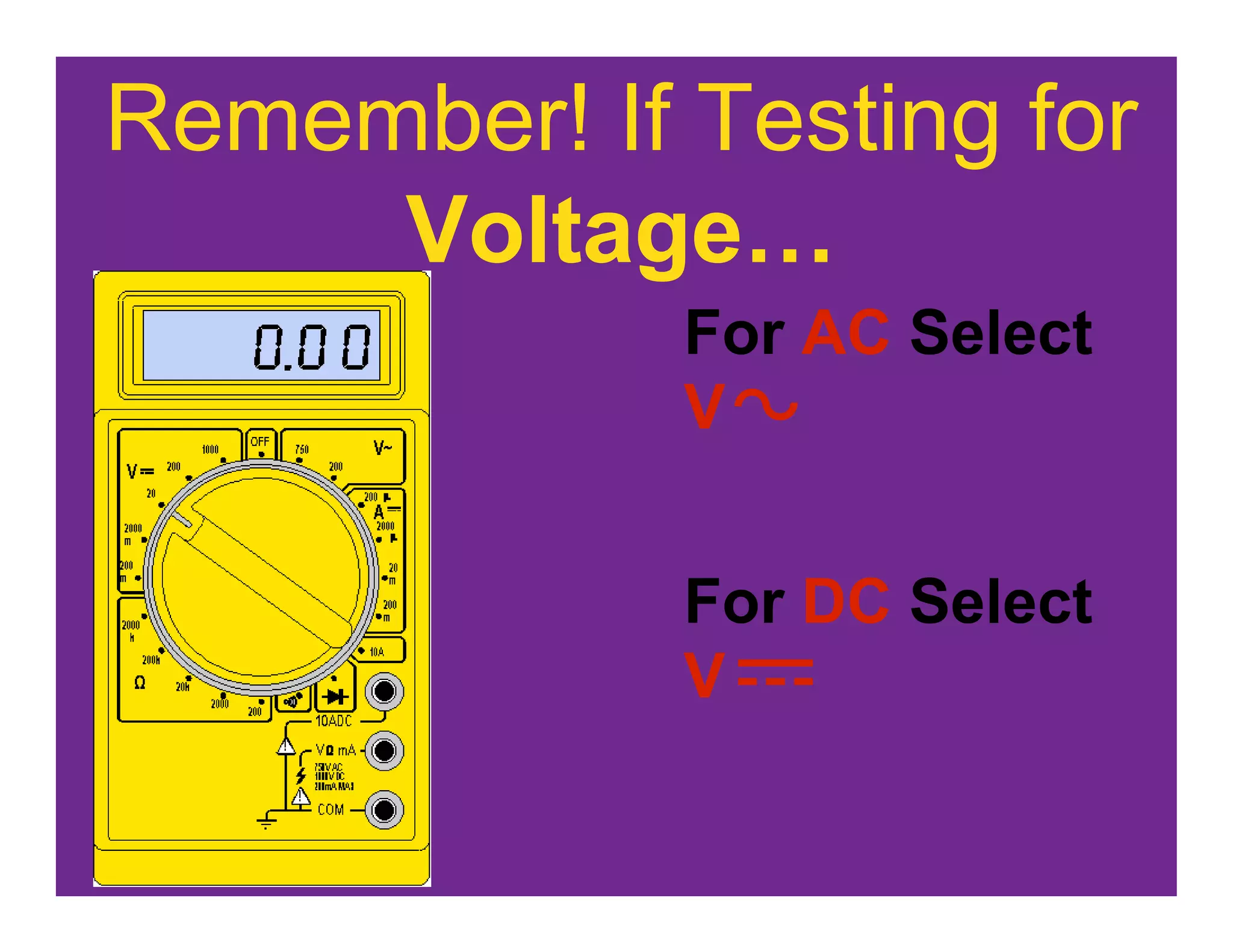

- 84. Remember! If Testingfor Voltage… For AC Select V
- 85. Remember! If Testingfor Voltage… For AC Select V For DC Select V
- 86. Now You Know How To Use a Multimeter!!
