1. FALSE CEILING

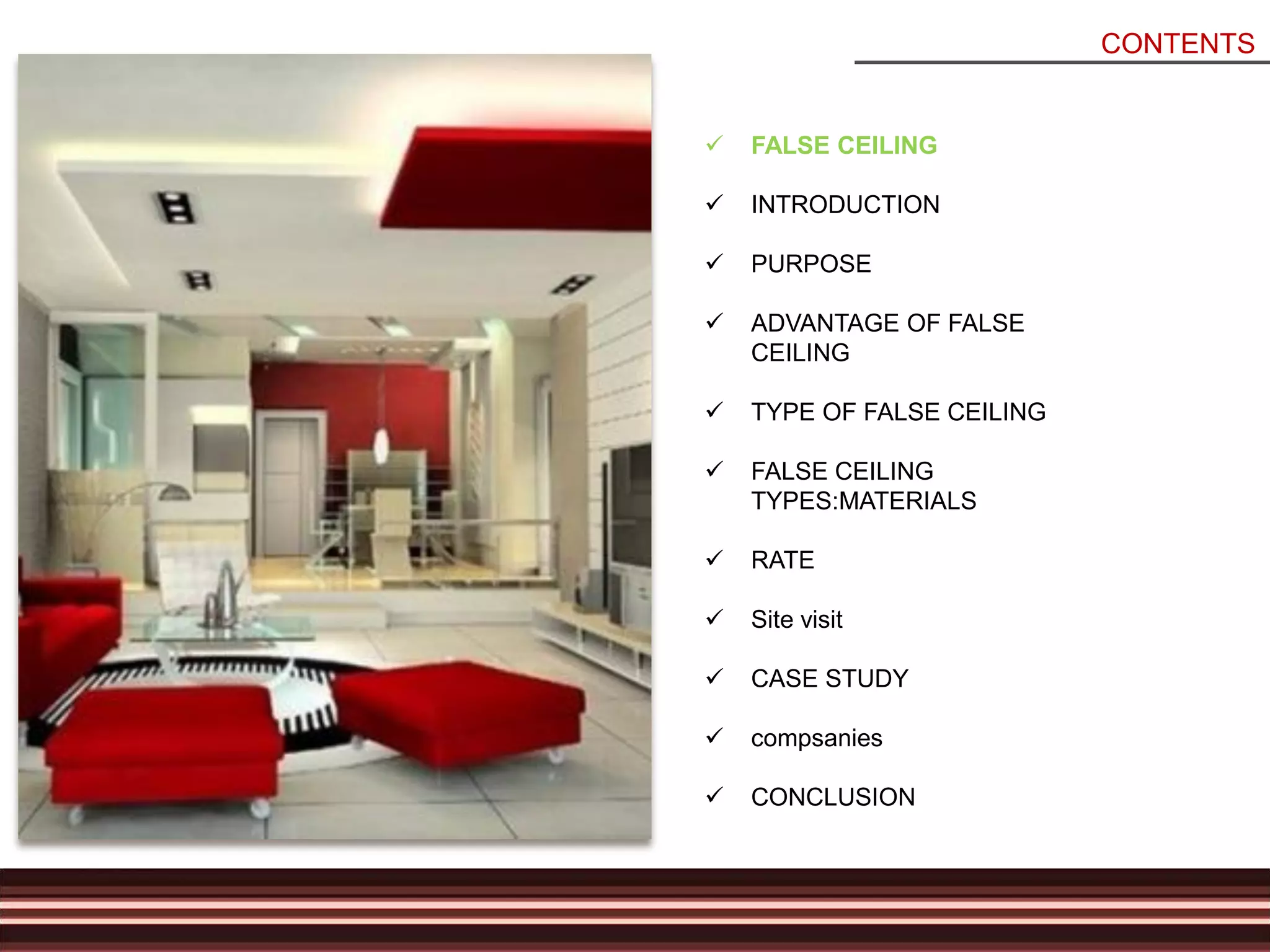

2. CONTENTS
 FALSE CEILING
 INTRODUCTION
 PURPOSE
 ADVANTAGE OF FALSE
CEILING
 TYPE OF FALSE CEILING
 FALSE CEILING
TYPES:MATERIALS
 RATE

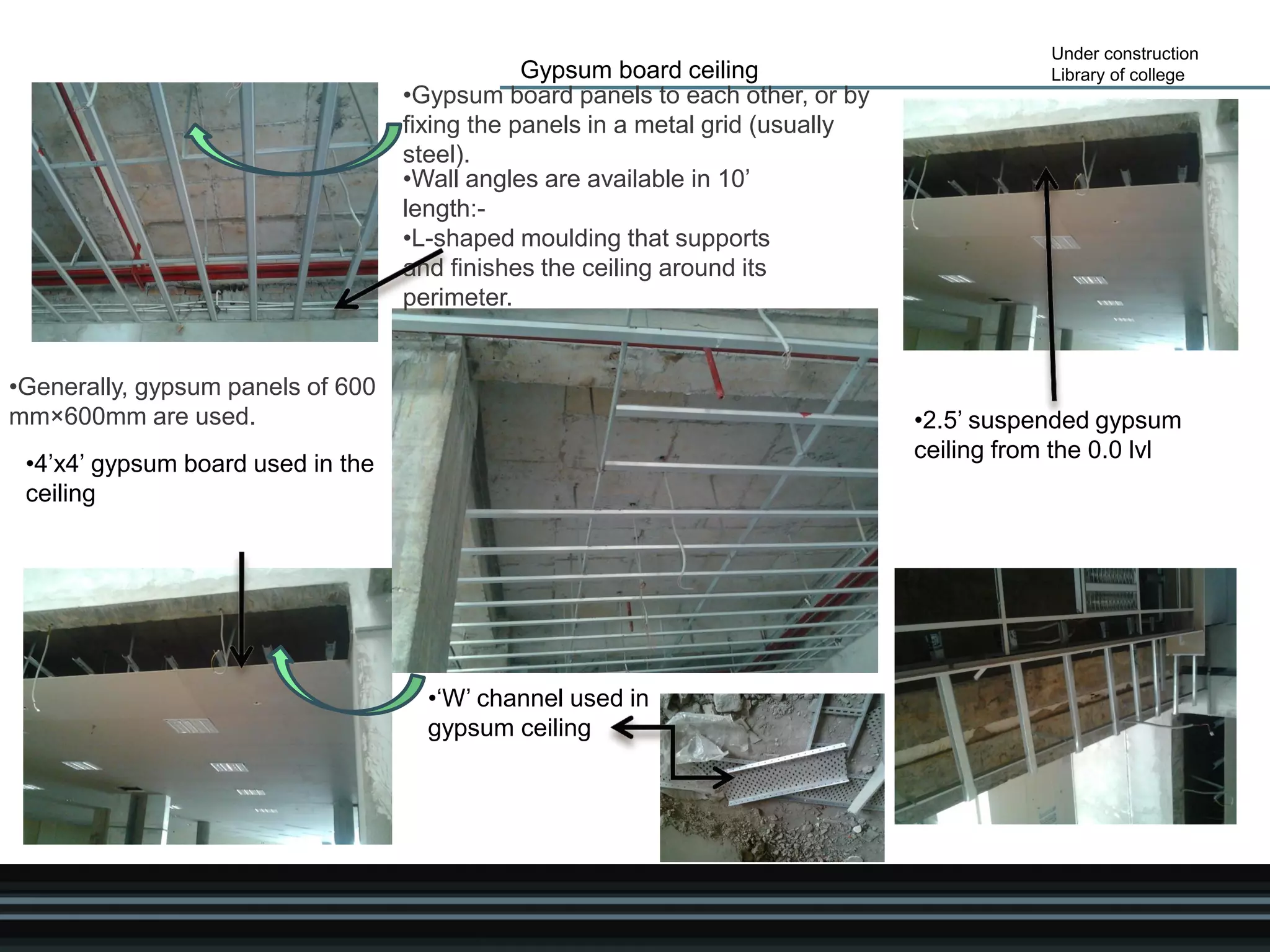

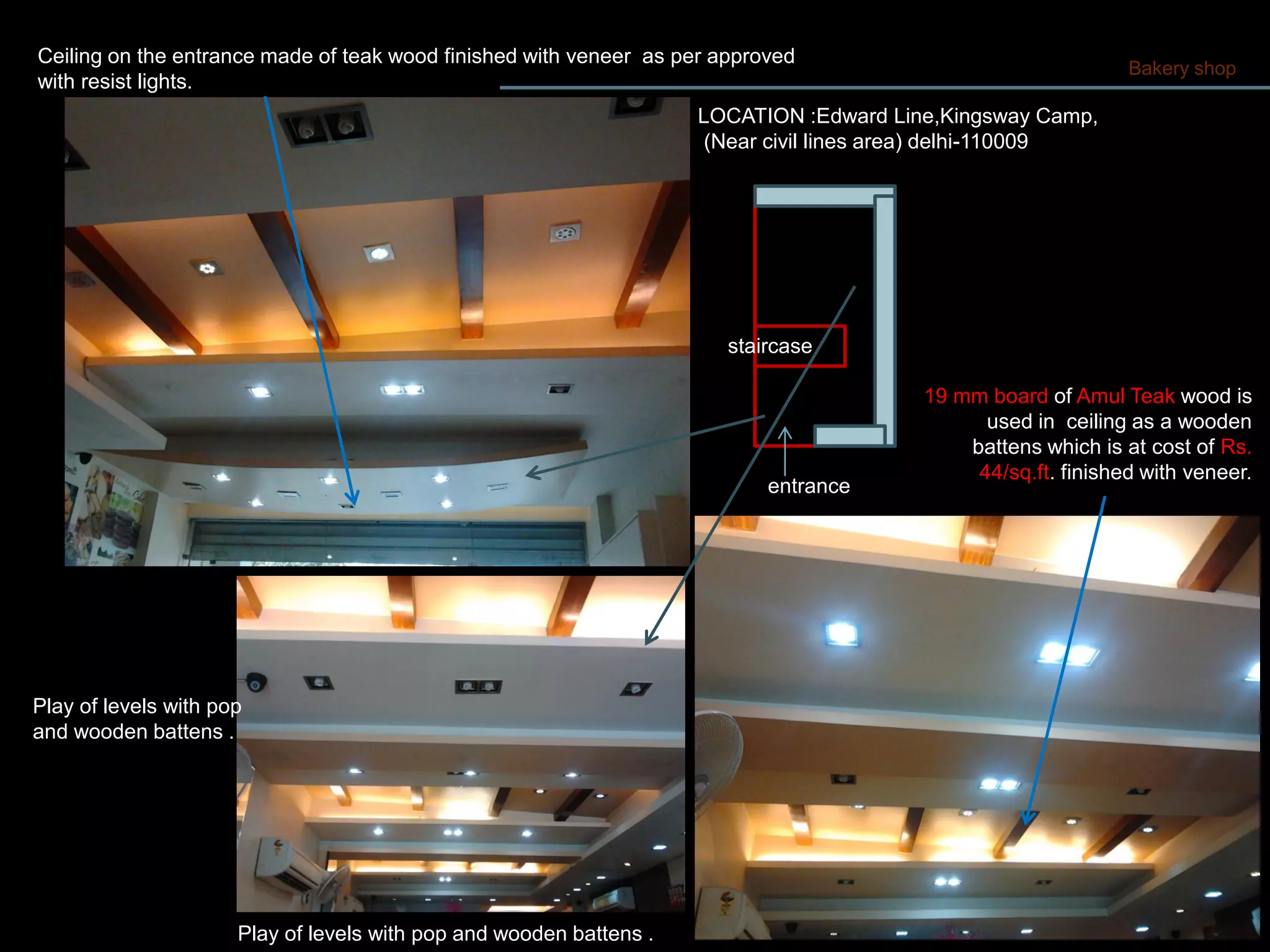

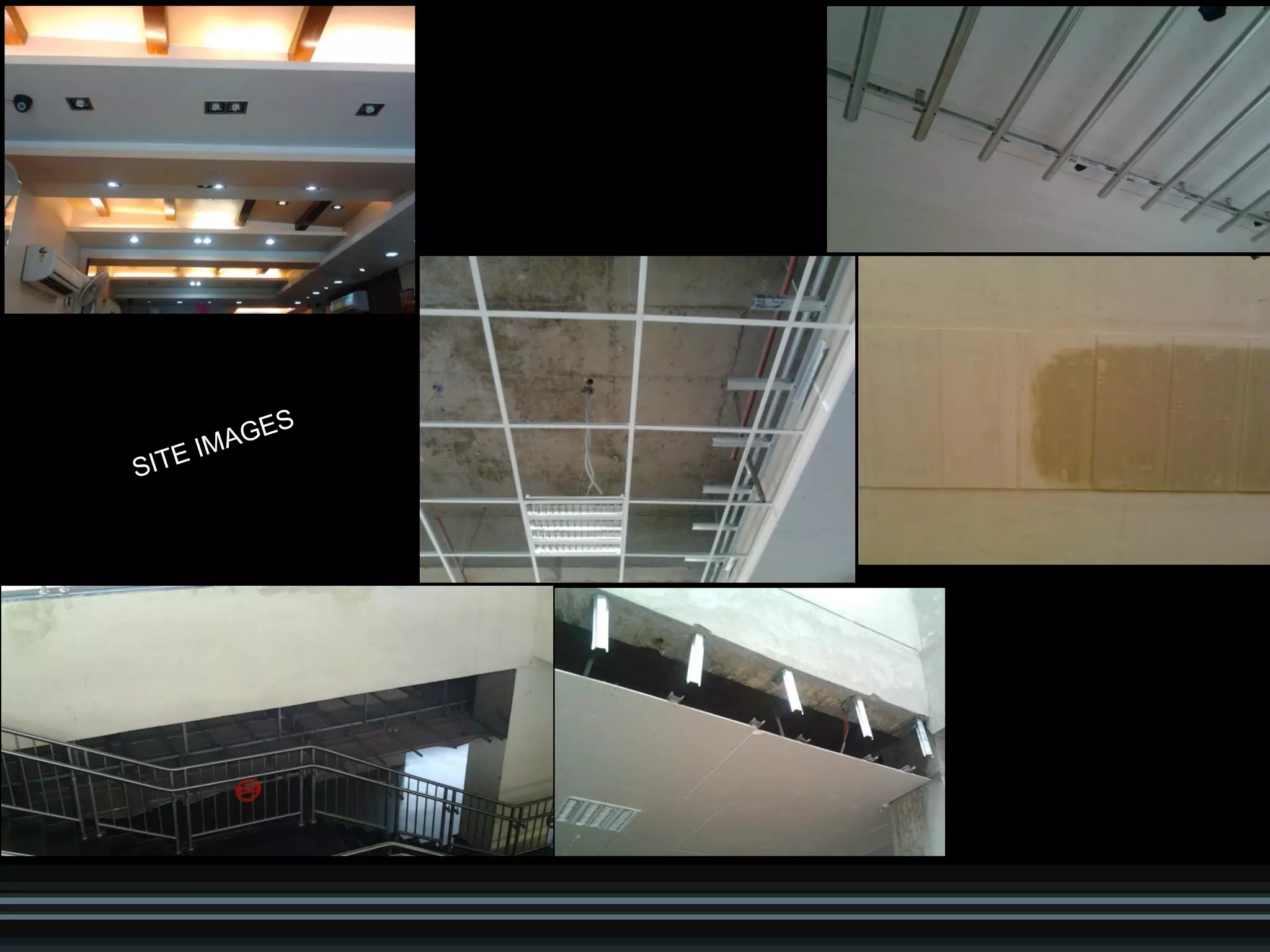

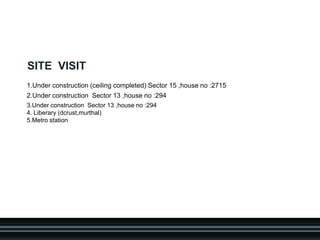

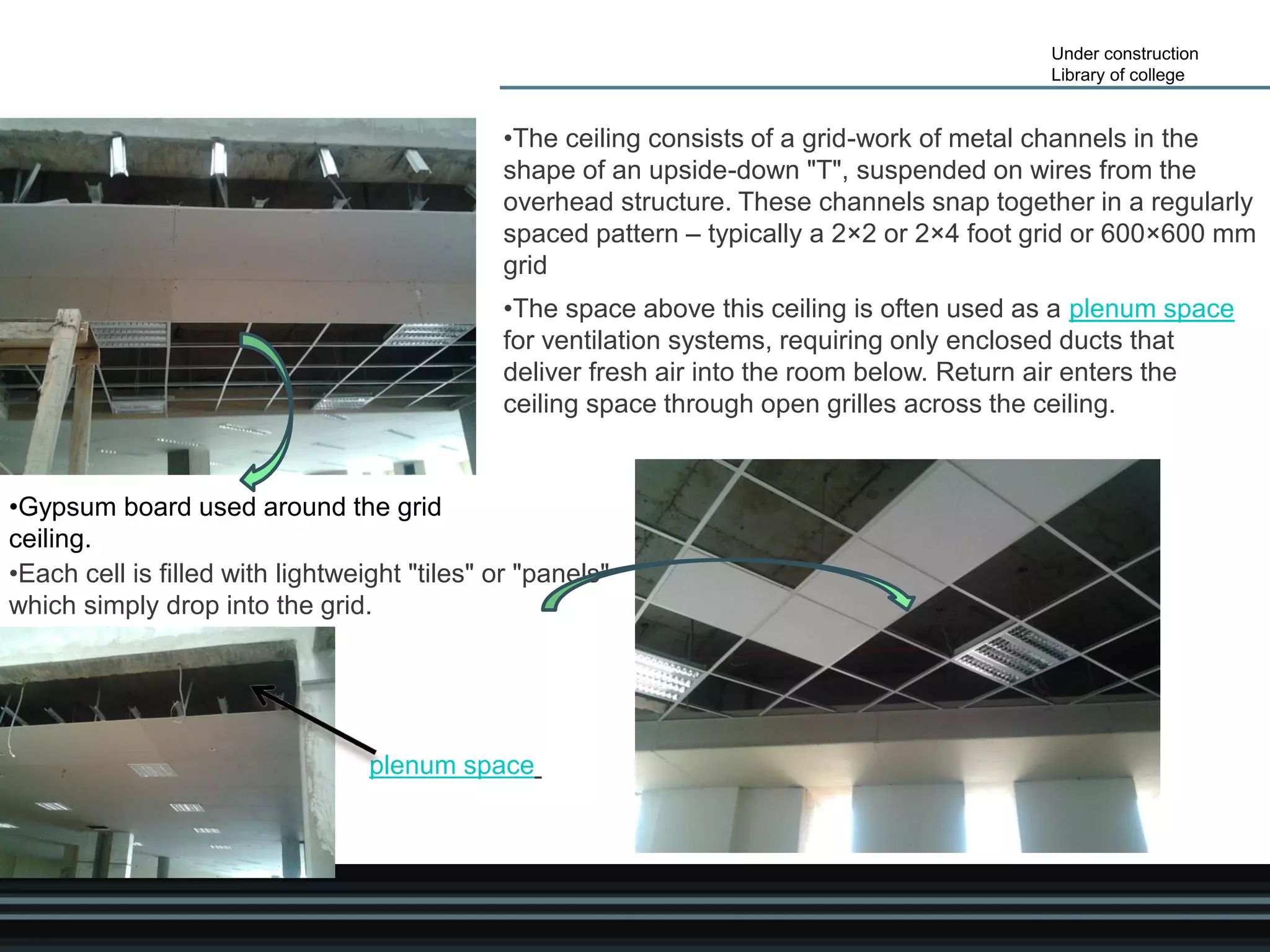

 Site visit

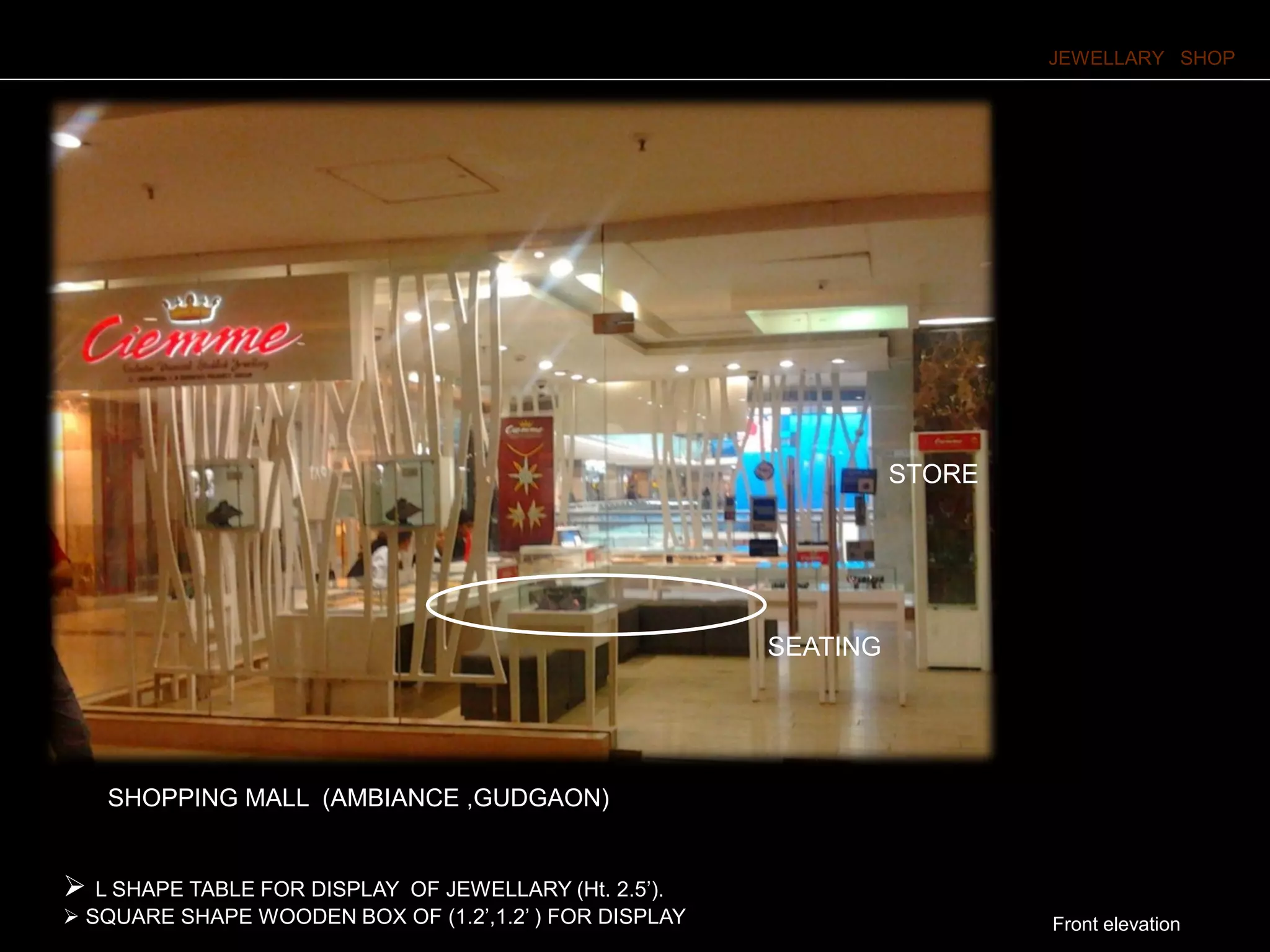

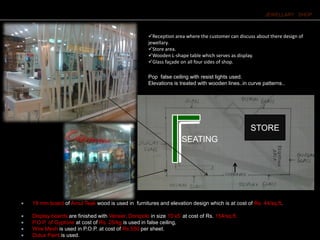

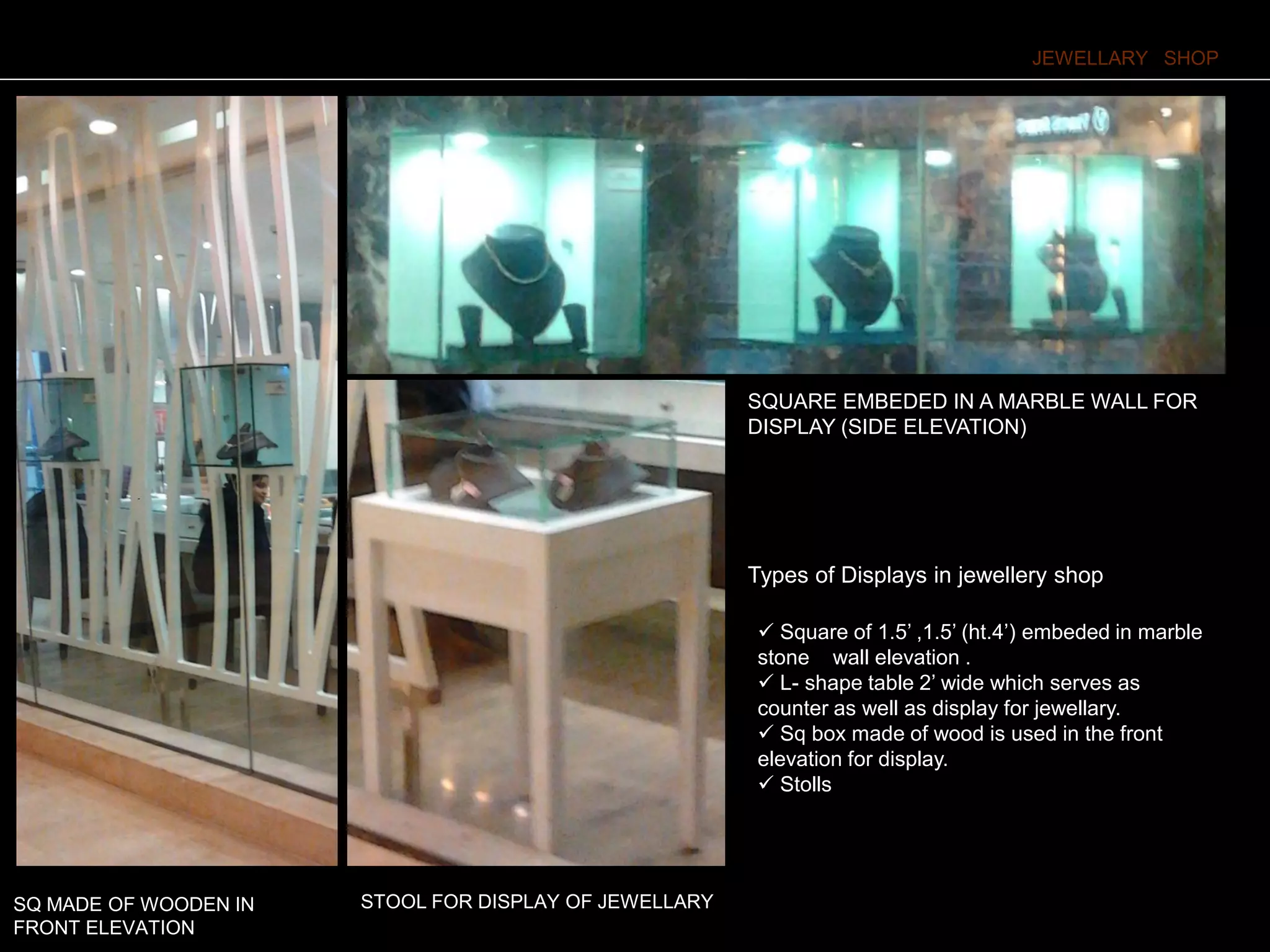

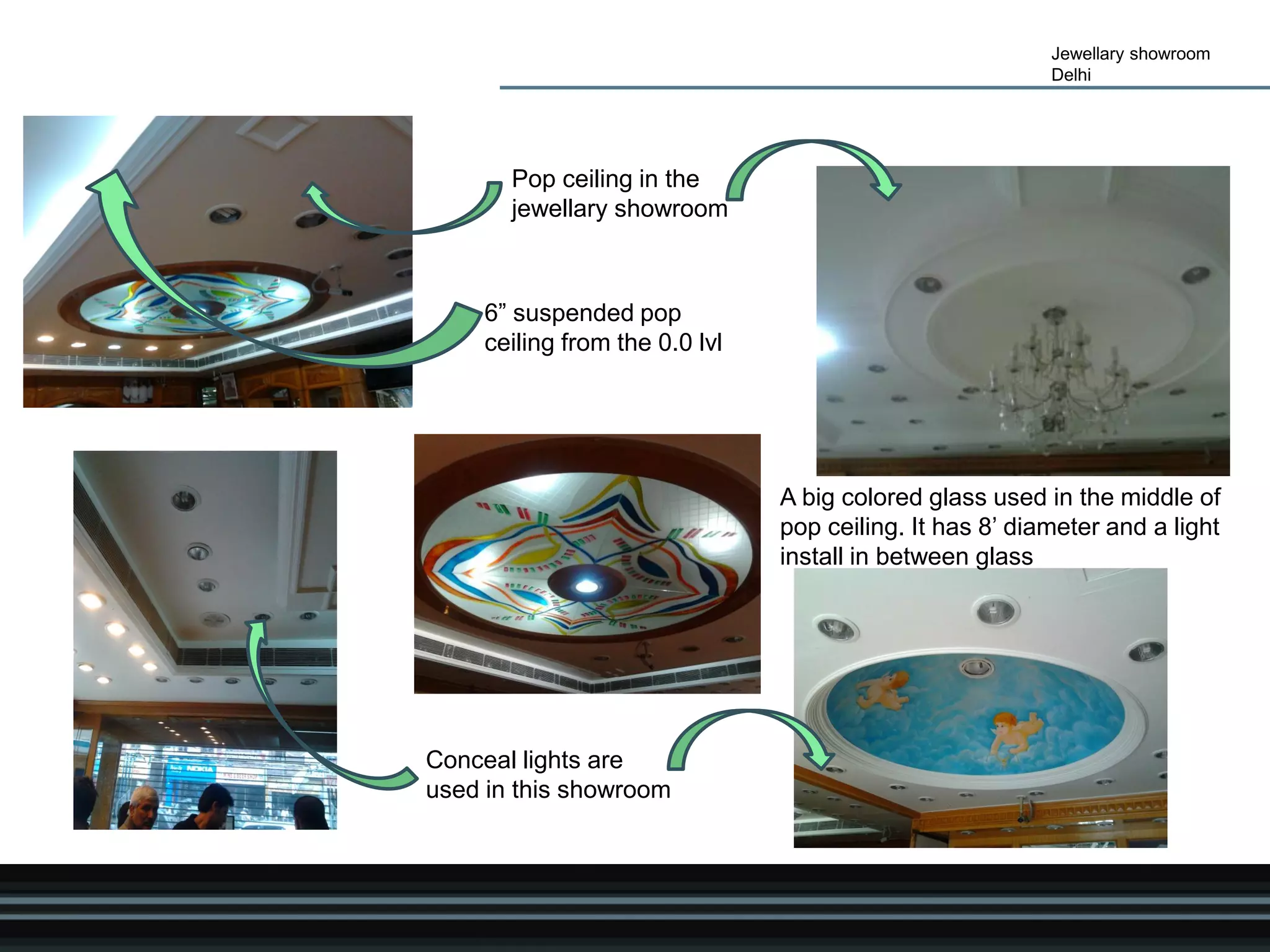

 CASE STUDY

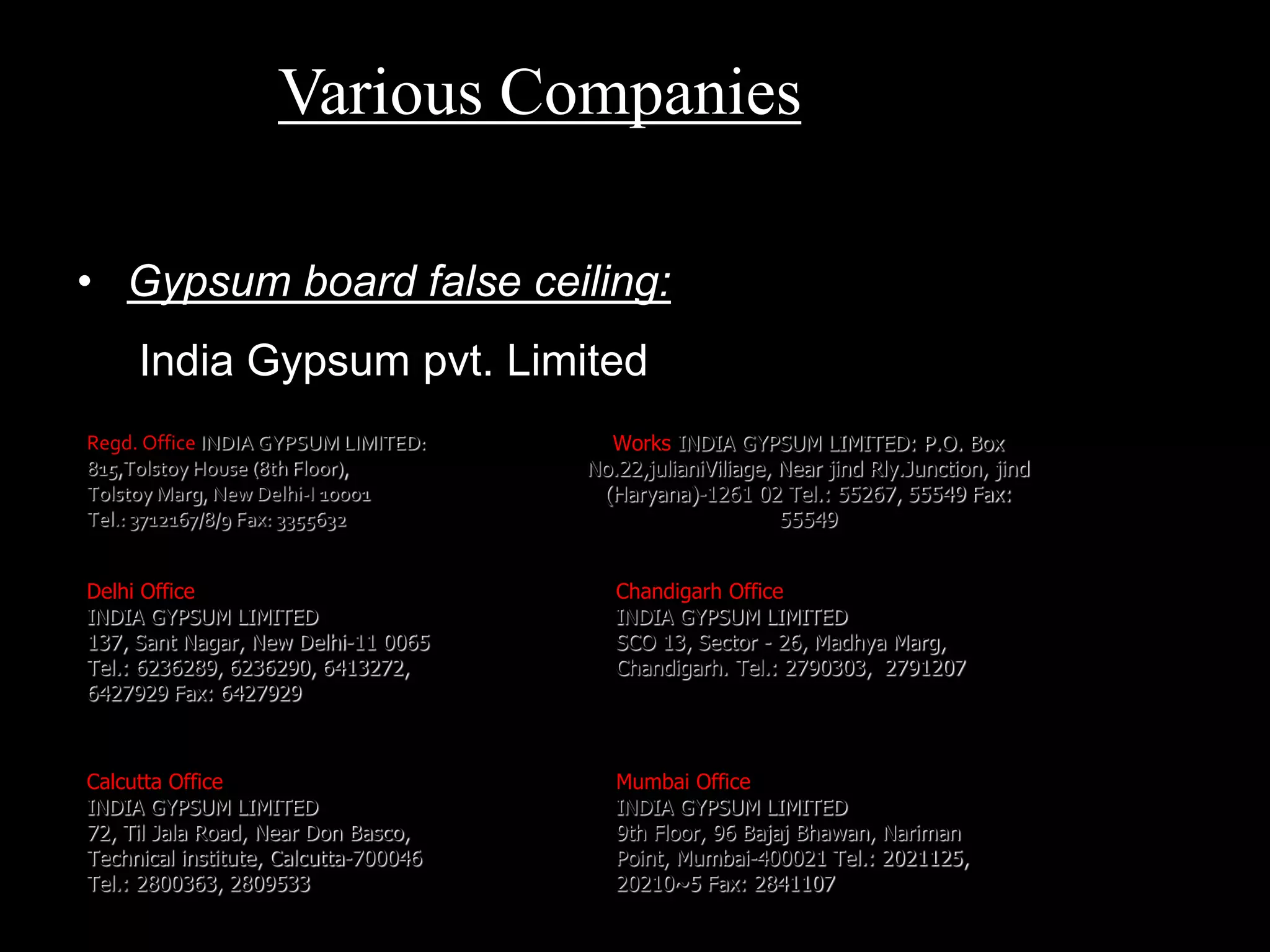

 compsanies
 CONCLUSION

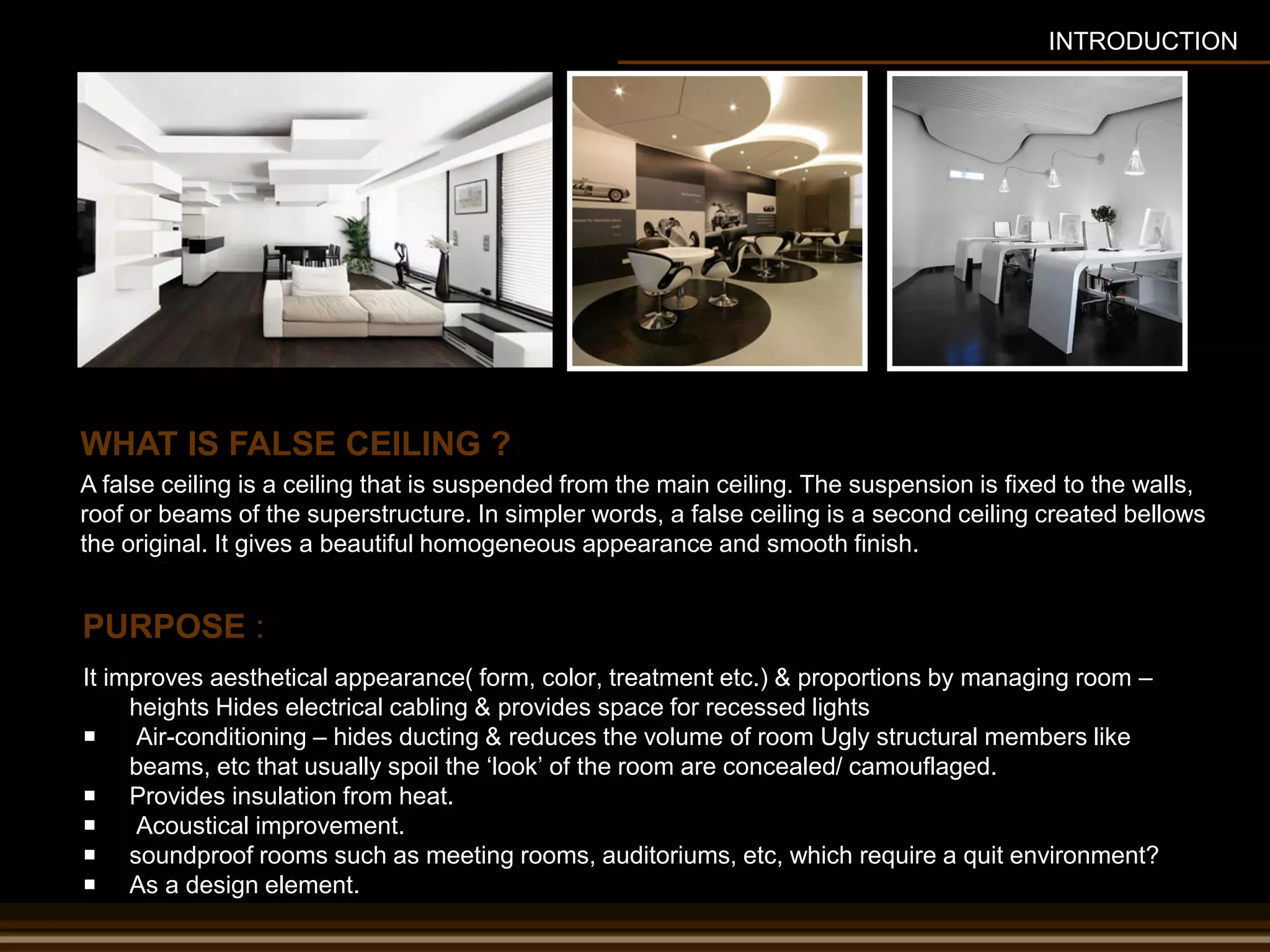

3. PURPOSE :
It improves aesthetical appearance( form, color, treatment etc.) & proportions by managing room –
heights Hides electrical cabling & provides space for recessed lights
 Air-conditioning – hides ducting & reduces the volume of room Ugly structural members like
beams, etc that usually spoil the ‘look’ of the room are concealed/ camouflaged.
 Provides insulation from heat.
 Acoustical improvement.
 soundproof rooms such as meeting rooms, auditoriums, etc, which require a quit environment?
 As a design element.
A false ceiling is a ceiling that is suspended from the main ceiling. The suspension is fixed to the walls,
roof or beams of the superstructure. In simpler words, a false ceiling is a second ceiling created bellows
the original. It gives a beautiful homogeneous appearance and smooth finish.
WHAT IS FALSE CEILING ?
INTRODUCTION

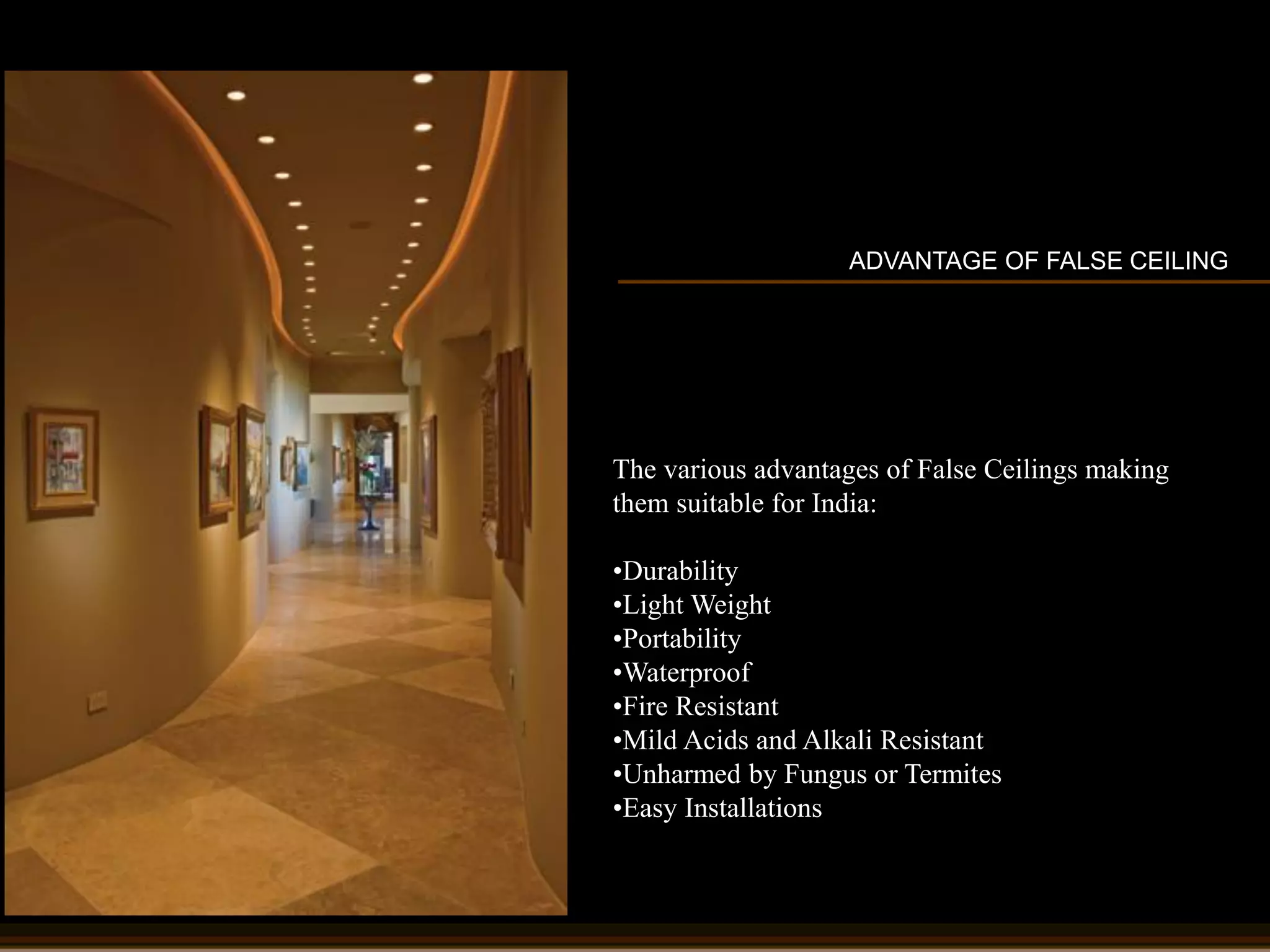

4. ADVANTAGE OF FALSE CEILING
The various advantages of False Ceilings making
them suitable for India:
•Durability
•Light Weight
•Portability
•Waterproof
•Fire Resistant
•Mild Acids and Alkali Resistant
•Unharmed by Fungus or Termites
•Easy Installations

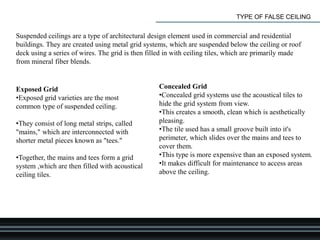

5. TYPE OF FALSE CEILING
Suspended ceilings are a type of architectural design element used in commercial and residential
buildings. They are created using metal grid systems, which are suspended below the ceiling or roof
deck using a series of wires. The grid is then filled in with ceiling tiles, which are primarily made
from mineral fiber blends.
Exposed Grid
•Exposed grid varieties are the most
common type of suspended ceiling.
•They consist of long metal strips, called
"mains," which are interconnected with
shorter metal pieces known as "tees."
•Together, the mains and tees form a grid
system ,which are then filled with acoustical
ceiling tiles.
Concealed Grid
•Concealed grid systems use the acoustical tiles to
hide the grid system from view.
•This creates a smooth, clean which is aesthetically
pleasing.
•The tile used has a small groove built into it's
perimeter, which slides over the mains and tees to
cover them.
•This type is more expensive than an exposed system.
•It makes difficult for maintenance to access areas
above the ceiling.

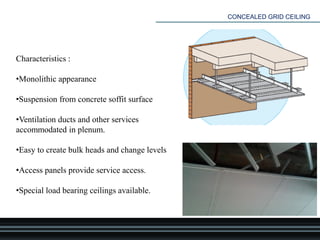

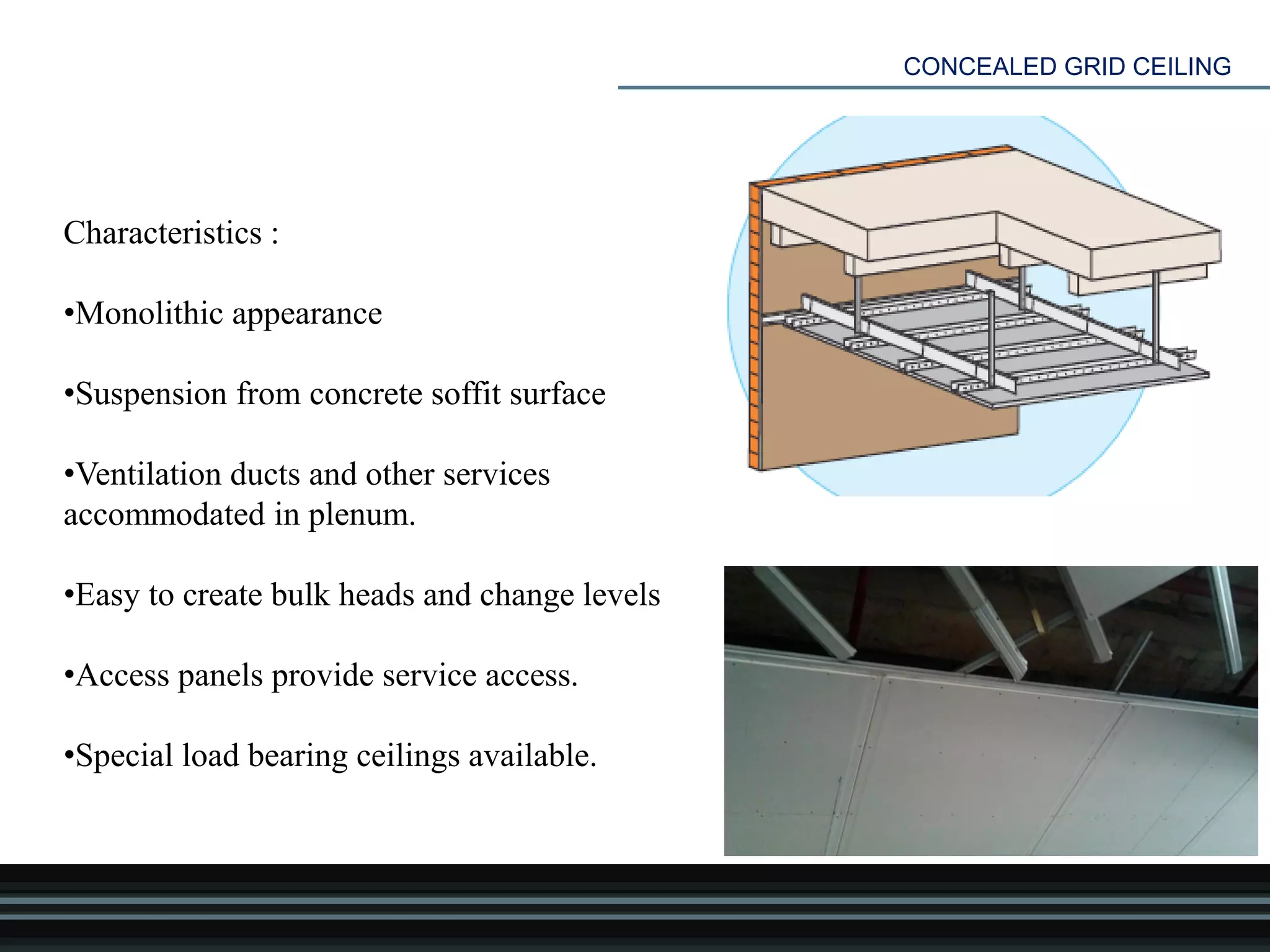

6. CONCEALED GRID CEILING
Characteristics :
•Monolithic appearance
•Suspension from concrete soffit surface
•Ventilation ducts and other services
accommodated in plenum.
•Easy to create bulk heads and change levels
•Access panels provide service access.
•Special load bearing ceilings available.

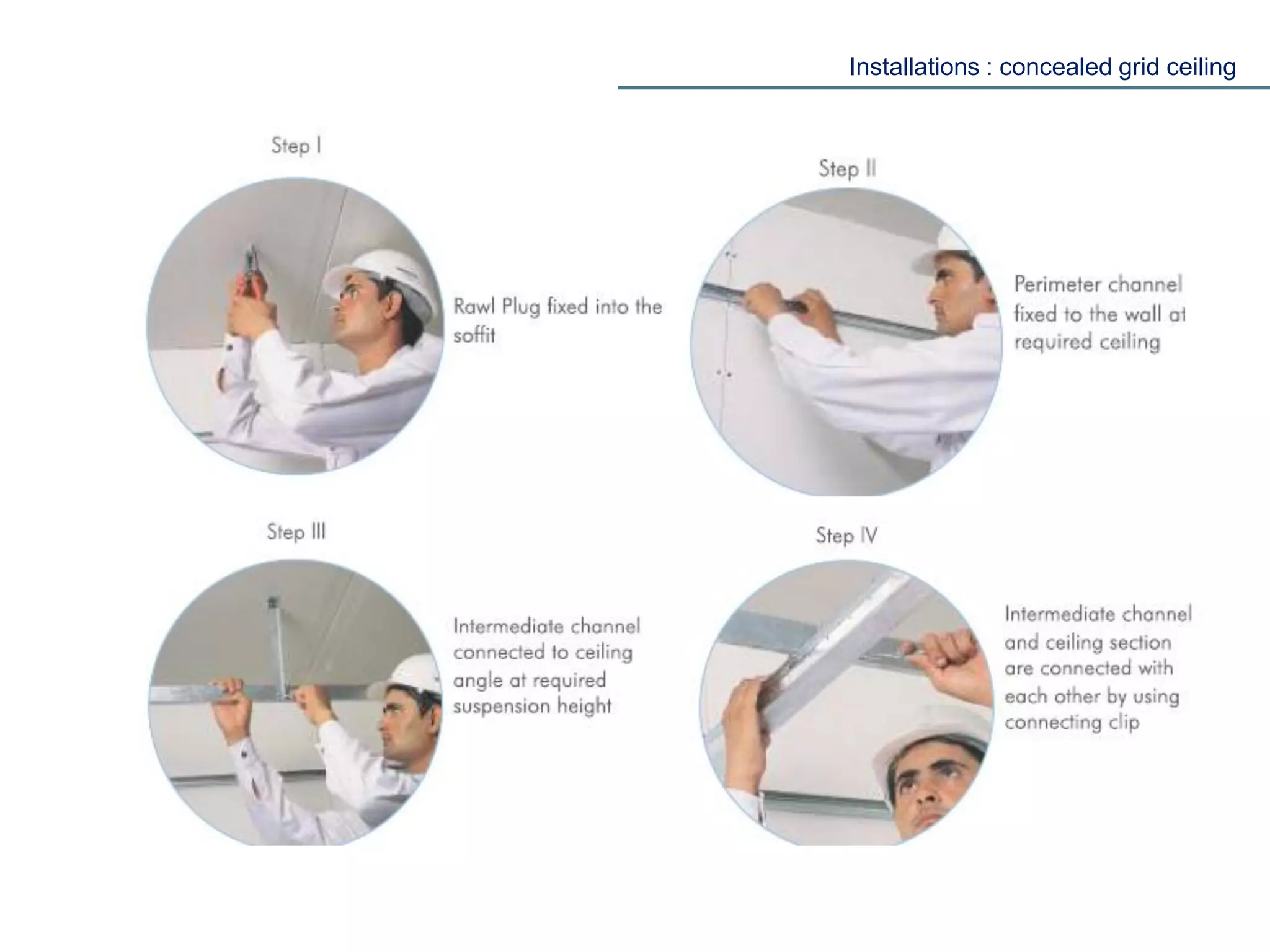

7. Installations : concealed grid ceiling

8. Installations : concealed grid ceiling

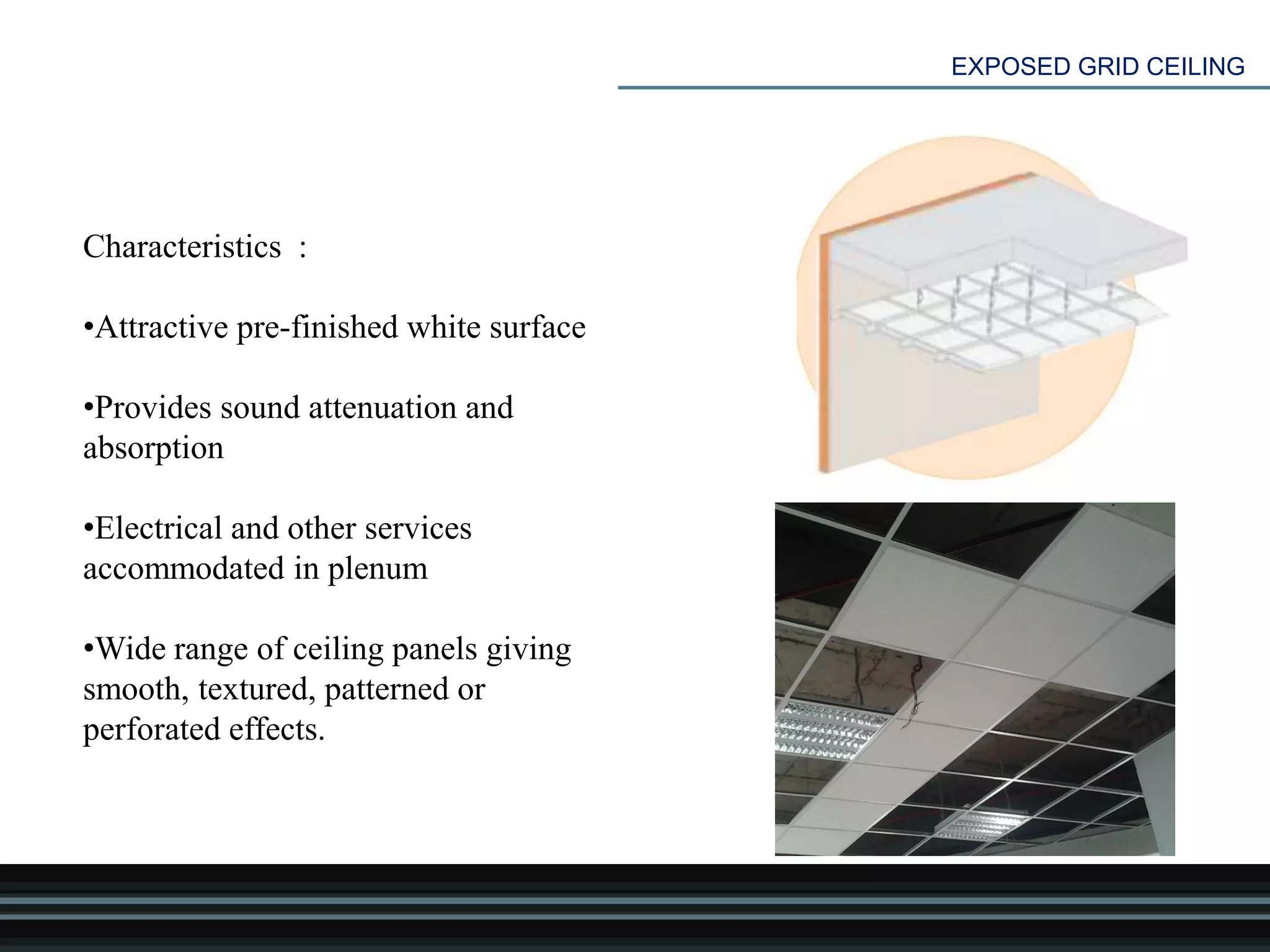

9. EXPOSED GRID CEILING
Characteristics :
•Attractive pre-finished white surface
•Provides sound attenuation and
absorption
•Electrical and other services
accommodated in plenum
•Wide range of ceiling panels giving
smooth, textured, patterned or
perforated effects.

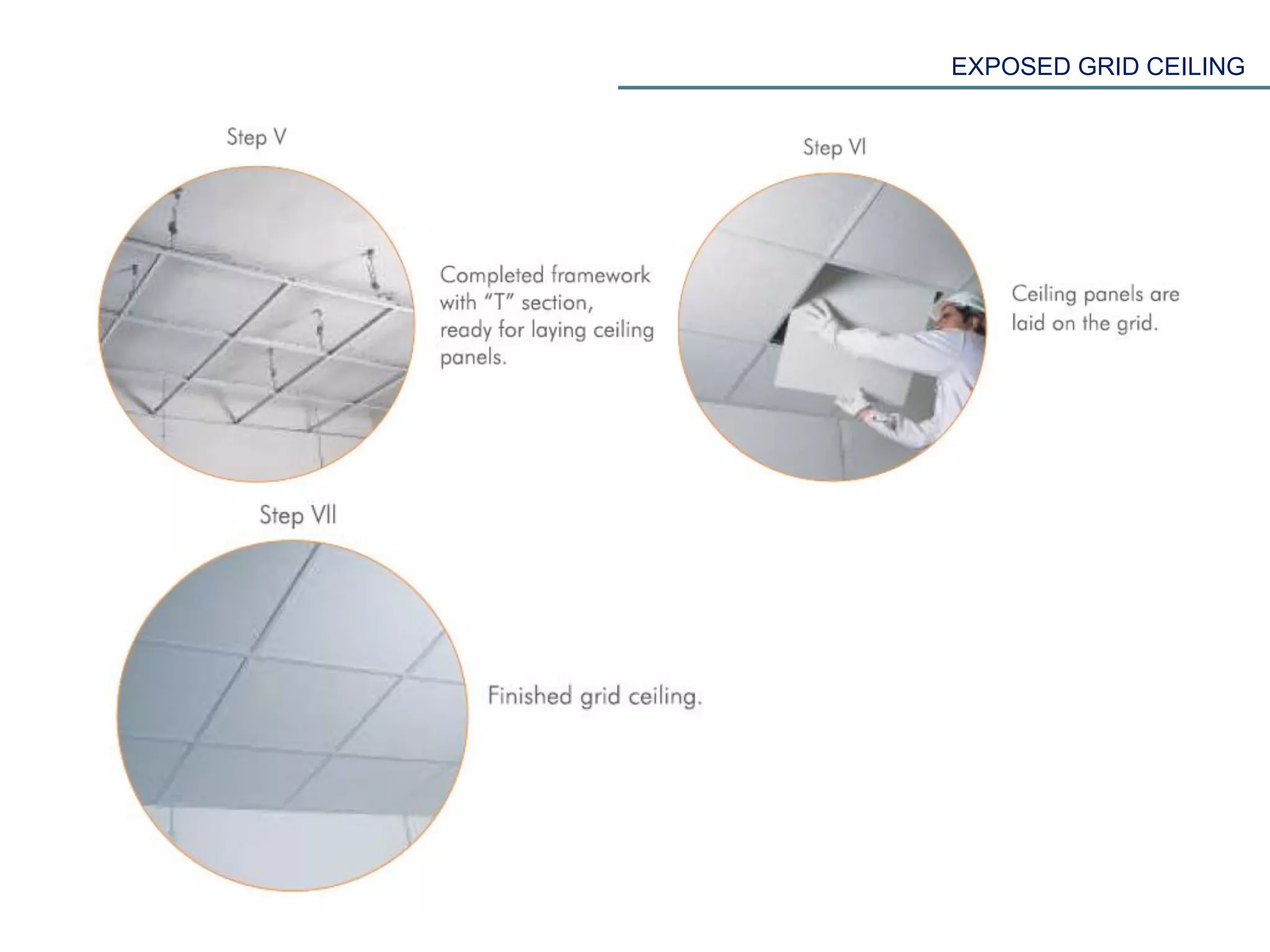

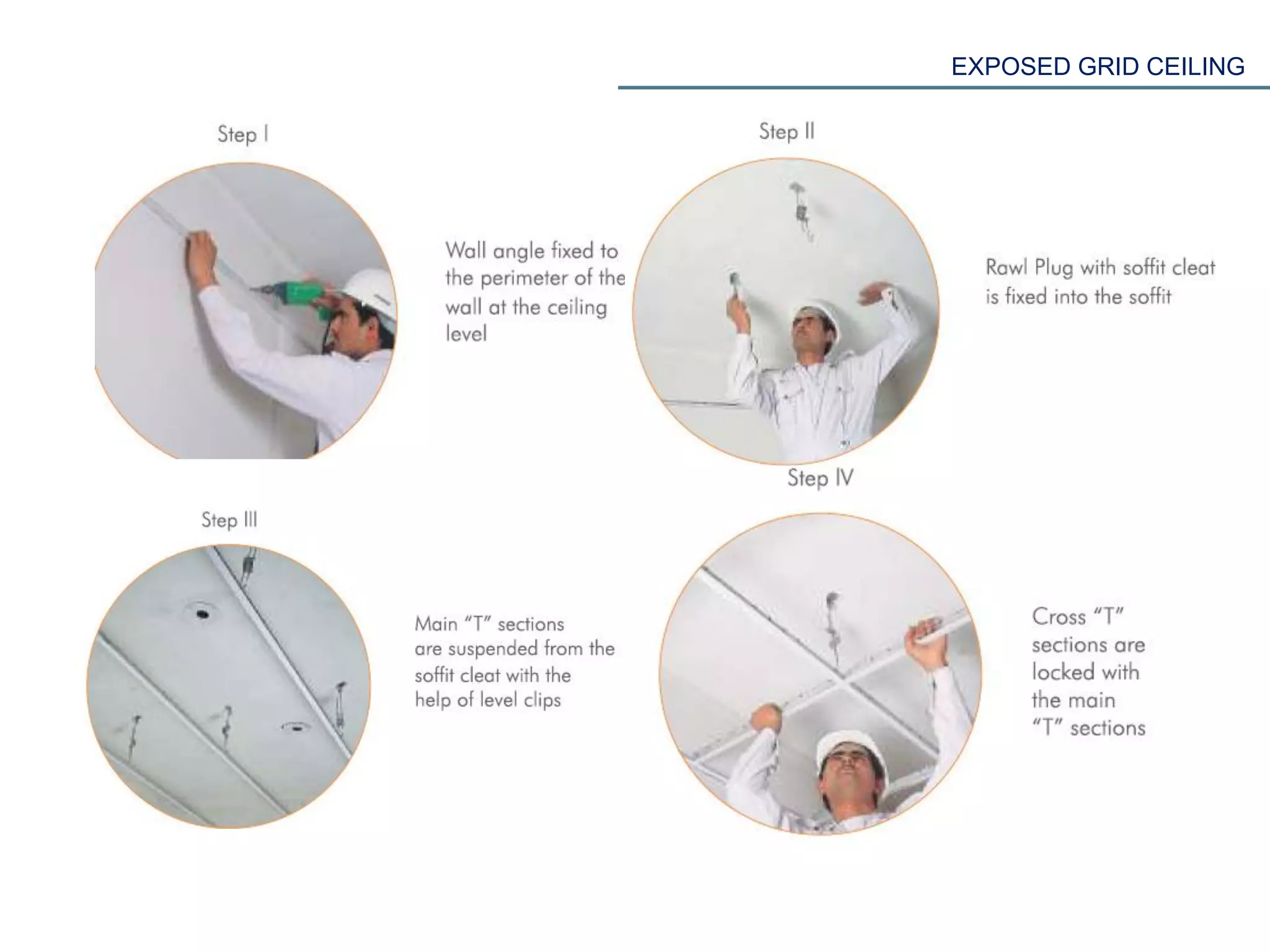

10. EXPOSED GRID CEILING

11. EXPOSED GRID CEILING

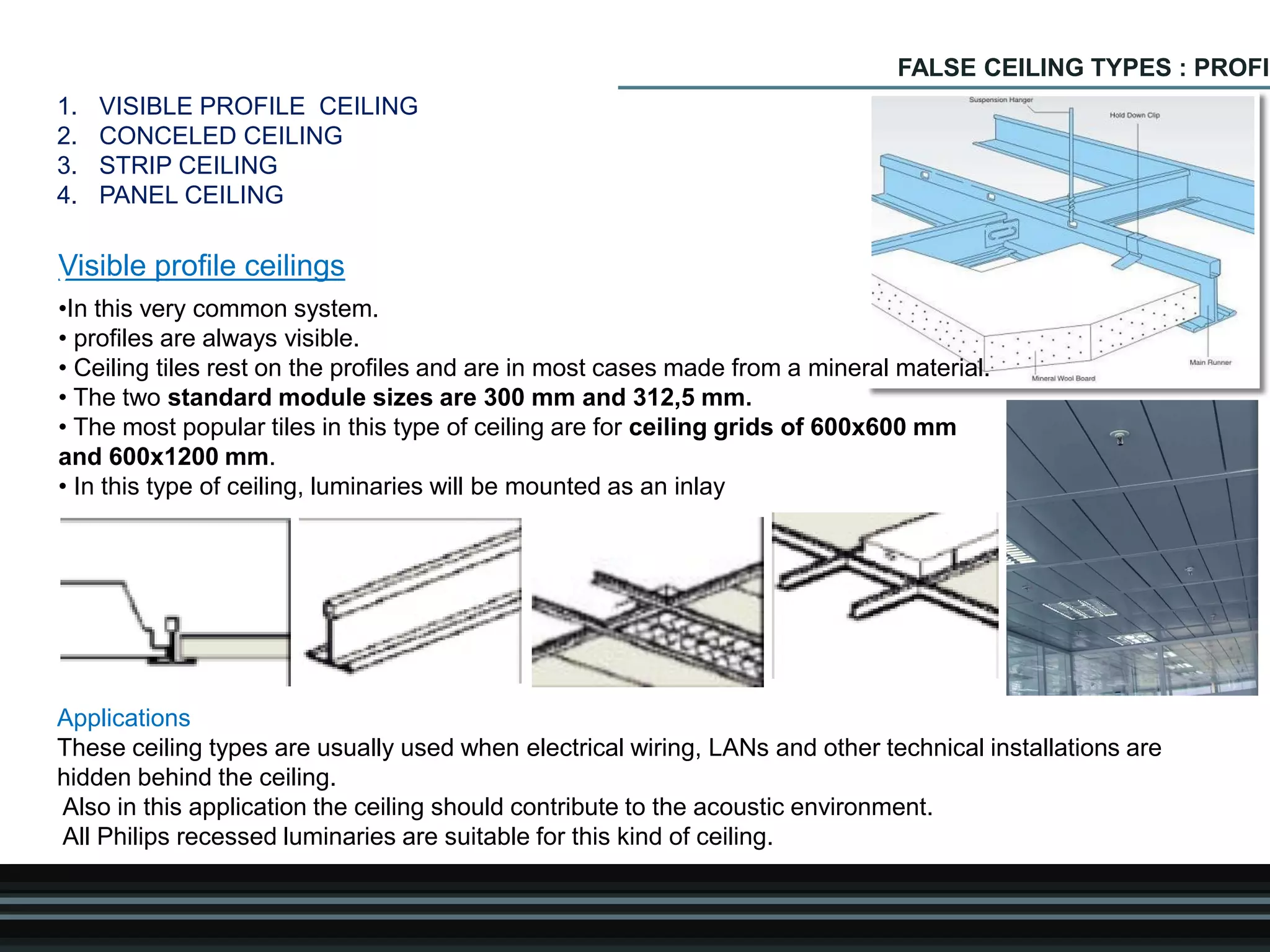

12. FALSE CEILING TYPES : PROFIL
Visible profile ceilings•
•In this very common system.
• profiles are always visible.
• Ceiling tiles rest on the profiles and are in most cases made from a mineral material.
• The two standard module sizes are 300 mm and 312,5 mm.
• The most popular tiles in this type of ceiling are for ceiling grids of 600x600 mm
and 600x1200 mm.
• In this type of ceiling, luminaries will be mounted as an inlay
Applications
These ceiling types are usually used when electrical wiring, LANs and other technical installations are
hidden behind the ceiling.
Also in this application the ceiling should contribute to the acoustic environment.
All Philips recessed luminaries are suitable for this kind of ceiling.
1. VISIBLE PROFILE CEILING
2. CONCELED CEILING
3. STRIP CEILING
4. PANEL CEILING

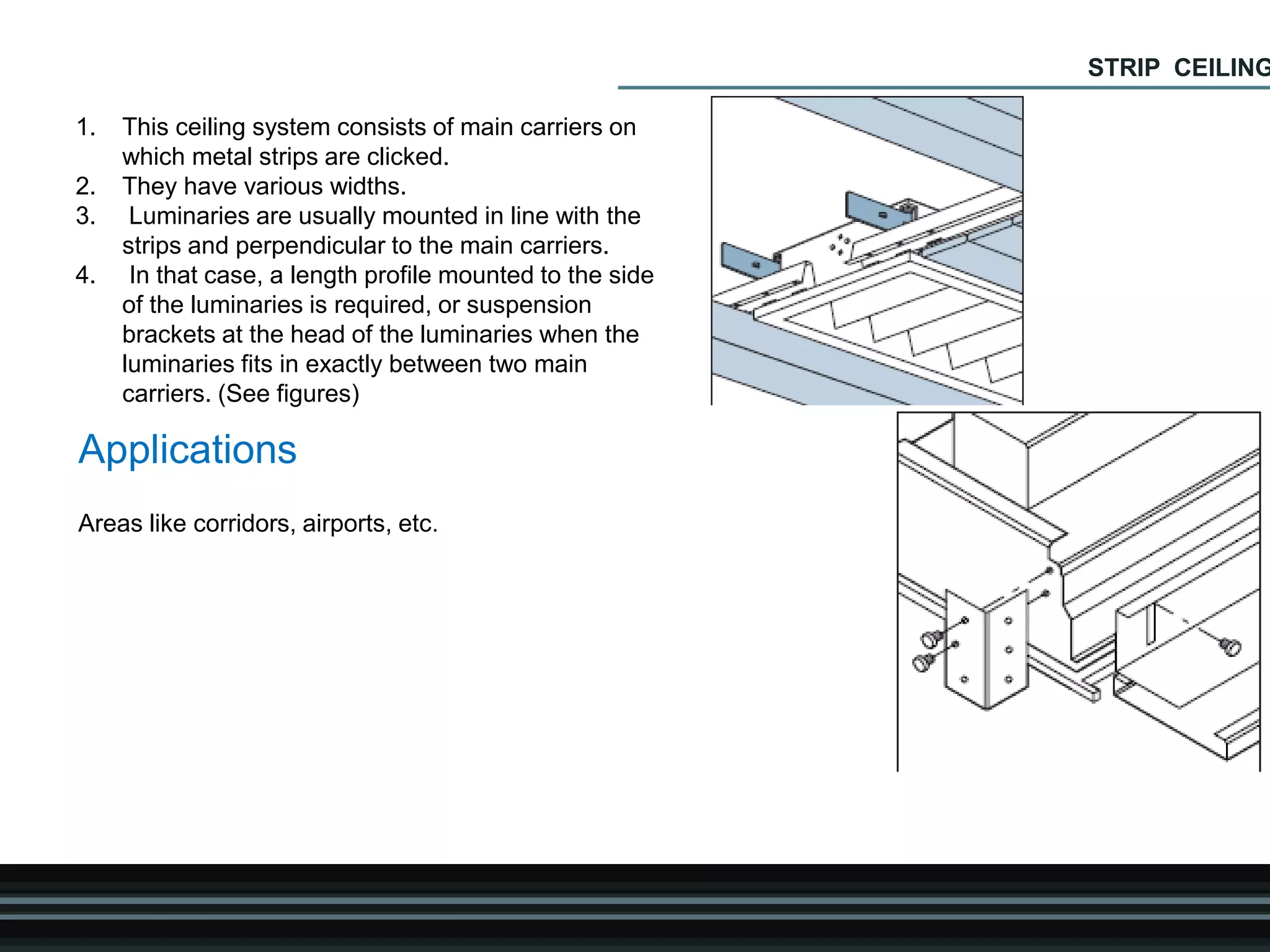

13. 1. This ceiling system consists of main carriers on
which metal strips are clicked.
2. They have various widths.
3. Luminaries are usually mounted in line with the
strips and perpendicular to the main carriers.
4. In that case, a length profile mounted to the side
of the luminaries is required, or suspension
brackets at the head of the luminaries when the
luminaries fits in exactly between two main
carriers. (See figures)
Applications
Areas like corridors, airports, etc.
STRIP CEILING

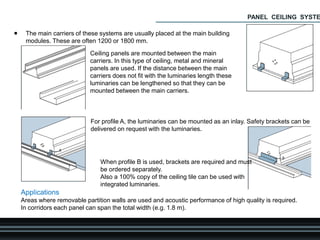

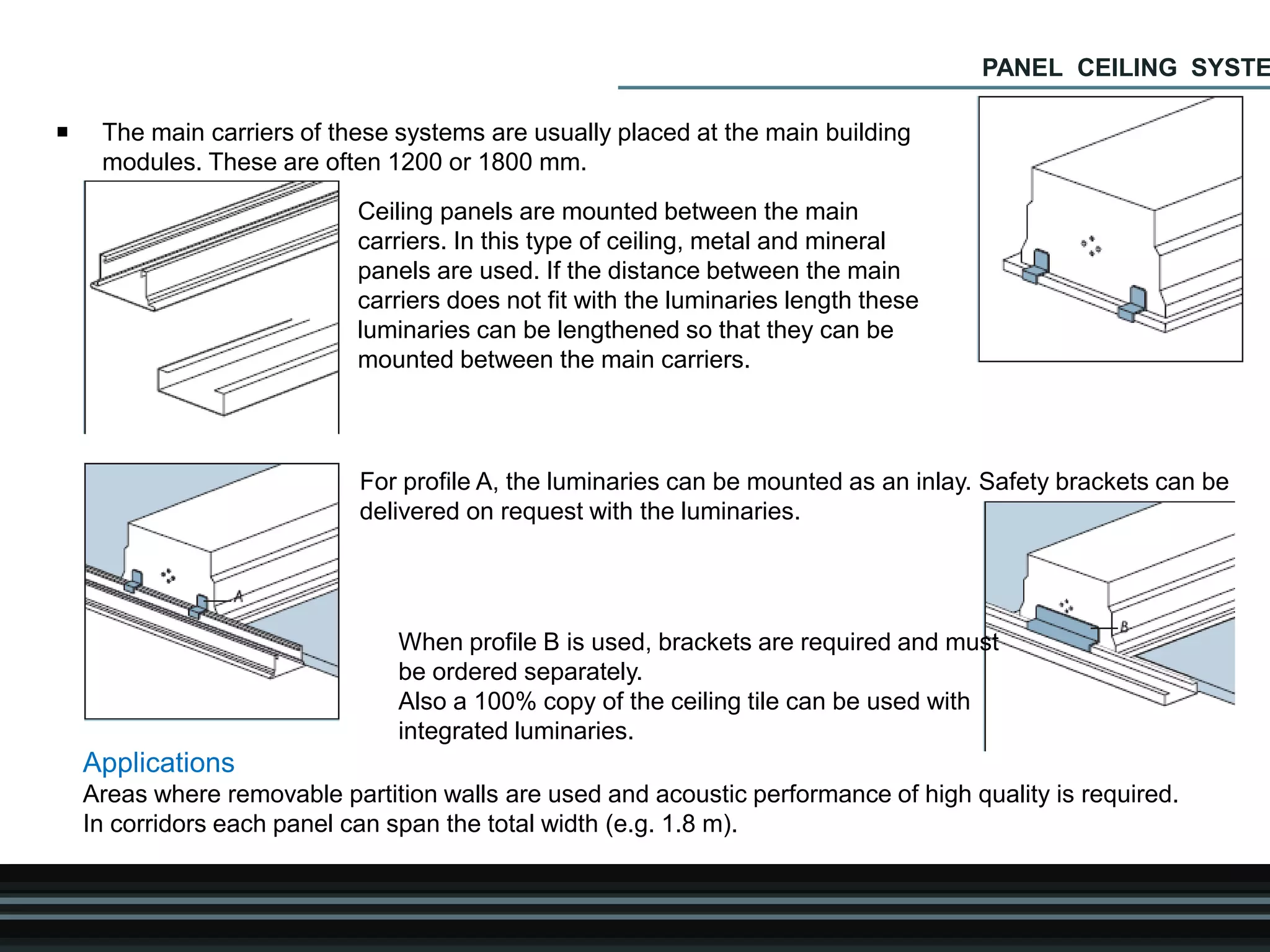

14.  The main carriers of these systems are usually placed at the main building
modules. These are often 1200 or 1800 mm.
Ceiling panels are mounted between the main
carriers. In this type of ceiling, metal and mineral
panels are used. If the distance between the main
carriers does not fit with the luminaries length these
luminaries can be lengthened so that they can be
mounted between the main carriers.
For profile A, the luminaries can be mounted as an inlay. Safety brackets can be
delivered on request with the luminaries.
When profile B is used, brackets are required and must
be ordered separately.
Also a 100% copy of the ceiling tile can be used with
integrated luminaries.
Applications
Areas where removable partition walls are used and acoustic performance of high quality is required.
In corridors each panel can span the total width (e.g. 1.8 m).
PANEL CEILING SYSTE

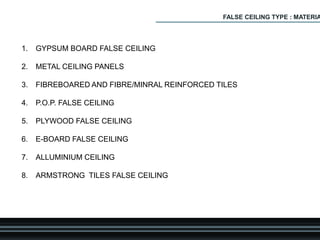

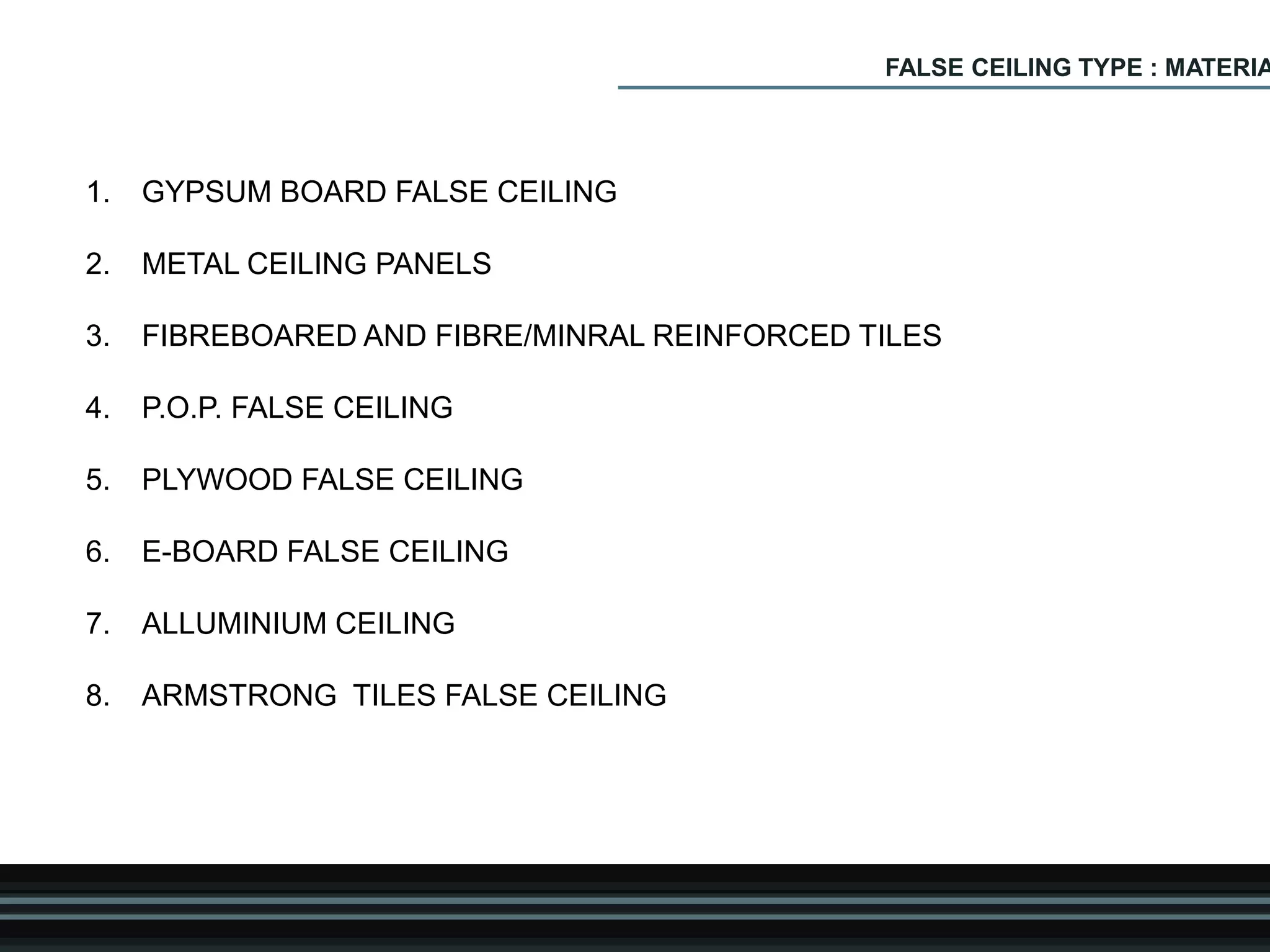

15. 1. GYPSUM BOARD FALSE CEILING
2. METAL CEILING PANELS

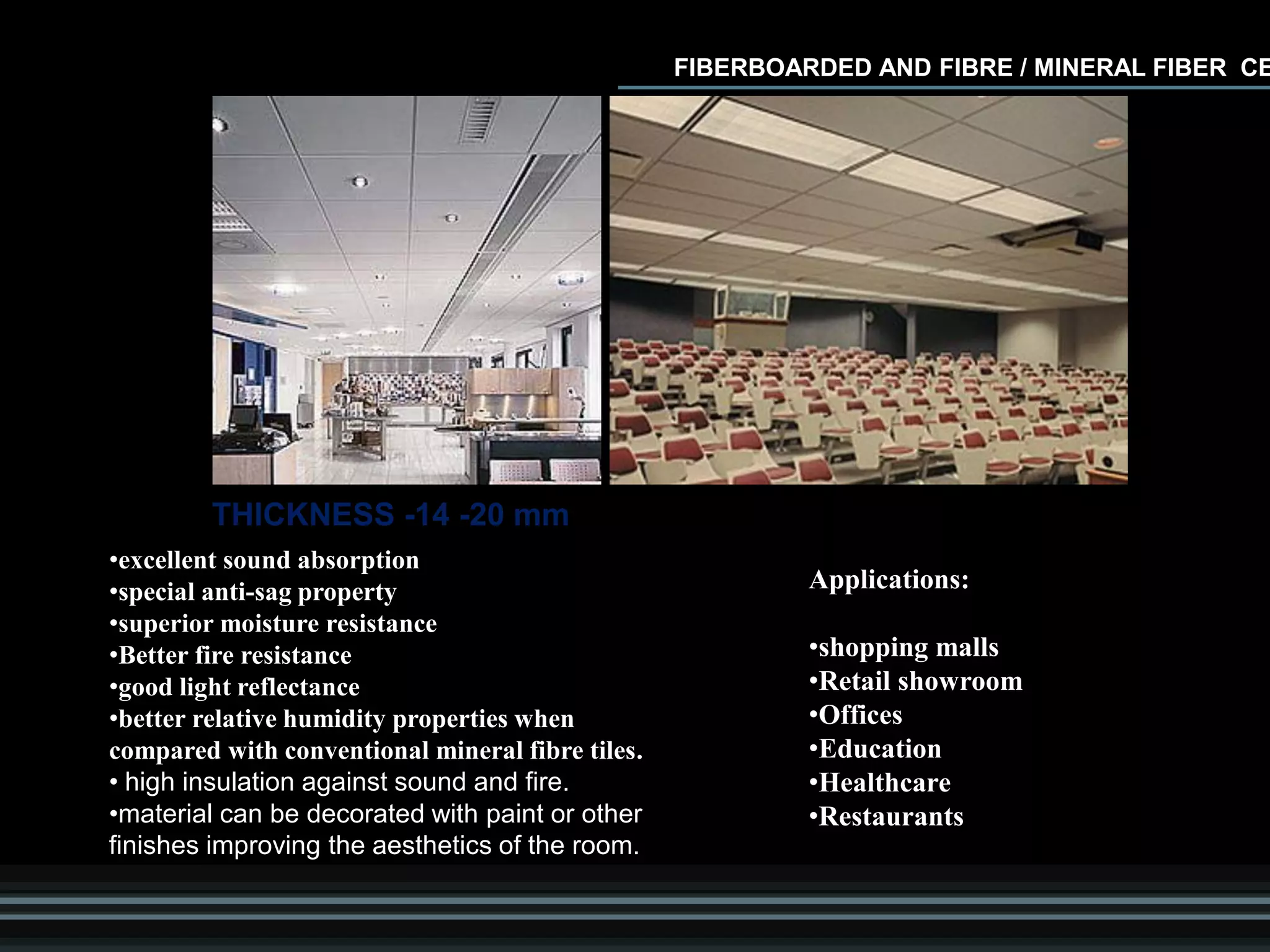

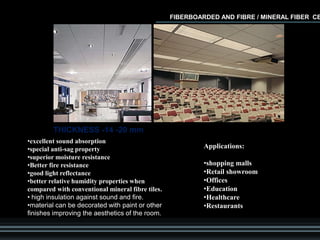

3. FIBREBOARED AND FIBRE/MINRAL REINFORCED TILES

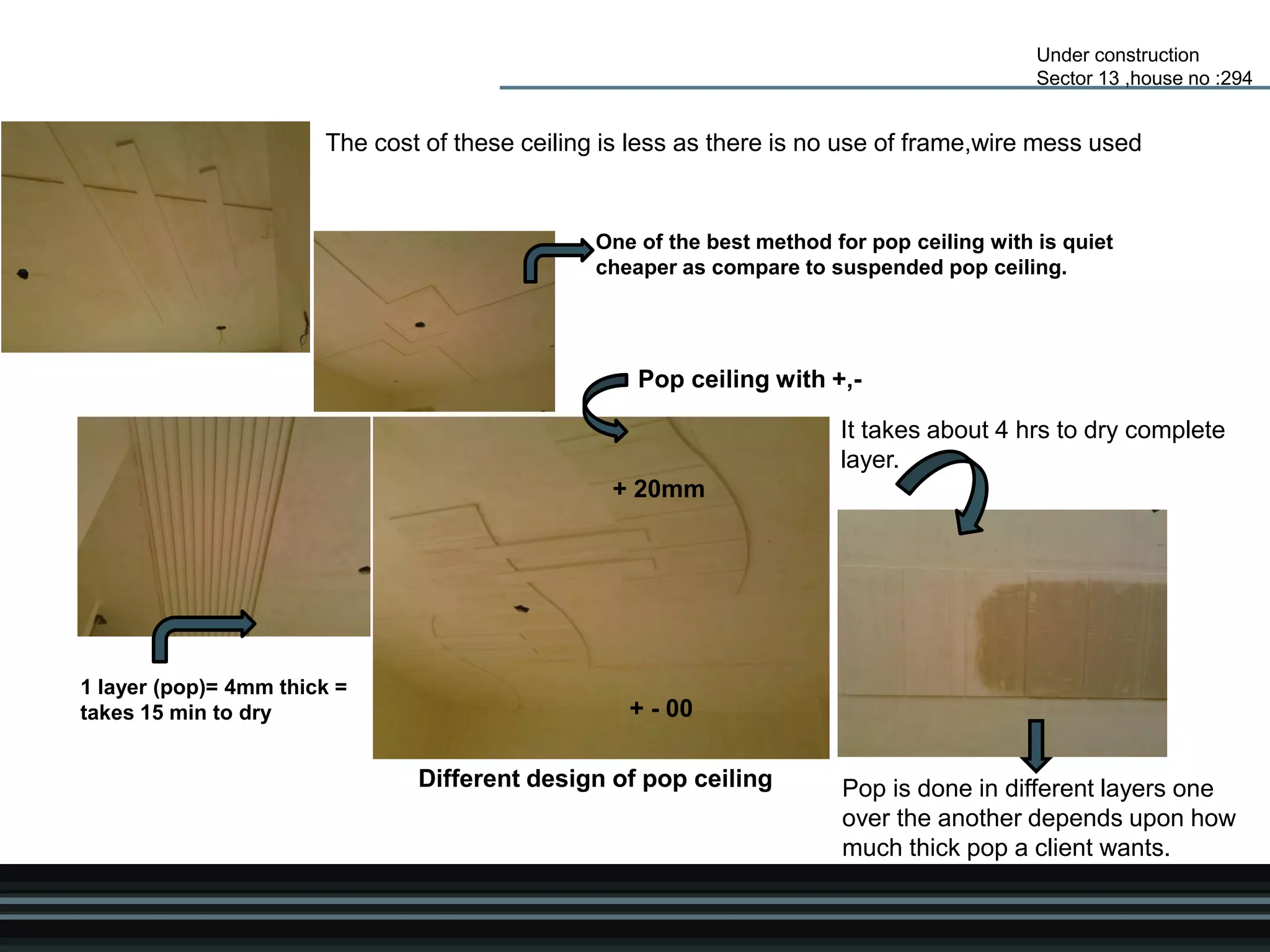

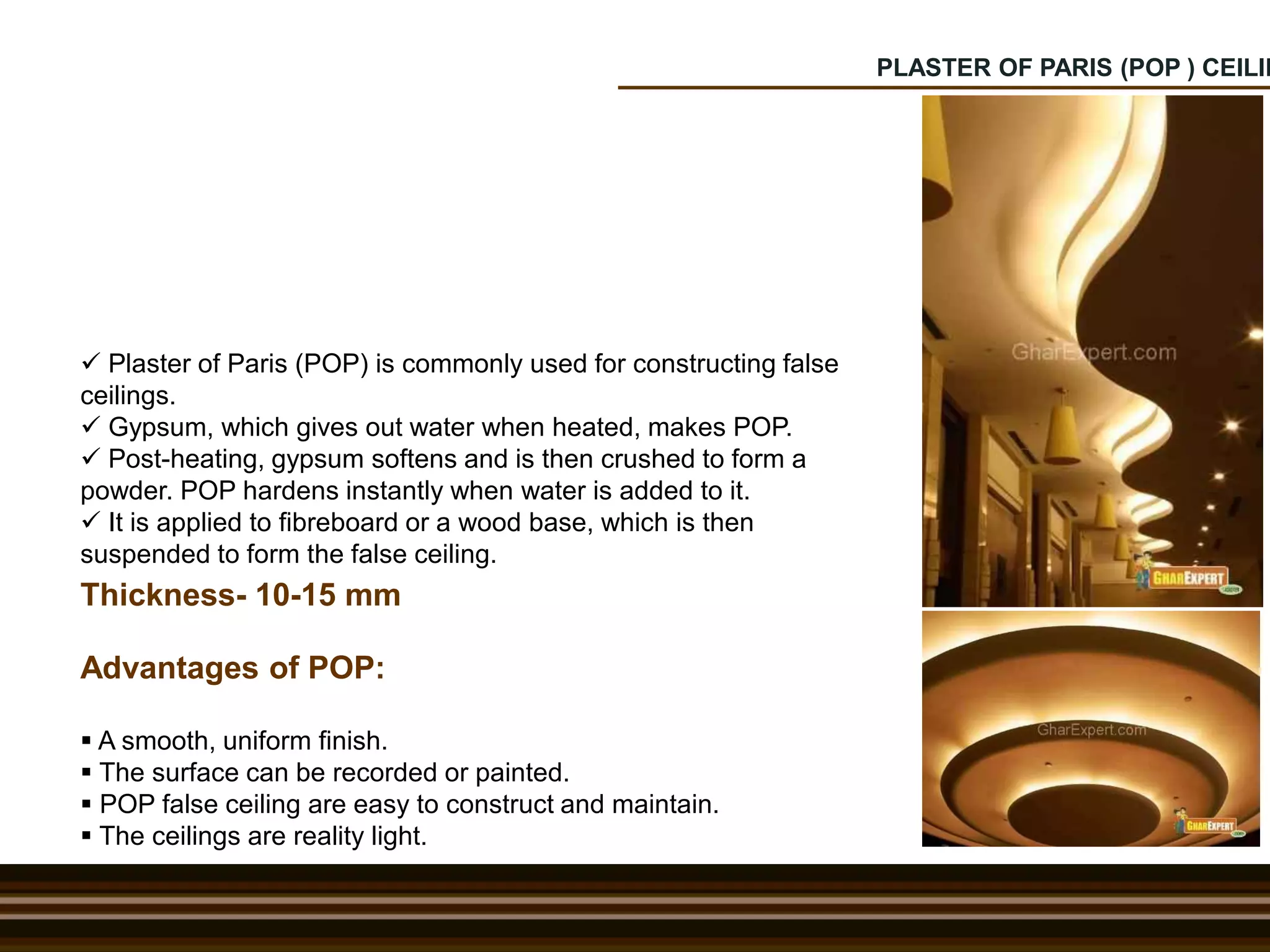

4. P.O.P. FALSE CEILING

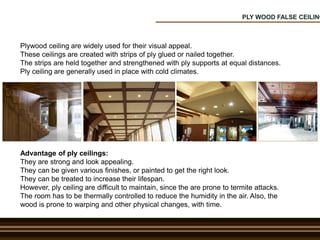

5. PLYWOOD FALSE CEILING

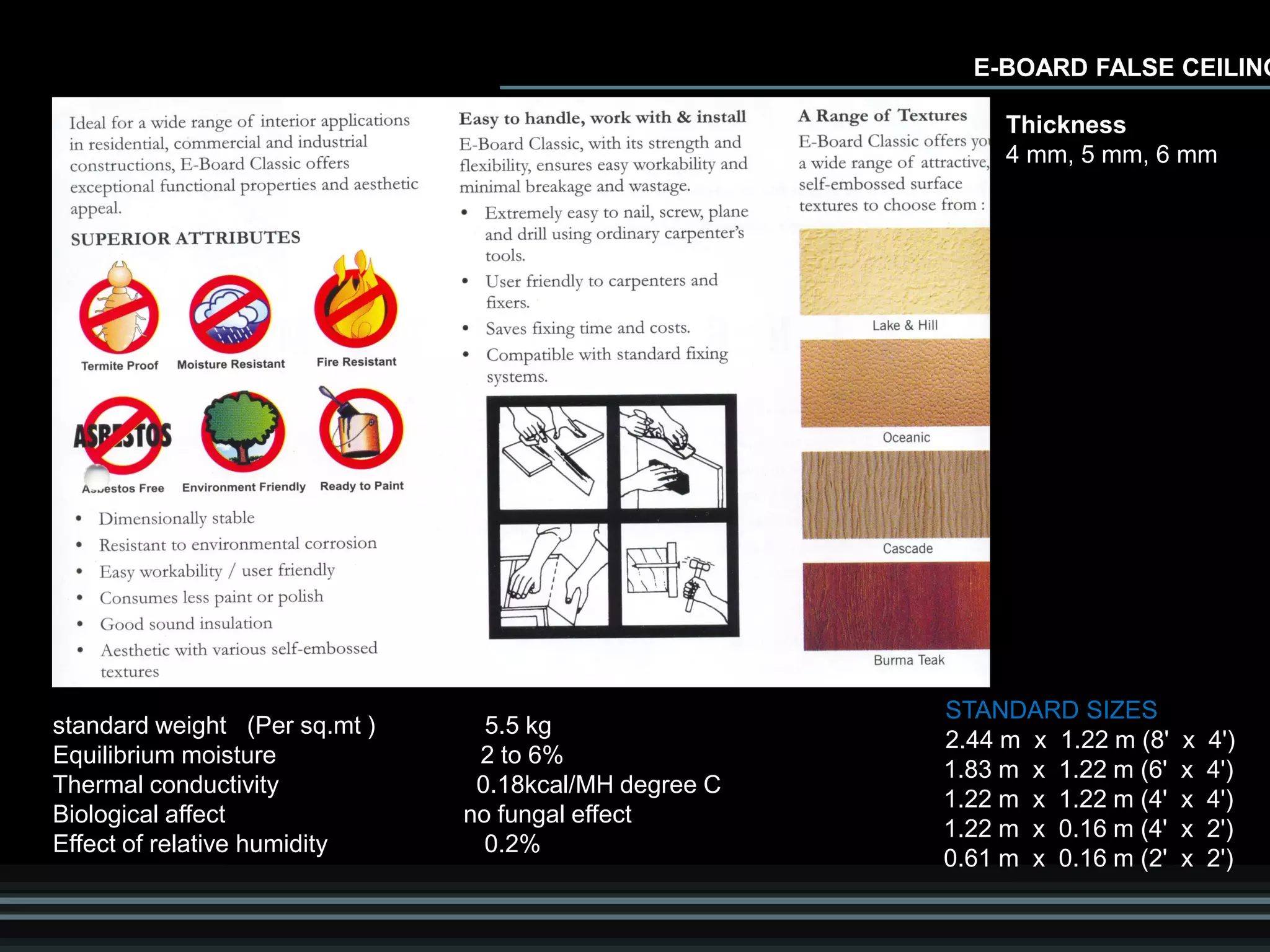

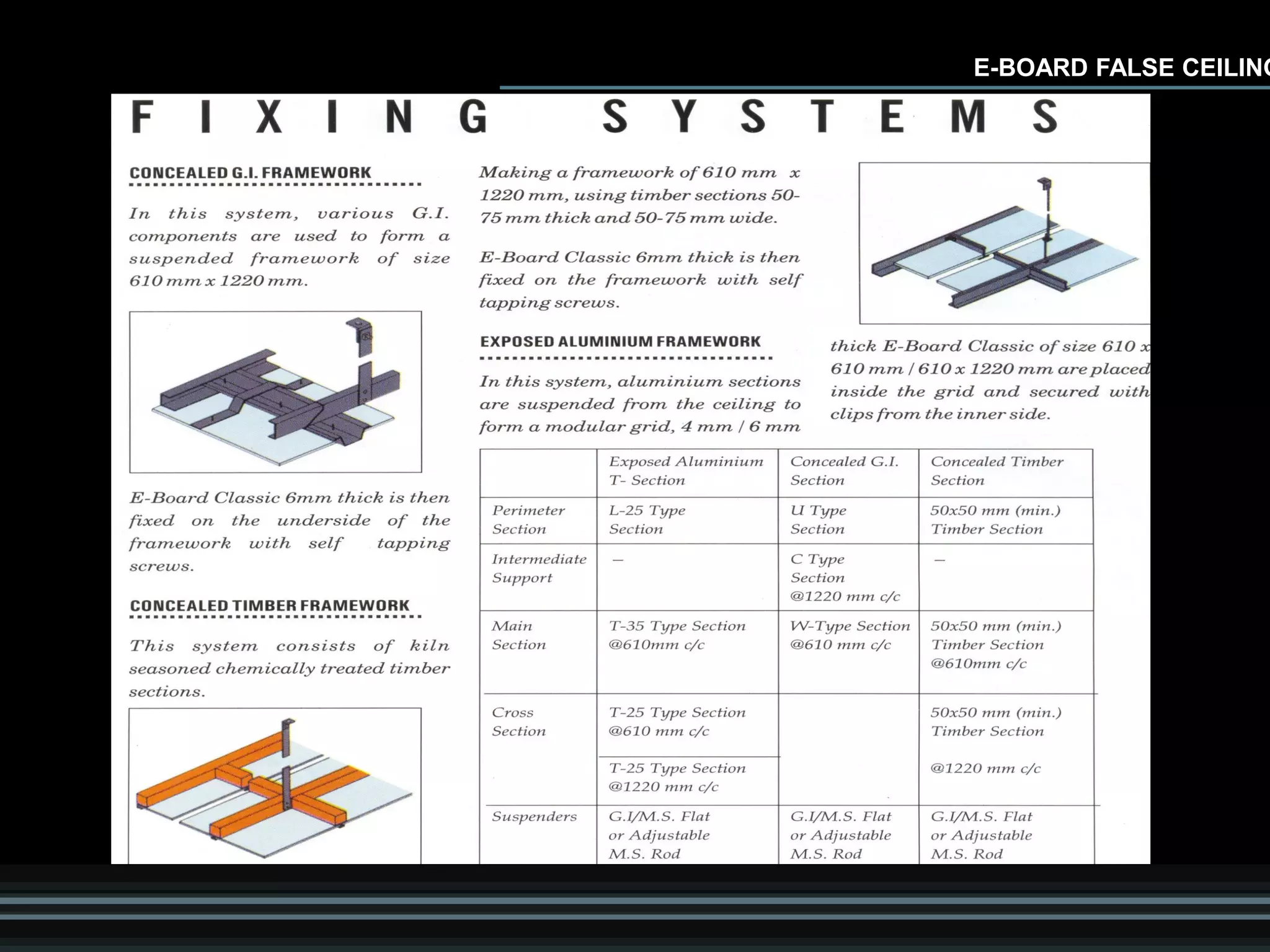

6. E-BOARD FALSE CEILING

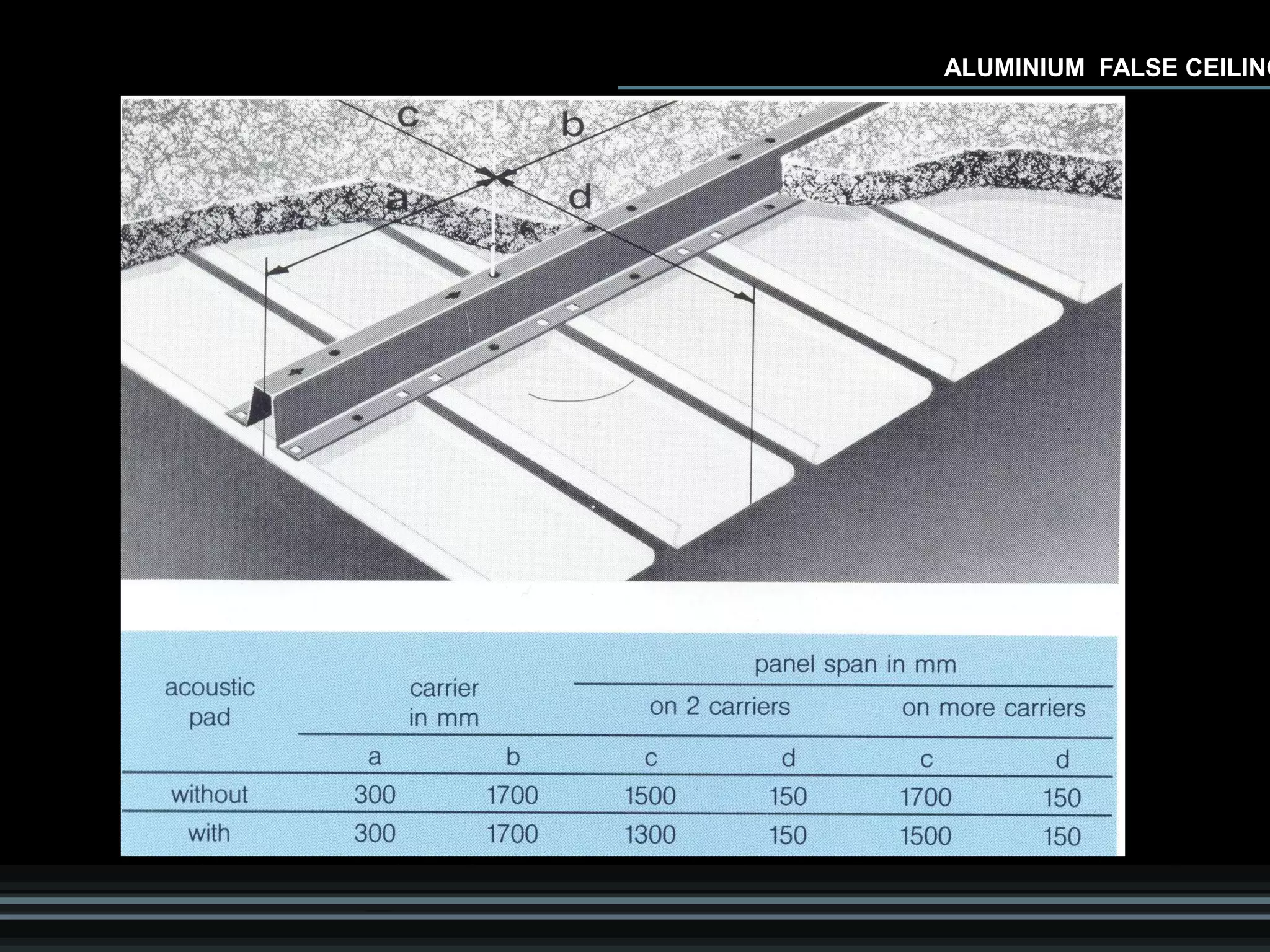

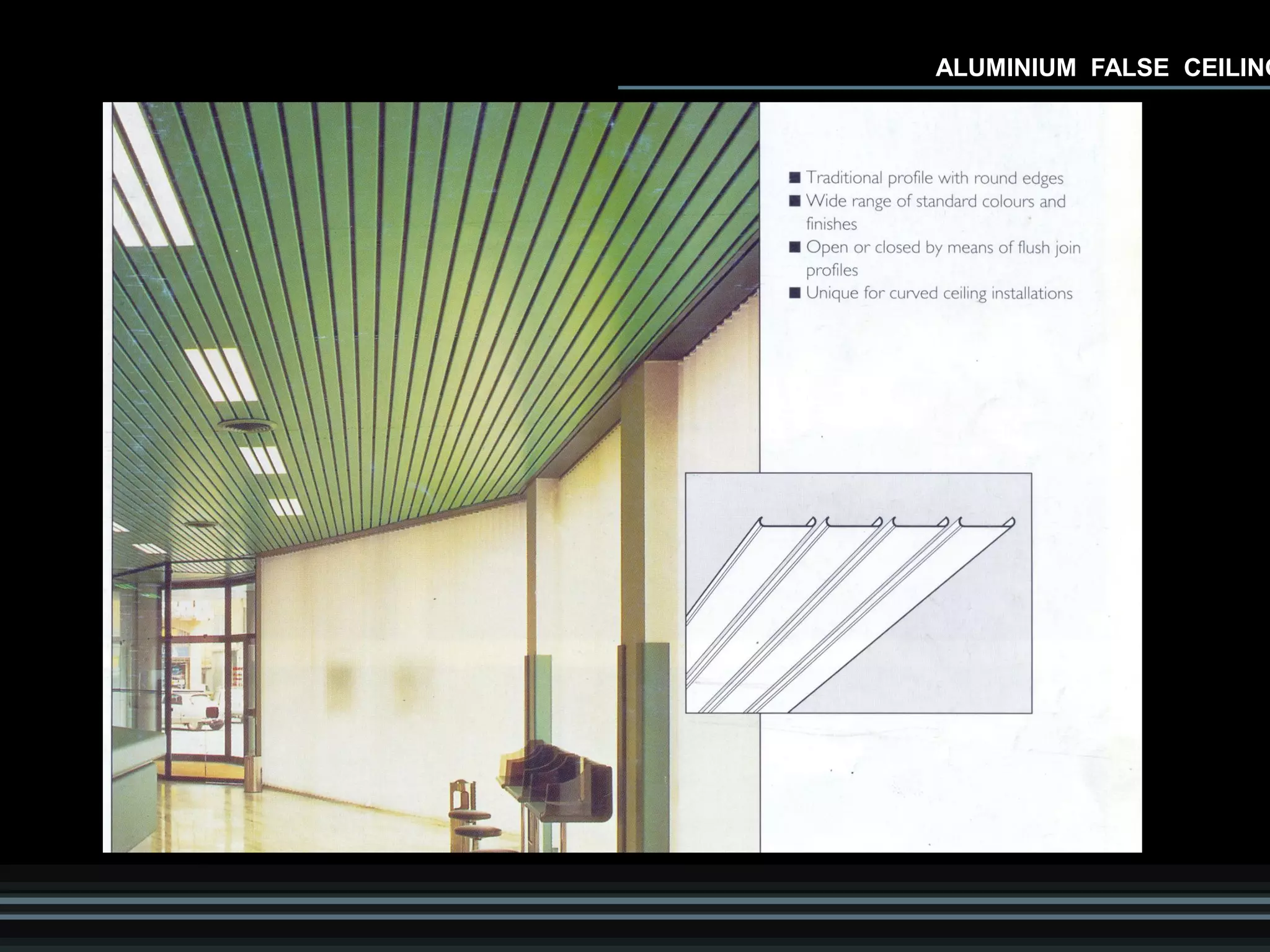

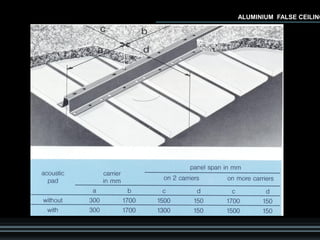

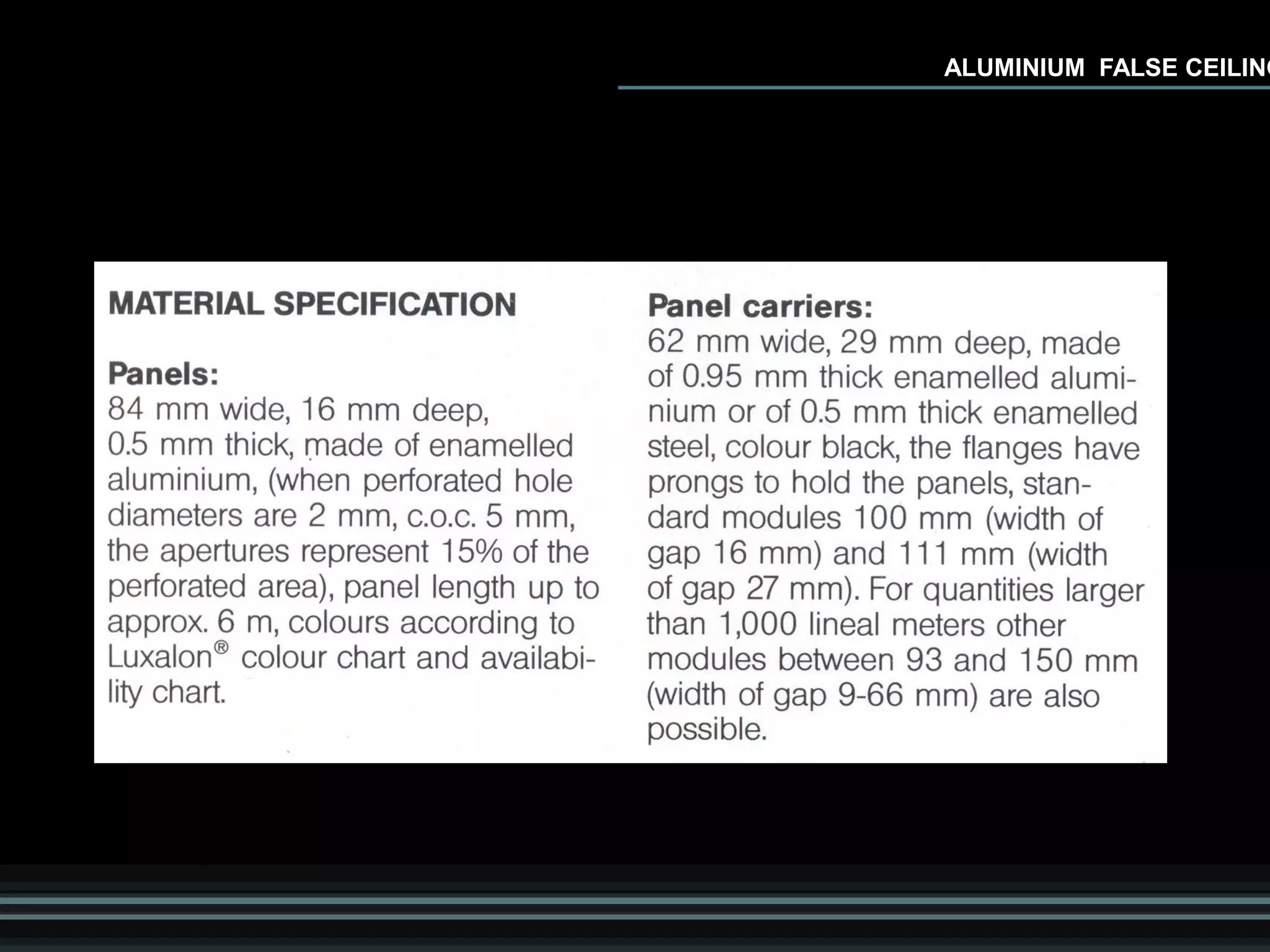

7. ALLUMINIUM CEILING

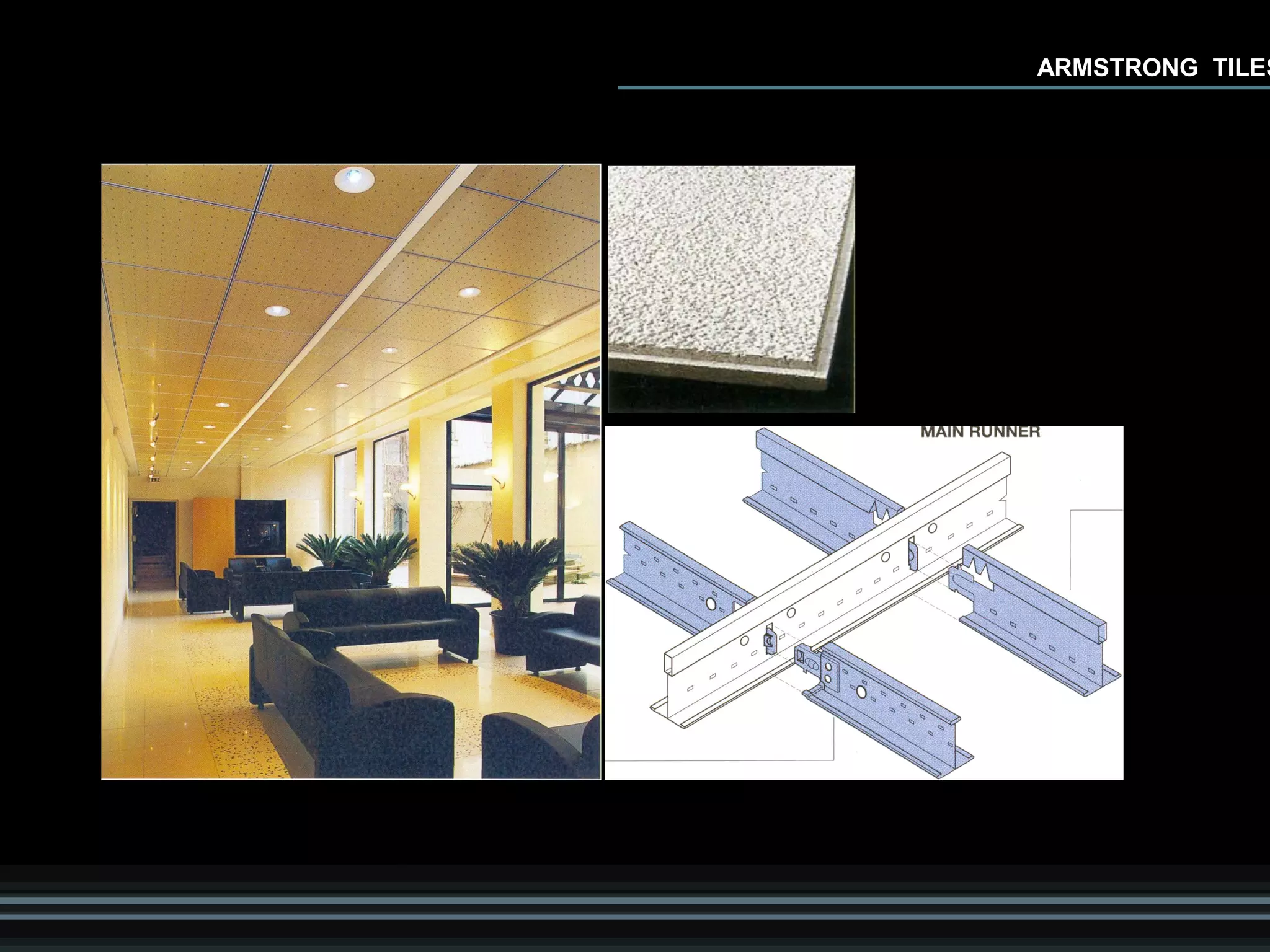

8. ARMSTRONG TILES FALSE CEILING
FALSE CEILING TYPE : MATERIA

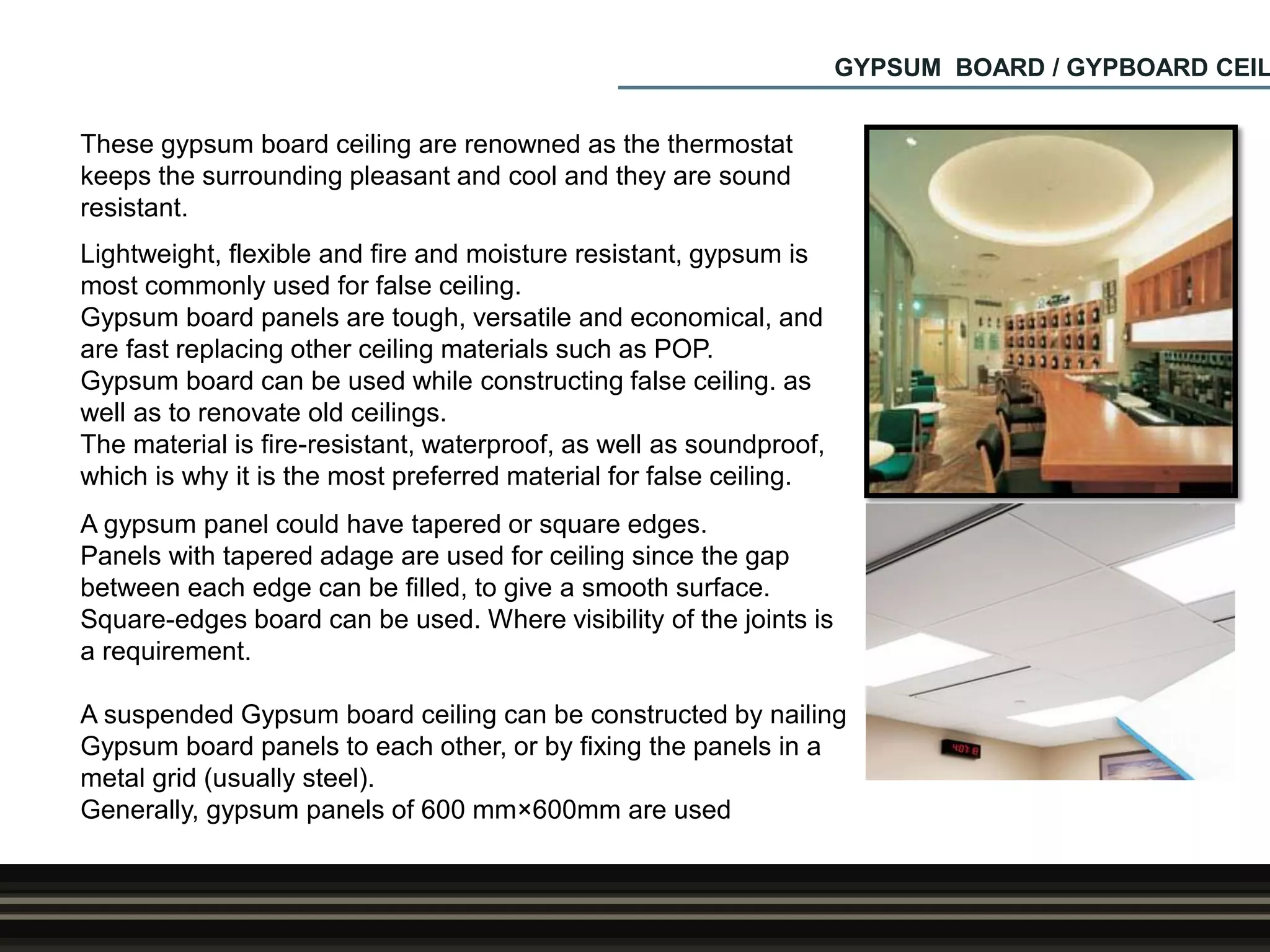

16. GYPSUM BOARD / GYPBOARD CEIL
These gypsum board ceiling are renowned as the thermostat
keeps the surrounding pleasant and cool and they are sound
resistant.
Lightweight, flexible and fire and moisture resistant, gypsum is
most commonly used for false ceiling.
Gypsum board panels are tough, versatile and economical, and
are fast replacing other ceiling materials such as POP.
Gypsum board can be used while constructing false ceiling. as
well as to renovate old ceilings.
The material is fire-resistant, waterproof, as well as soundproof,
which is why it is the most preferred material for false ceiling.
A gypsum panel could have tapered or square edges.
Panels with tapered adage are used for ceiling since the gap
between each edge can be filled, to give a smooth surface.
Square-edges board can be used. Where visibility of the joints is
a requirement.
A suspended Gypsum board ceiling can be constructed by nailing
Gypsum board panels to each other, or by fixing the panels in a
metal grid (usually steel).
Generally, gypsum panels of 600 mm×600mm are used.

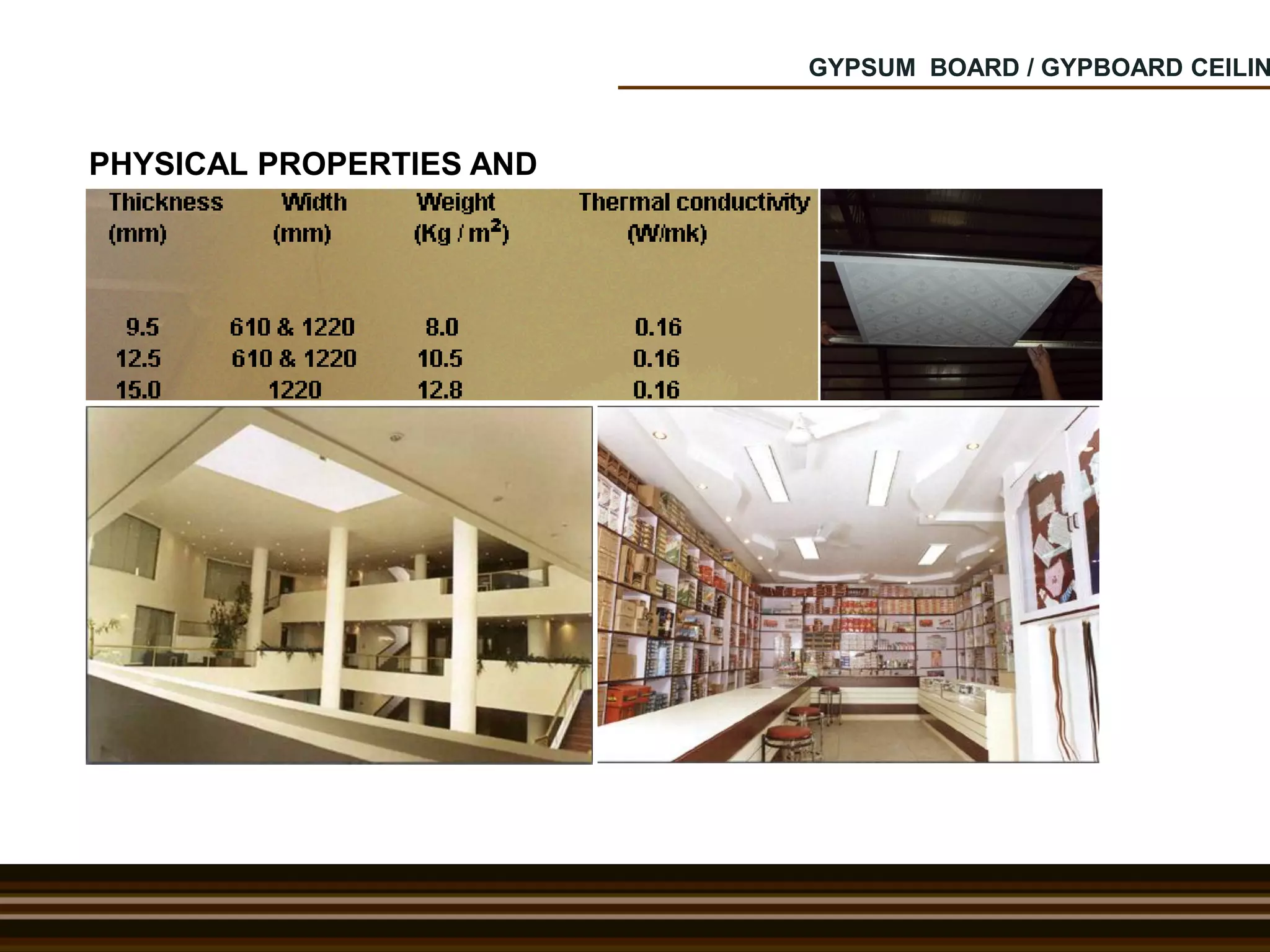

17. GYPSUM BOARD / GYPBOARD CEILIN
PHYSICAL PROPERTIES AND
PERFORMANCE

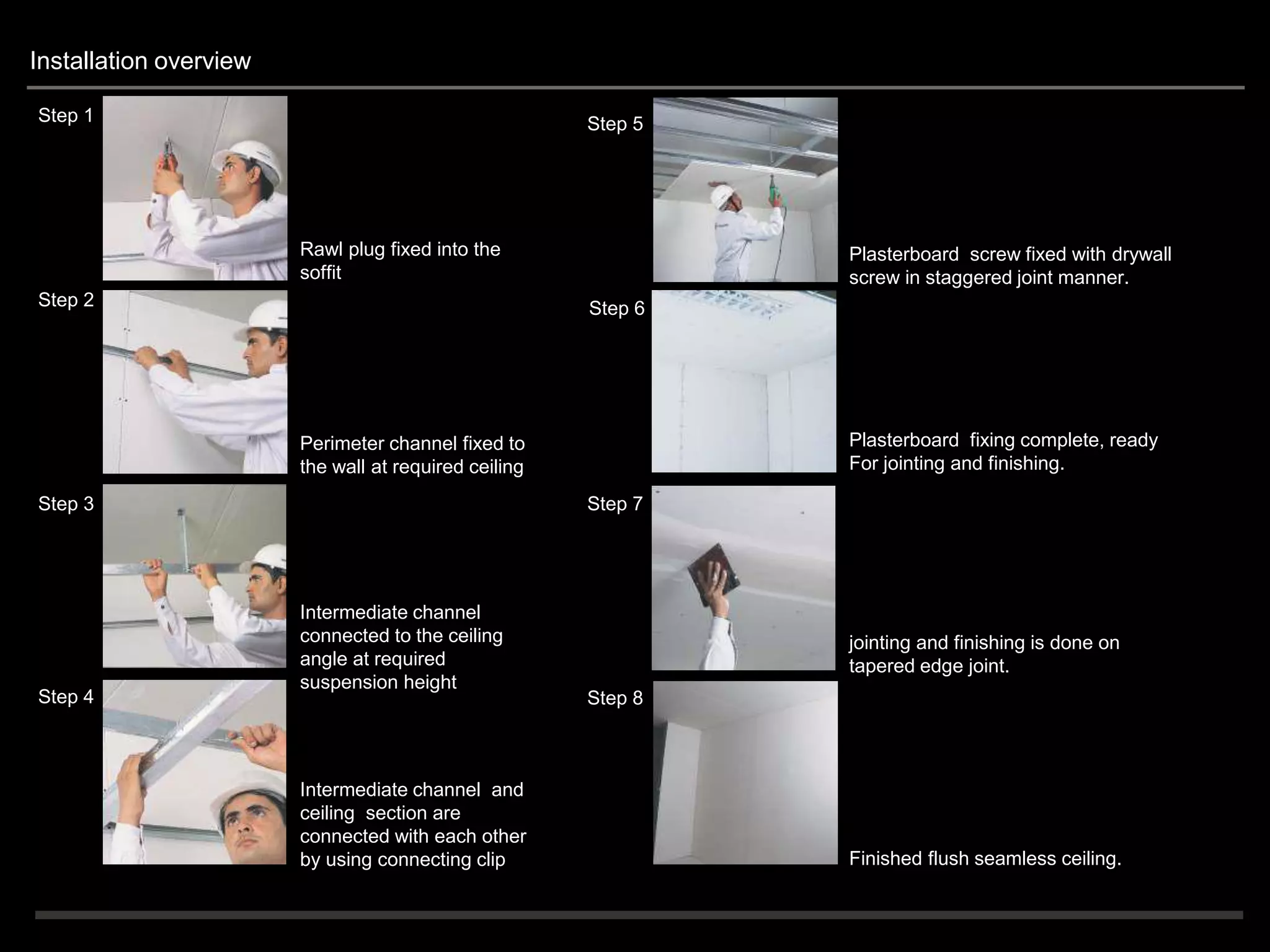

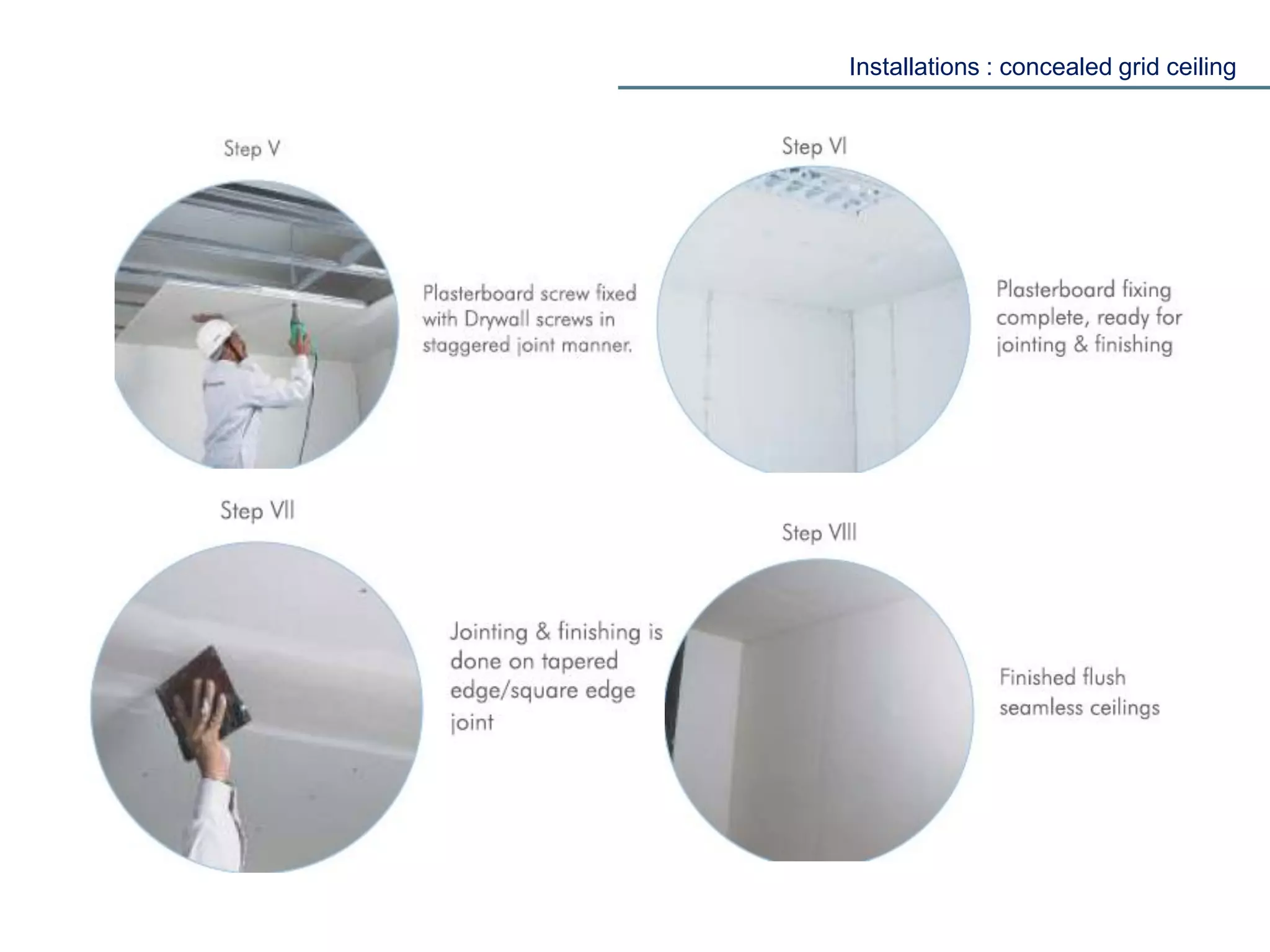

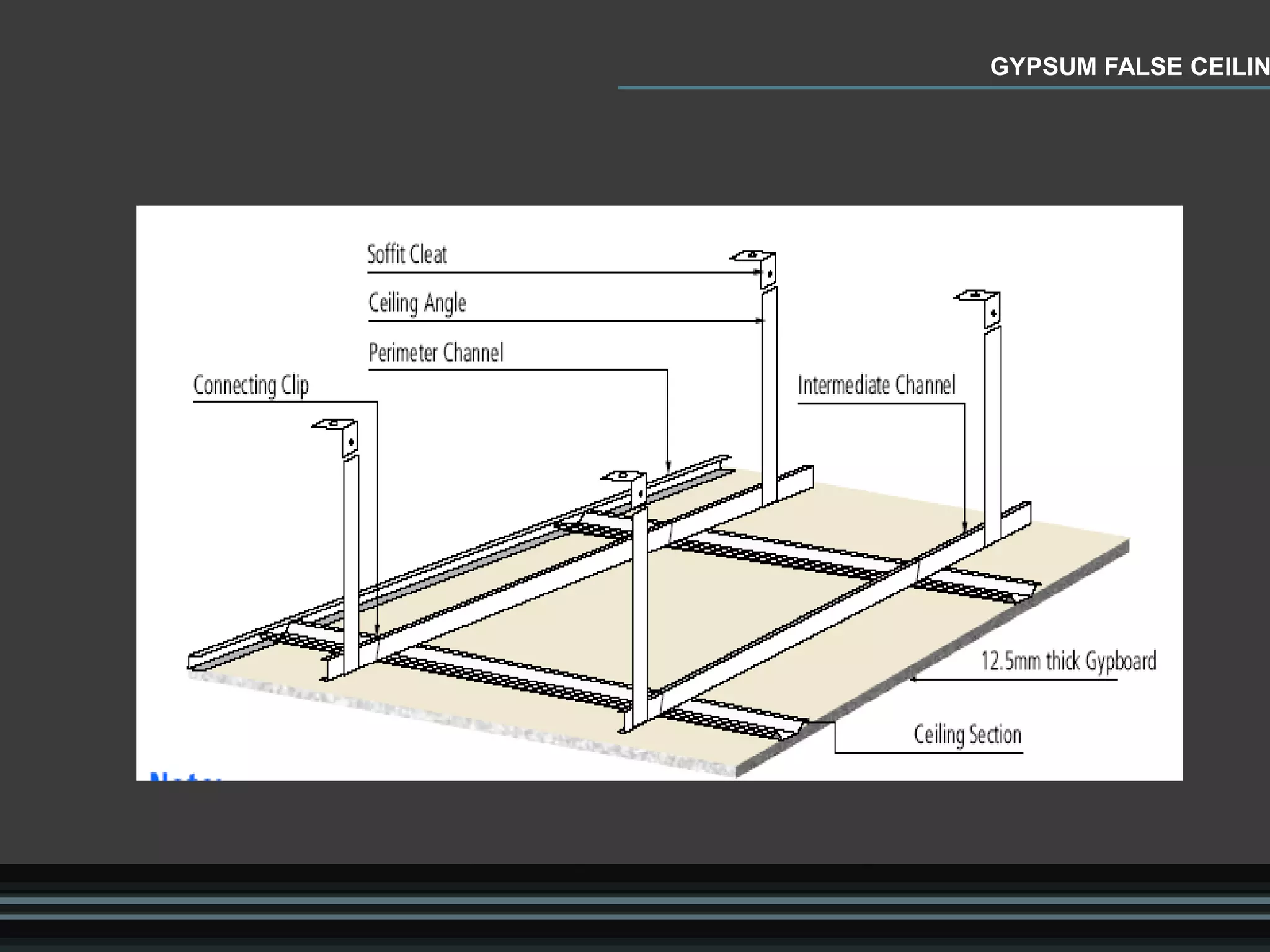

18. Installation overview
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
Step 8
Rawl plug fixed into the
soffit
Perimeter channel fixed to
the wall at required ceiling
Intermediate channel
connected to the ceiling
angle at required
suspension height
Intermediate channel and
ceiling section are
connected with each other
by using connecting clip
Plasterboard screw fixed with drywall
screw in staggered joint manner.
Plasterboard fixing complete, ready
For jointing and finishing.
jointing and finishing is done on
tapered edge joint.
Finished flush seamless ceiling.

19. GYPSUM FALSE CEILIN

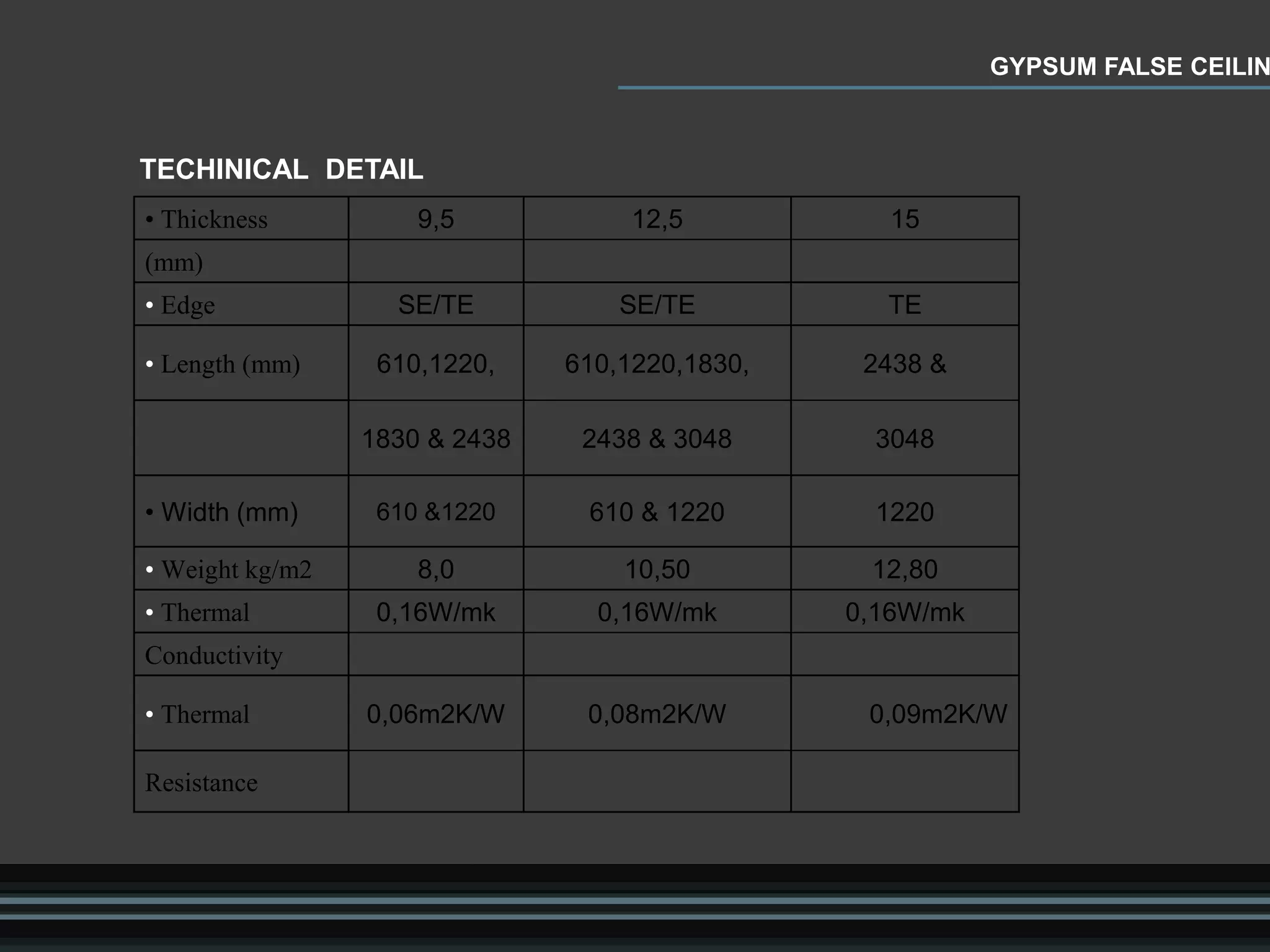

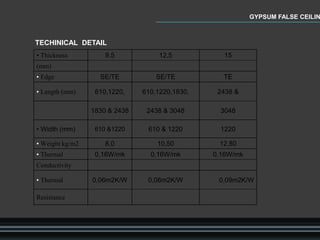

20. • Thickness 9,5 12,5 15
(mm)
• Edge SE/TE SE/TE TE
• Length (mm) 610,1220, 610,1220,1830, 2438 &
1830 & 2438 2438 & 3048 3048
• Width (mm) 610 &1220 610 & 1220 1220
• Weight kg/m2 8,0 10,50 12,80
• Thermal 0,16W/mk 0,16W/mk 0,16W/mk
Conductivity
• Thermal 0,06m2K/W 0,08m2K/W 0,09m2K/W
Resistance
GYPSUM FALSE CEILIN
TECHINICAL DETAIL

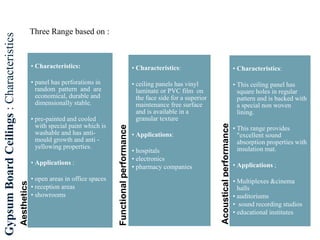

21. Three Range based on :
Aesthetics
• Characteristics:
• panel has perforations in
random pattern and are
economical, durable and
dimensionally stable.
• pre-painted and cooled
with special paint which is
washable and has anti-
mould growth and anti -
yellowing properties.
• Applications :
• open areas in office spaces
• reception areas
• showrooms
Functionalperformance
• Characteristics:
• ceiling panels has vinyl
laminate or PVC film on
the face side for a superior
maintenance free surface
and is available in a
granular texture
• Applications:
• hospitals
• electronics
• pharmacy companies
Acousticalperformance
• Characteristics:
• This ceiling panel has
square holes in regular
pattern and is backed with
a special non woven
lining.
• This range provides
"excellent sound
absorption properties with
insulation mat.
• Applications ;
• Multiplexes &cinema
halls
• auditoriums
• sound recording studios
• educational institutes
GypsumBoardCeilings:Characteristics

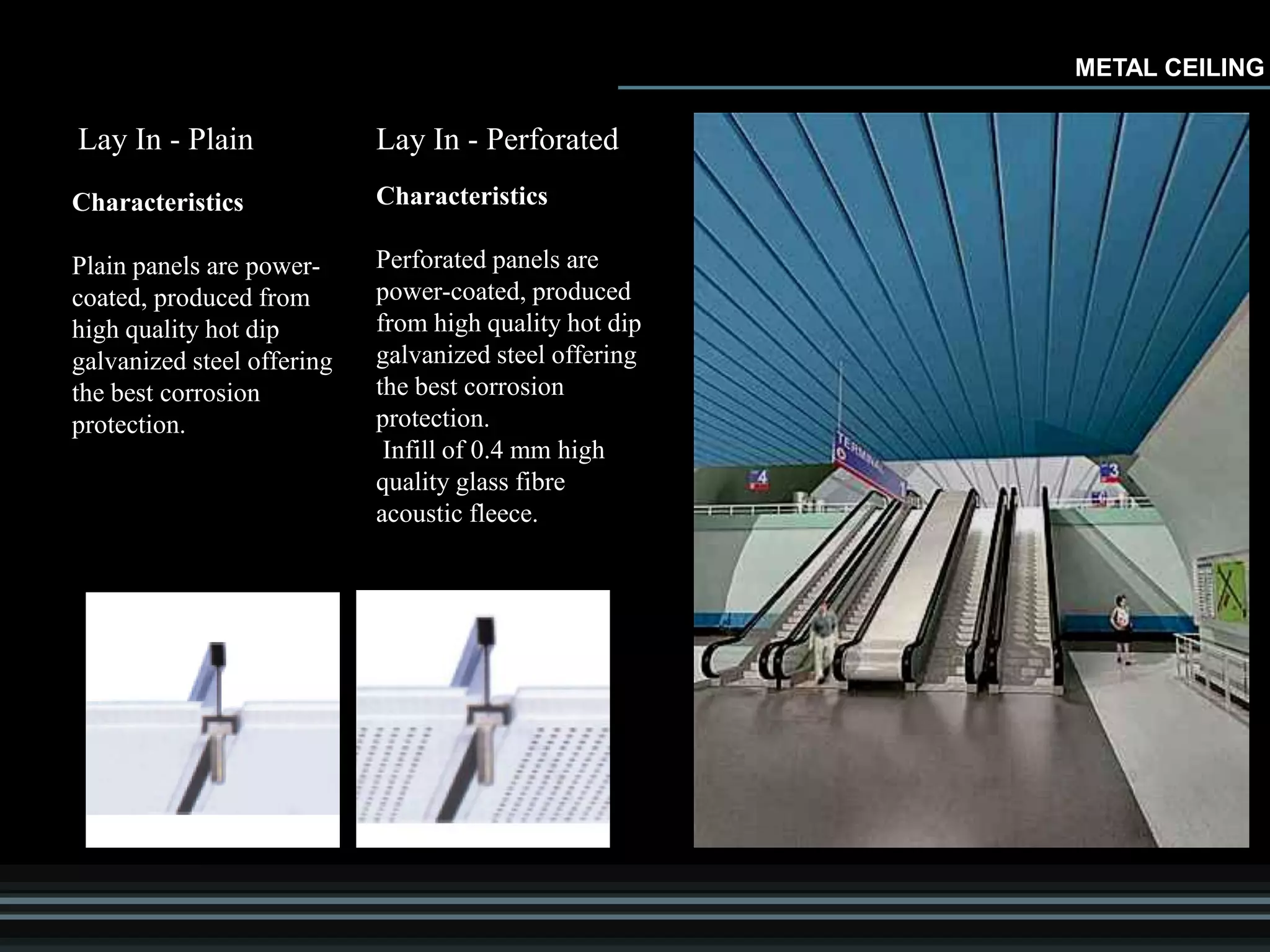

22. METAL CEILING
Lay In - Plain
Characteristics
Plain panels are power-
coated, produced from
high quality hot dip
galvanized steel offering
the best corrosion
protection.
Lay In - Perforated
Characteristics
Perforated panels are
power-coated, produced
from high quality hot dip
galvanized steel offering
the best corrosion
protection.
Infill of 0.4 mm high
quality glass fibre
acoustic fleece.

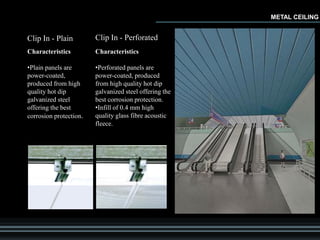

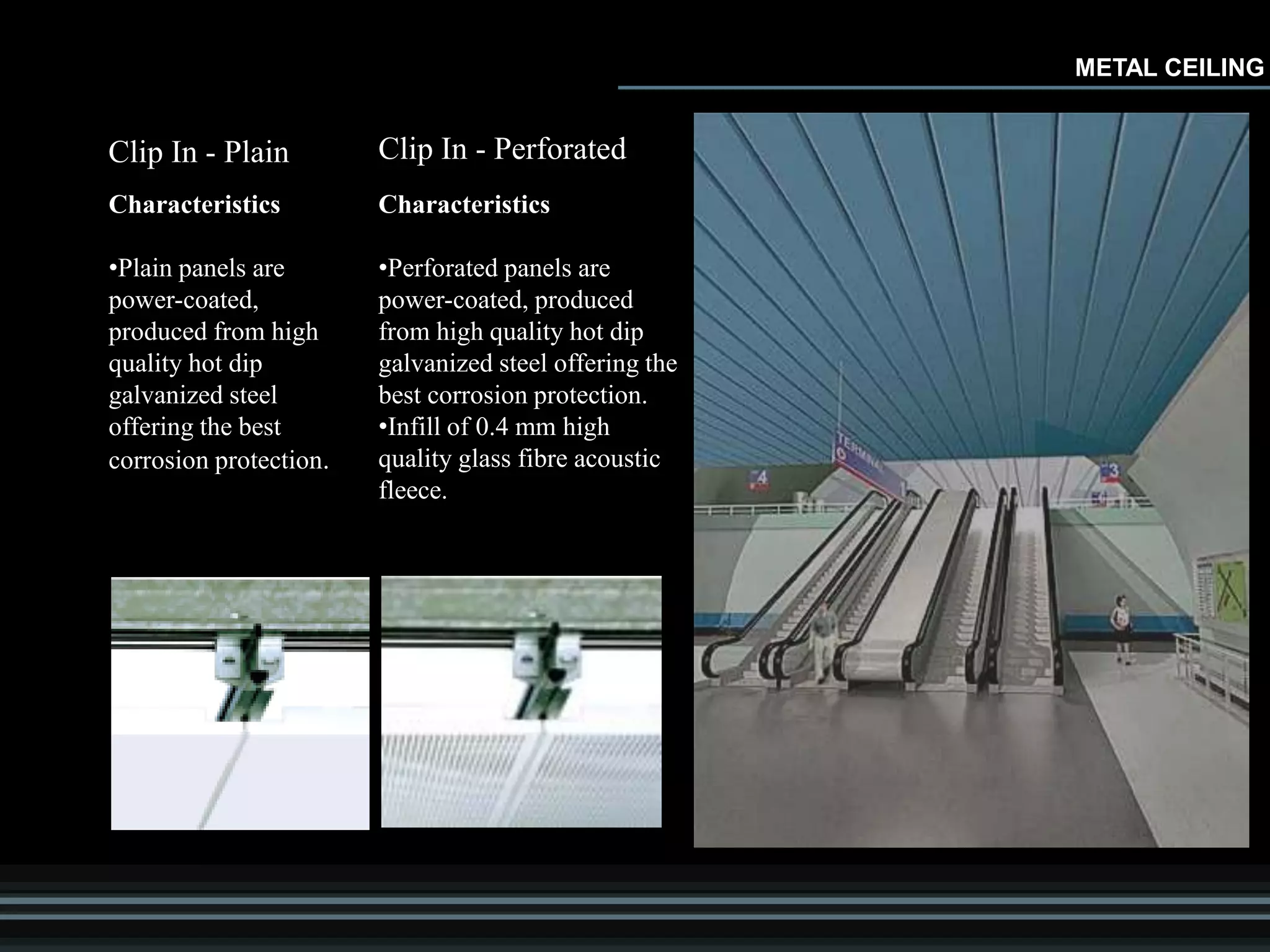

23. Clip In - Plain
Characteristics
•Plain panels are
power-coated,
produced from high
quality hot dip
galvanized steel
offering the best
corrosion protection.
Clip In - Perforated
Characteristics
•Perforated panels are
power-coated, produced
from high quality hot dip
galvanized steel offering the
best corrosion protection.
•Infill of 0.4 mm high
quality glass fibre acoustic
fleece.
METAL CEILING

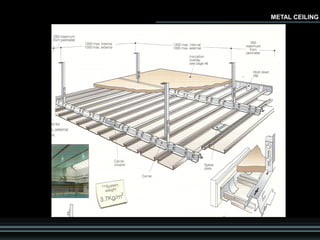

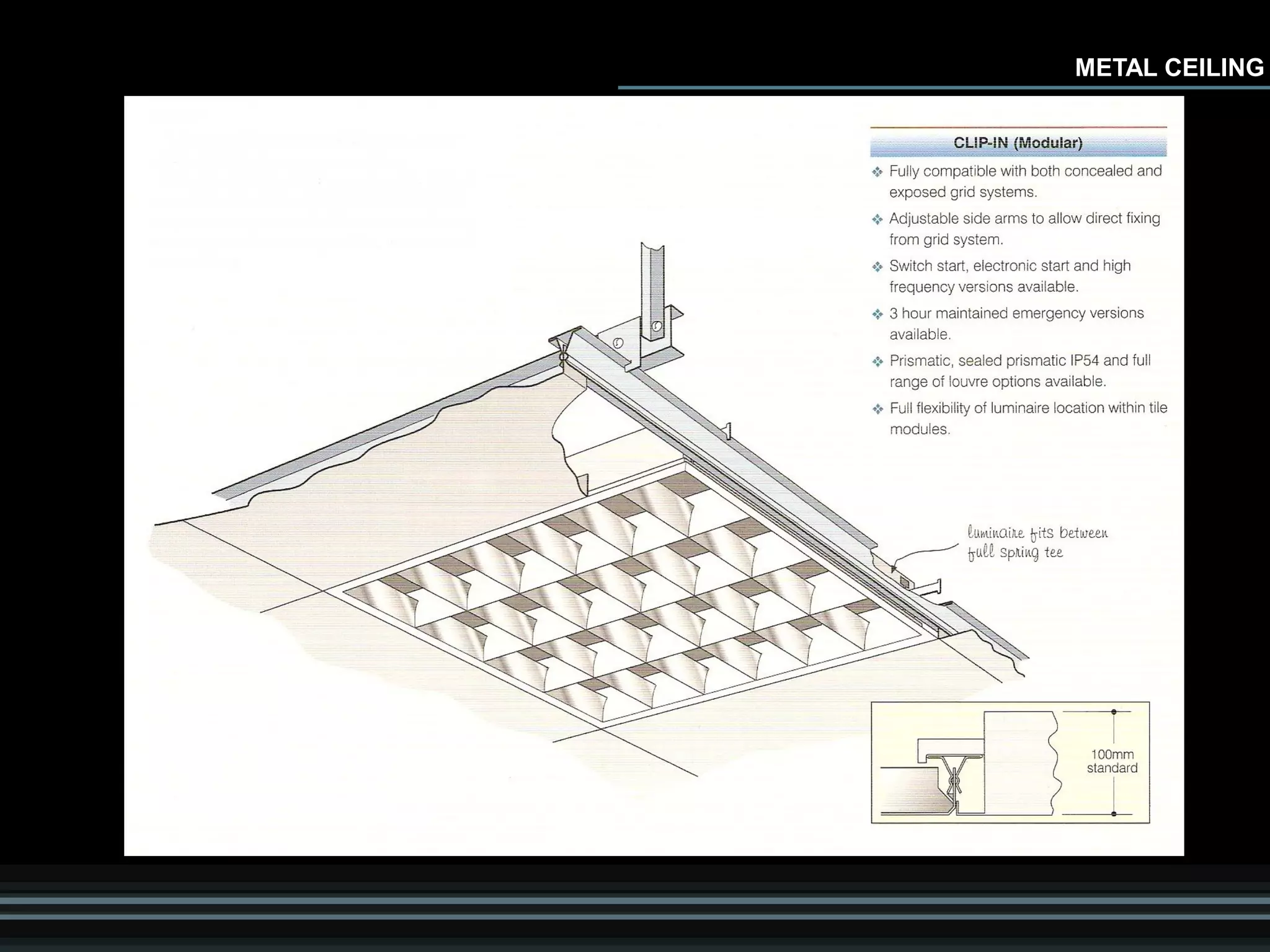

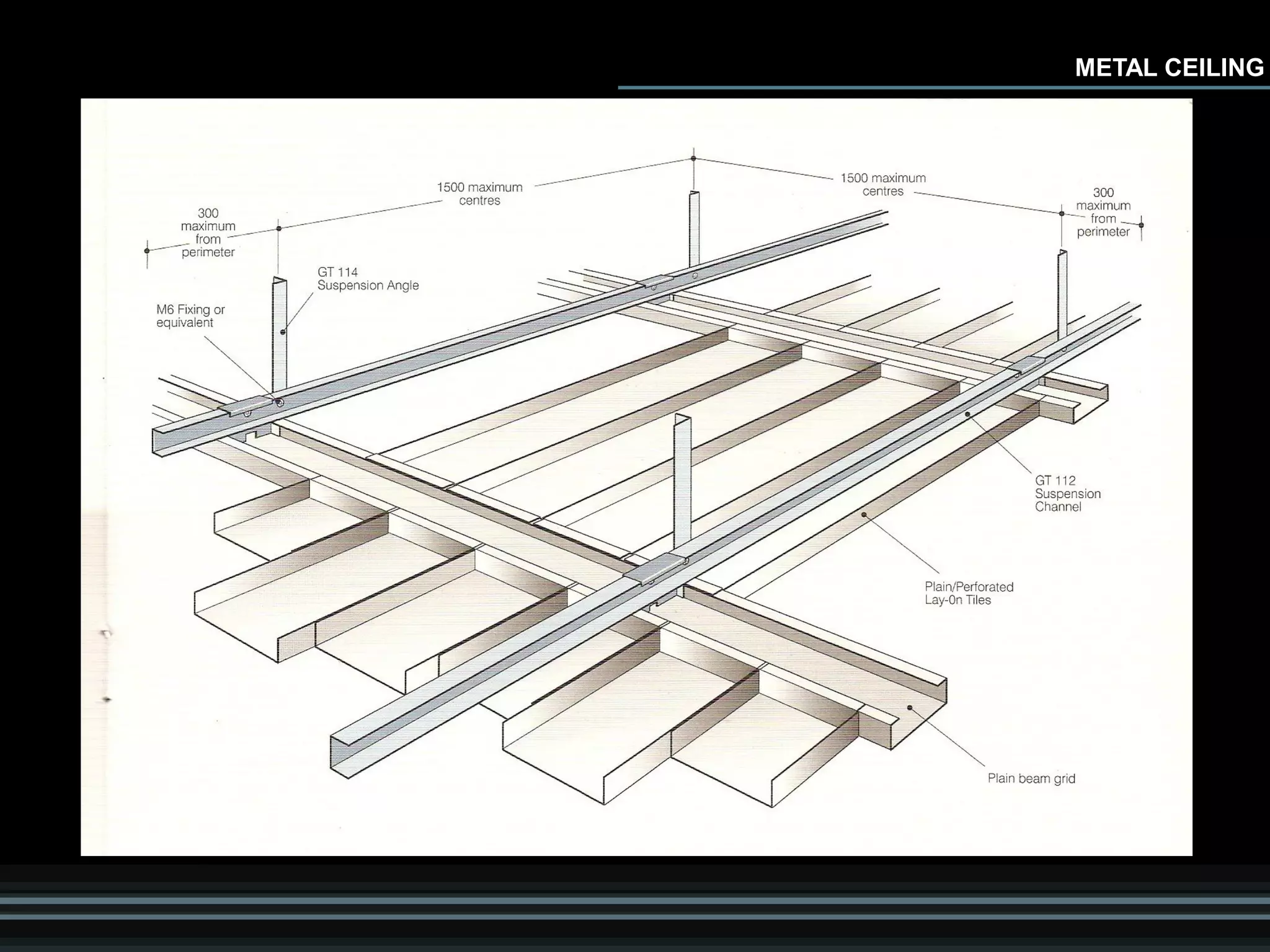

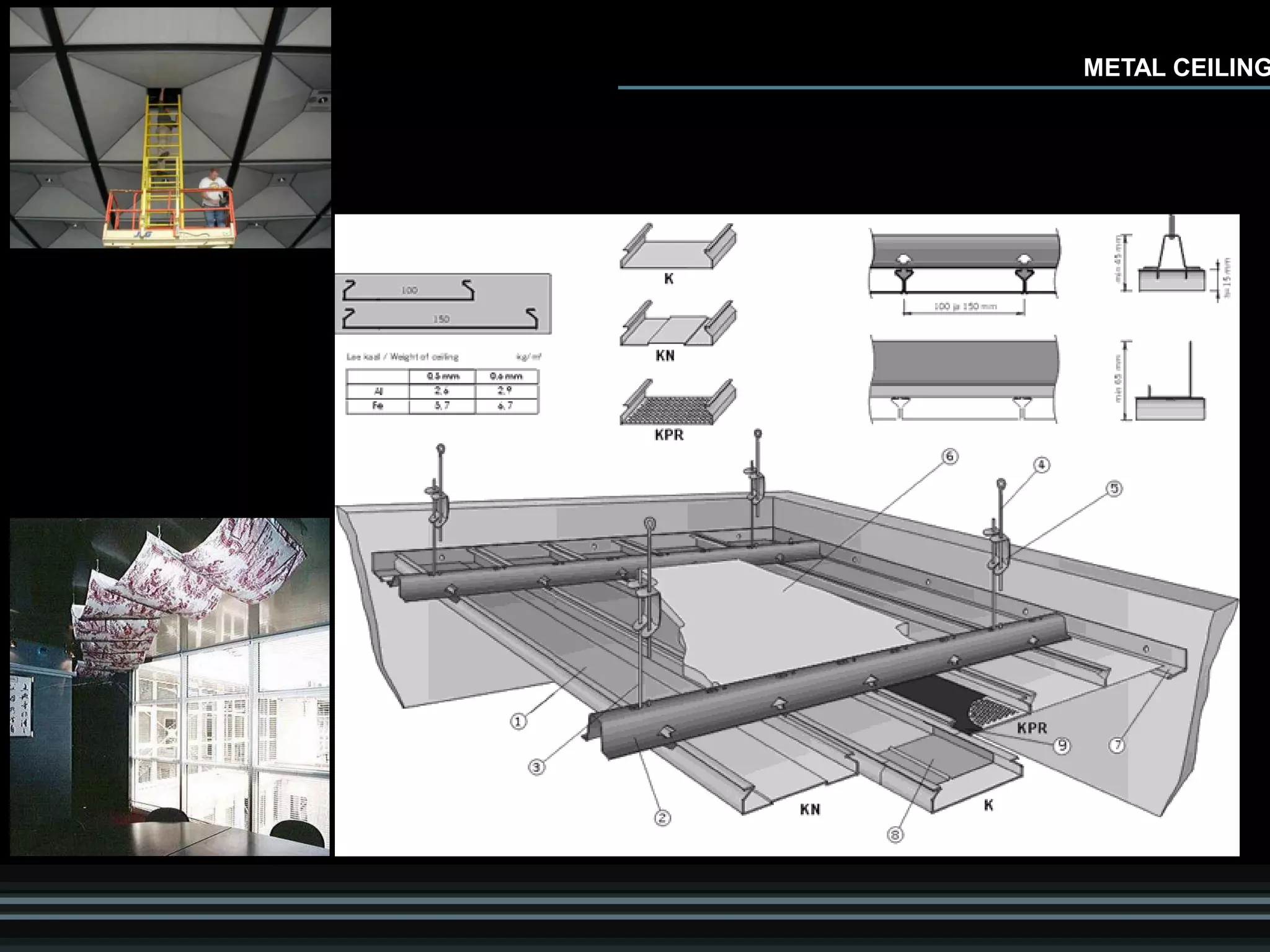

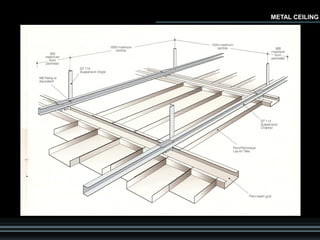

24. METAL CEILING

25. METAL CEILING

26. METAL CEILING

27. METAL CEILING

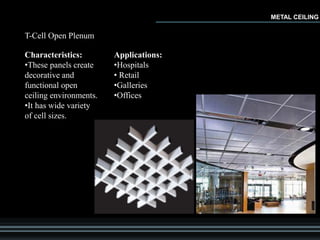

28. T-Cell Open Plenum
Characteristics:
•These panels create
decorative and
functional open
ceiling environments.
•It has wide variety
of cell sizes.
Applications:
•Hospitals
• Retail
•Galleries
•Offices
METAL CEILING

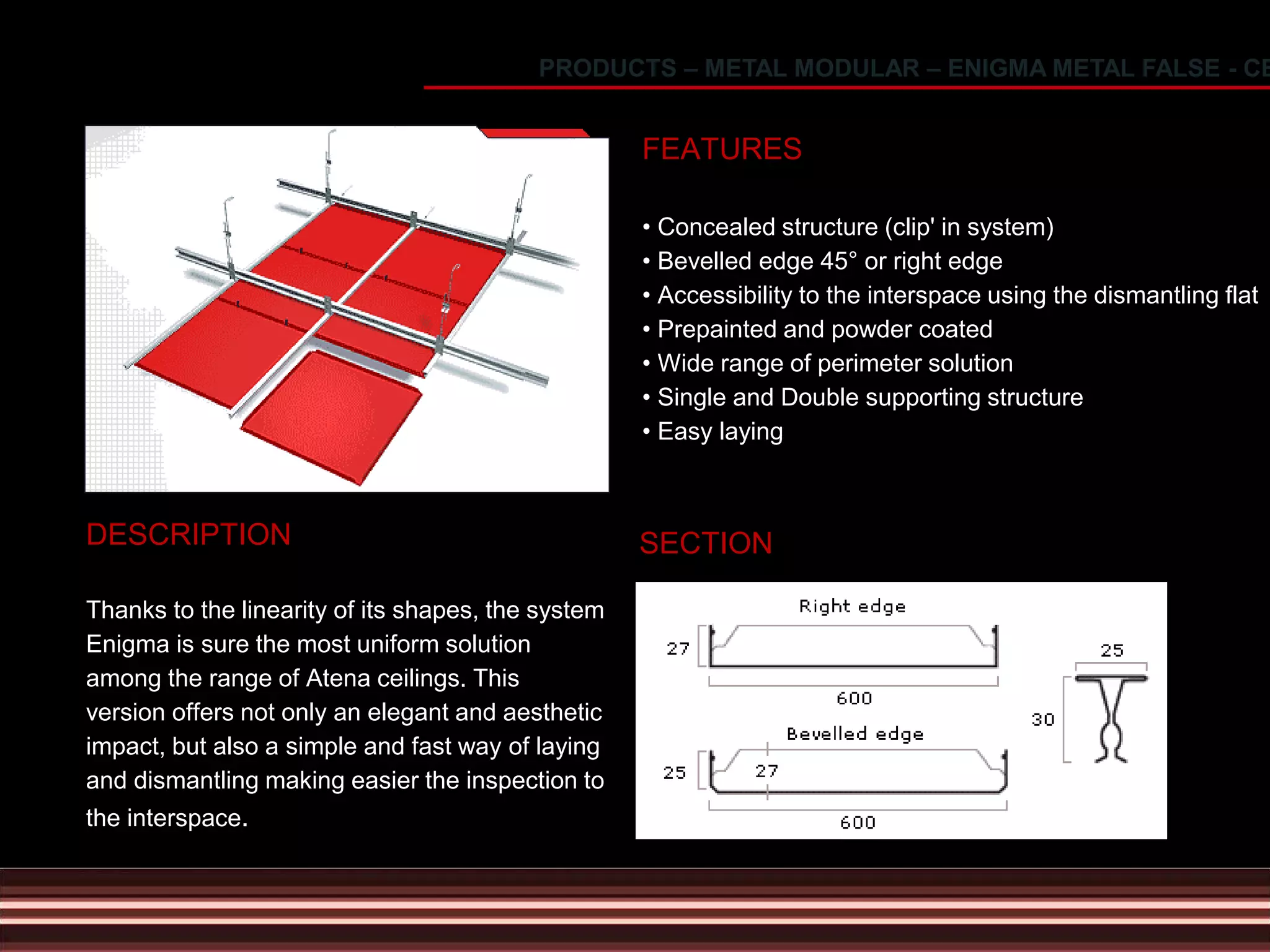

29. DESCRIPTION
Thanks to the linearity of its shapes, the system
Enigma is sure the most uniform solution
among the range of Atena ceilings. This
version offers not only an elegant and aesthetic
impact, but also a simple and fast way of laying
and dismantling making easier the inspection to
the interspace.
FEATURES
• Concealed structure (clip' in system)
• Bevelled edge 45° or right edge
• Accessibility to the interspace using the dismantling flat
• Prepainted and powder coated
• Wide range of perimeter solution
• Single and Double supporting structure
• Easy laying
SECTION
PRODUCTS – METAL MODULAR – ENIGMA METAL FALSE - CE

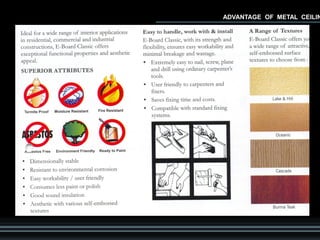

30. ADVANTAGE OF METAL CEILIN

31. METAL CEILING

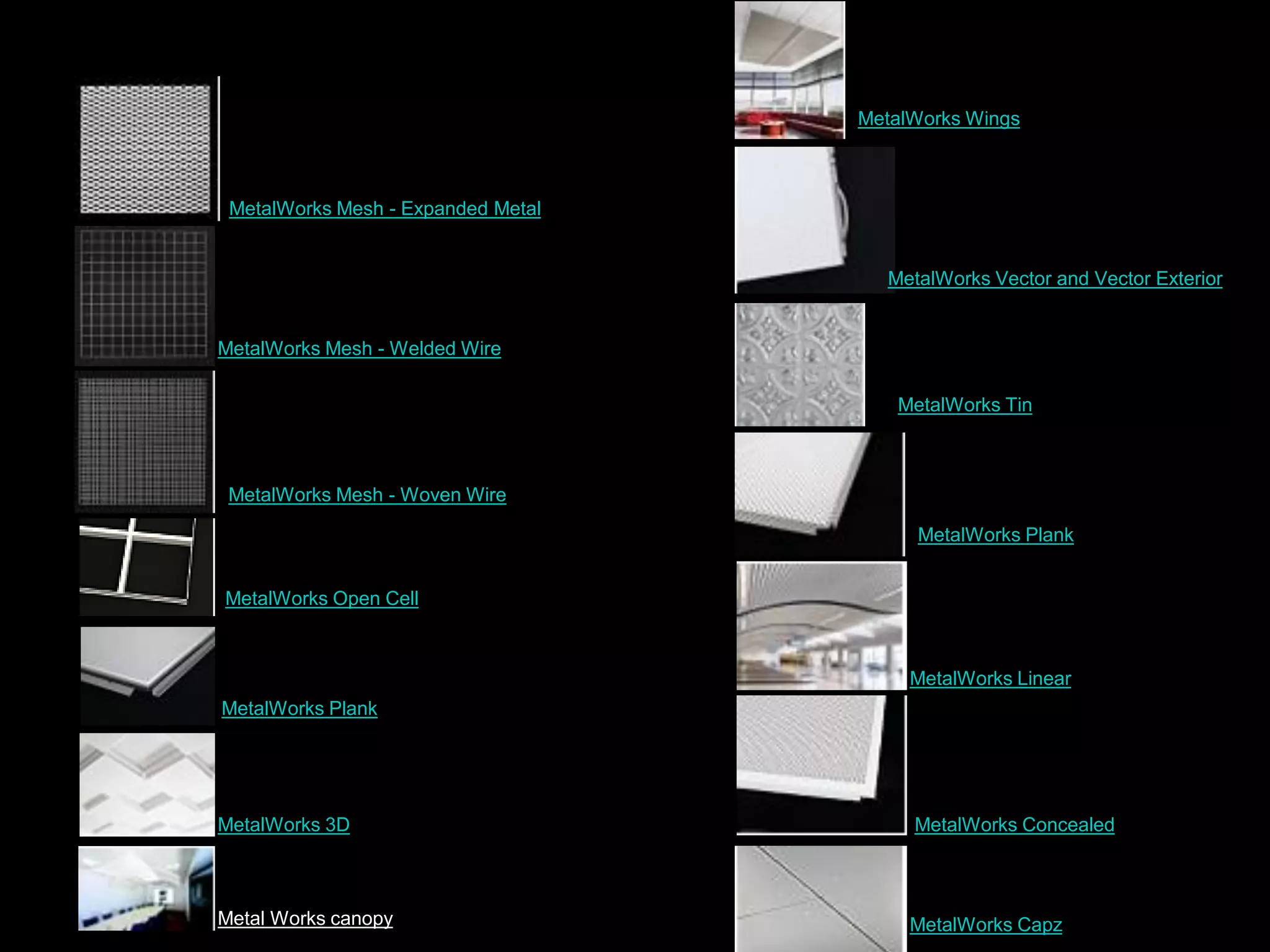

32. MetalWorks Mesh - Expanded Metal
MetalWorks Mesh - Welded Wire
MetalWorks Mesh - Woven Wire
MetalWorks Open Cell
MetalWorks Plank
MetalWorks 3D
Metal Works canopy MetalWorks Capz
MetalWorks Concealed
MetalWorks Linear
MetalWorks Wings
MetalWorks Vector and Vector Exterior
MetalWorks Tin
MetalWorks Plank

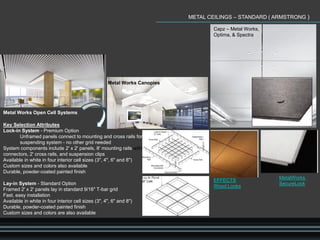

33. METAL CEILINGS – STANDARD ( ARMSTRONG )
Metal Works Open Cell Systems
Key Selection Attributes
Lock-in System - Premium Option
Unframed panels connect to mounting and cross rails for self-
suspending system - no other grid needed
System components include 2' x 2' panels, 8' mounting rails with
connectors, 2' cross rails, and suspension clips
Available in white in four interior cell sizes (3", 4", 6" and 8")
Custom sizes and colors also available
Durable, powder-coated painted finish
Lay-in System - Standard Option
Framed 2' x 2' panels lay in standard 9/16" T-bar grid
Fast, easy installation
Available in white in four interior cell sizes (3", 4", 6" and 8")
Durable, powder-coated painted finish
Custom sizes and colors are also available
Capz – Metal Works,
Optima, & Spectra
Metal Works Canopies
EFFECTS
Wood Looks
MetalWorks
SecureLock

34. Advantages of metal ceiling:
They reduce overall cost, since they are easy to install and access.
Hidden services can be easily accessed since the panels are removable.
They are ideal for workspaces which require clean environments and services that
require maintenance such as the machinery rooms, the AHU, etc.
They have a monolithic look.
They give the space a very modern look and blend well with glass.

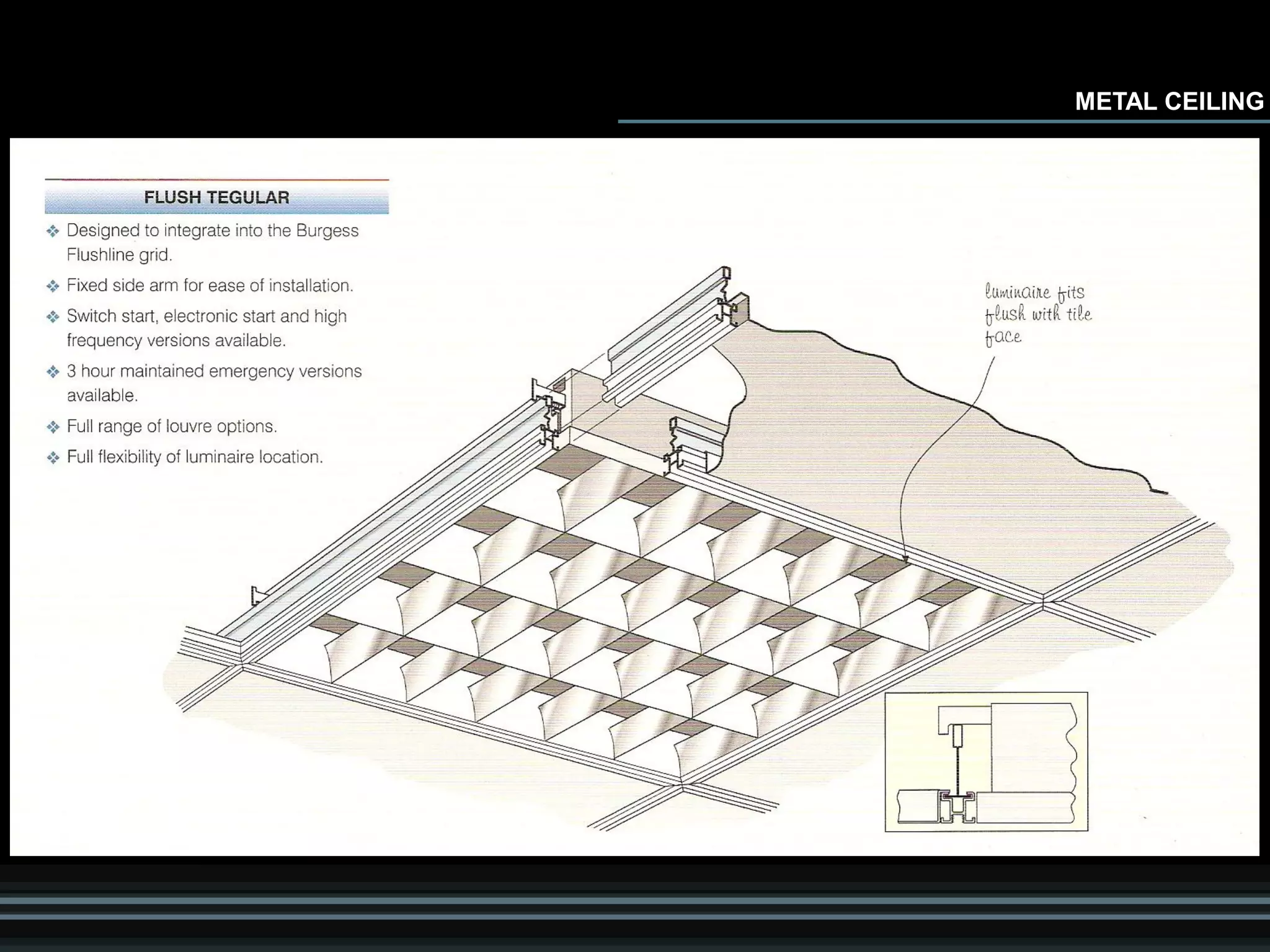

METAL CEILING

35. •excellent sound absorption
•special anti-sag property
•superior moisture resistance
•Better fire resistance
•good light reflectance
•better relative humidity properties when
compared with conventional mineral fibre tiles.
• high insulation against sound and fire.
•material can be decorated with paint or other
finishes improving the aesthetics of the room.
Applications:
•shopping malls
•Retail showroom
•Offices
•Education
•Healthcare
•Restaurants
FIBERBOARDED AND FIBRE / MINERAL FIBER CE
THICKNESS -14 -20 mm

36. PLASTER OF PARIS (POP ) CEILIN
 Plaster of Paris (POP) is commonly used for constructing false
ceilings.
 Gypsum, which gives out water when heated, makes POP.
 Post-heating, gypsum softens and is then crushed to form a
powder. POP hardens instantly when water is added to it.
 It is applied to fibreboard or a wood base, which is then
suspended to form the false ceiling.
Advantages of POP:
 A smooth, uniform finish.
 The surface can be recorded or painted.
 POP false ceiling are easy to construct and maintain.
 The ceilings are reality light.
Thickness- 10-15 mm

37. PLY WOOD FALSE CEILING
Plywood ceiling are widely used for their visual appeal.
These ceilings are created with strips of ply glued or nailed together.
The strips are held together and strengthened with ply supports at equal distances.
Ply ceiling are generally used in place with cold climates.
Advantage of ply ceilings:
They are strong and look appealing.
They can be given various finishes, or painted to get the right look.
They can be treated to increase their lifespan.
However, ply ceiling are difficult to maintain, since the are prone to termite attacks.
The room has to be thermally controlled to reduce the humidity in the air. Also, the
wood is prone to warping and other physical changes, with time.

38. E-BOARD FALSE CEILING
standard weight (Per sq.mt ) 5.5 kg
Equilibrium moisture 2 to 6%
Thermal conductivity 0.18kcal/MH degree C
Biological affect no fungal effect
Effect of relative humidity 0.2%
STANDARD SIZES
2.44 m x 1.22 m (8' x 4')
1.83 m x 1.22 m (6' x 4')
1.22 m x 1.22 m (4' x 4')
1.22 m x 0.16 m (4' x 2')
0.61 m x 0.16 m (2' x 2')
Thickness
4 mm, 5 mm, 6 mm

39. E-BOARD FALSE CEILING

40. ALUMINIUM FALSE CEILING

41. ALUMINIUM FALSE CEILING

42. ALUMINIUM FALSE CEILING

43. ARMSTRONG TILES

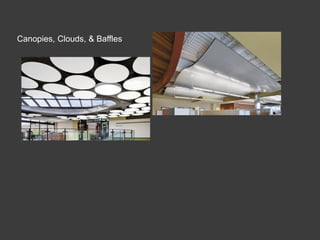

44. Canopies, Clouds, & Baffles

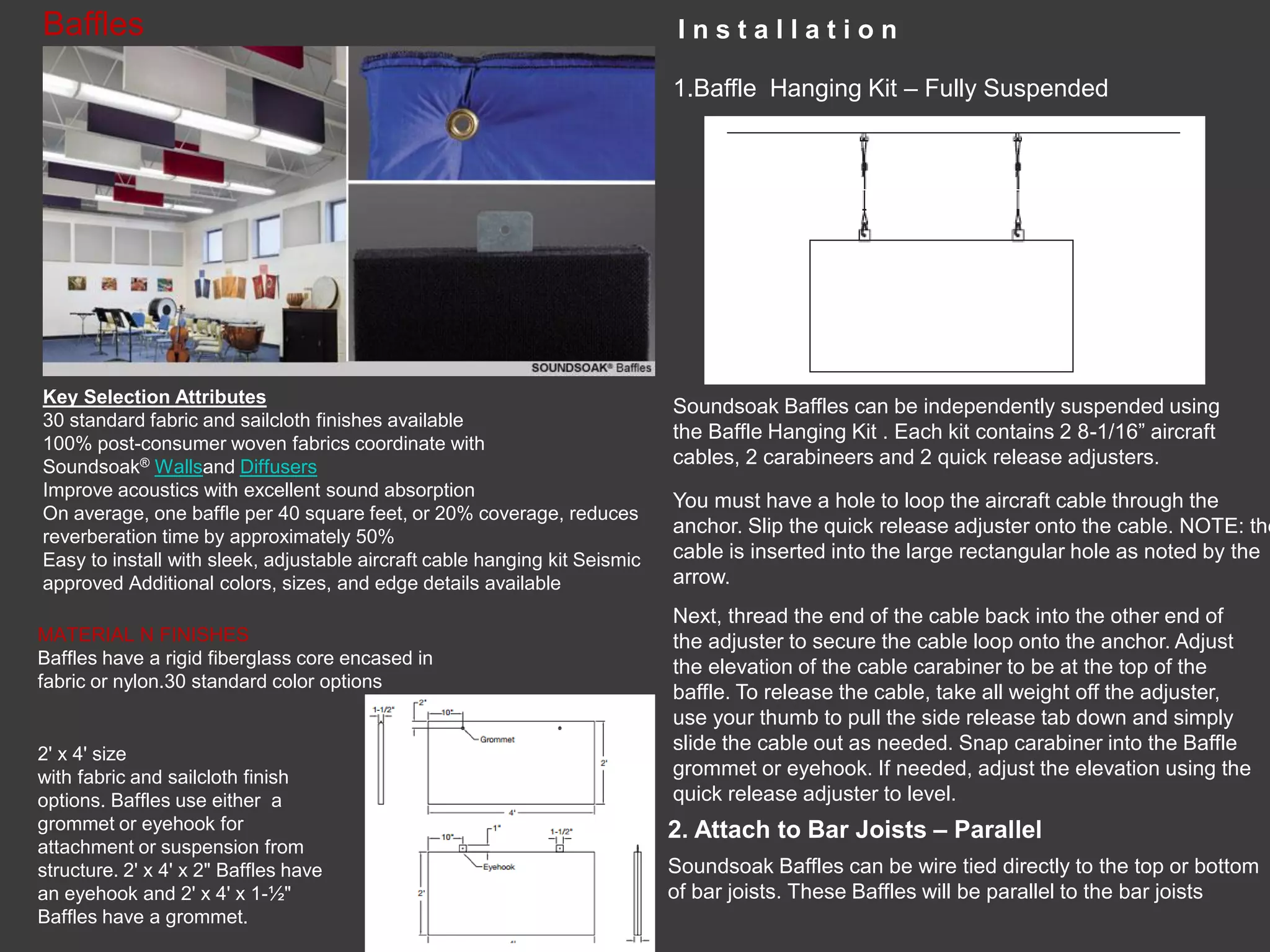

45. Key Selection Attributes
30 standard fabric and sailcloth finishes available
100% post-consumer woven fabrics coordinate with
Soundsoak® Wallsand Diffusers
Improve acoustics with excellent sound absorption
On average, one baffle per 40 square feet, or 20% coverage, reduces
reverberation time by approximately 50%
Easy to install with sleek, adjustable aircraft cable hanging kit Seismic
approved Additional colors, sizes, and edge details available
Baffles
2' x 4' size
with fabric and sailcloth finish
options. Baffles use either a
grommet or eyehook for
attachment or suspension from
structure. 2' x 4' x 2" Baffles have
an eyehook and 2' x 4' x 1-½"
Baffles have a grommet.
MATERIAL N FINISHES
Baffles have a rigid fiberglass core encased in
fabric or nylon.30 standard color options
1.Baffle Hanging Kit – Fully Suspended
2. Attach to Bar Joists – Parallel
I n s t a l l a t i o n
Soundsoak Baffles can be independently suspended using
the Baffle Hanging Kit . Each kit contains 2 8-1/16” aircraft
cables, 2 carabineers and 2 quick release adjusters.
You must have a hole to loop the aircraft cable through the
anchor. Slip the quick release adjuster onto the cable. NOTE: the
cable is inserted into the large rectangular hole as noted by the
arrow.
Next, thread the end of the cable back into the other end of
the adjuster to secure the cable loop onto the anchor. Adjust
the elevation of the cable carabiner to be at the top of the
baffle. To release the cable, take all weight off the adjuster,
use your thumb to pull the side release tab down and simply
slide the cable out as needed. Snap carabiner into the Baffle
grommet or eyehook. If needed, adjust the elevation using the
quick release adjuster to level.
Soundsoak Baffles can be wire tied directly to the top or bottom
of bar joists. These Baffles will be parallel to the bar joists

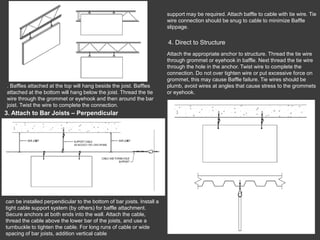

46. . Baffles attached at the top will hang beside the joist. Baffles
attached at the bottom will hang below the joist. Thread the tie
wire through the grommet or eyehook and then around the bar
joist. Twist the wire to complete the connection.
3. Attach to Bar Joists – Perpendicular
can be installed perpendicular to the bottom of bar joists. Install a
tight cable support system (by others) for baffle attachment.
Secure anchors at both ends into the wall. Attach the cable,
thread the cable above the lower bar of the joists, and use a
turnbuckle to tighten the cable. For long runs of cable or wide
spacing of bar joists, addition vertical cable
4. Direct to Structure
Attach the appropriate anchor to structure. Thread the tie wire
through grommet or eyehook in baffle. Next thread the tie wire
through the hole in the anchor. Twist wire to complete the
connection. Do not over tighten wire or put excessive force on
grommet, this may cause Baffle failure. Tie wires should be
plumb, avoid wires at angles that cause stress to the grommets
or eyehook.
support may be required. Attach baffle to cable with tie wire. Tie
wire connection should be snug to cable to minimize Baffle
slippage.

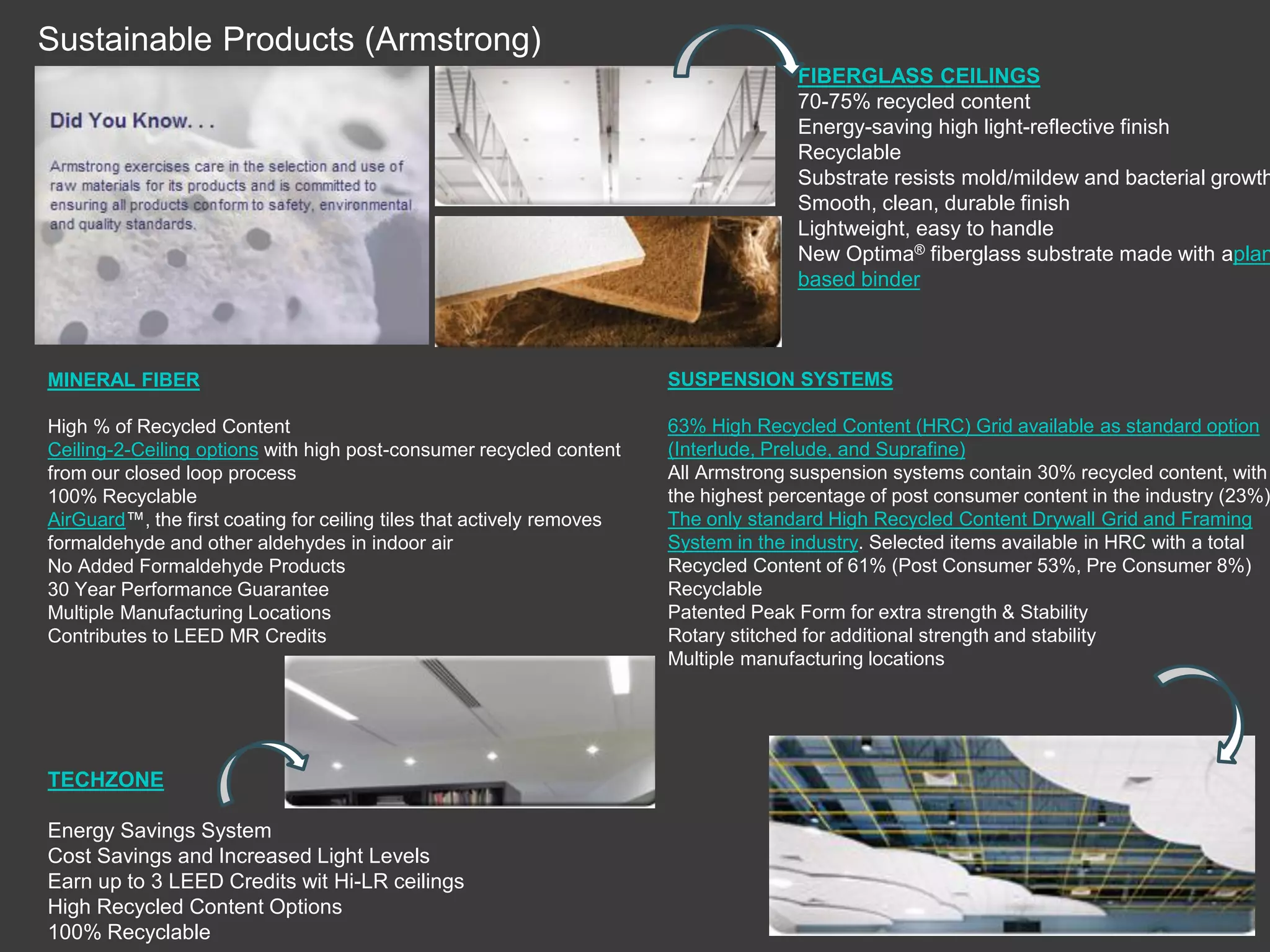

47. Sustainable Products (Armstrong)
MINERAL FIBER
High % of Recycled Content
Ceiling-2-Ceiling options with high post-consumer recycled content
from our closed loop process
100% Recyclable
AirGuard™, the first coating for ceiling tiles that actively removes
formaldehyde and other aldehydes in indoor air
No Added Formaldehyde Products
30 Year Performance Guarantee
Multiple Manufacturing Locations
Contributes to LEED MR Credits
FIBERGLASS CEILINGS
70-75% recycled content
Energy-saving high light-reflective finish
Recyclable
Substrate resists mold/mildew and bacterial growth
Smooth, clean, durable finish
Lightweight, easy to handle
New Optima® fiberglass substrate made with aplan
based binder
SUSPENSION SYSTEMS
63% High Recycled Content (HRC) Grid available as standard option
(Interlude, Prelude, and Suprafine)
All Armstrong suspension systems contain 30% recycled content, with
the highest percentage of post consumer content in the industry (23%)
The only standard High Recycled Content Drywall Grid and Framing
System in the industry. Selected items available in HRC with a total
Recycled Content of 61% (Post Consumer 53%, Pre Consumer 8%)
Recyclable
Patented Peak Form for extra strength & Stability
Rotary stitched for additional strength and stability
Multiple manufacturing locations
TECHZONE
Energy Savings System
Cost Savings and Increased Light Levels
Earn up to 3 LEED Credits wit Hi-LR ceilings
High Recycled Content Options
100% Recyclable

48. FALSE CEILING TYPE
GYPSUM BOARD
METAL CEILING PANELS
FIBREBOARED AND FIBRE/
MINRAL REINFORCED TILES
P.O.P. FALSE CEILING
PLYWOOD FALSE CEILING
E-BOARD FALSE CEILING
ARMSTRONG TILES
FALSE CEILING
₨ 40 /pc(s).
Price:
used in theatres, libraries, lounges, shops,
cafeterias, cloakrooms and canteens.
various sizes and colours
airport terminals, metro stations, hospitals,
pharma units and shopping malls.
homes, offices, restaurants, hotels,
malls, hospitals
they are sound resistant.
Any type of suspended ceiling
will be expensive. The cheapest
route is drywall.
Price:
₨ 50 /pc(s).
Rs20 sft.

49. POP false ceiling:
• 30/- per sft. to soon depend upon the design & Pattern.
• Labor cost is high.
Gypsum board false ceiling:
• Plain gypsum board ceiling panel: 40/- per sft.
• Gypsum board poly Ceiling panel: 47/- per sft.
• Gypsum board PVC laminated Ceiling panel: 70/- per sft.
• Gypsum board Semi Perforated Ceiling panel: 48/- per sft.
• Gypsum board Fully Perforated Ceiling panel: 60/- per sft. without glass-
wood.
• Gypsum board Fully Fissured Ceiling panel: 60/- per sft.
• Gypsum board Silt Ceiling panel: 64/- per sft. without glass-wood.
RATES OF DIFFERENT FALSE CEILIN

50. 1.Under construction (ceiling completed) Sector 15 ,house no :2715
2.Under construction Sector 13 ,house no :294
SITE VISIT
3.Under construction Sector 13 ,house no :294
4. Liberary (dcrust,murthal)
5.Metro station

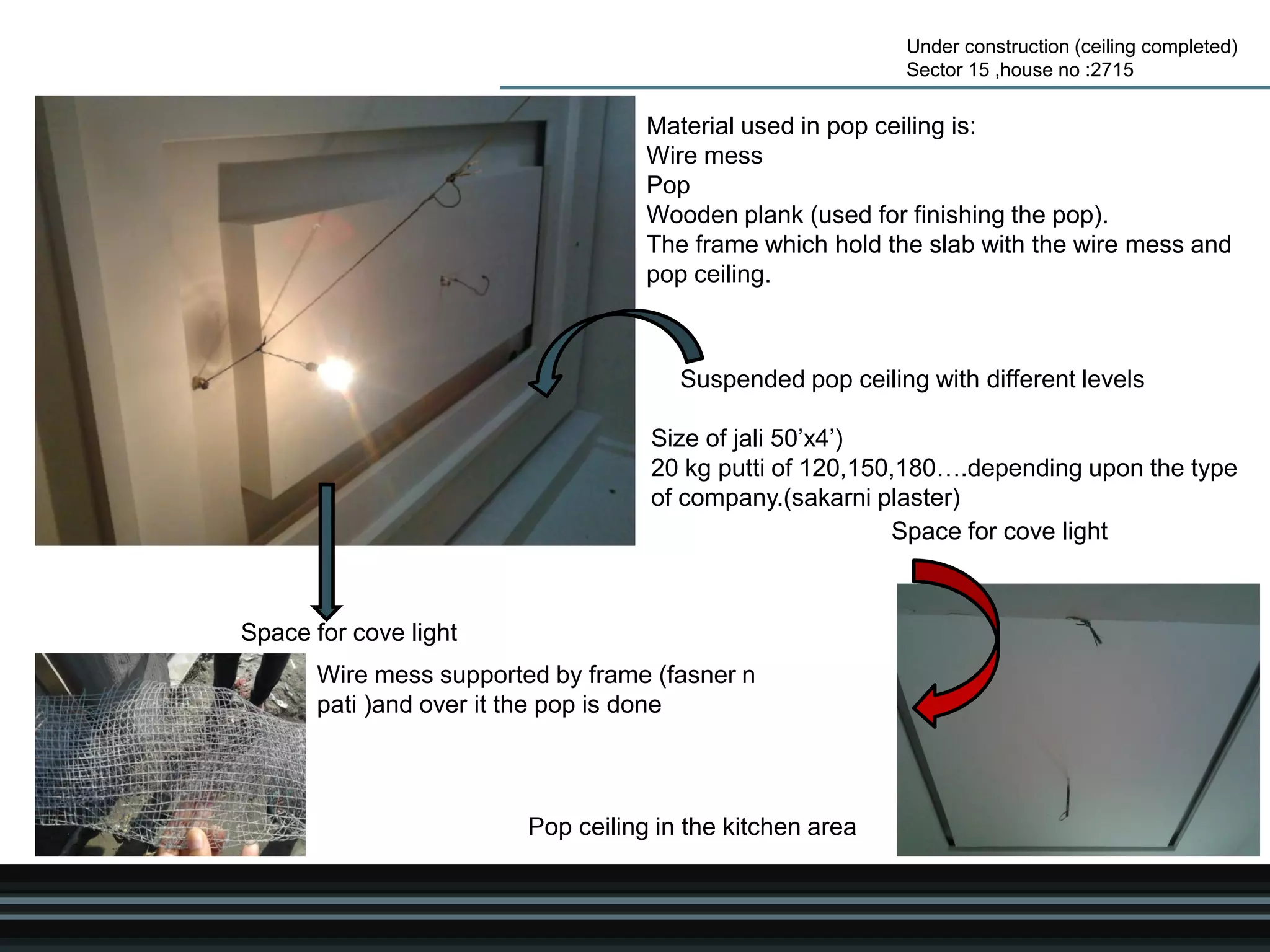

51. Under construction (ceiling completed)
Sector 15 ,house no :2715
Suspended pop ceiling with different levels
Pop ceiling in the kitchen area
Space for cove light
Space for cove light
Material used in pop ceiling is:
Wire mess
Pop
Wooden plank (used for finishing the pop).
The frame which hold the slab with the wire mess and
pop ceiling.
Wire mess supported by frame (fasner n
pati )and over it the pop is done
Size of jali 50’x4’)
20 kg putti of 120,150,180….depending upon the type
of company.(sakarni plaster)

52. Under construction
Sector 13 ,house no :294
Pop ceiling with +,-
Different design of pop ceiling
The cost of these ceiling is less as there is no use of frame,wire mess used
One of the best method for pop ceiling with is quiet
cheaper as compare to suspended pop ceiling.
+ - 00
+ 20mm it
It takes about 4 hrs to dry complete
layer.
Pop is done in different layers one
over the another depends upon how
much thick pop a client wants.
1 layer (pop)= 4mm thick =
takes 15 min to dry

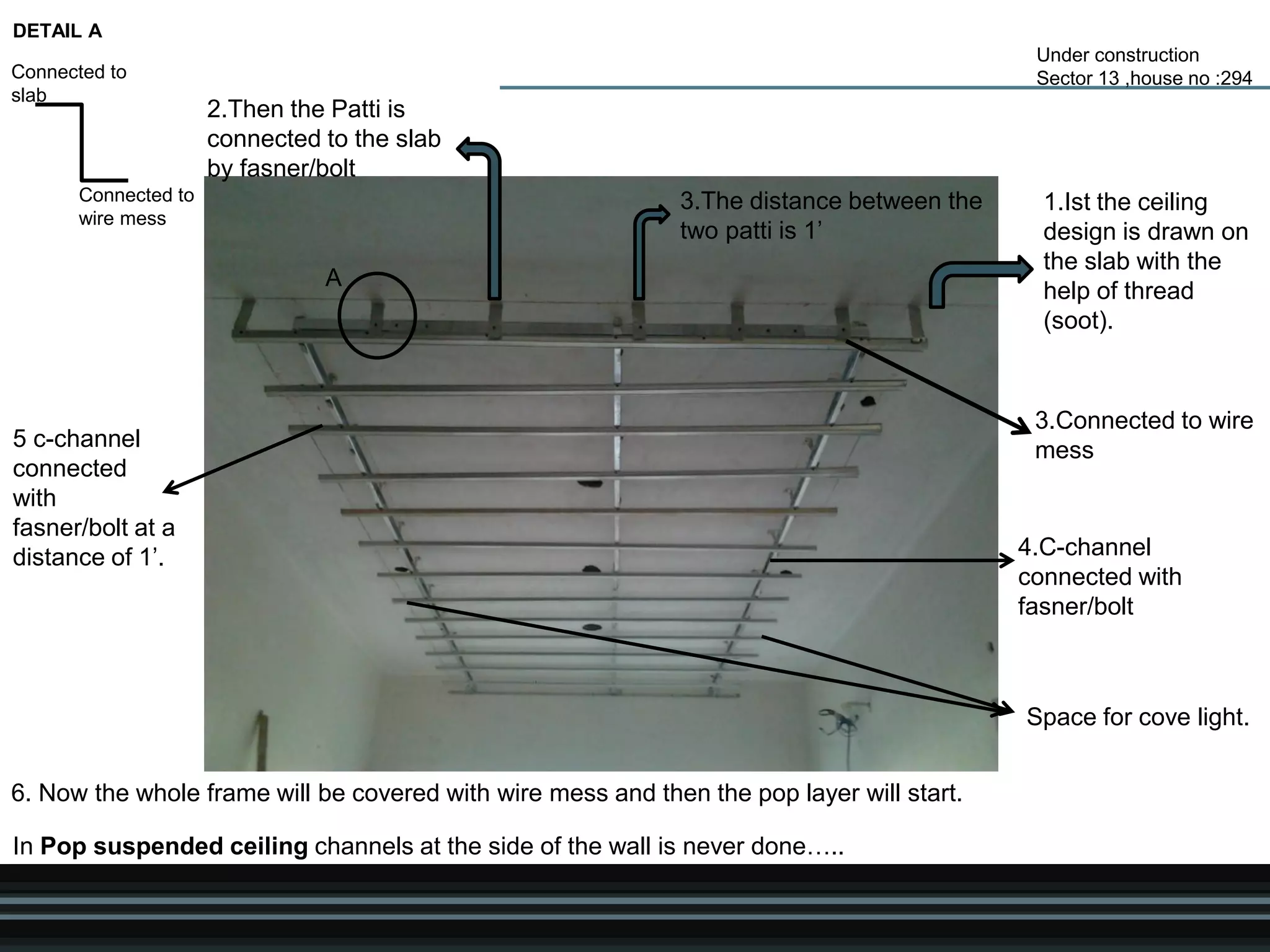

53. Under construction
Sector 13 ,house no :294
1.Ist the ceiling
design is drawn on
the slab with the
help of thread
(soot).
2.Then the Patti is
connected to the slab
by fasner/bolt
3.The distance between the
two patti is 1’
Connected to
slab
Connected to
wire mess
A
DETAIL A
3.Connected to wire
mess
4.C-channel
connected with
fasner/bolt
5 c-channel
connected
with
fasner/bolt at a
distance of 1’.
6. Now the whole frame will be covered with wire mess and then the pop layer will start.
Space for cove light.
In Pop suspended ceiling channels at the side of the wall is never done…..

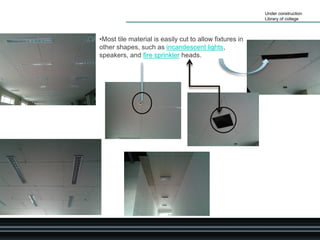

54. Under construction
Library of college
•4’x4’ gypsum board used in the
ceiling
Gypsum board ceiling
•2.5’ suspended gypsum
ceiling from the 0.0 lvl
•‘W’ channel used in
gypsum ceiling
•Wall angles are available in 10’
length:-
•L-shaped moulding that supports
and finishes the ceiling around its
perimeter.
•Gypsum board panels to each other, or by
fixing the panels in a metal grid (usually
steel).
•Generally, gypsum panels of 600
mm×600mm are used.

55. Under construction
Library of college
•Gypsum board used around the grid
ceiling.
•The space above this ceiling is often used as a plenum space
for ventilation systems, requiring only enclosed ducts that
deliver fresh air into the room below. Return air enters the
ceiling space through open grilles across the ceiling.
•The ceiling consists of a grid-work of metal channels in the
shape of an upside-down "T", suspended on wires from the
overhead structure. These channels snap together in a regularly
spaced pattern – typically a 2×2 or 2×4 foot grid or 600×600 mm
grid
•Each cell is filled with lightweight "tiles" or "panels"
which simply drop into the grid.
plenum space

56. Under construction
Library of college
•Most tile material is easily cut to allow fixtures in
other shapes, such as incandescent lights,
speakers, and fire sprinkler heads.

57. Metro station
Gypsum board
panels used in metro
ceiling
The grid of the ceiling
is suspended by
metal channel
•Wall angles, main tees and cross tees used in
making the grid for gypsum ceiling

58. CASE STUDY OF FALSE CEILING (JEWELLARY SHOWROOM)
SHOPPING MALL (AMBIANCE ,GUDGAON)
KIOSK
SHOWROOM
BAKERY SHOP

59. JEWELLARY SHOP
Front elevation
 L SHAPE TABLE FOR DISPLAY OF JEWELLARY (Ht. 2.5’).
 SQUARE SHAPE WOODEN BOX OF (1.2’,1.2’ ) FOR DISPLAY OF JEWELLARY AT 5’HT .
STORE
SEATING
SHOPPING MALL (AMBIANCE ,GUDGAON)

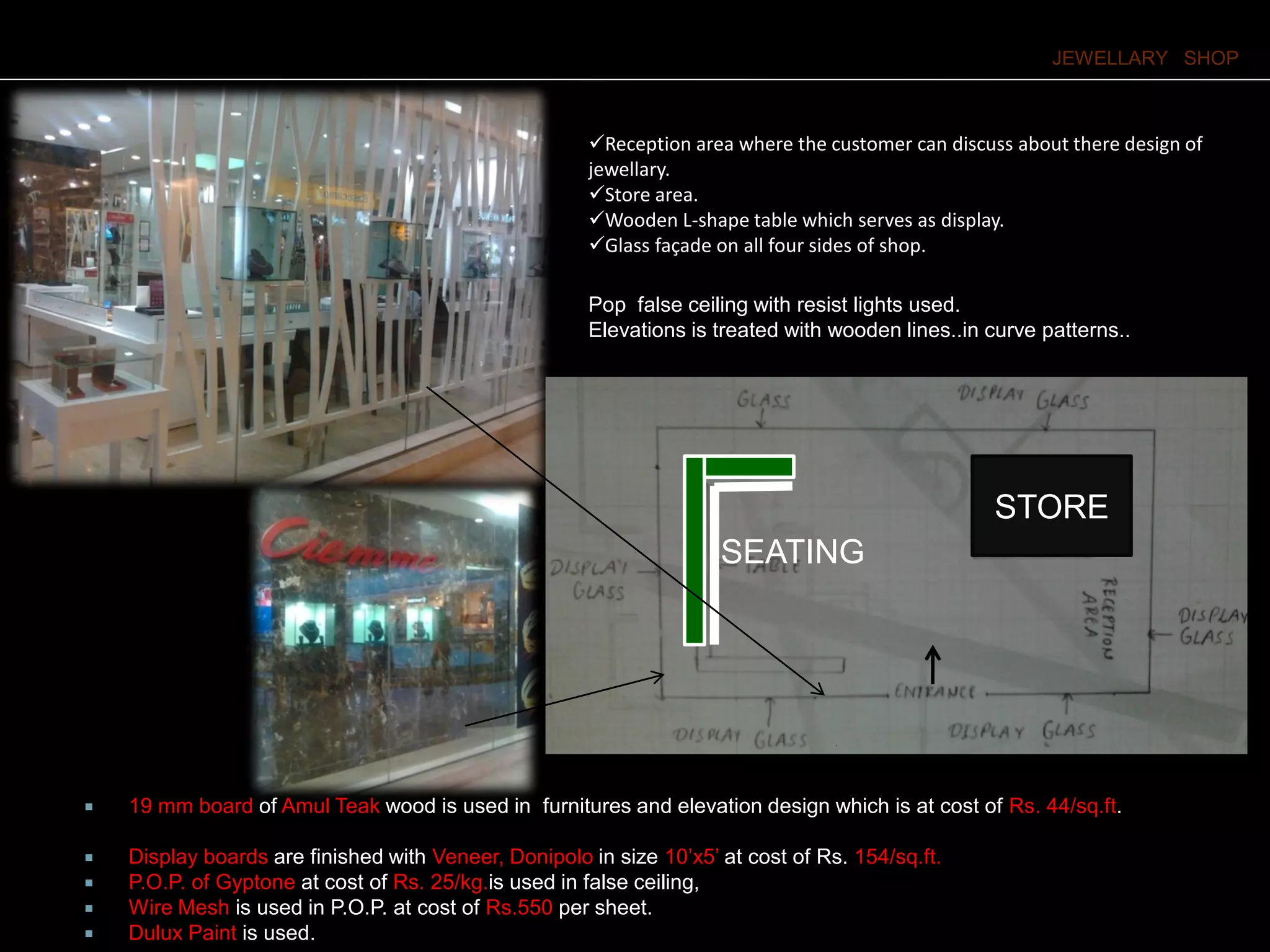

60. JEWELLARY SHOP
Reception area where the customer can discuss about there design of
jewellary.
Store area.
Wooden L-shape table which serves as display.
Glass façade on all four sides of shop.
STORE
SEATING
Pop false ceiling with resist lights used.
Elevations is treated with wooden lines..in curve patterns..
 19 mm board of Amul Teak wood is used in furnitures and elevation design which is at cost of Rs. 44/sq.ft.
 Display boards are finished with Veneer, Donipolo in size 10’x5’ at cost of Rs. 154/sq.ft.
 P.O.P. of Gyptone at cost of Rs. 25/kg.is used in false ceiling,
 Wire Mesh is used in P.O.P. at cost of Rs.550 per sheet.
 Dulux Paint is used.

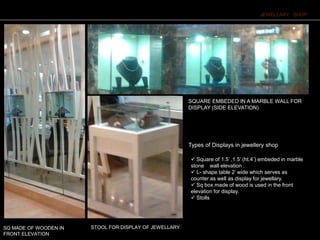

61. Types of Displays in jewellery shop
JEWELLARY SHOP
 Square of 1.5’ ,1.5’ (ht.4’) embeded in marble
stone wall elevation .
 L- shape table 2’ wide which serves as
counter as well as display for jewellary.
 Sq box made of wood is used in the front
elevation for display.
 Stolls
STOOL FOR DISPLAY OF JEWELLARY
SQUARE EMBEDED IN A MARBLE WALL FOR
DISPLAY (SIDE ELEVATION)
SQ MADE OF WOODEN IN
FRONT ELEVATION

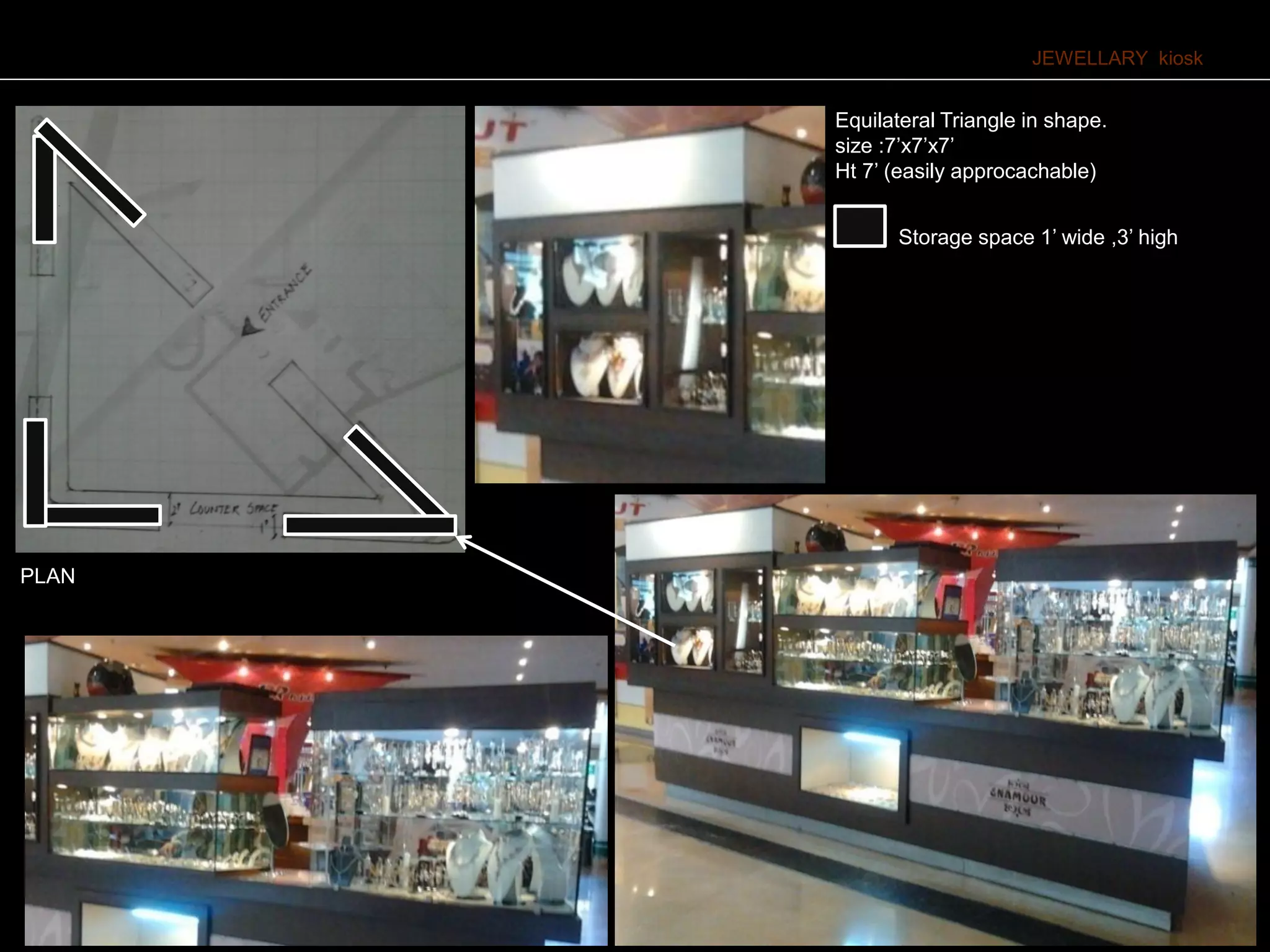

62. JEWELLARY kiosk
Equilateral Triangle in shape.
size :7’x7’x7’
Ht 7’ (easily approcachable)
PLAN
Storage space 1’ wide ,3’ high

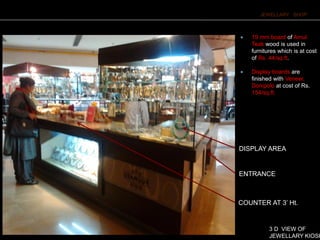

63. JEWELLARY SHOP
ENTRANCE
COUNTER AT 3’ Ht.
DISPLAY AREA
3 D VIEW OF
JEWELLARY KIOSK
 19 mm board of Amul
Teak wood is used in
furnitures which is at cost
of Rs. 44/sq.ft.
 Display boards are
finished with Veneer,
Donipolo at cost of Rs.
154/sq.ft.

64. Jewellary showroom
Delhi
Pop ceiling in the
jewellary showroom
6” suspended pop
ceiling from the 0.0 lvl
Conceal lights are
used in this showroom
A big colored glass used in the middle of
pop ceiling. It has 8’ diameter and a light
install in between glass

65. JEWELLARY SHOWROOM
LOCATION : NIRANKARI JEWELLERS ,Edward Line,Kingsway Camp,
delhi-110009 (Near civil lines area)
Fabric glass used in ceiling with
the wooden molding of teak wood
finished with veneer as per
approved
Pop ceiling with cove light
Ceiling of entrance lobby.
Resist lights used in the false ceiling
Split ac used .
19 mm board of Amul Teak wood is used in
furnitures which is at cost of Rs. 44/sq.ft
 P.O.P. of Gyptone at cost of Rs. 25/kg.is
used in false ceiling,
 Wire Mesh is used in P.O.P. at cost of
Rs.550 per sheet.
entrance
staircase

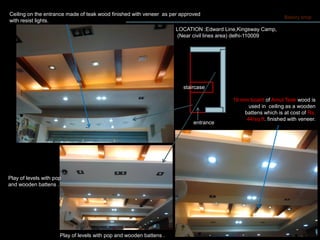

66. Bakery shop
entrance
staircase
Ceiling on the entrance made of teak wood finished with veneer as per approved
with resist lights.
Play of levels with pop and wooden battens .
Play of levels with pop
and wooden battens .
19 mm board of Amul Teak wood is
used in ceiling as a wooden
battens which is at cost of Rs.
44/sq.ft. finished with veneer.
LOCATION :Edward Line,Kingsway Camp,
(Near civil lines area) delhi-110009

68. • Gypsum board false ceiling:
India Gypsum pvt. Limited
Regd. Office INDIA GYPSUM LIMITED:
815,Tolstoy House (8th Floor),
Tolstoy Marg, New Delhi-I 10001
Tel.: 3712167/8/9 Fax: 3355632
Works INDIA GYPSUM LIMITED: P.O. Box
No.22,julianiViliage, Near jind Rly.Junction, jind
(Haryana)-1261 02 Tel.: 55267, 55549 Fax:
55549
Delhi Office
INDIA GYPSUM LIMITED
137, Sant Nagar, New Delhi-11 0065
Tel.: 6236289, 6236290, 6413272,
6427929 Fax: 6427929
Mumbai Office
INDIA GYPSUM LIMITED
9th Floor, 96 Bajaj Bhawan, Nariman
Point, Mumbai-400021 Tel.: 2021125,
20210~5 Fax: 2841107
Calcutta Office
INDIA GYPSUM LIMITED
72, Til Jala Road, Near Don Basco,
Technical institute, Calcutta-700046
Tel.: 2800363, 2809533
Chandigarh Office
INDIA GYPSUM LIMITED
SCO 13, Sector - 26, Madhya Marg,
Chandigarh. Tel.: 2790303, 2791207
Various Companies

69. Aluminum & Metal false ceiling:
LUXALON
A Hunter Douglas product
Hunter Douglas
BMS, 10, plaza cinema building
Connaught Circus, New Delhi-11 0001
Tel.: 3320264, 3350040 Fax: 3310093
Vista LEVOLOR
ALPS TEXTILES PVT. LTD.
B-4, D/3, Shopping cum facility centre,
D.D.A.Alaknanda,
New Delhi – 110019. Tel. – 26446658,
26476640, 26417519.
Fax: 91-11-26428609
E-Board false ceiling:
Eternit Everest ltd.
An ACC group company
Everest House, E-62, Greater Kailash-I,
New Delhi – 110048,
Tel. – 011-26432568, 26432569
Fax : 011 - 26464006
Armstrong false ceiling:
INARCO LIMITED
15-A/24, East Patel Nagar,
New Delhi – 110008,
Tel. – 011-25772724, 25772725
Fax : 011 - 25772724
Various Companies

70. 34-Corner Market, Malviya Nagar, Delhi - 110017 |
Call: +(91)-11-66434196
Eon Interior Product Pvt Ltd
ARK International
Plot No-428, Opp Star Gym,M G Rd, White
House, Gurgaon - 110030
Modern Plaster Corp
4/4, NR Bank Of India, D B Gupta RD, Pahar Ganj, Delhi -
110055
ARMSTRONG TILE FALSE CEILING
Aar Cee Sons
312-313,P P Tower, Netaji Subhash Place, pitampura,
Delhi - 110088
