The document discusses different types of ceiling systems. It defines a ceiling as the inside lining of a room overhead or the upper surface opposite the floor. There are three main types of ceiling systems discussed: direct fixed, direct clipped/furred, and suspended ceiling systems. Suspended ceiling systems are supported from the overhead structural framing and are not part of the structural framework. The document outlines three types of suspended ceiling systems: jointless, panelled, and decorative/open suspended ceilings. It provides details on the characteristics and materials of each.

1. CEILING www.shahrilkhairi.com

2. June 2011 – Dis 2011
Materials and construction 2

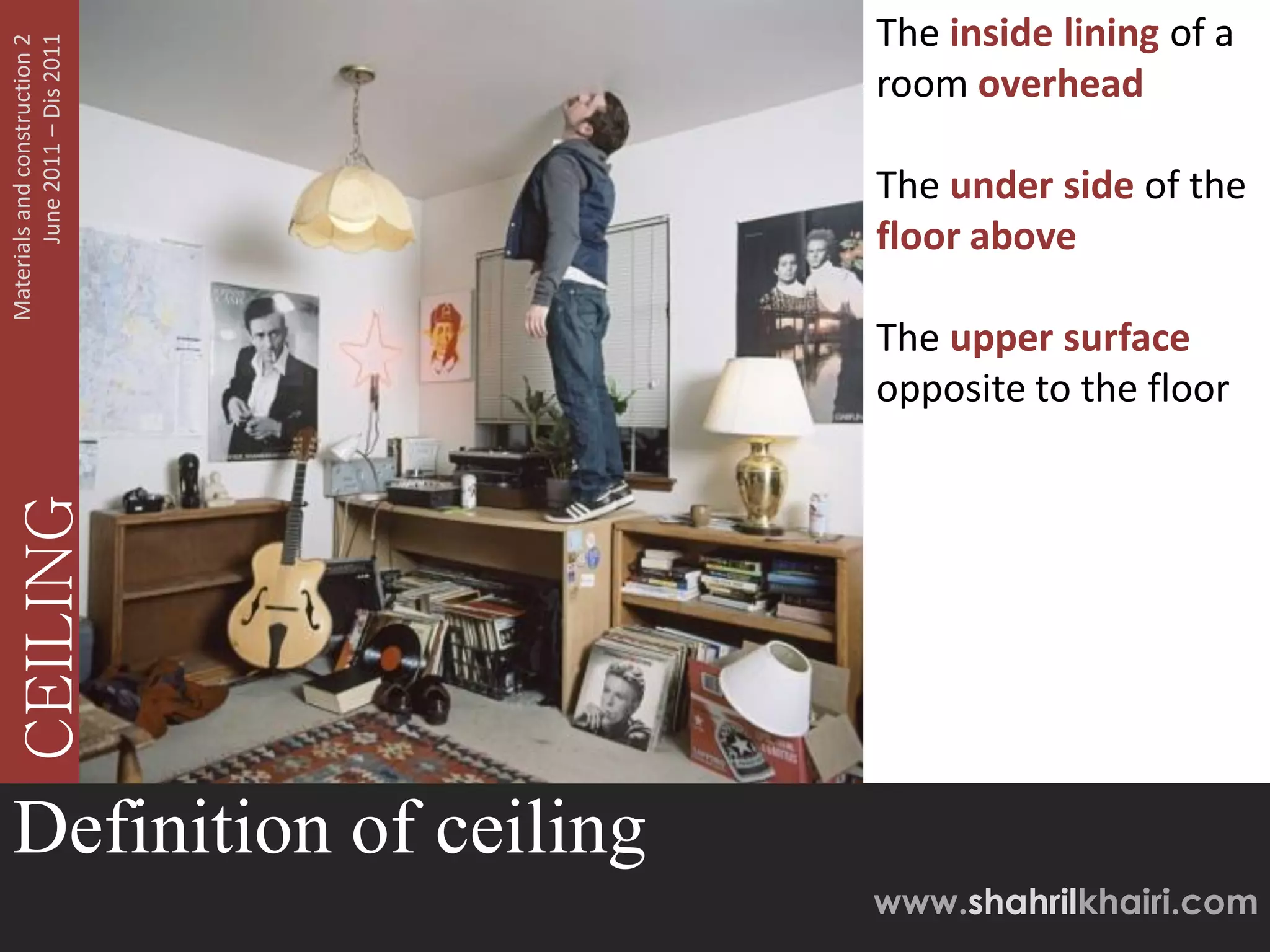

The inside lining of a
room overhead
The under side of the
floor above
The upper surface
opposite to the floor
CEILING
Definition of ceiling
www.shahrilkhairi.com

3. June 2011 – Dis 2011
Materials and construction 2
Direct Direct Suspended
Fixed Clipped Ceiling
Ceiling (Furred) System
System Ceiling
System
CEILING

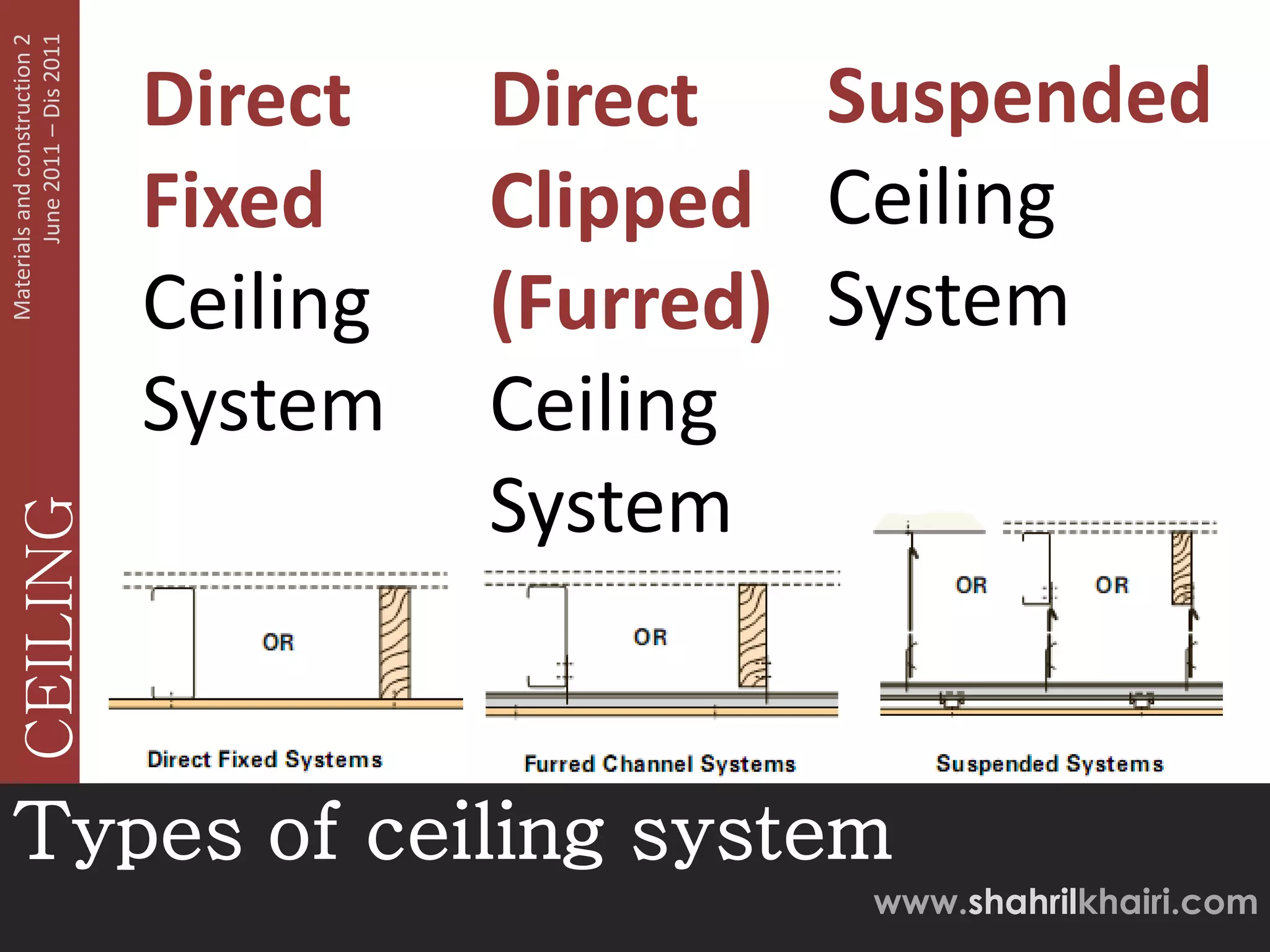

Types of ceiling system
www.shahrilkhairi.com

4. Materials and construction 2
June 2011 – Dis 2011
CEILING

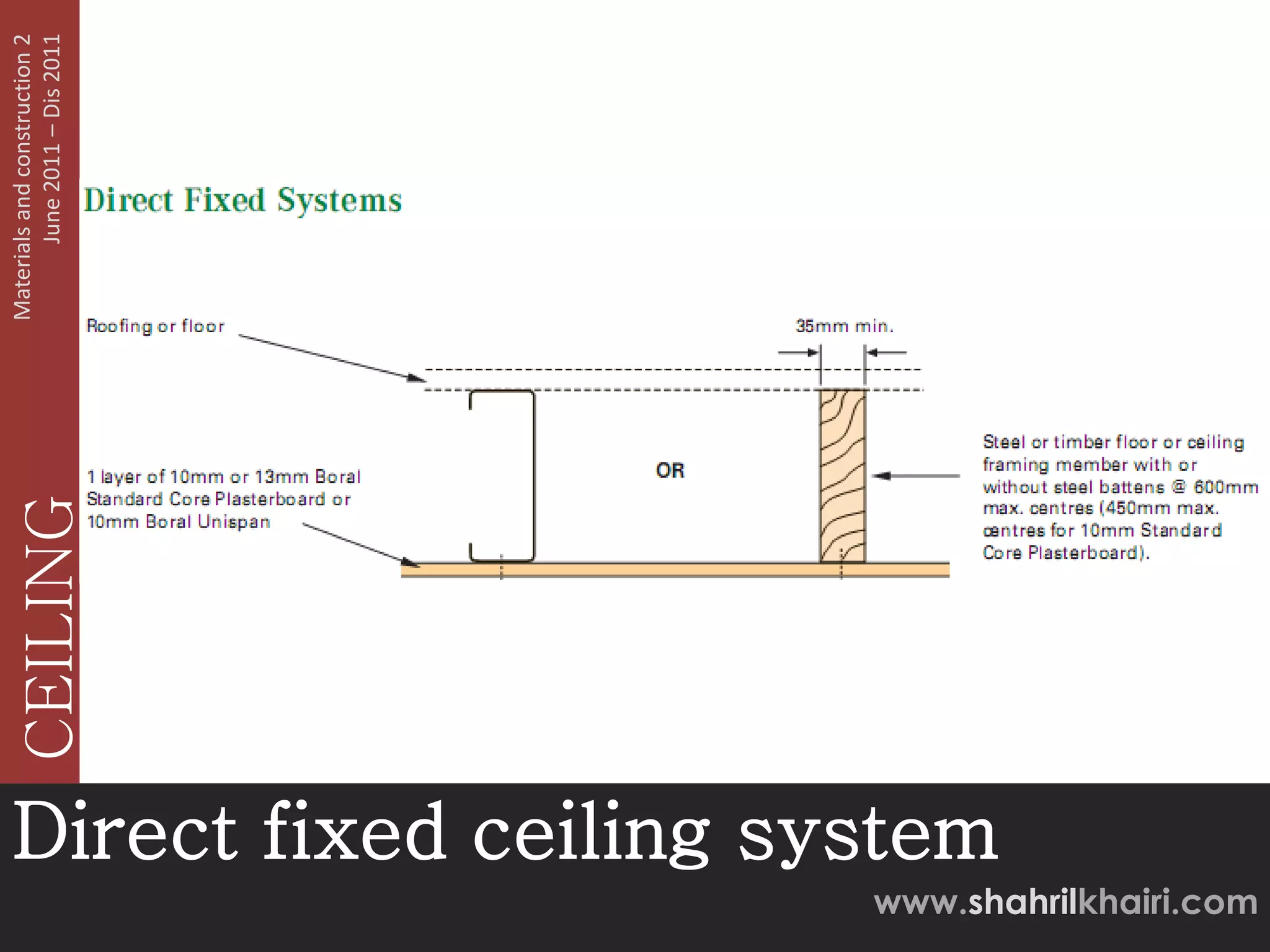

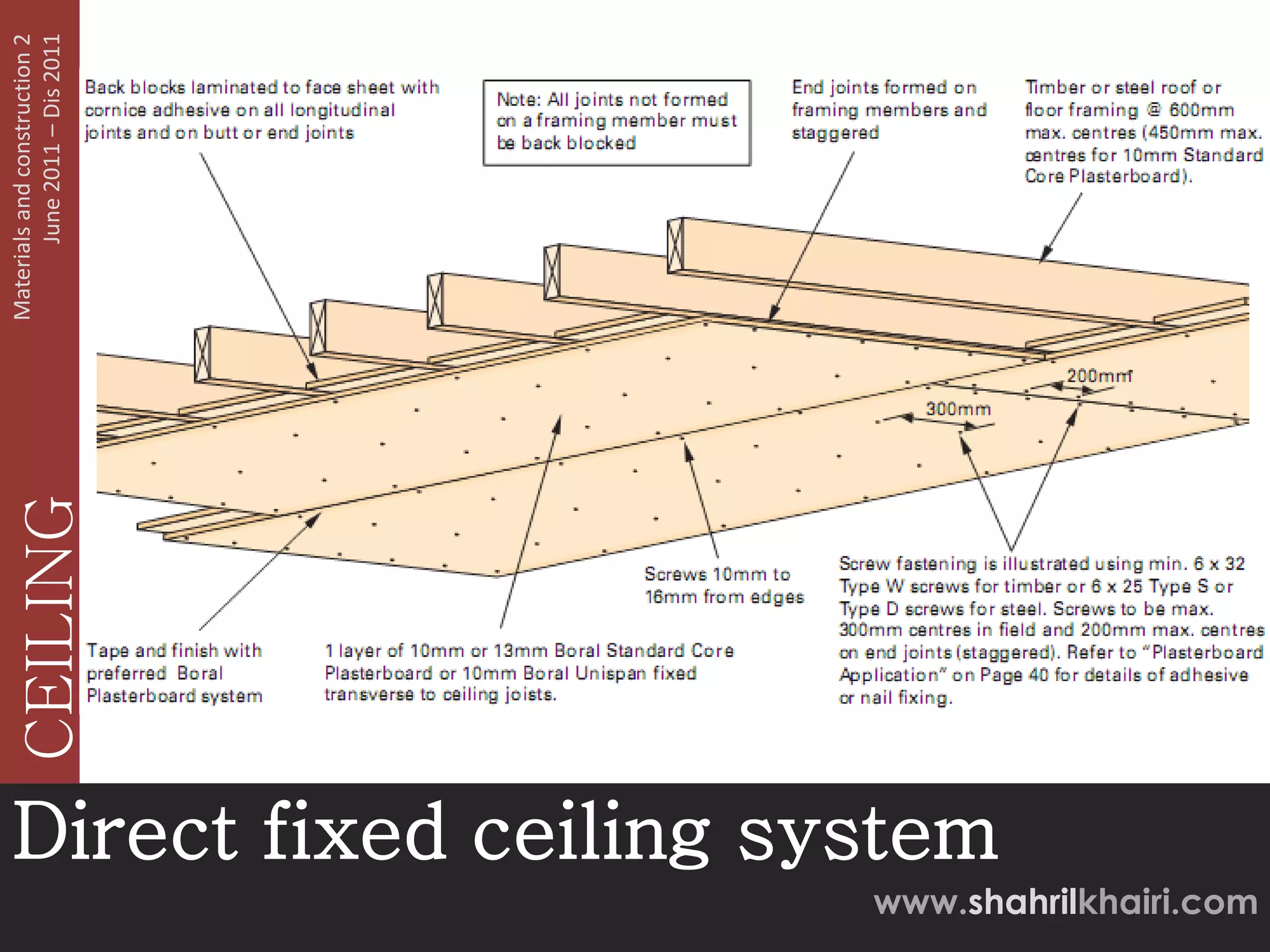

Direct fixed ceiling system
www.shahrilkhairi.com

5. Materials and construction 2
June 2011 – Dis 2011
CEILING
Direct fixed ceiling system
www.shahrilkhairi.com

6. June 2011 – Dis 2011
Materials and construction 2
CEILING

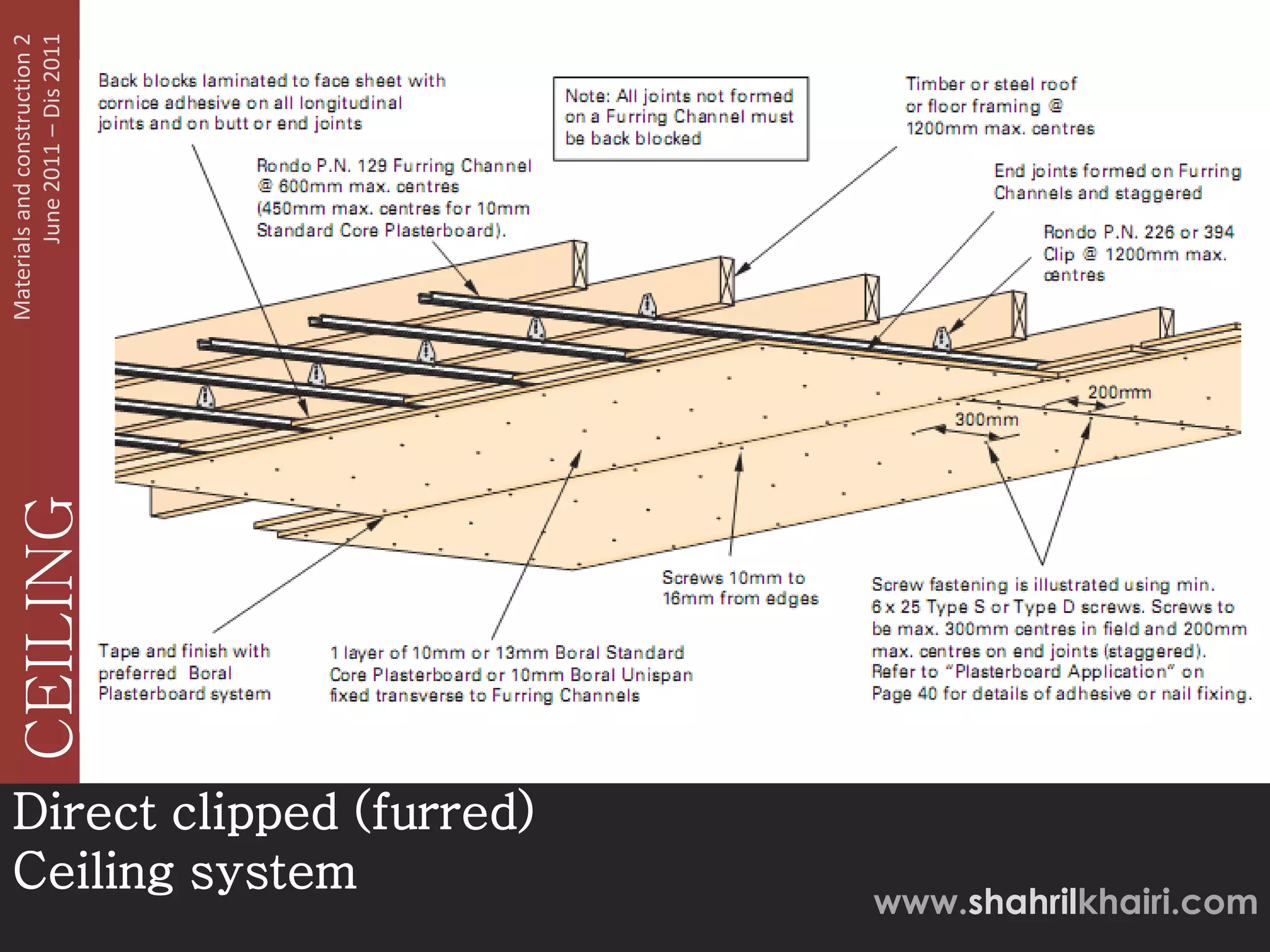

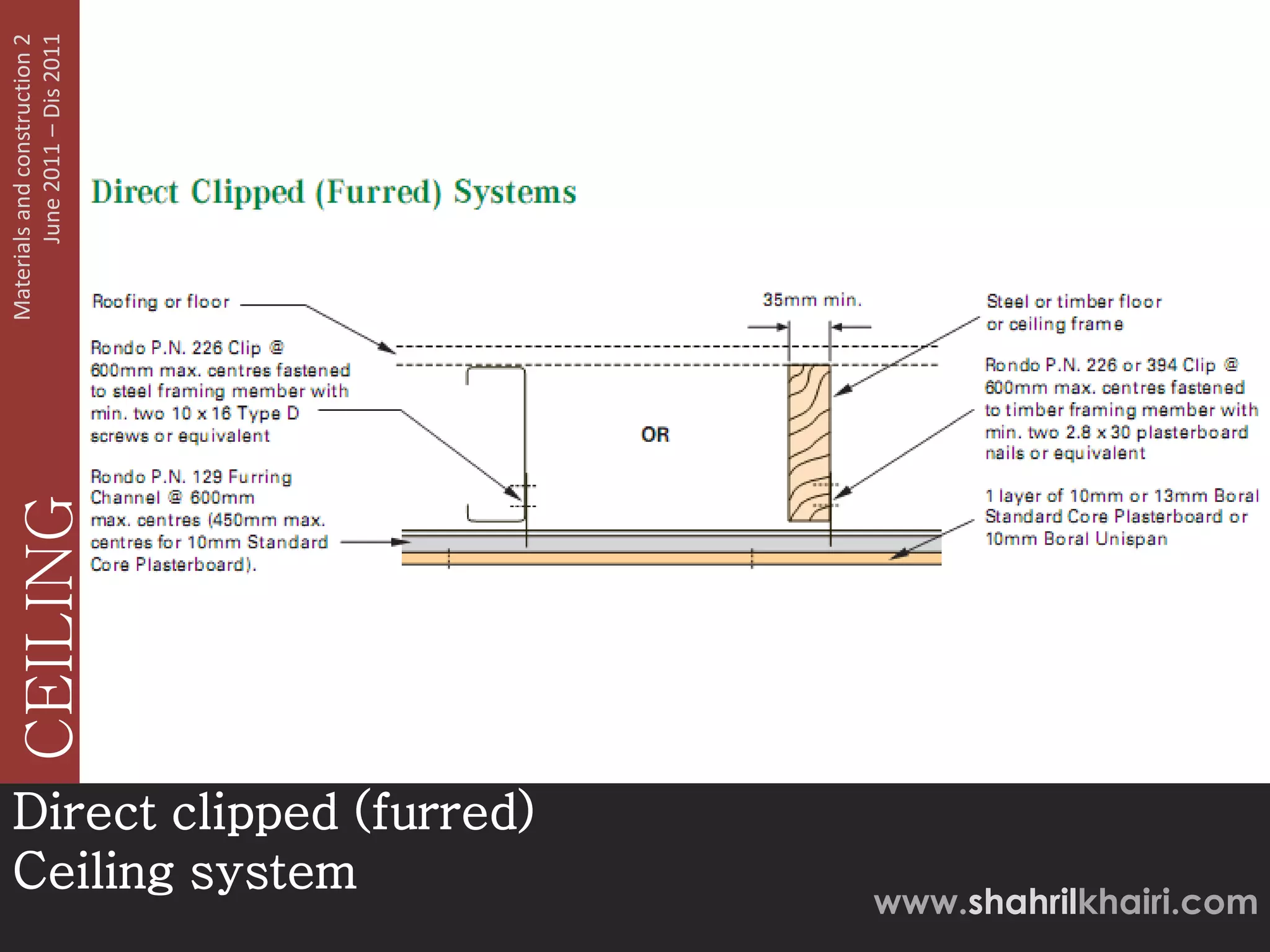

Direct clipped (furred)
Ceiling system
www.shahrilkhairi.com

7. June 2011 – Dis 2011
Materials and construction 2
CEILING

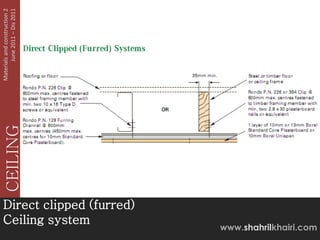

Direct clipped (furred)
Ceiling system
www.shahrilkhairi.com

8. Materials and construction 2
June 2011 – Dis 2011
CEILING

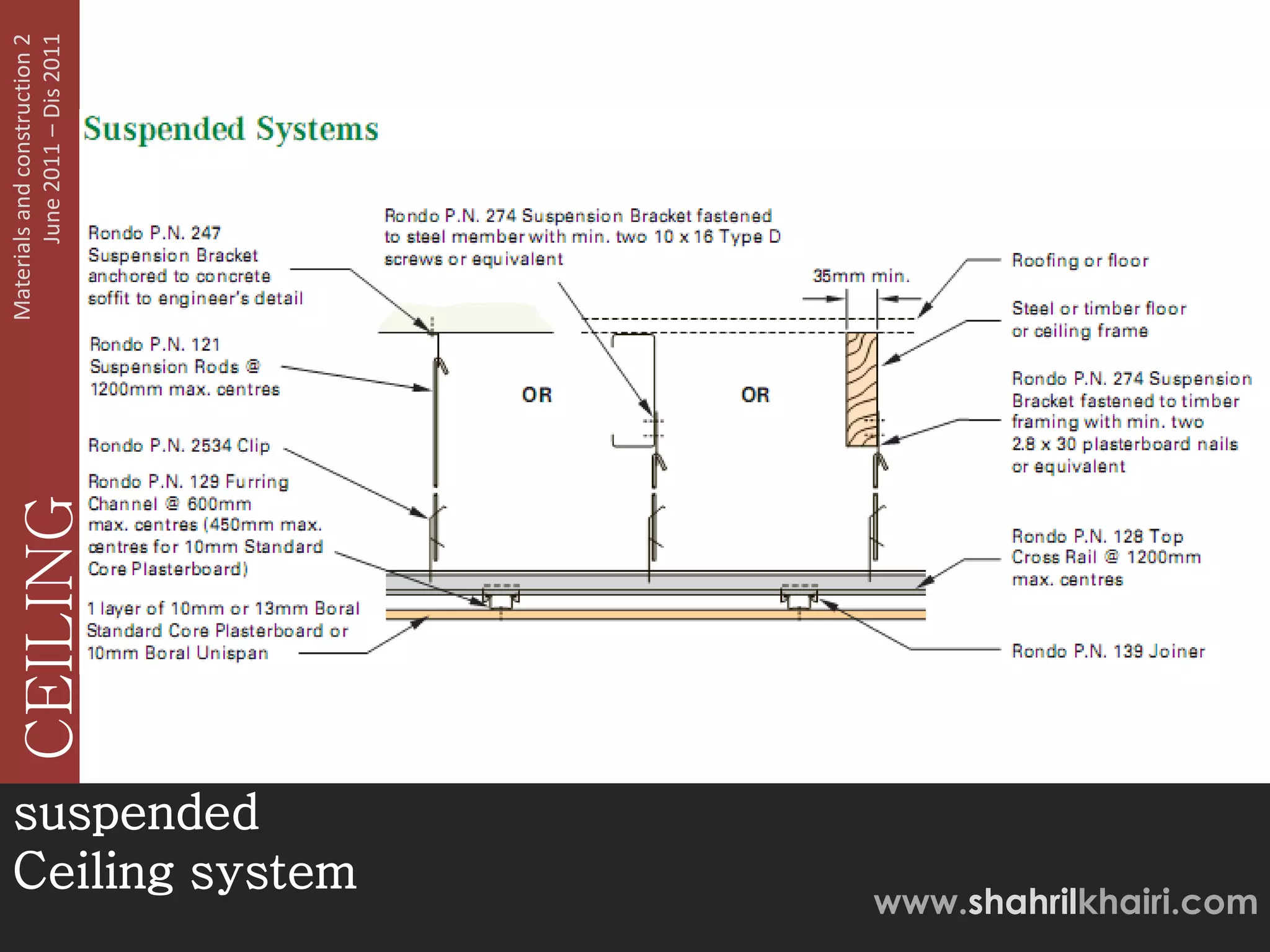

suspended
Ceiling system
www.shahrilkhairi.com

9. Materials and construction 2
June 2011 – Dis 2011
CEILING

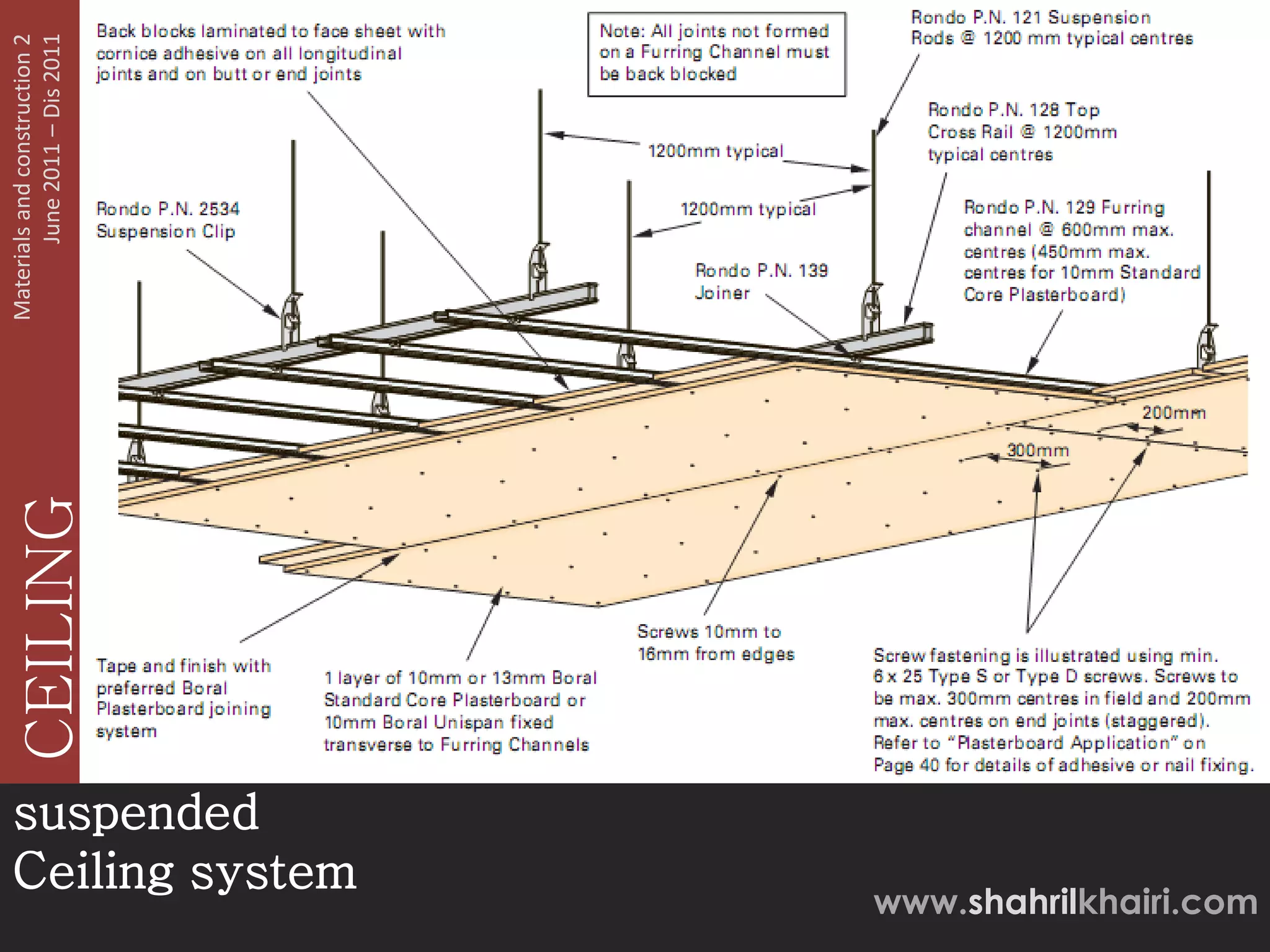

suspended
Ceiling system
www.shahrilkhairi.com

10. June 2011 – Dis 2011
Materials and construction 2
CEILING

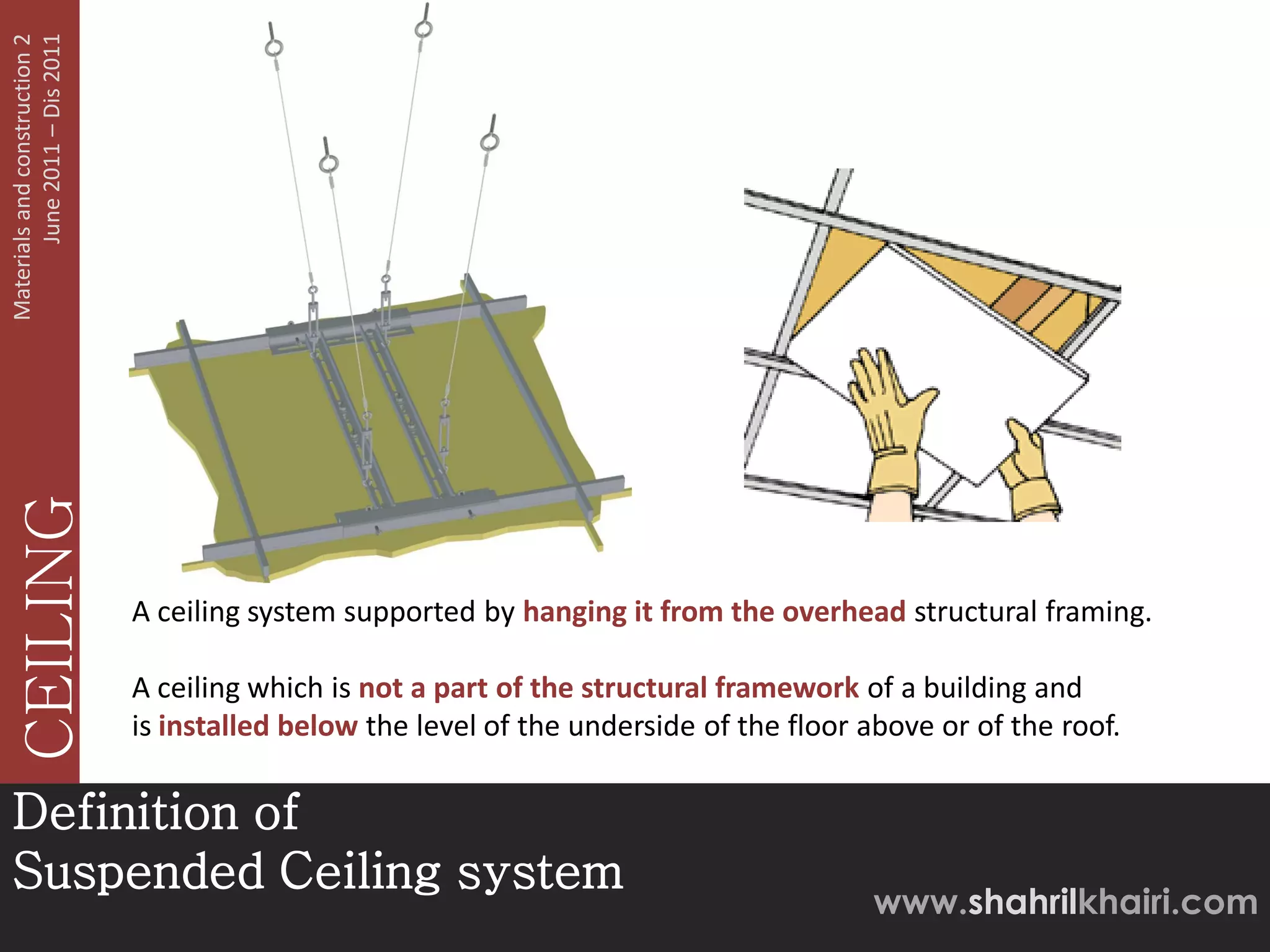

A ceiling system supported by hanging it from the overhead structural framing.
A ceiling which is not a part of the structural framework of a building and
is installed below the level of the underside of the floor above or of the roof.
Definition of
Suspended Ceiling system
www.shahrilkhairi.com

11. June 2011 – Dis 2011
Materials and construction 2

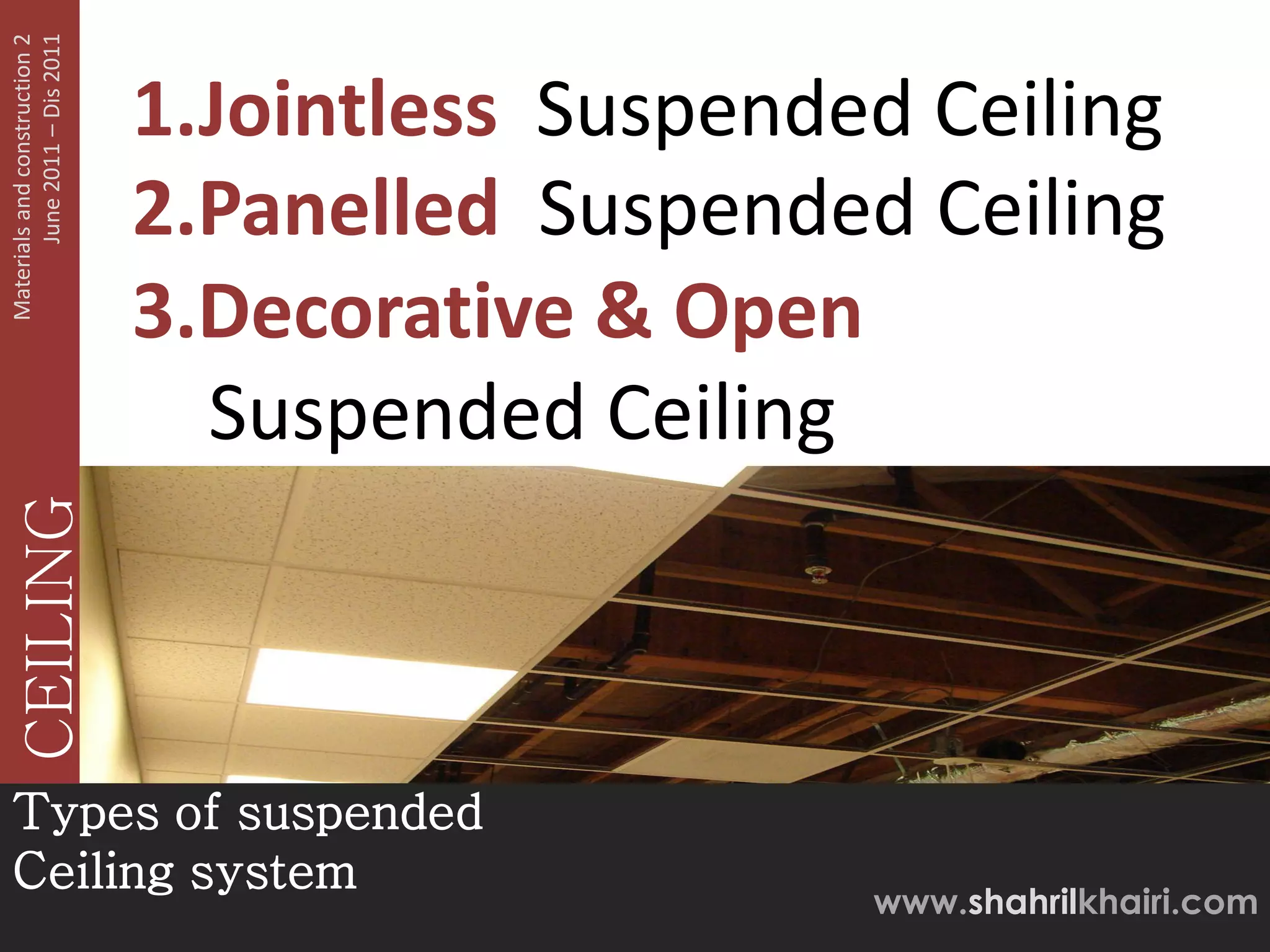

1.Jointless Suspended Ceiling
2.Panelled Suspended Ceiling
3.Decorative & Open
Suspended Ceiling
CEILING
Types of suspended
Ceiling system
www.shahrilkhairi.com

12. June 2011 – Dis 2011
Materials and construction 2
CEILING

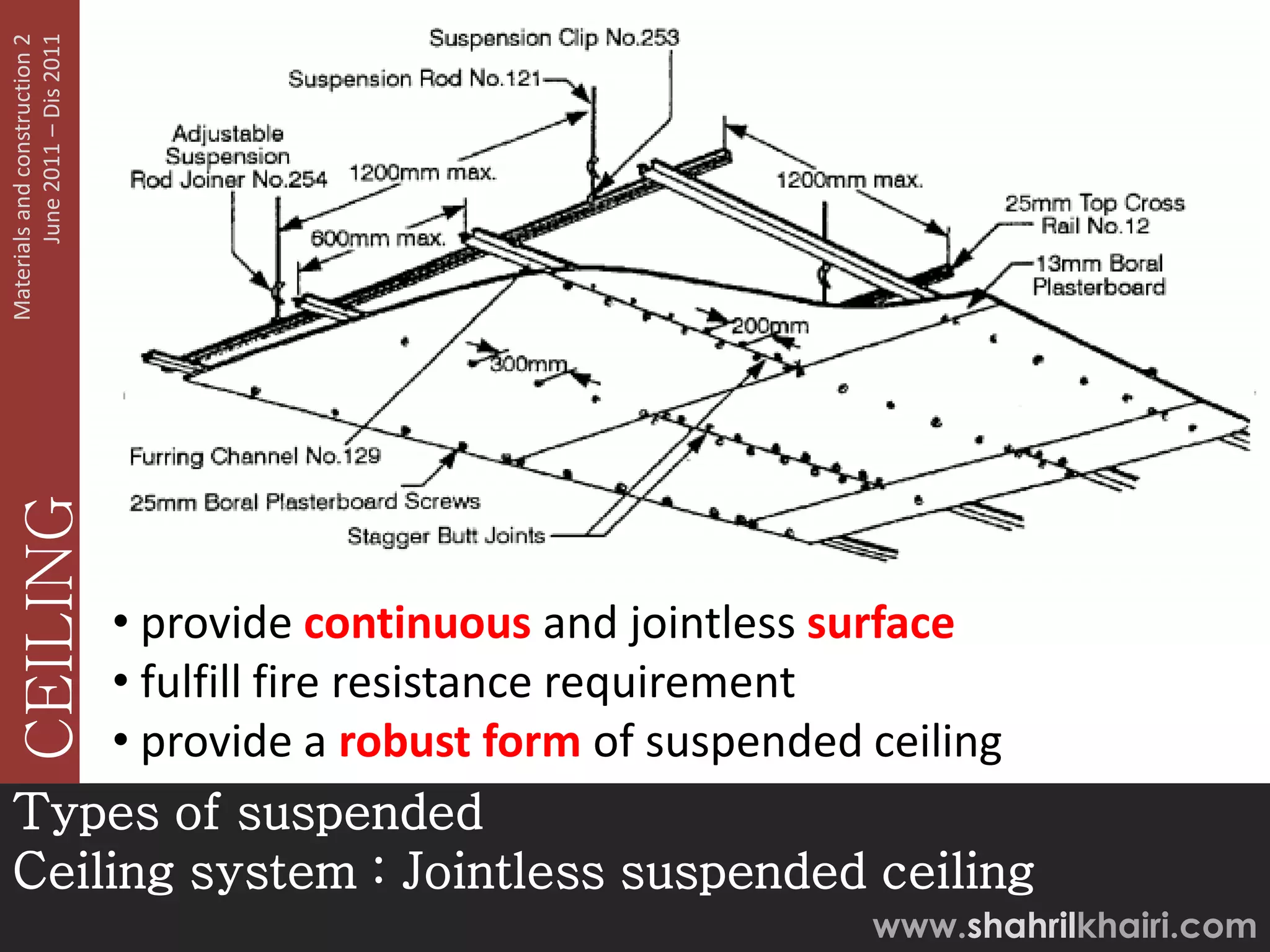

• provide continuous and jointless surface
• fulfill fire resistance requirement
• provide a robust form of suspended ceiling
Types of suspended
Ceiling system : Jointless suspended ceiling
www.shahrilkhairi.com

13. June 2011 – Dis 2011
Materials and construction 2
CEILING

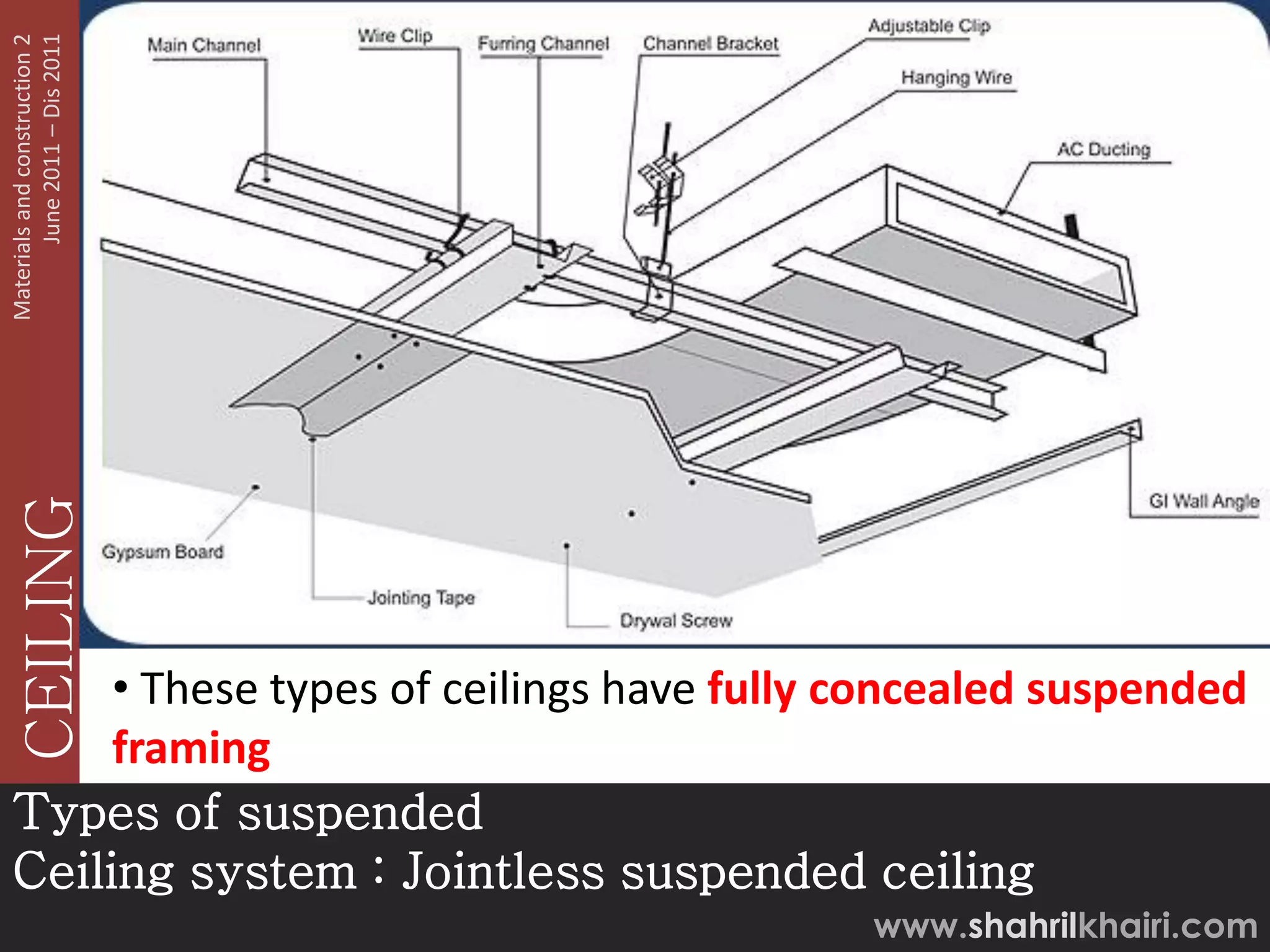

• These types of ceilings have fully concealed suspended
framing
Types of suspended
Ceiling system : Jointless suspended ceiling
www.shahrilkhairi.com

14. June 2011 – Dis 2011
Materials and construction 2

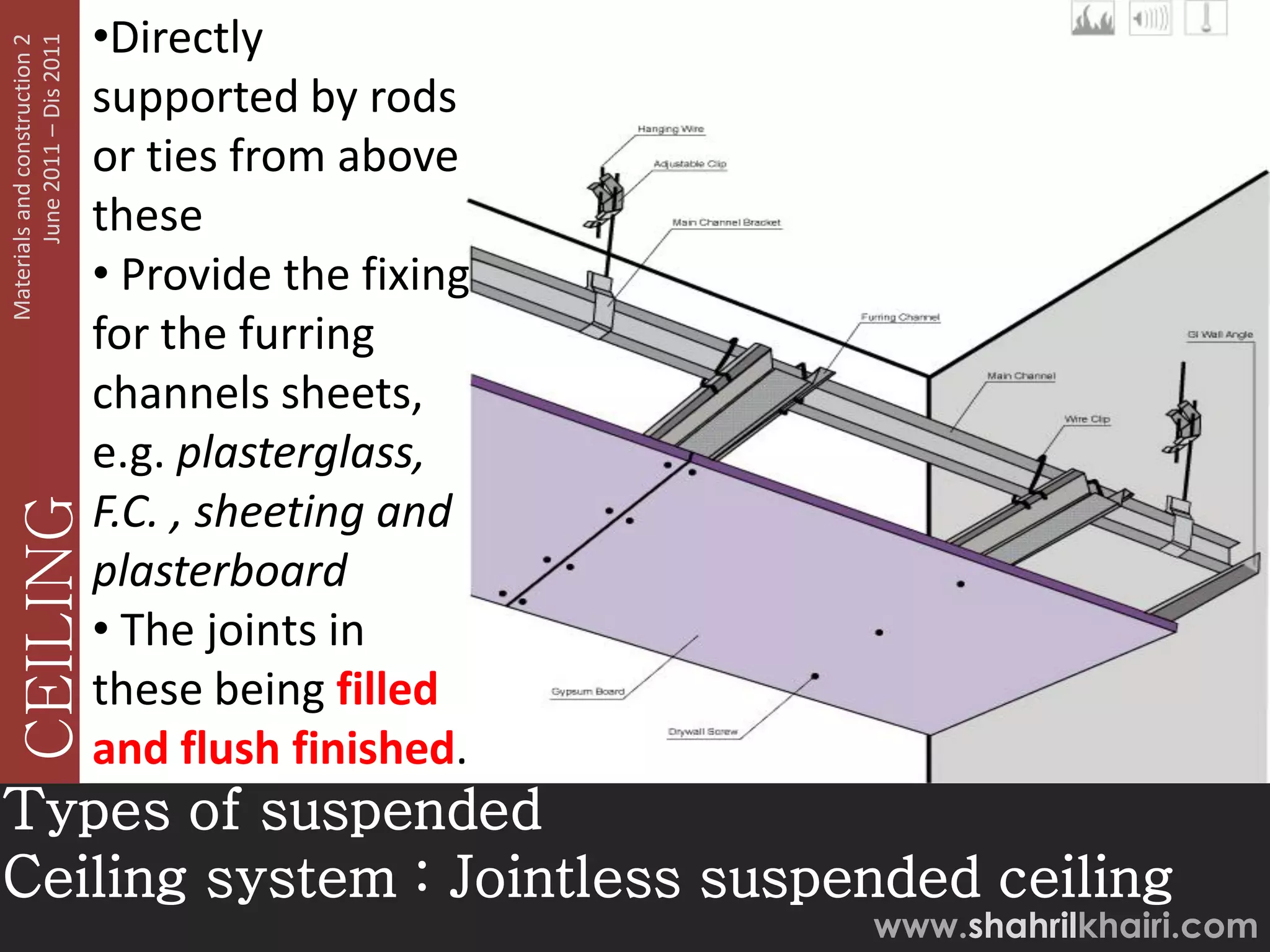

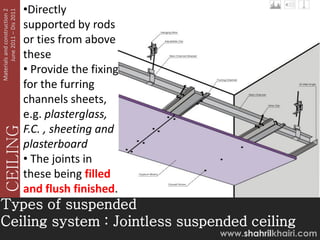

•Directly
supported by rods
or ties from above
these
• Provide the fixing
for the furring
channels sheets,
e.g. plasterglass,
F.C. , sheeting and
CEILING
plasterboard
• The joints in
these being filled
and flush finished.
Types of suspended
Ceiling system : Jointless suspended ceiling
www.shahrilkhairi.com

15. June 2011 – Dis 2011
Materials and construction 2
CEILING

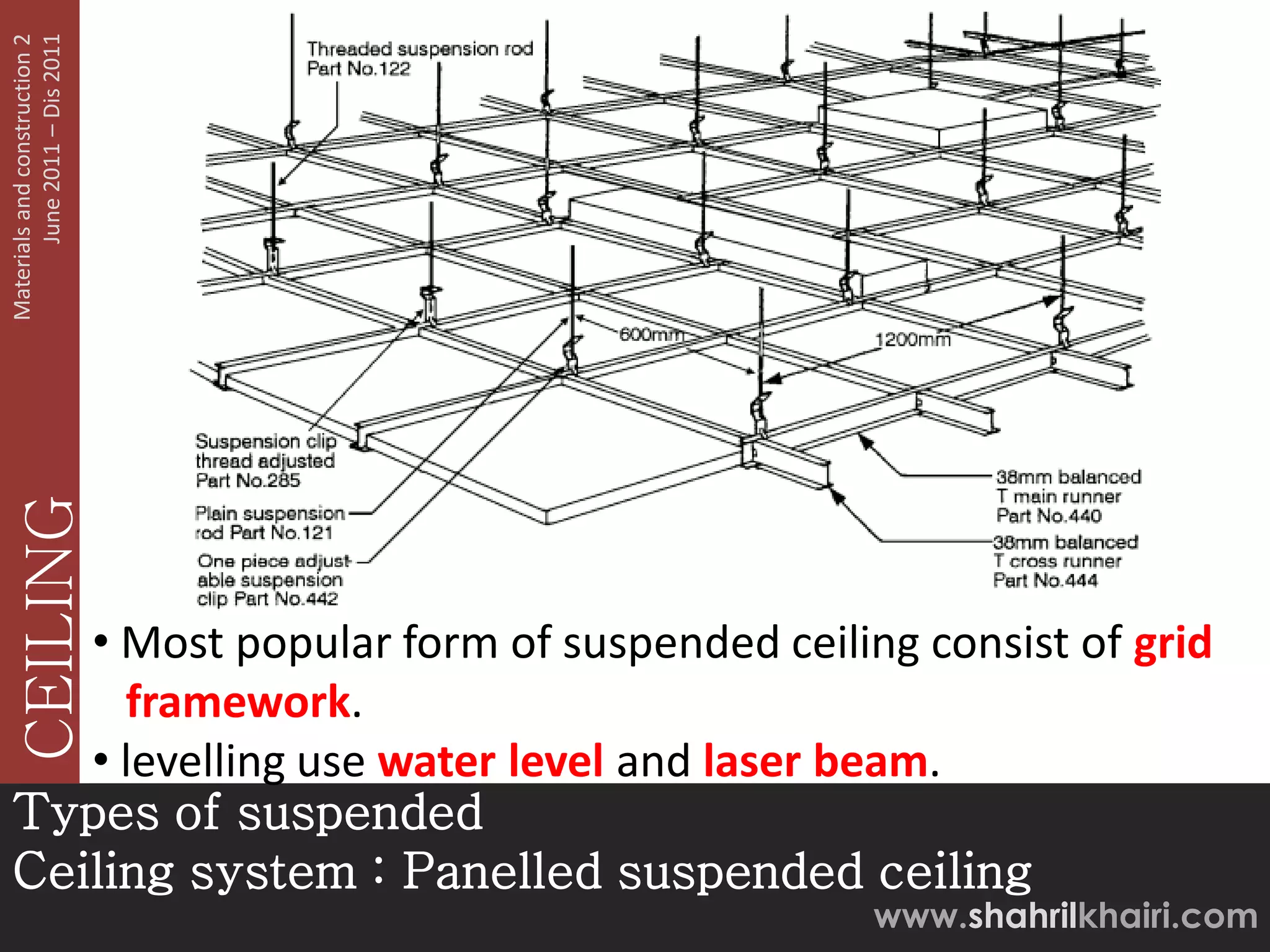

• Most popular form of suspended ceiling consist of grid
framework.
• levelling use water level and laser beam.
Types of suspended
Ceiling system : Panelled suspended ceiling
www.shahrilkhairi.com

16. June 2011 – Dis 2011
Materials and construction 2

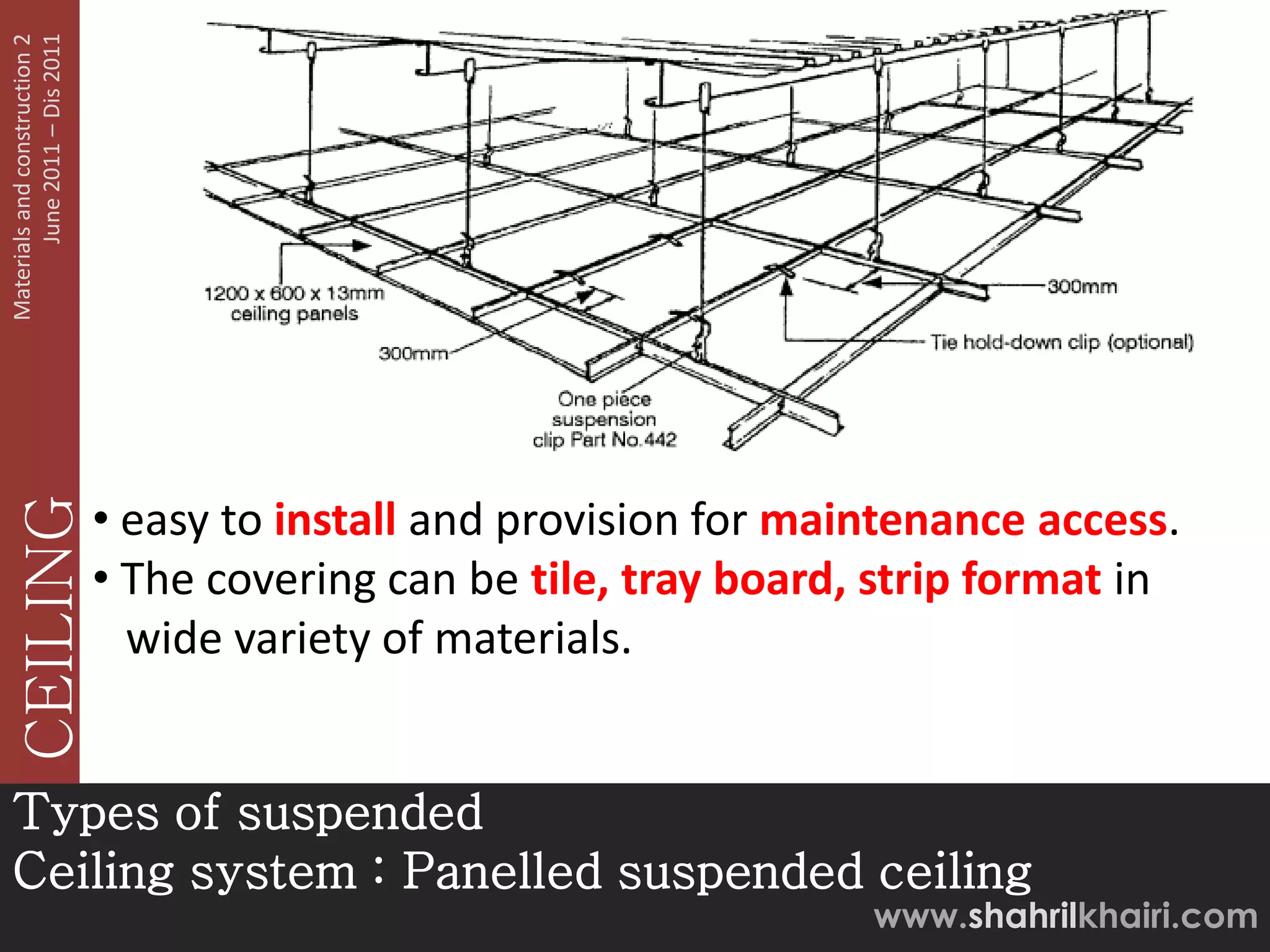

• easy to install and provision for maintenance access.
CEILING
• The covering can be tile, tray board, strip format in
wide variety of materials.
Types of suspended
Ceiling system : Panelled suspended ceiling
www.shahrilkhairi.com

17. June 2011 – Dis 2011
Materials and construction 2
CEILING

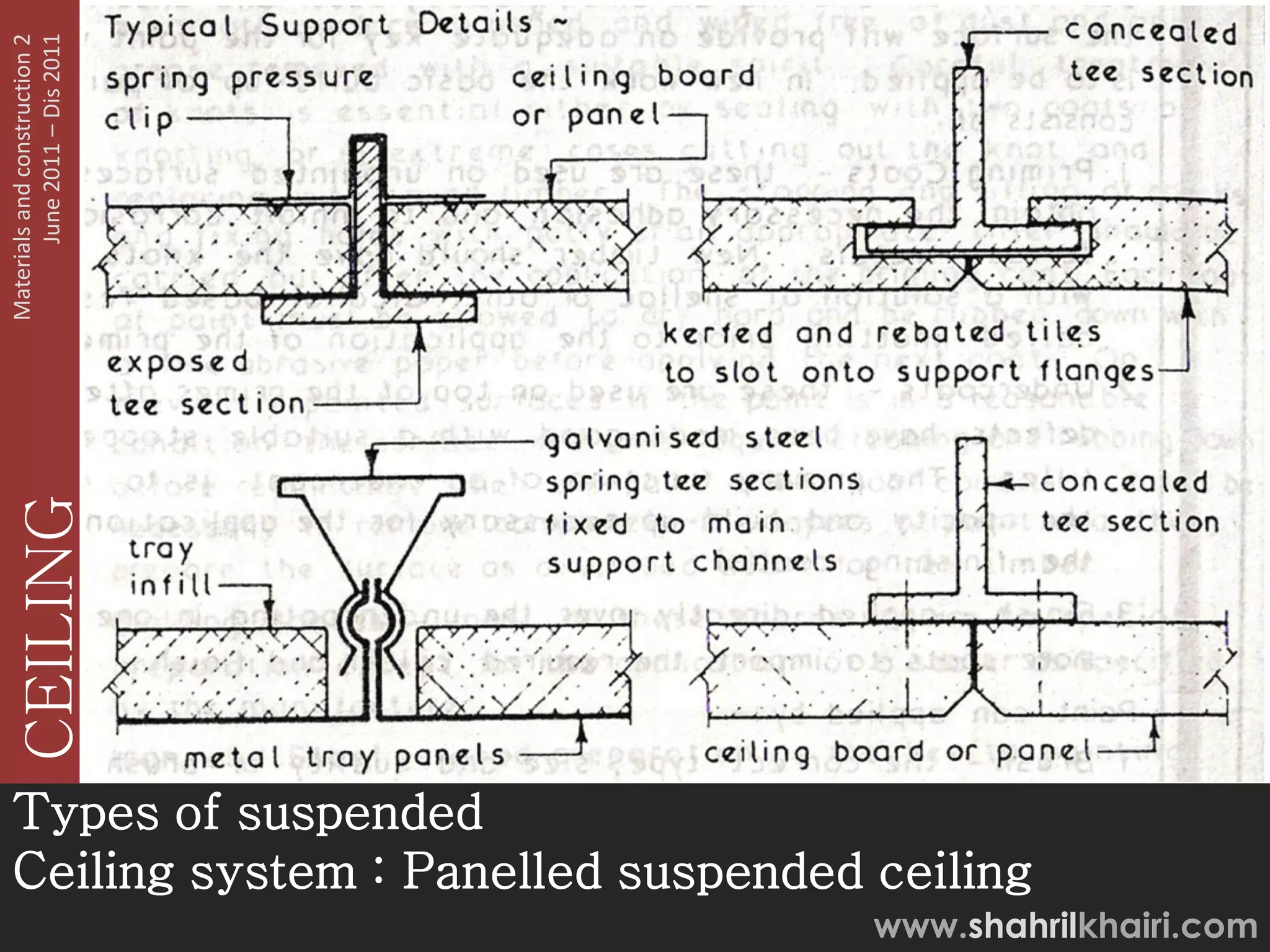

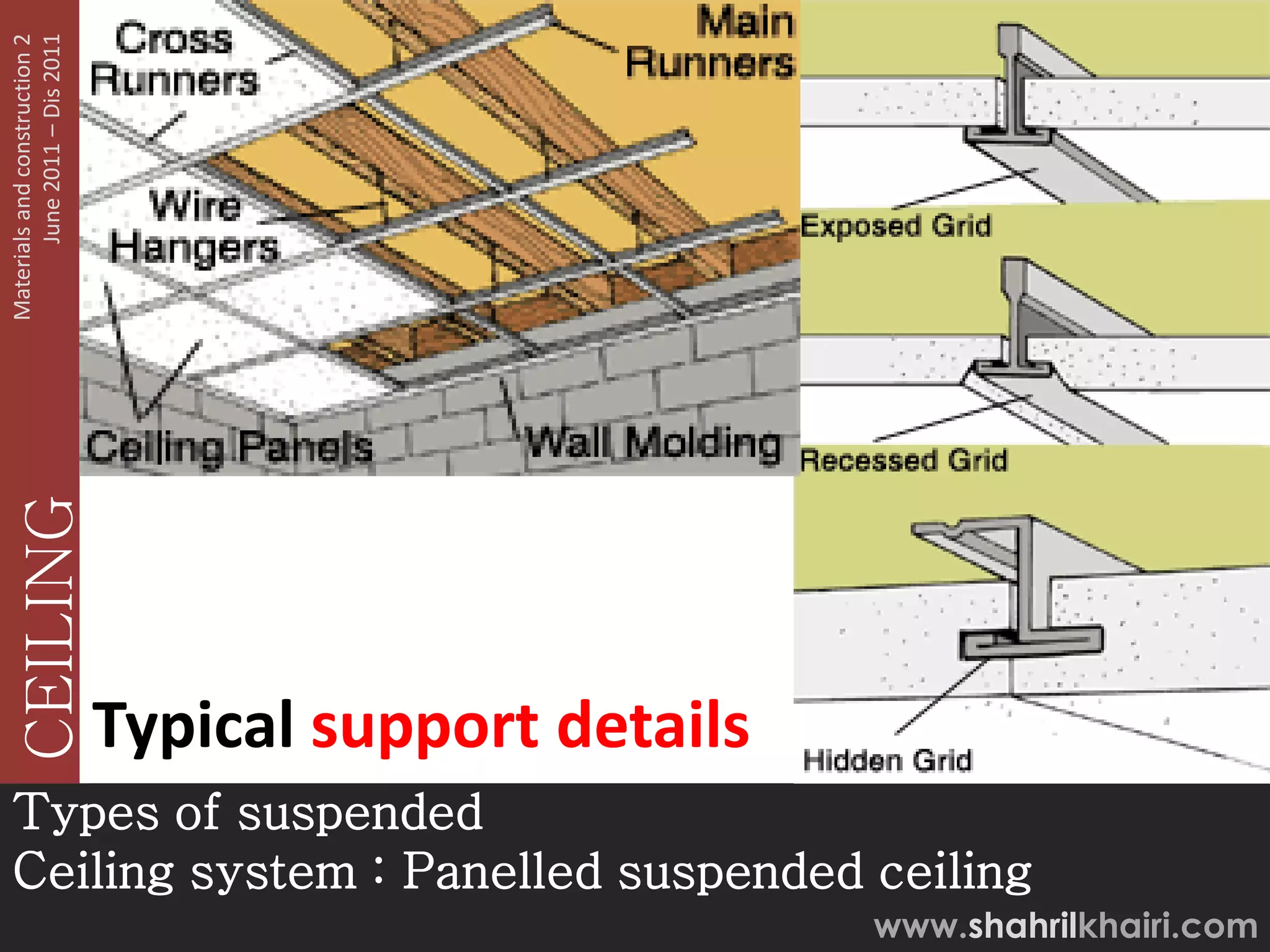

Typical support details
Types of suspended
Ceiling system : Panelled suspended ceiling
www.shahrilkhairi.com

18. June 2011 – Dis 2011
Materials and construction 2
CEILING
Types of suspended
Ceiling system : Panelled suspended ceiling
www.shahrilkhairi.com

19. June 2011 – Dis 2011
Materials and construction 2
CEILING
Types of suspended
Ceiling system : Panelled suspended ceiling
www.shahrilkhairi.com

20. June 2011 – Dis 2011
Materials and construction 2
CEILING

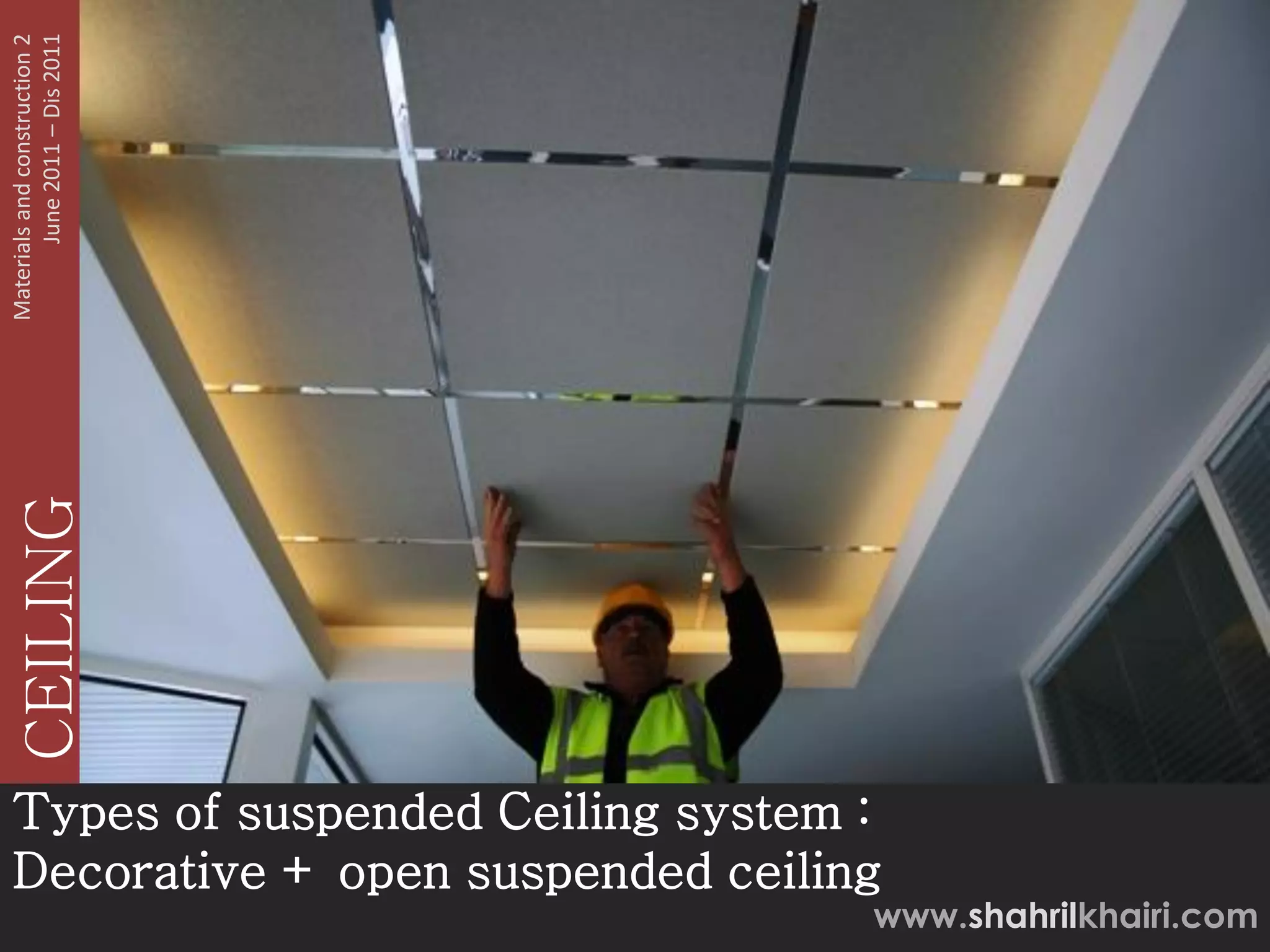

Types of suspended Ceiling system :
Decorative + open suspended ceiling
www.shahrilkhairi.com

21. June 2011 – Dis 2011
Materials and construction 2

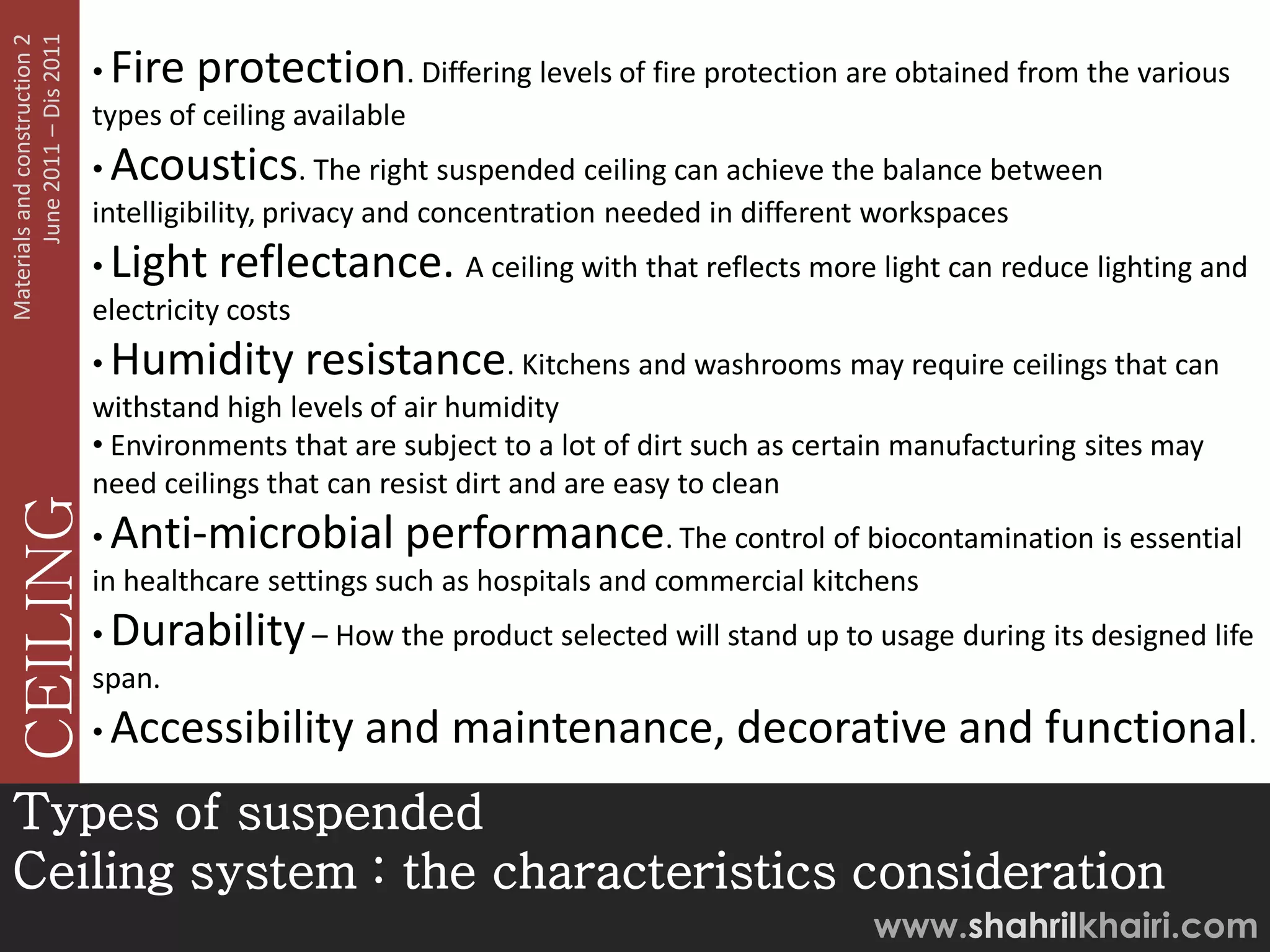

• Fire protection. Differing levels of fire protection are obtained from the various
types of ceiling available
• Acoustics. The right suspended ceiling can achieve the balance between
intelligibility, privacy and concentration needed in different workspaces
• Light reflectance. A ceiling with that reflects more light can reduce lighting and
electricity costs
• Humidity resistance. Kitchens and washrooms may require ceilings that can
withstand high levels of air humidity
• Environments that are subject to a lot of dirt such as certain manufacturing sites may
need ceilings that can resist dirt and are easy to clean
CEILING
• Anti-microbial performance. The control of biocontamination is essential
in healthcare settings such as hospitals and commercial kitchens
• Durability – How the product selected will stand up to usage during its designed life
span.
• Accessibility and maintenance, decorative and functional.
Types of suspended
Ceiling system : the characteristics consideration
www.shahrilkhairi.com
