1. How Telecoms contribute
to IoT landscape shaping
Evolution driven by business demands
or technology constraints ?
Marcin Mizgalski
International Sales Manager
Warszawa 2016

2. 2016-09-302

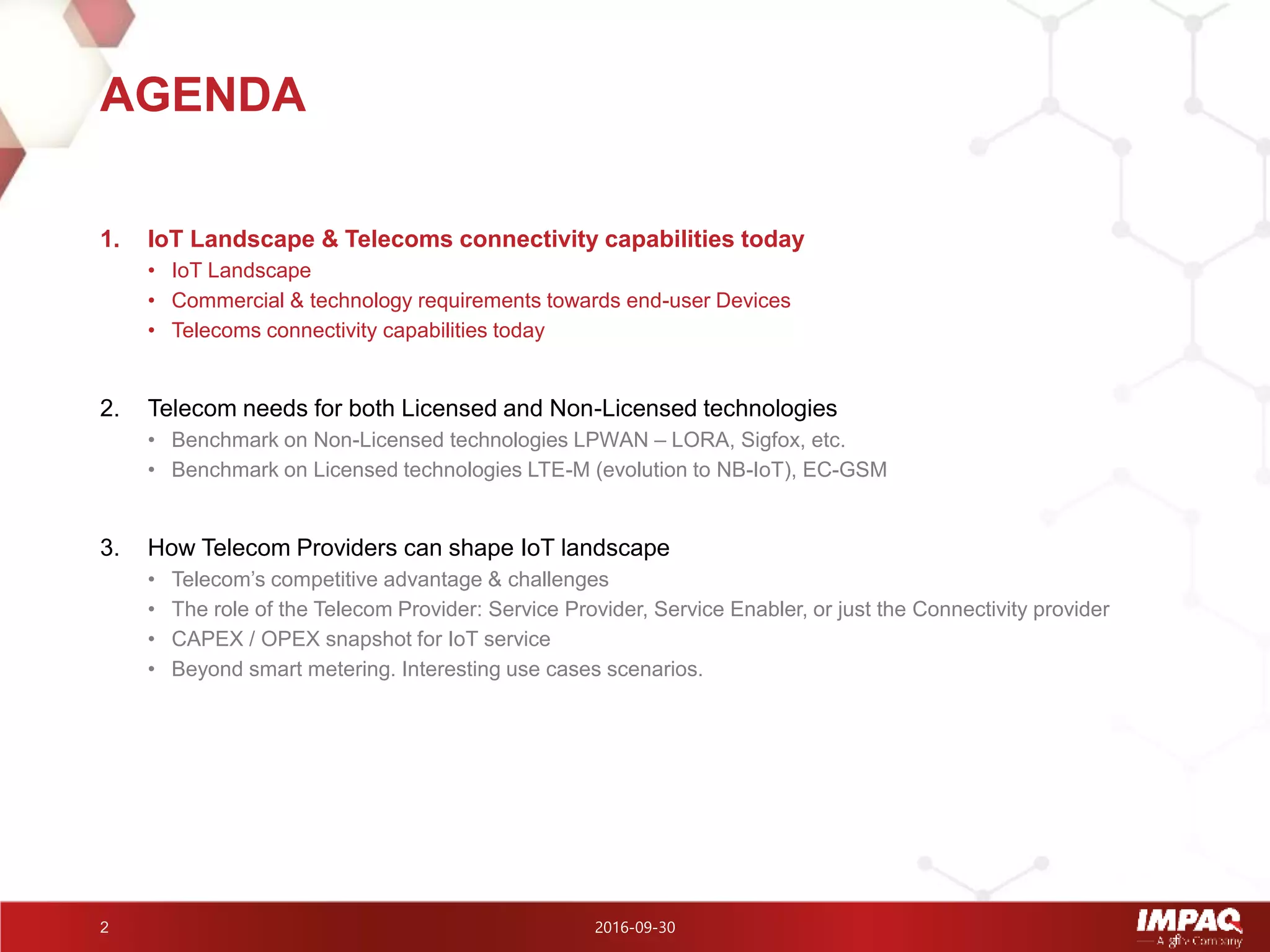

1. IoT Landscape & Telecoms connectivity capabilities today
• IoT Landscape
• Commercial & technology requirements towards end-user Devices
• Telecoms connectivity capabilities today
2. Telecom needs for both Licensed and Non-Licensed technologies
• Benchmark on Non-Licensed technologies LPWAN – LORA, Sigfox, etc.
• Benchmark on Licensed technologies LTE-M (evolution to NB-IoT), EC-GSM
3. How Telecom Providers can shape IoT landscape
• Telecom’s competitive advantage & challenges
• The role of the Telecom Provider: Service Provider, Service Enabler, or just the Connectivity provider
• CAPEX / OPEX snapshot for IoT service
• Beyond smart metering. Interesting use cases scenarios.
AGENDA

3. 2016-09-303

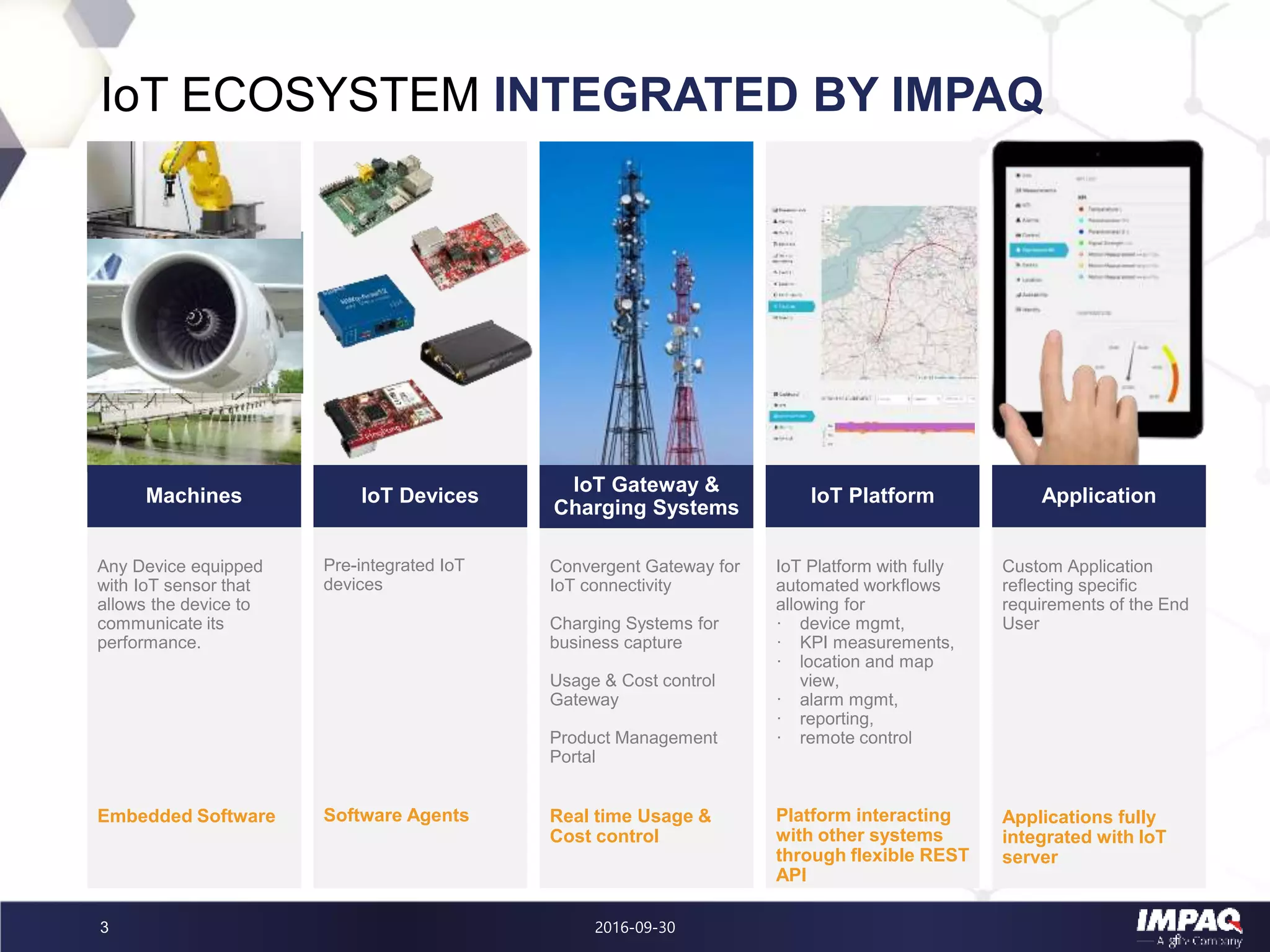

IoT ECOSYSTEM INTEGRATED BY IMPAQ
Any Device equipped
with IoT sensor that
allows the device to
communicate its
performance.
Embedded Software
Pre-integrated IoT
devices
Software Agents
Custom Application
reflecting specific
requirements of the End
User
Applications fully
integrated with IoT
server
ApplicationIoT DevicesMachines
Convergent Gateway for
IoT connectivity
Charging Systems for
business capture
Usage & Cost control
Gateway
Product Management
Portal
Real time Usage &
Cost control
IoT Gateway &
Charging Systems
IoT Platform with fully
automated workflows
allowing for
· device mgmt,
· KPI measurements,
· location and map
view,
· alarm mgmt,
· reporting,
· remote control
Platform interacting
with other systems
through flexible REST
API
IoT Platform

4. 2016-09-304

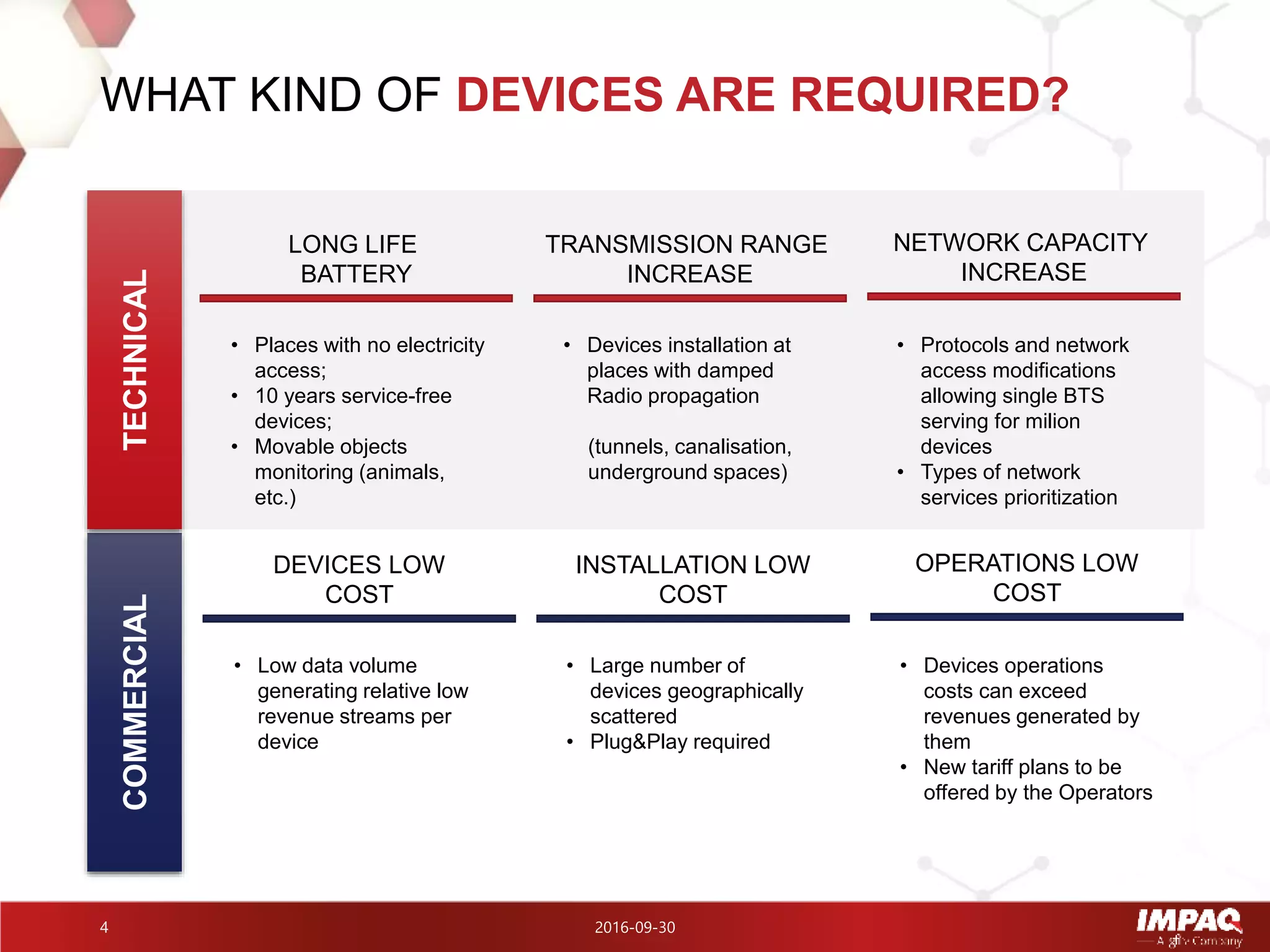

WHAT KIND OF DEVICES ARE REQUIRED?
TECHNICALCOMMERCIAL
LONG LIFE
BATTERY
TRANSMISSION RANGE
INCREASE
NETWORK CAPACITY
INCREASE
• Places with no electricity
access;
• 10 years service-free
devices;
• Movable objects
monitoring (animals,
etc.)
• Devices installation at
places with damped
Radio propagation
(tunnels, canalisation,
underground spaces)
• Protocols and network
access modifications
allowing single BTS
serving for milion
devices
• Types of network
services prioritization
DEVICES LOW
COST
INSTALLATION LOW
COST
OPERATIONS LOW
COST
• Low data volume
generating relative low
revenue streams per
device
• Large number of
devices geographically
scattered
• Plug&Play required
• Devices operations
costs can exceed
revenues generated by
them
• New tariff plans to be
offered by the Operators

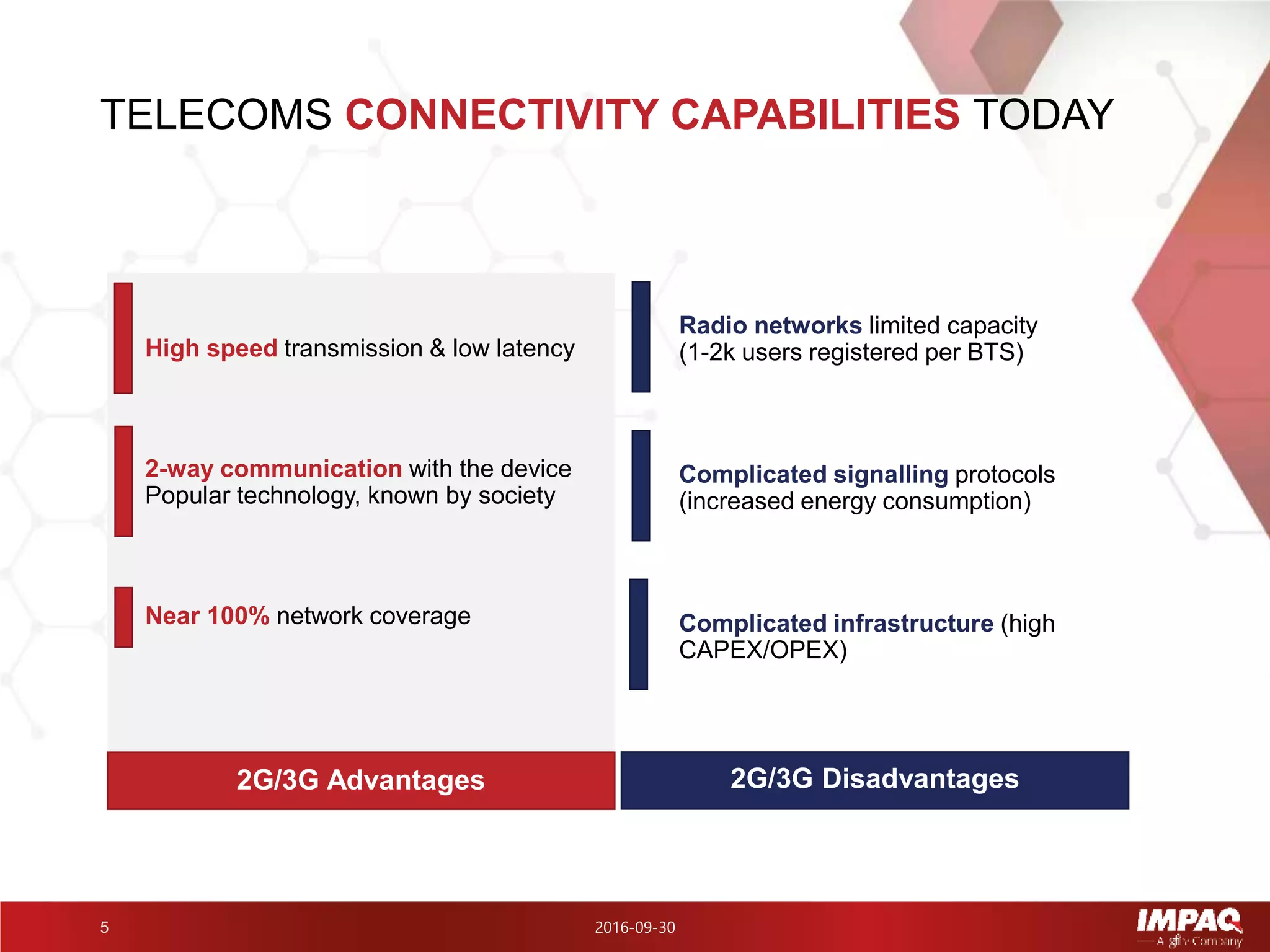

5. TELECOMS CONNECTIVITY CAPABILITIES TODAY
High speed transmission & low latency
2-way communication with the device
Popular technology, known by society
Near 100% network coverage
2016-09-305
2G/3G Advantages
Radio networks limited capacity
(1-2k users registered per BTS)
Complicated signalling protocols
(increased energy consumption)
Complicated infrastructure (high
CAPEX/OPEX)
2G/3G Disadvantages

6. 2016-09-306

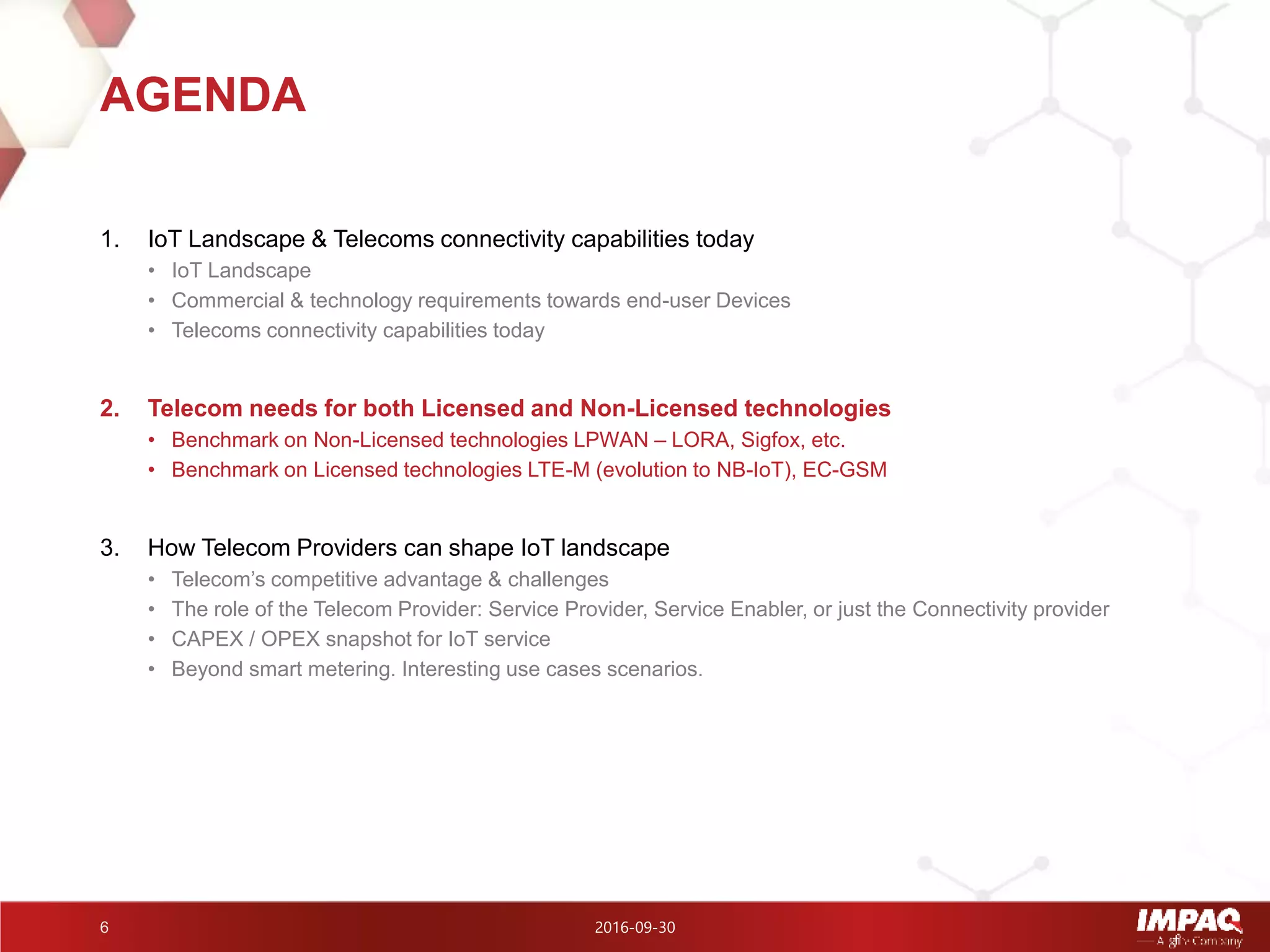

1. IoT Landscape & Telecoms connectivity capabilities today
• IoT Landscape
• Commercial & technology requirements towards end-user Devices
• Telecoms connectivity capabilities today
2. Telecom needs for both Licensed and Non-Licensed technologies
• Benchmark on Non-Licensed technologies LPWAN – LORA, Sigfox, etc.
• Benchmark on Licensed technologies LTE-M (evolution to NB-IoT), EC-GSM
3. How Telecom Providers can shape IoT landscape
• Telecom’s competitive advantage & challenges
• The role of the Telecom Provider: Service Provider, Service Enabler, or just the Connectivity provider
• CAPEX / OPEX snapshot for IoT service
• Beyond smart metering. Interesting use cases scenarios.
AGENDA

7. 2016-09-307

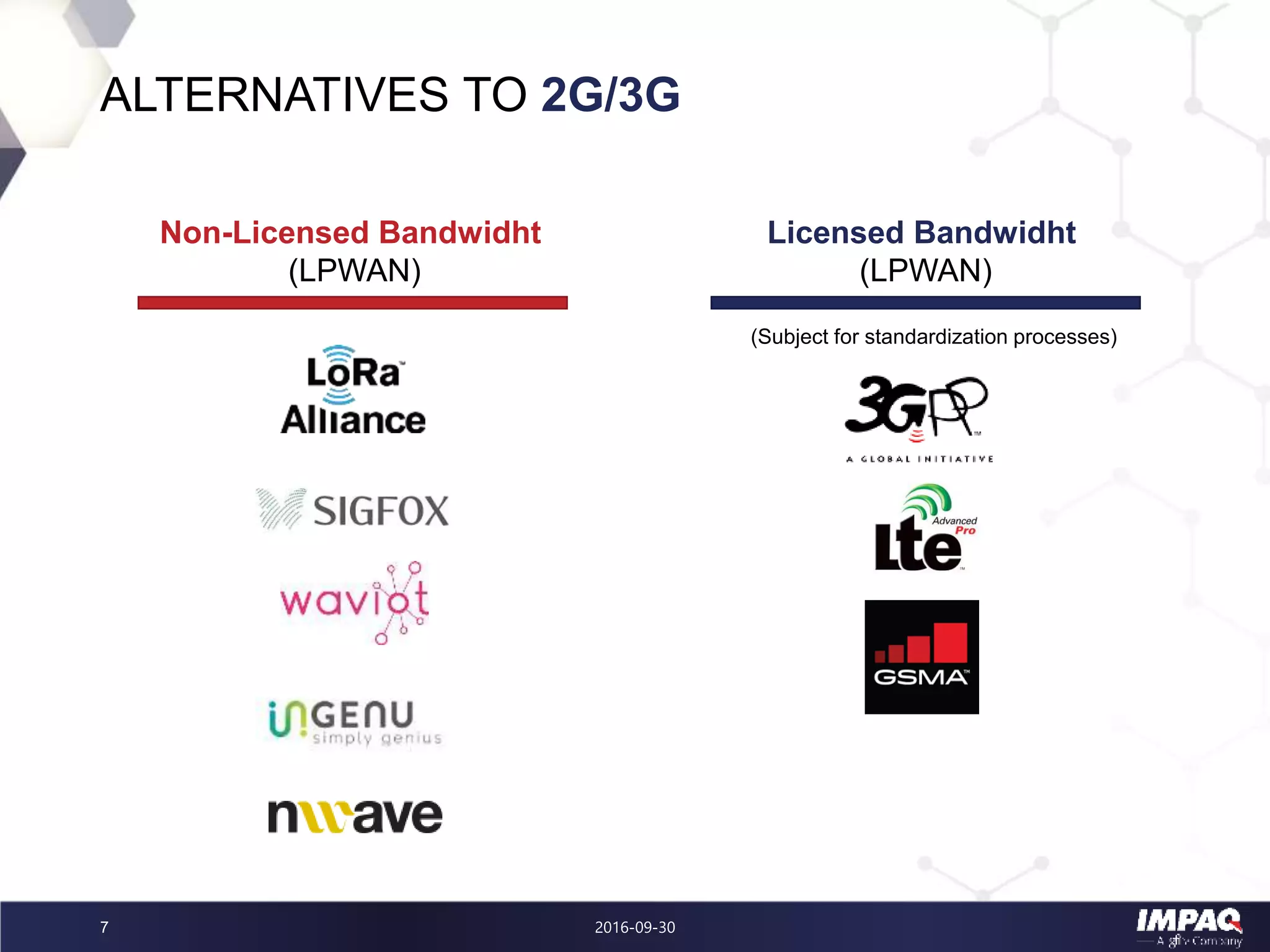

ALTERNATIVES TO 2G/3G
Non-Licensed Bandwidht
(LPWAN)
Licensed Bandwidht
(LPWAN)
(Subject for standardization processes)

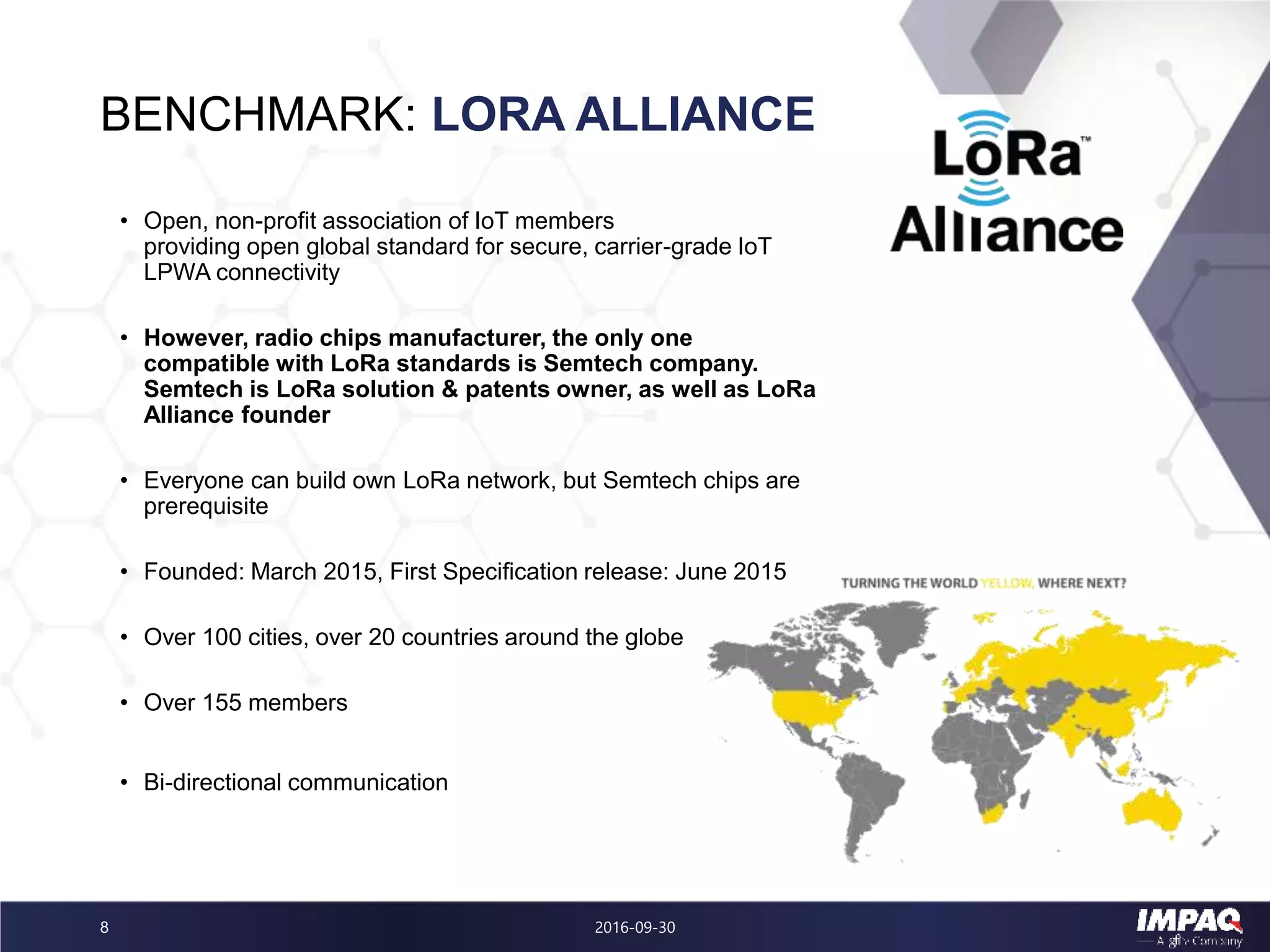

8. BENCHMARK: LORA ALLIANCE
2016-09-308
• Open, non-profit association of IoT members
providing open global standard for secure, carrier-grade IoT
LPWA connectivity
• However, radio chips manufacturer, the only one
compatible with LoRa standards is Semtech company.
Semtech is LoRa solution & patents owner, as well as LoRa
Alliance founder
• Everyone can build own LoRa network, but Semtech chips are
prerequisite
• Founded: March 2015, First Specification release: June 2015
• Over 100 cities, over 20 countries around the globe
• Over 155 members
• Bi-directional communication

9. 2016-09-309

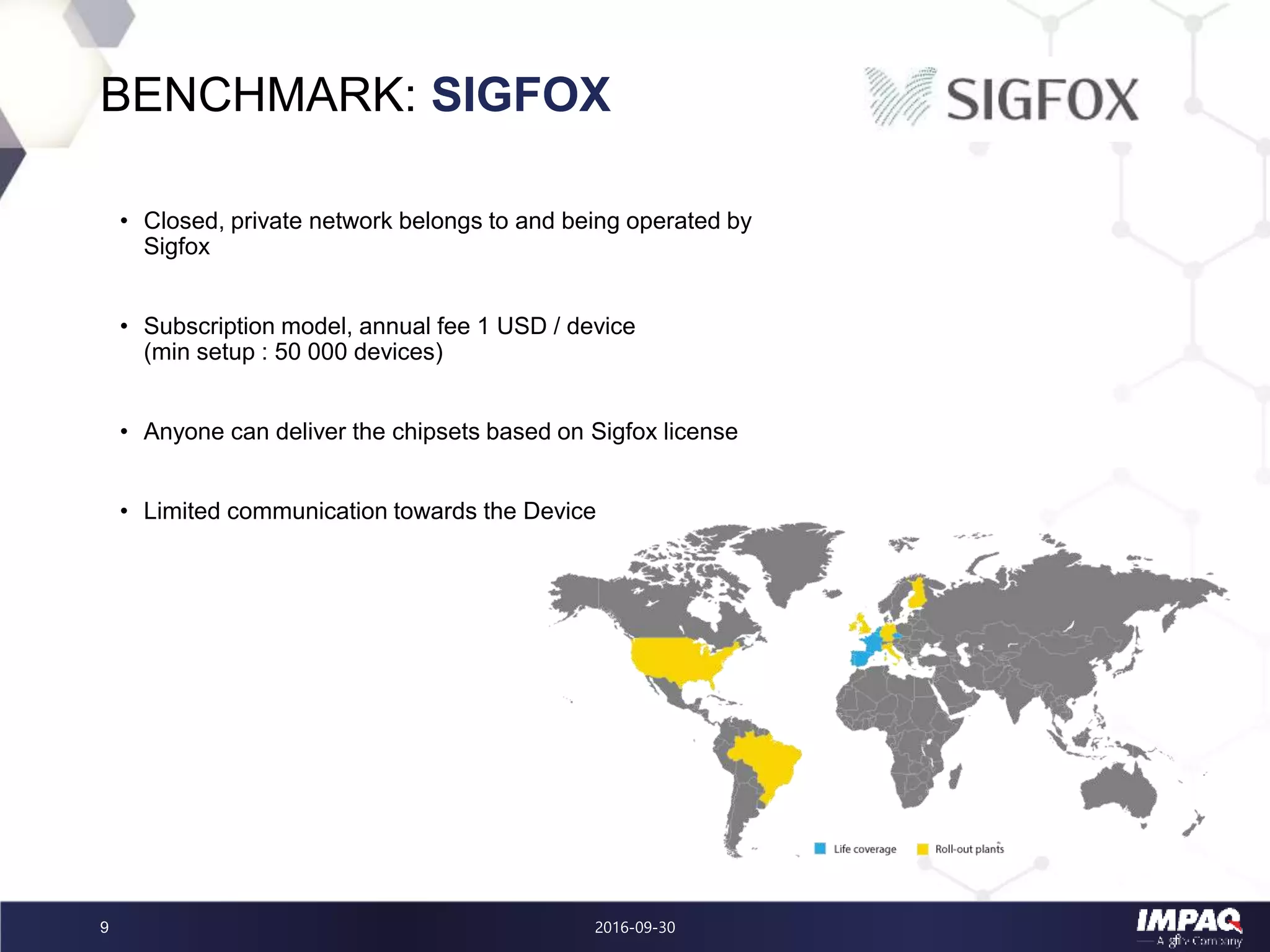

BENCHMARK: SIGFOX
• Closed, private network belongs to and being operated by
Sigfox
• Subscription model, annual fee 1 USD / device
(min setup : 50 000 devices)
• Anyone can deliver the chipsets based on Sigfox license
• Limited communication towards the Device

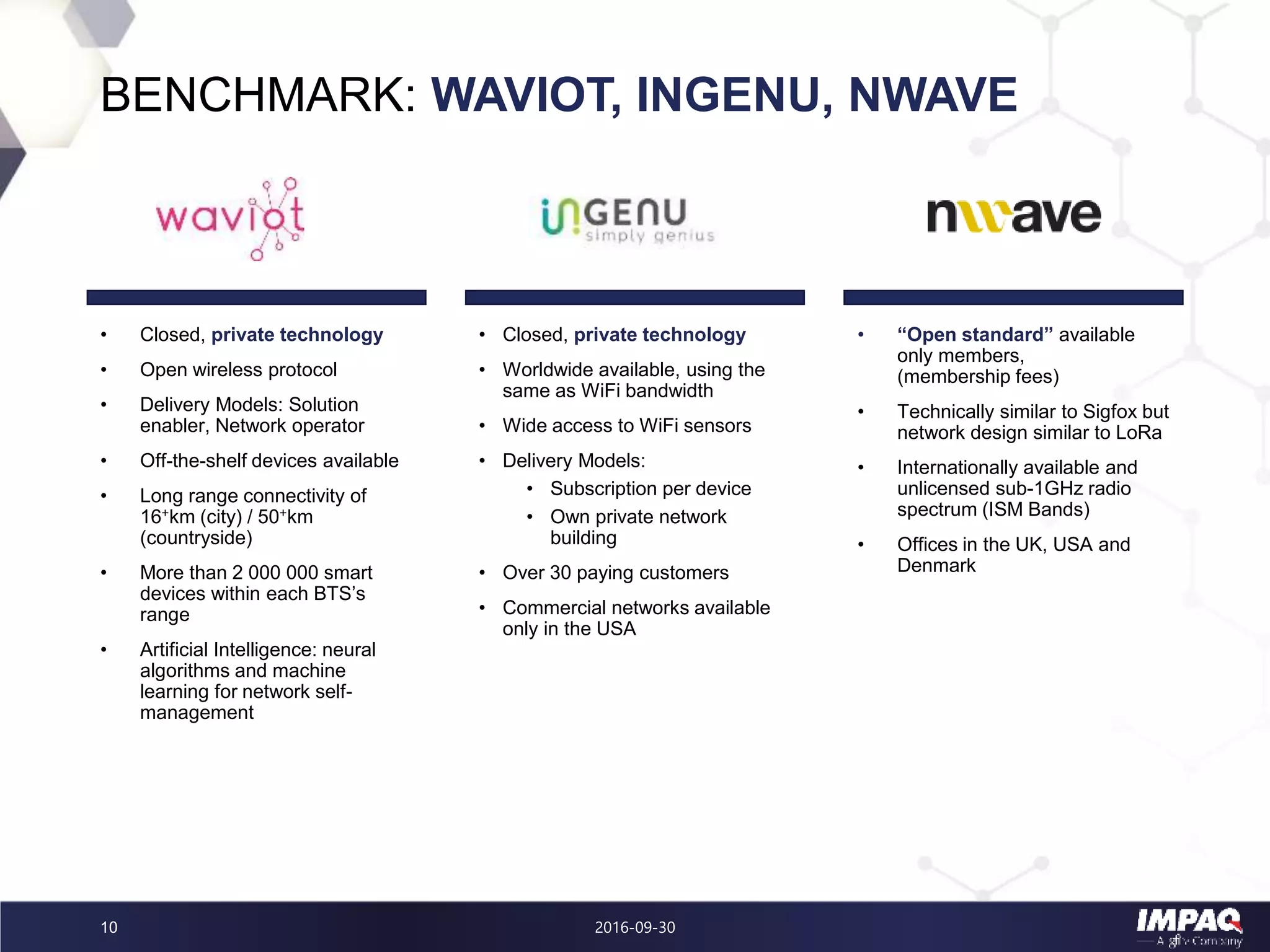

10. BENCHMARK: WAVIOT, INGENU, NWAVE
• Closed, private technology
• Open wireless protocol
• Delivery Models: Solution
enabler, Network operator
• Off-the-shelf devices available
• Long range connectivity of
16+km (city) / 50+km
(countryside)
• More than 2 000 000 smart
devices within each BTS’s
range
• Artificial Intelligence: neural
algorithms and machine
learning for network self-
management
2016-09-3010
• Closed, private technology
• Worldwide available, using the
same as WiFi bandwidth
• Wide access to WiFi sensors
• Delivery Models:
• Subscription per device
• Own private network
building
• Over 30 paying customers
• Commercial networks available
only in the USA
• “Open standard” available
only members,
(membership fees)
• Technically similar to Sigfox but
network design similar to LoRa
• Internationally available and
unlicensed sub-1GHz radio
spectrum (ISM Bands)
• Offices in the UK, USA and
Denmark

11. 2016-09-3011

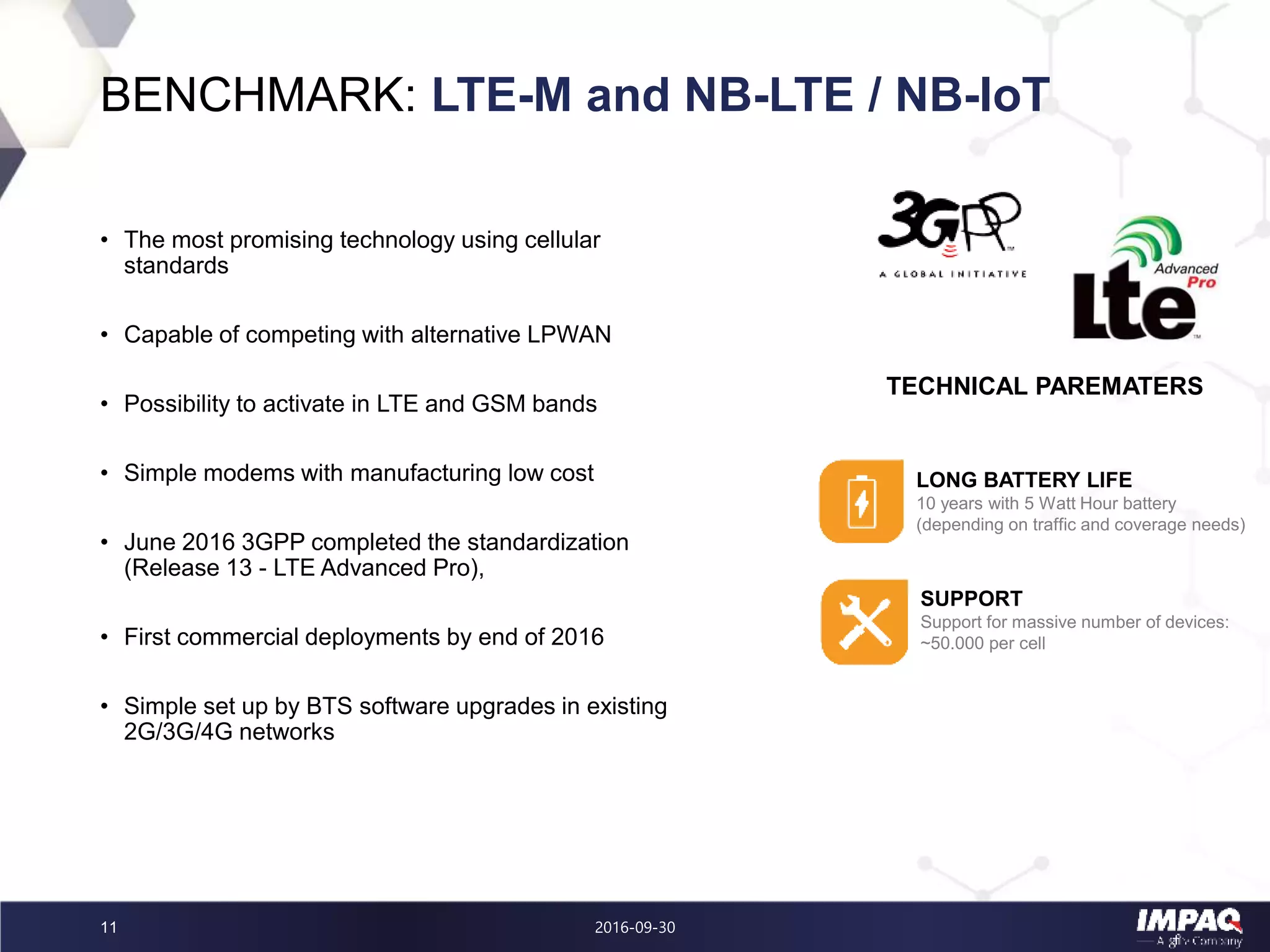

BENCHMARK: LTE-M and NB-LTE / NB-IoT
• The most promising technology using cellular
standards
• Capable of competing with alternative LPWAN
• Possibility to activate in LTE and GSM bands
• Simple modems with manufacturing low cost
• June 2016 3GPP completed the standardization
(Release 13 - LTE Advanced Pro),
• First commercial deployments by end of 2016
• Simple set up by BTS software upgrades in existing
2G/3G/4G networks
LONG BATTERY LIFE
10 years with 5 Watt Hour battery
(depending on traffic and coverage needs)
SUPPORT
Support for massive number of devices:
~50.000 per cell
TECHNICAL PAREMATERS

12. 2016-09-3012

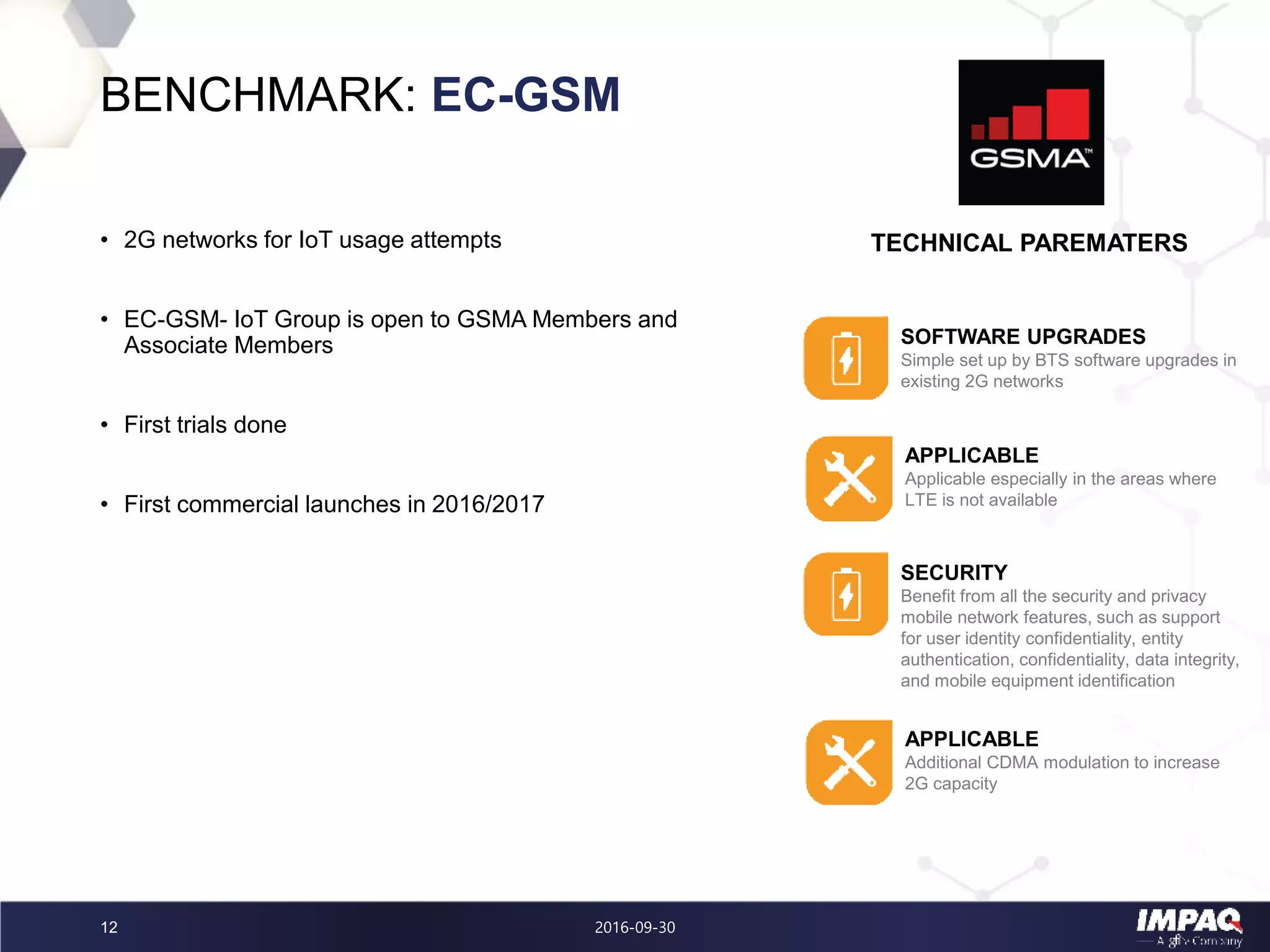

BENCHMARK: EC-GSM
• 2G networks for IoT usage attempts
• EC-GSM- IoT Group is open to GSMA Members and
Associate Members
• First trials done
• First commercial launches in 2016/2017
SOFTWARE UPGRADES
Simple set up by BTS software upgrades in
existing 2G networks
APPLICABLE
Applicable especially in the areas where
LTE is not available
TECHNICAL PAREMATERS
SECURITY
Benefit from all the security and privacy
mobile network features, such as support
for user identity confidentiality, entity
authentication, confidentiality, data integrity,
and mobile equipment identification
APPLICABLE
Additional CDMA modulation to increase
2G capacity

13. 2016-09-3013

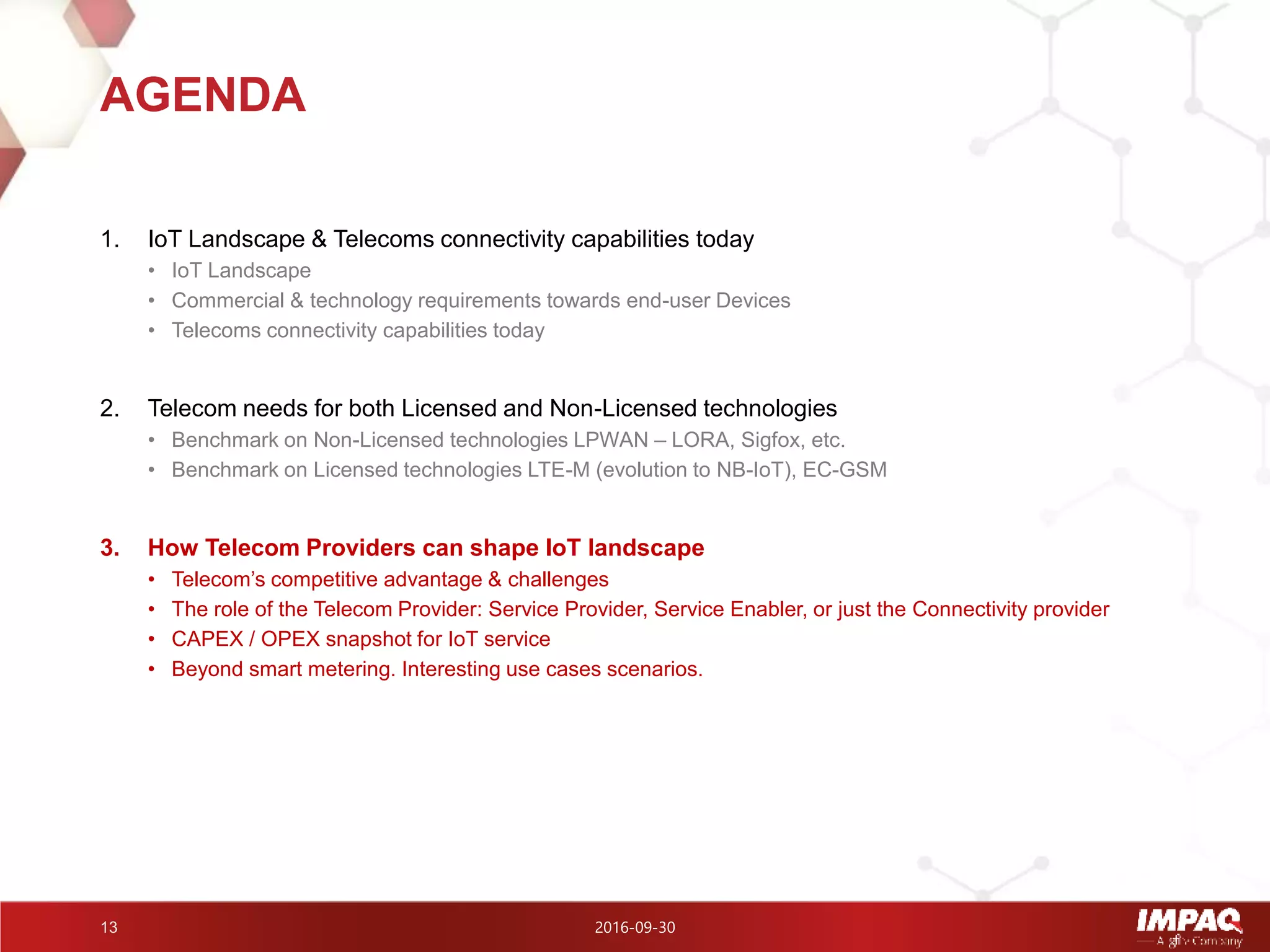

1. IoT Landscape & Telecoms connectivity capabilities today
• IoT Landscape
• Commercial & technology requirements towards end-user Devices
• Telecoms connectivity capabilities today
2. Telecom needs for both Licensed and Non-Licensed technologies
• Benchmark on Non-Licensed technologies LPWAN – LORA, Sigfox, etc.
• Benchmark on Licensed technologies LTE-M (evolution to NB-IoT), EC-GSM
3. How Telecom Providers can shape IoT landscape
• Telecom’s competitive advantage & challenges
• The role of the Telecom Provider: Service Provider, Service Enabler, or just the Connectivity provider
• CAPEX / OPEX snapshot for IoT service
• Beyond smart metering. Interesting use cases scenarios.
AGENDA

14. 2016-09-3014

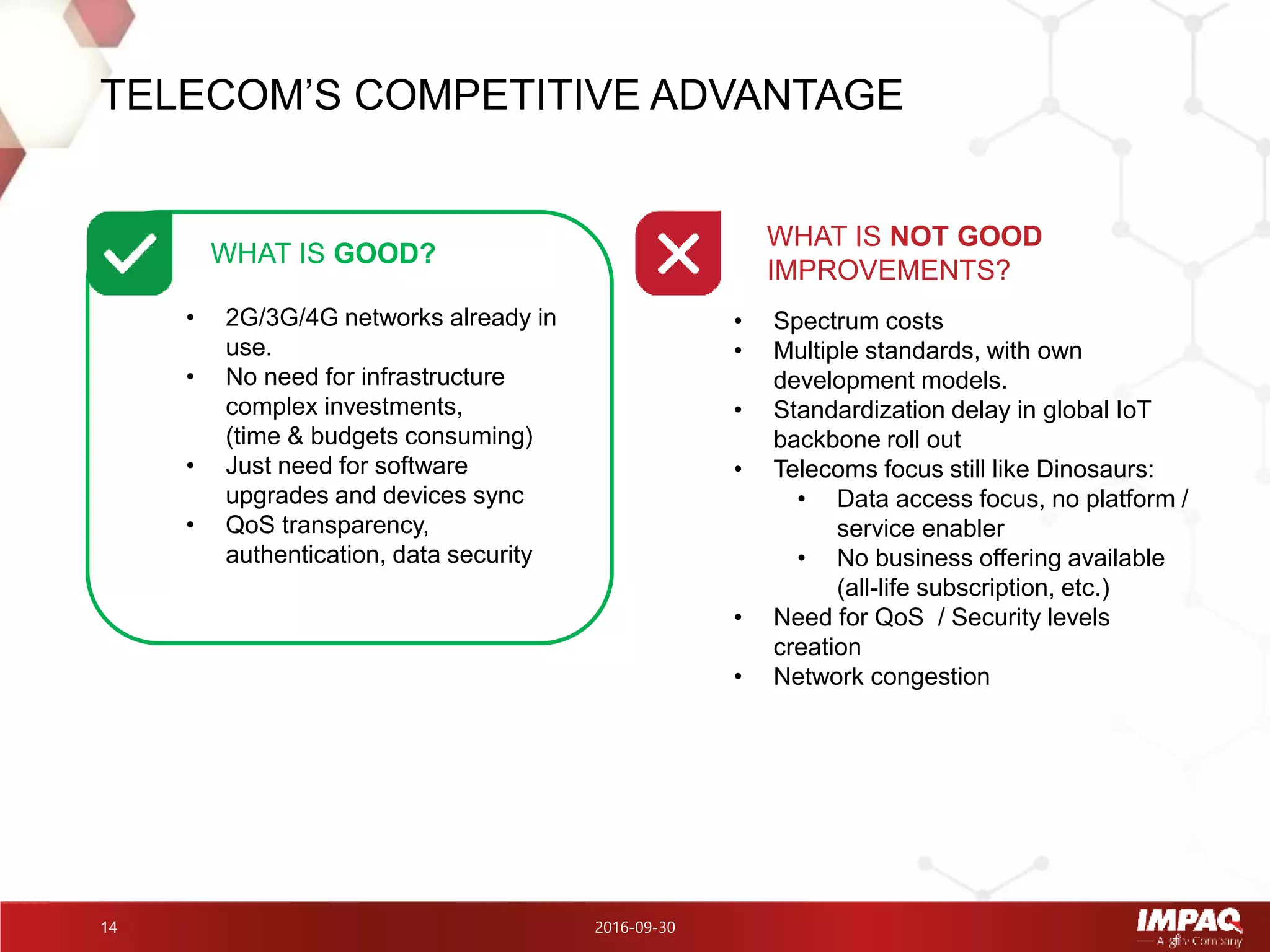

TELECOM’S COMPETITIVE ADVANTAGE
WHAT IS GOOD?
WHAT IS NOT GOOD
IMPROVEMENTS?
• 2G/3G/4G networks already in
use.
• No need for infrastructure
complex investments,
(time & budgets consuming)
• Just need for software
upgrades and devices sync
• QoS transparency,
authentication, data security
• Spectrum costs
• Multiple standards, with own
development models.
• Standardization delay in global IoT
backbone roll out
• Telecoms focus still like Dinosaurs:
• Data access focus, no platform /
service enabler
• No business offering available
(all-life subscription, etc.)
• Need for QoS / Security levels
creation
• Network congestion

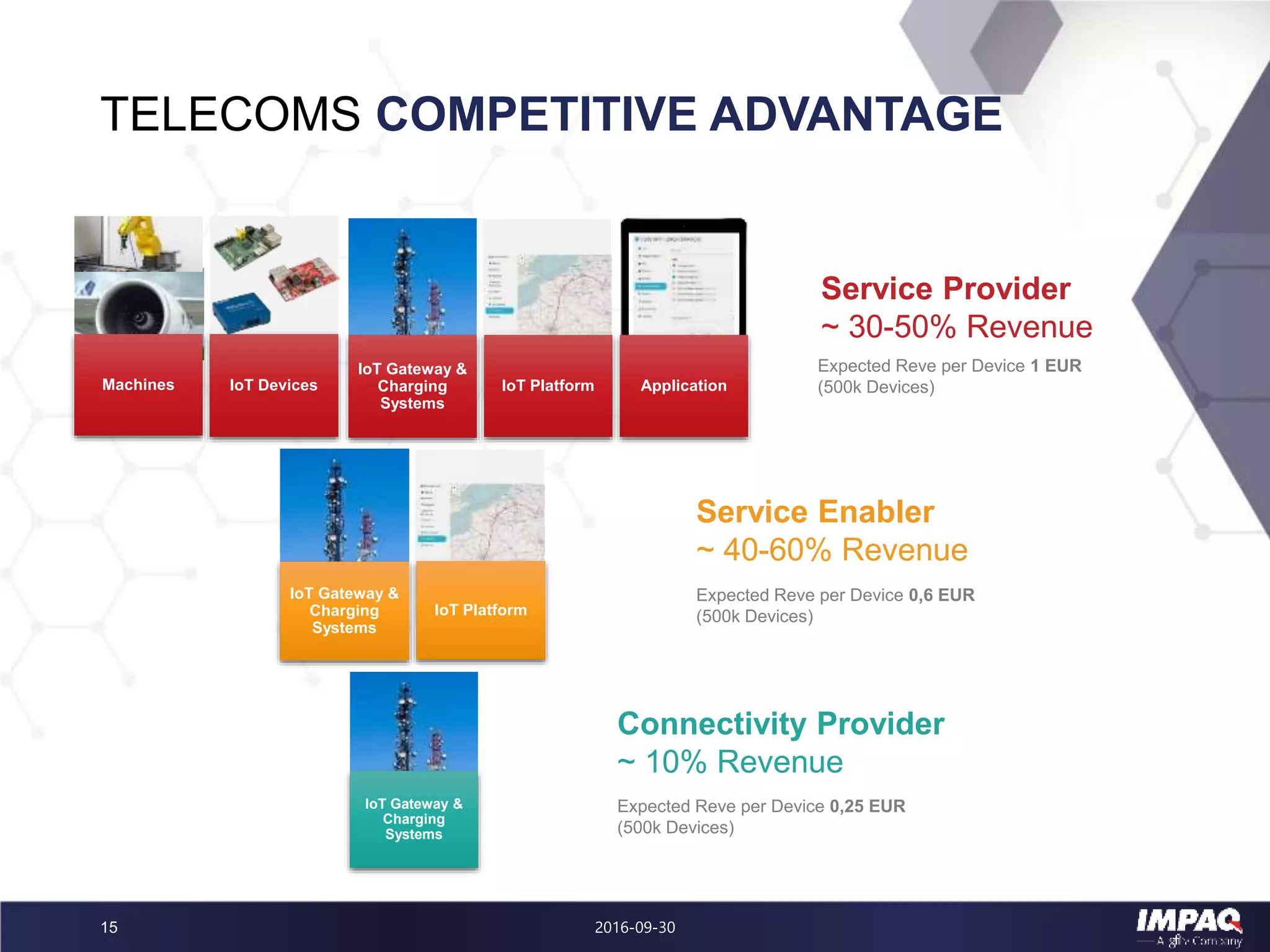

15. TELECOMS COMPETITIVE ADVANTAGE
2016-09-3015
IoT DevicesMachines
IoT Gateway &
Charging
Systems
IoT Gateway &
Charging
Systems
IoT Platform Application
IoT Gateway &
Charging
Systems
IoT Platform
Connectivity Provider
~ 10% Revenue
Service Enabler
~ 40-60% Revenue
Service Provider
~ 30-50% Revenue
Expected Reve per Device 1 EUR
(500k Devices)
Expected Reve per Device 0,6 EUR
(500k Devices)
Expected Reve per Device 0,25 EUR
(500k Devices)

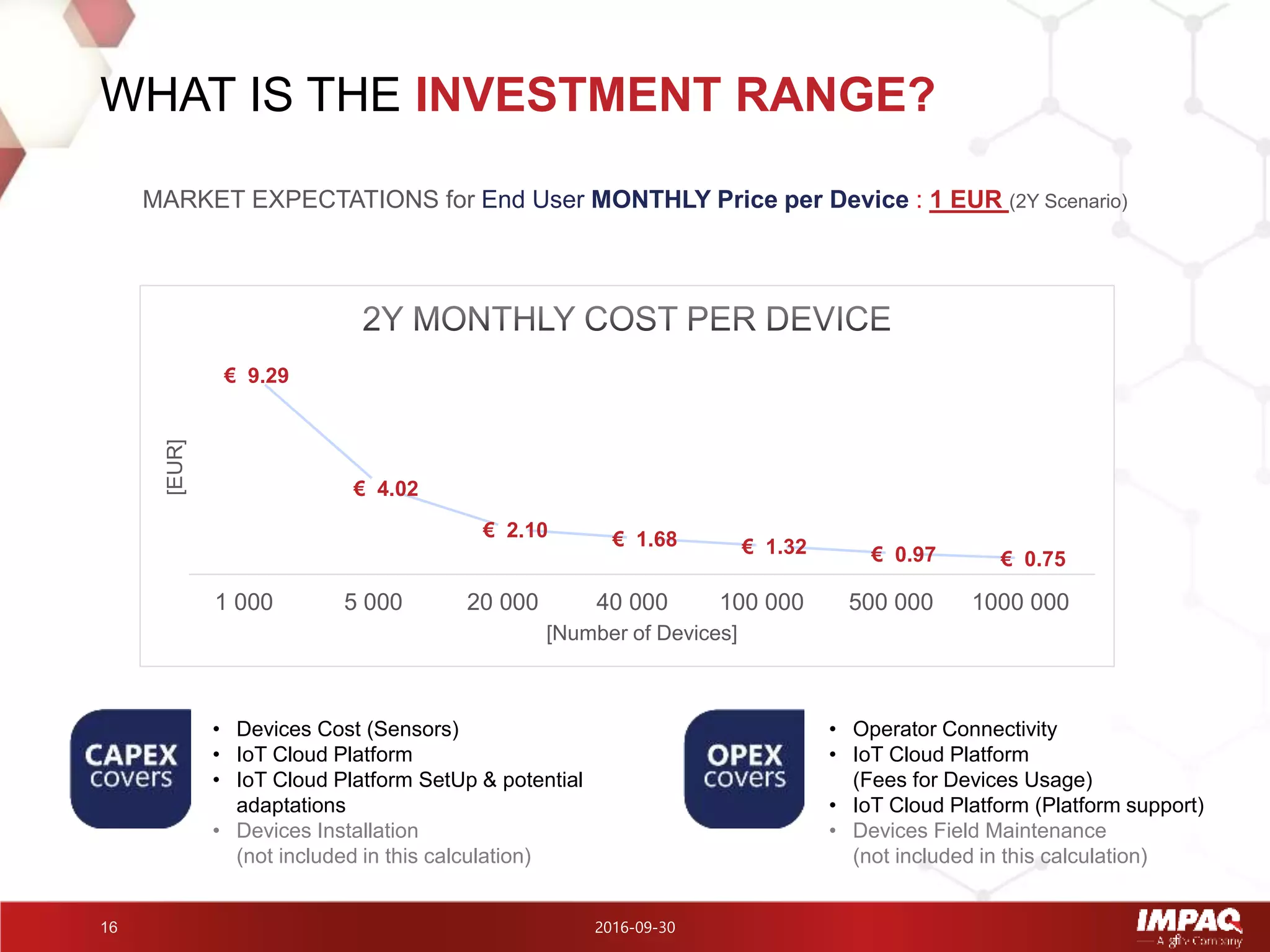

16. MARKET EXPECTATIONS for End User MONTHLY Price per Device : 1 EUR (2Y Scenario)
2016-09-3016
WHAT IS THE INVESTMENT RANGE?
• Devices Cost (Sensors)
• IoT Cloud Platform
• IoT Cloud Platform SetUp & potential
adaptations
• Devices Installation
(not included in this calculation)
• Operator Connectivity
• IoT Cloud Platform
(Fees for Devices Usage)
• IoT Cloud Platform (Platform support)
• Devices Field Maintenance
(not included in this calculation)
€ 9.29
€ 4.02
€ 2.10 € 1.68 € 1.32 € 0.97 € 0.75
1 000 5 000 20 000 40 000 100 000 500 000 1000 000
[EUR]
[Number of Devices]

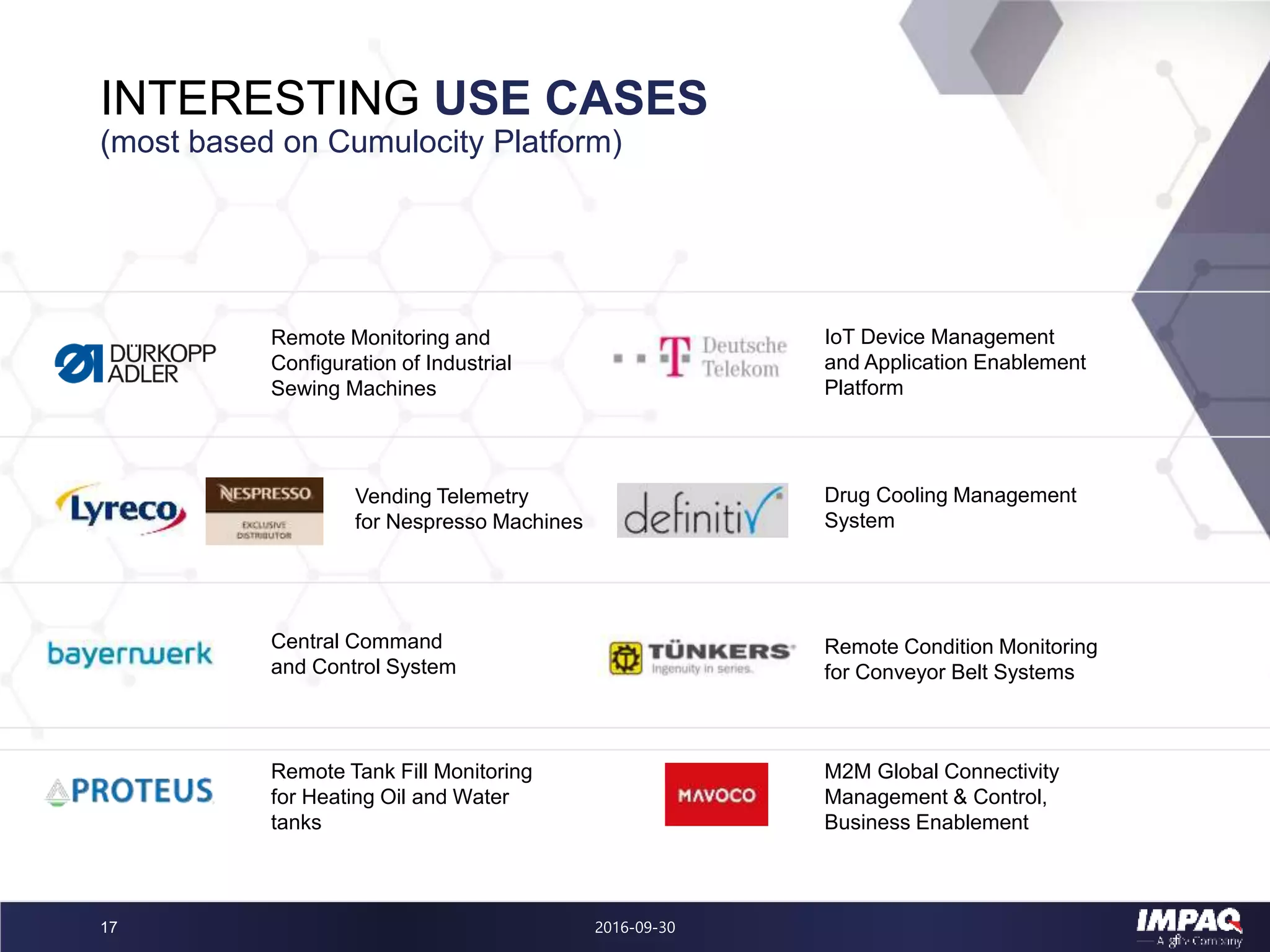

17. INTERESTING USE CASES
(most based on Cumulocity Platform)
2016-09-3017
M2M Global Connectivity
Management & Control,
Business Enablement
Remote Monitoring and
Configuration of Industrial
Sewing Machines
IoT Device Management
and Application Enablement
Platform
Drug Cooling Management
System
Remote Condition Monitoring
for Conveyor Belt Systems
Central Command
and Control System
Remote Tank Fill Monitoring
for Heating Oil and Water
tanks
Vending Telemetry
for Nespresso Machines

18. 2016-09-3018
IMPAQ VALUES
We focus on success, learn from the
past projects and develop new ideas.
We pride ourselves in quality of our
deliveries, measured by Customer
feedback and our own Quality
Assurance. Focus on Quality
guarantees the satisfaction of
Customers and our own team.
An individual wins a game, Teamwork
wins championships.
In IMPAQ, we believe that working
together creates positive atmosphere
and motivates us. Our roles are driven
by our Team goal
In IMPAQ, we keep the promises we
make. We push to exceed
commitments made to ourselves and
others. We feel responsible for our
team members.
Innovation is our drive, Innovation is
our style. All innovations contributing
to IMPAQ growth are considered and
addressed by Innovation Capture
Process. This way we create the
future of our company.

19. Thank you!
Welcome to
discuss further details
Marcin Mizgalski
International Sales Manager
IMPAQ Sp. z o.o.
ul. Wołoska 22, 02-675 Warsaw, Poland
Mobile: +48 600 41 20 14
marcin.mizgalski@impaqgroup.com
www.impaqgroup.comIMPAQ Sp. z o.o.
ul. Wołoska 22
02-675 Warsaw
Phone: +48 22 31 46 000
POLAND
IMPAQ AG
Badenerstrasse 580
CH-8048 Zurich
Phone: +41 44 405 21 00
Fax: +41 44 405 21 01
SWITZERLAND
IMPAQ UK Ltd.
9 Bridle Close, Surbiton Road
Kingston upon Thames
Surrey KT1 2JW
Phone: +44 20 85 49 2133
UNITED KINGDOM
