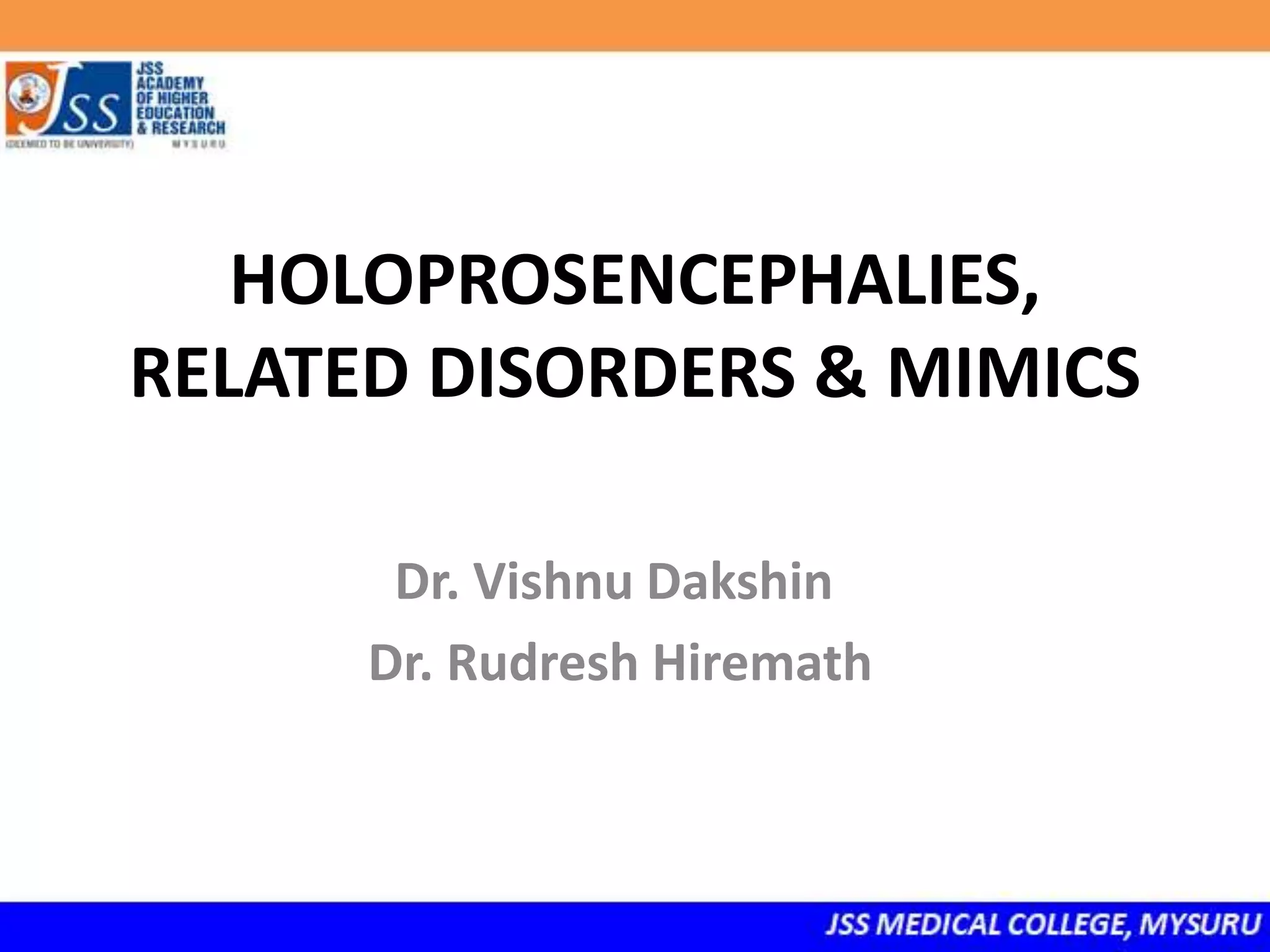

- 1. HOLOPROSENCEPHALIES, RELATED DISORDERS &MIMICS Dr. Vishnu Dakshin Dr. Rudresh Hiremath
- 2. HOLOPROSENCEPHALY • Rare congenitalbrain malformation resulting from incomplete separation of the two hemispheres. • “Holo” – Single ventricle • “pros” – Prosencephalon • “encephaly” - Brain
- 3.
- 4. TYPES - DEMYER •CLASSIC - Alobar - Semilobar - Lobar • VARIANTS - Syntelencephaly. - Septopreoptic HPE. • Minimal HPE. • Microform HPE.
- 5. CLASSIC • Alobar HPE. •Semilobar HPE. • Lobar HPE. • The distinction between these 3 forms is based primarily on the presence or absence of a midline fissure separating the hemispheres.
- 6. ALOBAR HPE • Mostsevere. • No midline fissure, no identifiable lobes. • Fused basal ganglia. • Agyric /disordered gyri /shallow sulci. • Single crescent monoventricle - opening dorsally into a large CSF filled dorsal cyst.

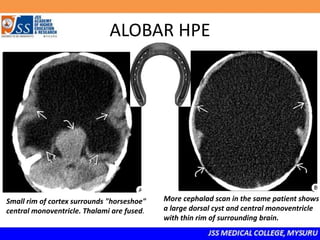

- 7. ALOBAR HPE Small rimof cortex surrounds "horseshoe" central monoventricle. Thalami are fused. More cephalad scan in the same patient shows a large dorsal cyst and central monoventricle with thin rim of surrounding brain.

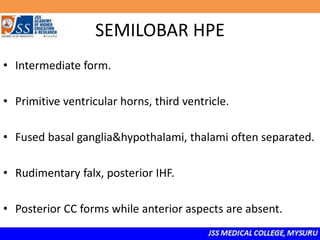

- 8. SEMILOBAR HPE • Intermediateform. • Primitive ventricular horns, third ventricle. • Fused basal ganglia&hypothalami, thalami often separated. • Rudimentary falx, posterior IHF. • Posterior CC forms while anterior aspects are absent.

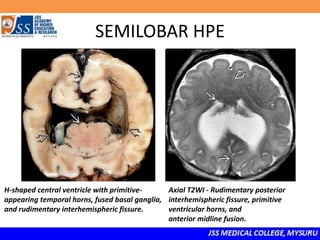

- 9. SEMILOBAR HPE H-shaped centralventricle with primitive- appearing temporal horns, fused basal ganglia, and rudimentary interhemispheric fissure. Axial T2WI - Rudimentary posterior interhemispheric fissure, primitive ventricular horns, and anterior midline fusion.

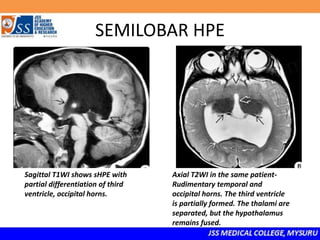

- 10. SEMILOBAR HPE Sagittal T1WIshows sHPE with partial differentiation of third ventricle, occipital horns. Axial T2WI in the same patient- Rudimentary temporal and occipital horns. The third ventricle is partially formed. The thalami are separated, but the hypothalamus remains fused.

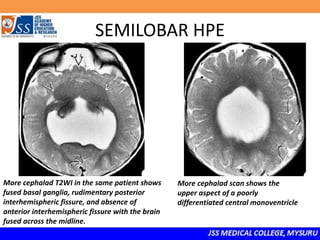

- 11. SEMILOBAR HPE More cephaladT2WI in the same patient shows fused basal ganglia, rudimentary posterior interhemispheric fissure, and absence of anterior interhemispheric fissure with the brain fused across the midline. More cephalad scan shows the upper aspect of a poorly differentiated central monoventricle

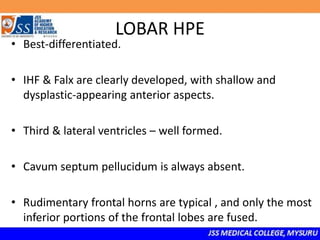

- 12. LOBAR HPE • Best-differentiated. •IHF & Falx are clearly developed, with shallow and dysplastic-appearing anterior aspects. • Third & lateral ventricles – well formed. • Cavum septum pellucidum is always absent. • Rudimentary frontal horns are typical , and only the most inferior portions of the frontal lobes are fused.

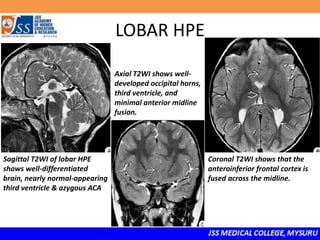

- 13. LOBAR HPE Sagittal T2WIof lobar HPE shows well-differentiated brain, nearly normal-appearing third ventricle & azygous ACA Axial T2WI shows well- developed occipital horns, third ventricle, and minimal anterior midline fusion. Coronal T2WI shows that the anteroinferior frontal cortex is fused across the midline.

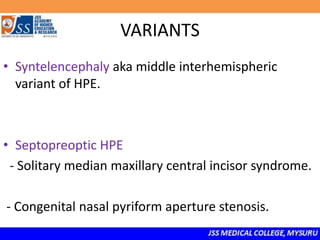

- 14. VARIANTS • Syntelencephaly akamiddle interhemispheric variant of HPE. • Septopreoptic HPE - Solitary median maxillary central incisor syndrome. - Congenital nasal pyriform aperture stenosis.

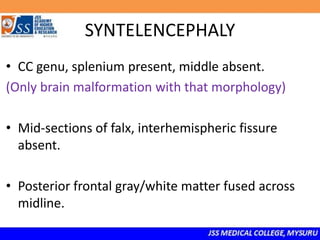

- 15. SYNTELENCEPHALY • CC genu,splenium present, middle absent. (Only brain malformation with that morphology) • Mid-sections of falx, interhemispheric fissure absent. • Posterior frontal gray/white matter fused across midline.

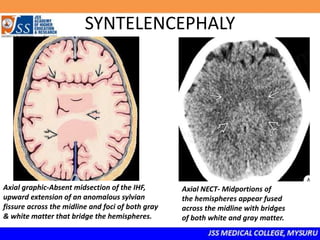

- 16. SYNTELENCEPHALY Axial graphic-Absent midsectionof the IHF, upward extension of an anomalous sylvian fissure across the midline and foci of both gray & white matter that bridge the hemispheres. Axial NECT- Midportions of the hemispheres appear fused across the midline with bridges of both white and gray matter.

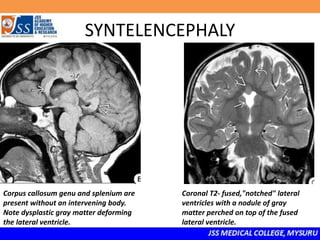

- 17. SYNTELENCEPHALY Corpus callosum genuand splenium are present without an intervening body. Note dysplastic gray matter deforming the lateral ventricle. Coronal T2- fused,"notched" lateral ventricles with a nodule of gray matter perched on top of the fused lateral ventricle.

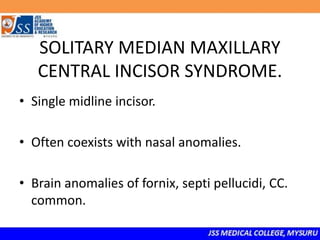

- 18. SOLITARY MEDIAN MAXILLARY CENTRALINCISOR SYNDROME. • Single midline incisor. • Often coexists with nasal anomalies. • Brain anomalies of fornix, septi pellucidi, CC. common.

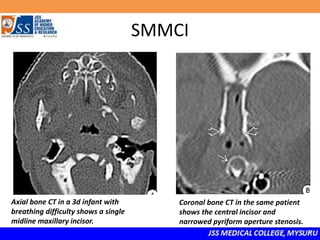

- 19. SMMCI Axial bone CTin a 3d infant with breathing difficulty shows a single midline maxillary incisor. Coronal bone CT in the same patient shows the central incisor and narrowed pyriform aperture stenosis.

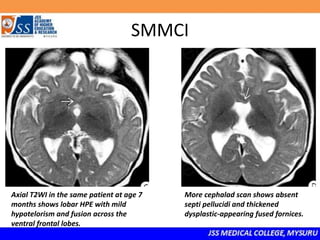

- 20. SMMCI Axial T2WI inthe same patient at age 7 months shows lobar HPE with mild hypotelorism and fusion across the ventral frontal lobes. More cephalad scan shows absent septi pellucidi and thickened dysplastic-appearing fused fornices.

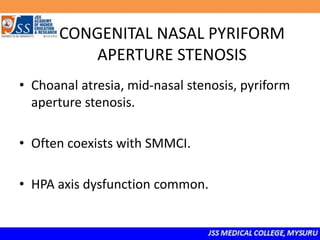

- 21. CONGENITAL NASAL PYRIFORM APERTURESTENOSIS • Choanal atresia, mid-nasal stenosis, pyriform aperture stenosis. • Often coexists with SMMCI. • HPA axis dysfunction common.
- 22.

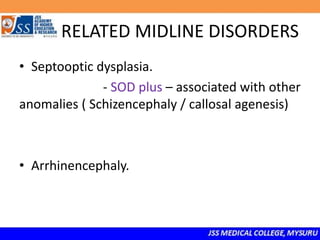

- 23. RELATED MIDLINE DISORDERS •Septooptic dysplasia. - SOD plus – associated with other anomalies ( Schizencephaly / callosal agenesis) • Arrhinencephaly.
- 24. SEPTOOPTIC DYSPLASIA • AkaDe Morsier syndrome. • Absence of septi pellucidi. - Squared-off frontal horns, pointed inferiorly on coronal T2WI • Hypoplastic optic nerves, chiasm. • Look for ○ Malformations of cortical development ○ Thin stalk, small gland, ectopic posterior pituitary
- 25. SEPTOOPTIC DYSPLASIA Absent cavumsepti pellucidi with flat-roofed anterior horns and small optic chiasm. Cavum septi pellucidi are absent ; boxlike lateral ventricles with inferiorly pointed frontal horns. Coronal T2WI in newborn- absent cavum septi pellucidi, schizencephaly,extensive polymicrogyria, fused fornices.

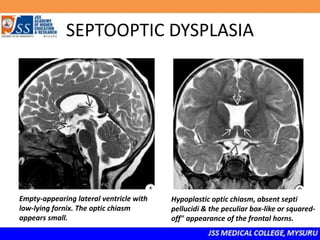

- 26. SEPTOOPTIC DYSPLASIA Empty-appearing lateralventricle with low-lying fornix. The optic chiasm appears small. Hypoplastic optic chiasm, absent septi pellucidi & the peculiar box-like or squared- off" appearance of the frontal horns.

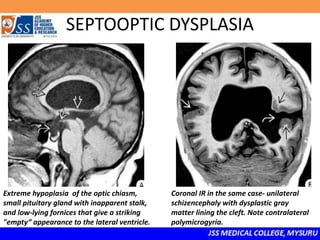

- 27. SEPTOOPTIC DYSPLASIA Extreme hypoplasiaof the optic chiasm, small pituitary gland with inapparent stalk, and low-lying fornices that give a striking "empty“ appearance to the lateral ventricle. Coronal IR in the same case- unilateral schizencephaly with dysplastic gray matter lining the cleft. Note contralateral polymicrogyria.

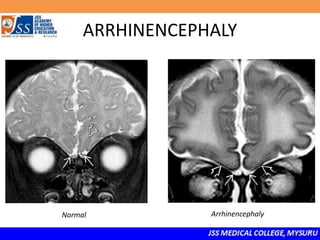

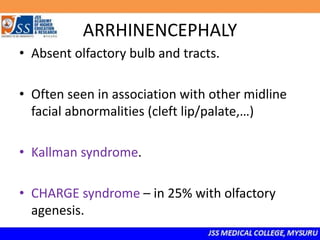

- 28. ARRHINENCEPHALY • Absent olfactorybulb and tracts. • Often seen in association with other midline facial abnormalities (cleft lip/palate,…) • Kallman syndrome. • CHARGE syndrome – in 25% with olfactory agenesis.
- 29.

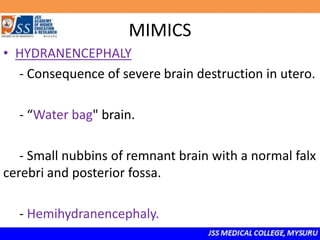

- 30. MIMICS • HYDRANENCEPHALY - Consequenceof severe brain destruction in utero. - “Water bag" brain. - Small nubbins of remnant brain with a normal falx cerebri and posterior fossa. - Hemihydranencephaly.

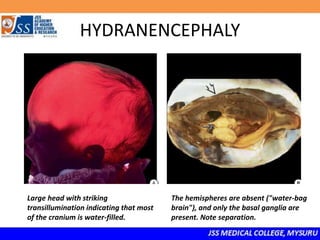

- 31. HYDRANENCEPHALY Large head withstriking transillumination indicating that most of the cranium is water-filled. The hemispheres are absent ("water-bag brain"), and only the basal ganglia are present. Note separation.

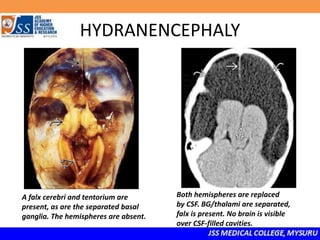

- 32. HYDRANENCEPHALY A falx cerebriand tentorium are present, as are the separated basal ganglia. The hemispheres are absent. Both hemispheres are replaced by CSF. BG/thalami are separated, falx is present. No brain is visible over CSF-filled cavities.

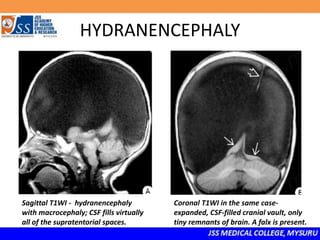

- 33. HYDRANENCEPHALY Sagittal T1WI -hydranencephaly with macrocephaly; CSF fills virtually all of the supratentorial spaces. Coronal T1WI in the same case- expanded, CSF-filled cranial vault, only tiny remnants of brain. A falx is present.

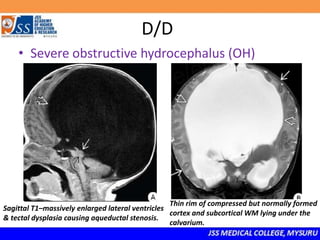

- 34. D/D • Severe obstructivehydrocephalus (OH) Sagittal T1–massively enlarged lateral ventricles & tectal dysplasia causing aqueductal stenosis. Thin rim of compressed but normally formed cortex and subcortical WM lying under the calvarium.

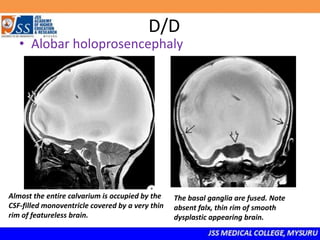

- 35. D/D • Alobar holoprosencephaly Almostthe entire calvarium is occupied by the CSF-filled monoventricle covered by a very thin rim of featureless brain. The basal ganglia are fused. Note absent falx, thin rim of smooth dysplastic appearing brain.

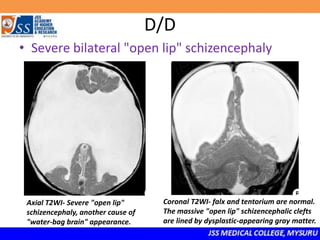

- 36. D/D • Severe bilateral"open lip" schizencephaly Axial T2WI- Severe "open lip" schizencephaly, another cause of "water-bag brain" appearance. Coronal T2WI- falx and tentorium are normal. The massive "open lip" schizencephalic clefts are lined by dysplastic-appearing gray matter.

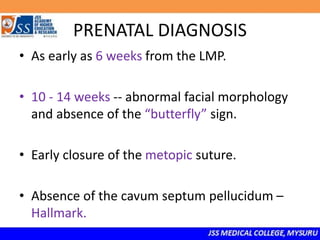

- 37. PRENATAL DIAGNOSIS • Asearly as 6 weeks from the LMP. • 10 - 14 weeks -- abnormal facial morphology and absence of the “butterfly” sign. • Early closure of the metopic suture. • Absence of the cavum septum pellucidum – Hallmark.

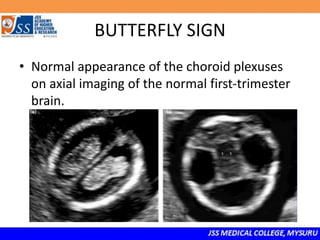

- 38. BUTTERFLY SIGN • Normalappearance of the choroid plexuses on axial imaging of the normal first-trimester brain.
- 39. SUMMARY • Incomplete separationof the two hemispheres. • Types - Classic – Alobar, Semilobar, Lobar. D/D – Hydranencephaly. D/D – Alobar/ Lobar HPE, depending on severity of sHPE. D/D - SOD,Arrhinencephaly , Syntelencephaly

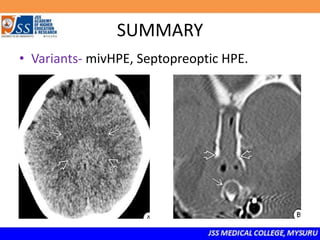

- 40. SUMMARY • Variants- mivHPE,Septopreoptic HPE.

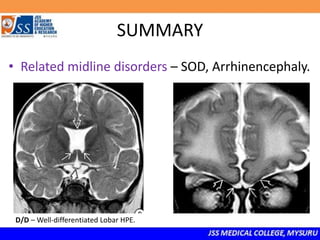

- 41. SUMMARY • Related midlinedisorders – SOD, Arrhinencephaly. D/D – Well-differentiated Lobar HPE.

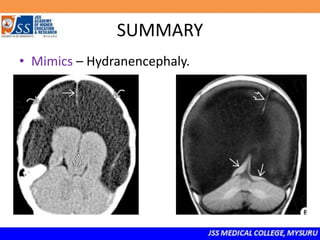

- 42. SUMMARY • Mimics –Hydranencephaly.
- 43. CONCLUSION • HPE isnot uniformly lethal, as is commonly thought. • Survival depends on the severity of the brain and facial malformations, the presence of chromosomal abnormalities, the involvement of other organs, and the presence of a multiple anomaly syndrome.

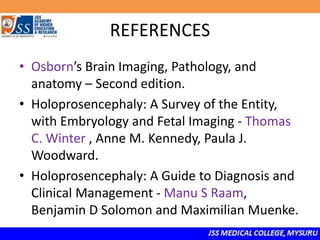

- 44. REFERENCES • Osborn’s BrainImaging, Pathology, and anatomy – Second edition. • Holoprosencephaly: A Survey of the Entity, with Embryology and Fetal Imaging - Thomas C. Winter , Anne M. Kennedy, Paula J. Woodward. • Holoprosencephaly: A Guide to Diagnosis and Clinical Management - Manu S Raam, Benjamin D Solomon and Maximilian Muenke.
- 45. THANK YOU! Visit www.jssmcradiology.comfor more Radiology Education
