Hive 房多多-二手房事业部-产品技术中心-数据挖掘产品中心 李栓柱 Samchu Li 2016-06-12

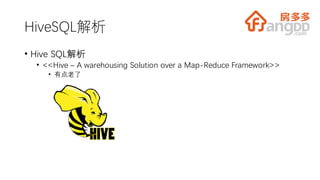

HiveSQL解析 • Hive SQL解析 • <<Hive – A warehousing Solution over a Map-Reduce Framework>> • 有点老了

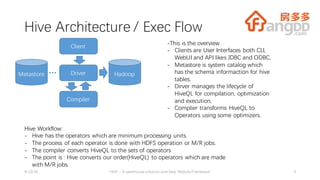

Hive Architecture / Exec Flow 6/13/16 HIVE - A warehouse solution over Map Reduce Framework 3 Driver Compiler Hadoop Client Metastore -This is the overview - Clients are User Interfaces both CLI, WebUI and API likes JDBC and ODBC. - Metastore is system catalog which has the schema informaction for hive tables. - Dirver manages the lifecycle of HiveQL for compilation, optimization and execution. - Complier transforms HiveQL to Operators using some optimizers. Hive Workflow: - Hive has the operators which are minimum processing units. - The process of each operator is done with HDFS operation or M/R jobs. - The compiler converts HiveQL to the sets of operators - The point is : Hive converts our order(HiveQL) to operators which are made with M/R jobs.

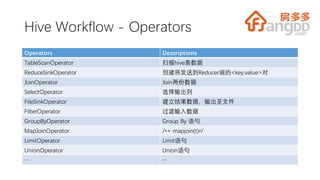

Hive Workflow - Operators Operators Descriptions TableScanOperator 扫描hive表数据 ReduceSinkOperator 创建将发送到Reducer端的<key,value>对 JoinOperator Join两份数据 SelectOperator 选择输出列 FileSinkOperator 建立结果数据，输出至文件 FilterOperator 过滤输入数据 GroupByOperator Group By 语句 MapJoinOperator /*+ mapjoin(t)*/ LimitOperator Limit语句 UnionOperator Union语句 … …

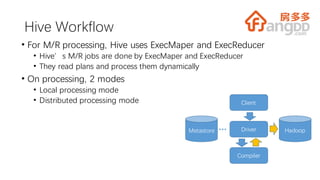

• For M/R processing, Hive uses ExecMaper and ExecReducer • Hive’s M/R jobs are done by ExecMaper and ExecReducer • They read plans and process them dynamically • On processing, 2 modes • Local processing mode • Distributed processing mode Hive Workflow Driver Compiler Hadoop Client Metastore

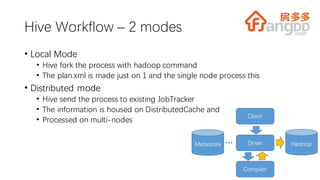

Hive Workflow – 2 modes • Local Mode • Hive fork the process with hadoop command • The plan.xml is made just on 1 and the single node process this • Distributed mode • Hive send the process to existing JobTracker • The information is housed on DistributedCache and • Processed on multi-nodes Driver Compiler Hadoop Client Metastore

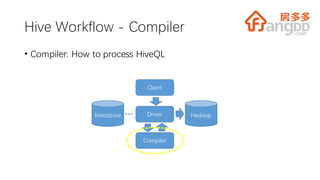

Hive Workflow - Compiler • Compiler: How to process HiveQL Driver Compiler Hadoop Client Metastore

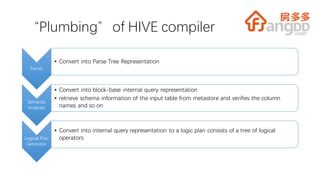

“Plumbing”of HIVE compiler Parser • Convert into Parse Tree Representation Semantic Analyzer • Convert into block-base internal query representation • retrieve schema information of the input table from metastore and verifies the column names and so on Logical Plan Generator • Convert into internal query representation to a logic plan consists of a tree of logical operators

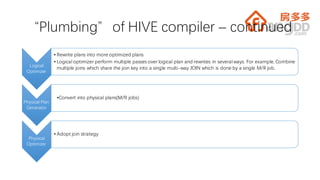

“Plumbing”of HIVE compiler – continued Logical Optimizer • Rewrite plans into more optimized plans • Logical optimizer perform multiple passes over logical plan and rewrites in several ways. For example, Combine multiple joins which share the join key into a single multi-way JOIN which is done by a single M/R job. Physical Plan Generator •Convert into physical plans(M/R jobs) Physical Optimizer • Adopt join strategy

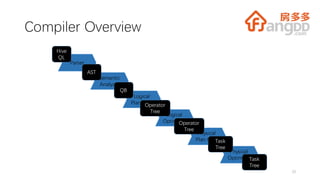

Compiler Overview 10 Semantic Analyzer Logical Plan Gen. Logical Optimizer Physical Plan Gen. Physical Optimizer Parser Hive QL AST Operator Tree QB Operator Tree Task Tree Task Tree

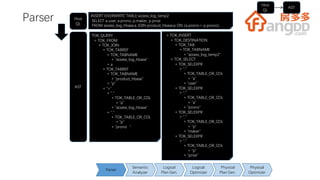

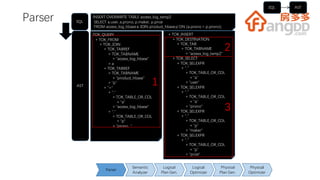

Semantic Analyzer Logical Plan Gen. Logical Optimizer Physical Plan Gen. Physical Optimizer Parser Parser Hive QL AST INSERT OVERWRITE TABLE access_log_temp2 SELECT a.user, a.prono, p.maker, p.price FROM access_log_hbase a JOIN product_hbase p ON (a.prono = p.prono); TOK_QUERY + TOK_FROM + TOK_JOIN + TOK_TABREF + TOK_TABNAME + "access_log_hbase" + a + TOK_TABREF + TOK_TABNAME + "product_hbase" + "p" + "=" + "." + TOK_TABLE_OR_COL + "a" + "access_log_hbase" + "." + TOK_TABLE_OR_COL + "p" + "prono“ Hive QL AST + TOK_INSERT + TOK_DESTINATION + TOK_TAB + TOK_TABNAME + "access_log_temp2" + TOK_SELECT + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "a" + "user" + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "a" + "prono" + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "p" + "maker" + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "p" + "price"
Semantic Analyzer Logical Plan Gen. Logical Optimizer Physical Plan Gen. Physical Optimizer Parser Parser SQL AST INSERT OVERWRITE TABLE access_log_temp2 SELECT a.user, a.prono, p.maker, p.price FROM access_log_hbase a JOIN product_hbase p ON (a.prono = p.prono); TOK_QUERY + TOK_FROM + TOK_JOIN + TOK_TABREF + TOK_TABNAME + "access_log_hbase" + a + TOK_TABREF + TOK_TABNAME + "product_hbase" + "p" + "=" + "." + TOK_TABLE_OR_COL + "a" + "access_log_hbase" + "." + TOK_TABLE_OR_COL + "p" + "prono“ + TOK_INSERT + TOK_DESTINATION + TOK_TAB + TOK_TABNAME + "access_log_temp2" + TOK_SELECT + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "a" + "user" + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "a" + "prono" + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "p" + "maker" + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "p" + "price" SQL AST 1 2 3

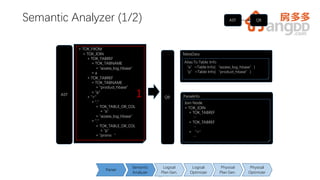

13 Semantic Analyzer (1/2) + TOK_FROM + TOK_JOIN + TOK_TABREF + TOK_TABNAME + "access_log_hbase" + a + TOK_TABREF + TOK_TABNAME + "product_hbase" + "p" + "=" + "." + TOK_TABLE_OR_COL + "a" + "access_log_hbase" + "." + TOK_TABLE_OR_COL + "p" + "prono“ QB AST ParseInfo Join Node + TOK_JOIN + TOK_TABREF … + TOK_TABREF … + “=” … 13 Semantic Analyzer Logical Plan Gen. Logical Optimizer Physical Plan Gen. Physical Optimizer Parser AST QB MetaData Alias To Table Info “a”=Table Info(“access_log_hbase”) “p”=Table Info(“product_hbase”) 1

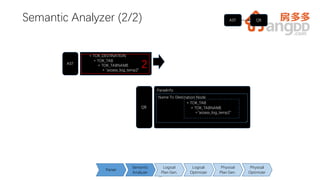

14 Semantic Analyzer (2/2) + TOK_DESTINATION + TOK_TAB + TOK_TABNAME + "access_log_temp2” AST QB ParseInfo Name To Destination Node + TOK_TAB + TOK_TABNAME +"access_log_temp2” 1414 Semantic Analyzer Logical Plan Gen. Logical Optimizer Physical Plan Gen. Physical Optimizer Parser AST QB 2

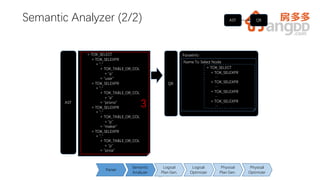

15 Semantic Analyzer (2/2) + TOK_SELECT + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "a" + "user" + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "a" + "prono" + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "p" + "maker" + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "p" + "price" AST QB ParseInfo Name To Select Node + TOK_SELECT + TOK_SELEXPR … + TOK_SELEXPR … + TOK_SELEXPR … + TOK_SELEXPR … 1515 Semantic Analyzer Logical Plan Gen. Logical Optimizer Physical Plan Gen. Physical Optimizer Parser AST QB 3

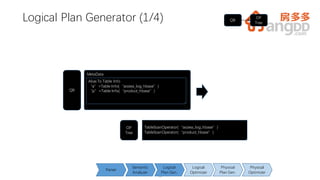

16 Logical Plan Generator (1/4) QB OP Tree TableScanOperator(“access_log_hbase”) TableScanOperator(“product_hbase”) MetaData Alias To Table Info “a”=Table Info(“access_log_hbase”) “p”=Table Info(“product_hbase”) 1616 Semantic Analyzer Logical Plan Gen. Logical Optimizer Physical Plan Gen. Physical Optimizer Parser QB OP Tree

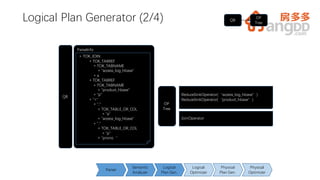

17 Logical Plan Generator (2/4) QB ParseInfo + TOK_JOIN + TOK_TABREF + TOK_TABNAME + "access_log_hbase" + a + TOK_TABREF + TOK_TABNAME + "product_hbase" + "p" + "=" + "." + TOK_TABLE_OR_COL + "a" + "access_log_hbase" + "." + TOK_TABLE_OR_COL + "p" + "prono“ OP Tree ReduceSinkOperator(“access_log_hbase”) ReduceSinkOperator(“product_hbase”) JoinOperator Semantic Analyzer Logical Plan Gen. Logical Optimizer Physical Plan Gen. Physical Optimizer Parser QB OP Tree
18 Logical Plan Generator (3/4) OP Tree SelectOperator QB ParseInfo Name To Select Node + TOK_SELECT + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "a" + "user" + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "a" + "prono" + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "p" + "maker" + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "p" + "price" Semantic Analyzer Logical Plan Gen. Logical Optimizer Physical Plan Gen. Physical Optimizer Parser QB OP Tree
19 Logical Plan Generator (4/4) OP Tree FileSinkOperator QB MetaData Name To Destination Table Info “insclause-0”= Table Info(“access_log_temp2”) Semantic Analyzer Logical Plan Gen. Logical Optimizer Physical Plan Gen. Physical Optimizer Parser QB OP Tree

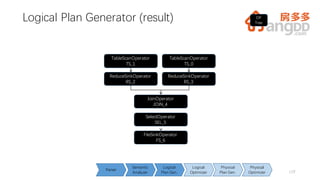

Logical Plan Generator (result) 20 LCF TableScanOperator TS_1 TableScanOperator TS_0 ReduceSinkOperator RS_2 ReduceSinkOperator RS_3 JoinOperator JOIN_4 SelectOperator SEL_5 FileSinkOperator FS_6 Semantic Analyzer Logical Plan Gen. Logical Optimizer Physical Plan Gen. Physical Optimizer Parser OP Tree

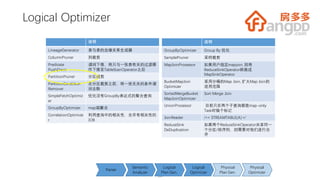

21 Logical Optimizer 说明 LineageGenerator 表与表的血缘关系生成器 ColumnPruner 列裁剪 Predicate PushDown 谓词下推，将只与一张表有关的过滤操 作下推至TableScanOperator之后 PartitionPruner 分区裁剪 PartitionCondition Remover 在分区裁剪之前，将一些无关的条件谓 词去除 SimpleFetchOptimiz er 优化没有GroupBy表达式的聚合查询 GroupByOptimizer map端聚合 CorrelationOptimize r 利用查询中的相关性，合并有相关性的 JOB 说明 GroupByOptimizer Group By 优化 SamplePruner 采样裁剪 MapJoinProcessor 如果用户指定mapjoin, 则将 ReduceSinkOperator转换成 MapSinkOperator BucketMapJoin Optimizer 采用分桶的Map Join, 扩大Map Join的 适用范围 SortedMergeBucket MapJoinOptimizer Sort Merge Join UnionProcessor 目前只在两个子查询都是map-only Task时做个标记 JoinReader /*+ STREAMTABLE(A) */ ReduceSink DeDuplication 如果两个ReduceSinkOperator共享同一 个分区/排序列，则需要对他们进行合 并 2121 Semantic Analyzer Logical Plan Gen. Logical Optimizer Physical Plan Gen. Physical Optimizer Parser

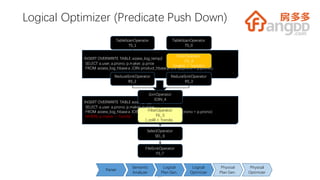

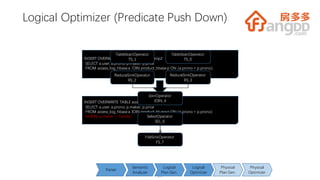

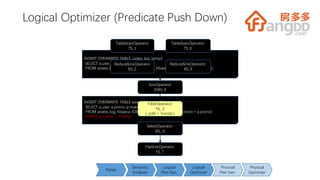

Logical Optimizer (Predicate Push Down) 2222 Semantic Analyzer Logical Plan Gen. Logical Optimizer Physical Plan Gen. Physical Optimizer Parser INSERT OVERWRITE TABLE access_log_temp2 SELECT a.user, a.prono, p.maker, p.price FROM access_log_hbase a JOIN product_hbase p ON (a.prono = p.prono) WHERE p.maker = 'honda'; INSERT OVERWRITE TABLE access_log_temp2 SELECT a.user, a.prono, p.maker, p.price FROM access_log_hbase a JOIN product_hbase p ON (a.prono = p.prono);
INSERT OVERWRITE TABLE access_log_temp2 SELECT a.user, a.prono, p.maker, p.price FROM access_log_hbase a JOIN product_hbase p ON (a.prono = p.prono) WHERE p.maker = 'honda'; INSERT OVERWRITE TABLE access_log_temp2 SELECT a.user, a.prono, p.maker, p.price FROM access_log_hbase a JOIN product_hbase p ON (a.prono = p.prono); Logical Optimizer (Predicate Push Down) TableScanOperator TS_1 TableScanOperator TS_0 ReduceSinkOperator RS_2 ReduceSinkOperator RS_3 JoinOperator JOIN_4 SelectOperator SEL_6 FileSinkOperator FS_7 2323 Semantic Analyzer Logical Plan Gen. Logical Optimizer Physical Plan Gen. Physical Optimizer Parser
INSERT OVERWRITE TABLE access_log_temp2 SELECT a.user, a.prono, p.maker, p.price FROM access_log_hbase a JOIN product_hbase p ON (a.prono = p.prono) WHERE p.maker = 'honda'; INSERT OVERWRITE TABLE access_log_temp2 SELECT a.user, a.prono, p.maker, p.price FROM access_log_hbase a JOIN product_hbase p ON (a.prono = p.prono); Logical Optimizer (Predicate Push Down) TableScanOperator TS_1 TableScanOperator TS_0 ReduceSinkOperator RS_2 ReduceSinkOperator RS_3 JoinOperator JOIN_4 FilterOperator FIL_5 (_col8 = 'honda') SelectOperator SEL_6 FileSinkOperator FS_7 2424 Semantic Analyzer Logical Plan Gen. Logical Optimizer Physical Plan Gen. Physical Optimizer Parser
INSERT OVERWRITE TABLE access_log_temp2 SELECT a.user, a.prono, p.maker, p.price FROM access_log_hbase a JOIN product_hbase p ON (a.prono = p.prono) WHERE p.maker = 'honda'; INSERT OVERWRITE TABLE access_log_temp2 SELECT a.user, a.prono, p.maker, p.price FROM access_log_hbase a JOIN product_hbase p ON (a.prono = p.prono); Logical Optimizer (Predicate Push Down) TableScanOperator TS_1 TableScanOperator TS_0 ReduceSinkOperator RS_2 ReduceSinkOperator RS_3 JoinOperator JOIN_4 FilterOperator FIL_5 (_col8 = 'honda') SelectOperator SEL_6 FileSinkOperator FS_7 FilterOperator FIL_8 (maker = 'honda') 2525 Semantic Analyzer Logical Plan Gen. Logical Optimizer Physical Plan Gen. Physical Optimizer Parser

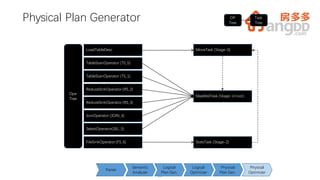

26 Physical Plan Generator MoveTask (Stage-0) Ope Tree LoadTableDesc MapRedTask (Stage-1/root) TableScanOperator (TS_1) JoinOperator (JOIN_4) ReduceSinkOperator (RS_3) FileSinkOperator (FS_6) StatsTask (Stage-2) 2626 Semantic Analyzer Logical Plan Gen. Logical Optimizer Physical Plan Gen. Physical Optimizer Parser OP Tree Task Tree TableScanOperator (TS_0) ReduceSinkOperator (RS_2) SelectOperator(SEL_5)

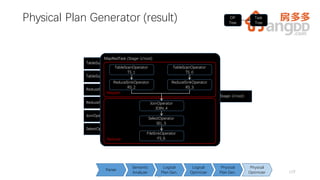

MapRedTask (Stage-1/root) TableScanOperator (TS_1) JoinOperator (JOIN_4) ReduceSinkOperator (RS_3) TableScanOperator (TS_0) ReduceSinkOperator (RS_2) SelectOperator(SEL_5) Physical Plan Generator (result) 27 LCF MapRedTask (Stage-1/root) Mapper TableScanOperator TS_1 TableScanOperator TS_0 ReduceSinkOperator RS_2 ReduceSinkOperator RS_3 Reducer JoinOperator JOIN_4 SelectOperator SEL_5 FileSinkOperator FS_6 272727 Semantic Analyzer Logical Plan Gen. Logical Optimizer Physical Plan Gen. Physical Optimizer Parser OP Tree Task Tree
28 Physical Optimizer java/org/apache/hadoop/hive/ql/optimizer/physical/以下 概要 MapJoinResolver 处理Map Join SkewJoinResolver 处理倾斜Join CommonJoinResolver 处理普通Join Vectorizer 使Hive从单行单行处理数据改为批量处理方 式，大大提升了指令流水线和缓存的利用率 SortMergeJoinResolver 与bucet配合，类似于归并排序 SamplingOptimizer 并行order by优化器 Semantic Analyzer Logical Plan Gen. Logical Optimizer Physical Plan Gen. Physical Optimizer Parser Task Tree Task Tree

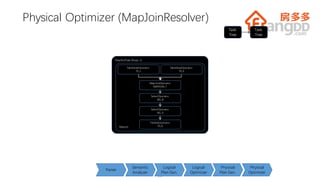

29 Physical Optimizer (MapJoinResolver) 29 Semantic Analyzer Logical Plan Gen. Logical Optimizer Physical Plan Gen. Physical Optimizer Parser Task Tree Task Tree MapRedTask (Stage-1) Mapper TableScanOperator TS_1 TableScanOperator TS_0 MapJoinOperator MAPJOIN_7 SelectOperator SEL_5 FileSinkOperator FS_6 SelectOperator SEL_8

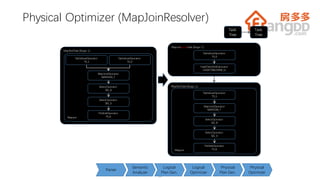

30 Physical Optimizer (MapJoinResolver) MapRedTask (Stage-1) Mapper TableScanOperator TS_1 MapJoinOperator MAPJOIN_7 SelectOperator SEL_5 FileSinkOperator FS_6 SelectOperator SEL_8 MapredLocalTask (Stage-7) TableScanOperator TS_0 HashTableSinkOperator HASHTABLESINK_11 MapRedTask (Stage-1) Mapper TableScanOperator TS_1 TableScanOperator TS_0 MapJoinOperator MAPJOIN_7 SelectOperator SEL_5 FileSinkOperator FS_6 SelectOperator SEL_8 30 Semantic Analyzer Logical Plan Gen. Logical Optimizer Physical Plan Gen. Physical Optimizer Parser Task Tree Task Tree

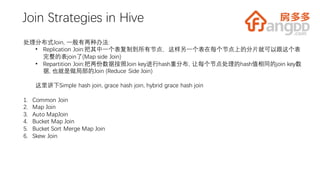

Join Strategies in Hive 处理分布式Join, 一般有两种办法: • Replication Join:把其中一个表复制到所有节点，这样另一个表在每个节点上的分片就可以跟这个表 完整的表join了(Map side Join) • Repartition Join:把两份数据按照Join key进行hash重分布, 让每个节点处理的hash值相同的join key数 据, 也就是做局部的Join (Reduce Side Join) 这里讲下Simple hash join, grace hash join, hybrid grace hash join 1. Common Join 2. Map Join 3. Auto MapJoin 4. Bucket Map Join 5. Bucket Sort Merge Map Join 6. Skew Join

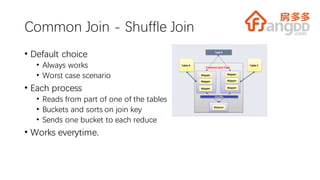

Common Join - Shuffle Join • Default choice • Always works • Worst case scenario • Each process • Reads from part of one of the tables • Buckets and sorts on join key • Sends one bucket to each reduce • Works everytime.
Map Join • One table is small (eg. dimension table) • Fits in memory • Each process • Reads small table into memory hash table • Streams through part of the big file • Joining each record from hash table • Very fast, but limited
Optimized Map Join – Hive-1293

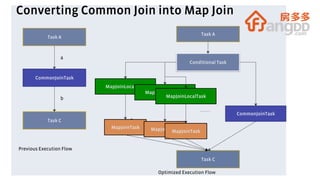

Converting Common Join into Map Join Task A CommonJoinTask Task C Task A Conditional Task Task C MapJoinLocalTask CommonJoinTask . . . . . c a b Previous Execution Flow Optimized Execution Flow MapJoinTask MapJoinLocalTask MapJoinTask MapJoinLocalTask MapJoinTask

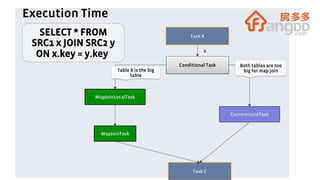

Execution Time Task A Conditional Task Task C MapJoinLocalTask CommonJoinTask a MapJoinTask Table X is the big table Both tables are too big for map join SELECT * FROM SRC1 x JOIN SRC2 y ON x.key = y.key;

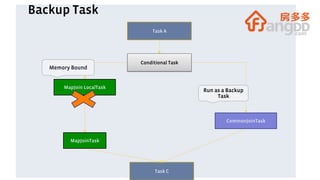

Backup Task Task A Conditional Task Task C MapJoin LocalTask CommonJoinTask MapJoinTask Run as a Backup Task Memory Bound

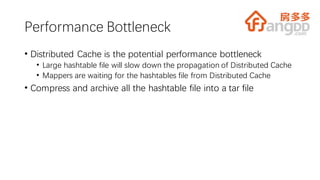

Performance Bottleneck • Distributed Cache is the potential performance bottleneck • Large hashtable file will slow down the propagation of Distributed Cache • Mappers are waiting for the hashtables file from Distributed Cache • Compress and archive all the hashtable file into a tar file

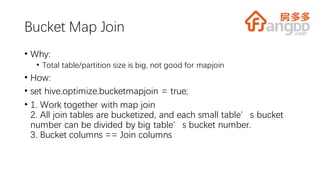

Bucket Map Join • Why: • Total table/partition size is big, not good for mapjoin • How: • set hive.optimize.bucketmapjoin = true; • 1. Work together with map join 2. All join tables are bucketized, and each small table’s bucket number can be divided by big table’s bucket number. 3. Bucket columns == Join columns

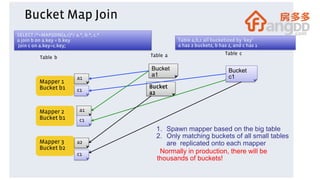

Bucket Map Join SELECT /*+MAPJOIN(a,c)*/ a.*, b.*, c.* a join b on a.key = b.key join c on a.key=c.key; Table b Table a Table c Mapper 1 Bucket b1 Bucket a1 Bucket a2 Bucket c1 Mapper 2 Bucket b1 Mapper 3 Bucket b2 a1 c1 a1 c1 a2 c1 Normally in production, there will be thousands of buckets! Table a,b,c all bucketized by ‘key’ a has 2 buckets, b has 2, and c has 1 1.  Spawn mapper based on the big table 2.  Only matching buckets of all small tables are replicated onto each mapper

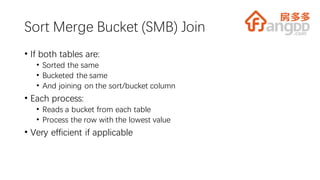

Sort Merge Bucket (SMB) Join • If both tables are: • Sorted the same • Bucketed the same • And joining on the sort/bucket column • Each process: • Reads a bucket from each table • Process the row with the lowest value • Very efficient if applicable

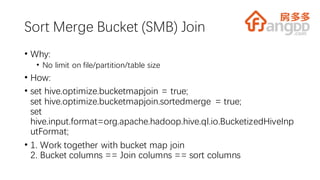

Sort Merge Bucket (SMB) Join • Why: • No limit on file/partition/table size • How: • set hive.optimize.bucketmapjoin = true; set hive.optimize.bucketmapjoin.sortedmerge = true; set hive.input.format=org.apache.hadoop.hive.ql.io.BucketizedHiveInp utFormat; • 1. Work together with bucket map join 2. Bucket columns == Join columns == sort columns

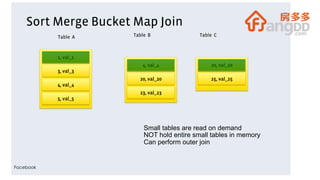

Sort Merge Bucket Map Join Facebook Table A Table B Table C 1, val_1 3, val_3 5, val_5 4, val_4 4, val_4 20, val_20 23, val_23 20, val_20 25, val_25 Small tables are read on demand NOT hold entire small tables in memory Can perform outer join

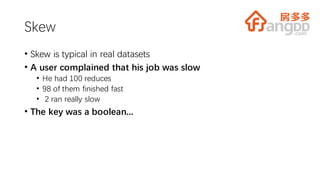

Skew • Skew is typical in real datasets • A user complained that his job was slow • He had 100 reduces • 98 of them finished fast • 2 ran really slow • The key was a boolean...

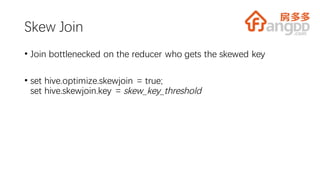

Skew Join • Join bottlenecked on the reducer who gets the skewed key • set hive.optimize.skewjoin = true; set hive.skewjoin.key = skew_key_threshold

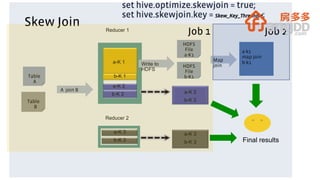

Skew Join Reducer 1 Reducer 2 a-K 3 b-K 3 a-K 3 b-K 3 a-K 2 b-K 2 a-K 2 b-K 2 a-K 1 b-K 1Table A Table B A join B Write to HDFS HDFS File a-K1 HDFS File b-K1 Map join a-k1 map join b-k1 Job 1 Job 2 Final results

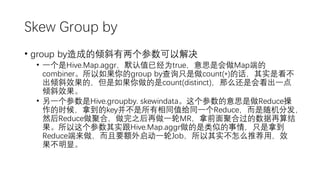

Skew Group by • group by造成的倾斜有两个参数可以解决 • 一个是Hive.Map.aggr，默认值已经为true，意思是会做Map端的 combiner。所以如果你的group by查询只是做count(*)的话，其实是看不 出倾斜效果的，但是如果你做的是count(distinct)，那么还是会看出一点 倾斜效果。 • 另一个参数是Hive.groupby. skewindata。这个参数的意思是做Reduce操 作的时候，拿到的key并不是所有相同值给同一个Reduce，而是随机分发， 然后Reduce做聚合，做完之后再做一轮MR，拿前面聚合过的数据再算结 果。所以这个参数其实跟Hive.Map.aggr做的是类似的事情，只是拿到 Reduce端来做，而且要额外启动一轮Job，所以其实不怎么推荐用，效 果不明显。

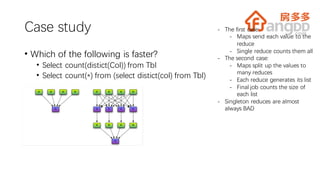

Case study • Which of the following is faster? • Select count(distict(Col)) from Tbl • Select count(*) from (select distict(col) from Tbl) - The first case: - Maps send each value to the reduce - Single reduce counts them all - The second case: - Maps split up the values to many reduces - Each reduce generates its list - Final job counts the size of each list - Singleton reduces are almost always BAD
• Appendix: What does Explain show? 6/13/16 HIVE - A warehouse solution over Map Reduce Framework 49

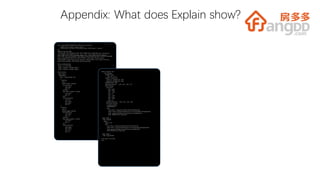

Appendix: What does Explain show? hive> explain INSERT OVERWRITE TABLE access_log_temp2 > SELECT a.user, a.prono, p.maker, p.price > FROMaccess_log_hbase a JOIN product_hbase p ON (a.prono = p.prono); OK ABSTRACT SYNTAX TREE: (TOK_QUERY (TOK_FROM(TOK_JOIN (TOK_TABREF (TOK_TABNAME access_log_hbase) a) (TOK_TABREF (TOK_TABNAME product_hbase) p) (= (. (TOK_TABLE_OR_COL a) prono) (. (TOK_TABLE_OR_COL p) prono)))) (TOK_INSERT (TOK_DESTINATION (TOK_TAB (TOK_TABNAME access_log_temp2))) (TOK_SELECT (TOK_SELEXPR (. (TOK_TABLE_OR_COL a) user)) (TOK_SELEXPR (. (TOK_TABLE_OR_COL a) prono)) (TOK_SELEXPR (. (TOK_TABLE_OR_COL p) maker)) (TOK_SELEXPR (. (TOK_TABLE_OR_COL p) price))))) STAGE DEPENDENCIES: Stage-1 is a root stage Stage-0 depends on stages: Stage-1 Stage-2 depends on stages: Stage-0 STAGE PLANS: Stage: Stage-1 Map Reduce Alias -> Map Operator Tree: a TableScan alias: a Reduce Output Operator key expressions: expr: prono type: int sort order: + Map-reduce partition columns: expr: prono type: int tag: 0 value expressions: expr: user type: string expr: prono type: int p TableScan alias: p Reduce Output Operator key expressions: expr: prono type: int sort order: + Map-reduce partition columns: expr: prono type: int tag: 1 value expressions: expr: maker type: string expr: price type: int Reduce Operator Tree: Join Operator condition map: Inner Join 0 to 1 condition expressions: 0 {VALUE._col0} {VALUE._col2} 1 {VALUE._col1} {VALUE._col2} handleSkewJoin: false outputColumnNames: _col0, _col2, _col6, _col7 Select Operator expressions: expr: _col0 type: string expr: _col2 type: int expr: _col6 type: string expr: _col7 type: int outputColumnNames: _col0, _col1, _col2, _col3 File Output Operator compressed: false GlobalTableId: 1 table: input format: org.apache.hadoop.mapred.TextInputFormat output format: org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat serde: org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe name: default.access_log_temp2 Stage: Stage-0 Move Operator tables: replace: true table: input format: org.apache.hadoop.mapred.TextInputForma t output format: org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat serde: org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe name: default.access_log_temp2 Stage: Stage-2 Stats-Aggr Operator Time taken: 0.1 seconds hive>

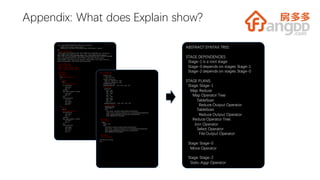

Appendix: What does Explain show? hive> explain INSERT OVERWRITE TABLE access_log_temp2 > SELECT a.user, a.prono, p.maker, p.price > FROMaccess_log_hbase a JOIN product_hbase p ON (a.prono = p.prono); OK ABSTRACT SYNTAX TREE: (TOK_QUERY (TOK_FROM(TOK_JOIN (TOK_TABREF (TOK_TABNAME access_log_hbase) a) (TOK_TABREF (TOK_TABNAME product_hbase) p) (= (. (TOK_TABLE_OR_COL a) prono) (. (TOK_TABLE_OR_COL p) prono)))) (TOK_INSERT (TOK_DESTINATION (TOK_TAB (TOK_TABNAME access_log_temp2))) (TOK_SELECT (TOK_SELEXPR (. (TOK_TABLE_OR_COL a) user)) (TOK_SELEXPR (. (TOK_TABLE_OR_COL a) prono)) (TOK_SELEXPR (. (TOK_TABLE_OR_COL p) maker)) (TOK_SELEXPR (. (TOK_TABLE_OR_COL p) price))))) STAGE DEPENDENCIES: Stage-1 is a root stage Stage-0 depends on stages: Stage-1 Stage-2 depends on stages: Stage-0 STAGE PLANS: Stage: Stage-1 Map Reduce Alias -> Map Operator Tree: a TableScan alias: a Reduce Output Operator key expressions: expr: prono type: int sort order: + Map-reduce partition columns: expr: prono type: int tag: 0 value expressions: expr: user type: string expr: prono type: int p TableScan alias: p Reduce Output Operator key expressions: expr: prono type: int sort order: + Map-reduce partition columns: expr: prono type: int tag: 1 value expressions: expr: maker type: string expr: price type: int Reduce Operator Tree: Join Operator condition map: Inner Join 0 to 1 condition expressions: 0 {VALUE._col0} {VALUE._col2} 1 {VALUE._col1} {VALUE._col2} handleSkewJoin: false outputColumnNames: _col0, _col2, _col6, _col7 Select Operator expressions: expr: _col0 type: string expr: _col2 type: int expr: _col6 type: string expr: _col7 type: int outputColumnNames: _col0, _col1, _col2, _col3 File Output Operator compressed: false GlobalTableId: 1 table: input format: org.apache.hadoop.mapred.TextInputFormat output format: org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat serde: org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe name: default.access_log_temp2 Stage: Stage-0 Move Operator tables: replace: true table: input format: org.apache.hadoop.mapred.TextInputForma t output format: org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat serde: org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe name: default.access_log_temp2 Stage: Stage-2 Stats-Aggr Operator Time taken: 0.1 seconds hive> ABSTRACT SYNTAX TREE: STAGE DEPENDENCIES: Stage-1 is a root stage Stage-0 depends on stages: Stage-1 Stage-2 depends on stages: Stage-0 STAGE PLANS: Stage: Stage-1 Map Reduce Map Operator Tree: TableScan Reduce Output Operator TableScan Reduce Output Operator Reduce Operator Tree: Join Operator Select Operator File Output Operator Stage: Stage-0 Move Operator Stage: Stage-2 Stats-Aggr Operator

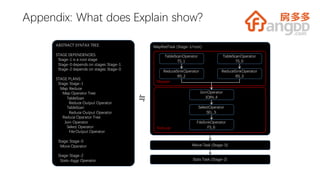

Appendix: What does Explain show? ABSTRACT SYNTAX TREE: STAGE DEPENDENCIES: Stage-1 is a root stage Stage-0 depends on stages: Stage-1 Stage-2 depends on stages: Stage-0 STAGE PLANS: Stage: Stage-1 Map Reduce Map Operator Tree: TableScan Reduce Output Operator TableScan Reduce Output Operator Reduce Operator Tree: Join Operator Select Operator File Output Operator Stage: Stage-0 Move Operator Stage: Stage-2 Stats-Aggr Operator MapRedTask (Stage-1/root) Mapper TableScanOperator TS_1 TableScanOperator TS_0 ReduceSinkOperator RS_2 ReduceSinkOperator RS_3 Reducer JoinOperator JOIN_4 SelectOperator SEL_5 FileSinkOperator FS_6 ≒ Move Task (Stage-0) Stats Task (Stage-2)

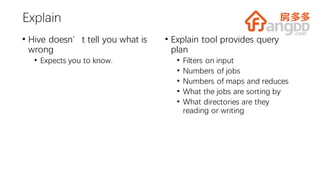

Explain • Hive doesn’t tell you what is wrong • Expects you to know. • Explain tool provides query plan • Filters on input • Numbers of jobs • Numbers of maps and reduces • What the jobs are sorting by • What directories are they reading or writing

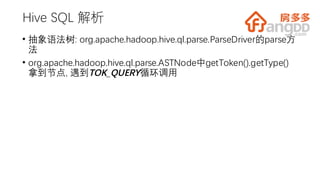

Hive SQL 解析 • 抽象语法树: org.apache.hadoop.hive.ql.parse.ParseDriver的parse方 法 • org.apache.hadoop.hive.ql.parse.ASTNode中getToken().getType() 拿到节点, 遇到TOK_QUERY循环调用

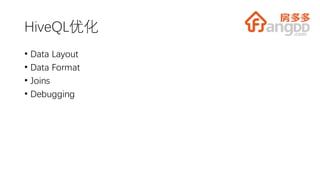

HiveQL优化 • Data Layout • Data Format • Joins • Debugging

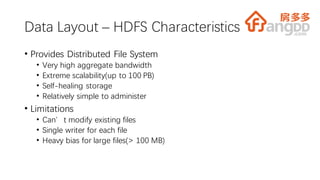

Data Layout – HDFS Characteristics • Provides Distributed File System • Very high aggregate bandwidth • Extreme scalability(up to 100 PB) • Self-healing storage • Relatively simple to administer • Limitations • Can’t modify existing files • Single writer for each file • Heavy bias for large files(> 100 MB)

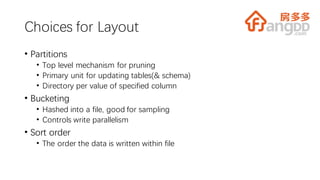

Choices for Layout • Partitions • Top level mechanism for pruning • Primary unit for updating tables(& schema) • Directory per value of specified column • Bucketing • Hashed into a file, good for sampling • Controls write parallelism • Sort order • The order the data is written within file
Example Hive Layout • Directory • Warehouse/$database/$table • Partitioning • /part1=$partValue/part2=$partValue • Bucketing • /$bucket_$attempt(eg. 000000_0) • Sort • Each file is sorted within the file

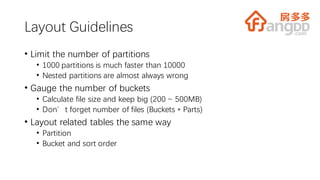

Layout Guidelines • Limit the number of partitions • 1000 partitions is much faster than 10000 • Nested partitions are almost always wrong • Gauge the number of buckets • Calculate file size and keep big (200 ~ 500MB) • Don’t forget number of files (Buckets * Parts) • Layout related tables the same way • Partition • Bucket and sort order

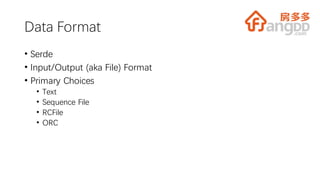

Data Format • Serde • Input/Output (aka File) Format • Primary Choices • Text • Sequence File • RCFile • ORC

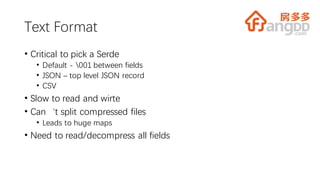

Text Format • Critical to pick a Serde • Default - 001 between fields • JSON – top level JSON record • CSV • Slow to read and wirte • Can‘t split compressed files • Leads to huge maps • Need to read/decompress all fields

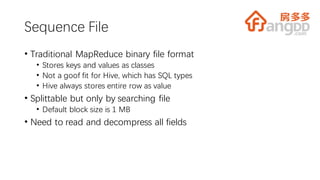

Sequence File • Traditional MapReduce binary file format • Stores keys and values as classes • Not a goof fit for Hive, which has SQL types • Hive always stores entire row as value • Splittable but only by searching file • Default block size is 1 MB • Need to read and decompress all fields

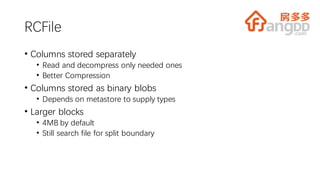

RCFile • Columns stored separately • Read and decompress only needed ones • Better Compression • Columns stored as binary blobs • Depends on metastore to supply types • Larger blocks • 4MB by default • Still search file for split boundary

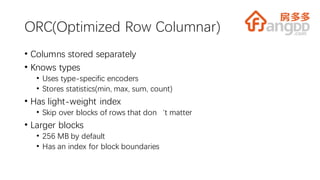

ORC(Optimized Row Columnar) • Columns stored separately • Knows types • Uses type-specific encoders • Stores statistics(min, max, sum, count) • Has light-weight index • Skip over blocks of rows that don‘t matter • Larger blocks • 256 MB by default • Has an index for block boundaries

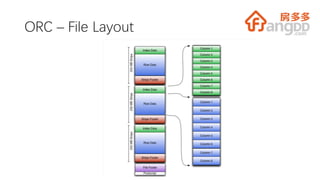

ORC – File Layout

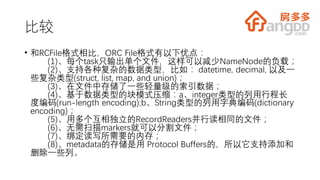

比较 • 和RCFile格式相比，ORC File格式有以下优点： (1)、每个task只输出单个文件，这样可以减少NameNode的负载； (2)、支持各种复杂的数据类型，比如： datetime, decimal, 以及一 些复杂类型(struct, list, map, and union)； (3)、在文件中存储了一些轻量级的索引数据； (4)、基于数据类型的块模式压缩：a、integer类型的列用行程长 度编码(run-length encoding);b、String类型的列用字典编码(dictionary encoding)； (5)、用多个互相独立的RecordReaders并行读相同的文件； (6)、无需扫描markers就可以分割文件； (7)、绑定读写所需要的内存； (8)、metadata的存储是用 Protocol Buffers的，所以它支持添加和 删除一些列。

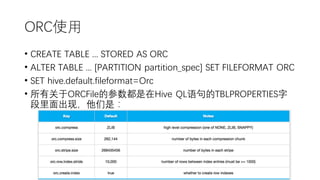

ORC使用 • CREATE TABLE ... STORED AS ORC • ALTER TABLE ... [PARTITION partition_spec] SET FILEFORMAT ORC • SET hive.default.fileformat=Orc • 所有关于ORCFile的参数都是在Hive QL语句的TBLPROPERTIES字 段里面出现，他们是：

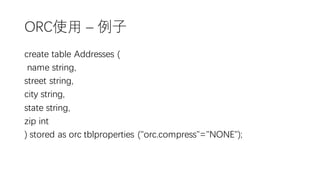

ORC使用 – 例子 create table Addresses ( name string, street string, city string, state string, zip int ) stored as orc tblproperties ("orc.compress"="NONE");

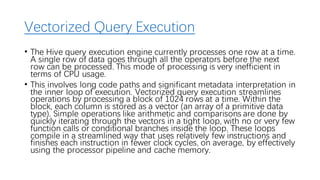

Vectorized Query Execution • The Hive query execution engine currently processes one row at a time. A single row of data goes through all the operators before the next row can be processed. This mode of processing is very inefficient in terms of CPU usage. • This involves long code paths and significant metadata interpretation in the inner loop of execution. Vectorized query execution streamlines operations by processing a block of 1024 rows at a time. Within the block, each column is stored as a vector (an array of a primitive data type). Simple operations like arithmetic and comparisons are done by quickly iterating through the vectors in a tight loop, with no or very few function calls or conditional branches inside the loop. These loops compile in a streamlined way that uses relatively few instructions and finishes each instruction in fewer clock cycles, on average, by effectively using the processor pipeline and cache memory.

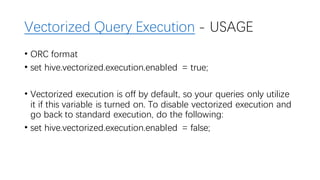

Vectorized Query Execution - USAGE • ORC format • set hive.vectorized.execution.enabled = true; • Vectorized execution is off by default, so your queries only utilize it if this variable is turned on. To disable vectorized execution and go back to standard execution, do the following: • set hive.vectorized.execution.enabled = false;

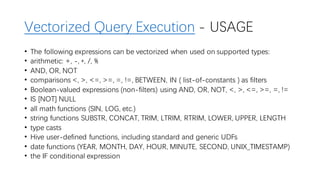

Vectorized Query Execution - USAGE • The following expressions can be vectorized when used on supported types: • arithmetic: +, -, *, /, % • AND, OR, NOT • comparisons <, >, <=, >=, =, !=, BETWEEN, IN ( list-of-constants ) as filters • Boolean-valued expressions (non-filters) using AND, OR, NOT, <, >, <=, >=, =, != • IS [NOT] NULL • all math functions (SIN, LOG, etc.) • string functions SUBSTR, CONCAT, TRIM, LTRIM, RTRIM, LOWER, UPPER, LENGTH • type casts • Hive user-defined functions, including standard and generic UDFs • date functions (YEAR, MONTH, DAY, HOUR, MINUTE, SECOND, UNIX_TIMESTAMP) • the IF conditional expression

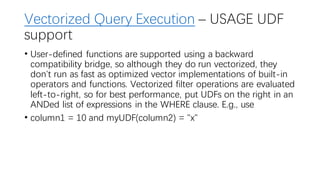

Vectorized Query Execution – USAGE UDF support • User-defined functions are supported using a backward compatibility bridge, so although they do run vectorized, they don't run as fast as optimized vector implementations of built-in operators and functions. Vectorized filter operations are evaluated left-to-right, so for best performance, put UDFs on the right in an ANDed list of expressions in the WHERE clause. E.g., use • column1 = 10 and myUDF(column2) = "x"

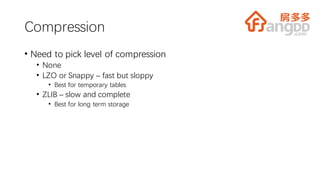

Compression • Need to pick level of compression • None • LZO or Snappy – fast but sloppy • Best for temporary tables • ZLIB – slow and complete • Best for long term storage

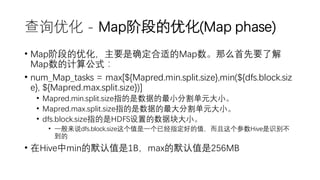

查询优化 - Map阶段的优化(Map phase) • Map阶段的优化，主要是确定合适的Map数。那么首先要了解 Map数的计算公式： • num_Map_tasks = max[${Mapred.min.split.size},min(${dfs.block.siz e}, ${Mapred.max.split.size})] • Mapred.min.split.size指的是数据的最小分割单元大小。 • Mapred.max.split.size指的是数据的最大分割单元大小。 • dfs.block.size指的是HDFS设置的数据块大小。 • 一般来说dfs.block.size这个值是一个已经指定好的值，而且这个参数Hive是识别不 到的 • 在Hive中min的默认值是1B，max的默认值是256MB

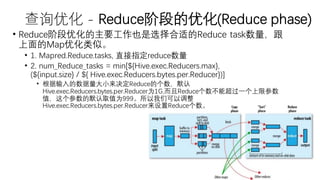

查询优化 - Reduce阶段的优化(Reduce phase) • Reduce阶段优化的主要工作也是选择合适的Reduce task数量，跟 上面的Map优化类似。 • 1. Mapred.Reduce.tasks, 直接指定reduce数量 • 2. num_Reduce_tasks = min[${Hive.exec.Reducers.max}, (${input.size} / ${ Hive.exec.Reducers.bytes.per.Reducer})] • 根据输入的数据量大小来决定Reduce的个数，默认 Hive.exec.Reducers.bytes.per.Reducer为1G,而且Reduce个数不能超过一个上限参数 值，这个参数的默认取值为999。所以我们可以调整 Hive.exec.Reducers.bytes.per.Reducer来设置Reduce个数。

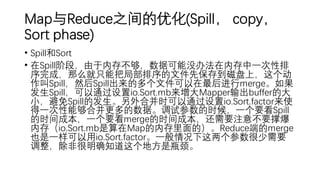

Map与Reduce之间的优化(Spill， copy， Sort phase) • Spill和Sort • 在Spill阶段，由于内存不够，数据可能没办法在内存中一次性排 序完成，那么就只能把局部排序的文件先保存到磁盘上，这个动 作叫Spill，然后Spill出来的多个文件可以在最后进行merge。如果 发生Spill，可以通过设置io.Sort.mb来增大Mapper输出buffer的大 小，避免Spill的发生。另外合并时可以通过设置io.Sort.factor来使 得一次性能够合并更多的数据。调试参数的时候，一个要看Spill 的时间成本，一个要看merge的时间成本，还需要注意不要撑爆 内存（io.Sort.mb是算在Map的内存里面的）。Reduce端的merge 也是一样可以用io.Sort.factor。一般情况下这两个参数很少需要 调整，除非很明确知道这个地方是瓶颈。

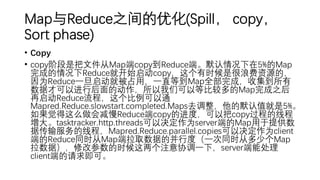

Map与Reduce之间的优化(Spill， copy， Sort phase) • Copy • copy阶段是把文件从Map端copy到Reduce端。默认情况下在5%的Map 完成的情况下Reduce就开始启动copy，这个有时候是很浪费资源的， 因为Reduce一旦启动就被占用，一直等到Map全部完成，收集到所有 数据才可以进行后面的动作，所以我们可以等比较多的Map完成之后 再启动Reduce流程，这个比例可以通 Mapred.Reduce.slowstart.completed.Maps去调整，他的默认值就是5%。 如果觉得这么做会减慢Reduce端copy的进度，可以把copy过程的线程 增大。tasktracker.http.threads可以决定作为server端的Map用于提供数 据传输服务的线程，Mapred.Reduce.parallel.copies可以决定作为client 端的Reduce同时从Map端拉取数据的并行度（一次同时从多少个Map 拉数据），修改参数的时候这两个注意协调一下，server端能处理 client端的请求即可。

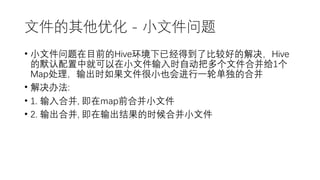

文件的其他优化 - 小文件问题 • 小文件问题在目前的Hive环境下已经得到了比较好的解决，Hive 的默认配置中就可以在小文件输入时自动把多个文件合并给1个 Map处理，输出时如果文件很小也会进行一轮单独的合并 • 解决办法: • 1. 输入合并, 即在map前合并小文件 • 2. 输出合并, 即在输出结果的时候合并小文件

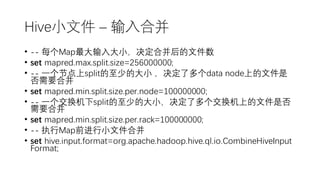

Hive小文件 – 输入合并 • -- 每个Map最大输入大小，决定合并后的文件数 • set mapred.max.split.size=256000000; • -- 一个节点上split的至少的大小 ，决定了多个data node上的文件是 否需要合并 • set mapred.min.split.size.per.node=100000000; • -- 一个交换机下split的至少的大小，决定了多个交换机上的文件是否 需要合并 • set mapred.min.split.size.per.rack=100000000; • -- 执行Map前进行小文件合并 • set hive.input.format=org.apache.hadoop.hive.ql.io.CombineHiveInput Format;

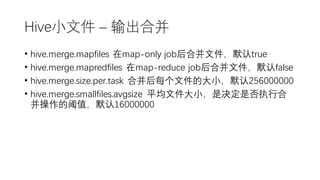

Hive小文件 – 输出合并 • hive.merge.mapfiles 在map-only job后合并文件，默认true • hive.merge.mapredfiles 在map-reduce job后合并文件，默认false • hive.merge.size.per.task 合并后每个文件的大小，默认256000000 • hive.merge.smallfiles.avgsize 平均文件大小，是决定是否执行合 并操作的阈值，默认16000000

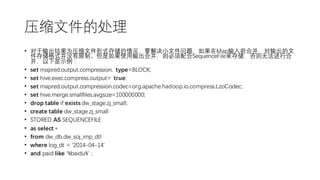

压缩文件的处理 • 对于输出结果为压缩文件形式存储的情况，要解决小文件问题，如果在Map输入前合并，对输出的文 件存储格式并没有限制。但是如果使用输出合并，则必须配合SequenceFile来存储，否则无法进行合 并，以下是示例： • set mapred.output.compression. type=BLOCK; • set hive.exec.compress.output= true; • set mapred.output.compression.codec=org.apache.hadoop.io.compress.LzoCodec; • set hive.merge.smallfiles.avgsize=100000000; • drop table if exists dw_stage.zj_small; • create table dw_stage.zj_small • STORED AS SEQUENCEFILE • as select * • from dw_db.dw_soj_imp_dtl • where log_dt = '2014-04-14' • and paid like '%baidu%' ;

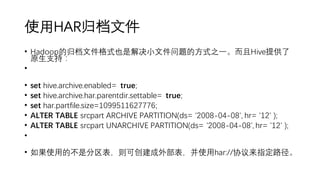

使用HAR归档文件 • Hadoop的归档文件格式也是解决小文件问题的方式之一。而且Hive提供了 原生支持： • • set hive.archive.enabled= true; • set hive.archive.har.parentdir.settable= true; • set har.partfile.size=1099511627776; • ALTER TABLE srcpart ARCHIVE PARTITION(ds= '2008-04-08', hr= '12' ); • ALTER TABLE srcpart UNARCHIVE PARTITION(ds= '2008-04-08', hr= '12' ); • • 如果使用的不是分区表，则可创建成外部表，并使用har://协议来指定路径。

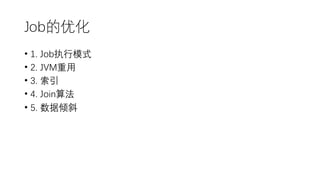

Job的优化 • 1. Job执行模式 • 2. JVM重用 • 3. 索引 • 4. Join算法 • 5. 数据倾斜

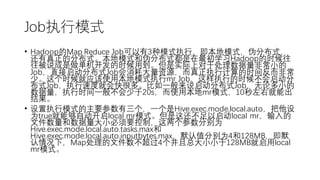

Job执行模式 • Hadoop的Map Reduce Job可以有3种模式执行，即本地模式，伪分布式， 还有真正的分布式。本地模式和伪分布式都是在最初学习Hadoop的时候往 往被说成是做单机开发的时候用到。但是实际上对于处理数据量非常小的 Job，直接启动分布式Job会消耗大量资源，而真正执行计算的时间反而非常 少。这个时候就应该使用本地模式执行mr Job，这样执行的时候不会启动分 布式Job，执行速度就会快很多。比如一般来说启动分布式Job，无论多小的 数据量，执行时间一般不会少于20s，而使用本地mr模式，10秒左右就能出 结果。 • 设置执行模式的主要参数有三个，一个是Hive.exec.mode.local.auto，把他设 为true就能够自动开启local mr模式。但是这还不足以启动local mr，输入的 文件数量和数据量大小必须要控制，这两个参数分别为 Hive.exec.mode.local.auto.tasks.max和 Hive.exec.mode.local.auto.inputbytes.max，默认值分别为4和128MB，即默 认情况下，Map处理的文件数不超过4个并且总大小小于128MB就启用local mr模式。

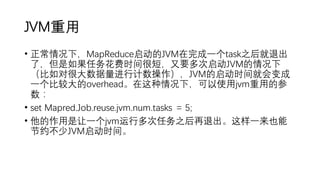

JVM重用 • 正常情况下，MapReduce启动的JVM在完成一个task之后就退出 了，但是如果任务花费时间很短，又要多次启动JVM的情况下 （比如对很大数据量进行计数操作），JVM的启动时间就会变成 一个比较大的overhead。在这种情况下，可以使用jvm重用的参 数： • set Mapred.Job.reuse.jvm.num.tasks = 5; • 他的作用是让一个jvm运行多次任务之后再退出。这样一来也能 节约不少JVM启动时间。

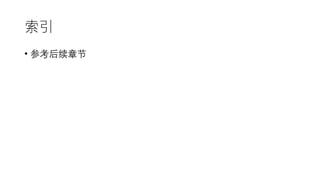

索引 • 参考后续章节

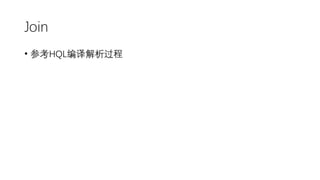

Join • 参考HQL编译解析过程

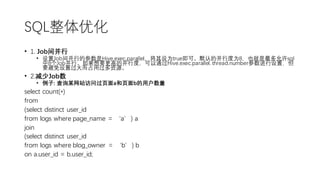

SQL整体优化 • 1. Job间并行 • 设置Job间并行的参数是Hive.exec.parallel，将其设为true即可。默认的并行度为8，也就是最多允许sql 中8个Job并行。如果想要更高的并行度，可以通过Hive.exec.parallel. thread.number参数进行设置，但 要避免设置过大而占用过多资源。 • 2.减少Job数 • 例子: 查询某网站访问过页面a和页面b的用户数量 select count(*) from (select distinct user_id from logs where page_name = ‘a’) a join (select distinct user_id from logs where blog_owner = ‘b’) b on a.user_id = b.user_id;

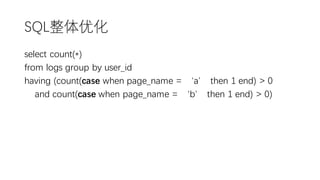

SQL整体优化 select count(*) from logs group by user_id having (count(case when page_name = ‘a’ then 1 end) > 0 and count(case when page_name = ‘b’ then 1 end) > 0)

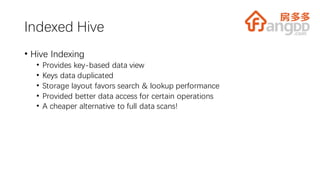

Indexed Hive • Hive Indexing • Provides key-based data view • Keys data duplicated • Storage layout favors search & lookup performance • Provided better data access for certain operations • A cheaper alternative to full data scans!

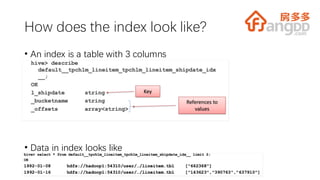

How does the index look like? • An index is a table with 3 columns • Data in index looks like

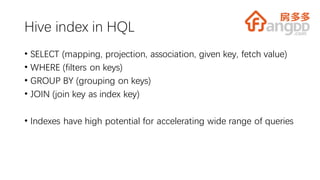

Hive index in HQL • SELECT (mapping, projection, association, given key, fetch value) • WHERE (filters on keys) • GROUP BY (grouping on keys) • JOIN (join key as index key) • Indexes have high potential for accelerating wide range of queries

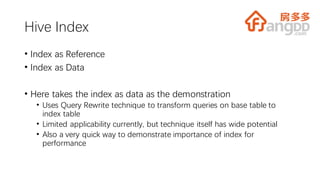

Hive Index • Index as Reference • Index as Data • Here takes the index as data as the demonstration • Uses Query Rewrite technique to transform queries on base table to index table • Limited applicability currently, but technique itself has wide potential • Also a very quick way to demonstrate importance of index for performance

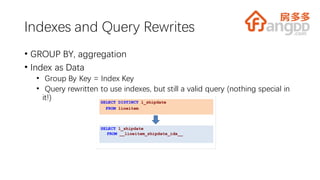

Indexes and Query Rewrites • GROUP BY, aggregation • Index as Data • Group By Key = Index Key • Query rewritten to use indexes, but still a valid query (nothing special in it!)

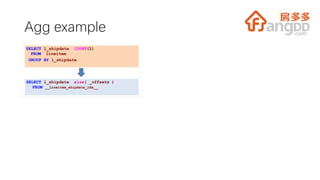

Agg example

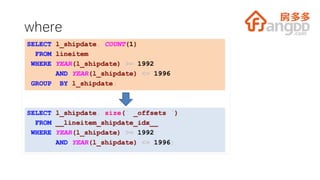

where

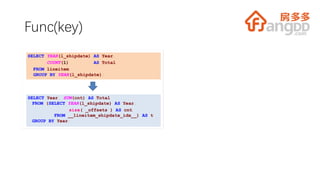

Func(key)

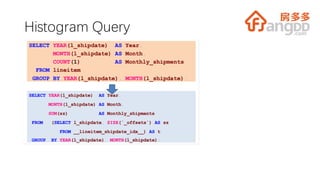

Histogram Query

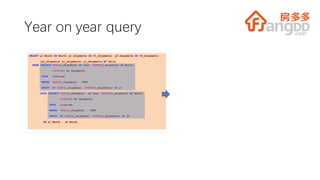

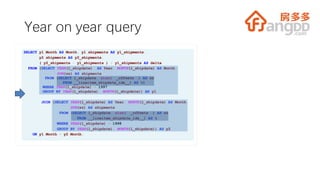

Year on year query
Year on year query

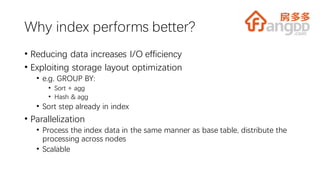

Why index performs better? • Reducing data increases I/O efficiency • Exploiting storage layout optimization • e.g. GROUP BY: • Sort + agg • Hash & agg • Sort step already in index • Parallelization • Process the index data in the same manner as base table, distribute the processing across nodes • Scalable

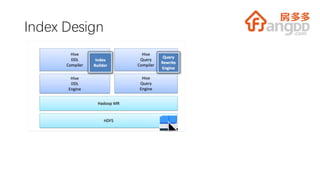

Index Design

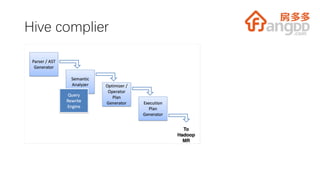

Hive complier

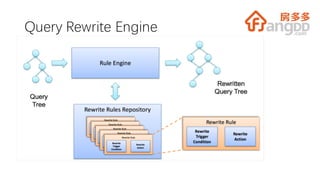

Query Rewrite Engine

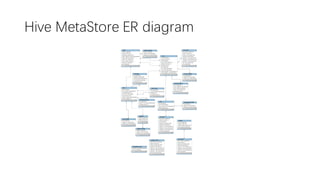

Hive MetaStore ER diagram BUCKETING_COLS SD_ID BIGINT(20) BUCKET_COL_NAME VARCHAR(256) INTEGER_IDX INT(11) Indexes COLUMNS SD_ID BIGINT(20) COMMENT VARCHAR(256) COLUMN_NAME VARCHAR(128) TYPE_NAME VARCHAR(4000) INTEGER_IDX INT(11) Indexes DATABASE_PARAMS DB_ID BIGINT(20) PARAM_KEY VARCHAR(180) PARAM_VALUE VARCHAR(4000) Indexes DBS DB_ID BIGINT(20) DESC VARCHAR(4000) DB_LOCATION_URI VARCHAR(4000) NAME VARCHAR(128) Indexes DB_PRIVS DB_GRANT_ID BIGINT(20) CREATE_TIME INT(11) DB_ID BIGINT(20) GRANT_OPTION SMALLINT(6) GRANTOR VARCHAR(128) GRANTOR_TYPE VARCHAR(128) PRINCIPAL_NAME VARCHAR(128) PRINCIPAL_TYPE VARCHAR(128) DB_PRIV VARCHAR(128) Indexes GLOBAL_PRIVS USER_GRANT_ID BIGINT(20) CREATE_TIME INT(11) GRANT_OPTION SMALLINT(6) GRANTOR VARCHAR(128) GRANTOR_TYPE VARCHAR(128) PRINCIPAL_NAME VARCHAR(128) PRINCIPAL_TYPE VARCHAR(128) USER_PRIV VARCHAR(128) Indexes IDXS INDEX_ID BIGINT(20) CREATE_TIME INT(11) DEFERRED_REBUILD BIT(1) INDEX_HANDLER_CLASS VARCHAR(4000) INDEX_NAME VARCHAR(128) INDEX_TBL_ID BIGINT(20) LAST_ACCESS_TIME INT(11) ORIG_TBL_ID BIGINT(20) SD_ID BIGINT(20) Indexes INDEX_PARAMS INDEX_ID BIGINT(20) PARAM_KEY VARCHAR(256) PARAM_VALUE VARCHAR(4000) Indexes PARTITION_KEYS TBL_ID BIGINT(20) PKEY_COMMENT VARCHAR(4000) PKEY_NAME VARCHAR(128) PKEY_TYPE VARCHAR(767) INTEGER_IDX INT(11) Indexes ROLES ROLE_ID BIGINT(20) CREATE_TIME INT(11) OWNER_NAME VARCHAR(128) ROLE_NAME VARCHAR(128) Indexes ROLE_MAP ROLE_GRANT_ID BIGINT(20) ADD_TIME INT(11) GRANT_OPTION SMALLINT(6) GRANTOR VARCHAR(128) GRANTOR_TYPE VARCHAR(128) PRINCIPAL_NAME VARCHAR(128) PRINCIPAL_TYPE VARCHAR(128) ROLE_ID BIGINT(20) Indexes SDS SD_ID BIGINT(20) INPUT_FORMAT VARCHAR(4000) IS_COMPRESSED BIT(1) LOCATION VARCHAR(4000) NUM_BUCKETS INT(11) OUTPUT_FORMAT VARCHAR(4000) SERDE_ID BIGINT(20) Indexes SD_PARAMS SD_ID BIGINT(20) PARAM_KEY VARCHAR(256) PARAM_VALUE VARCHAR(4000) Indexes SEQUENCE_TABLE SEQUENCE_NAME VARCHAR(255) NEXT_VAL BIGINT(20) Indexes SERDES SERDE_ID BIGINT(20) NAME VARCHAR(128) SLIB VARCHAR(4000) Indexes SERDE_PARAMS SERDE_ID BIGINT(20) PARAM_KEY VARCHAR(256) PARAM_VALUE VARCHAR(4000) Indexes SORT_COLS SD_ID BIGINT(20) COLUMN_NAME VARCHAR(128) ORDER INT(11) INTEGER_IDX INT(11) Indexes TABLE_PARAMS TBL_ID BIGINT(20) PARAM_KEY VARCHAR(256) PARAM_VALUE VARCHAR(4000) Indexes TBLS TBL_ID BIGINT(20) CREATE_TIME INT(11) DB_ID BIGINT(20) LAST_ACCESS_TIME INT(11) OWNER VARCHAR(767) RETENTION INT(11) SD_ID BIGINT(20) TBL_NAME VARCHAR(128) TBL_TYPE VARCHAR(128) VIEW_EXPANDED_TEXT MEDIUMTEXT VIEW_ORIGINAL_TEXT MEDIUMTEXT Indexes TBL_PRIVS TBL_GRANT_ID BIGINT(20) CREATE_TIME INT(11) GRANT_OPTION SMALLINT(6) GRANTOR VARCHAR(128) GRANTOR_TYPE VARCHAR(128) PRINCIPAL_NAME VARCHAR(128) PRINCIPAL_TYPE VARCHAR(128) TBL_PRIV VARCHAR(128) TBL_ID BIGINT(20) Indexes

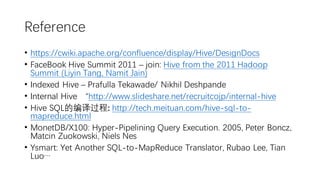

Reference • https://cwiki.apache.org/confluence/display/Hive/DesignDocs • FaceBook Hive Summit 2011 – join: Hive from the 2011 Hadoop Summit (Liyin Tang, Namit Jain) • Indexed Hive – Prafulla Tekawade/ Nikhil Deshpande • Internal Hive “http://www.slideshare.net/recruitcojp/internal-hive • Hive SQL的编译过程: http://tech.meituan.com/hive-sql-to- mapreduce.html • MonetDB/X100: Hyper-Pipelining Query Execution. 2005, Peter Boncz, Matcin Zuokowski, Niels Nes • Ysmart: Yet Another SQL-to-MapReduce Translator, Rubao Lee, Tian Luo…
