1. HCatalog is a table and storage management layer for Hadoop that provides a relational view of data in HDFS and abstracts data formats and locations from users. 2. Previously, HAWQ accessed Hive tables through PXF using external tables, but this required specifying the schema, location, and format which was error prone and wouldn't detect metadata changes. 3. The new integration retrieves metadata from HCatalog and parses it into in-memory catalog tables to provide dynamic access to Hive tables from HAWQ without needing to specify schemas.

1. HAWQ HCatalog Integration
Shivram Mani ( HAWQ-UD)

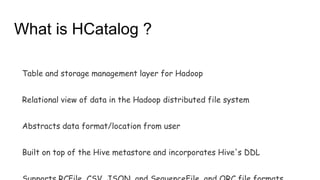

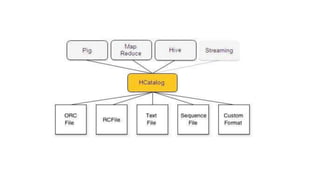

2. What is HCatalog ?
Table and storage management layer for Hadoop
Relational view of data in the Hadoop distributed file system
Abstracts data format/location from user
Built on top of the Hive metastore and incorporates Hive's DDL

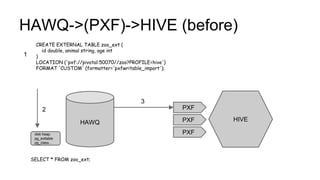

4. HAWQ->(PXF)->HIVE (before)
HAWQ HIVE
CREATE EXTERNAL TABLE zoo_ext (
id double, animal string, age int
)
LOCATION ('pxf://pivotal:50070//zoo?PROFILE=hive')
FORMAT 'CUSTOM' (formatter='pxfwritable_import');
PXF
PXF
PXF
SELECT * FROM zoo_ext;
disk heap:
pg_exttable
pg_class...
3
2
1

5. Motivation
Problem:
● User has to know Hive table schema
● Entering schema/location/format information is error prone
● External table (static) would not be aware of Hive table metadata change
(dynamic)
Solution:
● Native integration of HCatalog into HAWQ
○ HAWQ catalog manage HAWQ tables
○ HCatalog manage external(Hive, Pig, HBase) tables

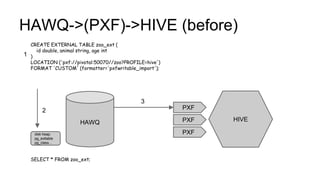

6. HAWQ->(PXF)->HIVE (before)
HAWQ HIVE
CREATE EXTERNAL TABLE zoo_ext (
id double, animal string, age int
)
LOCATION ('pxf://pivotal:50070//zoo?PROFILE=hive')
FORMAT 'CUSTOM' (formatter='pxfwritable_import');
PXF
PXF
PXF
SELECT * FROM zoo_ext;
disk heap:
pg_exttable
pg_class...
3
1
2

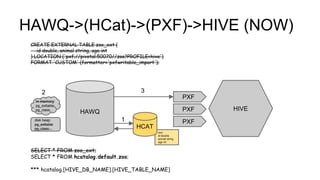

7. zoo:
id double
animal string
age int
HAWQ->(HCat)->(PXF)->HIVE (NOW)
HAWQ HIVE
CREATE EXTERNAL TABLE zoo_ext (
id double, animal string, age int
) LOCATION ('pxf://pivotal:50070//zoo?PROFILE=hive')
FORMAT 'CUSTOM' (formatter='pxfwritable_import');
PXF
PXF
PXF
SELECT * FROM zoo_ext;
SELECT * FROM hcatalog.default.zoo;
*** hcatalog.[HIVE_DB_NAME].[HIVE_TABLE_NAME]
HCAT
disk heap:
pg_exttable
pg_class...
in-memory:
pg_exttable
pg_class...
1
2 3

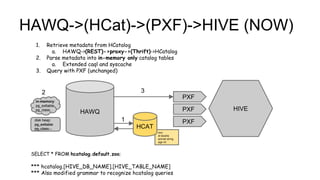

8. zoo:
id double
animal string
age int
HAWQ->(HCat)->(PXF)->HIVE (NOW)
HAWQ HIVE
1. Retrieve metadata from HCatalog
a. HAWQ->(REST)->proxy->(Thrift)->HCatalog
2. Parse metadata into in-memory only catalog tables
a. Extended caql and syscache
3. Query with PXF (unchanged)
PXF
PXF
PXF
SELECT * FROM hcatalog.default.zoo;
*** hcatalog.[HIVE_DB_NAME].[HIVE_TABLE_NAME]
*** Also modified grammar to recognize hcatalog queries
HCAT
disk heap:
pg_exttable
pg_class...
in-memory:
pg_exttable
pg_class...
1
2 3

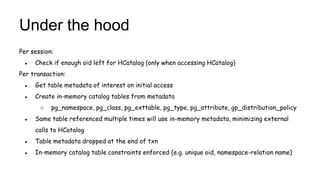

9. Under the hood
Per session:
● Check if enough oid left for HCatalog (only when accessing HCatalog)
Per transaction:
● Get table metadata of interest on initial access
● Create in-memory catalog tables from metadata
○ pg_namespace, pg_class, pg_exttable, pg_type, pg_attribute, gp_distribution_policy
● Same table referenced multiple times will use in-memory metadata, minimizing external
calls to HCatalog
● Table metadata dropped at the end of txn
● In-memory catalog table constraints enforced (e.g. unique oid, namespace-relation name)

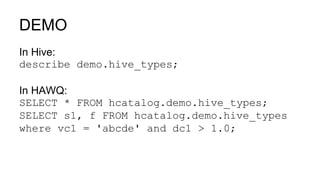

10. DEMO
In Hive:
describe demo.hive_types;
In HAWQ:
SELECT * FROM hcatalog.demo.hive_types;
SELECT s1, f FROM hcatalog.demo.hive_types
where vc1 = 'abcde' and dc1 > 1.0;
